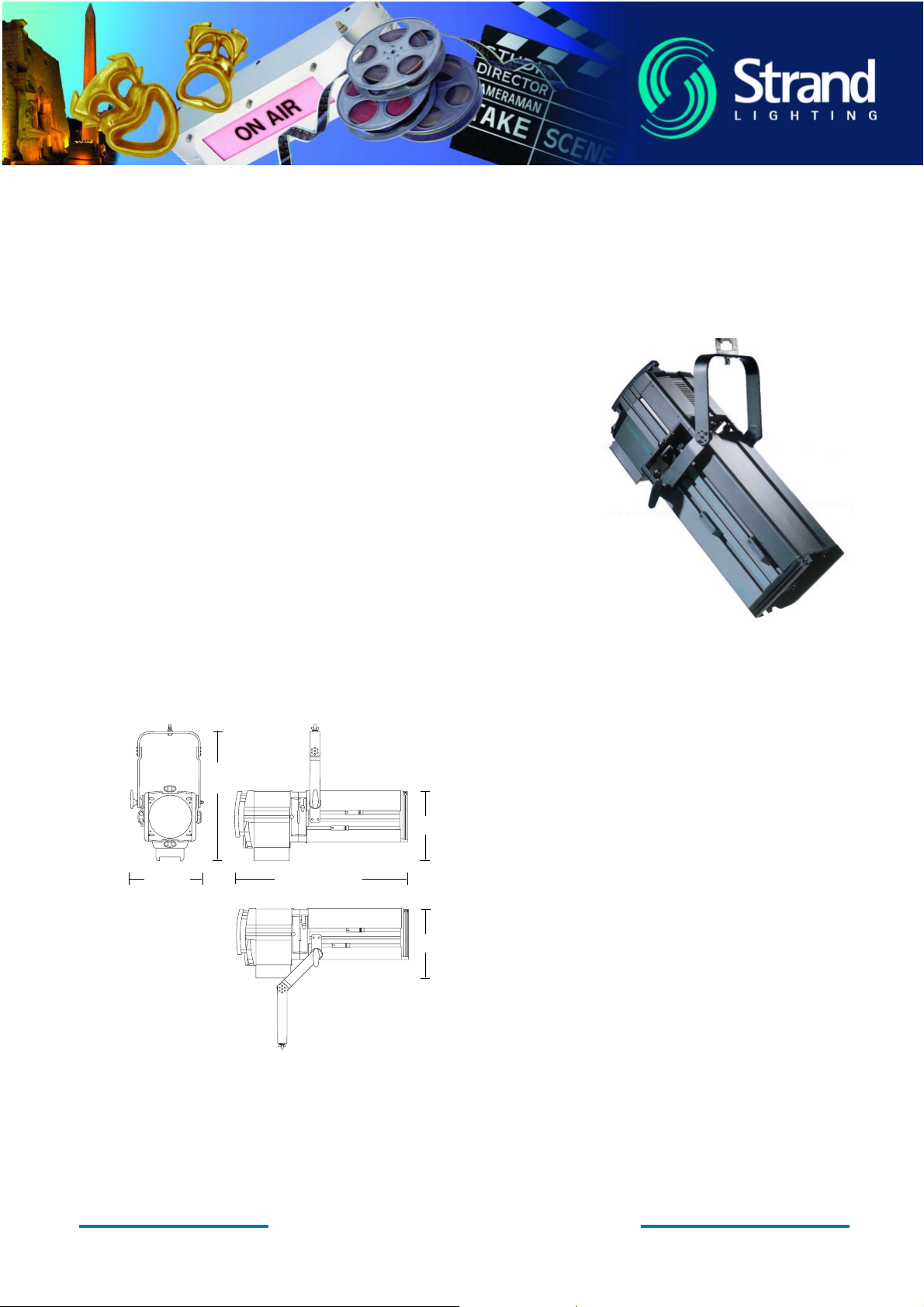

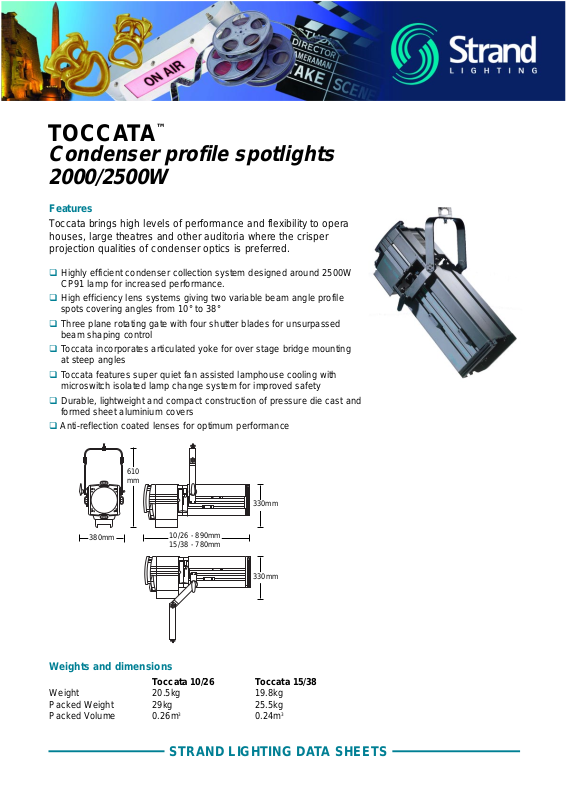

STRAND LIGHTING DATA SHEETS
TOCCATA
™
Condenser profile spotlights
2000/2500W
Features
Toccata brings high levels of performance and flexibility to opera
houses, large theatres and other auditoria where the crisper
projection qualities of condenser optics is preferred.
q Highly efficient condenser collection system designed around 2500W
CP91 lamp for increased performance.
q High efficiency lens systems giving two variable beam angle profile
spots covering angles from 10° to 38°
q Three plane rotating gate with four shutter blades for unsurpassed
beam shaping control
q Toccata incorporates articulated yoke for over stage bridge mounting
at steep angles
q Toccata features super quiet fan assisted lamphouse cooling with
microswitch isolated lamp change system for improved safety
q Durable, lightweight and compact construction of pressure die cast and
formed sheet aluminium covers
q Anti-reflection coated lenses for optimum performance
Weights and dimensions
Toccata 10/26 Toccata 15/38
Weight 20.5kg 19.8kg
Packed Weight 29kg 25.5kg
Packed Volume 0.26m
3
0.24m
3
10/26 - 890mm
15/38 - 780mm
330mm
330mm
610
mm
380mm
Page 2
Operational data
Lamp Access
Retractable lamp holder assembly with
automatic double pole microswitch isolation
Focus Adjustment
By locking screw handles on side of lens
tubes with focus setting indication provided
Suspension
Supplied with articulated fork for over
stage bridge mounting. 230V models
supplied with additional compact fork
Accessories
Colour runners take DIN standard 245 x
245 mm colour frames
Gobo size: A
Abuilt in 24 leaf iris is installed in 230V
models but is an optional accessory with
240V models
Mechanical/electrical data
Construction
Pressure die cast front and rear panels
with extruded aluminium tie bars and
formed aluminium cover panels all finished in two tone grey and black epoxy
powder coating.
Lamphouse/Cooling
Light collection system uses hemi-spherical reflector and double lens condenser.
Aspherical condenser lens is cooled by
convection but assisted by quiet running
axial fan
Gate/Lenstube
Pressure die cast gate assembly is fully
rotatable and incorporates three planes
housing four fully retained beam shaping
shutters and runners for gobo holder.
Lenses
Heat resistant crown glass lenses with
anti-reflective coatings in die cast carriers
sliding on bearing rods.
Lampholder
G22 to take lamps of 90 mm LCL and
maximum of 2500W
Supply Voltage
230V +/- 10% 50/60 Hz
Cat No Description
12154 Toccata 10/26, 240V CP91 2500W lamp, 15A plug
12153 Toccata 10/26, integral iris, 230V CP92 2000W lamp, Schuko plug
12164 Toccata 15/38, 240V CP91 2500W lamp, 15A plug
12163 Toccata 15/38, integral iris, 230V CP92 2000W lamp, Schuko plug
Optional accessories and lamps
18202 Gobo holder for ‘A’size gobos
18209 Iris, 24 leaf
18208 Compact fork option
18207 Bridge fork option
82011 Hook clamp, heavy duty
82001 Safety cable, heavy duty
18050 Shutter gate upgrade kit
18203 Additional colour frame, metal
43914 CP91 Lamp 2500W, 3200K, 400Hr - 240V
43913 CP91 Lamp 2500W, 3200K, 400Hr - 230V
43924 CP92 Lamp 2000W, 3200K, 400Hr - 240V
43923 CP92 Lamp 2000W, 3200K, 400Hr - 230V
Ordering information
Toccata 230V models are fitted with colour frame, 2000W CP92 lamp, integral
24-leaf iris, bridge mounting fork as well as a compact fork. 240V models come
with colour frame, 2500W CP91 lamp and compact fork.
Toccata 10/26: Narrow (10°)
12
2.1
-
15
2.6
2710
20
3.5
1525
25
4.4
980
30
5.2
680
Beam Ø
(m)
Illum (lux)
Distance (m)
Toccata 15/38: Narrow (15°)
12
3.2
2430
15
3.9
1555
20
5.3
875
25
6.6
560
30
7.9
390
Beam Ø
(m)
Illum (lux)
Distance (m)
Toccata 15/38: Wide (38°)
12
8.3
470
15
10.4
300
20
13.8
170
25
17.3
110
30
20.7
75
Beam Ø
(m)
Illum (lux)
Distance (m)
Toccata 10/26: Wide (26°)
12
5.5
800
15
6.9
510
20
9.2
290
25
11.5
185
30
13.9
130
Beam Ø
(m)
Illum (lux)
Distance (m)
Performance guide
Typical performance based on laboratory readings using CP92 2000W lamp
To calculate lux levels at any throw distance divide the following factors by the distance squared:
T occata 10/26 T occata 15/38
Narrow 609975 349875
Wide 114975 67950
T o calculate beam diameters at any throw distance multiply the throw in metres by the following factors:
T occata 10/26 T occata 15/38
Narrow 0.175 0..26
Wide 0.46 0.69
