STRAND LIGHTING DATA SHEETS
SUPERRIG
™
Secondary Grid Components
1 SR Rolling Pipe Kit
2 SR Rolling Track Kit
3 SR Rolling Rail Kit
4 SR Pole Operated Brake Kit
Primary Grid Components
5 SuperRig Support Track
6 SR Support Track Joint
7 SR Adjustable End Stop (4)
8 SR Cable Transfer Runner (5)
9 SR Equipment Support Plate (2)
Installation Accessories
10 SR Track Side Mount Bracket
11 SR Ceiling Track Support
12 SR Adjustable I Beam Hanger
13 SR Adjustable Track Support
14 SR Track Clamp Bracket
15 SR Weld on Support Bracket

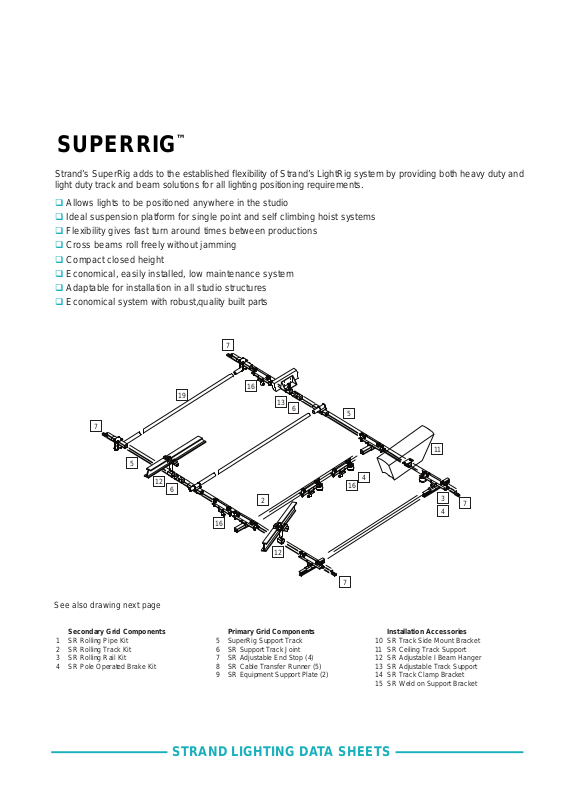

Strand’s SuperRig adds to the established flexibility of Strand’s LightRig system by providing both heavy duty and
light duty track and beam solutions for all lighting positioning requirements.
q Allows lights to be positioned anywhere in the studio
q Ideal suspension platform for single point and self climbing hoist systems
q Flexibility gives fast turn around times between productions
q Cross beams roll freely without jamming
q Compact closed height
q Economical, easily installed, low maintenance system
q Adaptable for installation in all studio structures
q Economical system with robust,quality built parts
16
16
16
3
4
4
12
12
7
7
7
7
5
13
5
6
6
2
19
11
See also drawing next page
STRAND LIGHTING DATA SHEETS
SuperRig is a cost effective, flexible support system for studios from 4m or more in height providing full flexibility in horizontal adjustment of luminaire positions. Strand’s comprehensive range of studio suspension
equipment products can then be used to provide the vertical height adjustment - Pole Operated Pantographs,
Spring Pantographs and Lightscopes in smaller studios through to Motorised Pantographs and Self Climbing
Hoists in larger studios.

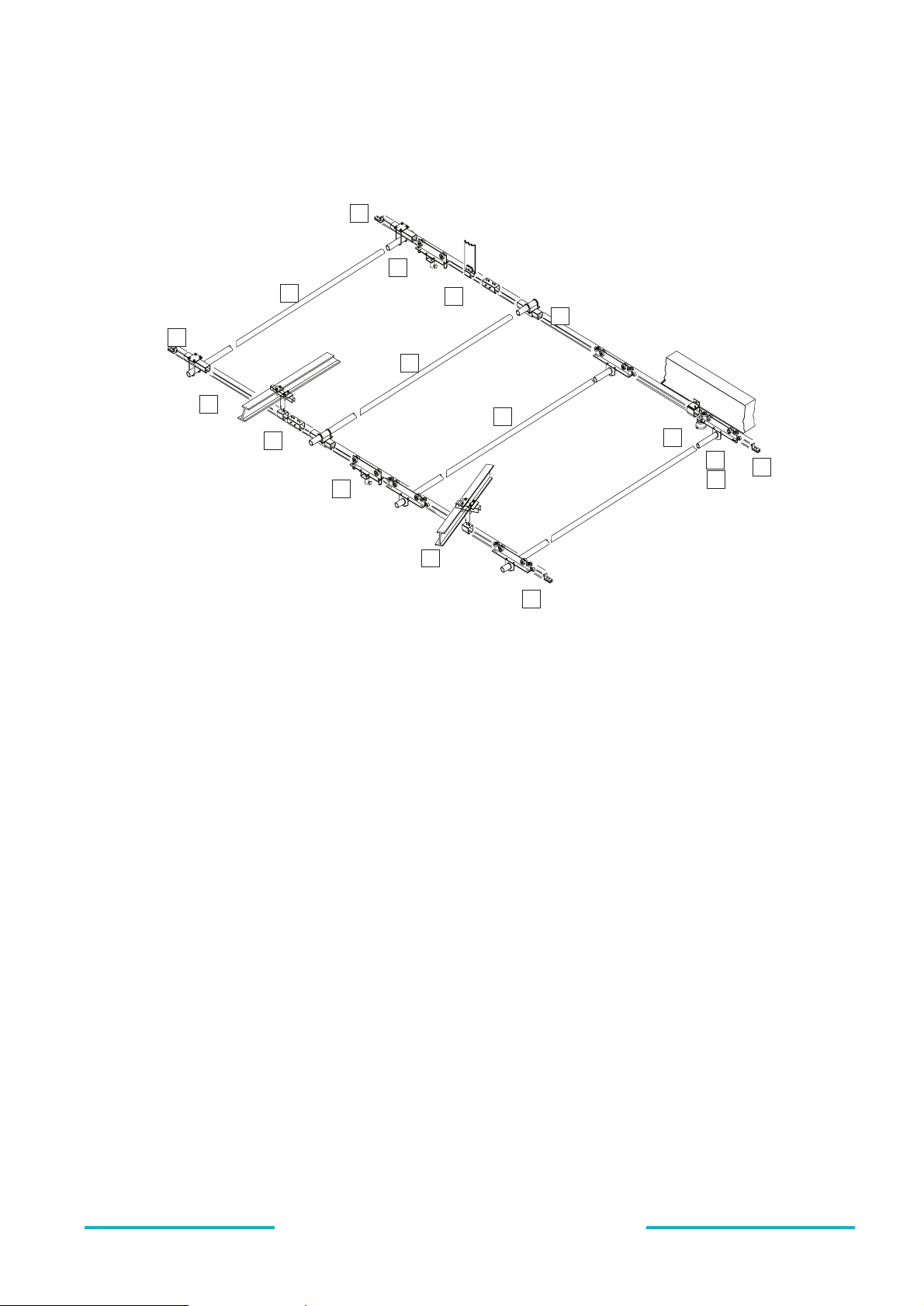

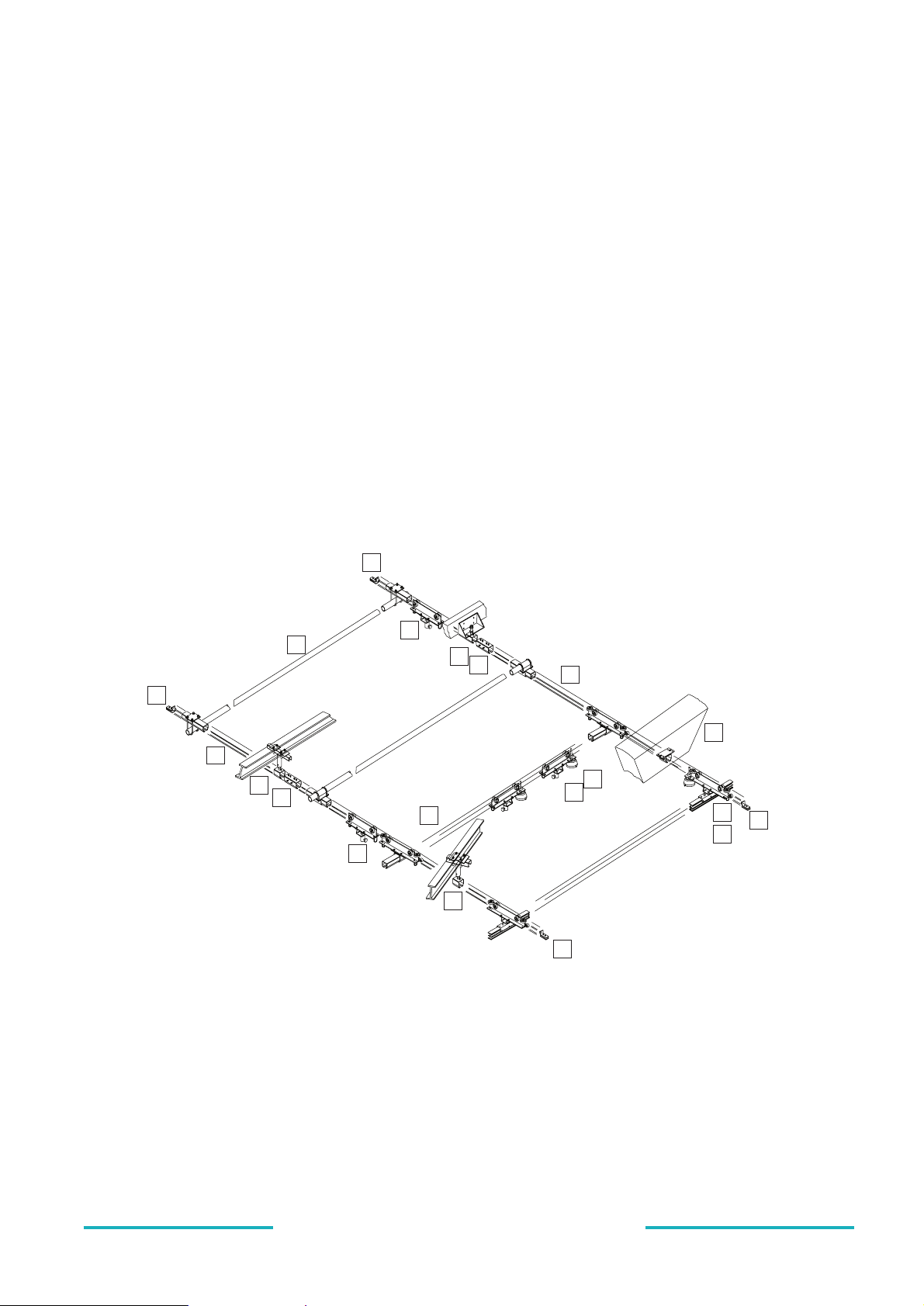

The two schematic drawings on this and the previous page show many of the components in a general layout
of the system with various typical trackmounting arrangements.
The system comprises:
q A fixed primary grid of robust, profiled steel track.
q An extensive range of installation accessories to suspend the fixed tracks from the studio structure.
q Secondary cross beams suspended from the primary grid by wheeled carriages, available in various forms;
pipe (aluminium or steel), SuperRig track or extruded aluminium LightRig rail.
q A range of suspension components enabling luminaires and other equipment to be hung from and tra-
versed along either fixed tracks or rolling cross beams.
Primary SuperRig tracks are based on profiled steel sections with zinc plate finish and are available in a number
of standard lengths which can be shortened to suit specific site requirements. Individual lengths can be linked by
using the support track joints. End stops are available to preventing carriage overtravel.
A comprehensive range of support brackets is available to suspend the fixed primary grid of SuperRig tracks
from a suitable load bearing structure within the building. Supports must be positioned in accordance with the
system's specified loading limits.
7
19
16
7
18
1
5
1
10
4
12
7
7
14
5
6
16
STRAND LIGHTING DATA SHEETS

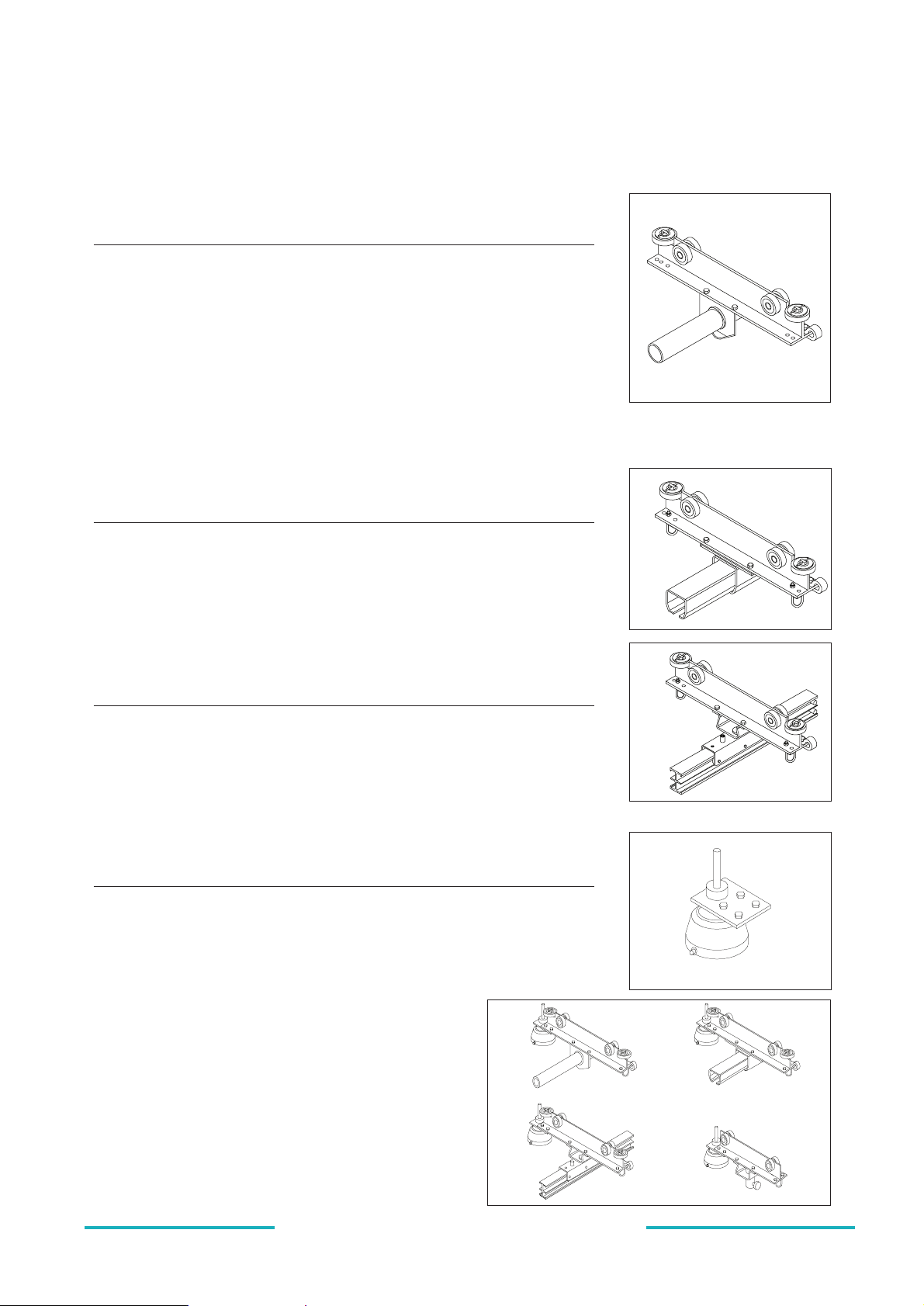

1. SR Rolling Pipe Kit
Cat No Description
31001 SR Rolling Pipe (aluminium) Kit - 3m
31007 SR Rolling Pipe (steel) Kit 3m
31027 SR Rolling Pipe (aluminium) Kit -2.5m
31028 SR Rolling Pipe (steel) Kit -2.5m
All kits comprise of two unbraked track carriages with a 48mm Ø pipe in
2.5m or 3m lengths. Maximum 2880mm fixed track pitch on 3m kits
supporting a uniformly distributed load of 100 kg.
Maximum 2380mm pitch on 2.5m supporting 140 kg.
2. SR Rolling Track Kit
Cat No Description
31008 SR Rolling Track Kit - 3m
Comprises two unbraked track carriages with a 3m length of SuperRig
track. Maximum 2880mm fixed track pitch. Supports uniformly distributed
load of 140 kg.
3. SR Rolling Rail Kit
Cat No Description
31009 SR Rolling Rail Kit -3m
Comprises two unbraked, articulated swivel track carriages with a 3m
length of aluminium LightRig rail. Maximum 2380mm fixed track pitch
supports uniformly distributed load 100 kg. Maximum rail overhang 20%
of fixed track pitch.
4. SR Pole Operated Brake Kit
Cat No Description
31010 SR Pole Operated Brake Kit. This assembly can be fitted to any of the
track carriages to provide a traverse brake and towing point.
STRAND LIGHTING DATA SHEETS
A variety of cross beam systems can be suspended from the fixed track;
- Rolling Pipe - Rolling Track - Rolling Rail. Each is suspended from the fixed
track by wheeled carriages, horizontal guide rollers resist jamming as the beam
is traversed along the track. Rolling pipe and rolling track kits traverse at
90° to the fixed tracks, rolling rails are articulated to traverse at angles up to 15°.
Pole operated brakes can be fitted to all carriages if required.

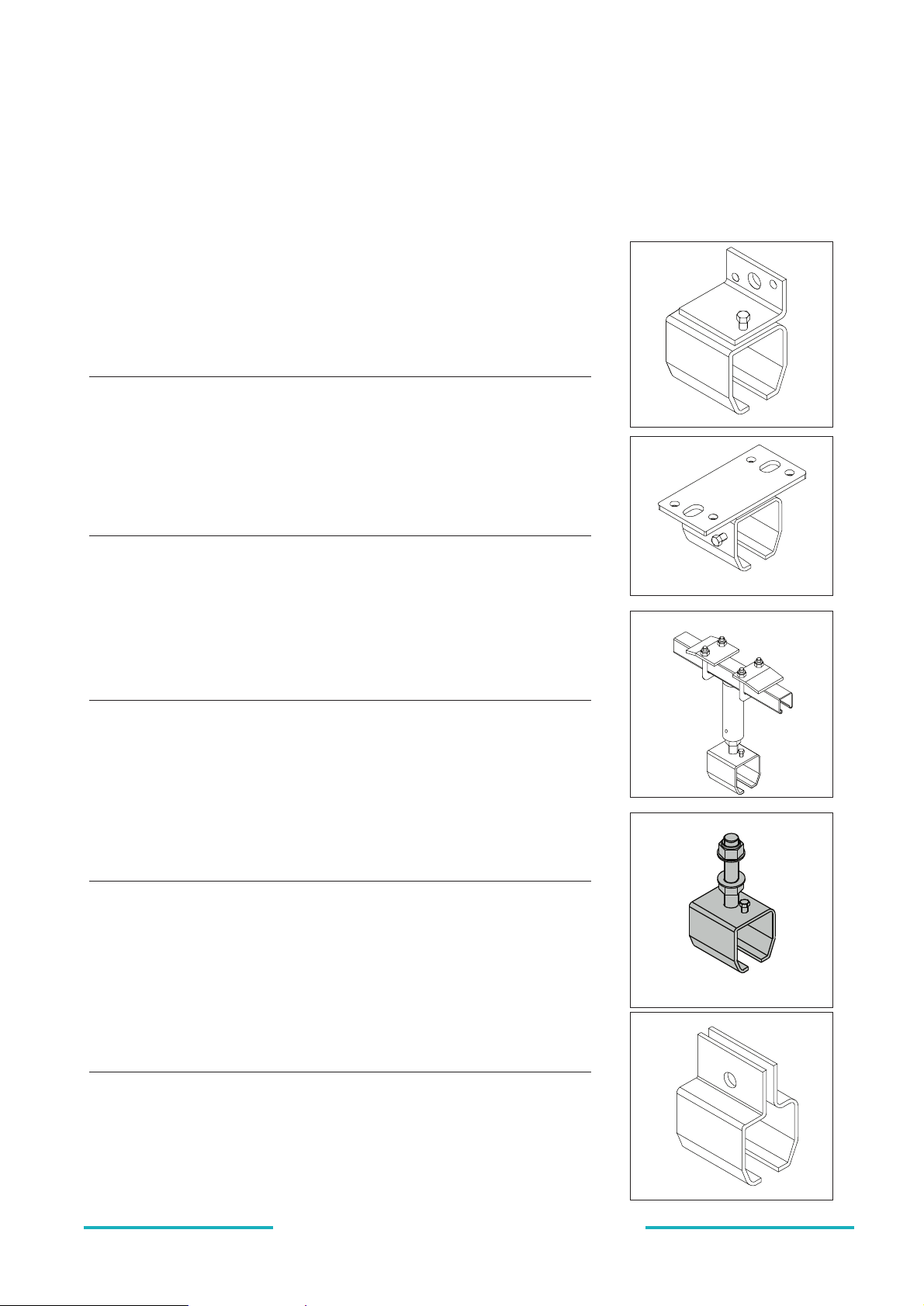

10. Track Side Mount Bracket
Cat No Description
31013 The range of mounting holes in this support bracket allow the track to
be fixed by one suitable M16 or two M10 fasteners directly to the side
of an intermediate support structure.
11. SR Ceiling Track Support
Cat No Description
31014 This support bracket allows the track to be fixed directly to a suitable
flat ceiling or to an intermediate support structure. The mounting holes
accommodate four M10 or two M16 fasteners.
12. Adjustable I Beam Hanger
Cat No Description
31015 This hanger arrangement allows the fixed tracks to be supported
directly below an I beam (76mm up to 203mm flange width) and also
provides vertical height adjustment for the track. The horizontal I beam
can be orientated at any angle relative to the fixed track.
13. SR Adjustable Track Support
Cat No Description
31016 The adjustable support allows the track to be supported from an
appropriate overhead structure and provides 102mm of vertical height
adjustment.
14. SR Track Clamp Bracket
Cat No Description
31017 This split clamp bracket fits around the fixed tracks providing an
alternative means of suspension for the tracks.
STRAND LIGHTING DATA SHEETS

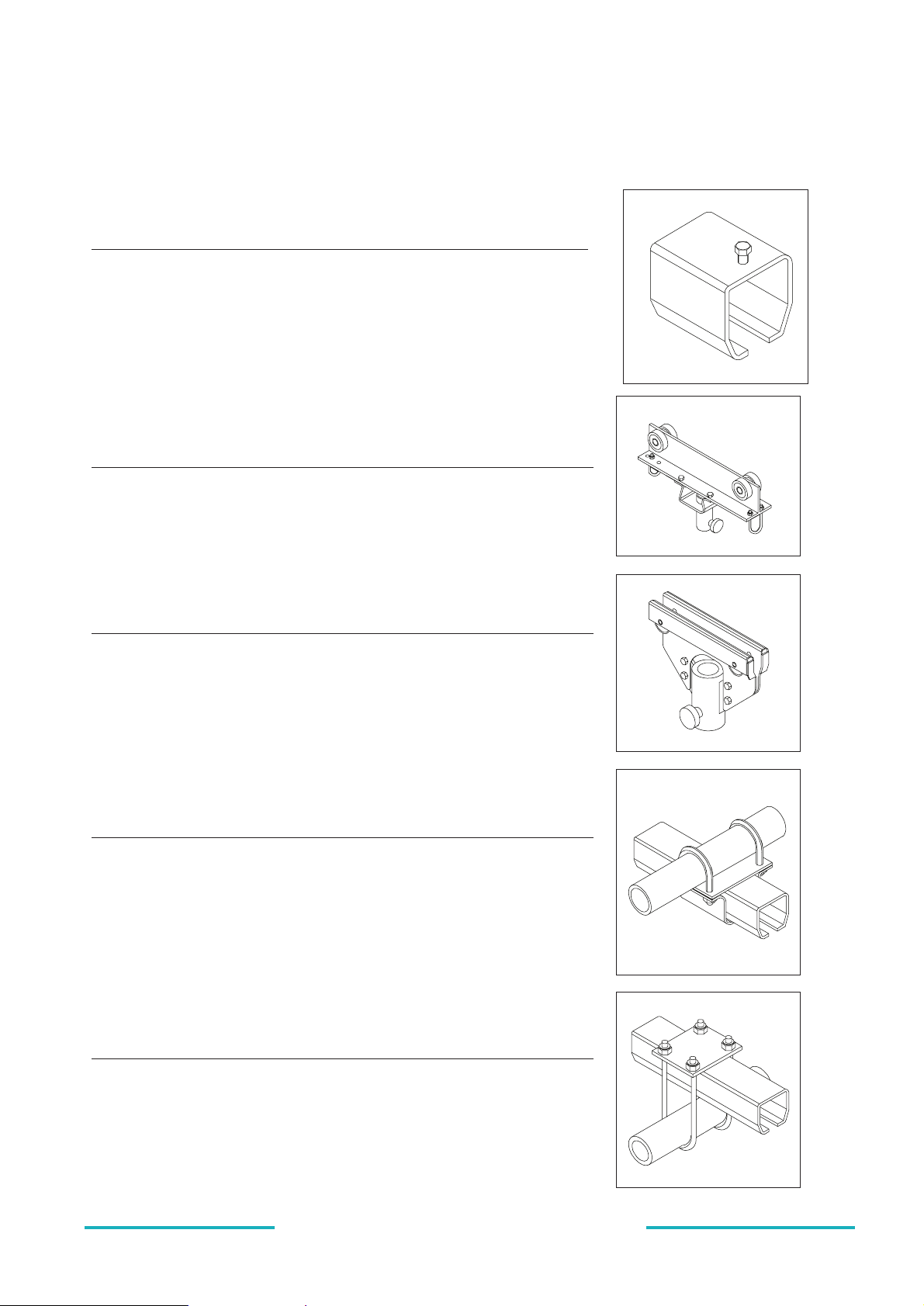

15. SR Weld on Support Bracket
Cat No Description
31018 Special customised track suspensions can be fabricated using this
bracket. Brackets are supplied unplated to allow for welding (not
shown on main illustration)
Lighting Suspension Components
16. SR Track Trolley
Cat No Description
31019 With 29mm Socket
31020 With DIN Socket
For use with the fixed or rolling tracks providing an unbraked trolley for
luminaire mounting via a 29mm or 28mm DIN socket.
17. SR Addalite Trolley
Cat No Description
31021 With 29mm Socket
31022 With DIN Socket
For completed installations luminaires with 29mm or 28mm DIN spigots
can be added to the fixed or rolling tracks using the Addalite trolley.
(not shown on main illustration)
18. SR Addalite Overtrack Pipe
Cat NoDescription
31023 With 3m Aluminium Pipe
31024 With 3m Steel Pipe
Provides a fixed 48mm diameter pipe (steel or aluminium) for the
suspension of additional luminaires without restricting track trolley
travel. The pipe supports a uniformly distributed load of 100kg between
parallel SuperRig support tracks spaced up to 2880mm apart.
19. SR Addalite Undertrack Pipe
CatNo Description
31025 With 3m Aluminium Pipe
31026 With 3m Steel Pipe
Provides a fixed 48mm diameter pipe (steel or aluminium) for the
suspension of additional luminaires. The pipe supports a uniformly
distributed load of 100kg between parallel SuperRig support tracks
spaced up to 2880mm apart.
STRAND LIGHTING DATA SHEETS
Ordering information
CatNo Secondary Grid Components Weight SWL
31001 SR Rolling Pipe Aluminium Kit - 3m 10.8kg 100kg
31027 SR Rolling Pipe Aluminium Kit - 2.5m 10.0kg 140kg
31007 SR Rolling Pipe Steel Kit - 3m 18.7kg 100kg
31028 SR Rolling Pipe Steel Kit - 2.5m 16.5kg 140kg
31008 SR Rolling Track Kit - 3m 24.2kg 140kg
31009 SR Rolling Rail Kit -3m 11.9kg 100kg
31010 SR Pole Operated Brake Kit 1.9kg -
Cat No Primary Grid Components Weight SWL
31002 SR Support Track - 2m 12.2kg 31003 SR Support Track - 3m 18.3kg 31004 SR Support Track - 4m 24.4kg 31005 SR Support Track - 5m 30.5kg 31006 SR Support Track - 6m 36.6kg 31012 SR Support Track Joint 2.1kg 31011 SR Adjustable End Stop (4) 2.5kg 31029 SR Cable Transfer Runner (5) 1.0kg 31030 SR Equipment Support Plate (2) 5.2kg 25kg
Cat No Installation Accessories Weight SWL
31013 SR Track Side Mount Bracket 1.4kg 400kg
31014 SR Ceiling Track Support 1.6kg 400kg
31015 SR Adjustable I Beam Hanger 3.3kg 400kg
31016 SR Adjustable Track Support 1.5kg 400kg
31017 SR Track Clamp Bracket 1.5kg 400kg
31018 SR Weld on Support Bracket 1.1kg 400kg
Cat No Suspension Components Weight SWL
31019 SR Track Trolley, 29mm Socket 2.8kg 70kg
31020 SR Track Trolley, 28mm DIN Socket 2.9kg 70kg
31021 SR Addalite Trolley, 29mm Socket 2.8kg 60kg
31022 SR Addalite Trolley, 28mm DIN Socket 2.9kg 60kg
31023 SR Addalite Overtrack Aluminium Pipe 9.2kg 100kg
31024 SR Addalite Overtrack Steel Pipe 17.1kg 100kg
31025 SR Addalite Undertrack Aluminium Pipe 8.8kg 100kg
31026 SR Addalite Undertrack Steel Pipe 16.7kg 100kg
Cat No System Accessories Weight SWL
38001 Brake Barrel Trolley, 29mm Socket 2.5kg 75kg
38003 Brake Barrel Trolley, 28mm DIN Socket 2.9kg 75kg
38010 Spigot Anti Rotation Pin, 28mm DIN – 82012 Luminaire Hook Clamp with 29mm Socket 1.1kg 50kg
82003 Safety Bond - 75kg – 75kg
82002 Luminaire Safety Bond - 50kg – 50kg
82001 Luminaire Safety Bond - 25kg – 25kg
82140 Adjustable Operating Pole 1.4m to 4.0m – 82115 Cranked Operating Pole - 1.5m – 82125 Cranked Operating Pole - 2.5m – 82135 Cranked Operating Pole - 3.5m – 82145 Cranked Operating Pole - 4.5m – -
System loading limits and installation requirements
All support brackets, trolleys, rolling beams and other suspension components
are clearly labelled with their associated safe working loads. These figures must
never be exceeded. Individual component weights are printed in this Data
Sheet. Further details of each component are provided on the instruction sheet
supplied with each item.
The versatility of the SuperRig system allows many loading permutations on the
fixed tracks. The loading graph below shows typical examples for a uniformly
distributed load, single point load per span and two point loads per span. Using
this graph the maximum distance between track supports can be then be determined by following the appropriate loading curve and the system layout planned
accordingly.
Note:
The centre of all track joints must be within 200mm of a support bracket, track
lengths must be selected to suit.
The load bearing structure must be capable of supporting the entire system
weight with maximum loads applied and distributed in line with the systems
specified layout.
It is recommended that the maximum loading information on which the system is
based is clearly displayed within the studio.

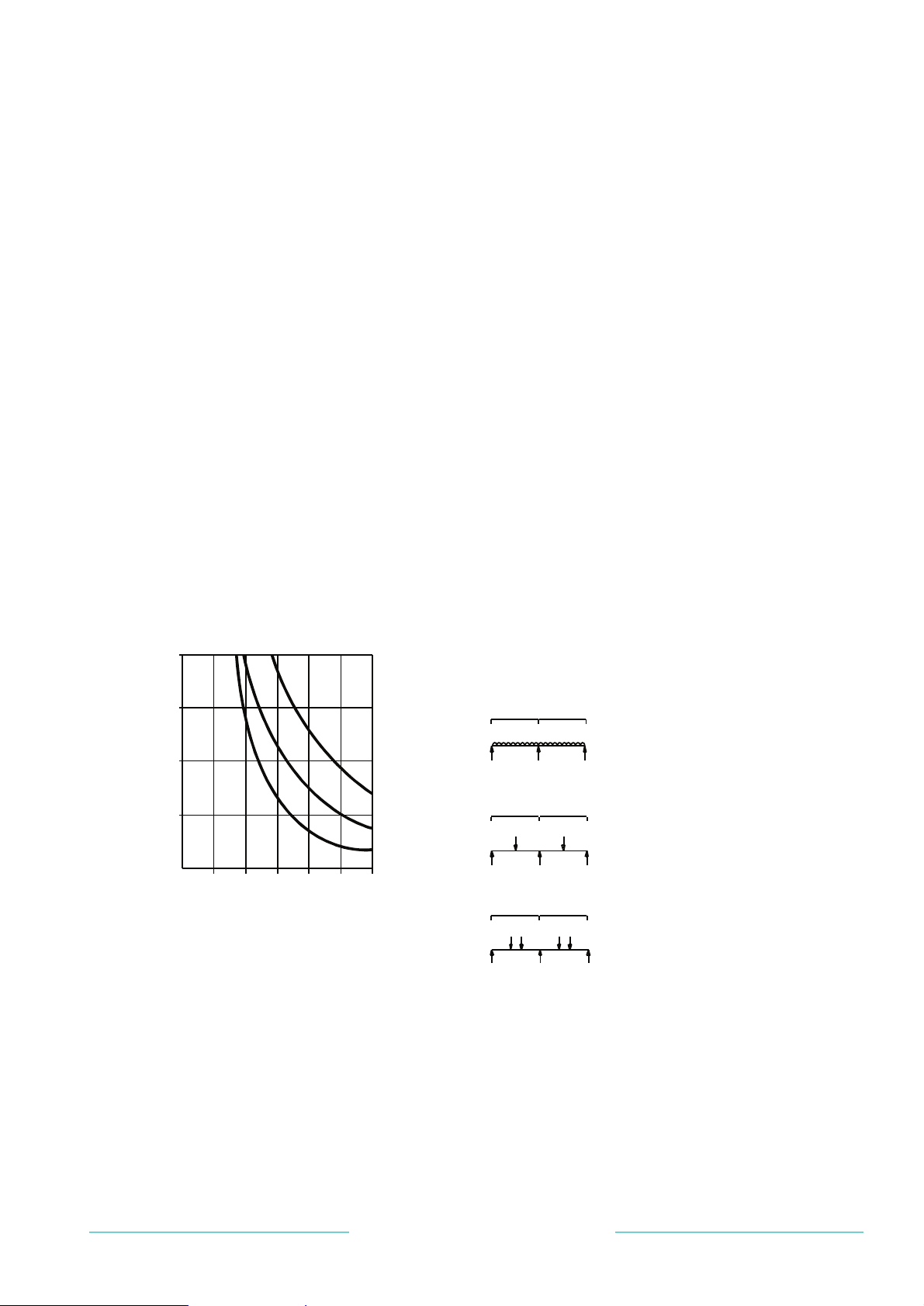

Load ‘W’ on Track Span between adjacent supports
Track Support Spacing ‘L’
Maximum SuperRig Support Track Loading
(two span system)
Curve 1
Curve 2
Curve 3
Two spans with load
(W) uniformly
distributed within
each span
Two spans with one
load (W) within
each span
Two spans with two
loads (W) within
each span
400kg
300kg
.5m01m 1.5m 2m 2.5m 3m
200kg
100kg
0kg
1
2
3
Span (L) Span (L)
Span (L) Span (L)
Span (L) Span (L)
W
W
W
W
WW
WW
The Company reserves the right to make any
variation in design or construction to the
equipment described. © Strand Lighting Ltd
1998. Strand™ and Strand Lighting™ are
trade marks of Strand Lighting Limited and
Strand Lighting Inc.
www.strandlight.com
Strand Lighting Ltd North Hyde House Hayes Road Heston Middx UB2 5NL UK Tel: +44 (0)181 571 3588 Fax: +44 (0)181 571 3305
Strand Lighting GmbH Ullsteinstrasse 114-142 D-12109 Berlin Germany Tel: +49 (0) 30/70 79 51 0 Fax: +49 (0) 30/70 79 519 9
Strand Lighting Italia srl Via delle Gardenie 33 00040 Pomezia-Roma Italy Tel: +39 06 9147123 Fax: +39 06 9147136
