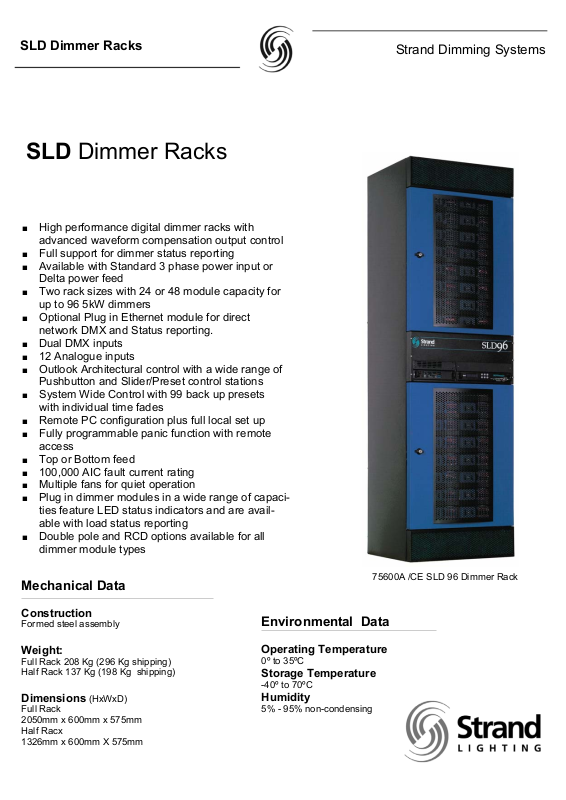

SLD Dimmer Racks
SLD Dimmer Racks
■ High performance digital dimmer racks with
advanced waveform compensation output control
■ Full support for dimmer status reporting
■ Available with Standard 3 phase power input or
Delta power feed
■ Two rack sizes with 24 or 48 module capacity for
up to 96 5kW dimmers
■ Optional Plug in Ethernet module for direct
network DMX and Status reporting.
■ Dual DMX inputs
■ 12 Analogue inputs
■ Outlook Architectural control with a wide range of
Pushbutton and Slider/Preset control stations
■ System Wide Control with 99 back up presets
with individual time fades
■ Remote PC configuration plus full local set up
■ Fully programmable panic function with remote
access
■ Top or Bottom feed
■ 100,000 AIC fault current rating
■ Multiple fans for quiet operation
■ Plug in dimmer modules in a wide range of capaci-
ties feature LED status indicators and are available with load status reporting
■ Double pole and RCD options available for all
dimmer module types
Strand Dimming Systems
Mechanical Data
Construction
Formed steel assembly
Weight:
Full Rack 208 Kg (296 Kg shipping)
Half Rack 137 Kg (198 Kg shipping)
Dimensions
Full Rack
2050mm x 600mm x 575mm
Half Racx
1326mm x 600mm X 575mm
(HxWxD)

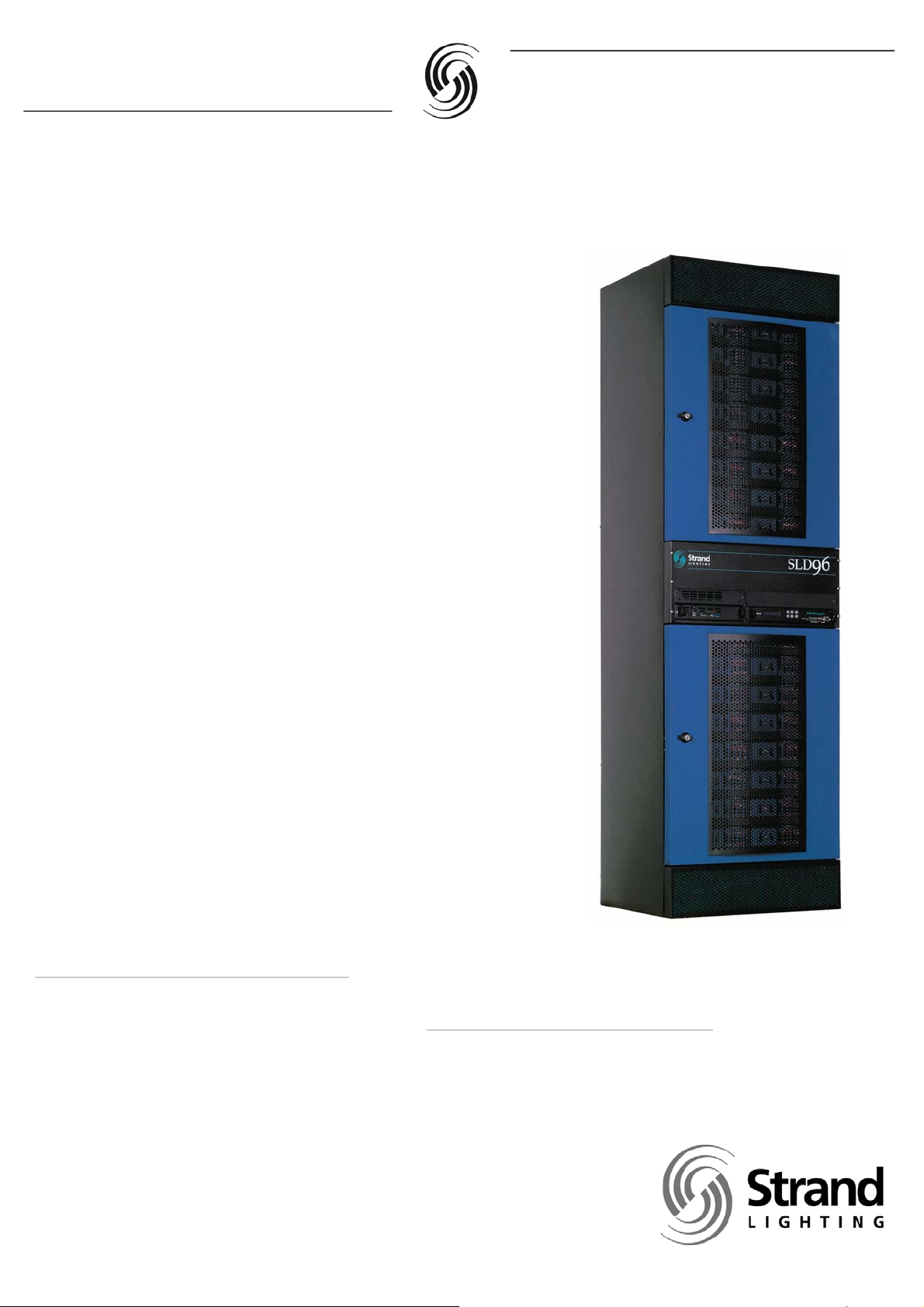

75600A /CE SLD 96 Dimmer Rack
Environmental Data
Operating Temperature
0º to 35ºC
Storage Temperature
-40º to 70ºC
Humidity
5% - 95% non-condensing
Page 2
SLD Dimmer Racks
SLD Series Dimmer Racks
The SLD Series represents premium
performance and high value for all levels
of users. Designed to interface fully with
Strand Lighting’s ShowNet Ethernet
system the SLD dimming system provides a wide range of inputs - including
two DMX and 12 analogue - as well as
presets for our Outlook architectural
system and 99 System Wide Control
back-up presets with individual fade
times.
All dimmers feature high-performance
chokes and dimmer status reporting to
Strand’s 300 and 500 Series consoles,
Any dimmer system is only as good as
its voltage regulation and accuracy and
the new SLD Series employs Strand
Lighting’s most advanced waveform
analysis design to date, with near instantaneous correction for line changes and
perturbations.
SLD systems feature a universal 24 or
48-module rack design that provides
support for 90-260 volt operation and is
CE, UL and cUL approved, meeting a
wide range of regulatory requirements
within a single rack.
Technical Specifications
Supply Voltage
90-260 volts 3 phase up to 600 amps
Standards Compliance
EMC emissions to EN50081-1,
EN55014; EMC immunity to EN50082-1,
IEC1000-2-2; Safety: EN60950,
EN60439 Part 1 (also part 12 BS5486);
design & build: ISO9001, UL1950
The rack shall be CE TUV certified.
Connections
DMX Inputs 2 with full patch
capability
Outlook 1 RS485 input for
Outlook Architectural
Controls
SWC Data link for access
to 99 Back up cues
Reporter Data link for dimmer
Status reporting and
Remote rack
configuration
Available with standard 220µs and up
to 400 µs hi rise time chokes all SLD
dimmers feature full digital dimming.

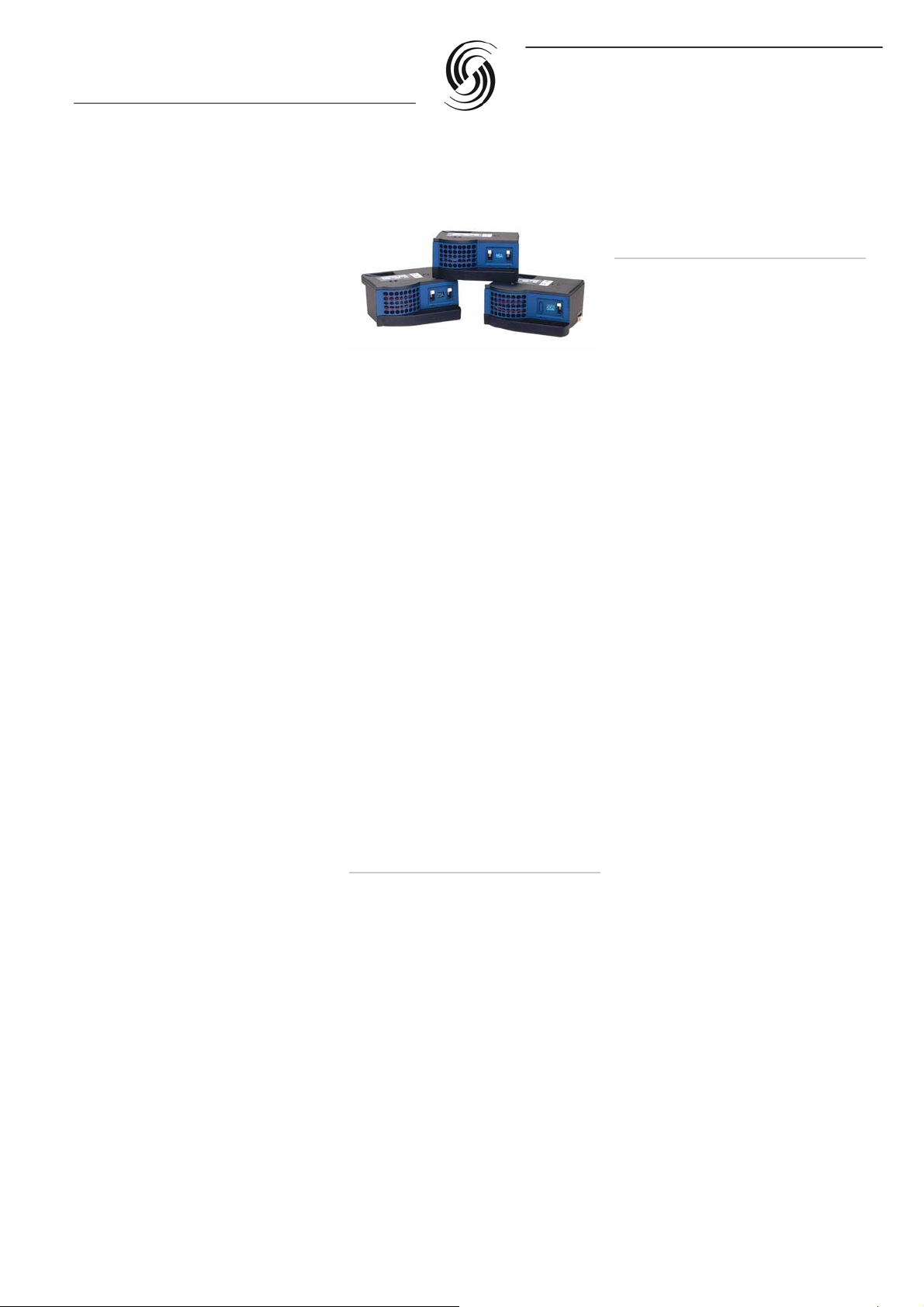

All dimmer modules offer full status
reporting on all module types. All
dimmers feature plug in components
for easy maintenance
All SLD dimmer modules may be fitted with double pole neutral disconnect or RCD circuit breakers to meet
any electrical requirement.
Ordering information
Cat No Description
75600A/CE SLD Rack for 48
modules
75610A /CE SLD Rack for 48
modules delta
75620A /CE SLD Rack for 24
modules
75625A /CE SLD Rack for 24
modules Delta
75690A /CE Processor housing
with processor
75692A Processor only
75785 SN110 Node
for SLD racks
Strand Dimming Systems
Ordering information
Cat No Description
Standard Dimmer Modules
75700 SLD 3kW Dual Dim
75720 SLD 5kW Dual Dim
75730/CE SLD 10kW Single Dim
Hi Rise Dimmer Modules
75702 SLD 3kW Dual Dim
75722 SLD 5kW Dual Dim
75732/CE SLD 10kW Single
Neutral Disconnect Standard
Dimmers
75701 SLD 3kW Dual Dim
75721 SLD 5kW Dual Dim
75731/CE SLD 10kW Single Dim
Neutral Disconnect Hi Rise
Dimmers
75703 SLD 3kW Dual Dim
75723 SLD 5kW Dual Dim
75733/CE SLD 10kW Single Dim
RCD Standard Dimmers
75709 SLD 3kW Dual Dim
75729 SLD 5kW Dual Dim
RCD Hi Rise Dimmers
75704 SLD 3kW Dual Dim
75724 SLD 5kW Dual Dim
Contactor Modules
75705 SLD 3kW Dual SP
75725 SLD 5kW Dual SP
75706 SLD 3.kW Dual DP
75726 SLD 5.kW Dual DP
75707 SLD 3kW Dual RCD
75727 SLD 5kW Dual RCD
Constant and Filler Modules
75760 SLD 3kW Dual SP
75761 SLD 3kW Dual DP
75766 SLD 5kWDual SP
75767 SLD 5kW Dual DP
75780 SLD filler module
Fluorescent Modules
75775 SLD 3kW Fl module
75776 SLD 3kW Fl module
RCD
Note: Fluorescent dimmer modules are 4 wire
type
The Company reserves the right to make any variation in design or construction to the equipment described.
©Copyright Strand Lighting Ltd. 2002
