SLD Dimmer Racks
SLD Dimmer Racks
■ High performance digital dimmer racks with ad-
vanced waveform compensation output control
■ Full support for dimmer status reporting
■ Available with Standard 3 phase power input or
Delta power feed
■ Two rack sizes with 24 or 48 module capacity
■ Optional Plug in Ethernet module for direct net-
work DMX and Status reporting
■ Dual DMX inputs
■ 12 Analog inputs
■ Outlook Architectural control with a wide range of
Pushbutton and Slider/Preset control stations
■ System Wide Control with 99 back up presets
with individual time fades
■ Remote PC configuration plus full local set up
■ Fully programmable panic function with remote
access
■ Top or Bottom feed
■ 100,000 AIC fault current rating
■ Multiple fans for quiet cool operation
■ Plug in dimmer modules in a wide range of capaci-
ties feature LED status indicators and are available with load status reporting
■ Single 20 amp Sinewave dimmer module for silent
dimming
Strand Dimming Systems
Mechanical Data
Construction
Formed steel assembly
Weight:
Full Rack 223 Kg 490 lbs.(296Kg 651 lbs shipping)
Half Rack181Kg 399 lbs (198 Kg 436 lbs shipping)
Dimensions (HXWXD)
Full Rack
2050mm X 600mm X 575mm
80.7in. X 23.6in. X 22.6in.
Half Rack
1326mm X 600mm X 575mm
52.2in. X 23.6in. X 22.6in.

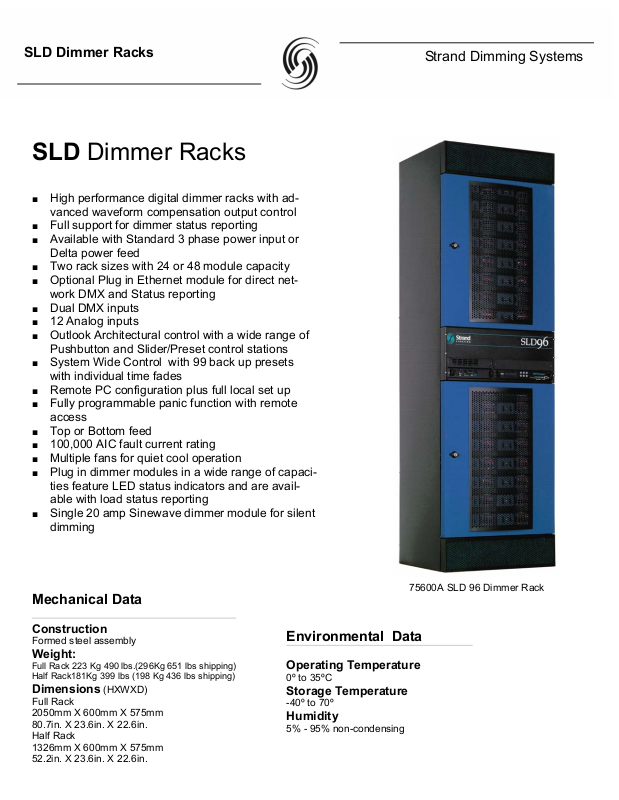

75600A SLD 96 Dimmer Rack
Environmental Data
Operating Temperature
0º to 35ºC
Storage Temperature
-40º to 70º
Humidity
5% - 95% non-condensing
Page 2

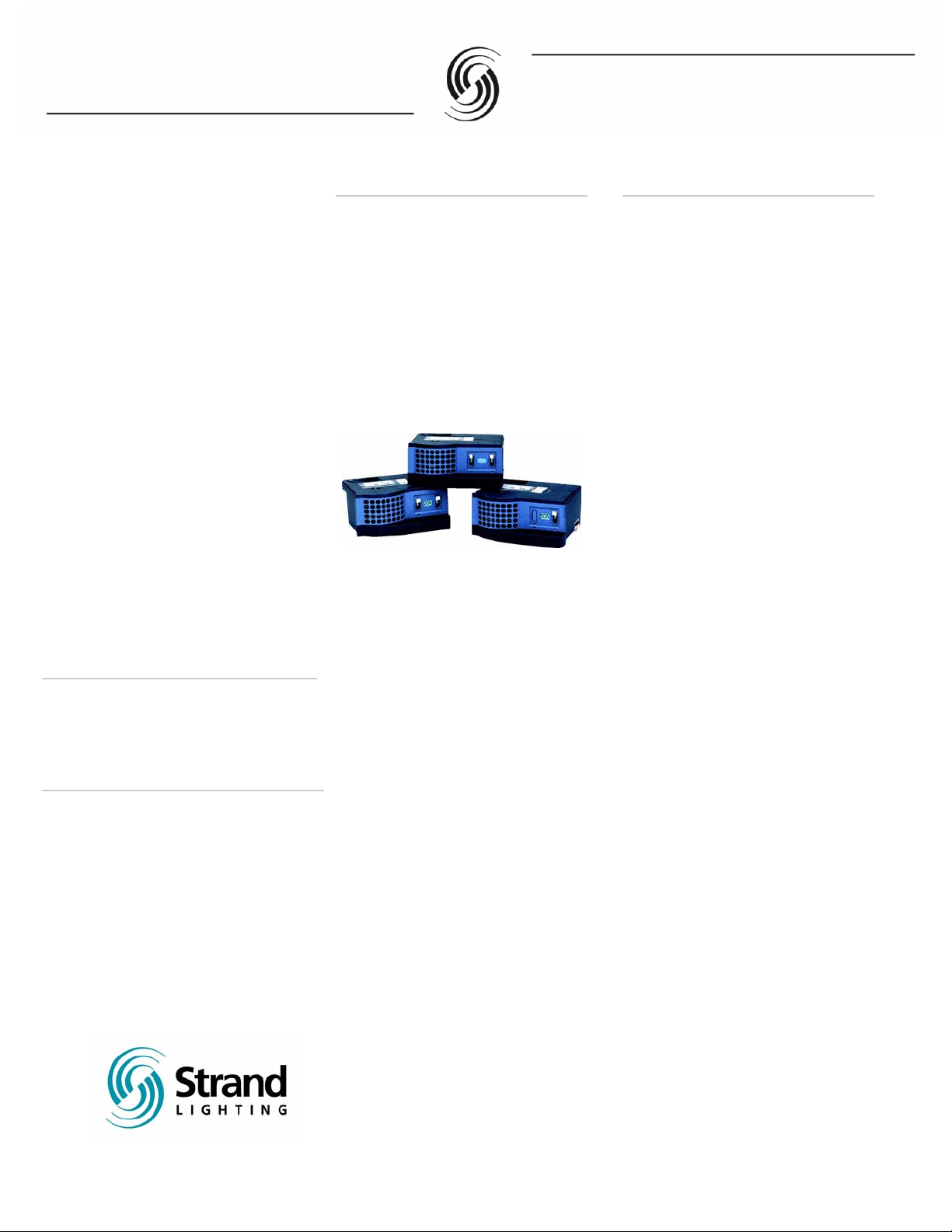

SLD Dimmer Racks
Strand Dimming Systems
SLD Series Dimmer Racks
The SLD Series represents premium
performance and high value for all levels
of users. Designed to interface fully with
Strand Lighting’s ShowNet Ethernet system the SLD dimming system provides a
wide range of inputs - including two DMX
and 12 analog - as well as presets for
our Outlook architectural system and 99
System Wide Control back-up presets
with individual fade times.
All dimmers feature high-performance
chokes and dimmer status reporting to
Strand’s 300 and 500 Series consoles.
Any dimmer system is only as good as
its voltage regulation and accuracy and
the new SLD Series employs Strand
Lighting’s most advanced waveform
analysis design to date, with near instantaneous correction for line changes and
perturbations.
SLD systems feature a universal 24 or
48-module rack design that provides
support for 90-260 volt operation and is
CE, UL and cUL approved, meeting a
wide range of regulatory requirements
within a single rack.
Technical Specifications
Supply Voltage
90-260 volts 3 phase up to 800 amps
Standards Compliance
EMC emissions to EN50081-1,
EN55014; EMC immunity to EN50082-1,
IEC1000-2-2; Safety: EN60950,
EN60439 Part 1 (also part 12 BS5486);
design & build: ISO9000, UL1950
The rack shall be CE UL & cUL listed.
Connections
DMX Inputs 2 with full patch ca pability
Outlook 1 RS485 input for
Outlook Architectural
Controls
SWC Data link for access
to 99 Back up cues
Reporter Data link for dimmer
Status reporting and
Remote rack config uration
Available with standard 500µs and
800 µs hi rise time chokes all SLD
dimmers feature full digital dimming.
All dimmer modules offer full status
reporting on all module types. All
dimmer feature plug in components
for easy maintenance
Consult factory for information on dimmer
modules with double pole circuit breakers for
delta power feed applications
.
Ordering information
Cat No Description
75600B SLD Rack for 48
modules
75610A SLD Rack for 48
modules delta
75620A SLD Rack for 24
modules
75625A SLD Rack for 24
modules Delta
75690A Processor housing
with processor
75692A Processor only
75785 SN110 Node
for SLD racks
Standard Dimmer Modules
75700 SLD 15A Dual Dim
STD Rise
75710 SLD 20A Dual Dim
STD Rise
75730 SLD 50A Single
Dim STD Rise
Hi Rise Dimmer Modules
75702 SLD 15A Dual Dim
Hi-Rise
75712 SLD 20A Dual Dim
Hi-Rise
75732 SLD 50A Single
Dim Hi-Rise
Contactor Modules
75745 SLD 15A Dual ND
75747 SLD 20A Dual ND
Constant and Filler Modules
75760 SLD 15A Dual
Constant
75763 SLD 20A Dual
Constant
75780 SLD filler module
Sinewave Module
75750 SLD 20A Single
Sinewave
The Company reserves the right to make any variation in design or construction to the equipment described.
