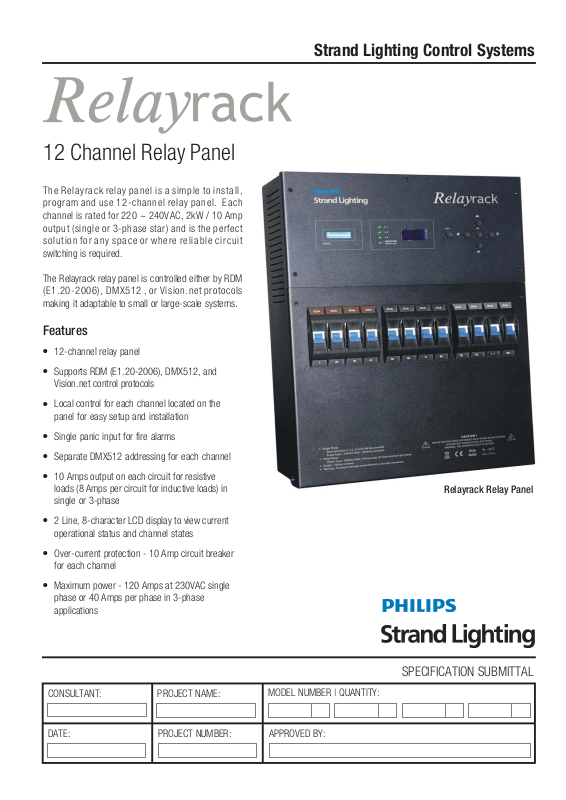

12 Channel Relay Panel
The Relayrack relay panel is a simple to install,
program and use 12-channel relay panel. Each
channel is rated for 220 ~ 240VAC, 2kW / 10 Amp
output (single or 3-phase star) and is the perfect
solution for any space or where reliable circuit
switching is required.
The Relayrack relay panel is controlled either by RDM
(E1.20-2006), DMX512 , or Vision.net protocols
making it adaptable to small or large-scale systems.
Strand Lighting Control Systems
Features
●
12-channel relay panel
●
Supports RDM (E1.20-2006), DMX512, and
Vision.net control protocols
●
Local control for each channel located on the
panel for easy setup and installation
●
Single panic input for fire alarms
●
Separate DMX512 addressing for each channel
●
10 Amps output on each circuit for resistive
loads (8 Amps per circuit for inductive loads) in
single or 3-phase
●
2 Line, 8-character LCD display to view current
operational status and channel states
●
Over-current protection - 10 Amp circuit breaker
for each channel
●
Maximum power - 120 Amps at 230VAC single
phase or 40 Amps per phase in 3-phase
applications
Relayrack Relay Panel
CONSULTANT: PROJECT NAME:
DATE:
PROJECT NUMBER:
SPECIFICATION SUBMITTAL
MODEL NUMBER | QUANTITY:
APPROVED BY:
Page 2
12 Channel Relay Panel
Strand Lighting Control Systems
Feed Knockouts
(Source and Loads)
Electrical Data
Supply Voltage: Single Phase - 230VAC, 50/60 Hz, 120
Amps (max.) / Three Phase - 400VAC/
230VAC, 50/60 Hz, 3-Phase Star, 40
Amps per Phase (max.)
Output: Normal Resistive Loads: 10A per Circuit
Inductive Loads: 8A per Circuit
Circuit Protection: 10A Circuit Breaker per Channel
(over-current protection)
Environmental Data
Operating: -10 to +50°C
Storage: -10 to +70°C
Humidity Range: 0 to 95% Non-condensing
Compliance: CE Marked, IP20 Protection Rating
Ordering Information
Cat No. Description
Relayrack Relay Panel
Side View
Bottom ViewFront View
Mechanical Data
Weight: 9.4 kg
Construction: Sheet metal with powder coat finish
Dimensions: 475 (H) x 332 (W) x 137 (D) mm
Connections: RDM (E1.20-2006), DMX512A In / Out,
and Vision.net Architectural Control
76412 Relayrack Relay Panel, 12 Channel
Philips Strand Lighting
Dallas Auckland www.strandlighting.com
10911 Petal Street 19-21 Kawana Street © Philips Group 2014
Dallas, TX 75238 Northcote, Auckland 0627 All rights reserved.
Tel: +1 (214) 647-7880 New Zealand The Company reserves the right to make any variation in
Fax: +1 (214) 647-8031 Tel: + 64 9 481 0100 design, construction or descriptions contained herein,
Fax: + 64 9 481 0101 of the equipment, at any time without prior notice. E&OE
Asia Europe
Unit C, 14/F, European Service & Distribution Centre
Roxy Industrial Centre Rondweg zuid 85
No. 41-49 Kwai Cheong Road Winterswijk 7102 JD
Kwai Chung, N.T., Hong Kong the Netherlands
Tel: +852 2796 9786 Tel: +31 (0) 543-542516
Fax: +852 2798 6545
031114EUA
