Parts List
Leko 40 - rear assembly
Drawing
Ident:
1 SLEEVING 3/8 INT. DIA x 3 243/B016
2 LAMPHOLDER T22 (450C) 246/B047
3 ROLL PIN 604/B428
4 YOKE LOCK KNOB 607/B404
5 FOCUS ADJUST KNOB 607/B405
6 LENS ADJUSTMENT KNOB 607/B407
7 REFLECTOR 61/B001
8 8*32 ANC-2A 1/2 TAP PN HD 652/B042
9 1/4*1/2 PHILLIP PAN HD 652/B043
10 NO6X32ANC-2A PH5/16 TAP P 652/B046
11 5/16 X 3/4 L16 H/W TAPTIT 652/B050
12 10X32 UNF 1/2 PH PAN HD S 652/B053
13 8-32 UNC-2A 5/16" LG PH 652/B061
120V
Package Items:Part/Package No:Part/Package Description:
14 No8x1/2" SELF TAPPER PH P 654/B154
15 1/4 FULL NUT 662/B006
16 N010 LARGE FLANGE WASHER 670/B091
17 4BA EXT SHK PRF WASHER SC 672/B025/SCP
18 3/8 PLAIN WASHER 702/B032
19 N010 BECU WAVE WASHER 702/B033
20 1/4 GROVER 703/B014
21 For information please contact your Strand supplier.
22 3/8*1 1/2 HEX HD BOLT 708/B051
23 REAR GRAB HANDLE CB/0B41755
24 PTFE WASHER CB/0D41864
25 SHUTTER BLADE (BLK) MLD K CM/0C41777/2
26 SLOTTED GATE BAFFLE DB/0C41799
27 SHUTTER PRESSURE PLATE DM/0A41771
28 IRIS MOUNTING PLATE DM/0B41773
Date Printed: 05/12/2003 Page: 1
Leko 40 - rear assembly
120V
Drawing
Ident:
29 LENS TUBE OUTER (15 DEGREE ONLY) DM/0B41998/1
29 LENS TUBE OUTER 20-50 DEG DM/0B41998/2
30 X - Y PLATE DM/0C41763
31 IRIS BAFFLE DM/0C41834
32 #LOCK CUP F & PC DM/0D30013/2
33 BAYONET STOP PIN FB/0C41761/1
34 LAMPHOLDER MOUNTING CASTI FB/0C41762/1
35 REFLECTOR HOUSING FB/0A41750
36 GATE CASTING FB/0A41751
37 LAMP CARRIAGE CASTING PAI FB/0B41756
38 BAYONET SPRING HB/0C41760
39 SCREENED YOKE(FOR 15 DEGREE ONLY) NX/0B41840/1
39 SCREENED YOKE(FOR 20-50 DEGREE) NX/0B41840/2
40 EARTH WIRE ASSY PL/0C41786/1
Package Items:Part/Package No:Part/Package Description:
41 8-32 UNC AVDEL 707/B055
42 For information please contact your Strand supplier.
43 UL CABLE LABEL 40/B588
Date Printed: 05/12/2003 Page: 2
43
1
14
23
19
40
17
10
37
34
2
8
11
18
39
22
15
32
18
20
9
4
25
27
25
13
41
31
41
8
13
8
6
7
26
10
35
3
12
16
30
38
8
33
24
5
25
36
27
25
28
8
8
29

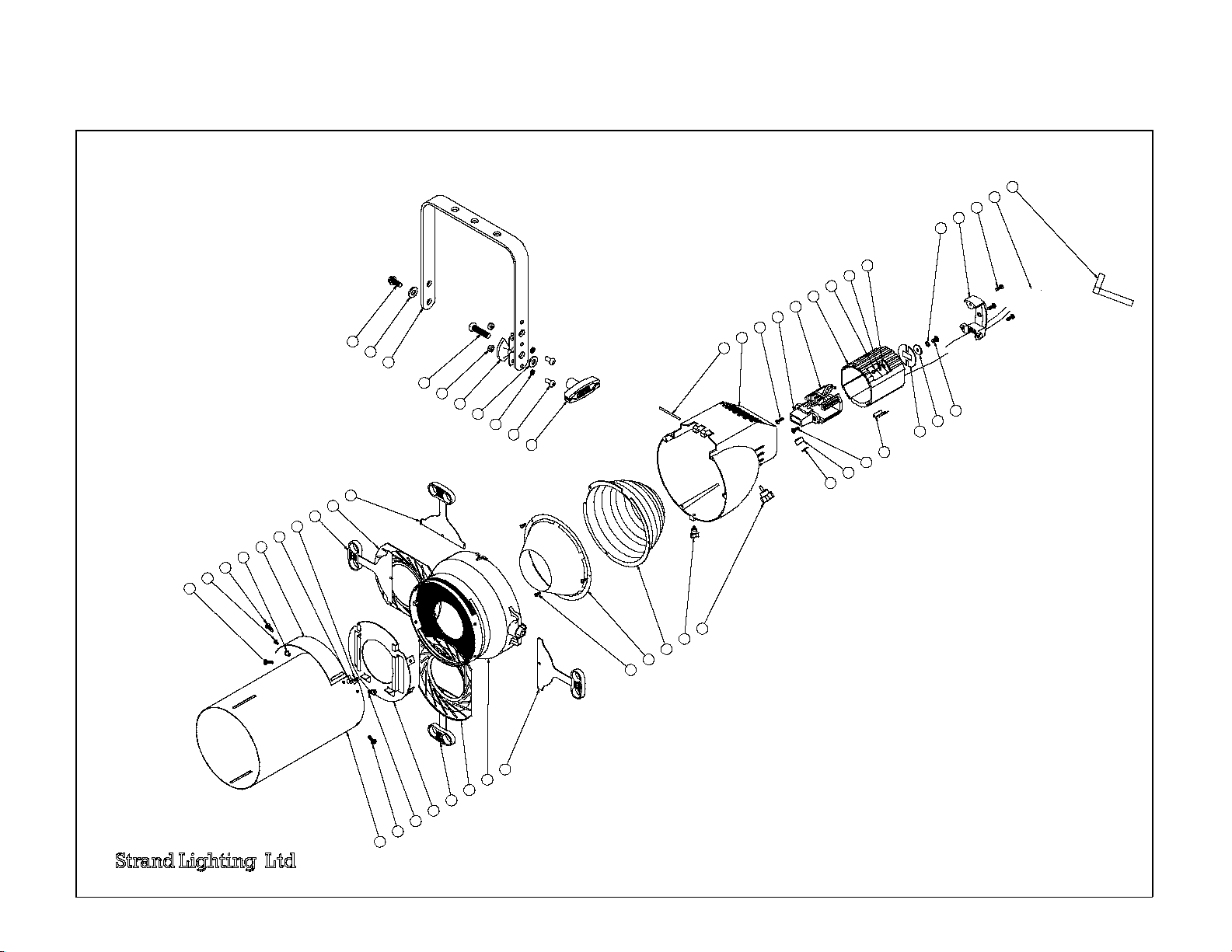

LEKO REAR ASSEMBLY 15¡ - 50¡ (120Vac)
ISSUE 1 13-4-98
Parts List
Leko 40 - tube assembly
Drawing
Ident:
1 LENS 6" X 14" FLPLANO CONVEX 60/B099
2 FRONT PLATE DM/0B41772
3 No8-32 UNC-2A 5/16"LG PH 652/B061
4 AVDEL NUTSERT 8 -32 UNC 707/B055
5 10-32 UNF LARGE FLANGE AVDEL 707/B073
6 LENS ADJUSTMENT KNOB 607/B407
7 7.5" COLOUR FRAME DP/0B42674
8 LENS SEPARATOR DM/0B41774/4
9 LENS CARRIER 20-50 DEG DR/0B41995
10 LENS INSERT 20-40 DEGREE DP/0C41996/1
11 LENS COMPRESSION SPRING HB/0C41801/2
120V
Package Items:Part/Package No:Part/Package Description:
Date Printed: 05/12/2003 Page: 1
6
5
1
8
1
11
6
4
2
3
7
10
9
5
LEKO 40¡ TUBE ASSEMBLY (USA)
ISSUE 1 13-4-98
