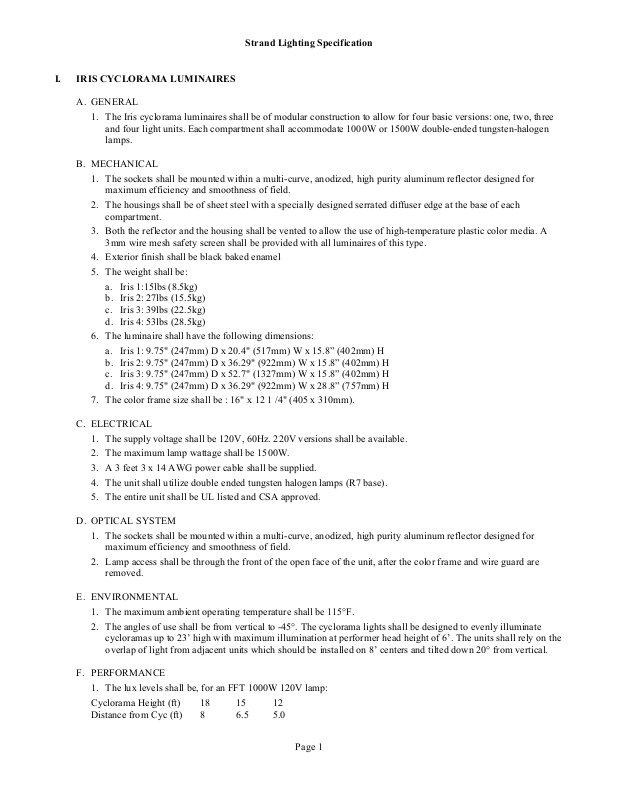

! Strand Lighting Specification
Page 1
I. IRIS CYCLORAMA LUMINAIRES
A. GENERAL
1. The Iris cyclorama luminaires shall be of modular construction to allow for four basic versions: one, two, three
and four light units. Each compartment shall accommodate 1000W or 1500W double-ended tungsten-halogen
lamps.
B. MECHANICAL
1. The sockets shall be mounted within a multi-curve, anodized, high purity aluminum reflector designed for
maximum efficiency and smoothness of field.
2. The housings shall be of sheet steel with a specially designed serrated diffuser edge at the base of each
compartment.
3. Both the reflector and the housing shall be vented to allow the use of high-temperature plastic color media. A
3mm wire mesh safety screen shall be provided with all luminaires of this type.
4. Exterior finish shall be black baked enamel
5. The weight shall be:
a. Iris 1:15lbs (8.5kg)
b. Iris 2: 27lbs (15.5kg)
c. Iris 3: 39lbs (22.5kg)
d. Iris 4: 53lbs (28.5kg)
6. The luminaire shall have the following dimensions:
a. Iris 1: 9.75" (247mm) D x 20.4" (517mm) W x 15.8” (402mm) H
b. Iris 2: 9.75" (247mm) D x 36.29" (922mm) W x 15.8” (402mm) H
c. Iris 3: 9.75" (247mm) D x 52.7" (1327mm) W x 15.8” (402mm) H
d. Iris 4: 9.75" (247mm) D x 36.29" (922mm) W x 28.8” (757mm) H
7. The color frame size shall be : 16" x 12 1 /4" (405 x 310mm).
C. ELECTRICAL
1. The supply voltage shall be 120V, 60Hz. 220V versions shall be available.
2. The maximum lamp wattage shall be 1500W.
3. A 3 feet 3 x 14 AWG power cable shall be supplied.
4. The unit shall utilize double ended tungsten halogen lamps (R7 base).
5. The entire unit shall be UL listed and CSA approved.
D. OPTICAL SYSTEM
1. The sockets shall be mounted within a multi-curve, anodized, high purity aluminum reflector designed for
maximum efficiency and smoothness of field.
2. Lamp access shall be through the front of the open face of the unit, after the color frame and wire guard are
removed.
E. ENVIRONMENTAL
1. The maximum ambient operating temperature shall be 115°F.
2. The angles of use shall be from vertical to -45°. The cyclorama lights shall be designed to evenly illuminate
cycloramas up to 23’ high with maximum illumination at performer head height of 6’. The units shall rely on the
overlap of light from adjacent units which should be installed on 8’ centers and tilted down 20° from vertical.
F. PERFORMANCE
1. The lux levels shall be, for an FFT 1000W 120V lamp:
Cyclorama Height (ft) 18 15 12
Distance from Cyc (ft) 8 6.5 5.0
! Strand Lighting Specification
Page 2
Spacing on centers (ft) 8 6.5 5.0
Lux level at 6ft high 100 120 140
Alternative lamp FDB 1500W, 120V, multiply FFT performance by 1.49.
2. The unit shall produce a smooth uniform field with less than +5% deviation from top to bottom on a 24' (7.3m)
cyclorama using units on 8' (2.4m) centers.
3. Horizontal deviation shall not exceed +3%.
G. INCLUDED FURNISHINGS
1. One color frame for each compartment
2. One wire guard for each compartment
3. Iron C-clamp to grip up to 2" (51mm) pipe
4. Steel yoke
5. 39”' (1m) leads in fiberglass sleeving, or with connectors as specified
H. ACCESSORIES
1. Lamp
2. Additional Color frames
3. Additional Wire guard
4. Safety cable, 18" (457mm)
I. PROVIDE THE FOLLOWING:
Qty. Cat. No. Description
# 26071 Iris 1 Cyclight, bare leads
# 26076 Iris 1 Cyclight, (1) GR (15A) Fitted Connector
# 26077 Iris 1 Cyclight, (1) GP (20A) Fitted Connector
# 26078 Iris 1 Cyclight, (1) GTL (20A) Fitted Connector
# 28081 Iris 1 Pole Operated Cyclight (tilt only), bare leads
# 28086 Iris 1 Pole Operated Cyclight (tilt only), (1) GR (15A) Fitted Connector
# 28087 Iris 1 Pole Operated Cyclight (tilt only), (1) GP (20A) Fitted Connector
# 28088 Iris 1 Pole Operated Cyclight (tilt only), (1) GTL (20A) Fitted Connector
# 26171 Iris 2 Cyclight, bare leads
# 26176 Iris 2 Cyclight, (2) GR (15A) Fitted Connectors
# 26177 Iris 2 Cyclight, (2) GP (20A) Fitted Connectors
# 26178 Iris 2 Cyclight, (2) GTL (20A) Fitted Connectors
# 26111 Iris 2 Pole Operated Cyclight (tilt only), bare leads
# 26116 Iris 2 Pole Operated Cyclight (tilt only), (2) GR (15A) Fitted Connectors
# 26117 Iris 2 Pole Operated Cyclight (tilt only), (2) GP (20A) Fitted Connectors
# 26118 Iris 2 Pole Operated Cyclight (tilt only), (2) GTL (20A) Fitted Connectors
# 26101 Iris 2 Split Yoke Pole Operated Cyclight (tilt only), bare leads
# 26106 Iris 2 Split Yoke Pole Operated Cyclight (tilt only), (2) GR (15A) Fitted Connectors
# 26107 Iris 2 Split Yoke Pole Operated Cyclight (tilt only), (2) GP (20A) Fitted Connectors
# 26108 Iris 2 Split Yoke Pole Operated Cyclight (tilt only), (2) GTL (20A) Fitted Connectors
# 26181 Iris 3 Cyclight, bare leads
# 26186 Iris 3 Cyclight, (3) GR (15A) Fitted Connector
# 26187 Iris 3 Cyclight, (3) GP (20A) Fitted Connector
# 26188 Iris 3 Cyclight, (3) GTL (20A) Fitted Connector
# 26131 Iris 3 Pole Operated Cyclight (tilt only), bare leads
# 26136 Iris 3 Pole Operated Cyclight (tilt only), (3) GR (15A) Fitted Connectors
! Strand Lighting Specification
Page 3
# 26137 Iris 3 Pole Operated Cyclight (tilt only), (3) GP (20A) Fitted Connectors
# 26138 Iris 3 Pole Operated Cyclight (tilt only), (3) GTL (20A) Fitted Connectors
# 26191 Iris 4 Cyclight, bare leads
# 26196 Iris 4 Cyclight, (4) GR (15A) Fitted Connectors
# 26197 Iris 4 Cyclight, (4) GP (20A) Fitted Connectors
# 26198 Iris 4 Cyclight, (4) GTL (20A) Fitted Connectors
# 26151 Iris 4 Pole Operated Cyclight (tilt only), bare leads
# 26156 Iris 4 Pole Operated Cyclight (tilt only), (4) GR (15A) Fitted Connectors
# 26157 Iris 4 Pole Operated Cyclight (tilt only), (4) GP (20A) Fitted Connectors
# 26158 Iris 4 Pole Operated Cyclight (tilt only), (4) GTL (20A) Fitted Connectors
# 26141 Iris 4 Split Yoke Pole Operated Cyclight (tilt only), bare leads
# 26146 Iris 4 Split Yoke Pole Operated Cyclight (tilt only), (4) GR (15A) Fitted Connectors
# 26147 Iris 4 Split Yoke Pole Operated Cyclight (tilt only), (4) GP (20A) Fitted Connectors
# 26148 Iris 4 Split Yoke Pole Operated Cyclight (tilt only), (4) GTL (20A) Fitted Connectors
# FFT 1000W 120V lamp, one per compartment
# FDB 1500W 120V lamp, one per compartment
# FGT 1500W 120V lamp (frosted), one per compartment
# 28012 Wire guard (3mm), one per compartment
# 28011 Color frame, one per compartment
# 82003 Safety cable, 18" (457mm)
# 82019 Stud C-clamp
# 95556 Stud C-clamp (long bolt)
