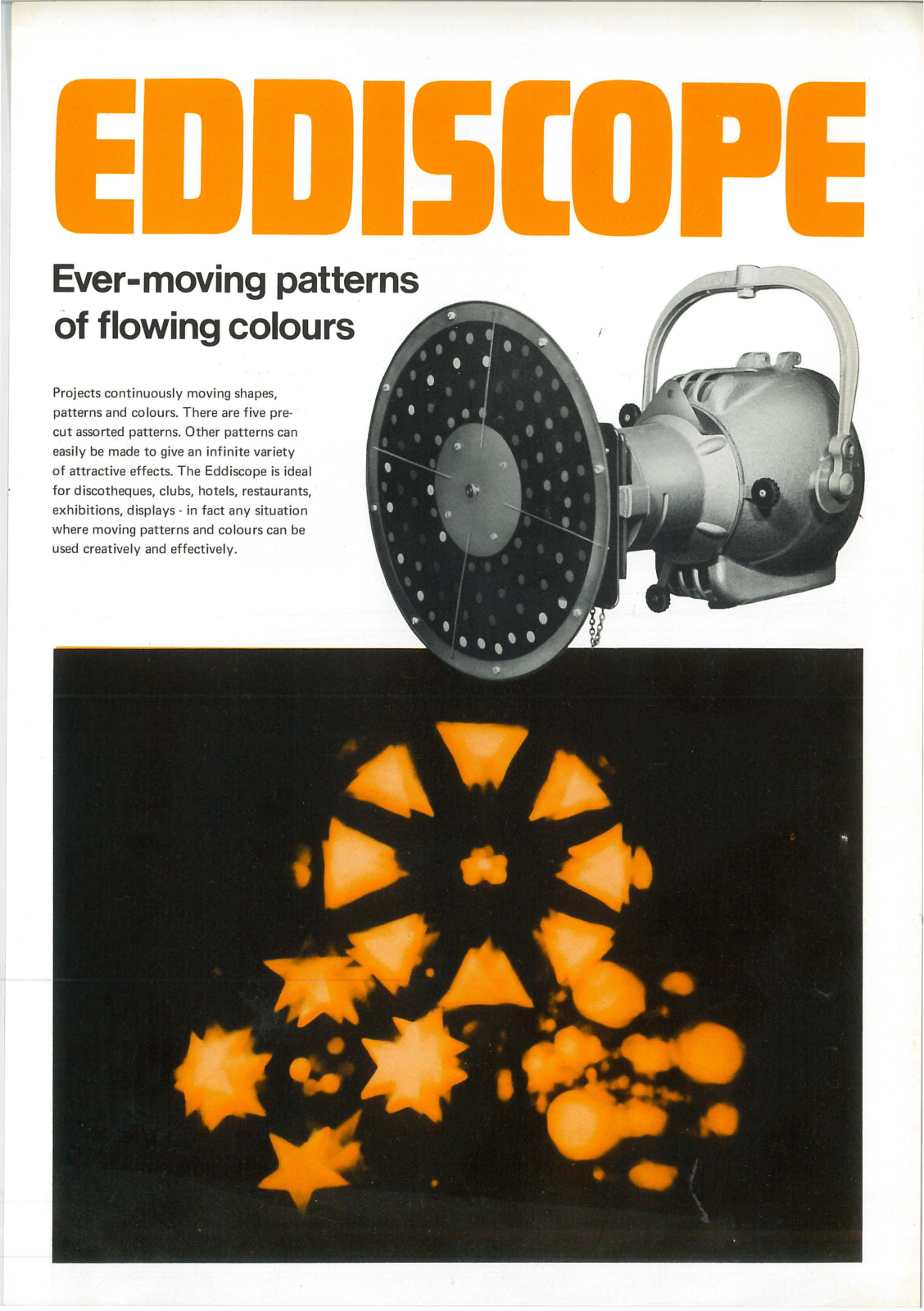

Strand Eddiscope Eddiscope Leaflet

Ever-moving patterns

of flowing colours

Projects continuously moving shapes ,
patterns and colours. There are five pre­cut assorted patterns. Other patterns can
easily be made to give an infinite variety

of attractive effects . The Eddiscope is ideal
for discotheques, clubs, hotels , restaurants ,
exhibitions, displays - in fact any situation
where moving patterns and colours can be
used creatively and effectively .

Description

The Eddiscope is available as a complete unit for use with the Rank Strand

Patt. 23 or 23w Profile Spot, either the original design or the current pro-

duction models with built-in beam-shaping shutters.

Assembly is easy . Simply remove iris diaphragm, circular mask or adjustable
mask from the gate runners between the lens tube and the lamphouse and
substitute an Eddiscope pattern mask. If the Profile Spot has built-in beam­shaping shutters ensure that they are withdrawn to the limit of their move­ment . Next, slide the backplate of the Eddiscope motor drive unit into the
front colour frame runners of the lens tube. Fit the Eddiscope colour disc
to the driving shaft and connect the motor drive terminals to a 220/250
volt A.C. supply.

Specification

Eddiscope
Pattern Mask

Eddiscope slots
into colour
frame runner

If you already have a Ref.
can be used; the Ref. 747 Eddiscope colour disc is then substituted for the
five aperture colour. wheel.

Ref. 746 Eddiscope effect complete, with self-starting synchronous 220/

250 volts 50Hz 4 rpm Motor Drive unit with terminal block for supply input .

Ref. 747 Eddiscope Disc only ,

Ref. 748 Set of six metal pattern masks, five pre-cut of assorted patterns
and one blank for

Weight Eddiscope (complete) -

cuttiPlg to your own design.

38? Colour Change Wheel, its motor drive unit

125/ain. (320 mm) diameter .

2% lbs. ( 1.3 kg)

l
