Strand Dig6 Datasheet

Weights and dimensions

Packed wgt Height Depth Width Packed Volume

6 x BS546 11kg 133mm (3 rack units) 360mm 483mm 0.28m

3

12 x BS546 14kg 178mm (4 rack units) 360mm 483mm 0.38m

3

6 x Schuko 12kg 133mm (3 rack units) 360mm 483mm 0.28m

3

12 x Schuko 14kg 178mm (4 rack units) 360mm 483mm 0.38m

3

Mechanical data

Finish/colour Grey powder coat epoxy paint
Construction Folded sheet steel

Environmental data

Temperature range 0-30C
Relative humidity range 0-90% non-condensing
Ingress protection IP 30
Standards compliance EN60439, EN60950, EN55014, EN55022, EN50082-1

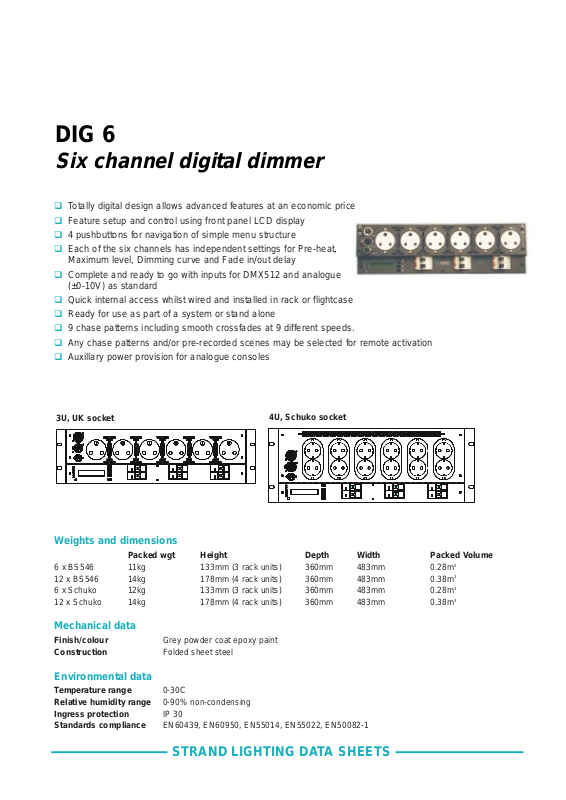

STRAND LIGHTING DATA SHEETS

DIG 6

Six channel digital dimmer

q Totally digital design allows advanced features at an economic price
q Feature setup and control using front panel LCD display
q 4 pushbuttons for navigation of simple menu structure
q Each of the six channels has independent settings for Pre-heat,

Maximum level, Dimming curve and Fade in/out delay

q Complete and ready to go with inputs for DMX512 and analogue

(±0-10V) as standard

q Quick internal access whilst wired and installed in rack or flightcase
q Ready for use as part of a system or stand alone
q 9 chase patterns including smooth crossfades at 9 different speeds.
q Any chase patterns and/or pre-recorded scenes may be selected for remote activation
q Auxillary power provision for analogue consoles

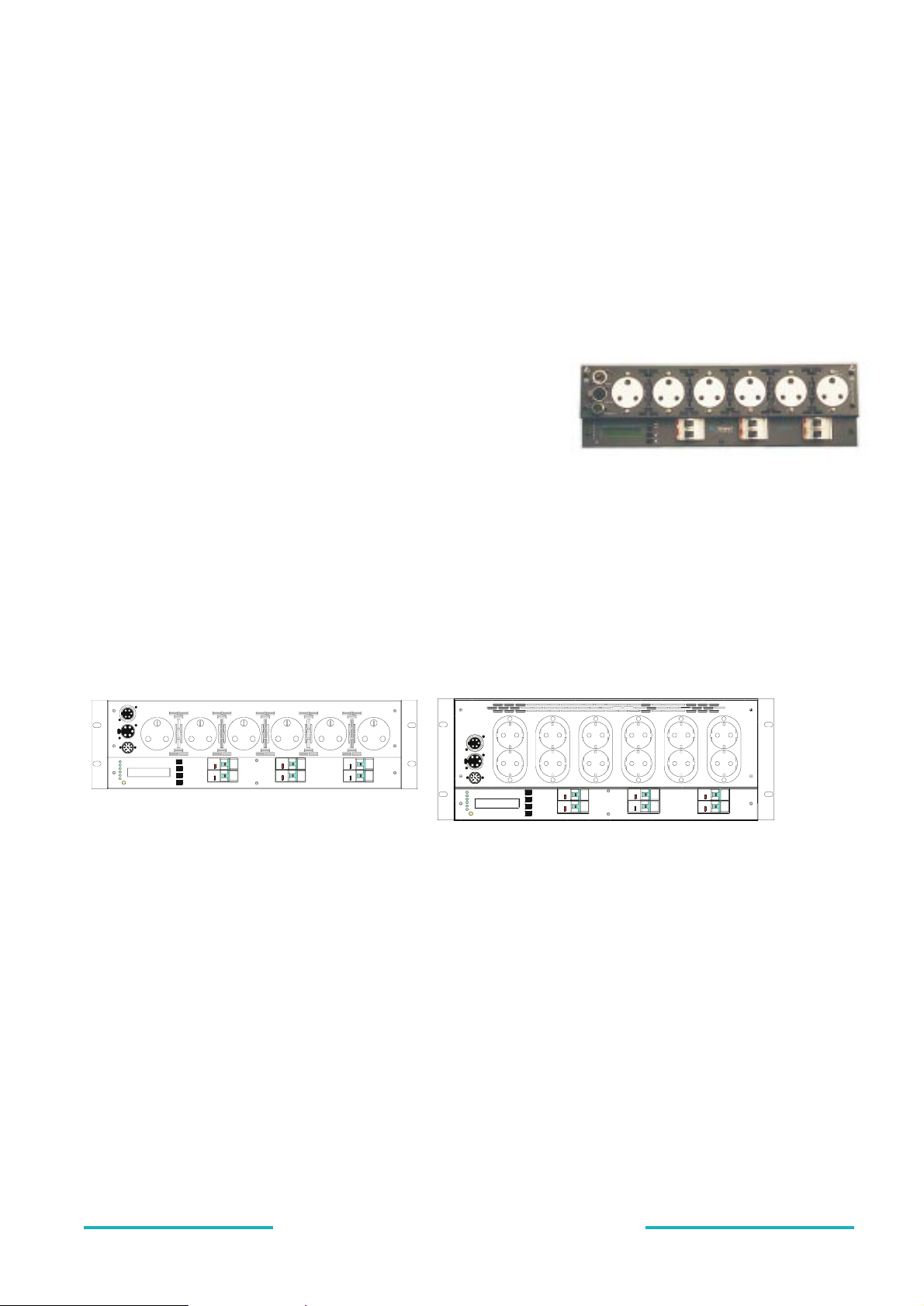

3U, UK socket

4U, Schuko socket

Electrical and operational data

Supply voltage/frequency

230V AC nominal (link selectable to
110VAC nominal)
Frequency 50/60 Hz
Three Phase + Neutral+ Earth
Single Phase + Neutral + Earth (with
supplied links fitted). Main power con­nector should be 60A (single phase),
20A (three phase). Recommended
connector type: CEE 17 BS4343

Total capacity

Maximum load 6 channels @ 10A per
channel, 60A total.
Minimum load 100W per channel

Control input

Analogue:

±0-10V DC (auto-sensing)

via 8-pin locking DIN connector.
Input impedance 47kΩ.
DMX: USITT DMX512 (1990) via 5-pin
XLR in/out connectors

Dig 6
Cat No Description

73081 Dig 6 with 6 UK BS546 sockets
73082 Dig 6 with 12 UK sockets
73082 Dig 6 with 6 Schuko sockets
73084 Dig 6 with dual Schuko sockets

Control

Analogue auto-sensing 0V to - 10V
(full-on) via 10K resistor and silicon
diode, or 0V to +10V (full-on) via 1K
resistor and silicon diode. When DMX
is active, analogue and DMX512 Mux
signal can function simultaneously,
with the dimmer responding to the
highest level.
9 preset effects and 8 user program­mable scenes are selectable via LCD
interface.

Connections

Mains input cable via 32mm cable
entry hole in the rear panel, using a
suitable cable gland. Load connec­tions are made with individual plugs
(maximum 2 per circuit if optional
second sockets are fitted).
Connections also available at rear for
either hard wiring or the fitting of a
multicon socket.

Circuit protection

Each dimmer module is protected by
a 10A thermal/magnetic MCB.

Control input

Analogue 0V - 10V (+/-), via 8 pin
locking DIN connector. DMX512
(1990) multiplexed digital control on
front panel. May be relocated on rear
panel.

Indicators/Connectors

6 LEDs displacing channel output.
LCD for configuration and input moni­toring.

Cooling method

Internal processor controlled fan pro­vides adequate cooling in any
well-ventilated position.

Ordering information

Dig 6

Compact dimmer pack with six 10A 230V dimmers controlled by 0V to 10V ana­logue signal (plus/minus autosensing) per dimmer or DMX 512 multiplex signals.
Nine internal effects, each with nine fade times, together with eight user record­able scenes may be assigned to any of the six dimmer channels. All versions
accept three phase power, and include linking straps for single phase use.

Accessories

61107 6-way & master control desk
66090 DIN8 2m control cable
66091 DIN8 5m control cable
66092 DIN8 25m control cable
66083 DMX control cable, 2m
66081 DMX control cable, 10m
66082 DMX control cable, 25m
