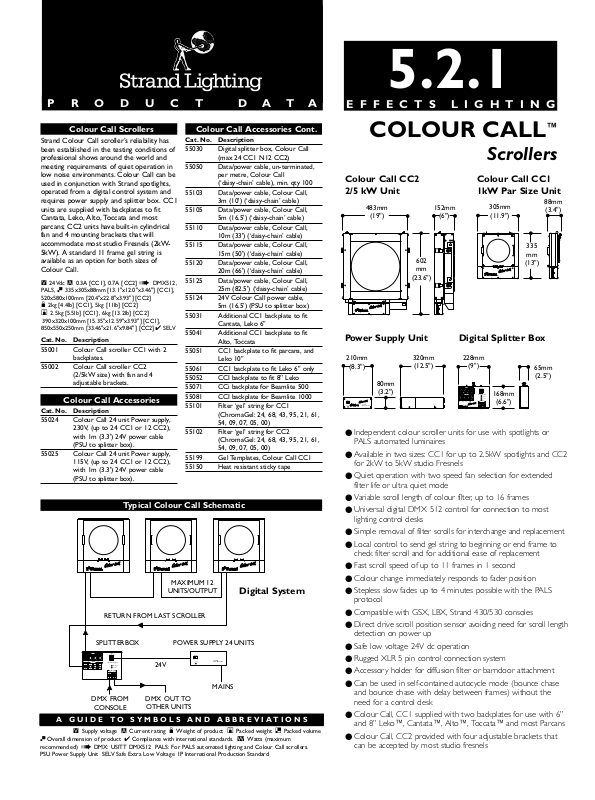

Strand Colour Call Scrollers 5.2.1 Colour Call Scrollers

Page 1

5.2.1

PRODUCT DATA

Colour Call Scrollers

Strand Colour Call scroller’s reliability has been established in the testing conditions of professional shows around the world and meeting requirements of quiet operation in low noise environments. Colour Call can be used in conjunction with Strand spotlights, operated from a digital control system and requires power supply and splitter box. CC1 units are supplied with backplates to fit Cantata, Leko, Alto, Toccata and most parcans; CC2 units have built-in cylindrical fan and 4 mounting brackets that will accommodate most studio Fresnels (2kW5kW). A standard 11 frame gel string is available as an option for both sizes of Colour Call.

V 24Vdc A 0.3A [CC1], 0.7A [CC2] Y DMX512, PALS, O 335x305x88mm [13.1"x12.0"x3.46"] [CC1], 520x580x100mm [20.4"x22.8"x3.93"] [CC2]

w 2kg [4.4lb] [CC1], 5kg [11lb] [CC2] p 2.5kg [5.5lb] [CC1], 6kg [13.2lb] [CC2]

390x320x100mm [15.35"x12.59"x3.93"] [CC1],

850x550x250mm [33.46"x21.6"x9.84"] [CC2] s SELV

Cat. No. Description

55001 Colour Call scroller CC1 with 2

backplates.

55002 Colour Call scroller CC2

(2/5kW size) with fan and 4 adjustable brackets.

Colour Call Accessories

Cat. No. Description

55024 Colour Call 24 unit Power supply,

230V, (up to 24 CC1 or 12 CC2), with 1m (3.3') 24V power cable (PSU to splitter box).

55025 Colour Call 24 unit Power supply,

115V, (up to 24 CC1 or 12 CC2), with 1m (3.3') 24V power cable (PSU to splitter box).

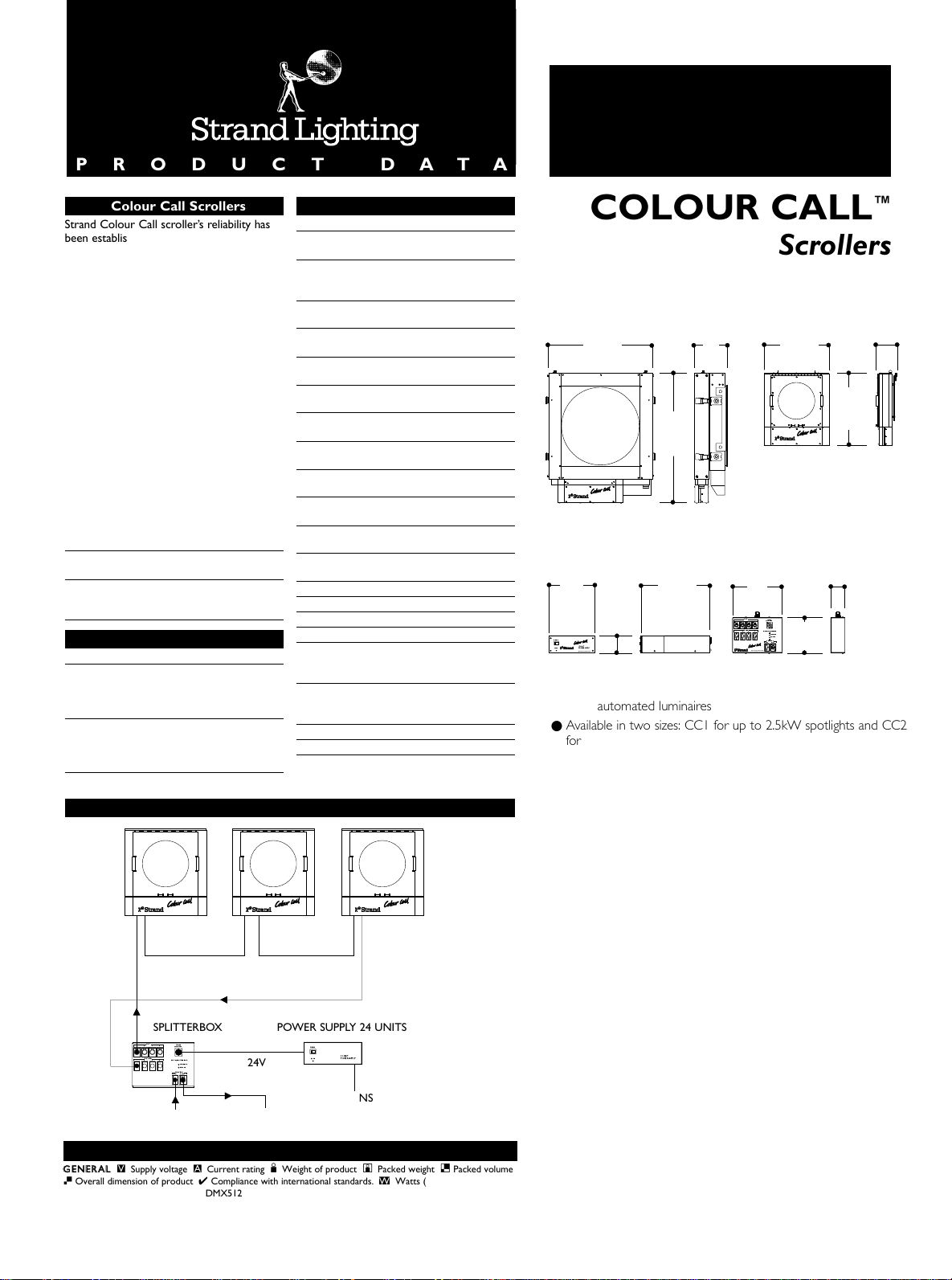

Typical Colour Call Schematic

RETURN FROM LAST SCROLLER

OUT

POWER

1234

24 VOLTS DC

RETURN

1234

DIGITAL SPLITTER BOX

POWER OK

DATA OK

CONTROL

INPUT OUTPUT

DMX FROM

CONSOLE

A GUIDE TO SYMBOLS AND ABBREVIATIONS

GENERAL

O Overall dimension of product s Compliance with international standards. W Watts (maximum recommended) Y DMX: USITT DMX512 PALS: For PALS automated lighting and Colour Call scrollers. PSU Power Supply Unit SELV Safe Extra Low Voltage IP International Production Standard

VSupply voltage A Current rating w Weight of product p Packed weight P Packed volume

24V

DMX OUT TO

OTHER UNITS

Colour Call Accessories Cont.

Cat. No. Description

55030 Digital splitter box, Colour Call

55050 Data/power cable, un-terminated,

55103 Data/power cable, Colour Call,

55105 Data/power cable, Colour Call,

55110 Data/power cable, Colour Call,

55115 Data/power cable, Colour Call,

55120 Data/power cable, Colour Call,

55125 Data/power cable, Colour Call,

55124 24V Colour Call power cable,

55031 Additional CC1 backplate to fit

55041 Additional CC1 backplate to fit

55051 CC1 backplate to fit parcans, and

55061 CC1 backplate to fit Leko 6" only 55052 CCI backplate to fit 8” Leko 55071 CCi backplate for Beamlite 500 55081 CCI backplate for Beamlite 1000 55101 Filter ‘gel’ string for CC1

55102 Filter ‘gel’ string for CC2

55199 Gel Templates, Colour Call CC1 55150 Heat resistant sticky tape

MAXIMUM 12

UNITS/OUTPUT

POWER SUPPLY 24 UNITSSPLITTERBOX

(max 24 CC1 N12 CC2)

per metre, Colour Call (‘daisy-chain’ cable), min. qty 100

3m (10') (‘daisy-chain’ cable)

5m (16.5') (‘daisy-chain’ cable)

10m (33') (‘daisy-chain’ cable)

15m (50') (‘daisy-chain’ cable)

20m (66') (‘daisy-chain’ cable)

25m (82.5') (‘daisy-chain’ cable)

5m (16.5') (PSU to splitter box)

Cantata, Leko 6"

Alto, Toccata

Leko 10"

(ChromaGel: 24, 68, 43, 95, 21, 61, 54, 09, 07, 05, 00)

Digital System

MAINS

24 UNIT POWER SUPPLY

24V OK

MAINS

EFFECTS LIGHTING

COLOUR CALL

™

Scrollers

Colour Call CC2 2/5 kW Unit

483mm

(19")

152mm

(6")

602 mm

(23.6")

Power Supply Unit Digital Splitter Box

210mm

(8.3")

80mm

MAINS

24V OK

(3.2")

12 UNIT POWER SUPPLY

Made for Strand Lighting in Sweden by Camelont

● Independent colour scroller units for use with spotlights or

PALS automated luminaires

● Available in two sizes: CC1 for up to 2.5kW spotlights and CC2

for 2kW to 5kW studio Fresnels

● Quiet operation with two speed fan selection for extended

filter life or ultra quiet mode

● Variable scroll length of colour filter, up to 16 frames

● Universal digital DMX 512 control for connection to most

lighting control desks

● Simple removal of filter scrolls for interchange and replacement

● Local control to send gel string to beginning or end frame to

check filter scroll and for additional ease of replacement

● Fast scroll speed of up to 11 frames in 1 second

● Colour change immediately responds to fader position

● Stepless slow fades up to 4 minutes possible with the PALS

protocol

● Compatible with GSX, LBX, Strand 430/530 consoles

● Direct drive scroll position sensor avoiding need for scroll length

detection on power up

● Safe low voltage 24V dc operation

● Rugged XLR 5 pin control connection system

● Accessory holder for diffusion filter or barndoor attachment

● Can be used in self-contained autocycle mode (bounce chase

and bounce chase with delay between frames) without the need for a control desk

● Colour Call, CC1 supplied with two backplates for use with 6”

and 8” Leko™, Cantata™, Alto™, Toccata™ and most Parcans

● Colour Call, CC2 provided with four adjustable brackets that

can be accepted by most studio fresnels

320mm

(12.5")

Colour Call CC1 1kW Par Size Unit

305mm

(11.9")

228mm

(9")

OUT

POWER

1234

24 VOLTS DC

RETURN

1234

DIGITAL SPLITTER BOX

168mm

POWER OK

DATA OK

CONTROL

INPUT OUTPUT

(6.6")

Made for Strand Lighting in Sweden by Camelont

88mm

(3.4")

335 mm

(13")

65mm

(2.5")

Page 2

Electrical Data

Power Supply Unit 24 Unit Nominal input 230V

Voltage Input Voltage ±15%

Variation Current 2.5Amp

Consumption Output Voltage 24Vdc

Splitter Box 24Vdc Input Voltage

Current 0.1Amp Consumption

Scrollers CC1 CC2 Input Voltage 24Vdc 24Vdc Current 0.3Amp. 0.7Amp (Incl Fan)

Consumption Control Input DMX512. Connected via a 5 pin XLR.

(Both) Indicators (LED) Both units are fitted with three LEDs to give a visual display of

correct operation. Red: 24Vdc power present. Green: Receipt of digital signal. Yellow: Level “mimic” of channel level.

Environmental Data

Max Operating 35°C (95°F). Ambient Temp

CC1 Scrolling Speed Max: 11 frames per second.

Number Of 2 to 16 frames. Calibrated at 11 frames. Colours

Back Plates Cantata size: 185mm x 185mm (7.3" x 7.3") (included) Cadenza size 245mm x 255mm (9.6" x 10.0")

CC2 Scrolling Speed Max: 11 frames in four seconds.

Number Of 2 to 16 frames. Calibrated at 11 frames. Colours

Suitable Castor, Pollux, Pollux Bambino. Luminaires

Set Up & Control The splitter box receives the DMX512 signal from

Operational Data

Min: Fade time determined by control board.

Backplates also available to fit most Strand luminaires

Min: Fade time determined by control board.

the control desk. This is distributed, along with 24V dc power to four ‘daisy-chain’ scroller loops. Each ‘loop’ allows for a maximum of 12 scroller units. The splitter box optically isolates each scroller loop from its neighbour and from the control desk. Each daisy-chain loop should be returned to the splitter box as this distributes 24 volts of dc power in a ring formation, as well as terminating the DMX512 line correctly. Control may be achieved using DMX512 from most standard lighting consoles.

IP Rating IP20.

Mechanical Data

Mounting Backplates are supplied to fit most luminaires. See Colour Call

Accessories section for details.

Weights and Dimensions

CC1 335mm (13.1") 305mm (12.0") 88mm (3.46") CC1 (Packed) 390mm (15.35") 320mm (12.59") 100mm (3.93") CC2 520mm (20.4") 580mm (22.8") 100mm (3.93") CC2 (Packed) 850 mm (33.46") 550mm (21.6") 250mm (9.84") Digital splitter 168mm (6.6") 246mm (9.6") 60mm (2.4") PSUs 215mm (8.5") 330mm (13.0") 85mm (3.4")

Weights Unpacked Packed CC1 2.0kg (4.4lb) 2.5kg (5.5lb)

CC2 5.0kg (11.0lb) 6.0kg (13.2lb) Digital splitter 2.2kg (5.0lb) 2.7kg (6.0lb) PSUs 3.8kg (8.4lb) 4.2kg (9.3lb)

London: Strand Lighting Ltd, Grant Way, Isleworth, Middlesex, TW7 5QD, United Kingdom.

Wolfenbüttel: Strand Lighting GmbH, Salzbergstraße 2, 38302 Wolfenbüttel, Germany.

Rome: Strand Lighting Srl, Via delle Gardenie 33, Pontina Vecchia Km 33,400,

Brussels: Strand Lighting Ltd, Chaussée de Haecht 1801, 1130 Bruxelles, Belgium

Stockholm: Strand Lighting Ltd, Box 20105, Tappvägen 24, 161 02 Bromma, Sweden

ALSO FACILITIES IN: LOS ANGELES • NEW YORK • HONG KONG • MILANO • MUNICH • BERLIN

Tel: +44 (0)181 560 3171 Fax: +44 (0)181 568 2103

Tel: +49 (0) 5331 3008-8 Fax: +49 (0) 5331 78883

00040 Pomezia-Roma, Italy Tel: +39 (0) 6 914 7123 Fax: +39 (0) 6 914 7136

Tel: +32 (0) 2 245 8686 Fax: +32 (0) 2 245 2235

Tel: +46 (0) 8 799 6950 Fax: +46 (0) 8 799 6954

Height Width Depth

The Company reserves the right to make any variation in design or construction to the equipment described. © Strand Lighting Ltd 1995. Strand™, Strand Lighting™ and Colour Call™ are trade marks of Strand Lighting Limited. Strand Lighting is a company within the Film & Television Division of The Rank Organisation Plc, United Kingdom Country of origin Sweden.
