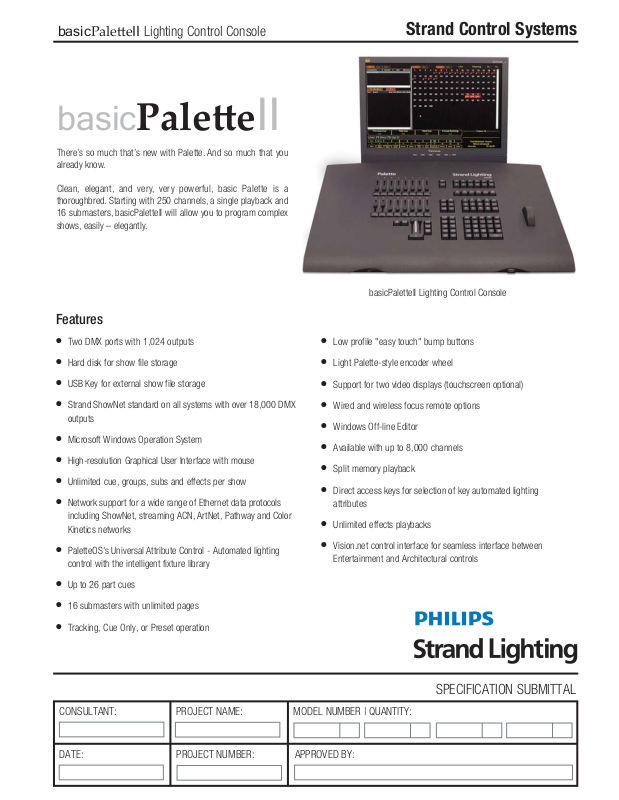

basicPaleeII Lighting Control Console
basicPaleeII
There’s so much that’s new with Palette. And so much that you
already know.
Clean, elegant, and very, very powerful, basic Palette is a
thoroughbred. Starting with 250 channels, a single playback and
16 submasters, basicPaletteII will allow you to program complex
shows, easily – elegantly.
Features
Strand Control Systems
basicPaletteII Lighting Control Console
●
Two DMX ports with 1,024 outputs
●
Hard disk for show file storage
●
USB Key for external show file storage
●
Strand ShowNet standard on all systems with over 18,000 DMX
outputs
●
Microsoft Windows Operation System
●
High-resolution Graphical User Interface with mouse
●
Unlimited cue, groups, subs and effects per show
●
Network support for a wide range of Ethernet data protocols
including ShowNet, streaming ACN, ArtNet, Pathway and Color
Kinetics networks
●
PaletteOS's Universal Attribute Control - Automated lighting
control with the intelligent fixture library
●
Up to 26 part cues
●
16 submasters with unlimited pages
●
Tracking, Cue Only, or Preset operation
●
Low profile "easy touch" bump buttons
●
Light Palette-style encoder wheel
●
Support for two video displays (touchscreen optional)
●
Wired and wireless focus remote options
●
Windows Off-line Editor
●
Available with up to 8,000 channels
●
Split memory playback
●
Direct access keys for selection of key automated lighting
attributes
●
Unlimited effects playbacks
●
Vision.net control interface for seamless interface between
Entertainment and Architectural controls
CONSULTANT: PROJECT NAME:
DATE:
PROJECT NUMBER:
SPECIFICATION SUBMITTAL
MODEL NUMBER | QUANTITY:
APPROVED BY:
Page 2
basicPaleeII Lighting Control Console
Introduction
Strand Control Systems
Strand's new Palette consoles build on the most successful lighting
control operating system to bring you PaletteOS, a high-resolution
point/click graphical environment to unleash your creativity and speed
up workflow. PaletteOS harnesses the power of Windows to provide a
familiar, user-friendly environment for either the console or the
Off-Line Editor.
basicPaletteII is powerful - with up to 8,000 channels of control and
amazing automatic focus group controls that will slash your
programming time. Palette has a powerful web browser that lets you
configure and monitor your network and interact directly with Strand's
Power Input Processor DMX512 Out (XLR-5M)
25.2 in
(640.1 mm)
award-winning C21 dimming systems. Right there on the console
screen. And Palette is an elegant and highly functional lighting
console, leveraging industry-standard technologies to make it robust
and future-safe.
Palette's brain is a rugged independent PC that can be swapped in
seconds. Palette has a generous 100GB hard drive, or you can save
your shows anywhere on the network. You even get a shiny new USB
key for show storage. Oh, and you can even convert your old 300 /
500 series show files so that no one gets left behind.
4.5 in
(114.3 mm)
92800 Basic Palette II Memory Console
with 250 Channels, 16 Submasters
18.2 in
(462.3 mm)
Page 3
basicPaleeII Lighting Control Console
Strand Control Systems
Technical Specifications
Electrical
Supply Voltage: Universal power supply 90-240V
Approvals: ETL listed and CE marked
Mechanical
Construction: Galvanized sheet steel and aluminum
extrusion and Flame retardant ABS
controls
Operating Temperature: 0° to 40°C ambient (32° to 104°F)
Humidity: 5% - 95% non-condensing
Storage Temperature: -40° to 70°C (-40° to 158°F)
Weight: 23.8 lbs (10.8 kgs)
Dimensions (LxWxH): 18.2 x 25.2 x 4.5 in
462.3 x 640.1 x 114.3 mm
Ordering Information
Connectivity
1 Ethernet (RJ45) port, Strand ShowNet compatible
2 USB ports (rear)
1 USB port (front)
2 VGA monitor outputs (monitors not included)
1 Serial port
2 DMX512 (XLR5) ports
Cat. No. Description
basicPaletteII Console
92800 Palette II 250 Channel Basic Console*
92800-NC Palette II Basic Console* - No Channels
Includes: *All consoles include Palette keyboard, mouse, dust
cover, USB key, power cord and printed installation
guide. Monitors not included.
Peripheral Equipment - Software
67509 50 Additional Channels with a NEW Console Purchase
67510 50 Additional Channels for an EXISTING Console
Peripheral Equipment - Cables
95090 DMX-512 Control Cable 25’ (A5F to A5M)
96456 Ethernet cable 10’ 10/100BaseT (RJ-45)
96459 Ethernet cable 25’ 10/100BaseT (RJ-45)
Accessories
66216 Palette Keyboard (additional)
67528 USB Key Drive (additional)
95220 20-inch Flat Panel Monitor
95712 17-inch Touch Screen Flat Panel monitor
Pocket Palette Wireless Kits
66149 Pocket Palette Networked Kit (includes remote,
controller switch, and (2) access ports
66150 Pocket Palette Standalone Kit (includes remote and
wireless access point)
Page 4
basicPaleeII Lighting Control Console
Strand Control Systems
- This page intentionally left blank -
