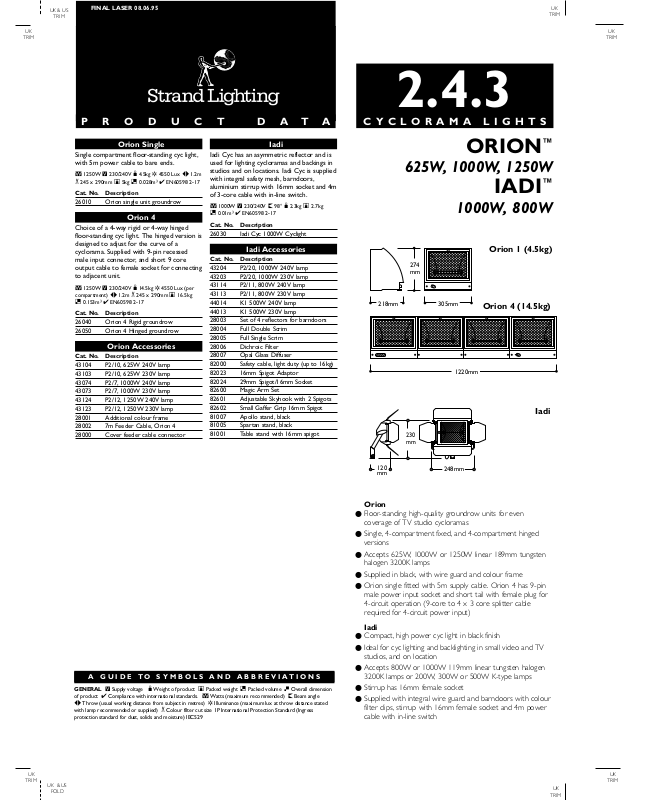

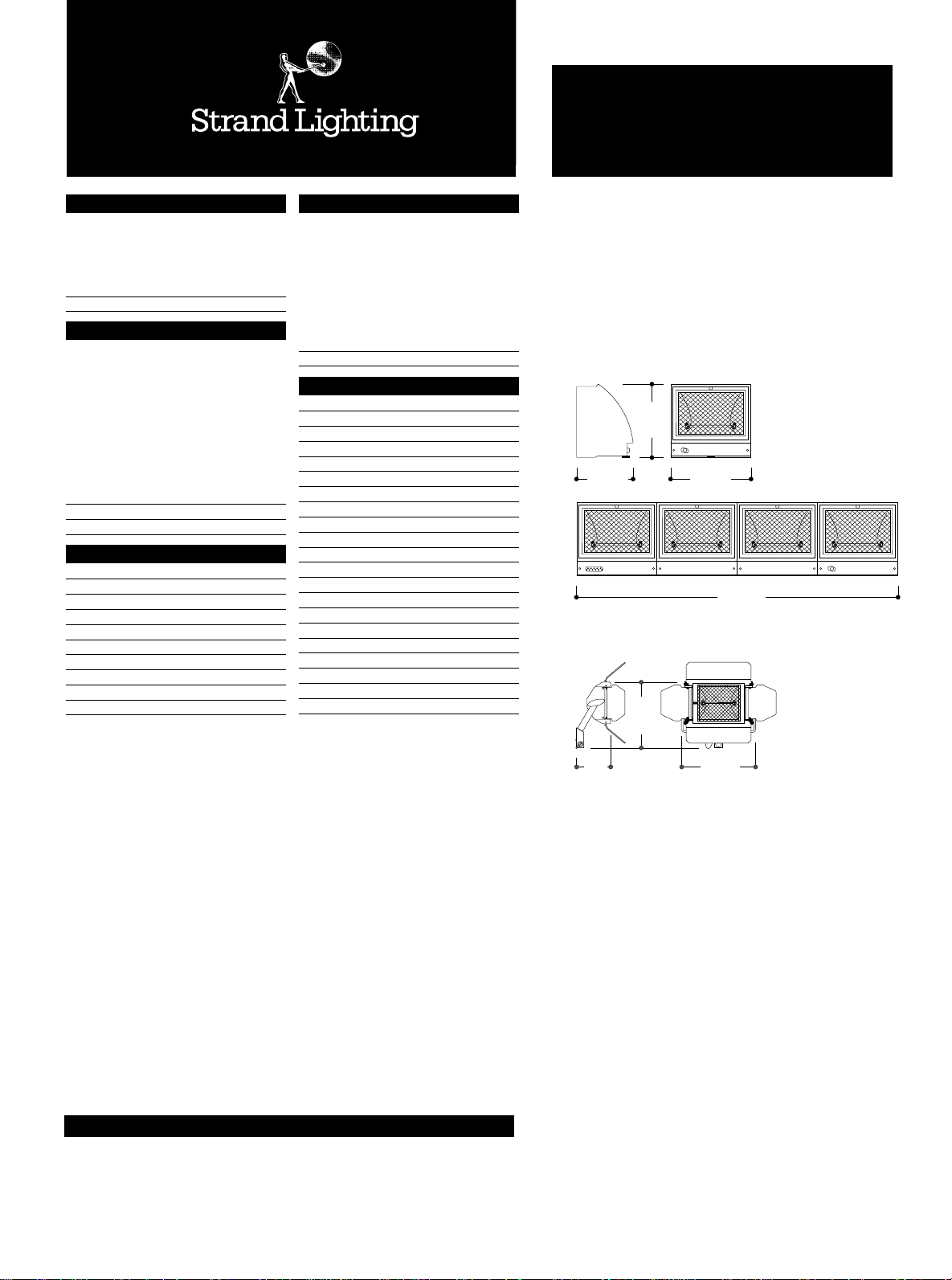

Page 1
2.4.3
PRODUCT DATA
Orion Single
Single compartment floor-standing cyc light,
with 5m power cable to bare ends.
¤ 1250W | 230/240V w 4.5kg Ÿ 4550 Lux fi 1.2m
‡ 245 x 290mm p 5kg P 0.028m
Cat. No. Description
26010 Orion single unit groundrow
¬
‚ EN60598 2-17
Orion 4
Choice of a 4-way rigid or 4-way hinged
floor-standing cyc light. The hinged version is
designed to adjust for the curve of a
cyclorama. Supplied with 9-pin recessed
male input connector, and short 9 core
output cable to female socket for connecting
to adjacent unit.
¤ 1250W | 230/240V w 14.5kg Ÿ 4550 Lux (per
compartment) fi 1.2m ‡ 245 x 290mm p 16.5kg
¬
P 0.153m
Cat. No. Description
26040 Orion 4 Rigid groundrow
26050 Orion 4 Hinged groundrow
‚ EN60598 2-17
Orion Accessories
Cat. No. Description
43104 P2/10, 625W 240V lamp
43103 P2/10, 625W 230V lamp
43074 P2/7, 1000W 240V lamp
43073 P2/7, 1000W 230V lamp
43124 P2/12, 1250W 240V lamp
43123 P2/12, 1250W 230V lamp
28001 Additional colour frame
28002 7m Feeder Cable, Orion 4
28000 Cover feeder cable connector
Iadi Cyc has an asymmetric reflector and is
used for lighting cycloramas and backings in
studios and on locations. Iadi Cyc is supplied
with integral safety mesh, barndoors,
aluminium stirrup with 16mm socket and 4m
of 3-core cable with in-line switch.
¤ 1000W | 230/240V ⁄ 98° w 2.3kg p 2.7kg
¬
‚ EN60598 2-17
P 0.01m
Cat. No. Description
26030 Iadi Cyc 1000W Cyclight
Cat. No. Description
43204 P2/20, 1000W 240V lamp
43203 P2/20, 1000W 230V lamp
43114 P2/11, 800W 240V lamp
43113 P2/11, 800W 230V lamp
44014 K1 500W 240V lamp
44013 K1 500W 230V lamp
28003 Set of 4 reflectors for barndoors
28004 Full Double Scrim
28005 Full Single Scrim
28006 Dichroic Filter
28007 Opal Glass Diffuser
82000 Safety cable, light duty (up to 16kg)
82023 16mm Spigot Adaptor
82024 29mm Spigot/16mm Socket
82600 Magic Arm Set
82601 Adjustable Skyhook with 2 Spigots
82602 Small Gaffer Grip 16mm Spigot
81007 Apollo stand, black
81005 Spartan stand, black
81001 Table stand with 16mm spigot
Iadi
Iadi Accessories
CYCLORAMA LIGHTS
ORION
™
625W, 1000W, 1250W
IADI
™
1000W, 800W
Orion 1 (4.5kg)
274
mm
218mm
230
mm
305mm
Orion 4 (14.5kg)
1220mm
Iadi
A GUIDE TO SYMBOLS AND ABBREVIATIONS
GENERAL | Supply voltage w Weight of product p Packed weight P Packed volume O Overall dimension
of product ‚ Compliance with international standards. ¤ Watts (maximum recommended) ⁄ Beam angle
fi Throw (usual working distance from subject in metres) Ÿ Illuminance (maximum lux at throw distance stated
with lamp recommended or supplied) ‡ Colour filter cut size IP International Protection Standard (Ingress
protection standard for dust, solids and moisture) IEC529
120
mm
248mm
Orion
● Floor-standing high-quality groundrow units for even
coverage of TV studio cycloramas
● Single, 4-compartment fixed, and 4-compartment hinged
versions
● Accepts 625W, 1000W or 1250W linear 189mm tungsten
halogen 3200K lamps
● Supplied in black, with wire guard and colour frame
● Orion single fitted with 5m supply cable. Orion 4 has 9-pin
male power input socket and short tail with female plug for
4-circuit operation (9-core to 4 x 3 core splitter cable
required for 4-circuit power input)
Iadi
● Compact, high power cyc light in black finish
● Ideal for cyc lighting and backlighting in small video and TV
studios, and on location
● Accepts 800W or 1000W 119mm linear tungsten halogen
3200K lamps or 200W, 300W or 500W K-type lamps
● Stirrup has 16mm female socket
● Supplied with integral wire guard and barndoors with colour
filter clips, stirrup with 16mm female socket and 4m power
cable with in-line switch
Page 2
PAGE 2 © Strand Lighting CYCLORAMA LIGHTS ORION & IADI VERSION 1.0
Photometric Data
Orion groundrows are designed to evenly illuminate a cyclorama and rely on the overlap
of light from adjacent compartments. They are intended to be placed 1.2m from the
bottom of the cyclorama with 1.2m spacing between each compartment of each colour
circuit. Orion groundrows can be used in conjunction with Iris top-lights to cover higher
cycloramas or to provide mixed colour washes
A guide to performance at different heights on the cyclorama is given below
Orion - P2/7 1000W lamp
Height from base 12345
or top of cyc (metres)
Lux 1900 1450 975 675 475
Iadi - P2/20 1000W lamp**
Vertical Beam Angle 50°
Distance from cyc 1.2m
Height from base 12345
or top of cyc (metres)
Lux 1900 1450 975 675 475
**Based on overlapping units on 1.2m lateral spacing
Lamp Data
Specify lamps for replacement to the following specifications and indicate voltage
Watts 625W 1000W 1250W 500W 800W 1000W
Designation P2/10 P2/7 P2/12 K1 P2/11 P2/20
Orion Iadi
Max Operating 45°C
Ambient Temp
IP Rating IP20
Tilt/Recommended Iadi: -45° to + 45°
angles of use
Paint/Finish Black powder coated epoxy paint.
Lamp House The housings are constructed of formed sheet steel
Reflector Asymmetric multi-curve reflectors of high reflectivity
Mounting Orion: Floor mounted.
Suspension Iadi: Aluminium stirrup with 16mm socket.
Weight 4.5kg 2.3kg
Depth 218mm 119mm
Width 305mm 280mm
Height 247mm 228mm
Colour Frame Size Orion: 245 x 290mm.
Environmental Data
Mechanical Data
assembled with machine threaded screws and rivets
for high strength and light weight.
textured aluminium for smooth cyclorama
illumination.
Weights and Dimensions
Orion Iadi
Iadi: Integral barndoors with gel clips.
Base R7s R7s R7s R7s R7s R7s
Lumens 16900 26000 35000 9500 22000 25500
Lamp Length 189mm 189mm 189mm 119mm 119mm 119mm
Rated 200 200 200 2000 200 150
Life-Hours
Colour Temp 3200K 3200K 3200K 3200K 3200K 2900K
Lamp Access Through front of open face of fixture after colour
Pan Adjustment Iadi: 16mm socket with thumb screw locking.
Tilt Adjustment Iadi: Heat insulated lock handle.
Operational Data
frame and wireguard are removed.
Electrical Data
Supply Voltage 230/240V 50/60Hz
Max Lamp 1250W (Orion) 1000W (Iadi)
per compartment
Lamp Type/Base Orion: 189mm linear lamp R7s Iadi: 119mm linear lamp R7s
Power Cable Orion 1: Fitted with 5 metres 3 x 1.5mm
Orion 4: Fitted with flush fitting 9-pin male input socket and short
9 core x 1.5mm
2
cable fitted with moulded rubber clad female output
connector. Separate 9 core to 4 x 3 core splitter cable required for
connection to dimmer outlets. Wiring is designed for maximum
25 amps loading.
Iadi: Fitted with 4 metres of 3 x 1.5mm
switch.
Standards EN60 598 2-17.
Compliance
2
cable.
2
with double pole in-line
