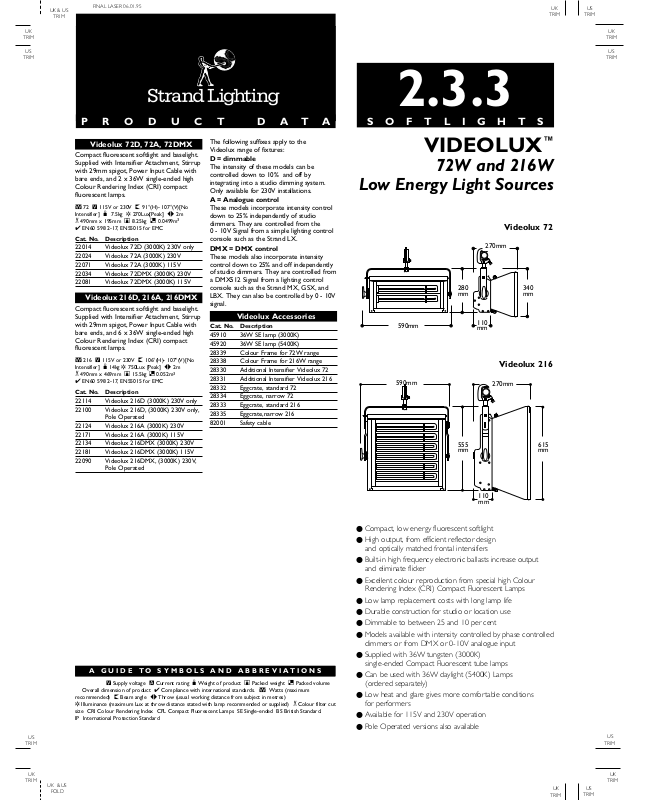

Strand 2.3.3 Videolux Datasheet

2.3.3

PRODUCT DATA

Videolux 72D, 72A, 72DMX

Compact fluorescent softlight and baselight.
Supplied with Intensifier Attachment, Stirrup
with 29mm spigot, Power Input Cable with
bare ends, and 2 x 36W single-ended high
Colour Rendering Index (CRI) compact
fluorescent lamps.

¤ 72 | 115V or 230V ⁄ 91°(H)- 107°(V)[No
Intensifier] ª 7.5kg Ÿ 270Lux[Peak] fi 2m
‡ 490mm x 195mm ¶ 8.25kg ı 0.0499m
‚ EN60 598 2-17, EN55015 for EMC

Cat. No. Description

22014 Videolux 72D (3000K) 230V only
22024 Videolux 72A (3000K) 230V
22071 Videolux 72A (3000K) 115V
22034 Videolux 72DMX (3000K) 230V
22081 Videolux 72DMX (3000K) 115V

3

Videolux 216D, 216A, 216DMX

Compact fluorescent softlight and baselight.
Supplied with Intensifier Attachment, Stirrup
with 29mm spigot, Power Input Cable with
bare ends, and 6 x 36W single-ended high
Colour Rendering Index (CRI) compact
fluorescent lamps.

¤ 216 | 115V or 230V ⁄ 106°(H)- 107°(V)[No
Intensifier] ª 14kg Ÿ 750Lux [Peak] fi 2m
‡ 490mm x 469mm ¶ 15.5kg ı 0.052m
‚ EN60 598 2-17, EN55015 for EMC

Cat. No. Description

22114 Videolux 216D (3000K) 230V only
22100 Videolux 216D, (3000K) 230V only,

22124 Videolux 216A (3000K) 230V
22171 Videolux 216A (3000K) 115V
22134 Videolux 216DMX (3000K) 230V
22181 Videolux 216DMX (3000K) 115V
22090 Videolux 216DMX, (3000K) 230V,

Pole Operated

Pole Operated

3

The following suffixes apply to the
Videolux range of fixtures:

D = dimmable

The intensity of these models can be
controlled down to 10% and off by
integrating into a studio dimming system.
Only available for 230V installations.

A = Analogue control

These models incorporate intensity control
down to 25% independently of studio
dimmers. They are controlled from the
0 - 10V Signal from a simple lighting control
console such as the Strand LX.

DMX = DMX control

These models also incorporate intensity
control down to 25% and off independently
of studio dimmers. They are controlled from
a DMX512 Signal from a lighting control
console such as the Strand MX, GSX, and
LBX. They can also be controlled by 0 - 10V
signal.

Videolux Accessories

Cat. No. Description

45910 36W SE lamp (3000K)
45920 36W SE lamp (5400K)
28339 Colour Frame for 72W range
28338 Colour Frame for 216W range
28330 Additional Intensifier Videolux 72
28331 Additional Intensifier Videolux 216
28332 Eggcrate, standard 72
28334 Eggcrate, narrow 72
28333 Eggcrate, standard 216
28335 Eggcrate,narrow 216
82001 Safety cable

SOFTLIGHTS

VIDEOLUX

™

72W and 216W

Low Energy Light Sources

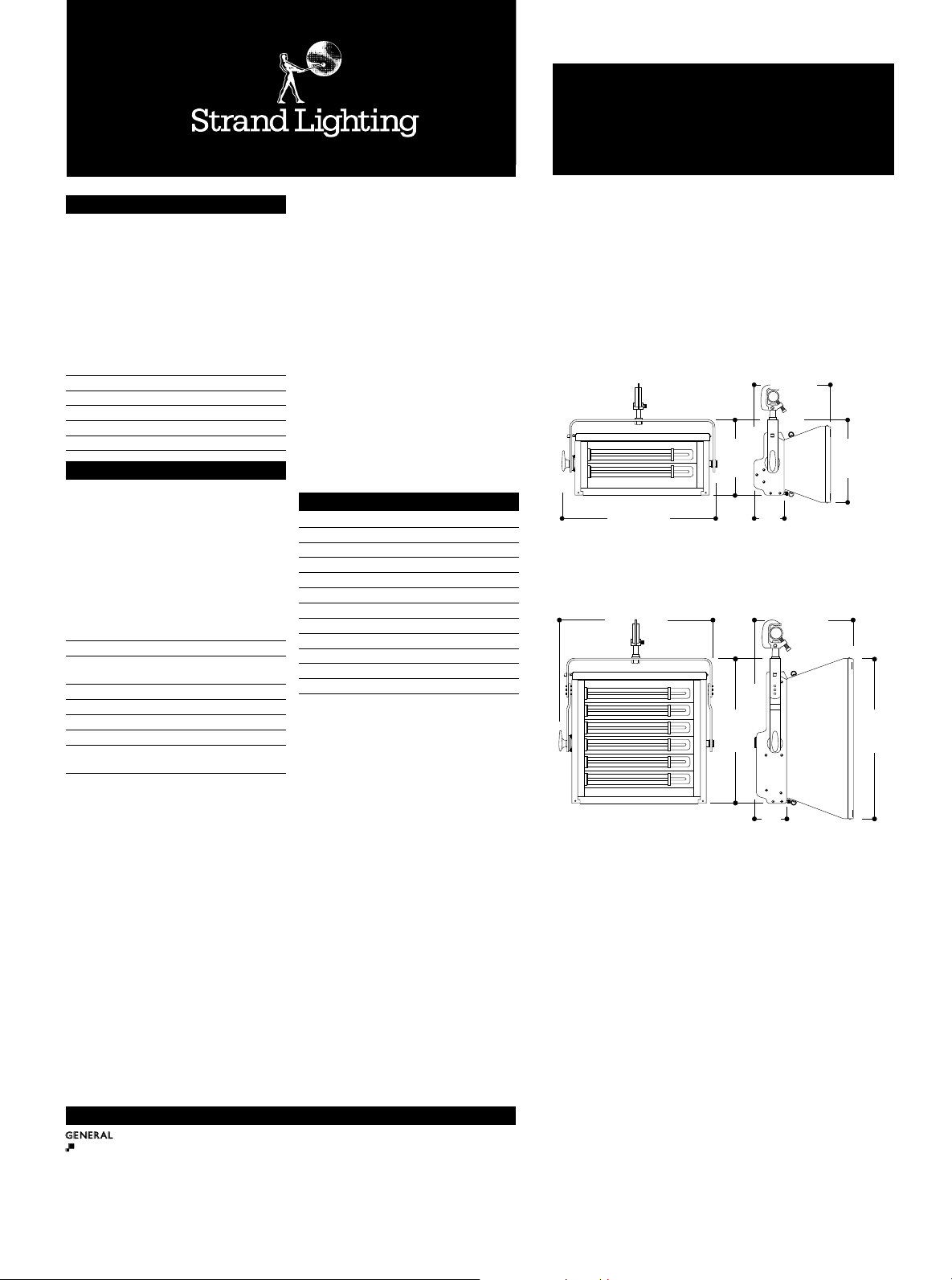

Videolux 72

270mm

340
mm

Videolux 216

615
mm

590mm

590mm

280
mm

555
mm

110
mm

270mm

A GUIDE TO SYMBOLS AND ABBREVIATIONS

GENERAL

O

recommended) ⁄ Beam angle fi Throw (usual working distance from subject in metres)
Ÿ Illuminance (maximum Lux at throw distance stated with lamp recommended or supplied) ‡ Colour filter cut
size CRI Colour Rendering Index CFL Compact Fluorescent Lamps SE Single-ended BS British Standard.
IP International Protection Standard

| Supply voltage º Current rating w Weight of product p Packed weight P Packed volume

Overall dimension of product ‚ Compliance with international standards. ¤ Watts (maximum

110
mm

● Compact, low energy fluorescent softlight

● High output, from efficient reflector design

and optically matched frontal intensifiers

● Built-in high frequency electronic ballasts increase output

and eliminate flicker

● Excellent colour reproduction from special high Colour

Rendering Index (CRI) Compact Fluorescent Lamps

● Low lamp replacement costs with long lamp life

● Durable construction for studio or location use

● Dimmable to between 25 and 10 per cent

● Models available with intensity controlled by phase controlled

dimmers or from DMX or 0-10V analogue input

● Supplied with 36W tungsten (3000K)

single-ended Compact Fluorescent tube lamps

● Can be used with 36W daylight (5400K) Lamps

(ordered separately)

● Low heat and glare gives more comfortable conditions

for performers

● Available for 115V and 230V operation

● Pole Operated versions also available

PAGE 2 © Strand Lighting VIDEOLUX 72W and 216W VERSION 1.0

Photometric data

Videolux 72

With intensifier Beam Angle (50% Peak) 57°(Vert) 75°(Horiz)

Throw (metres) 1234
Lux 2070 510 230 129

Without intensifier Beam Angle (50% Peak) 91°(Vert ) 107°(Horiz)

Throw (metres) 1234
Lux 1080 270 120 67.5

Supply Voltage 115V or 230V +/- 10%
Max Lamp Watts 36W per socket
Lamp Type/Socket 2G 11 (4-pin)
Ballast 36W High Frequency Electronic Ballast

Electrical Data

72DMX and 72A 230V - Single 2 x 36W
216DMX and 216A 230V - Three 2 x 36W
198V to 264V 50Hz operating voltage
Continuous dimming from 100% to 25% of light
output.

72DMX and 72A 115V - Single 3 x 36W

Videolux 216

With intensifier Beam Angle (50% Peak) 72°(Vert) 74°(Horiz)

Throw (metres) 1234
Lux 5230 1315 585 325

Without intensifiern Beam Angle (50% Peak) 106°(Vert) 107°(Horiz)

Throw (metres) 1234
Lux 3000 750 335 187.5

Lamp Data

Specify lamps for replacement to the following specifications

Watts 36W
Designation High Colour Rendering Index (90+CRI) Lamps.

Single ended. Compact Fluorescent Tubes.

Base 2G 11 (4-pin)
Lumens 1900
Rated Life-Hours 7000
Colour Temperature 3000K tungsten or 5400K daylight

Supply Connections Fused and switched IEC 320 power input socket with

Control 72D and 216D: Control of these luminaires is through
Connections a studio dimming and control system by means of

Standards EN60 598 2-17
Compliance EN 55015

216DMX and 216A 115V - Two 3 x 36W
90V to 145V 60Hz operating voltage
Continuous dimming from 100% to 20% of light
output.

72DMX and 72D 230V (only) - Single 2 x 36W
216D 230V (only) - Three 2 x 36W
198V to 264V 50Hz operating voltage
Continuous dimming from 100% to 10% of light
output.

green neon indicator accepts a 10 (3m) detachable
power input cord with bare ends.
216A and 216DMX units have additional power output
socket for “daisychaining”. Up to 5 units at 115V or
10 units at 230V.

power input cables connected directly to the dimmer
output.
72A and 216A: Control by 3-pin XLR in-put socket for
+ 0 ± 10V signal. A three position switch provides for:
Full-on, Nominal 50%, and Control Signal operation,
(or 25% output when no control input connected).
72DMX and 216DMX: 5-pin XLR in and out
connectors for DMX512 signal. DIL switches to select
luminaire address.
Edge wheel for local control of intensity when DMX
not engaged. Separate 3 - pin XLR for alternative
connection to 0 - 10V analog control signal.
Programmable to set maximum and minimum
light levels.

The Company reserves the right to make any variation in design or construction to the equipment described.
© Strand Lighting Ltd 1995. Strand™, Strand Lighting™ and Videolux™ are trade marks of
Strand Lighting Limited and Strand Lighting Inc. Strand Lighting is a company within the Film & Television
Division of The Rank Organisation Plc, United Kingdom. Country of origin United Kingdom.

London: Strand Lighting Ltd, Grant Way, Isleworth, Middlesex, TW7 5QD, United Kingdom.

Wolfenbüttel: Strand Lighting GmbH, Salzbergstraße 2, 38302 Wolfenbüttel, Germany.

Rome: Strand Lighting Srl, Via delle Gardenie 33, Pontina Vecchia Km 33,400,

Brussels: Strand Lighting Ltd, Chaussée de Haecht 1801, 1130 Bruxelles, Belgium

Stockholm: Strand Lighting Ltd, Box 20105, Tappvägen 24, 161 02 Bromma, Sweden

ALSO
FACILITIES IN: LOS ANGELES • NEW YORK • HONG KONG • MILANO • MUNICH • BERLIN

© Copyright Strand Lighting Limited November 1995

Tel: [phone] Fax: [phone]

Tel: [phone] Fax: [phone]

00040 Pomezia-Roma, Italy
Tel: [phone] Fax: [phone]

Tel: [phone] Fax: [phone]

Tel: [phone] Fax: [phone]

Environmental Data

Max Operating 31°C
Ambient Temp
IP Rating IP20.
Tilt/Recommended 90°- 0 -90°
Angles of Use

Mechanical Data

Paint/Finish Powder coated epoxy grey.
Lamp House Formed and extruded aluminium.
Reflector High reflectivity polished and anodised aluminium,

Intensifier Four leaf high reflectivity aluminium intensifier is

Mounting/ Aluminium stirrup assembly with 29mm spigot for stand
Suspension mounting. 216W unit is fitted with an articulated

Lamp Access Through front of luminaire. Lamps are retained by

specially formed to ensure smooth distribution from
CFL lamps. 72W units have specially selected textured
reflector to ensure smooth distribution.

detachable and folds flat for storage in carrying case.

(cranked) stirrup to enable mounting in a variety of
positions from a studio suspension system to a stand.
The 72W unit has a fixed stirrup. However a spigot can
be mounted on the side to give flexibility in rigging
the unit.

custom designed quick release clips.

Weights and Dimensions

Without Intensifier 72W 216W
Weight 7.2kg 14kg
Depth 110mm 110mm
Width 590mm 590mm
Height 280mm 555mm

With Intensifier 72W 216W
Weight 8kg 15kg
Depth 270mm 270mm
Width 620mm 620mm
Height 340mm 615mm

Colour Frame Size 490mm x 195mm 490mm x 469mm
