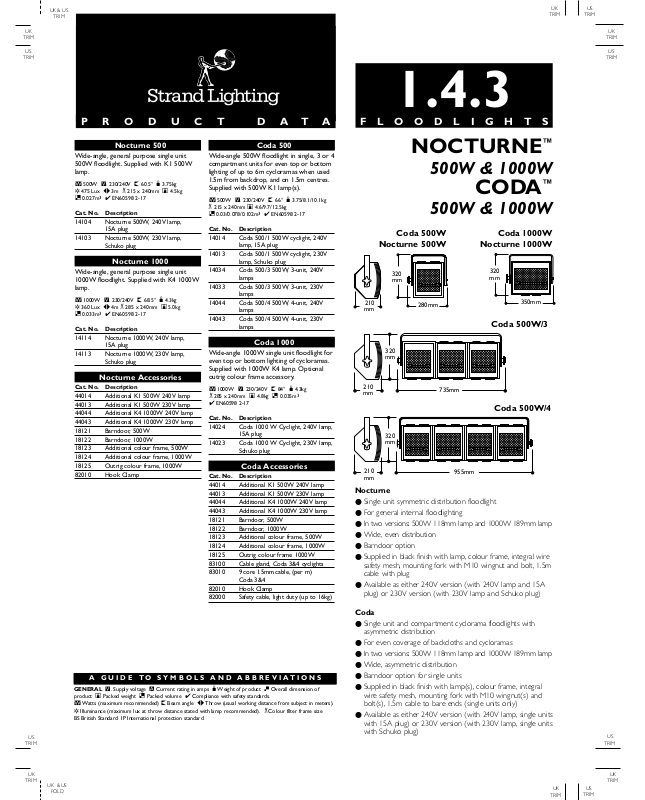

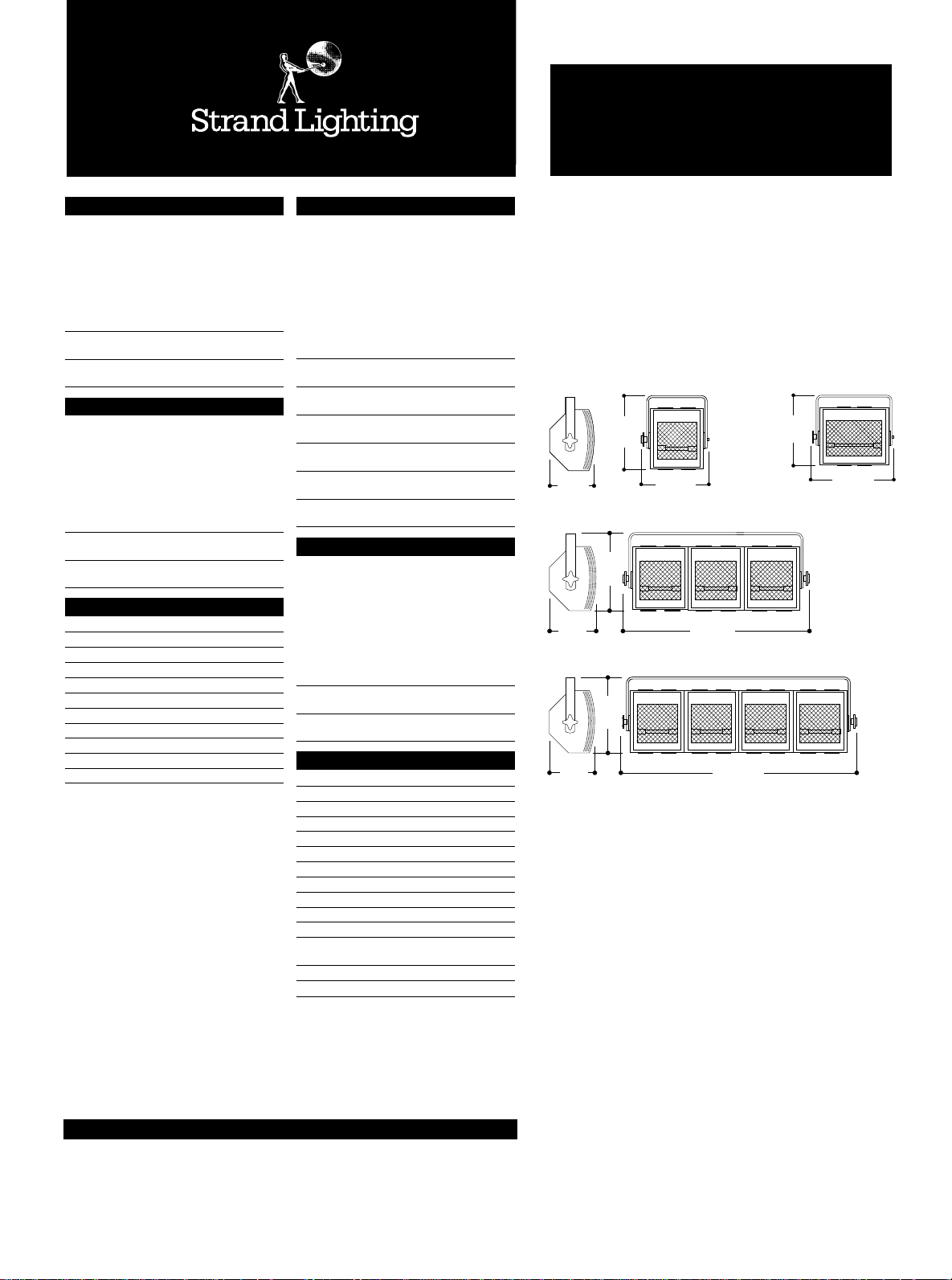

Page 1

1.4.3

PRODUCT DATA

Nocturne 500

Wide-angle, general purpose single unit 500W floodlight. Supplied with K1 500W lamp.

¤ 500W |. 230/240V ⁄ 60.5° w 3.75kg Ÿ 475 Lux ﬁ 3m ‡ 215 x 240mm p 4.5kg P 0.027m¬ ‚ EN60598 2-17

Cat. No. Description

14104 Nocturne 500W, 240V lamp,

14103 Nocturne 500W, 230V lamp,

15A plug

Schuko plug

Wide-angle 500W floodlight in single, 3 or 4 compartment units for even top or bottom lighting of up to 6m cycloramas when used

1.5m from backdrop, and on 1.5m centres. Supplied with 500W K1 lamp(s).

¤ 500W |. 230/240V ⁄ 66° w 3.75/8.1/10.1kg ‡ 215 x 240mm p 4.6/9.7/12.5kg P 0.03/0.078/0.102m¬ ‚ EN60598 2-17

Cat. No. Description

14014 Coda 500/1 500W cyclight, 240V

14013 Coda 500/1 500W cyclight, 230V

Nocturne 1000

Wide-angle, general purpose single unit 1000W floodlight. Supplied with K4 1000W lamp.

¤ 1000W |. 230/240V ⁄ 68.5° w 4.3kg Ÿ 360 Lux ﬁ 4m ‡ 285 x 240mm p 5.0kg P 0.033m¬ ‚ EN60598 2-17

Cat. No. Description

14114 Nocturne 1000W, 240V lamp,

14113 Nocturne 1000W, 230V lamp,

15A plug

Schuko plug

Nocturne Accessories

Cat. No. Description

44014 Additional K1 500W 240V lamp 44013 Additional K1 500W 230V lamp 44044 Additional K4 1000W 240V lamp 44043 Additional K4 1000W 230V lamp 18121 Barndoor, 500W 18122 Barndoor, 1000W 18123 Additional colour frame, 500W 18124 Additional colour frame, 1000W 18125 Outrig colour frame, 1000W 82010 Hook Clamp

A GUIDE TO SYMBOLS AND ABBREVIATIONS

GENERAL |. Supply voltage º Current rating in amps w Weight of product O Overall dimension of

product p Packed weight P Packed volume ‚ Compliance with safety standards. ¤ Watts (maximum recommended) ⁄ Beam angle ﬁ Throw (usual working distance from subject in meters). Ÿ Illuminance (maximum lux at throw distance stated with lamp recommended). ‡ Colour filter frame size BS British Standard IP International protection standard

14034 Coda 500/3 500W, 3-unit, 240V

14033 Coda 500/3 500W, 3-unit, 230V

14044 Coda 500/4 500W, 4-unit, 240V

14043 Coda 500/4 500W, 4-unit, 230V

Wide-angle 1000W single unit floodlight for even top or bottom lighting of cycloramas. Supplied with 1000W K4 lamp. Optional outrig colour frame accessory.

¤ 1000W |. 230/240V ⁄ 84° w 4.3kg ‡ 285 x 240mm p 4.8kg P 0.035m¬ ‚ EN60598 2-17

Cat. No. Description

14024 Coda 1000 W Cyclight, 240V lamp,

14023 Coda 1000 W Cyclight, 230V lamp,

Cat. No. Description

82010 Hook Clamp 82000 Safety cable, light duty (up to 16kg)

Coda 500

lamp, 15A plug

lamp, Schuko plug

lamps

Coda 1000

15A plug

Schuko plug

Coda Accessories

Coda 3&4

FLOODLIGHTS

NOCTURNE

™

500W & 1000W

CODA

™

500W & 1000W

Coda 500W

Nocturne 500W

320 mm

210 mm

320 mm

210 mm

320 mm

210 mm

Nocturne

● Single unit symmetric distribution floodlight

● For general internal floodlighting

● In two versions: 500W 118mm lamp and 1000W 189mm lamp

● Wide, even distribution

● Barndoor option

● Supplied in black finish with lamp, colour frame, integral wire

safety mesh, mounting fork with M10 wingnut and bolt, 1.5m cable with plug

● Available as either 240V version (with 240V lamp and 15A

plug) or 230V version (with 230V lamp and Schuko plug)

Coda

● Single unit and compartment cyclorama floodlights with

asymmetric distribution

● For even coverage of backcloths and cycloramas

● In two versions: 500W 118mm lamp and 1000W 189mm lamp

● Wide, asymmetric distribution

● Barndoor option for single units

● Supplied in black finish with lamp(s), colour frame, integral

wire safety mesh, mounting fork with M10 wingnut(s) and bolt(s), 1.5m cable to bare ends (single units only)

● Available as either 240V version (with 240V lamp, single units

with 15A plug) or 230V version (with 230V lamp, single units with Schuko plug)

280mm

735mm

955mm

Coda 1000W

Nocturne 1000W

320 mm

350mm

Coda 500W/3

Coda 500W/4

Page 2

PAGE 2 © Strand Lighting NOCTURNE & CODA 500W & 1000W VERSION 1.0

Photometric Data

Typical performance based on 500W K1 240V lamp (Nocturne and Coda 500) and 1000W K4 240V lamp (Nocturne and Coda 1000)

Peak Distribution Nocturne

Throw (metres) 123456 500W 4232 1028 470 264 169 117

Throw (metres) 123456 1000W 8297 2074 922 518 331 230

Spread (m) for Projected Throw in Metres Throw (metres) 12 34 5 6

500W 1.16 2.33 3.49 4.66 5.83 6.99 1000W 1.36 2.72 4.09 5.45 6.82 8.18

At 5.5m hanging. 45° angle. 1.5m from cyclorama on 1.5m centres Floor level 45° angle. 1.5m from cyclorama on 1.5m centres

Coda Cyc Height (metres) 12 3 45 6

500W 480 760 990 1000 1000 700

Cyc Height (metres) 12 3 45 6 1000W 2050 1760 1100 580 360 270

Peak Intensity,

Nocturne 500W 60.5 95.8 4232 Nocturne 1000W 68.6 99.5 8297

For performance at any distance divide candela by Distance For performance of Coda 1000W unit refer to your Strand Lighting dealer

/2 Peak and 1/10 Peak

/2 Pk

/10 Pk Pk. Candelas

Supply Voltage 230 or 240 volts 50/60 Hz Max Lamp Wattage As indicated by luminaire wattage. Lamp Type/Base K1 500W or K4 1000W R7s sockets. Cable/Connection 1.5m toughened silicone rubber sheathed cable,

Standards Designed to conform to EN 60-598 2-17 Compliance

Max Operating 45°C Ambient Temp

Maximum Surface 290°C Temperature

IP Rating IP20 Tilt/Recommended 75 °- 0 - 90°

Angles of Use

Paint/Finish High temperature stoved epoxy powder coat in

Lamp House Pressure diecast aluminium alloy end sections Construction common to all luminaires joined by machine

Mounting and Single units: Fork of aluminium alloy, reversible, Suspension with 70mm diameter friction disc and heat

Electrical Data

bare ends (Coda 500/3 & 500/4 are supplied. without cable, but with a cable gland at one end and a knockout at the other).

Environmental Data

Mechanical Data

black

threaded screws to pressed sheet steel housing. Anchorage provided for safety bond. Design allows for maximum heat dissipation assisted by convection ventilation.

insulated hand knob. Fork threaded and supplied

Lamp Data

Specify Strand lamps for replacement purposes to the following specifications

Volts 230V 240V 230V 240V Watts 500W 500W 1000W 1000W Designation K1 K1 K4 K4 Base R7s R7s R7s R7s Lamp Length 118mm 118mm 189mm 189mm Lumens 9500 9500 22000 22000 Rated Life-Hours 2000 2000 2000 2000 Colour Temp 2900K 2900K 3000K 3000K Cat. No. 44013 44014 44043 44044

Weight 3.75kg 4.3kg 3.75kg 8.1kg 10.1kg 4.3kg Length 210 210 210 210 210 210 Width 280 350 280 735 955 350

with M10 bolt, washer and wingnut Coda 500/3 & 500/4. Fitted with reversible ‘L’ forks, dual top suspension fork/groundrow tilt foot each with 70mm diameter friction disk and hand knob (Two hook clamps required for hanging unless swivel cross-bar is used).

Weights and Dimensions

Nocturne Nocturne Coda Coda Coda Coda 500 1000 500/1 500/3 500/4 1000

Height 320mm 320mm 320mm 320mm 320mm 320mm Packed Weight 4.5kg 5.0kg 4.5kg 9.2kg 11.5kg 5.0kg Packed Volume 0.027m30.033m30.027m30.073m30.095m30.033m

Filter Cut Size Nocturne & Coda 500, 500/3, 500/4: 214 x 240mm

Nocturne & Coda 1000: 285 x 240mm

Colour Runner Nocturne & Coda 500, 500/3, 500/4: 214 x 240mm

Nocturne & Coda 1000: 285 x 240mm

Colour Frame “Book-form” hinged with one edge serrated for top

or bottom ‘soft’ edge characteristics.

London: Strand Lighting Ltd, Grant Way, Isleworth, Middlesex, TW7 5QD, United Kingdom.

Wolfenbüttel: Strand Lighting GmbH, Salzbergstraße 2, 38302 Wolfenbüttel, Germany.

Rome: Strand Lighting Srl, Via delle Gardenie 33, Pontina Vecchia Km 33,400,

Brussels: Strand Lighting Ltd, Chaussée de Haecht 1801, 1130 Bruxelles, Belgium

Stockholm: Strand Lighting Ltd, Box 20105, Tappvägen 24, 161 02 Bromma, Sweden

ALSO FACILITIES IN: LOS ANGELES • NEW YORK • HONG KONG • MILANO • MUNICH • BERLIN

Tel: +44 (0)181 560 3171 Fax: +44 (0)181 568 2103

Tel: +49 (0) 5331 3008-8 Fax: +49 (0) 5331 78883

00040 Pomezia-Roma, Italy Tel: +39 (0) 6 914 7123 Fax: +39 (0) 6 914 7136

Tel: +32 (0) 2 245 8686 Fax: +32 (0) 2 245 2235

Tel: +46 (0) 8 799 6950 Fax: +46 (0) 8 799 6954

Optical System

Reflector Nocturne: Symmetrical textured anodised

aluminium. Coda: Asymmetrical textured anodised aluminium.

Operational Data

Lamp Access Through the front of each unit or compartment via

Beam Shaping On single units only, 4-leaf barndoors. Tilt Heat insulated hand knob on right side of luminaire. Pan Single units: M10 bolt through top of fork

The Company reserves the right to make any variation in design or construction to the equipment described. © Strand Lighting Ltd 1995. Strand™, Srand Lighting™, Coda™ and Nocturne™ are trade marks of Strand Lighting Limited. Strand Lighting is a company within the Film & Television Division of The Rank Organisation Plc, United Kingdom. Country of origin United Kingdom.

hinged wireguard with positive spring retention clip.

Multiple units: Swivel crossbar and M10 bolt.
