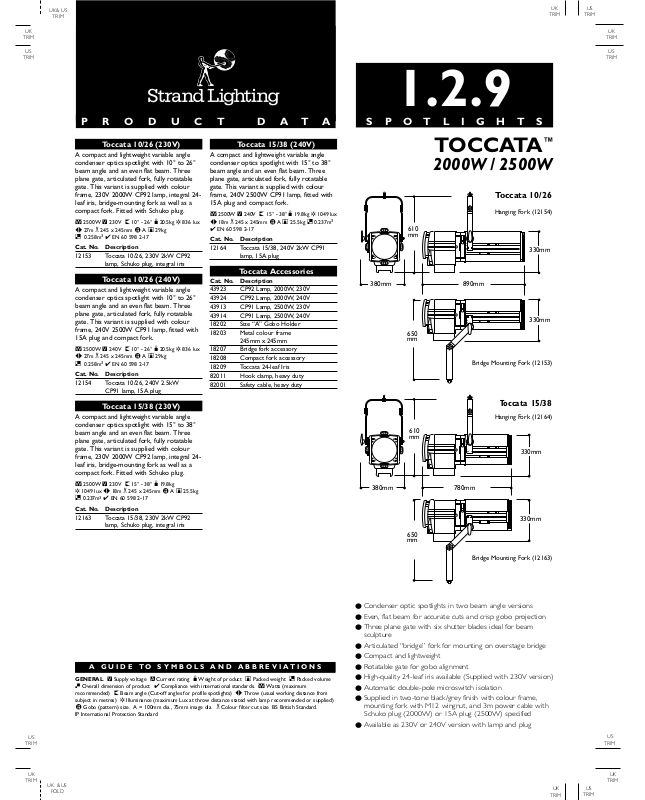

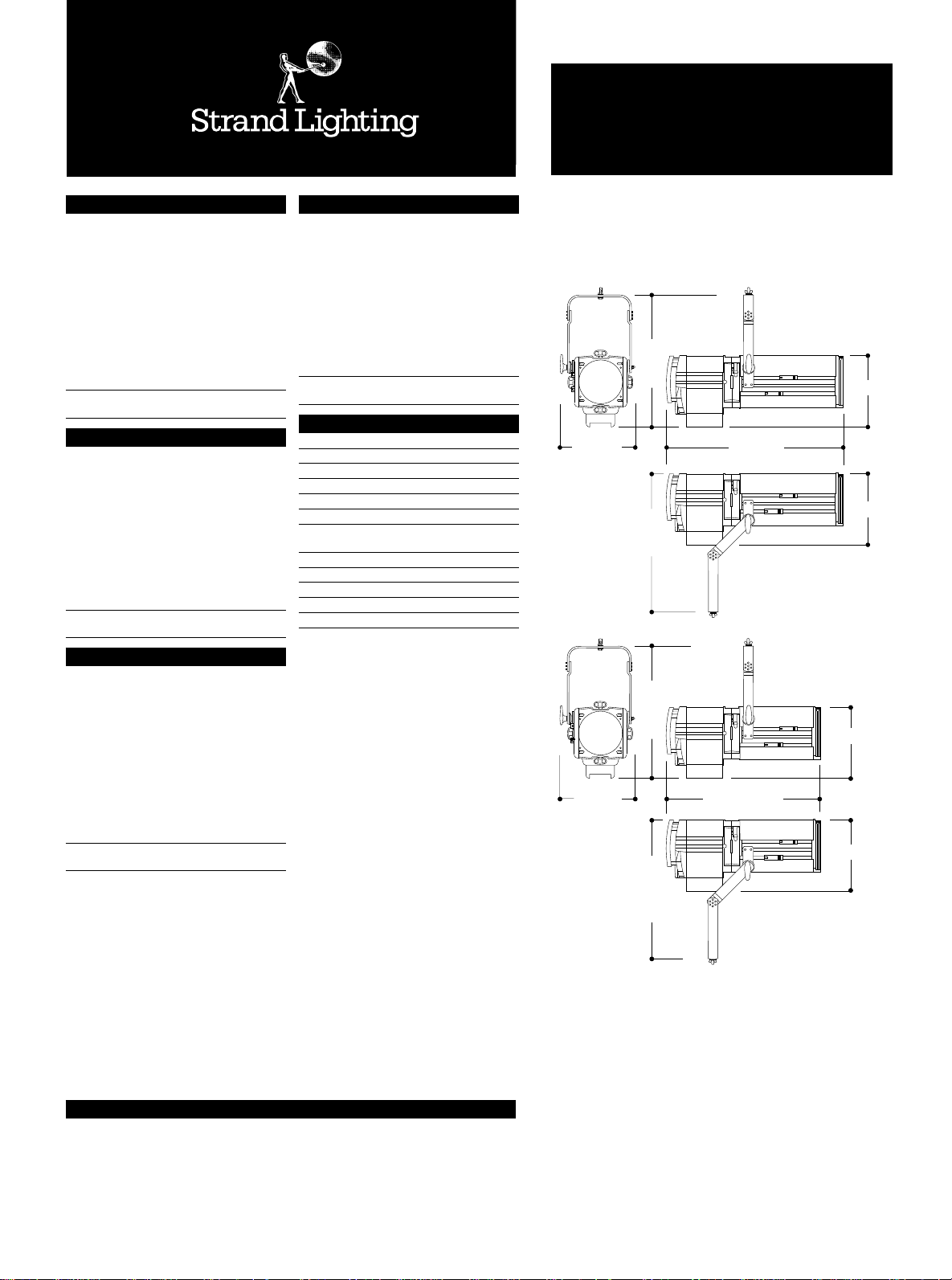

Page 1
1.2.9
PRODUCT DATA
Toccata 10/26 (230V)
A compact and lightweight variable angle
condenser optics spotlight with 10° to 26°
beam angle and an even flat beam. Three
plane gate, articulated fork, fully rotatable
gate. This variant is supplied with colour
frame, 230V 2000W CP92 lamp, integral 24leaf iris, bridge-mounting fork as well as a
compact fork. Fitted with Schuko plug.
¤ 2500W | 230V ⁄ 10° - 26° w 20.5kg Ÿ 836 lux
fi 27m ‡ 245 x 245mm fl A p 29kg
3
ı 0.258m
Cat. No. Description
12153 Toccata 10/26, 230V 2kW CP92
‚ EN 60 598 2-17
lamp, Schuko plug, integral iris
Toccata 10/26 (240V)
A compact and lightweight variable angle
condenser optics spotlight with 10° to 26°
beam angle and an even flat beam. Three
plane gate, articulated fork, fully rotatable
gate. This variant is supplied with colour
frame, 240V 2500W CP91 lamp, fitted with
15A plug and compact fork.
¤ 2500W | 240V ⁄ 10° - 26° w 20.5kg Ÿ 836 lux
fi 27m ‡ 245 x 245mm fl A p 29kg
3
ı 0.258m
Cat. No. Description
12154 Toccata 10/26, 240V 2.5kW
‚ EN 60 598 2-17
CP91 lamp, 15A plug
Toccata 15/38 (230V)
A compact and lightweight variable angle
condenser optics spotlight with 15° to 38°
beam angle and an even flat beam. Three
plane gate, articulated fork, fully rotatable
gate. This variant is supplied with colour
frame, 230V 2000W CP92 lamp, integral 24leaf iris, bridge-mounting fork as well as a
compact fork. Fitted with Schuko plug.
¤ 2500W | 230V ⁄ 15° - 38° w 19.8kg
Ÿ 1049 lux fi 18m ‡ 245 x 245mm fl A p 25.5kg
3
ı 0.237m
Cat. No. Description
12163 Toccata 15/38, 230V 2kW CP92
‚ EN 60 598 2-17
lamp, Schuko plug, integral iris
Toccata 15/38 (240V)
A compact and lightweight variable angle
condenser optics spotlight with 15° to 38°
beam angle and an even flat beam. Three
plane gate, articulated fork, fully rotatable
gate. This variant is supplied with colour
frame, 240V 2500W CP91 lamp, fitted with
15A plug and compact fork.
¤ 2500W | 240V ⁄ 15° - 38° w 19.8kg Ÿ 1049 lux
fi 18m ‡ 245 x 245mm fl A p 25.5kg ı 0.237m
‚ EN 60 598 2-17
Cat. No. Description
12164 Toccata 15/38, 240V 2kW CP91
lamp, 15A plug
Toccata Accessories
Cat. No. Description
43923 CP92 Lamp, 2000W, 230V
43924 CP92 Lamp, 2000W, 240V
43913 CP91 Lamp, 2500W, 230V
43914 CP91 Lamp, 2500W, 240V
18202 Size “A” Gobo Holder
18203 Metal colour frame
18207 Bridge fork accessory
18208 Compact fork accessory
18209 Toccata 24-leaf Iris
82011 Hook clamp, heavy duty
82001 Safety cable, heavy duty
245mm x 245mm
SPOTLIGHTS
TOCCATA
™
2000W / 2500W
Toccata 10/26
3
380mm
380mm
610
mm
650
mm
610
mm
650
mm
890mm
780mm
Hanging Fork (12154)
330mm
330mm
Bridge Mounting Fork (12153)
Toccata 15/38
Hanging Fork (12164)
330mm
330mm
A GUIDE TO SYMBOLS AND ABBREVIATIONS
GENERAL | Supply voltage º Current rating w Weight of product p Packed weight ı Packed volume
O Overall dimension of product ‚ Compliance with international standards. ¤ Watts (maximum
recommended) ⁄ Beam angle (Cut-off angles for profile spotlights) fi Throw (usual working distance from
subject in metres) Ÿ Illuminance (maximum Lux at throw distance stated with lamp recommended or supplied)
fl Gobo (pattern) size. A = 100mm dia., 75mm image dia. ‡ Colour filter cut size BS British Standard.
IP International Protection Standard
Bridge Mounting Fork (12163)
● Condenser optic spotlights in two beam angle versions
● Even, flat beam for accurate cuts and crisp gobo projection
● Three plane gate with six shutter blades ideal for beam
sculpture
● Articulated “bridge” fork for mounting on overstage bridge
● Compact and lightweight
● Rotatable gate for gobo alignment
● High-quality 24-leaf iris available (Supplied with 230V version)
● Automatic double-pole microswitch isolation
● Supplied in two-tone black/grey finish with colour frame,
mounting fork with M12 wingnut, and 3m power cable with
Schuko plug (2000W) or 15A plug (2500W) specified
● Available as 230V or 240V version with lamp and plug
Page 2
PAGE 2 © Strand Lighting TOCCATA 2000/2500W VERSION 1.0
Photometric Data
Typical performance based on 2500W CP91 240V lamp
Throw (metres) 12 15 20 25 30
Lux Ø Lux Ø Lux Ø Lux Ø Lux Ø
Toccata 10/26 (N) 4236 2.1 2711 2.6 1525 3.5 976 4.4 678 5.2
Toccata 10/26 (W) 798 5.5 511 6.9 288 9.2 184 11.5 128 13.9
Supply Volts 230/240V
Max Lamp Watts 2500W
Lamp Type/Socket CP92 or CP91 G22 socket
Cable/Connections 3.0m power cable, Schuko or 15A plug options
Standards Designed to conform to EN 60 598 2-17
Compliance
Electrical Data
Toccata 15/38 (N) 2361 3.2 1555 3.9 875 5.3 560 6.6 389 7.9
Toccata 15/38 (W) 472 8.3 302 10.3 170 13.8 108 17.2 76 20.7
Ø Beam diameter in metres
Lamp Data
Specify lamps for replacement, with voltage, to the following specifications
Watts 2000W 2500W
Designation CP92 CP91
Base G22 G22
Lumens 52000 67500
Rated Life-Hours 400 400
Colour Temperature 3200K 3200K
Max Operating 45°C
Ambient Temp
Max Surface Temp 230°C
IP Rating IP20
Tilt/Recommended +90° - 0 - 90°
Angles of Use
Paint/Finish Two tone black/grey high temperature epoxy
Lamp House Pressure diecast aluminium front and rear sections
Environmental Data
Mechanical Data
powder coating.
with extruded aluminium tie bar and formed
sections sheet aluminium covers.
Lens Tube Pressure diecast front and rear sections with
extruded aluminium tie bars placed on each side.
Top and bottom covers are formed from sheet
aluminium.
Cooling Convection cooled with quiet axial fan assisting
airflow.
Optical System A condenser optical system is formed from 120mm
modified hemispherical, electro polished, anodised
aluminium reflector and an aspherical condenser
lens as well as intermediary plano-convex lens.
The gate image is focused using two sets of
plano-convex lenses. Each lens is contained by
rigid pressure diecast lens carriers. The rear set
will contain one (10/26) or two (15/38) planoconvex lens. Some lens surfaces have anti-reflective
coatings.
Mounting /Suspension Compact or Compact/Bridge fork assembly with
M12 wingnut and bolt or DIN 15560 mounting.
Pattern/Gobo Size A
The Company reserves the right to make any variation in design or construction to the equipment described.
© Strand Lighting Ltd 1995. Strand™, Strand Lighting™ and Toccata™ are trade marks of
Strand Lighting Limited and Strand Lighting Inc. Strand Lighting is a company within the Film & Television
Division of The Rank Organisation Plc, United Kingdom. Country of origin United Kingdom.
London: Strand Lighting Ltd, Grant Way, Islewor th, Middlesex, TW7 5QD, United Kingdom.
Wolfenbüttel: Strand Lighting GmbH, Salzbergstraße 2, 38302 Wolfenbüttel, Germany.
Rome: Strand Lighting Srl, Via delle Gardenie 33, Pontina Vecchia Km 33,400,
Brussels: Strand Lighting Ltd, Chaussée de Haecht 1801, 1130 Bruxelles, Belgium
Stockholm: Strand Lighting Ltd, Box 20105, Tappvägen 24, 161 02 Bromma, Sweden
ALSO
FACILITIES IN: LOS ANGELES • NEW YORK • HONG KONG • MILANO • MUNICH • BERLIN
© Copyright Strand Lighting Limited November 1995
Tel: +44 (0)181 560 3171 Fax: +44 (0)181 568 2103
Tel: +49 (0) 5331 3008-8 Fax: +49 (0) 5331 78883
00040 Pomezia-Roma, Italy
Tel: +39 (0) 6 914 7123 Fax: +39 (0) 6 914 7136
Tel: +32 (0) 2 245 8686 Fax: +32 (0) 2 245 2235
Tel: +46 (0) 8 799 6950 Fax: +46 (0) 8 799 6954
Weights and Dimensions
10/26 15/38
Weight 20.5kg 19.8kg
Length 890mm 780mm
Width 380mm 380mm
Height (body) 330mm 330mm
Height (with fork) 610mm 610mm
Packed Weight 29kg 25.5kg
Packed Length 1070mm 990mm
Packed Width 480mm 480mm
Packed Height 500mm 500mm
Filter Cut Size 245mm x 245mm
Operational Data
Focus Adjustment By handles which pivot out from the side of the
instrument for focusing, and fold flat to lock
lenses in position. Beam angle and focus setting is
provided.
Beam Shaping Six self-retained beam shaping shutters of heat
resistant stainless steel fitted with heat resistant
handles, within aluminium gate assembly rotatable
through 220°. Gate incorporates runners for “A”
size gobo holder.
Lamp Access Retractable lamp-holder assembly with automatic
double pole microswitch isolation.
Tilt Adjustment by means of pivots on either side of
fork, locked by T-handle on interlocking spring
cup and disk mechanism.
Pan Pivot around M12 bolt through centre of fork, or
using DIN 15560 mounting.
