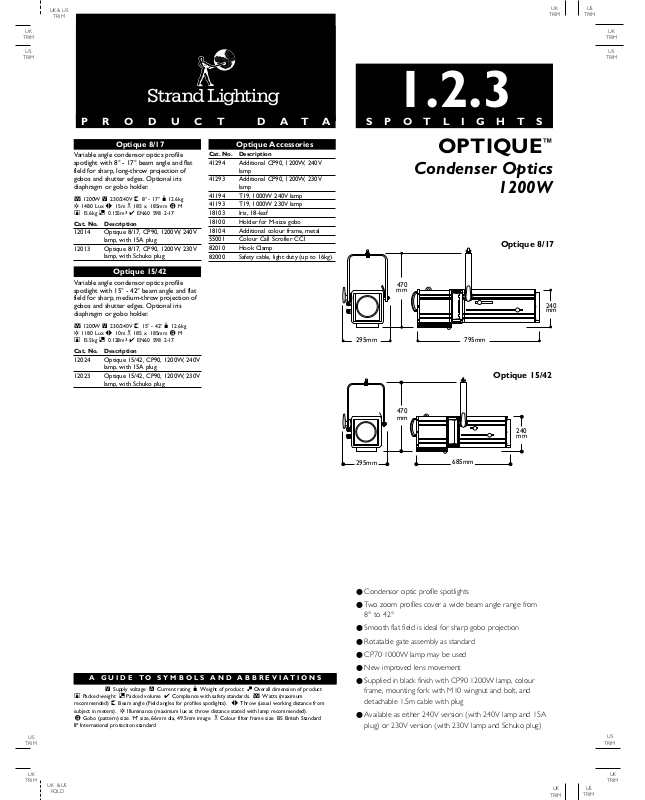

Strand 1.2.3 Optique Datasheet

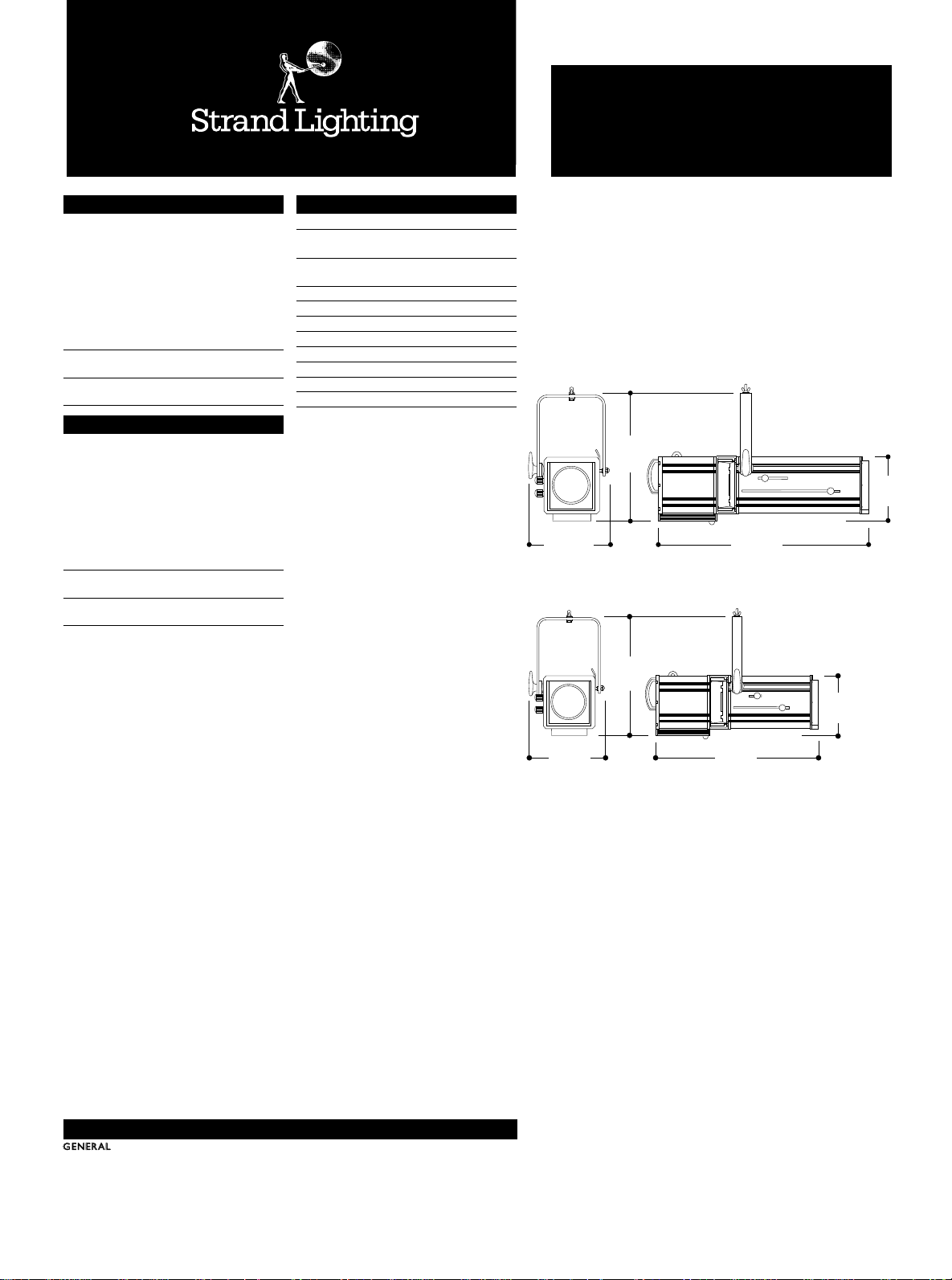

Page 1

1.2.3

PRODUCT DATA

Optique 8/17

Variable angle condensor optics profile spotlight with 8° - 17° beam angle and flat field for sharp, long-throw projection of gobos and shutter edges. Optional iris diaphragm or gobo holder.

¤ 1200W | 230/240V ⁄ 8° - 17° ◊ 12.6kg Ÿ 1480 Lux ﬁ 15m ‡ 185 x 185mm ﬂ M ¶ 15.6kg ı 0.155m¬ ‚ EN60 598 2-17

Cat. No. Description

12014 Optique 8/17, CP90, 1200W, 240V

12013 Optique 8/17, CP90, 1200W, 230V

Variable angle condensor optics profile spotlight with 15° - 42° beam angle and flat field for sharp, medium-throw projection of gobos and shutter edges. Optional iris diaphragm or gobo holder.

¤ 1200W | 230/240V ⁄ 15° - 42° ◊ 12.6kg Ÿ 1180 Lux ﬁ 10m ‡ 185 x 185mm ﬂ M ¶ 15.5kg ı 0.128m¬ ‚ EN60 598 2-17

Cat. No. Description

12024 Optique 15/42, CP90, 1200W, 240V

12023 Optique 15/42, CP90, 1200W, 230V

lamp, with 15A plug

lamp, with Schuko plug

Optique 15/42

lamp, with 15A plug

lamp, with Schuko plug

Optique Accessories

Cat. No. Description

41294 Additional CP90, 1200W, 240V

lamp

41293 Additional CP90, 1200W, 230V

lamp 41194 T19, 1000W 240V lamp 41193 T19, 1000W 230V lamp 18103 Iris, 18-leaf 18100 Holder for M-size gobo 18104 Additional colour frame, metal 55001 Colour Call Scroller CC1 82010 Hook Clamp 82000 Safety cable, light duty (up to 16kg)

SPOTLIGHTS

OPTIQUE

Condenser Optics

1200W

Optique 8/17

470 mm

295mm

795mm

Optique 15/42

™

240 mm

A GUIDE TO SYMBOLS AND ABBREVIATIONS

GENERAL

¶ Packed weight ı Packed volume ‚ Compliance with safety standards. ¤ Watts (maximum recommended) ⁄ Beam angle (Field angles for profiles spotlights). ﬁ Throw (usual working distance from subject in meters). Ÿ Illuminance (maximum lux at throw distance stated with lamp recommended). ﬂ Gobo (pattern) size. ‘M’ size, 66mm dia, 49.5mm image ‡ Colour filter frame size BS British Standard IP International protection standard

| Supply voltage º Current rating w Weight of product O Overall dimension of product

470 mm

240 mm

295mm

● Condensor optic profile spotlights

● Two zoom profiles cover a wide beam angle range from

8° to 42°

● Smooth flat field is ideal for sharp gobo projection

● Rotatable gate assembly as standard

● CP70 1000W lamp may be used

● New improved lens movement

● Supplied in black finish with CP90 1200W lamp, colour

frame, mounting fork with M10 wingnut and bolt, and detachable 1.5m cable with plug

● Available as either 240V version (with 240V lamp and 15A

plug) or 230V version (with 230V lamp and Schuko plug)

685mm

Page 2

PAGE 2 © Strand Lighting OPTIQUE CONDENSER OPTICS 1200W VERSION 1.0

Photometric Data

Typical performance based on CP90 1200W 240V lamp

Peak Distribution Throw (metres) 5 10 12.5 15 20 25

8°-17° (N) 3550 2272 1577 888 570 8°-17° (W) 3840 960 614 427 15°-42° (N) 4400 1100 710 490 15°-42° (W) 960 240 153

Beam Diameter (m) for Projected Throw in Meters Throw (metres) 5 10 12.5 15 20 25

8°-17° (N) 1.39 1.75 2.09 2.79 3.49 8°-17° (W) 1.49 2.98 3.73 15°-42° (N) 1.31 2.63 3.29 3.94 15°-42° (W) 3.83 7.67 9.59

Peak Intensity, Half Peak and Cut-off

/2Pk Candelas

8°-17° (N) 7° 355000 8°

8°-17° (W) 12° 96000 16° 15°-42° (N) 13° 110000 15° 15°-42° (W) 24° 24000 37°

For performance of any luminaire divide Candela by Distance

Lamp Data

Specify Strand lamps for replacement purposes to the following specifications

Volts 230V 240V 230V 240V Watts 1200W 1200W 1000W 1000W Designation CP90 CP90 T19 T19 Base GX9.5 GX9.5 GX9.5 GX9.5 Lumens 30000 30000 21000 21000 Rated Life-hours 240 240 750 750 Colour Temp 3050K 3050K 3050K 3050K

Volts 230V 240V Watts 1200W 1200W Designation T29 T29 Base GX9.5 GX9.5 Lumens 29000 29000 Rated Life-hours 400 400 Colour Temp 3050K 3050K

Max Operating 45°C Ambient Temp

Max Surface 290°C Temperature

IP Rating IP20 Tilt/Recommended 45 °- 0 - 90°

angles of use

Paint/Finish High temperature stoved epoxy powder coat in

Lamp House Pressure diecast aluminium rear panel, aluminium Construction sides and slotted top panels for ventilation.

Lens Tube (Profiles) Extruded aluminium side panels with pressed steel

Rear Handle Vertical, heat insulated handle on rear of lamp

Mounting and Mounting fork with M10 wingnut and bolt or Suspension DIN15560 mounting.

Weight 12.8kg 12.4kg Length (Incl handle) 795mm 685mm Width 295mm 295mm Height (Incl stirrup) 470mm 470mm Packed weight 15.9kg 15.4kg Packed length 915mm 790mm Packed width 390mm 395mm Packed height 400mm 390mm Filter Cut Size 185 x 185mm 185 x 185mm Colour runner 185mm

Optical system A condenser optical system is formed from a

Environmental Data

Mechanical Data

black.

Rear hinging extruded aluminium lamptray retained by 1/4 turn fastener.

rear plate, steel top and bottom panels and diecast front panel with extruded aluminium colour runners. Pressed steel lens carriers mounted on diecast sliders running in extruded slot inside panel.

housing.

Weights and Dimensions

Optique 8/17 Optique 15/42

DIN size metal colour frame fits integral diecast runners with retention spring for single handed insertion and removal.

60mm modified hemispherical, electro polished, aluminium reflector and an aspherical condenser lens. The gate image is focused using two sets of

Electrical Data

Supply Voltage 230 volts or 240 volts 50/60 Hz Max Lamp Wattage 1200W Lamp Type/Base CP90 or T29 1200W GX9.5 base.

T19 1000W GX9.5 base.

Cable/Connection 1.5m toughened silicone rubber detachable power cable

terminating in CEE22 angled power connection for connection to luminaire.(15A or Schuko plug shall be specified). Conductors 3 x 1.5mm2.

Standards Designed to conform with EN 60 598 2-17. Compliance

Gobo Size M

Lamp Access Rearward hinging lamptray provides access after

Lens Access Sliding top covers open for complete access to

plano-convex lenses. Each lens is contained by rigid pressure diecast lens carriers. The rear set will contain one (8/17) or two (15/42) planoconvex crown glass lenses. Some lens surfaces have anti-reflective coatings.

Operational Data

removal of power cable and is retained by a fastener.

lenses for cleaning and maintenance.

Focus Adjustment Lens position adjusted by handles at side of lens

tube. Focus setting indication is provided.

Beam Shaping Four removable beam shaping shutters of steel

alloy and fitted in diecast gate assembly which is rotatable through 360° 18-leaf iris and Gobo holder available as accessory.

Tilt Adjustment by means of pivots on either side of

fork, locked by T-handle on interlocking spring cup and disk mechanism.

Pan Pivot around M10 bolt through centre of fork, or

London: Strand Lighting Ltd, Grant Way, Isleworth, Middlesex, TW7 5QD, United Kingdom.

Wolfenbüttel: Strand Lighting GmbH, Salzbergstraße 2, 38302 Wolfenbüttel, Germany.

Rome: Strand Lighting Srl, Via delle Gardenie 33, Pontina Vecchia Km 33,400,

Brussels: Strand Lighting Ltd, Chaussée de Haecht 1801, 1130 Bruxelles, Belgium

Stockholm: Strand Lighting Ltd, Box 20105, Tappvägen 24, 161 02 Bromma, Sweden

ALSO FACILITIES IN: LOS ANGELES • NEW YORK • HONG KONG • MILANO • MUNICH • BERLIN

Tel: +44 (0)181 560 3171 Fax: +44 (0)181 568 2103

Tel: +49 (0) 5331 3008-8 Fax: +49 (0) 5331 78883

00040 Pomezia-Roma, Italy Tel: +39 (0) 6 914 7123 Fax: +39 (0) 6 914 7136

Tel: +32 (0) 2 245 8686 Fax: +32 (0) 2 245 2235

Tel: +46 (0) 8 799 6950 Fax: +46 (0) 8 799 6954

The Company reserves the right to make any variation in design or construction to the equipment described. © Strand Lighting Ltd 1995. Strand™, Strand Lighting™ and Optique™ are trade marks of Strand Lighting Limited and Strand Lighting Inc. Strand Lighting is a company within the Film & Television Division of The Rank Organisation Plc, United Kingdom. Country of origin United Kingdom.

using DIN 15560 mounting.

/4 turn
