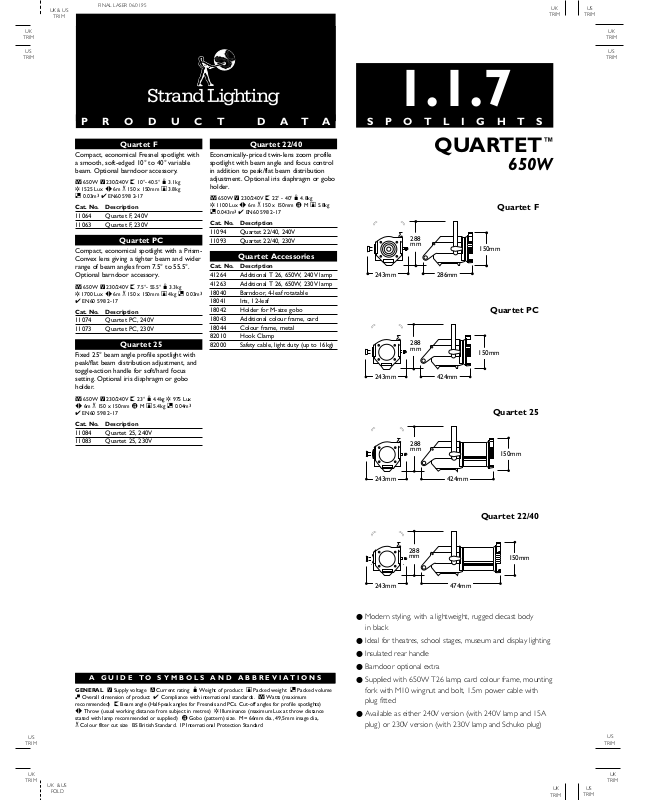

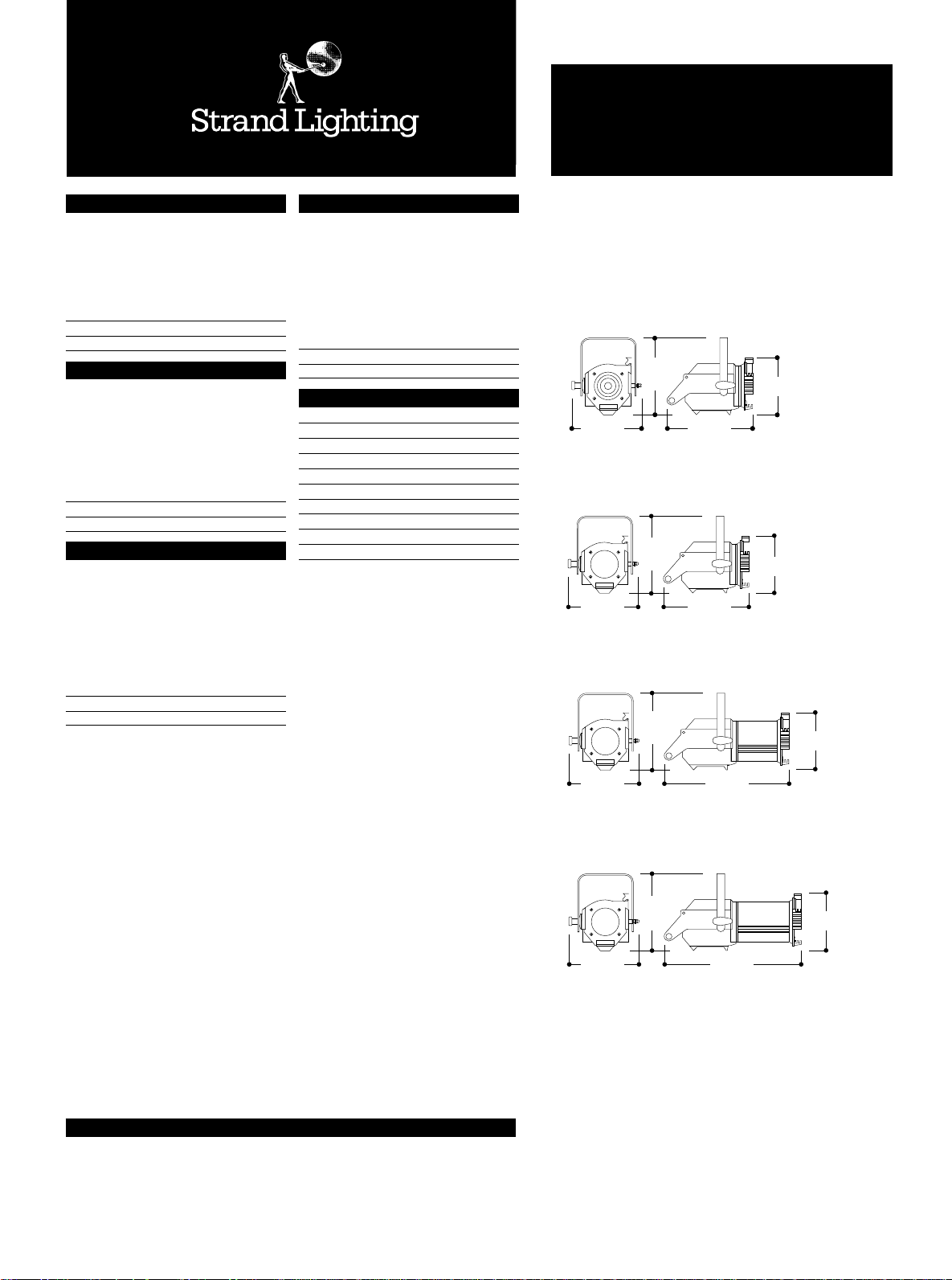

Strand 1.1.7 Quartet Range Datasheet

1.1.7

PRODUCT DATA

Quartet F

Compact, economical Fresnel spotlight with
a smooth, soft-edged 10° to 40° variable
beam. Optional barndoor accessory.

¤ 650W | 230/240V ⁄ 10°- 40.5° ª 3.1kg
Ÿ 1525 Lux fi 6m ‡ 150 x 150mm ¶ 3.8kg
ı 0.03m¬ ‚ EN60 598 2-17

Cat. No. Description

11064 Quartet F, 240V
11063 Quartet F, 230V

Quartet PC

Compact, economical spotlight with a Prism­Convex lens giving a tighter beam and wider
range of beam angles from 7.5° to 55.5°.
Optional barndoor accessory.

¤ 650W | 230/240V ⁄ 7.5°- 55.5° ª 3.3kg
Ÿ 1700 Lux fi 6m ‡ 150 x 150mm ¶ 4kg ı 0.03m¬
‚ EN60 598 2-17

Cat. No. Description

11074 Quartet PC, 240V
11073 Quartet PC, 230V

Quartet 25

Fixed 25° beam angle profile spotlight with
peak/flat beam distribution adjustment, and
toggle-action handle for soft/hard focus
setting. Optional iris diaphragm or gobo
holder.

¤ 650W | 230/240V ⁄ 23° ª 4.4kg Ÿ 975 Lux
fi 6m ‡ 150 x 150mm fl M ¶ 5.4kg ı 0.04m¬
‚ EN60 598 2-17

Cat. No. Description

11084 Quartet 25, 240V
11083 Quartet 25, 230V

Economically-priced twin-lens zoom profile
spotlight with beam angle and focus control
in addition to peak/flat beam distribution
adjustment. Optional iris diaphragm or gobo
holder.

¤ 650W | 230/240V ⁄ 22° - 40° ª 4.8kg
Ÿ 1100 Lux fi 6m ‡ 150 x 150mm fl M ¶ 5.8kg
ı 0.043m¬ ‚ EN60 598 2-17

Cat. No. Description

11094 Quartet 22/40, 240V
11093 Quartet 22/40, 230V

Cat. No. Description

41264 Additional T 26, 650W, 240V lamp
41263 Additional T 26, 650W, 230V lamp
18040 Barndoor, 4-leaf rotatable
18041 Iris, 12-leaf
18042 Holder for M-size gobo
18043 Additional colour frame, card
18044 Colour frame, metal
82010 Hook Clamp
82000 Safety cable, light duty (up to 16kg)

Quartet 22/40

Quartet Accessories

SPOTLIGHTS

QUARTET

™

650W

Quartet F

288

243mm

mm

288
mm

288
mm

286mm

424mm243mm

150mm

Quartet PC

150mm

Quartet 25

150mm

A GUIDE TO SYMBOLS AND ABBREVIATIONS

GENERAL | Supply voltage º Current rating ª Weight of product ¶ Packed weight ı Packed volume

∏ Overall dimension of product ‚ Compliance with international standards. ¤ Watts (maximum
recommended) ⁄ Beam angle (Half-peak angles for Fresnels and PCs. Cut-off angles for profile spotlights)
fi Throw (usual working distance from subject in metres) Ÿ Illuminance (maximum Lux at throw distance
stated with lamp recommended or supplied) fl Gobo (pattern) size. M= 66mm dia., 49,5mm image dia,.
‡ Colour filter cut size BS British Standard. IP International Protection Standard

424mm243mm

Quartet 22/40

288
mm

474mm243mm

● Modern styling, with a lightweight, rugged diecast body

in black

● Ideal for theatres, school stages, museum and display lighting

● Insulated rear handle

● Barndoor optional extra

● Supplied with 650W T26 lamp, card colour frame, mounting

fork with M10 wingnut and bolt, 1.5m power cable with
plug fitted

● Available as either 240V version (with 240V lamp and 15A

plug) or 230V version (with 230V lamp and Schuko plug)

150mm

PAGE 2 © Strand Lighting QUARTET 650W

Photometric Data

Typical performance based on: 650W T26 240V lamp.

Throw (metres) 46810

Lux Ø Lux Ø Lux Ø Lux Ø
Quartet F (N) 3420 0.6 1525 0.9 850 1.2 550 1.5
Quartet F (W) 725 2.6 325 3.9 175 5.2 125 6.5
Quartet PC (N) 3850 0.45 1700 0.7 975 0.9 625 1.2
Quartet PC (W) 450 3.7 200 5.6 125 7.4 75 9.3
Quartet 25 2175 1.6 975 2.4 550 3.2 350 4.0
22/40 Quartet (N) 2500 1.4 1100 2.1 625 2.8 400 3.5
22/40 Quartet (W) 1475 2.6 650 3.9 375 5.2 250 6.5

Ø = Beam Diameter in metres.

Peak Intensity, Half Peak and Cut-off

1

/2 Pk Pk Candelas

1

/10 Pk
Quartet F (N) 10° 54720 20°
Quartet F (W) 40.5° 11600 54°
Quartet PC (N) 7.5° 61600 12.5°
Quartet PC (W) 55.5° 7200 65°

1

/2 Pk Candelas

1

/2 Pk Candelas Cut-off

(Peaky) (Peaky) (Flat) (Flat)
Quartet 25 15° 34668 23° 20089 25°
22/40 Quartet (N) 16° 39642 22° 28622 22°
22/40 Quartet (W) 12.5° 23551 36.5° 5217 40°

Specify lamps for replacement purposes to the following specifications

Watts 650W 500W 500W
Designation T26 T18 M40
Base GY9.5 GY9.5 GY9.5
Catalogue Number 41264 (240V) 41184 (240V) 41404 (240V)

Rated Life-Hours 400 400 2000
Colour Temperature 3050K 3050K 2900K

Supply Volts 230V/240V 50/60Hz
Max Lamp Watts 650W
Lamp Type/Socket T26 650W, T18, M40 500W GY 9.5
Cable/Connections Supplied with 1.5m power cable silicone insulated

Standards Compliance Designed to conform to EN 60 598 2-17

Max Operating 45°C
Ambient Temp

Max Surface Temp 210°C
IP Rating IP20
Tilt/Recommended 45° - 0 - 90°

Angles of Use

Paint/Finish Black epoxy powder coat paint finish.
Lamp House Pressure diecast aluminium, baffled to prevent

Reflector Profiles: Near ellipsoidal polished, anodised

Lens(es) Profiles: Plano convex of heat resistant borosilicate

Mounting /Suspension Steel fork, insulated handwheel, with M10 bolt,

VERSION 1.0

Lamp Data

41263 (230V) 41183 (230V) 41403 (230V)

Electrical Data

with connector as specified.

Environmental Data

Mechanical Data

light spill and allow ventilation.
Heat resistant rear handle.

aluminium.
Fresnel & PC: Edge-masked spherical reflector
of polished, anodised aluminium.

glass mounted in extruded lens carriers.
Fresnel/PC: Moulded borosilicate lenses retained in
front aluminium diecast lens carriiers by means of
spring clips.

washer and wingnut for attachment and swivel
adjustment.

The Company reserves the right to make any variation in design or construction to the equipment described.
© Strand Lighting Ltd 1995. Strand™, Strand Lighting™ and Quartet™ are trade marks of
Strand Lighting Limited and Strand Lighting Inc. Strand Lighting is a company within the Film & Television
Division of The Rank Organisation Plc, United Kingdom. Country of origin United Kingdom.

London: Strand Lighting Ltd, Grant Way, Isleworth, Middlesex,

Wolfenbüttel: Strand Lighting GmbH, Salzbergstraße 2, 38302 Wolfenbüttel, Germany.

Rome: Strand Lighting Srl, Via delle Gardenie 33, Pontina Vecchia Km 33,400,

Brussels: Strand Lighting Ltd, Chaussée de Haecht 1801, 1130 Bruxelles, Belgium

Stockholm: Strand Lighting Ltd, Box 20105, Tappvägen 24, 161 02 Bromma, Sweden

ALSO
FACILITIES IN: LOS ANGELES • NEW YORK • HONG KONG • MILANO • MUNICH • BERLIN

© Copyright Strand Lighting Limited November 1995

Tel: [phone] Fax: [phone]

Tel: [phone] Fax: [phone]

00040 Pomezia-Roma, Italy
Tel: [phone] Fax: [phone]

Tel: [phone] Fax: [phone]

Tel: [phone] Fax: [phone]

TW7 5QD, United Kingdom.

Weights and Dimensions

Quartet F Quartet PC Quartet 25 Quartet 22/40
Weight 3.1kg 3.3kg 4.4kg 4.8kg
Length 286mm 286mm 424mm 474mm
Width 243mm 243mm 243mm 243mm
Height 288mm 288mm 288mm 288mm
Packed Weight 4.0kg 4.2kg 5.4kg 5.8kg
Packed Length 400mm 400mm 540mm 590mm
Packed Width 290mm 290mm 290mm 290mm
Packed Height 290mm 290mm 290mm 290mm

Filter Cut Size 150mm x 150mm

Operational Data

Focus Adjustment Fresnel & PC: Slide adjustment by means of thumb

wheel on underside of lamp tray.
Profiles: Toggle action handles on side of lamp tray.

Beam Shaping Fresnel & PC: The two colour runners will accept

a 4-leaf rotating barndoor accessory.
Profiles: The gate assembly is supplied with four
beam shaping shutters, each with insulated handle.

Lamp Access Through hinge-down lamptray secured by quarter

turn fastener.
