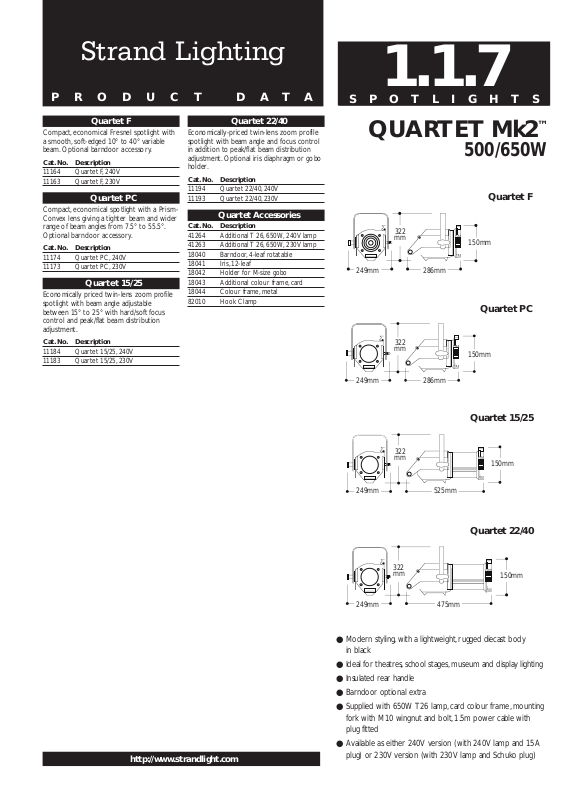

Quartet F
Compact,economical Fresnel spotlight with
a smooth,soft-edged 10° to 40° variable
beam.Optional barndoor accessory.
Cat.No. Description
11164 Quartet F,240V
11163 Quartet F,230V
Quartet PC
Compact,economical spotlight with a PrismConvex lens giving a tighter beam and wider
range of beam angles from 7.5° to 55.5°.
Optional barndoor accessory.
Cat.No. Description
11174 Quartet PC, 240V
11173 Quartet PC, 230V
Quartet 15/25
Economically priced twin-lens zoom profile
spotlight with beam angle adjustable
between 15° to 25° with hard/soft focus
control and peak/flat beam distribution
adjustment.
Cat.No. Description
11184 Quartet 15/25,240V
11183 Quartet 15/25,230V
Quartet 22/40
Economically-priced twin-lens zoom profile
spotlight with beam angle and focus control
in addition to peak/flat beam distribution
adjustment.Optional iris diaphragm or gobo
holder.
Cat.No. Description
11194 Quartet 22/40,240V
11193 Quartet 22/40,230V
Quartet Accessories
Cat.No. Description
41264 Additional T 26,650W,240V lamp
41263 Additional T 26,650W,230V lamp
18040 Barndoor, 4-leaf rotatable
18041 Iris,12-leaf
18042 Holder for M-size gobo
18043 Additional colour frame,card
18044 Colour frame,metal
82010 Hook Clamp
● Modern styling, with a lightweight, rugged diecast body
in black
● Ideal for theatres, school stages, museum and display lighting
● Insulated rear handle
● Barndoor optional extra
● Supplied with 650W T26 lamp,card colour frame, mounting
fork with M10 wingnut and bolt, 1.5m power cable with
plug fitted
● Available as either 240V version (with 240V lamp and 15A
plug) or 230V version (with 230V lamp and Schuko plug)

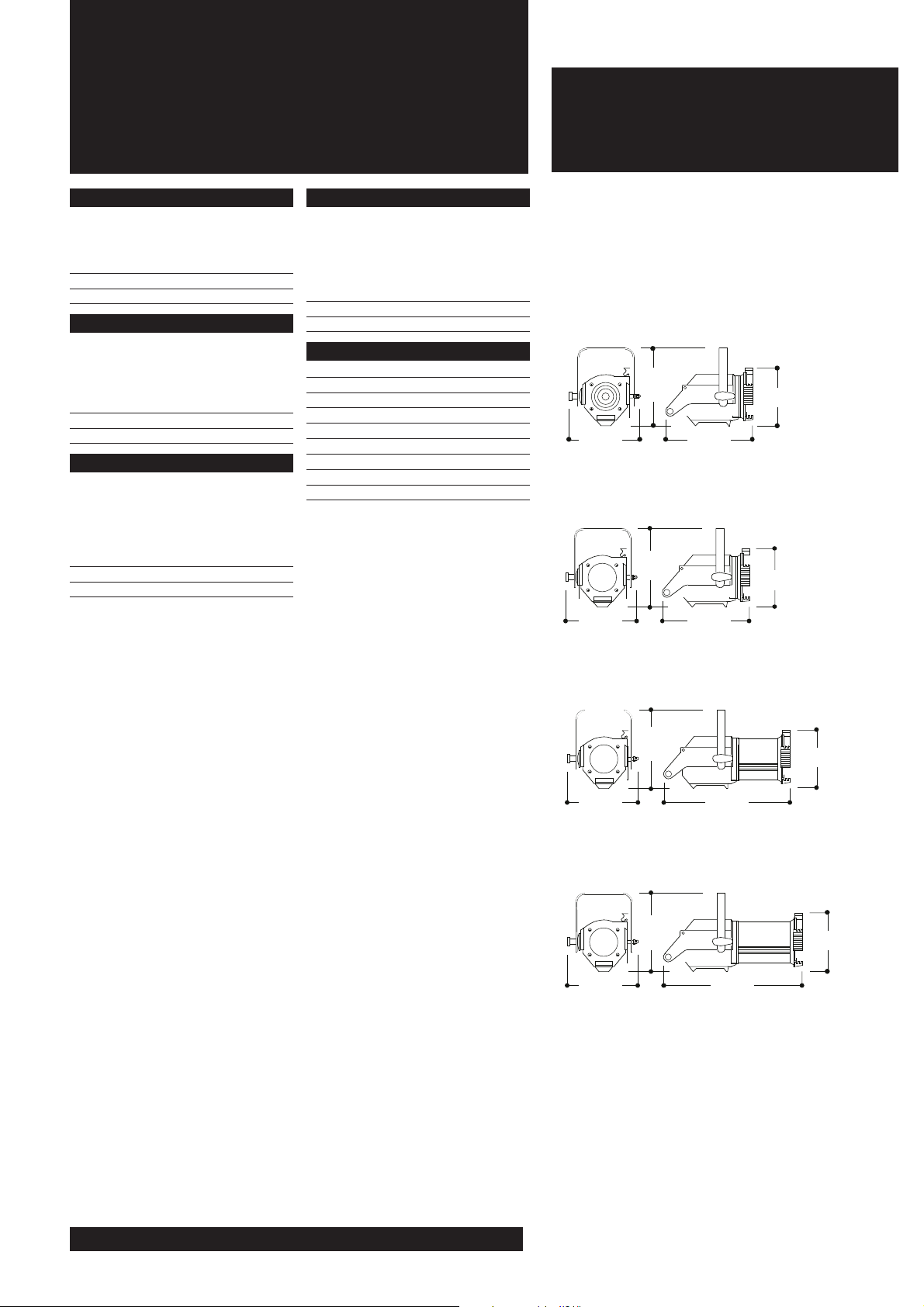

QUARTET Mk2
™
500/650W
Quartet 15/25
Quartet F
Quartet PC
Quartet 22/40
286mm
150mm
150mm
150mm
150mm
249mm
286mm249mm
525mm249mm
475mm249mm
322
mm
322
mm
322
mm
322
mm
Strand Lighting
PRODUCT DATA
1.1.7
SPOTLIGHTS
http://www.strandlight.com
Photometric Data
Typical performance based on:650W T26 240V lamp.
Throw (metres) 4 6 8 10
Lux Ø Lux Ø Lux Ø Lux Ø
Quartet F (N) 3100 0.97 1759 1.46 989 1.95 759 2.4
Quartet F (W) 420 4.3 304 6.4 130 8.5 99 10.6
Quartet PC (N) 2551 0.99 1860 1.5 960 1.98 587 2.4
Quartet PC (W) 275 4.85 180 7.3 87 9.7 55 12.0
Quartet 15/25 (N) 2990 1.05 1980 1.6 1120 2.1 728 2.6
Quartet 15/25 (W) 1780 1.8 1430 2.7 740 3.7 409 4.4
22/40 Quartet (N) 1730 1.6 1220 2.3 650 3.1 408 3.9
22/40 Quartet (W) 980 2.9 830 4.4 380 5.8 230 7.3
Ø = Beam Diameter in metres.
Peak Intensity, Half Peak and Cut-off
1
/2 Pk Pk Candelas
1
/10 Pk
Quartet F (N) 7° 75900 14°
Quartet F (W) 45° 13200 56°
Quartet PC (N) 7.5° 64100 12.5°
Quartet PC (W) 55.5° 7400 65°
1
/2 Pk Candelas
1
/2 Pk Candelas Cut-off
(Peaky) (Peaky) (Flat) (Flat)
Quartet 15/25(N) 11° 81350 14° 75030 15°
Quartet 15/25(W) 24° 31970 23° 35480 25°
22/40 Quartet (N) 16° 42110 22° 32120 22°
22/40 Quartet (W) 12.5° 24610 36.5° 5920 40°
Lamp Data
Specify lamps for replacement purposes to the following specifications
Watts 650W 500W 500W
Designation T26 T18 M40
Base GY9.5 GY9.5 GY9.5
Catalogue Number 41264 (240V) 41184 (240V) 41404 (240V)
41263 (230V) 41183 (230V) 41403 (230V)
Rated Life-Hours 400 400 2000
Colour Temperature 3050K 3050K 2900K
Electrical Data
Supply Volts 230V/240V 50/60Hz
Max Lamp Watts 650W
Lamp Type/Socket T26 650W, T18, M40 500W GY 9.5
Cable/Connections Supplied with 1.5m power cable silicone insulated
with connector as specified.
Standards Compliance Designed to conform to EN 60 598 2-17
Environmental Data
Max Operating 45°C
Ambient Temp
Max Surface Temp 210°C
IP Rating IP20
Tilt/Recommended 45° - 0 - 90°
Angles of Use
Mechanical Data
Paint/Finish Black epoxy powder coat paint finish.
Lamp House Pressure diecast aluminium, baffled to prevent
light spill and allow ventilation.
Heat resistant rear handle.
Reflector Profiles:Near ellipsoidal polished, anodised
aluminium.
Fresnel & PC:Edge-masked spherical reflector
of polished,anodised aluminium.
Lens(es) Profiles:Plano-convex and positive meniscus made of
heat resistant borosilicate glass mounted in diecast
aluminium lens carriers
Fresnel/PC:Moulded borosilicate lenses retained in
front aluminium diecast lens carriers by means of
spring clips.
Mounting /Suspension Steel fork,insulated handwheel,with M10 bolt,
washer and wingnut for attachment and swivel
adjustment.
Weights and Dimensions
Quartet F Quartet PC Quartet 15/25 Quartet22/40
Weight 3.1kg 3.3kg 5.5kg 5.2kg
Length 286mm 286mm 525mm 475mm
Width 249mm 249mm 249mm 249mm
Height 322mm 322mm 322mm 322mm
Packed Weight 4.0kg 4.2kg 6.1kg 6.0kg
Packed Length 400mm 400mm 540mm 590mm
Packed Width 290mm 290mm 290mm 290mm
Packed Height 290mm 290mm 290mm 290mm
Filter Cut Size 150mm x 150mm
Operational Data
Focus Adjustment Fresnel & PC:Slide adjustment by means of thumb
wheel on underside of lamp tray.
Profiles:Thumb wheels on side of lens tube
Beam Shaping Fresnel & PC:The two colour runners will accept
a 4-leaf rotating barndoor accessory.
Profiles:The gate assembly is supplied with four
beam shaping shutters,each with insulated handle.
Lamp Access Through hinge-down lamptray secured by quarter
turn fastener.
PAGE 2 © Strand Lighting QUARTET 650W
VERSION 2.0
