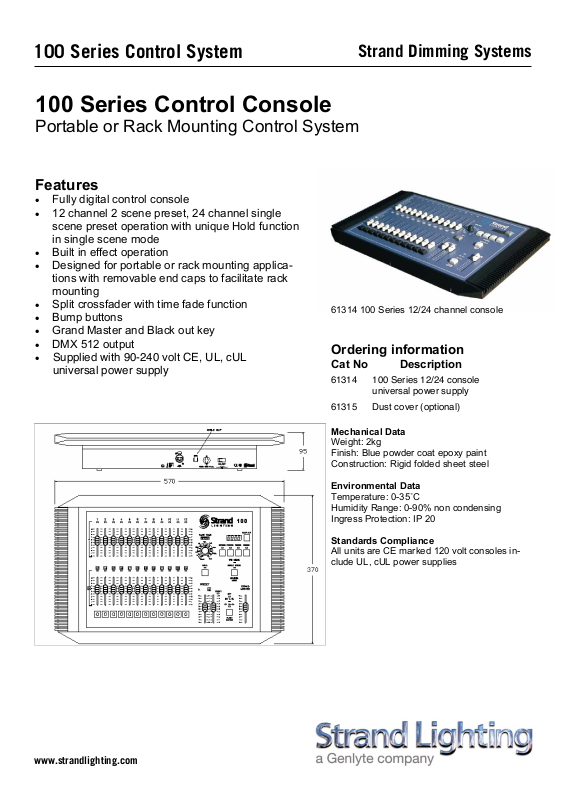

100 Series Control System
100 Series Control Console
Portable or Rack Mounting Control System
Features
x Fully digital control console
x 12 channel 2 scene preset, 24 channel single
scene preset operation with unique Hold function
in single scene mode
x Built in effect operation
x Designed for portable or rack mounting applica-
tions with removable end caps to facilitate rack
mounting
x Split crossfader with time fade function
x Bump buttons
x Grand Master and Black out key
x DMX 512 output
x
Ordering information
Cat No Description
Mechanical Data
Weight: 2kg
Finish: Blue powder coat epoxy paint
Construction: Rigid folded sheet steel
Environmental Data
Temperature: 0-35C
Humidity Range: 0-90% non condensing
Ingress Protection: IP 20
Standards Compliance
All units are CE marked 120 volt consoles include UL, cUL power supplies
61314 100 Series 12/24 channel console
Strand Dimming Systems
Supplied with 90-240 volt CE, UL, cUL
universal power supply
61314 100 Series 12/24 console
universal power supply
61315 Dust cover (optional)
www.strandlighting.com
Page 2
100 Series Control System
Strand Dimming Systems
Strand Lighting Inc.
6603 Darin Way
Cypress, California 90630-5130
Tel: +1 714 230-8200
Fax: +1 714 899-0132
Strand Lighting Asia
20/F Delta House, 3 On Yiu Street
Shatin, N.T. Hong Kong
Tel: +852 2757 3033
Fax: +852 2757 1767
The Company reserves the right to make
any variation in design or construction to
the equipment described. E&OE
© Strand Lighting Inc. 2006
Strand™ and Strand Lighting™ are
trademarks of Strand Lighting Inc.
