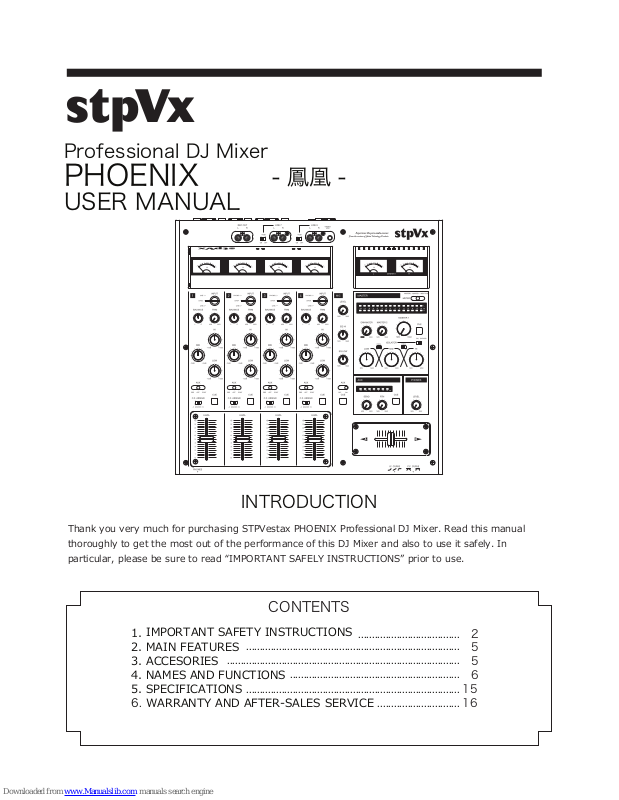

Thank you very much for purchasing STPVestax PHOENIX Professional DJ Mixer. Read this manual

thoroughly to get the most out of the performance of this DJ Mixer and also to use it safely. In

particular, please be sure to read “IMPORTANT SAFELY INSTRUCTIONS” prior to use.

PHOENIX

-鳳凰-

ProfessionalDJMixer

USERMANUAL

-25-10-5-

1 0 +4 +6dB

-8-12-15-25-6-4-3-2-

1 0 +1

+2 +3 +5 +8

VU

CONTENTS



5. SPECIFICATIONS



INTRODUCTION

IMPORTANT SAFETY INSTRUCTIONS

1. MAIN FEATURES

2. ACCESORIES

3. NAMES AND FUNCTIONS

WARRANTY AND AFTER-SALES SERVICE

.....................................

..............................

..............................................................................

.....................................................................................

..............................................................

-2-

※Inbelowdescription“thisdevice”includesdedicatedpowersupplyunit.



1. IMPORTANT SAFETY INSTRUCTIONS

EXPLANATION OF GRAPHICAL SYMBOLS



This Symbol indicates a prohibited action.

This Symbol indicates an action or instruction.

This Symbol indicates a warning or caution.

●

△

For correct operation and safety, please read this manual thoroughly prior to using your DJ mixer. After reading, please ensure to keep this manual in a safe place for ready reference.

This “Safety Instructions” contain various pictorial symbols in order to use our product safely and correctly, to prevent injury to you and other users, and to prevent damage to property. Please be sure to understand the meaning of each symbol prior to reading on.

WARNING indicates a hazardous situation which, if not avoided and handling it incorrectly could result in death or serious injury.

CAUTION indicates a hazardous situation which, if not avoided and handling it incorrectly could result in minor or moderate injury, or only property damage.

Speciﬁc prohibited action (The left ﬁgure indicates do not disassemble) indicated by

transparent "No" circle-symbol.

Speciﬁc instruction (The left ﬁgure indicates the power plug is unplugged from the power outlet) is illustrated.

Speciﬁc warning image (The left ﬁgure shows caution to not jam ﬁngers) is illustrated.

WARNING

CAUTION

When the power cord is damaged (exposing wire core, break in cable, etc.), ask your dealer

for a replacement. Continued use may cause

ﬁre or electric shock.

●

Fire or electric shock may occur if you continue to use this device when it is behaving abnormally, such as smoke, unusual odor, or noise.

Turn oﬀ the power switch immediately and unplug the power cord from the AC outlet. Conﬁrm that smoke does not come out and ask

your dealer for repair.

Fire or electric shock may occur if you continue

to use this device when water or liquid enter the unit. Turn oﬀ the power switch immediately, unplug the power cord from the AC

outlet, and contact your dealer for advice.

Fire or electric shock may occur if you continue

to use this device when foreign objects are placed in or enter the unit. Turn oﬀ the power switch immediately, unplug the power cord

from the AC outlet, and contact your dealer for advice.

Unplug the power

cord from the AC outlet

Donotuse nearwater

●

Do not use in places such as bathrooms or

moist environments where the device is exposed to water droplets or mist. It may cause ﬁre or electric shock.

Donottouch

●

Do not touch the power cord during electric storms. It may cause ﬁre or electric shock.

●

Do not use this device at a voltage other than

indicated voltage (AC 100V). It may cause ﬁre

or electric shock.

●

Do not allow water or ﬂuids to enter or touch this device. It may cause ﬁre or electric shock.

Pay particular attention to usage of this device

in rain, snow, coastal or water-adjacent sites.

●

Do not connect to a direct current (DC) power

source, such as used in a ship. It may cause a

ﬁre.



WARNING

●

Fire or electric shock may occur if you continue

to use this device when it is dropped or its cabinet is damaged. Turn oﬀ the power switch immediately and unplug the power cord from the

AC outlet, and contact your dealer.

Unplug the power

cord from the AC outlet



●

Donot diassemble

●

Do not insert or drop metals, ﬂammable

materials etc inside the unit. This may result in

ﬁre or electric shock. Be vigilant especially when it is used by children.

Do not place small metal objects nor any containers on top of this device, such as vases, ﬂower-pots, cups, cosmetics, chemicals or water containers. Spillage or leakage may cause ﬁre or electric shock.

Do not remove the deviceʼs cover, cabinet or rear panel. There are high voltage parts within, and you may receive an electrical shock. Contact

your dealer for internal inspection, maintenance, or repairs.

Do not modify this device. It may cause ﬁre or electric shock.

Do not place naked ﬂame sources on top of the device, such as lighted candles. It may cause ﬁre.

WARNING

Do not block the ventilation ducts. Blocked ventilation ducts may cause heat to accumulate inside and result in ﬁre. This device has ventilation ports both at the top and bottom of the chassis to prevent internal temperature-rise. Please pay particular attention to the following

recommendations:

・Do not place the device upside down, sideways

or face upwards.

・Do not push the device into any narrow and

poorly-　 ventilated space such as a bookcase or 　 closet.(other than on the dedicated rack). ・Do not cover the device with a table cloth or

place it 　on a carpet or bed.

When installing this equipment, keep 10 cm space from the wall. Also, to improve heat dissipation, keep it away from other equipment.

When mounting unit in a rack etc, ensure to have a gap of more than 2 cm from the top panel, more than 5 cm from the back. This will prevent internal heat from rising - which if trapped could cause overheating and ﬁre.

Do not place heavy objects on the power cord nor run the cord under heavy objects. The cord may be damaged and this could cause ﬁre or electric shock. Be careful not to cover the cord with rugs, matts etc, as you may inadvertently place heavy objects on the cord without noticing.

Do not scratch, modify, bend, twist, pull, or heat the power cord. A damaged cord is a ﬁre and electrical shock hazard.



●

●

Do not place any location exposed to oil smoke or steam, such as near cooking stoves, humidiﬁers, etc. It may cause ﬁre or electric shock.

●

Do not place the unit in a physically-unstable situation such as an unsteady table or sloping surface. Falling unit or collapsing operatingbench may cause injury.

●

Do not place the power cord close to a heater. The coating of the cord may melt, causing ﬁre or electrical shock.

●

Do not leave the unit in excessively hot environment, such as in a car with windows closed, or exposed to direct sunlight etc. It may have a negative inﬂuence on the cabinet and internal parts, and could result in ﬁre.

●

Do not place unit in an excessively humid or dusty environment. It may result in ﬁre or electric shock.

When connecting audio equipment, TV, video equipment, game machine or speakers, make

sure to read the instruction manual of each

equipment carefully, turn oﬀ the power, and connect accordingly as described. Use only speciﬁed cable for connection. Using non-speciﬁed cable or extending the cable may cause overheating and cause burns.

Make sure to minimize the volume control before turning on the power. A sudden loud blast of sound may damage your hearing. Also, minimize the volume control when you connect this deviceʼs speakers with TV.

CAUTION

-3-



●

Even when the power switch is in the OFF position, the unit is not completely isolated from the power supply. In order to prevent accidents, place this product near the AC outlet and so that you can immediately unplug the power cord from AC outlet in case of emergency.

●

Do not place anything on top of this device. There are vent holes on the top panel. Blocking the ventilation holes may cause heat accumula-

tion inside and cause ﬁre.

●

Do not relocate unit while using with TV, audio equipment etc. Falling or dropped device may cause injury.

●

Do not sit on nor hang from this device. Pay attention especially when children are nearby. Unit may fall or break, resulting in injury.

Do not use sound distortion through the unit for long periods of time. This may cause your speakers to generate heat and could result in fire.

To move/relocate the device, turn off the power switch, make sure to disconnect the power cord from AC outlet, and remove all connected cables between other devices. This is to prevent cord damage and the potential to cause fire or electric shock.

For safety, make sure to unplug the power cord from the AC outlet whenever you do not use the device for long periods of time, such as on vacation etc.

When cleaning, unplug the power cord from AC outlet for safety to prevent electric shock.

Do not plug or unplug the power cord with wet hands. It may result in electric shock.

When disconnecting the power cord from AC outlet, hold the power cord plug and never pull the cord. A damaged power cord is a fire and electrical shock hazard.

Do not handle the device during use nor immediately after use, except for the user controls and rear connection terminals, as its high operating temperature is a potential burn hazard. In particular, do not touch the upper surface panel.

Do not place heavy or large objects on this device that protrude from the outer frame. This may upset balance and cause accidents resulting in damage or injury.

Consult your dealer about internal servicing of the unit once every five years. (In case of usage public-space use in music bars etc, once a year internal servicing is recommended). Dust may accumulate inside the device when not cleaned for a long periods of time. This may cause fire or malfunction. In regions where high-humidity/ rainy-seasons are common, it is recommended to clean units prior to that time. Consult your dealer about service/maintenance fees.

Use only the specified AC cord which is included in the product package. Do not use other non-specified AC cords.

CAUTION

Unplug the power cord from the AC outlet

High temperature

-4-

-5-

●



●

•

2. MAIN FEATURES

3. ACCESORIES

The Phoenix Professional DJ Mixer is an all-round type 4CH mixer, created through careful design and tapping the abundant development/experience history and knowledge-base of its sound equipment master-craftspersons. It is manufactured using the highest technologies.

Full, rich analog sound is produced that could not be gained with a digital mixer through reviewing the techniques of DJ mixer production history, as well as using original large toroidal transformers, specially-selected parts, and adapting advanced discrete circuitry.

Encorporates professional VU meters for all channels, including a master channel, in order for ease of accurate level-matching which is essential in the pursuit of high sound quality.

It consists of 4 channels to support 3 phono inputs and 9 line inputs. In addition, it is equipped with an independent 1 MIC channel, separated AUX stereo send-return function and master loop function. Besides the two outputs MASTER OUT1 and MASTER OUT2 which perform independent volume control, there is also a separate REC OUT that does not pass through any volume-out control.

Each of the 4 channels has a TRIM, LR balance control, and a high-quality 3-band equalizer that

has been fully tested for eﬀectiveness. In addition, the ideal 60mm vertical fader is built in to oﬀer

solid curve control.

The cross fader is an all genre type which can support long-mix play with longitudinal fades, to scratch play performance with sharp cuts, by adapting the latest technologies for non-contact type fader and curve control.

It is equipped with a Phono direct-out jack, and does not require replacing the record player cable when connecting the interface - in order to support DVS with binary control.

Two LINE inputs for Φ 6.3 standard stereo phones. Other two LINE inputs are equipped with switch for -10dB / 0dB to support the low volume level of the headphone jack output for portable cellphone audio. It is also equipped with a Φ 3.5 mini stereo phone jack in one of the LINE inputs.

Equipped with a 3-band isolator in the master stage. Each of the Hi-Mid and Mid-Low dividing points includes a critical two point switch, developed over many years of research.

With the integrated enhancer eﬀector, it enables an unique sound outline ﬁnish correction, and oﬀers eﬀects which can produced analog-circuits.

"Made in Japan" to the highest manufacturing, technology, and quality-control standards.

Included with the main unit are the following accessories:

Dedicated power supply

"Caution" notes for safety of use. (Please ensure to read it)

Main features and their functions can be divided into 3 panels:

Input channel panel Master panel Input/Output terminal panel

Input/Output terminal panel

-6-

4. NAMES AND FUNCTIONS

-25-10-5-

1 0 +4 +6 dB

-8-12-15-25-6-4-3-2-

1 0 +1

+2 +3 +5 +8

KYORITSU

KM-48

VU

KYORITSU

KM-48

VU

KYORITSU

KM-48

VU

KYORITSU

KM-48

VU

KYORITSU

KM-48

VU

KYORITSU

KM-48

VU



Input channel panel

Master panel

Input/Output terminal panel

-7-

KYORITSU

KM-48

100

VU

KYORITSU

KM-48

100

VU

KYORITSU

KM-48

100

VU

KYORITSU

KM-48

100

VU

Input channel panel

①

② ③ ④ ⑤

⑬

⑭

⑮

⑯

⑰

⑥

⑦

⑧

⑨

⑩ ⑪

⑫

① INPUT VU METER

Displays the input level of each channel.

② INPUT SELECTOR 1

Selects the input to assign to CH1. Select one input source from LINE1, LINE2 or LINE3.

③ INPUT SELECTOR 2

Selects the input to assign to CH2. Select one input source from PHONO1, LINE4 or LINE5.

④ INPUT SELECTOR 3

Selects the input to assign to CH3. Select one input source from PHONO2, LINE6 or LINE7.

⑤ INPUT SELECTOR 4

Selects the input to assign to CH4. Select one input source from PHONO3, LINE8 or LINE9.

⑦ TRIM ADJUST VOLUME

Adjusts the input level by checking ①input VU meter.

⑥ LR BALANCE

Adjusts LR balance of each channel. The input

level diﬀerence of L and R can be checked

visually on LED level meter in master panel, by

switching the meter display menu to [INPUT CUE] and pushing ⑪ CUE button of your

desired channel.

-8-

⑧ CHANNEL 3BAND EQUALIZER

Adjusts Hi (high frequency range), Mid (medium frequency range), and Low (low frequency range) of each channel.Hi and Low adjustable range are between -12dB to +12dB, and Mid is between -10dB to +10dB.

⑨ CHANNEL AUX SEND ON / OFF SWITCH

Determines whether to output that channel from the AUX SEND jack. OFF is at center position. When switched to the left (PRE), it outputs with the max volume of the vertical fader regardless of the position of the fader. When switched to the right (POST), it outputs with the volume determined by the vertical fader.

⑩ CROSS FADER ASIGN SWITCH

Determines whether the sound passed through the vertical fader is assigned to the A or B side of the cross fader, or is sent to MASTER without assigning to the cross fader.

⑪ CHANNEL CUE BUTTON

Press this button to select the channel for the headphone monitor. LED lights while it is ON. Press again to to turn it OFF (LED goes out). If you turn on the CUE buttons on multiple channels, they will be mixed, and can be monitored together from the headphone.

⑫ CHANNEL FADER (VERTICAL FADER)

Controls the volume of the channel. The curve characteristics can be selected at Channel fader curve control.

⑬ MIC LEVEL

Controls the volume of the micprophone.

⑭ MIC EQUALIZER Hi

Controls the high frequency ranges of the microphone.

⑮ MIC EQUALIZER Low

Controls the low frequency ranges of the microphone.

⑯ MIC AUX SEND ON/OFF SWITCH

Select whether or not to output the microphone from AUX SEND jack.

⑰ MIC CUE BUTTON

Select if outputting the microphone from AUX SEND jack.

Master panel

-9-

-25-10-5-

1 0 +4 +6

-8-12-15-

-6-4-3-2-

1 0 +1

+2 +3 +5 +8

KYORITSU

KM-48

100

VU

KYORITSU

KM-48

100

VU

MASTER1 LEVEL VU METER

Indicates MASTER1ʼs output level. There are 2 master outputs; MASTER1/2 which can be adjusted the volume individually.

LED LEVEL METER DISPLAY SWITCH

Selects the source to show on the LED level meter. Left: MASTER2, Center: MASTER1, Right; INPUT CUE. INPUT CUE shows the level before passing through the vertical fader, of which the CUE button of the four channels can be pressed. This enables you to check the volume and LR balance before raising the vertical fader to output. You can also visually check the level diﬀerence for each channel by alternately pressing the CUE button.

MASTER1 VOLUME

Determines the output volume of MASTER1. Reference position is 14:00.

ENHANCER EFFECTS

Controls the volume of the eﬀector that outlines the sound. Apply it thinly for sound ﬁeld correction.

MASTER CUE

Turn ON to monitor MASTER output via headphone. MASTER1/2 volume position is ignored. ※ It starts in ON-state when the power is turned ON.

MASTER2 VOLUME

Determines the output volume of MASTER2. Reference position is 14:00.

ISOLATOR ON/OFF SWITCH

ISOLATOR ON/OFF SWITCH 3band isolator ON/OFF witch. Right is OFF (by-passed) and left is ON. OFF (by-passed) is recommended if you do not use the isolator function.

Low-Mid DIVIDING POINT SWITCH

Switches 2 dividing points between Low and Mid range of the isolator.

Mid-Hi DIVIDING POINT SWITCH

Switches 2 dividing points between Mid and Hi range of the isolator.

LED LEVEL METER

Shows the level which is selected at .

3BAND ISLATOR Low CONTROL

Controls the volume of low frequency range

between -∞ to +6dB. Flat at 12:00 position.

3BAND ISLATOR Mid CONTROL

Controls the volume of mid frequency range between -∞ to +4dB. Flat at 12:00 position.

3BAND ISLATOR Hi CONTROL

Controls the volume of hi frequency range between -∞ to +4dB. Flat at 12:00 position.

AUX RTN LEVEL METER

Indicates the input level of AUX return.

AUX SEND LEVEL

Controls the 4 input channels and MIC channelʼs output level from the AUX send jack, when the AUX lever is ON.

HEADPHONE VOLUME

Controls the output level of from the headphone jack (6.3mm stereo-phone) equipped on the front left of the unit.

※ If the surroundings are too loud, the headphone volume tends to be raised in order to monitor steadily, but be sure to guard against ear-damage when selecting high volumes.

When tune-selecting or mixing, do not depend on the monitor sound at 100% but also refer to the VU meter or LED meter for volume level and beat movement. (Combined use of hearing and vision)

CROSS FADER

Crossfades the channel output which is assigned to A or B on each channel.

CHANNEL FADER CRUVE CONTROL

Adjusts the curve characteristic of the rising edge of the channel fader. Turning towards the left gives more A-curve, the center is B curve, and the right is a tight C curve setting which sharply raises the sound.

CROSS FADER CURVE CONTROL

Adjusts the sharpness of the curve of the crossfader. When it is Max, the curve rises sharply. For example, the sound of A-side assigned channel comes out just by sliding a fader slightly from B-side edge and vise versa. This setting is ideal for scratch play. When it is at a minimum, it becomes a gentle cross fade curve. At this setting, the sound volume does not drop in both A side and B side when the fader is on the center. This setting is for a mixing-style using both a crossfader and vertical fader together.

-10-



AUX RETURN LEVEL

Controls the input level of AUX return.



AUX CUE

Checks the AUX return input source via headphone before raising its volume. LED lights when it is ON, and press again to turn it OFF.



37 38

LINE1 INPUT TERMINAL (RCA Pin)

Input terminal for line level output devices such as CD player or audio interface, and is assigned to CH1.

LINE2 INPUT TERMINAL (RCA Pin)

Input terminal for line level output devices such as CD player or audio interface, and is assigned to CH1.

LINE4 INPUT TERMINAL (RCA Pin)

Input terminal for line level output devices such as CD player or audio interface, and is assigned to CH2.

PHONO1 INPUT TERMINAL (RCA Pin)

Input terminal for the record player (MM cartridge supported), and is assigned to CH2. (However, if the record player is phono equalizer equipped and is set to line level output, be sure to connect to the LINE input terminal of this device.

PHONO2 INPUT TERMINAL (RCA Pin)

Input terminal for the record player (MM cartridge supported), and is assigned to CH3.(However, if the record player is phono equalizer equipped and is set to line level output, be sure to connect to the LINE input terminal of this device.

LINE6 INPUT TERMINAL (RCA Pin)

Input terminal for line level output devices such as CD player or audio interface, and is assigned to CH3.

LINE8 INPUT TERMINAL (RCA Pin)

Input terminal for line level output devices such as CD player or audio interface, and is assigned to CH4.

LINE3 INPUT TERMINAL

(Φ6.3 standard mono phone)

Input terminal for line level output devices such as CD player or audio interface, and also for an audio mixer, keyboard or instrument whose output source is line level. This is assigned to CH1. (Only the terminal type is

diﬀerent from other RCA pin LINE inputs.)

PHONO3 INPUT TERMINAL (RCA Pin)

-11-



Input/Output terminal panel

56 55 54 53 52 51 48 47

60 59 58 57 50 49 46 45 44 43 42 41 40 39

-12-



LINE5 INPUT TERMINAL

(Φ6.3 standard mono phone)

diﬀerent from other RCA pin LINE inputs.)

PHONO1 DIRECT OUTPUT TERMINAL

(RCA Pin)

Outputs PHONO1 input source directly. Use

this terminal for connecting an interface

(DVS) to use a control vinyl for digital DJ. Recommended setting is; Keep the record player connected to PHONO1 input, and connect this PHONO1 direct output to the PHONO input of the left-side DVS interface.

Then, connect the line output of the DVS

interface to LINE 4 or LINE 5 which are assigned to CH2 as same as PHONO1. You

can now easily select input source either from DVS or analog record, by just switching the CH2's input selector switch.

PHONO2 DIRECT OUTPUT TERMINAL

(RCA Pin)

Outputs PHONO2 input source directly. Use

this terminal for connecting an interface

(DVS) to use a control vinyl for digital DJ. Recommended setting is; Keep the record player connected to PHONO2 input, and connect this PHONO2 direct output to the PHONO input of the right-side DVS interface.

Then, connect the line output of the DVS

interface to LINE 6 or LINE 7 which are assigned to CH3 as same as PHONO2. You

can now easily select input source either from DVS or analog record, by just switching the CH3's input selector switch.



MASTER LOOP INPUT TERMINAL

(Φ6.3 standard mono phone)

This mixer can add external eﬀectors (isolator, equalizer, delay, reverb etc) just before the ﬁnal output stage. Connect the output from to the external eﬀector, and return the output of eﬀector to this terminal.



MASTER LOOP OUTPUT TERMINAL

(Φ6.3 standard mono phone)

This mixer can add external eﬀectors (isolator, equalizer, delay, reverb etc) just before the ﬁnal output stage. Connect the

output from this terminal to the external

eﬀector, and return the output of eﬀector to

this .



EARTH TERMINAL

Connect the earth of the record player. Up to

3 record players can be connected to this mixer, thus 3 terminals are equipped. Be sure to connect the earth otherwise noise will be produced.



MIC INPUT TERMINAL (XLR Connector)

Connect the cable from microphone.



AUX OUTPUT SEND TERMINAL (RCA Pin)

Useful when applying external eﬀectors (delay, reverb, sampler, etc.) for a speciﬁc channel. Connect to the input terminal of the external eﬀector.



AUX INPUT RETURN TERMINAL (RCA Pin)

Useful when applying external eﬀectors (delay, reverb, sampler, etc.) for a speciﬁc channel. Connect to the output terminal of the external eﬀector.



Unbalanced output of ﬁnal mix which level is set at MASTER1 volume.

MASTER1 UNBALANCED OUTPUT TERMINAL

(Φ6.3 standard mono phone)



Unbalanced output of ﬁnal mix which level is set at MASTER1 volume.

MASTER1 BALANCED OUTPUT TERMINAL

(XLR Pin2-Hot)

Unbalanced output of ﬁnal mix which level is set at MASTER2 volume.



MASTER2 BALANCED OUTPUT TERMINAL

(XLR Pin2-Hot)

Connect the supplied power box.

※Do not use power supply other than the one provided, even if the terminal/plug shape is same. It may not only damage the unit but also may result in a fire.



POWER SUPPLY TERMINAL

To hear the channel(s) for which CUE button(s) is ON. Control the volume level at



HEADPHONE TERMINAL

(Φ6.3 standard stereo phone)

-13-



Outputs same sound as master. However, its volume does not relate to the master volume, and it outputs as the level of 14:00 position. It is useful for recording the event mix.

REC OUT TERMINAL

Switches the attenuator value of the sound input to LINE7. Set it to OFF to connect a normal LINE output device, and set +10dB ON to input low level output device such as mobile audio or smartphone.

LINE7 INPUT ATTENUATOR SWITCH

Terminal for LINE level output devices such as CD player, audio interface, and for low level output devices such as mobile audio or smartphone. It is assigned to CH3.

LINE9 INPUT TERMINAL

Terminal for LINE level output devices such as CD player, audio interface, and for low level output devices such as mobile audio or smartphone. It is assigned to CH4. However, this input is disabled while the plug is inserted to mini-stereo terminal.

LINE9 INPUT TERMINAL (RCA Pin)

-14-



Terminal for mini stereo input. If both RCA pin terminal and this terminal are connected at the same time, this mini stereo phone takes precedence over RCA pin, and RCA

input is shut oﬀ. This is assigned to CH4.

LINE9 INPUT TERMINAL

(Φ3.5 mini stereo phone)



62 63 64 65 66 67

Switches the attenuator value of the sound input to LINE9. Set it to OFF to connect a normal LINE output device, and set +10dB ON to input low level output device such as mobile audio or smartphone.

LINE9 INPUT ATTENUATOR SWITCH

-15-

INPUT STAGE (Standard level / impedance）

CH1

-10dBv/10kΩ

LINE 3 IN φ6.3 Terminal×2 (Unbalanced） -10dBv/10kΩ

CH2

-52dBv(1kHz)/47kΩ

-10dBv/10kΩ

CH3

-52dBv(1kHz)/47kΩ

-10dBv/10kΩ

CH4



-52dBv(1kHz)/47kΩ

-10dBv/10kΩ

-50dBv/3.3kΩ

-10dBv/10kΩ



-10dBv/10kΩ



+4dBv/ ≧ 600Ω



0dBv/≧ 10kΩ

+4dBv/≧ 600Ω

-10dBv/≧ 10kΩ

-52dBv/≧ 10kΩ 0dBv/≧ 10kΩ

-10dBv/≧ 0kΩ

120ｍW（max）/ ≧ 8Ω

NOISE LEVEL (TRIM at 14:00 IFVR MAX MASTERVR at 14:00)

MASTER OUT

Power requirement Power consumption

Dimensions

Weight

LINE IN → MASTER OUT 20

～20

kHz/+1.0dB-3dB



≦ 2mV

1kHz LINE IN → MASTER OUT



≦ 0.5％



AC100V, 120V or 220V (depending on Region) 50/60Hz



95W

Unit：430mm(W) × 91mm(H) × 410mm(D)

(excl. meter housing)

430mm(W) × 120mm(H) × 410mm(D)

(incl. meter housing)

Power Supply：125mm(W) × 74mm(H) × 183mm(D)



Unit：11Kg

Power Supply：2.5kg (100V), 3.2kg (120V), 3.2kg (220V)

5. SPECIFICATIONS

LINE 1, 2 IN

RCA Pin terminal (Unbalanced）



LINE 5 IN φ6.3 Terminal×2 (Unbalanced）



MASTER LOOP IN φ6.3 Terminal×2 (Unbalanced）



MASTER LOOP OUT φ6.3 Terminal×2 (Unbalanced）



HEADPHONE OUT φ6.3 Terminal (Unbalanced）



φ3.5 Stereo terminal (Unbalanced）



LINE 4 IN

RCA Pin terminal (Unbalanced）

  

PHONO1 IN

RCA Pin terminal (Unbalanced）



LINE 9 IN RCA Pin terminal (Unbalanced）



AUX RTN IN RCA Pin terminal (Unbalanced）

MIC IN XLR terminal (Balanced）

LINE 8 IN

RCA Pin terminal (Unbalanced）

 

PHONO3 IN

RCA Pin terminal (Unbalanced）



 

MASTER OUT1

XLR terminal (Balanced）



 

MASTER OUT2

XLR terminal (Balanced）



 

REC OUT2

RCA terminal (Unbalanced）



 

PHONO1,2 OUT

RCA terminal (Unbalanced）



 

AUX SEND

RCA terminal (Unbalanced）

 

MASTER OUT1

φ6.3 Terminal×2 (Unbalanced）

LINE 6,7 IN

RCA Pin terminal (Unbalanced）

  

PHONO2 IN

RCA Pin terminal (Unbalanced）

OUTPUT STAGE (Standard level / load impedance）

FREQUENCY CHARACTERISTIC (at rated input/rated output)

TOTAL HARMONIC DISTORTION (at rated input/rated output)

NB: For product improvements, speciﬁcations and appearance are subject to change without notice.

6. WARRANTY AND AFTER-SALES SERVICE

（１）

WARRANTY CARD

REPAIR QUESTION

REPAIR REQUESTS

NON-REPAIRABLE CASES AND CONDITIONS

REPLACEMENT UNIT DURING REPAIR PERIOD



  

 

※ The owner shall bear the freight-costs for repair, even within the warranty period.

（２） S



（３） 



（４）



（５）





www.stpvestax.com

There is no printed warranty card included. The purchase date, owner information, and the serial number of this unit will be registered and managed by “Stpvestax LLP”, and can be veriﬁed by the dealer or owner by contacting the manufacturer “Stpvestax LLP” (stpvestax.com). (Privacy/Personal data is strictly handled). If the unit's owner changes, the warranty period will be continued by veriﬁcation from both the previous owner and the new owner.

For unit failures or faults, immediately cease using it and request a repair from the original dealer from whom you purchased the unit. (Even within the warranty period, repair fees may be charged depending upon the nature and cause of the defect).

During the warranty period, repairs will be performed according to our warranty policy.

Following the expiration of the warranty period, the unit can be repair at your request. If you require an estimate ﬁrst, please tell us in advance. An "Estimate Fee" will also be charged, but it will be included in that repair fee if you decide to proceed with the repair.

Repairs may not be possible, or we may refuse to repair a unit if it exhibits any of the following conditions ... Faults caused by opening and modifying the unit by the Purchaser or 3rd Party. Additionally, in the case where liquid-spillage from drinks or continued usage in wet environments has resulted in prior repairs, the unit may fail again due to adjunct damage which develops over time. Therefore, a repair cannot be guaranteed to prevent a recurrence of product failure or faults.

We are not able to oﬀer a replacement unit during the repair period. If using our unit for business purposes, we recommend you purchase a back-up machine as necessary.

If you have any questions or want to know more information, please visit our ofﬁcial website.

If for any reason, the original dealer from whom you purchased the unit has closed, please contact “Stpvestax LLP” (stpvestax.com) for support.

For repair consultation and product questions, please contact your original dealer from whom you purchased the unit, or “Stpvestax LLP” (stpvestax. Com)

Warranty period is one (1) year.

※ From the date from the original retail purchase.

stpVx Phoenix User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
