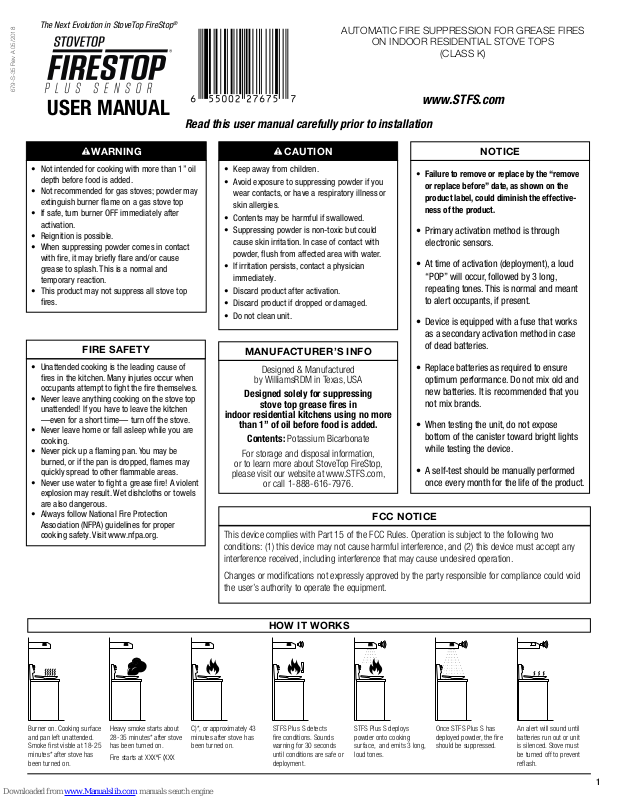

The Next Evolution in StoveTop FireStop

679-S-35 Rev A 05/2018

USER MANUAL

AUTOMATIC FIRE SUPPRESSION FOR GREASE FIRES

ON INDOOR RESIDENTIAL STOVE TOPS

(CLASS K)

www.STFS.com

Read this user manual carefully prior to installation

WARNING CAUTION

• Not intended for cooking with more than 1” oil depth before food is added.

• Not recommended for gas stoves; powder may extinguish burner ﬂame on a gas stove top

• If safe, turn burner OFF immediately after activation.

• Reignition is possible.

• When suppressing powder comes in contact with ﬁre, it may brieﬂy ﬂare and/or cause grease to splash. This is a normal and temporary reaction.

• This product may not suppress all stove top ﬁres.

FIRE SAFETY

• Unattended cooking is the leading cause of ﬁres in the kitchen. Many injuries occur when occupants attempt to ﬁght the ﬁre themselves.

• Never leave anything cooking on the stove top unattended! If you have to leave the kitchen —even for a short time— turn off the stove.

• Never leave home or fall asleep while you are cooking.

• Never pick up a ﬂaming pan. You may be burned, or if the pan is dropped, ﬂames may quickly spread to other ﬂammable areas.

• Never use water to ﬁght a grease ﬁre! A violent explosion may result. Wet dishcloths or towels are also dangerous.

• Always follow National Fire Protection Association (NFPA) guidelines for proper cooking safety. Visit www.nfpa.org.

NOTICE

• Keep away from children.

• Avoid exposure to suppressing powder if you wear contacts, or have a respiratory illness or skin allergies.

• Contents may be harmful if swallowed.

• Suppressing powder is non-toxic but could cause skin irritation. In case of contact with powder, ﬂush from affected area with water.

• If irritation persists, contact a physician immediately.

• Discard product after activation.

• Discard product if dropped or damaged.

• Do not clean unit.

• Failure to remove or replace by the “remove or replace before” date, as shown on the product label, could diminish the effectiveness of the product.

• Primary activation method is through electronic sensors.

• At time of activation (deployment), a loud “POP” will occur, followed by 3 long, repeating tones. This is normal and meant to alert occupants, if present.

• Device is equipped with a fuse that works as a secondary activation method in case

MANUFACTURER’S INFO

Designed & Manufactured

by WilliamsRDM in Texas, USA

Designed solely for suppressing

stove top grease ﬁres in

of dead batteries.

• Replace batteries as required to ensure optimum performance. Do not mix old and new batteries. It is recommended that you not mix brands.

indoor residential kitchens using no more

than 1” of oil before food is added.

Contents: Potassium Bicarbonate

For storage and disposal information,

or to learn more about StoveTop FireStop,

please visit our website at www.STFS.com,

or call 1-888-616-7976.

• When testing the unit, do not expose bottom of the canister toward bright lights while testing the device.

• A self-test should be manually performed once every month for the life of the product.

FCC NOTICE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Burner on. Cooking surface and pan left unattended. Smoke ﬁrst visble at 18-25 minutes* after stove has been turned on.

Heavy smoke starts about 28-35 minutes* after stove has been turned on.

Fire starts at XXXºF (XXX

C)*, or approximately 43 minutes after stove has been turned on.

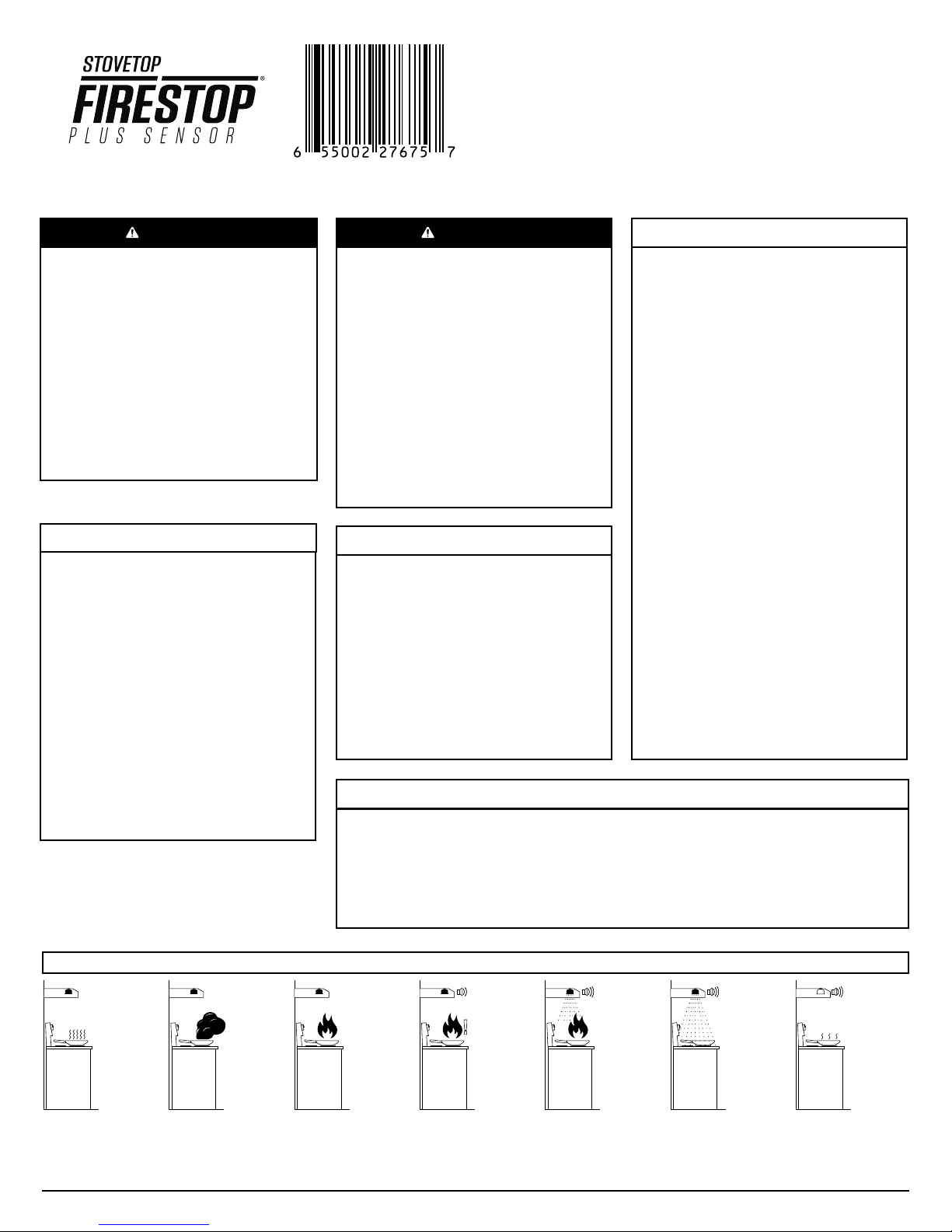

HOW IT WORKS

STFS Plus S detects ﬁre conditions. Sounds warning for 30 seconds until conditions are safe or deployment.

STFS Plus S deploys powder onto cooking surface, and emits 3 long, loud tones.

Once STFS Plus S has deployed powder, the ﬁre should be suppressed.

An alert will sound until batteries run out or unit is silenced. Stove must be turned off to prevent reﬂash.

Page 2

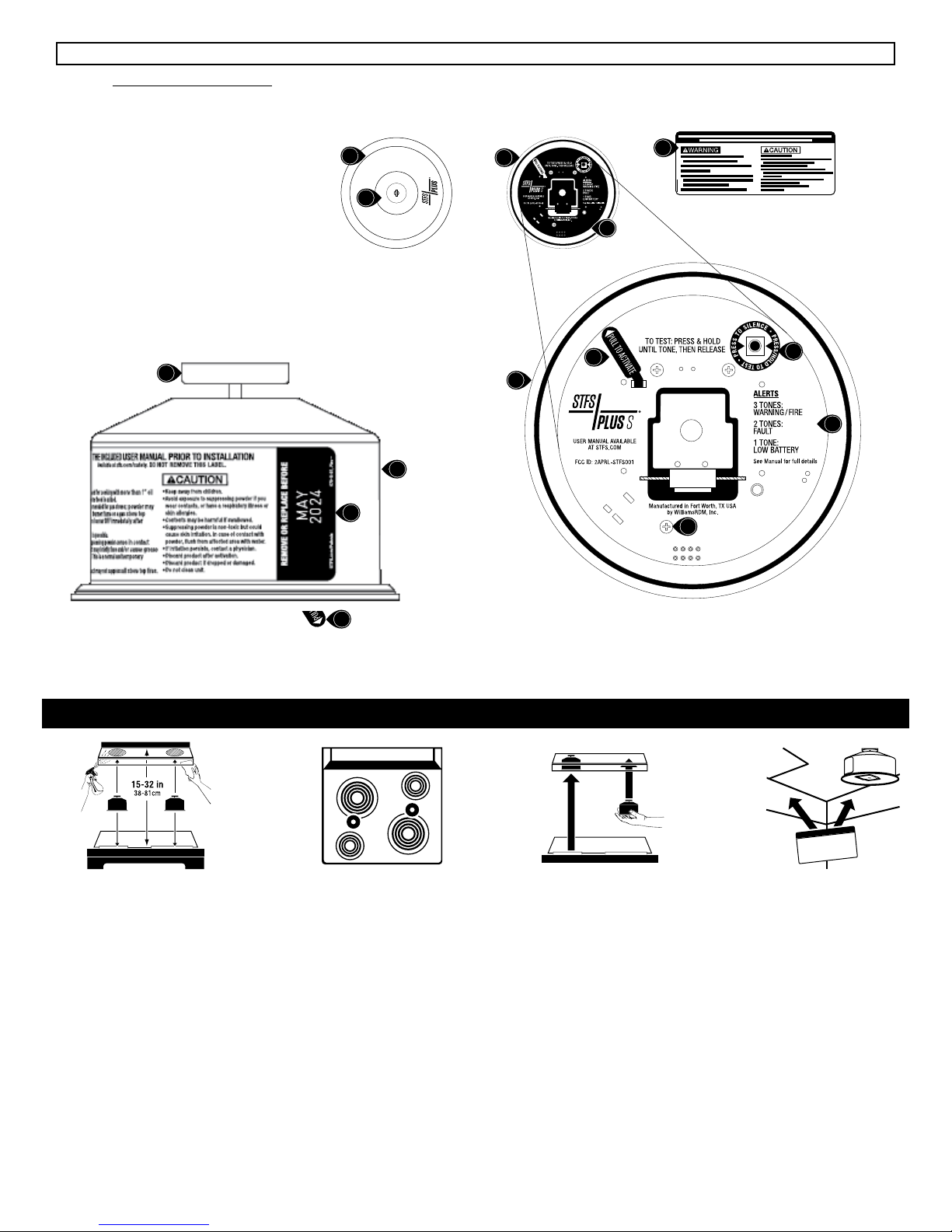

WHAT’S IN THE BOX

(not drawn to scale) IN THE BOX (not drawn to scale)

STFS PLUS SENSOR CANNISTERS ONE ASSEMBLED PAIR FOR EACH 4-BURNERS

STFS PLUS SENSOR CANISTERS

A. STFS Plus Sensor Canister B. Magnet C. Sensor Board D. Test / Reset Button E. Board Screws (3 per canister) F. Pull Tab G. Decal, 1 per pair H. Expiration Date (on Label)

Top View

Bottom View

Sensor Board Detail ViewSide View

STFS PLUS S MECHANICAL INSTALLATION

(1)

1) Must have 15-32” (38-81 cm) between surface of cooktop and mounting point in range hood. Clean and dry areas in range hood where both

(2)

(3)

(4)

magnets will attach.

2) Position canisters in range hood at the midpoint between the center of front and back burners on each side.

3) Raise canisters to the spot directly above in range hood.

4) Place the enclosed decal where it can be seen in the ventilation hood.

If the magnet does not attach, go to www.STFS.com to order an alternative mounting kit.

Page 3

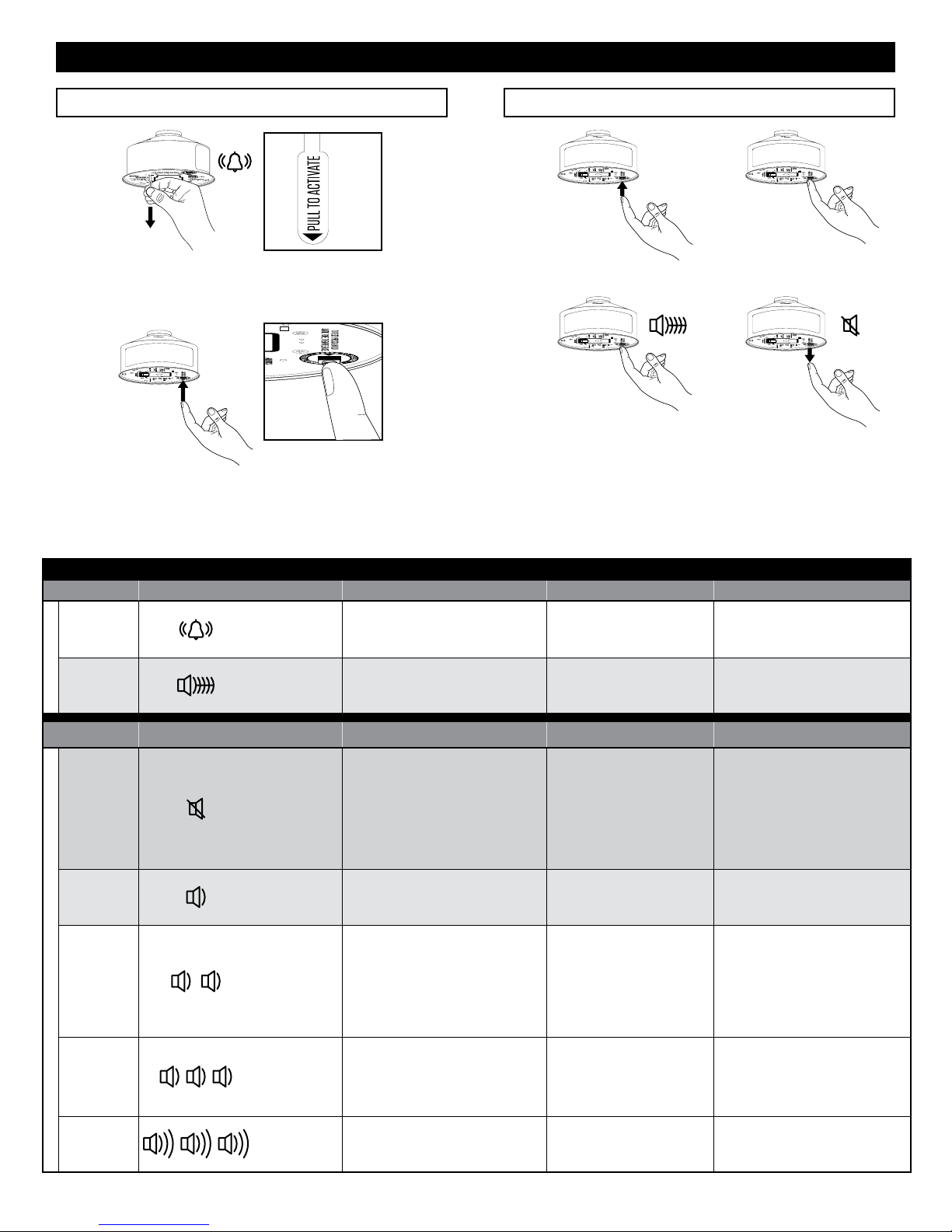

STFS PLUS S ACTIVATION & TEST

INITIAL ACTIVATION

(1)

1) Pull out the red tab to activate the product. The product should

emit an ‘activation jingle’, one time.

(2)

2) If no sound is heard, proceed to TESTING section and/or BATTERY

REPLACEMENT sections.

See chart below for explanation of additional alerts.

TESTING

(1)

3 secs

(2)

5+ secs

1) To test the device, hold Test button for more than 3 seconds until

a tone is heard.

2) When the button is released, or has been held down for 5

continuous seconds, the tone will stop.

Do not point the sensors at bright lights when performing a self test. If no sound is heard, Test was successful.

TROUBLESHOOTING

CONDITION SOUND ACTION CYCLE MEANING

Only once when tab is

pulled, OR when batteries

are replaced.

Tone sounds for a

duration of 5 seconds or

until button is released

None

Repeats every 60 seconds

until batteries run out or

are replaced, or unit is

silenced.*

Repeats every 60 seconds

until batteries run out, or

unit is silenced.*

Repeats every 2 seconds

for 30 seconds until

conditions improve, or

unit is silenced.*

Repeats every 1.5

seconds until batteries

run out or are removed, or

unit is silenced.*

Device is powered on and

working properly

Device has initiated a self-test.

See below for results.

Remove then reinstall existing

batteries, clearing any debris

preventing battery contact.

Retest. If no sound, replace

with new batteries. Retest.

If still no sound, contact

manufacturer immediately.

Replace old batteries with two (2) new, 1.5V alkaline,

N-cell batteries

Go to STFS Plus Sensor Troubleshooting Section

at www.STFS.com. Do not

dismount canisters. The unit

will still function if ﬂames from

a cooking ﬁre come in direct,

sustained contact with the fuse.

If safe to do so, turn off stove.

Do not reach across the pan.

Press button to silence alarm.

If nothing changes, unit will

deploy powder onto stove top.

Leave dwelling immediately,

then call 911. Once powder has

been deployed, the unit must

be replaced.

Activation jingle

Continuous tone

2 tones

3 tones

3 LOUD tones

Power On

TESTING

Self Test

CONDITION SOUND MEANING CYCLE REMEDY

No Power No tone

Low Battery 1 tone Low Battery

ALERTS

Fault

Warning

Deploy

* Alarms can be silenced by pressing the TEST/SILENCE button on the bottom of the unit. This will only silence the alarm for about one day. Speciﬁc action must be taken to permanently silence any of the alarms.

Initial activation by pulling tab,

or batteries have been replaced

Press and Hold self-test button

until tone sounds (approximately

3 seconds)

Batteries contact impeded, or

battery life expired

An error has been detected

within the sensor board

The conditions for a ﬁre to

start have been detected.

Action needed to prevent ﬁre or

deployment.

A ﬁre has been detected, and

deployed suppression powder

Page 4

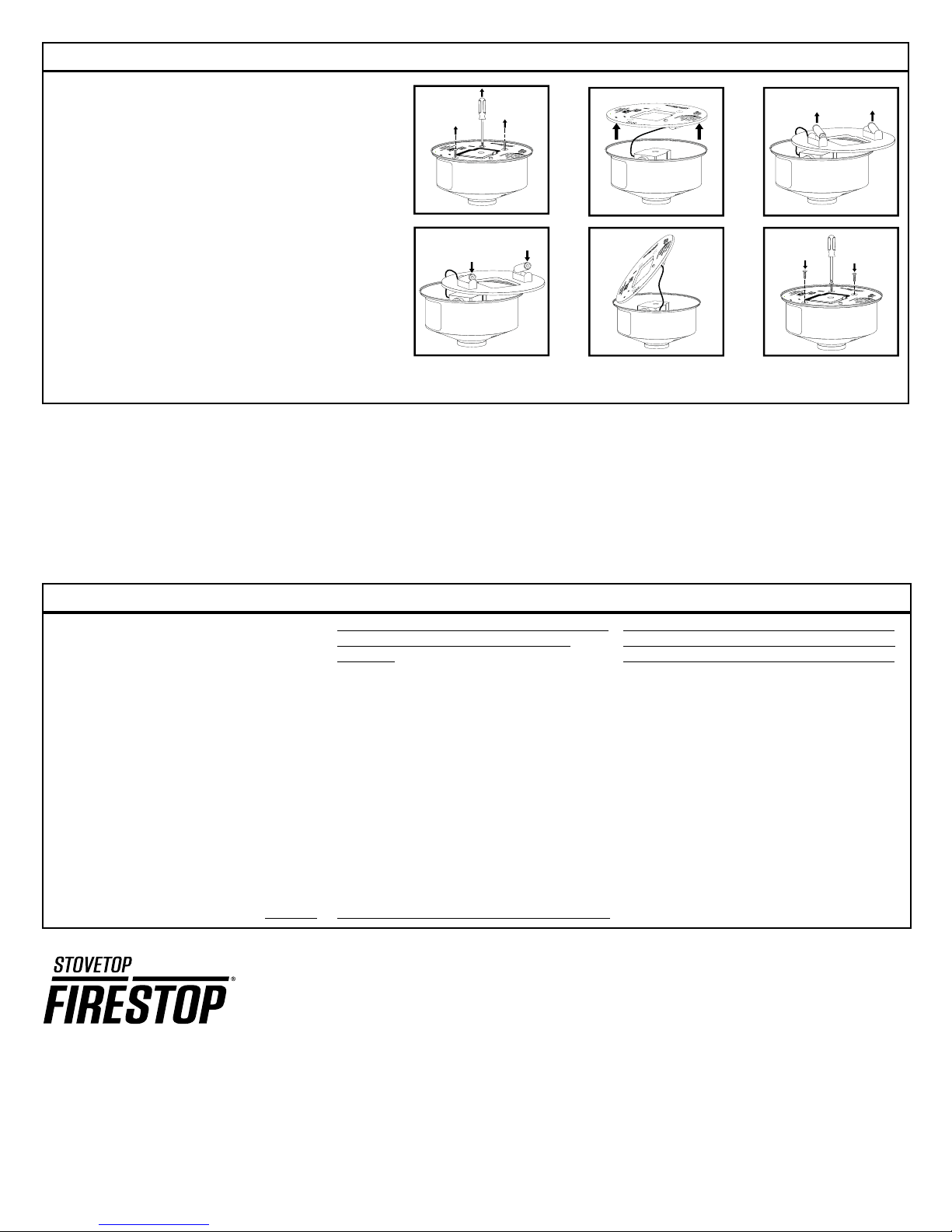

BATTERY REPLACEMENT

1) Use #2 Phillips head screw driver to unscrew the

three (3) small screws from the sensor board.

2) Remove the sensor board, taking care not to

damage or disconnect the wires.

3) Properly dispose of the existing batteries. Check for

any debris in the battery compartment that would interfere with battery contact.

4) Replace with two (2) new, 1.5V alkaline N-cell,

batteries. Do not mix new and old batteries.

5) Fold the wires back into place, taking care

not to damage the wires.

6) Reattach the sensor board with the three (3) small

screws, and reinstall per installation instructions.

Do not tamper with any sensors, or any other parts of the product or you risk device malfunction and voiding manufacturer’s warranty.

(1)

(4)

(2)

(5)

(3)

(6)

WilliamsRDM, Inc. (“WRDM”) warrants this StoveTop FireStop® product against defects in material or workmanship for the time periods and under the terms set forth below. Pursuant to this Limited Warranty, WRDM will, at its option, (i) repair the product using new or refurbished parts or (ii) replace the product with a new or refurbished product. For purposes of this Limited Warranty, “refurbished” means a product or part that has been returned to its original speciﬁcations. In the event of a defect, these are your

exclusive remedies.

WRDM warrants to the original retail purchaser all WRDM products for a period of one (1) year against defective material and faulty workmanship. Any unit found to be defective during the warranty period will be repaired if possible, or replaced free of charge upon the buyer’s prepaid return of the defective unit—only after receipt of an ofﬁcial Return Material Authorization (RMA) number. Proof of retail purchase is required. This warranty gives the buyer speciﬁc legal rights which may vary by state (or country.)

THE FORGOING WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES WITH RESPECT TO THIS PRODUCT, INCLUDING

Manufactured by WilliamsRDM 200 Greenleaf Street Fort Worth, TX 76107 817 872-1500 te l 888 616-7976 to ll fr ee [email protected] STFS.com

LIMITED WARRANTY

ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE—WHICH ARE HEREBY DISCLAIMED. THERE ARE NO IMPLIED WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. NO PERSON IS AUTHORIZED TO GIVE ANY OTHER WARRANTY, OR TO ASSUME FOR WRDM ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OR INSTALLATION OF ITS PRODUCTS. REPLACEMENT OF THE PRODUCT WILL BE THE SOLE REMEDY WITH RESPECT TO ANY LOSS OR DAMAGE TO PROPERTY. BUYER IS NOT RELYING ON SELLER’S JUDGMENT REGARDING BUYER’S PARTICULAR REQUIREMENTS AND BUYER HAS HAD AN OPPORTUNITY TO INSPECT THE PRODUCT TO BUYER’S SATISFACTION. UNAUTHORIZED SERVICE OF ANY KIND INVALIDATES ALL WARRANTY PROVISIONS.

This Limited Warranty covers only the hardware components packaged with this product. It does not cover technical assistance for hardware. Any parts or product replaced under this Limited Warranty will become the property of WRDM.

LIMITATION ON DAMAGES: WRDM SHALL NOT BE LIABLE FOR

ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO ANY SUCH DAMAGES FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT.

Instructions: To obtain warranty service, you must deliver the product, freight prepaid, in either its original packaging, or packaging affording an equal degree of protection, to WRDM’s speciﬁed manufacturing facility.

This Limited Warranty only covers product issues caused by defects in material or workmanship during ordinary consumer use; it does not cover product issues caused by any other reason, including but not limited to product issues due to commercial use, acts of God, misuse, limitations of technology, or modiﬁcation of or to any part of the WRDM product. This Limited Warranty is invalid if either the factory-applied work order number or date code has been altered or removed from the product. This Limited Warranty is valid only in the United States.

For StoveTop FireStop customer service:

go to www.STFS.com or call 1-888-616-7976.

© 2018 WilliamsRDM, Inc. All rights reserved. StoveTop FireStop, the StoveTop FireStop logo, STFS, the STFS Plus logo and design graphics are either registered trademarks or trademarks of WilliamsRDM, Inc. in the United States, and/or other countries. Model No. 679-S-3A. Patent info at www.STFS.com/patents.
