Page 1
720EF, Q721EF
Electric Double Oven & Grill
User & Installation Instructions
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 1
Page 2
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 2
Page 3
User’s Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 22
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Be Safe - Not Sorry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Using the Grill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using the Top Oven (Conventional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Top oven baking guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using the Main Oven (Fanned). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cooking with a fanned oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Main oven baking guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Defrosting and Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Slow cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Hints for cooking frozen & chilled foods. . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Traditional fruit cakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Roasting turkey. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Roasting guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

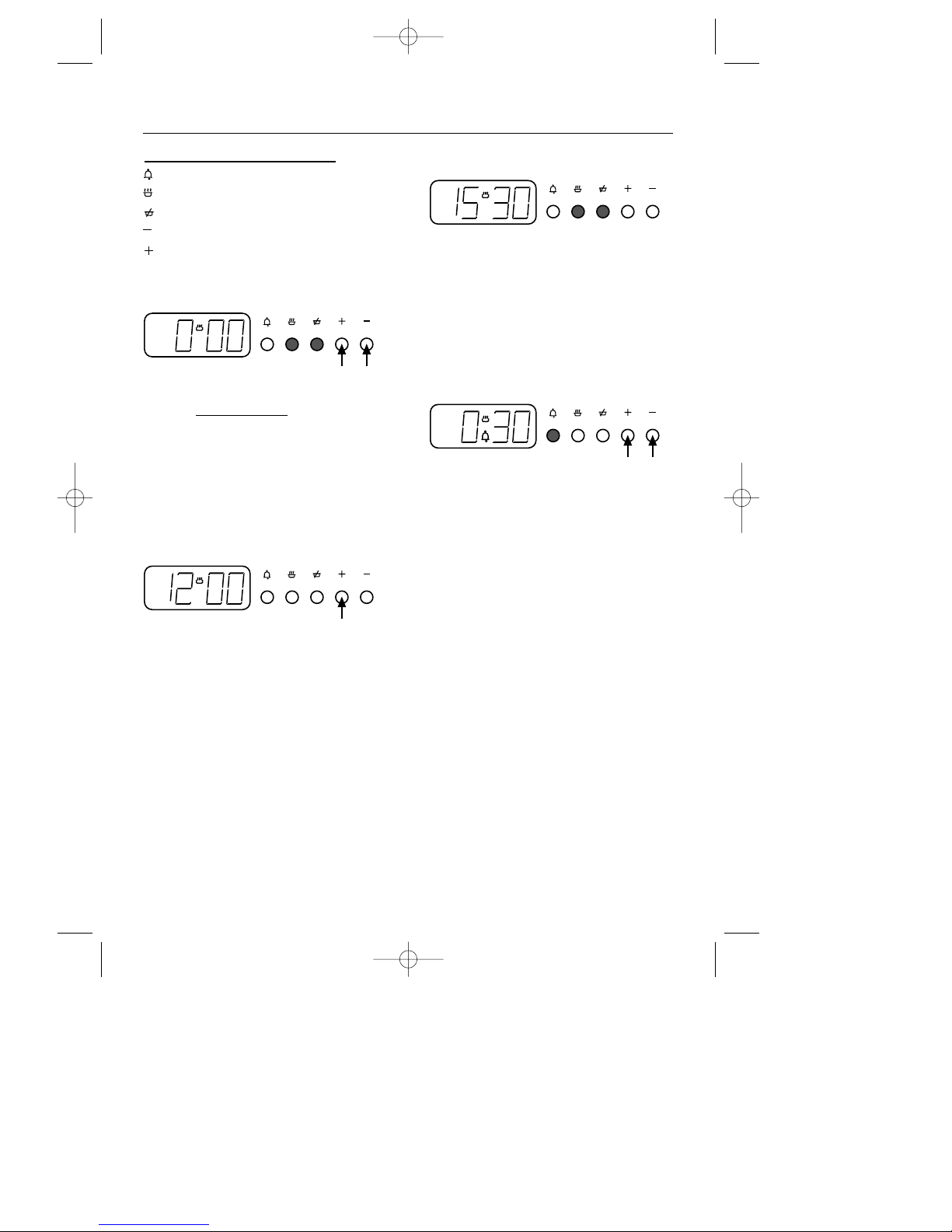

Programmer / Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Automatic Cooking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 - 32
Before you start your installation, please read the instructions - planning your
installation will save you time and effort.
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Stoves Customer Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
1
Please keep this handbook for future reference, or for anyone else
who may use the appliance.
CONTENTS
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 3
Page 4
Thank you for choosing a
British built appliance by Stoves
We hope the following information
will help you to quickly familiarise
yourself with the feature of the
appliance, and to use it successfully
and safely.
Our policy is one of constant
development and improvement. Strict
accuracy of illustrations and specifications
is not guaranteed. Modification to
design and materials may be necessary
subsequent to publication.
Your 1st year guarantee
To fulfil the conditions of your guarantee,
this appliance must be correctly
installed and operated, in accordance
with these instructions, and only be
used for normal domestic purposes.
Please note that the guarantee, and
Service availability, only apply to the
UK and Republic of Ireland.

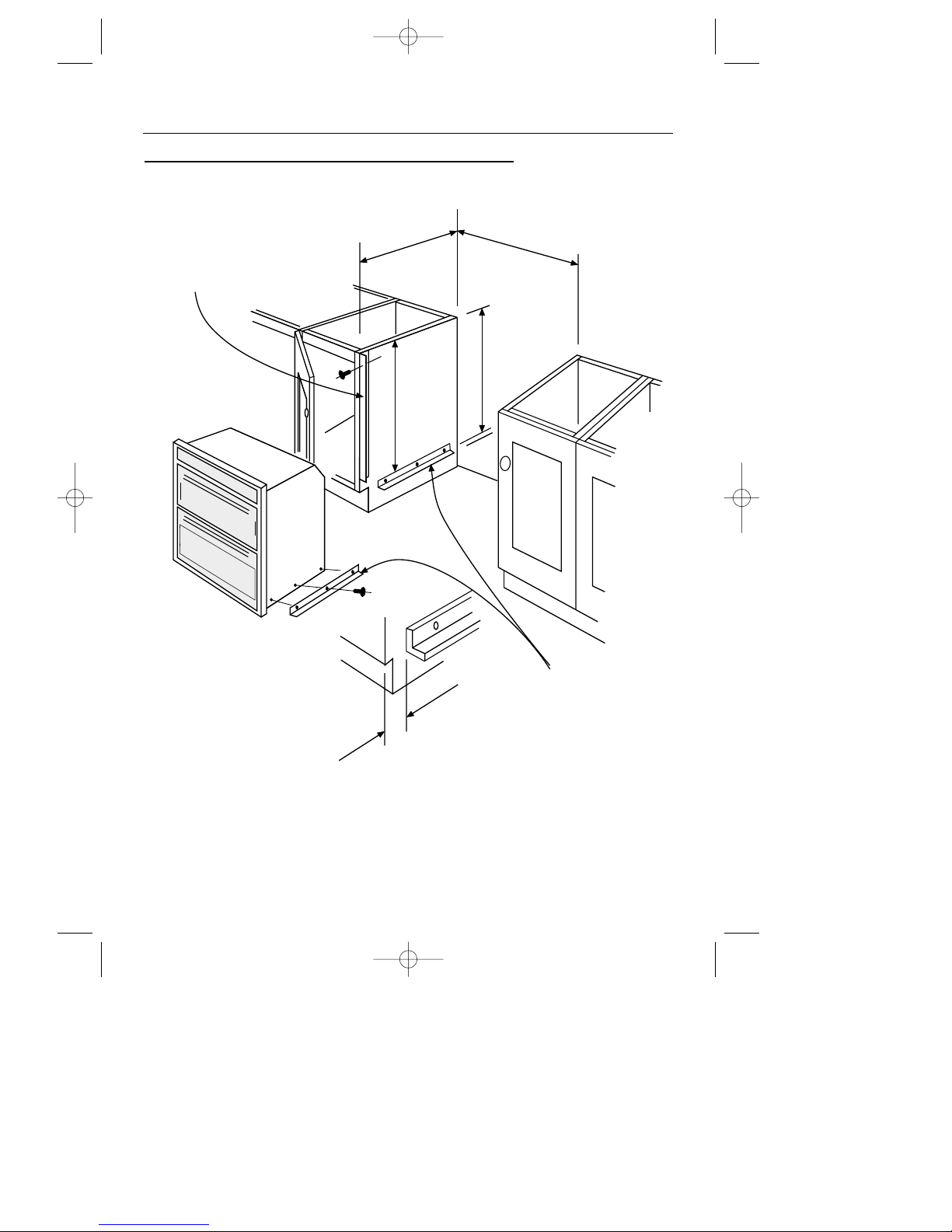

The oven is designed to be installed
beneath worktop level, either into a
housing unit, or between base units.
Before using the appliance for
the first time, remove any protective
polythene film and wash the oven
shelves and furniture in hot soapy
water to remove their protective
covering of oil. Even so, when you
first turn on the oven or grill you may
notice a smell and some smoke.
Electrical connection
Please refer to the ‘Installation
Instructions’. For your safety
, employ
a competent electrician.
Warning: This appliance must be
earthed.
In the event of a power cut:
1. Switch off the electricity supply to
the appliance at the cooker control
unit.
2. When the power returns, see the
‘Programmer / Clock’ section to
‘Set the time of day’.
2
INTRODUCTION
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 4
Page 5

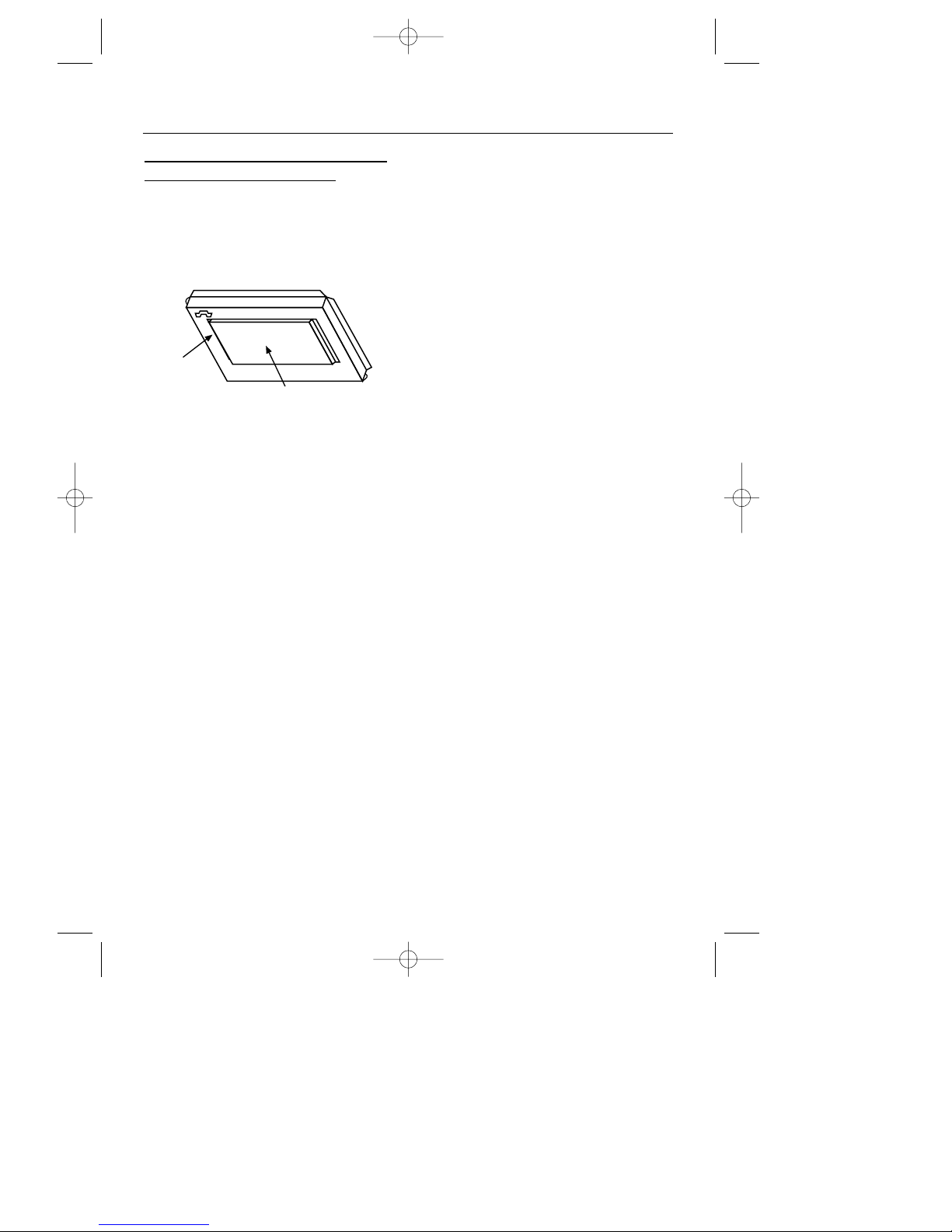

To replace a light bulb
Caution: Switch off the electricity
supply, to remove the risk of electric
shock. Wait until the oven /grill is
cool before removing the shelves.
With a large flat bladed screwdriver
or coin, prise off the lamp glass cover.
Unscrew the bulb and replace.
replace lens cover.
Please note that oven light bulbs are
not covered by guarantee.
Glass panels
To meet the relevant Standards of
Domestic Cooking Appliances, all the
glass panels on this appliance are
toughened to meet the fragmentation
requirements of BS3193. This ensures
that, in the unlikely event that, in the
unlikely event that a panel breaks, it
does so into small fragments to
minimise the risk of injury.
Please take care when handling, using
or cleaning all glass panels as any
damage to the surfaces or edges may
result in the glass breaking without
warning or apparent cause at a later
date. Should any glass panels be
damages, we strongly recommend
that it is replaced immediately.
Cooling fan
When the appliance is switched on,
you will hear the cooling fan come
on. This keeps the facia and control
knobs cool during cooking. Should
any fault occur with the cooling fan,
the appliance will need to be serviced
- contact Stoves Customer Support.
When hot and cold air meet,
condensation forms. The outer door is
air cooled and the inner door gets hot,
so some condensation might form - this
is normal.
3
INTRODUCTION
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 5
Page 6
When you are cooking, keep
children away from the vicinity
of appliance.
This product is designed as a domestic
cooking appliance for the preparation
and cooking of domestic food
products, and should not be used for
any other purpose.
• Remove all packaging from the
appliance before using for the
first time.
• Make sure you read and
understand the instructions before
using the appliance.
• Keep electrical leads short so they
do not drape over the appliance
or the edge of the worktop.
• Keep all flammable materials (such
as curtains, furnishings & clothing)
away from the appliance.
• Parts of the appliance may be hot
during or immediately after use.
Care should be taken to avoid
touching the heating elements
inside the oven. Allow sufficient
time for the appliance to cool after
switching off.
• When opening the appliance
door, take care to avoid skin
contact with any steam which may
escape from the cooking.
• Do not use aluminium foil to cover
the grill pan, or put items wrapped
in foil under the grill, as this
creates a fire hazard. The high
reflectivity can also damage the
element.
• Do not use the oven with the door
inner glass panel removed.
• Do not drape tea towels over the flue
vents as this creates a fire hazard.
• Use oven gloves when removing
hot food utensils from the oven or
grill. The oven / grill and utensils
will be very hot when in use.
• Do not place items on drop down
doors when they are open.
• Do not use foil on oven shelves, or
allow it to block the oven flue, as
this creates a fire hazard.
• When cooking heavy items - eg;
turkeys - do not pull the oven shelf
out with the item still on the shelf.
• Switch off the electricity supply
before replacing the oven light bulb,
to avoid the risk electric shock.
• Never use the appliance for
heating a room.
All installation, servicing and
maintenance work should be carried
out by a competent person who will
comply with current Regulations,
Standards and Requirements.
Warning: This appliance must be
earthed.
When you have finished
cooking check that all controls
are in the off position.
4
BE SAFE - NOT SORRY
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 6
Page 7
Caution: Accessible parts may
be hot when the grill is used,
young children should be kept
away.
The grill will not operate if the top
oven is switched on or set for
automatic cooking.
Manual operation
If A(Auto) is showing on the programmer
display, return to manual operation by
pressing the cook time and ready
time buttons simultaneously. Any
programme which has been set is
cancelled.
To switch on the grill
Open the grill door.
Important: the door must be kept
open when the grill is used.
Turn the grill control knob either clock-
wise to use the full grill settings
, which
are coloured red, or anticlockwise to
the economy grill settings
, which are
coloured white.
The economy grill settings only use the
inner element of the grill.
To switch off, return the contorl knob to
the off “●” position.
To switch on the grill lights
Turn the ‘
TOP OVEN’ control knob clock-
wise until the light symbol is showing
in the window.
Aluminium foil
Using aluminium foil to cover the grill
pan, or putting items wrapped in foil
under the grill creates a fire hazard,
and the high reflectivity can damage
the grill element.

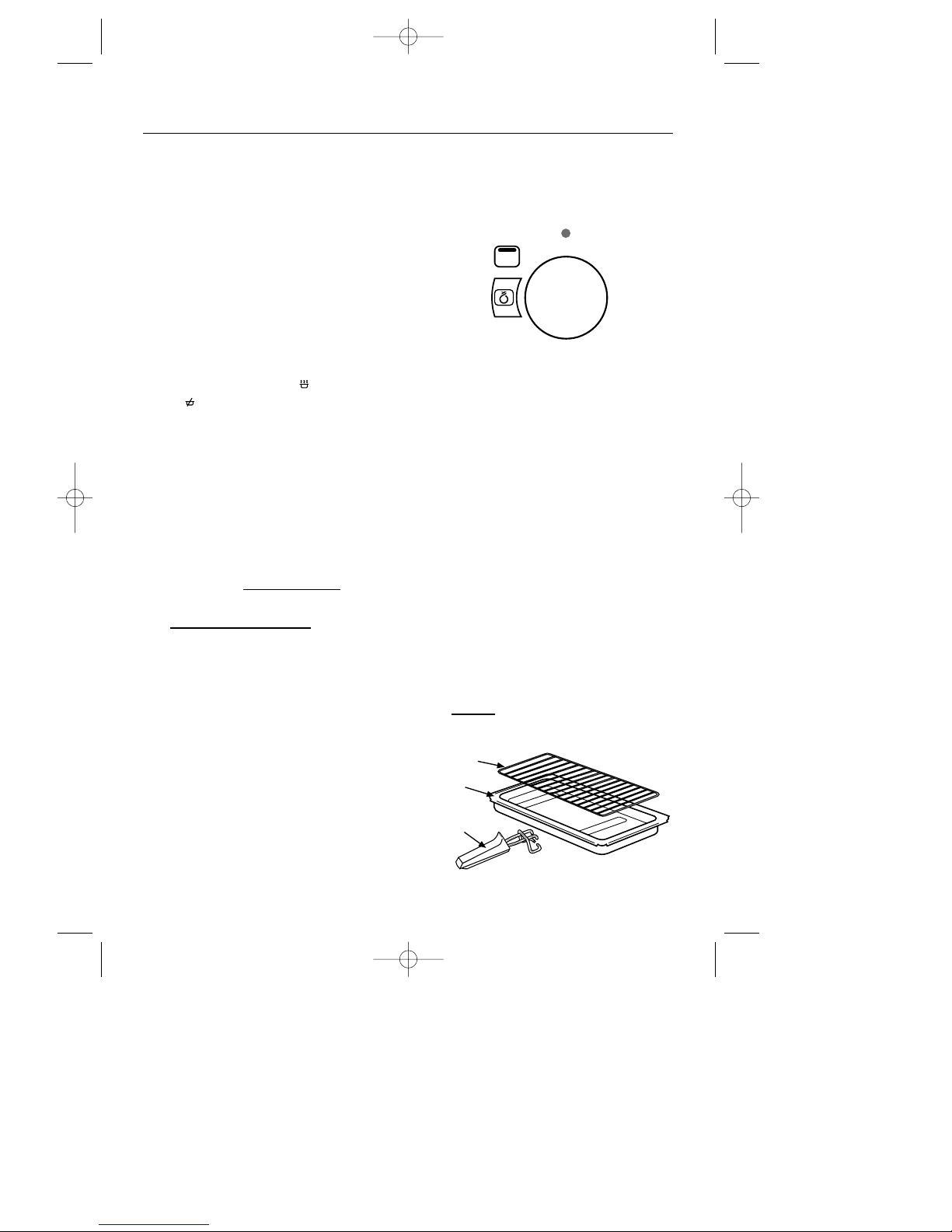

Detachable grill pan handle
Place the handle over the edge of
the grill pan. The handle should be
removed from the pan during grilling,
to prevent overheating.
The handle is designed for removing /
inserting the grill pan under the grill
when grilling. If cleaning the grill pan
when it is hot, use oven gloves to move
it. Do not
use the handle to pour hot
fats from the grill pan.
5
grill pan
handle
grill pan
trivet
USING THE GRILL
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 7
Page 8
Caution: Accessible parts may
be hot when the oven is used,
young children should be kept
away.
The top oven is a conventional oven.
Manual operation
The programmer must be set to manual
before the top oven can be used.
The top oven cannot be used manually
when the programmer is set for
automatic cooking; if A (Auto) is
showing on the programmer display,
return the oven to manual operation by
pressing the cook time and ready
time buttons simultaneously. Any
programme which has been set is
cancelled.

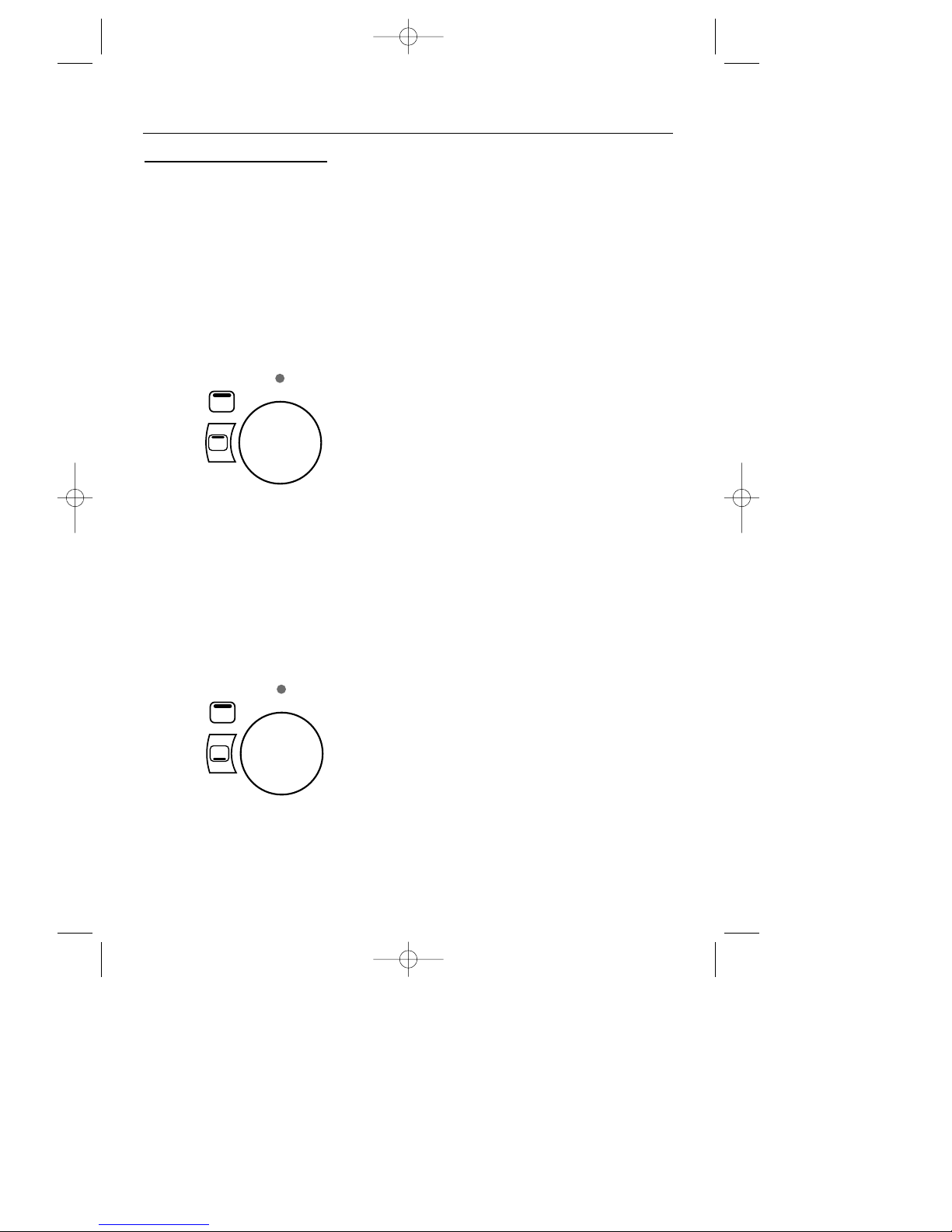

To switch on the top oven
Turn the top oven control knob to the
required temperature setting.
The red thermostat indicator will come
on until the selected temperature is
reached and then go off; it will turn on
and off periodically as the thermostat
operates to maintain the selected
temperature.
To switch off, return the control to the
OFF position.
Automatic operation
See ‘Programmer / Clock’ section.
Important: Never put items directly
on the base of the oven or cover the
oven base with foil, as this may cause
the element to overheat.
Caution: The top element gets
extremely hot when in use, so take
extra care to avoid touching it.
Baking tray and roasting tins
For best cooked results and even
browning, the maximum size baking
trays and roasting tins that should be
used are as follows;
Baking tray 350 mm x 280 mm
This size of baking tray will hold up to
20 small cakes.
Roasting tin 370 mm x 320 mm
We recommend that you use good
quality cookware. Poor quality trays
and tins may warp when heated,
leading to uneven baking results.

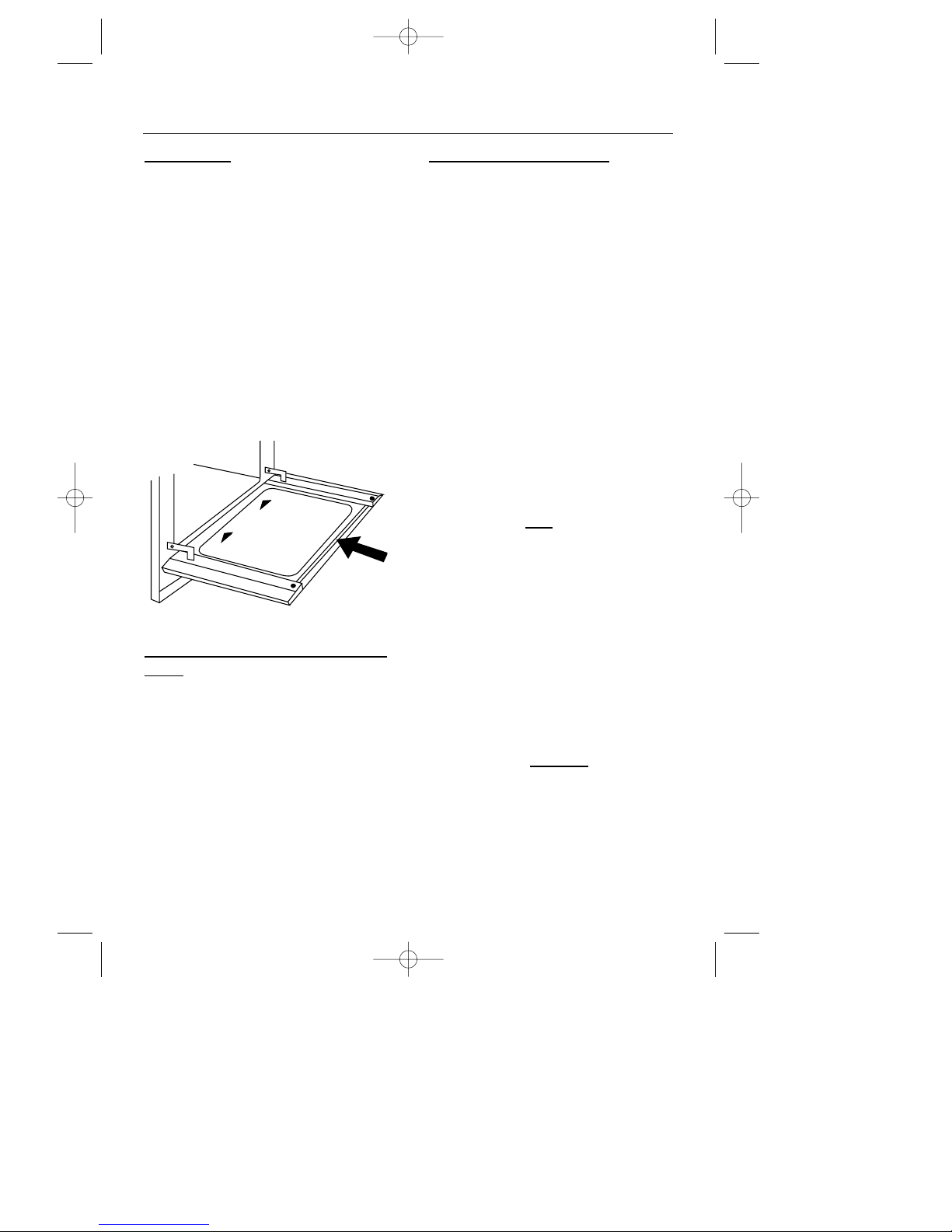

Oven shelves
The oven shelf must be positioned with
the upstand facing up.
Position baking trays and roasting tins
on the middle of the shelves, and leave
one clear shelf position between
shelves, to allow for circulation of heat.
6
USING THE TOP OVEN
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 8
Page 9

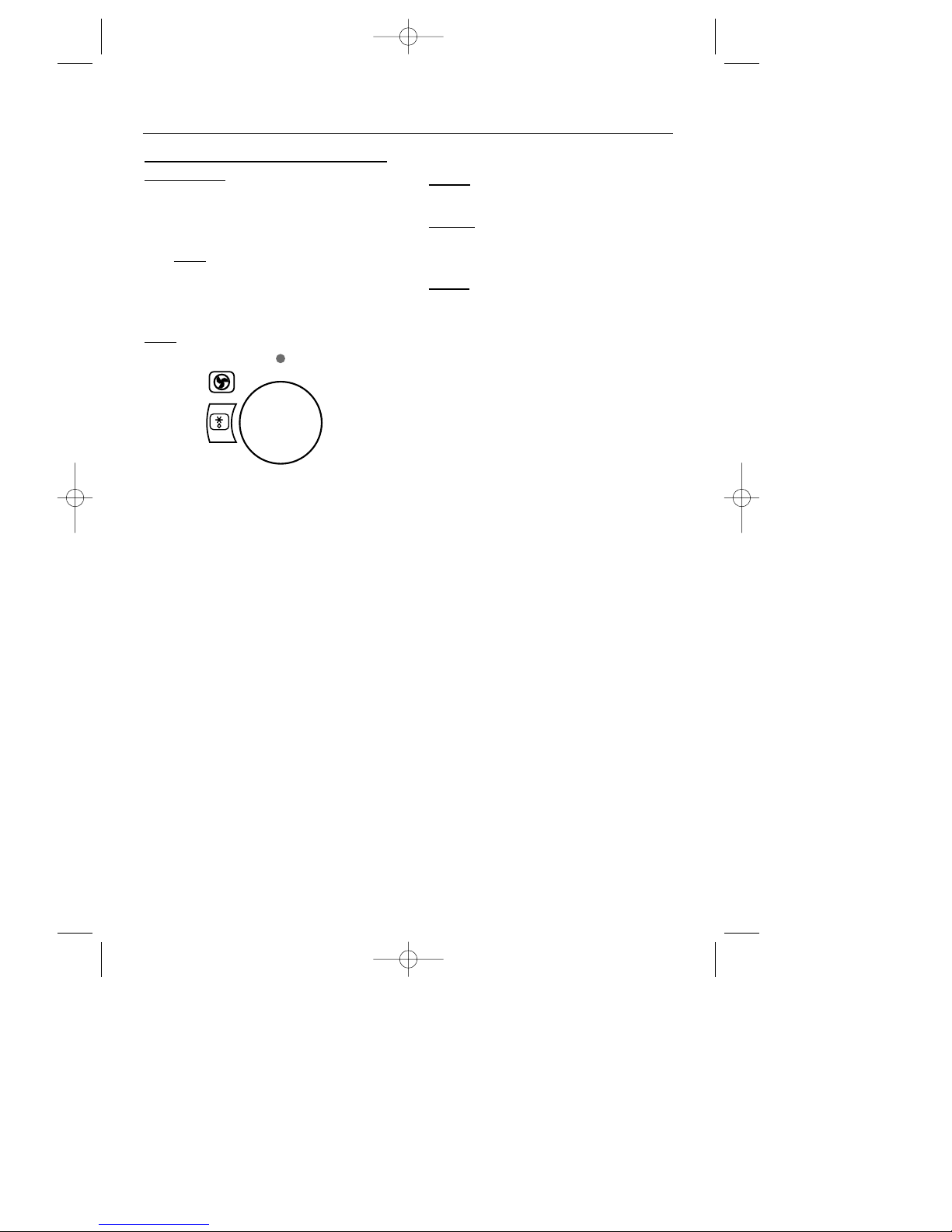

Top heat and base heat
The top oven offers the advantage that
it can be used with either base heat
only or top heat only. These are fixed
heat settings.
Top heat only
Turn the top oven control knob past the
oven temperature markings, until the
top heat symbol is in the window as
shown below.
This setting can be used to brown the
top of dishes such as cauliflower
cheese or baked alaska etc.
Base heat only
Turn the top oven control knob past the
oven temperature markings, until the
base heat symbol is in the window as
shown below.
This setting can be used to finish
cooking pastry bases, pies, pizzas etc.
7
USING THE TOP OVEN
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 9
Page 10
Preheating
The oven must be preheated when
cooking frozen or chilled foods, and
we recommend preheating for yeast
mixtures, batters, soufflés, and
whisked sponges.
Preheat the oven until the indicator
light switches off for the first time, this
will take up to 20 minutes depending
on the temperature selected.
If you are not preheating the oven, the
cooking times in the following guide
may need to be extended, as they are
based on a preheated oven.
When cooking frozen or chilled food,
use the highest possible shelf position,
while allowing some clearance
between the food and the top element.
Cooking temperatures
Because the top oven is more compact
it may be necessary to reduce cooking
temperatures specified in recipes by 20˚C.
Use the following guide as a reference
for determining temperatures to use.
Shelf positions
There are 3 shelf positions in the top
oven, which are counted from the
bottom of the oven upwards, so shelf
position 1 is the lowest.
8
Item Temperature Shelf Approximate
˚C position cooking time
Small cakes 180 2 15 - 20 mins
Victoria sandwich 160 2 20 - 25 mins
(2 x 180 mm / 7”)
Swiss Roll 200 2 8 - 12 mins
Semi rich fruit cake 140 1 2
1
⁄4 - 23⁄4 hours
(180 mm / 7” )
Scones 215 3 10 - 15 mins
Meringues 110 1 2 - 3 hours
Shortcake Pastry 200 - 210 2 depends on size and
Puff / Flaky Pastry 200 - 210 2 type of cooking dish,
Choux Pastry 200 - 210 2 and also the filling
Biscuits 160 - 200 3 10 - 20 mins
Sponge Pudding 150 2 30 - 45 mins
Milk Pudding 140 1 2 - 2
1
⁄2 hours
Baking guide
USING THE TOP OVEN
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 10
Page 11
Caution: Accessible parts may
be hot when the oven is used,
young children should be kept
away.
The main oven is a fanned oven.
Manual operation
The programmer must be set to
manual before the oven can be used.
The oven cannot be used manually
when the programmer is set for
automatic cooking; if A (Auto) is on the
programmer display, return the oven to
manual operation by pressing the
cook time and ready time buttons
simultaneously. Any programme
which has been set is cancelled.
To turn on the main oven
Turn the oven control knob clockwise
to the selected temperature.
The red thermostat indicator will come
on until the selected temperature is
reached and then go off; it will turn on
and off periodically as the thermostat
operates to maintain the selected
temperature.
To switch off, return the control knob to
the ‘OFF’ position.
Automatic operation
See ‘Programmer / Clock’ section.
Baking tray and roasting tins
For best cooked results and even
browning, the maximum size baking
trays and roasting tins that should be
used are as follows;
Baking tray 350 mm x 280 mm
This size of baking tray will hold up to
20 small cakes.
Roasting tin 370 mm x 320 mm
We recommend that you use good
quality cookware. Poor quality trays
and tins may warp when heated,
leading to uneven baking results.
Oven shelves
The oven shelf must be positioned with
the upstand facing up.
Position baking trays and roasting tins
on the middle of the shelves, and leave
one clear shelf position between
shelves, to allow for circulation of heat.
To help the air circulate freely
• Position the shelves evenly within
the oven and maintain a clearance
from the oven roof and base.
• If more than one cooking dish or
baking tray is to be used on a
shelf, leave a gap of at least 25
mm between the items themselves
and the oven interior.
• Allow enough space between
shelves for food that will rise
during cooking.
• Do not
place items on the oven
base as this will prevent air from
circulating freely.
9
USING THE MAIN OVEN
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 11
Page 12
Cooking with a fanned oven
If you have been used to cooking with
a conventional oven, you will find a
number of differences to cooking with
a fanned oven, which will require a
different approach:
There are no zones of heat in a
fanned oven, the convection fan at the
back of the oven ensures an even
temperature throughout the oven; this
makes it ideal for batch baking - eg;
when planning a party or stocking
the freezer, as all items will be cooked
within the same length of time.
Foods are cooked at a lower
temperature (between 10˚C and
20˚C lower) than a conventional oven,
so conventional recipe temperatures
may have to be reduced.
Cooking times
will generally be
shorter, by between 5 - 10 minutes per
hour, than those given in recipe books
for conventional cooking.
There is no flavour transference
in a
fan oven, which means you can cook
strong smelling foods such as fish at
the same time as mild foods, eg; milk
puddings. When batch baking foods
that will rise during cooking - eg;
bread, always ensure that enough
space has been left between shelves to
allow for the rise.
Preheating
is generally not necessary
as a fanned oven warms up quickly.
When 2 or more shelves are being
used, it may be necessary to increase
the cooking time slightly.
Because the 2 oven shelves are wider
than in many ovens, it is possible to
cook 2 items per shelf - eg; 2 victoria
sandwiches or 2 casseroles. Although
you need to keep in mind the points
from the previous page ‘to help the air
circulate freely’. With careful choice
of dishes and tins, it is possible to
cook a complete meal, and perhaps
something else for the freezer, in the
oven at the same time.
When roasting meats, you may notice
that fat splashing is greatly reduced,
which is due in part to the lower oven
temperatures, and will help keep
cleaning of the oven to a minimum.
Because a fanned oven has an even
temperature throughout the oven, no
shelf positions have been given in the
following Baking Guide, and there is
no need to interchange dishes onto
different shelves part way through
cooking as with a conventional oven.
10
USING THE MAIN OVEN
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 12
Page 13
11
Item Temperature Approximate
˚C Cooking Time
Small cakes 170 - 180 20 - 25 mins
Whisked Sponge 170 15 - 20 mins
Swiss Roll 190 8 - 12 mins
Victoria sandwich 160 25 - 35 mins
(2 x 205 mm / 8”, shallow tins)
Semi rich fruit cake 125 21⁄2 - 3 hours
(180 mm / 7” deep tin)
Scones 210 - 220 10 - 15 mins
Meringues 110 2 - 3 hours
Shortcake Pastry 200 depends on size and
Puff/Flaky Pastry 210 type of cooking dish
Choux Pastry 200 and also the filling
Biscuits 160 - 200 10 - 20 mins
Bread (500 g (1lb) loaf) 210 20 - 30 mins
Sponge Pudding 150 45 mins - 1 hour
Milk Pudding 150 1
1
⁄2 - 13⁄4 hours
Baking guide
USING THE MAIN OVEN
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 13
Page 14
Defrosting and cooling in the
main oven
To defrost frozen foods, turn the
oven control to the defrost position,
place the food in the centre of the oven
and close
the door.
To cool foods after cooking prior to
refrigerating or freezing, turn the oven
control to the defrost position and
open
the door.
Defrosting times
• Small or thin pieces of frozen fish
or meat eg; fish filets, prawns,
and mince will take approximately
1 - 2 hours.
• Placing the food in a single layer
will reduce the thawing time.
• A medium sized casserole or stew
will take approximately 3 - 4 hours.
•A 1
1
⁄2kg / 3lb oven ready chicken
will take approximately 5 hours;
remove the giblets as soon as
possible.
Be safe
Do not
defrost stuffed poultry using this
method.
Do not
defrost larger joints of meat
and poultry over 2kg / 4lb using this
method.
Never
place uncooked food for
defrosting next to cooked food which
is to be cooled, as this can lead to
cross contamination.
Defrosting meat, poultry, and fish, can
be accelerated using this method but
make sure they are completely thawed
before cooking thoroughly. Place meat
and poultry on a trivet in a meat tin.
12
USING THE MAIN OVEN
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 14
Page 15
Slow cooking
• Make sure that frozen foods are
thoroughly thawed before cooking.
• Do not
slow cook joints of meat or
poultry weighing more than 21⁄4kg
/ 41⁄2lb.
• For roasting joints of meat or
poultry and for pot roasts preheat
the oven to 190˚C - 200˚C and
cook for 30 minutes, then adjust
the oven control to 120˚C - top
oven / 110˚C - main oven for the
remainder of the cooking time.
• Slow cooking times will be about
3 times as long as conventional
cooking times.
Hints for cooking frozen &
chilled foods
• When cooking frozen or chilled foods,
please follow the manufacturer’s
instructions. If cooking more than
one tray or item, cooking times
may need to be increased.
• Please ensure that foods are
piping hot before consumption.
• Always
use the temperature setting
stated on food packaging when
cooking convenience food.
• Preheat the oven if requested.
• Never overload the tray - eg; oven
chips should be placed onto the
baking tray in one even layer for
satisfactory cooking.
• Follow the cooking times given on
packaging but remember they are
only intended as a guide and do
not take individual preferences
into account.
• Always cook frozen convenience
foods straight from the freezer
unless packaging advises otherwise.
13
USING THE MAIN OVEN
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 15
Page 16
Traditional fruit cakes
It should be remembered that ovens
can vary over time, therefore cooking
times can vary, making it difficult to be
precise when baking fruit cakes.
It is necessary therefore, to test the
cake before removal from the oven.
Use a fine warmed skewer inserted
into the centre of the cake. If the
skewer comes out clean, then the cake
is cooked.
• Do not attempt to make Christmas
cakes larger than the oven can
cope with, you should allow at
least 25 mm (1 inch) space
between the oven walls and the tin.
• Always follow the temperatures
recommended in the recipe
.
• To protect a very rich fruit cake
during cooking, tie 2 layers of
brown paper around the tin.
• We recommend that the cake tin is
not stood on layers of brown
paper, as this can hinder effective
circulation of air.
• Do not use soft tub margarine for
rich fruit cakes, unless specified in
the recipe.
• Always use the correct size and
shape of tin for the recipe quantities.
Roast turkey
Roasting turkey perfectly requires
cooking two different types of meat the delicate light breast meat, which
must not be allowed to dry out, and
the darker leg meat, which takes
longer to cook.
The turkey must be roasted long
enough for the legs to cook, so
frequent basting is necessary. The breast
meat can be covered once browned.
• Turkey should be roasted at 170 180˚C for 20 minutes per lb,
plus 20 minutes, unless packaging
advises otherwise.
• The turkey can be open roasted,
breast side down, for half of the
cook time, and then turned over for
the remainder of the cooking time.
• If the turkey is stuffed, add
5
minutes per lb to the cooking time.
• If roasting turkey covered with
foil, add
5 minutes per 1lb to the
cooking time.
To test if the turkey is cooked, push a
fine skewer into the thickest part of the
thigh. If the juices run clear, the turkey
is cooked. If the juices are still pink,
the turkey will need longer cooking.
14
USING THE MAIN OVEN
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 16
Page 17
Roasting guide
The times given in the roasting guide
are only approximate, because the
size and age of the bird will influence
cooking times as will the shape of a
joint and the proportion of the bone.
Frozen meat should be thoroughly
thawed before cooking. For large
joints it is advisable to thaw overnight.
Frozen poultry should be thoroughly
thawed before cooking. The time
required depends on the size of the
bird - eg; a large turkey may take up
to 48 hours to thaw.
Use of a trivet with a roasting tin will
reduce fat splashing and will help to keep
the oven interior clean. Alternatively,
to help reduce fat splashing, potatoes
or other vegetables can be roasted
around the meat / poultry.
Notes:
• When cooking stuffed meat or
poultry calculate the cooking time
from the total weight of the meat
plus the stuffing.
• For joints cooked in foil or covered
roasters, and for lidded casseroles,
add 5 minutes per 450 g (1lb) to
the calculated cooking time.
• Smaller joints weighing less than
1.25 kg (2
1
⁄2lb) may require 5
minutes per 450 g (1lb) extra
cooking time.
• Position the oven shelf so that the
meat or poultry will be in the
centre of the oven.
15
Cook in oven at; Approximate cooking time
180˚C - main fanned oven (Preheated oven)
200˚C - conventional top oven
Beef Rare 20 minutes per 450 g (1lb), plus 20 minutes
Medium 25 minutes per 450 g (1lb), plus 20 minutes
Well done 30 minutes per 450 g (1lb), plus 30 minutes
Lamb Medium 25 minutes per 450 g (1lb), plus 25 minutes
Well done 30 minutes per 450 g (1lb), plus 30 minutes
Pork 35 minutes per 450 g (1lb), plus 35 minutes
Poultry 20 minutes per 450 g (1lb), plus 20 minutes
USING THE MAIN OVEN
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 17
Page 18
The Programmer Buttons
minute minder
cook time
ready time
minus
plus
To set the “Time of Day”
Press the cook time and ready time
buttons simultaneously
, and keep the
buttons depressed. Use the plus and
minus buttons to set the time of day,
eg; 12.00.
A (Auto) symbol goes out, cookpot
symbol comes on.
To select an alarm tone
Press the minus button to listen to the
first tone.
Release the minus button and press it
again to listen to the second tone, etc.
Releasing the minus button after the
tone has sounded will automatically
select that tone.
Manual operation
To set the programmer to manual
operation at any time (cancelling any
automatic setting), press the cook time and
ready time buttons simultaneously. The
programmer must be set to manual before
the appliance can be used manually.
Setting the minute minder
Press the minute minder button, then
use the plus and minus buttons to set
the required time.
The minute minder (bell) symbol will
appear on the display.
You can cancel the minute minder at
any time by pressing the minute
minder button and the minus button
until the display returns to 0.00.
After setting, the display will revert to
show the time of day, but you can press
the minute minder button, and the
display will show the minutes remaining.
The tone will sound at the end of the
time set - to cancel the tone, press the
minute minder button.
16
PROGRAMMER / CLOCK
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 18
Page 19
17
1. A (Auto) symbol appears.
2.
3. A (Auto) symbol will flash.
4. A (Auto) symbol goes out.
Semi-automatic cooking
(example)
You have started cooking a meal or
dish in the oven, and want to set the
time for the oven to switch off
.
Press the cook time button, then use the
plus and minus buttons to set the
display to show the length of cooking
time required, eg; 2 hours as shown (1).
After setting, the display will revert to
show the time of day, but you can
press the cook time button and the
display will show how much cooking
time still remains on the clock.
Press the ready time button, and the
display will show the actual time the
oven is going to switch off, eg; 3.30
as shown (2).
At the end of the cooking time, the
alarm will sound.
To switch off the alarm, press the
minute minder button (3).
When the oven has switched off,
return the oven control knob to
the “off” position, and press the
cook time and ready time buttons to
return to manual operation (4).
If you wish to cancel the automatic
setting, or to cancel any remaining
cooking time left on the clock before
the alarm sounds, press the cook time
and ready time buttons simultaneously.
(4).
A
U
T
O
A
U
T
O
A
U
T
O
PROGRAMMER / CLOCK
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 19
Page 20
18
5. A (Auto) symbol appears.
6. The cookpot symbol will
disappear from display.
7. The cookpot symbol will appear
on display.
8.

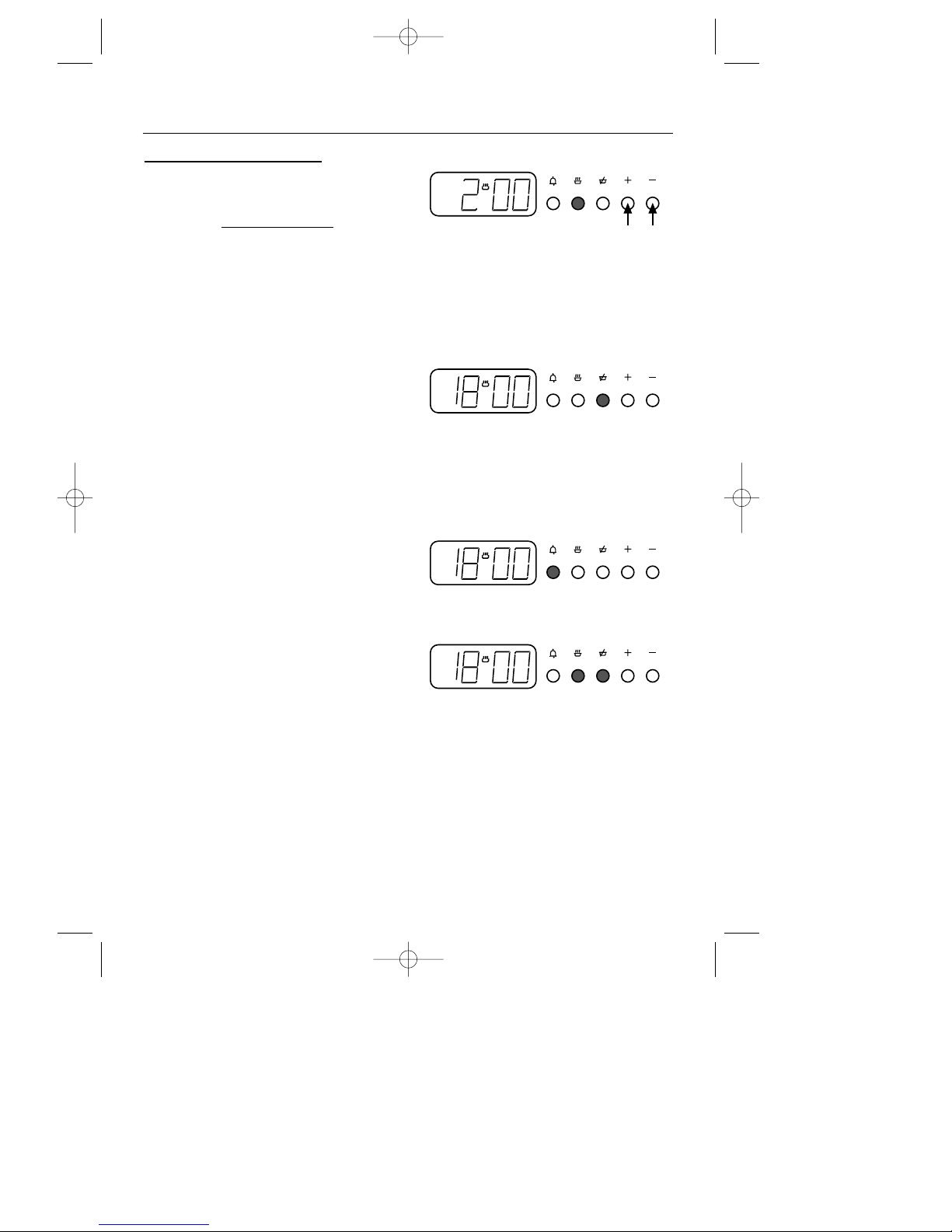

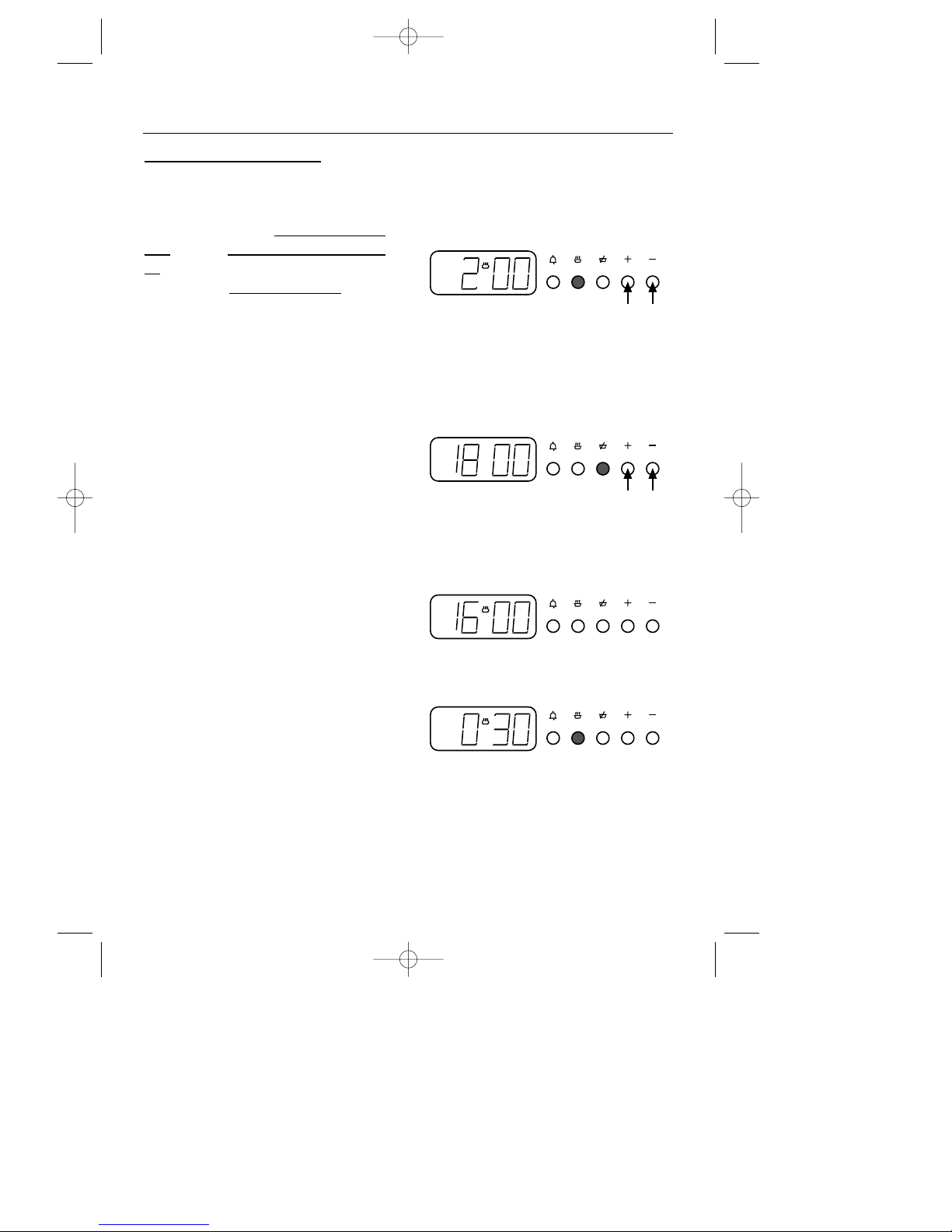

Fully automatic cooking
(example)
For use when a delayed start time is
required.
You want to set the length of cooking
time, and the time for the oven to switch
off. The programmer will automatically
calculate the cooking start time.
Press the cook time button, then use the
plus and minus buttons to set the
display to show the length of cooking
time required, eg; 2 hours as shown (5).
Press the ready time button, and the
present ready time will be displayed.
Using the plus and minus buttons you
can set the display to show the actual
time you want the oven to switch off,
eg; 18.00 hours (6.00 pm) (6).
The display will revert to show time of day.
After setting the programmer,
turn the oven control to the
required temperature.
The oven will automatically switch on
at the calculated start time of 16.00
hours (4.00 pm) (7).
A single press of the cook time button
shows the cooking time remaining
before the oven automatically switches
off (8).
A
U
T
O
A
U
T
O
A
U
T
O
A
U
T
O
PROGRAMMER / CLOCK
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 20
Page 21
19

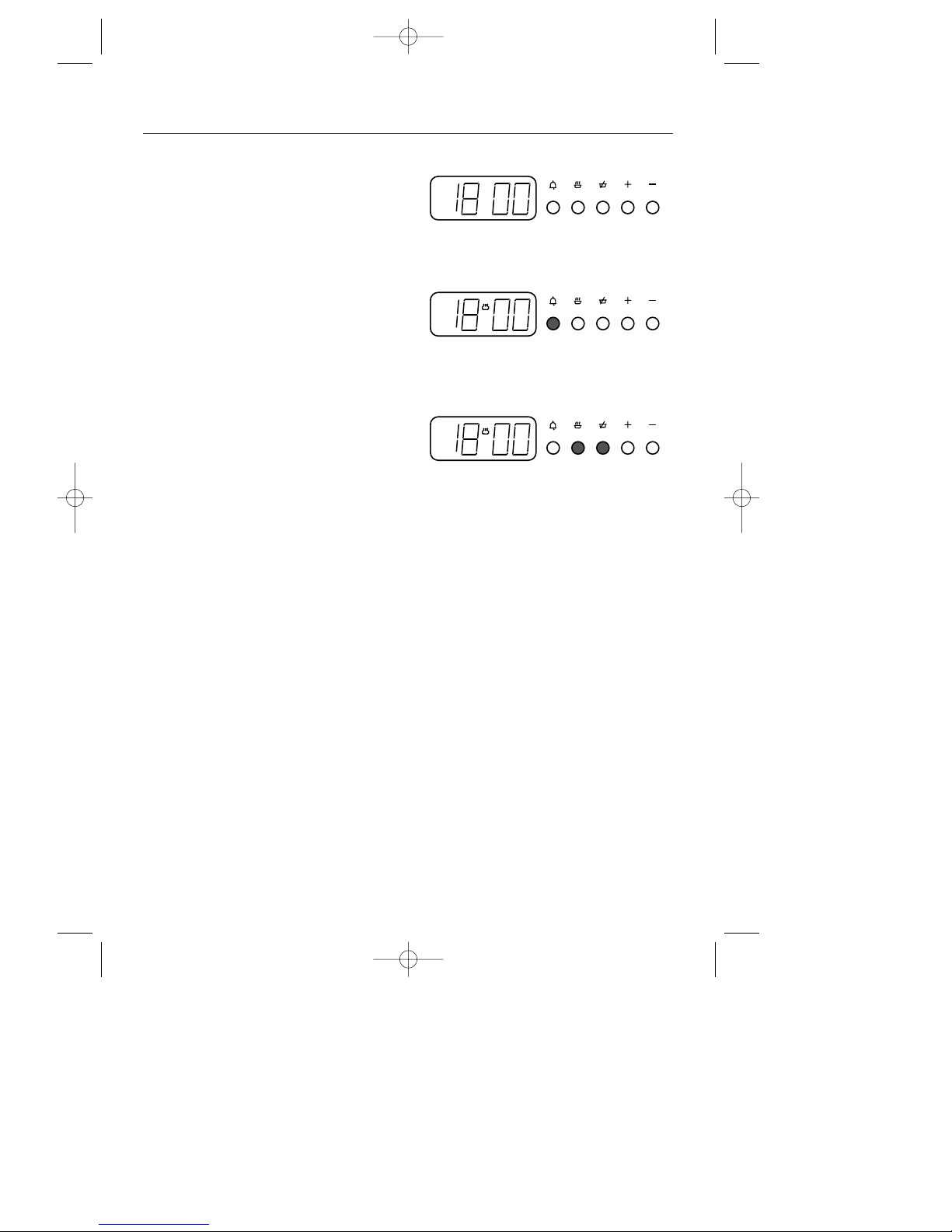

9. A (Auto) symbol will flash.
10.
11. A (Auto) symbol goes out.
The oven will automatically switch off
at 18.00 hours (6.00 pm) and the
alarm will sound (9).
To switch off the alarm press the
minute minder button (10).
When the oven has switched off,
return the oven control knob to the
“off” position, and press the cook time
and ready time buttons simultaneously
(11).
If you wish to cancel the automatic
setting before cooking has started,
and return to manual operation, press
the cook time and ready time buttons
simultaneously (11).
To cancel any remaining cooking time
left on the clock before the alarm
sounds, press the cook time and ready
time buttons simultaneously (11).
A
U
T
O
A
U
T
O
PROGRAMMER / CLOCK
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 21
Page 22
Automatic cooking
The automatic cooking facility is
controlled by the programmer (see
‘Programmer / Clock’ section) and
allows complete meals, or individual
dishes, to be cooked while you are out
of the house, to be ready for when you
return. The ‘
READY TIME’ should be set
as close as possible to, or just after,
your anticipated return, so food is not
left standing in a warm oven.
Do:
• Select foods which are as fresh as
possible, and as cold as possible ie; preferably straight from the
refrigerator.
• Choose foods which are suitable
for cooking from a cold start, as
some dishes will be affected by
being left uncooked, at room
temperature, perhaps for several
hours - eg; a wet filling on a
pastry base.
• Make sure that meat and poultry
are thoroughly thawed (but still cold
from the refrigerator) before placing
them in the oven, and avoid using
rolled joints of meat, which can be
more susceptible to the growth of
food poisoning organisms.
• Cover dishes with lids or foil to
keep the food moist, and protect
from possible contamination; the
food can be uncovered towards the
end of cooking to crisp and brown.
Do not:
• Warm food should never be
placed in the oven if there is a
delay period.
• Stews prepared by frying the
meat and vegetables first should
be cooked as soon as possible,
or refrigerated prior to placing in
the oven.
• Some dishes are not suitable for
cooking on automatic - eg; dishes
containing left-over meat or
poultry, dishes containing eggs,
cooked rice, or seafood.
• Do not put food items (intended for
automatic cooking) into a warm
oven; allow the oven to cool before
setting for automatic cooking.
• Do not over fill dishes containing
liquids, as they might boil over.
• Never leave food in the oven to
cool slowly after cooking; serve
immediately or refrigerate.
• Never use the automatic facility
to reheat ‘cook chill’ foods, as
they should go straight from the
refrigerator into a preheated oven.
• To help keep food as cool as
possible prior to automatic cooking,
do not leave the oven lights on.
20
AUTOMATIC COOKING
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 22
Page 23
Important:
Food is more susceptible to the growth
of food poisoning organisms in warm
conditions. If the weather is hot, either
take care to ensure that food is not left
standing in a warm oven, or avoid
using the automatic cooking facility.
Hints for automatic cooking
• Food is placed in a cold oven so
you will need to add about 10 15 minutes onto the cooking time
to allow for the oven to reach the
selected temperature.
• Wine or beer may ferment, and
cream may curdle during the delay
period, so it is best to add these
ingredients just before serving.
• Potatoes should be parboiled or
brushed with oil to prevent
discolouration during the delay
period.
• Meat can be brushed with oil to
prevent it drying.
• Lemon juice can be added to
certain fruits and vegetables such
as apples, pears, turnips and
parsnips to prevent discolouration
during the delay period
21
AUTOMATIC COOKING
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 23
Page 24
Caution: Any cleaning agent
used incorrectly may damage
the appliance.
Always let the oven cool before
cleaning.
Some cooking operations generate
considerable amount of grease, this
combined with spillage can become a
hazard if allowed to accumulate on
the appliance through lack of
cleaning. In extreme cases this may
amount to misuse of the appliance and
could invalidate your guarantee.
Do not use caustic pastes, abrasive
cleaning powders, coarse wire wool
or any hard implements, as they will
damage the surfaces.
All parts of the appliance can be safely
cleaned with a cloth wrung out in hot
soapy water.
Vitreous enamel surfaces
GRILL PAN, TOP OVEN COMPARTMENT, MAIN
OVEN COMPARTMENT FLOOR
Use a mild cream cleaner. Look for one
which has the Vitreous Enamel Council’s
recommendation seal - eg; “Jif”.
Stubborn marks may be removed with
a moistened “Brillo” pad.
The grill pan may be cleaned in a
dishwahser, or with a nylon brush in
hot soapy water.
Chrome plated parts
OVEN SHELVES & OVEN SHELF RUNNERS,
GRILL PAN TRIVET
Do not use abrasives or polishes, use
a moist soap pad - eg; “Brillo”.

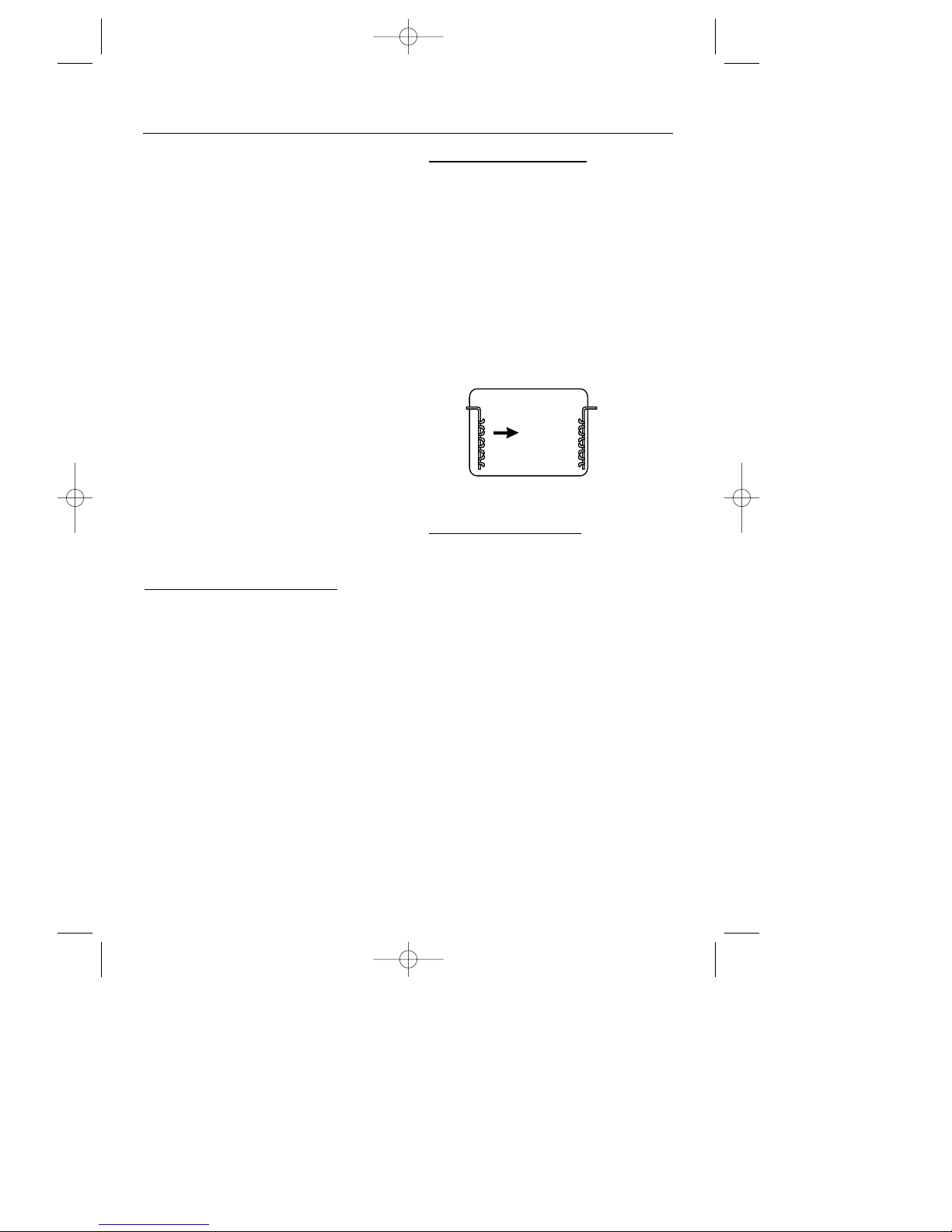

Note: Oven shelf runners can be
removed for cleaning. Grasp the
runners, and slide out of the hanging
holes as shown.
Note: These items may also be
cleaned in a dishwasher.
‘Easy-care’ surfaces
MAIN OVEN SIDES AND BACK
If you do a lot of open roasting, or
roast at temperatures above 200˚C,
we recommend regular cleaning to
help prevent a build up of fats. Use of
a trivet in a roasting tin when roasting
will help reduce fat splashing.
Caution: Most types of cleaning
agent will damage these surfaces.
Only use a few drops of washing up
liquid in hot water. Wipe the surfaces
with a clean cloth wrung out in hot soapy
water - if larger splashes of fat do not
readily disappear, scrub the area with
a nylon brush or nylon pan scourer
and hot soapy water. Rinse well and
heat the oven to dry the surfaces.
22
CLEANING
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 24
Page 25
Glass parts
FACIA PANEL & DOOR PANELS
Use a mild cream cleaner - eg; “Jif”.
Rinse thoroughly and dry with a soft
cloth. D
O NOT use abrasive cleaners
or polishes.
Important: the inner door glass
panel can be removed for cleaning but
it must be replaced the right way up as
shown (so the reflective side faces
inwards), and pushed fully in to the
stop position. To remove the glass
panel, open the door wide, hold the
top and bottom edges and slide out.
Painted, plastic and metal finish
parts (where fitted)
HANDLES
& CONTROL KNOBS, OVEN DOOR
FRAME
Only use a clean cloth wrung out in
hot soapy water.
Stainless Steel surfaces
(stainless
steel finish models only)
FACIA PANEL, HANDLES, DOOR PANELS
Only use a clean cloth wrung out in hot
soapy water, and dry with a soft cloth.
Stubborn marks can be removed using
“Luneta”. We recommend that you
clean the whole of the stainless steel
area to maintain a uniform finish.
Supplies can be purchased from
H.R.P.C. - contact direct sales
order line on 01772 819 672.
Do not use undiluted bleach or any
products containing chlorides as they
can permanently damage the steel.
Extra care should be taken when cooking food in salted water. Some foods
are corrosive - eg; vinegar, fruit juices
and especially salt
- they can mark or
damage stainless steel if they are left
on the surface. Turn off and wipe any
spillage immediately, taking care to
avoid skin contact with any hot surface
or spillage.
Sharp objects can mark the surface of
stainless steel, but marks will become
less noticeable with time.
To maintain the finish of the stainless
steel, or to remove any greasy marks,
wipe the stainless steel surface sparingly with a minimum
amount of
“Johnson’s Baby Oil” and kitchen paper.
Do not use cooking oils, as these may
contain salt, which can damage the
stainless steel surface.
23
SLIDE
IN
SLIDE
IN
THIS SIDE UP
CLEANING
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 25
Page 26
Before you start - please read the
instructions carefully - planning your
installation will save you time and effort.
Look at the different ways the appliance
can be installed - as shown on the
following pages - and plan the installation
to suit your
situation.
Leave the appliance in the base tray
packaging until you are ready to install it.
When you remove the appliance from the
base tray packaging, take care not to
damage it.
Whilst every care is taken to eliminate
burrs and raw edges from this product,
please take care when handling - we
recommend the use of protective gloves.
Please note that the weight of this appliance
is approximately 55kg (unpacked). Take care
when lifting it into the housing unit - always
use an appropriate method of lifting.
This appliance must be installed only at
low level - ie; under a worktop. The
controls have been designed for viewing at
a low level, and it should therefore not be
installed at high level.
Important: Do not modify the outer
panels of this appliance in any way.
Please note that all dimensions and sizes
given are nominal, some variation is to be
expected.
If this appliance is to be installed near to a
corner where the adjacent cabinets run at
right angles forward of the appliance,
there must be a gap of at least 90 mm
between the appliance and the cabinets,
to prevent overheating of the cabinets.
Fixing screws - The fixing screws are in
a polythene bag in the oven pack.
Depending on the method of installation,
some of the screws may not be needed.
Step 1: Prepare for installation
There are 3 methods of installing
the appliance:
Method 1:
Into a space between two
base units, ie; without a housing unit.
Method 2:
Into a housing unit, with an
internal height of less than 710 mm, which
can be modified to obtain the required
dimensions.
Method 3:
Into a housing unit, with an
internal height of 710 or more.
If you have a non standard size of cabinet
which leaves a gap above or below the
appliance, you may be able to buy a trim
kit (to fill in the gap) from the supplier of
your cabinets.
24
Quantity Colour Description For Fixing:
6 Silver No 8 x 12 mm long Runners to appliance
Self tapping screw
12 Black No 8 x 12 mm long Runners and sidetrims to cabinet
Chipboard screw or housing
2 Silver No 8 x 25 mm long Appliance to cabinet
Chipboard screw
2 Silver No 8 x 12 mm long Appliance to sidetrims
Self tapping screw
INSTALLATION INSTRUCTIONS
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 26
Page 27
Method 1: Without housing unit
(between 2 base units)
Before installing the appliance, check
the internal dimensions as shown.
The space for the appliance must be
clear of obstruction. You may have to
cut into or remove any rear cross
members to obtain the 550 mm
minimum depth.
The fixing kit
is packed onto the oven
under the polystyrene packaging. You
will find 2 side trims (692 mm long)
and 4 runners (420 mm long). The
fixing screws are in a polythene bag
in the oven.
1. Remove the 6 screws (3 each side)
from the lower sides of the oven.
Take the 6 No 8 x 12 mm (silver)
self tapping screws from the
polythene bag, and use them to fit
one runner to each side of the
appliance.
2. Make sure they are the right way
up as shown.
3. Take one of the side trims, hold it
against the side of the base unit,
and mark off 692 mm from the
top edge of the base unit, to the
top edge of the runner.
Note: This ensures a 5 - 8 mm
clearance from the underside of the
worktop to the top of the appliance.
4. Measure 50 mm from the front
edge of the base units, to mark the
front edge of the runners.
5. Take 6 of the No 8 x 12 mm
(Black) chipboard screws and
screw the runners into opposition
the right way up as shown.
6. Fit the side trims to be flush to the
top and front edges of the base
units, using the remaining 6 No 8 x
12 mm (Black) chipboard screws.
25
INSTALLATION INSTRUCTIONS
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 27
Page 28
26

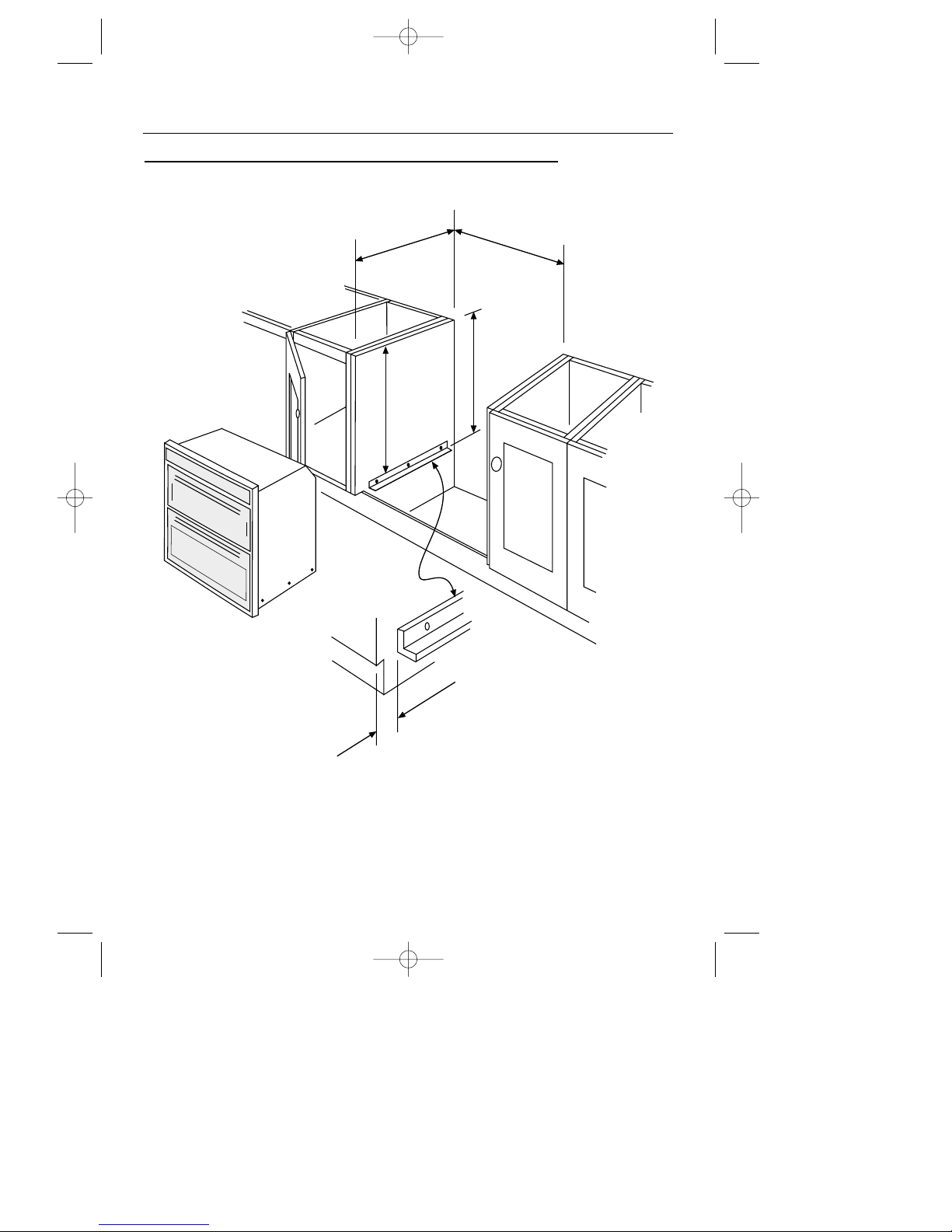

Method 1:
Without housing unit (between 2 base units)
50 mm
min 550 mm
598 - 602 mm
692 mm
715 mm
runners
sidetrim
INSTALLATION INSTRUCTIONS
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 28
Page 29
27
Method 2:
Housing unit with
internal height less than 710 mm.
Note: You will not need the 2 side
trims (692 mm long) or the appliance
runners for this installation. You will
need the 2 runners to fix to the
adjacent cabinets.
Before you start;
Before removing the bottom shelf or
modifying the housing unit, make sure
that it will remain structurally sound,
eg; by fixing to adjacent cabinets,
floor or worktop.
You may have to cut into or remove
any rear cross members to obtain the
550 mm minimum depth.
To obtain the required 715 mm height,
you may have to lower or remove the
bottom shelf - remove any cross rails
and reposition brackets.
To fix the runners
1. Take the side trims, hold it against
the side of the base unit, and use
it to mark off the 692 mm from the
top edge of the side unit, to the top
edge for the runner.
Note: This ensures a 5 - 8 mm
clearance from the underside of
the worktop to the top of the
appliance.
2. Measure 50 mm from the front
edges of the base units, to mark
the front edge for the runners.
3. Take 6 of the No 8 x 12 mm
(Black) chipboard screws and
screw the runners into position the
right way up as shown.
4. If necessary, adjust the height of
the plinth to just below the bottom
edge of the runners.
INSTALLATION INSTRUCTIONS
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 29
Page 30
28

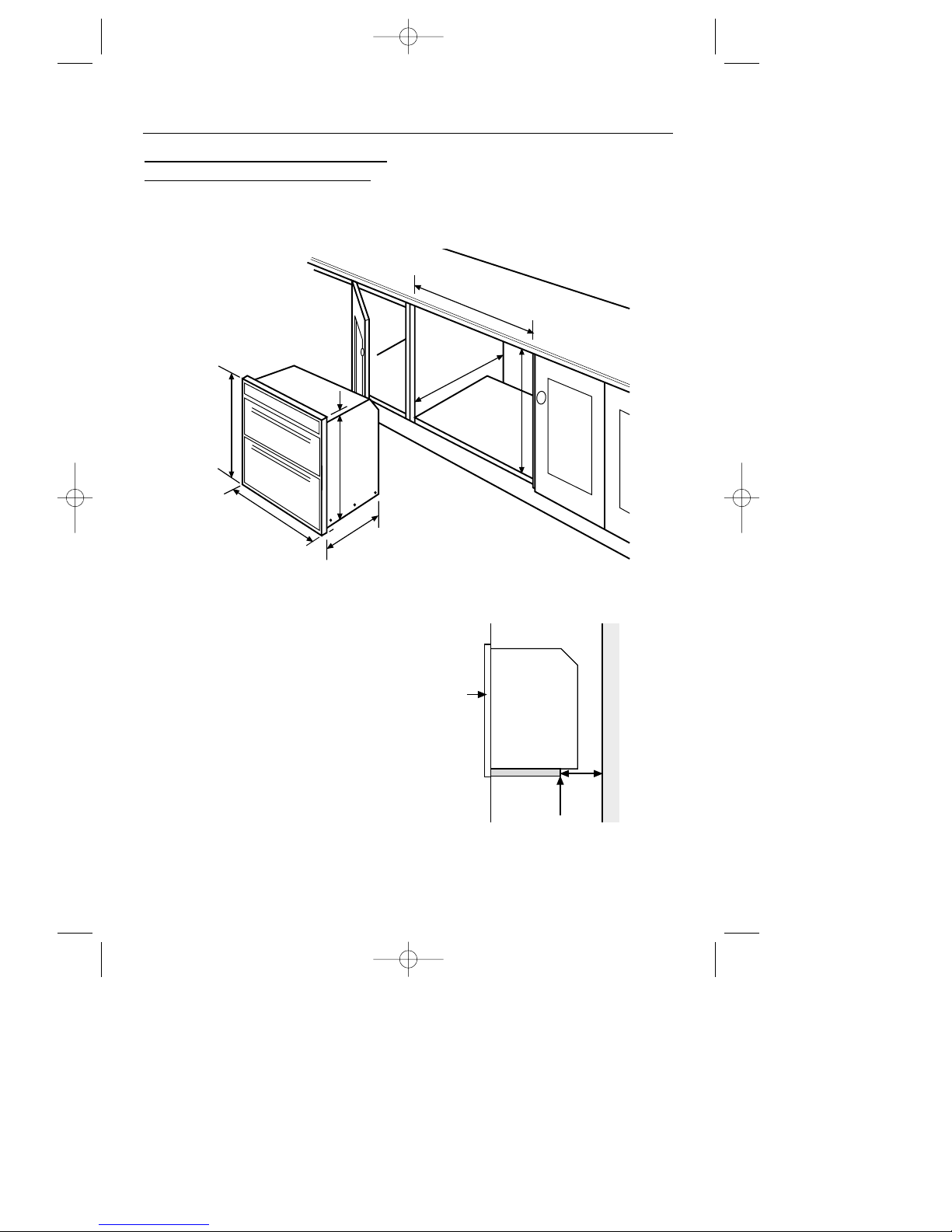

Method 2:
Housing unit with internal height less than 710 mm
50 mm
min 550 mm
560 - 570 mm
692
mm
715 mm
runners
INSTALLATION INSTRUCTIONS
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 30
Page 31
29
Method 3:
Housing unit with
internal height of 710 mm or more.
Note: You will not need the 4 runners
and 2 trims that are packed with the
oven for this installation.
(i) When installed in a typical 600
mm deep built in housing unit, the
false back should be removed
from the housing unit to provide
the necessary depth for installation.
(ii) When the false back is removed, it
is normally the case that the support
shelf for the appliance leaves a
gap between the back edge and
the wall of approximately 80 mm.
(iii) If no gap occurs between the back
edge of the shelf and the wall
behind the unit, we recommend
that a gap of at least 30 mm is
made by shortening the shelf.
Remove any fixings that may prevent
entry of the oven into the housing. The
cabinetry should be kept structurally
sound by fixing to adjacent cabinets,
floor or worktop.
560 - 570mm
Min 550mm
Min
710
mm
697
mm
712
mm
550mm
595mm
9mm
Rear wall
30 - 80
mm
Back edge of
support shelf
Front of
oven
INSTALLATION INSTRUCTIONS
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 31
Page 32
Step 2: Connect to the electricity
supply
Warning: This appliance must be
earthed.
The appliance must be installed by a
competent electrician using a double
pole control unit of 30 ampere
minimum capacity with 3 mm minimum
contact separation at all poles.
We recommend that the appliance is
connected by a qualified electrician
who is a member of the N.I.C.E.I.C.
and who will comply with the I.E.E.
and local regulation.
1. Access to the mains terminal is
gained by opening the terminal
block cover at the rear of the
appliance (use a small flat-bladed
screwdriver).
2. Connection should be made with
suitable twin and earth heat
resistant flexible cable, minimum
4mm
2
, which is suitable for use up
to 25 amps.
3. First strip the wires, then push the
cable through the cable clamp in
the terminal block cover.
4. Connect the cable to the terminal
block and tighten the cable clamp
cover.
5. Close the terminal box, ensuring
that the cover is engaged on the
locking tabs.
30
INSTALLATION INSTRUCTIONS
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 32
Page 33

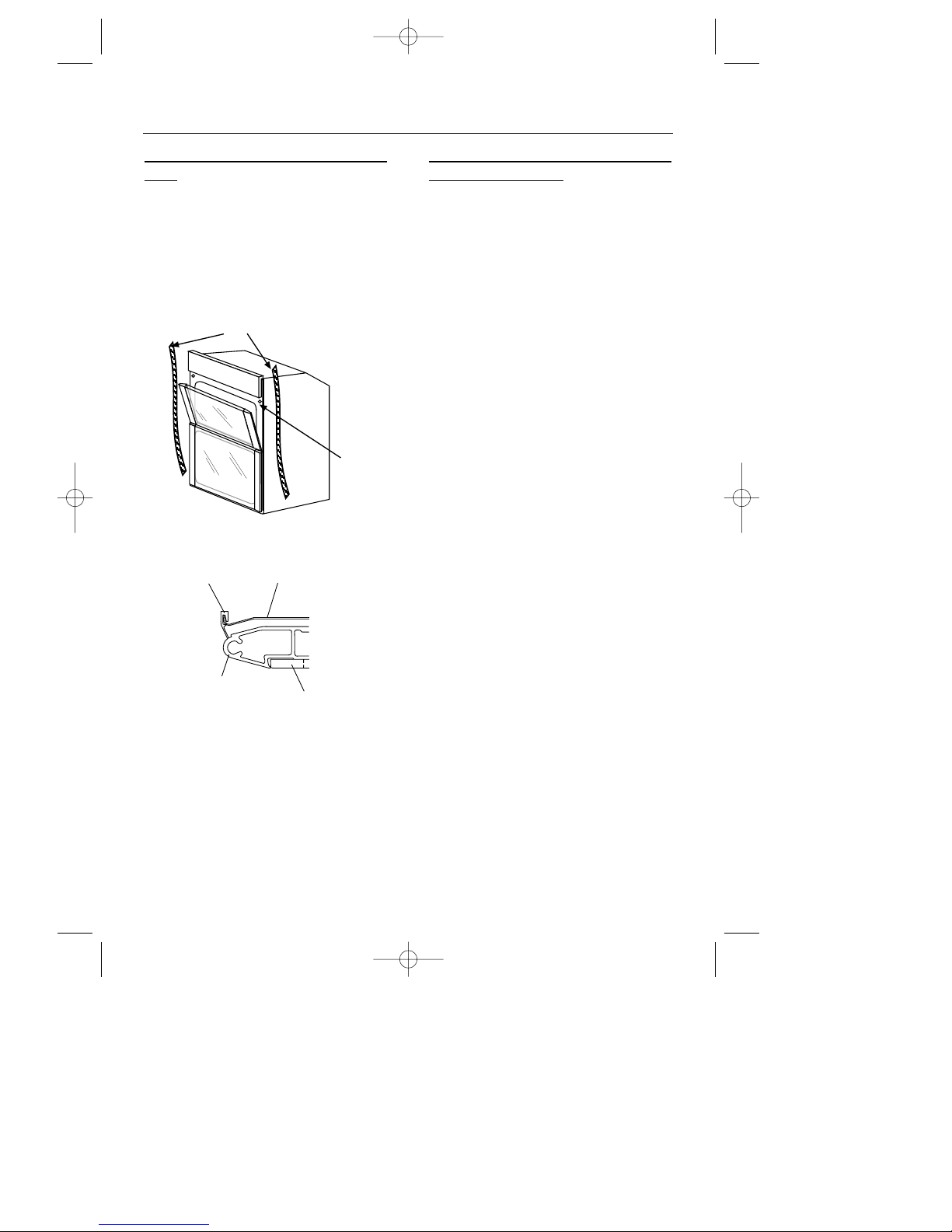

Step 3: Fit edging strip (Q721EF
only
Before inserting the appliance into the
cabinet, fit the silicon edging strip
(supplied in the oven pack) to the front
side edges of the front frame. Trim to
size.
Fitting the edging strip:
Detail:
Step 4: Insert appliance and
secure in position
Note: The unit housing the appliance
must be appropriately fixed.
Method 1: Care must be taken to
ensure the appliance runners are
sufficiently engaged over the top of the
runners on the base units.
Method 2: Insert appliance into
cabinet - ensure that it is engaged over
the top of the side runners.
Method 3: Insert appliance into cabinet.
To secure:
Make sure the appliance is centrally
located.
Method 1: Open the grill door and
you will see the 2 fixing holes at the
top sides of the front frame. Drill
through the fixing holes into the side
trims with a 3.2 mm diameter drill.
Secure the appliance to the side trims
with the 2 remaining No 8 x 12 mm
(Silver) self tapping screws.
Methods 2 & 3: Open the grill door
and secure appliance into position
using 2 No 8 x 25 mm (Silver) chipboard screws through the front frame.
31
front
frame
edging strip
glass outer
door extrusion
edging strip
front frame
INSTALLATION INSTRUCTIONS
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 33
Page 34
Step 5: Installing a STOVES gas
hob above the appliance
1. Remove the heatshield from the
underside of the hob base.
Note: The heatshield is not
required in this type of installation.
2. Fit the inlet connector adaptor
kit to the hob:
a. Remove the polythene bag,
containing the kit and fixing
screws from the oven pack.
b. Take out the pressure test nipple
and elbow adaptor.
c. If the existing pressure test nipple
on the hob is longer than the one
supplied in the adaptor kit it must
be replaced by the shorter one.
d. Remove existing inlet connector
from the hob, and replace with the
new elbow adaptor.
Care must be taken to ensure the hob
inlet pipe is as close to the back wall
as possible, so it doesn’t obstruct the
appliance or the appliance inlet pipe.
If a flexible inlet pipe is used, it must
hang vertically and not be trapped
between the oven and rear wall.
If another make of hob is installed
above the appliance, and the inlet
connector adaptor kit doesn’t fit the
hob, the correct size elbow and
connector can be bought from a local
hardware store.
32
Base of
hob
heatshield
INSTALLATION INSTRUCTIONS
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 34
Page 35
Electricity supply
Voltage 230 - 240V ~ 50Hz
Element ratings
Dual grill 1725 / 2685 W
Top oven (base) 670 W
Top oven (grill) 615 W
Main oven 2400 W
Oven lights each - 25 W
Cooling fan 10 W
Maximum load 5285 W
Countries of destination
(GB) Great Britain, (IE) Ireland
33
TECHNICAL DATA
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 35
Page 36
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 36
Page 37
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 37
Page 38
In case of difficulty please call
STOVES Customer Support Helpline on
0151 432 7838
When you dial this number you will hear a recorded message, and be given a
number of options. This indicates that your call has been accepted and is being
held in a queue. Calls are answered in strict rotation as our Customer Support
Representatives become available.
Enter appliance numbers here for future reference:
Please ensure you have the above details (Model No and Serial No) to hand
when calling Stoves Customer Support. They are essential to booking your call.
Model No
Serial No
36
STOVES PLC, STONEY LANE, PRESCOT, MERSEYSIDE, L35 2XW
STOVES CUSTOMER SUPPORT
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 38
Page 39
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 39
Page 40
08 23892 02 © 2000
RS2
23892 02 - Q721EF/720EF 03/04/2001 15:31 Page 40
Loading...
