SRE 712
Stover
Portable heaters
Laser
Stover
SRE 712 (BD Type C)
LC-V3270-SV(BD)
grey (dull)
8713508731834
Burner type
Capacity
kW 0.80 - 3.00
Suitable space
m
2
16 - 48
m
3
40 - 120
F
uel consumption
l
tr/hr 0.083 - 0.313
g
/hr 67 - 250
Tank capacity ltr 4.0
Burning time tank hr 12.8 - 48.2
Mains V / Hz 220-230 / 50
Power consumption preheat W320
Power consumption burning W28
Noise level (low-high) dB(A) 21 - 37
Dimensions (w x d x h) * mm 374 x 280 x 435
Weight kg 9.5
Guarantee ** years 2
* including base plate
Transportation cap
Instructions for use
Description Model EAN Code
Burner mat
D 8713508703916
Removable fuel tank D 8713508401607
Fuel tank cap high A 8713508400600
Fuel filter high A 8713508401003
Burner mat adhesive 8713508403403
Manual fuel pump 8713508400105
Mica window 8713508135007
Transportation cap 8713508402505
Air quality control system 8713508727752
Model name
Toyotomi model name
Colour
EAN code

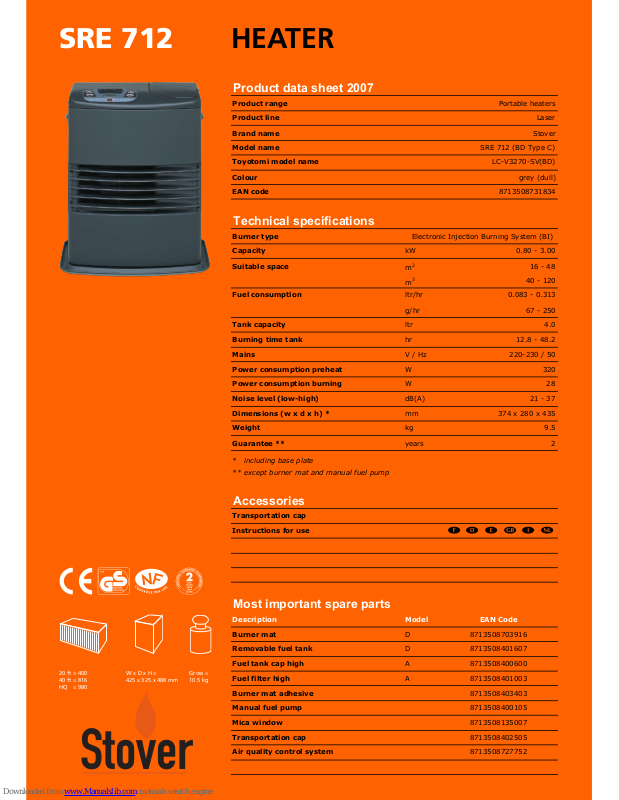

Product data sheet 2007
Product range
Product line
Brand name
Technical specifications
3 2 5 4 > 1
Electronic Injection Burning System (BI)
** except burner mat and manual fuel pump
Accessories
Most important spare parts
20 ft = 400
40 ft = 816
HQ = 980
W x D x H =
425 x 325 x 488 mm
Gr
oss =
10.5 kg
HEATER
SRE 712 HEATER
Features
Additional high burning mode: This feature is also known as booster. It
provides 10% extra heating capacity for 5 minutes, in addition to the heat output
in the maximum burning mode during a cold start (room temperature below 10oC
a
nd set temperature above 15
o
C
).
Automatic cleaning mode: When the heater has been burning for two hours
consecutively at its maximum burning mode it will automatically clean the burner
c
hamber for a period of 5 minutes.
Semi-automatic operation: This heater is equipped with a 24-hour
p
rogrammable timer and integrated thermostatic control to maintain the desired
room temperature.
Wickless design: Provides clean and economical heating without wick
maintenance or replacement.
I
nformation display:Helps to keep track of all the important heater functions.
S
afety devices:This heater is equipped with two flame-rod sensors, an over-
h
eat protector, a tip-over switch and a burner thermistor for safe heating.
Safety system: This heater is fitted with a safety system that automatically
switches off the heater after 48 hours of continuous operation.
Childproof lock: When this button is pressed, the operation of buttons will be
blocked, except the on/off button.
Automatic airflow control: The speed of the built-in fan is self-regulatory,
depending on the burning mode of the heater.
Made in Japan: This heater has been produced according to the ISO 9000:2000
Quality Control Standard.
Air quality control system: This heater automatically switches off when the
room is not ventilated sufficiently.
L
CD display
Laser burner
F
uel filter
Transportation cap
Air quality control system
