A warm welcome

Nothing creates an inviting atmosphere quite like a Gazco stove.

The centrepiece of any home, a Gazco stove adds warmth and character

to a room or living space – even if you don’t have a chimney!

Whether you want to achieve a minimalist, contemporary look, or have your

heart set on a more traditional stove, this brochure will help you make the

perfect choice, whatever your style or budget.

This season we have also introduced a new, stunningly realistic, electric

log-effect range of stoves; opening up new possibilities suc h as conservatories,

kitchens, dining rooms and bedrooms for you to have the warmth and character

of a Gazco stove in your home.

Contents

Relax – it’s a Gazco stove 4

Flue and Fuel Types 6

Traditional Styles

Gas and Electric Marlborough 8

Gas and Electric Stockton 12

Gas and Electric Huntingdon 30 18

Gas and Electric Clarendon 22

Gas and Electric Ashdon 26

Gas Brunel 32

Gas Regency 34

Contemporary Styles

Gas Ceramica Manhattan 36

Gas and Electric Steel Manhattan 38

Gas F40 Avanti 42

Gas F67 Riva 44

Gas Riva Nemos 50

Additional Information 52

Technical information 57

Front Cover: Gas Huntingdon 30 in Matt Black

The Future of Flame

3

Relax – it’s a
Gazco stove

When you choose Gazco, quality and

technology are assured. From traditional

models to state-of-the-art designs, Gazco is

committed to creating the ultimate flame-effect

gas and electric stoves.

Our research and development laboratories

are amongst the most advanced in the world,

ensuring that the very latest innovations are

incorporated into our appliances.

Gazco is a BSI registered firm. Our rigorous

quality control systems ensure that all our

appliances comply with British safety standards

as well as stringent European regulations.

We also carry the quality standard CE mark on

all our gas and electric stoves.

4

5

What's

6

your type?

Before you select your stove, your local Gazco retailer will need

to make sure it’s suitable for your home. Firstly, you need to

know what fuel you will be running. Secondly, you will need

to be aware of what type of chimney or flue you have. If you

do not have a chimney then don’t worr y, Gazco have models

developed to suit your home too! To assist you in selecting the

right stove for your home, a general guide to which models can

be installed with the various flue types is given on each page.

Fuel - Gas or Electric?

The majority of our stoves are available in either gas or electric

versions. All the electric models run on a standard 13amp plug

and have no need for a chimney.

Which Gas type....

All Gazco gas stoves in this brochure can be specified for use

with either Natural Gas or LPG. Natural Gas is provided though

mains pipelines, whilst LPG is usually supplied to homes in rural

areas from a tank in the garden or gas bottles.

Your home…

The type of c himney or flue you have usually dictates your

choice of stove. To help you understand which stoves are

suitable for your home, please use the information and pictures

shown opposite to identify your chimney. Don’t worry, if you

don’t have a chimney though, you can still find the perfect stove

for your home! Once you have identified your chimney

(or confirmed you do not have one), take note of the symbol

that represents this, as this will be used throughout the

brochure to represent the stoves that are suitable for

installation in your home.

Brick or Stone Chimney

(Class 1)

Conventional chimneys are easily recognisable. The stack rises

well above the roofline and is topped by a traditional chimney

pot or gas terminal. This type of c himney relies on the natural

circulation of heated air to expel the products of combustion up

your chimney.

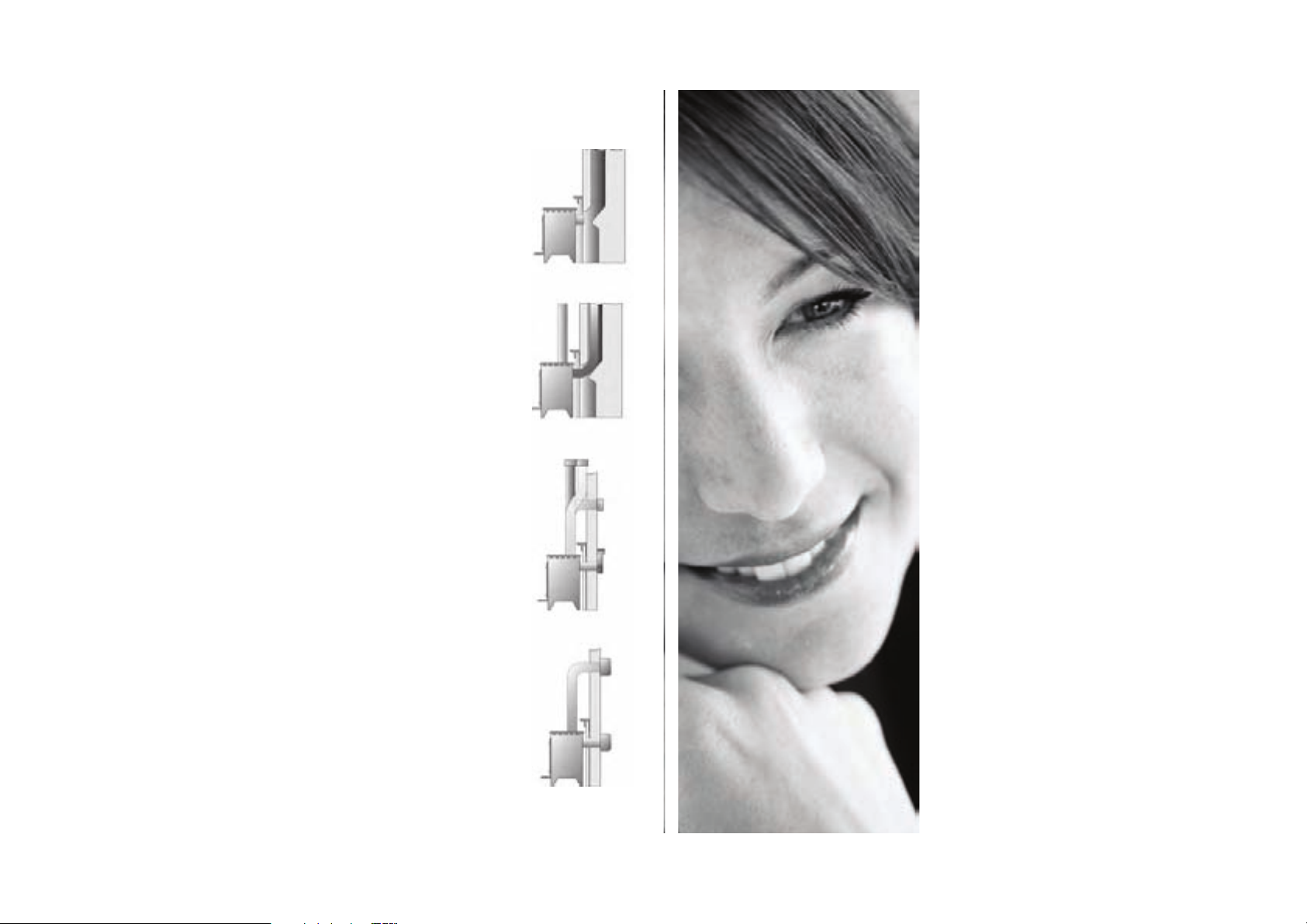

Pre-Fabricated Flues

(Class 1 & 2)

You will see a metal flue cowl on your roof. Some are all metal

whilst others may terminate through a short rectangular pot (but

without a chimney stack). These flues create the same circulation

of heated air as a brick or stone c himney.

Many modern homes have been built with such flues. You can

readily identify them by either a metal flue cowl or a raised ridge

terminal on your roof. Again, the natural circulation of heated air

expels the products of combustion. This option is only available

on the small stoves

No Air Vent required (UK)

All stoves shown with this symbol, boast the advantage of not normally requiring an air vent*. Please discuss this in full with

your local retailer.

The above information is to assist in your choice of a suitable Gazco stove. This is not intended to be all the information required to install your stove.
This can be obtained from your local Gazco retailer or you can download full installation instructions from the Gazco website at www.gazco.com

1

2

Pre-Cast flues

(Class 2)

3

Balanced flues work in conjunction with glass fronted gas stoves.

The appliance is completely sealed from the room into which it is

installed (so there are no draughts and heating efficiency is

increased!) and a twin-wall pipe vents directly to an outside wall.

Air for combustion is drawn in through the outer pipe whilst the

inner pipe removes the combustion gases to the exterior of the

property. Dependent upon the stove selected, the twin-walled pipe

may exit horizontally through an external wall or vertically through

the roof. No electric supply is required; therefore there is no sound

with this flue system.

A powered flue uses an extractor unit mounted to vent the

combustion gases directly outside. This means that your stove

does not have to be installed against an external wall, so it can

be located in more rooms around your home. A mains electricity

supply is needed to operate this system.

Electric Stoves

(No chimney required)

Gazco produce an excellent selection of electric Marlborough,

Stockton, Huntingdon 30, Clarendon, Ashdon and Steel Manhattan

stoves which do not, of cour se, require a chimney or flue of any kind.

X

Balanced Flue

(No chimney required)

BF

Powered Flue

(No chimney required)

*Requirements in the Republic Of Ireland are different.

PF

7

Gas
Marlborough

Country or city, traditional or contemporary, the

innovative Gas Marlborough has the flexibility to suit

your lifestyle and your décor. It is available in three sizes

and each has an extensive window area to allow you

to enjoy the dancing flames and warm ambience of the

coal or log effect fires to the full.

Operation is simplicity itself too. There’s Piezo ignition

and a manual control to adjust the flame height and

heat output. Choose Gazco’s Command upgradable

remote control and you can adjust the flames and heat

from your armchair. Alternatively, opt for the deluxe

Programmable upgradable remote control to set the

stove to switch itself on and off and heat the room to

the temperature you select.

Colour Choice

Matt Black

Heat Output

S: 1.95 - 3.60kW

M: 2.50 - 5.15kW

L: 3.10 - 7.28kW

Efficiency

Conventional flue 78%

Balanced flue 82%

Fuel Bed

Coals

Logs

X

Command Controls

X

Manual

Standard upgradable

Programmable upgradable

Suitable for

1 2 3

BF PF

Large Gas Marlborough with coal-effect fire

Small Gas Marlborough with log-effect fire

For complete model choices, specifications and

additional information please see pages 52-56 and 58

8

Medium Gas Marlborough with log-effect fire

9

Electric
Marlborough

Featuring the same distinctive styling as the Gas

Marlborough, the two electric versions offer you an

amazingly realistic log-effect fire at the touch of a switch.

At its heart is Gazco’s unique VeriFlame™ technology

which allows you to choose from 5 different glow settings

and 5 different flame speeds to match your mood exactly

– and everything is operated from a remote control to

save you bending. Furthermore, you can select fire effect

only; fire effect + 1kw heat; and fire effect + 2kw heat

according to your heating needs.

The Electric Marlborough simply plugs into a 13amp

socket, so is particularly suited for conservatories or

rooms without a chimney.

Small Electric Marlborough

X

X

Fuel Bed

Logs

Command Controls

Remote as standard

Suitable for

No chimney required

11

Colour Choice

Matt Black

Heat Output

S: 1.00 - 2.00kW

M: 1.00 - 2.00kW

Efficiency

99.8%

For complete model choices, specifications and
additional information please see pages 54-55 and 58

10

Medium Electric Marlborough

Gas Stockton

Using cast iron for the door and heavy gauge

steel for the body, Gas Stockton stoves combine simple,

understated lines with Gazco's latest living flame

technology.

This means you can enjoy an unrivalled coal or log effect

fire together with a heating performance that will keep

your room really cosy on those cold winter evenings. In

fact, you won’t even have to move from your chair if you

opt for one of our remote controls!

Colour Choice

Matt Black

Heat Output

S: 1.95 - 3.60kW

M: 2.50 - 5.15kW

Efficiency

Conventional flue 78%

Balanced flue 82%

Fuel Bed

Coals

Logs

X

Command Controls

X

Manual

Standard upgradable

Programmable upgradable

Suitable for

1 2 3

BF PF

Small Gas Stockton with log-effect fire

For complete model choices, specification and

additional information please see pages 52-56 and 58

12

Medium Gas Stockton with coal-effect fire

13

Gas Stockton 5 with log-effect fire

Gas Stockton 5

With authentic multi-fuel stove styling, right down to

the hinged door with handle, the new Gas Stockton 5

is conveniently sized between the small and medium

models featured on the previous page. So you have even

more opportunity to suit your needs – and to enjoy all

the enchantment of a real coal or log effect fire.

Choose from manual or remote controls.

Colour Choice

Matt Black

Heat Output

1.95 - 3.95kW

Efficiency

Conventional flue 78%

Balanced flue 80%

*Please note this is a viable installation in stone, but not
suitable for combustible materials.

For complete model choices, specifications and
additional information please see pages 52-56 and 58

X

Fuel Bed

Coals

Logs

Command Controls

Manual

Standard upgradable

Programmable upgradable

Suitable for

BF

1 2

14

Gas Stockton 5* with coal-effect fire

15

Electric Stockton

Using the same cast iron door and heavy gauge steel

body as the Gas Stocktons, the electric version combines

the classic looks of a wood burning stove with the ease

of Gazco’s latest VeriFlame™ technology. This means you

will enjoy up to 25 combinations of flame and glow from

a remarkably authentic log-effect fire that creates a superb

focal point for your room.

Choose from the Stockton 5 or slightly larger

Medium Stockton.

Medium Electric Stockton in Matt Black

16

Colour Choice

Matt Black

Heat Output

5: 1.00 - 2.00kW

M: 1.00 - 2.00kW

Efficiency

99.8%

For complete model choices, specifications and
additional information please see pages 54-55 and 58

Fuel Bed

Logs

Command Controls

X

Remote as standard

X

Suitable for

No chimney required

Electric Stockton 5 in Matt Black

17

Gas
Huntingdon 30

A recent addition to the Gazco range, the Gas

Huntingdon 30 successfully combines refined styling

with efficient heating technology. This popular size of

gas stove is also available in a choice of three high

quality enamel colours as well as Matt Black. So there

is a version of this authentic stove with beautiful tracery

windows, that will fit right into your home.

Choose from manual or remote controls.

Colour Choice

Matt Black

Laurel Green

Midnight Blue

Ivory

Heat Output

1.95 - 3.50kW

X

Fuel Bed

Coals

Logs

Command Controls

Manual

Standard upgradable

Programmable upgradable

Gas Huntingdon 30 in Ivory enamel

with log-effect fire

Efficiency

Conventional flue 78%

Balanced flue 80%

For complete model choices, specifications and

additional information please see pages 52-56 and 59

18

18

Gas Huntingdon 30 in Matt Black with coal-effect fire

Suitable for

BF

1 2

Gas Huntingdon 30 in Matt Black

with log-effect fire

19

19

Electric Huntingdon 30 in Laurel Green enamel

Electric
Huntingdon 30

New this year is the electric version of the ever popular

Huntingdon 30. The fine castings and beautiful tracery

door of the stove are brought alive with Gazco’s

VeriFlame™ technology which provides you with a

selection of 5 flame speeds and 5 glow levels. Your choice

of fire is then set against the highly realistic fuel bed and

individually hand painted ‘logs’, perfectly mirroring the look

and atmosphere of a real woodburning stove.

Operation is simple too as the remote control not only

allows selection of the flame and glow but also fire/heat

combinations. These can be fire effect only only; fire effect

+ 1kw heat; and fire effect + 2kw heat according to the

amount of warmth required.

Electric Huntingdon 30 in Ivory enamel

Colour Choice

Matt Black

Laurel Green

Midnight Blue

Ivory

Heat Output

1.00 - 2.00kW

Efficiency

99.8%

For complete model choices, specifications and

additional information please see pages 54-55 and 59

X

Fuel Bed

Logs

Command Controls

Remote as standard

Suitable for

No chimney required

120

Electric Huntingdon 30 in Matt Black

21

Small Gas Clarendon in Midnight Blue enamel

with clear glass and log-effect fire

Gas Clarendon

Superb heating efficiency, finely detailed castings,

a real fire effect and choice of three sizes make the Gas

Clarendon perfect for a wide variety of homes. Further, whilst

the tracery of the standard window provides minimal obscuring

of the flames, there are also 'clear glass' versions to attain

the fullest possible view of the fire. The small and medium

clear glass models are also available in two enamelled colours,

Laurel Green and Midnight Blue.

According to size of model, the fires may be coal or log effect.

All feature a fully adjustable flame and heat setting whether

you opt for manual controls, the Standard remote control or

the Programmable remote control. Select the Programmable

remote control and you can even set the stove to switch

itself on and off twice a day and thermostatically maintain the

temperature in your room.

Medium Gas Clarendon in Midnight Blue

enamel with clear glass and log-effect fire

22

Colour Choice

Matt Black

Laurel Green (S & M)

Midnight Blue (S & M)

Heat Output

S: 1.95 - 3.60kW

M: 2.50 - 5.15kW

L: 3.10 - 7.28kW

Efficiency

Conventional flue 78%

Balanced flue 82%

For complete model choices, specifications and additional

information please see pages 52-56 and 60

Sizes Available

Small

Medium

Large

Fuel Bed

X

Coals

X

Logs

Command Controls

Manual

Standard upgradable

Programmable upgradable

Suitable for

1 2

BF PF

Medium Gas Clarendon in Matt Black with log-effect fire

23

Medium Electric Clarendon in Matt Black

Electric
Clarendon

Authentic styling and elegant castings give the small

and medium Clarendon all the character of a real stove

but with the convenience of electricity. Simply plug in

and switch on for Gazco’s highly realistic log-effect fire,

complete with your choice of different glows and

flame speeds, as well as the soothing comfort of

instant warmth.

The heater is discreetly located under the stove but, as

all functions can be operated from the remote control,

there is no stooping or crouching. In fact, you can alter

the VeriFlame™ effect or adjust the heat output whilst

relaxing in your favourite chair!

Small Electric Clarendon in Matt Black

24

Colour Choice

Matt Black

Laurel Green

Midnight Blue

Heat Output

1.00 - 2.00kW

Efficiency

99.8%

For complete model choices, specifications and

additional information please see pages 54-55 and 60

X

Sizes Available

Small

Medium

Fuel Bed

Logs

Command Controls

Remote as standard

Suitable for

No chimney required

Small Electric Clarendon in Matt Black

25

25

Gas Ashdon

Refinement and performance are very much the

hallmarks of the Gas Ashdon. Its g raceful lines and fine

Gothic tracery window combined with the latest gas fire

technology provide a superb focal point for your home.

There is a choice of traditional Matt Black, lustrous

Midnight Blue, Laurel Green or Ivory enamel finishes;

coals or logs; Standard upgradable and Programmable

upgradable remote controls. In fact, all the features you

would expect from this magnificent top-of-the-range stove.

Gas Ashdon in Ivory enamel with log-effect fire

Colour Choice

Matt Black

Laurel Green

Midnight Blue

Ivory

Heat Output

2.50 - 5.15kW

Efficiency

Conventional flue 78%

Balanced flue 82%

For complete model choices, specifications and

additional information please see pages 52-56 and 61

26

Gas Ashdon in Laurel Green enamel with coal-effect fire

X

Fuel Bed

Coals

Logs

Command Controls

Manual

Standard upgradable

Programmable upgradable

Suitable for

BF PF

1 2

Gas Ashdon in Midnight Blue enamel

with coal-effect fire

27

Gas Ashdon

Clear Door

For those who admire the fine lines and heating capacity

of the Gas Ashdon, there is now the choice of a clear

door version. Identical in performance and size to the Gas

Ashdon, the clear door version is for those who crave the

fullest possible flame picture without compromise.

Colour Choice

Matt Black

Laurel Green

Midnight Blue

Ivory

Heat Output

2.50 - 5.15kW

X

Fuel Bed

Coals

Logs

Command Controls

Manual

Standard upgradable

Programmable upgradable

Gas Ashdon with clear door in Laurel Green

enamel and coal-effect fire

Efficiency

Conventional flue 78%

Balanced flue 82%

For complete model choices, specifications and

additional information please see pages 52-56 and 61

28

28

Gas Ashdon with clear door in Matt Black and log-effect fire

Suitabel for

BF PF

1 2

29

29

Electric Ashdon

Gazco’s most popular electric stove now features our

new VeriFlame™ technology offering a stunningly

realistic log-effect fire with up to 25 combinations of

glow and flame speed. Quite simply, it means that

you can enjoy all the ambience of a genuine cast iron

wood burner with the convenience of a remote control.

From the hand painted fuel bed and logs to the

lustrous enamel finishes, this stove exudes the style

and quality to make an impressive focal point in any

room or conservatory.

Electric Ashdon in Laurel Green enamel

30

X

Efficiency

99.8%

Fuel Bed

Logs

Command Controls

Remote as standard

Suitable for

No chimney required

Colour Choice

Matt Black

Laurel Green

Midnight Blue

Ivory

Heat Output

1.00 - 2.00kW

For complete model choices, specifications and
additional information please see pages 54-55 and 61

Electric Ashdon in Matt Black

31

Gas Brunel

Ideal for the smaller room, this compact yet attractive cast

iron stove can be mounted on an open hearth or fitted in

front of a standard 22” (560mm) high fireplace opening.

Whether you choose Matt Black, Midnight Blue enamel or

Laurel Green enamel, there's a fully adjustable, authentic

looking coal effect fire providing warmth and comfort on

demand.

Fuel Bed

Coals

Command Controls

Gas Brunel in Matt Black

Colour Choice

Matt Black
Laurel Green
Midnight Blue

Manual

Heat Output

1.65 - 3.50kW

X

Suitable for

1 2 3

Efficiency

78%

For complete model choices, specifications and additional

information please see pages 52-56 and 62

32

Gas Brunel in Midnight Blue enamel, shown in Stovax Small Kensington mantel

33

Gas Regency

This traditional cast iron stove, originally patented by

Benjamin Franklin in 1742, has been updated for the

21st Century with Gazco's impressively realistic open

gas fire. In addition to being able to adjust the flame

height and heat output, this model includes a variable

flame control to allow you to select your preferred

flame type – a gentle glow or flickering flames.

There are two sizes of Gas Regency. Each is supplied

with a pair of brass ball finials but you can also add an

optional set of brass rails if you wish, enhancing the

classic styling still further.

Medium Gas Regency with optional rail-set

Colour Choice

Matt Black

Heat Output

S: 1.00 - 2.75kW

M: 1.30 - 3.25kW

For complete model choices, specifications and

additional information please see pages 52-56 and 62

34

Small Gas Regency with optional rail set

Fuel Bed

Coals

Command Controls

Manual

Suitable for

1

35

Gas Ceramica
Manhattan

With its superb contemporary styling and sturdy

ceramic panelling, the Manhattan brings a colourful

new dimension to home heating. At its centre is a

finely detailed, cast iron frame surrounding a panoramic

window that allows you to enjoy to the full a realistic

picture of dancing flames and glowing coals or logs. To

complete the look, a cast iron top grille permits warm,

convected air to flow gently into the room.

Choose from manual or remote controls.

Colour Choice

Matt Beige

Heat Output

2.50 - 5.15kW

Efficiency

Conventional flue 78%

Balanced flue 82%

X

Fuel Bed

Coals

Logs

Command Controls

Manual

Standard upgradable

Programmable upgradable

Suitable for

BF PF

1 2

For complete model choices, specifications and
additional information please see pages 52-56 and 63

36

Gas Ceramica Manhattan in Matt Beige with coal-effect fire

37

Gas Steel
Manhattan

With similar styling to the Ceramica Manhattan,

the steel versions offer you even more opportunities

to co-ordinate with today's contemporary décors,

room sizes and furnishings, especially as there are two

sizes and each is available in a choice of

two finishes.

Whichever way you look at the Steel Manhattan,

as a piece of furniture or as a heating appliance,

this precision-engineered gas stove provides an

outstanding focal point for any room.

Small Gas Steel Manhattan in Brushed

Stainless Steel with coal-effect fire

Colour Choice

Anthracite

Brushed Stainless Steel

Heat Output

S:1.95 - 3.65kW

M: 2.50 - 5.15kW

Efficiency

Conventional flue 78%

Balanced flue 82%

For complete model choices, specifications and

additional information please see pages 52-56 and 63

38

Medium Gas Steel Manhattan in Brushed Stainless Steel with log-effect fire

Fuel Bed

Coals

Logs

Command Controls

X

Manual

X

Standard upgradable

Programmable upgradable

Suitable for

1 2

BF PF

Medium Gas Steel Manhattan in Anthracite

with log-effect fire

39

Small Electric Steel Manhattan in Anthracite

Electric Steel
Manhattan

Contemporary, convenient and comforting, the small

and medium Electric Steel Manhattan provide clean

lines, a highly realistic log-effect fire and up to 2kW of

heat at the press of a button on the remote control.

Both versions incorporate Gazco’s VeriFlame™

technology which offers you with a selection of 5

different flame speeds and 5 different glow levels

together with a heater that is discreetly concealed

beneath the stove. There is also a choice of modern

finishes to blend with a wide range of interiors.

Colour Choice

Anthracite

Brushed Stainless Steel

Heat Output

S: 1.00 - 2.00kW

M: 1.00 - 2.00kW

For complete model choices, specifications and
additional information please see pages 54-55 and 63

40

X

X

Efficiency

99.8%

Fuel Bed

Logs

Command Controls

Remote as standard

Suitable for

No chimney required

Medium Electric Steel Manhattan in Brushed Stainless Steel, shown in Stovax Brompton mantel

41

Gas F40
Avanti

Designed to provide a splendid focal point in contemporarily

styled interiors, the new Gas F40 Avanti is available in three

distinctive versions – Avanti, Avanti Midi and Avanti Highline

– to suit the widest range of requirements. Each features

excellent views of Gazco’s highly realistic coal or log fire

through its large glass window.

Gas F40 Avanti Highline with coal-effect fire

Gas F40 Avanti with log-effect fire (balanced flue

42

(conventional flue only)

only), shown in Stovax Alborg mantel

Colour Choice

Iridium/Black

Heat Output

2.73 - 4.29kW

Efficiency

Conventional flue 78%

Balanced flue 80%

For complete model choices, specifications and

additional information please see pages 52-56 and 64

X

Fuel Bed

Coals

Logs

Command Controls

Manual

Standard upgradable

Programmable upgradable

Suitable for

BF

1 2

Gas F40 Avanti Midi with coal-effect fire (conventional flue only)

43

Gas F67 Riva

If you need a high level of heating performance and

efficiency but are seeking a look that is, perhaps, a little

closer to a contemporary fire than a stove, then the F67

Riva offers an exceptionally stylish solution.

At the heart of the F67 Riva is a highly efficient, gas

log fire. This not only provides a ‘real fire’ atmosphere,

complete with comforting glow and flickering flames, but

also up to 4.9kW of effective heating at the turn of a

switch. Alternatively, opt for one of our Command remote

controls and operation is easier still!

Colour Choice

Black, with polished

stainless steel inserts

Heat Output

2.35 - 4.90kW

Efficiency

Conventional flue 72%

Balanced flue 75%

For complete model choices, specifications and

additional information please see pages 52-56 and 64

44

44

Gas F67 Riva

X

Fuel Bed

Logs

Command Controls

Manual

Standard upgradable

Programmable upgradable

Suitable for

BF

1 2

Gas F67 Riva

45

45

Gas F67 Riva Bench

Gas F67
Riva Bench

As an alternative interior design option to the hearth-

mounted F67 Riva, a ‘Bench’ version is also available.

Raised off the hearth on a sturdily constructed and

specially designed bench, the extra 350mm of height

provides you with an excellent view of the fire through

the generously wide window whilst the additional width

creates a more striking focal point in your home.

For even more effect, choose Gazco’s Command

Programmable remote and you can set the fire to

switch on/off when you want (so you can come home

to a really cosy room) or simply adjust the flames and

temperature from your favourite armchair!

Colour Choice

Black, with polished

stainless steel inserts

Heat Output

2.35 - 4.90kW

Efficiency

Conventional flue 72%

Balanced flue 75%

For complete model choices, specifications and

additional information please see pages 52-56 and 64

46

46

X

Fuel Bed

Logs

Command Controls

Manual

Standard upgradable

Programmable upgradable

Suitable for

BF

1 2

Gas F67 Riva Bench

47

47

Gas F67 Riva Pedestal

Gas F67
Riva Pedestal

Completing the F67 series is the Riva F67 Pedestal.

This freestanding stove blends an elegant, ‘wide

screen’ appearance with a highly realistic gas log fire

to provide the ultimate centrepiece to any open living

space. Alternatively, thanks to the tapered design at the

rear, the F67 Pedestal may be installed into the corner

of a room.

Just as importantly, there is up to 4.9kW of efficient,

convected heat ready to warm your home whenever

you wish.

Colour Choice

Black, with polished

stainless steel inserts

Heat Output

2.35 - 4.90kW

Efficiency

Conventional flue 72%

Balanced flue 75%

For complete model choices, specifications and

additional information please see pages 52-56 and 64

48

48

X

Fuel Bed

Logs

Command Controls

Manual

Standard upgradable

Programmable upgradable

Suitable for

BF

1 2

Gas F67 Riva Pedestal

49

49

Gas Riva Nemos

Combining both pure lines and soft curves, the Riva

Nemos has an allure that is immediate. However, its

beauty is more than skin deep, because behind the glass

window you will find a state-of-the-art gas fire featuring

superbly sculpted driftwood logs and an exceptionally

realistic flame pattern.

Furthermore, the Riva Nemos has been developed for

highly efficient heating. Opt for the Programmable remote

control and you can even wake up or come home to that

cosy real fire atmosphere and a room temperature to suit

your needs.

Colour Choices

Iridium/Black

Brushed Stainless/Black

Heat Output

2.50 - 5.30kW

Efficiency

78%

For complete model choices, specificationsand
additional information please see pages 52-56 and 65

50

Gas Riva Nemos in Iridium

X

Fuel Bed

Driftwood

Command Controls

Manual

Standard upgradable

Programmable upgradable

Suitable for

BF

Gas Riva Nemos in Brushed Stainless

51

Additional
Information

Impressive features

All Gazco gas stoves have an outstanding list of standard features:

• Ceramic fibre coals, logs or driftwood - skilfully sculpted for
maximum 'real fire' effect and atmosphere

• Multi-purpose control knobs- for simple, fingertip control of ignition,
pilot light and gas supply (except Gas F40 Avanti)

• Piezo ignition - automatic sparking without batteries or electricity
(except Gas F40 Avanti)

• Adjustable flame setting - infinitely adjustable between
high and low

• Convection system - for improved heating efficiency and safety

• Flame failure device - automatically shuts off the gas suppl y if the
pilot light goes out

• Flue Sure System® - Gazco's special safety system shuts off the
gas supply in the case of accidental flue bloc kage (conventional flue
models only)

• Choice of flue exit - top or rear exit options for greater flexibility of
installation (except Brunel and small balanced flue models which are
rear exit only)

Command remote controls for gas stoves

Gazco was the first UK company to introduce remote controls for gas fires.
Today, our Command remote control systems allow most stoves to be
upgraded, either at the time of purc hase or at a later date, with either:

a) Standard upgradable remote control

Once the pilot light has been ignited manually you can
vary the flame height and heat output from the comfort
of your armc hair.

b) Programmable upgradable

remote control

This deluxe version has two additional features.
The first allows you to thermostatically control the
room temperature whilst the second allows you
to programme your stove to switch itself on and of f
twice a day. Use both and you can even come home
to a glowing fire that has heated the room to the
temperature you select!

Colour/finish choices

According to model, the colour/finishes available are shown below:

2

Matt Black

Midnight Blue

Laurel Green

Iridium

Steel

Anthracite

1 = Enamel finish 2 = Paint finish 3 = Steel finish 4 = Glaze Finish

Matt Beige

1

1

Graphite

2

2

Ivory1

Brushed Stainless

4

2

3

Electric Stoves

Our range of Electric Stoves are as easy to install as plugging in and
switching on! Available in a range of designs from traditional to modern,
ensuring that there is an electric stove available to suit all pockets and
locations. The heater is discreetly located under the stove. Once set, all
VeriFlame™ and heat controls are positioned at high level to save you
crouching or stooping. They allow you to operate the stove on one of three
heat outputs – VeriFlame™ fi re effect only, VeriFlame™ fi re effect + 1kW
heat and VeriFlame™ fi re effect + 2 kW heat. Every VeriFlame™ setting
beautifully highlights the highly realistic log-effect engine with a glass fi bre
fuel bed that is not only hand-painted for maximum aesthetic appeal but
also includes separate, individually hand painted logs.

The Gazco VeriFlame™ Difference

Unique on the market, Gazco’s VeriFlame™ technology
produces the ultimate in realistic fi re effects. The complementary
remote control allows you to independently adjust the speed
of the fl ames and the fuel bed intensity and fl ame level on
fi ve different settings from low to high, to produce the exact
ambience you require. Complete fl exibility at the touch of a
button. There are also discreetly concealed manual controls
should the batteries in the remote control run out of power.

Technical Specifications

All specifications given in the main part of this brochure are approximate. Actual

specifications for each individual product will vary according to the exact model and are

given on pages 53-62. Your Gazco retailer will be pleased to help explain specific model

specifications and provide any further information you may require, or you can view/

download specification sheets from www.gazco.com

Installation

Gazco gas stoves must be fitted by a qualified gas installer (CORGI registered in the

UK) who should also verify the proposed site conditions are fully suitable for the product

selected. Complete installation instructions for many models can be obtained prior to

purchase by downloading them from www.gazco.com

Colours

Owing to variations in studio lighting and printing inks, the colours of

stoves illustrated in this brochure may differ slightly from actual models.

In addition, the glaze used on the Ceramica Manhattan is fired on to the ceramic shell

castings at very high temperatures. These castings sometimes have shading variations in

the glaze finish and this does not constitute a fault, indeed, they add to the charm and

individuality of ever y piece.

Product improvement

Gazco's policy is one of constant product improvement. Appliances

may therefore sometimes differ from the descriptions or illustrations in

this brochure.

Please note: The operation and appearance of gas appliances depends on variable

factors such as the gas pressure supplied.

52

53

53

GAS & ELECTRIC STOVES - dimensions and options

Model Overall dimensions (mm) Approx weight (kg)

WHD

Gas Marlborough - Matt Black only

Small 410 533 360 35 
Medium 590 583 410 48 
Large 730 628 420 56 
Gas Stockton - Matt Black only
Small 422 525 340 57 
Stockton 5 481 544 337 55
Medium 579 618 411 77 
Gas Huntingdon 30 - Matt Black, Laurel Green, Midnight Blue and Ivory
560 592 351 72 
Gas Clarendon - Matt Black but also Laurel Green and Midnight Blue on S & M Clear Glass models
Small 431 589 342 56 
Medium 654 652 427 86 
Large 779 710 468 102 
Small - clear glass 431 589 342 54 
Medium - clear glass 654 652 427 84 
Large - clear glass 779 710 468 99 
Gas Ashdon - Matt Black, Laurel Green, Midnight Blue and Ivory
Medium 654 652 515 88
Medium - clear glass 654 652 515 86 

Gas Brunel - Matt Black, Laurel Green and Midnight Blue

Gas Regency - Matt Black only

Small 850 910 600 125 
Medium 950 940 660 142 

Gas Ceramica Manhattan - Matt Beige only

Gas Steel Manhattan - Anthracite and Brushed Stainless Steel

Small 540 635 360 64 ­Medium 711 700 427 80 

Gas Riva Nemos - Iridium/Black Brushed Stainless Steel/Black

Gas F40 Avanti - Iridium/Black only

Avanti 462 644 331 45 
Midi 462 824 331 55 
Highline 462 999 331 65 
Gas Riva F67 - Black, with polished steel only
Riva F67 880 592 420 58 ­Riva F67 Bench 1200 942 420 102 ­Riva F67 Pedestal 880 843 420 98 -

Electric Marlborough - Matt Black only
Small 410 559 360 35 ­Medium 590

Electric Stockton - Matt Black only
Stockton 5 481 544 337 55 ­Medium 579 618 411 82 -

Electric Huntingdon 30 - Matt Black, Laurel Green, Midnight Blue and Ivory

Electric Clarendon - Matt Black, Laurel Green and Midnight Blue

Small 431 589 342 56 ­Medium 654 652 427 78 -

Electric Ashdon - Matt Black, Laurel Green, Midnight Blue and Ivory

Electric Steel Manhattan - Anthracite and Brushed Stainless Steel

Small 540 635 360 33 -

54

54

Medium 711 700 427 44 -

412 524 414 49 *

711 720 427 110 

694 1148 424 122 -

583 410 48 -

560 592 351 71.5 -

654 652 515 78 -

Conventional or

Pre-fabricated flue





Important Notes:

1. Conventional Flue Pipe and options:

for flue pipe codes and options such as flue
collars, closure plates and spigot extensions,
please see price list.

Coal fire

Pre-cast flue

  --* - -

-   - --

-  - - ---

  --*- -

-- - -

-   - --

- -  -  --

  --*- -

-   - --

-  - - ---

  --*- -

-   - --

-  - - ---

-

-

*- -

- - - - ---

- - - - ---

-   - --

-- - - 

-   - --

-- - -†- -

-- - - --

-- - - --

-- - - --

-- †-† - -

-- †-† - -

-- †-† - -

-- - ---

-- - ---

-- - ---

-- - ---

-- - ---

-- - ---

-- - ---

-- - ---

-- - ---

-- - ---

Powered

flue

 
  - --

2. Balanced Flue:

in addition, please order appropriate flue
kit and optional flue collar. Please see
price list for details.

Conventional or

Pre-fabricated

3. Powered Flue:

please order powered flue kit and, if terminal
is to be less than 2m above ground level, a
terminal guard is also required.

Log fire

Pre-cast flue Balanced flue



-

-



---

*- -

4. *: indicates product is
available with rear flue exit
only. All other products
top or rear.

Powered

flue

--

--

5. †: Top flue only.

Electric

No flue req.

55

55

Gas Flue Systems

1.

Closure Plate and Spigot Extension†

This is a flue system suitable for homes with existing conventional chimneys in whic h an airtight, steel closure

plate is fitted over a fireplace opening or Class 2 pre-cast starter block and a short piece of flue extends from
the back of the stove, through the plate, into the chimney. The products of combustion are carried up the
chimney by natural convection.

Models which can be fitted with a closure plate and spigot extension are:

Small Gas Marlborough, Small Gas Stockton, Medium Gas Marlborough and Gas Brunel.

Models which can be fitted to a pre-cast chimney with a closure plate are:

Small Gas Marlborough, Small Gas Stockton and Gas Brunel.

2. Rigid or Flexible Metal Flue†

With this flue system rigid metal tubes, or a combination

from the stove to the outside of the property. This may be either straight through the ceiling or roof with the flue
pipe exposed, or by using the channel of a chimney or a studwork enc losure. The products of
carried up the flue by natural convection.

Models which can use this system are:

Small, Medium and Large Gas Marlborough, Small and Medium Gas Stockton, Gas Stockton 5,
Huntingdon 30, Small, Medium and Large Gas Clarendon and clear glass, Gas Ashdon and clear glass, Gas
Brunel, Ceramica Manhattan, Small and Medium Steel Manhattan, Gas F40 Avanti, Midi and Highline, Gas F67
Riva, Gas F67 Riva Bench, Gas F67 Riva Pedestal. Also Small and Medium Gas Regency with 7" minimum flue.

3. Balanced Flue

Where a room has no chimney, then a Balanced Flue version of a Gazco stove is a practical option. The flue

consists of one tube inside another. The outer tube brings air into the stove for combustion whilst the inner
one emits the products of combustion.

Options: A - Rear outlet (max 600mm wall thickness).

Ask dealer for full technical details and installation requirements. A 4-page information sheet is available.

Models which can use this system are:

B - Top outlet/up and out (min rise 500mm, max 3m), horizontal (min 500mm, max 5m).
An additional bend can be incorporated in to the horizontal section of the ‘up and out’, dependent
upon a 1m min vertical rise.
C - Top outlet/vertical (min 3m, max 10m).
D - Top outlet/vertical with offset (min to first bend 500mm, max flue length 10m).

Small* and Medium Gas Marlborough, Small* and Medium Gas Stockton, Gas Stockton 5, Gas Huntingdon 30,
Gas F40 Avanti, Midi and Highline, Gas F67 Riva†, Gas F67 Riva Bench†, Gas F67 Riva Pedestal†, Small* and
Medium Gas Clarendon and Clear Glass, Gas Ashdon and clear glass, Ceramica Manhattan, Small* and Medium
Steel Manhattan and Gas Riva Nemos†. (*Rear outlet only † Top outlet only)

All Balanced Flue models are log effect only.

4. Powered Flue

Where a room has no chimne y then a Powered Flue is the answer. It is a special extractor unit which attaches

to an outside wall and removes the products of combustion, along a rigid metal pipe by fan action. Generally
the flue pipe can be of longer lengths than with a Balanced Flue and can also inc lude a number of 90° bends.

Models which can use this system are:

Small, Medium and Large Gas Marlborough, Small and Medium Gas Stockton, Small, Medium and Large Gas
Clarendon and clear glass, Gas Ashdon and clear glass, Ceramica Manhattan and Medium Steel Manhattan.

Use Powered Flue with coal effect only.

†

Due to the high efficiency and the limited flue flow of the c losed convector stoves, a 5" (125mm) flexible flue liner is required when

installing the stoves into a brick chimney or a larger than 5" (125mm) diameter lined flue. The only exception to this is stoves that

are listed as suitable for installation with a Gazco closure plate and spigot over a standard 22"x 16" fire opening.

56

of rigid and flexible metal tubes, extend vertically directly

combustion are

1

Technical
Information

The following pages provide much of the

dimensional, heat input/output, efficiency and

product code information you will need to choose your

new Gazco Stove. For more detailed specifications,

2

please consult your Gazco retailer. Alternatively,

complete installation instructions may

be downloaded from www.gazco.com.

Contents

Traditional Stoves

Gas and Electric Marlborough 58

Gas and Electric Stockton 58

C D

3

B

A

4

Gas and Electric Huntingdon 30 59

Gas and Electric Clarendon 60

Gas and Electric Ashdon 61

Gas Brunel 62

Gas Regency 62

Contemporary Stoves

Gas Ceramica Manhattan 63

Gas and Electric Steel Manhattan 63

Gas F40 Avanti 64

Gas F67 Riva 64

Gas F67 Riva Bench 64

Gas F67 Riva Pedestal 64

Gas Riva Nemos 65

Components for balanced flue Gas models 66

57

Gas and Electric Marlborough

Product

Model Colour Flue Type Logs/

Code

X

8560

Small

X

8536

Small

X

8564

Medium

X

8610LUC

Medium

X

8535LUC

Medium

8568

Large

X

P8560

Small

X

P8536

Small

X

P8564

Medium

P8610LUC

X

Medium

P8535LUC

X

Medium

P8568

Large

X

E8560

Small

X

E8610

Medium

Matt Black Conventional

Matt Black Balanced Flue

Matt Black Conventional

Matt Black Conventional

Matt Black Balanced Flue

Matt Black Conventional

Matt Black Conventional

Matt Black Balanced Flue

Matt Black Conventional

Matt Black Conventional

Matt Black Balanced Flue

Matt Black Conventional

Matt Black N/A

Matt Black N/A

Fuel

Coals

Type

Coals Nat.Gas 4.55kW 3.53kW 78%

Logs Nat.Gas 3.65kW 2.92kW 80%

Coals Nat.Gas 6.60kW 5.15kW 78%

Logs Nat.Gas 6.45kW 5.03kW 78%

Logs Nat.Gas 6.25kW 5.15kW 82%

Coals Nat.Gas 8.90kW 6.95kW 78%

Coals LPG 4.60kW 3.60kW 78%

Logs LPG 3.65kW 2.92kW 80%

Coals LPG 6.30kW 4.94kW 78%

Logs LPG 6.40kW 5.00kW 78%

Logs LPG 6.15kW 5.07kW 82%

Coals LPG 9.30kW 7.28kW 78%

Logs Elec – 2.00kW 99%

Logs Elec – 2.00kW 99%

Marlborough Dimensions (see letters on diagram)

A B C D E F

ins mm ins mm ins mm ins mm ins mm ins mm

1
/

SMALL

8

16

410 21*533*14

1
/

MEDIUM

4

23

590 23 583 16

3

/

LARGE

4

28

* Small Electric Marlborough is 1" (25mm) higher.

730 24

3
/

4

628 16

1
/

8

360 11 280 13

1
/

8

410 13 330 15

1

3

/

/

2

8

420 13

340 17

Heat
Input

7

/

8

3

/

4

1

/

2

Heat
Output

3

/

8

352 4

401 4 101

446 4 101

Efficiency

†

(Balanced flue version 5

*

(Small balanced flue version 14

*

(Medium balanced flue version 17
Recommended clearances between stove and other surfaces: top 9" (225mm), sides 6"
(150mm), rear must be a minimum of 2" (50mm).

The Marlborough has a choice of top or rear flue exit and can be supplied with an
optional rear closure plate: Small (8108), Medium (8109) and spigot extension

(8111). Small balanced flue stoves are rear exit only.

Matt black stove pipe

Balanced flue versions of the Gas Marlborough must only use the 6" stainless steel
flue provided. For additional Matt Black, Midnight Blue, Laurel Green and Ivory
enamelled flue collars, please see the Gazco Stoves price list. Gazco recommends
the use of 5" matt black enamelled stove pipe with the conventional flue version
Marlborough stove. The components usually required are:

Description Product Code

111

1' Straight pipe

2' Straight pipe

3' Straight pipe

90° long ‘elbow’ adaptor (9" projection)

Flue collar

Gas and Electric Stockton

Product

Model Colour Flue

Code

X

8573

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

Small Matt Black Conventional Coals Nat Gas 4.55kW 3.53kW 78%

8540

Small Matt Black Balanced Flue Logs Nat Gas 3.65kW 2.92kW 80%

8574

Medium Matt Black Conventional Coals Nat Gas 6.60kW 5.15kW 78%

8575MCUC

5 Matt Black Conventional Coals Nat Gas 4.60kW 3.58kW 78%

8563LUC

5 Matt Black Balanced Flue Logs Nat Gas 4.20kW 3.36kW 80%

8617LUC

Medium Matt Black Conventional Logs Nat Gas 6.45kW 5.03kW 80%

8570LUC

Medium Matt Black Balanced Flue Logs Nat Gas 6.25kW 5.15kW 82%

P8573

Small Matt Black Conventional Coals LPG 4.60kW 3.60kW 78%

P8540

Small Matt Black Balanced Flue Logs LPG 3.65kW 2.92kW 80%

P8574

Medium Matt Black Conventional Coals LPG 6.30kW 5.07kW 78%

P8617LUC

Medium Matt Black Conventional Logs LPG 6.45kW 5.00kW 78%

P8570LUC

Medium Matt Black Balanced Flue Logs LPG 6.15kW 4.94kW 82%

P8575MCUC

5 Matt Black Conventional Coals LPG 4.40kW 3.43kW 78%

P8563LUC

5 Matt Black Balanced Flue Logs LPG 4.10kW 3.28kW 80%

E8575

5 Matt Black N/A Logs Elec – 2.00kW 99%

E8617

Medium Matt Black N/A Logs Elec – 2.00kW 99%

Stockton Dimensions (see letters on diagram)

A B C D E F

ins mm ins mm ins mm ins mm ins mm ins mm

5

5

/

8

16

422 20

3
/

4

22

579 24

19 481 21

/

8

3
/

16

1
/

2

525 11

618 13

544 10

SMALL

MEDIUM

5

The above information is to assist in your choice of a suitable Gazco stove. This is not intended to be all the information required to install your stove.

This can be obtained from your local Gazco retailer or you can download the full installation instructions from the Gazco website at www.gazco.com

58

Type

1
/

2

290 13

5
/

8

345 16

3
/

273 15 380 3

4

Logs/

Fuel

Coals

Type

5
/

8

346 4

3
/

4

425 4 102 2

Heat
Input

3
/

8

110 2 50

5
/

92 2

8

Heat
Output

Efficiency

A

†

(Balanced flue version 5

*(Small balanced flue version 14

*(Medium balanced flue version 19" 482mm).

Recommended clearances between stove and other surfaces: top 9" (225mm), sides
6" (150mm), rear must be a minimum of 2" (50mm).

The Stockton has a choice of top or rear flue e xit. Small and medium models can be
supplied with an optional rear closure plates: Small (8042), Medium (8105) and
spigot extension (8111). Small balanced flue stoves are rear exit only.

Matt Black stove pipe

Balanced flue versions of the Gas Stockton must only use the 6" stainless steel f lue
provided. For additional Matt Black, Midnight Blue, Laurel Green and Ivory enamelled
flue collars, please see the Gazco Stoves price list. Gazco recommends the use of 5"
Matt Black enamelled stove pipe with the conventional flue version. The components
required are:

Description Product Code

1' Straight pipe

2' Straight pipe

5
/

8

1
/

2

3' Straight pipe

66

90° Long ‘elbow’ adaptor (9" projection)

64

Flue collar

A

1

/

" 134mm).

4

B

1

⁄2” 140mm).

1

/

" 370mm).

2

7
/

" 453mm).

8

1

⁄2”366mm)

†

F

B

C

F

*

E

D

C

4500

4501

4502

4514

8549

E†

D*

4500

4501

4502

4514

8549

Gas and Electric
Huntingdon 30

Heat

Heat

Product
Code

8503CFMCUC

X

8503CFMCUCMB

X

8503CFMCUCLG

X

8503CFMCUCIV

X

8503BFLUC

X

8503BFLUCMB

X

8503BFLCUCLG

X

8503BFLUCIV

X

P8503CFMCUC

X

P8503CFMCUCMB

X

P8503CFMCUCLG

X

P8503CFMCUCIV

X

P8503BFLUC

X

P8503BFLUCMB

X

P8503BFLUCLG

X

P8503BFLUCIV

X

E8503

X

E8503LG

X

E8503MB

X

E8503IV

X

Model Colour Flue

30 Matt Black Conventional Coals Nat Gas 4.60kW 3.50kW 76%

30 Midnight Conventional Coals Nat Gas 4.60kW 3.50kW 76%

30 Laurel Conventional Coals Nat Gas 4.60kW 3.50kW 76%

30 Ivory Conventional Coals Nat Gas 4.60kW 3.50kW 76%

30 Matt Black Balanced Flue Logs Nat Gas 4.20kW 3.35kW 80%

30 Midnight Balanced Flue Logs Nat Gas 4.20kW 3.35kW 80%

30 Laurel Balanced Flue Logs Nat Gas 4.20kW 3.35kW 80%

30 Ivory Balanced Flue Logs Nat Gas 4.20kW 3.35kW 80%

30 Matt Black Conventional Coals LPG 4.40kW 3.35kW 76%

30 Midnight Conventional Coals LPG 4.40kW 3.35kW 76%

30 Laurel Conventional Coals LPG 4.40kW 3.35kW 76%

30 Ivory Conventional Coals LPG 4.40kW 3.35kW 76%

30 Matt Black Balanced Flue Logs LPG 4.10kW 3.30kW 80%

30 Midnight Balanced Flue Logs LPG 4.10kW 3.30kW 80%

30 Laurel Balanced Flue Logs LPG 4.10kW 3.30kW 80%

30 Ivory Balanced Flue Logs LPG 4.10kW 3.30kW 80%

30 Matt Black

30 Midnight

30 Laurel

30 Ivory

Logs/

Type

Coals

N/A

Logs Elec – 2.00kW 99%

N/A

Logs Elec – 2.00kW 99%

N/A

Logs Elec – 2.00kW 99%

N/A

Logs Elec – 2.00kW 99%

Fuel
Type

Input

Huntingdon 30 Dimensions (see letters on diagram)

A B C D E F G

ins mm ins mm ins mm ins mm ins mm ins mm ins mm

1

7

3

/

30

22 560 23

The above information is to assist in your choice of a suitable Gazco stove. This is not intended to be all the information required to install your stove.

This can be obtained from your local Gazco retailer or you can download the full installation instructions from the Gazco website at www.gazco.com

4

592 13

/

8

351 15

4

/

/

4

5

3

96 6

400

Efficiency

Output

A

†

(Balanced flue version 195mm (7

*(Balanced flue version 422mm (16

Recommended clearances between stove and other surfaces: top 9" (225mm), sides

6" (150mm), rear must be a minimum of 2" (50mm).

The Huntingdon 30 has a choice of top or rear flue exit.

Matt Black stove pipe

Balanced flue versions of the Gas Huntingdon 30 must only use the 6" stainless steel
flue provided. For additional Matt Black, Midnight Blue, Laurel Green and Ivory
enamelled flue collars, please see the Gazco Stoves price list. Gazco recommends the
use of 5" Matt Black enamelled stove pipe with the conventional flue version. The
components required are:

Description Product Code

1' Straight pipe, Matt Black

2' Straight pipe, Matt Black

3' Straight pipe, Matt Black

90° long ‘elbow’ adaptor (9" projection), Matt Black

1' Straight pipe, Midnight Blue

2' Straight pipe, Midnight Blue

3' Straight pipe, Midnight Blue

1' Straight pipe, Laurel Green

2' Straight pipe, Laurel Green

3' Straight pipe, Laurel Green

6

/

8

475

1' Straight pipe, Ivory

2' Straight pipe, Ivory

3' Straight pipe, Ivory

Flue collar, Matt Black

Flue collar, Midnight Blue

Flue collar, Laurel Green

Flue collar, Ivory

7

/

8

174 18

F†

B

E

4

/

D*

C

5

)).

3

/

5

))

4500

4501

4502

4514

4500MBL

4501MBL

4502MBL

4500LG

4501LG

4502LG

4500IV

4501IV

4502IV

8549

8549MB

8549LG

8549IV

G

59

Gas Clarendon

Product

Model Colour Flue

Code

X

8541

Small Matt Black Conventional Coals Nat.Gas 4.55kW 3.53kW 78%

X

8538

Small Matt Black Balanced Flue Logs Nat.Gas 3.65kW 2.92kW 80%

X

8542

Medium Matt Black Conventional Coals Nat.Gas 6.60kW 5.15kW 78%

8611LUC

X

Medium Matt Black Conventional Logs Nat.Gas 6.45kW 5.03kW 78%

8545LUC

X

Medium Matt Black Balanced Flue Logs Nat.Gas 6.25kW 5.15kW 82%

8543

Large Matt Black Conventional Coals Nat.Gas 8.90kW 6.95kW 78%

X

P8541

Small Matt Black Conventional Coals LPG 4.60kW 3.60kW 78%

X

P8538

Small Matt Black Balanced Flue Logs LPG 3.65kW 2.92kW 80%

X

P8542

Medium Matt Black Conventional Coals LPG 6.30kW 4.94kW 78%

P8611LUC

X

Medium Matt Black Conventional Logs LPG 6.45kW 5.00kW 78%

P8545LUC

X

Medium Matt Black Balanced Flue Logs LPG 6.15kW 5.07kW 82%

P8543

Large Matt Black Conventional Coals LPG 9.30kW 7.28kW 78%

Type

Logs/
Coals

Fuel
Type

Heat
Input

Gas & Electric Clarendon Clear Glass

Product

Model Colour Flue

Code

8517

Small Matt Black Conventional Coals Nat Gas 4.55kW 3.53kW 78%

X

8517B

Small Midnight Conventional Coals Nat Gas 4.55kW 3.53kW 78%

X

8517G

Small Laurel Conventional Coals Nat Gas 4.55kW 3.53kW 78%

X

8562

Small Matt Black Balanced Flue Logs Nat Gas 3.65kW 2.92kW 80%

X

8562B

Small Midnight Balanced Flue Logs Nat Gas 3.65kW 2.92kW 80%

X

8562G

Small Laurel Balanced Flue Logs Nat Gas 3.65kW 2.92kW 80%

X

8518

Medium Matt Black Conventional Coals Nat Gas 6.60kW 5.15kW 78%

X

X

8518B

Medium Midnight Conventional Coals Nat Gas 6.60kW 5.15kW 78%

8518G

Medium Laurel Conventional Coals Nat Gas 6.60kW 5.15kW 78%

X

8612LUC

Medium Matt Black Conventional Logs Nat Gas 6.45kW 5.03kW 78%

X

8612BLUC

X

Medium Midnight Conventional Logs Nat Gas 6.45kW 5.03kW 78%

8612GLUC

X

Medium Laurel Conventional Logs Nat Gas 6.45kW 5.03kW 78%

8547LUC

X

Medium Matt Black Balanced Flue Logs Nat Gas 6.25kW 5.15kW 82%

8547BLUC

Medium Midnight Balanced Flue Logs Nat Gas 6.25kW 5.15kW 82%

X

8547GLUC

Medium Laurel Balanced Flue Logs Nat Gas 6.25kW 5.15kW 82%

X

8519

Large Matt Black Conventional Coals Nat Gas 8.90kW 6.95kW 78%

P8517

X

Small Matt Black Conventional Coals LPG 4.60kW 3.60kW 78%

P8517B

X

Small Midnight Conventional Coals LPG 4.60kW 3.60kW 78%

P8517G

X

Small Laurel Conventional Coals LPG 4.60kW 3.60kW 78%

X

P8562

Small Matt Black Balanced Flue Logs LPG 3.65kW 2.92kW 80%

P8562B

Small Midnight Balanced Flue Logs LPG 3.65kW 2.92kW 80%

X

P8562G

Small Laurel Balanced Flue Logs LPG 3.65kW 2.92kW 80%

X

P8518

X

Medium Matt Black Conventional Coals LPG 6.30kW 4.94kW 78%

P8518B

X

Medium Midnight Conventional Coals LPG 6.30kW 4.94kW 78%

X

P8518G

Medium Laurel Conventional Coals LPG 6.30kW 4.94kW 78%

P8612LUC

X

Medium Matt Black Conventional Logs LPG 6.45kW 5.00kW 78%

P8612BLUC

X

Medium Midnight Conventional Logs LPG 6.45kW 5.00kW 78%

P8612GLUC

X

Medium Laurel Conventional Logs LPG 6.45kW 5.00kW 78%

P8547LUC

X

Medium Matt Black Balanced Flue Logs LPG 6.15kW 5.07kW 82%

P8547BLUC

X

Medium Midnight Balanced Flue Logs LPG 6.15kW 5.07kW 82%

P8547GLUC

X

Medium Laurel Balanced Flue Logs LPG 6.15kW 5.07kW 82%

P8519

Large Matt Black Conventional Coal LPG 9.30kW 7.28kW 78%

E8517

X

Small Matt Black N/A Logs Elec – 2.00kW 99%

E8517MB

X

Small Midnight N/A Logs Elec – 2.00kW 99%

X

E8517LG

Small Laurel N/A Logs Elec – 2.00kW 99%

X

E8518

Medium Matt Black N/A Logs Elec – 2.00kW 99%

X

E8518MB

Medium Midnight N/A Logs Elec – 2.00kW 99%

X

E8518LG

Medium Laurel N/A Logs Elec – 2.00kW 99%

The above information is to assist in your choice of a suitable Gazco stove. This is not intended to be all the information required to install your stove.

This can be obtained from your local Gazco retailer or you can download the full installation instructions from the Gazco website at www.gazco.com

60

Type

Logs/
Coals

Gas
Type

Heat
Input

Heat
Output

Heat
Output

Efficiency

AC

*

(Small balanced flue version 17" 430mm).

*

(Medium balanced flue version 20

†

(Balanced flue version 6
Recommended clearances between stove and other surfaces: top 9" (225mm), sides 6"
(150mm), rear must be a minimum of 2" (50mm).

The Clarendon has a choice of top or rear flue exit and the Small Clarendon can be
supplied with an optional rear closure plate (8104) and spigot extension (8111).
Small balanced flue stoves are rear exit only.

Efficiency

A B C D E

ins mm ins mm ins mm ins mm ins mm

SMALL

17 431 23

MEDIUM

25

LARGE

30

Matt Black stove pipe

Balanced flue versions of the Gas Marlborough must only use the 6" stainless steel
flue provided. For additional Matt Black, Midnight Blue, Laurel Green and Ivory
enamelled flue collars, please see the Gazco Stoves price list. Gazco recommends
the use of 5" matt black enamelled stove pipe with the conventional flue version
Marlborough stove. The components usually required are:

Description Product Code

1' Straight pipe, Matt Black

2' Straight pipe, Matt Black

3' Straight pipe, Matt Black

90° long ‘elbow’ adaptor (9" projection), Matt Black

1' Straight pipe, Midnight Blue

2' Straight pipe, Midnight Blue

3' Straight pipe, Midnight Blue

1' Straight pipe, Laurel Green

2' Straight pipe, Laurel Green

3' Straight pipe, Laurel Green

Flue collar, Matt Black

Flue collar, Midnight Blue

Flue collar, Laurel Green

Longer legs - Matt Black only

A set of longer legs, raising the height of the Clarendon by 2
as an optional extra*. Product code 8113.

*Not suitable for use with optional rear closure plate.

1
/

" 158mm).

4

B

1

/

" 520mm).

2

D*

Clarendon Dimensions (see letters on diagram)

1

1

589 13

/

8

3

3

654 25

/

/

4

5

779 28 710 18

/

8

4

342 16 404 5 125

/

2

3

652 16

427 18

/

4

1

468 20

/

2

1

463 5 126

/

4

3

517 6

/

8

1

⁄8” (5 5mm) is available

1
/

2

4500

4501

4502

4514

4500MBL

4501MBL

4502MBL

4500LG

4501LG

4502LG

8549

8549MB

8549LG

4500

4501

4502

4514

4500MBL

4501MBL

4502MBL

4500LG

4501LG

4502LG

4500IV

4501IV

4502IV

8549

8549MB

8549LG

8549IV

E†

61

Gas and Electric Ashdon

Product

†

E

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

166

X

X

X

X

X

X

X

X

Gas Ashdon Clear Glass

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

The above information is to assist in your choice of a suitable Gazco stove. This is not intended to be all the information required to install your stove.

This can be obtained from your local Gazco retailer or you can download the full installation instructions from the Gazco website at www.gazco.com

Model Colour Flue

Code

8513

Medium Matt Blac k Conventional Coals Nat.Gas 6.60kW 5.15kW 78%

8513B

Medium Midnight Conventional Coals Nat.Gas 6.60kW 5.15kW 78%

8513G

Medium Laurel Conventional Coals Nat.Gas 6.60kW 5.15kW 78%

8513V

Medium Ivor y Conventional Coals Nat.Gas 6.60kW 5.15kW 78%

8613LUC

Medium Matt Blac k Conventional Logs Nat.Gas 6.45kW 5.03kW 78%

8613BLUC

Medium Midnight Conventional Logs Nat.Gas 6.45kW 5.03kW 78%

8613GLUC

Medium Laurel Conventional Logs Nat.Gas 6.45kW 5.03kW 78%

8613VLUC

Medium Ivor y Conventional Logs Nat.Gas 6.45kW 5.03kW 78%

8546LUC

Medium Matt Blac k Balanced Flue Logs Nat.Gas 6.25kW 5.15kW 82%

8546BLUC

Medium Midnight Balanced Flue Logs Nat.Gas 6.25kW 5.15kW 82%

8546GLUC

Medium Laurel Balanced Flue Logs Nat.Gas 6.25kW 5.15kW 82%

8546VLUC

Medium Ivor y Balanced Flue Logs Nat.Gas 6.25kW 5.15kW 82%

P8513

Medium Matt Blac k Conventional Coals LPG 6.30kW 4.94kW 78%

P8513B

Medium Midnight Conventional Coals LPG 6.30kW 4.94kW 78%

P8513G

Medium Laurel Conventional Coals LPG 6.30kW 4.94kW 78%

P8513V

Medium Ivor y Conventional Coals LPG 6.30kW 4.94kW 78%

P8613LUC

Medium Matt Blac k Conventional Logs LPG 6.40kW 5.00kW 78%

P8613BLUC

Medium Midnight Conventional Logs LPG 6.40kW 5.00kW 78%

P8613GLUC

Medium Laurel Conventional Logs LPG 6.40kW 5.00kW 78%

P8613VLUC

Medium Ivor y Conventional Logs LPG 6.40kW 5.00kW 78%

P8546LUC

Medium Matt Blac k Balanced Flue Logs LPG 6.15kW 5.07kW 82%

P8546BLUC

Medium Midnight Balanced Flue Logs LPG 6.15kW 5.07kW 82%

P8546GLUC

Medium Laurel Balanced Flue Logs LPG 6.15kW 5.07kW 82%

P8546VLUC

Medium Ivor y Balanced Flue Logs LPG 6.15kW 5.07kW 82%

8613EL

Medium Matt Blac k N/A Logs Elec – 2.00kW 99%

E8613MB

Medium Midnight N/A Logs Elec – 2.00kW 99%

E8613LG

Medium Laurel N/A Logs Elec – 2.00kW 99%

E8613IV

Medium Ivor y N/A Logs Elec – 2.00kW 99%

Product

Model Colour Flue

Code

8522

Medium Matt Blac k Conventional Coals Nat.Gas 6.60kW 5.15kW 78%

8522B

Medium Midnight Conventional Coals Nat.Gas 6.60kW 5.15kW 78%

8522G

Medium Laurel Conventional Coals Nat Gas 6.60kW 5.15kW 78%

8522V

Medium Ivor y Conventional Coals Nat Gas 6.60kW 5.15kW 78%

8614

Medium Matt Blac k Conventional Logs Nat.Gas 6.45kW 5.03kW 78%

8614B

Medium Midnight Conventional Logs Nat.Gas 6.45kW 5.03kW 78%

8614G

Medium Laurel Conventional Logs Nat.Gas 6.45kW 5.03kW 78%

8614V

Medium Ivor y Conventional Logs Nat.Gas 6.45kW 5.03kW 78%

8544

Medium Matt Blac k Balanced Logs Nat.Gas 6.25kW 5.15kW 82%

8544B

Medium Midnight Balanced Logs Nat.Gas 6.25kW 5.15kW 82%

8544G

Medium Laurel Balanced Logs Nat.Gas 6.25kW 5.15kW 82%

8544V

Medium Ivor y Balanced Logs Nat.Gas 6.25kW 5.15kW 82%

P8522

Medium Matt Blac k Conventional Coals LPG 6.60kW 5.15kW 78%

P8522B

Medium Midnight Conventional Coals LPG 6.60kW 5.15kW 78%

P8522G

Medium Laurel Conventional Coals LPG 6.60kW 5.15kW 78%

P8522V

Medium Ivor y Conventional Coals LPG 6.60kW 5.15kW 78%

P8614

Medium Matt Blac k Conventional Logs LPG 6.45kW 5.00kW 78%

P8614B

Medium Midnight Conventional Logs LPG 6.45kW 5.00kW 78%

P8614G

Medium Laurel Conventional Logs LPG 6.45kW 5.00kW 78%

P8614V

Medium Ivor y Conventional Logs LPG 6.45kW 5.00kW 78%

P8544

Medium Matt Blac k Balanced Logs LPG 6.25kW 5.07kW 82%

P8544B

Medium Midnight Balanced Logs LPG 6.25kW 5.07kW 82%

P8544G

Medium Laurel Balanced Logs LPG 6.25kW 5.07kW 82%

P8544V

Medium Ivor y Balanced Logs LPG 6.25kW 5.07kW 82%

Type

Type

Logs/
Coals

Logs/
Coals

Fuel
Type

Fuel
Type

Heat
Input

Heat
Input

Heat
Output

Heat
Output

Efficiency

*

(Balanced flue version 20

†

(Balanced flue version 6
Recommended clearances between stove and other surfaces: top 9" (225mm), sides 6"
(150mm), rear must be a minimum of 2" (50mm).

The Ashdon has a choice of top or rear flue exit.

MEDIUM

Enamelled stove pipe (Matt Black, Laurel Green or Midnight Blue)

Balanced flue versions of the Gas Ashdon must only use the 6" stainless steel flue
provided. For additional Matt Black, Midnight Blue, Laurel Green and Ivory enamelled
flue collars, please see the Gazco Stoves price list. Gazco recommends the use of 5"
enamelled stove pipe with the conventional flue version Ashdon stove. The components
usually required are:

Description Product Code

1' Straight pipe, Matt Black

2' Straight pipe, Matt Black

3' Straight pipe, Matt Black

90° long ‘elbow’ adaptor (9" projection), Matt Black

1' Straight pipe, Midnight Blue

2' Straight pipe, Midnight Blue

3' Straight pipe, Midnight Blue

1' Straight pipe, Laurel Green

2' Straight pipe, Laurel Green

3' Straight pipe, Laurel Green

Efficiency

1' Straight pipe, Ivory

2' Straight pipe, Ivory

3' Straight pipe, Ivory

Flue collar, Matt Black

Flue collar, Midnight Blue

Flue collar, Laurel Green

Flue collar, Ivory

Longer legs - Matt Black only

A set of longer legs, raising the height of the Ashdon by 2
an optional extra. Product code 8113.

*Not suitable for use with optional rear closure plate.

B

A

1

"

/

2

1

"

/

158mm).

4

F

520mm).

Ashdon Dimensions (see letters on diagram)

A B C D E F

ins mm ins mm ins mm ins mm ins mm ins mm

3

3

/

/

4

4

25

654 25

652 17

C

3
/

4

440 18

D*

1
/

4

463 5 126 3 75

1

⁄

8" (55mm) is available as

Gas Brunel 1

Product

Colour Flue Type Logs/

Code

8050

X

X

X

X

X

X

Enamelled stove pipe (Matt Black, Laurel Green or Midnight Blue)

Gazco recommends the use of 5" enamelled stove pipe with the Brunel stove. The components
usually required are:

Description Product Code

1' Straight pipe

2' Straight pipe

3' Straight pipe

90° Short ‘elbow’ adaptor (6" projection)

90° Long ‘elbow’ adaptor (9" projection)

1' Straight pipe, Midnight Blue

2' Straight pipe, Midnight Blue

3' Straight pipe, Midnight Blue

1' Straight pipe, Laurel Green

2' Straight pipe, Laurel Green

3' Straight pipe, Laurel Green

Matt Black Conventional Coals Nat.Gas 4.50kW 3.50kW 78%

8050B

Midnight Conventional Coals Nat.Gas 4.50kW 3.50kW 78%

8050G

Laurel Conventional Coals Nat.Gas 4.50kW 3.50kW 78%

P8050

Matt Black Conventional Coals LPG 4.45kW 3.47kW 78%

P8050B

Midnight Conventional Coals LPG 4.45kW 3.47kW 78%

P8050G

Laurel Conventional Coals LPG 4.45kW 3.47kW 78%

Coals

Fuel
Type

Heat
Input

4500

4501

4502

4521

4514

4500MBL

4501MBL

4502MBL

4500LG

4501LG

4502LG

Heat
Output

Gas Regency

Product

Model Colour Logs/

Code

8069

8070

P8069

P8070

Small

Medium

Small

Medium

Matt Black

Matt Black

Matt Black

Matt Black

Regency Dimensions (see letters on diagram)

A B C D E F G

ins mm ins mm ins mm ins mm ins mm ins mm ins mm

5

30 760 23

1

/

2

31

800 26 660 31

/

8

600 28

SMALL
MEDIUM

•All Gas Regency Stoves should be installed into a Class 1 chimney.

Fuel

Heat

Heat

Coals

Type

Coals Nat.Gas 10.60kW 2.65kW 25%

Coals Nat.Gas 12.30kW 3.05kW 25%

Coals LPG 11.00kW 2.75kW 25%

Coals LPG 13.00kW 3.25kW 25%

3

/

4

730 33

1
/

8

790 37

Input

1

/

2

850 30 760 35

1

/

2

950 31

1
/

8

790 37 940 23

Output

7
/

8

Efficiency

910 20

Efficiency

3

/

4

3

/

4

1

/

"

4

16

412mm

5

/

"

8

20

524mm

1

/

"

1

2

3

/

"

3

2

16

"

/
4

114mm

11

300mm

7

⁄8" (685mm) are available as

89mm

Recommended clearances between stove and other surfaces: top 9" (225mm), sides
6" (150mm), rear must be a minimum of 2" (50mm).

The Brunel has a rear flue exit only and can be supplied with an optional rear closure
plate (8107) and spigot extension (8111).

Longer legs

Sets of longer legs, raising the height of the Br unel to 26
an optional extra*:
*Not suitable for use with optional rear closure plate.

Description Product Code

Matt Black

200mm

C

Dia

EF

B

Recommended clearances between stove and other surfaces: top 9" (225mm), sides
6" (150mm), rear must be a minimum of 2" (50mm).
The Regency has a choice of top or rear flue exit.

Matt Black stove pipe

Gazco recommends the use of Stovax 8" Matt Black enamelled stove pipe with the
Regency stove (or 7" pipe using a reducing adaptor). The matching adapters
required are:

530

Description Product Code

600

Top exit

Rear exit

1' straight with door 4808 or 7" 4708

2' straight with door 4809 or 7" 4709

3' straight with door 4810 or 7" 4710

90° “T” Adaptor

4817

8049

5

"

125mm Dia

5

15
396mm

G

A

D

Ceramica Manhattan

Gas and Electric
Steel Manhattan

Product

Colour/

Logs/

Flue

Fuel

Code

Finish

Coals

X

8578A

/

"

8

5

"

/

4

8

120mm

X

X

X

X

X

*

(Small balanced flue version 16

*

(Medium balanced flue version 20" 506mm).

†

(Medium balanced flue version 7" 177mm).
Recommended clearances between stove and other surfaces: top 9" (225mm), sides
6" (150mm), rear must be a minimum of 2" (50mm).

The Manhattan has a choice of top or rear flue exit. Small steel balanced flue stoves
are rear exit only.

Small*

Medium

*Steel Manhattan only.

†

720mm height on Ceramica versions.

Matt Beige Coals Conventional Nat.Gas 6.60kW 5.15kW 78%

8615ALUC

Matt Beige Logs Conventional Nat.Gas 6.45kW 5.05kW 78%

8537ALUC

Matt Beige Logs Balanced Flue Nat.Gas 6.25kW 5.15kW 82%

P8578A

Matt Beige Coals Conventional LPG 6.30kW 4.94kW 78%

P8615ALUC

Matt Beige Logs Conventional LPG 6.40kW 5.00kW 78%

P8537ALUC

Matt Beige Logs Balanced Flue LPG 6.15kW 5.07kW 82%

A

Manhattan Dimensions (see letters on diagram)

A B C D E

ins mm ins mm ins mm ins mm ins mm

1

⁄4540 25 635 141⁄8360 163⁄4425 71⁄8182

21

28 711 27

Type

C

B

5
/

" 424mm).

8

1

⁄2700†163⁄4427 177⁄8 453 53⁄4145

Heat

Type

Input

*

D

Heat
Output

Efficiency

Product

Model Steel

Code

X

8622AN

X

X

X

X

X

X

X

X

X

X

X

†

E

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

Matt Black stove pipe

Balanced flue versions of the Gas Manhattan must only use the 6" stainless steel flue
provided. For additional Matt Black, Midnight Blue, Laurel Green and Ivory enamelled flue
collars, please see the Gazco Stoves price list. Gazco recommends the use of 5" matt black
enamelled stove pipe with the conventional flue version Manhattan stove. The components
usually required are:

Small Anthracite Bal. Flue Logs Nat.Gas

8622MA

Small

8622BS

Small

8619AN

Medium Anthracite Con. Flue Coals Nat.Gas

8619MA

Medium

8619BS

Medium

8618ANLUC

Medium Anthracite Con. Flue Logs Nat.Gas

8618MALUC

Medium

8618BSLUC

Medium

8620ANLUC

Medium Anthracite Bal. Flue Logs Nat.Gas

8620MALUC

Medium

8620BSLUC

Medium

P8622AN

Small Anthracite Bal. Flue Logs LPG

P8622MA

Small

P8622BS

Small

P8619AN

Medium Anthracite Con. Flue Coals LPG

P8619MA

Medium

P8619BS

Medium

P8618ANLUC

Medium Anthracite Con. Flue Logs LPG

P8618MALUC

Medium

P8618BSLUC

Medium

P8620ANLUC

Medium Anthracite Bal. Flue Logs LPG

P8620MALUC

Medium

P8620BSLUC

Medium

AN

E8622

Small Anthracite N/A Logs Elec –

BS

E8622

Small

AN

E8619

Medium Anthracite N/A Logs Elec –

BS

E8619

Medium

Flue

Finish

Type

Metallic Alloy

Bal. Flue Logs Nat.Gas

Brushed Stainless

Bal. Flue Logs Nat.Gas

Metallic Alloy

Con. Flue Coals Nat.Gas

Brushed Stainless

Con. Flue Coals Nat.Gas

Metallic Alloy

Con. Flue Logs Nat.Gas

Brushed Stainless

Con. Flue Logs Nat.Gas

Metallic Alloy

Bal. Flue Logs Nat.Gas

Brushed Stainless

Bal. Flue Logs Nat.Gas

Metallic Alloy

Bal. Flue Logs LPG

Brushed Stainless

Bal. Flue Logs LPG

Metallic Alloy

Con. Flue Coals LPG

Brushed Stainless

Con. Flue Coals LPG

Metallic Alloy

Con. Flue Logs LPG

Brushed Stainless

Con. Flue Logs LPG

Metallic Alloy

Bal. Flue Logs LPG

Brushed Stainless

Bal. Flue Logs LPG

Brushed Stainless

N/A Logs Elec –

Brushed Stainless

N/A Logs Elec –

Description Product Code

1' Straight pipe

2' Straight pipe

3' Straight pipe

90° Long ‘elbow’ adaptor (9" projection)

Flue collar

Logs/
Coals

Fuel
Type

Heat
Input

3.65kW 2.92kW

3.65kW 2.92kW

3.65kW 2.92kW

6.60kW 5.15kW

6.60kW 5.15kW

6.60kW 5.15kW

6.45kW 5.05kW

6.45kW 5.05kW

6.45kW 5.05kW

6.25kW 5.15kW

6.25kW 5.15kW

6.25kW 5.15kW

3.65kW 2.92kW

3.65kW 2.92kW

3.65kW 2.92kW

6.30kW 4.94kW

6.30kW 4.94kW

6.30kW 4.94kW

6.40kW 5.00kW

6.40kW 5.00kW

6.40kW 5.00kW

6.15kW 5.07kW

6.15kW 5.07kW

6.15kW 5.07kW

4500

4501

4502

4514

8549

Heat

Output

2.00kW

2.00kW

2.00kW

2.00kW

Efficiency

80%

80%

80%

78%

78%

78%

78%

78%

78%

82%

82%

82%

80%

80%

80%

78%

78%

78%

78%

78%

78%

82%

82%

82%

99%

99%

99%

99%

The above information is to assist in your choice of a suitable Gazco stove. This is not intended to be all the information required to install your stove.

This can be obtained from your local Gazco retailer or you can download the full installation instructions from the Gazco website at www.gazco.com

62

The above information is to assist in your choice of a suitable Gazco stove. This is not intended to be all the information required to install your stove.

This can be obtained from your local Gazco retailer or you can download the full installation instructions from the Gazco website at www.gazco.com

63

Gas F40 Avanti

Product
Code

X

8685MCUC

X

8685MMCUC

X

8685HMCUC

X

8686LUC

X

8686MLUC

X

8686HLUC

X

P8685MCUC

X

P8685MMCUC

X

P8685HMCUC

X

P8686LUC

X

P8686MLUC

X

P8686HLUC

AVANTI

MEDIUM

HIGHLINE

Model Flue Type

Avanti Conventional Coals Nat Gas 5.45kW 4.25kW 78%

Midi Conventional Coals Nat Gas 5.45kW 4.25kW 78%

Highline Conventional Coals Nat Gas 5.45kW 4.25kW 78%

Avanti Balanced Flue Logs Nat Gas 5.00kW 4.00kW 80%

Midi Balanced Flue Logs Nat Gas 5.00kW 4.00kW 80%

Highline Balanced Flue Logs Nat Gas 5.00kW 4.00kW 80%

Avanti Conventional Coals LPG 5.50kW 4.29kW 78%

Midi Conventional Coals LPG 5.50kW 4.29kW 78%

Highline Conventional Coals LPG 5.50kW 4.29kW 78%

Avanti Balanced Flue Logs LPG 4.60kW 3.68kW 80%

Midi Balanced Flue Logs LPG 4.60kW 3.68kW 80%

Highline Balanced Flue Logs LPG 4.60kW 3.68kW 80%

Gas F40 Avanti Dimensions (see letters on diagram)

A B C D E

ins mm ins mm ins mm ins mm ins mm

183⁄8 462 253⁄8 644 13 331 175⁄8 453 45⁄8 119

3

⁄8

18

462 32

3

⁄8

18

462 39

Logs/

Fuel

Coals

Type

1

⁄2

824 13 331 25 633 4

3

⁄8

999 13 331 31

Heat
Input

Heat
Output

A

Effi ciency

Recommended clearances between stove and other surfaces: top 9” (225mm),
sides 6” (150mm), rear 2” (50mm).
*(Balanced flue 6

Matt Black stove pipe

Balanced flue versions of the Gas F40 Avanti must only use the 6" stainless steel flue
provided. For additional Matt Black, Midnight Blue, Laurel Green and Ivory enamelled
flue collars, please see the Gazco Stoves price list. Gazco recommends the use of 5"
matt black enamelled stove pipe with the conventional flue version F40 Avanti stove.
The components usually required are:

1

165mm).

⁄2”

B

C

E*

D

Riva Nemos

Product

Steel

Code

X

X

X

X

Recommended clearances between stove and other surfaces: top 8” (200mm),
sides 2” (50mm), rear 2” (50mm). The Riva Nemos has a top flue exit only.

Anthracite and Stainless Steel flue pipe

For details of kits and components, please see page 62.

Matt Black stove pipe

Balanced flue Gas Riva Nemos must only use the 6" stainless steel flue provided.

Finish

8627IR

Iridium Driftwood Nat.Gas 6.80kW 5.30kW 78%

8627BS

Brushed Stainless Driftwood Nat.Gas 6.80kW 5.30kW 78%

P8627IR

Iridium Driftwood LPG 6.30kW 4.90kW 78%

P8627BS

Brushed Stainless Driftwood LPG 6.30kW 4.90kW 78%

Fuel
Effect

Fuel
Type

Heat
Input

Heat
Output

Efficiency

451/4” 1148mm

273/8” 694mm

5” 127mm

16 3/4” 424mm

Description Product Code

1' Straight pipe

2' Straight pipe

5

⁄8

808 4

⁄8 119

5

⁄8 119

7

3' Straight pipe

90° Long ‘elbow’ adaptor (9" projection)

Flue collar

4500

4501

4502

4514

8549

Gas Riva F67

Product
Code

X

8742CFLUC

X

8742BFLUC

8732

X

8741CFLUC

X

8741BFLUC

X

P8742BFLUC

X

P8742CFLUC

8732

X

P8741CFLUC

X

P8741BFLUC

F67 Riva Conventional Flue

F67 Riva Balanced Flue

F67 Riva Pedestal Conventional Flue

F67 Riva Pedestal Balanced Flue

F67 Riva Bench Conventional Flue*

F67 Riva Bench Balanced Flue*

*Bench itself is 1200 x 350 x 420mm (w x h x d)

The above information is to assist in your choice of a suitable Gazco stove. This is not intended to be all the information required to install your stove.

This can be obtained from your local Gazco retailer or you can download the full installation instructions from the Gazco website at www.gazco.com

Model Flue Type

F67 Con. Flue Logs Nat Gas 6.80kW 4.90kW 72%

F67 Bal. Flue Logs Nat Gas 6.10kW 4.60kW 75%

Bench to be ordered with F67 Riva, to make Riva F67 Bench

F67 Pedestal

F67 Pedestal

F67 Bal. Flue Logs LPG 6.70kW 4.80kW 72%

F67 Con. Flue Logs LPG 5.80kW 4.40kW 75%

Bench to be ordered with F67 Riva, to make Riva F67 Bench

F67 Pedestal

F67 Pedestal

Gas F67 Riva Dimensions (see letters on diagram)

64

Logs/

Fuel

Heat

Heat

Coals

Type

Input

Con. Flue Logs Nat Gas 6.80kW 4.90kW 72%

Bal. Flue Logs Nat Gas 6.10kW 4.60kW 75%

Con. Flue Logs LPG 6.70kW 4.80kW 72%

Bal. Flue Logs LPG 5.80kW 4.40kW 75%

A B C D E

ins mm ins mm ins mm ins mm ins mm

1

⁄4 592 161⁄2 420 47⁄8 124 211⁄4 540 345⁄8 880

23

1

⁄4 592 161⁄2 420 57⁄8 149 211⁄4 540 345⁄8 880

23

1

⁄8 843 161⁄2 420 47⁄8 124 211⁄4 540 345⁄8 880

33

1

⁄8 843 161⁄2 420 57⁄8 149 211⁄4 540 345⁄8 880

33

37 942 16

37 942 16

1

⁄2 420 47⁄8 124 211⁄4 540 393⁄8 1000

1

⁄2 420 57⁄8 149 211⁄4 540 393⁄8 1000

Output

Effi ciency

Recommended clearances between stove and other surfaces: top 9”
(225mm), sides 6” (150mm), rear 2” (50mm).
The Gas F67 Riva has a top flue exit only.

Matt Black stove pipe

Balanced flue versions of the Gas Riva F67 must only use the 6" stainless steel flue
provided. For additional Matt Black, Midnight Blue, Laurel Green and Ivory enamelled
flue collars, please see the Gazco Stoves price list. Gazco recommends the use of 5"
matt black enamelled stove pipe with the conventional flue version Riva F67 stove.
The components usually required are:

Description Product Code

1' Straight pipe

2' Straight pipe

3' Straight pipe

90° Long ‘elbow’ adaptor (9" projection)

Flue collar

B

C

A

4500

4501

4502

4514

8549

D

E

The above information is to assist in your choice of a suitable Gazco stove. This is not intended to be all the information required to install your stove.

This can be obtained from your local Gazco retailer or you can download the full installation instructions from the Gazco website at www.gazco.com

65

Components for balanced flue models

Basic Stainless Steel Kits Product Code

Rear exit, horizontal - complete with terminal guard

Top exit, up & out, stoves

Top exit, up & out, Nemos & F67

Top exit, vertical

45° offset bend (set of two) for use with 8524

Basic Anthracite Steel Kits Product Code

Top exit, up & out, stoves

Top exit, up & out, Nemos & F67

Top exit, vertical

45° offset bend (set of two) for use with 8524AN

Rear Exit Terminal

200mm

600mm

Up & Out Terminal1mVertical Terminal

300mm

95mm

150mm

200mm

500mm

8526

8523

8534

8524

8530

8523AN

8534AN

8524AN

8530AN

Additional Stainless Steel components for top exit (as required)

200mm straight (effective length 140mm)

500mm straight (effective length 440mm)

1000mm straight (effective length 940mm)

45° bend

90° bend

Additional

Anthracite

200mm straight (effective length 140mm)

500mm straight (effective length 440mm)

1000mm straight (effective length 940mm)

45° bend

90° bend

Additional Steel components for top exit Product Code

Flue collar, Matt Black

Flue collar, Midnight Blue

Flue collar, Laurel Green

Flue collar, Ivory

Steel components for top exit (as required)

Product Code

8527

8528

8529

8507

8508

Product Code

8527AN

8528AN

8529AN

8507AN

8508AN

8548

8548MB

8548LG

8548IV

Other products offered by the Gazco family that may be of interest to you include:

Featuring hundreds of different fire and surround permutations, this brochure really does feature a fire for every home.
Offering the wonderful ambience of a real fire-effect with superb efficiency, these built-in appliances give you the choice of
gas or electric to heat your home.

Gazco Fires www.gazco.com

Redfyre Range Cookers www.redfyrecookers.co.uk

Handcrafted by skilled ar tisans, Redfyre’s leading collection of range cookers build upon their heritage dating back to 1931.
A multitude of versions and options are available including the Traditional, Central Heating or Universal – combining the heat
store efficiencies with the utmost of modern usability. All versions are available in a choice of 6 beautifully enamelled colours
and options inc lude a choice of gas, oil or electric; 2 or 4 ovens; round or square hobplate covers; gas, electric or induction
hobs; the ability to run up to 24 radiator s and provide domestic hot water.

Godin Cookers www.godincookers.co.uk

Godin cookers and stoves have been manufactured in France since 1840. Now available in the UK and Republic of Ireland
through Redfyre range cookers is the Godin cookers family of the Souveraine, Châtelaine and Exclusive cookers. Godin
cookers have a reputation as leader in the development of heating and cooking products and artfully blend tradition with
innovation to provide the ultimate kitchen accoutrements. Individually handmade to the highest standards, these professional
quality appliances are the cookers of choice for many Michelin c hefs.

Wamsler Cookers & Stoves www.wamslercookers.co.uk

Wamsler products, synonymous with the manufacture of solid fuel cookers and heating products, are now available in the
UK and Republic of Ireland through Redfyre range cookers. Featuring a wide choice of solid fuel cookers, central heating
cookers and multi-fuel stoves that are particularly suited to British & Irish homes, Wamsler offer a viable ecological way to
heat your home and cook.

To receive a copy of the Gas Fires brochure, please call 01392 474061. For a copy of Redfyre, Godin or Wamsler brochures please call 01392

474079. Alternatively, details on all the full range of products and brochure PDF’s can be found at all the websites as detailed above.

Gazco is a member of the Stovax Group which manufactures and distributes many other high quality fireplace products:

The above information is to assist in your choice of a suitable Gazco stove. This is not intended to be all the information required to install your stove.

This can be obtained from your local Gazco retailer or you can download the full installation instructions from the Gazco website at www.gazco.com

66

Gazco gratefully acknowledges the assistance of the following companies with photographic settings:

Furnishings and Ornaments:- www.furniturevillage.co.uk; www.debenhams.com; www.eclectique.co.uk; www.theorangetree.co.uk; www.houseoffraser.co.uk;
www.lauraashley.com; www.faginsantiques.com; www.habitat.co.uk; www.stbridgetnurseries.co.uk; www.ashoreje wellery.co.uk

Wood Mantels:- www.stovax.com Stone Mantels:- www.rudloe-stone.com; www.farmington.co.uk; www.bnsp.co.uk Paintings:- www.easyart.com

Wood Flooring:- www.beachbros.co.uk Stone Floors:- www.originalstyle.com Televisions:- www.heavitreeradio.co.uk

67
