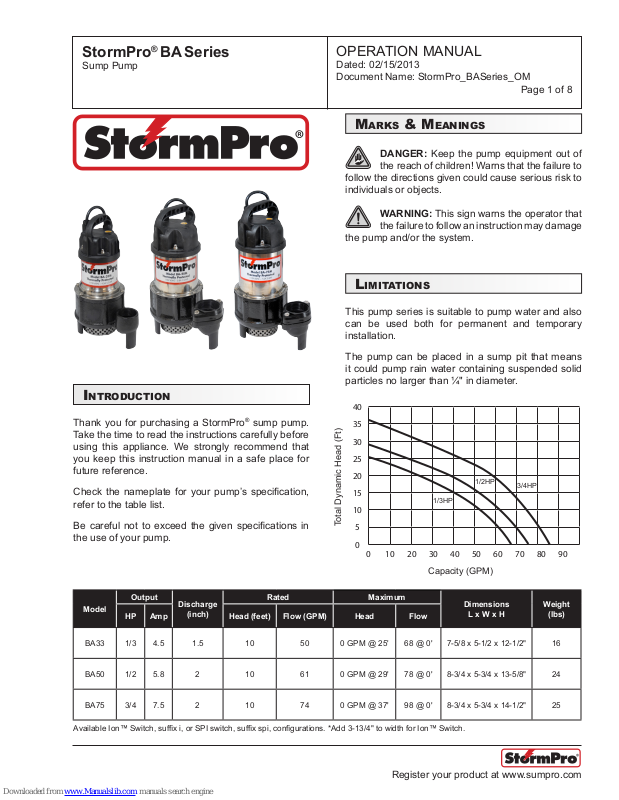

StormPro® BA Series

Sump Pump

OPERATION MANUAL

Dated: 02/15/2013 Document Name: StormPro_BASeries_OM

Page 1 of 8

Marks & MeanIngs

DANGER: Keep the pump equipment out of

the reach of children! Warns that the failure to follow the directions given could cause serious risk to individuals or objects.

WARNING: This sign warns the operator that

the failure to follow an instruction may damage the pump and/or the system.

IntroductIon

Thank you for purchasing a StormPro® sump pump. Take the time to read the instructions carefully before using this appliance. We strongly recommend that you keep this instruction manual in a safe place for future reference.

Check the nameplate for your pump’s specication,

refer to the table list.

Be careful not to exceed the given specications in

the use of your pump.

LIMItatIons

This pump series is suitable to pump water and also can be used both for permanent and temporary installation.

The pump can be placed in a sump pit that means it could pump rain water containing suspended solid particles no larger than ¼" in diameter.

Total Dynamic Head (Ft)

0 10 20 30 40 50 60 70 80 90

1/3HP

Capacity (GPM)

1/2HP

3/4HP

Output

Model

BA33 1/3 4.5 1.5 10 50 0 GPM @ 25' 68 @ 0' 7-5/8 x 5-1/2 x 12-1/2" 16

BA50 1/2 5.8 2 10 61 0 GPM @ 29' 78 @ 0' 8-3/4 x 5-3/4 x 13-5/8" 24

BA75 3/4 7.5 2 10 74 0 GPM @ 37' 98 @ 0' 8-3/4 x 5-3/4 x 14-1/2" 25

Available Ion™ Switch, sufx i, or SPI switch, sufx spi, congurations. *Add 3-13/4" to width for Ion™ Switch.

HP Amp Head (feet) Flow (GPM) Head Flow

Discharge

(inch)

Rated Maximum

Dimensions

L x W x H

Weight

(lbs)

Page 2

StormPro® BA Series

Sump Pump

OPERATION MANUAL

Dated: 02/15/2013 Document Name: StormPro_BASeries_OM

Page 2 of 8

WARNING: The pump can be used for sea

water but not inammable, corrosive,

explosive or dangerous liquids.

InstaLLatIon

Drill a 1/8″ inch hole into PVC pipe 4 inches above the pumps discharge.

Do not work on pump until power is unplugged. Do

not cut off ground pin or use an adapter tting. Do not

use an extension cord.

The pump power cord should be connected to a

separately fused, grounded line with a minimum

capacity of 15 amps.

It can be connected to non-fused breaker at the recommended amperes. Never touch the pump when it is connected to electrical power.

1. Before installing or servicing this pump, be certain pump power source is disconnected.

6. Piping: Plastic PVC pipe could be installed in the

outlet piping, but drain hose, galvanized steel or

copper pipe may be used if desired. All piping must be clean and free of all foreign matter to prevent clogging. Use thread compound on

all threaded joints unless specied otherwise.

Be sure to seal the thread connection with

tape when using the pipe tting to connect the ange.

7. Before installing pump, clear sump basin of any

water, debris or sediment.

WARNING: Sump basin must be vented in accordance with local plumbing codes.

StormPro® sump pumps are not designed for, and

can not be installed in locations classied as hazardous.

8. Position vertical switch on discharge pipe, making sure that off level is not lower than minimum level. See Figure 1.

2. Installation and electrical wiring must adhere to state and local codes and must be completed before priming pump. Check appropriate community agencies or contact local electrical and pump professionals.

3. Call an electrician when in doubt. Pump should be connected to a separate 15 amps circuit breaker or 15 amp fuse block. Note that plugging into existing outlets may cause low

voltage at motor, causing blown fuses, tripping of motor overload, or burned out motors.

4. A permanent ground connection from pump to the grounding bar at the service panel is

mandatory, StormPro® sump pumps come

with a grounding conductor and a groundingtype attachment plug. Do not connect pump to a power supply until permanently grounded.

For maximum safety, connect pump to a circuit

equipped with a fault interrupter device when you position the pump’s grounding wire.

5. Voltage of power supply must match the voltage of the pump.

Note: If you purchased your pump with an Ion™ Digital

Level Control switch, please refer to its manual for

installation instructions.

9. Tighten pipe clamp around pipe and through mounting bracket slots.

10. If needed, on and off stops on switch can be

adjusted. See Figure 1.

Page 3

StormPro® BA Series

Sump Pump

OPERATION MANUAL

Dated: 02/15/2013 Document Name: StormPro_BASeries_OM

Page 3 of 8

11. Plug piggyback plug into a grounded outlet,

then plug pump into the piggyback plug. See

Figure 2.

12. Cycle the system for proper operation. Filling the basin may require a bucket or garden hose to cycle. Make adjustments if needed and cycle system again to ensure proper operation.

13. Make sure that oat is free and unobstructed.

2. The plug and connections should be protected

from water splashes. Before using the pump,

always inspect it visually (especially power cable and plug).

3. Do not use the pump if it is damaged.

4. If the pump is damaged, have it inspected by

an authorized service center only.

5. Make sure that electric connections are protected from inundation. Protect the plug and

the power cable from heat, oil or sharp edges.

WARNING: The power cable must be

replaced by qualied personnel only.

Grounding

The plug of the power cable has a double grounding

contact, so that grounding can be performed by

simply inserting the plug

Overload Protection:

This pump series has a built in thermal protection switch. The pump stops if an overload condition occurs. The motor restarts automatically after it has cooled down.

14. Secure all excessive and loose cord to avoid future problems.

eLectrIcaL WIre connectIon

DANGER: Before servicing a pump, always

shut off the main power breaker and then unplug the pump. Make sure you are not standing in water and are wearing insulated protective sole

shoes, under ooded conditions. Contact your local electric company or a qualied, licensed electrician

for disconnecting electrical service prior to pump removal.

WARNING: Verify that the voltage and

frequency of the pump shown on the nameplate correspond to those available on the mains.

1. The installer must make sure that the electric system is grounded in accordance with the law in force.

troubLeshootIng

DANGER: Shut off power to pump.

A. If pump does not run and hums, check the following:

1. Check line circuit breaker is off, or fuse is burned or loose.

2. Check water level in sump has not reached turn-on level.

3. Check pump cord is not making contact in receptacle.

4. Check oat is stuck. It should operate freely in basin.

5. Check if all of the above are OK, then the motor could be malfunctioning.

Page 4

StormPro® BA Series

Sump Pump

OPERATION MANUAL

Dated: 02/15/2013 Document Name: StormPro_BASeries_OM

Page 4 of 8

B. If pump runs but does not deliver water, check the following:

1. Check valve is installed backwards. Arrow on

valve should point in direction of ow.

2. Discharge shut-off valve (if used) may be closed.

3. Impeller or volute openings are fully or partially clogged. Remove pump and clean.

4. Pump is air-locked. Start and stop several times by plugging and unplugging cord. Check for clogged vent hole in pump case. Drill a 1/8 inch hole into PVC discharge pipe.

5. Inlet holes in pump base are clogged. Remove pump and clean the openings.

6. Vertical pumping distance is too high. Reduce

distance or change the discharge ttings of the

pump.

C. If pump runs and pumps out sump, but does not stop, check the following:

E. If fuse blows or circuit breaker trips, check the following:

1. Pump impeller is partially clogged, causing motor to run slow and overload. Remove pump and clean.

2. Motor stator may be defective.

3. Fuse size or circuit breaker may be too small. (Must be 15 amps).

4. Impeller or volute opening are fully or partially clogged. Remove pump and clean

F. If motor runs for a short time then stops, check the following:

1. Inlet holes in pump base are clogged. Remove pump and clean the openings.

2. Pump impeller is partially clogged, causing motor to run slow and overload. Remove pump and clean.

3. Motor stator may be defective.

1. Float is stuck in up position. Be sure oat operates freely in basin.

2. Defective oat switch. Replace with oat switch.

3. Defective vertical switch. Replace with vertical switch

D. If pump runs but only delivers a small amount of water, check the following:

1. Pump is air-locked. Start and stop several times by plugging and unplugging cord. Check for clogged vent hole in pump case. Drill a 1/8 inch hole into PVC discharge pipe.

2. Vertical pumping distance is too high. Reduce

distance or change the discharge tting of the

pump. Inlet holes in pump base are clogged. Remove pump and clean the strainer and openings.

3. Impeller or volute openings are fully or partially clogged. Remove pump and clean.

4. Pump impeller is partially clogged, causing motor to run slow and overload Remove pump and clean.

4. Impeller or volute openings are fully or partially clogged. Remove pump and clean also clean the strainer if you had installed.

Page 5

StormPro® BA Series

Sump Pump

OPERATION MANUAL

Dated: 02/15/2013 Document Name: StormPro_BASeries_OM

Warranty VoId If...

The following may cause severe damage to pump and will void the warranty:

1. Using an extension cord.

2. Power cord has been cut or altered.

3. Cutting off the ground pin or using an adapter tting.

4. Working on pump or switch while plugged in.

5. Removing motor housing, unscrewing impeller, or otherwise removing impeller seal

6. Running the pump continuously.

7. Pumping chemicals or corrosive liquids.

8. Pumping gasoline or other ammable liquids.

9. Removing cord tags.

Page 5 of 8

10. Pump will be inadequate if suspension liquids contain solid particles larger than the strainer’s holes.

Warranty regIstratIon card

Please ll out and send back to: Metropolitan Ind. Warranty Department P.O. Box 7266 Romeoville, IL 60446. Or to register online, go to www.sumpro.com

StormPro® BA Series Warranty Registration Card

To register your purchase, please ll in the following information:

Name:

Address:

City

State: Zip:

Date:

Purchased From:

Installed By:

Phone:

Page 6

StormPro® BA Series

Sump Pump

notes

OPERATION MANUAL

Dated: 02/15/2013 Document Name: StormPro_BASeries_OM

Page 6 of 8

Page 7

StormPro® BA Series

Sump Pump

notes

OPERATION MANUAL

Dated: 02/15/2013 Document Name: StormPro_BASeries_OM

Page 7 of 8

Page 8

StormPro® BA Series

Sump Pump

1. Coverage and Term. Metropolitan Industries, Inc. (“Metropolitan”) warrants to the original purchaser (the “Buyer”) of each StormPro/Sumpro product (the “product”), that any part thereof which proves to be defective in material or workmanship within three (3) years from date of manufacture, will be replaced at no charge with a new or remanufactured part, F.O.B. factory. Buyer shall be responsible for all freight charges

and all costs of ﬁ eld labor or other charges incurred in the removal and/or reinstallation of any product, part

or component thereof.

2. Exclusions. THE WARRANTY IS SUBJECT TO THE FOLLOWING CONDITIONS AND

EXCLUSIONS:

(a) The Warranty excludes products or workmanship which becomes defective as a result

of: (i) earthquake, ﬁ re, storms, the elements or any other acts of God; (ii) normal wear and tear from use; (iii) accident, misuse, abuse or neglect; (iv) modiﬁ cations made by Buyer or any third party, other than Metropolitan; and (v) Buyer’s failure to properly install, maintain, service and/or operate the product under normal conditions and according to manufacturer’s instructions.

(b) Metropolitan shall not be responsible for, and the Warranty shall not cover, extended damage which occurs because of Buyer’s failure to notify Metropolitan promptly in writing of apparent defects. (c) Any part or component designated as manufactured by anyone other than Metropolitan shall be covered only by the express warranty of the manufacturer thereof.

(d) The Warranty shall lapse upon Buyer’s failure to fully comply with the terms and conditions of its contract with Metropolitan, including Buyer’s failure to pay the purchase price for the product or any portion thereof. Buyer’s subsequent compliance with the terms and conditions of any such contract, will not

cause the term of the Warranty to extend beyond the time period set forth above. (e) No actions taken by Metropolitan to correct a defect in a product shall extend the Warranty beyond the period set forth above. Metropolitan shall not be obligated to remedy any defect, where otherwise

required pursuant to the Warranty unless and until Buyer notiﬁ es Metropolitan in writing of the defect and then only if such notiﬁ cation is made prior to the expiration of the period set forth above.

3. Process of Claims and Repairs. Metropolitan agrees that if the product or any part or component thereof shall fail to conform to the terms of this Warranty, Metropolitan shall replace such nonconforming product, part or component at the original point of delivery and furnish instruction for its disposition. Any

transportation charges involved in such disposition and all costs of ﬁ eld labor or other charges incurred in the

removal and/or reinstallation of any product, part or component thereof shall be the responsibility of Buyer.

4. Limitation on Liability. Notwithstanding any provision to the contrary, Metropolitan’s entire

liability under this Warranty shall not in the aggregate exceed, and Buyer’s exclusive and sole remedies

are, to the extent permitted by law, shall be to secure replacement of the defective product. UNDER NO CIRCUMSTANCES SHALL METROPOLITAN BE LIABLE UNDER THE WARRANTY FOR ANY INDIRECT, PUNITIVE, SPECIAL, EXEMPLARY, CONSEQUENTIAL OR INCIDENTAL DAMAGES (INCLUDING LOST PROFITS, REVENUE, USE OR ECONOMIC ADVANTAGE).

5. Express Waiver of Any Other Warranties. THE EXPRESS WARRANTY SET FORTH IN THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY METROPOLITAN, OR ANY OTHER PARTY, IN CONNECTION WITH ANY PRODUCT PURCHASED FROM METROPOLITAN. NEITHER METROPOLITAN, NOR ANY OTHER PARTY, MAKES ANY OTHER EXPRESS OR IMPLIED WARRANTY WHICH IS NOT SET FORTH HEREIN, AND METROPOLITAN HEREBY DISCLAIMS AND BUYER HEREBY WAIVES ALL IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

6. Not Transferable. The Warranty may not be transferred and shall be void on the sale or other transfer of the product.

7. Products and Warranty Subject to Change. Metropolitan reserves the right to make revisions to its

products and their speciﬁ cations, and to revise this Warranty and related information without notice.

OPERATION MANUAL

Dated: 02/15/2013 Document Name: StormPro_BASeries_OM

Page 8 of 8

3 Year Residential Warranty
