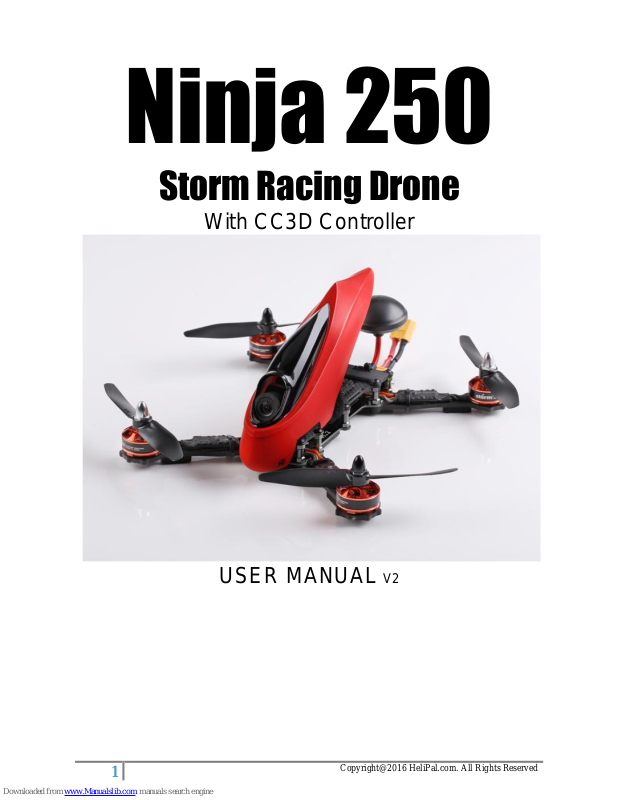

Ninja 250
Storm Racing Drone
With CC3D Controller
USER MANUAL V2
2
Copyright@2016 HeliPal.com. All Rights Reserved
DISCLAIMER
Please read this disclaimer carefully before using this product. This product is a
hobby with motors but not a toy which is not suitable for people under the age of
18. By using this product, you hereby agree to this disclaimer and signify that you
have read them fully. You agreed that you are responsible for your own conduct
and content while using this product, and for any consequences thereof.
Before you fly the drone
1) Make sure all connections are good, and keep children and animals away
during flying, firmware update, system calibration and parameter setup.
2) Always fly the drone away from unsafe conditions, such as obstacles, crowds,
high-voltage lines, etc.
3) Do not use in bad weathers such as rainy day, snow, windy (more than
moderate breeze), hail, lighting, tornadoes, hurricanes etc.
4) Check whether the propellers and the motors are installed correctly and firmly
before flight. Make sure the rotation direction of each propeller is correct.
5) Check whether all parts of the drone are in good condition before flight. Do not
fly with aging or broken parts.
6) Never overcharge LiPo batteries. Do not charge above 4.2V per cell. When the
battery is fully charged, disconnect it from the charger. Never leave the battery
charger unattended during charging.
7) Never discharge batteries to below 3.3V per cell
8) Remove batteries when not using the drone.
3
Copyright@2016 HeliPal.com. All Rights Reserved
Package includes:
1. Fully Assembled Storm Ninja 250 w/ FPV System (Camera and Transmitter)
2. RadioLink AT9 Radio System
3. Storm 14.8V 1000mah 65C Li-Po Battery
4. SKYRC E4 Charger
5. 6pcs Clockwise HQ 5040 Propeller (4 of them are spare)
6. 6pcs Counter-Clockwise HQ 5040 Propeller (4 of them are spare)
7. 2.0 mm Hex Wrench (for column screws)
8. 10mm Hex Nut Driver Driver (for motor cap)
4
Copyright@2016 HeliPal.com. All Rights Reserved
Quick Start
5
Copyright@2016 HeliPal.com. All Rights Reserved
6
Copyright@2016 HeliPal.com. All Rights Reserved
How to control
7
Copyright@2016 HeliPal.com. All Rights Reserved
Circuit Diagram
8
Copyright@2016 HeliPal.com. All Rights Reserved
FPV System
Our video transmitter has up to 32 different video channels available to avoid interference with
other channels.
If two or more drones are flying at the same time, try to
select different video frequency to avoid video
interference. The bigger different in video frequency
between drones, the less interference generated.
Always check the supported channels of you FPV
reception devices such as monitor, goggle
Frequency Table
Frequency
Frequency/Channel
Frequency
Frequency/Channel
5865MHz
A1
5704MHz
E1
5845MHz
A2
5685MHz
E2
5825MHz
A3
5665MHz
E3 (Default)
5805MHz
A4
5645MHz
E4
5785MHz
A5
5885MHz
E5
5765MHz
A6
5905MHz
E6
5745MHz
A7
5925MHz
E7
5725MHz
A8
5945MHz
E8
5733MHz
B1
5740MHz
F1
5752MHz
B2
5760MHz
F2
5771MHz
B3
5780MHz
F3
5790MHz
B4
5800MHz
F4
5809MHz
B5
5820MHz
F5
5828MHz
B6
5840MHz
F6
5847MHz
B7
5860MHz
F7
5866MHz
B8
5880MHz
F8
LONG Press for Changing Frequency
SHORT Press for Changing Channel
9
Copyright@2016 HeliPal.com. All Rights Reserved
FAQ
Lost connection with radio controller
If you’re the drone cannot response to the radio controller stick travel, the connection between
radio controller and receiver may lost and you can try to re-bind them by following the procedure
below:
Press the switch inside the receiver twice with small screwdrivers to make LED indicator turns PURPLE to set the
control mode to D Bus Mode. (Skip this step if it is default in Purple light)
Use the small screwdrivers to press and hold the switch inside the receiver until it is flashing with light in Blue and
Purple, Switch on the radio controller, it will start searching for available receiver. Receiver will stop flashing while the
bind process complete and the radio controller will the signal strength on the screen
Radio Controller Parameters
If you reset your radio controller (AT9) setting, you can apply the setting below:
1) Press and Hold the controller wheel (With wordings
“PUSH”) to unlock the manual. Press and Hold Mode
Button to go into basic menu page
2) [STK-MODE] = 2 (Stick Mode)
[LockScreen] = 30s (Time to lock screen)
10
Copyright@2016 HeliPal.com. All Rights Reserved
3) [TYPE] = AIRCRAFT
4) [SELECT] = 01
[NAME] = SRD-CC3D (Any name you want)
5) Go to [AUX-CH] -> ATTITUDE, apply the setting below:
[CH] = CH5 [SW3] = SwG [SW2] = SwD
[STABL.] = 0% [STABL.] = 25% [STABL.] = 35%
[ARCO] = 50% [ARCO] = 75% [ARCO] = 100%
6) [CH5] = ------- [CH6] = VrA [CH7] = VrB
[CH8] = SwE [CH9] = SwF [CH10] = SwC
7) [1] [TIME] = 10:00
[1] [MODE] = UP
[1] [ON][1] = ST-THK (Using Throttle Stick to start the
timer)
[1][ON] [2] = 15% ( Move the indicator over the value, set
throttle stick to around 15%, Press and hold “Push” button
to recognize the throttle value and move the wheel to change
the arrow sign)
[1][RESET] [1] = SwH (Using Switch H to responsible for the
reset timer action)
[1][RESET] [2] = DOWN (Using Switch H’s down action to
reset the timer)
8) [1] [AILE] = NOR
[2] [ELEV] = NOR
[3] [THRO] = NOR
[4] [RUDD] = NOR
[5] [ATTI] = NOR
[6] [AUX1] = NOR
[7] [AUX2] = NOR
[8] [AUX3] = REV
