StorCase® Technology
Data Express® DE300
(P/N S20A133)
Removable SCSI Wide Ultra160 Drive Enclosure and Blowers
User's Guide
StorCase® Technology
Data Express® DE300
(P/N S20A133)
Removable
Drive Enclosure and Blowers
User's Guide
Part No. D89-0000-0194 A02 January 2003
i
StorCase Technology, Inc.
17600 Newhope Street
Phone (714) 438-1850 Fax (714) 438-1847
S20A133 User's Guide - Rev. A02 StorCase Technology, Inc.
Fountain Valley, CA 92708-9885
ii
LIMITED WARRANTY
STORCASE TECHNOLOGY, Incorporated (StorCase) warrants that its products will be free from defects in material and workmanship, subject to the conditions and limitations set forth below. StorCase will, at its option, either repair or replace any part of its product that proves defective by reason of improper workmanship or materials. Repair parts or replacement products will be provided by StorCase on an exchange basis, and will be either new or reconditioned to be functionally equivalent to new.
This warranty does not cover any product damage that results from accident, abuse, misuse, natural or personal disaster, external power surge or failure, or any unauthorized disassem­bly, repair or modification. StorCase will not be responsible for any software, firmware or other customer data stored within, or interfacing with a StorCase product.
Duration of Warranty
Seven-Year Warranty: The following StorCase products are covered by this warranty for
a period of seven (7) years from the original date of purchase from StorCase or its authorized reseller: all Data Express® removable device enclosures and all StorCase interface cables and accessories specifically intended for use with these products. Data Silo®, Data Stacker® and InfoStation® products are covered by this warranty for a period of seven (7) years, excepting the RAID controller, power supply, fan and blower components, which are covered by the three-year warranty described below.
Three-Year Warranty: The following StorCase products are covered by this warranty for a period of three (3) years from the original date of purchase from StorCase or its authorized reseller: all Rhino®JR external expansion chassis and all RAID controller modules. In addition, the following components of the Data Silo®, Data Stacker®, InfoStation® products are subject to warranty for a period of three (3) years: all power supplies, fans and blowers.
Warranty Claim Requirements
To obtain warranty service, the defective product must be returned to your local authorized StorCase dealer or distributor, or, with prior StorCase approval, to the StorCase factory service center.
For defective products returned directly to StorCase, a Return Material Authorization (RMA) number must be obtained by calling StorCase Customer Service at (714) 445-3455. The RMA number must be prominently displayed on the outside of the return package. Shipments must be freight-prepaid and insured, and must include the product serial number, a detailed description of the problem experienced, and proof of the original retail purchase date. Products must be properly packaged to prevent damage in transit. Damage resulting from improper packaging will not be covered by this warranty. The StorCase factory service center is located at 17650 Newhope Street, Receiving Dock, Gate #4, Fountain Valley, CA 92780, U.S.A.
StorCase Technology, Inc. S20A133 User's Guide - Rev. A02
Free Technical Support
StorCase provides free technical support. If you experience any difficulty during the installation or subsequent use of a StorCase product, please contact StorCases Technical Support Department prior to servicing your system. This warranty covers only repair or replacement of defective StorCase products, as described above. StorCase is not liable for, and does not cover under warranty, any costs associated with servicing and/or installation of StorCase products.
StorCase Technical Support can be reached in the U.S. at (714) 438-1858 or toll-free at (888) 435-5460 (U.S. and Canada only). StorCase European Technical Support can be reached in the U.K. at +44 (0) 1932 738900.
Disclaimers
The foregoing is the complete warranty for the products identified above and supersedes all other warranties and representations, whether oral or written. StorCase expressly disclaims all warranties for the identified products, which are not stated herein, including, to the extent permitted by applicable law, any implied warranty of merchantability or fitness for a particular purpose. In no event will StorCase be liable to the purchaser, or to any user of a StorCase product, for any damages, expenses, lost revenues, lost savings, lost profits, or any other incidental or consequential damages arising from the purchase, use or inability to use a StorCase product, even if StorCase has been advised of the possibility
of such damages.
iii
Copyright © 2003 StorCase Technology. All rights reserved. All registered trademarks are the property of StorCase Technology. All other logos and trademarks are properties of their respective companies.
S20A133 User's Guide - Rev. A02 StorCase Technology, Inc.
iv
Declaration of Conformity
Company Name:
Corporate Office Address:
Manufacturing Address:
Product Name:
Model Number:
Conforms to the following standards:
EMC Directives: (89/336/EEC)
Safety Standards: CSA (NRTL/C)
TUV
StorCase Technology, Inc.
17600 Newhope Street Fountain Valley, CA 92708
17600 Newhope Street Fountain Valley, CA 92708
Data Express DE300
S20A133
EN 50081-1: 1992 Generic Emission
- EN 55022/CISPR22 Class B
- EN 61000-3-2
- EN 61000-3-3 EN 55024: 1998 ITE Immunity
- EN 61000-4-2 - EN 61000-4-6
- EN 61000-4-3 - EN 61000-4-8
- EN 61000-4-4 - EN 61000-4-11
- EN 61000-4-5
CAN/CSA-C22.2 No. 950-95 UL 1950
EN 60950: 1992 EN 60950/A2: 1993 EN 60950/A1: 1993 EN 60950/A3: 1995
EMI Standards:
EMC Standards:
Year of Manufacture:
Signature:___________________ Full name: Dieter Paul Position: President
StorCase Technology, Inc. S20A133 User's Guide - Rev. A02
FCC Part 15, Class B
AS/NZS 3548 Information Technology Equipment
2002
Table of Contents
INTRODUCTION ..................................................................................................................... 1
Packaging Information .................................................................................................. 1
Serial Numbers .............................................................................................................. 1
Package Contents ......................................................................................................... 2
General Description ...................................................................................................... 3
Receiving Frame Front Panel ............................................................................... 4
Receiving Frame Rear Panel................................................................................ 6
INSTALLATION ...................................................................................................................... 7
Installing the Drive in the Carrier .................................................................................. 7
Preparation ............................................................................................................ 7
Installation ............................................................................................................. 7
Installing the Receiving Frame ..................................................................................... 9
Selecting the Unit ID Number...................................................................................... 12
Adjusting the Spin Down/Up Timer ............................................................................ 14
APPENDICES ........................................................................................................................ 15
Appendix A - Specifications/Dimensions .................................................................. 17
Appendix B - Attaching the ON/OFF Key .................................................................. 18
Appendix C - Optional Accessories .......................................................................... 19
Ultra160 Repeater Board ................................................................................... 19
Carrying Case ..................................................................................................... 20
v
Reader's Comments............................................................................................................ 21
S20A133 User's Guide - Rev. A02 StorCase Technology, Inc.
vi
List of Figures
Figure 1: Package Contents .......................................................................................... 2
Figure 2: DE300 Receiving Frame and Carrier ............................................................. 3
Figure 3: Receiving Frame Front Panel ......................................................................... 5
Figure 4: Receiving Frame Unit ID Number and Activity Display ................................. 5
Figure 5: Receiving Frame (Rear View) ....................................................................... 6
Figure 6: Drive Installation Assembly............................................................................ 8
Figure 7: Receiving Frame Motherboard J3 Option Pin Connector ............................. 9
Figure 8: Receiving Frame Mounting Holes ................................................................ 11
Figure 9: Unit ID Select Switch Location .................................................................... 13
Figure 10: Device Spin Down/Up Timer Switch ........................................................... 14
Figure A-1: DE300 Physical Dimensions ......................................................................... 17
Figure B-1: Attaching the ON/OFF Key .......................................................................... 18

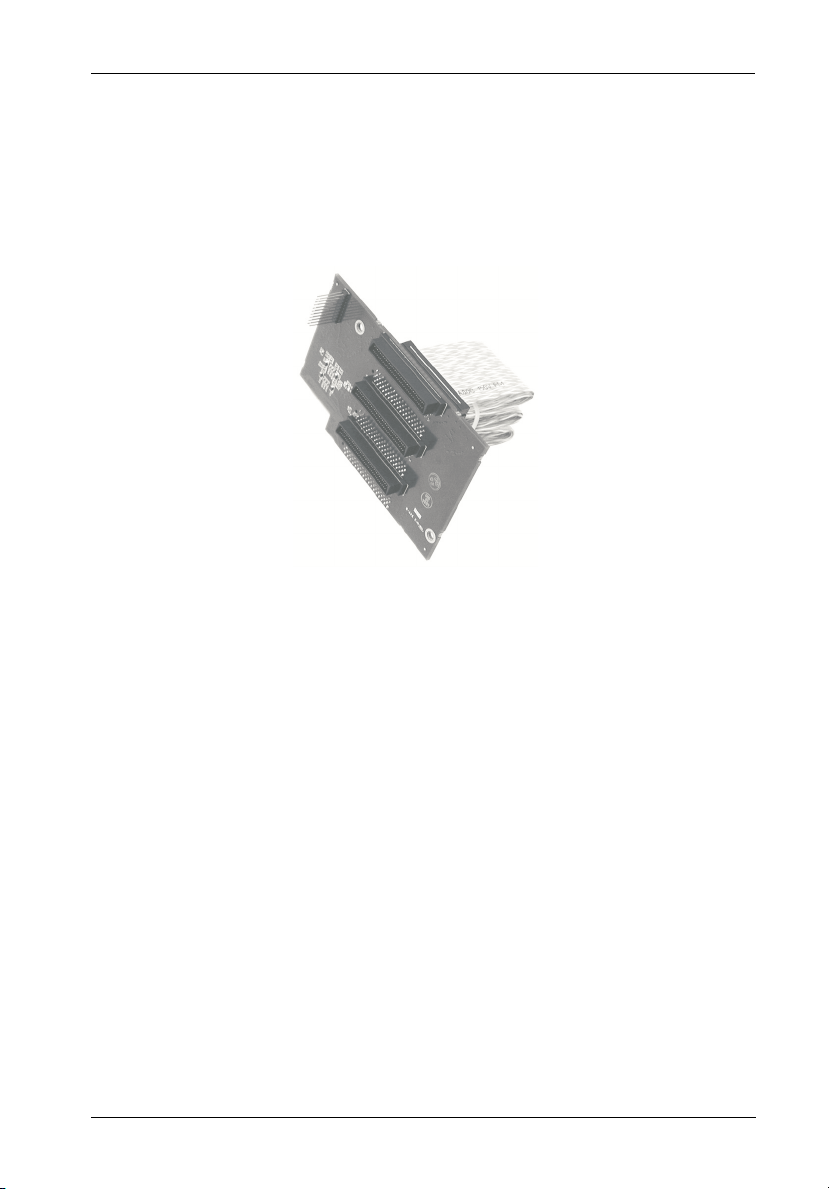

Figure C-1: Ultra160 Repeater Board ............................................................................. 19
Figure C-1: Carrying Case ............................................................................................... 20
List of Tables
Table 1: J3A1, J3B1, J3C1 Option Pin Signal Descriptions ............................................ 10
NOTICE: This User's Guide is subject to periodic updates without notice. While reasonable
StorCase Technology, Inc. S20A133 User's Guide - Rev. A02
efforts have been made to ensure the accuracy of this document, StorCase Technology, Inc. assumes no liability resulting from errors or omissions in this publication, or from the use of the information contained herein.
Please check the StorCase web site at http://www.storcase.com or contact your StorCase representative for the latest revision of this document.
Introduction 1
INTRODUCTION
PackagingInformation
The StorCase Technology Data Express® system is shipped in a container designed to provide protection and prevent damage during shipment. The Data Express unit was carefully in­spected before and during the packing procedure at the factory. Bent or broken connectors, or evidence of other damage to the Data Express should be reported to the shipper immediately. Refer to Figure 1 for the package contents.
If the wrong Data Express model has been received, please call your reseller or StorCase at (800) 435-0642 to arrange for a Return Material Authorization (RMA). StorCase cannot ac­cept returns which do not display an RMA number on the outside of the package. Return the unit with all the original packing materials.
Before removing any component from its packaging, discharge any static electricity by touching a properly grounded metal object.
Serial Numbers
Both the DE300 receiving frame and carriers are labeled with serial numbers. These numbers must be reported to the StorCase Customer Service Representative in order to receive a Return Material Authorization (RMA) for warranty claims. Locate the serial number labels and record the numbers in the spaces provided below.
Receiving Frame:
Device Carriers:
S20A133 User's Guide - Rev. A02 StorCase Technology, Inc.
2 Introduction
PackageContents
The DE300 package contents should include the following items. If any item is missing or damaged, contact your StorCase dealer for a replacement.
2
1
0435c
7
1. Drive Carrier
2. Receiving Frame
3. #6-32 Phillips Flat Hd. Screws
4. #6-32 Phillips Pan Hd. Screws
D
a
ta
E
x
p
r
e
C a C b l o
e
(
v
P
e r r o v i d e d
) D i s ( k N
D o t
r
i I
v n
e
c
l
u
d
e
d
P
) o w
e
r I / O
C
a C
b
a
l e
b
I
l e
D S e
l e c t C
D
a
r i
b
v
l
e
e C a r r
i e
r D r i
H
v e
a
P
r
M
d
h
w
o
i
3 l
u
a
l
/
i
1
n
p
r e
6
t
s
i n
(
#
F
4
g
l
e
6
a
a
-
t
3
)
H
2 D
x
C a
S
b l
c
e r # e
C
0
w 6
1
o
F
-
5
s
v
3
1
l a
e
2
( t
2
r
x H
p
D
3
l
c / 1
s
)
6
Figure 1: Package Contents
3
s
s
4
5
6
5. Drive Lock Keys
6. Alignment Tool
7. Insert Sheet
StorCase Technology, Inc. S20A133 User's Guide - Rev. A02
Introduction 3
GeneralDescription
The StorCase Technology Data Express® DE300 (P/N S20A133) is composed of a receiving frame which supports SCSI Ultra160 interfaces and fits within 5.25" full-height peripheral slots. This 16-bit I/O can support up to 160MByte/sec transfer rates. The receiving frame contains three (3) removable drive carriers designed to provide durable and reliable mounting for 3.5" form factor, low-profile 1" high 68-pin SCSI drives (Figure 2).
Two (2) built-in blowers inside the receiving frame provides enhanced heat dissipation (9.2 CFM).
The S20A133 allows a drive to be removed and transported to another S20A133-equipped computer or expansion chassis, and also provides the ability to secure sensitive data by removing and storing the drive safely for future use. The S20A133 is particularly well suited for RAID configurations.
NOTES: For SCSI Ultra160 operation, the DE300 requires Ultra160 chassis and cabling.
These newly-designed Ultra160 68-pin DE300 (with blower) carriers are inter­changeable with other Ultra160 68-pin DE300 (with blower) receiving frames and older Ultra160 68-pin DE300 receiving frames (without blowers).
Older Ultra160 68-pin DE300 carriers are NOT designed for use with the newer Ultra160 68-pin DE300 (with blower) receiving frames (overheating may occur if there is inefficient air flow within the enclosure).
0437b
Receiving Frame
Drive Carrier

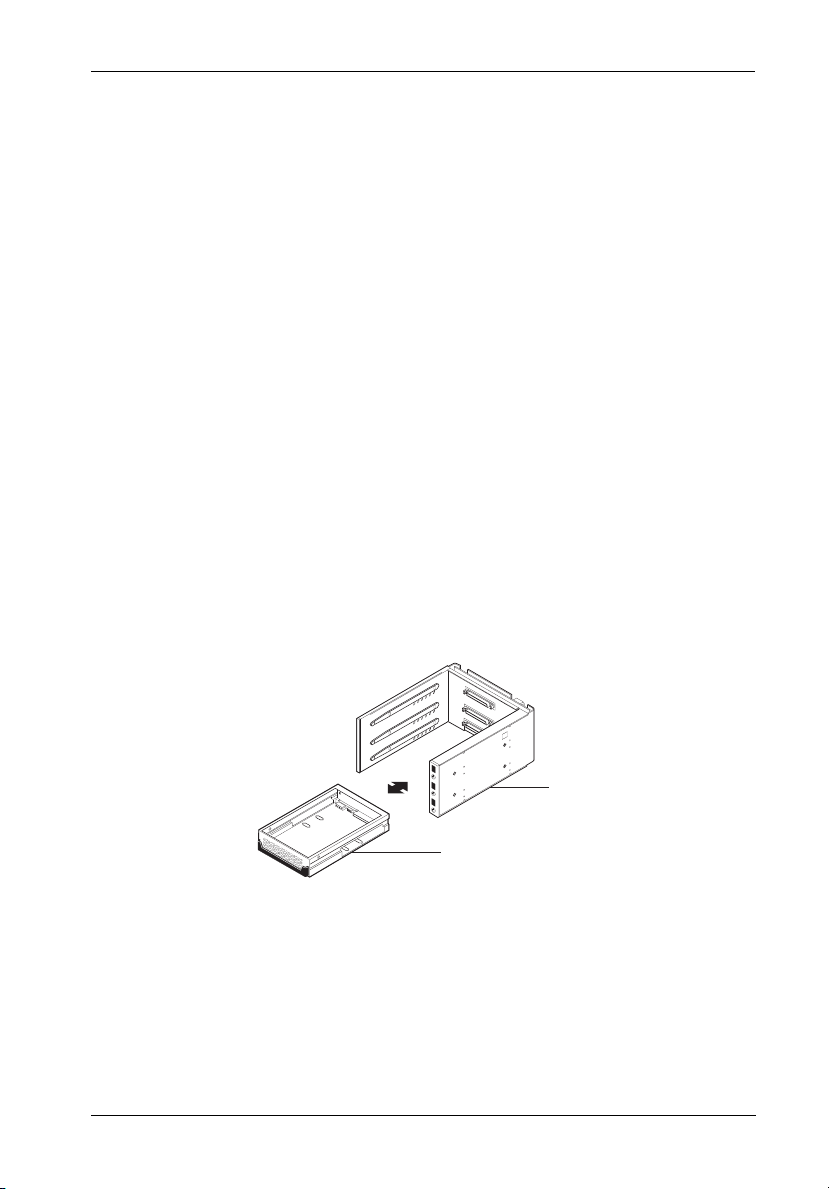

Figure 2: DE300 Receiving Frame and Carrier
This User's Guide describes the steps required to install the DE300 removable enclosure inside a computer peripheral bay or external expansion chassis. This guide supplements documen­tation provided with the host computer system, operating system, and the drive to be installed within the carrier.
S20A133 User's Guide - Rev. A02 StorCase Technology, Inc.
4 Introduction
ReceivingFrameFrontPanel
(Figure 3)
Key Lock/Drive Power Switch: Performs three (3) functions. The key lock assures proper seating of the device carrier within the receiving frame, turns power to the device carrier on and off, and prevents unauthorized removal or installation of the carrier. For the computer to access data on the DE300 disk drive, the key must be turned counterclockwise to the locked position.
The key may also be permanently attached to the locking mechanism as shown in Appendix B.
NOTES: The lock on the DE300 receiving frame functions as a lock and a DC power
Unit ID Number Indicator: Displays the physical SCSI address of the DE300 device carrier
if the carrier is Installed and Locked in the receiving frame or if the carrier is Removed from the receiving frame. If the carrier is Installed but Not Locked in the receiving frame, a "u" will be displayed to indicate an unlocked condition. The unit ID number is selected by means of the unit ID select switch inside the receiving frame using a special alignment tool supplied with the DE300.
Fan Failure LED: The unit ID number indicator will display a flashing "F", and an audible alarm will sound to indicate a blower failure.
Activity Indicator: A small dot next to the Unit ID Number which illuminates to show when the host computer is accessing the data on the DE300 carrier. This dot will flash during communication with the host computer.
Device Spin Down/Up Timer: This feature allows the receiving frame unit ID number display to provide a visual indication of drive spin down/up activity. A small timing switch located on the side of the receiving frame allows the operator to ad-just the timer to match the specific drive manufacturer's specifications (Figure 10).
switch for the carrier unit. The lock MUST be engaged (turned counter­clockwise) in order to supply power to the carrier and installed drive unit.
The built-in blowers will NOT turn on if there are no drives installed! A minimum of one (1) drive installed (with the key lock engaged) is required to activate the built-in blowers.
StorCase Technology, Inc. S20A133 User's Guide - Rev. A02
Introduction 5
Figure 3: Receiving Frame Front Panel
Activity
Carrier Removed
from Receiving Frame
The number "2" shown above is for illustration purposes only. It can be any valid unit ID number. The letter "u" and F will appear as illustrated.
Carrier Installed
(unlocked)
Blower Failure
Carrier Installed
(locked)
Indicator
0064d
Figure 4: Receiving Frame Unit ID Number and Activity Display
S20A133 User's Guide - Rev. A02 StorCase Technology, Inc.
6 Introduction
ReceivingFrameRearPanel
(Figure 5)
DC Power Connector (P1):The Data Express uses a standard 4-pin DC power connector to accept DC power.
I/O Connectors (Drive A, Drive B, Drive C): The input/output connector provides a standard interface for 16-bit wide SCSI signals.
Option Pins (J3A1, J3B1, J3C1)
Remote Unit ID Selection: Pins 1-8 of these connectors are provided for remote
unit SCSI ID selection through the computer system. Remote ID selection requires that the unit ID switch located on the inside of the receiving frame be set to "0" (device ID selection is set with a switch located on the inside of the receiving frame as shown in Figure 9). See Table 1 for J3 pin assignments.
Remote Activity LED: Pins 11 & 12 are used for a remote LED device activity indicator.
Jumpers: Installed at the factory - Do not remove!
Blower Vent: Two (2) bulit-in blowers provide enhanced heat dissipation (9.2 CFM).
Blower
Vent
DC Power Connector
Drive A
Drive B
Drive C
= Pin 1
68-pin SCSI
I/O Connector
J3A1
J3B1
J3C1
0503e
SCSI ID0 SCSI ID1
1
21
1
21
1
21
SCSI ID2 SCSI ID3
Buzzer Enable Jumper (Factory-Installed on J3A1 Only!)
Jumpers (Factory-Installed)
P11
Activity LED
Remote
P12
AnodeCathode
Figure 5: Receiving Frame Motherboard (Rear View)
StorCase Technology, Inc. S20A133 User's Guide - Rev. A02
Installation 7
INSTALLATION
InstallingtheDriveintheCarrier
Preparation
While performing the steps in this section, work on a soft surface to prevent excessive shock to the drive being installed. Also refer to the manufacturer's documentation provided with the
drive.
NOTE: A #2 Phillips screwdriver will be required during this procedure.
1. Remove the drive from its protective packaging.
2. Plastic Drive Bezel: If the drive came equipped with a plastic front bezel, it
must be removed.
3. SCSI Drive Termination: The DE300 does not provide onboard termination.
External termination must be provided. Refer to the documentation provided by the drive manufacturer for termination information.
Installation
1. Locate the ID select jumper positions on the drive, and remove any jumpers plugs installed (the drive carrier board will plug into this section of the drive).
2. Carefully insert the drive (not included) into the carrier. Slide the drive towards the drive carrier board, so that the I/O, DC power, and ID select connectors on the drive mate with their respective connectors on the drive carrier board (Figure 6).
NOTE: The carrier supports most 68-pin SCSI Ultra160 low-profile (1" high) drives, except
S20A133 User's Guide - Rev. A02 StorCase Technology, Inc.
Fujitsu Alegro6 10K RPM drives (these drives have different spacing between the 68-pin and DC power connectors and will not mate with the drive carrier board).
3. Fasten the drive into place with four (4) #6-32 Phillips Flat Hd. screws (provided) as shown in Figure 6.
4. Install and fasten the drive cover into place with two (2) #6-32 Phillips Pan Hd. screws (provided) as shown in Figure 6.
8 Installation
Drive Cover
Drive
(Not Included)
Cover Mounting
Screw (2 Total)
0867
Drive
Carrier

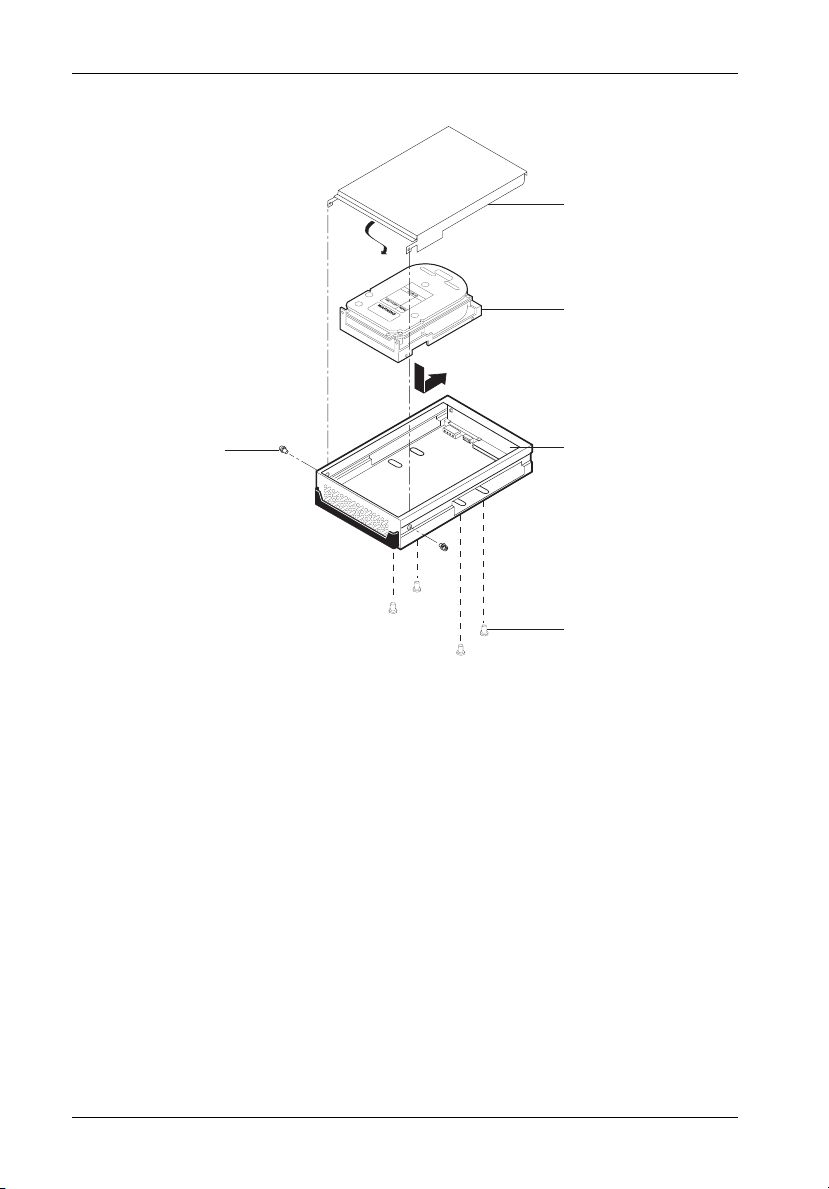

Figure 6: Drive Installation Assembly
Drive Carrier
Board
#6-32 x 3/16 Phillips
Flat Head Screw
(4 Total)
StorCase Technology, Inc. S20A133 User's Guide - Rev. A02
Installation 9
InstallingtheReceivingFrame
NOTES: For SCSI Ultra160 operation, the DE300 requires Ultra160 chassis and cabling.
These newly-designed Ultra160 68-pin DE300 (with blower) carriers are inter­changeable with other Ultra160 68-pin DE300 (with blower) receiving frames and older Ultra160 68-pin DE300 receiving frames (without blowers).
Older Ultra160 68-pin DE300 carriers are NOT designed for use with the newer Ultra160 68-pin DE300 (with blower) receiving frames (overheating may occur if there is inefficient air flow within the enclosure).
The drive should be installed into the carrier before installing the receiving frame into the mounting bay of a computer or expansion chassis.
NOTE: Use a #2 Phillips screwdriver during this procedure.
1. Turn OFF power to the computer.
2. Open the computer system according to the manufacturers instructions. If neces­sary, temporarily remove any expansion boards that may make installation difficult.
3. To select the DE300 unit ID remotely through the computer system or external ex­pansion chassis, the appropriate cable from the system must be connected to the option pins (1-8 on connectors J3A1, J3B1, J3C1) on the rear of the receiving frame as shown in Figure 7.
Pin 1 Pin 2 ID0
Pin 3
Pin 5
Pin 7
Pin 9
Pin 11
Pin 13
Pin 15
Pin 17
Pin 19
Pin 21
Pin 4 ID1
Pin 6 ID2
Pin 8 ID3
Pin 10 Buzzer Enable
Pin 12 RLED
Pin 14 Fan Failure Indication
Pin 16 Sync
Pin 18 RMTST
Pin 20 DLYST
Pin 22 For Factory Use Only
0542B
(Factory-Installed Jumper is located on J3A1 connector only!)
(Factory-Installed Jumper - Do Not Remove!)
Figure 7: Receiving Frame Motherboard J3 Option Pin Connector
S20A133 User's Guide - Rev. A02 StorCase Technology, Inc.
10 Installation
Table 2: J3A1, J3B1, J3C1 Option Pin Signal Descriptions
PIN Signal Function
1 ID0 SCSI ID 2 GND Ground 3 ID1 SCSI ID 4 GND Ground 5 ID2 SCSI ID 6 GND Ground 7 ID3 SCSI ID 8 GND Ground
9 BUZZER Buzzer Enable (J3A1 ONLY) 10 5V 5V (J3A1 ONLY) 11 RLEDC Remote LED Cathode 12 RLEDA Remote LED Anode 13 FFAULT Fan Failure Indication 14 FFAULT Fan Failure Indication 15 SYNC Drive Synchronization Signal 16 GND Ground 17 RMTST Remote Start 18 GND Ground 19 DLYST Delay Start 20 GND Ground 21 LKA For Factory Use Only 22 LKB For Factory Use Only
IMPORTANT NOTE: In order to use remote ID selection from the computer or ex-
StorCase Technology, Inc. S20A133 User's Guide - Rev. A02
pansion chassis, the Unit ID number on the Data Express re­ceiving frame must be set to "0" with the provided alignment tool. Refer to the section "Selecting the Unit ID Number" later in this User's Guide for the Unit ID selection procedure.
Installation 11
4. With the drive carriers locked into place inside the receiving frame, install the DE300 receiving frame into the drive opening in the computer or expansion chassis. Use the appropriate guides to position the DE300, and fasten it into place with the four (4) #6-32 Phillips screws provided. Figure 8 illustrates the location of the mounting holes. Mounting holes are provided on each side and the bottom of the receiving frame to accommodate a variety of mounting configurations. Use the mounting holes which best suit the computer or expansion chassis con­figuration.
Front of Unit
Mounting
Holes
(Right)
0520a
Mounting
Holes
(Bottom)
Figure 8: Receiving Frame Mounting Holes
5. Adjust the front of the receiving frame so the carrier slides freely in and out on the receiving frame guides. The position of adjoining peripheral units may require adjustment.
6. To connect a drive to a Remote Activity LED in the computer system or expansion chassis, connect the appropriate cable(s) to the receiving frame motherboard as shown in Figure 5. Connect J3A1, J3B1, and J3C1 Pins 11 & 12 to a remote activity LED.
7. Connect the I/O cables from the host adapter to the receiving frame. The Pin 1 indicator on the cable must be properly aligned. Refer to Figure 5 for the correct Pin 1 location.
NOTE: No onboard termination is provided on the DE300. External ter-
mination must be provided.
S20A133 User's Guide - Rev. A02 StorCase Technology, Inc.
12 Installation
8. Connect the power cable from the DC power supply in the computer or expansion chassis to the power connector on the DE300 receiving frame. Refer to Figure 5 for the DE300 receiving frame power connector location.
9. Replace any expansion boards that may have been removed earlier. Replace the system cover according to the manufacturers instructions.
10. Reconnect any system or peripheral cables removed earlier.
11. Turn ON power to the computer. If the installation has been successful, and all cables have been properly attached, the system should boot normally. Although the computer may not recognize the DE300 yet, the appropriate front panel LED indicators on the DE300 should illuminate.
NOTES: The lock on the DE300 receiving frame functions as a lock and a DC power
12. The new drives may need to be formatted or initialized prior to use with the
switch for the carrier unit. The lock MUST be engaged (turned counter­clockwise) in order to supply power to the carrier and installed drive unit.
The built-in blowers will NOT turn on if there are no drives installed! A minimum of one (1) drive installed (with the key lock engaged) is required to activate the built-in blowers.
operating system and applications software. Refer to the drive and/or computer manufacturer's documentation for formatting information.
SelectingtheUnitID Number
1. Verify that power is turned ON to the DE300 receiving frame by turning on the computer or external expansion chassis. Numbers should appear in the unit ID display windows if the carriers are locked into place.
2. Unlock the DE300 drive carrier. The unit ID number will begin flashing, indicating that the drive is spinning down. The length of time that the unit ID number flashes is controlled by a small timing switch located on the side of the receiving frame. Refer to Figure 10 for the location of the Device Spin Down/Up Timer Switch on the receiving frame. A "u" will be displayed once the drive has completed spin down and is ready to be removed from the receiving frame. The indicator will return to the SCSI ID number when the carrier is removed from the receiving frame.
WARNING: Unlocking the carrier unit switches DC power off to the drive.
Since disk drives require a short amount of time to spin down, allow about 15 seconds before pulling the carrier unit out of the receiving frame to avoid possible damage to the drive.
StorCase Technology, Inc. S20A133 User's Guide - Rev. A02
Installation 13
3. Use the alignment tool supplied with the DE300 to select the ID number of the disk drive. Refer to Figure 9 for the location of the Unit ID Select Switch inside the receiving frame.
WARNING: Selecting an invalid ID number, or selecting the same unit ID
number on different devices may cause unpredictable results and the computer system may not recognize the installed de­vice(s). If the computer system can not recognize the boot disk, the computer may fail to start-up properly.
4. After selecting an appropriate unit ID number, replace the DE300 carrier in the receiving frame, and LOCK IT INTO PLACE.
5. The new drive(s) may need to be formatted or initialized prior to use with the operating system and applications software. Refer to the drive and/or computer manufacturer's documentation for formatting information.
Unit ID Select Switch (3 plcs)
0515b
Alignment Tool
Figure 9: Unit ID Select Switch Location
S20A133 User's Guide - Rev. A02 StorCase Technology, Inc.
14 Installation
Adjusting the Spin Down/Up Timer
NOTE: The timer for device spin down is controlled by a small selector, located in a cutout
on the side of the DE300 receiving frame as shown in Figure 10. The amount of time required for a drive to spin down is approximately 15 seconds or more. This number can vary depending on the type of SCSI device and manufacturer (some drives may require 45 seconds or more). The factory configuration is set for 20 seconds. A different delay time may be selected with the provided alignment tool. Refer to the SCSI device manufacturers manual for more information on required device spin down time.
Spin Down/Up Time
0 = 10 SECONDS 8 = 50 SECONDS 1 = 15 SECONDS 9 = 55 SECONDS 2 = 20 SECONDS A = 60 SECONDS 3 = 25 SECONDS B = 65 SECONDS 4 = 30 SECONDS C = 70 SECONDS 5 = 35 SECONDS D = 75 SECONDS 6 = 40 SECONDS E = 80 SECONDS 7 = 45 SECONDS F = 85 SECONDS
0445
C
E
A
0
2
4
6
8
Front of Receiving Frame
Figure 10: Device Spin Down/Up Timer Switch
StorCase Technology, Inc. S20A133 User's Guide - Rev. A02
Appendix A - Specifications/Dimensions 15
APPENDICES
S20A133 User's Guide - Rev. A02 StorCase Technology, Inc.
16 Appendix A - Specifications/Dimensions
Appendix A - Specifications/Dimensions
SCSI Data Express subsystems conform to the Small Computer Systems Interface (SCSI) Standard set by the American National Standards Institute (ANSI).
Environmental Specifications
Operating Storage
Ambient Temperature 0° C to 40° C -40° C to 70° C Relative Humidity Altitude -1000 to 10,000 ft -1000 to 40,000 ft
(2)
Shock
(1)
Non-condensing with maximum gradient of 10% per hour.
(2)
11 msec pulse width 1/2 sine wave.
Physical Specifications Carrier Receiving Frame
Height 1.07" (27.2mm) 3.38" (85.9mm) Width 4.67" (118.6mm) 5.88" (149.4mm) Depth 7.69" (195.3mm) 8.22" (208.8mm)
Weight 1.0lb (0.45kg) 2.3lb (1.0kg)
(1)
With carriers removed.
(1 )
10% to 80% 10% to 90%
-305m to 3048m -305m to 12195m 10g 60g
(1)
Chassis Reliability/Maintainability Cooling
MTBF 500,000 Hours Total for 2 Blowers 9.2 CFM MTTR 5 Minutes Preventive Maintenance None
Electrical Specifications
Input +5V 165mA
+12V 36mA
StorCase Technology, Inc. S20A133 User's Guide - Rev. A02
Appendix A - Specifications/Dimensions 17
Receiving Frame with Carriers Installed
2.06
(52.3mm)
3.12
(79.2mm)
Carrier Only
3.38
(85.9mm)
(27.2mm)
1.07
5.88
(149.4mm)
4.67
(118.6mm)
5.50
(139.7mm)
#6-32 x 4
(Bottom)
8.22
(208.8mm)
3.12
(79.2mm)
7.69
(195.3mm)
0.47 (11.9mm)
1.25 (31.8mm)
0.39 (9.9mm)
#6-32 x 8
(Side)
0.47 (11.9mm)
0.11 (2.8mm)
3.75
(95.3mm)
1.75
(44.5mm)
4.67 (118.6mm)
0444b
Figure A-1: DE300 Physical Dimensions
(Dimensions are for reference only)
S20A133 User's Guide - Rev. A02 StorCase Technology, Inc.
18 Appendix B - Attaching the ON/OFF Key
Appendix B - Attaching the ON/OFF Key
The following information will provide the necessary steps to attach the ON/OFF key to the key lock mechanism so that it is non-removable, preventing accidental key loss. The procedure can be reversed at a later date to revert back to a removable key.
1. Make certain power is OFF to the receiving frame.
Access Hole
Pawl
Key Lock
90 Degrees
180 Degrees
0523a
Locate the rectangular shaped key lock mecha­nism access hole on the inside of the receiving frame. Note that the pawl is in an upright position.
Insert the key into the key lock.
2. Rotate the key 90 degrees counterclockwise so that the pawl is visible in the access hole as shown in the figure at left.
3. Using the provided alignment tool, unscrew and remove the pawl from the access hole.
4. Rotate the key 180 degrees clockwise.
5. Reinstall the pawl into the access hole with the alignment tool.
Your key is now attached to the key lock mecha­nism.
Figure B-1: Attaching the ON/OFF Key
StorCase Technology, Inc. S20A133 User's Guide - Rev. A02
Appendix C - Optional Accessories 19
Appendix C - Optional Accessories
Ultra160 Repeater Board
300_2
Figure C-1: Ultra160 Repeater Board
The Ultra160 Repeater Board (P/N S20A130) is an upgrade attachment for the DE300 receiving frame (Figure C-1).
NOTE: All StorCase® Technology SCSI removable enclosures adhere strictly to SCSI speci-
S20A133 User's Guide - Rev. A02 StorCase Technology, Inc.
fications. These products are typically installed into storage system configurations which contain a variety of components (such as cables, terminators, and connectors), which may have varying SCSI characteristics when used together in some con ­figurations.
The StorCase Data Express® Repeater Board has been shown to resolve is­sues associated with combining system components designed for different SCSI technologies (single-ended or LVD) and/or by different manufacturers.
Your configuration may require that a Data Express Repeater Board be installed on the products receiving frame.
Contact your StorCase dealer for further details and ordering information.
20 Appendix C - Optional Accessories
Carrying Case
Drive
Carrier
0460e
S20E104
Carrying Case
Figure C-2: Carrying Case
The optional molded plastic carrying case is designed to transport the DE300 carrier from one site to another in a safe, impact and moisture resistant environment. Its compact dimensions, 7 long x 9 wide x 4 high, make it easy to carry and to store. The foam lining is contoured to fit a single Data Express carrier with a 1" form factor. Contact your StorCase dealer for further details and ordering information.
StorCase Technology, Inc. S20A133 User's Guide - Rev. A02
Reader's Comments 21
Reader's Comments
Please take a few moments when your computer system is up and running to send us your ideas and suggestions for improving our products and documentation. Did the installation go smoothly for you? Are there any changes you would like us to make, either with the hardware itself, or with the installation instructions? Everyone at StorCase Technology is working toward the goal of providing you with the highest quality, most cost effective, products available on the market, and we need your comments to guide our efforts. We look forward to hearing from you soon!
Date:
Your Name:
Address:
Telephone: ( )
To mail this page, carefully remove it from the manual, fold it, staple or tape it shut, and drop it in the mail. To FAX this page, carefully remove it from the manual (or make a photocopy) and FAX it to us at (714) 438-1847. Thank you for taking the time to help us make our products better!
S20A133 User's Guide - Rev. A02 StorCase Technology, Inc.
22 Reader's Comments
FOLD ALONG THIS LINE AND STAPLE SHUT
NO POSTAGE
NECESSARY
IF MAILED
IN THE
UNITED STATES
CUT ALONG THIS LINE FROM BOTTOM TO TOP OF PAGE
BUSINESS REPLY MAIL
FIRST CLASS MAIL PERMIT NO. 10686 SANTA ANA, CA
POSTAGE WILL BE PAID BY ADDRESSEE
TECHNOLOGY CORPORATION
17600 NEWHOPE STREET FOUNTAIN VALLEY CA 92708-9885
StorCase Technology, Inc. S20A124 User's Guide - Rev. A02
Loading...
