Introduction 1

DATA EXPRESS® DE75i-SWC INTRODUCTION

PackagingInformation

The StorCase Technology Data Express® system is shipped in a container designed to
provide protection and prevent damage during shipment. The Data Express unit was
carefully inspected before and during the packing procedure at the factory. Bent or
broken connectors, or evidence of other damage to the Data Express should be reported
to the shipper immediately. Refer to Figure 1 for the package contents.

If the wrong Data Express model has been received, please call StorCase at (800) 435-

0642. A staff member will give you a Return Material Authorization (RMA) number to
facilitate processing. StorCase cannot accept returns which do not display an RMA
number on the outside of the package. Return the unit with all the original packing
materials.

Before removing any component from its packaging, discharge any static electricity by
touching a properly grounded metal object.

1. Drive Carrier

2. Receiving Frame

3. Half-Height Adapter Bracket

(shown installed)

4. #6-32 x 1/4" Phillips

Machine Hd. Screws

Figure 1: Package Contents

DE75i-SWC User's Guide - Rev. B00 StorCase Technology Inc.

5. Alignment Tool

6. Drive Cover

7. User's Guide

8. Drive Lock Keys

2 Introduction

PackageContents

The DE75i-SWC product shipment should include the following items:

Table 1: DE75i-SWC Shipment Contents

One StorCase Data Express DE75i-SWC DE75i-CSWC DE75i-RSWC
SCSI System Part Number (Carrier & RF) (Carrier) (Receiving Frame)

Drive Carrier DE75i-CSWC (1) (1)

Receiving Frame DE75i-RSWC (1) (1)

Half-Height Adapter Bracket D10-4040-0405 (1) (1)

Alignment Tool D45-0000-0037 (1) (1)

Phillips Mounting Screws (#6-32 x 1/4) D45-0000-0004 (8) (4 ) (4)
(To install drive and receiving frame)

Drive Cover D10-4040-0213 (1) (1 )

Drive Lock Keys D45-0000-0059 (1 Set) (1 Set)

User's Guide D89-0000-0048 (1) (1 ) (1)

If any item is missing or damaged, contact your StorCase dealer for a replacement.

Serial Numbers

Both the Data Express receiving frame and carrier are labeled with serial numbers.
These numbers must be reported to the StorCase Customer Service Representative in
order to receive a Return Material Authorization (RMA) for warranty claims. Locate the
serial number labels and record the numbers in the spaces provided below.

Receiving Frame:

Device Carrier:

StorCase Technology Inc. DE75i-SWC User's Guide - Rev. B00

Introduction 3

GeneralDescription

The StorCase Technology Data Express® DE75i-SWC is composed of a receiving frame
with 68-pin Wide SCSI connectors and fits within a 5.25" half-height peripheral slot. The
receiving frame contains a removable drive carrier designed to provide durable and
reliable mounting for one (1) 3.5" form factor, low-profile (up to 1" high) SCSI drive. The
DE75i-SWC is specifically designed for 80-pin Single Connector Attachment (SCA) SCSI
drives (Figure 2).

The DE75i-SWC allows a drive to be removed and transported to another DE75i-SWC­equipped computer or expansion chassis, and also provides the ability to secure sensitive
data by removing and storing the drive safely for future use.

Figure 2: DE75i-SWC Receiving Frame and Carrier

This User's Guide describes the steps required to install the StorCase Data Express
DE75i-SWC removable enclosure inside a computer peripheral bay or external expansion
chassis. This guide supplements documentation provided with the host computer system,
operating system, and the drive to be installed within the DE75i-SWC carrier.

DE75i-SWC User's Guide - Rev. B00 StorCase Technology Inc.

4 Introduction

ReceivingFrameFrontPanel

(Refer to Figure 3)

 The Key Lock/Drive Power Switch performs three (3) functions. The key

lock assures proper seating of the device carrier within the receiving frame,
turns power to the device carrier on and off, and prevents unauthorized
removal or installation of the carrier. For the computer to access data on the
DE75i-SWC disk drive, the key must be turned counterclockwise to the locked
position.

The key can be attached (optional) to the locking mechanism as shown in
Appendix C.

 The Unit Number Indicator (also refer to Figure 4) displays the physical

address of the DE75i-SWC device carrier if the carrier is Installed and Locked in
the receiving frame or if the carrier is Removed from the receiving frame. If the
carrier is Installed but Not Locked in the receiving frame, a "u" will be displayed
to indicate an unlocked condition. The unit number is selected by means of the
unit select switch inside the receiving frame using a special alignment tool
supplied with the DE75i-SWC.

 The Activity Indicator is a small dot next to the Unit Number which illuminates

to show when the host computer is accessing the data on the DE75i-SWC
carrier. This dot will flash during communication with the host computer.

Figure 3: Receiving Frame Front Panel

StorCase Technology Inc. DE75i-SWC User's Guide - Rev. B00

Introduction 5

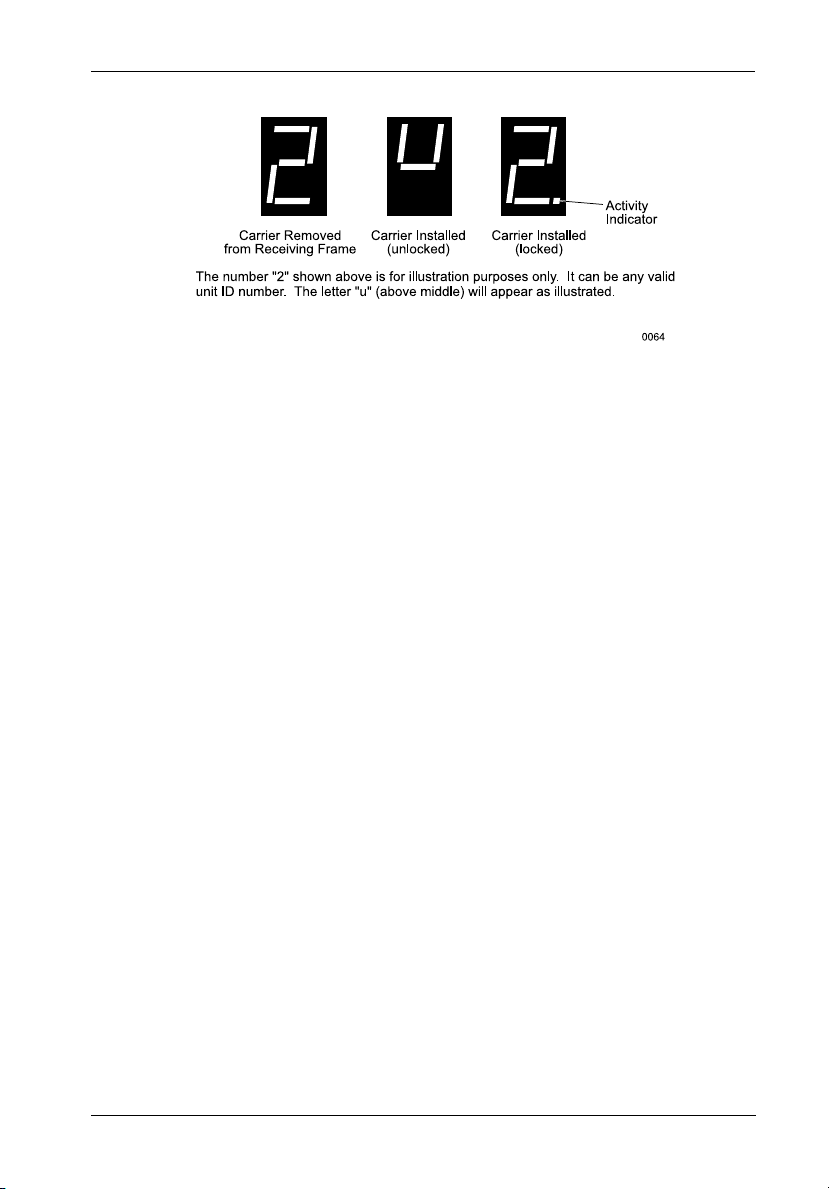

Figure 4: Receiving Frame Unit Number and Activity Display

ReceivingFrameRearPanel

(Refer to Figure 5)

 DC Power Connector (J1): The DE75i-SWC uses a standard 4-pin DC power

connector to accept DC power.

 I/O Connector (J3): The input/output connector provides a standard interface for

16-bit wide SCSI signals.

 Option Pins (Figure 5)

Remote Unit ID Selection: Pins 1 through 8 of this connector are provided for

remote unit SCSI ID selection through the computer system. Remote ID selection
requires that the unit ID switch located on the inside of the receiving frame be set
to "0" (Onboard ID selection is set with a switch located on the inside of the
receiving frame as shown in Figure 9). See Table 2 for Option Jumper Block pin
assignments.

Disable Onboard Termination: Pins 9 and 10 contain a factory installed jumper.
Removing the jumper will enable onboard termination.

Remote Activity LED: Pins 11 and 12 provide power for a remote LED device
activity indicator.

DE75i-SWC User's Guide - Rev. B00 StorCase Technology Inc.

6 Introduction

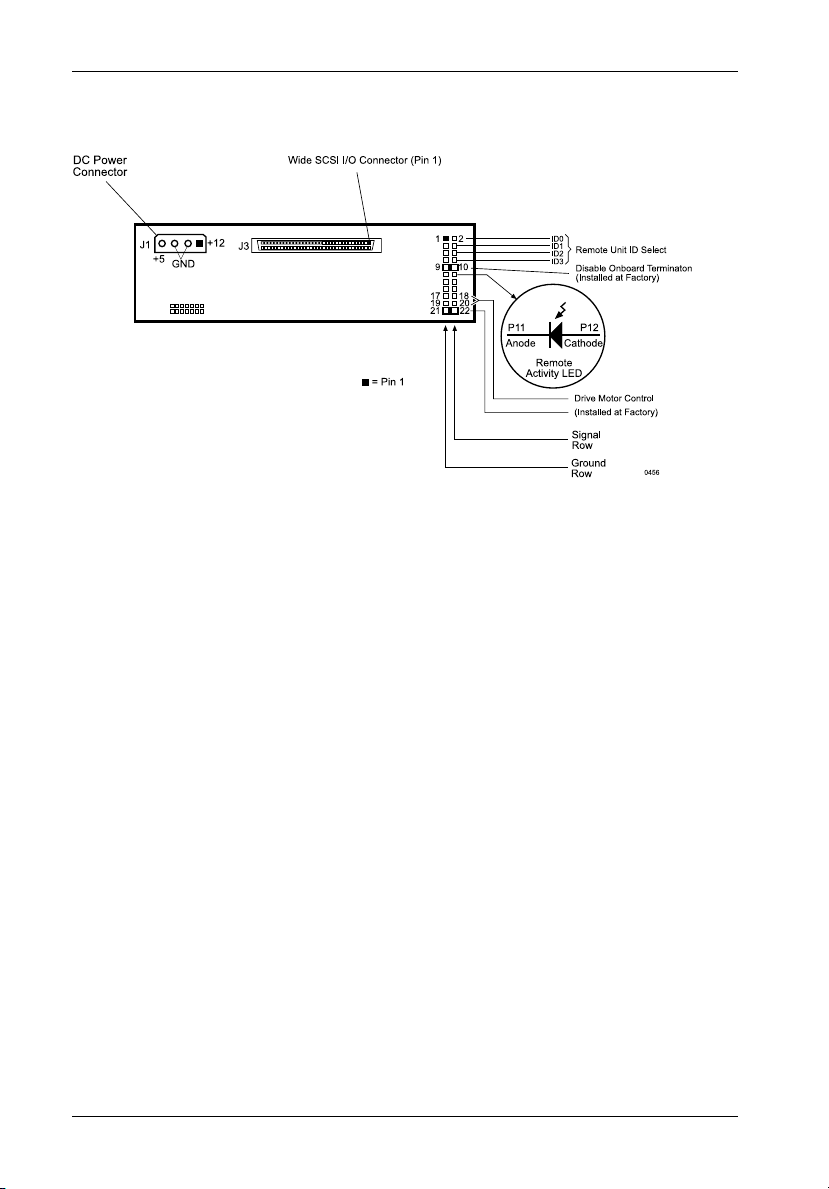

Figure 5: Receiving Frame Motherboard (Rear View)

StorCase Technology Inc. DE75i-SWC User's Guide - Rev. B00

Installation 7

DE75i-SWCINSTALLATION

InstallingtheDriveintheCarrier

Preparation

While performing the steps in this section, work on a soft surface to prevent excessive
shock to the drive being installed. Also refer to the manufacturer's documentation

provided with the drive.

NOTE: A #2 Phillips screwdriver will be required during this procedure.

1. Remove the drive from its protective packaging.

2. Plastic Drive Bezel: If the drive came equipped with a plastic front bezel,

it must be removed.

3. SCSI Drive Termination: If the drive contains onboard termination,

disable it. Termination is handled by an external terminator in the DE75i­SWC receiving frame. Refer to the documentation provided by the drive
manufacturer for termination information.

Installation

1. Carefully insert the drive (Figure 6) into the carrier so that the I/O connector
is flush with the rear of the carrier. Do not fasten the drive into place until
the drive cover has been installed as described in the following step.

2. Install the drive cover by inserting the front lip of the cover under the front
inside face of the carrier. Carefully push down on the rear of the cover so
that the side flanges align with the outside of the carrier as they appear in
Figure 6. The drive cover should sit flush with the top and rear of the
carrier. The drive and the I/O connector must also be flush with the rear of
the carrier. Fasten the drive and the cover into place with four (4) #6-32 x
1/4" Phillips machine head screws.

DE75i-SWC User's Guide - Rev. B00 StorCase Technology Inc.

8 Installation

Figure 6: Drive Installation Assembly

StorCase Technology Inc. DE75i-SWC User's Guide - Rev. B00

Installation 9

InstallingtheReceivingFrame

The drive should be installed into the carrier before installing the receiving frame into the
mounting bay of a computer or expansion chassis.

NOTE: Use a #2 Phillips screwdriver during this procedure.

1. Turn OFF power to the computer.

2. Open the computer system according to the manufacturers instructions. If
necessary, temporarily remove any expansion boards that may make
installation difficult.

3. To select the DE75i-SWC unit ID remotely through the computer system or
external expansion chassis, the appropriate cable from the system must be
connected to the option Pins 1-8 on the rear of the receiving frame as shown
in Figure 7.

Figure 7: Receiving Frame Motherboard Option Pin Connector

DE75i-SWC User's Guide - Rev. B00 StorCase Technology Inc.

10 Installation

Table 2 - Option Pin Connector Signal Descriptions

Pin Signal Function

1 GND Ground
2 ID0 SCSI ID
3 GND Ground
4 ID1 SCSI ID
5 GND Ground
6 ID2 SCSI ID
7 GND Ground
8 ID3 SCSI ID

9 GND Ground
10 DT Disable Onboard Terminator
11 RLEDA Remote LED Anode
12 RLEDC Remote LED Cathode
13 GND Ground
14 DFAULT Force Drive Fault Signal to Display
15 GND Ground
16 SYNC Drive Synchronization Signal
17 GND Ground
18 RMST Remote Start (see Table 3)
19 GND Ground
20 DLST Delay Start (see Table 3)
21 LKB Disable Isolator Function
22 LKA Disable Isolator Function

Table 3 - Option Pins 17-20 Drive Motor Control

DLST RMST Function

Open Open Motor spins up on power on
Open Closed Motor spins up only if SCSI

"Start" command is received

Closed Open Drive motor starts spining up

approximately 12 seconds x the
SCSI ID number for each target
drive (12 second minimum)

Closed Closed Reserved

Closed = Jumper installed
Open = Jumper removed

StorCase Technology Inc. DE75i-SWC User's Guide - Rev. B00

Installation 11

4. With the drive carrier locked into place inside the receiving frame, install the
DE75i-SWC receiving frame into the drive opening in the computer or
expansion chassis. Use the appropriate guides to position the DE75i-SWC,
and fasten it into place with the four (4) #6-32 x 1/4 screws provided.
Figure 8 illustrates the location of the mounting holes. Mounting holes are
provided on each side and the bottom of the receiving frame to
accommodate a variety of mounting configurations. Use the mounting holes
which best suit the computer or expansion chassis configuration.

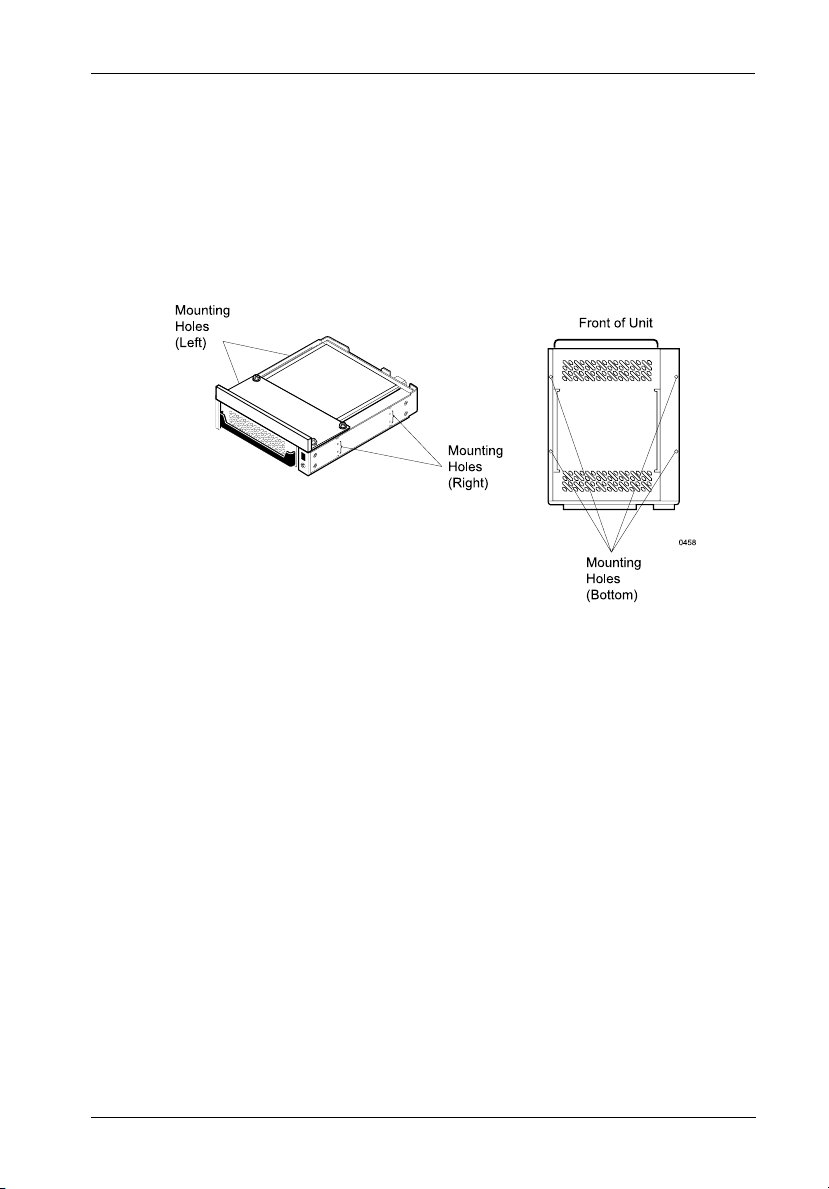

Figure 8: Receiving Frame Mounting Holes

5. Adjust the front of the receiving frame so the carrier slides freely in and out
on the receiving frame guides. The position of adjoining peripheral units may
require adjustment.

6. To connect a drive to a Remote Activity LED in the computer system or
expansion chassis, connect the appropriate cable(s) to the receiving frame
motherboard as shown in Figure 5. Connect Option Jumper Block Pins 11
and 12 to a remote activity LED.

7. Connect the I/O cable from the host adapter to the receiving frame. The Pin
1 indicator on the cable must be properly aligned. Refer to Figure 5 for the
correct Pin 1 location.

Make sure that only the last SCSI device is terminated. If the DE75i-SWC is
at the end of a daisy chain, the terminators on the receiving frame must be
enabled by removing the jumper at Option Pins 9 and 10. If the DE75i-SWC is
in the middle of a daisy chain, termination should be disabled (factory
setting, Figure 5).

DE75i-SWC User's Guide - Rev. B00 StorCase Technology Inc.

12 Installation

8. Connect the power cable from the DC power supply in the computer or
expansion chassis to the power connector on the DE75i-SWC receiving
frame. Refer to Figure 5 for the DE75i-SWC receiving frame power
connector location.

9. Replace any expansion boards that may have been removed earlier.
Replace the system cover according to the manufacturers instructions.

10. Reconnect any system or peripheral cables removed earlier.

11. Turn ON power to the computer. If the installation has been successful, and
all cables have been properly attached, the system should boot normally.
Although the computer may not recognize the DE75i-SWC yet, the front
panel LED indicator on the receiving frame should illuminate.

NOTE: The lock on the DE75i-SWC receiving frame functions as a lock

12. The new drive may need to be formatted or initialized prior to use with the
operating system and applications software. Refer to the drive and/or
computer manufacturer's documentation for formatting information.

and a DC power switch for the carrier unit. The lock must be
engaged (turned counterclockwise) in order to supply power to
the carrier and installed drive unit.

SelectingtheUnitID Number

1. Verify that power is turned on to the DE75i-SWC receiving frame by turning
on the computer or external expansion chassis. A number should appear
in the unit display window if the carrier is locked into place.

2. Unlock the DE75i-SWC drive carrier and remove it from the receiving frame.
A "u" will be displayed initially when the unit is unlocked but will return to a
SCSI ID number when the carrier is removed from the receiving frame.

WARNING: Unlocking the carrier unit switches DC power off to the

3. Use the alignment tool supplied with the DE75i-SWC to select the ID number
of the disk drive. Refer to Figure 9 for the location of the unit ID select
switch inside the receiving frame.

drive. Since disk drives require a short amount of time to
spin down, allow about 15 seconds before pulling the
carrier unit out of the receiving frame to avoid possible
damage to the drive.

4. After selecting an appropriate unit ID number, replace the DE75i-SWC
carrier in the receiving frame, and LOCK IT INTO PLACE.

StorCase Technology Inc. DE75i-SWC User's Guide - Rev. B00

Installation 13

5. The new drive may need to be formatted or initialized prior to use with the
operating system and applications software. Refer to the drive and/or
computer manufacturer's documentation for formatting information.

Figure 9: Unit ID Select Switch Location

DE75i-SWC User's Guide - Rev. B00 StorCase Technology Inc.

14 Installation

This Page Left Blank Intentionally.

StorCase Technology Inc. DE75i-SWC User's Guide - Rev. B00

Appendix A - Specifications/Dimensions 15

APPENDICES

DE75i-SWC User's Guide - Rev. B00 StorCase Technology Inc.

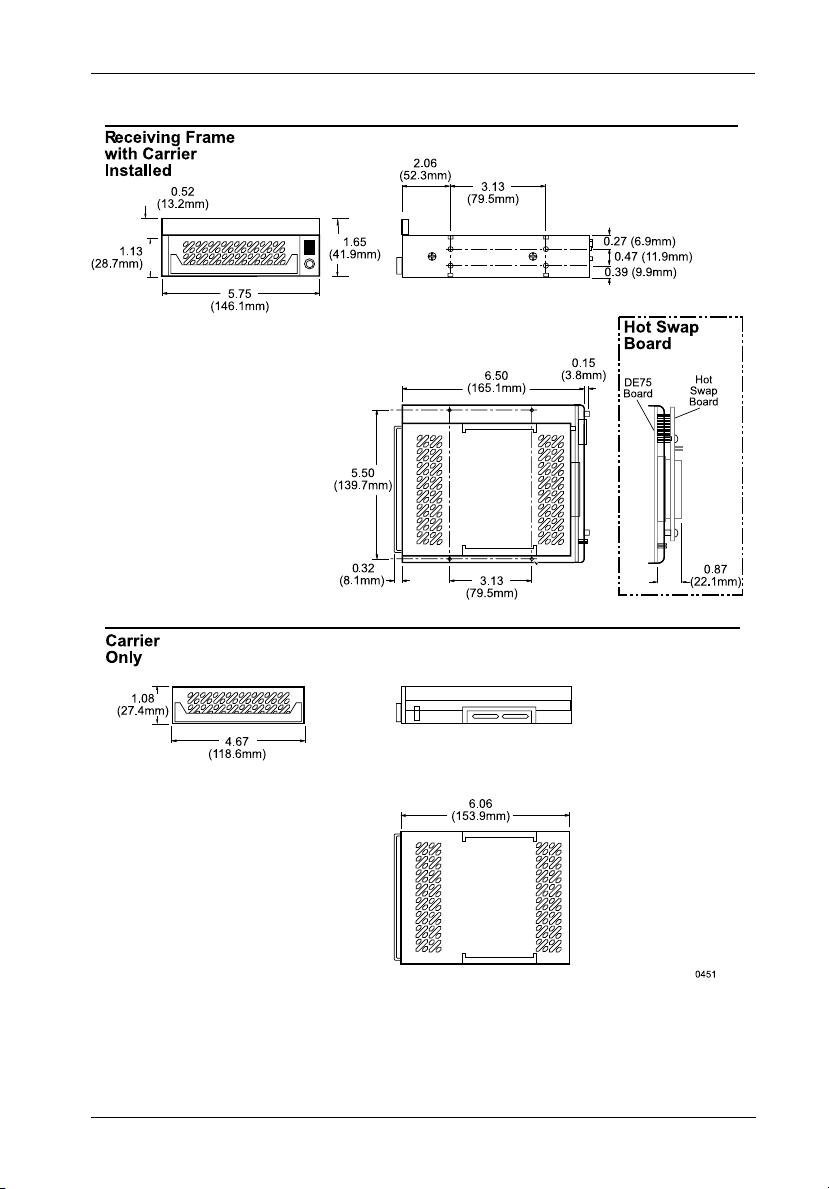

16 Appendix A - Specifications/Dimensions

Appendix A - Specifications/Dimensions

SCSI Data Express subsystems conform to the Small Computer Systems Interface (SCSI)
Standard set by the American National Standards Institute (ANSI). The following DE75i­SWC specifications and dimensions are provided for reference only.

Environmental Specifications

Operating Storage

Ambient Temperature -5° C to 50° C -45° C to 75° C
Relative Humidity
Altitude -1000 to 50,000 ft -1000 to 50,000 ft

(2)

Shock

(1)

Non-condensing with maximum gradient of 10% per hour.

(2)

11 msec pulse width 1/2 sine wave.

Physical
Specifications Carrier Receiving Frame

Height 1.08" (27.4mm) 1.13" (28.7mm)
Width 4.67" (118.6mm) 5.75" (146.1mm)
Depth 6.06" (153.9mm) 6.50" (165.1mm)

Weight 0.75lb. (0.34kg) 0.95lb (0.43kg)

(1)

With adapter bezel removed.

(2)

With carrier removed.

(1 )

10% to 80% 10% to 90%

-304m to 15240m -304m to 15240m
10g 60g

(1)

(2)

Chassis Reliability/Maintainability

MTBF 500,000 Hours
MTTR 5 Minutes
Preventive
Maintenance None

Electrical Specifications

Input +5V 65mA

+12V 400µA

StorCase Technology Inc. DE75i-SWC User's Guide - Rev. B00

Appendix A - Specifications/Dimensions 17

Figure A-1: DE75i-SWC Physical Dimensions

(Dimensions are for reference only)

DE75i-SWC User's Guide - Rev. B00 StorCase Technology Inc.

18 Appendix B - Factory-Installed Options

Appendix B - Factory-Installed Options

Hot Swap Board

The DE75 SCSI Hot Swap Board (part number DX75-SWC/H) allows the installation,
removal or exchange of DE75i-SWC carriers while your computer system is operating by
monitoring and protecting the computer system and other peripheral devices on the SCSI
Bus. The Hot Swap option eliminates the need to shut down your system when adding or
removing a SCSI device by performing two functions:

1. Delays power up/down of the drive until the time period between SCSI bus
cycles. This prevents the interruption of any SCSI bus activity being done by
other devices on the bus.

2. Prevents drive power sequencing from generating noise on the SCSI bus, thus
preventing data transfer corruption on other devices.

Please note that, whereas UNIX and Apple based systems provide mount/dismount drive
commands, most PC systems do not provide such a feature. When using one of these
operating systems, it may be necessary to reboot the computer after adding or changing
a drive. This reboot activity will force the SCSI host adapter to rescan its SCSI bus for
physically attached drives, and will then be able to access the new or changed drive.

Attaching the Hot Swap Board

The DE75i-SWC may be purchased with the Hot Swap option factory-installed. If the Hot
Swap Board has not already been attached to the DE75i-SWC receiving frame, follow the
instructions below to add the Hot Swap Board. Otherwise, proceed to the section "Using
the Hot Swap Board" for usage instructions.

1. Remove the jumper on the receiving frame motherboard option Pins 21 and 22.
Option jumper at Pins 9 and 10 must be installed (default setting) to disable on­board termination at the receiving frame motherboard (Figure 5). The Hot Swap
Board (Figure B-2), will control onboard termination. Removing jumper JP1 will
enable termination (Refer to the next section "Jumper Options").

NOTE: Save these jumper(s)! These jumper(s) are required when the Hot

2. Carefully align the connectors of the Hot Swap Board with the connectors on
the receiving frame motherboard and gently push the Hot Swap Board into
position. Make certain that all connectors are properly mated.

3. Attach the Hot Swap Board to the receiving frame stand-offs with the two (2)
provided screws (Figure B-1).

StorCase Technology Inc. DE75i-SWC User's Guide - Rev. B00

Swap Board is not installed.

Appendix B - Factory-Installed Options 19

Figure B-1: Attaching the Hot Swap Board

Jumper Options

Most jumper options are configurable via the receiving frame motherboard (Figure 7). The
Hot Swap Board provides one configurable jumper, JP1 (Figure B-2). When installed
(factory default), this jumper disables onboard termination. If the DE75i-SWC will be
physically located at the end of a SCSI daisy chain, remove this jumper to enable
termination.

DE75i-SWC User's Guide - Rev. B00 StorCase Technology Inc.

20 Appendix B - Factory-Installed Options

Figure B-2: Hot Swap Board Details

Using the Hot Swap Board

Carrier Removal

Follow the procedures below to remove the DE75i-SWC carrier from the receiving frame
equipped with the Hot Swap option.

1. Verify that the drive is not active. If the system is on a network, make certain
other users are not accessing the target drive, then disable it from the network.
Dismount the drive.

2. Turn the DE75i-SWC key lock mechanism (located on the front of the receiving
frame), clockwise to the OFF position. This unlocks the drive from the receiving
frame and activates the Hot Swap Board. The unit number on the display will
begin flashing.

StorCase Technology Inc. DE75i-SWC User's Guide - Rev. B00

Appendix B - Factory-Installed Options 21

WARNING: Be careful not to remove or disturb the carrier unit at this point.

3. As the unit number flashes, the Hot Swap Board monitors the activity of the SCSI
bus. When activity is no longer present, the Hot Swap Board will remove power
from the drive and then remove the device from the SCSI Bus. The unit number
will continue to flash during this period.

4. After a short length of time the unit display will turn from a flashing unit number to
a steady "u", indicating that the device is powered down, unlocked and ready to
be removed from the receiving frame.

Although the carrier is physically unlocked, the drive requires a
minimum of 15 seconds to spin down and is subject to vibration and
possible damage during this period.

Carrier Installation

Follow the procedures below to install the DE75i-SWC Carrier into the receiving frame
equipped with the Hot Swap option.

1. Install the carrier into the receiving frame. A "u" will be present on the front panel,
indicating that the carrier is in an unlocked condition.

2. Turn the key lock mechanism, located on the front of the receiving frame, counter­clockwise to the ON position. This locks the drive into the receiving frame and
activates the Hot Swap Board. The drive will begin to spin up and the unit number
on the display will begin flashing.

3. After a short length of time the unit display will stop flashing, indicating that the
device is ready to be used.

DE75i-SWC User's Guide - Rev. B00 StorCase Technology Inc.

22 Appendix C - Attaching the ON/OFF Key

Appendix C - Attaching the ON/OFF Key

The following information will provide the necessary steps to attach the ON/OFF key to
the key lock mechanism so that it is non-removable, preventing accidental key loss. The
procedure can be reversed at a later date to revert back to a removable key.

1. Make certain power is OFF to the receiving
frame.

Locate the rectangular shaped key lock
mechanism access hole on the inside of the
receiving frame. Note that the pawl is in an
upright position.

Insert the key into the key lock.

2. Rotate the key 90 degrees counterclockwise
so that the pawl is visible in the access hole
as shown in the figure at left.

3. Using the provided alignment tool, unscrew
and remove the pawl from the access hole.

4. Rotate the key 180 degrees clockwise.

5. Reinstall the pawl into the access hole with
the alignment tool.

Your key is now attached to the key lock
mechanism.

Figure C-1: Attaching the ON/OFF Key

StorCase Technology Inc. DE75i-SWC User's Guide - Rev. B00

Appendix D - Optional Accessories 23

Appendix D - Optional Accessories

Carrying Case

Drive
Carrier

DX300-DE-C
Carrying Case

Figure D-1: Carrying Case

The optional molded plastic carrying case is designed to transport the DE75i-SWC carrier
from one site to another in a safe, impact and moisture resistant environment. Its compact
dimensions, 7 long x 9 wide x 3.5 high, make it easy to carry and to store. The foam
lining is contoured to fit a single Data Express carrier with a 1 inch form factor. Contact
your StorCase dealer for further details and ordering information.

DE75i-SWC User's Guide - Rev. B00 StorCase Technology Inc.

0460

24 Appendix D - Optional Accessories

Drive Plug

Figure D-2: Drive Plug

The drive plug (part number DX75C/300C-PLUG) is designed to fill system or external
enclosure bays that are occupied by receiving frames that have no carrier units installed.
The purpose of the plug is to provide an attractive and functional method of directing
proper air flow to the other installed devices in the system or external enclosure.

StorCase Technology Inc. DE75i-SWC User's Guide - Rev. B00

Reader's Comments 25

Reader's Comments

Please take a few moments when your computer system is up and running to send us
your ideas and suggestions for improving our products and documentation. Did the
installation go smoothly for you? Are there any changes you would like us to make, either
with the hardware itself, or with the installation instructions? Everyone at StorCase
Technology is working toward the goal of providing you with the highest quality, most
cost effective, products available on the market, and we need your comments to guide
our efforts. We look forward to hearing from you soon!

Date:

Your Name:

Address:

Telephone: ( )

To mail this page, carefully remove it from the manual, fold it, staple or tape it shut, and
drop it in the mail. To FAX this page, carefully remove it from the manual (or make a
photocopy) and FAX it to us at [phone]. Thank you for taking the time to help us
make our products better!

DE75i-SWC User's Guide - Rev. B00 StorCase Technology Inc.

26 Reader's Comments

FOLD ALONG THIS LINE AND STAPLE SHUT

NO POSTAGE

NECESSARY

IF MAILED

IN THE

UNITED STATES

CUT ALONG THIS LINE FROM BOTTOM TO TOP OF PAGE

BUSINESS REPLY MAIL

FIRST CLASS MAIL PERMIT NO. 10686 SANTA ANA, CA

POSTAGE WILL BE PAID BY ADDRESSEE

TECHNOLOGY CORPORATION

17600 NEWHOPE STREET
FOUNTAIN VALLEY CA 92708-9885

StorCase Technology Inc. DE75i-SWC User's Guide - Rev. B00
