StorCase Technology

Data Express

®

DE75i-A66

Removable Ultra ATA/66
Low-Profile Drive Enclosure

User's Guide

StorCase Technology

i

Data Express

®

DE75i-A66

Removable Ultra ATA/66

Low-Profile Drive Enclosure

User's Guide

Part No. D89-0000-0110 A00 June 2000

StorCase Technology Inc.

17580 Newhope Street

Phone [phone] Fax [phone]

DE75i-A66 User's Guide - Rev. A00 StorCase Technology Inc.

Fountain Valley, CA 92708-9885

ii

LIMITED WARRANTY

STORCASE TECHNOLOGY INC. ("StorCase") warrants that the following products will be free
from defects in material and workmanship for a period of seven (7) years from the date of
purchase from StorCase or its authorized reseller: all Data Silo®, Data Stacker®, and
InfoStation external expansion chassis, all Data Express® removable device enclosures and
all StorCase interface cables and accessories specifically intended for use with these
products. Subject to the conditions and limitations set forth below, StorCase will, at its option,
either repair or replace any part of its product that proves defective by reason of improper
workmanship or materials. Repair parts or replacement products will be provided by StorCase
on an exchange basis, and will be either new or refurbished to be functionally equivalent to
new.

This warranty will not be responsible for any software, firmware or other customer data stored
within, or interfacing with a StorCase product.

Warranty Claim Requirements

To obtain warranty service, the defective product must be returned to your local authorized
StorCase dealer or distributor, or, with prior StorCase approval, to the StorCase factory
service center.

For defective product returns directly to StorCase, a Return Material Authorization
("RMA") number must be obtained by calling StorCase Customer Service at [phone].
The RMA number must be prominently displayed on the outside of the return package.
Shipments must be freight-prepaid and insured, and must include the product serial number,
a detailed description of the problem experienced, and proof of the original purchase date.
Products must be properly packaged to prevent damage in transit. Damage resulting from
improper packaging will not be covered by this warranty. The StorCase factory service center
is located at 3400 S. Susan Street, RMA Dept., Santa Ana, California 92704, U.S.A.

Free Technical Support

StorCase provides free technical support. If you experience any difficulty during the
installation or subsequent use of a StorCase product, please contact StorCase's Technical
Support Department prior to servicing your system. This warranty covers only repair or
replacement of defective StorCase products, as described above. StorCase is not liable for,
and does not cover under warranty, any costs associated with servicing and/or installation
of StorCase products.

StorCase Technical Support can be reached in the U.S. at [phone] or toll-free at (888)
435-5460 (U.S. and Canada only). StorCase European Technical Support can be reached
from within the U.K. at 01932 738915.

StorCase Technology Inc. DE75i-A66 User's Guide - Rev. A00

Disclaimers

The foregoing is the complete warranty for the products identified above and
supersedes all other warranties and representations, whether oral or written.
StorCase expressly disclaims all warranties for the identified products which are
not stated herein, including, to the extent permitted by applicable law, any implied
warranty of merchantability or fitness for a particular purpose. In no event will
StorCase be liable to the purchaser, or to any user of a StorCase product, for any
damages, expenses, lost revenues, lost savings, lost profits, or any other
incidental or consequential damages arising from the purchase, use or inability
to use a StorCase product, even if StorCase has been advised of the possibility
of such damages.

Copyright © 2000 StorCase Technology. All rights reserved. All registered trademarks are
the property of StorCase Technology. All other logos and trademarks are properties of their
respective companies. Printed in the U.S.A.

iii

DE75i-A66 User's Guide - Rev. A00 StorCase Technology Inc.

iv

Declaration of Conformity

Company Name:

Corporate Office Address:

Manufacturing Address:

Product Name:

Model Number:

Conforms to the following standards:

EMC Directives:
(89/336/EEC)

Low Voltage Directive:
(73/23/EEC)

Safety Standards:
CSA (NRTL/C)

TUV

StorCase Technology Inc.

17600 Newhope Street
Fountain Valley, CA 92708

3400 S. Susan Street
Santa Ana, CA 92704

Data Express DE75

DE75i-XXXX/X

EN 50081-1: 1992 Generic Emission

- EN 55022/CISPR22 Class B
EN 50082-1: 1992 Generic Immunity

- IEC 1000-4-2 ESD

- IEC 1000-4-3 Radiated Immunity

- IEC 1000-4-4 Electrical Fast Transient

EN 60950

CAN/CSA-C22.2 No. 950-95
UL 1950

EN 60950: 1992 EN 60950/A2: 1993
EN 60950/A1: 1993 EN 60950/A3: 1995

EMI Standards:

EMC Standards:

Year of Manufacture:

Signature:___________________
Full name: Dieter Paul
Position: Vice President of Engineering

StorCase Technology Inc. DE75i-A66 User's Guide - Rev. A00

FCC Part 15, Class B

AS/NZS 3548 Information Technology Equipment

2000

Table of Contents

DATA EXPRESS DE75i-A66 INTRODUCTION ...................................................................... 1

Packaging Information .................................................................................................. 1

Package Contents ......................................................................................................... 2

Serial Numbers .............................................................................................................. 2

General Description ...................................................................................................... 3

Receiving Frame Front Panel ............................................................................... 4

Receiving Frame Rear Panel................................................................................ 5

DE75I-A66 INSTALLATION ................................................................................................... 6

Installing the Drive into the Carrier ............................................................................... 6

Preparation ............................................................................................................ 6

Configuring the Drive Carrier Circuit Board (Method 2) ............................................. 6

Installation ..................................................................................................................... 9

Installing the Receiving Frame ................................................................................... 10

Selecting the Unit ID Number ...................................................................................... 12

Unit ID Select Switch Settings ........................................................................... 13

AT/IDE Interface Connector JP1 ........................................................................ 13

APPENDICES ........................................................................................................................ 15

Appendix A - Specifications/Dimensions .................................................................. 16

Appendix B - Attaching the ON/OFF Key .................................................................. 18

Appendix C - Optional Accessories .......................................................................... 19

Carrying Case ..................................................................................................... 19

v

Reader's Comments............................................................................................................ 21

DE75i-A66 User's Guide - Rev. A00 StorCase Technology Inc.

vi

List of Figures

Figure 1: Package Contents .............................................................................................. 1

Figure 2: DE75i-A66 Low-Profile Receiving Frame and Carrier ...................................... 3

Figure 3: Receiving Frame Front Panel............................................................................. 4

Figure 4: Receiving Frame Rear Panel (Motherboard)..................................................... 5

Figure 5: DE75i-A66 Drive Carrier Circuit Board .............................................................. 7

Figure 6: Typical Ultra ATA/66 Master/Slave Drive Connection ...................................... 8

Figure 7: Drive Installation Assembly................................................................................ 9

Figure 8: Typical Receiving Frame JP4 Master/Slave Jumper Settings ........................ 10

Figure 9: Receiving Frame Mounting Holes .................................................................... 11

Figure 10: Unit ID Select Switch Location ........................................................................ 12

Figure A-1: DE75i-A66 Physical Dimensions ...................................................................... 17

Figure B-1: Attaching the ON/OFF Key .............................................................................. 18

Figure C-1: Carrying Case ................................................................................................... 19

List of Tables

Table 1: Shipping Contents .............................................................................................. 2

Table 2: Unit ID Select Switch Settings ......................................................................... 11

Table 3: AT/IDE Interface Signals .................................................................................. 11

NOTICE: This User's Guide is subject to periodic updates without notice. Please check

StorCase Technology Inc. DE75i-A66 User's Guide - Rev. A00

the StorCase website at http://www.storcase.com or contact your StorCase
representative for the latest revision of this document.

Introduction 1

DATA EXPRESS® DE75i-A66 INTRODUCTION

PackagingInformation

The StorCase Technology Data Express® system is shipped in a container designed to
provide protection and prevent damage during shipment. The Data Express unit was
carefully inspected before and during the packing procedure at the factory. Bent or
broken connectors, or evidence of other damage to the Data Express should be reported
to the shipper immediately. Refer to Figure 1 for the package contents.

If the wrong Data Express model has been received, please call StorCase at (800) 435-

0642. A staff member will give you a Return Material Authorization (RMA) number to
facilitate processing. StorCase cannot accept returns which do not display an RMA
number on the outside of the package. Return the unit with all the original packing
materials.

Before removing any component from its packaging, discharge any static electricity by
touching a properly grounded metal object.

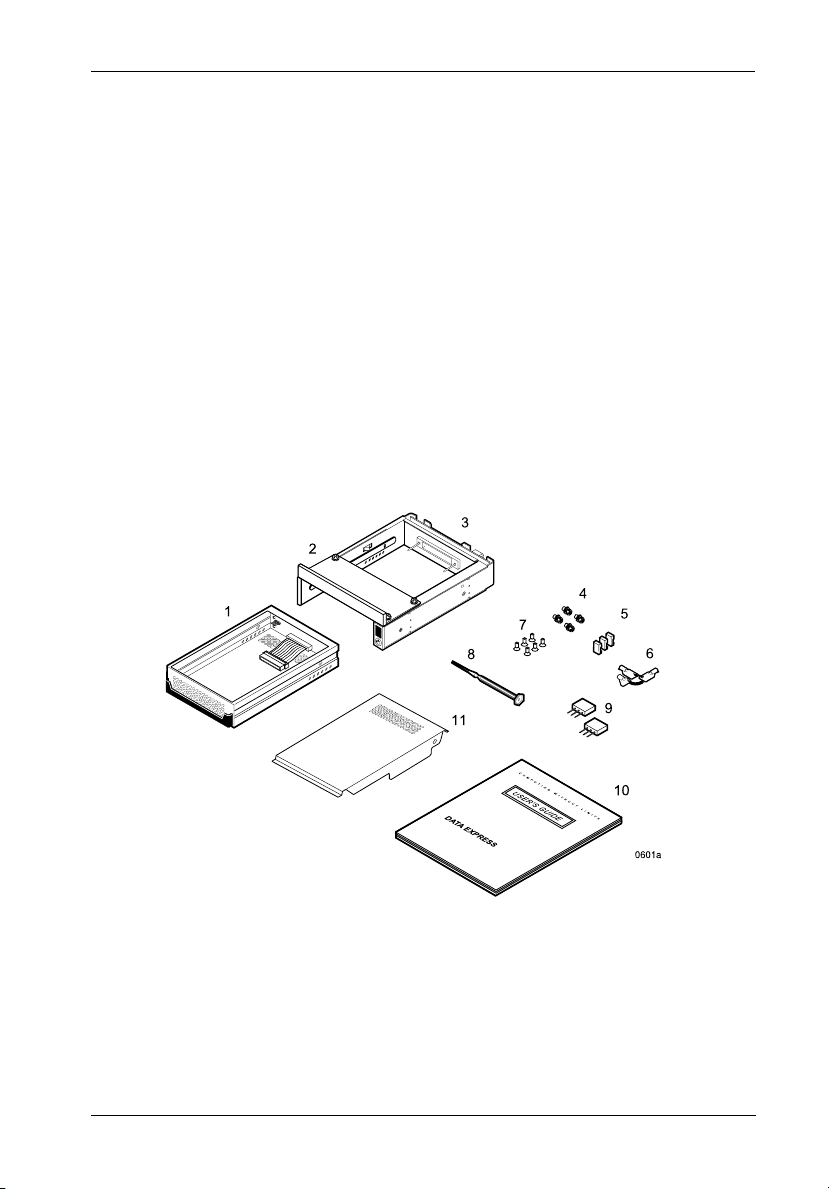

1. Drive Carrier

2. Low-Profile Filler Bracket (Installed)

3. Receiving Frame

4. #6-32 x 1/4" Phillips Machine Hd. Screws
(Attach Receiving Frame to Computer)

5. Jumper Plugs

6. Drive Lock Keys

7. #6-32 x 3/16" Phillips F.H. Screws
(Attach Drive and Cable Cover to

Carrier)

8. Alignment Tool

9. Single Row Wire Wrap Connectors

10. User's Guide

11. Drive Cover

Figure 1: Package Contents

DE75i-A66 User's Guide - Rev. A00 StorCase Technology Inc.

2 Introduction

Package Contents

The DE75i-A66 package contents include the following items:

Table 1: Shipping Contents

One StorCase Data Express DE75i-A66 DE75i-CA66 DE75i-RA66
AT/IDE Removable Enclosure Part Number (Carrier & RF) (Carrier) (Receiving Frame)

Drive Carrier DE75i-CA66 (1) (1)

Receiving Frame DE75i-RA66 (1) (1)

Alignment Tool D45-0000-0037 (1) (1)

Phillips Mounting Screws (#6-32 x 3/16 D10-4040-0087 (6) (6)
F.H. to attach drive and cable cover)

Phillips Mounting Screws (#6-32 x 1/4) D45-0000-0004 (4) (4)
to attach receiving frame to computer)

Single Row Wire Wrap Connectors D16-0000-0014 (2) (2)

Drive Cover D10-4040-0213 (1) (1)

Jumper Plugs D16-0000-0053 (3) (3)

Drive Lock Keys D45-0000-0059 (1 Set) (1 Set)

User's Guide D89-0000-0110 (1) (1) (1)

If any items are missing or damaged, contact your StorCase dealer for a replacement.

Serial Numbers

Both the Data Express receiving frame and carrier are labeled with serial numbers.
These numbers must be reported to the StorCase Customer Service Representative in
order to receive a Return Material Authorization (RMA) for warranty claims. Locate the
serial number labels and record the numbers in the spaces provided below.

Receiving Frame:

Drive Carrier:

StorCase Technology Inc. DE75i-A66 User's Guide - Rev. A00

Introduction 3

GeneralDescription

The StorCase Technology Data Express® DE75i-A66 is a removable low-profile drive
carrier and receiving frame. The DE75i-A66 is designed to provide durable and reliable
mounting for one (1) 3.5 low profile Ultra ATA/66 drive within a 5.25" half-height
peripheral slot (Figure 2). It is downward compatible with earlier technology AT/IDE
drives.

The DE75i-A66 allows the carrier unit and installed drive to be removed and transported to
another DE75i-A66 equipped computer, and also provides the ability to secure sensitive
data by removing and storing the carrier/drive safely for future use.

NOTE: For Ultra ATA/66 (66MByte/sec) operation, an Ultra ATA/66 controller and hard

This User's Guide describes the steps required to install the StorCase Data Express
DE75i-A66 removable enclosure into a computer peripheral bay. This guide supplements
documentation provided with the host computer system, operating system, and the drive
to be installed within the Data Express carrier.

drive(s), and a special 40-pin, 80-conductor cable is required.

Figure 2: DE75i-A66 Receiving Frame and Carrier

DE75i-A66 User's Guide - Rev. A00 StorCase Technology Inc.

4 Introduction

ReceivingFrameFrontPanel

(Figure 3)

 The Key Lock/Drive Power Switch performs three functions. The key lock

assures proper seating of the drive carrier within the receiving frame, turns
power to the drive carrier on and off, and prevents unauthorized removal or
installation of the carrier. For the computer to access data on the DE75i-A66
drive, the key must be turned counterclockwise to the locked position.

 The Unit Number Indicator displays the physical address of the DE75i-A66

drive carrier when the carrier is Installed and Locked in the receiving frame or

Removed from the receiving frame. If the drive carrier is Installed but Not
Locked , a "u" will be displayed. The unit number is selected by means of the

unit select switch located inside the receiving frame using a special alignment
tool supplied with the DE75i-A66. This procedure is explained later during the
installation process.

 The Activity Indicator is a small dot next to the Unit Number which illuminates

to show when the host computer is accessing the data on the DE75i-A66
carrier.

Figure 3: Receiving Frame Front Panel

StorCase Technology Inc. DE75i-A66 User's Guide - Rev. A00

Introduction 5

ReceivingFrameRearPanel

(Figure 4)

 DC Power Connector (P1): The Data Express uses a standard 4-pin DC

Power Connector to accept DC power.

 I/O Connector (JP6): The input/output connector provides a standard

interface for all IDE signals. See Table 3 for JP1 pin assignments.

 Master/Slave Selection (JP4): Master/Slave Drive configuration. Refer to the

"Installation" section for more specific information.

 Option Pins (JP6)

 Device Spin Down/Up Timer Jumper (ID0 & ID1): Jumper installed on Pins 1

and 2 (Factory Default) enables device spin down/up visual indicator for the
Master drive. Jumper installed on Pins 3 and 4 enables device spin down/up
visual indicator for the Slave drive.

 Remote Drive Activity (JP6 RLED): Pins 17 and 18 are used for remote drive

activity.

 Jumper (JP6 DDA): Installed at the factory - Do not remove!

Figure 4: Receiving Frame Rear Panel (Motherboard)

DE75i-A66 User's Guide - Rev. A00 StorCase Technology Inc.

6 Installation

DE75i-A66INSTALLATION

InstallingtheDriveintotheCarrier

Preparation

While performing the steps in this section, work on a soft surface to prevent excessive
shock to the drive being installed. Also refer to the manufacturer's documentation
provided with the drive.

NOTE: A #2 Phillips screwdriver will be required during this procedure.

1. Remove the drive from its protective packaging.

2. Plastic Drive Bezel: If the drive came equipped with a plastic front panel

(bezel), it must be removed before installing the drive into the drive carrier.

3. Master/Slave Drive Selection: There are two ways to set the Master/Slave

drive designation for the DE75i-A66 unit:
 Method 1: Use the factory-installed jumper on your IDE drive - In

most cases, the drive will be factory-configured as a Master Ultra ATA/66 drive
using a jumper plug on the drive itself. No configuration changes are required.
For multiple drive configurations, it is necessary to set the first IDE drive as
Master and the second Ultra ATA/66 drive to Slave. This can be done by
changing the jumper on the Ultra ATA/66 drive itself (refer to your drive
manufacturer documentation). This method requires no additional configuration
of the drive carrier circuit board. Skip the Method 2 section below and

continue with the "Installation" section.

 Method 2: Use the hard-wire connector JP3 and/or JP4 on the drive
carrier circuit board - The Master/Slave drive selection is set by both a hard-

wire connection between the drive and the drive carrier circuit board and
jumper(s) JP4 configuration on the receiving frame motherboard. This method
requires the fabrication of a cable wire (not provided). Refer to the section

below to configure the drive carrier circuit board and receiving frame
using this method.

Configuring the Drive Carrier Circuit Board (Method 2)

When configuring the dual drives for interchangeable Master/Slave assignment, it is
necessary to emulate the Master and Slave drive jumpers and the specific drive's signal
polarity definition of Master and Slave.

NOTE: For dual, interchangeable drive configuration, the two drives must be

StorCase Technology Inc. DE75i-A66 User's Guide - Rev. A00

of the same make and model.

Installation 7

The appropriate pins on the drive must be connected to JP3 and/or JP4 on the carrier
board. These connections are required to set the Master/Slave configurations of the
installed drive. Figure 5 illustrates the Drive Carrier Circuit Board.

Figure 5: DE75i-A66 Drive Carrier Circuit Board

The JP3 and JP4 connectors have 3 pins each:

Pin 1 should be connected to the Master signal of the disk drive. This signal indicates

Pin 2 should be connected to the Slave/Slave Present signal of the drive. This signal

Pin 3 may optionally be connected to the "Active" signal of the drive. This signal

DE75i-A66 User's Guide - Rev. A00 StorCase Technology Inc.

that this is the Master C: drive.

indicates whether a Slave D: drive is present or not.

controls the level of the drive activity indicator light on the front panel of the
receiving frame. The receiving frame circuit board is designed to route the
drive's - HOST SLV/ACT signal (drive activity) to the activity indicator light on
the front panel of the DE75i-A66 receiving frame. A connection to Pin 3 should
only be made if the drive does not support this - HOST SLV/ACT signal on Pin
39 of the interface connector (check the documentation that accompanied the
drive and controller).

8 Installation

Figure 6: Typical Ultra ATA/66 Master/Slave Drive Connections

Typical Ultra ATA/66 drive pin positions are shown in Figure 6. Remove and save all
jumpers. Install a wire (not provided) connecting the appropriate drive pins to the
appropriate JP3 and JP4 pins as shown in Figure 6. Refer to the drive manufacturer's
documentation for further information.

Once the Master/Slave configuration on the drive carrier circuit board is complete, the JP4
jumper(s) on the receiving frame motherboard must be configured as shown in Figure 8.

StorCase Technology Inc. DE75i-A66 User's Guide - Rev. A00

Installation 9

Installation

1. Attach the I/O cable on the drive carrier circuit board to the drive. Refer to
Figure 7 for an illustration of the installation process.

2. Attach the 4-pin power cable on the drive carrier circuit board to the drive.
If you are installing only one drive carrier, skip to Step 4.

3. For Method 2 Users:
If a Master/Slave cable was fabricated as outlined in the previous section,
install it now between the appropriate drive pins and connectors JP3 and
JP4 on the drive carrier circuit board. See Figure 6 for typical Ultra ATA/66
Master/Slave drive connections. Also refer to the documentation that
accompanied the drive for more specific information.

Figure 7: Drive Installation Assembly

4. Carefully insert the drive into the drive carrier at an angle, cable-end first.

Make sure none of the cables are pinched. Lower the front of the
drive carefully into place. Fasten the drive into the carrier with four of the
eight screws provided as shown in Figure 7.

5. Install the provided drive cover.

DE75i-A66 User's Guide - Rev. A00 StorCase Technology Inc.

10 Installation

InstallingtheReceivingFrame

The drive should be installed into the carrier before installing the receiving frame into the
mounting bay of the computer chassis.

NOTE: Use a #2 Phillips screwdriver during this procedure.

1. Turn OFF power to the computer.

2. Open the computer system according to the manufacturers instructions. If
necessary, temporarily remove any expansion boards that may make
installation difficult.

3. Select the Master/Slave configuration on the rear of the receiving frame by
placing jumper(s) on the appropriate (JP4) pins (Figure 8).

Figure 8: Typical Receiving Frame JP4 Master/Slave Jumper Settings

4. With the drive carrier locked in place inside the receiving frame, install the
DE75i-A66 into the 5.25 drive opening in the computer or expansion chassis.
Use the appropriate guides to position the DE75i-A66, and fasten it into place
with the four (4) #6-32 x 1/4 screws provided. Figure 9 illustrates the
location of the mounting holes. Mounting holes are provided on each side and
the bottom of the receiving frame to accommodate a variety of mounting
configurations. Use the mounting holes which best suit the computer or
expansion chassis configuration. Note that bottom mounting holes require self
tapping screws (not provided).

StorCase Technology Inc. DE75i-A66 User's Guide - Rev. A00

Installation 11

Figure 9: Receiving Frame Mounting Holes

5. Adjust the front of the receiving frame so the carrier slides freely in and out
on the receiving frame guides. The position of adjoining peripheral units may
require adjustment.

6. To connect the drive to a Remote Activity LED in the computer system,
connect the appropriate cable(s) to the receiving frame rear panel as shown
in Figure 4. Connect JP6 Pins 17 and 18 to a remote activity LED.

7. Connect the I/O cable from the host adapter to the receiving frame. The Pin 1
indicator on the cable must be properly aligned. Refer to Figure 4 for the
correct Pin 1 location.

8. Connect the power cable from the DC power supply in the computer chassis
to the power connector on the DE75i-A66 receiving frame. Refer to Figure 4
for the receiving frame power connector location.

9. Replace any expansion boards that may have been removed earlier. Replace
the system cover according to the manufacturers instructions.

10. Reconnect any system or peripheral cables removed earlier.

11. Turn on power to the computer. If the installation has been successful, and
all cables have been properly attached, the system should boot normally.
Although the computer may not recognize the DE75i-A66 yet, the front panel
display on the Data Express should illuminate.

NOTE: The lock on the DE75i-A66 receiving frame functions as a lock and a DC

DE75i-A66 User's Guide - Rev. A00 StorCase Technology Inc.

power switch for the carrier unit. The lock must be engaged (turned
counterclockwise) in order to supply power to the carrier and installed
drive unit.

12. The new drive may need to be formatted or initialized prior to use with the

operating system and applications software. Refer to the drive and/or
computer manufacturer's documentation for formatting information.

12 Installation

SelectingtheUnitID Number

1. Verify that power is turned on to the DE75i-A66 receiving frame by turning
on the computer. A number should appear in the unit display window if the
carrier is locked in place.

2. Unlock the DE75i-A66 drive carrier and remove it from the receiving frame.
A "u" will be displayed initially when the unit is unlocked but will return to a
number when the carrier is removed from the receiving frame.

WARNING: Unlocking the carrier unit switches DC power off to the drive. Since

3. Use the alignment tool supplied with the DE75i-A66 to select the ID number

NOTE: If using drive or receiving frame jumpers to determine Master/Slave status,

4. After selecting an appropriate unit ID number, replace the DE75i-A66 carrier

NOTE: The lock on the DE75i-A66 receiving frame functions as a lock and a DC

5. Reboot the computer. The new device is now ready for use, although it

disk drives require a short amount of time to spin down, allow about
15 seconds before pulling the carrier unit out of the receiving frame
to avoid possible damage to the drive.

of the drive. Refer to Figure 10 for the location of the Unit ID Select Switch
inside the receiving frame. Table 2 lists the valid unit ID numbers that can
be used for the drive.

set the unit number to "0" on the receiving frame.

in the receiving frame, and LOCK IT IN PLACE.

power switch for the carrier unit. The lock must be engaged in order to
supply power to the carrier and installed drive.

may have to be formatted or initialized prior to use with your operating
system and applications software.

Figure 10: Unit ID Select Switch Location

StorCase Technology Inc. DE75i-A66 User's Guide - Rev. A00

Installation 13

9

9

9

9

9

9

9

8

8

8

8

8

8

8

6

6

6

6

6

6

6

8

8

8

8

8

8

6

6

6

6

6

6

9

9

9

9

9

9

Unit ID Select Switch Settings

The following table lists the Unit ID Select Switch settings and the valid AT/IDE unit
numbers. Please note that all invalid switch settings have shaded boxes and result in a
blank display in the receiving frame display window.

Table 2: Unit ID Select Switch Settings

Switch
Setting 0 1 2 3 4 5 6 7 8 9

AT/IDE
Unit No. 1 2 1 2

LED Number
Displayed

Drive
Config.

2345678

2345678

2345678

2345678

2345678

2345678

Blank 0 1 Blank Blank 2 3 Blank Blank Blank

2345678

2345678

2345678

2345678

2345678

2345678

2345678

Master Slave Master Slave

2345678901234567

2345678901234567

2345678901234567

2345678901234567

2345678901234567

2345678901234567

2345678901234567

2345678901234567

2345678901234567

2345678901234567

2345678901234567

2345678901234567

2345678901234567

234567890123456789012345

234567890123456789012345

234567890123456789012345

234567890123456789012345

234567890123456789012345

234567890123456789012345

234567890123456789012345

234567890123456789012345

234567890123456789012345

234567890123456789012345

234567890123456789012345

234567890123456789012345

234567890123456789012345

AT/IDE Interface Connector JP1

The AT/IDE Interface connector (JP1) pin assignments are as follows:

Table 3: AT/IDE Interface Signals

Pin Signal I/O Pin Signal I/O

01 Host Reset- O 02 Ground
03 Host Data 7 I/O 04 Host Data 8 I/O
05 Host Data 6 I/O 06 Host Data 9 I/O
07 Host Data 5 I/O 08 Host Data 10 I/O
09 Host Data 4 I/O 10 Host Data 11 I/O
11 Host Data 3 I/O 12 Host Data 12 I/O
13 Host Data 2 I/O 14 Host Data 13 I/O
15 Host Data 1 I/O 16 Host Data 14 I/O
17 Host Data 0 I/O 18 Host Data 15 I/O
19 Ground 20 Key No Pin
21 Reserved 22 Ground
23 HIOW- O 24 Ground
25 HIOR- O 26 Ground
27 Reserved 28 Reserved
29 Reserved 30 Ground
31 IRQ 14 I 32 Host IO16-(AT) I
33 Host ADDR 1 O 34 PDIAG- (16) Notes
35 Host ADDR 0 O 36 Host ADDR 2 O
37 Host CS0- O 38 Host CS1- O
39 DASP- Notes 40 Ground

- Indicates an active-low signal.
Signal direction is with respect to the host.

"I" indicates To the host
"O" indicates From the host

The PDIAG and DASP signals are used for communication between master and slave.

DE75i-A66 User's Guide - Rev. A00 StorCase Technology Inc.

14 Installation

This Page Left Blank Intentionally.

StorCase Technology Inc. DE75i-A66 User's Guide - Rev. A00

Appendix A - Specifications/Dimensions 15

APPENDICES

DE75i-A66 User's Guide - Rev. A00 StorCase Technology Inc.

16 Appendix A - Specifications/Dimensions

Appendix A - Specifications/Dimensions

Environmental Specifications

Operating Storage

Ambient Temperature -5° C to 50° C -45° C to 75° C
Relative Humidity
Altitude -1000 to 50,000 ft -1000 to 50,000 ft

(2)

Shock

(1)

Non-condensing with maximum gradient of 10% per hour.

(2)

11 msec pulse width 1/2 sine wave.

Physical
Specifications Carrier Receiving Frame

Height 1.07" (27.2mm) 1.13" (28.7mm)
Width 4.67" (118.6mm) 5.75" (146.1mm)
Depth 7.38" (187.5mm) 8.15" (207.0mm)

Weight 1.1lb (0.50kg) 1.1lb (0.50kg)

(1)

With low profile filler bracket removed.

(2)

With carrier removed.

(1 )

10% to 80% 10% to 90%

-304m to 15240m -304m to 15240m
10g 60g

(1)

(2)

Chassis Reliability/Maintainability

MTBF 500,000 Hours
MTTR 5 Minutes
Preventive
Maintenance None

Electrical Specifications

Input +5V 78mA

+12V 11µA

StorCase Technology Inc. DE75i-A66 User's Guide - Rev. A00

Appendix A - Specifications/Dimensions 17

Figure A-1: DE75i-A66 Physical Dimensions

(Dimensions are for reference only)

DE75i-A66 User's Guide - Rev. A00 StorCase Technology Inc.

18 Appendix B - Attaching the ON/OFF Key

Appendix B - Attaching the ON/OFF Key

The following information will provide the necessary steps to attach the ON/OFF key to the
key lock mechanism so that it is non-removable, preventing accidental key loss. The
procedure can be reversed at a later date to revert back to a removable key.

1. Make certain power is OFF to the receiving
frame.

Locate the rectangular shaped key lock
mechanism access hole on the inside of the
receiving frame. Note that the pawl is in an
upright position.

Insert the key into the key lock.

2. Rotate the key 90 degrees counterclockwise so
that the pawl is visible in the access hole as
shown in the figure at left.

3. Using the provided alignment tool, unscrew and
remove the pawl from the access hole.

4. Rotate the key 180 degrees clockwise.

5. Reinstall the pawl into the access hole with the
alignment tool.

Your key is now attached to the key lock
mechanism.

Figure B-1: Attaching the ON/OFF Key

StorCase Technology Inc. DE75i-A66 User's Guide - Rev. A00

Appendix C - Optional Accessories 19

Appendix C - Optional Accessories

Carrying Case

Figure C-1: Carrying Case

The optional molded plastic carrying case is designed to transport the DE75i-A66 carrier
from one location to another in a safe, impact and moisture resistant environment. Its
compact dimensions, 7 long x 9 wide x 3.5 high, make it easy to carry and to store.
The foam lining is contoured to fit a single low-profile Data Express carrier (remove the
foam piece shown in the illustration above). Contact StorCase for further details and
ordering information.

DE75i-A66 User's Guide - Rev. A00 StorCase Technology Inc.

20 Appendix C - Optional Accessories

This Page Left Blank Intentionally.

StorCase Technology Inc. DE75i-A66 User's Guide - Rev. A00

Reader's Comments 21

Reader's Comments

Please take a few moments when your computer system is up and running to send us
your ideas and suggestions for improving our products and documentation. Did the
installation go smoothly for you? Are there any changes you would like us to make, either
with the hardware itself, or with the installation instructions? Everyone at StorCase
Technology is working toward the goal of providing you with the highest quality, most
cost effective, products available on the market, and we need your comments to guide
our efforts. We look forward to hearing from you soon!

Date:

Your Name:

Address:

Telephone: ( )

To mail this page, carefully remove it from the manual, fold it, staple or tape it shut, and
drop it in the mail. To FAX this page, carefully remove it from the manual (or make a
photocopy) and FAX it to us at [phone]. Thank you for taking the time to help us
make our products better!

DE75i-A66 User's Guide - Rev. A00 StorCase Technology Inc.

22 Reader's Comments

FOLD ALONG THIS LINE AND STAPLE SHUT

CUT ALONG THIS LINE FROM BOTTOM TO TOP OF PAGE

NO POSTAGE

NECESSARY

IF MAILED

IN THE

UNITED STATES

BUSINESS REPLY MAIL

FIRST CLASS MAIL PERMIT NO. 10686 SANTA ANA, CA

POSTAGE WILL BE PAID BY ADDRESSEE

TECHNOLOGY CORPORATION

17600 NEWHOPE STREET
FOUNTAIN VALLEY CA 92708-9885

StorCase Technology Company DE75i-A66 User's Guide - Rev. A00
