Page 1
Kingston Technology
DATA EXPRESS
Removable SCSI Drive Enclosure
With Wide Differential I/O
User's Guide
Page 2
Kingston Technology's
i
Data Express
®
DE100i-SWD
Removable SCSI Drive Enclosure
with 16-Bit Wide Differential I/O
User's Guide
Part No. D89-0000-0012 C00 December 1997
Kingston Technology Company
17600 Newhope Street
Fountain Valley, CA 92708-9885
Phone (714) 438-1850 Fax (714) 438-1847
DE100i-SWD User's Guide - Rev. C00 Kingston Technology Company
Page 3
ii
Limited Warranty
KINGSTON TECHNOLOGY COMPANY (“Kingston”) warrants that this product is free from defects in material and
workmanship. Subject to the conditions and limitations set forth below, Kingston will, at its option, either repair or
replace any part of this product which proves defective by reason of improper workmanship or materials. Repair
parts or replacement products will be provided by Kingston on an exchange basis, and will be either new or
refurbished to be functionally equivalent to new.
This warranty does not cover any damage to this product which results from accident, abuse, misuse, natural or
personal disaster, or any unauthorized disassembly, repair or modification.
Duration of Warranty
Lifetime Warranty:
memory modules and boards), networking adapters and. hubs (excluding power supply unit), solid state PCMCIA
interface adapters, and microprocessor upgrade products.
Seven Year Warranty:
from the date of original retail purchase: storage enclosures, including power supply units, cables, terminators, and
accessories.
Five Year Warranty:
the date of original retail purchase: networking hub power supply unit; and all other Kingston products (other than
those products covered by a two-year or one-year warranty, as provided below).
Two Year Warranty:
the date of original retail purchase: Winchester hard disk drives in a 2.5 inch, 3.5 inch or 5.25 inch form factor.
One Year Warranty:
the date of original retail purchase: Winchester hard disk drives in a 1.8 inch form factor, optical reading and storage
products, and magnetic tape storage products.
To obtain warranty service, return the defective product, freight prepaid and insured, to your local authorized
Kingston dealer or distributor, or to the Kingston factory service center located at 17600 Newhope Street, Fountain
Valley, California 92708, U.S.A. You must include the product serial number (if applicable) and a detailed
description of the problem you are experiencing. You must also include proof of the date of original retail purchase
as evidence that the product is within the applicable warranty period. If you return the product directly to the Kingston
factory, you must first obtain a Return Material Authorization (“RMA”) number by calling Kingston Customer Service
at (714) 438-1810, and include the RMA number prominently displayed on the outside of your package. Products
must be properly packaged to prevent damage in transit.
Kingston provides free technical support. If you experience any difficulty during the installation or subsequent use
of a Kingston product, please contact Kingstons Technical Support department at either: (714) 435-2639 U.S.
headquarters, or Kingston Germany Office at (089) 62 71 56-21, prior, to servicing your system. This warranty
covers only repair or replacement of defective Kingston products, as provided above. Kingston is not liable for, and
does not cover under warranty, any costs associated with servicing and/or installation of Kingston products.
Disclaimers – The foregoing is the complete warranty for Kingston products and supersedes all other
warranties and representations, whether oral or written. Except as expressly set forth above, no other
warranties are made with respect to Kingston products and Kingston expressly disclaims all warranties
not stated herein, including, to the extent permitted by applicable law, any implied warranty of merchantability or fitness for a particular purpose. In no event will Kingston be liable to the purchaser, or to any user
of the Kingston product, for any damages, expenses, lost revenues, lost savings, lost profits, or any other
incidental or consequential damages arising from the purchase, use or inability to use the Kingston
product, even if Kingston has been advised of the possibility of such damages.
Copyright© 1997 Kingston Technology Company. All rights reserved. Printed in the U.S.A. Kingston
The following Kingston products are covered by this warranty for life: solid state memory (e.g.,
The following Kingston products are covered by this warranty for a period of seven years
The following Kingston products are covered by this warranty for a period of five years from
The following Kingston products are covered by this warranty for a period of two years from
The following Kingston products are covered by this warranty for a period of one year from
Warranty Claim Requirements
Free Technical Support
Technology and the Kingston logo are trademarks of Kingston Technology Company.
Kingston Technology Company DE100i-SWD User's Guide - Rev. C00
Page 4
CE Declaration of Conformity
iii
Company’s Name:
Company’s Address:
Manufacturer’s Address:
Product Name:
Model Number:
Conforms to the following specifications:
Safety Agencies:
CSA “Certified”
UL
TÜV “Bauart Geprüft”
Safety Directive:
EMC Directive:
Kingston Technology Company
Storage Products Division
17600 Newhope Street
Fountain Valley, CA 92708
11535 Martens River Circle
Fountain Valley, CA 92708
Data Express DE100i
DE100i-XSXX/XXX
Safety Tests: License #:
CAN/CSA-C22.2 No950-93 LR 90843-3
UL 1950 E173791 SP
EN 60950/06.88 R 9371301
EN 60950 A1/08.90
EN 60950 A2/10.91
73/23/EEC low voltage
EMC Tests:
EN 50081-1:1992 for Generic Emission
CISPR22:1995/EN 55022:1987 Class B
EN 50082-1:1992 for Generic Immunity
IEC 1000-4-2:1994 ESD
IEC 1000-4-3:1994 Radiated EM Field
IEC 1000-4-4:1994 Fast Transient/Burst
89/336/EEC
FCC Part 15, Class B
Year of Manufacture:
Signature:___________________
Full name: Dieter Paul
Position: Vice President of Engineering
DE100i-SWD User's Guide - Rev. C00 Kingston Technology Company
1997
Page 5
iv
Table of Contents
DATA EXPRESS DE100i-SWD ............................................................................................... 1
Packaging Materials ...................................................................................................... 1
Package Contents ......................................................................................................... 2
Serial Numbers .............................................................................................................. 2
General Description ....................................................................................................... 3
The Receiving Frame Front Panel...................................................................... 4
The Receiving Frame Rear Panel ...................................................................... 5
DATA EXPRESS INSTALLATION .......................................................................................... 6
Installing the Drive into the Carrier ................................................................................ 6
Preparation .......................................................................................................... 6
Installation ............................................................................................................ 7
Installing the Receiving Frame ...................................................................................... 9
Selecting the Unit Number ........................................................................................... 11
SCSI Interface Connector J2 ...................................................................................... 13
APPENDICES ......................................................................................................................15
Appendix A - Specifications/Dimensions .................................................................... 16
Appendix B - Factory-Installed Options ...................................................................... 18
Hot Swap Feature .............................................................................................. 18
Solenoid Drive Lock ........................................................................................... 22
Appendix C - Attaching the On/Off Key to Non-Solenoid Units ....................... 23
Appendix D - Optional Accessories ............................................................................ 24
Carrying Case ................................................................................................... 24
Drive Cover ....................................................................................................... 25
Write Protect Switch .......................................................................................... 26
Drive Plug ........................................................................................................... 27
Reader's Comments .............................................................................................................. 29
Kingston Technology Company DE100i-SWD User's Guide - Rev. C00
Page 6
List of Figures
Figure 1: Data Express DE100i-SWD Package Contents ................................................ 1
Figure 2: DE100i-SWD Receiving Frame and Carrier ....................................................... 2
Figure 3: Receiving Frame Front Panel ............................................................................. 4
Figure 4: Unit Number Display Conditions ......................................................................... 5
Figure 5: Receiving Frame (Rear View) ............................................................................ 5
Figure 6: Drive Installation Assembly ................................................................................. 7

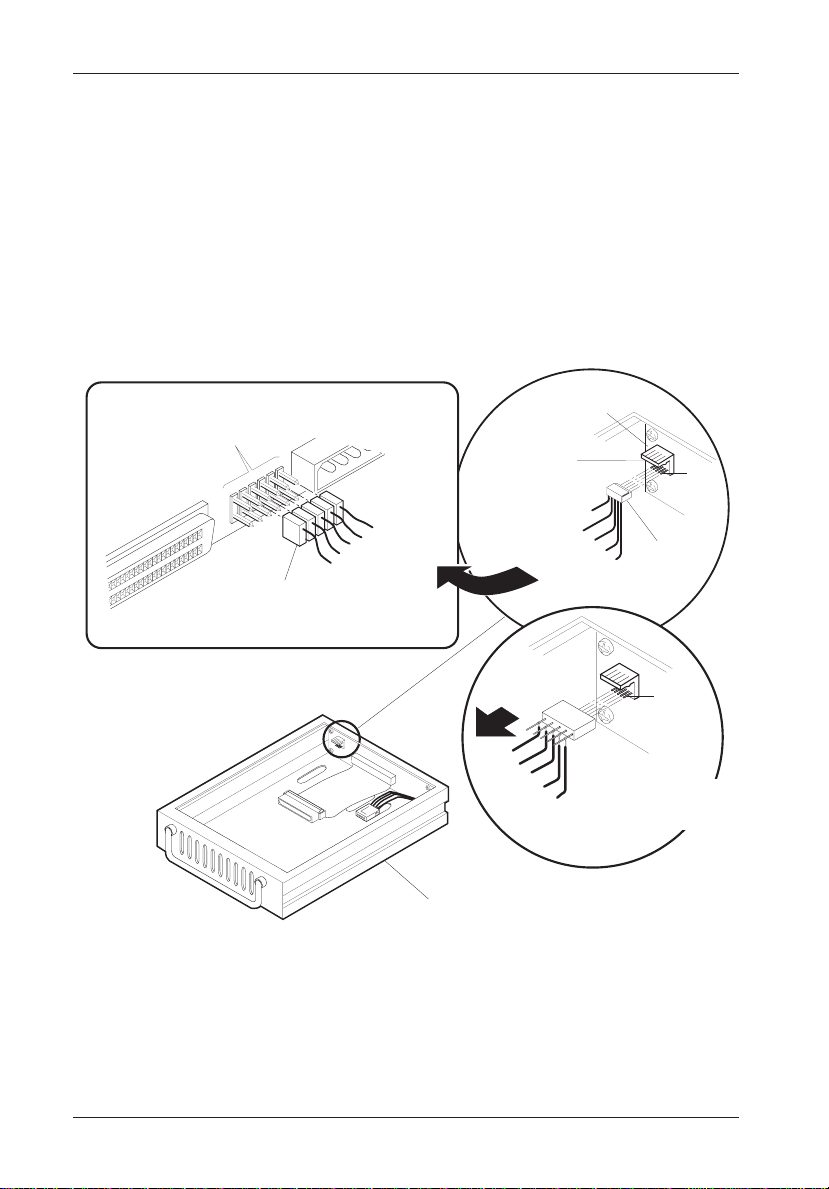

Figure 7: Typical SCSI ID Select Connections (2mm Drive Pins) .................................... 8
Figure 8: Receiving Frame Connector J4 Pin Configuration ............................................. 9
Figure 9: Receiving Frame Mounting Holes ..................................................................... 10
Figure 10: Unit Select Switch Location............................................................................... 12
Figure A-1: Data Express Physical Dimensions ................................................................. 17
Figure B-1: Attaching the Hot Swap Board .......................................................................... 19
Figure B-2: Device Spin Down/Up Timer ............................................................................. 20
Figure B-3: Hot Swap Board Jumper Options..................................................................... 21
Figure B-4: Solenoid Mechanism ......................................................................................... 22
Figure C-1: Attaching the On/Off Key .................................................................................. 23
Figure D-1: Optional Carrying Case (DX100-DE-C) ........................................................... 24
Figure D-2: Optional Drive Cover (DX100-COV) ................................................................ 25
Figure D-3: Optional Write Protect Switch (DX100-DEWP) ................................................ 26
Figure D-4: Optional Drive Plug (DX100-PLUG) ................................................................. 27
v
List of Tables
Table 1: Shipping Contents .................................................................................................... 2
Table 2: Receiving Frame Motherboard Connector J4 Pin Configuration ........................... 9
Table 3: 16-Bit Wide Differential Unit ID Display................................................................. 12
Table 4: 68-Pin Wide Differential SCSI Interface Connector J2 Pin Assignments ............ 13
DE100i-SWD User's Guide - Rev. C00 Kingston Technology Company
Page 7
Introduction 1
Data Express® DE100i-SWD
Packaging Materials
The Kingston Technology Data Express® system is shipped in a container designed to
provide protection and prevent damage during shipment. The Data Express unit was
carefully inspected before and during the packing procedure at the factory. Bent or broken
connectors, or evidence of other damage to the Data Express should be reported to the
shipper immediately. Refer to Figure 1 for the package contents.
If the wrong Data Express model has been received, please call Kingston's Storage
Product Division at (800) 435-0642. A staff member will give you a Return Material
Authorization (RMA) number to facilitate processing. Kingston cannot accept returns which
do not display an RMA number on the outside of the package. Return the unit with all the
original packing materials.
Before removing any component from its packaging, discharge any static electricity by
touching a properly grounded metal object.
1
11
10
DATA EXPRESS
TECHNOLOGY
1. Cable Cover
2. Alignment Tool
3. Drive Lock Keys
4. Receiving Frame
5. Drive Carrier
6. User's Guide
9
8
COMPUTING WITHOUT LIMITS
USER'S GUIDE
7
6
7. Drive Standoffs
8. 6-32 by 1/4" Phillips Machine Hd. Mounting Screws
9. 6-32 by 3/16" Phillips F.H. Mounting Screws
10 . 1.25mm/2mm ID Select Cable
11 . Single Row Wire Wrap Connector
2
3
4
5
0430B
Figure 1: Data Express DE100i-SWD Package Contents
DE100i-SWD User's Guide - Rev. C00 Kingston Technology Company
Page 8
2 Introduction
Package Contents
The DE100i-SWD package contents include the following items:
Table 1: Shipping Contents
One Kingston Data Express DE100i-SWD DE100i-CSWD DE100i-RSWD
SCSI System Part Number (Carrier & RF) (Carrier) (Receiving Frame)
Drive Carrier DE100i-CSWD (1) (1)
Receiving Frame DE100i-RSWD (1) (1)
Alignment Tool D45-0000-0037 (1) (1)
Phillips Mounting Screws (6-32 by 3/16” D45-0000-0001 (6) (6)
F.H. to attach disk drive and cable cover)
Phillips Mounting Screws (6-32 by 1/4”) D45-0000-0004 (4) (4)
to attach receiving frame to computer)
Single Row Wire Wrap Connector D16-0000-0046 (1) (1)
2mm Low Profile Interface Cable D12-1000-0081 (1) (1)
Cable Cover D10-4040-0151 (1) (1)
Drive Standoffs D45-0000-0069 (4) (4)
Drive Lock Keys D10-4050-0005 (3) (3)
User's Guide D89-0000-0012 (1) (1) (1)
If any item is missing or damaged, contact your Kingston dealer for a replacement.
Serial Numbers
Both the Data Express receiving frame and carrier are labeled with serial numbers. These
numbers must be reported to the Kingston Customer Service Representative in order to
receive a Return Material Authorization (RMA) for warranty claims. Locate the serial
number labels and record the numbers in the spaces provided below.
Receiving Frame:
Drive Carrier:
Kingston Technology Company DE100i-SWD User's Guide - Rev. C00
Page 9
Introduction 3
General Description
The Kingston Technology Data Express® DE100i-SWD is a removable drive carrier and
receiving frame designed to provide durable and reliable mounting for 3.5” SCSI drives
within 5.25" half-height peripheral slots (Figure 2).
The Data Express allows a drive to be removed and transported to another Data Expressequipped computer or expansion chassis, and also provides the ability to secure sensitive
data by removing and storing the drive safely for future use. Up to fifteen DE100i-SWD
Data Express units can be attached to one host adapter.
0425B
Receiving
Frame
Drive Carrier
Figure 2: DE100i-SWD Receiving Frame and Carrier
This User's Guide describes the steps required to install the Kingston Data Express
removable enclosure inside a computer peripheral bay or external expansion chassis. This
guide supplements documentation provided with the host computer system, operating
system, and the drive to be installed within the Data Express carrier.
DE100i-SWD User's Guide - Rev. C00 Kingston Technology Company
Page 10
4 Introduction
The Receiving Frame Front Panel
• The Key Lock/Drive Power Switch performs three functions. The key lock
assures proper seating of the drive carrier within the receiving frame, it turns power
to the drive carrier "On" and "Off", and it prevents unauthorized removal or
installation of the carrier. For the computer to access data on the Data Express
disk drive, the key must be turned counter-clockwise to the locked position.
The key may also be permanently attached to the locking mechanism as shown in
Appendix C.
• The Unit Number Indicator (Figure 4) displays the physical address of the Data
Express drive carrier when the carrier is
or Removed
frame
Locked
, a 'u' will be displayed to indicate an unlocked condition. The unit number is
from the receiving frame. If the drive carrier is
Installed and Locked
in the receiving
Installed but Not
selected by means of the unit select switch inside the receiving frame using a
special alignment tool supplied with the Data Express. This procedure is explained
later during the installation process.
• The Activity Indicator is a small dot next to the unit number which illuminates to
show when the host computer is accessing the data on the Data Express carrier.
This dot will flash during communication with the host computer.
• Device Spin Down/Up Timer may be disabled by removing Jumper J6 P1-P2
(Figure 5). The timer controls the length of time that the unit number display
flashes during device spin down/up, providing a visual indication of drive activity.
Refer to Figure B-3 for switch settings.
Conductive Plastic
Carrier Guide
High Insertion
Count Mating
Connector
All Steel
Receiving
Frame
Device Spin
Down/Up Timer
Unit Number
Receiving Frame
Front
Display
2.
Activity Indicator
Key/Lock
and Power
Switch
0231
Figure 3: Receiving Frame Front Panel
Kingston Technology Company DE100i-SWD User's Guide - Rev. C00
Page 11
Introduction 5
Activity
Carrier Removed
from Receiving Frame
The number "2" shown above is for illustration purposes only. It can be any valid
unit ID number. However, the letter "u" (above middle), will appear as illustrated.
Carrier Installed
(unlocked)
Carrier Installed
(locked)
Indicator
0064
Figure 4: Unit Number Display Conditions
The Receiving Frame Rear Panel
• I/O Connector (J2): The input/output connector provides a standard interface
for all SCSI signals. See Table 4 for J2 pin assignments.
• DC Power Connector (J3): The Data Express uses a standard 4-pin Molex
Power Connector to accept DC power.
• ID Select Pins (J4): Pins 1 through 12 are reserved. Pins 13 through 20 of this
connector provide unit SCSI ID selection for the computer system or expansion
chassis. For remote ID selection through an expansion chassis, the unit ID must
be set to '0' or open (no jumpers installed) on these pins. See Table 2 for J4 pin
assignments.
• Enable Termination Power To/From SCSI BUS (W1): This jumper is installed at
the factory.
P6
P4
DC Power
Connector
Ground
J6:
P1, P2 = Enable Spin Down/Up Timer
(Installed at Factory)
P4, P6 = Remote Drive Activity
P3, P5 = Reserved
J3
19
20
Remote ID
Select
+12
34
+5
GND
68
11
J4
1
2
12
ID0
ID1
ID3
ID2
Reserved
Jumpers
Installed
at Factory
Anode Cathode
J6
1
35
J2
68-Pin
I/O Connector
12612
W1
J6A:
P1 = Write Protect
P2 = Fault
P3, P5 = Not Used
P4, P6 = Ground
J6A
6
Enable
Termination
Power To/From
SCSI BUS
= Pin 1
0408B
Figure 5: Receiving Frame (Rear View)
DE100i-SWD User's Guide - Rev. C00 Kingston Technology Company
Page 12
6 Installation
DATA EXPRESS INSTALLATION
Installing the Drive into the Carrier
Preparation
While performing the steps in this section, work on a soft surface to prevent excessive
shock to the drive being installed. Also refer to the manufacturer's documentation
provided with the drive.
NOTE: A #2 Phillips screwdriver will be required during this procedure.
1. Remove the drive from its protective packaging.
2. Plastic Drive Bezel: If the drive came equipped with a plastic front bezel, it
must be removed.
3. SCSI Drive Termination: Disable or remove the termination resistor
packs from the drive. Refer to the documentation provided by the drive
manufacturer for the location of these terminators or jumpers. Termination
is performed externally on the expansion chassis and not on the Data
Express unit.
4. SCSI Drive ID Select Jumpers: Locate the SCSI ID Select Jumper
positions on the disk drive, and remove any jumper plugs in this area. The
SCSI ID cable will be installed into this section of the drive.
5. SCSI ID Cable: (Figure 7) The Data Express carrier is supplied with one (1)
5-wire cable. This cable is used for remote ID selection by means of the
Data Express Unit Select Switch inside the receiving frame. The cable is
designed to connect to drives with 2mm ID Select connectors.
The cables are made up of black, brown, red, orange, and yellow wires.
The black wire is plugged into the pin used to select ID0, the brown wire
plugs into the pin for ID1, the red wire plugs into the pin for ID2 and the
orange wire connects to ID3. Most drive manufacturers mark these pins
with some sort of identification which corresponds to ID0, ID1, ID2 and ID3.
The yellow wire should be connected to the drive's activity signal.
Disk drives use a row of pins to provide ground to the ID signals. This row
of pins is not used when installing the ID select cable to the carrier
connector. Refer to the drive manufacturer's documentation for more
information.
Kingston Technology Company DE100i-SWD User's Guide - Rev. C00
Page 13
Installation 7
Drive Carrier
Disk Drive
Power Cable
I/O Interface
Cable/s
Drive Mounting
Hardware (4ea)
Phillips # 6-32 x
3/16 Flat HD
ID Select Cable
(Typical)
0151
Cable
Cover
(Provided)
Cable Cover
Screws (2 plcs)
# 6-32 x 3/16
Flat HD
Standoff (4 Plcs).
Can only be used
on low profile 1"
high drives. Use
only if additional
connector space is
required below drive.
NOTE: SCSI units are provided with a single row 5-pin wire wrap connector. This
connector allows fabrication of ID select cable connections for use in confined
areas or for drives which have non-standard pin configurations. If required,
install five wire wrap jumpers from the drive ID pins to the ID select connector
located inside the carrier on the signal distribution board. See Figure 7 for the
location of the ID Select Interface connector. Refer to page 8 for a typical
drive connection.
Installation
1. Attach the I/O interface cable from the signal distribution board of the Data
Express carrier to the disk drive (Figure 6).
2. Attach the four-pin power cable from the signal distribution board to the disk
drive (Figure 6).
3. Install the five-pin ID select cable into the signal distribution board connector.
Refer to Figure 7 for a typical 2mm drive pin connection.
4. Carefully insert the drive into the carrier at an angle, cable-end first. Make
sure that none of the cables are pinched. Lower the front of the drive
carefully into place. Fasten the drive into the carrier with four #6-32 x 3/16"
Flat Head screws provided.
5. Attach the provided cable cover with two #6-32 x 3/16" Flat Head screws.
Figure 6: Drive Installation Assembly
DE100i-SWD User's Guide - Rev. C00 Kingston Technology Company
Page 14
8 Installation
Black (ID0)
Brown (ID1)
Red (ID2)
Orange (ID3)
Yellow (LED Activity)
TYPICAL 2MM DRIVE ID PIN CONFIGURATION
Figure 7 illustrates a typical SCSI ID select connection to a drive with 2mm ID select pins.
The wires on the wire harness connect to the positive pin (or signal pins) on the disk drive. In
some cases, the drive manufacturer will label the signal pins as Pin 1, 3, 5, 7, (instead of 0,
1, 2, 3 as shown in Figure 7 below). Also, in some cases, the even-numbered Pins 2, 4, 6
are used for Ground.
Attach the ID select cable to the drive using the 2mm connectors. Align the “ID0” pin with the
black wire. Attach the other end of the ID select cable to the connector (J3) provided on the
signal distribution board, located inside the carrier. Refer to the manufacturer’s
documentation to disable termination on the drive.
Typical Drive Wide Differential ID Select Pins
(Pins vary on each drive model. See Drive
Manufacturer's Manual.)
0
1
2
3
LED
Wide Differential ID
Select Cable (from Data
Express Signal
Distribution Board)
Disk
Carrier
Data Express ID
Select Interface
(Inside Carrier)
Yellow (LED)
Orange (ID3)
T
O
To Drive ID
Select Pins
To LED
To ID3
To ID2
To ID1
To ID0
Signal
Distribution
Board
Wide
Red (ID2)
Brown (ID1)
Black (ID0)
5-PIN WIRE WRAP
CONNECTOR (Provided). Use
in place of ID Select Cable
if there is not enough space.
Differential
ID Select
Cable
Pin 1
0142
Pin 1
Figure 7: Typical SCSI ID Select Connections (2mm Drive Pins)
Kingston Technology Company DE100i-SWD User's Guide - Rev. C00
Page 15
Installation 9
Installing the Receiving Frame
The drive should be installed into the carrier before installing the receiving frame into the
mounting bay of a computer or expansion chassis.
NOTE: Use a #2 Phillips screwdriver during this procedure.
1. Turn off power to the computer.
2. Open the computer system according to the manufacturer’s instructions. If
necessary, temporarily remove any expansion boards that may make installation
difficult.
3. To select the Data Express unit ID remotely through the computer system or
external expansion chassis, the appropriate cable from the system must be
connected to the ID select connector (J4) on the rear of the receiving frame as
shown in Table 2 and Figure 8.
Table 2 - Receiving Frame Motherboard Connector J4 Pin Configuration
Pin 1 RESERVED Pin 11 RESERVED
Pin 2 RESERVED Pin 12 RESERVED
Pin 3 RESERVED Pin 13 Ground
Pin 4 RESERVED Pin 14 ID3
Pin 5 RESERVED Pin 15 Ground
Pin 6 RESERVED Pin 16 ID2
Pin 7 RESERVED Pin 17 Ground
Pin 8 RESERVED Pin 18 ID1
Pin 9 RESERVED Pin 19 Ground
Pin 10 RESERVED Pin 20 ID0
Jumpers Installed
at Factory
Ground
19
20
From System ID0
From System ID1
From System ID2
From System ID3
111
Receiving Frame
Motherboard
212
Connector J4
0427B
Reserved
Figure 8: Receiving Frame Connector J4 Pin Configuration
DE100i-SWD User's Guide - Rev. C00 Kingston Technology Company
Page 16
10 Installation
IMPORTANT NOTE: In order to use remote ID selection from a computer or
expansion chassis, the Unit ID number on the Data Express
receiving frame must be set to '0' with the provided alignment
tool. Refer to the section "Selecting the Unit Number" later in
this section for the Unit ID selection procedure.
4. With the drive carrier locked in place inside the receiving frame, install the Data
Express into the 5.25” drive opening in the computer or expansion chassis.
Use the appropriate guides to position the Data Express, and fasten it into
place with the four 6-32 x 1/4” screws provided. Figure 9 illustrates the location
of the mounting holes. Mounting holes are provided on each side and the
bottom of the receiving frame to accommodate a variety of mounting
configurations. Use the mounting holes which best suit the computer or
expansion chassis configuration.
Front of Unit
Mounting
Mounting
Holes (Right)
Mounting
Holes (Bottom)
Holes (Left)
0086
Figure 9: Receiving Frame Mounting Holes
5. Adjust the front of the receiving frame so the carrier slides freely in and out on
the receiving frame guides. The position of adjoining peripheral units may
require adjustment.
6. To connect the drive to a Remote Activity LED in the computer system or
expansion chassis, connect the appropriate cable(s) to the receiving frame
mother board as shown in Figure 5. Connect J6 Pins 4 and 6 to a remote
activity LED.
7. Connect the I/O interface cable from the host adapter to the receiving frame.
The pin 1 indicator on the cable must be properly aligned. Refer to Figure 5
for the correct pin 1 location.
Make sure that only the last SCSI device is terminated. The Differential Data
Express does not contain on-board SCSI termination. If it is the last SCSI
device, set the termination from the expansion chassis.
Kingston Technology Company DE100i-SWD User's Guide - Rev. C00
Page 17
Installation 11
8. Connect the power cable from the DC power supply in the computer or
expansion chassis to the power connector on the Data Express receiving
frame. Refer to Figure 5 for the Data Express receiving frame power
connector location.
9. Replace any expansion boards that may have been removed earlier. Replace
the system cover according to the manufacturer’s instructions.
10. Reconnect any system or peripheral cables removed earlier.
11. Turn on power to the computer. If the installation has been successful, and
all cables have been properly attached, the system should boot normally.
Although the computer may not recognize the Data Express yet, the
appropriate front panel LED indicators on the Data Express should illuminate.
NOTE: The lock on the Data Express receiving frame functions as a lock
12. The new drive may need to be formatted or initialized prior to use with the
operating system and applications software. Refer to the drive and/or computer
manufacturer's documentation for formatting information.
and a DC power switch for the carrier unit. The lock must be
engaged (turned counterclockwise) in order to supply power to the
carrier and installed drive unit.
Selecting the Unit Number
1. Verify that power is turned on to the Data Express receiving frame by turning
on the computer or external expansion chassis. A number should appear in
the unit display window if the carrier is locked in place.
2. Unlock the Data Express drive carrier and remove it from the receiving frame.
A 'u' will be displayed initially when the unit is unlocked but will return to a
number when the carrier is removed from the receiving frame.
WARNING: Unlocking the carrier unit switches DC power off to the drive.
Since disk drives require a short amount of time to spin down, allow about 15
seconds before pulling the carrier unit out of the receiving frame to avoid
possible damage to the drive.
3. Use the alignment tool supplied with the Data Express to select the unit
number of the disk drive. Refer to Figure 10 for the location of the Unit Select
Switch inside the receiving frame.
4. After selecting an appropriate unit ID number, replace the Data Express
carrier in the receiving frame, and LOCK IT IN PLACE.
DE100i-SWD User's Guide - Rev. C00 Kingston Technology Company
Page 18
12 Installation
NOTE: The lock on the Data Express receiving frame serves two functions:
1) as a lock to secure the drive; and 2) as a DC power switch for
the carrier unit. The lock must be engaged (turned counterclockwise) in order to supply power to the drive carrier.
5. The new drive may need to be formatted or initialized prior to use with the
operating system and applications software, Refer to the drive and/or
computer manufacturer's documentation for formatting information.
Unit Number
Display
Lock
and DC
Power
Switch
Front of Unit
Drive Carrier
(removed)
0179A
Receiving
Frame
Drive Carrier
Guide
Unit Select
Rotating Switch
Figure 10: Unit Select Switch Location
Table 3: 16-Bit Wide Differential Unit ID Display
DISPLAY
(HEX)
UNIT
NUMBER (
0
1
2
3
4
5
6
7
)
10
DISPLAY
(HEX)
UNIT
NUMBER (10)
8
9
10
11
12
13
14
15
0147
Kingston Technology Company DE100i-SWD User's Guide - Rev. C00
Page 19
Installation 13
SCSI Interface Connector J2
The SCSI interface connector (J2) pin assignments are supplied for your convenience.
Table 4: 68-Pin Wide Differential SCSI Interface Connector J2 Pin Assignments
Pin Signal Pin Signal Pin Signal Pin Signal
1 +DB(12) 2 +DB(13) 35 -DB(12) 36 -DB(13)
3 +DB(14) 4 +DB(15) 37 -DB(14) 38 -DB(15)
5 +DB(P1) 6 GROUND 39 -DB(P1) 40 GROUND
7 +DB(0) 8 +DB(1) 41 -DB(0) 42 -DB(1)
9 +DB(2) 10 +DB(3) 4 3 -DB(2) 4 4 -DB(3)
11 +DB(4) 12 +DB(5) 45 -DB(4) 46 -DB(5)
13 +DB(6) 14 +DB(7) 47 -DB(6) 48 -DB(7)
15 +DB(P) 16 DIFFSENS 49 -DB(P) 50 GROUND
17 TERMPWR 18 TERMPWR 51 TERMPWR 52 TERMPWR
19 RESERVED 20 +ATN 53 RESERVED 54 -ATN
21 GROUND 2 2 +BSY 55 GROUND 56 -BSY
23 +ACK 24 +RST 57 -ACK 58 -RST
25 +MSG 26 +SEL 59 -MSG 60 -SEL
27 +C/D 28 +REQ 61 -C/D 62 -REQ
29 +I/O 30 GROUND 63 -I/O 64 -GROUND
31 +DB(8) 32 +DB(9) 65 -DB(8) 66 -DB(9)
33 +DB(10) 34 +DB(11) 67 -DB(10) 68 -DB(11)
NOTE: The hyphen preceding a signal name indicates that the signal is active low.
DE100i-SWD User's Guide - Rev. C00 Kingston Technology Company
Page 20
14 Installation
Kingston Technology Company DE100i-SWD User's Guide - Rev. C00
Page 21
Appendix A - Specifications/Dimensions 15
Appendices
DE100i-SWD User's Guide - Rev. C00 Kingston Technology Company
Page 22
16 Appendix A - Specifications/Dimensions
Appendix A - Specifications/Dimensions
SCSI Data Express subsystems conform to the Small Computer Systems Interface (SCSI)
Standard set by the American National Standards Institute (ANSI).
Environmental Specifications
Operating Storage
Ambient Temperature -15° C to 50° C -45° C to 75° C
Relative Humidity
Altitude -1000 to 50,000 ft -1000 to 50,000 ft
(2)
Shock
(1)
Non-condensing with maximum Gradient of 10% per hour.
(2)
11 msec Pulse Width 1/2 Sine Wave.
Physical
Specifications Carrier Receiving Frame
Height 1.68" (42.5mm) 1.70" (43.2mm)
Width 4.67" (118.6mm) 5.75" (146.1mm)
Depth 7.38" (187.5mm) 8.18" (207.9mm)
Weight 1.5lb. (.68kg)
(1)
Plus weight of installed disk drive.
(2)
With carrier removed.
(1)
10% to 80% 10% to 90%
-304m to 15240m -304m to 15240m
10g 60g
(1)
1lb (.45kg)
(2)
Chassis Reliability/Maintainability
MTBF 500,000 Hours
MTTR 5 Minutes
Preventive
Maintenance None
Electrical Specifications
Input +5V 65mA
+12V 400µA
Kingston Technology Company DE100i-SWD User's Guide - Rev. C00
Page 23
Appendix A - Specifications/Dimensions 17
Receiving
Frame
with Carrier
(43.2)
5.875
(149.2)
Carrier
Only
1.70
.50
(12.7)
.375
(9.5)
5.50
(139.7)
.250
(6.4)
2.060
(52.3)
3.125
(79.4)
8.19 (208.0)
3.125
(79.4)
#6-32 x 8
#6-32 x 4
Bottom
.15
(3.8)
With Hot
Swap
Board
DE100
Board
Hot
Swap
Board
.64
(16.3)
4.665
(118.5)
1.68
(42.7)
7.38 (187.5)
1.75
(44.5)
.245
(6.2)
3.75 (95.3)
0285A
Figure A-1: Data Express Physical Dimensions
DE100i-SWD User's Guide - Rev. C00 Kingston Technology Company
Page 24
18 Appendix B - Factory-Installed Options
Appendix B - Factory-Installed Options
Hot Swap Feature
The DE100 SCSI Hot Swap Board allows the installation, removal or exchange of Data
Express carriers while your computer system is operating by monitoring and protecting the
computer system and other peripheral devices on the SCSI Bus. The Hot Swap option
eliminates the need to shut down your system when adding or removing a SCSI device by
performing two functions:
1. Delays power up/down of the drive until the time period between SCSI bus cycles.
This prevents the interruption of any SCSI bus activity by other devices on the bus.
2. Prevents drive power sequencing from generating noise on the SCSI bus, thus
preventing data transfer corruption on other devices.
Please note that, whereas UNIX and Apple based systems provide mount/dismount drive
commands, most PC systems do not provide such a feature. When using one of these
operating systems, it may be necessary to reboot the computer after adding or changing a
drive. This reboot activity will force the SCSI host adapter to rescan its SCSI bus for
physically attached drives, and will then be able to access the new or changed drive.
Attaching the Hot Swap Board to the DE100i-SWD
The DE100i-SWD may be purchased with the Hot Swap option factory-installed. If the Hot
Swap Board has not already been attached to the Data Express receiving frame, follow the
instructions below to add the Hot Swap Board:
NOTE: The drive carrier must be installed in the receiving frame when removing or
1. Remove the two Phillips head machine screws from the receiving frame motherboard
2. Remove jumpers on the receiving frame motherboard locations J4 pins 5-6 and 7-8,
3. Attach the two provided standoffs into the receiving frame motherboard holes in place
4. Attach the Hot Swap Board to the receiving frame motherboard by using the two
Kingston Technology Company DE100i-SWD User's Guide - Rev. C00
attaching the Hot Swap Board to ensure proper alignment between the
motherboard and the disk drive.
and set the screws aside (Figure B-1).
and also on J6 pins 1-2 (Figure 5).
of the two removed screws. Carefully align the connectors of the Hot Swap Board
with the connectors on the receiving frame board and gently push the Hot Swap
Board into position. Make certain that all connectors are properly mated.
screws removed earlier and insert them through the Hot Swap Board into the
standoffs.
Page 25
Appendix B - Factory-Installed Options 19
Receiving
Frame Mother
Board
Remove Mounting Screws
and use to Fasten Hot
Swap Board (2 plcs)
Hot Swap
Board
I/O Interface
Connector
Stand Offs (2 plcs)
(Replace Mother
Board Mounting
Screws)
0639
SCSI Receiving Frame
(Carrier Installed)
Figure B-1: Attaching the Hot Swap Board
Carrier Removal
Follow the procedures below to remove the Data Express carrier from the receiving frame
equipped with the Hot Swap option.
1. Verify that the drive is not active. If the system is on a network, make certain other
users are not accessing the target drive, then disable it from the network. Dismount
the drive.
2. Turn the DE100 key/lock mechanism (located on the front of the receiving frame),
clockwise to the Off position. This unlocks the drive from the receiving frame and
activates the Hot Swap Board. The unit number on the display will begin flashing.
WARNING: Be careful not to remove or disturb the carrier unit at this point. Although
the carrier is physically unlocked, the drive requires a minumum of 15
seconds to spin down and is subject to vibration and possible damage
during this period.
3. As the unit number flashes, the Hot Swap Board monitors the activity of the SCSI
bus. When activity is no longer present, the Hot Swap Board will remove power from
the drive and then remove the device from the SCSI Bus. The unit number will
continue to flash during this period.
4. After a short length of time the unit display will turn from a flashing unit number to a
steady “u”, indicating that the device is powered down, unlocked and ready to be
removed from the receiving frame.
DE100i-SWD User's Guide - Rev. C00 Kingston Technology Company
Page 26
20 Appendix B - Factory-Installed Options
NOTE: The timer for device spin down is controlled by a small selector, located in a
cutout on the side of the Data Express Receiving Frame as shown in Figure B-2.
When the key is turned to the off position, and when the timer receives a No
SCSI Activity signal from the Hot Swap Board, it waits the specified delay time
before displaying a “u” on the front panel of the Receiving Frame. The amount of
time required for a disk drive to spin down is approximately 15 seconds or more.
This number can vary depending on the type of SCSI device and manufacturer
(e.g. a Seagate Barracuda may require 45 seconds). The factory configuration is
set for 20 seconds. A different delay time may be selected with the provided
adjustment tool. Refer to the SCSI device manufacturer’s manual for more
information on required device spin down time.
Carrier Installation
Follow the procedures below to install the Data Express carrier into the receiving frame
equipped with the Hot Swap option.
1. Install the Carrier into the Receiving Frame. A "u" will be present on the front
panel.
2. Turn the key lock mechanism, located on the front of the receiving frame,
counter clockwise to the On position. This locks the drive into the receiving
frame and activates the Hot Swap Board. The drive will begin to spin up and
the unit number on the display will begin flashing.
3. After a short length of time the unit display will stop flashing, indicating that the
device is ready to be used.
0
2
E
C
A
4
6
8
Front of
Receiving
Frame
Spin Down/Up Time
0 = 10 SECONDS 8 = 50 SECONDS
1 = 15 SECONDS 9 = 55 SECONDS
2 = 20 SECONDS A = 60 SECONDS
3 = 25 SECONDS B = 65 SECONDS
4 = 30 SECONDS C = 70 SECONDS
5 = 35 SECONDS D = 75 SECONDS
6 = 40 SECONDS E = 80 SECONDS
7 = 45 SECONDS F = 85 SECONDS
0143B
Figure B-2: Device Spin Down/Up Timer
Kingston Technology Company DE100i-SWD User's Guide - Rev. C00
Page 27
Appendix B - Factory-Installed Options 21
Jumper Options
Jumper location W1 provides remote ID selection (Figure B-3). Jumper JP7, if installed,
provides additional data protection during device spin-down. If the Data Express is switched
off while the device is active, this jumper will prevent the device from spinning-down by
monitoring the activity signal. When activity stops, the device will spin down normally.
ID
Remote
Select
Ground
Power Connector
J3
+5
ID0
ID1
ID2
ID3
DC Power
Connector
Pin 1
+12
GND
W1
I/O Interface
Connector
Device Activity
Monitor
JP7
Reserved for
Future Use
I/O Connector
Pin 1
P1
0637
Device Activity
Monitor Jumper
Hot Swap
Board
SCSI Receiving Frame
(Carrier Installed)
Figure B-3: Hot Swap Board Jumper Options
DE100i-SWD User's Guide - Rev. C00 Kingston Technology Company
Page 28
22 Appendix B - Factory-Installed Options
Solenoid Drive Lock
The factory installed solenoid option prevents premature removal of the carrier and drive unit
until the target drive has fully spun down. For most disk drives, this period of time can range
from 15-40 seconds, depending on the type of drive being used (e.g. Seagate Barracuda
drives require up to 50 seconds). Refer to the drive manufacturer's documentation for
specific drive information.
The solenoid lock is controlled by a timing switch located on the side of the receiving frame.
Refer to the previous section "Hot Swap Feature", for information describing the readjustment of the timer setting.
The solenoid option provides an extra step in drive protection by preventing the removal and
movement of the drive until the drive motor has fully stopped.
Shown with Outer Shell
of Receiving Frame
Removed
Spin-Down
Timer
Solenoid
Control
Pivoting Lock
Mechanism
Rotating Pawl
0286
Figure B-4: Solenoid Mechanism
Kingston Technology Company DE100i-SWD User's Guide - Rev. C00
Page 29
Appendix C - Attaching the On/Off Key 23
Appendix C - Attaching the On/Off Key
to Non-Solenoid Units
The following information will provide the necessary steps to attatch the On/Off key to the
key/lock mechanism so that it is non-removable, preventing accidental key loss. The
procedure can be reversed if, at a later date, you want to remove the key.
1. Make certain power is off to the receiving
frame.
Access
Hole
Pawl
Key/Lock
90
Degrees
180
Degrees
Locate the rectangular shaped key/lock
mechanism access hole on the inside of the
receiving frame. Note that the pawl is in an
upright position.
Insert the key into the key/lock.
2. Rotate the key 90 degrees counter-clockwise
so that the pawl is visable in the access hole as
shown in the figure at left.
3. Using the provided adjustment tool, unscrew
and remove the pawl from the access hole.
4. Rotate the key 180 degrees clockwise (or
counter clockwise).
5. Reinstall the pawl into the access hole with the
adjustment tool..
Your key is now attached to the key/lock
mechanism.
0156
Figure C-1: Attaching the On/Off Key
DE100i-SWD User's Guide - Rev. C00 Kingston Technology Company
Page 30
24 Appendix D - Optional Accessories
Appendix D - Optional Accessories
Carrying Case
Drive
Carrier
DX100-DE-C
Carrying
Case
Figure D-1: Optional Data Express Carrying Case (DX100-DE-C)
The optional molded plastic carrying case is designed to transport your Data Express carrier
from one site to another in a safe, impact and moisture resistant environment. Its compact
dimensions, 7” long x 9” wide x 3.5” high, make it easy to carry and to store. The foam lining is
contoured to fit a single Data Express carrier. Contact your Kingston dealer for further details
and ordering information.
Kingston Technology Company DE100i-SWD User's Guide - Rev. C00
0014
Page 31
Appendix D - Optional Accessories 25
Drive Cover
1
Slip Drive Cover
Lip into Top Rear
of Carrier. The
Sides of the Cover
Will Fit Between
the Drive and the
Carrier. Mounting
Holes Must be
Towards Rear of
Carrier.
2
Swing Drive Cover
Down, Covering
the Drive. Make
Certain You Do
Not Damage
Connector Pins or
Cables.
The Data Express optional drive cover (DX100-COV) is an attractive metal cover which can
provide additional protection to the drive, preventing foreign material from coming in contact
with the drive and cables. The optional drive cover is similar to the cable cover provided with
the Data Express except the optional drive cover protects the drive as well as the cables. It
is easily installed with two 6-32 x 3/16" flat head screws as shown in the illustration above.
1
3
Slide Drive Cover
Forward Making Certain
Front Cover Lip is Inside
2
Drive
Cover
Carrier. Fasten Screws.
3
Mounting
Holes
Disk
Carrier
Full Drive Cover (optional)
Figure D-2: Optional Data Express Drive Cover (DX100-COV)
0067
NOTE: The Data Express drive cover may not be compatible with all 3.5" half-height
drives. Exact drive height and fit within the Data Express frame can vary between
drive manufacturers. Please contact Kingston Storage for technical assistance
before ordering the Data Express drive cover.
DE100i-SWD User's Guide - Rev. C00 Kingston Technology Company
Page 32
26 Appendix D - Optional Accessories
WRITE PROTECT
OFF ON
Write Protect Switch
Disk Drive Write Protect
Switch Bracket and Cable
Cover
WRITE PROTECT
Disk Carrier
Write Protect
Connector
(attach to appropriate
disk drive pins)
Figure D-3: Write Protect Switch
OFF ON
(Disk Drive not
shown for clarity)
0357A
The Data Express write protect switch (DX100-DEWP), easily mounts inside the device
carrier of a Data Express unit. For some drive models this feature provides a convenient
method for system administrators to protect sensitive data by merely engaging the write
protect switch and locking the carrier unit inside it's receiving frame within a system or
expansion chassis. Please contact Kingston Storage for technical assistance regarding
drive connection compatibility.
The following instructions provide information for installing the optional Data Express write
protect switch into the Data Express carrier. Refer to the device manufacturer's instruction
manual for additional information regarding specific jumper options.
1. If installing the write protect switch into a drive that is already mounted in a Data
Express carrier, the drive will probably need to be removed from the carrier unit. Refer
to the device manufacturer's instructions to locate the appropriate jumper pins.
2. If a cable cover or optional drive cover is installed on the Data Express carrier, it will
need to be removed. The write protect switch bracket will replace it.
3. Attach the write protect connector to the appropriate drive pins. Refer to the device
manufacturer's instructions for pin locations.
4. Attach the SCSI cable and power connectors.
Kingston Technology Company DE100i-SWD User's Guide - Rev. C00
Page 33
Appendix D - Optional Accessories 27
0429
Drive Plug
Figure D-4: Drive Plug
The Data Express Drive Plug (DX100-PLUG), is designed to fill system or external enclosure bays that are occupied by receiving frames that have no carrier units installed. The
purpose of the plug is to provide an attractive and functional method of directing proper air
flow to the other installed devices in the system or external enclosure.
DE100i-SWD User's Guide - Rev. C00 Kingston Technology Company
Loading...
