StorCase Technology Data Express Ultra320 DE100 User Manual

StorCase® Technology

Data Express

®

Ultra320 DE100

Removable SCSI Ultra320
Drive Enclosure with
80-Pin SCA Interface

User's Guide

i

Ultra320 DE100 User's Guide - Rev. A00 StorCase Technology, Inc.

StorCase® Technology

Data Express

®

Ultra320 DE100

Removable SCSI Ultra320

Drive Enclosure with

80-Pin SCA Interface

User's Guide

Part No. D89-0000-0240 A00 September 2003

StorCase Technology, Inc.

17600 Newhope Street

Fountain Valley, CA 92708-9885

Phone [phone] Fax [phone]

ii

StorCase Technology, Inc. Ultra320 DE100 User's Guide - Rev. A00

LIMITED WARRANTY

STORCASE TECHNOLOGY, Incorporated (StorCase) warrants that its products will be free
from defects in material and workmanship, subject to the conditions and limitations set forth
below. StorCase will, at its option, either repair or replace any part of its product that proves
defective by reason of improper workmanship or materials. Repair parts or replacement
products will be provided by StorCase on an exchange basis, and will be either new or
reconditioned to be functionally equivalent to new.

This warranty does not cover any product damage that results from accident, abuse, misuse,
natural or personal disaster, external power surge or failure, or any unauthorized disassem­bly, repair or modification. StorCase will not be responsible for any software, firmware or other
customer data stored within, or interfacing with a StorCase product.

Duration of Warranty

Seven-Year Warranty: The following StorCase products are covered by this warranty for

a period of seven (7) years from the original date of purchase from StorCase or its authorized
reseller: all Data Express® removable device enclosures and all StorCase interface cables and
accessories specifically intended for use with these products. Data Silo®, Data Stacker® and
InfoStation® products are covered by this warranty for a period of seven (7) years, excepting
the RAID controller, power supply, fan and blower components, which are covered by the
three-year warranty described below.

Three-Year Warranty: The following StorCase products are covered by this warranty for
a period of three (3) years from the original date of purchase from StorCase or its authorized
reseller: all Rhino®JR external expansion chassis and all RAID controller modules. In addition,
the following components of the Data Silo®, Data Stacker®, InfoStation® products are subject
to warranty for a period of three (3) years: all power supplies, fans and blowers.

Warranty Claim Requirements

To obtain warranty service, the defective product must be returned to your local authorized
StorCase dealer or distributor, or, with prior StorCase approval, to the StorCase factory
service center.

For defective products returned directly to StorCase, a Return Material Authorization (RMA)
number must be obtained by calling StorCase Customer Service at [phone]. The RMA
number must be prominently displayed on the outside of the return package. Shipments must
be freight-prepaid and insured, and must include the product serial number, a detailed
description of the problem experienced, and proof of the original retail purchase date. Products
must be properly packaged to prevent damage in transit. Damage resulting from improper
packaging will not be covered by this warranty. The StorCase factory service center is located
at 17650 Newhope Street, Receiving Dock, Gate #4, Fountain Valley, CA 92780, U.S.A.

iii

Ultra320 DE100 User's Guide - Rev. A00 StorCase Technology, Inc.

Free Technical Support

StorCase provides free technical support. If you experience any difficulty during the
installation or subsequent use of a StorCase product, please contact StorCases Technical
Support Department prior to servicing your system. This warranty covers only repair or
replacement of defective StorCase products, as described above. StorCase is not liable for,
and does not cover under warranty, any costs associated with servicing and/or installation
of StorCase products.

StorCase Technical Support can be reached in the U.S. at [phone] or toll-free at (888)
435-5460 (U.S. and Canada only). StorCase European Technical Support can be reached in
the U.K. at [phone].

Disclaimers

The foregoing is the complete warranty for the products identified above and
supersedes all other warranties and representations, whether oral or written.
StorCase expressly disclaims all warranties for the identified products, which are
not stated herein, including, to the extent permitted by applicable law, any implied
warranty of merchantability or fitness for a particular purpose. In no event will
StorCase be liable to the purchaser, or to any user of a StorCase product, for any
damages, expenses, lost revenues, lost savings, lost profits, or any other
incidental or consequential damages arising from the purchase, use or inability
to use a StorCase product, even if StorCase has been advised of the possibility

of such damages.

Copyright © 2003 StorCase Technology. All rights reserved. All registered
trademarks are the property of StorCase Technology. All other logos and trademarks
are properties of their respective companies.

iv

StorCase Technology, Inc. Ultra320 DE100 User's Guide - Rev. A00

Declaration of Conformity

StorCase Technology, Inc.

17600 Newhope Street
Fountain Valley, CA 92708

17600 Newhope Street
Fountain Valley, CA 92708

Data Express Ultra320 DE100 80-pin SCA

S20A160, S20A161, S20A162, S20A163,
S20A164, S20A165

EN 50081-1: 1992

- EN 55022: 1998

- EN 61000-3-2 Harmonic Current

- EN 61000-3-3 Voltage Fluctuations and Flicker
EN 55024: 1998

- EN 61000-4-2 - EN 61000-4-6

- EN 61000-4-3 - EN 61000-4-8

- EN 61000-4-4 - EN 61000-4-11

- EN 61000-4-5

CAN/CSA-C22.2 No. 950-95
UL 1950

EN 60950: 2000

FCC Part 15, Class B

AS/NZS 3548 Information Technology Equipment
Supplier's Code Number N10664

2003

Company Name:

Corporate Office Address:

Manufacturing Address:

Product Name:

Model Number:

Conforms to the following standards:

EMC DIrectives:
(89/336/EEC)

Safety Standards:
CSA (NRTL/C)

TUV

EMI Standards:

EMC Standards:

Year of Manufacture:

Signature:___________________
Full name: Dieter Paul
Position: President

v

Ultra320 DE100 User's Guide - Rev. A00 StorCase Technology, Inc.

INTRODUCTION .................................................................................................................... 1

Packaging Information .................................................................................................. 1

Serial Numbers .............................................................................................................. 1

Package Contents ......................................................................................................... 2

General Description ...................................................................................................... 3

Receiving Frame Front Panel ............................................................................... 4

Receiving Frame Rear Panel ................................................................................ 5

INSTALLATION ...................................................................................................................... 7

Installing the Drive in the Carrier .................................................................................. 7

Preparation ............................................................................................................ 7

Installation ............................................................................................................. 7

Installing the Receiving Frame ..................................................................................... 9

Selecting the Unit ID Number ...................................................................................... 12

Adjusting the Spin Down/Up Timer ............................................................................ 14

APPENDICES ........................................................................................................................ 15

Appendix A - Specifications/Dimensions .................................................................. 16

Appendix B - Attaching the ON/OFF Key .................................................................. 18

Appendix C - Field-Replacing the Carrier Fan .......................................................... 19

Appendix D - Optional Accessories .......................................................................... 21

Carrying Case ..................................................................................................... 21

Reader's Comments............................................................................................................ 23

Table of Contents

vi

StorCase Technology, Inc. Ultra320 DE100 User's Guide - Rev. A00

List of Tables

Table 1: Option Pin Signal Descriptions ........................................................................... 10

Table 2: Option Pins 15-18 Drive Motor Control .............................................................. 10

NOTICE: This User's Guide is subject to periodic updates without notice. While reasonable

efforts have been made to ensure the accuracy of this document, StorCase Tech­nology, Inc. assumes no liability resulting from errors or omissions in this publication,
or from the use of the information contained herein.

Please check the StorCase web site at http://www.storcase.com or contact your
StorCase representative for the latest revision of this document.

List of Figures

Figure 1: Package Contents .......................................................................................... 2

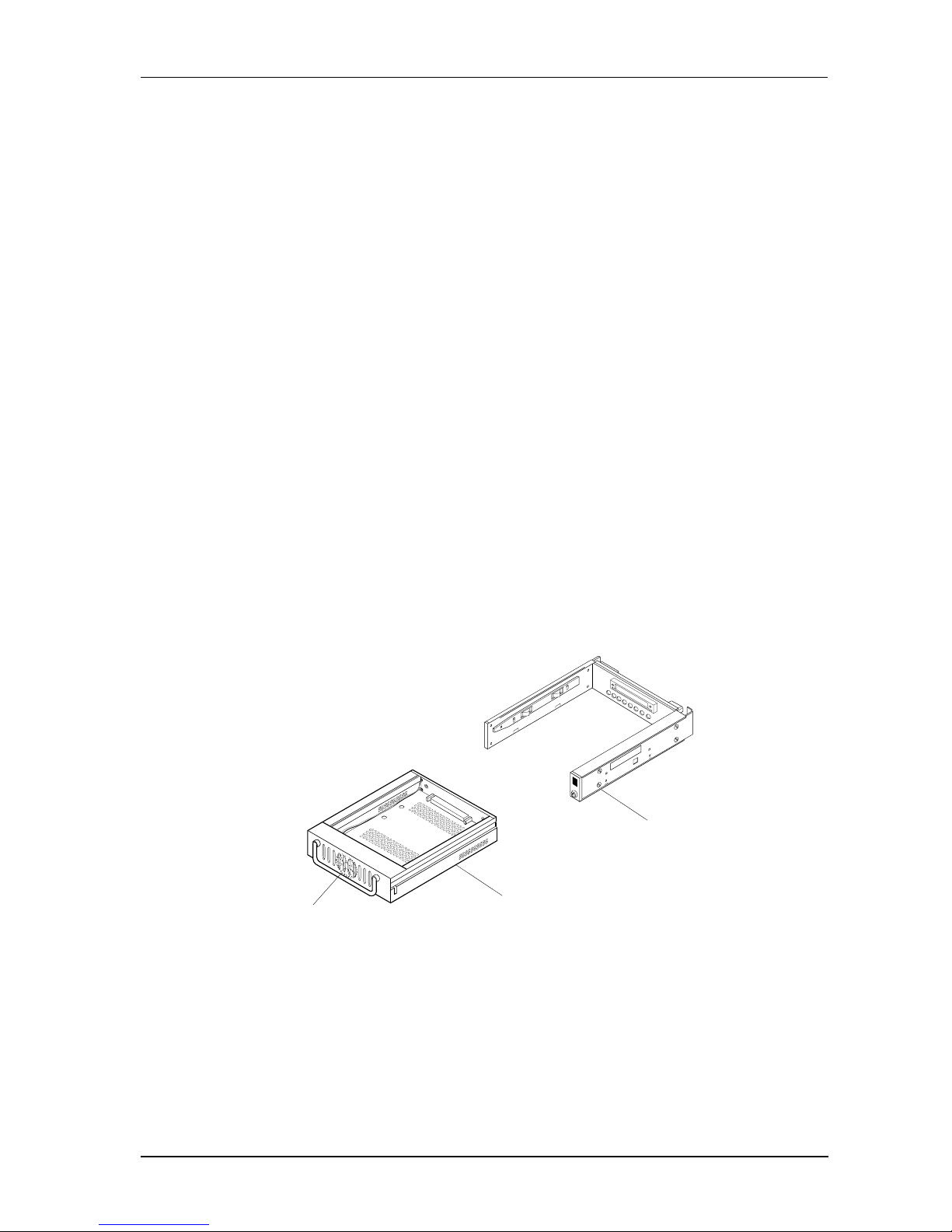

Figure 2: Ultra320 DE100 Receiving Frame and Carrier .............................................. 3

Figure 3: Receiving Frame (Front View) ...................................................................... 4

Figure 4: Receiving Frame Unit ID Number and Activity Display ................................. 5

Figure 5: Receiving Frame Motherboard (Rear View)................................................. 6

Figure 6: Drive Installation Assembly ............................................................................ 8

Figure 7: Drive Cover Installation .................................................................................. 8

Figure 8: Receiving Frame Motherboard Option Pins ................................................... 9

Figure 9: Receiving Frame Mounting Holes ................................................................ 11

Figure 10: Unit ID Select Switch Location .................................................................... 13

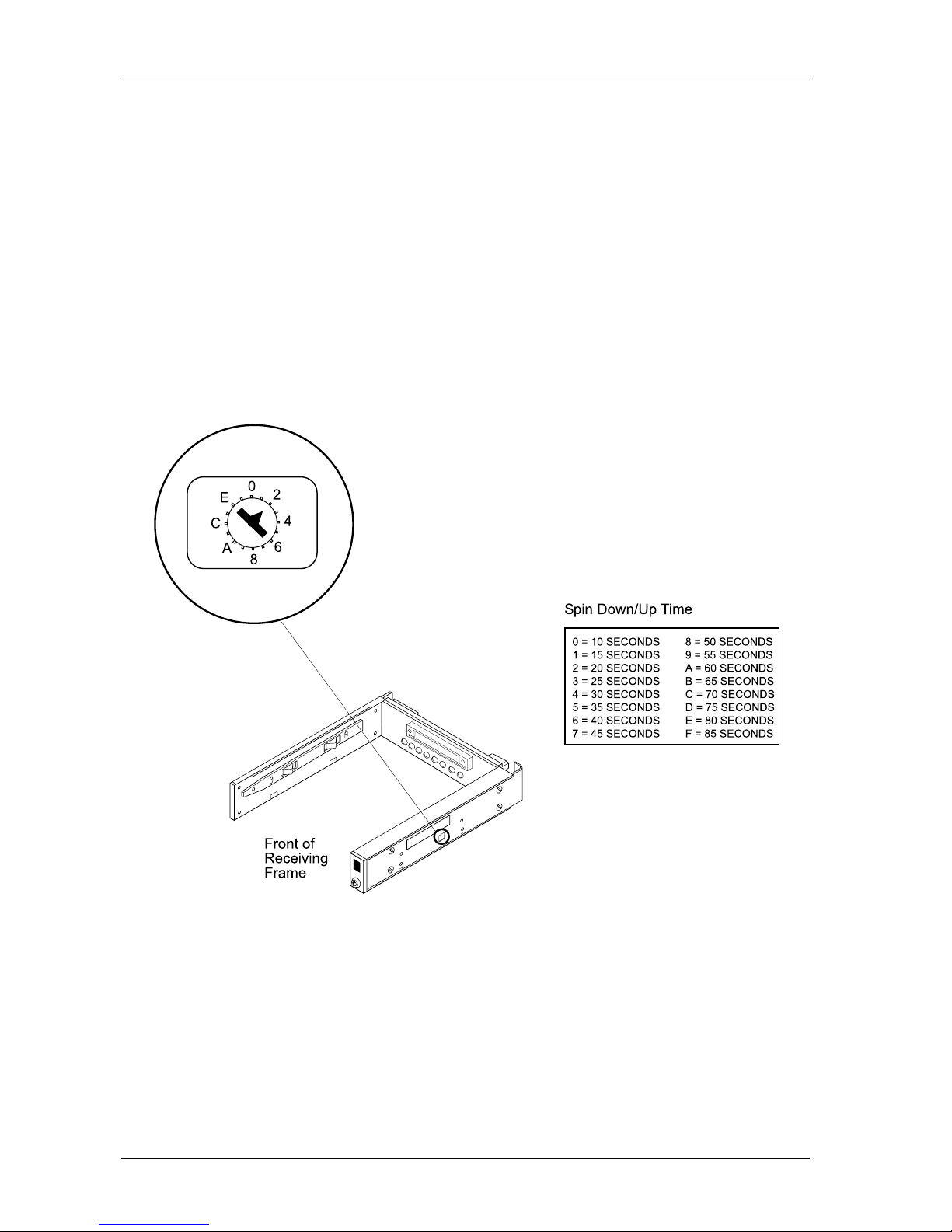

Figure 11: Device Spin Down/Up Timer Switch ........................................................... 14

Figure A-1: Ultra320 DE100 Physical Dimensions.......................................................... 17

Figure B-1: Attaching the ON/OFF Key .......................................................................... 18

Figure C-1: Removing the Fan Bracket from the Carrier ............................................... 19

Figure C-2: Replacing the Fan......................................................................................... 20

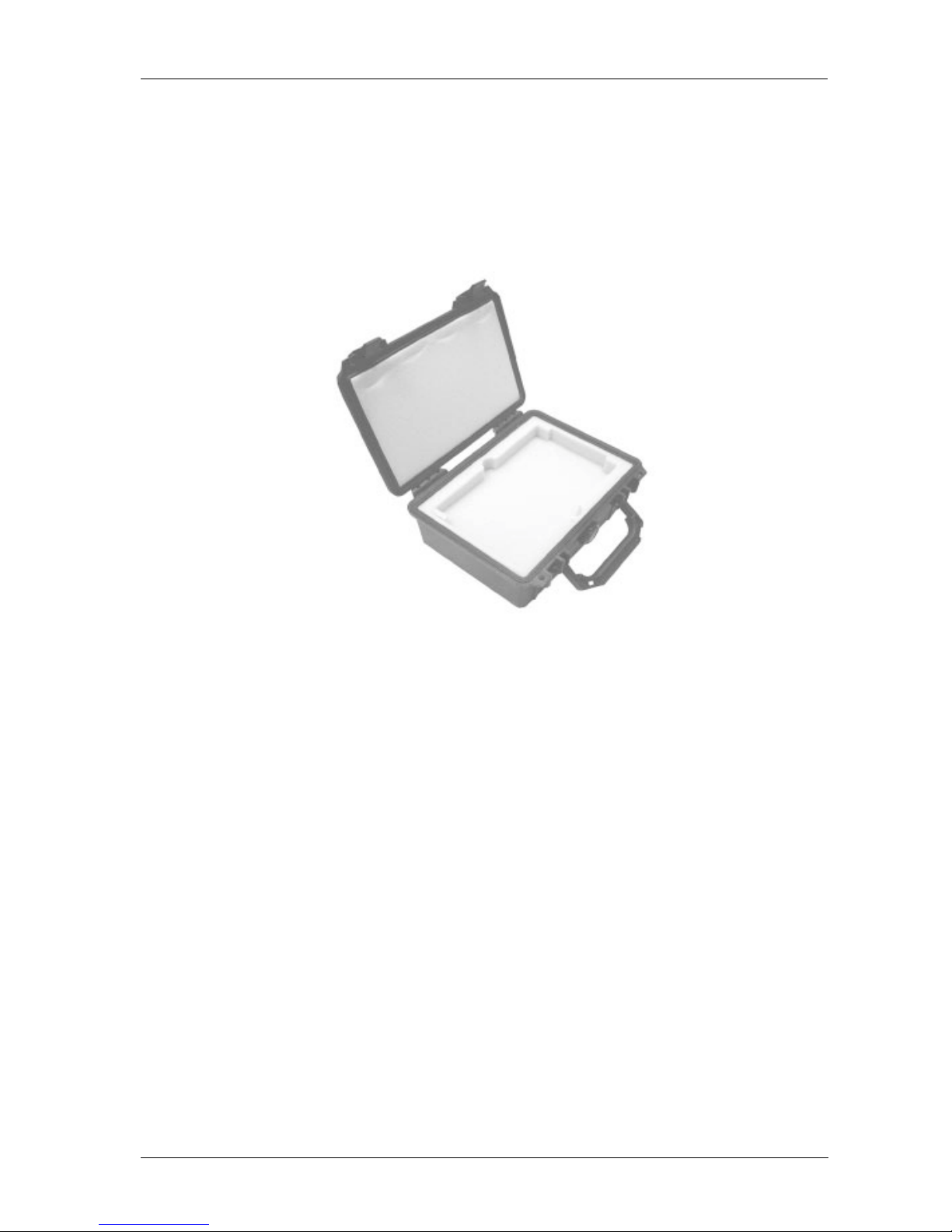

Figure D-1: Carrying Case ............................................................................................... 21

Introduction 1

Ultra320 DE100 User's Guide - Rev. A00 StorCase Technology, Inc.

INTRODUCTION

PackagingInformation

The StorCase Technology Data Express® system is shipped in a container designed to provide
protection and prevent damage during shipment. The Data Express unit was carefully in­spected before and during the packing procedure at the factory. Bent or broken connectors,
or evidence of other damage to the Data Express should be reported to the shipper immediately.
Refer to Figure 1 for the package contents.

If the wrong Data Express model has been received, please call your reseller or StorCase at
[phone] to arrange for a Return Material Authorization (RMA). StorCase cannot accept
returns which do not display an RMA number on the outside of the package. Return the unit
with all the original packing materials.

Before removing any component from its packaging, discharge any static electricity by
touching a properly grounded metal object.

Serial Numbers

Both the Data Express DE100 receiving frame and carrier are labeled with serial numbers.
These numbers must be reported to the StorCase Customer Service Representative in order
to receive a Return Material Authorization (RMA) for warranty claims. Locate the serial number
labels and record the numbers in the spaces provided below.

Receiving Frame:

Device Carrier:

2 Introduction

StorCase Technology, Inc. Ultra320 DE100 User's Guide - Rev. A00

PackageContents

The DE100 package contents include the following items. If any item is missing or damaged,
contact your StorCase dealer for a replacement.

Figure 1: Package Contents

0430i

1. #6-32 x 1/4 Phillips
Pan Head Mounting Screws

2. #6-32 x 1/4 Phillips
Flat Head Mounting Screws

3. Alignment Tool

4. Drive Lock Keys

5. Insert Sheet

6. Drive Carrier

7. Receiving Frame

8. Drive Cover

7

8

D

ata E

xp

res

s

D

r
i
v
e

C
a

r
r
i
e

r

D
i
s

k
D

r
i
v
e

(
N

o
t
I

n
c
l

u
d
e
d

)

P
o
w

e
r
C

a
b

l
e

I
/
O

C
a

b
l
e

D
r

i
v
e

M

o
u

n
t
i

n
g

H
a

r
d
w

a

r
e

(
4
e

a
)

P
h

i
l
l
i
p

s

#
6

­3

2
x

3
/
1

6

F
l
a

t
H

D

I
D

S
e

l
e
c
t
C

a
b

l
e

0
1
5

1

C

a
b

l
e

C
o

v
e
r

(
P

r
o
v

i
d
e
d

)

C
a

b
l
e

C
o

v
e
r

S
c

r
e
w

s

(
2
p

l
c
s

)

#
6

­3

2
x

3
/

1
6

F
l
a

t
H

D

Introduction 3

Ultra320 DE100 User's Guide - Rev. A00 StorCase Technology, Inc.

This User's Guide describes the steps required to install the StorCase Data Express DE100
removable enclosure inside of a computer peripheral bay or external chassis. This guide
supplements documentation provided with the host computer system, operating system, and
the drive to be installed within the carrier.

Figure 2: Ultra320 DE100 Receiving Frame and Carrier

GeneralDescription

NOTES: For SCSI Ultra320 operation, the Ultra320 DE100 requires Ultra320 drives, Ultra320

HBA, and Ultra320-compliant cabling (internal and external).

Ultra320 DE100 can support Ultra320 implementations with a maximum of fifteen (15)

Ultra320 drives (Ultra320 repeater may be required).

Ultra320 DE100 receiving frames are indicated by their BLUE LED, while the Ultra320

DE100 carriers are indicated by the Ultra320 logo.

The StorCase Technology Data Express® Ultra320 DE100 is composed of a receiving frame
which supports SCSI Ultra320 interfaces and fits within a 5.25" half-height peripheral slot. This
16-bit single-connect I/O can support up to 320MByte/sec transfer rates. The receiving frame
contains one (1) removable drive carrier designed to provide durable and reliable mounting
for one (1) 3.5" form factor Single Connector Attachment (SCA) SCSI drive (Figure 2).

A field-replaceable fan in the front of the drive carrier provides enhanced heat dissipation (3.5
CFM). Refer to Appendix C for further information.

The Ultra320 DE100 allows a drive to be removed and transported to another Ultra320 DE100­equipped computer or expansion chassis, and also provides the ability to secure sensitive data
by removing and storing the drive safely for future use. Up to fifteen (15) Ultra320 DE100 units
can be attached to one host adapter.

0425e

Receiving
Frame

Front-Mounted

Fan

Drive
Carrier

4 Introduction

StorCase Technology, Inc. Ultra320 DE100 User's Guide - Rev. A00

ReceivingFrameFront Panel

(Figure 3)

 Key Lock/Drive Power Switch - This key switch assures proper seating of the

drive carrier within the receiving frame, turns power to the drive carrier ON and OFF,
and prevents unauthorized removal or installation of the carrier. For the computer
to access data on the disk drive, the key must be turned counterclockwise to the
locked position.

The key can be permanently attached to the locking mechanism as shown in
Appendix C.

 Unit ID Number Indicator - (Figure 4) This BLUE LED displays the physical address

of the Ultra320 DE100 drive carrier if the carrier is Installed and Locked in the
receiving frame or if the carrier is Removed from the receiving frame. If the carrier
is Installed but Not Locked in the receiving frame, a "u" will be displayed to indicate
an unlocked condition. The unit ID number is selected by means of the unit ID select
switch inside the receiving frame using a special alignment tool supplied with the
DE100.

Fan Failure LED - The unit ID number indicator will display a flashing "F" and an

audible alarm will sound to indicate a fan failure.

 Activity Indicator- A small BLUE dot next to the Unit ID Number which illuminates

to show when the host computer is accessing the data on the DE100 carrier. This
dot will flash during communication with the host computer.

Figure 3: Receiving Frame (Front View)

Device Spin
Down/Up Timer

0231b

Unit ID Number
Display

All Steel
Receiving
Frame

Activity Indicator

Key Lock
and Power
Switch

Receiving Frame
Front

Conductive Plastic

Carrier Guide

Introduction 5

Ultra320 DE100 User's Guide - Rev. A00 StorCase Technology, Inc.

Carrier Installed

(unlocked)

Carrier Installed

(locked)

Carrier Removed

from Receiving Frame

The number "2" shown above is for illustration purposes only. It can be any valid
unit ID number. The letter "u" and F will appear as illustrated.

0064c

Activity
Indicator

Fan Failure

Figure 4: Receiving Frame Unit ID Number and Activity Display

Receiving Frame Rear Panel

(Figure 5)

 DC Power Connector (P1): The Ultra320 DE100 uses a standard 4-pin DC power

connector to accept DC power.

 I/O Connector (J3) : The input/output connector provides a standard interface for

16-bit wide SCSI signals.

 Buzzer: Buzzer will sound in the case of a fan failure.

 Option Pin Connector (W1):

Remote Unit ID Selection: Pins 1-8 of this connector are provided for remote unit

SCSI ID selection through the computer system. Remote ID selection requires that the
unit ID switch located on the inside of the receiving frame be set to "0" (onboard ID
selection is set with a switch located on the inside of the receiving frame as shown
in Figure 10). See Table 1 for pin assignments.

Remote Activity LED (RLED): Pins 17 & 18 provide power for a remote LED device
activity indicator.

6 Introduction

StorCase Technology, Inc. Ultra320 DE100 User's Guide - Rev. A00

Figure 5: Receiving Frame Motherboard (Rear View)

P1

DC Power
Connector

(P1)

68-Pin I/O

Connector

(J3)

Option Pin

Connector

(W1)

0456J

Buzzer

17 18
19 20

910

Factory-Installed

Jumpers

(Do Not Remove!)

J3

P17

P18

Factory-Installed Jumpers: There are two (2) jumpers factory-installed on W1.
These jumpers are located on Pins 9 & 10, and Pins 19 & 20.

NOTE: Do not remove these jumpers!

Installation 7

Ultra320 DE100 User's Guide - Rev. A00 StorCase Technology, Inc.

INSTALLATION

NOTES: For SCSI Ultra320 operation, the Ultra320 DE100 requires Ultra320 drives,

Ultra320 HBA, and Ultra320-compliant cabling (internal and external).

Ultra320 DE100 can support Ultra320 implementations with a maximum of
fifteen (15) Ultra320 drives (Ultra320 repeater may be required).

Ultra320 DE100 receiving frames are indicated by their BLUE LED, while
the Ultra320 DE100 carriers are indicated by the Ultra320 logo.

InstallingtheDriveintheCarrier

Preparation

While performing the steps in this section, work on a soft surface to prevent excessive shock
to the drive being installed. Also refer to the manufacturer's documentation provided with the
drive.

NOTE: A #2 Phillips screwdriver will be required during this procedure.

1. Remove the drive from its protective packaging.

2. Plastic Drive Bezel: If the drive came equipped with a plastic front bezel, it

must be removed.

3. SCSI Drive Termination: The Ultra320 DE100 does not provide onboard

termination. External termination must be provided. Refer to the documentation
provided by the drive manufacturer for termination information.

Installation

1. Carefully insert the drive into the carrier. Slide the drive towards the Drive Carrier
Board, so that the I/O connector on the drive mates with the I/O connector on
the board (Figure 6).

2. Fasten the drive into place with four (4) #6-32 Phillips Flat Hd. screws (Figure

6).

3. Once the drive is installed into the carrier, install the drive cover onto the carrier.
Fasten the cover into place with two (2) #6-32 Phillips Flat Hd. screws (Figure

7).

NOTE: Installation of drive cover is necessary for proper fan air flow!

8 Installation

StorCase Technology, Inc. Ultra320 DE100 User's Guide - Rev. A00

Figure 6: Drive Installation Assembly

0151d

Drive

(Not Included)

#6-32 x 1/4 Phillips

Flat Head Screw

(4 each)

Drive

Carrier

Drive Carrier

Board

Figure 7: Drive Cover Installation

2 Slide the cover

towards the back
of the carrier

1 Insert this end

into the carrier
first

3 Secure with two

(2) #6-32x1/4
Phillips Flat Head
screws.

0823

Installation 9

Ultra320 DE100 User's Guide - Rev. A00 StorCase Technology, Inc.

Figure 8: Receiving Frame Motherboard Option Pin Connector (W1)

InstallingtheReceivingFrame

The drive should be installed into the carrier before installing the receiving frame into the
mounting bay of a computer or expansion chassis. A #2 Phillips screwdriver will be required
for installation.

1. Turn OFF power to the computer.

2. Open the computer system according to the manufacturers instructions. If
necessary, temporarily remove any expansion boards that may make installation
difficult.

3. To select the Ultra320 DE100 unit ID remotely through the computer system or
external expansion chassis, the appropriate cable from the system must be
connected to the ID Select Pins 1-8 on the rear of the receiving frame as shown
in Figure 8.

Pin 10

Pin 12

Pin 14

Pin 22

Pin 20

Pin 18

Pin 16

0439i

SYNC

RMST

DYST

FFAULT/Alarm Enable

RLED

Reserved

Factory-Installed Jumpers
(Do Not Remove!)

Fan 1

Fan 2

10 Installation

StorCase Technology, Inc. Ultra320 DE100 User's Guide - Rev. A00

NOTE: Option Pins 13-16 (Table 2) are used to remotely access the disk drive's motor

control options. Refer to the drive manufacturer's documentation for further in­formation.

Open Open Motor spins up on "Power On"
Open Closed Motor spins up only if SCSI

"Start" command is received

Closed Open Drive motor starts spinning up

approximately 12 seconds x the
SCSI ID number for each target
drive (12 second minimum)

Closed Closed Reserved

Closed = Jumper installed

Open = Jumper removed

DYST RMST Function

1 ID0 SCSI ID
2 GND Ground
3 ID1 SCSI ID
4 GND Ground
5 ID2 SCSI ID
6 GND Ground
7 ID3 SCSI ID

8 GND Ground
9 FFAULT Fan Fault LED/Alarm Enable*
10 FFAULT Fan Fault LED/Alarm Enable*
11 SYNC Drive Synchronous Signal
12 GND Ground
13 RMST Remote Start (see Table 2)
14 GND Ground
15 DYST Delay Start (see Table 2)
16 GND Ground
17 RLED Remote LED Cathode
18 RLED Remote LED Anode
19 FAN1 Fan Signal**
20 FAN2 Fan Signal**
21 Reserved Reserved
22 Reserved Reserved

PIN Signal Function

Table 1: Option Pin Connector (W1) Signal Descriptions

Table 2: Option Pins 13-16 Drive Motor Control

* Jumper on Pins 9 & 10 required for Fan Fault LED/Alarm option.
** Jumper on Pins 19 & 20 required for Fan option.

Installation 11

Ultra320 DE100 User's Guide - Rev. A00 StorCase Technology, Inc.

Figure 9: Receiving Frame Mounting Holes

5. Adjust the front of the receiving frame so the carrier slides freely in and out on
the receiving frame guides. The position of adjoining peripheral units may require
adjustment.

6. Connect the I/O cable from the host adapter to the receiving frame. The Pin 1
indicator on the cable must be properly aligned. Refer to Figure 5 for the correct
Pin 1 location on connector J3.

NOTE: Make sure that only the last SCSI device is terminated. No onboard ter-

mination is provided on the Ultra320 DE100. External termination must
be provided.

4. With the drive carrier locked into place inside the receiving frame, install the
Ultra320 DE100 receiving frame into the drive bay in the computer or expansion
chassis. Use the appropriate guides to position the Ultra320 DE100, and fasten
it into place with the four (4) #6-32 Phillips screws provided. Figure 9 illustrates
the location of the mounting holes. Mounting holes are provided on each side
and the bottom of the receiving frame to accommodate a variety of mounting
configurations. Use the mounting holes which best suit the computer or
expansion chassis configuration.

12 Installation

StorCase Technology, Inc. Ultra320 DE100 User's Guide - Rev. A00

7. Connect the power cable from the DC power supply in the computer or expansion
chassis to the power connector on the Ultra320 DE100 receiving frame. Refer
to Figure 5 for the receiving frame power connector location.

8. Replace any expansion boards that may have been removed earlier. Replace
the system cover according to the manufacturers instructions.

9. Reconnect any system or peripheral cables removed earlier.

10. Turn ON power to the computer. If the installation has been successful, and all
cables have been properly attached, the system should boot normally. Although
the computer may not recognize the Ultra320 DE100 yet, the front panel LED
indicator on the receiving frame should illuminate.

NOTE: The lock on the Ultra320 DE100 receiving frame functions as a lock and

a DC power switch for the carrier unit. The lock must be engaged (turned
counterclockwise) in order to supply power to the carrier and installed
drive unit.

11. The new drive may need to be formatted or initialized prior to use with the
operating system and applications software. Refer to the drive and/or computer
manufacturer's documentation for formatting information.

SelectingtheUnitID Number

1. Verify that power is turned ON to the Ultra320 DE100 receiving frame by turning
on the computer or external expansion chassis. A number should appear in
the unit ID display window if the carrier is locked into place.

2. Unlock the Ultra320 DE100 drive carrier and remove it from the receiving frame.
A "u" will be displayed initially when the unit is unlocked but will return to a SCSI
ID number when the carrier is removed from the receiving frame.

WARNING: Unlocking the carrier unit switches DC power OFF to the drive. Since disk

drives require a short amount of time to spin down, allow about 15 seconds
before pulling the carrier unit out of the receiving frame to avoid possible
damage to the drive.

3. Use the alignment tool supplied with the Ultra320 DE100 to select the unit ID
number of the disk drive. Refer to Figure 10 for the location of the unit ID select
switch inside the receiving frame.

4. After selecting an appropriate unit ID number, replace the Ultra320 DE100
carrier in the receiving frame, and LOCK IT INTO PLACE.

Installation 13

Ultra320 DE100 User's Guide - Rev. A00 StorCase Technology, Inc.

Figure 10: Unit ID Select Switch Location

5. The new drive may need to be formatted or initialized prior to use with the
operating system and applications software. Refer to the drive and computer
manufacturer's documentation for formatting information.

ID Select
Rotating Switch

0179d

Unit ID Number
Display

14 Installation

StorCase Technology, Inc. Ultra320 DE100 User's Guide - Rev. A00

NOTE: The timer for device spin down is controlled by a small selector, located in a cutout

on the side of the Ultra320 DE100 receiving frame as shown in Figure 11. The
amount of time required for a drive to spin down is approximately 15 seconds or
more. This number can vary depending on the type of SCSI device and
manufacturer (some drives may require 45 seconds or more). The factory
configuration is set for 20 seconds. A different delay time may be selected with
the provided alignment tool. Refer to the SCSI device manufacturers manual for
more information on required device spin down time.

Adjusting the Spin Down/Up Timer

Figure 11: Device Spin Down/Up Timer Switch

0144b

Appendix A - Specifications/Dimensions 15

Ultra320 DE100 User's Guide - Rev. A00 StorCase Technology, Inc.

APPENDICES

16 Appendix A - Specifications/Dimensions

StorCase Technology, Inc. Ultra320 DE100 User's Guide - Rev. A00

Appendix A - Specifications/Dimensions

Environmental Specifications

Operating Storage

Ambient Temperature 0° C to 50° C -45° C to 75° C
Relative Humidity

( 1 )

10% to 80% 10% to 90%

Altitude -1000 to 50,000 ft -1000 to 50,000 ft

-304m to 15240m -304m to 15240m

Shock

(2)

10g 60g

(1)

Non-condensing with maximum gradient of 10% per hour.

(2)

11 msec pulse width 1/2 sine wave.

Physical
Specifications Carrier Receiving Frame

Height 1.68" (42.7mm) 1.70" (43.2mm)
Width 4.67" (118.6mm) 5.75" (146.1mm)
Depth 7.38" (187.5mm) 7.93" (201.4mm)

Weight 1.1lb (0.50kg) 1.3lb (0.59kg)

(1)

Chassis Reliability/Maintainability

MTBF 500,000 Hours
MTTR 5 Minutes
Preventive
Maintenance None

Electrical Specifications Fan Air Flow

Input +5V 65mA 1 Fan 3.5 CFM

+12V 800µA

(1)

With carrier removed.

SCSI Data Express subsystems conform to the Small Computer Systems Interface (SCSI)
Standard set by the American National Standards Institute (ANSI).

Appendix A - Specifications/Dimensions 17

Ultra320 DE100 User's Guide - Rev. A00 StorCase Technology, Inc.

Figure A-1: Ultra320 DE100 Physical Dimensions

(Dimensions are for reference only)

3.13

(79.4mm)

0.25

(6.4mm)

7.38 (187.5mm)

0285c

4.67

(118.6mm)

1.68

(42.5mm)

0.15

(3.8mm)

1.70

(43.2mm)

5.75

(146.1mm)

5.50

(139.7mm)

7.93 (201.4mm)

18 Appendix B - Attaching the ON/OFF Key

StorCase Technology, Inc. Ultra320 DE100 User's Guide - Rev. A00

The following information describes the necessary steps to attach the ON/OFF key to the key
lock mechanism so that it is non-removable, preventing accidental key loss. The procedure
can be reversed at a later date to revert back to a removable key.

1. Make certain power is OFF to the receiving frame.

Locate the rectangular-shaped key lock mecha­nism access hole on the inside of the receiving
frame. Note that the pawl is in an upright position.

Insert the key into the key lock.

2. Rotate the key 90 degrees counterclockwise so
that the pawl is visible in the access hole as
shown in the figure at left.

3. Using the provided alignment tool, unscrew and
remove the pawl from the access hole.

4. Rotate the key 180 degrees clockwise.

5. Reinstall the pawl into the access hole with the
alignment tool.

The key is now attached to the key lock mecha­nism.

Figure B-1: Attaching the ON/OFF Key

Appendix B - Attaching the ON/OFF Key

Ultra320 DE100 User's Guide - Rev. A00 StorCase Technology, Inc.

Appendix C - Field-Replacing the Carrier Fan 19

Drive

Carrier

0179e

Fan
Bracket

#6-32 Phillips
Flat Head Screw
(3 Places)

Power

Cable

Fan

Figure C-1: Removing the Fan Bracket from the Carrier

The Ultra320 DE100 drive carrier contains one (1) front-mounted drive carrier fan for en­hanced heat dissipation. Should the fan ever fail, the unit ID number indicator (located on the
front of the receiving frame) will display a flashing "F" and an audible alarm will sound. Refer
to section "Receiving Frame Front Panel" in the Introduction for further information.

In the case of failure, the fan is easily field-replaceable as outlined in the steps below.

Appendix C - Field-Replacing the Carrier Fan

NOTE: A #2 Phillips screwdriver will be required during this procedure.

While performing steps in this section, work on a soft surface to prevent excessive
shock to the drive and carrier.

20 Appendix C - Field-Replacing the Carrier Fan

StorCase Technology, Inc. Ultra320 DE100 User's Guide - Rev. A00

1. Carefully uninstall drive (if still installed in carrier). Refer to section "INSTAL-
LATION" for further information.

2. To remove fan, loosen and remove the three (3) #6-32 Phillips Head screws
securing the fan bracket to the drive carrier (Figure C-1).

3. Carefully remove the fan bracket, making sure to disconnect the fan power
cable from the drive carrier.

4. Remove the faulty fan by removing the four (4) Philips Head screws securing
the fan to the fan bracket (Figure C-2).

5. To install new fan, simply reverse above mentioned steps.

Figure C-2: Replacing the Fan

Fan

Bracket

Fan

0826b

Phillips Head

Screws (4 per Fan)

Ultra320 DE100 User's Guide - Rev. A00 StorCase Technology, Inc.

Appendix D - Optional Accessories 21

Appendix D - Optional Accessories

Carrying Case

Figure D-1: Carrying Case

The optional molded plastic carrying case (P/N S20E104) is designed to transport the Ultra320
DE100 carrier from one site to another in a safe, impact and moisture resistant environment.
Its compact design, makes it easy to carry and to store. Contact your StorCase dealer for
further details and ordering information.

320FW_13

22 Appendix D - Optional Accessories

StorCase Technology, Inc. Ultra320 DE100 User's Guide - Rev. A00
