StorCase Technology Data Express DE300i-SWC User Manual

StorCase Technology

Data Express

®

DE300i-SWC

Removable SCSI Wide Single-Ended
Drive Enclosure with SCA Interface

User's Guide

i

DE300i-SWC User's Guide - Rev. A00 StorCase Technology Inc.

StorCase Technology Inc.

17600 Newhope Street

Fountain Valley, CA 92708-9885

Phone [phone] Fax [phone]

StorCase Technology

Data Express

®

DE300i-SWC

Removable SCSI Wide Single-Ended

Drive Enclosure with SCA Interface

User's Guide

Part No. D89-0000-0047 A00 June 2000

ii

StorCase Technology Inc. DE300i-SWC User's Guide - Rev. A00

LIMITED WARRANTY

STORCASE TECHNOLOGY INC. ("StorCase") warrants that the following products will be free
from defects in material and workmanship for a period of seven (7) years from the date of
purchase from StorCase or its authorized reseller: all Data Silo®, Data Stacker®, and
InfoStation external expansion chassis, all Data Express® removable device enclosures and
all StorCase interface cables and accessories specifically intended for use with these
products. Subject to the conditions and limitations set forth below, StorCase will, at its option,
either repair or replace any part of its product that proves defective by reason of improper
workmanship or materials. Repair parts or replacement products will be provided by StorCase
on an exchange basis, and will be either new or refurbished to be functionally equivalent to
new.

This warranty will not be responsible for any software, firmware or other customer data stored
within, or interfacing with a StorCase product.

Warranty Claim Requirements

To obtain warranty service, the defective product must be returned to your local authorized
StorCase dealer or distributor, or, with prior StorCase approval, to the StorCase factory
service center.

For defective product returns directly to StorCase, a Return Material Authorization
("RMA") number must be obtained by calling StorCase Customer Service at [phone].
The RMA number must be prominently displayed on the outside of the return package.
Shipments must be freight-prepaid and insured, and must include the product serial number,
a detailed description of the problem experienced, and proof of the original purchase date.
Products must be properly packaged to prevent damage in transit. Damage resulting from
improper packaging will not be covered by this warranty. The StorCase factory service center
is located at 3400 S. Susan Street, RMA Dept., Santa Ana, California 92704, U.S.A.

Free Technical Support

StorCase provides free technical support. If you experience any difficulty during the
installation or subsequent use of a StorCase product, please contact StorCase's Technical
Support Department prior to servicing your system. This warranty covers only repair or
replacement of defective StorCase products, as described above. StorCase is not liable for,
and does not cover under warranty, any costs associated with servicing and/or installation
of StorCase products.

StorCase Technical Support can be reached in the U.S. at [phone] or toll-free at (888)
435-5460 (U.S. and Canada only). StorCase European Technical Support can be reached
from within the U.K. at 01932 738915.

iii

DE300i-SWC User's Guide - Rev. A00 StorCase Technology Inc.

Disclaimers

The foregoing is the complete warranty for the products identified above and
supersedes all other warranties and representations, whether oral or written.
StorCase expressly disclaims all warranties for the identified products which are
not stated herein, including, to the extent permitted by applicable law, any implied
warranty of merchantability or fitness for a particular purpose. In no event will
StorCase be liable to the purchaser, or to any user of a StorCase product, for any
damages, expenses, lost revenues, lost savings, lost profits, or any other
incidental or consequential damages arising from the purchase, use or inability
to use a StorCase product, even if StorCase has been advised of the possibility
of such damages.

Copyright © 2000 StorCase Technology. All rights reserved. All registered trademarks are
the property of StorCase Technology. All other logos and trademarks are properties of their
respective companies. Printed in the U.S.A.

iv

StorCase Technology Inc. DE300i-SWC User's Guide - Rev. A00

Declaration of Conformity

StorCase Technology Inc.

17600 Newhope Street
Fountain Valley, CA 92708

3400 S. Susan Street
Santa Ana, CA 92704

Data Express DE300

DE300i-XXXX/XXX

EN 50081-1: 1992 Generic Emission

- EN 55022/CISPR22 Class B
EN 50082-1: 1992 Generic Immunity

- IEC 1000-4-2 ESD

- IEC 1000-4-3 Radiated Immunity

- IEC 1000-4-4 Electrical Fast Transient

EN 60950

CAN/CSA-C22.2 No. 950-95
UL 1950

EN 60950: 1988 EN 60950/A2: 1991
EN 60950/A1: 1993 0

FCC Part 15, Class B

AS/NZS 3548 Information Technology Equipment

1997

Company Name:

Corporate Office Address:

Manufacturing Address:

Product Name:

Model Number:

Conforms to the following standards:

EMC Directives:
(89/336/EEC)

Low Voltage Directive:
(73/23/EEC)

Safety Standards:
CSA (NRTL/C)

TUV

EMI Standards:

EMC Standards:

Year of Manufacture:

Signature:___________________
Full name: Dieter Paul
Position: Vice President of Engineering

v

DE300i-SWC User's Guide - Rev. A00 StorCase Technology Inc.

Table of Contents

DATA EXPRESS DE300i-SWC INTRODUCTION ................................................................... 1

Packaging Information .................................................................................................. 1

Package Contents ......................................................................................................... 2

Serial Numbers .............................................................................................................. 2

General Description ...................................................................................................... 3

Receiving Frame Front Panel ............................................................................... 4

Receiving Frame Rear Panel................................................................................ 5

DE300i-SWC INSTALLATION ................................................................................................ 7

Installing the Drive in the Carrier .................................................................................. 7

Preparation ............................................................................................................ 7

Installation ............................................................................................................. 7

Installing the Receiving Frame ..................................................................................... 9

Selecting the Unit ID Number ...................................................................................... 12

Adjusting the Spin Down/Up Timer ............................................................................ 14

APPENDICES ........................................................................................................................ 15

Appendix A - Specifications/Dimensions .................................................................. 16

Appendix B - Factory-Installed Options .................................................................... 18

Hot Swap Board ................................................................................................. 18

Attaching the Hot Swap Board .......................................................................... 18

Jumper Options........................................................................................... 19

Using the Hot Swap Board ................................................................................ 19

Carrier Removal.......................................................................................... 19

Carrier Installation ...................................................................................... 21

Appendix C - Attaching the ON/OFF Key .................................................................. 22

Appendix D - Optional Accessories.......................................................................... 23

Carrying Case ..................................................................................... 23

Drive Plug ........................................................................................... 24

Reader's Comments............................................................................................................ 25

vi

StorCase Technology Inc. DE300i-SWC User's Guide - Rev. A00

List of Tables

Table 1: DE300i-SWC Shipment Contents ......................................................................... 2

Table 2: Option Pin Signal Descriptions ........................................................................... 10

Table 3: Option Pins 17-20 Drive Motor Control .............................................................. 10

List of Figures

Figure 1: Package Contents ................................................................................................ 2

Figure 2: DE300i-SWC Receiving Frame and Carrier ......................................................... 3

Figure 3: Receiving Frame Front Panel ............................................................................... 4

Figure 4: Receiving Frame Unit Number and Activity Display ........................................... 5

Figure 5: Receiving Frame (Rear View) ............................................................................. 6

Figure 6: Drive Installation Assembly .................................................................................. 8

Figure 7: Receiving Frame Motherboard J3 Option Pins .................................................... 9

Figure 8: Receiving Frame Mounting Holes ...................................................................... 11

Figure 9: Unit ID Select Switch Location .......................................................................... 13

Figure 10: Device Spin Down/Up Timer .............................................................................. 14

Figure A-1: DE300i-SWC Physical Dimensions .................................................................... 17

Figure B-1: Installing the Hot Swap Board ........................................................................... 19

Figure B-2: Hot Swap Board Termination Jumpers ............................................................. 20

Figure B-3: Device Spin Down/Up Timer .............................................................................. 21

Figure C-1: Attaching the ON/OFF Key ................................................................................ 22

Figure D-1: Carrying Case ..................................................................................................... 23

Figure D-2: Drive Plug ............................................................................................................ 24

NOTICE: This User's Guide is subject to periodic updates without notice. Please check

the StorCase website at http://www.storcase.com or contact your StorCase
representative for the latest revision of this document.

DE300i-SWC User's Guide - Rev. A00 StorCase Technology Inc.

Introduction 1

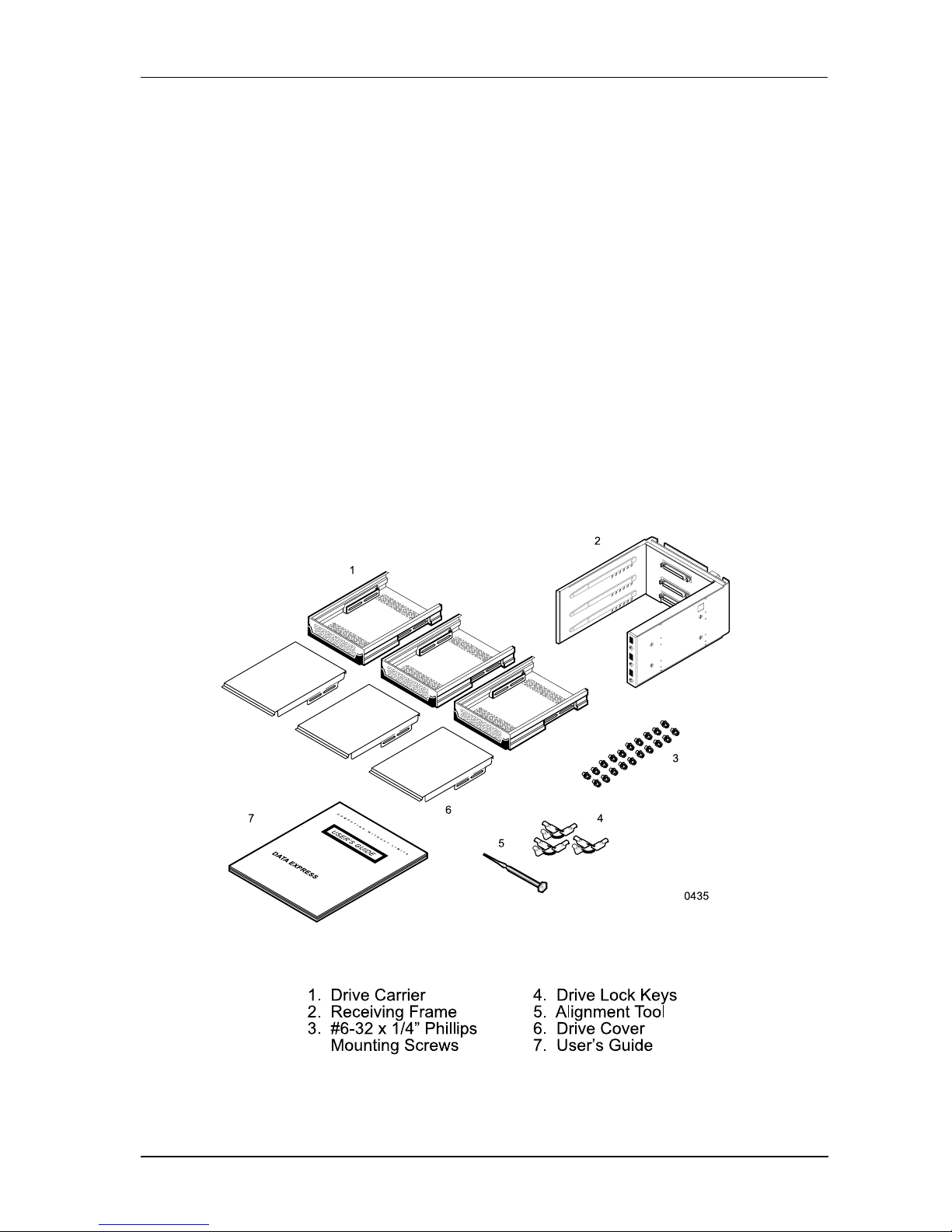

Figure 1: Package Contents

DATA EXPRESS DE300i-SWC INTRODUCTION

Packaging Information

The StorCase Technology Data Express® system is shipped in a container designed to
provide protection and prevent damage during shipment. The Data Express unit was
carefully inspected before and during the packing procedure at the factory. Bent or
broken connectors, or evidence of other damage to the Data Express should be reported
to the shipper immediately. Refer to Figure 1 for the package contents.

If the wrong Data Express model has been received, please call StorCase at (800) 435-

0642. A staff member will give you a Return Material Authorization (RMA) number to
facilitate processing. StorCase cannot accept returns which do not display an RMA
number on the outside of the package. Return the unit with all the original packing
materials.

Before removing any component from its packaging, discharge any static electricity by
touching a properly grounded metal object.

2 Introduction

StorCase Technology Inc. DE300i-SWC User's Guide - Rev. A00

Serial Numbers

Both the Data Express receiving frame and carrier are labeled with serial numbers.
These numbers must be reported to the StorCase Customer Service Representative in
order to receive a Return Material Authorization (RMA) for warranty claims. Locate the
serial number labels and record the numbers in the spaces provided below.

Receiving Frame:

Drive Carrier:

If any item is missing or damaged, contact your StorCase dealer for a replacement.

One StorCase Data Express DE300i-SWC DE300i-CSWC DE300i-RSWC
SCSI System Part Number (Carriers & RF) (Carrier) (Receiving Frame)

Drive Carrier DE300i-CSWC (3) (3)

Receiving Frame DE300i-RSWC (1) (1)

Alignment Tool D45-0000-0037 (1) (1)

Phillips Mounting Screws (#6-32 x 1/4) D45-0000-0004 (20) (4) (8)
(To install drive and receiving frame)

Drive Cover D10-4040-0397 (3) (3)

Drive Lock Keys D45-0000-0059 (3 Sets) (3 Sets)

User's Guide D89-0000-0047 (1) (1) (1)

Table 1: DE300i-SWC Shipment Contents

PackageContents

The DE300i-SWC product shipment should include the following items:

DE300i-SWC User's Guide - Rev. A00 StorCase Technology Inc.

Introduction 3

GeneralDescription

The StorCase Technology Data Express® DE300i-SWC is composed of a receiving frame
with 68-pin SCSI Wide connectors and fits within 5.25" full-height peripheral slots. The
receiving frame contains three (3) removable drive carriers designed to provide durable
and reliable mounting for three (3) 3.5" form factor x 1" high SCSI drives. The DE300i­SWC is specifically designed for Single Connector Attachment (SCA) SCSI drives (Figure

2).

The DE300i-SWC allows a drive to be removed and transported to another DE300i-SWC­equipped computer or expansion chassis, and also provides the ability to secure sensitive
data by removing and storing the drive safely for future use. The DE300i-SWC is
particularly well suited for RAID configurations, combining wide receiving frame I/O
connectors with three (3) removable single connect (SCA) drive carriers.

This User's Guide describes the steps required to install the StorCase Data Express
(DE300i-SWC) removable enclosure inside a computer peripheral bay or external
expansion chassis. This guide supplements documentation provided with the host
computer system, operating system, and the drive to be installed within the DE300i-SWC
carrier.

Figure 2: DE300i-SWC Carrier and Receiving Frame

4 Introduction

StorCase Technology Inc. DE300i-SWC User's Guide - Rev. A00

Figure 3: Receiving Frame Front Panel

ReceivingFrameFrontPanel

(Refer to Figure 3)

 The Key Lock/Drive Power Switch performs three (3) functions. The key

lock assures proper seating of the device carrier within the receiving frame,
turns power to the device carrier on and off, and prevents unauthorized
removal or installation of the carrier. For the computer to access data on the
DE300i-SWC disk drive, the key must be turned counterclockwise to the locked
position.

The key can be attached (optional) to the locking mechanism as shown in
Appendix C.

 The Unit Number Indicator (Figure 4) displays the physical address of the

DE300i-SWC device carrier if the carrier is Installed and Locked in the receiving
frame or if the carrier is Removed from the receiving frame. If the carrier is
Installed but Not Locked in the receiving frame, a "u" will be displayed to
indicate an unlocked condition. The unit ID number is selected by means of the
unit select switch inside the receiving frame using a special alignment tool
supplied with the DE300i-SWC.

 The Activity Indicator is a small dot next to the Unit ID Number which

illuminates to show when the host computer is accessing the data on the
DE300i-SWC carrier. This dot will flash during communication with the host
computer.

 Device Spin Down/Up Timer This feature allows the receiving frame unit

number display to provide a visual indication of drive spin down/up activity. A
small timing switch located on the side of the receiving frame allows the
operator to adjust the timer to match the specific drive manufacturer's specifica­tions (Figure B-3).

DE300i-SWC User's Guide - Rev. A00 StorCase Technology Inc.

Introduction 5

Figure 4: Receiving Frame Unit Number and Activity Display

ReceivingFrameRearPanel

(Refer to Figure 5)

 DC Power Connector (J1): The DE300i-SWC uses a standard 4-pin DC power

connector to accept DC power.

 I/O Connectors (J3, J5, J7): The input/output connector provides a standard

interface for 16-bit wide SCSI signals.

 Option Pins (J3A, J3B, J3C)

Remote Unit ID Selection: Pins 1 through 8 of these connectors are provided

for remote unit SCSI ID selection through the computer system. Remote ID
selection requires that the unit ID switch located on the inside of the receiving
frame be set to "0" (device ID selection is set with a switch located on the inside
of the receiving frame as shown in Figure 9). See Table 2 for J3 pin assignments.

Disable Onboard Termination: Pins 9 and 10 contain a factory-installed
jumper. Removing the jumper will enable onboard termination.

Remote Activity LED: Pins 11 and 12 provide power for a remote LED device
activity indicator.

6 Introduction

StorCase Technology Inc. DE300i-SWC User's Guide - Rev. A00

Figure 5: Receiving Frame Motherboard (Rear View)

DE300i-SWC User's Guide - Rev. A00 StorCase Technology Inc.

Installation 7

DE300i-SWCINSTALLATION

InstallingtheDriveintheCarrier

Preparation

While performing the steps in this section, work on a soft surface to prevent excessive
shock to the drive being installed. Also refer to the manufacturer's documentation

provided with the drive.

NOTE: A #2 Phillips screwdriver will be required during this procedure.

1. Remove the drive from its protective packaging.

2. Plastic Drive Bezel: If the drive came equipped with a plastic front bezel,

it must be removed.

3. SCSI Drive Termination: If your drive has SCSI termination, disable

termination on the drive. Termination is handled by an external terminator in
the DE300i-SWC receiving frame. Refer to the documentation provided by
the drive manufacturer for the location of these terminators or jumpers.

Installation

1. Carefully insert the drive (Figure 6) into the carrier so that the I/O connector
is flush with the rear of the carrier. Do not fasten the drive into place until
the drive cover has been installed as described in the following step.

2. Install the drive cover by inserting the front lip of the cover under the front
inside face of the carrier. Carefully push down on the rear of the cover so
that the side flanges align with the outside of the carrier as they appear in
Figure 6. The drive cover should sit flush with the top and rear of the
carrier. The drive and the I/O connector must also be flush with the rear of
the carrier. Fasten the drive and the cover into place with four (4) #6-32 x
1/4" Phillips machine head screws.

8 Installation

StorCase Technology Inc. DE300i-SWC User's Guide - Rev. A00

Figure 6: Drive Installation Assembly

DE300i-SWC User's Guide - Rev. A00 StorCase Technology Inc.

Installation 9

0439

Pin 1 Pin 2 ID0
Pin 3
Pin 5
Pin 7
Pin 9
Pin 11
Pin 13
Pin 15
Pin 17
Pin 19
Pin 21

Pin 4 ID1
Pin 6 ID2
Pin 8 ID3
Pin 10 DT (Factory Installed Jumper)

Pin 12 RLED
Pin 14 DF

Pin 16 SYNC
Pin 18 TPWP

Pin 20 WTP
Pin 22 LK (Factory Installed Jumper)

Ground
Row

Signal
Row

Figure 7: Receiving Frame Motherboard J3 Option Pins

InstallingtheReceivingFrame

The drive should be installed into the carrier before installing the receiving frame into the
mounting bay of a computer or expansion chassis.

NOTE: Use a #2 Phillips screwdriver during this procedure.

1. Turn OFF power to the computer.

2. Open the computer system according to the manufacturers instructions. If
necessary, temporarily remove any expansion boards that may make
installation difficult.

3. To select the DE300i-SWC unit ID remotely through the computer system or
external expansion chassis, the appropriate cable from the system must be
connected to the option pins (1-8 on connectors J3A, J3B, J3C) on the rear of
the receiving frame as shown in Figure 7.

10 Installation

StorCase Technology Inc. DE300i-SWC User's Guide - Rev. A00

Table 2: J3A, J3B, J3C Option Pin Signal Descriptions

PIN Signal Function

1 ID0 SCSI ID
2 GND Ground
3 ID1 SCSI ID
4 GND Ground
5 ID2 SCSI ID
6 GND Ground
7 ID3 SCSI ID
8 GND Ground

9 DT Disable On Board Terminator
10 GND Ground
11 RLEDC Remote LED Cathode
12 RLEDA Remote LED Anode
13 DFAULT Force Drive Fault Signal to Display
14 GND Ground
15 SYNC Drive Synchronization Signal
16 GND Ground
17 RMST Remote Start (see Table 3)
18 GND Ground
19 DLST Delay Start (see Table 3)
20 GND Ground
21 LKA Disable Isolator Functions
22 LKB Disable Isolator Functions

Table 3: J3A, J3B, J3C Option Pins 17-20 Drive Motor Control

DLST RMST Function

Open Open Motor spins up on power on
Open Closed Motor spins up only if SCSI

"Start" command is received

Closed Open Drive motor starts spining up

approximately 12 seconds x the
SCSI ID number for each target
drive (12 second minimum)

Closed Closed Reserved

Closed = Jumper installed
Open = Jumper removed

DE300i-SWC User's Guide - Rev. A00 StorCase Technology Inc.

Installation 11

4. With the drive carriers locked into place inside the receiving frame, install the
DE300i-SWC receiving frame into the drive opening in the computer or
expansion chassis. Use the appropriate guides to position the DE300i-SWC,
and fasten it into place with the four (4) #6-32 x 1/4 screws provided.
Figure 8 illustrates the location of the mounting holes. Mounting holes are
provided on each side and the bottom of the receiving frame to
accommodate a variety of mounting configurations. Use the mounting holes
which best suit the computer or expansion chassis configuration.

Figure 8: Receiving Frame Mounting Holes

Mounting
Holes
(Right)

0520

Mounting
Holes
(Bottom)

Front of Unit

5. Adjust the front of the receiving frame so the carrier slides freely in and out
on the receiving frame guides. The position of adjoining peripheral units may
require adjustment.

6. To connect a drive to a Remote Activity LED in the computer system or
expansion chassis, connect the appropriate cable(s) to the receiving frame
motherboard as shown in Figure 5. Connect J3A, J3B, and J3C Pins 11 and
12 to a remote activity LED.

7. Connect the I/O cables from the host adapter to the receiving frame. The Pin
1 indicator on the cable must be properly aligned. Refer to Figure 5 for the
correct Pin 1 location.

8. Make sure that only the last SCSI device is terminated. If the DE300i-SWC is
at the end of a daisy chain, the receiving frame termination for the last
device must be enabled by removing the appropriate jumper. If the
DE300i-SWC is in the middle of a daisy chain, termination should be disabled
(jumper installed, factory setting) at J3A, J3B, and J3C, Pins 9 and 10
(Figure 7).

12 Installation

StorCase Technology Inc. DE300i-SWC User's Guide - Rev. A00

9. Connect the power cable from the DC power supply in the computer or
expansion chassis to the power connector on the DE300i-SWC receiving
frame. Refer to Figure 5 for the DE300i-SWC receiving frame power
connector location.

10. Replace any expansion boards that may have been removed earlier.
Replace the system cover according to the manufacturers instructions.

11. Reconnect any system or peripheral cables removed earlier.

12. Turn on power to the computer. If the installation has been successful, and
all cables have been properly attached, the system should boot normally.
Although the computer may not recognize the DE300i-SWC yet, the
appropriate front panel LED indicators on the DE300i-SWC should illuminate.

NOTE: The lock on the DE300i-SWC receiving frame functions as a lock

and a DC power switch for the carrier unit. The lock must be
engaged (turned counterclockwise) in order to supply power to
the carrier and installed drive unit.

13. The new drives may need to be formatted or initialized prior to use with the
operating system and applications software. Refer to the drive and/or
computer manufacturer's documentation for formatting information.

SelectingtheUnitID Number

1. Verify that power is turned on to the DE300i-SWC receiving frame by
turning on the computer or external expansion chassis. Numbers should
appear in the unit display windows if the carriers are locked into place.

2. Unlock the DE300i-SWC drive carrier and remove it from the receiving
frame. A "u" will be displayed initially when the unit is unlocked but will
return to a SCSI ID number when the carrier is removed from the receiving
frame.

WARNING: Unlocking the carrier unit switches DC power off to the

drive. Since disk drives require a short amount of time to
spin down, allow about 15 seconds before pulling the
carrier unit out of the receiving frame to avoid possible
damage to the drive.

3. Use the alignment tool supplied with the DE300i-SWC to select the ID
number of the disk drive. Refer to Figure 9 for the location of the Unit ID
Select Switch inside the receiving frame.

4. After selecting an appropriate unit ID number, replace the DE300i-SWC
carrier in the receiving frame, and LOCK IT INTO PLACE.

DE300i-SWC User's Guide - Rev. A00 StorCase Technology Inc.

Installation 13

Figure 9: Unit ID Select Switch Location

5. The new drive(s) may need to be formatted or initialized prior to use with
the operating system and applications software. Refer to the drive and/or
computer manufacturer's documentation for formatting information.

14 Installation

StorCase Technology Inc. DE300i-SWC User's Guide - Rev. A00

Front of
Receiving
Frame

0445

0

2

4

6

8

A

C

E

0 = 10 SECONDS 8 = 50 SECONDS
1 = 15 SECONDS 9 = 55 SECONDS
2 = 20 SECONDS A = 60 SECONDS
3 = 25 SECONDS B = 65 SECONDS
4 = 30 SECONDS C = 70 SECONDS
5 = 35 SECONDS D = 75 SECONDS
6 = 40 SECONDS E = 80 SECONDS
7 = 45 SECONDS F = 85 SECONDS

Spin Down/Up Time

Figure 10: Device Spin Down/Up Timer

Adjusting the Spin Down/Up Timer

NOTE: The timer for device spin down is controlled by a small selector,

located in a cutout on the side of the DE300i-SWC receiving frame as
shown in Figure 10. The amount of time required for a drive to spin
down is approximately 15 seconds or more. This number can vary
depending on the type of SCSI device and manufacturer (some
devices may require 45 seconds or more). The factory configuration
is set for 20 seconds. A different delay time may be selected with the
provided alignment tool. Refer to the SCSI device manufacturer's
manual for more information on required device spin down time.

DE300i-SWC User's Guide - Rev. A00 StorCase Technology Inc.

Appendix A - Specifications/Dimensions 15

APPENDICES

16 Appendix A - Specifications/Dimensions

StorCase Technology Inc. DE300i-SWC User's Guide - Rev. A00

SCSI Data Express subsystems conform to the Small Computer Systems Interface (SCSI)
Standard set by the American National Standards Institute (ANSI).

(1)

With carrier removed.

Appendix A - Specifications/Dimensions

Environmental Specifications

Operating Storage

Ambient Temperature -5° C to 50° C -45° C to 75° C
Relative Humidity

( 1 )

10% to 80% 10% to 90%

Altitude -1000 to 50,000 ft -1000 to 50,000 ft

-304m to 15240m -304m to 15240m

Shock

(2)

10g 60g

(1)

Non-condensing with maximum gradient of 10% per hour.

(2)

11 msec pulse width 1/2 sine wave.

Physical
Specifications Carrier Receiving Frame

Height 1.07" (27.2mm) 3.38" (85.9mm)
Width 4.67" (118.6mm) 5.88" (149.4mm)
Depth 6.06" (153.9mm) 6.55" (166.4mm)

Weight 0.75lb (0.34kg) 2.1lb (0.95kg)

(1)

Chassis Reliability/Maintainability

MTBF 500,000 Hours
MTTR 5 Minutes
Preventive
Maintenance None

Electrical Specifications

Input +5V 200mA

+12V 1.2mA

DE300i-SWC User's Guide - Rev. A00 StorCase Technology Inc.

Appendix A - Specifications/Dimensions 17

Figure A-1: DE300i-SWC Physical Dimensions

(Dimensions are for reference only)

18 Appendix B - Factory-Installed Options

StorCase Technology Inc. DE300i-SWC User's Guide - Rev. A00

Appendix B - Factory-Installed Options

DE300 Hot Swap Board

The DE300 SCSI Hot Swap Board (part number DX300-SWC/H) allows the installation,
removal or exchange of DE300i-SWC carriers while your computer system is operating by
monitoring and protecting the computer system and other peripheral devices on the SCSI
Bus. The Hot Swap option eliminates the need to shut down your system when adding or
removing a SCSI device by performing two functions:

1. Delays power up/down of the drive until the time period between SCSI bus
cycles. This prevents the interruption of any SCSI bus activity being done by
other devices on the bus.

2. Prevents drive power sequencing from generating noise on the SCSI bus, thus
preventing data transfer corruption on other devices.

Please note that, whereas UNIX and Apple-based systems provide mount/dismount drive
commands, most PC systems do not provide such a feature. When using one of these
operating systems, it may be necessary to reboot the computer after adding or changing
a drive. This reboot activity will force the SCSI host adapter to rescan its SCSI bus for
physically attached drives, and will then be able to access the new or changed drive.

Attaching the Hot Swap Board

The DE300i-SWC may be purchased with the Hot Swap option factory-installed. If the Hot
Swap Board has not already been attached to the DE300i-SWC receiving frame, follow
the instructions below to add the Hot Swap Board. Otherwise, proceed to the section
"Using the Hot Swap Board" for usage instructions.

1. Remove the two (2) Phillips head machine screws from the receiving frame
motherboard and set aside (Figure B-1).

2. Remove jumpers on the receiving frame motherboard J3A, J3B, and J3C Pins 21
and 22 (Figure 5). Option jumpers at Pins 9 and 10 must be installed (default
setting) to disable onboard termination at the receiving frame motherboard
(Figure 5). The Hot Swap Board (Figure B-2), will control onboard termination.
Removing jumpers JTA, JTB, or JTC, will enable termination at the corresponding
drive.

NOTE: Save these jumpers! These jumpers are required when the Hot Swap

Board is not installed.

3. Attach the two (2) provided stand-offs into the receiving frame motherboard
holes in place of the two removed screws. Carefully align the connectors of the
Hot Swap Board with the connectors on the receiving frame motherboard and
gently push the Hot Swap Board into position. Make certain that all connectors
are properly mated.

DE300i-SWC User's Guide - Rev. A00 StorCase Technology Inc.

Appendix B - Factory-Installed Options 19

Figure B-1: Attaching the Hot Swap Board

4. Attach the Hot Swap Board to the receiving frame motherboard by using the two
screws removed earlier and insert them through the Hot Swap Board into the
stand-offs.

Jumper Options

Most jumper options are configurable via the receiving frame motherboard (Figure 7). The
Hot Swap Board provides three (3) configurable jumpers, DTA, DTB, and DTC (Figure B-

2). When installed (factory default), these jumpers disable onboard termination at drives
A, B, and C, respectively. If a DE300 drive will be physically located at the end of a SCSI
daisy chain, remove the appropriate jumper to enable termination.

Using the Hot Swap Board

Carrier Removal

Follow the procedures below to remove the DE300i-SWC carrier from the receiving frame
equipped with the Hot Swap option.

1. Verify that the drive is not active. If the system is on a network, make certain other
users are not accessing the target drive, then disable it from the network.
Dismount the drive.

20 Appendix B - Factory-Installed Options

StorCase Technology Inc. DE300i-SWC User's Guide - Rev. A00

Figure B-2: Hot Swap Board Termination Jumpers

2. Turn the DE300 key lock mechanism (located on the front of the receiving frame),
clockwise to the OFF position. This unlocks the drive from the receiving frame and
activates the Hot Swap Board. The unit ID number on the display will begin
flashing.

DE300i-SWC User's Guide - Rev. A00 StorCase Technology Inc.

Appendix B - Factory-Installed Options 21

WARNING: Be careful not to remove or disturb the carrier unit at this point.

Although the carrier is physically unlocked, the drive requires a
minimum of 15 seconds to spin down and is subject to vibration and
possible damage during this period.

3. As the unit number flashes, the Hot Swap Board monitors the activity of the SCSI
bus. When activity is no longer present, the Hot Swap Board will remove power
from the drive and then remove the device from the SCSI Bus. The unit ID number
will continue to flash during this period.

4. After a short length of time the unit display will turn from a flashing unit number to
a steady u, indicating that the device is powered down, unlocked and ready to
be removed from the receiving frame.

Carrier Installation

Follow the procedures below to install the DE300i-SWC carrier into the receiving frame
equipped with the Hot Swap option.

1. Install the Carrier into the Receiving Frame. A "u" will be present on the front panel.

2. Turn the key lock mechanism, located on the front of the receiving frame, counter
clockwise to the On position. This locks the drive into the receiving frame and
activates the Hot Swap Board. The drive will begin to spin up and the unit number
on the display will begin flashing.

3. After a short length of time the unit display will stop flashing, indicating that the
device is ready to be used.

22 Appendix C - Attaching the ON/OFF Key

StorCase Technology Inc. DE300i-SWC User's Guide - Rev. A00

The following information will provide the necessary steps to attach the ON/OFF key to
the key lock mechanism so that it is non-removable, preventing accidental key loss. The
procedure can be reversed at a later date to revert back to a removable key.

1. Make certain power is OFF to the receiving
frame.

Locate the rectangular shaped key lock
mechanism access hole on the inside of the
receiving frame. Note that the pawl is in an
upright position.

Insert the key into the key lock.

2. Rotate the key 90 degrees counterclockwise
so that the pawl is visible in the access hole
as shown in the figure at left.

3. Using the provided alignment tool, unscrew
and remove the pawl from the access hole.

4. Rotate the key 180 degrees clockwise.

5. Reinstall the pawl into the access hole with
the alignment tool.

Your key is now attached to the key lock
mechanism.

Figure C-1: Attaching the ON/OFF Key

Appendix C - Attaching the ON/OFF Key

DE300i-SWC User's Guide - Rev. A00 StorCase Technology Inc.

Appendix D - Optional Accessories 23

Figure D-1: Carrying Case

The optional molded plastic carrying case is designed to transport the DE300i-SWC carrier
from one site to another in a safe, impact and moisture resistant environment. Its compact
dimensions, 7 long x 9 wide x 3.5 high, make it easy to carry and to store. The foam
lining is contoured to fit a single Data Express carrier with a 1 inch form factor. Contact
your StorCase dealer for further details and ordering information.

Drive
Carrier

DX300-DE-C
Carrying Case

0460

Appendix D - Optional Accessories

Carrying Case

24 Appendix D - Optional Accessories

StorCase Technology Inc. DE300i-SWC User's Guide - Rev. A00

Drive Plug

Figure D-2: Drive Plug

The drive plug (DX75C/300C-PLUG) is designed to fill system or external enclosure bays
that are occupied by receiving frames that have no carrier units installed. The purpose of
the plug is to provide an attractive and functional method of directing proper air flow to the
other installed devices in the system or external enclosure.

DE300i-SWC User's Guide - Rev. A00 StorCase Technology Inc.

Reader's Comments 25

Reader's Comments

Please take a few moments when your computer system is up and running to send us
your ideas and suggestions for improving our products and documentation. Did the
installation go smoothly for you? Are there any changes you would like us to make, either
with the hardware itself, or with the installation instructions? Everyone at StorCase
Technology is working toward the goal of providing you with the highest quality, most
cost effective, products available on the market, and we need your comments to guide
our efforts. We look forward to hearing from you soon!

Date:

Your Name:

Address:

Telephone: ( )

To mail this page, carefully remove it from the manual, fold it, staple or tape it shut, and
drop it in the mail. To FAX this page, carefully remove it from the manual (or make a
photocopy) and FAX it to us at [phone]. Thank you for taking the time to help us
make our products better!

26 Reader's Comments

StorCase Technology Inc. DE300i-SWC User's Guide - Rev. A00

FOLD ALONG THIS LINE AND STAPLE SHUT

CUT ALONG THIS LINE FROM BOTTOM TO TOP OF PAGE

BUSINESS REPLY MAIL

POSTAGE WILL BE PAID BY ADDRESSEE

NO POSTAGE

NECESSARY

IF MAILED

IN THE

UNITED STATES

FIRST CLASS MAIL PERMIT NO. 10686 SANTA ANA, CA

TECHNOLOGY CORPORATION

17600 NEWHOPE STREET
FOUNTAIN VALLEY CA 92708-9885
