Page 1

CHILDREN’S

ELECTRONIC TOY RIDE-ON

• Suitable for 3+ Years

• Maximum user weight: 50 kg

OWNERS MANUAL

with Assembly Instructions

Read and understand this entire manual before using!

Please keep this manual for future reference as it contains important information. Before first time use, charge the battery for at least 4-6 hours, but no more than 10 hours.

Page 2

About Your New Vehicle

On the purchase of your new Ride-On.

This ride-on car will provide your child with many miles of riding of enjoyment. To help assure you and your rider a safe ride we ask you to please read this manual carefully, and keep it for future reference.

Follow the recommendations in this manual, they are designed to improve the safety and operation of your ride-on car and its rider.

Specification

Battery

Charger

input

Motor

Suitable age:

Charge time:

Load capacity:

Size of car:v

Speed:

12V4.5AH X1

12V500mA

550-12000

3+ Years

8~12 hours

Under 50 kg

1145×725×730MM mm

2-8 km/h

12V7AH X1

12V700mA

Depend on local voltage

550-12000

12V10AH X1

12V1000mA

550-12000

BATTERY INFORMATION

● Non-rechargeable batteries are not to be recharged.

● If removable rechargeable batteries are used, the are only to be charged under adult supervision.

● Remove rechargeable batteries from the product before charging.

● Do not mix old and new batteries. Do not mix different types of batteries: alkaline, standard

(carbon-zinc) or rechargeable (nickel-cadmium).

● Insert batteries as indicated inside the battery compartment, anode to anode, cathode to cathode.

● Remove batteries during long periods of non-use. Always remove exhausted batteries from the

product. Battery leakage and corrosion can damage this product. Dispose of batteries safely.

● Never short circuit the battery terminals.

Page 3

Parts List

NO. PART NAME

Vehicle body

Gear box

Wheel driver

Wheel

Ø12 washer

Ø10 washer

Lock nut

Wheel cover

Driving wheel house

Rear axle

Front axle

Ø4x12 screws

Side mirror

Steering wheel

M5x45 machine screw

Ø5 nut

Windshield

Seat

Seat back

Light bar linkage

Light bar support

Front bumper

Right front fender

Right rear fender

Spanner

Charger

Remote controller

Front roll bar

28 1

Q’TY (PCS)

REMARK

left and right

If equipped

Page 4

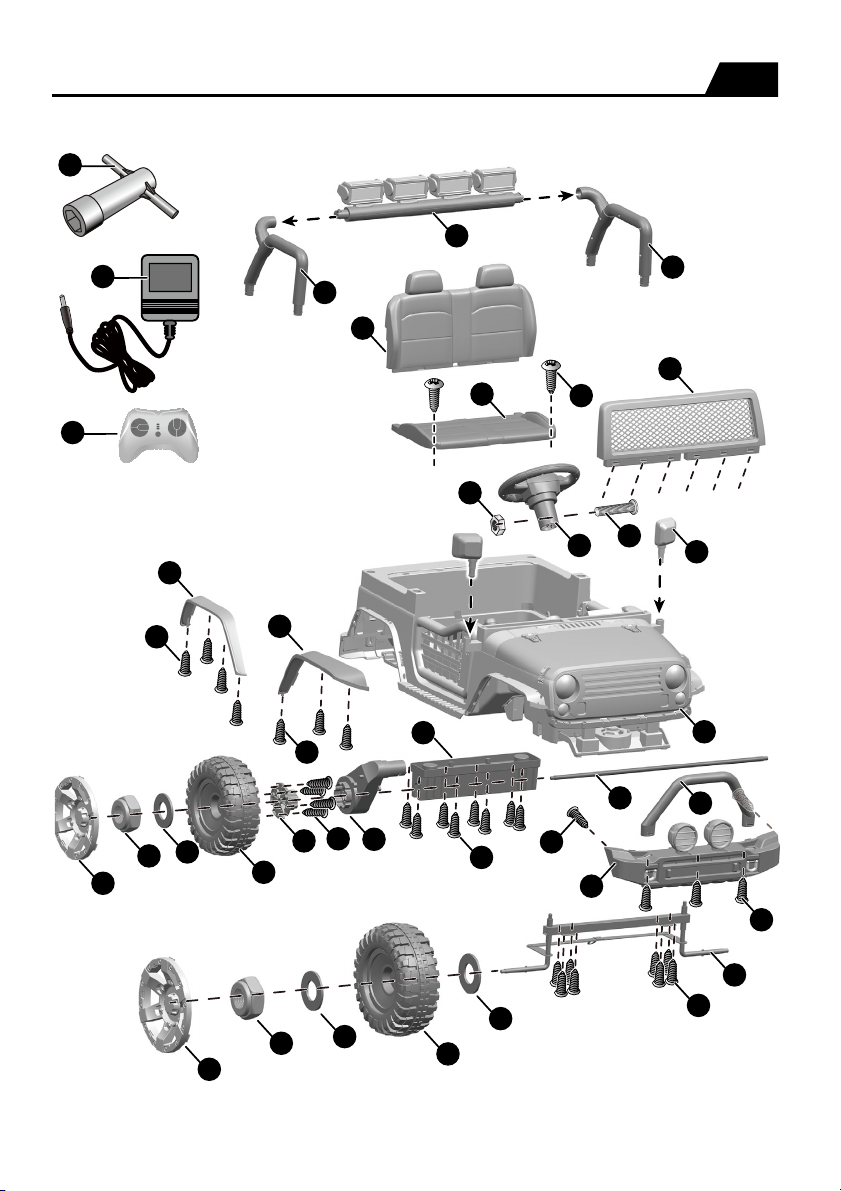

Parts Diagram

HINT: Some parts shown are assembled on both sides of vehicle

Page 5

Safety

PREVENT INJURIES AND DEATHS:

• NEVER LEAVE CHILD UNATTENDED. ADULT DIRECT SUPERVISION IS REQUIRED. Always keep

child in view when child is in vehicle.

• This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.

• Protective equipment should be worn.

• Never use in roadways, near cars, or on near steep inclines or steps, swimming pools or other bodies of water.

• Always wear shoes, always sit on the seat.

• Not to be used in traffic.

• This toy is unsuitable for children under 36 months due to its maximum speed; Maximum user weight is 50 kg.

• This toy has no brake.

WARNING:

• CHOKING HAZARD! Not suitable for children under 36 months.

• Must be assembled by an adult.

Rules for Safe Riding

• Keep Children within Safe Riding Areas:

- Never use in roadway, near motor vehicles, on lawn space, on or near steep inclines or steps, swimming pools or other bodies of water;

• Use the toy only on flat surfaces. Such as inside your house, garden or playground.

• Never use in the dark. A child could encounter unexpected obstacles and have an accident. Operate the vehicle only in the daytime or a well-lit area.

• It is prohibited to change the circuit or add other electric parts

• Inspect wires and connections of the vehicle periodically.

• Do not let any child touch the wheels or be near them when the car is moving .

• This vehicle has adjustable play seat belts. Please instruct children how to tie the safety belt before

using, guarantee the security.

Page 6

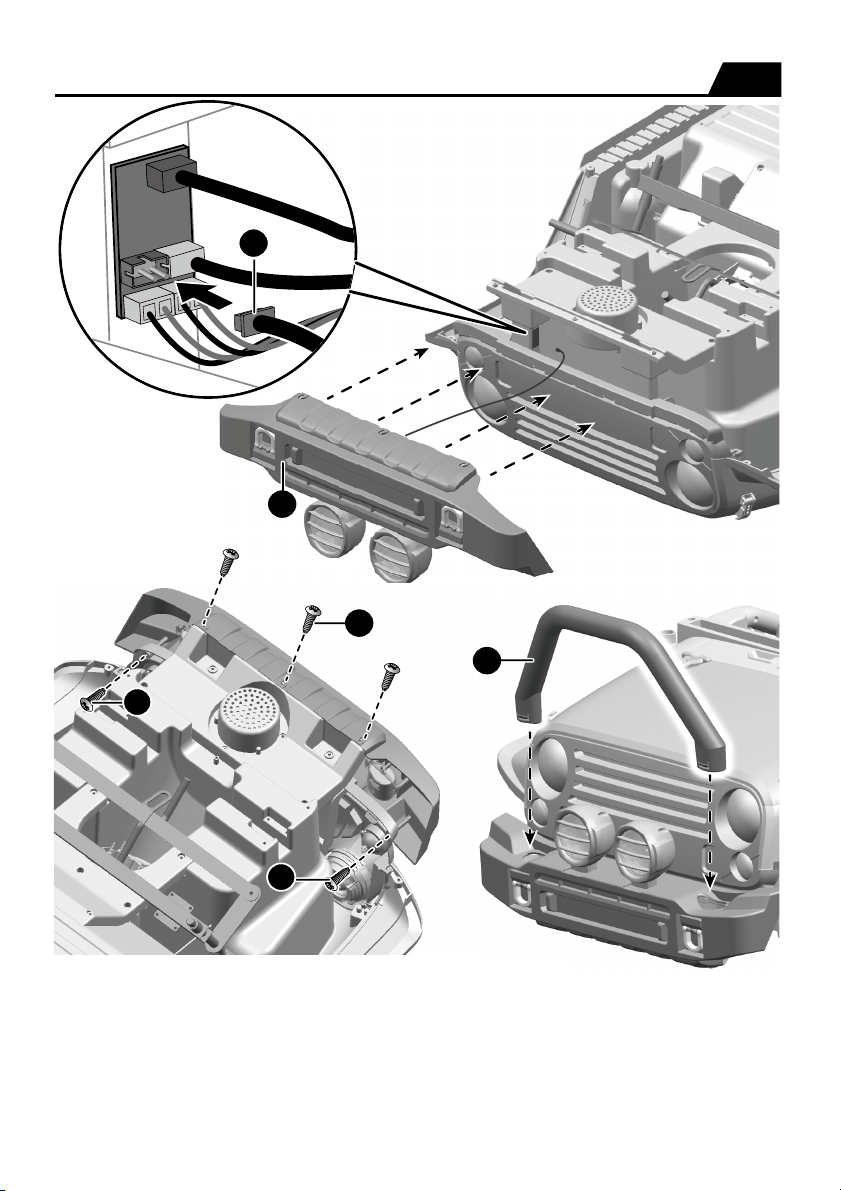

Attach the Front Bumper

Turn the vehicle body upside down.

1. Plug the connector on the front bumper into the terminal on the vehicle body.

1. “Snap” the front bumper to the vehicle body.

2. “Snap” the front bumper to the vehicle body.

2. Tighten five Ø4x12 screws with a screwdriver.

3. Tighten five Ø4x12 screws with a screwdriver.

4. Turn the vehicle body upright. Fit the front roll bar into the holes on the top of the

front bumper.

Page 7

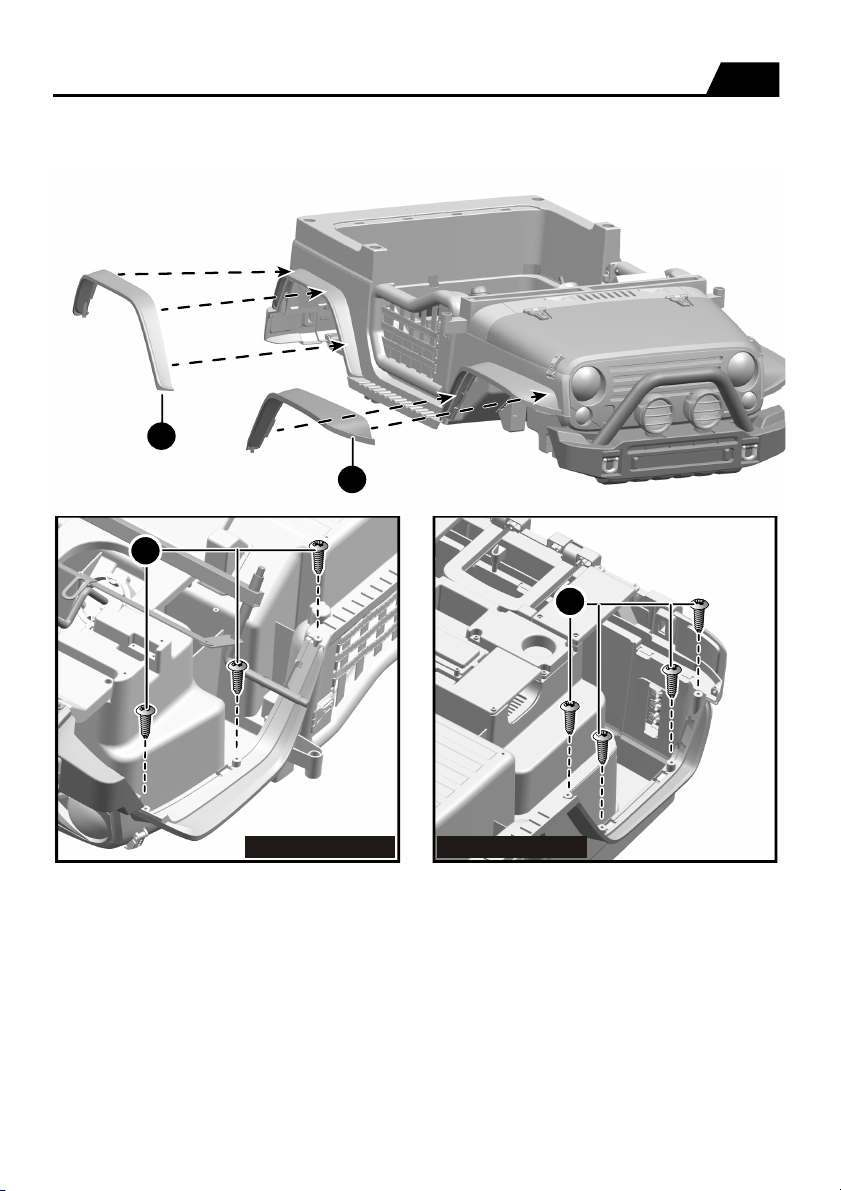

Attach the Front & Rear Fenders on the Right Side

HINT: The front and rear fenders on the left side have been assembled by factory.

Front botttom View Rear botttom View

Turn the vehicle body upright.

1. “Snap” the front fender to the vehicle body.

2. “Snap” the rear fender to the vehicle body. Turn the vhielc body upside down.

3. Insert three Ø4x12 screws through the vehicle body and into the front fender, tighten with a screwdriver.

4. Insert four Ø4x12 screws through the vehicle body and into the rear fender, tighten with a screwdriver.

Page 8

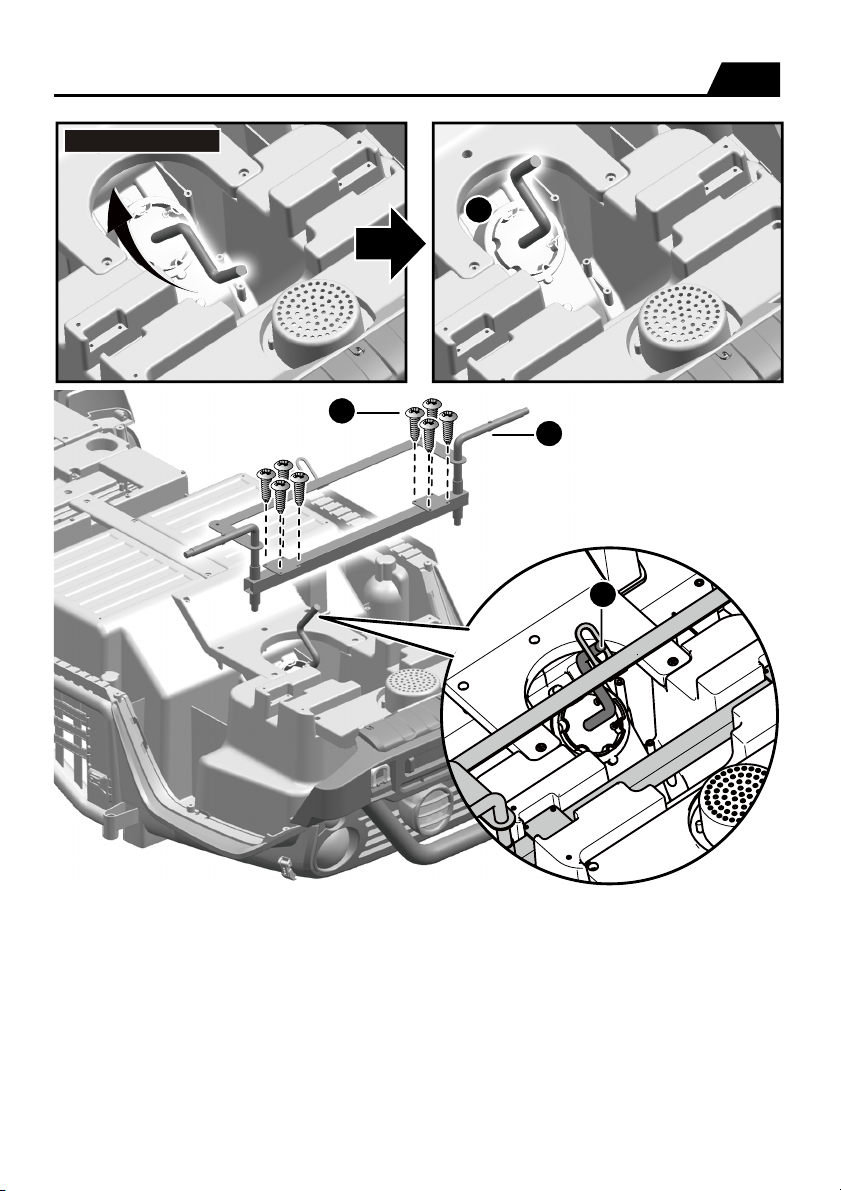

Attach the Front axle

Front botttom View

1. Rotate the front axle 180 degrees as shown.

2. Fit the fonrt axle to the vehicle body.

3. Insert the bent end of the steering column into the hole in the front axle linkage.

4. Insert eight Ø4x12 screws and tighten with a screwdriver.

Page 9

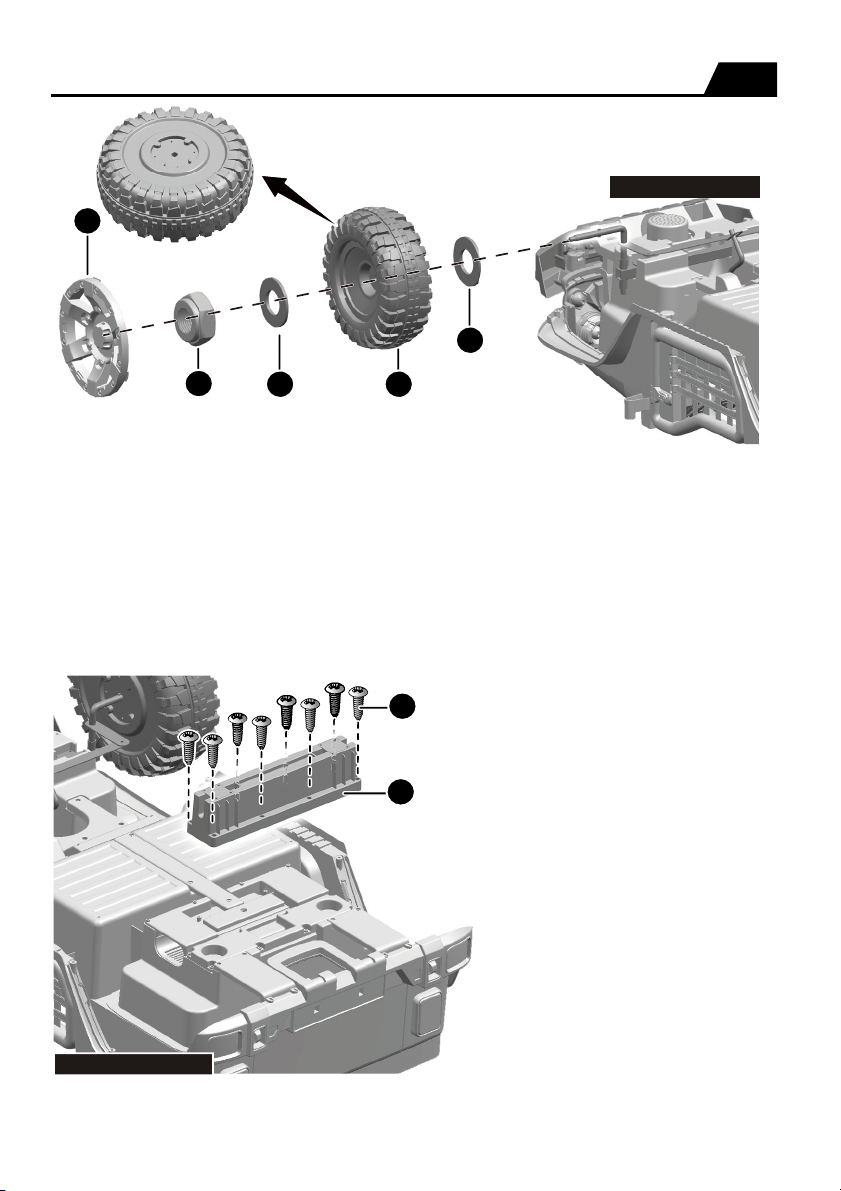

Attach the Front Wheel & Driving Wheel House

Front botttom View

Remove all the parts from the front axle.

1. Slide a Ø12 washer onto the front axle.

2. Slide a front wheel onto the front alxe.

3. Slide a Ø10 washer onto the front axle.

4. Tighten a lock nut to the end of the front axle with a spanner. DO NOT over tgithen.

5. “Snap” the hubcap to the wheel.

Repeat the above procedure to assemble the other rear wheel.

6. Fit the rear wheel house onto the

vehicle body.

7. Insert eigtht Ø4x12 screws and

tighten with screwdriver.

Rear Bottom View

Page 10

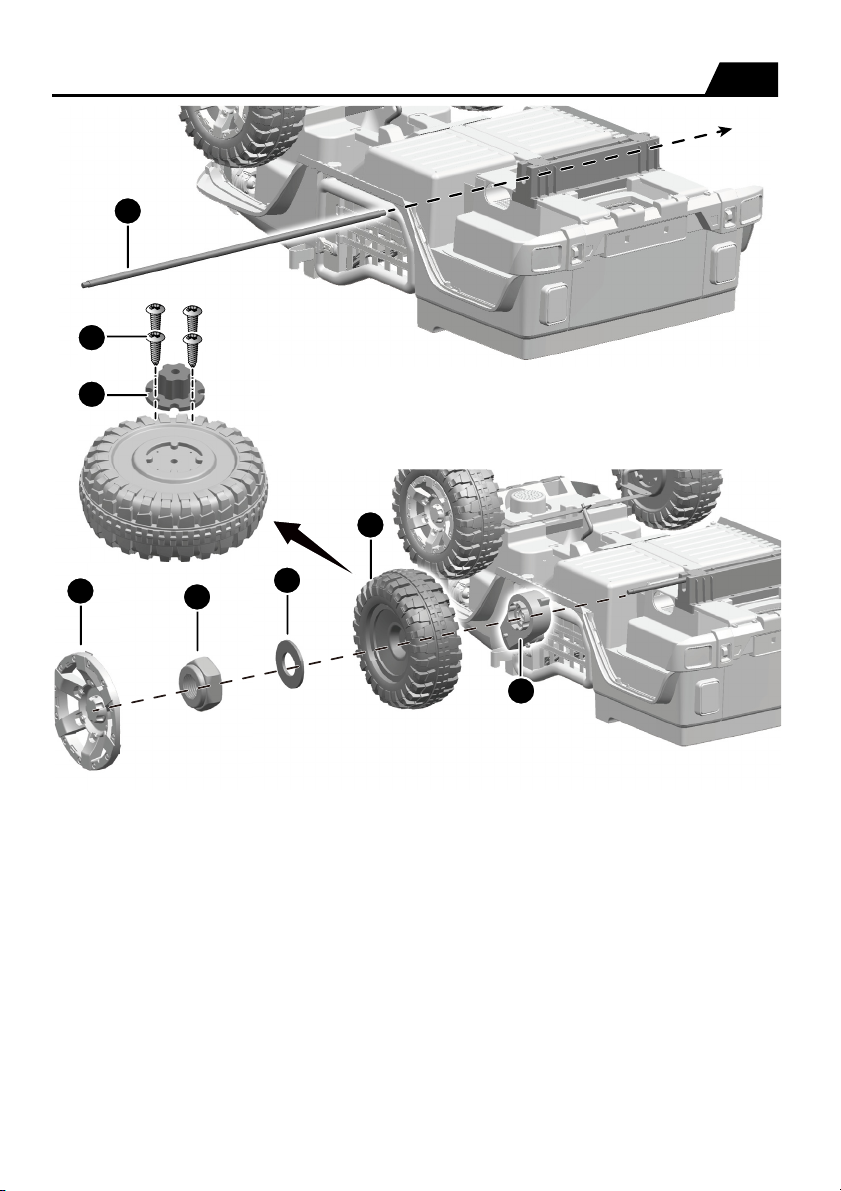

Attach the Rear Axle & Driving Wheel

Remove all the parts from the rear axle.

1. Insert the rear axle through the hole in the rear wheel house.

2-3. Fit the wheel driver to the wheel, Tighten four Ø4x12 screws with screwdriver.

4. Slide a gear box on the rear axle, and ensure the motor on the gear box passes through the hole in the vehicle body.

5. Slide a driving wheel onto the rear alxe. The gear part on the driving wheel should match up with the gear box.

6. Slide a Ø10 washer onto the front axle.

7. Tighten a lock nut to the end of the front axle with a spanner. DO NOT over tgithen.

8. “Snap” the hubcap to the wheel.

Repeat the 2-8 procedures to assemble the other rear wheel.

Page 11

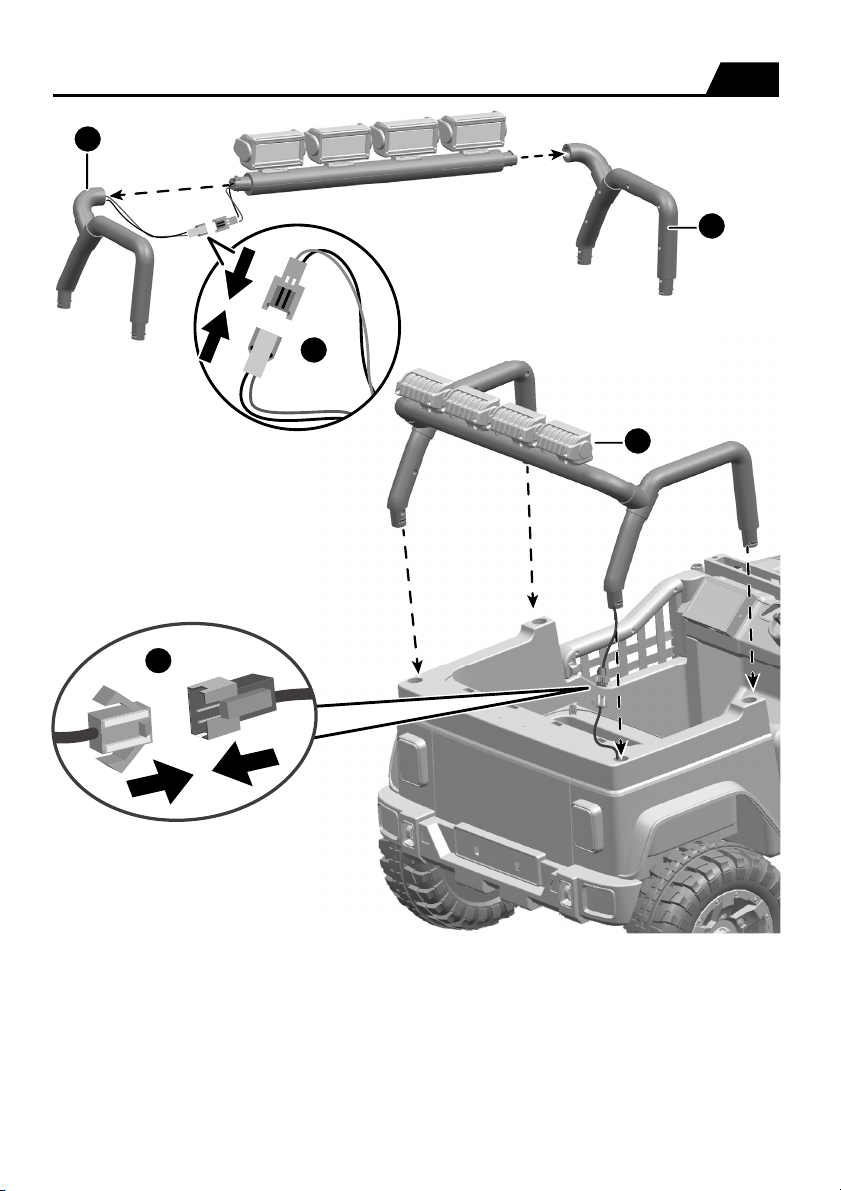

Attach the Light Bar

Turn the vehicle body upright.

1. Plug the light unit connector into the connector on the light bar support R.

2. Fit the light bar supports to the light bar.

3. Plug the connector on the light bar into the connector in the vehicle body.

4. Insert the tabs on the light bar into the holes, and push it until you hear it “click” into placed.

Page 12

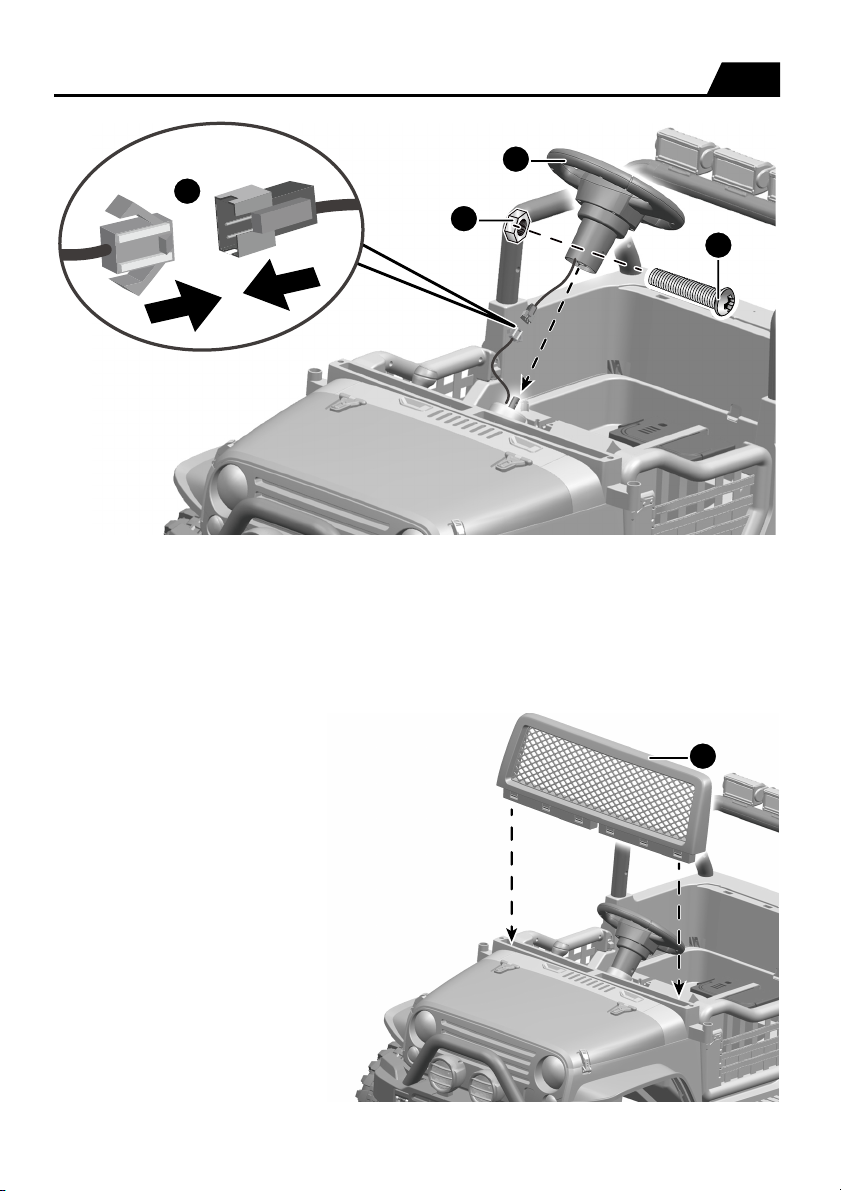

Attach the Steering Wheel & Windshield

1. Plug the sound unit connector on the steering wheel into the connector on the vehicle body.

2. Fit the steering wheel to the end of the steering column.

3. Line up the holes on the steering wheel with the holes on the steering column, insert the

M5x45 machine screw.

4. Fasten a nut on the opposite end of the screw with a screwdriver.

5. Insert the tabs on the windshield into the grooves on the vehicle body, push until you hear it

“click” into place.

Page 13

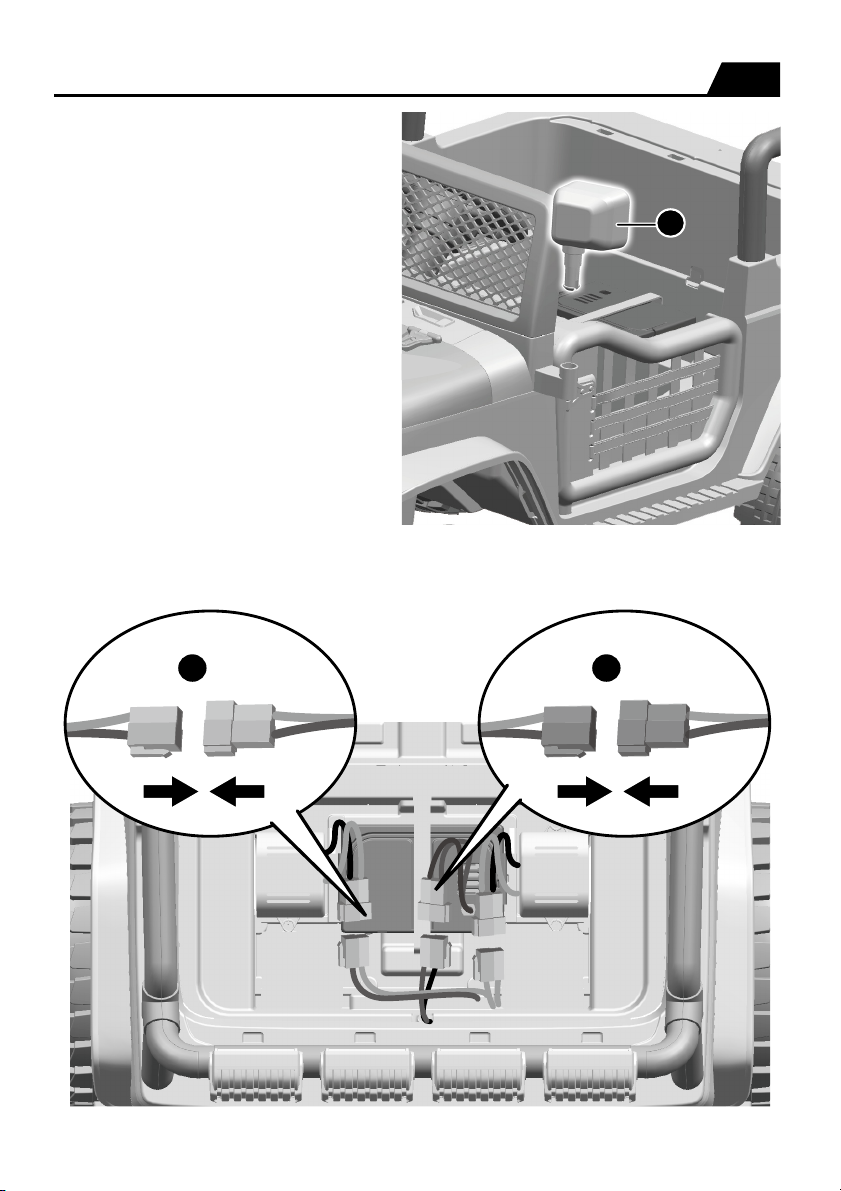

Attach the Side Mirrors & Connect the Power Supply

1. Insert the mirror into the hole on the side of

the vehicle body.

2. Plug the red connector on the vehicle body

into the red connector on the battery.

3. Plug the white connector on the motor into

the white connector of the vehicle body. Repeat for the other side.

Page 14

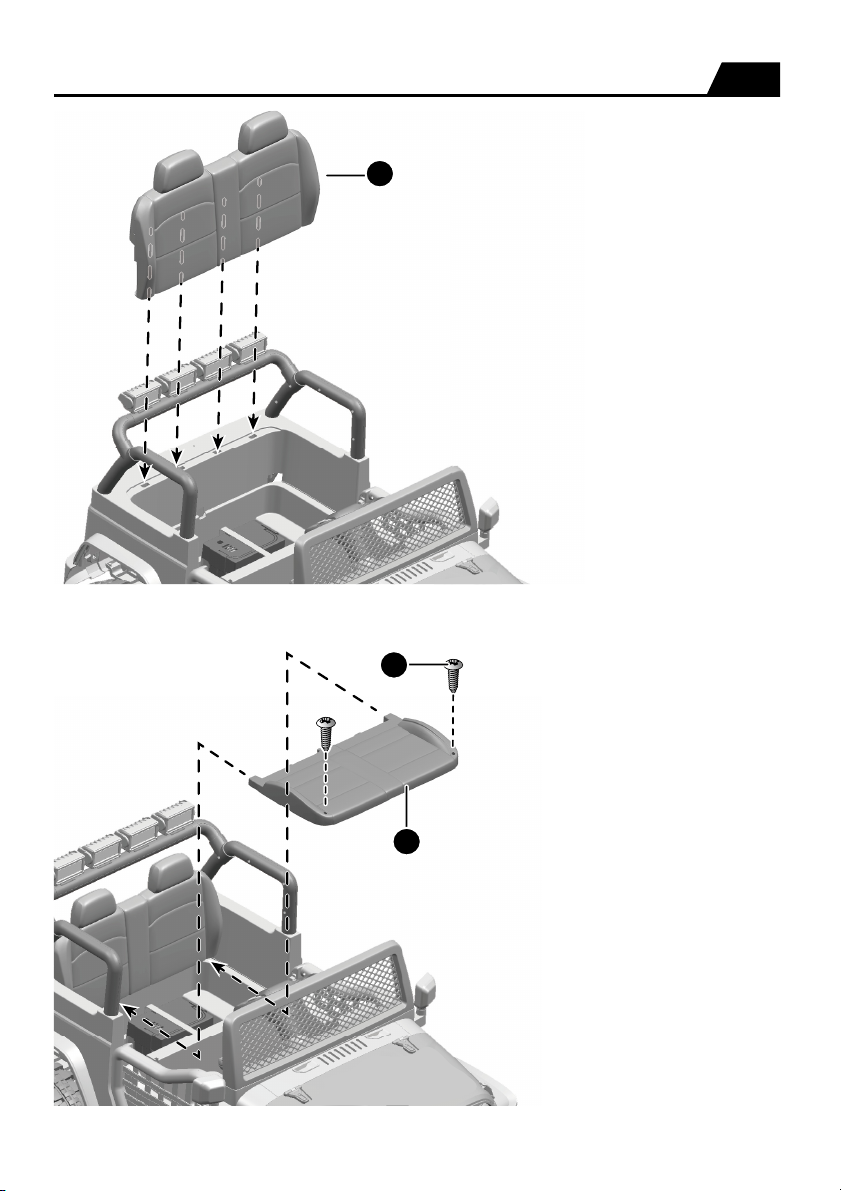

Attach the Seat

1. Insert the tabs on seat back into the

holes on the vehicle body.

2. Fit seat to the vehicle body.

3. Insert and tighten two Ø4x12 scrwes

and tighten with a screwdriver.

Page 15

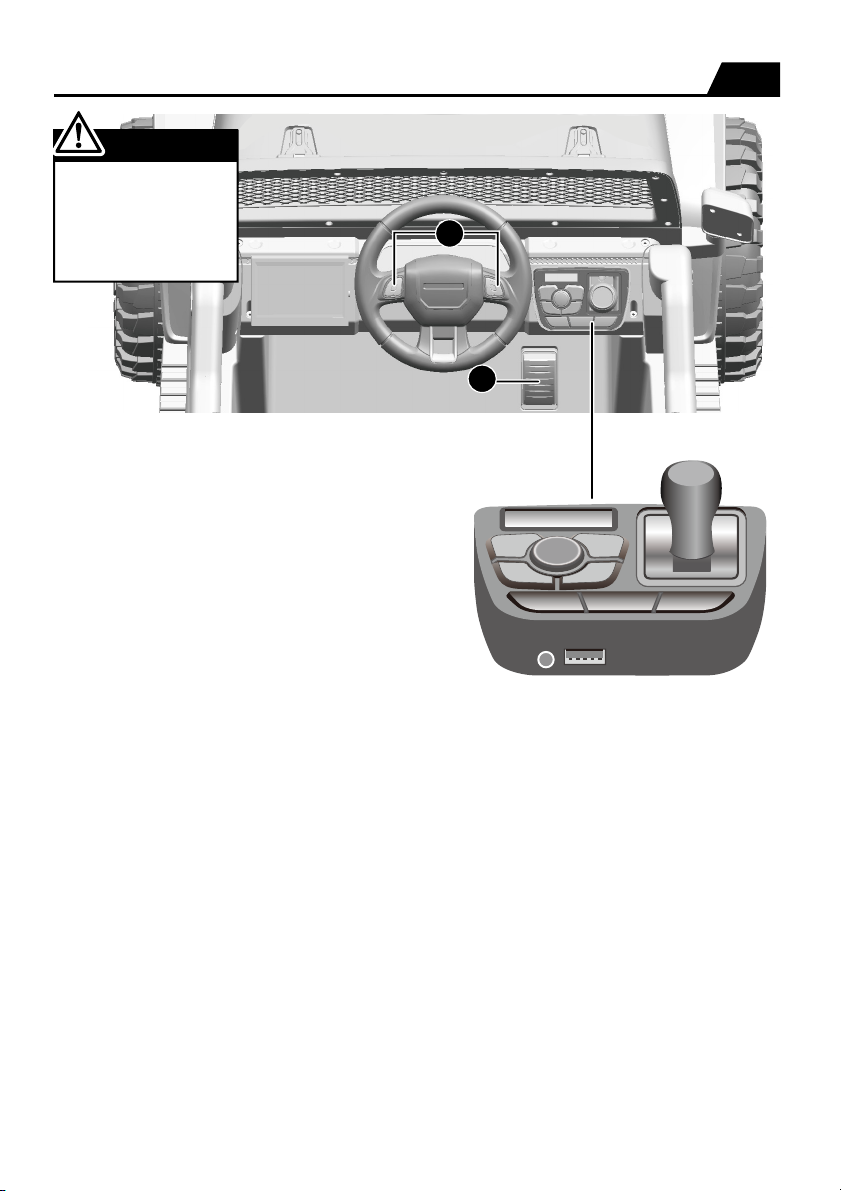

Use Your New Vehicle

IMPORTANT!

Always stop vehicle when changing the speed or direction to avoid damage the gears and motor.

1. Foot pedal: ● To move the vehicle, press the pedal down.

● To brake or slow down, release pressure from the pedal.

2. Horn button: Press for horn playing.

1415

A. Power Switch: Press it to power on the vehicle,

long press it for 3 seconds to power off.

B. Forward/Reverse switch:

Changes the direction that vehicle moves from forward to

reverse. The vehicle equipped with 2 speeds in forward:

high speed / low speed.

C. Display screen: It displays the power level of the battery when the vehicle stops. When the numerical

value is less than 12, recharge the battery please.

D: Lights button: Turns the lights on and off.

E: Play / Pause

F. Previous / decrease volume

G. Next / Increase volume

H. Rocking mode

I. USB interface: Allow the audio from your portable device to be played through the vehicle speakers.

MP3 format ONLY.

J. 3.5mm AUX input: Allow the audio from your portable music player or phone to be played through the

vehicle speakers. MP3 format ONLY.

K. Music mode

L. Change the audio input from the FM radio, USB, AUX input or Bluetooth

Under the FM radio mode, long press button E (play/pause) for radio searching. When your phone

connecoted to the product with bluetooth, the product could answer the call through the microphone inside the dash.

Page 16

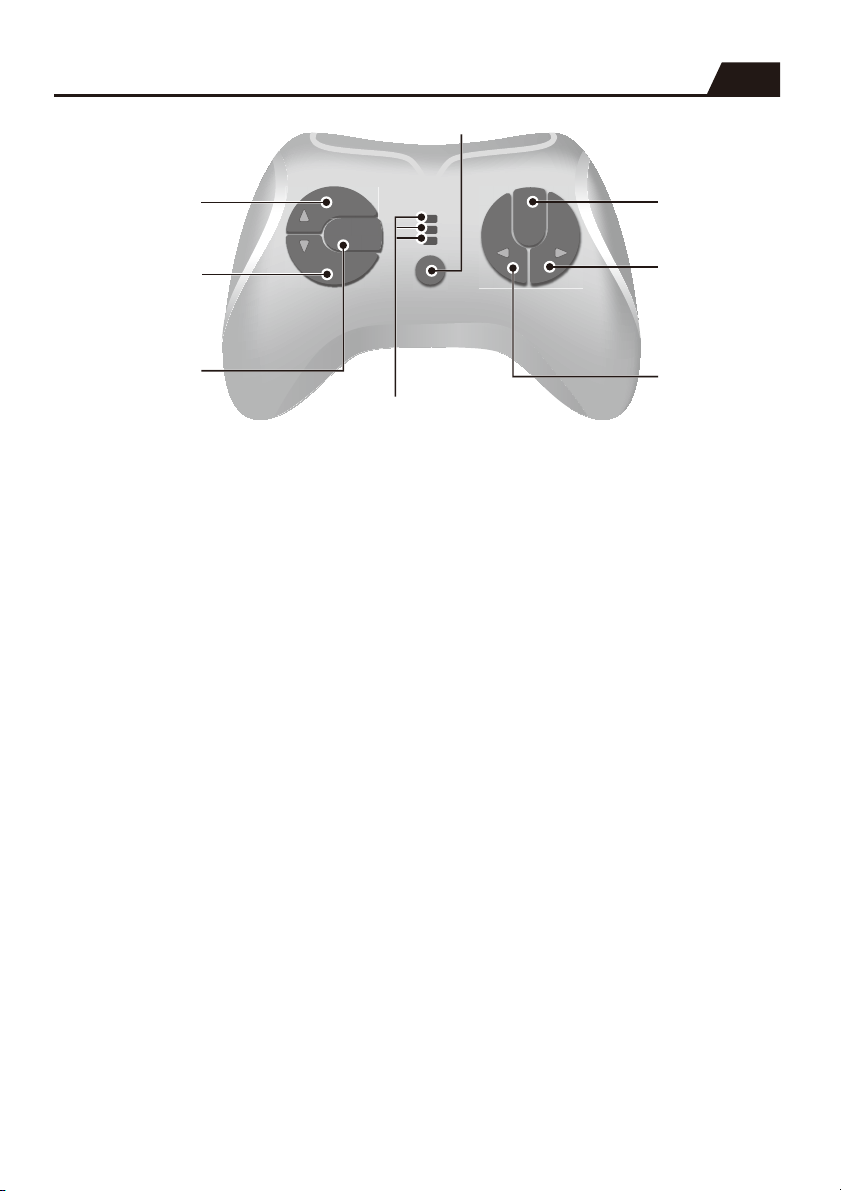

Use the Remote Controller (IF EQUIPPED)

Connection button

Forward button

Reverse button

Brake button

Right button

Speed select

button

Left button

High speed indicator Normal speed indicator Low speed indicator

Attach the batteries of controller

Lift the battery compartment door on the back of the controller and insert two AAA(LR03) batteries.

HINT: Batteries not included. Refer to the Battery Information on the page 1.

1. Connection button (Build connection)

Long press the Connection buttons for 3 seconds, and the low speed indicator flashes. Then power on the vehicle, the low speed indicator goes to long bright, means the connection successful. If the low speed indicator no response, means the connection failed. Replace the batteries and retry.

2. Brake button

Press the button to stop the vehicle, press it again to release the brake.

3. Speed select button

The switch operates the vehicle to move in low, normal and high speed.

HINT: This switch won’t work while your vehicle moves reverse.

NOTE:

• Leave the remote controller idling for about 10 seconds, it will shut down automatically.

• Rebuild connection when you replace the batteries of the remote controller.

Page 17

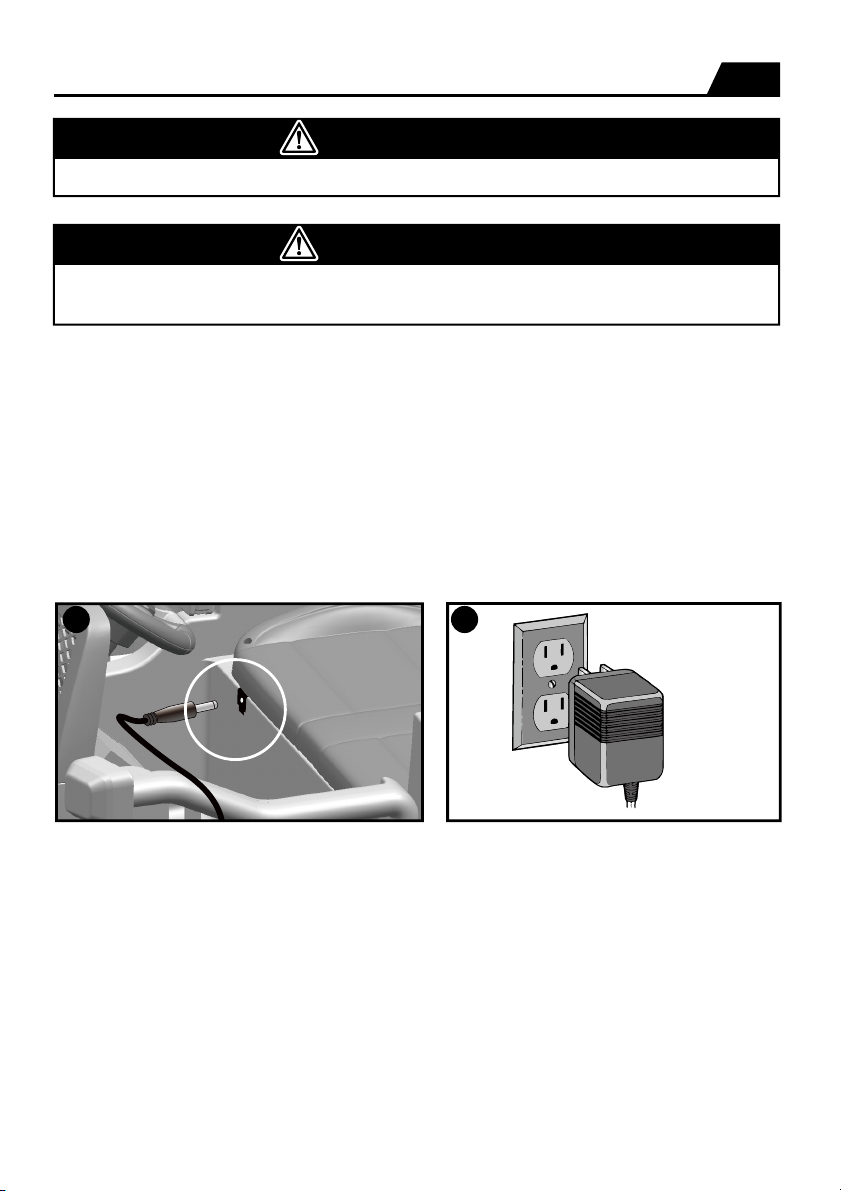

Charging

WARNING!

ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY!

WARNING!

This product with Charging Protection: when charging, all functions will be cut off! Only an adult can charge and recharge the battery!

• The POWER SWITCH must be turned in OFF position when charging.

• Before the first use, you should charge the battery for 4-6 hours. Do not recharge the

battery for more than 10 hours to avoid overheating the charger.

• When the vehicle begins to run slowly, recharge the battery.

• After each use or once a month minimum recharge time as 8 to 12 hours, less than 20

hours at most.

• Use the only rechargeable battery and charger supplied with your vehicle. NEVER

substitute the battery or the charger with another brand. Using another battery or charger may cause a fire or explosion.

• Do not use the battery or charger for any other product.

1. Plug the charger port into the input socket. (below the seat)

2. Plug the charger plug into a wall outlet. The battery will begin charging.

Page 18

Troubleshooting Guide

Problem Possible Cause Solution

Vehicle does not run

Battery low on power

Recharge battery.

Vehicle does not run very long

Vehicle runs sluggishly

Vehicle needs a push to go forward

Difficult shifting from forward to reverse or vice-versa

Loud grinding or clicking noises coming from motor or gear box

Thermal fuse has tripped

Battery connector or wires are loose

Battery is dead

Electrical system is damaged

Motor is damaged

Battery is under charged

Battery is old

Battery low on power

Battery is old

Vehicle is overload

Vehicle is being used in harsh conditions

Poor contact of wires or Connectors

“Dead Spot” on motor

Attempting to shift while the vehicle is motion

Motor or gears are damaged

Reset fuse, see <Fuse>

Check that the battery connectors are firmly plugged into each other. If wires are loose around the motor

contact your distributor please.

Replace battery, contact your distributor please.

Contact your distributor please.

Check that the battery connectors are firmly plugged into each other when recharging

Replace battery, contact your distributor please.

Recharge battery, contact your distributor please.

Replace battery, contact your distributor please.

Reduce weight on vehicle.

Avoid using vehicle in harsh conditions ,see <Safety>.

Check that the battery connectors are firmly plugged into each other. If wires are loose around the motor,

contact your distributor please.

A dead spot means the electric power is not being delivered to the terminal connection and the vehicle needs repair. Contact your distributor please.

Completely stop the vehicle and shift, see <Use Your New Vehicle>

Contact your distributor please.

Battery will not recharge

Charger feels warm when recharging

Battery connector or adapter connector is loose

Charger not plugged in

Charger is not working

This is normal and not a cause for concern

Check that the battery connectors are firmly plugged into each other.

Check that the battery charger is plugged into a working wall outlet.

Contact your distributor please.

Completely read through this manual and the troubleshooting guide table before calling. If you still need help resolving the problem Contact your distributor please.

Page 19

Maintaining

• It is parents' responsibility to check main parts of the toy before using,

must regularly examine for potential hazard, such as the battery, charge,cable or cord, plug, screws are fastening enclosure of other parts and that in the event of such damage, the toy must not be used until that damage had been properly removed.

• Make sure the plastic parts of the vehicle are not cracked or broken.

• Occasionally use a lightweight oil to lubricate moving parts such as wheels.

• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.

• Keep the vehicle away from sources of heat, such as stoves and heaters. Plastic parts may melt.

• Recharge the battery after each use. Only an adult can handle the battery. Recharge the battery at least once a month when the vehicle Raider is not being used.

• Do not wash the vehicle with a hose. Do not wash the vehicle with soap and water. Do not drive the vehicle in rainy or snowy weather. Water will damage the motor, electric system and battery.

• Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a non-wax furniture polish. Do not use car wax. Do not use abrasive cleaners.

• Do not drive the vehicle in loose dirt, sand or fine gravel which could damage the moving parts, motors or the electric system.

• When not using, all the electrical source should be turn off. Turn off the power switch and disconnect the battery connection.

Page 20

Fuse

The battery features a thermal fuse with a rest fuse that will automatically trip and cut all power to the vehicle if the motor, electric system or battery is overloaded. The fuse will reset and power will be restored after the unit is turned OFF for 20 seconds and then turned ON again. If the thermal fuse trips repeatedly during normal use, the vehicle may need repair. Contact your distributor please.

To avoid losing power, follow these guidelines:

● Do not overload the vehicle.

● Do not tow anything behind the vehicle.

● Do not drive up steep slopes.

● Do not drive into fixed objects, which may cause the wheels to spin, causing the motor to overheat.

● Do not drive in very hot weather, components may overheat.

● Do not allow water or other liquids to come in contact with the battery or other electric components.

● Do not tamper with the electric system. Doing so may create a short, causing the fuse to trip.

Disposal Of Battery

● Your sealed lead-acid battery must be recycled or disposed of in an environ-

mentally sound manner.

● Do not dispose of your lead-acid battery in a fire. The battery may explode or

leak.

● Do not dispose of a lead-acid battery in your regular, household trash. The

incineration, land filling or mixing of sealed lead-acid batteries with household trash is prohibited by law.

Our products are suitable for ASTM F963; GB6675; EN71 and EN62115 standard.
