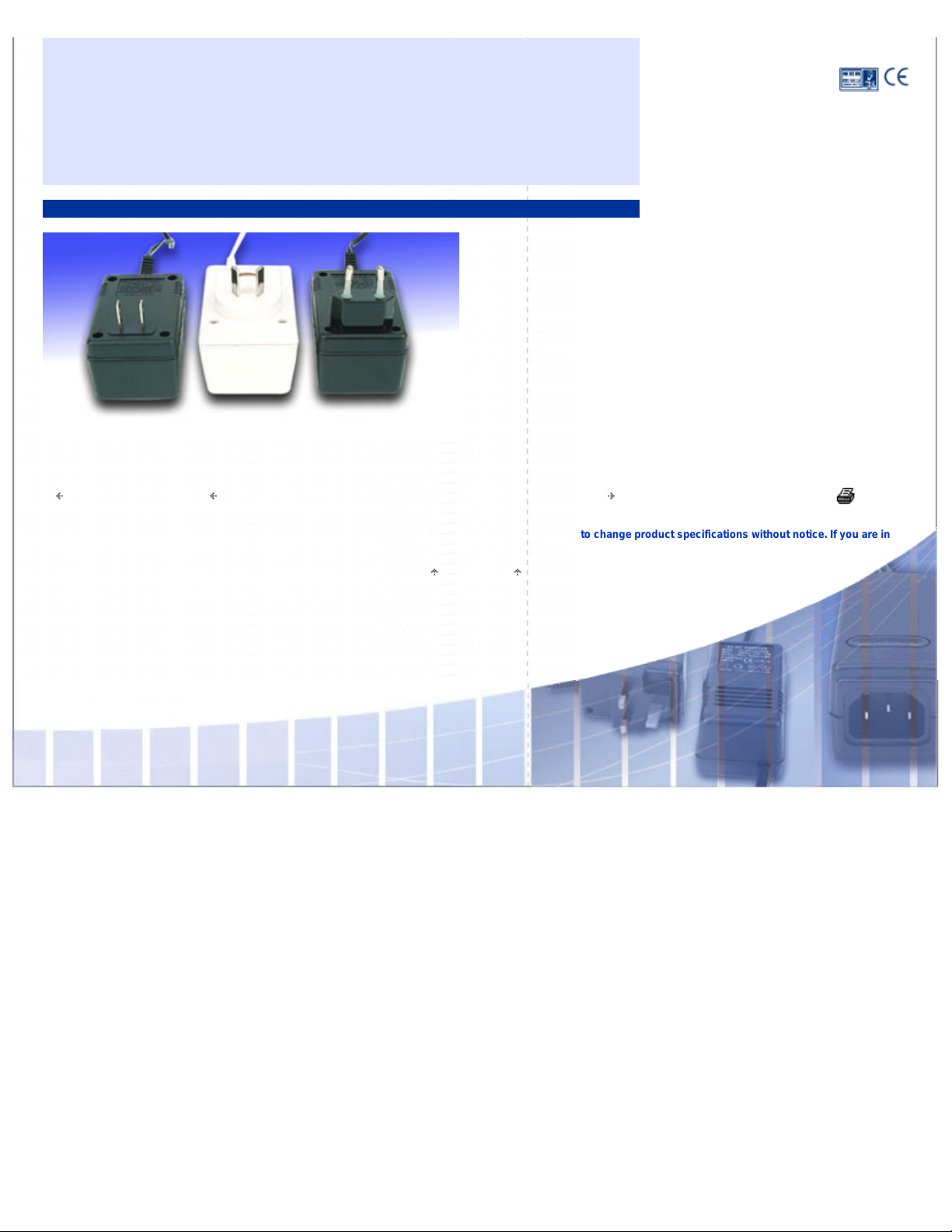

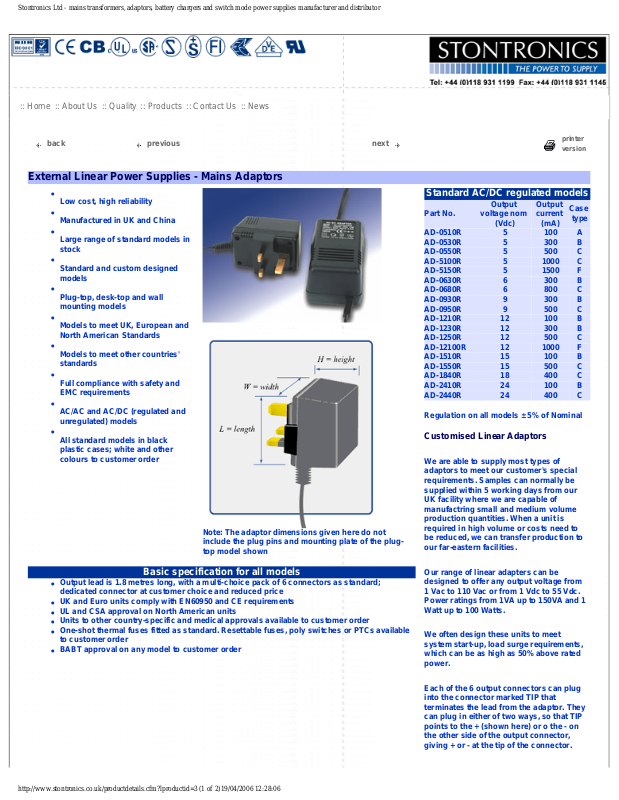

External Linear Power Supplies - Mains Adaptors
●
Low cost, high reliability
●
Manufactured in UK and China
●
Large range of standard models in
stock
●
Standard and custom designed
models
●
Plug-top, desk-top and wall
mounting models
●
Models to meet UK, European and
North American Standards
●
Models to meet other countries'
standards
●
Full compliance with safety and
EMC requirements
●
AC/AC and AC/DC (regulated and
unregulated) models
●
All standard models in black
plastic cases; white and other
colours to customer order

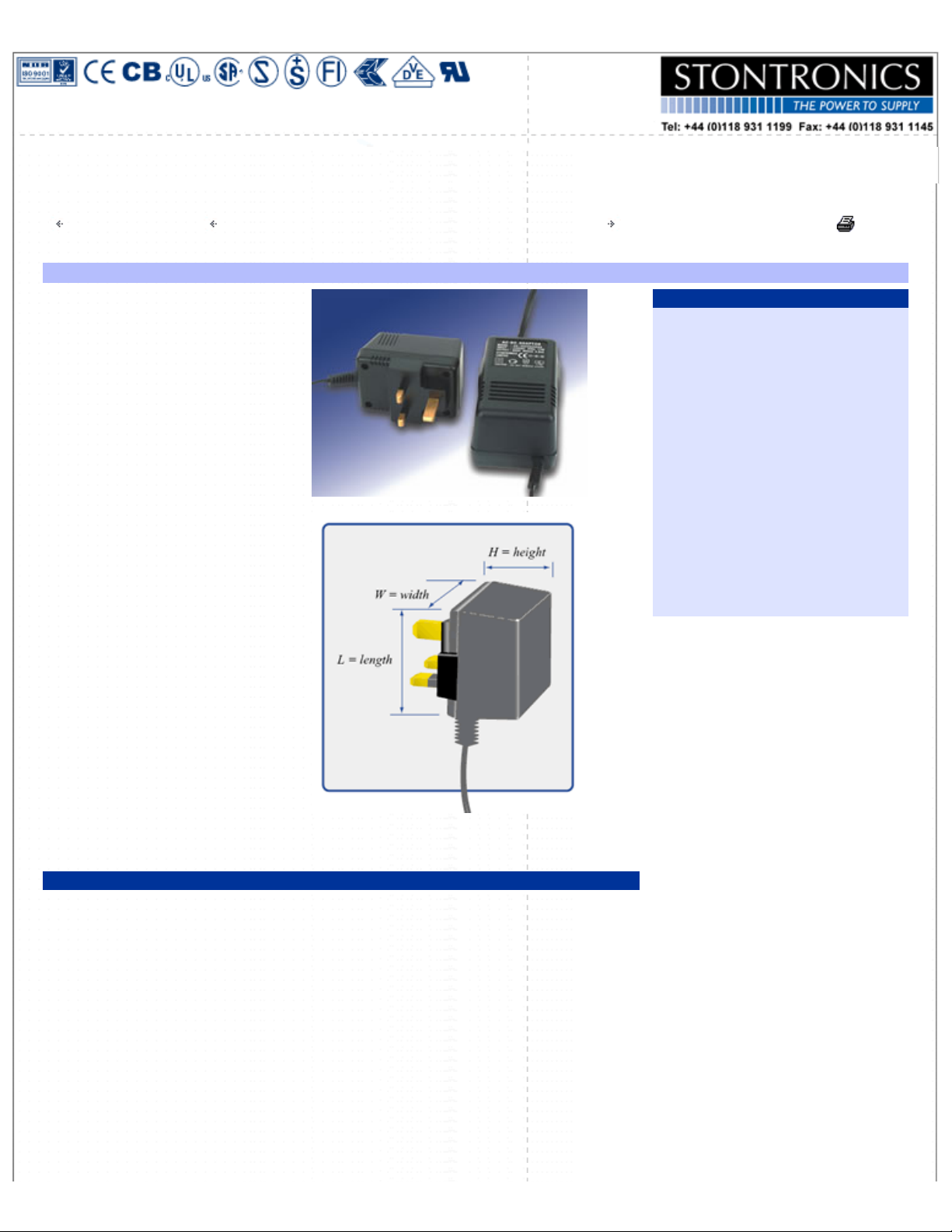

Note: The adaptor dimensions given here do not
include the plug pins and mounting plate of the plugtop model shown
Standard AC/DC regulated models
Part No.
Output
voltage nom
(Vdc)
Output
current
(mA)
Case
type
AD-0510R 5 100 A
AD-0530R 5 300 B
AD-0550R 5 500 C
AD-5100R 5 1000 C
AD-5150R 5 1500 F
AD-0630R 6 300 B
AD-0680R 6 800 C
AD-0930R 9 300 B
AD-0950R 9 500 C
AD-1210R 12 100 B
AD-1230R 12 300 B
AD-1250R 12 500 C
AD-12100R 12 1000 F
AD-1510R 15 100 B
AD-1550R 15 500 C
AD-1840R 18 400 C
AD-2410R 24 100 B
AD-2440R 24 400 C
Regulation on all models ± 5% of Nominal
Customised Linear Adaptors
We are able to supply most types of
adaptors to meet our customer's special
requirements. Samples can normally be
supplied within 5 working days from our
UK facility where we are capable of
manufactring small and medium volume
production quantities. When a unit is
required in high volume or costs need to
be reduced, we can transfer production to
our far-eastern facilities.
Our range of linear adapters can be
designed to offer any output voltage from
1 Vac to 110 Vac or from 1 Vdc to 55 Vdc.
Power ratings from 1VA up to 150VA and 1
Watt up to 100 Watts.
We often design these units to meet
system start-up, load surge requirements,
which can be as high as 50% above rated
power.
Each of the 6 output connectors can plug
into the connector marked TIP that
terminates the lead from the adaptor. They
can plug in either of two ways, so that TIP
points to the + (shown here) or o the - on
the other side of the output connector,
giving + or - at the tip of the connector.
Basic specification for all models
● Output lead is 1.8 metres long, with a multi-choice pack of 6 connectors as standard;
dedicated connector at customer choice and reduced price
● UK and Euro units comply with EN60950 and CE requirements
● UL and CSA approval on North American units
● Units to other country-specific and medical approvals available to customer order
● One-shot thermal fuses fitted as standard. Resettable fuses, poly switches or PTCs available
to customer order
● BABT approval on any model to customer order
http://www.stontronics.co.uk/productdetails.cfm?lproductid=3 (1 of 2)19/04/2006 12:28:06
Page 2
Stontronics Ltd - mains transformers, adaptors, battery chargers and switch mode power supplies manufacturer and distributor
For regulation figures of all these models
see table 1 opposite.
Table 1
Case Type Case Type
LengthL WidthW HeightH Weigth
gm
Typical
AC/AC
regulation (%)
AC/DC unreg
A 35 62 51 42 200 22 33
B 41 78 52 45 295 15 30
C 48 99 61 48 480 10 35
D 57 100 70 58 750 10 35
E 66S 110 93 67 1100 8 25
F 66L 130 93 67 1230 8 20
G 84 150 110 93 1600 8 18
all dimensions are in millimetres (mm)
Output Connectors
all dimensions are in millimetres (mm)
back previous next
printer
version
Please Note: Stontronics carry out a programme of continuous product development and reserve the right to change product specifications without notice. If you are in
doubt about a particular product or products, please contact us to check the latest position.
