with Modbus Communication VCT
(PM95_______)

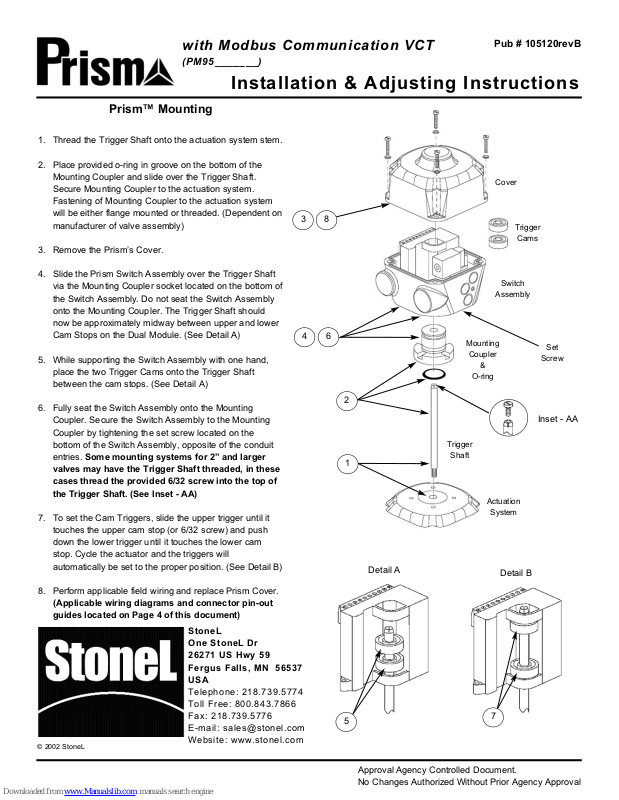

Installation & Adjusting Instructions
Pub # 105120revB
Approval Agency Controlled Document.
No Changes Authorized Without Prior Agency Approval
5
7
Detail A
Detail B

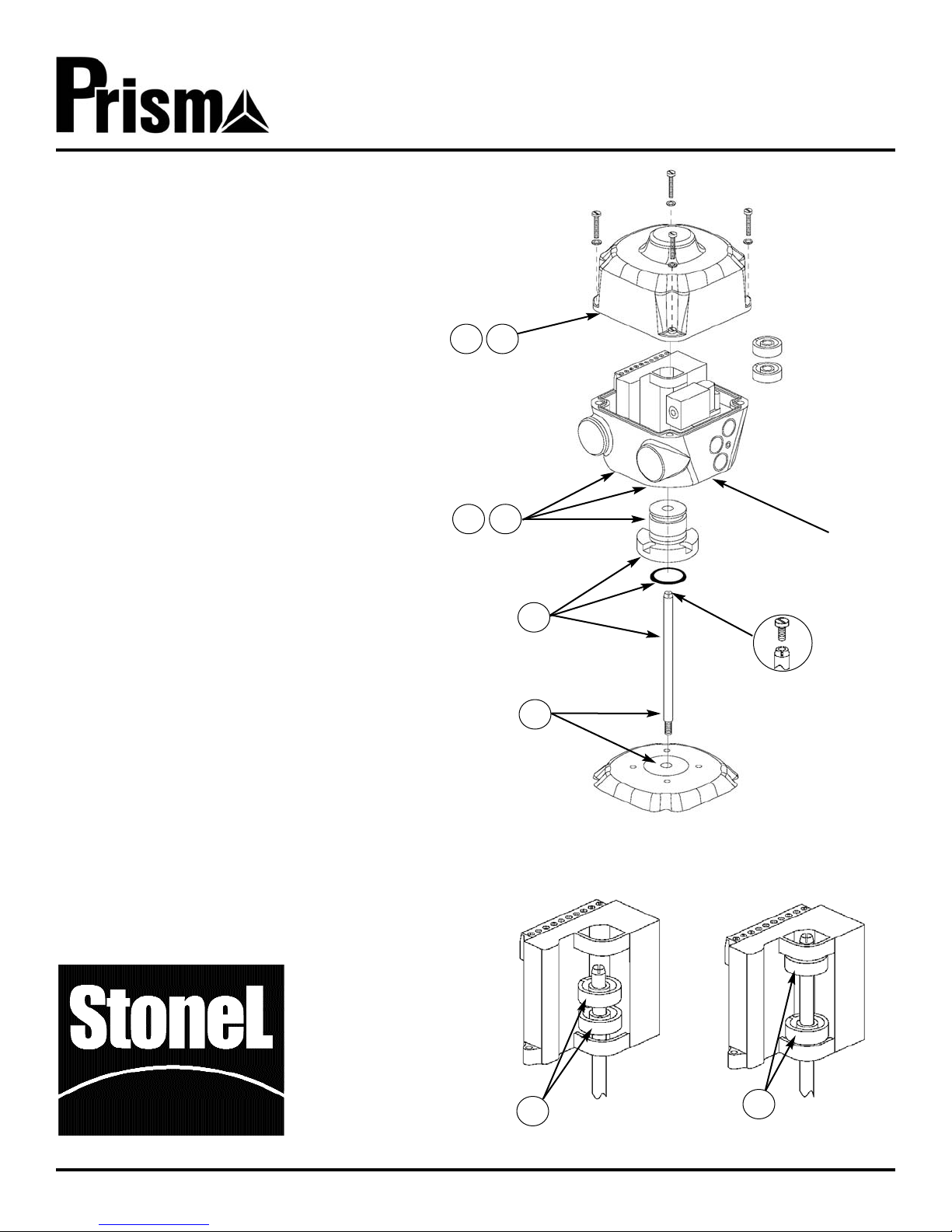

Prism™ Mounting
1. Thread the Trigger Shaft onto the actuation system stem.
2. Place provided o-ring in groove on the bottom of the
Mounting Coupler and slide over the Trigger Shaft.
Secure Mounting Coupler to the actuation system.
Fastening of Mounting Coupler to the actuation system
will be either flange mounted or threaded. (Dependent on
manufacturer of valve assembly)
3. Remove the Prism’s Cover.
4. Slide the Prism Switch Assembly over the Trigger Shaft
via the Mounting Coupler socket located on the bottom of
the Switch Assembly. Do not seat the Switch Assembly
onto the Mounting Coupler. The Trigger Shaft should
now be approximately midway between upper and lower
Cam Stops on the Dual Module. (See Detail A)
5. While supporting the Switch Assembly with one hand,
place the two Trigger Cams onto the Trigger Shaft
between the cam stops. (See Detail A)
6. Fully seat the Switch Assembly onto the Mounting
Coupler. Secure the Switch Assembly to the Mounting
Coupler by tightening the set screw located on the
bottom of the Switch Assembly, opposite of the conduit
entries. Some mounting systems for 2” and larger
valves may have the Trigger Shaft threaded, in these
cases thread the provided 6/32 screw into the top of
the Trigger Shaft. (See Inset - AA)
7. To set the Cam Triggers, slide the upper trigger until it
touches the upper cam stop (or 6/32 screw) and push
down the lower trigger until it touches the lower cam
stop. Cycle the actuator and the triggers will
automatically be set to the proper position. (See Detail B)
8. Perform applicable field wiring and replace Prism Cover.
(Applicable wiring diagrams and connector pin-out
guides located on Page 4 of this document)
Trigger
Cams
Cover
Switch
Assembly
Set
Screw
Mounting
Coupler
&
O-ring
Trigger
Shaft
Actuation
System
1
2
3
4
6
8
Inset - AA
Page 2

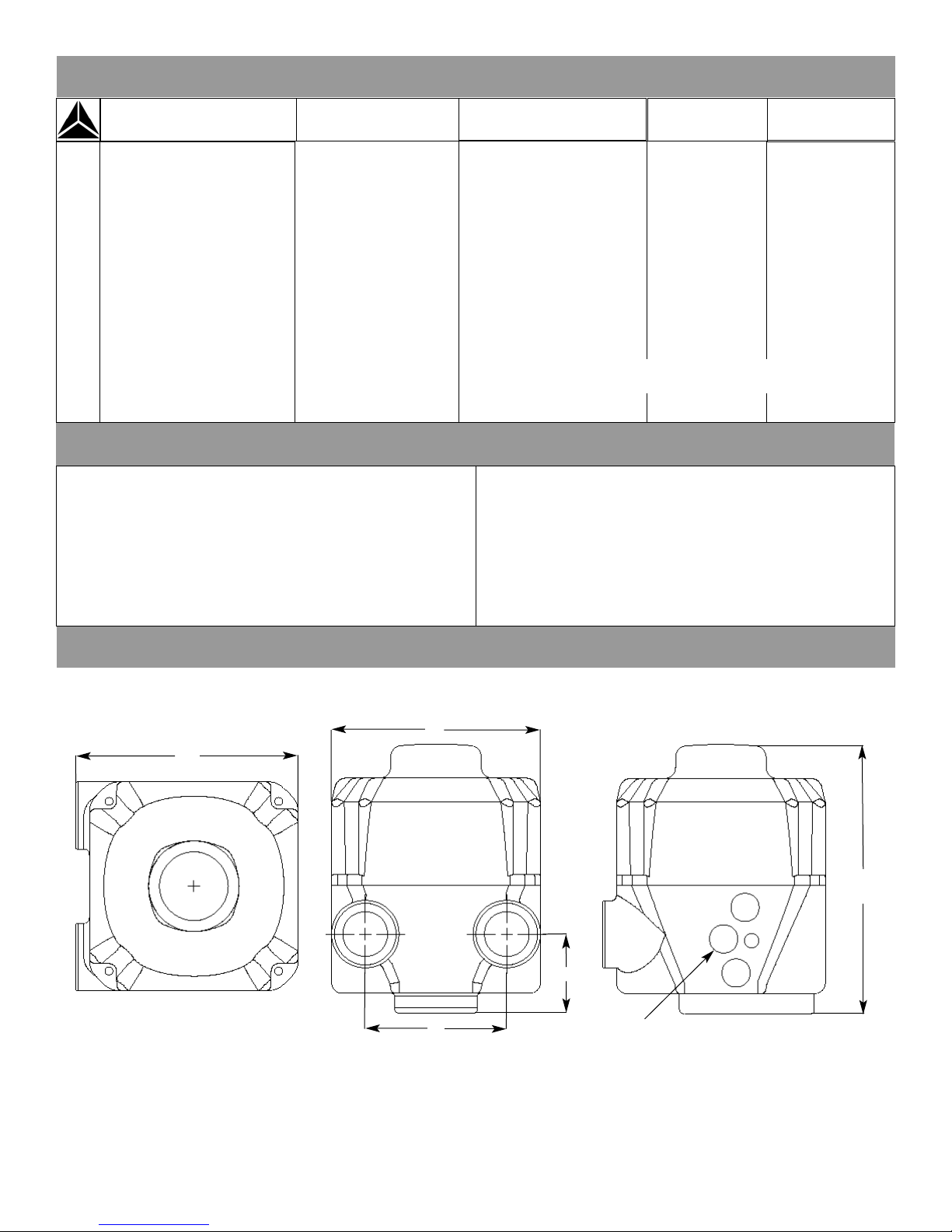

PRISM Model Selector
General Specifications and Ratings
Dimensions (mm)
S02 (2) 1/2” NPT
S05 (2) M20
S09 (2) Cable Glands
S11 (1) 5-Pin Mini-Connector
S13 (1) 4-Pin Micro-Connector
S14 (2) 4-Pin Micro-Connector
S15 (1) 5-Pin Micro-Connector
S16 (1) 5-Pin Micro-Connector
& (1) 4-Pin Micro Connector
11 No Pneumatic Valve
1A 3-way/Piezo*
1B 3-way/24 VDC/1.8 W
1C 3-way/120 VAC/5.4 W
1D 3-way/24 VDC/0.5 W
1E 3-way/12 VDC (I.S.)**
* For use with Function 93
only
** For use with Function 44
only
R Red Closed/
Green Open
G Green Closed/
Red Open
S Stroke less than 2”
L Stroke from 2” to 4”
PM
Function Pneumatic Valve Conduit/Connectors
Visual
Indicator
Valve Size
Materials of Construction
Housing & Cover: Polycarbonate
Fasteners: Stainless Steel
Triggering Cams: Stainless Steel Banded Polycarbonate
Mounting System: Stainless Steel
O-Rings: Buna-N
Valve Manifold: Polysulfone with Stainless Steel Reinforced
NPT Ports
Operating Life: One Million Cycles
Temperature Range: -40° C to 80° C (-40° F to 180° F)
Enclosure Protection
NEMA: 4, 4X, 6; IP67
Hazardous Location Ratings
Nonincendive: Class I&II, Div 2, All Gas Groups
Warranty
Dual Modules/VCTs: Five Years
Mechanical Components: Two Years
94
64
101
36
1/8”
NPT (3)
S= 122
L= 147
Model Number Example: PM961BS2RS
Pub # 105120revB
Page 2
StoneL Phone: (218) 739-5774 · Toll-free: (800) 843-7866 · Website: www.stonel.com
33 (2) SST N.O. Sensors
34 (2) SST N.C. Sensors
44 (2) NAMUR Sensors
92 DeviceNet VCT**
93 Foundation Fieldbus VCT*
(Bus Power Outputs; I.S.)
94 Foundation Fieldbus VCT**
(Externally Powered Outputs)
95 Modbus VCT**
96 AS-Interface VCT**
97 AS-Interface VCT (Ext Add)**
* For use with pneumatic valve
option 11 or 1A only
** For use with pneumatic valve
option 11, 1B or 1D only
Page 3
StoneL Phone: (218) 739-5774 · Toll-free: (800) 843-7866 · Website: www.stonel.com

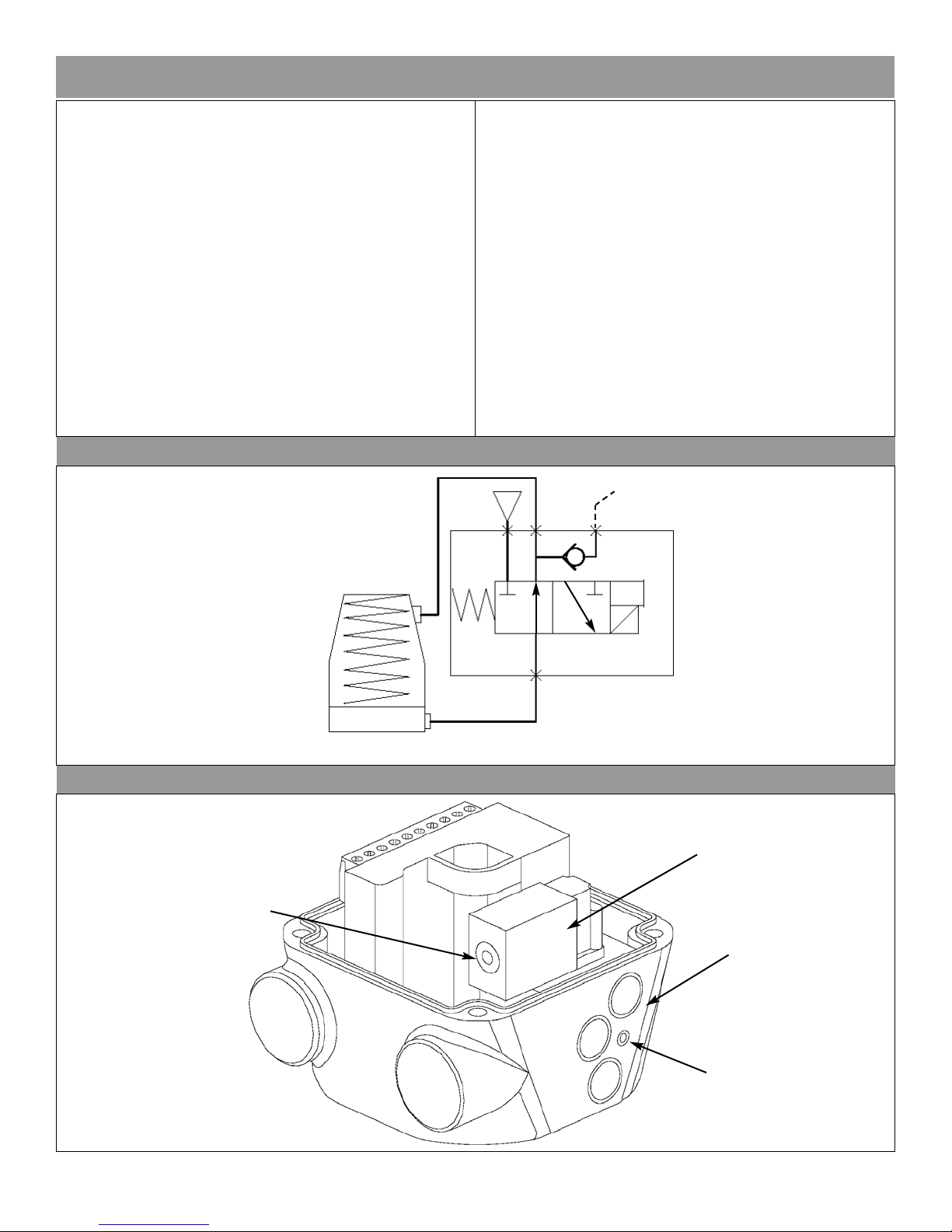

Pneumatic Valve Specifications
Pneumatic Valve Schematic
Pneumatic Valve Component Locator
Pub # 105120revB
Page 3
General Pneumatic Specifications
Configuration: 3-Way, 2-Position, Spring Return
Porting: 1/8 NPT (all pressurized ports)
Rebreather Port: 4-40 size
Operating Pressure: 40 psi to 120 psi (2.6 to 8.0 bar)
Flow Rating: 0.1 Cv (1.4 Kv)
Rebreather: Standard on all models; Diverts air from
exhausting cylinder into actuator spring side,
Excess air exhausted to the atmosphere
Valve Cycle Time:
1/2” Stroke To Open = < 1 sec. To Close = < 1 sec.
1 1/8” Stroke To Open = 3.4 sec. To Close = 3.1 sec.
Operating Life: One Million Cycles
Solenoid Coil Specifications
120 VAC (with burn-out proof coil)
Power: 5.4 Watts
Inrush Current: 0.09 Amps @ 120 VAC
Holding Current: 0.06 Amps @120 VAC
24 VDC
Power: 1.8 Watts (1B); 0.5 Watts (1D)
Current Draw: 0.075 Amps (1B); 0.02 Amps (1D)
Temperature Range: -18° C to 50° C (0° F to 120° F)
Filtration Requirements: 40 Microns
12 VDC (Intrinsically Safe)
Power: 0.5 Watts
Current Draw: 0.04 Amps
Temperature Range: -18° C to 50° C (0° F to 120° F)
Filtration Requirements: 40 Microns
Piezo
Operating Voltage: 5.5 VDC to 9.0 VDC
Current Draw: 2.0 mA @ 6.5 VDC
Temperature Range: -10° C to 60° C (14° F to 140° F)
Filtration Requirements: 30 Microns
Hazardous Ratings: EEx ia IIC T6
P
A
Actuator
Manifold
Rebreather Port
Solenoid
E
Rebreather Port
Manual Override
Solenoid
P
A
E
Manifold
Page 4

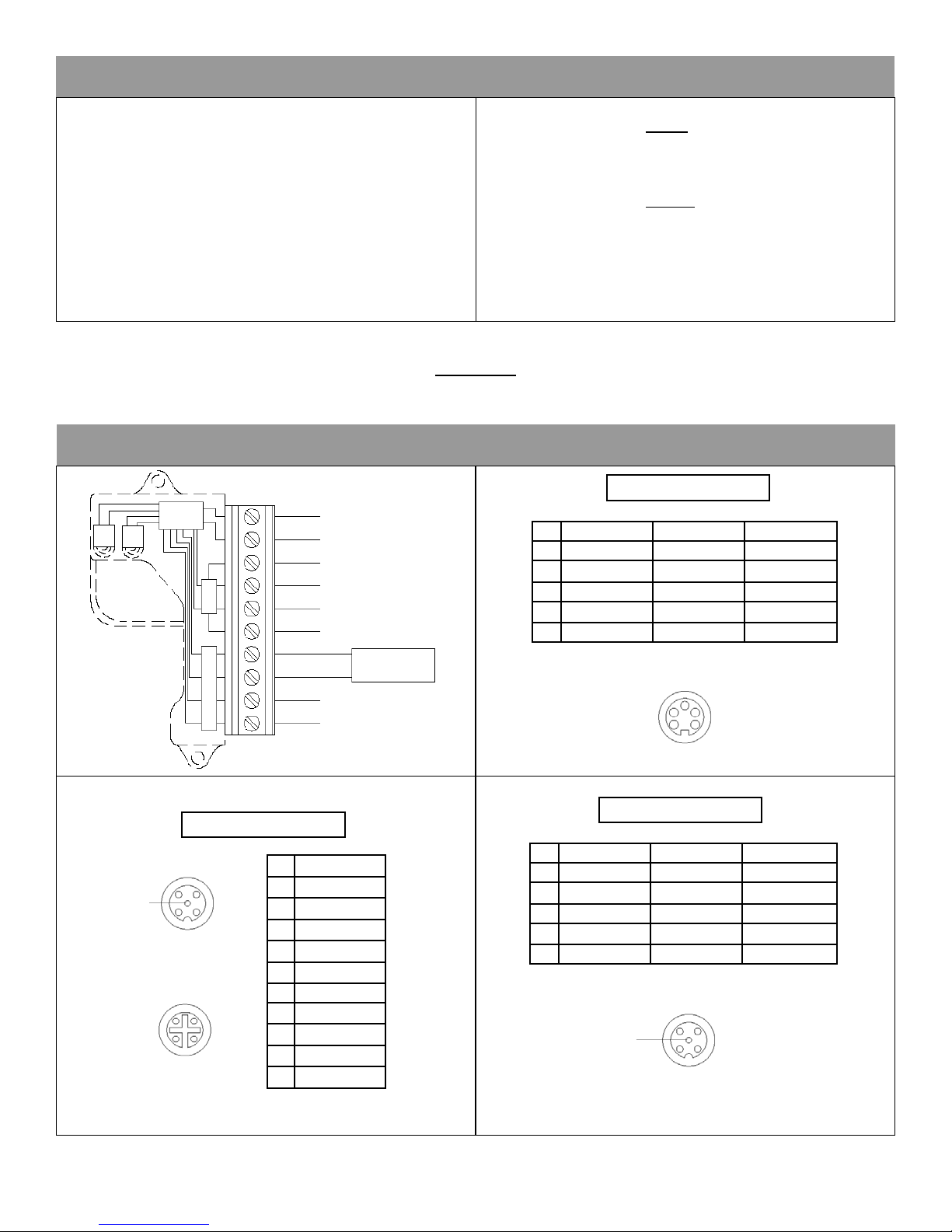

PRISM with Modbus VCT
Wiring Diagram/Connector Pin-Out
To Bench Test a Modbus VCT: Use 24 VDC power supply across V + and V -. No series resistor needed. A functioning ModBus
network is required to test communications.
WARNING:
DO NOT APPLY EXTERNAL POWER TO THE OUTPUT TERMINALS. THIS WILL RESULT IN PERMANENT
DAMAGE TO THE UNIT.
StoneL Phone: (218) 739-5774 · Toll-free: (800) 843-7866 · Website: www.stonel.com
Pub # 105120revB
Page 4
Modbus VCT Specifications
Communication Protocol: ModBus
Configuration: (2) Discrete Inputs (Sensors)
(1) Auxiliary Analog Input (4-20mA)
(2) Discrete Outputs (Solenoids)
Voltage: 24VDC (The 24VDC power source
should share the same ground refer-
ence as the communication line)
Output Voltage: 24VDC
Max. Output Current: 160mA, Both Outputs Combined
Max. Output Power: 4 Watts, Both Outputs Combined
Default Address: 03
Bit Assignment: Inputs
10001 = Red LED (Bottom Sensor)
10002 = Green LED (Top Sensor)
30001 = Analog Input
Outputs
00001 = OUT 1*
00002 = OUT 2
* Discrete Output 1 is used for units with integral solenoids
AIN -
OUT 1 -
OUT 1 +
OUT 2 -
OUT 2 +
Solenoid valve*
AIN +
V -
BUS -
BUS +
V +
MICRO-CONNECTOR
MALE (PINS)
4
5
3
2
1
MICRO-CONNECTOR
FEMALE (SOCKETS)
4
3
2
1
Connector Option (S16)
PIN PM9511S16XX
1 NOT USED
2 V +
3 V -
4 BUS +
5 BUS -
XX XXXXXXXXXX
1 NOT USED
2 NOT USED
3 OUT 1 -
4 OUT 1 +
Connector Option (S11)
Connector Option (S15)
MINI-CONNECTOR
MALE (PINS)
4
5
3
2
1
PIN PM9511S11XX PM951BS11XX PM951DS11XX
1 NOT USED NOT USED NOT USED
2 V + V + V +
3 V - V - V -
4 BUS + BUS + BUS +
5 BUS - BUS - BUS -
PIN PM9511S15XX PM951BS15XX PM951DS15XX
1 NOT USED NOT USED NOT USED
2 V + V + V +
3 V - V - V -
4 BUS + BUS + BUS +
5 BUS - BUS - BUS -
MICRO-CONNECTOR
MALE (PINS)
4
5
3
2
1
*Solenoid valve
supplied with “1B”
and “1D” units only
