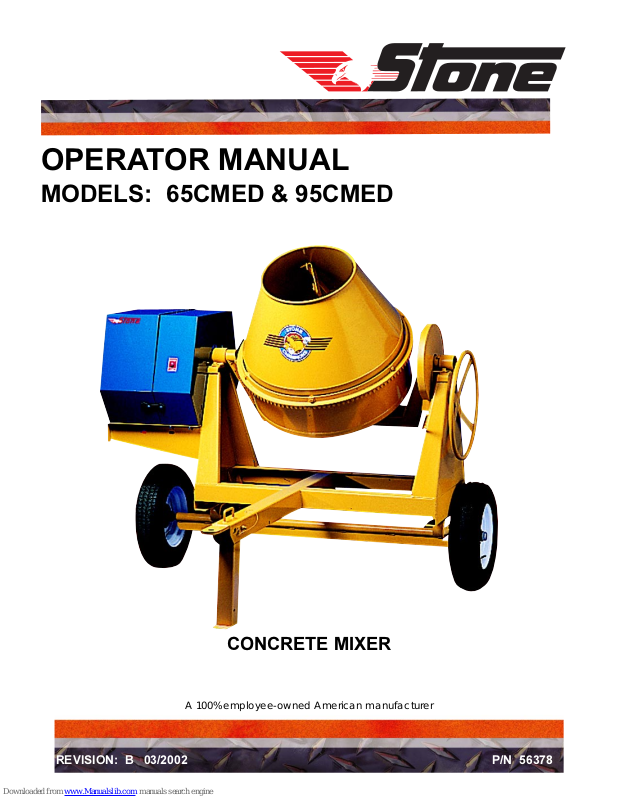

Stone 65CMED, 95CMED Operator's Manual

OPERATOR MANUAL

MODELS: 65CMED & 95CMED

A 100% employee-owned American manufacturer

REVISION: B 03/2002 P/N 56378

CONCRETE MIXER

Table of Contents

FOREWORD ..................................................................................................................... 4

Limited WARRANTY ..................................................................................................... 5

TECHNICAL DATA ........................................................................................................ 6 - 8

Specifications ............................................................................................................... 6

Imperial Torque Chart ................................................................................................. 7

Metric Torque Chart .................................................................................................... 8

HEALTH & SAFETY ...................................................................................................... 9 - 13

OPERATIONS .................................................................................................................. 14 - 18

Before Starting ............................................................................................................. 14

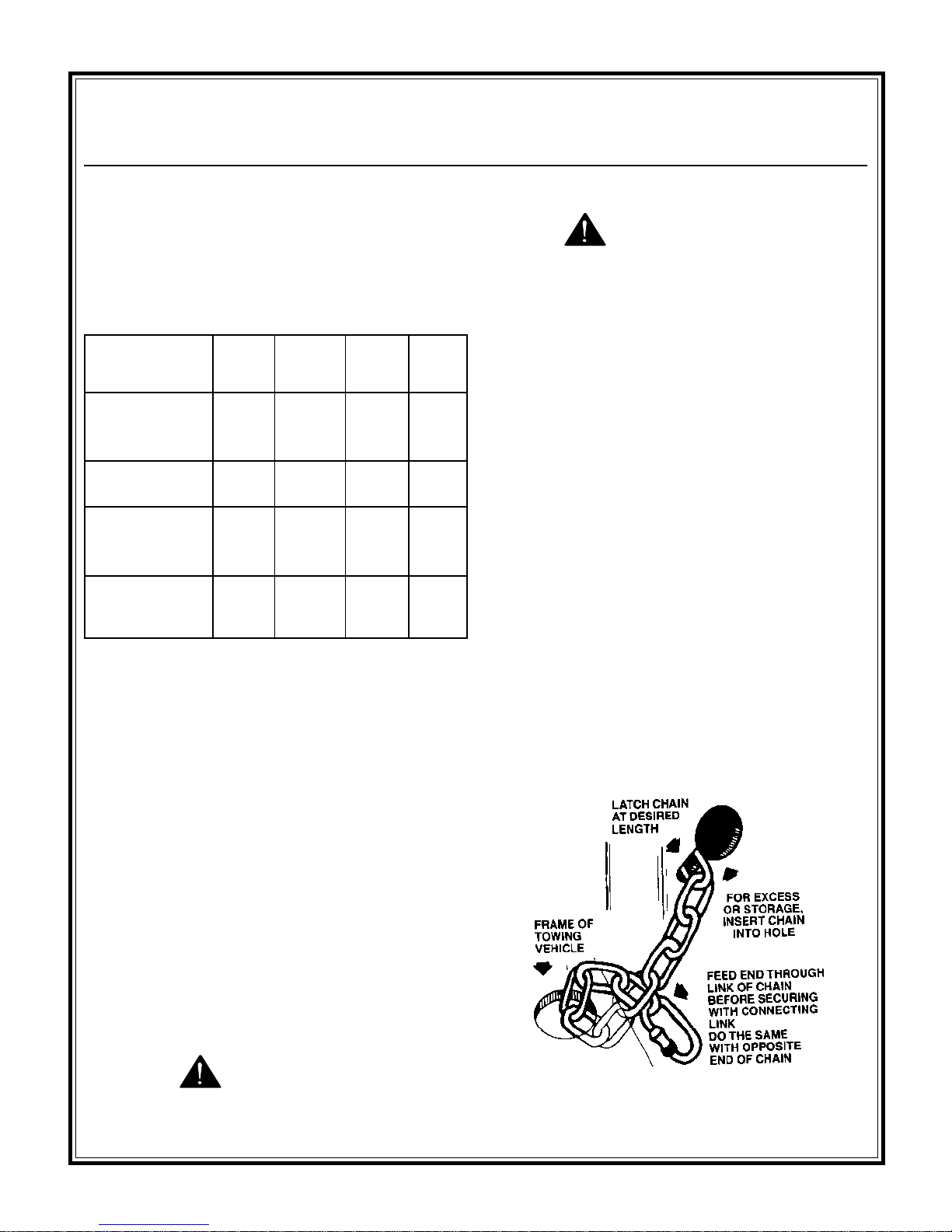

Safety Chain Installation ............................................................................................ 14

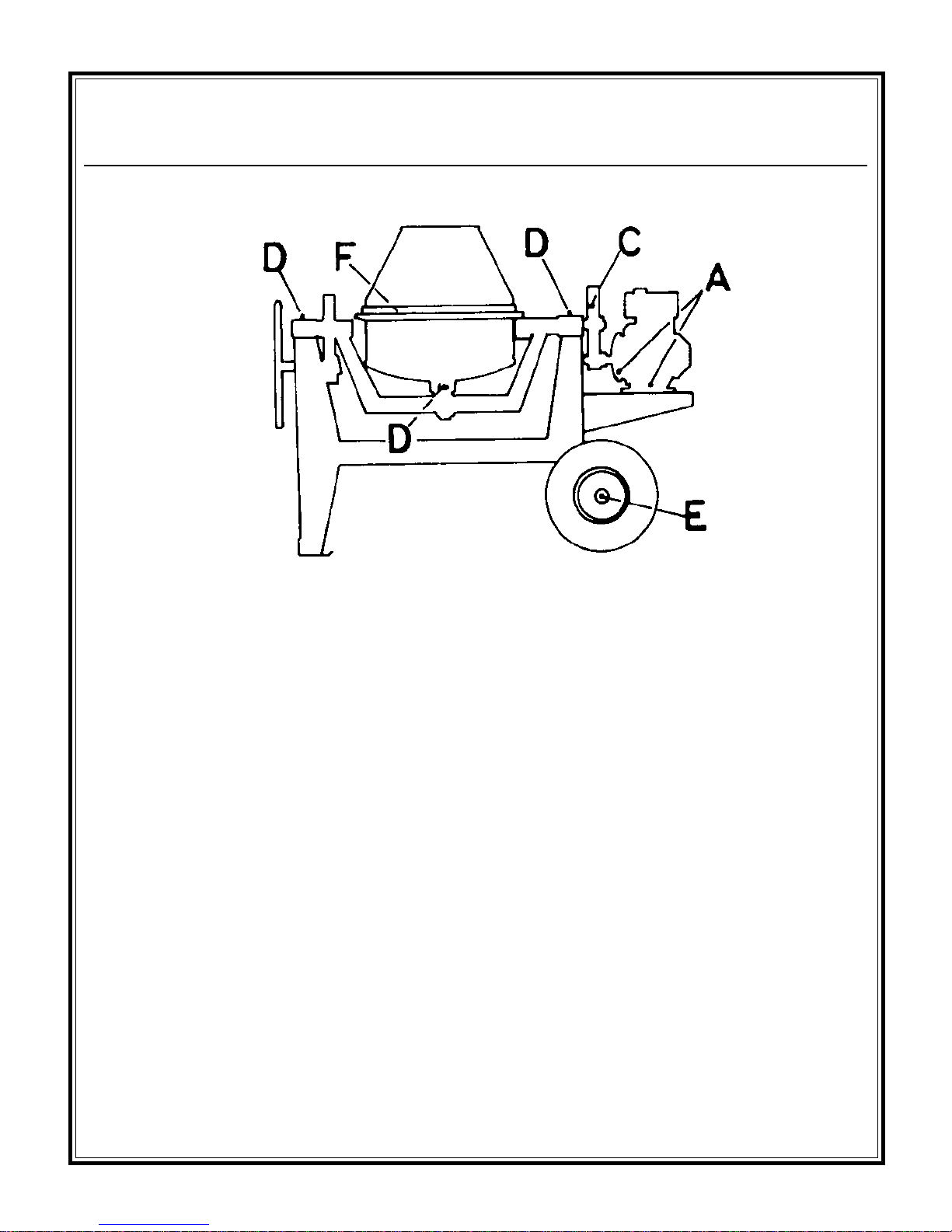

Oil Levels and Lubrication ......................................................................................... 14

Hardware ....................................................................................................................... 14

Fuel................................................................................................................................. 14

To Start the Engine/Motor .......................................................................................... 14 - 15

To Stop The Engine/Motor ......................................................................................... 15

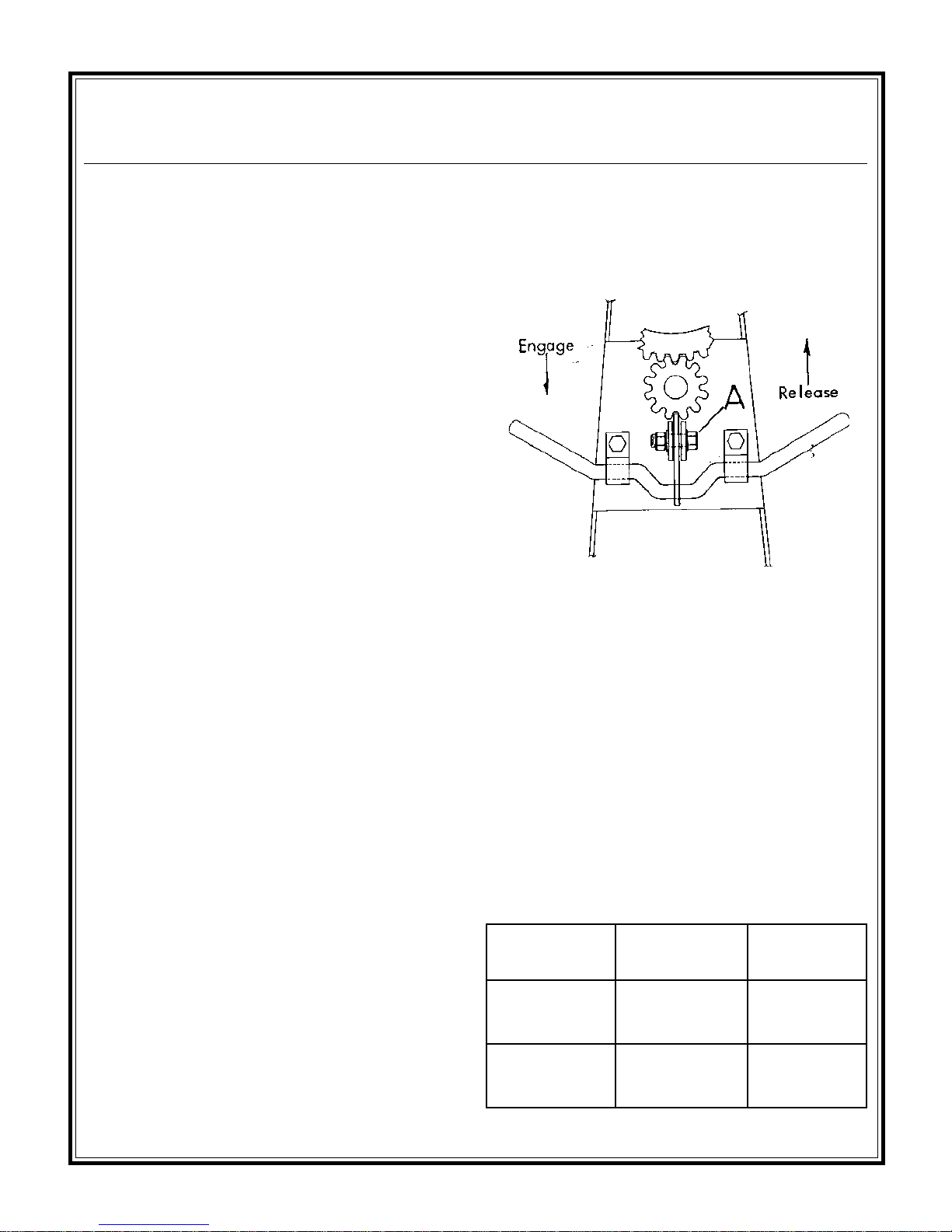

Operation....................................................................................................................... 15

Capacities ...................................................................................................................... 15

Sample Mix ................................................................................................................... 16

Cleaning ........................................................................................................................ 16

Towing ........................................................................................................................... 16 - 17

Maintenance Schedule ................................................................................................ 18

65CMED & 95CMED

CALIFORNIA PROPOSITION 65 WARNING ........................................................ IBC

- 3 -

User Information

These instructions include:

Foreword/Service Information

Safety regulations
Operating instructions
Maintenance instructions

These instructions have been prepared for
operation on the construction site and for the
maintenance engineer.

These instructions are intended to simplify
operation of the machine and to avoid
malfunctions through improper operation.

Observing the maintenance instructions will
increase the reliability and service life of the
machine when used on the construction site
and reduce repair costs and downtimes.

Always keep these instructions at the place
of use of the machine.

Only operate the machine as instructed.

Observe the safety regulations as well as the
guidelines of the civil engineering trade
association. Observe the safety rules for
operation and the pertinent regulations for
the prevention of accidents.

1. Machine Type: _______________________________

Machine S/N: ________________________________

2. Engine Type: ________________________________

Engine S/N: _________________________________

3. VIN: _______________________________________

4. Purchase Date: _______________________________

5. Dealer/Distributor Information:

Name: ______________________________________

Address: ____________________________________

___________________________________________

Phone #: ____________________________________

Fax #: ______________________________________

6. Battery
Manufacturer: _______________________________

Battery Type: ________________________________

Stone Construction Equipment, Inc. is not
liable for the function of the machine when
used in an improper manner or for other
than the intended purpose.

Operating errors, improper maintenance
and the use of incorrect operating materials
are not covered by the warranty.

The above information does not extend the
warranty and liability conditions of business
of Stone Construction Equipment, Inc.

Stone Construction Equipment, Inc.

P.O. Box 150, Honeoye, New York 14471

Phone: [phone]
Fax: [phone]

Battery S/N: _________________________________

Location of above information:

1. Information on S/N tag.

2. Information on engine tag.

3. Information on S/N tag - if applicable.

4. Date you purchased machine.

5. Dealer machine was purchased from.

6. Information on battery and battery warranty

card.

- 4 -

L i m i t e d W a r r a n t y

The Manufacturer warrants that products manufactured shall be free from defects in material and
workmanship that develop under normal use for a period of 90 days for concrete vibrators and electric
pumps, one year for Rhino®, Bulldog®, WolfPac Rollers, trowels, Stompers®, saws, forward plates,
engine powered pumps, Lift Jockey, Mortar Lift and 6 months for all other products from the date
of shipment. The foregoing shall be the exclusive remedy of the buyer and the exclusive liability of the
Manufacturer. Our warranty excludes normal replaceable wear items, i.e. gaskets, wear plates, seals, O­rings, V-belts, drive chains, clutches, etc. Any equipment, part or product which is furnished by the
Manufacturer but manufactured by another, bears only the warranty given by such other manufacturer.
(The Manufacturer extends the warranty period to “Lifetime” for the drum bearings and seals for the mortar
equipments, and agrees to furnish, free of charge, the bearings and seals only upon receipt of the defective
parts. The warranty is two years for eccentric bearings on the forward plate compactors, mortar and plaster
equipment drums, trowel gearboxes and five years on the Bulldog trench roller eccentric bearings.) A
Warranty Evaluation Form must accompany all defective parts. Warranty is voided by product abuse,
alterations, and use of equipment in applications for which it was not intended, use of non-manufacturer
parts, or failure to follow documented service instructions. The foregoing warranty is exclusive of all other
warranties whether written or oral, expressed or implied. No warranty of merchantability or fitness for a
particular purpose shall apply. The agents, dealer and employees of Manufacturer are not authorized to
make modification to this warranty , or additional warranties binding on Manufacturer. Therefore, additional
statements, whether oral or written, do not constitute warranty and should not be relied upon.

The Manufacturer’s sole responsibility for any breach of the foregoing provision of this contract, with respect
to any product or part not conforming to the Warranty or the description herein contained, is at its option (a)
to repair, replace or refund such product or parts upon the prepaid return thereof to location designated
specifically by the Manufacturer. Product returns not shipped prepaid or on an economical transportation
basis will be refused (b) as an alternative to the foregoing modes of settlement - the Manufacturer’s dealer
to repair defective units with reimbursement for expenses, except labor, and be reviewed with the
Manufacturer prior to repair. A Warranty Evaluation Form must accompany all warranty claims.

Except as set forth hereinabove and without limitation of the above, there are no warranties or other
affirmations which extends beyond the description of the products and the fact hereof, or as to operational
efficiency, product reliability or maintainability or compatibility with products furnished by others. In no
event whether as a result of breach of contract or warranty or alleged negligence, shall the Manufacturer
be liable for special or consequential damages including but not limited to: Loss of profits or revenues, loss
of use of the product or any associated product, cost of capital, cost of substitute products, facilities or
services or claims of customers.

No claim will be allowed for products lost or damaged in transit. Such claims should be filed with the carrier
within fifteen days.

Effective September 2001.

Bred Tough, Technology Born To Work.

The Way It Ought To Be.

Stone Construction Equipment, Inc.

32 East Main Street, P . O. Box 150
Honeoye, NY 14471-0150

- 5 -

Phone: [phone] • 1-716-229-5141

Fax: [phone]

www.stone-equip.com • e-mail:

[email protected]

9/01 P/N 51018

TECHNICAL DATA

Stone 65CMED & 95CMED Mixer – Specifications

65CMED 95CMED

Dimensions

Operating Wt.

740 lbs. (w/ 8 hp Honda)

335.7 kg

Specifications

875 lbs. (w/ 8 hp Honda)

396.9 kg

Batch Capacity
(Bags)

Batch Capacity
(cu. ft.)

Total Volume

L x W x H

Power Source

1/2 - 1 bags

6 cu. ft. / .17 cu. m.

9.0 cu. ft. / .255 cu. m.

65 x 82 x 62 (in)

165.1 x 202.3 x 157.5 (cm)

1 hp / .75 kW Electric

5 hp / 3.7 kW B&S

5.5 hp / 4.1 kW Honda
6 hp / 4.5 kW Robin
6 hp / 4.5 kW Diesel

8.5 hp / 6.3 kW Robin

8 hp / 6 kW B&S Kool Bore

8 hp / 5.9 kW B&S I/P

8 hp / 6 kW Honda

10 hp / 7.5 kW B&S

1 - 1 1/2 bags

9 cu. ft. / .255 cu. m.

15.1 cu. ft. / .43 cu. m.

85 x 85 x 71 (in)

215.9 x 215.9 x 180.3 (cm)

1 1/2 hp / 1.1 kW Electric

6 hp / 4.5 kW Diesel

8.5 hp / 6.3 kW Robin

8 hp / 6 kW B&S Kool Bore

8 hp / 5.9 kW B&S I/P

8 hp / 6 kW Honda

10 hp / 7.5 kW B&S I/P

- 6 -

TECHNICAL DATA

Imperial Torque Chart

SAE GRADE 5

Coarse Thread, Zinc-Plated

SIZE TORQUE SIZE TORQUE

ft. lbs. Nm ft. lbs. Nm

1/4 - 20 (.250) 681/4 - 20 (.250) 912

5/16 - 18 (.3125) 13 18 5/16 - 18 (.3125) 18 24

3/8 - 16 (.375) 23 31 3/8 - 16 (.375) 33 45

7/16 - 14 (.4375) 37 50 7/16 - 14 (.4375) 52 70

1/2 - 13 (.500) 57 77 1/2 - 13 (.500) 80 108

9/16 - 12 (.5625) 82 111 9/16 - 12 (.5625) 115 156

5/8 - 11 (.625) 112 152 5/8 - 11 (.625) 159 215
3/4 - 10 (.750) 200 271 3/4 - 10 (.750) 282 382

7/8 - 9 (.875) 322 436.5 7/8 - 9 (.875) 454 615

1 - 8 (1.000) 483 655 1 - 8 (1.000) 682 925

Coarse Thread, Zinc-Plated

SAE GRADE 5

Fine Thread, Zinc-Plated

SIZE TORQUE SIZE TORQUE

ft. lbs. Nm ft. lbs. Nm

1/4 - 28 (.250) 7101/4 - 28 (.250) 10 14

5/16 - 24 (.3125) 14 19 5/16 - 24 (.3125) 20 27

3/8 - 24 (.375) 26 35 3/8 - 24 (.375) 37 50

7/16 - 20 (.4375) 41 56 7/16 - 20 (.4375) 58 79

1/2 - 20 (.500) 64 87 1/2 - 20 (.500) 90 122

9/16 - 18 (.5625) 91 123 9/16 - 18 (.5625) 129 175

5/8 - 18 (.625) 128 173 5/8 - 18 (.625) 180 244
3/4 - 16 (.750) 223 302 3/4 - 16 (.750) 315 427
7/8 - 14 (.875) 355 481 7/8 - 9 (.875) 501 679

1 - 12 (1.000) 529 717 1 - 12 (1.000) 746 1011

1 -14 (1.000) 541 733 1 -14 (1.000) 764 1036

SAE GRADE 8

SAE GRADE 8

Fine Thread, Zinc-Plated

tchart_i.doc

- 7 -

TECHNICAL DATA

Property Class 8.8

ZINC-PLATED

SIZE Nm ft. lbs. Nm ft. lbs.

M6 9.9 7 NA NA

M8 24 18 25 18
M10 48 35 49 36
M12 83 61 88 65
M14 132 97 140 103
M16 200 148 210 155
M20 390 288 425 313
M24 675 498 720 531

Property Class 10.9

ZINC-PLATED

SIZE Nm ft. lbs. Nm ft. lbs.

M6 14 10 NA NA

M8 34 25 35 26
M10 67 49 68 50
M12 117 86 125 92
M14 185 136 192 142
M16 285 210 295 218
M20 550 406 600 443
M24 950 701 1000 738

Coarse Th read Fine Thread

Coarse Th read Fine Thread

Metric To rque Chart

Property Class 12.9

ZINC-PLATED

SIZE Nm ft. lbs. Nm ft. lbs.

M6 16.5 12 N A N A

M8 40 30 42 31
M10 81 60 82 60
M12 140 103 150 111
M14 220 162 235 173
M16 340 251 350 258
M20 660 487 720 531
M24 1140 841 1200 885

Conversion Factor: 1 ft. lb. = 1.3558 N m

Coarse Th read Fine Thread

- 8 -

HEALTH & SAFETY

Safety Precautions

Before using this equipment, study this entire manual
to become familiar with its operation. Do not allow
untrained or unauthorized personnel, especially
children, to operate this equipment. Use only factory
authorized parts for service.

FOLLOW SAFETY INSTRUCTIONS

Carefully read all safety messages and decals in this manual and on
your machine. Keep decals in good condition. Replace missing or
damaged decals. Be sure new equipment components and repair parts
include the current safety signs. Replacement safety signs and decals
are available through your dealer.

Learn how to operate the machine and how to use controls properly.
Do not let anyone operate without instruction.

Keep your machine in proper working condition. Unauthorized
modifications to the machine may impair the function and/or safety
and affect machine life.

If you do not understand any part of this manual and need assistance,
contact your dealer.

When warning decals are destroyed or missing, contact
the Manufacturer immediately at 1-800-888-9926 for
replacement. For the safety of yourself and others, it is
imperative that the following rules are observed. Failure
to do so may result in serious injury or death.

UNDERSTAND SIGNAL WORDS

A signal word  DANGER, WARNING, or CAUTION  is used with
the safety-alert symbol. DANGER identifies the most serious
hazards.

DANGER or WARNING safety signs are located near specific
hazards. General precautions are listed on CAUTION safety signs.
CAUTION also calls attention to safety messages in this manual.

This notation appears before warnings in the text. It means that the
step which follows must be carried out to avoid the possibility of
personal injury or death. These warnings are intended to help the
technician avoid any potential hazards encountered in the normal
service procedures. We strongly recommend that the reader takes
advantage of the information provided to prevent personal injury or
injury to others.

- 9 -

HEALTH & SAFETY

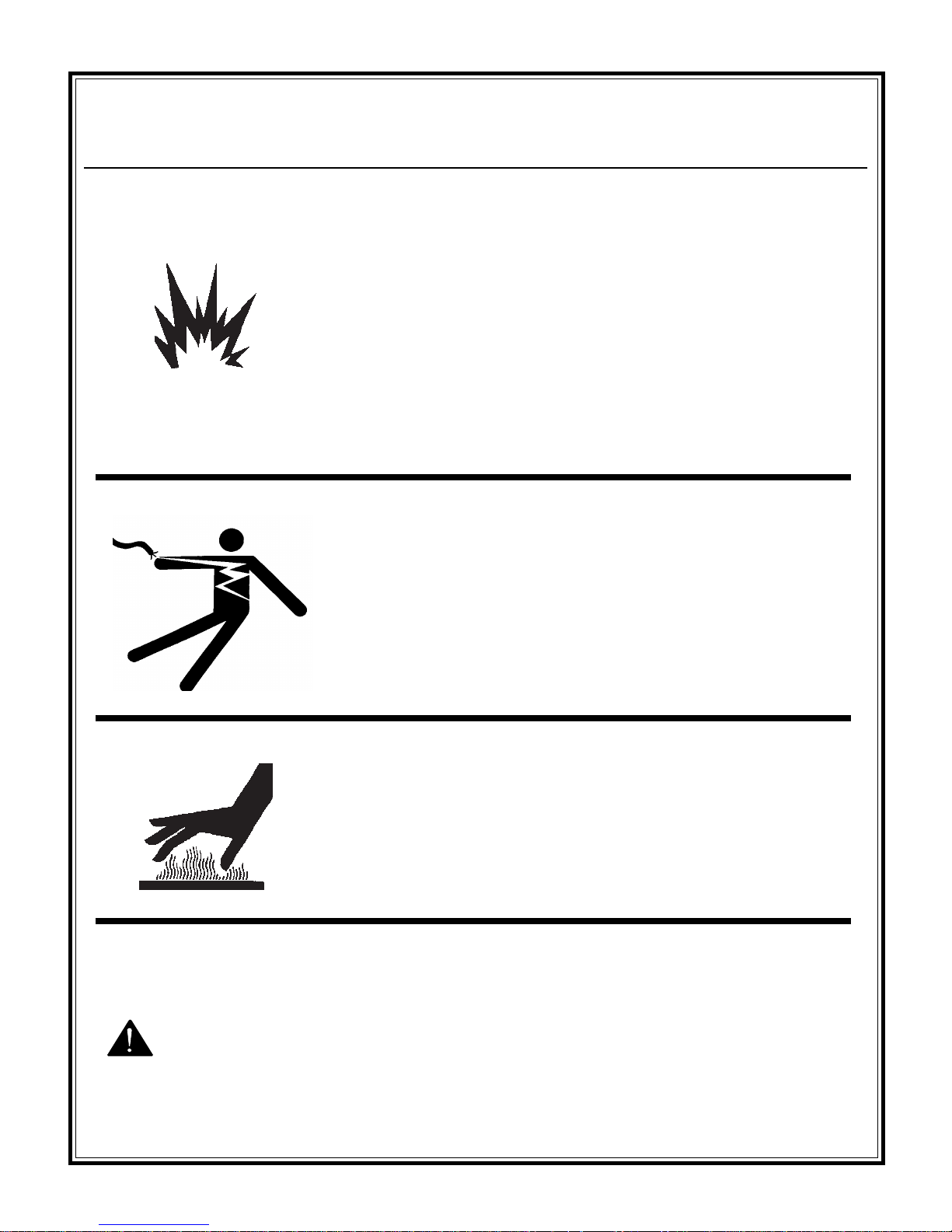

USE COMMON SENSE WHEN HANDLING FUELS

 Transport and handle fuel only when contained in approved safety

container.

 Do not smoke when refueling or during any other fuel handling

operation.
 Do not refuel while the engine is running or while it is still hot.
 If fuel is spilled during refueling, wipe it off of the engine

immediately and discard the rag in a safe place.
 Do not operate the equipment if fuel or oil leaks exist - repair

immediately.
 Never operate this equipment in an explosive atmosphere.

 Always use the proper size grounded extension cord, conforming to

the National Electric Code and Local Ordinances.

 Inspect all extensions and electrical cords for cuts, frayed wire and

broken connectors before use. Do not use cords if not in good

condition.

 Do not route extension cords through standing water.
 Do not operate the mixer in standing water.
 When cleaning the mixer, never spray water on the electric motor.

Safety Precautions

WARNING

HOT SURFACES

 Avoid contact with hot exhaust systems and engines.

 Allow all components in the engine compartment to cool before

performing any service work.

 Never leave mixer unattended while running.

 Mix only concrete.

- 10 -

HEALTH & SAFETY

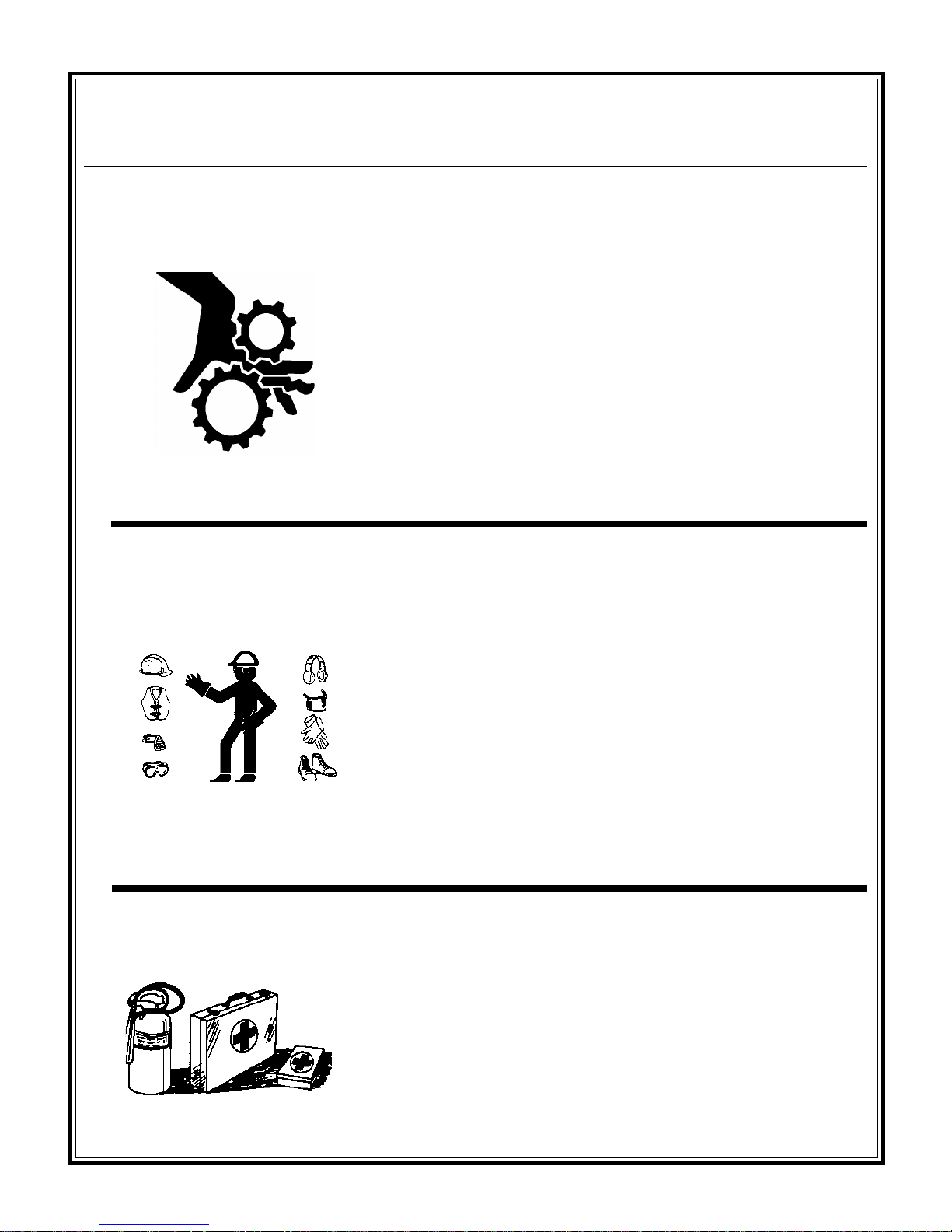

 Never perform any work on the mixer while it is running.

 Before working on the mixer, stop the engine and disconnect the

spark plug wire(s) to prevent accidental starting. On electric models,
disconnect the electric cord at the mixer.

 Keep cowl closed and latched during the operation, close and latch

cowl immediately after starting.

 Keep hands, clothing and jewelry away from all moving parts.

 Keep all guards in place, including drum guards.

 Never place your hands or any solid object into the drum while the

mixer is in operation.

WEAR PROTECTIVE CLOTHING

Safety Precautions

 Wear close fitting clothing and safety equipment appropriate to the

job.

 Prolonged exposure to loud noise can cause impairment or loss of

hearing.

 Wear a suitable hearing protective device such as earmuffs or

earplugs to protect against objectionable or uncomfortable loud
noises.

 Operating equipment safely requires the full attention of the

operator. Do not wear radio or music headphones while operating
machine.

PREPARE FOR EMERGENCIES

 Be prepared if a fire starts.

 Keep a first aid kit and fire extinguisher handy.

 Keep emergency numbers for doctors, ambulance service, hospital,

and fire department near your telephone.

- 11 -

HEALTH & SAFETY

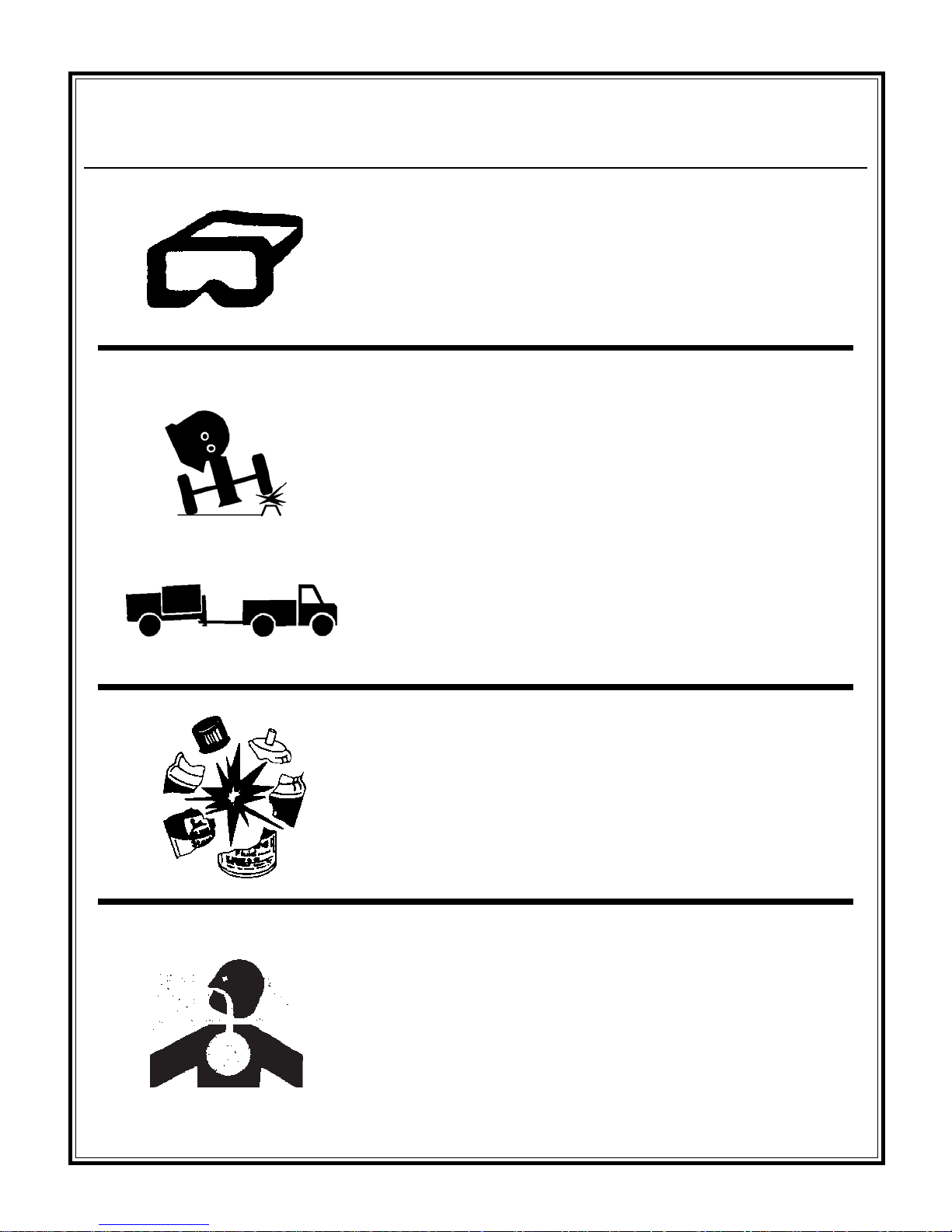

Warning-Eye Protection

• Always wear splash goggles when operating mixer.

Warning-Towing

• Warning: Do not tow the mixer with the drum in the dump position.

Mixer may become unstable and tip over when hitting a curb,

pothole, or other obstruction.

• Warning: Always properly attach safety chains before mixer is

towed. Maximum towing speed 55 m.p.h. (90 km/hr). Reduce

speed according to highway conditions.

Safety Precautions

 Starting fluid (ether) is highly flammable, do not use or an

explosion or fire may result.

 Never operate unit in a poorly ventilated or enclosed area.

 Avoid prolonged breathing of exhaust gases.

 Engine exhaust fumes can cause sickness or death.

- 12 -

HEALTH & SAFETY

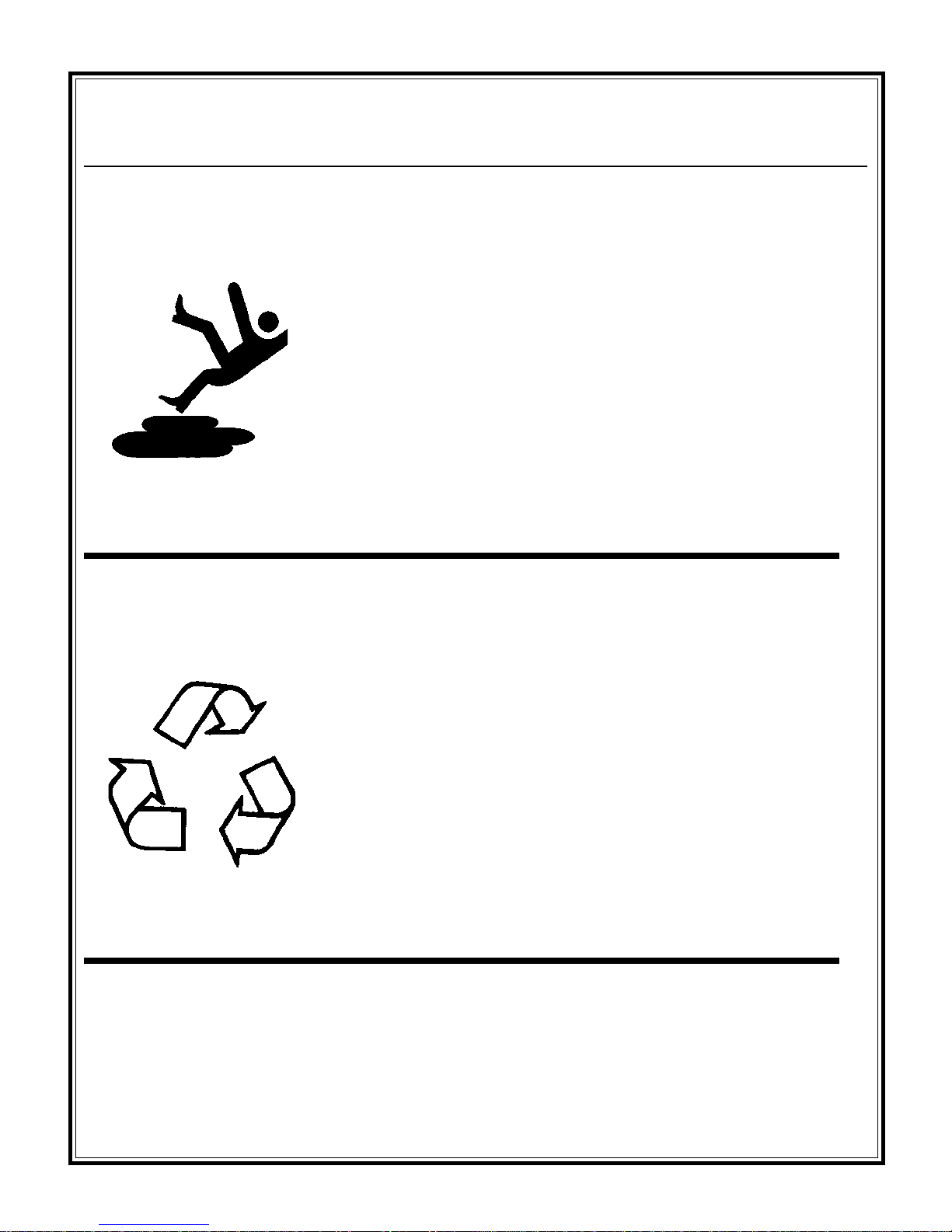

PRACTICE SAFE MAINTENANCE

 Understand service procedure before doing work. Keep area clean

and dry.

 Never lubricate, service or adjust machine while it is moving. Keep

hands, feet, and clothing from power-driven parts. Disengage all
power and operate controls to relieve pressure. Lower equipment to
the ground. Stop the engine. Remove the key. Allow machine to
cool.

 Securely support any machine elements that must be raised for

service work.

 Keep all parts in good condition and properly installed. Repair

damage immediately. Replace worn or broken parts. Remove any
buildup of grease, oil, or debris.

 Disconnect battery ground cable (-) before making adjustments on

electrical systems or welding on machine.

Safety Precautions

DISPOSE OF WASTE PROPERLY

 Improperly disposing of waste can threaten the environment and

ecology. Potentially harmful waste used with equipment includes
items such as oil, fuel, coolant, brake fluid, filters, and batteries.

 Use leakproof containers when draining fluids. Do not use food or

beverage containers that may mislead someone into drinking from
them.

 Do not pour waste onto the ground, down a drain, or into any water

source.

 Air conditioning refrigerants escaping into the air can damage the

Earths atmosphere. Government regulations may require a certified
air conditioning service center to recover and recycle used air
conditioning refrigerants.

 Inquire on the proper way to recycle or dispose of waste from your

local environmental or recycling center.

SAFETY DECALS - FOR THE SAFETY OF YOURSELF AND OTHERS REPLACE ANY
DAMAGED OR MISSING SAFETY DECALS.

 Warning Decal (SN-92) P/N 55011
 Safety Instruction Decal (SN-67A) P/N 55046
 Warning Decal (SN-8) P/N 55127
 Safety Chain Decal (Front Post, SN-66) P/N 55121

- 13 -

OPERATION

65CMED & 95CMED

BEFORE STARTING

Mixers are shipped completely assembled and ready
for operation except for installation of the safety chain.

SAFETY CHAIN INSTALLATION - Remove the
safety chain kit from the engine compartment. The kit
includes (1) 12 ft. length of safety chain and (2)
connecting links. Pull one end of the chain through the
(2) key hole slots located in the front post of the mixer
with a hook (see drawing below and decal on mixer
front post). Attach the connecting links to each end of
the chain. Follow the instructions in the TOWING
section of this manual and on the mixer front post to
attach the safety chain to the towing vehicle.

INSTALLING CHAIN TO MIXER

OIL LEVELS AND LUBRICATION - Be sure to

check the oil levels in the engine and engine reduction
unit BEFORE starting this unit. The engine warranty is
VOID if it is run without oil. Consult the ENGINE
MANUAL supplied with this unit for specific
instructions and oil recommendations.
Also check the trunnion bearings to make sure they
have been greased. Consult the Lubrication Section of
the manual for the specific instructions if greasing is
required.

WARNING

BEFORE WORKING ON MACHINE, MAKE
SURE ENGINE SPARK PLUG WIRE IS
DISCONNECTED, OR, IF ELECTRIC, THAT
THE ELECTRIC CORD IS DISCONNECTED, TO
PREVENT ANY ACCIDENTAL STARTING.

HARDWARE - Check all hardware on mixer and

engine / motor before starting. Consult the TORQUE
CHART section of this manual and tighten any loose
hardware accordingly. Loose hardware will contribute
to early component failure and poor performance.

FUEL - If your mixer is equipped with a gasoline
engine, fill the gas tank with clean gasoline from a
safety can. Consult the ENGINE MANUAL supplied
with this unit for the proper type of gasoline required.

DO NOT mix oil with gasoline.

WARNING

FOLLOW THE GUIDELINES FOUND IN THE
SAFETY PRECAUTION SECTION OF THIS
MANUAL WHENEVER HANDLING GASOLINE.

TO START THE ENGINE/MOTOR

COLD START - Open the fuel valve under the gas

tank all the way. Open the throttle approximately half
way and apply the choke. Pull the starter rope sharply.
If the engine doesn't start after (3) pulls, open choke
slightly to prevent flooding. When the engine starts,
open the choke and adjust the throttle as necessary to
keep it running. Allow the engine to warm up for a few
minutes before placing it under the load. Always
operate the engine at full throttle when under load.

HOT START - Open the valve under the gas tank all
the way if it has been shut off. Open the throttle
approximately half way. Do not apply the choke. Pull
the starter rope sharply until the engine starts. When
the engine starts, adjust the throttle. Always operate
the engine at full throttle when under load. Adjust
engine speed so drum is turning between 20 - 25 RPM.

NOTE: These starting instructions are general
guidelines only. Since many engine options are
available on the manufacturer's CMED mixers, consult
the ENGINE MANUAL included with this unit for
specific instructions.

- 14 -

OPERATION

65CMED & 95CMED

ELECTRIC MOTORS - Use the proper size (3) wire
(grounded) extension cord, conforming to the National
Electric Code and Local Ordinances. DO NOT use (2)
wire extension cord. Check any extension cord which
you plan on using carefully for broken connectors, bare
wires and damaged insulation. DO NOT use any cord
found to be in poor condition. Make sure the extension
cord is not routed through standing water and that all
the connections are tight. Use the shortest extension
cord possible. Turn motor on.

TO STOP THE ENGINE / MOTOR

GASOLINE ENGINES - Depress kill switch located

on stationary cowl half and hold down until engine
stops completely. Consult the ENGINE MANUAL
included with this unit for specific instructions. IF
THE MIXER IS TO BE LEFT UNATTENDED FOR
ANY LENGTH OF TIME OR IF THE MIXER IS TO
BE TOWED TO A NEW LOCATION, CLOSE THE
FUEL VALVE UNDER THE GAS TANK.

ELECTRIC MOTORS - TURN THE MOTOR OFF.
IF THE MIXER IS TO BE LEFT UNATTENDED
FOR ANY LENGTH OF TIME, DISCONNECT THE
POWER CORD.

By adding the water and gravel first the drum will be
kept clean and a good tumbling action will be added.
To discharge concrete, grasp handwheel firmly with
one hand and release tilt brake by pushing up on the tilt
handle with the other, (see diagram below).

To prevent accidental discharge, never release brake
without holding the handwheel firmly. Do not attempt
to grab handwheel to stop an accidental discharge,
serious injury could result. Always make sure that the
brake is fully engaged after discharge of concrete and
before reloading drum.

OPERATION

Start the engine / motor as instructed above and allow
gasoline engines to reach operating temperatures.
Close and latch the engine cowl. NEVER operate the
mixer with cowl open.

With drum operating between 20 - 25 RPM the mixer is
now ready for the addition of the concrete mix. For
best results proceed as follows:

1. Pour the required amount of water into
drum.

2. Add the required amount of gravel.

3. Add the required amount of cement.

4. Add the required amount of sand.

After discharge of concrete, immediately pour in the
required amount of water for the next batch.

NOTE: When servicing brake mechanism, bolt A
should be tightened so that approximately 17 - 18
pounds of force is required to release the brake. This
will prevent accidental discharge due to vibration.

CAPACITIES

65CMED 95CMED
2/3 Bag Mixer 1 Bag Mixer

Total Drum
Volum e 9.0 cu. ft. 15.1 cu. ft.

Max. Batch
Size* 6.0 cu. ft. 9.0 cu. ft.

* Maximum batch size depends on mix and type
of aggregate used.

- 15 -

OPERATION

SAMPLE MIX

Volume relationship of 1:2-1/4:3 (cement : sand :
gravel) mix. The mix volume may vary depending on
aggregate used.

65CMED & 95CMED

WARNING

NEVER PUT HANDS OR ANY OBJECT INTO
THE DRUM WHILE THE ENGINE OR MOTOR
IS RUNNING.

Mix Volume
Cu. Ft. 3469

Cement
(bags) 1/2 2/3 1 1-1/2

Water (gal.) 2-1/2 3-1/2 5-1/4 8

Sand (gal./
shovels) 9121818

Gravel (gal./
shovels) 12 16 23 23

CLEANING

For consistent performance, long life and continued
high quality mixing of cement, thoroughly clean the
mixer inside and out at the end of each day's operation.
Drum may be scoured by 2 minute operation with
gravel and water mixture. Discharge, then hose down
drum inside and out. Keep mixer clean.

ALWAYS DISCONNECT THE SPARK PLUG
WIRE OR ELECTRIC CORD WHEN CLEANING
INSIDE DRUM.

TOWING

Before attempting to tow this mixer, check the state
and local laws that apply to your intended route and
check the following:

1. Hitch attached to the towing vehicle
securely.

2. Towpole fully extended and bolted to mixer
securely.

3. Safety chain hooked up properly (see
illustration below or decal on mixer front
post).

INSTALLING CHAIN TO VEHICLE

Before cleaning, shut off the engine or motor and
disconnect the spark plug wire or electric cord to
prevent accidental starting. Spray the mixer with water
before the mix dries to remove any accumulations.
Dried mix should be scraped out as necessary. DO
NOT beat on drum with shovel, hammer or other
device to break up accumulations of dried mix, as this
will dent and damage the drum.

WARNING

NEVER POUR OR SPRAY WATER OVER THE
ENGINE OR MOTOR.

4. Lug nuts, wheel nuts and axle mount nuts
tight.

- 16 -

OPERATION

5. Main axle springs and small snubber
springs and bolts not broken or cracked.

6. Tires in good shape and at proper inflation
as follows:
Tire size B78 x 13 @ 35 P.S.I.

Refer to FRAME AND DRUM ASSEMBLY and
AXLE ASSEMBLY sections of the Service/Parts
Manual for parts identification and location.

WARNING

DO NOT EXCEED A TOWING SPEED OF 55
MILES/HR (90 KM/HR). FOR POOR ROAD
CONDITIONS OR INCLEMENT WEATHER,
REDUCE SPEED ACCORDINGLY.

65CMED & 95CMED

- 17 -

MAINTENANCE

Schedule

NOTE: Cowl removed
for clarity. Do not operate
mixer with cowl removed.

A. ENGINE--Daily check the oil levels in the engine and engine reduction unit. The engine warranty is VOID if run

without oil . Since there are many engine options available on this mixer, consult the ENGINE MANUAL for
specific recommendation as to oil level, oil type required and frequency of oil changes required. For maximum
service life from the engine, follow those recommendations.

B. PILLOW BLOCK BEARINGS--*WEEKLY - Grease idler shaft pillow block bearings on electric drive

models.

C. CHAIN & SPROCKETS--WEEKLY - Lubricate chain and sprockets on chain drive models with a few drops of

SAE 30 motor oil or any spray chain lube.

D. TRUNNIONS & DRUM SPINDLE--MONTHLY - Grease trunnions (2) places and drum spindle (1) place.

E. WHEEL HUBS--EARLY - Repack (4) tapered roller bearings in wheel hubs and replace wheel seals. Install

washer and nut. Torque to 20 ft. lbs., back off one turn, torque to 7 ft. lbs., back off to first slot in nut and insert
cotter key.

F. PINION & RING GEAR--DO NOT lubricate pinion and ring gear. They will collect abrasive materials which

will accelerate wear.

* See Exploded Views in the Service/

Parts Manual for exact location.

- 18 -

CALIFORNIA PROPOSITION 65 WARNING: Engine
exhaust from this product contains chemicals
known to the State of California to cause cancer,
birth defects, or other reproductive harm.

A 100% employee-owned American manufacturer

© 1987 Stone Construction Equipment, Inc.

Bred Tough. Born to Work.

The Way It Ought To Be.

Stone Construction Equipment, Inc.

P.O. Box 150, Honeoye, New York 14471

Phone: [phone]

Fax: [phone]

e-mail: [email protected]

www: stone-equip.com

Printed in U.S.A.

GP1M
