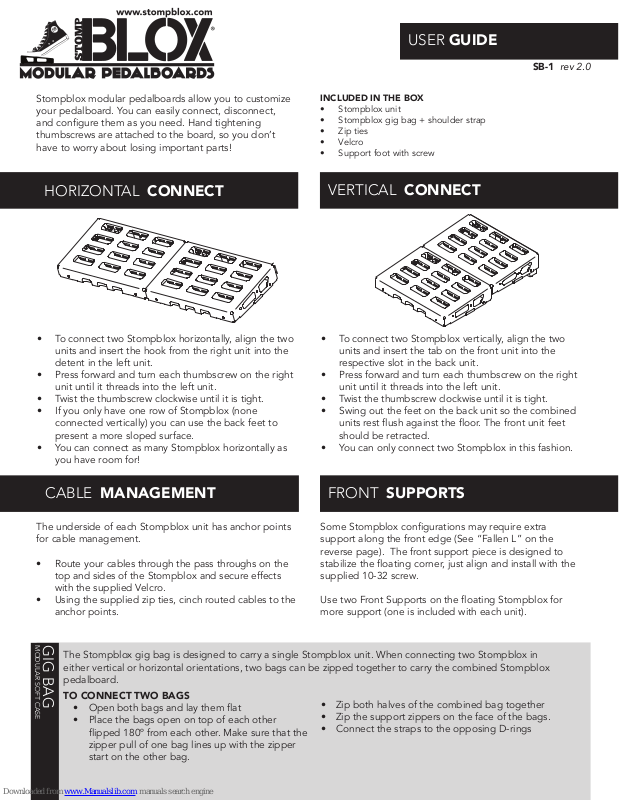

USER GUIDE
SB-1 rev 2.0
Stompblox modular pedalboards allow you to customize
your pedalboard. You can easily connect, disconnect,
and congure them as you need. Hand tightening
thumbscrews are attached to the board, so you don’t
have to worry about losing important parts!

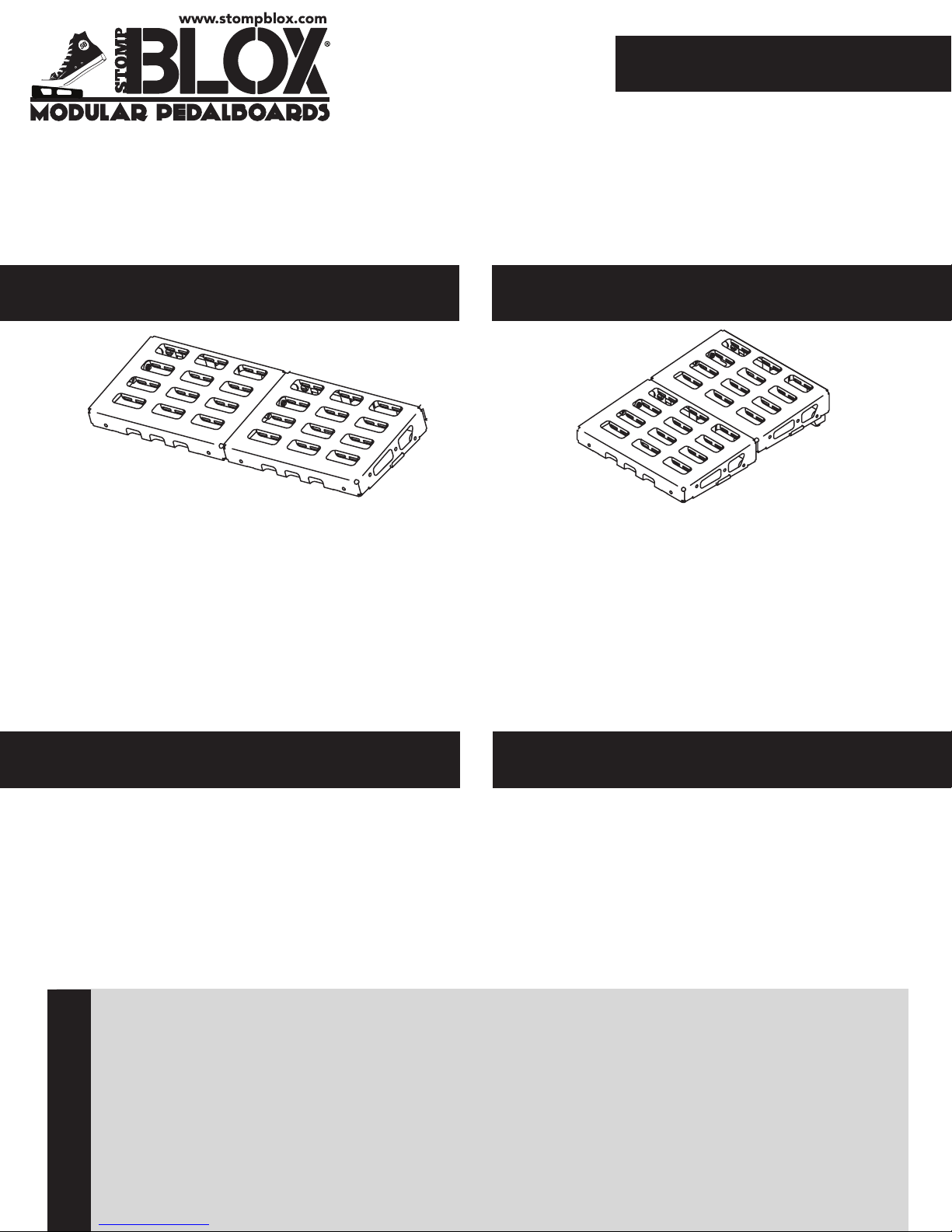

HORIZONTAL CONNECT
• To connect two Stompblox horizontally, align the two
units and insert the hook from the right unit into the
detent in the left unit.
• Press forward and turn each thumbscrew on the right
unit until it threads into the left unit.
• Twist the thumbscrew clockwise until it is tight.
• If you only have one row of Stompblox (none
connected vertically) you can use the back feet to
present a more sloped surface.
• You can connect as many Stompblox horizontally as
you have room for!
INCLUDED IN THE BOX
• Stompblox unit
• Stompblox gig bag + shoulder strap
• Zip ties
• Velcro
• Support foot with screw
VERTICAL CONNECT
• To connect two Stompblox vertically, align the two
units and insert the tab on the front unit into the
respective slot in the back unit.
• Press forward and turn each thumbscrew on the right
unit until it threads into the left unit.
• Twist the thumbscrew clockwise until it is tight.
• Swing out the feet on the back unit so the combined
units rest ush against the oor. The front unit feet
should be retracted.
• You can only connect two Stompblox in this fashion.
CABLE MANAGEMENT FRONT SUPPORTS
The underside of each Stompblox unit has anchor points
for cable management.
• Route your cables through the pass throughs on the
top and sides of the Stompblox and secure effects
with the supplied Velcro.
• Using the supplied zip ties, cinch routed cables to the
anchor points.
GIG BAG
MODULAR SOFT CASE
The Stompblox gig bag is designed to carry a single Stompblox unit. When connecting two Stompblox in
either vertical or horizontal orientations, two bags can be zipped together to carry the combined Stompblox
pedalboard.
TO CONNECT TWO BAGS
• Open both bags and lay them at
• Place the bags open on top of each other
ipped 180º from each other. Make sure that the
zipper pull of one bag lines up with the zipper
start on the other bag.
Some Stompblox congurations may require extra
support along the front edge (See “Fallen L” on the
reverse page). The front support piece is designed to
stabilize the oating corner, just align and install with the
supplied 10-32 screw.
Use two Front Supports on the oating Stompblox for
more support (one is included with each unit).
• Zip both halves of the combined bag together
• Zip the support zippers on the face of the bags.
• Connect the straps to the opposing D-rings
Page 2

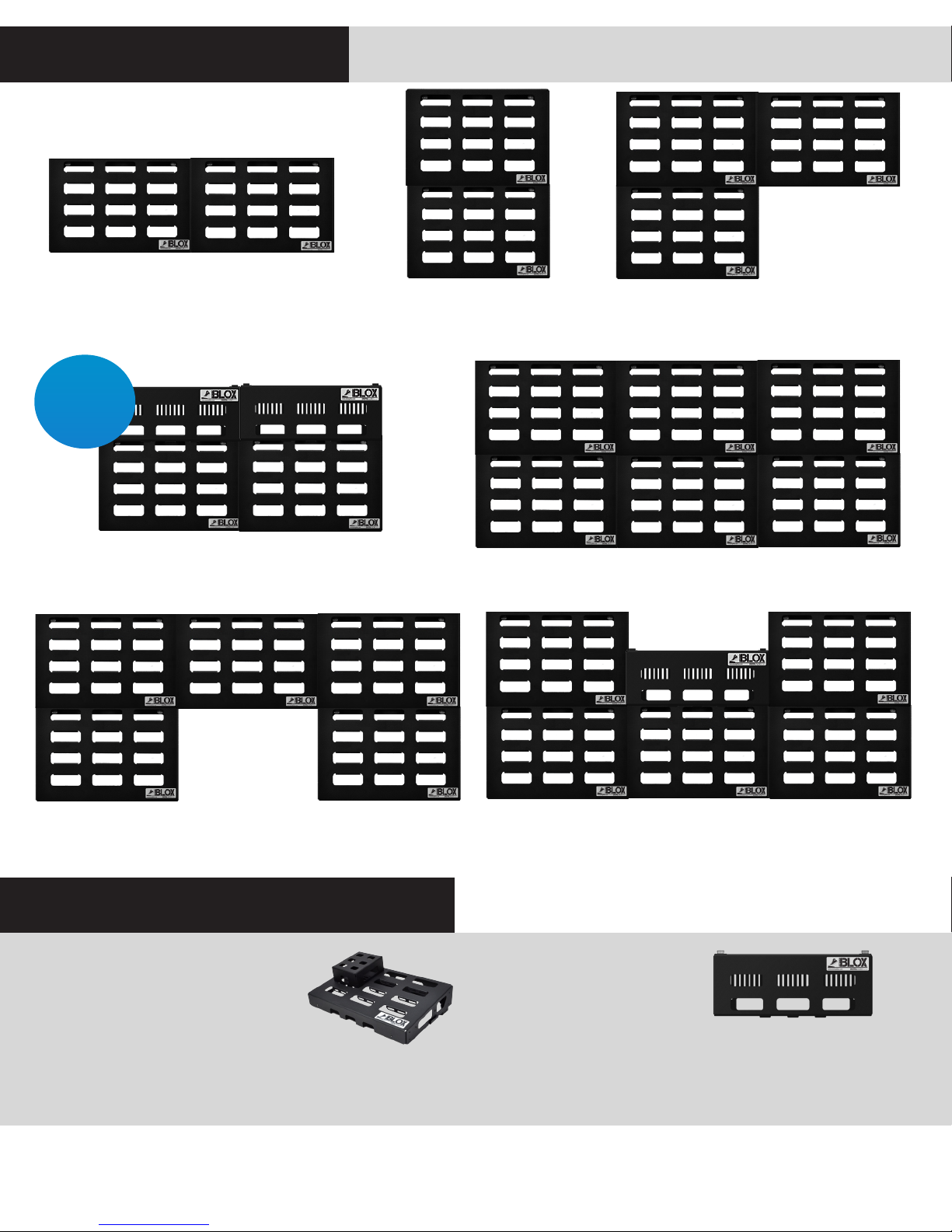

CONFIGURATION IDEAS
SHOW US YOUR PEDALBOARD!
We want to see your Stompblox! Tag @Stompblox on Facebook or use
#STOMPBLOX on Instagram or Twitter.
The 2x1 conguration is perfect for the gigging
player. It will t around 10-12 effects. Adjust
back swing feet for additional tilt if desired.
The 1x2 is another great option for
travelers. This gives more room for
larger pedals like volume and wahs.
POPULAR!
A 2 Stompblox with 2 Extends is a popular conguration and is
great for tting lots of effects and a power supply or two. We’ve
t up to 21 effects on this puppy, but your mileage may vary.
The “Fallen L” conguration allows easy
access to your back row or a nesting area
for large oor processors. Try it ipped to
make room for a mic stand.
This 2x3 conguration is for those players who have pedal
inventory, not just a collection. This bad boy is great for practice
rooms or massive stages.
A favorite of ours, the “n” shape allows great access to the back
row of effects. Perfect for placing a looper on the center unit for
easy access of control functions.
NEED MORE CUSTOMIZATION?
STOMPBLOX RISER
Stompblox Risers are modular
risers that snap into Stompblox
allowing pedals to be elevated
for easy access. Each Riser can
snap into one of six positions
on the Stompblox and up to three Risers can be used on
any single Stompblox.
RENOVO AMP WORKS
NASHVILLE, TN
® & © 2014-2015 Renovo Amp Works.
Singing guitarist or worship leader? The “u” conguration allows
you to place a mic stand in the middle of your pedalboard so you
can access effects while singing. You could even put an Extend in
the middle for easy power access to all your effect pedals.
STOMPBLOX EXTEND
Extend is a dual function
extension giving users an
additional 4.75” of surface
area for effect mounting. It also
provides space and mounts for power supplies, DI’s,
looping devices, etc. Stompblox Extend attaches to
the back of any Stompblox unit and the included multiposition foot gives extra support where necessary.
(615) 208-9995
WWW.STOMPBLOX.COM
