Page 1
TA+P2I
Adapting ISDN Phones to
POTS FXS
User Manual
Release r06
Page 2
TA+P2I
User Manual
Release r06 www.stollmann.de Page 2 of 18
Note
This device was developed for the purpose of communication in an office
environment. It is intended solely for our industrial clients for physical integration into
their own technical products after careful examination by experienced technical
personnel for its suitability for the intended purpose. The device was not developed
for or intended for use in any specific customer application. The firmware of the
device may have to be adapted to the specific intended modalities of use or even
replaced by other firmware in order to ensure flawless function in the respective
areas of application. Performance data (range, power requirements, etc.) may
depend on the operating environment, the area of application, the configuration, and
method of control, as well as on other conditions of use; these may deviate from the
technical specifications, the Design Guide specifications, or other product
documentation. The actual performance characteristics can be determined only by
measurements subsequent to integration. Variations in the performance data of
mass-produced devices may occur due to individual differences between such
devices. Device samples were tested in a reference environment for compliance
with the legal requirements applicable to the reference environment. No
representation is made regarding the compliance with legal, regulatory, or other
requirements in other environments. No representation can be made and no
warranty can be assumed regarding the suitability of the device for a specific
purpose as defined by our customers. Stollmann reserves the right to make changes
to the hardware or firmware or to the specifications without prior notice or to replace
the device with a successor model. Of course, any changes to the hardware or
firmware of any devices for which we have entered into a supply agreement with our
customers will be made only if, and only to the extent that, such changes can
reasonably be expected to be acceptable to our customers. No general commitment
will be made regarding periods of availability; these must be subject to individual
agreement. All agreements are subject to our Terms and Conditions for Deliveries
and Payments, a copy of which is available from Stollmann.
Copyright © 2005-2008 Stollmann E+V GmbH
Trademarks
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any
use of such marks by Stollmann E+V GmbH is under license. Other trademarks and
trade names are those of their respective owners.
Page 3
TA+P2I
User Manual
Release r06 www.stollmann.de Page 3 of 18
Table of contents
1 Introduction........................................................................................................ 4
1.1 Product description....................................................................................... 4
2 Installation ......................................................................................................... 5
2.1 Content......................................................................................................... 5
2.2 Procedure of Installation for ISDN phones.................................................... 5
2.3 Procedure of Installation for ISDN PABX ...................................................... 7
2.4 Displays........................................................................................................ 8
2.5 Interfaces...................................................................................................... 9
3 Usage of the TA+P2I......................................................................................... 9
3.1 Incoming call............................................................................................... 10
3.2 Outgoing call............................................................................................... 11
3.3 Call waiting................................................................................................. 11
3.4 Call Hold / Enquiry...................................................................................... 11
3.5 Three party conference............................................................................... 12
3.6 Call forwarding............................................................................................ 12
3.7 Additional supplementary services.............................................................. 12
4 Error Diagnostic............................................................................................... 13
4.1 Error: Phone calls not possible ................................................................... 13
4.2 Error: No dial tone....................................................................................... 14
4.3 Error: No incoming calls.............................................................................. 14
4.4 FAQ............................................................................................................ 14
5 Configuration................................................................................................... 15
5.1 Overview configuration commands............................................................. 15
6 Operation Mode............................................................................................... 15
7 Technical features ........................................................................................... 16
7.1 Analogue ports ........................................................................................... 16
7.2 ISDN ports.................................................................................................. 16
8 History............................................................................................................. 18
Page 4
TA+P2I
User Manual
Release r06 www.stollmann.de Page 4 of 18
1 Introduction
We are very pleased to see that you have purchased a Stollmann product and
would like to express our appreciation.
This documentation is valid for the product TA+P2I:
• Software version V1.715 or later
1.1 Product description
Using the TA+P2I you can connect ISDN phones or an ISDN PABX with two
analogue interfaces (POTS FXS).
The analogue lines of the TA+P2I react like standard analogue phones und have to
be connected with the FXO ports of the switching system or adapter.
The ISDN interface has identical function equal to an ISDN interface presented by
an NT1 or a PABX.
You can connect up to 8 ISDN phones to the ISDN interface whereas up to 4 ISDN
phones can be powered by the TA+P2I.
ISDN modems for data transmission and ISDN fax machine group 4 cannot be
driven by the TA+P2I.
Devices based on voice connection like answering machines and fax G3 machines
are supported.
Page 5
TA+P2I
User Manual
Release r06 www.stollmann.de Page 5 of 18
2 Installation
2.1 Content
This package contains the following parts:
• TA+P2I adapter
• External power supply (cable length approx. 1.85m)
• Two cable for the analogue interfaces (cable length approx. 1.00m)
• This user manual
• Quick installation guide

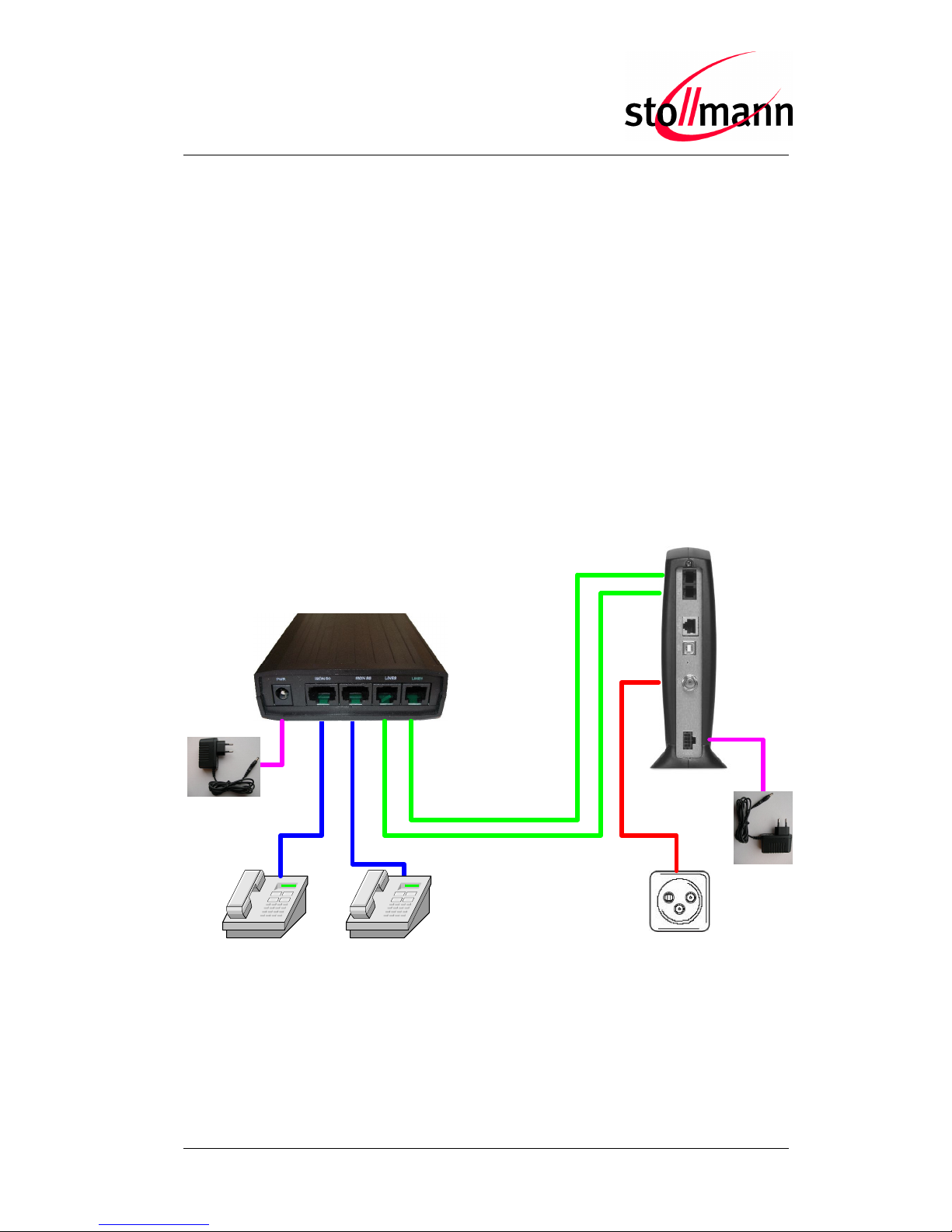

2.2 Procedure of Installation for ISDN phones
ISDN phone ISDN phone
TA+P2I
Cablemodem
Power
supplry
Power
supplry
Page 6
TA+P2I
User Manual
Release r06 www.stollmann.de Page 6 of 18
The installation of your TA+P2I is done in a few simple steps:
• Connect the power supply to the TA+P2I and mains: The green LED “READY” at
the front panel will be lit.
Attention: Please use only the delivered power supply!
• Connect „LINE 1“ with the first analogue line of the cable modem, LINE 2 with
the second one. The corresponding LEDs LINE1 and LINE2 will be lit green.
• Connect the ISDN phone(s) to one or both ISDN plugs. As an alternative you
can connect the previous installed ISDN cabling to one of the ISDN plugs.
Note: The ISDN terminating resistors for the ISDN network are integrated
inside the TA+P2I already.
• Check whether you can receive calls using all called numbers. If you have
problems please proceed as follows:
o If one ISDN phone shall react on all incoming calls from both lines it is
necessary to delete all still activated MSN settings inside the ISDN
phone.
o If one ISDN phone shall react only to the phone numbers of one of the
analogue lines of the cable modem, change the former MSN settings and
use the digit “1” as MSN for that phone, which shall react on incoming
call from line 1. Please handle the same way for the ISDN phone that
shall be allocated to line 2, this phone needs the digit “2” as MSN setting.
o Example:
For line 1 was associated the call number 123123123 and for line
2 the call number 456456456
If an ISDN phone shall only accept incoming calls for the number
123123123, set up the MSN of this phone to „1“.
If another phone shall react on incoming calls to 456456456,. set
up the MSN of this phone to „2“.
If a third phone shall react on all incoming calls, so delete all
MSNs of that phone.
• More information you can find in your phone manual. If you have problems
setting up MSNs please contact your dealer or the manufacturer of the phone.
More setups you will find in the next chapter.
Page 7
TA+P2I
User Manual
Release r06 www.stollmann.de Page 7 of 18

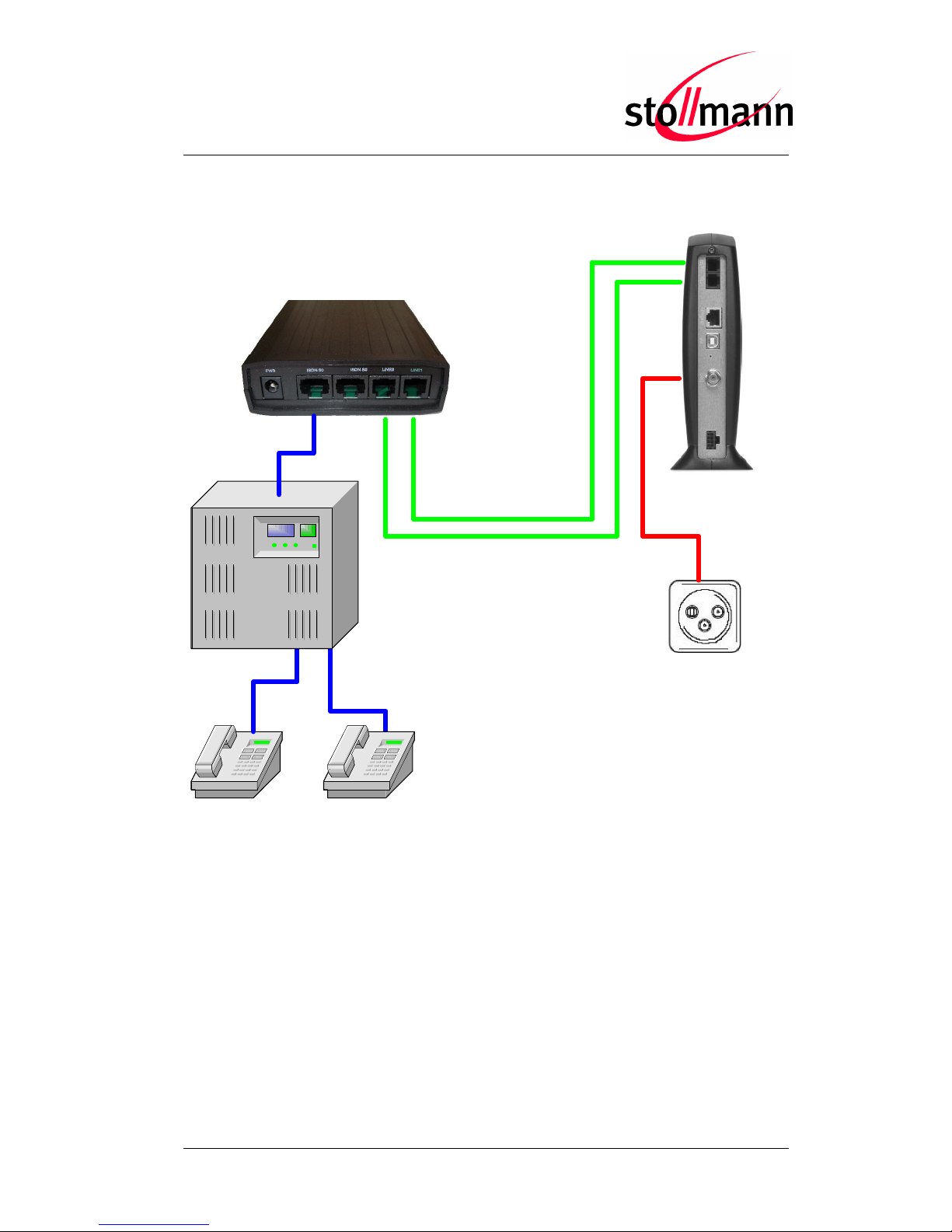

2.3 Procedure of Installation for ISDN PABX
ISDN phone ISDN phone
TA+P2I
Pabx
Cablemodem
To use the TA+P2I with an ISDN PABX please do the steps below:
• Connect the power supply to the TA+P2I and mains: The green LED “READY” at
the front panel will be lit permanently.
Attention: Please use only the delivered power supply!
• Connect “LINE 1“ with the first analogue line, “LINE 2” with the second one. The
corresponding LEDs LINE1 and LINE2 will be lit green.
• Connect the public line port of the PABX to one ISDN plug.
Note: The ISDN terminating resistors for the ISDN network are integrated
inside the TA+P2I already.
Page 8
TA+P2I
User Manual
Release r06 www.stollmann.de Page 8 of 18
• For accepting incoming calls with the correct calling number, you have to set up
the MSN inside the ISDN PABX:
Set up the MSN of your ISDN PABX as they are signaled by the TA+P2I:
By default the MSN “1” for the analogue line 1 and the MSN “2” for the analogue
line 2.

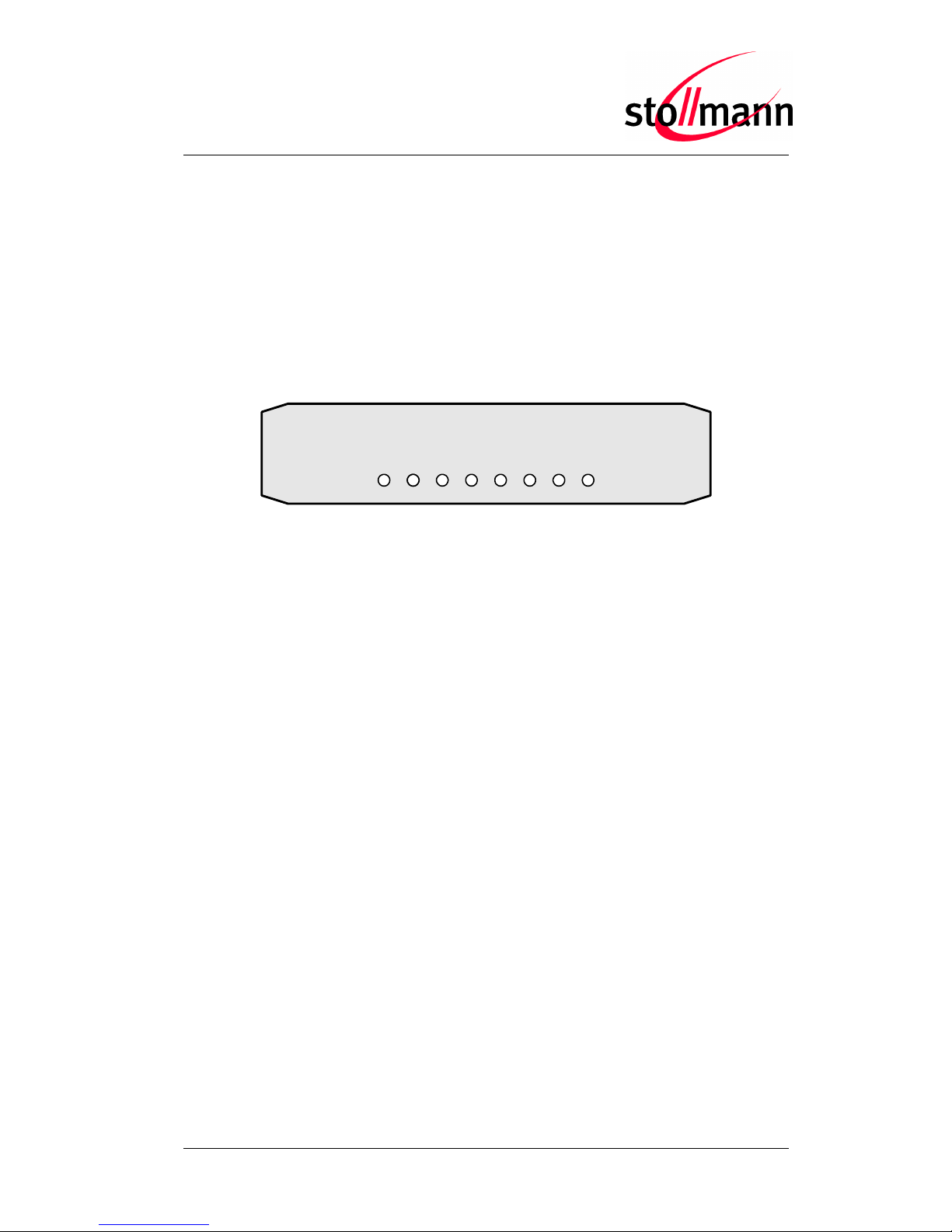

2.4 Displays
E
R
R
O
R
L
I
N
E
1
LINE2
I
S
D
N
1
I
S
D
N
2
CONFEXT
R
E
A
D
Y
READY The TA+P2I is powered and ready to use
ERROR Hardware error, the TA+P2I cannot be used
LINE1 Lit: The analogue line 1 is connected to a working analogue
interface
Blinking: The analogue line 1 is connected to a working
analogue interface, but there is no dial tone
LINE2 Lit: The analogue line 2 is connected to a working analogue
interface
Blinking: The analogue line 2 is connected to a working
analogue interface, but there is no dial tone
ISDN1 The first B channel is in use respectively
the hand set of the ISDN phone is off hook
ISDN2 The second B channel is in use respectively
the hand set of the ISDN phone is off hook
CONF The configuration of the TA+P2I has been changed
EXT Reserved
Page 9
TA+P2I
User Manual
Release r06 www.stollmann.de Page 9 of 18

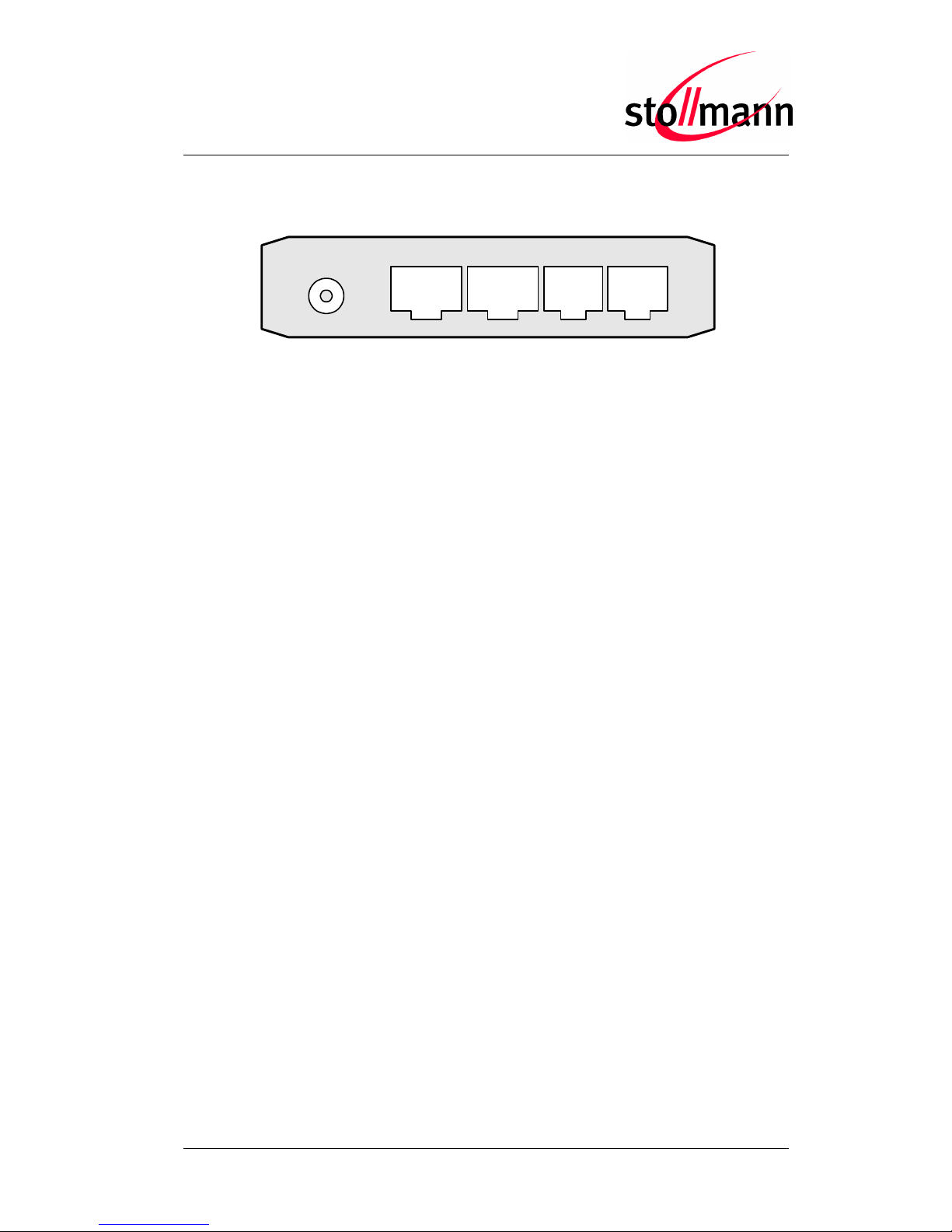

2.5 Interfaces
PWR ISDN S0 ISDN S0 LINE2 LINE1
LINE1 Interface for the first analogue line
LINE2 Interface for the second analogue line
ISDN S0 First plug for ISDN devices
ISDN S0 Second plug for ISDN devices
PWR Interface for external power supply
! Attention: Please use only the delivered power supply !
3 Usage of the TA+P2I
By adapting with the TA+P2I you can use many supplementary services known from
the ISDN also via the analogue lines, the services have to be activated on the
analogue lines.
The TA+P2I supports the following supplementary services:
• Outgoing call including transmission of calling party number
• Calling line identification restriction
• Incoming call including display of calling party
• Call waiting
• Call hold
• Three party conference (3PTY)
• Barring incoming calls
• Terminal portability (TP)
• Call forwarding (CFU, CFB, CFNR)
More services may be available depending on the characteristics of the analogue
lines, these can be driven from the ISDN phone transparently by key inputs.
Page 10
TA+P2I
User Manual
Release r06 www.stollmann.de Page 10 of 18
3.1 Incoming call
An incoming call will be shown via the ringing tone and the calling number display as
if the ISDN phone would be connected to the ISDN network directly.
To route the incoming calls to the addressed ISDN phones it is necessary to set up
the MSN of each ISDN phone. If the MSN is not configured (MSN = <empty>) in the
ISDN phone, the ISDN phone is ringing on incoming calls both on analogue line 1
and analogue line 2.
If a wrong MSN (a MSN which does not match with any MSN configured in the
TA+P2I) is configured in the ISDN phone, the ISDN phone is not ringing.
By factory the associated MSNs for the two analogue line are set to 1 (line1) and 2
(line2). For using the factory setting set up the MSN of your phones accordingly:
Phone with MSN = 1 is ringing on incoming calls on analogue line 1.
Phone with MSN = 2 is ringing on incoming calls on analogue line 2.
For experts only:
If a phone number according to the call number of the analogue lines shall be used,
you have to set up this correct MSN both in the TA+P2I and the ISDN phones.
To change the setting for the MSN for analogue line 1 please do the following:
• Please enter the following number in on hook state of the ISDN phone
• 00000101xxx = Set the first MSN for analogue line 1 to xxx
(factory default 1: „Dialing 000001011“)
• Go off hook
• Go on hook
Please proceed adequate for the second analogue line, please dial instead:
00000102xxx = Set the first MSN for analogue line 2 to xxx (factory default 2:
„Dialing 000001022“).
Two additional MSNs can be programmed for each line accordingly by using other
dial codes (see chapter configuration).
Note: The settings can only be changed by using an ISDN phone directly
connected to the TA+P2I. Changing the settings via a ISDN PABX are not
possible, because the configuration command is not transmitted to the TA+P2I.
Page 11
TA+P2I
User Manual
Release r06 www.stollmann.de Page 11 of 18
3.2 Outgoing call
An outgoing call will be started identical as if the ISDN phone would be connected
directly to the ISDN network via the menu and the keys of the ISDN phone.
The MSNs entered in the ISDN phone and the TA+P2I define the analogue interface
(line 1 or line 2), that will be used for the outgoing call. If no MSN is defined in the
ISDN phone, the TA+P2I uses the next free analogue line (line 1 or line 2). If a
wrong MSN (a MSN which does not match with any MSN configured in the TA+P2I)
is configured in the ISDN phone, an outgoing call is not possible.
In case that during an outgoing call an assumed call pause of approx. 10 seconds
occur, this can be reduced to approx. 5 seconds by terminating the call attempt with
the # key.
Background: The assumed call pause is caused by the analogue interface (DTMF
tones are not hearable via ISDN) and the cable modem. The cable modem
establishes the voice connection via VoIP.
An example of an outgoing call attempt using the # key looks like follows:
<phone number># (i.e. 123456789#)
Important: Some ISDN phones do not support (or it is disabled by default) dialing
using # key in the dial string. Please refer to the user manual of your ISDN phone
to change this setting.
To make an outgoing call with calling line restriction please use the menu user
interface of the ISDN phone. The signaling sequence will be adapted automatically
by the TA+P2I.
Note: The ISDN phone can display „connected“ although the connection has not
been established completely. This behavior is caused by the technology.
3.3 Call waiting
Call waiting will be signaled as if connected to an ISDN network. The display text
and tone signaled is dependent on the configuration of the ISDN phone and will be
shown according to the ISDN phone features and settings (typical by an acoustic
tone and a display entry).
3.4 Call Hold / Enquiry
You can start an enquiry by the typical sequence as usual for the ISDN phone
(menu key or R key).
Page 12
TA+P2I
User Manual
Release r06 www.stollmann.de Page 12 of 18
3.5 Three party conference
You can start a three party conference by the typical sequence as usual for the
ISDN phone (menu driven).
3.6 Call forwarding
You can activate and deactivate call forwarding by the typical sequence as usual for
an analogue line by prefix codes. These codes are predefined by your service
provider.
Activation and deactivation is only possible by using the appropriate keys of the
ISDN phone (i.e. *21<phone number>). Activation and deactivation by using the
menu keys of an ISDN phone or an ISDN PABX is not possible.
3.7 Additional supplementary services
Additional services like call completion to busy subscriber, call transfer, etc. are not
available via the menu driven interface of the ISDN phone. These services are
defined by the services of the analogue lines and are controlled by keypad input
(DTMF tones). The display information of the ISDN phone is also not available.
Please refer to the services supported by your provider of the analogue lines.
Page 13
TA+P2I
User Manual
Release r06 www.stollmann.de Page 13 of 18
4 Error Diagnostic
4.1 Error: Phone calls not possible
Is the READY LED lit green? If not, please check, whether the
delivered power supply is adapted
correctly. Disconnect the power supply
for several seconds. Is the READY LED
still off or is the ERROR LED lit, the
device has a hardware error. Please
contact your supplier.
Is the LINE1 LED lit green? If not, please check the connection
between the plug LINE1 and the
analogue port.
Is the LINE1 LED blinking green? The analogue line 1 is connected to a
working analogue interface, but there is
no dial tone.
Is the LINE2 LED lit green? If not, please check the connection
between the plug LINE2 and the
analogue port.
Is the LINE2 LED blinking green? The analogue line 2 is connected to a
working analogue interface, but there is
no dial tone.
Is the MSN programmed in the ISDN
phone also programmed in the TA+P2I?
Check the setting of the MSNs in the
ISDN phone and the TA+P2I. In the
default configuration of the TA+P2I MSN
“1” is configured for analogue line 1 and
MSN “2” is configured for analogue line
2. Please check if the ISDN phone is
configured accordingly (i.e. MSN-A = 1).
Page 14
TA+P2I
User Manual
Release r06 www.stollmann.de Page 14 of 18
4.2 Error: No dial tone
ISDN1 or ISDN2 lit, but there is no
dial tone.
A The analogue line is connected to a
working analogue interface, but there is
no dial tone. Please check in the
customer portal of Kabel Deutschland if
a phone number is activated at the
analogue line.
B Another phone already uses the same
analogue line. Check if a busy tone can
be heard and/or the phone display
indicates that the line is busy.
4.3 Error: No incoming calls
Is the setting of the MSN correct? Check the setting of the MSN in the
ISDN phone and the TA+P2I. Please
refer additionally to chapter incoming
call.
4.4 FAQ
• The TA+P2I supports all ISDN phones and ISDN PABX’s configured to
“multipoint” mode.
• The TA+P2I does not support data connections via ISDN modems or ISDN PC
cards. Voice connections like answering machine and fax G3 are supported.
• Call waiting: Due to technical reason another phone in the same phone number
group is ringing in case of call waiting. But it is not possible to accept the waiting
call with this phone, only the active phone may accept the waiting call.
• For additionally frequently asked questions please refer to our web site:
http://www.stollmann.de
Page 15
TA+P2I
User Manual
Release r06 www.stollmann.de Page 15 of 18
5 Configuration
5.1 Overview configuration commands
Each configuration command has to be dialed en-bloc from the ISDN phone. Enter
the configuration dial number, go off hook and go on hook.
00000101xxx
Set-up first MSN xxx for line 1
00000111xxx
Set-up second MSN xxx for line 1
00000121xxx
Set-up third MSN xxx for line 1
00000102xxx
Set-up first MSN xxx for line 2
00000112xxx
Set-up second MSN xxx for line 2
00000122xxx
Set-up third MSN xxx for line 2
(The MSN xxx may consist of 1...20 digits)
000002011
Barring incoming calls for line 1
000002021
Barring incoming calls for line 2
000002010
Release barring of incoming calls for line 1
000002020
Release barring of incoming calls for line 2
00000103ddmmyyhhmm
Set-up date and time
00000104yy
Set-up year only
(dd=day; mm=month; yy=year; hh=hour; mm=minute)
00000980
Reset all parameters to factory default
6 Operation Mode
The TA+P2I can only be used in „multipoint“ operation mode.
Page 16
TA+P2I
User Manual
Release r06 www.stollmann.de Page 16 of 18
7 Technical features
Function TA+P2I
Power supply External plug in power supply
Input 100-240V AC
Output 12V DC 1,25A
Dimensions 127 x 88 x 27 mm
CE conformity CE Europe
7.1 Analogue ports
Function TA+P2I
Plug 2 x RJ11
Ringing detection 20 to 50 Hz
Off-Hook / On-Hook signaling
√
DTMF dial
√
Barring incoming call
√
CLIP detection (FSK)
√
Busy tone detection
√
Pin assignment analogue plug (6 pin; RJ11)
Pin Signal (a/b)
1 Not connected
2 Not connected
3 a (TIP)
4 b (RING)
5 Not connected
6 Not connected
7.2 ISDN ports
Function TA+P2I
ISDN interface 1 x I.430 LT-S mode (S-Bus, BRI)
Plug 2 x RJ 45
Terminating resistors Integrated, 2 x 100 Ohm
Phantom feeding ISDN-Bus 4 Watt
Supplementary services TA+P2I MSN, DDI, call waiting, hold, resume, three party
conference, call forwarding
Supplementary services transparent using
DTMF
All available on analogue line
D channel protocol DSS1 LT-S mode
Interfacing modes Multipoint
B channel G.711 a-law (analogue voice)
Configuration Block dial via ISDN phone
Page 17
TA+P2I
User Manual
Release r06 www.stollmann.de Page 17 of 18
Pin assignment ISDN plug (8 pin; RJ45; ITU I.430/ISO 8877)
Pin Signal (S0)
1 Not connected
2 Not connected
3 [2a] Rx+ (Receive +)
4 [1a] Tx+ (Transmit +)
5 [1b] Tx- (Transmit -)
6 [2b] Rx- (Receive -)
7 Not connected
8 Not connected
Page 18
TA+P2I
User Manual
Release r06 www.stollmann.de Page 18 of 18
8 History
Version Release Date By Change description
r04 Nov 2007 is First release for firmware version 1.701
r05 Mar 2008 nh New document structure,
Added pin assignment for analogue/ISDN plug
Changes for new firmware version 1.715:
- Modified behavior depending on the MSN settings during
outgoing call
- New parameter for setting the year
- Modified LED behavior for LINE1, LINE2, ISDN1, ISDN2
r06 Jun 2008 ta Revised chapter Call Forwarding
In case of technical problems or if you have questions about the installation
please contact our service hotline under 01805 - 91 31 09.
The service is available Monday - Sunday between 8:00 am and 12:00 pm.
(14ct/minute in German telephone network. Different costs may occur when calling from mobile phone.)
Loading...
