STB20N95K5, STF20N95K5,
STP20N95K5, STW20N95K5
N-channel 950 V, 0.275 Ω typ., 17.5 A MDmesh™ K5
Power MOSFETs in D²PAK, TO-220FP, TO-220 and TO-247
Datasheet - production data
Order code
VDS
R
DS(on)
max.
ID
P
TOT
STB20N95K5
950 V
0.330 Ω
17.5 A
250 W
STF20N95K5
40 W
STP20N95K5
250 W
STW20N95K5
Order code
Marking
Package
Packing
STB20N95K5
20N95K5
D²PAK
Tape and reel
STF20N95K5
TO-220FP
Tube
STP20N95K5
TO-220
STW20N95K5
TO-247
Features
Figure 1: Internal schematic diagram
Industry’s lowest R
Industry’s best FoM (figure of merit)
Ultra-low gate charge
DS(on)
x area
100% avalanche tested
Zener-protected
Applications
Switching applications
Description
These very high voltage N-channel Power
MOSFETs are designed using MDmesh™ K5
technology based on an innovative proprietary
vertical structure. The result is a dramatic
reduction in on-resistance and ultra-low gate
charge for applications requiring superior power
density and high efficiency.
Table 1: Device summary
Contents
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
2/22
DocID16825 Rev 5
Contents
1 Electrical ratings ............................................................................. 3
2 Electrical characteristics ................................................................ 4
2.1 Electrical characteristics (curves) ...................................................... 6
3 Test circuits ..................................................................................... 9
4 Package information ..................................................................... 10
4.1 D2PAK package information ............................................................ 10
4.2 TO-220FP package information ...................................................... 13
4.3 TO-220 type A package information ................................................ 15
4.4 TO-247 package information ........................................................... 17
4.5 D2PAK packing information ............................................................. 19
5 Revision history ............................................................................ 21
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
Electrical ratings
DocID16825 Rev 5
3/22
Symbol
Parameter
Value
Unit
D²PAK
TO-220
TO-247
TO-220FP
VGS
Gate-source voltage
±30
V
ID
Drain current (continuous) at TC = 25 °C
17.5
A
ID
Drain current (continuous) at TC = 100 °C
11
A
I
D
(1)
Drain current (pulsed)
70
A
P
TOT
Total dissipation at TC = 25 °C
250
40
W
ESD
Gate-source human body model (R= 1,5 kΩ,
C = 100 pF)
2
kV
V
ISO
Insulation withstand voltage (RMS) from all
three leads to external heat sink (t = 1 s;
TC = 25 °C)
2500
V
dv/dt
(2)
Peak diode recovery voltage slope
6
V/ns
dv/dt
(3)
MOSFET dv/dt ruggedness
50
Tj
Operating junction temperature range
-55 to 150
°C
T
stg
Storage temperature range
Notes:
(1)
Pulse width limited by safe operating area.
(2)
ISD ≤ 17.5 A, di/dt ≤ 100 A/μs; VDS peak ≤ V
(BR)DSS
(3)
VDS ≤ 760 V
Symbol
Parameter
Value
Unit
D²PAK
TO-220
TO-247
TO-220FP
R
thj-case
Thermal resistance junction-case
0.5
3.1
°C/W
R
thj-amb
Thermal resistance junction-ambient
62.5
50
62.5
R
thj-pcb
(1)
Thermal resistance junction-pcb
30
Notes:
(1)
When mounted on 1 inch² FR-4 board, 2 Oz Cu.
Symbol
Parameter
Value
Unit
IAR
Avalanche current, repetitive or not repetitive (pulse width limited by T
jmax.
)
6 A EAS
Single pulse avalanche energy (starting Tj = 25 °C, ID = IAR, VDD = 50 V)
200
mJ
1 Electrical ratings
Table 2: Absolute maximum ratings
Table 3: Thermal data
Table 4: Avalanche characteristics
Electrical characteristics
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
4/22
DocID16825 Rev 5
Symbol
Parameter
Test conditions
Min.
Typ.
Max.
Unit
V
(BR)DSS
Drain-source breakdown voltage
VGS = 0 V, ID = 1 mA
950
V
I
DSS
Zero-gate voltage drain current
VGS = 0 V, VDS = 950 V
1
µA
VGS = 0 V, VDS = 950 V
TC = 125 °C
(1)
50
µA
I
GSS
Gate body leakage current
VDS = 0 V, VGS = ±20 V
±10
µA
V
GS(th)
Gate threshold voltage
VDS = VGS, ID = 100 µA
3 4 5 V R
DS(on)
Static drain-source on-resistance
VGS = 10 V, ID = 9 A
0.275
0.330
Ω
Notes:
(1)
Defined by design, not subject to production test.
Symbol
Parameter
Test conditions
Min.
Typ.
Max.
Unit
C
iss
Input capacitance
VDS = 100 V, f = 1 MHz,
VGS = 0 V
-
1550 - pF
C
oss
Output capacitance
-
140 - pF
C
rss
Reverse transfer capacitance
- 1 -
pF
C
o(er)
(1)
Equivalent capacitance energy
related
VGS = 0 V, VDS = 0 to
760 V
-
65 - pF
C
o(tr)
(2)
Equivalent capacitance time
related
178 - pF
Rg
Intrinsic gate resistance
f = 1 MHz , ID = 0 A
-
3.5 - Ω
Qg
Total gate charge
VDD = 760 V,
ID = 17.5 A
VGS= 10 V
(see Figure 20: "Test
circuit for gate charge
behavior")
-
48 - nC
Qgs
Gate-source charge
- 9 -
nC
Qgd
Gate-drain charge
-
32.5 - nC
Notes:
(1)
C
o(er)
is a constant capacitance value that gives the same stored energy as C
oss
while VDS is rising from 0 to
80% V
DSS
.
(2)
C
o(tr)
is a constant capacitance value that gives the same charging time as C
oss
while VDS is rising from 0 to
80% V
DSS
.
2 Electrical characteristics
TC = 25 °C unless otherwise specified
Table 5: On/off-state
Table 6: Dynamic
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
Electrical characteristics
DocID16825 Rev 5
5/22
Symbol
Parameter
Test conditions
Min.
Typ.
Max.
Unit
t
d(on)
Turn-on
delay time
VDD= 475 V, ID = 9 A, RG = 4.7 Ω
VGS = 10 V
(see Figure 19: "Test circuit for resistive
load switching times" and Figure 24:
"Switching time waveform")
-
18 - ns
tr
Rise time
- 9 -
ns
t
d(off)
Turn-off
delay time
-
65 - ns
tf
Fall time
-
18 - ns
Symbol
Parameter
Test conditions
Min.
Typ.
Max.
Unit
ISD
Source-drain
current
- 17.5
A
I
SDM
(1)
Source-drain
current (pulsed)
- 70
A
V
SD
(2)
Forward on
voltage
ISD = 17.5 A, VGS = 0 V
- 1.5
V
trr
Reverse recovery
time
ISD = 17.5 A, di/dt = 100 A/µs,
VDD = 60 V
(see Figure 21: "Test circuit for
inductive load switching and diode
recovery times")
-
513 ns
Qrr
Reverse recovery
charge
-
12 µC
I
RRM
Reverse recovery
current
-
46
A
trr
Reverse recovery
time
ISD = 17.5 A, di/dt = 100 A/µs
VDD = 60 V, Tj = 150 °C
(see Figure 21: "Test circuit for
inductive load switching and diode
recovery times")
-
670 ns
Qrr
Reverse recovery
charge
-
15 µC
I
RRM
Reverse recovery
current
-
44 A
Notes:
(1)
Pulse width limited by safe operating area
(2)
Pulsed: pulse duration = 300 µs, duty cycle 1.5%
Symbol
Parameter
Test conditions
Min.
Typ.
Max.
Unit
V
(BR) GSO
Gate-source breakdown voltage
IGS = ± 1 mA, ID = 0 A
30 - -
V
Table 7: Switching times
Table 8: Source-drain diode
The built-in back-to-back Zener diodes are specifically designed to enhance the ESD
performance of the device. The Zener voltage facilitates efficient and cost-effective device
integrity protection, thus eliminating the need for additional external componentry.
Table 9: Gate-source Zener diode
Electrical characteristics
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
6/22
DocID16825 Rev 5
Figure 2: Safe operating area for D²PAK and TO-220
Figure 3: Thermal impedance for D²PAK and
TO-220
Figure 4: Safe operating area for TO-220FP
Figure 5: Thermal impedance for TO-220FP
Figure 6: Safe operating area for TO-247
Figure 7: Thermal impedance for TO-247
2.1 Electrical characteristics (curves)
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
Electrical characteristics
DocID16825 Rev 5
7/22
Figure 8: Output characteristics
Figure 9: Transfer characteristics
Figure 10: Gate charge vs gate-source voltage
Figure 11: Static drain-source on-resistance
Figure 12: Capacitance variation
Figure 13: Output capacitance stored energy
Electrical characteristics
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
8/22
DocID16825 Rev 5
Figure 14: Normalized gate threshold voltage vs
temperature
Figure 15: Normalized on-resistance vs
temperature
Figure 16: Maximum avalanche energy vs. starting TJ
Figure 17: Normalized V
(BR)DSS
vs. temperature
Figure 18: Source-drain diode forward characteristics
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
Test circuits
DocID16825 Rev 5
9/22
Figure 19: Test circuit for resistive load
switching times
Figure 20: Test circuit for gate charge
behavior
Figure 21: Test circuit for inductive load
switching and diode recovery times
Figure 22: Unclamped inductive load test
circuit
Figure 23: Unclamped inductive waveform
Figure 24: Switching time waveform
AM01469v10
47 kΩ
2.7 kΩ
1 kΩ
IG= CONST
100 Ω
D.U.T.
+
pulse width
V
GS
2200
μF
V
G
V
DD
RL
3 Test circuits
Package information
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
10/22
DocID16825 Rev 5
0079457_A_rev22
4 Package information
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK® is an ST trademark.
4.1 D2PAK package information
Figure 25: D²PAK (TO-263) type A package outline
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
Package information
DocID16825 Rev 5
11/22
Dim.
mm
Min.
Typ.
Max.
A
4.40
4.60
A1
0.03
0.23
b
0.70
0.93
b2
1.14
1.70
c
0.45
0.60
c2
1.23
1.36
D
8.95
9.35
D1
7.50
7.75
8.00
D2
1.10
1.30
1.50
E
10
10.40
E1
8.50
8.70
8.90
E2
6.85
7.05
7.25
e
2.54
e1
4.88
5.28
H
15
15.85
J1
2.49
2.69
L
2.29
2.79
L1
1.27
1.40
L2
1.30
1.75
R
0.4
V2
0°
8°
Table 10: D²PAK (TO-263) type A package mechanical data
Package information
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
12/22
DocID16825 Rev 5

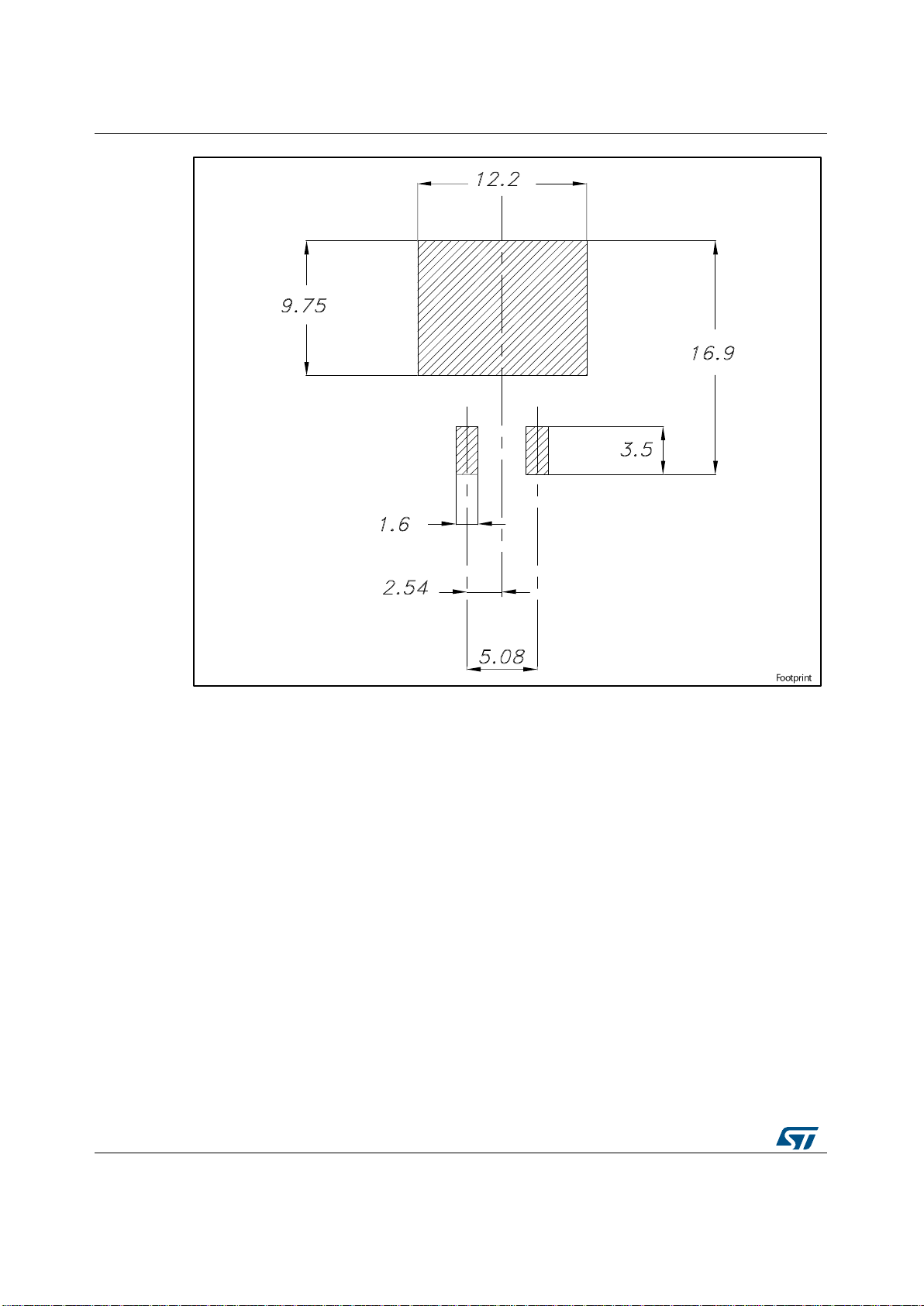

Figure 26: D²PAK (TO-263) recommended footprint (dimensions are in mm)
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
Package information
DocID16825 Rev 5
13/22
4.2 TO-220FP package information
Figure 27: TO-220FP package outline
Package information
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
14/22
DocID16825 Rev 5
Dim.
mm
Min.
Typ.
Max.
A
4.4
4.6 B 2.5
2.7 D 2.5
2.75
E
0.45
0.7
F
0.75 1 F1
1.15
1.70
F2
1.15
1.70
G
4.95
5.2
G1
2.4
2.7 H 10
10.4
L2
16
L3
28.6
30.6
L4
9.8
10.6
L5
2.9
3.6
L6
15.9
16.4
L7 9 9.3
Dia 3 3.2
Table 11: TO-220FP package mechanical data
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
Package information
DocID16825 Rev 5
15/22
4.3 TO-220 type A package information
Figure 28: TO-220 type A package outline
Package information
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
16/22
DocID16825 Rev 5
Dim.
mm
Min.
Typ.
Max.
A
4.40
4.60
b
0.61
0.88
b1
1.14
1.55
c
0.48
0.70
D
15.25
15.75
D1
1.27
E
10.00
10.40
e
2.40
2.70
e1
4.95
5.15
F
1.23
1.32
H1
6.20
6.60
J1
2.40
2.72
L
13.00
14.00
L1
3.50
3.93
L20
16.40
L30
28.90
øP
3.75
3.85
Q
2.65
2.95
Table 12: TO-220 type A mechanical data
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
Package information
DocID16825 Rev 5
17/22
0075325_8
4.4 TO-247 package information
Figure 29: TO-247 package outline
Package information
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
18/22
DocID16825 Rev 5
Dim.
mm
Min.
Typ.
Max.
A
4.85
5.15
A1
2.20
2.60 b 1.0
1.40
b1
2.0
2.40
b2
3.0
3.40
c
0.40
0.80
D
19.85
20.15
E
15.45
15.75
e
5.30
5.45
5.60
L
14.20
14.80
L1
3.70
4.30
L2
18.50
ØP
3.55
3.65
ØR
4.50
5.50
S
5.30
5.50
5.70
Table 13: TO-247 package mechanical data
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
Package information
DocID16825 Rev 5
19/22
4.5 D2PAK packing information
Figure 30: Tape outline
Package information
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
20/22
DocID16825 Rev 5
Tape
Reel
Dim.
mm
Dim.
mm
Min.
Max.
Min.
Max.
A0
10.5
10.7 A 330
B0
15.7
15.9 B 1.5 D 1.5
1.6 C 12.8
13.2
D1
1.59
1.61 D 20.2
E
1.65
1.85 G 24.4
26.4
F
11.4
11.6 N 100
K0
4.8
5.0 T 30.4
P0
3.9
4.1
P1
11.9
12.1
Base quantity
1000
P2
1.9
2.1
Bulk quantity
1000
R
50 T
0.25
0.35
W
23.7
24.3
Figure 31: Reel outline
Table 14: D²PAK tape and reel mechanical data
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
Revision history
DocID16825 Rev 5
21/22
Date
Revision
Changes
25-Nov-2009
1
First release.
12-Jan-2010
2
Corrected VGS value in Table 2: Absolute maximum ratings.
22-Dec-2011
3
Inserted device in D2PAK.
Document status promoted from preliminary data to datasheet.
Added: Section 2.1: Electrical characteristics (curves)
Updated Section 4: Package mechanical data.
Added Section 5: Packaging mechanical data. Minor text changes.
06-Jun-2012
4
Figure 9: Transfer characteristics has been updated.
16-Jan-2017
5
Updated title, features, description and schematic diagram in cover
page.
Minor text changes in Section 1: "Electrical ratings" and Section 2:
"Electrical characteristics".
Updated Section 2.1: "Electrical characteristics (curves)"
Updated package information section.
5 Revision history
Table 15: Document revision history
STB20N95K5, STF20N95K5, STP20N95K5,
STW20N95K5
22/22
DocID16825 Rev 5
IMPORTANT NOTICE – PLEASE READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications , and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST
products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the
design of Purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2017 STMicroelectronics – All rights reserved
Loading...
