STMicroelectronics STM32F479AI, STM32F479AG, STM32F479BI, STM32F479BG, STM32F479II Datasheet

...

Download

STM32F479xx

WLCSP168

UFBGA176 (10 x 10 mm)

TFBGA216 (13 x 13 mm)

LQFP100 (14 × 14 mm) LQFP144 (20 × 20 mm) LQFP176 (24 × 24 mm)

LQFP208 (28 × 28 mm)

UFBGA169 (7 × 7 mm)

Arm®Cortex®-M4 32b MCU+FPU, 225DMIPS, up to 2MB Flash/384+4KB RAM, USB OTG HS/FS,

Ethernet, FMC, dual Quad-SPI, Crypto, Graphical accelerator, Camera IF, LCD-TFT & MIPI DSI

Datasheet - production data

Features

 Core: Arm® 32-bit Cortex®-M4 CPU with FPU,

Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory, frequency up to 180 MHz, MPU, 225 DMIPS/1.25 DMIPS/MHz (Dhrystone

2.1), and DSP instructions

 Memories

– Up to 2 MB of Flash memory organized into

two banks allowing read-while-write

– Up to 384+4 KB of SRAM including 64 KB of

CCM (core coupled memory) data RAM

– Flexible external memory controller with up

to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR, SDRAM, Flash NOR/NAND memories

– Dual-flash mode Quad-SPI interface

 Graphics:

– Chrom-ART Accelerator™ (DMA2D),

graphical hardware accelerator enabling enhanced graphical user interface with

minimum CPU load – LCD parallel interface, 8080/6800 modes – LCD TFT controller supporting up to XGA

resolution –MIPI

DSI host controller supporting up to

720p 30Hz resolution

 Clock, reset and supply management

– 1.7 V to 3.6 V application supply and I/Os – POR, PDR, PVD and BOR – 4-to-26 MHz crystal oscillator – Internal 16 MHz factory-trimmed RC (1%

accuracy) – 32 kHz oscillator for RTC with calibration – Internal 32 kHz RC with calibration

 Low power

– Sleep, Stop and Standby modes –V

supply for RTC, 20×32 bit backup

BAT

registers + optional 4 KB backup SRAM

 3×12-bit, 2.4 MSPS ADC: up to 24 channels and

7.2 MSPS in triple interleaved mode

 2×12-bit D/A converters  General-purpose DMA: 16-stream DMA

controller with FIFOs and burst support

 Up to 17 timers: up to twelve 16-bit and two 32-

bit timers up to 180 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input. 2x watchdogs and SysTick timer

 Debug mode

– SWD & JTAG interfaces –Cortex

-M4 Trace Macrocell™

 Up to 161 I/O ports with interrupt capability

– Up to 157 fast I/Os up to 90 MHz – Up to 159 5 V-tolerant I/Os

 Up to 21 communication interfaces

– Up to 3 × I

C interfaces (SMBus/PMBus)

– Up to 4 USARTs and 4 UARTs (11.25 Mbit/s,

ISO7816 interface, LIN, IrDA, modem control)

– Up to 6 SPIs (45 Mbits/s), 2 with muxed full-

duplex I

S for audio class accuracy via

internal audio PLL or external clock – 1 x SAI (serial audio interface) – 2 × CAN (2.0B Active) –SDIO interface

 Advanced connectivity

– USB 2.0 full-speed device/host/OTG

controller with on-chip PHY – USB 2.0 high-speed/full-speed

device/host/OTG controller with dedicated

DMA, on-chip full-speed PHY and ULPI – Dedicated USB power rail enabling on-chip

PHYs operation throughout the entire MCU

power supply range – 10/100 Ethernet MAC with dedicated DMA:

supports IEEE 1588v2 hardware, MII/RMII

 8- to 14-bit parallel camera interface up to

54 Mbytes/s

 Cryptographic accelerator

– HW accelerator for AES 128, 192, 256,

Triple DES, HASH (MD5, SHA-1, SHA-2)

and HMAC

 True random number generator  CRC calculation unit  RTC: subsecond accuracy, hardware calendar  96-bit unique ID

Reference Part numbers

STM32F479xx

Table 1. Device summary

STM32F479AI, STM32F479AG, STM32F479BI,

STM32F479BG, STM32F479II, STM32F479IG,

STM32F479NI, STM32F479NG, STM32479VG,

STM32479VI, STM32479ZG, STM32479ZI

Jan u ar y 2 021 DS 1111 8 Rev 6 1/ 220

This is information on a product in full production.

www.st.com

Contents STM32F479xx

Contents

1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1.1 Compatibility throughout the family . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

1.1.1 LQFP176 package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

1.1.2 LQFP208 package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

1.1.3 UFBGA176 package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

1.1.4 TFBGA216 package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2 Functional overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2.1 Arm® Cortex®-M4 with FPU and embedded Flash and SRAM . . . . . . . . 21

2.2 Adaptive real-time memory accelerator (ART Accelerator™) . . . . . . . . . 21

2.3 Memory protection unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2.4 Embedded Flash memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2.5 CRC (cyclic redundancy check) calculation unit . . . . . . . . . . . . . . . . . . . 22

2.6 Embedded SRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2.7 Multi-AHB bus matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2.8 DMA controller (DMA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

2.9 Flexible memory controller (FMC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

2.10 Quad-SPI memory interface (QUADSPI) . . . . . . . . . . . . . . . . . . . . . . . . . 25

2.11 LCD-TFT controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

2.12 DSI Host (DSIHOST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

2.13 Chrom-ART Accelerator™ (DMA2D) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

2.14 Nested vectored interrupt controller (NVIC) . . . . . . . . . . . . . . . . . . . . . . . 27

2.15 External interrupt/event controller (EXTI) . . . . . . . . . . . . . . . . . . . . . . . . . 27

2.16 Clocks and startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

2.17 Boot modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

2.18 Power supply schemes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

2.19 Power supply supervisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

2.19.1 Internal reset ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

2.19.2 Internal reset OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

2.20 Voltage regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

2.20.1 Regulator ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

2.20.2 Regulator OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

2/22 0 D S 1111 8 R e v 6

STM32F479xx Contents

2.20.3 Regulator ON/OFF and internal reset ON/OFF availability . . . . . . . . . . 35

2.21 Real-time clock (RTC), backup SRAM and backup registers . . . . . . . . . . 35

2.22 Low-power modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

2.23 V

operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

BAT

2.24 Timers and watchdogs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

2.24.1 Advanced-control timers (TIM1, TIM8) . . . . . . . . . . . . . . . . . . . . . . . . . 38

2.24.2 General-purpose timers (TIMx) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

2.24.3 Basic timers TIM6 and TIM7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

2.24.4 Independent watchdog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

2.24.5 Window watchdog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

2.24.6 SysTick timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

2.25 Inter-integrated circuit interface (I2C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

2.26 Universal synchronous/asynchronous receiver transmitters (USART) . . 40

2.27 Serial peripheral interface (SPI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

2.28 Inter-integrated sound (I

S) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

2.29 Serial Audio interface (SAI1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

2.30 Audio PLL (PLLI2S) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

2.31 Audio and LCD PLL(PLLSAI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

2.32 Secure digital input/output interface (SDIO) . . . . . . . . . . . . . . . . . . . . . . . 42

2.33 Ethernet MAC interface with dedicated DMA and IEEE 1588 support . . . 43

2.34 Controller area network (bxCAN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

2.35 Universal serial bus on-the-go full-speed (OTG_FS) . . . . . . . . . . . . . . . . 44

2.36 Universal serial bus on-the-go high-speed (OTG_HS) . . . . . . . . . . . . . . . 44

2.37 Digital camera interface (DCMI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

2.38 Cryptographic accelerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

2.39 Random number generator (RNG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

2.40 General-purpose input/outputs (GPIOs) . . . . . . . . . . . . . . . . . . . . . . . . . . 45

2.41 Analog-to-digital converters (ADCs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

2.42 Temperature sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

2.43 Digital-to-analog converter (DAC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

2.44 Serial wire JTAG debug port (SWJ-DP) . . . . . . . . . . . . . . . . . . . . . . . . . . 47

2.45 Embedded Trace Macrocell™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

3 Pinouts and pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

DS 1111 8 Rev 6 3/ 2 2 0

Contents STM32F479xx

4 Memory mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

5 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

5.1 Parameter conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

5.1.1 Minimum and maximum values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

5.1.2 Typical values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

5.1.3 Typical curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

5.1.4 Loading capacitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

5.1.5 Pin input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

5.1.6 Power supply scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

5.1.7 Current consumption measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

5.2 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

5.3 Operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

5.3.1 General operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

5.3.2 VCAP1/VCAP2 external capacitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

5.3.3 Operating conditions at power-up / power-down (regulator ON) . . . . . . 96

5.3.4 Operating conditions at power-up / power-down (regulator OFF) . . . . . 96

5.3.5 Reset and power control block characteristics . . . . . . . . . . . . . . . . . . . 96

5.3.6 Over-drive switching characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

5.3.7 Supply current characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

5.3.8 Wakeup time from low-power modes . . . . . . . . . . . . . . . . . . . . . . . . . . 114

5.3.9 External clock source characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . 115

5.3.10 Internal clock source characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . 119

5.3.11 PLL characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

5.3.12 PLL spread spectrum clock generation (SSCG) characteristics . . . . . 123

5.3.13 MIPI D-PHY characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

5.3.14 MIPI D-PHY PLL characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

5.3.15 MIPI D-PHY regulator characteristics . . . . . . . . . . . . . . . . . . . . . . . . . 128

5.3.16 Memory characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

5.3.17 EMC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

5.3.18 Absolute maximum ratings (electrical sensitivity) . . . . . . . . . . . . . . . . 132

5.3.19 I/O current injection characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

5.3.20 I/O port characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

5.3.21 NRST pin characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

5.3.22 TIM timer characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

5.3.23 Communications interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

5.3.24 12-bit ADC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

4/22 0 D S 1111 8 R e v 6

STM32F479xx Contents

5.3.25 Temperature sensor characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

5.3.26 V

5.3.27 Reference voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

5.3.28 DAC electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

5.3.29 FMC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

5.3.30 Quad-SPI interface characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

5.3.31 Camera interface (DCMI) timing specifications . . . . . . . . . . . . . . . . . . 186

5.3.32 LCD-TFT controller (LTDC) characteristics . . . . . . . . . . . . . . . . . . . . . 187

5.3.33 SD/SDIO MMC card host interface (SDIO) characteristics . . . . . . . . . 189

5.3.34 RTC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

monitoring characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

BAT

6 Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

6.1 LQFP100 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

6.2 LQFP144 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

6.3 WLCSP168 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

6.4 UFBGA169 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

6.5 LQFP176 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

6.6 UFBGA(176+25) package information . . . . . . . . . . . . . . . . . . . . . . . . . . 207

6.7 LQFP208 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208

6.8 TFBGA216 package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

6.9 Thermal characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215

7 Part numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216

Appendix A Recommendations when using internal reset OFF . . . . . . . . . . . 217

A.1 Operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217

Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218

DS 1111 8 Rev 6 5/ 2 2 0

List of tables STM32F479xx

List of tables

Table 1. Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Table 2. STM32F479xx features and peripheral counts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Table 3. Voltage regulator configuration mode versus device operating mode . . . . . . . . . . . . . . . . 32

Table 4. Regulator ON/OFF and internal reset ON/OFF availability. . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 5. Voltage regulator modes in stop mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 6. Timer feature comparison . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 7. Comparison of I2C analog and digital filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Table 8. USART feature comparison . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Table 9. Legend/abbreviations used in the pinout table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Table 10. STM32F479xx pin and ball definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Table 11. FMC pin definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Table 12. Alternate function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Table 13. STM32F479xx register boundary addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Table 14. Voltage characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Table 15. Current characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Table 16. Thermal characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Table 17. General operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Table 18. Limitations depending on the operating power supply range . . . . . . . . . . . . . . . . . . . . . . . 95

Table 19. VCAP1/VCAP2 operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Table 20. Operating conditions at power-up / power-down (regulator ON) . . . . . . . . . . . . . . . . . . . . 96

Table 21. Operating conditions at power-up / power-down (regulator OFF). . . . . . . . . . . . . . . . . . . . 96

Table 22. Reset and power control block characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Table 23. Over-drive switching characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Table 24. Typical and maximum current consumption in Run mode, code with data processing

running from Flash memory (ART accelerator enabled except prefetch) or RAM,

regulator ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Table 25. Typical and maximum current consumption in Run mode, code with data processing

running from Flash memory (ART accelerator disabled), regulator ON . . . . . . . . . . . . . . 101

Table 26. Typical and maximum current consumption in Run mode, code with data

processing running from Flash memory (ART accelerator enabled except prefetch),

regulator OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Table 27. Typical and maximum current consumption in Sleep mode, regulator ON . . . . . . . . . . . . 103

Table 28. Typical and maximum current consumption in Sleep mode, regulator OFF . . . . . . . . . . . 104

Table 29. Typical and maximum current consumption in Stop mode . . . . . . . . . . . . . . . . . . . . . . . . 105

Table 30. Typical and maximum current consumption in Standby mode . . . . . . . . . . . . . . . . . . . . . 106

Table 31. Typical and maximum current consumption in V

Table 32. Switching output I/O current consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Table 33. Peripheral current consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Table 34. Low-power mode wakeup timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Table 35. High-speed external user clock characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Table 36. Low-speed external user clock characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Table 37. HSE 4-26 MHz oscillator characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Table 38. LSE oscillator characteristics (f

Table 39. HSI oscillator characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Table 40. LSI oscillator characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Table 41. Main PLL characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Table 42. PLLI2S (audio PLL) characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Table 43. PLLSAI (audio and LCD-TFT PLL) characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

= 32.768 kHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

LSE

mode. . . . . . . . . . . . . . . . . . . . . . . . 107

BAT

6/22 0 D S 1111 8 R e v 6

STM32F479xx List of tables

Table 44. SSCG parameters constraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Table 45. MIPI D-PHY characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Table 46. MIPI D-PHY AC characteristics LP mode and HS/LP transitions . . . . . . . . . . . . . . . . . . . 126

Table 47. DSI-PLL characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Table 48. DSI regulator characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Table 49. Flash memory characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Table 50. Flash memory programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Table 51. Flash memory programming with V

PP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Table 52. Flash memory endurance and data retention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Table 53. EMS characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Table 54. EMI characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Table 55. ESD absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Table 56. Electrical sensitivities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Table 57. I/O current injection susceptibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Table 58. I/O static characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Table 59. Output voltage characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Table 60. I/O AC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Table 61. NRST pin characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Table 62. TIMx characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Table 63. I2C analog filter characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Table 64. SPI dynamic characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Table 65. I

S dynamic characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Table 66. SAI characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Table 67. USB OTG full speed startup time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Table 68. USB OTG full speed DC electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Table 69. USB OTG full speed electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Table 70. USB HS DC electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Table 71. USB HS clock timing parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Table 72. Dynamic characteristics: USB ULPI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Table 73. Dynamics characteristics: Ethernet MAC signals for SMI. . . . . . . . . . . . . . . . . . . . . . . . . 154

Table 74. Dynamics characteristics: Ethernet MAC signals for RMII . . . . . . . . . . . . . . . . . . . . . . . . 155

Table 75. Dynamics characteristics: Ethernet MAC signals for MII . . . . . . . . . . . . . . . . . . . . . . . . . 155

Table 76. ADC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Table 77. ADC static accuracy at f Table 78. ADC static accuracy at f Table 79. ADC static accuracy at f Table 80. ADC dynamic accuracy at f Table 81. ADC dynamic accuracy at f

= 18 MHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

ADC

= 30 MHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

ADC

= 36 MHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

ADC

= 18 MHz - limited test conditions . . . . . . . . . . . . . . . . . 159

ADC

= 36 MHz - limited test conditions . . . . . . . . . . . . . . . . . 159

ADC

Table 82. Temperature sensor characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Table 83. Temperature sensor calibration values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Table 84. V

monitoring characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

BAT

Table 85. internal reference voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Table 86. Internal reference voltage calibration values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Table 87. DAC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Table 88. Asynchronous non-multiplexed SRAM/PSRAM/NOR - read timings . . . . . . . . . . . . . . . . 167

Table 89. Asynchronous non-multiplexed SRAM/PSRAM/NOR read - NWAIT timings . . . . . . . . . . 167

Table 90. Asynchronous non-multiplexed SRAM/PSRAM/NOR write timings . . . . . . . . . . . . . . . . . 168

Table 91. Asynchronous non-multiplexed SRAM/PSRAM/NOR write - NWAIT timings . . . . . . . . . . 169

Table 92. Asynchronous multiplexed PSRAM/NOR read timings. . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Table 93. Asynchronous multiplexed PSRAM/NOR read-NWAIT timings . . . . . . . . . . . . . . . . . . . . 170

Table 94. Asynchronous multiplexed PSRAM/NOR write timings . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Table 95. Asynchronous multiplexed PSRAM/NOR write-NWAIT timings . . . . . . . . . . . . . . . . . . . . 172

DS 1111 8 Rev 6 7/ 2 2 0

List of tables STM32F479xx

Table 96. Synchronous multiplexed NOR/PSRAM read timings . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Table 97. Synchronous multiplexed PSRAM write timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Table 98. Synchronous non-multiplexed NOR/PSRAM read timings . . . . . . . . . . . . . . . . . . . . . . . . 177

Table 99. Synchronous non-multiplexed PSRAM write timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Table 100. Switching characteristics for NAND Flash read cycles . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Table 101. Switching characteristics for NAND Flash write cycles. . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Table 102. SDRAM read timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

Table 103. LPSDR SDRAM read timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Table 104. SDRAM write timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

Table 105. LPSDR SDRAM write timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

Table 106. Quad-SPI characteristics in SDR mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Table 107. Quad-SPI characteristics in DDR mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Table 108. DCMI characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

Table 109. LTDC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

Table 110. Dynamic characteristics: SD / MMC characteristics, VDD = 2.7 to 3.6 V . . . . . . . . . . . . . 190

Table 111. Dynamic characteristics: SD / MMC characteristics, VDD = 1.71 to 1.9 V . . . . . . . . . . . . 191

Table 112. RTC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

Table 113. LQFP100 - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

Table 114. LQFP144 - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

Table 115. WLCSP168 - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Table 116. UFBGA169 - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

Table 117. UFBGA169 - Recommended PCB design rules (0.5 mm pitch BGA). . . . . . . . . . . . . . . . 201

Table 118. LQFP176 - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

Table 119. UFBGA(176+25) - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

Table 120. UFBGA(176+25) - Recommended PCB design rules (0.65 mm pitch BGA) . . . . . . . . . . 208

Table 121. LQFP208 - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

Table 122. TFBGA216 - Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

Table 123. TFBGA216 - Recommended PCB design rules (0.8 mm pitch) . . . . . . . . . . . . . . . . . . . . 213

Table 124. Package thermal characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215

Table 125. Ordering information scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216

Table 126. Limitations depending on the operating power supply range . . . . . . . . . . . . . . . . . . . . . . 217

Table 127. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218

8/22 0 D S 1111 8 R e v 6

STM32F479xx List of figures

List of figures

Figure 1. Incompatible board design for LQFP176 package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Figure 2. Incompatible board design for LQFP208 package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 3. UFBGA176 port-to-terminal assignment differences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 4. TFBGA216 port-to-terminal assignment differences. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Figure 5. STM32F479xx block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 6. STM32F479xx Multi-AHB matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 7. VDDUSB connected to an external independent power supply . . . . . . . . . . . . . . . . . . . . . 29

Figure 8. Power supply supervisor interconnection with internal reset OFF . . . . . . . . . . . . . . . . . . . 30

Figure 9. PDR_ON control with internal reset OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Figure 10. Regulator OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Figure 11. Startup in regulator OFF: slow V

- power-down reset risen after V

Figure 12. Startup in regulator OFF mode: fast V

- power-down reset risen before V

Figure 13. STM32F47x LQFP100 pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Figure 14. STM32F47x LQFP144 pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Figure 15. STM32F47x WLCSP168 pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Figure 16. STM32F47x UFBGA169 ballout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Figure 17. STM32F47x UFBGA176 ballout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Figure 18. STM32F47x LQFP176 pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Figure 19. STM32F47x LQFP208 pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Figure 20. STM32F47x TFBGA216 ballout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Figure 21. Memory map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Figure 22. Pin loading conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Figure 23. Pin input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Figure 24. Power supply scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Figure 25. Current consumption measurement scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Figure 26. External capacitor C Figure 27. Typical V

current consumption

BAT

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

EXT

(RTC ON / backup SRAM ON and LSE in Low drive mode) . . . . . . . . . . . . . . . . . . . . . . 107

Figure 28. Typical V

current consumption

BAT

(RTC ON / backup SRAM ON and LSE in High drive mode) . . . . . . . . . . . . . . . . . . . . . . 108

Figure 29. High-speed external clock source AC timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Figure 30. Low-speed external clock source AC timing diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Figure 31. Typical application with an 8 MHz crystal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Figure 32. Typical application with a 32.768 kHz crystal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Figure 33. ACCHSI vs. temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Figure 34. ACC

versus temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

LSI

Figure 35. PLL output clock waveforms in center spread mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Figure 36. PLL output clock waveforms in down spread mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Figure 37. MIPI D-PHY HS/LP clock lane transition timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . 127

Figure 38. MIPI D-PHY HS/LP data lane transition timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Figure 39. FT I/O input characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Figure 40. I/O AC characteristics definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Figure 41. Recommended NRST pin protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Figure 42. SPI timing diagram - slave mode and CPHA = 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Figure 43. SPI timing diagram - slave mode and CPHA = 1 Figure 44. SPI timing diagram - master mode

slope

CAP_1 , VCAP_2

slope

CAP_1 , VCAP_2

(1)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

stabilization . . . . . . . . . . . . . . . . . . . . . . . 34

stabilization . . . . . . . . . . . . . . . . . . . . . . 35

(1)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

DS 1111 8 Rev 6 9/ 2 2 0

List of figures STM32F479xx

Figure 45. I2S slave timing diagram (Philips protocol) Figure 46. I

S master timing diagram (Philips protocol)

(1)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

(1)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Figure 47. SAI master timing waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Figure 48. SAI slave timing waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Figure 49. USB OTG full speed timings: definition of data signal rise and fall time . . . . . . . . . . . . . . 151

Figure 50. ULPI timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Figure 51. Ethernet SMI timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Figure 52. Ethernet RMII timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Figure 53. Ethernet MII timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Figure 54. ADC accuracy characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Figure 55. Typical connection diagram using the ADC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Figure 56. Power supply and reference decoupling (V Figure 57. Power supply and reference decoupling (V

not connected to V

REF+

connected to V

REF+

). . . . . . . . . . . . . 161

DDA

). . . . . . . . . . . . . . . . 161

DDA

Figure 58. 12-bit buffered/non-buffered DAC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Figure 59. Asynchronous non-multiplexed SRAM/PSRAM/NOR read waveforms . . . . . . . . . . . . . . 166

Figure 60. Asynchronous non-multiplexed SRAM/PSRAM/NOR write waveforms . . . . . . . . . . . . . . 168

Figure 61. Asynchronous multiplexed PSRAM/NOR read waveforms. . . . . . . . . . . . . . . . . . . . . . . . 169

Figure 62. Asynchronous multiplexed PSRAM/NOR write waveforms . . . . . . . . . . . . . . . . . . . . . . . 171

Figure 63. Synchronous multiplexed NOR/PSRAM read timings . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

Figure 64. Synchronous multiplexed PSRAM write timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

Figure 65. Synchronous non-multiplexed NOR/PSRAM read timings . . . . . . . . . . . . . . . . . . . . . . . . 177

Figure 66. Synchronous non-multiplexed PSRAM write timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Figure 67. NAND controller waveforms for read access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Figure 68. NAND controller waveforms for write access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Figure 69. NAND controller waveforms for common memory read access . . . . . . . . . . . . . . . . . . . . 180

Figure 70. NAND controller waveforms for common memory write access. . . . . . . . . . . . . . . . . . . . 181

Figure 71. SDRAM read access waveforms (CL = 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

Figure 72. SDRAM write access waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Figure 73. Quad-SPI SDR timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Figure 74. Quad-SPI DDR timing diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Figure 75. DCMI timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

Figure 76. LCD-TFT horizontal timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

Figure 77. LCD-TFT vertical timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Figure 78. SDIO high-speed mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Figure 79. SD default mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

Figure 80. LQFP100 - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

Figure 81. LQFP100 - Recommended footprint. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

Figure 82. LQFP100 marking example (package top view). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

Figure 83. LQFP144 - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

Figure 84. LQFP144 - Recommended footprint. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Figure 85. LQFP144 marking example (package top view). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Figure 86. WLCSP168 - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

Figure 87. UFBGA169 - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

Figure 88. UFBGA169 - Recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

Figure 89. UFBGA169 marking example (package top view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Figure 90. LQFP176 - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

Figure 91. LQFP176 - Recommended footprint. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205

Figure 92. LQFP176 marking example (package top view). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206

Figure 93. UFBGA(176+25) - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

Figure 94. UFBGA(176+25) - Recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208

Figure 95. LQFP208 - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

Figure 96. LQFP208 - Recommended footprint. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210

10 /22 0 DS 1111 8 Rev 6

STM32F479xx List of figures

Figure 97. LQFP208 marking example (package top view). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211

Figure 98. TFBGA216 - Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

Figure 99. TFBGA216 - Recommended footprint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

Figure 100. TFBGA216 marking example (package top view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214

DS 1111 8 Rev 6 11/ 2 2 0

Description STM32F479xx

1 Description

The STM32F479xx devices are based on the high-performance Arm RISC core operating at a frequency of up to 180 MHz. The Cortex Floating point unit (FPU) single precision which supports all Arm

®(a)

Cortex®-M4 32-bit

-M4 core features a

single-precision dataprocessing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

The STM32F479xx devices incorporate high-speed embedded memories (Flash memory up to 2 Mbytes, up to 384 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers, a true random number generator (RNG), and a cryptographic acceleration cell. They also feature standard and advanced communication interfaces:

 Up to three I

 Six SPIs, two I

Ss full duplex. To achieve audio class accuracy, the I2S peripherals can be clocked via a dedicated internal audio PLL or via an external clock to allow synchronization.

 Four USARTs plus four UARTs

 An USB OTG full-speed and a USB OTG high-speed with full-speed capability (with the

ULPI)

 Two CANs

 One SAI serial audio interface

 An SDMMC host interface

 Ethernet and camera interface

 LCD-TFT display controller

 Chrom-ART Accelerator™

 DSI Host.

Advanced peripherals include an SDMMC interface, a flexible memory control (FMC) interface, a Quad-SPI Flash memory, camera interface for CMOS sensors and a cryptographic acceleration cell. Refer to Ta bl e 2 for the list of peripherals available on each part number.

The STM32F479xx devices operate in the –40 to +105 °C temperature range from a 1.7 to

3.6 V power supply. A dedicated supply input for USB (OTG_FS and OTG_HS) only in full speed mode, is available on all packages.

The supply voltage can drop to 1.7 V (refer to Section 2.19.2). A comprehensive set of power-saving mode allows the design of low-power applications.

a. Arm is a registered trademark of Arm Limited (or its subsidiaries) in the US and/or elsewhere.

12 /22 0 DS 1111 8 Rev 6

STM32F479xx Description

The STM32F479xx devices are offered in eight packages, ranging from 100 to 216 pins. The set of included peripherals changes with the device chosen, according to Tab le 2.

These features make the STM32F479xx microcontrollers suitable for a wide range of applications:

 Motor drive and application control

 Medical equipment

 Industrial applications: PLC, inverters, circuit breakers

 Printers, and scanners

 Alarm systems, video intercom, and HVAC

 Home audio appliances

Figure 5 shows the general block diagram of the device family.

Peripherals

Table 2. STM32F479xx features and peripheral counts

STM32F479Vx

STM32F479Zx

STM32F479Ax

STM32F479Ix

STM32F479Bx

STM32F479Nx

Flash memory in Kbytes 1024 2048 1024 2048 1024 2048 1024 2048 1024 2048 1024 2048

SRAM in Kbytes

System 384(160+32+128+64)

Backup 4

FMC memory controller Yes

Quad-SPI Yes

Ethernet Yes

Timers

Generalpurpose

Advancedcontrol

Basic 2

Random number generator Yes

S 4/2(full duplex)

SPI / I

(1)

6/2(full duplex)

(1)

I2C3

USART/UART 4/3 4/4

Communication interfaces

USB OTG FS Yes

USB OTG HS Yes

CAN 2

SAI 1

SDIO Yes

Camera interface Yes

DS 1111 8 Rev 6 13/ 2 2 0

Description STM32F479xx

Table 2. STM32F479xx features and peripheral counts (continued)

Peripherals

STM32F479Vx

STM32F479Zx

STM32F479Ax

STM32F479Ix

STM32F479Bx

STM32F479Nx

MIPI-DSI Host Yes

LCD-TFT Yes

Chrom-ART Accelerator™ (DMA2D)

Yes

Cryptography Yes

GPIOs 71 131 114 131 161 161

12-bit ADC Number of channels

12-bit DAC Number of channels

14 20 24

Yes

Maximum CPU frequency 180 MHz

Operating voltage 1.7 to 3.6V

Operating temperatures

Package LQFP100 LQFP144

1. The SPI2 and SPI3 interfaces give the flexibility to work in an exclusive way in either the SPI mode or the I2S audio mode.

2. VDD/VDDA minimum value of 1.7 V is obtained when the internal reset is OFF (refer to Section 2.19.2).

Ambient operating temperature: −40 to 85 °C / −40 to 105 °C

Junction temperature: −40 to 105 °C / −40 to 125 °C

UFBGA169

WLCSP168

(2)

LQFP176

UFBGA176

LQFP208 TFBGA216

14 /22 0 DS 1111 8 Rev 6

STM32F479xx Description

1.1 Compatibility throughout the family

STM32F479xx devices are not compatible with other STM32F4xx devices.

Figure 1 and Figure 2 show incompatible board designs, respectively, for LQFP176 and

LQFP208 packages (highlighted pins).

The UFBGA176 and TFBGA216 ballouts are compatible with other STM32F4xx devices, only few IO port pins are substituted, as shown in Figure 3 and Figure 4.

The LQFP100, LQFP144 and UFBGA169 packages are incompatible with other STM32F4xx devices.

DS 1111 8 Rev 6 15/ 2 2 0

Description STM32F479xx

MS38294V2

VSS

PI3

PI1

135 134 133

132

PI0

131

VDD

130

VSS

129

VCAP2

128

PA13

127

PA12

126

PA11

125

PA10

124

PA9

123

PA8

122

PC9

121

PC8

120

PC7

119

PC6 VDDUSB

117

VSS

116

PG8

115

PG7

114

PG6

113

PG5

112

PG4

111

PG3

110

PG2

109

VSSDSI

108

DSIHOST_D1N

107

DSIHOST_D1P

106

VDD12DSI

105

DSIHOST_CKN

104

DSIHOST_CKP

103

VSSDSI

102

DSIHOST_D0N

101

DSIHOST_D0P

100

VCAPDSI

VDDSI

PD15

PD14

VDD

VSS

PD13

PD12

PD11

PD10

PD9

PD8

84 85

86 87

STM32F469xx/479xx

LQFP176

PH7

PB12

PB13

PB14

PB15

118

VSS

PI3

PI2

135 134

133

132

PI1 131 PI0 130

PH15 129

PH14 128

PH13 127

VDD 126

VSS 125

VCAP2 124

PA13 123

PA12 122

PA11 121

PA10 120

PA9 119

PA8 118

PC9 117

PC8 116

PC7 115

PC6

114

VDD

113

VSS

112

PG8

111

PG7

110

PG6

109

PG5

108

PG4

107

PG3

106

PG2

105

PD15

104

PD14

103

VDD

102

VSS

101

PD13

100

PD12

PD11

PD10

PD9

PD8

PB15

PB14

PB13

PB12

VDD

VSS

PH12

PH8

PH9

PH10

PH11

STM32F4xx

LQFP176

PH7

1.1.1 LQFP176 package

Figure 1. Incompatible board design for LQFP176 package

16 /22 0 DS 1111 8 Rev 6

1. Pins from 85 to 133 are not compatible.

STM32F479xx Description

MS38295V1

138

PC6

137 VDDUSB

VDD

136

VSS

135

PG8

134

PG7

133

PG6

132

PG5

131

PG4

130

PG3

129

PG2

128

VSSDSI

PK2

127

DSIHOST_D1N

PK1

126

DSIHOST_D1P

PK0

125

VDD12DSI

VSS

124

DSIHOST_CKN

VDD

123

DSIHOST_CKP

PJ11

122

VSSDSI

PJ10

121

DSIHOST_D0N

PJ9

120

DSIHOST_D0P

PJ8

119

VCAPDSI

PJ7

118

VDDDSI

PJ6

117

PD15

116

PD14

STM32F42x/STM32F43x

LQFP208

STM32F469xx/479xx

LQFP208

138 137 136 135 134 133 132 131 130

129 128

127 126 125 124 123

122 121 120

119

118 117 116

1.1.2 LQFP208 package

Figure 2. Incompatible board design for LQFP208 package

1. Pins from 118 to 128 and pin 137 are not compatible

DS 1111 8 Rev 6 17/ 2 2 0

Description STM32F479xx

DSI

HOST_

D0P

DSI

HOST_

D0N

DSI

HOST_

CKN

DSI

HOST_

CKP

VCAP

DSI

VDD DSI

VDD_

USB

VSS DSI

DSI

HOST_

D1P

DSI

HOST_

D1N

VDD12

DSI

MS39403V1

1 2 3 9 10 11 12 13 14 15

APE3PE2

PE1 PE 0 PB 8

PB5

PG1 4 PG1 3 PB 4 P B3 PD7 P C12 PA15 PA 14 PA 13

BPE4PE5

PE6

PB9 PB7

PB6

PG15 PG12 PG11 PG10 PD6 PD0 PC 11 PC10 PA12

VBAT

PI7 PI6 PI5

PDR _ON

VDD

PG9 PD5 PD1 PI3 PA11

PC13

PI8

PI9 PI4 BOOT0

VSS VSS VSS PD4 PD3 PD2

PI1

PA10

PC14

PF0 PI10

PI11

PI0 PA9

FPC15

VSS

VDD

PH2

VSS VCAP2 PC9 PA8

PH0

VSS V DD PH 3

VSS VDD PC8 PC7

PH1

PF2

PF1

PH4

PG8 PC6

NRS T P F3 PH 5

PG7 PG6

PF7

PF6

PF4

VDD

VSS

PG5 PG4 PG 3

PF10

BYPASS

_REG

PD15 PG2

MVSSAPC0

PF8

PC1 PC2 PC 3

PB2

PG1

VCAP

PH6 PD14 PD13

NVREF-

PA0

PA4

PC4

PF13

PG0 V DD VDD VDD PE 13 P H7 PD1 2 PD 11 PD10

PA2 PA6 P A5

PC5

PF12

PF15 PE8 PE9 PE11 PE14 PB12 PB13 PD9 PD8

PA3

PB1

PF11 PE7

PE1 2 PE15 PB 10 PB11 PB 14 PB15

VSS

45678

PA1

VDD

VREF+

VDDA

PA7

PB0

PF14

PF10

VSS VSS VSS VSS

VSSVSSVSS VSS VSS

VSS VSS

PF9

PF5

PD1 PI3

PI2

PD2

PI1

PH13

PI0

VSS VCAP2 PC9

VSS VDD PC8

VSS VDD

PG8

PG7

PG5 PG4

PD15

PD14

PH15

PH14

VDD

PH12

PH11

PH8 PH9

PH10

VDD

PD1 PI3

PD2

PI1

DSI

HOST_

D1P

PI0

VSS VCAP2 PC9

VSS VDD PC8

VSS

DSI

VDD_

USB

PG8

PG7

PG5 PG4

PD15

PD14

VDD12

DSI

HOST_

D1N

VDD

DSI

VCAP

DSI

HOST_

CKP

DSI

HOST_

D0P

DSI

HOST_

D0N

DSI

HOST_

CKN

VDD

STM32F42xx/3xx

STM32F40xx/41xx

STM32F469xx STM32F479xx

1.1.3 UFBGA176 package

Figure 3. UFBGA176 port-to-terminal assignment differences

18 /22 0 DS 1111 8 Rev 6

1. The highlighted pins are substituted with dedicated DSI IO pins on STM32F469xx/479xx devices.

STM32F479xx Description

MSv39404V1

123 4 5678 9101112131415

PG14

PE1

PE0

PB8

PB5

PB4

PB3

PD7

PC12 PA15

PA14 PA13

PE5 PE6 PG13 PB9

PB7

PB6

PG15

PG11 PJ13

PJ12 PD6

PD0

PC11 PC10

PA12

VBAT PI8

PI4

PK7 PK6 PK5

PG12

PG10 PJ14 PD5

PD1

PI3

PI2

PA11

PC13 PF0 PI5 PI7 PI10 PI6 PK4 PK3 PG9 PJ15 PD4 PD2 PH15 PI1 PA10

PC14 PF1 PI12 PI9 BOOT0 VDD

VDD

VDD VDD

VCAP2

PH13

PH14 PI0 PA 9

PC15 VSS PI11

VDD

PC9

PA8

PH0

PF2

PI13

PI15

VDD

PC8 PC7

PH1 PI14

PH4

VSS PG8

PC6

NRST PF4 PH5

PH3

VSS

VDD

PG7

PG6

PF7

PF6

PF5

PH2

VDD

VSS

VSS VSS VSS VSS VDD

PD15

PB13

PD10

PF10

PC3

BYPASS

-REG

PB12

PD9 PD8

VSSA

PG1

PD12 PD13 PG3 PG2 PJ5 PH12

VREF- PA1

PA0

PA4

PC4

PF13

PG0 PJ3

PE8

PD11 PG5

PG4

PH7

PH9

PH11

VREF+

PA2

PA6 PA5 PC5 PF14 PJ2 PF11 PE9

PE11

PE14

PB10 PH6 PH8 PH10

PA3 PA7 PB1

PB0 PJ0

PJ1

PE7 PE10 PE12

PE15 PE13

PB11 PB14

PB15

PF3

VDDA

PDR

PE4

PE3

PE2

VDD

VSS

VSS VSS VSS VSS VSS

VSS

VDD

PJ4PF15

VDD VDD VDD VCAP1 PD14

VDD

PF8

PF9

PC0

PC1 PC2 PB2 PF12

VDD

VSS

PD3

STM32F42xx/3xx

STM32F40xx/41xx

STM32F469xx STM32F479xx

VDD

PD15

VDD

PD15

VDD

DSI

HOST_

CKP

VDDD

USB

VSS DSI

VDD12

DSI

HOST_

CKN

DSI

HOST_

D0P

VCAP

DSI

HOST_

D0N

DSI

HOST_

D1P

DSI

HOST_

D1N

PJ8

VDD

PJ11

PK0

PJ10

PJ7

PJ6

PJ9

PK1

PL2

VDD

1.1.4 TFBGA216 package

Figure 4. TFBGA216 port-to-terminal assignment differences

1. The highlighted pins are substituted with dedicated DSI IO pins on STM32F469xx/479xx devices.

DS 1111 8 Rev 6 19/ 2 2 0

Description STM32F479xx

MS38297V1

USART 2MBpsGPIO PORT A

AHB/APB2

USART 2MBps

EXT IT. WKUP

168 AF

PA[15:0]

USART 2MBps

GPIO PORT B

PB[15:0]

USART 2MBps

TIMER 1 / PWM

4 compl. chan. (TIM1_CH1[1:4]N),

4 chan. (TIM8_CH1[1:4]ETR),

BKIN as AF

USART 2MBpsTIMER 8 / PWM

USART 2MBps

GPIO PORT C

PC[15:0]

USART 2MBps

USART 1

RX, TX, SCK,

CTS, RTS as AF

USART 2MBpsGPIO PORT D

PD[15:0]

USART 2MBpsGPIO PORT E

PE[15:0]

USART 2MBps

GPIO PORT F

PF[15:0]

USART 2MBpsGPIO PORT G

PG[15:0]

USART 2MBps

SPI1/I2S

APB 2 60 M H z

8 analog inputs common

to the 3 ADCs

8 analog inputs common

to the ADC1 & 2

DDREF_ADC

8 analog inputs to ADC3

4 Channels, ETR as AF

TIM2

TIM3

TIM4

4 Channels

TIM5

RX, TX, SCK,

USART2

RX, TX, SCK

USART3

RX, TX as AF

UART4

RX, TX as AF

UART5

MOSI, MISO, SCK

NSS/WS, MCK as AF

SPI2/I2S

MOSI, MISO, SCK

SPI3/I2S

NSS/WS, MCK as AF

SCL, SDA, SMBA as AF

I2C1/SMBUS

SCL, SDA, SMBA as AF

I2C2/SMBUS

TX, RX

bxCAN1

TX, RX

bxCAN2

DAC1 as AF

DAC1

DAC2 as AF

DAC2

ITF

TIMER6

TIMER7

WWDG

4KB BKPRAM

RTC_TAMP1 RTC_TAMP2 RTC_OUT RTC_REFIN RTC_TS

OSC32_IN OSC32_OUT

OSCIN OSCOUT

VDDA, VSSA, NRST

USART 2MBpsUSART 6

RX, TX, SCK,

CTS, RTS as AF

smcard

irDA

smcard

irDA

smcard

irDA

smcard irDA

16b

32b

16b

32b

16b

CTS, RTS as AF

SDIO / MMC

D[7:0]

CMD, CK as AF

VBAT = 1.8 to 3.6 V

DMA1

AHB/APB1

DMA2

SCL, SDA, SMBA as AF

I2C3/SMBUS

USART 2MBpsGPIO PORT H

PH[15:0]

JTAG & SW

ARM

Cortex M4

180 MHz

I-BUS

S-BUS

D-BUS

NVICETM

MPUFPU

JTRST, JTDI,

JTCK/SWCLK

JTDO/SWD, JTDO

TRACECK

TRACED(3:0)

USB

DMA/

FIFO

OTG HS

D+, D-

VDDUSB = 3.0 to 3.6 V

ULPI : CLK, D(7:0),

DIR, STP, NXT

SCL/SDA, INT, ID, VBUS

GP-DMA2

8 Streams

FIFO

GP-DMA1

8 Streams

FIFO

Flash 1MB

ACCEL/

CACHE

SRAM1 160KB

SRAM2 32KB

EXT MEM CTRL (FMC)

SRAM, PSRAM, NOR Flash

NAND Flash, SDRAM

CLK, NE[3:0], A[23:0], D[31:0], NOE, NWEN, NBL[3:0], SDCLKE[1:0], SDNE[1:0], NRAS, NCAS, NADV, NWAIT, INTR

CAMERA

HSYNC, VSYNC PIXCK, D(13:0)

ITF

USB

PHY

OTG FS

D+, D-, VDDUSB = 3.0 to 3.6 V, SCL, SDA, INT, ID, VBUS

FIFO

PHY

FIFO

USART 2MBps

TEMP SENSOR

ADC1

ADC2

ADC 3

@VDDA

POR/PDR/

SUPPLY

SUPERVISION

PVD

Reset

Int

POR

XTAL OSC

4-26MHz

XTAL 32kHz

MANAGT

RTC

RC HS

RC LS

Standbyinterface

IWDG

@VBAT

@VDDA

AWU

RESET&

CLOCK

CTRL

PLL1,2,3

@VDDA @VDD

Backup Register

AHB2 180MHz

2 Channels as AF

TIM12

1 Channels as AF

TIM13

1 CH as AF

TIM14

16b

USART 2MBpsTIMER 9

2 channels as AF

USART 2MBps

TIMER10

1 channel as AF

16b

USART 2MBps

TIMER11

1 channel as AF

16b

BOR

FIFO

UART7

UART8

USART 2MBpsSPI 4

SD, SCK, FS MCLK as AF

CRC

USART 2MBps

SAI 1

Dig. Filter

FIFO

QuadSPI

CLK, BK1_NCS, BK2_NCS, D[7:0]

USART 2MBps

SPI6

FIFO

Flash 1MB

SRAM3 128KB

3DES,

AES256

HASH

FIFO

RNG

AHB2 180 MHz

4 Channels, ETR as AF

USART 2MBpsGPIO PORT I

PI[15:0]

USART 2MBpsGPIO PORT J

PJ[15:0]

USART 2MBpsGPIO PORT K

PK[7:0]

AHB1 180 MHz

HCLKx

PCLKx

USART 2MBps

SPI5

MOSI, MISO, SCK,

NSS as AF

MOSI, MISO, SCK,

NSS as AF

MOSI, MISO, SCK,

NSS as AF

MOSI, MISO, SCK,

NSS as AF

CCM data RAM 64 KB

LCD-TFT

FIFO

DMA-2D

FIFO

DSI Host

DSI

PHI

DSIHOST_D0 P/N DSIHOST_D1 P/N

DSIHOST_CK P/N

VDD12DSI, VDDSI, VSSDSI

VCAPDSI

DSIHOST_TE

4 compl. chan. (TIM1_CH1[1:4]N),

4 chan. (TIM8_CH1[1:4]ETR),

BKIN as AF

RX, TX as AF

AHB BUS MATRIX

APB1 45 MHz

APB2 90 MHz

Figure 5. STM32F479xx block diagram

20 /22 0 DS 1111 8 Rev 6

1. The timers connected to APB2 are clocked from TIMxCLK up to 180 MHz, while the timers connected to APB1 are clocked from TIMxCLK either up to 90 MHz or 180 MHz depending on TIMPRE bit configuration in the RCC_DCKCFGR register.

STM32F479xx Functional overview

2 Functional overview

2.1 Arm® Cortex®-M4 with FPU and embedded Flash and SRAM

The Arm® Cortex®-M4 with FPU processor is the latest generation of Arm® processors for embedded systems, developed to provide a low-cost platform that meets the needs of MCU implementation, with a reduced pin count and low-power consumption, while delivering outstanding computational performance and an advanced response to interrupts.

The Arm code-efficiency, delivering the high-performance expected from an Arm memory size usually associated with 8- and 16-bit devices.

The processor supports a set of DSP instructions that allow efficient signal processing and complex algorithm execution. Its single precision FPU (floating point unit) speeds up software development by using metalanguage development tools, while avoiding saturation.

The STM32F47x line is compatible with all Arm

Figure 5 shows the general block diagram of the STM32F47x line.

Note: Cortex

Cortex®-M4 with FPU core is a 32-bit RISC processor that features exceptional

tools and software.

-M4 with FPU core is binary compatible with the Cortex®-M3 core.

core in the

2.2 Adaptive real-time memory accelerator (ART Accelerator™)

The ART Accelerator™ is a memory accelerator optimized for STM32 industry-standard

Arm

Cortex®-M4 with FPU processors. It balances the inherent performance advantage of the Arm the processor to wait for the Flash memory at higher frequencies.

To release the processor full 225 DMIPS performance at this frequency, the accelerator implements an instruction prefetch queue and branch cache, which increases program execution speed from the 128-bit Flash memory. Based on CoreMark performance achieved thanks to the ART Accelerator is equivalent to 0 wait state program execution from Flash memory at a CPU frequency up to 180 MHz.

Cortex®-M4 with FPU over Flash memory technologies, which normally require

benchmark, the

2.3 Memory protection unit

The memory protection unit (MPU) is used to manage the CPU accesses to memory to prevent one task to accidentally corrupt the memory or resources used by any other active task. This memory area is organized into up to 8 protected areas that can in turn be divided up into 8 subareas. The protection area sizes are between 32 bytes and the whole 4 Gbytes of addressable memory.

The MPU is especially helpful for applications where some critical or certified code has to be protected against the misbehavior of other tasks. It is usually managed by an RTOS (realtime operating system). If a program accesses a memory location that is prohibited by the MPU, the RTOS can detect it and take action. In an RTOS environment, the kernel can dynamically update the MPU area setting, based on the process to be executed.

The MPU is optional and can be bypassed for applications that do not need it.

DS 1111 8 Rev 6 21/ 2 2 0

Functional overview STM32F479xx

2.4 Embedded Flash memory

The devices embed a Flash memory of up to 2 Mbytes available for storing programs and data.

2.5 CRC (cyclic redundancy check) calculation unit

The CRC (cyclic redundancy check) calculation unit is used to get a CRC code from a 32-bit data word and a fixed generator polynomial.

Among other applications, CRC-based techniques are used to verify data transmission or storage integrity. In the scope of the EN/IEC 60335-1 standard, they offer a means of verifying the Flash memory integrity. The CRC calculation unit helps compute a software signature during runtime, to be compared with a reference signature generated at link-time and stored at a given memory location.

2.6 Embedded SRAM

All devices embed:

 Up to 384Kbytes of system SRAM including 64 Kbytes of CCM (core coupled memory)

data RAM

RAM is accessed (read/write) at CPU clock speed with 0 wait states.

 4 Kbytes of backup SRAM

This area is accessible only from the CPU. Its content is protected against possible unwanted write accesses, and is retained in Standby or V

BAT mode.

2.7 Multi-AHB bus matrix

The 32-bit multi-AHB bus matrix interconnects all the masters (CPU, DMAs, Ethernet, USB HS, LCD-TFT, and DMA2D) and the slaves (Flash memory, RAM, FMC, QUADSPI, AHB and APB peripherals) and ensures a seamless and efficient operation even when several high-speed peripherals work simultaneously.

22 /22 0 DS 1111 8 Rev 6

STM32F479xx Functional overview

ARM

Cortex-M4

DMA1

DMA2

MAC

Ethernet

USB OTG

Bus matrix-S

ICODE

DCODE

ACCEL

Flash

memory

SRAM1

160 Kbyte

SRAM2

32 Kbyte

AHB2

peripherals

AHB1

peripherals

FMC external

MemCtl

I-bus

D-bus

S-bus

DMA_PI

DMA_MEM1

DMA_MEM2

DMA_P2

ETHERNET_M

USB_HS_M

MS33862V1

CCM data RAM

64-Kbyte

APB1

APB2

SRAM3

128 Kbyte

LCD-TFT

Chrom ART Accelerator(DMA2D)

LCD-TFT_M

DMA2D

QuadSPI

Figure 6. STM32F479xx Multi-AHB matrix

2.8 DMA controller (DMA)

The devices feature two general-purpose dual-port DMAs (DMA1 and DMA2) with 8 streams each. They are able to manage memory-to-memory, peripheral-to-memory and memory-to-peripheral transfers. They feature dedicated FIFOs for APB/AHB peripherals, support burst transfer and are designed to provide the maximum peripheral bandwidth (AHB/APB).

The two DMA controllers support circular buffer management, so that no specific code is needed when the controller reaches the end of the buffer. The two DMA controllers also have a double buffering feature, which automates the use and switching of two memory buffers without requiring any special code.

Each stream is connected to dedicated hardware DMA requests, with support for software trigger on each stream. Configuration is made by software and transfer sizes between source and destination are independent.

DS 1111 8 Rev 6 23/ 2 2 0

Functional overview STM32F479xx

The DMA can be used with the main peripherals:

 SPI and I

 I

 USART

 General-purpose, basic and advanced-control timers TIMx

 DAC

 SDIO

 Camera interface (DCMI)

 ADC

 SAI1

 QUADSPI.

2.9 Flexible memory controller (FMC)

The Flexible memory controller (FMC) includes three memory controllers:

 The NOR/PSRAM memory controller

 The NAND/memory controller

 The Synchronous DRAM (SDRAM/Mobile LPSDR SDRAM) controller

The main features of the FMC controller are the following:

 Interface with static-memory mapped devices including:

– Static random access memory (SRAM)

– NOR Flash memory/OneNAND Flash memory

– PSRAM

– NAND Flash memory with ECC hardware to check up to 8 Kbytes of data

 Interface with synchronous DRAM (SDRAM/Mobile LPSDR SDRAM) memories

 8-,16-,32-bit data bus width

 Independent Chip Select control for each memory bank

 Independent configuration for each memory bank

 Write FIFO

 Read FIFO for SDRAM controller

 The Maximum FMC_CLK/FMC_SDCLK frequency for synchronous accesses is

HCLK/2.

LCD parallel interface

The FMC can be configured to interface seamlessly with most graphic LCD controllers. It

supports the Intel 8080 and Motorola 6800 modes, and is flexible enough to adapt to

specific LCD interfaces. This LCD parallel interface capability makes it easy to build cost effective graphic applications using LCD modules with embedded controllers or high

performance solutions using external controllers with dedicated acceleration.

24 /22 0 DS 1111 8 Rev 6

STM32F479xx Functional overview

2.10 Quad-SPI memory interface (QUADSPI)

All STM32F479xx devices embed a Quad-SPI memory interface, which is a specialized communication interface targeting Single, Dual, Quad or Dual-flash SPI memories. It can work in direct mode through registers, external flash status register polling mode and memory mapped mode. Up to 256 Mbytes external Flash memory are mapped, supporting 8, 16 and 32-bit access. Code execution is supported.

The opcode and the frame format are fully programmable. Communication can be either in Single Data Rate or Dual Data Rate.

2.11 LCD-TFT controller

The LCD-TFT display controller provides a 24-bit parallel digital RGB (Red, Green, Blue) and delivers all signals to interface directly to a broad range of LCD and TFT panels up to XGA (1024x768) resolution with the following features:

 2 displays layers with dedicated FIFO (64x32-bit)

 Color Look-Up table (CLUT) up to 256 colors (256x24-bit) per layer

 Up to 8 Input color formats selectable per layer

 Flexible blending between two layers using alpha value (per pixel or constant)

 Flexible programmable parameters for each layer

 Color keying (transparency color)

 Up to 4 programmable interrupt events.

2.12 DSI Host (DSIHOST)

The DSI Host is a dedicated peripheral for interfacing with MIPI DSI compliant displays. It includes a dedicated video interface internally connected to the LTDC and a generic APB interface that can be used to transmit information to the display.

These interfaces are as follows:

 LTDC interface:

– Used to transmit information in Video Mode, in which the transfers from the host

processor to the peripheral take the form of a real-time pixel stream (DPI).

– Through a customized for mode, this interface can be used to transmit information

in full bandwidth in the Adapted Command Mode (DBI).

 APB slave interface:

– Allows the transmission of generic information in Command mode, and follows a

proprietary register interface.

– Can operate concurrently with either LTDC interface in either Video Mode or

Adapted Command Mode.

 Video mode pattern generator:

– Allows the transmission of horizontal/vertical color bar and D-PHY BER testing

pattern without any kind of stimuli.

DS 1111 8 Rev 6 25/ 2 2 0

Functional overview STM32F479xx

The DSI Host main features:

 Compliant with MIPI

 Interface with MIPI

 Supports all commands defined in the MIPI

– Transmission of all Command mode packets through the APB interface

– Transmission of commands in low-power and high-speed during Video Mode

 Supports up to two D-PHY data lanes

 Bidirectional communication and escape mode support through data lane 0

 Supports non-continuous clock in D-PHY clock lane for additional power saving

 Supports Ultra Low-Power mode with PLL disabled

 ECC and Checksum capabilities

 Support for End of Transmission Packet (EoTp)

 Fault recovery schemes

 3D transmission support

 Configurable selection of system interfaces:

– AMBA APB for control and optional support for Generic and DCS commands

– Video Mode interface through LTDC

– Adapted Command Mode interface through LTDC

 Independently programmable Virtual Channel ID in

– Video Mode

– Adapted Command Mode

– APB Slave



Alliance standards



D-PHY



Alliance specification for DCS:

Video Mode interfaces features

 LTDC interface color coding mappings into 24-bit interface:

– 16-bit RGB, configurations 1, 2, and 3

– 18-bit RGB, configurations 1 and 2

– 24-bit RGB

 Programmable polarity of all LTDC interface signals

 Maximum resolution is limited by available DSI physical link bandwidth:

– Number of lanes: 2

– Maximum speed per lane: 500 Mbps

Adapted interface features

 Support for sending large amounts of data through the memory_write_start (WMS) and

memory_write_continue (WMC) DCS commands

 LTDC interface color coding mappings into 24-bit interface:

– 16-bit RGB, configurations 1, 2, and 3

– 18-bit RGB, configurations 1 and 2

– 24-bit RGB

26 /22 0 DS 1111 8 Rev 6

STM32F479xx Functional overview

Video mode pattern generator

 Vertical and horizontal color bar generation without LTDC stimuli

 BER pattern without LTDC stimuli

2.13 Chrom-ART Accelerator™ (DMA2D)

The Chrom-Art Accelerator™ (DMA2D) is a graphic accelerator which offers advanced bit blitting, row data copy and pixel format conversion. It supports the following functions:

 Rectangle filling with a fixed color

 Rectangle copy

 Rectangle copy with pixel format conversion

 Rectangle composition with blending and pixel format conversion.

Various image format coding are supported, from indirect 4bpp color mode up to 32bpp direct color. It embeds dedicated memory to store color lookup tables.

An interrupt can be generated when an operation is complete or at a programmed watermark.

All the operations are fully automatized and are running independently from the CPU or the DMAs.

2.14 Nested vectored interrupt controller (NVIC)

The devices embed a nested vectored interrupt controller able to manage 16 priority levels, and handle up to 93 maskable interrupt channels plus the 16 interrupt lines of the Cortex M4 with FPU core.

 Closely coupled NVIC gives low-latency interrupt processing

 Interrupt entry vector table address passed directly to the core

 Allows early processing of interrupts

 Processing of late arriving, higher-priority interrupts

 Support tail chaining

 Processor state automatically saved on interrupt entry, and restored on interrupt exit,

with no instruction overhead

This hardware block provides flexible interrupt management features with minimum interrupt latency.

2.15 External interrupt/event controller (EXTI)

The external interrupt/event controller consists of 23 edge-detector lines used to generate interrupt/event requests. Each line can be independently configured to select the trigger event (rising edge, falling edge, both) and can be masked independently. A pending register maintains the status of the interrupt requests. The EXTI can detect an external line with a pulse width shorter than the Internal APB2 clock period. Up to 159 GPIOs can be connected to the 16 external interrupt lines.

DS 1111 8 Rev 6 27/ 2 2 0

Functional overview STM32F479xx

2.16 Clocks and startup

On reset the 16 MHz internal RC oscillator is selected as the default CPU clock. The 16 MHz internal RC oscillator is factory-trimmed to offer 1% accuracy over the full temperature range. The application can then select as system clock either the RC oscillator or an external 4-26 MHz clock source. This clock can be monitored for failure. If a failure is detected, the system automatically switches back to the internal RC oscillator and a software interrupt is generated (if enabled). This clock source is input to a PLL thus allowing to increase the frequency up to 180 MHz. Similarly, full interrupt management of the PLL clock entry is available when necessary (for example if an indirectly used external oscillator fails).

Several prescalers allow the configuration of the two AHB buses, the high-speed APB (APB2) and the low-speed APB (APB1) domains. The maximum frequency of the two AHB buses is 180 MHz while the maximum frequency of the high-speed APB domains is 90 MHz. The maximum allowed frequency of the low-speed APB domain is 45 MHz.

The devices embed a dedicated PLL (PLLI2S) and PLLSAI which allows to achieve audio class performance. In this case, the I frequencies from 8 kHz to 192 kHz.

2.17 Boot modes

At startup, boot pins are used to select one out of three boot options:

 Boot from user Flash

 Boot from system memory

 Boot from embedded SRAM

The boot loader is located in system memory. It is used to reprogram the Flash memory through a serial interface. Refer to application note AN2606 for details.

2.18 Power supply schemes

 VDD = 1.7 to 3.6 V: external power supply for I/Os and the internal regulator (when

enabled), provided externally through V

Note: V

 V

DD/VDDA

Section 2.19.2). Refer to Ta bl e 3 to identify the packages supporting this option.

 V

, V

SSA

blocks, RCs and PLL. V

BAT

= 1.7 to 3.6 V: external analog power supplies for ADC, DAC, Reset

DDA

minimum value of 1.7 V is obtained when the internal reset is OFF (refer to

DDA

and V

= 1.65 to 3.6 V: power supply for RTC, external clock 32 kHz oscillator and

backup registers (through power switch) when V

can be connected either to VDD or an external independent power supply (3.0

DDUSB

to 3.6 V) for USB transceivers. For example, when device is powered at 1.8V, an independent power supply 3.3 V can be connected to V it is independent from V

DDUSB

. When the V

or V

first to disappear.

S master clock can generate all standard sampling

pins.

must be connected to VDD and VSS, respectively.

SSA

is not present.

is connected to a separated power supply,

DDUSB

but it must be the last supply to be provided and the

DDA

28 /22 0 DS 1111 8 Rev 6

STM32F479xx Functional overview

MS37590V1

DDUSB_MIN

DD_MIN

time

DDUSB_MAX

USB functional area

VDD=V

DDA

USB non functional area

DDUSB

Power-on

Power-down

Operating mode

USB non functional area

The following conditions must be respected:

– During power-on phase (V

– During power-down phase (VDD < V

–V

rising and falling time rate specifications must be respected.

DDUSB

– In operating mode phase, V

< V

DDUSB

DD_MIN

), V

should be always lower than

DDUSB

should be always lower than

DDUSB

could be lower or higher than VDD:

– If USB (USB OTG_HS/OTG_FS) is used, the associated GPIOs powered by

are operating between V

DDUSB

DDUSB_MIN

and V

DDUSB_MAX

.The V

DDUSB

supplies both USB transceivers (USB OTG_HS and USB OTG_FS).

– If only one USB transceiver is used in the application, the GPIOs associated to

the other USB transceiver are still supplied by V

DDUSB

– If USB (USB OTG_HS/OTG_FS) is not used, the associated GPIOs powered

by V

are operating between V

DDUSB

DD_MIN

and V

DD_MAX

– If USB (USB OTG_HS/OTG_FS) is not used and the associated GPIOs

must not be floating).

DDUSB

are not used, then V

DDUSB

should be tied to VSS or VDD

DDUSB

Figure 7. V

connected to an external independent power supply

DDUSB

The DSI (Display Serial Interface) sub-system uses several power supply pins that are independent from the other supply pins:

 VDDDSI is an independent DSI power supply dedicated for DSI Regulator and MIPI

D-PHY. This supply must be connected to global VDD.

 VCAPDSI pin is the output of DSI Regulator (1.2 V), which must be connected

externally to VDD12DSI.

 VDD12DSI pin is used to supply the MIPI D-PHY, and to supply clock and data lanes

pins. An external capacitor of 2.2 µF must be connected on VDD12DSI pin.

 VSSDSI pin is an isolated supply ground used for DSI sub-system.

 If DSI functionality is not used at all, then:

– VDDDSI pin must be connected to global VDD.

DS 1111 8 Rev 6 29/ 2 2 0

Functional overview STM32F479xx

PDR_ON

STM32F479xx

VSS

PDR not active : 1.7 V < VDD < 3.6 V

VBAT

VDD

Application reset

signal (optional)

MSv36589V1

– VCAPDSI pin must be connected externally to VDD12DSI but the external

capacitor is no more needed.

– VSSDSI pin must be grounded.

2.19 Power supply supervisor

2.19.1 Internal reset ON

On packages embedding the PDR_ON pin, the power supply supervisor is enabled by holding PDR_ON high. On other packages the power supply supervisor is always enabled.

The device has an integrated power-on reset (POR)/ power-down reset (PDR) circuitry coupled with a Brownout reset (BOR) circuitry. At power-on, POR/PDR is always active and ensures proper operation starting from 1.8 V. After the 1.8 V POR threshold level is reached, the option byte loading process starts, either to confirm or modify default BOR thresholds, or to disable BOR permanently. Three BOR thresholds are available through option bytes. The device remains in reset mode when V V

POR/PDR

or V

, without the need for an external reset circuit.

BOR

The device also features an embedded programmable voltage detector (PVD) that monitors the V

DD/VDDA

generated when V higher than the V

power supply and compares it to the V

DD/VDDA

PVD

drops below the V

threshold. The interrupt service routine can then generate a warning

threshold and/or when VDD/V

PVD

message and/or put the MCU into a safe state. The PVD is enabled by software.

is below a specified threshold,

threshold. An interrupt can be

PVD

DDA

2.19.2 Internal reset OFF

This feature is available only on packages featuring the PDR_ON pin. The internal power-on reset (POR) / power-down reset (PDR) circuitry is disabled through the PDR_ON pin.

An external power supply supervisor should monitor V the device in reset mode as long as V connected to VSS, as shown in Figure 8.

Figure 8. Power supply supervisor interconnection with internal reset OFF

is below a specified threshold. PDR_ON must be

and NRST and should maintain

30 /22 0 DS 1111 8 Rev 6

STM32F479xx Functional overview

MS19009V7

time

PDR = 1.7 V

time

NRST

PDR_ON

Reset by other source than

power supply supervisor

The VDD specified threshold, below which the device must be maintained under reset, is

1.7 V (see Figure 9).

A comprehensive set of power-saving mode allows to design low-power applications.

When the internal reset is OFF, the following integrated features are no more supported:

 The integrated power-on reset (POR) / power-down reset (PDR) circuitry is disabled

 The brownout reset (BOR) circuitry must be disabled

 The embedded programmable voltage detector (PVD) is disabled

 V

functionality is no more available and V

BAT

pin should be connected to VDD.

BAT

All packages allow to disable the internal reset through the PDR_ON signal when connected to V

Figure 9. PDR_ON control with internal reset OFF

1. PDR_ON signal to be kept always low.

2.20 Voltage regulator

The regulator has four operating modes:

 Regulator ON

– Main regulator mode (MR)

– Low power regulator (LPR)

– Power-down

 Regulator OFF

DS 1111 8 Rev 6 31/ 2 2 0

Functional overview STM32F479xx

2.20.1 Regulator ON

On packages embedding the BYPASS_REG pin, the regulator is enabled by holding BYPASS_REG low. On all other packages, the regulator is always enabled.

There are three power modes configured by software when the regulator is ON:

 MR mode used in Run/sleep modes or in Stop modes

– In Run/Sleep mode

The MR mode is used either in the normal mode (default mode) or the over-drive mode (enabled by software). Different voltages scaling are provided to reach the best compromise between maximum frequency and dynamic power consumption. The over-drive mode allows operating at a higher frequency than the normal mode for a given voltage scaling.

– In Stop modes

The MR can be configured in two ways during stop mode:

MR operates in normal mode (default mode of MR in stop mode)

MR operates in under-drive mode (reduced leakage mode).

 LPR is used in the Stop modes:

The LP regulator mode is configured by software when entering Stop mode.

Like the MR mode, the LPR can be configured in two ways during stop mode:

– LPR operates in normal mode (default mode when LPR is ON)

– LPR operates in under-drive mode (reduced leakage mode).

 Power-down is used in Standby mode.

The Power-down mode is activated only when entering in Standby mode. The regulator output is in high impedance and the kernel circuitry is powered down, inducing zero consumption. The contents of the registers and SRAM are lost.

Refer to Tab le 3 for a summary of voltage regulator modes versus device operating modes.

Two external ceramic capacitors should be connected on V

CAP_1

and V

CAP_2

Section 2.18 and Table 126.

All packages have the regulator ON feature.

Table 3. Voltage regulator configuration mode versus device operating mode

Voltage regulator

configuration

Normal mode MR MR MR or LPR -

Over-drive mode

Under-drive mode - - MR or LPR -

Power-down mode - - - Yes

1. ‘-’ means that the corresponding configuration is not available.

2. The over-drive mode is not available when V

(2)

Run mode Sleep mode Stop mode Standby mode

MR MR - -

= 1.7 to 2.1 V.

pin. Refer to

(1)

32 /22 0 DS 1111 8 Rev 6

STM32F479xx Functional overview

ai18498V3

BYPASS_REG

CAP_1

CAP_2

PA0

V12

NRST

Application reset

signal (optional)

External V

CAP_1/2

power

supply supervisor

Ext. reset controller active

when V

CAP_1/2

< Min V

V12

2.20.2 Regulator OFF

This feature is available only on packages featuring the BYPASS_REG pin. The regulator is disabled by holding BYPASS_REG high. The regulator OFF mode allows to supply externally a V

Since the internal voltage scaling is not managed internally, the external voltage value must be aligned with the targeted maximum frequency. Refer to Operating conditions.The two

2.2 µF ceramic capacitors should be replaced by two 100 nF decoupling capacitors. Refer to Section 2.18.

voltage source through V

CAP_1

and V

CAP_2

pins.

When the regulator is OFF, there is no more internal monitoring on V supply supervisor should be used to monitor the V

of the logic power domain. PA0 pin

should be used for this purpose, and act as power-on reset on V

. An external power

power domain.

In regulator OFF mode, the following features are no more supported:

 PA0 cannot be used as a GPIO pin since it allows to reset a part of the V

logic power

domain which is not reset by the NRST pin.

 As long as PA0 is kept low, the debug mode cannot be used under power-on reset. As

a consequence, PA0 and NRST pins must be managed separately if the debug connection under reset or pre-reset is required.

 The over-drive and under-drive modes are not available.

 The Standby mode is not available.

Figure 10. Regulator OFF

DS 1111 8 Rev 6 33/ 2 2 0

Functional overview STM32F479xx

ai18491g

time

Min V

PDR = 1.7 or 1.8 V

CAP_1

CAP_2

NRST

time

PA0

The following conditions must be respected:

 V

must always be higher than V

CAP_1

and V

to avoid current injection between

CAP_2

power domains.

 If the time for V

to reach 1.7 V, then PA0 must be kept low to cover both conditions: until V

and V

CAP_2

reach V

 Otherwise, if the time for V

than the time for V

and V

CAP_1

minimum value and until V

CAP_1

to reach 1.7 V, then PA0 can be asserted low externally (see

CAP_2

to reach V

and V

CAP_2

minimum value is faster than the time for

reaches 1.7 V (see Figure 11).

to reach V

minimum value is slower

CAP_1

Figure 12).

 If V

CAP_1

and V

CAP_2

go below V

minimum value and VDD is higher than 1.7 V, then a

reset must be asserted on PA0 pin.

Note: The minimum value of V

(see Operating conditions).

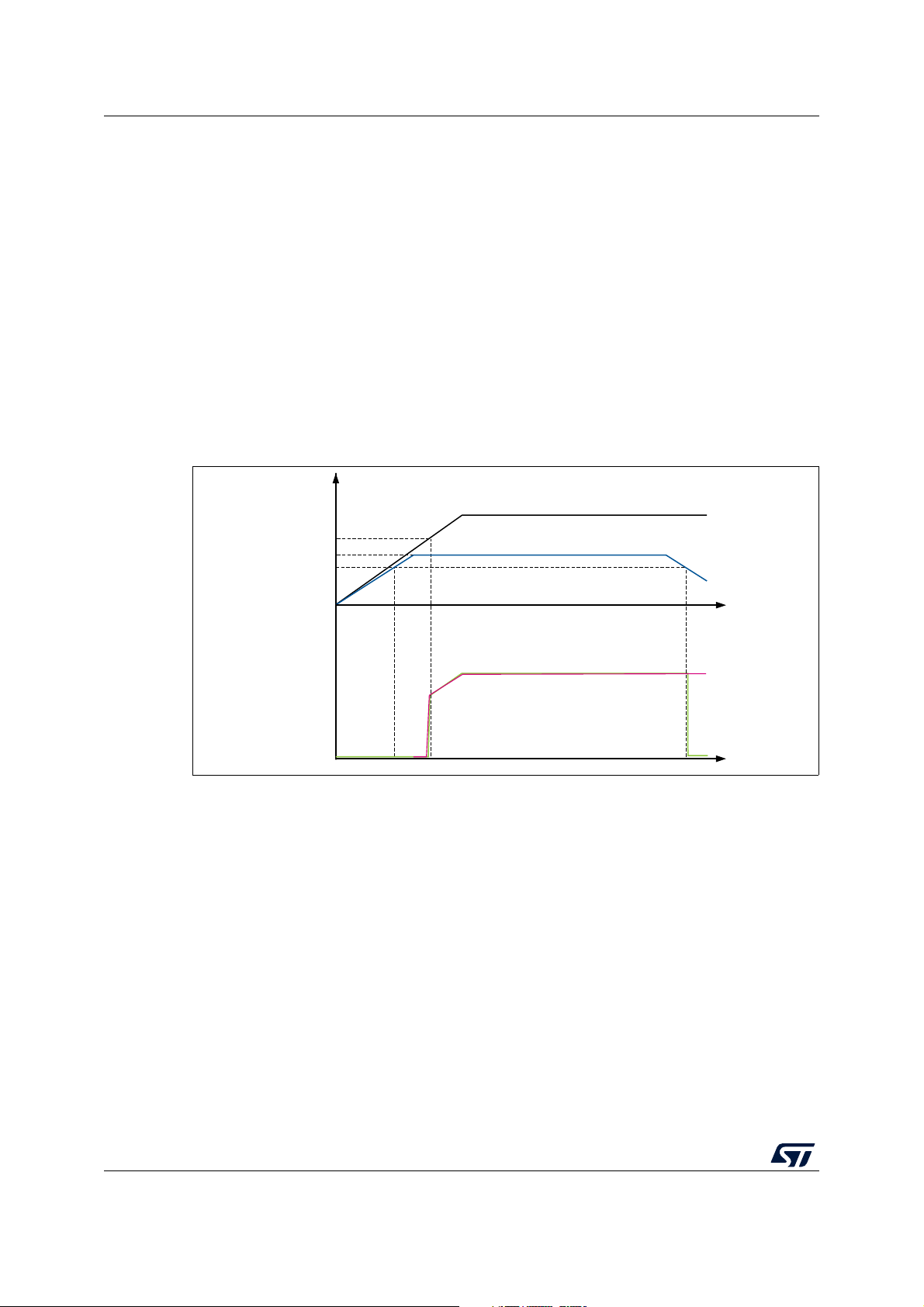

Figure 11. Startup in regulator OFF: slow V

- power-down reset risen after V

1. This figure is valid whatever the internal reset mode (ON or OFF).

depends on the maximum frequency targeted in the application

slope

CAP_1

, V

CAP_2

stabilization

34 /22 0 DS 1111 8 Rev 6

STM32F479xx Functional overview

time

Min V

CAP_1

, V

CAP_2

PA0

NRST

time

ai18492f

PDR = 1.7 or 1.8 V

(2)

Figure 12. Startup in regulator OFF mode: fast VDD slope

- power-down reset risen before V

1. This figure is valid whatever the internal reset mode (ON or OFF).

CAP_1

, V

CAP_2

stabilization

2.20.3 Regulator ON/OFF and internal reset ON/OFF availability

Table 4. Regulator ON/OFF and internal reset ON/OFF availability

Package Regulator ON Regulator OFF Internal reset ON Internal reset OFF

WLCSP168 UFBGA169

LQFP208

LQFP176

UFBGA176

TFBGA216

Yes No

Yes

BYPASS_REG set

to V

Yes

BYPASS_REG set

to V

Yes

PDR_ON set to V

Yes

2.21 Real-time clock (RTC), backup SRAM and backup registers

The backup domain includes:

 The real-time clock (RTC)

 4 Kbytes of backup SRAM

 20 backup registers

The real-time clock (RTC) is an independent BCD timer/counter. Dedicated registers contain the second, minute, hour (in 12/24 hour), week day, date, month, year, in BCD (binarycoded decimal) format. Correction for 28, 29 (leap year), 30, and 31 day of the month are performed automatically. The RTC provides a programmable alarm and programmable periodic interrupts with wakeup from Stop and Standby modes. The sub-seconds value is also available in binary format.

It is clocked by a 32.768 kHz external crystal, resonator or oscillator, the internal low-power RC oscillator or the high-speed external clock divided by 128. The internal low-speed RC has a typical frequency of 32 kHz. The RTC can be calibrated using an external 512 Hz output to compensate for any natural quartz deviation.

DS 1111 8 Rev 6 35/ 2 2 0

Functional overview STM32F479xx

Two alarm registers are used to generate an alarm at a specific time and calendar fields can be independently masked for alarm comparison. To generate a periodic interrupt, a 16-bit programmable binary auto-reload downcounter with programmable resolution is available and allows automatic wakeup and periodic alarms from every 120 µs to every 36 hours.

A 20-bit prescaler is used for the time base clock. It is by default configured to generate a time base of 1 second from a clock at 32.768 kHz.

The 4-Kbyte backup SRAM is an EEPROM-like memory area. It can be used to store data which need to be retained in VBAT and standby mode. This memory area is disabled by default to minimize power consumption (see Section 2.22). It can be enabled by software.

The backup registers are 32-bit registers used to store 80 bytes of user application data when V

power is not present. Backup registers are not reset by a system, a power reset,

or when the device wakes up from the Standby mode (see Section 2.22).

Additional 32-bit registers contain the programmable alarm subseconds, seconds, minutes, hours, day, and date.

Like backup SRAM, the RTC and backup registers are supplied through a switch that is powered either from the V

supply when present or from the V

BAT

pin.

2.22 Low-power modes

The devices support three low-power modes to achieve the best compromise between low power consumption, short startup time and available wakeup sources:

 Sleep mode

In Sleep mode, only the CPU is stopped. All peripherals continue to operate and can wake up the CPU when an interrupt/event occurs.

 Stop mode

The Stop mode achieves the lowest power consumption while retaining the contents of SRAM and registers. All clocks in the 1.2 V domain are stopped, the PLL, the HSI RC and the HSE crystal oscillators are disabled.

The voltage regulator can be put either in main regulator mode (MR) or in low-power mode (LPR). Both modes can be configured as follows (see Tab le 5):

– Normal mode (default mode when MR or LPR is enabled)

– Under-drive mode.

The device can be woken up from the Stop mode by any of the EXTI line (the EXTI line source can be one of the 16 external lines, the PVD output, the RTC alarm / wakeup / tamper / time stamp events, the USB OTG FS/HS wakeup or the Ethernet wakeup).

Voltage regulator

configuration

Normal mode MR ON LPR ON

Table 5. Voltage regulator modes in stop mode

Main regulator (MR) Low-power regulator (LPR)

Under-drive mode MR in under-drive mode LPR in under-drive mode

 Standby mode

The Standby mode is used to achieve the lowest power consumption. The internal voltage regulator is switched off so that the entire 1.2 V domain is powered off. The

36 /22 0 DS 1111 8 Rev 6

STM32F479xx Functional overview

PLL, the HSI RC and the HSE crystal oscillators are also switched off. After entering Standby mode, the SRAM and register contents are lost except for registers in the backup domain and the backup SRAM when selected.

The device exits the Standby mode when an external reset (NRST pin), an IWDG reset, a rising edge on the WKUP pin, or an RTC alarm / wakeup / tamper /time stamp event occurs.

The standby mode is not supported when the embedded voltage regulator is bypassed and the 1.2 V domain is controlled by an external power.

2.23 V

The V supercapacitor, or from V

operation

BAT

pin allows to power the device V

BAT

when no external battery neither an external supercapacitor are

present.

operation is activated when VDD is not present.

BAT

The V

pin supplies the RTC, the backup registers and the backup SRAM.

BAT

Note: When the microcontroller is supplied from V

do not exit it from V

When PDR_ON pin is connected to V more available and V

operation.

BAT

(Internal Reset OFF), the V

pin should be connected to VDD.

BAT

2.24 Timers and watchdogs

The devices include two advanced-control timers, eight general-purpose timers, two basic timers and two watchdog timers.

All timer counters can be frozen in debug mode.

Tab le 6 compares the features of the advanced-control, general-purpose and basic timers.

domain from an external battery, an external

BAT

, external interrupts and RTC alarm/events

BAT

functionality is no

BAT

DS 1111 8 Rev 6 37/ 2 2 0

Functional overview STM32F479xx

Timer

type

Advanced

control

General purpose

Basic

Counter

resolution

16-bit

32-bit

16-bit

16-bit Up

Timer

TIM1,

TIM8

TIM2,

TIM5

TIM3,

TIM4

TIM9 16-bit Up

TIM10

TIM11

TIM12 16-bit Up

TIM13

TIM14

TIM6,

TIM7

Counter

type

Up,

Down,

Up/down

Up,

Down,

Up/down

Up,

Down,

Up/down

Table 6. Timer feature comparison

Prescaler

factor

Any integer

between 1

and 65536

Any integer

between 1

and 65536

Any integer

between 1

and 65536

Any integer

between 1

and 65536

Any integer

between 1

and 65536

Any integer

between 1

and 65536

Any integer

between 1

and 65536

Any integer

between 1

and 65536

DMA

request

generation

Yes 4 Yes 90 180

Yes 4 No 45 90/180

No 2 No 90 180

No 1 No 90 180

No 2 No 45 90/180

No 1 No 45 90/180

Yes 0 No 45 90/180

Capture/ compare

channels

Complementary

output

Max

interface

clock

(MHz)

Max timer clock

(MHz)

(1)

1. The maximum timer clock is either 90 or 180 MHz depending on TIMPRE bit configuration in the RCC_DCKCFGR register.

2.24.1 Advanced-control timers (TIM1, TIM8)

The advanced-control timers (TIM1, TIM8) can be seen as three-phase PWM generators multiplexed on 6 channels. They have complementary PWM outputs with programmable inserted dead times. They can also be considered as complete general-purpose timers. Their 4 independent channels can be used for:

 Input capture

 Output compare

 PWM generation (edge- or center-aligned modes)

 One-pulse mode output

If configured as standard 16-bit timers, they have the same features as the general-purpose TIMx timers. If configured as 16-bit PWM generators, they have full modulation capability (0100%).

The advanced-control timer can work together with the TIMx timers via the Timer Link feature for synchronization or event chaining.

TIM1 and TIM8 support independent DMA request generation.

38 /22 0 DS 1111 8 Rev 6

STM32F479xx Functional overview

2.24.2 General-purpose timers (TIMx)

There are ten synchronizable general-purpose timers embedded in the STM32F47x devices (see Tab l e 6 for differences).

 TIM2, TIM3, TIM4, TIM5

The STM32F47x include 4 full-featured general-purpose timers: TIM2, TIM5, TIM3, and TIM4.The TIM2 and TIM5 timers are based on a 32-bit auto-reload up/down counter and a 16-bit prescaler. The TIM3 and TIM4 timers are based on a 16-bit autoreload up/down counter and a 16-bit prescaler. They all feature 4 independent channels for input capture/output compare, PWM or one-pulse mode output. This gives up to 16 input capture/output compare/PWMs on the largest packages.

The TIM2, TIM3, TIM4, TIM5 general-purpose timers can work together, or with the other general-purpose timers and the advanced-control timers TIM1 and TIM8 via the Timer Link feature for synchronization or event chaining.

Any of these general-purpose timers can be used to generate PWM outputs.

TIM2, TIM3, TIM4, TIM5 all have independent DMA request generation. They are capable of handling quadrature (incremental) encoder signals and the digital outputs from 1 to 4 hall-effect sensors.

 TIM9, TIM10, TIM11, TIM12, TIM13, and TIM14

These timers are based on a 16-bit auto-reload upcounter and a 16-bit prescaler. TIM10, TIM11, TIM13, and TIM14 feature one independent channel, whereas TIM9 and TIM12 have two independent channels for input capture/output compare, PWM or one-pulse mode output. They can be synchronized with the TIM2, TIM3, TIM4, TIM5 full-featured general-purpose timers. They can also be used as simple time bases.

2.24.3 Basic timers TIM6 and TIM7

These timers are mainly used for DAC trigger and waveform generation. They can also be used as a generic 16-bit time base.

TIM6 and TIM7 support independent DMA request generation.

2.24.4 Independent watchdog

The independent watchdog is based on a 12-bit downcounter and 8-bit prescaler. It is clocked from an independent 32 kHz internal RC and as it operates independently from the main clock, it can operate in Stop and Standby modes. It can be used either as a watchdog to reset the device when a problem occurs, or as a free-running timer for application timeout management. It is hardware- or software-configurable through the option bytes.

2.24.5 Window watchdog

The window watchdog is based on a 7-bit downcounter that can be set as free-running. It can be used as a watchdog to reset the device when a problem occurs. It is clocked from the main clock. It has an early warning interrupt capability and the counter can be frozen in debug mode.

DS 1111 8 Rev 6 39/ 2 2 0

Functional overview STM32F479xx

2.24.6 SysTick timer

This timer is dedicated to real-time operating systems, but could also be used as a standard downcounter. It features:

 a 24-bit downcounter

 autoreload capability

 maskable system interrupt generation when the counter reaches 0

 programmable clock source.

2.25 Inter-integrated circuit interface (I2C)

Up to three I²C bus interfaces can operate in multimaster and slave modes. They can support the standard (up to 100 KHz), and fast (up to 400 KHz) modes. They support the 7/10-bit addressing mode and the 7-bit dual addressing mode (as slave). A hardware CRC generation/verification is embedded.

The I²C bus interfaces can be served by DMA and support SMBus 2.0/PMBus.

The devices also include programmable analog and digital noise filters (see Tabl e 7).

Table 7. Comparison of I2C analog and digital filters

Filter Analog Digital

Pulse width of suppressed spikes  50 ns Programmable length, from one to fifteen I2C peripheral clocks

2.26 Universal synchronous/asynchronous receiver transmitters

(USART)

The devices embed four universal synchronous/asynchronous receiver transmitters (USART1, USART2, USART3 and USART6) and four universal asynchronous receiver transmitters (UART4, UART5, UART7, and UART8).

These six interfaces provide asynchronous communication, IrDA SIR ENDEC support, multiprocessor communication mode, single-wire half-duplex communication mode and have LIN Master/Slave capability. The USART1 and USART6 interfaces are able to communicate at speeds of up to 11.25 Mbit/s. The other available interfaces communicate at up to 5.62 bit/s.

USART1, USART2, USART3 and USART6 also provide hardware management of the CTS and RTS signals, Smart Card mode (ISO 7816 compliant) and SPI-like communication capability. All interfaces can be served by the DMA controller.

40 /22 0 DS 1111 8 Rev 6

STM32F479xx Functional overview

Name

USART1 X X X X X X 5.62 11.25

USART2 X X X X X X 2.81 5.62

USART3 X X X X X X 2.81 5.62

UART4 X - X - X - 2.81 5.62

UART5 X - X - X - 2.81 5.62

USART6 X X X X X X 5.62 11.25

UART7 X - X - X - 2.81 5.62

UART8 X - X - X - 2.81 5.62

1. X = feature supported.

Standard

features

Modem

(RTS/CTS)

Table 8. USART feature comparison

LIN

SPI

master

irDA

Smartcard

(ISO 7816)

(1)

Max. baud rate in Mbit/s

Oversampling

by 16

Oversampling

by 8

APB

mapping

APB2 (max.

90 MHz)

APB1 (max.

45 MHz)

APB1 (max.

45 MHz)

APB1 (max.

45 MHz)

APB1 (max.

45 MHz)

APB2 (max.

90 MHz)

APB1 (max.

45 MHz)

APB1 (max.

45 MHz)

2.27 Serial peripheral interface (SPI)

The devices feature up to six SPIs in slave and master modes in full-duplex and simplex communication modes. SPI1, SPI4, SPI5, and SPI6 can communicate at up to 45 Mbits/s, SPI2 and SPI3 can communicate at up to 22.5 Mbit/s. The 3-bit prescaler gives 8 master mode frequencies and the frame is configurable to 8 bits or 16 bits. The hardware CRC generation/verification supports basic SD Card/MMC modes. All SPIs can be served by the DMA controller.

The SPI interface can be configured to operate in TI mode for communications in master mode and slave mode.

2.28 Inter-integrated sound (I2S)

Two standard I2S interfaces (multiplexed with SPI2 and SPI3) are available. They can be operated in master or slave mode, in full duplex and simplex communication modes, and can be configured to operate with a 16-/32-bit resolution as an input or output channel.

DS 1111 8 Rev 6 41/ 2 2 0

Functional overview STM32F479xx

Audio sampling frequencies from 8 kHz up to 192 kHz are supported. When either or both of

the I

S interfaces is/are configured in master mode, the master clock can be output to the

external DAC/CODEC at 256 times the sampling frequency.

All I2Sx can be served by the DMA controller.

Note: For I2S2 full-duplex mode, I2S2_CK and I2S2_WS signals can be used only on GPIO Port

B and GPIO Port D.

2.29 Serial Audio interface (SAI1)

The serial audio interface (SAI1) is based on two independent audio sub-blocks which can operate as transmitter or receiver with their FIFO. Many audio protocols are supported by each block: I2S standards, LSB or MSB-justified, PCM/DSP, TDM, AC’97 and SPDIF output, supporting audio sampling frequencies from 8 kHz up to 192 kHz. Both sub-blocks can be configured in master or in slave mode.

In master mode, the master clock can be output to the external DAC/CODEC at 256 times of the sampling frequency.

The two sub-blocks can be configured in synchronous mode when full-duplex mode is required.

SAI1 can be served by the DMA controller.

2.30 Audio PLL (PLLI2S)

The devices feature an additional dedicated PLL for audio I2S and SAI applications. It allows to achieve error-free I performance, while using USB peripherals.

The PLLI2S configuration can be modified to manage an I without disabling the main PLL (PLL) used for CPU, USB and Ethernet interfaces.

The audio PLL can be programmed with very low error to obtain sampling rates ranging from 8 KHz to 192 KHz.

In addition to the audio PLL, a master clock input pin can be used to synchronize the

S/SAI flow with an external PLL (or Codec output).

S sampling clock accuracy without compromising on the CPU

S/SAI sample rate change

2.31 Audio and LCD PLL(PLLSAI)

An additional PLL dedicated to audio and LCD-TFT is used for SAI1 peripheral in case the PLLI2S is programmed to achieve another audio sampling frequency (49.152 MHz or

11.2896 MHz) and the audio application requires both sampling frequencies simultaneously.

The PLLSAI is also used to generate the LCD-TFT clock.

2.32 Secure digital input/output interface (SDIO)

An SD/SDIO/MMC host interface is available, that supports MultiMediaCard System Specification Version 4.2 in three different databus modes: 1-bit (default), 4-bit and 8-bit.

42 /22 0 DS 1111 8 Rev 6

STM32F479xx Functional overview

The interface allows data transfer at up to 48 MHz, and is compliant with the SD Memory Card Specification Version 2.0.

The SDIO Card Specification Version 2.0 is also supported with two different databus modes: 1-bit (default) and 4-bit.

The current version supports only one SD/SDIO/MMC4.2 card at any one time and a stack of MMC4.1 or previous.

In addition to SD/SDIO/MMC, this interface is fully compliant with the CE-ATA digital protocol Rev1.1.

2.33 Ethernet MAC interface with dedicated DMA and IEEE 1588

support

The devices provide an IEEE-802.3-2002-compliant media access controller (MAC) for ethernet LAN communications through an industry-standard medium-independent interface (MII) or a reduced medium-independent interface (RMII). The microcontroller requires an external physical interface device (PHY) to connect to the physical LAN bus (twisted-pair, fiber, etc.). The PHY is connected to the device MII port using 17 signals for MII or 9 signals for RMII, and can be clocked using the 25 MHz (MII) from the microcontroller.

The devices include the following features:

 Supports 10 and 100 Mbit/s rates

 Dedicated DMA controller allowing high-speed transfers between the dedicated SRAM

and the descriptors (see the STM32F4xx reference manual for details)

 Tagged MAC frame support (VLAN support)

 Half-duplex (CSMA/CD) and full-duplex operation

 MAC control sublayer (control frames) support

 32-bit CRC generation and removal

 Several address filtering modes for physical and multicast address (multicast and

group addresses)

 32-bit status code for each transmitted or received frame

 Internal FIFOs to buffer transmit and receive frames. The transmit FIFO and the

receive FIFO are both 2 Kbytes.

 Supports hardware PTP (precision time protocol) in accordance with IEEE 1588 2008

(PTP V2) with the time stamp comparator connected to the TIM2 input

 Triggers interrupt when system time becomes greater than target time

2.34 Controller area network (bxCAN)

The two CANs are compliant with the 2.0A and B (active) specifications with a bitrate up to 1 Mbit/s. They can receive and transmit standard frames with 11-bit identifiers as well as extended frames with 29-bit identifiers. Each CAN has three transmit mailboxes, two receive FIFOS with 3 stages and 28 shared scalable filter banks (all of them can be used even if one CAN is used). 256 bytes of SRAM are allocated for each CAN.

DS 1111 8 Rev 6 43/ 2 2 0

Functional overview STM32F479xx

2.35 Universal serial bus on-the-go full-speed (OTG_FS)

The device embeds an USB OTG full-speed device/host/OTG peripheral with integrated transceivers. The USB OTG FS peripheral is compliant with the USB 2.0 specification and with the OTG 2.0 specification. It has software-configurable endpoint setting and supports suspend/resume. The USB OTG controller requires a dedicated 48 MHz clock that is generated by a PLL connected to the HSE oscillator.

The main features are:

 Combined Rx and Tx FIFO size of 1.28 KB with dynamic FIFO sizing

 Supports the session request protocol (SRP) and host negotiation protocol (HNP)

 1 bidirectional control endpoint + 5 IN endpoints + 5 OUT endpoints

 12 host channels with periodic OUT support

 Software configurable to OTG1.3 and OTG2.0 modes of operation

 USB 2.0 LPM (Link Power Management) support

 Internal FS OTG PHY support

 HNP/SNP/IP inside (no need for any external resistor)

For OTG/Host modes, a power switch is needed in case bus-powered devices are connected

2.36 Universal serial bus on-the-go high-speed (OTG_HS)

The device embeds a USB OTG high-speed (up to 480 Mb/s) device/host/OTG peripheral. The USB OTG HS supports both full-speed and high-speed operations. It integrates the transceivers for full-speed operation (12 MB/s) and features a UTMI low-pin interface (ULPI) for high-speed operation (480 MB/s). When using the USB OTG HS in HS mode, an external PHY device connected to the ULPI is required.

The USB OTG HS peripheral is compliant with the USB 2.0 specification and with the OTG

2.0 specification. It has software-configurable endpoint setting and supports suspend/resume. The USB OTG controller requires a dedicated 48 MHz clock that is generated by a PLL connected to the HSE oscillator.

The main features are:

 Combined Rx and Tx FIFO size of 4 KB with dynamic FIFO sizing

 Supports the session request protocol (SRP) and host negotiation protocol (HNP)

 8 bidirectional endpoints

 16 host channels with periodic OUT support

 Software configurable to OTG1.3 and OTG2.0 modes of operation

 USB 2.0 LPM (Link Power Management) support

 Internal FS OTG PHY support

 External HS or HS OTG operation supporting ULPI in SDR mode. The OTG PHY is

connected to the microcontroller ULPI port through 12 signals. It can be clocked using the 60 MHz output.

 Internal USB DMA

 HNP/SNP/IP inside (no need for any external resistor)

 for OTG/Host modes, a power switch is needed in case bus-powered devices are

connected

44 /22 0 DS 1111 8 Rev 6

STM32F479xx Functional overview

2.37 Digital camera interface (DCMI)

The devices embed a camera interface that can connect with camera modules and CMOS sensors through an 8-bit to 14-bit parallel interface, to receive video data. The camera interface can sustain a data transfer rate up to 54 Mbyte/s at 54 MHz. It features:

 Programmable polarity for the input pixel clock and synchronization signals

 Parallel data communication can be 8-, 10-, 12- or 14-bit

 Supports 8-bit progressive video monochrome or raw bayer format, YCbCr 4:2:2

progressive video, RGB 565 progressive video or compressed data (like JPEG)

 Supports continuous mode or snapshot (a single frame) mode

 Capability to automatically crop the image black & white.

2.38 Cryptographic accelerator

The devices embed a cryptographic accelerator. This cryptographic accelerator provides a

set of hardware acceleration for the advanced cryptographic algorithms usually needed to

provide confidentiality, authentication, data integrity and non repudiation when exchanging

messages with a peer.

 These algorithms consists of:

Encryption/Decryption

– DES/TDES (data encryption standard/triple data encryption standard): ECB

(electronic codebook) and CBC (cipher block chaining) chaining algorithms, 64,128- or 192-bit key

– AES (advanced encryption standard): ECB, CBC, GCM, CCM, and CTR (counter

mode) chaining algorithms, 128, 192 or 256-bit key

Universal hash

– SHA-1 and SHA-2 (secure hash algorithms)

–MD5

–HMAC

The cryptographic accelerator supports DMA request generation.

2.39 Random number generator (RNG)

All devices embed an RNG that delivers 32-bit random numbers generated by an integrated analog circuit.

2.40 General-purpose input/outputs (GPIOs)

Each of the GPIO pins can be configured by software as output (push-pull or open-drain, with or without pull-up or pull-down), as input (floating, with or without pull-up or pull-down) or as peripheral alternate function. Most of the GPIO pins are shared with digital or analog alternate functions. All GPIOs are high-current-capable and have speed selection to better manage internal noise, power consumption and electromagnetic emission.

DS 1111 8 Rev 6 45/ 2 2 0

Functional overview STM32F479xx

The I/O configuration can be locked if needed by following a specific sequence in order to avoid spurious writing to the I/Os registers.

Fast I/O handling allowing maximum I/O toggling up to 90 MHz.

2.41 Analog-to-digital converters (ADCs)

Three 12-bit analog-to-digital converters are embedded and each ADC shares up to 16 external channels, performing conversions in the single-shot or scan mode. In scan mode, automatic conversion is performed on a selected group of analog inputs.

Additional logic functions embedded in the ADC interface allow:

 Simultaneous sample and hold

 Interleaved sample and hold

The ADC can be served by the DMA controller. An analog watchdog feature allows very precise monitoring of the converted voltage of one, some or all selected channels. An interrupt is generated when the converted voltage is outside the programmed thresholds.

To synchronize A/D conversion and timers, the ADCs could be triggered by any of TIM1, TIM2, TIM3, TIM4, TIM5, or TIM8 timer.

2.42 Temperature sensor

The temperature sensor has to generate a voltage that varies linearly with temperature. The conversion range is between 1.7 V and 3.6 V. The temperature sensor is internally connected to the same input channel as V sensor output voltage into a digital value. When the temperature sensor and V conversion are enabled at the same time, only V

As the offset of the temperature sensor varies from chip to chip due to process variation, the internal temperature sensor is mainly suitable for applications that detect temperature changes instead of absolute temperatures. If an accurate temperature reading is needed, then an external temperature sensor part should be used.

, ADC1_IN18, which is used to convert the

BAT

2.43 Digital-to-analog converter (DAC)

The two 12-bit buffered DAC channels can be used to convert two digital signals into two analog voltage signal outputs.

conversion is performed.

BAT

46 /22 0 DS 1111 8 Rev 6

STM32F479xx Functional overview

This dual digital Interface supports the following features:

 two DAC converters: one for each output channel

 8-bit or 10-bit monotonic output

 left or right data alignment in 12-bit mode

 synchronized update capability

 noise-wave generation

 triangular-wave generation

 dual DAC channel independent or simultaneous conversions

 DMA capability for each channel

 external triggers for conversion

 input voltage reference V

Eight DAC trigger inputs are used in the device. The DAC channels are triggered through the timer update outputs that are also connected to different DMA streams.

REF+

2.44 Serial wire JTAG debug port (SWJ-DP)

The Arm SWJ-DP interface is embedded, and is a combined JTAG and serial wire debug port that enables either a serial wire debug or a JTAG probe to be connected to the target.

Debug is performed using 2 pins only instead of 5 required by the JTAG (JTAG pins could be re-use as GPIO with alternate function): the JTAG TMS and TCK pins are shared with SWDIO and SWCLK, respectively, and a specific sequence on the TMS pin is used to switch between JTAG-DP and SW-DP.

2.45 Embedded Trace Macrocell™

The Arm Embedded Trace Macrocell provides a greater visibility of the instruction and data flow inside the CPU core by streaming compressed data at a very high rate from the STM32F47x through a small number of ETM pins to an external hardware trace port analyzer (TPA) device. The TPA is connected to a host computer using USB, Ethernet, or any other high-speed channel. Real-time instruction and data flow activity can be recorded and then formatted for display on the host computer that runs the debugger software. TPA hardware is commercially available from common development tool vendors.

The Embedded Trace Macrocell operates with third party debugger software tools.

DS 1111 8 Rev 6 47/ 2 2 0

Pinouts and pin description STM32F479xx

MS40560V1

LQFP100

PH1

PC0

PC1

PC2

PC3

VSSA

VREF+

VDDA

PA0

PA1

PA2

PA3

VSS

VDD

PA4

PH0

NRST

PC13

PC15

VDD

PE2

VSS

VBAT

PC14

VSS

89888786858483828180797877

100

37383940414243444546474849

262728

PA5

PA6

PB1

PE8

PE12

PA7

PB0

PE9

PE14

PB11

PB2

PE7

PE15

VCAP1

PB12

PE10

PE11

VSS

PB13

PB15

PE13

PB10

VDD

PB14

PD8

PC6

DSIHOST_D1N

DSIHOST_D1P

VDD12DSI

DSIHOST_CKN

DSIHOST_CKP

VSSDSI

DSIHOST_D0N

DSIHOST_D0P

VCAPDSI

VDDDSI

PD15

PD14

PD10

PD9

PC7

VDDUSB

PA10

PA8

PC8

PA13

PA12

PA11

PA9

PC9

VDD

PB9

PB7

PB4

PD5

PB8

BOOT0

PB3

PD3

PD0

PB6

PB5

PD2

PC12

PA15

PD7

PD6

PC11

PA14

VDD

PD4

PD1

PC10

VSS

VCAP2

3 Pinouts and pin description

Figure 13. STM32F47x LQFP100 pinout

1. The above figure shows the package top view.

48 /22 0 DS 1111 8 Rev 6

STM32F479xx Pinouts and pin description

MS40561V2

LQFP144

PC0

PC2

PC3

VDD

VSSA

VREF+

VDDA

PA0

PA1

PA2

PA3

VSS

VDD

PA4

PA5

NRST

PC1

VSS

PF10

PH1

PF4

PF5

VDD

PH0

135

133

132

131

130

129

128

127

126

125

124

123

122

121

136

134

141

139

137

144

143

142

140

138

49505152535455565758596061

383940

PA7

PC4

PB1

PF12

PF15

PC5

PB0

VDD

PG1

PE9

PB2

PF11

PE7

VSS

PE11

PF13

PF14

VDD

PE12

PE14

PG0

PE8

PE10

PE13

PD9

DSIHOST_D1P

DSIHOST_CKN

DSIHOST_CKP

VSSDSI

DSIHOST_D0N

DSIHOST_D0P

VCAPDSI

VDDDSI

PD15

PD14

VDD

VSS

PD12

PD11

PD10

DSIHOST_D1N

VDD12DSI

PG6

PG4

PG2

VDDUSB

PG8

PG7

PG5

PG3

PE2

VDD

PE0

BOOT0

PB4

PDR_ON

PE1

PB7

PG15

PG12

PB9

PB8

VDD

PG11

PD6

PB6

PB5

PG10

VDD

PD5

PB3

VSS

PG9

VSS

120 PD4

119 PD3

118 PD2

117 PD1

116 PD0

115 PC12

114 PC11

113 PC10

112 PA15

111 PA14

110 VDD

109 VSS

108 VCAP2

104

107

106

105

103

PA10

PA13

PA12

PA11

PA9

9998PC7

PC6

101

100

PC9

PC8

102 PA8

686970

PB13

PB14

PD8

PB15

646566

PB11

VCAP1

PB12

VDD

PE15

PB10

PA6

PF3

PF2

PC13

PC15

PF1

PE6

VBAT

PC14

PF0

3PE5

2PE4

1PE3

Figure 14. STM32F47x LQFP144 pinout

1. The above figure shows the package top view.

DS 1111 8 Rev 6 49/ 2 2 0

Pinouts and pin description STM32F479xx

MSv35729V2

121110987654321

PI7 VDD PE0 PB7 PB3 VDD PG12 PD7 VSS PD1 PA15 PI2

PE5

PI6

VSS

PB8

PB5

VSS

PG11

VDD

PD4

PC11

PI3

PH13

VBAT

PE4

PI5

PE1

PB4

PG10

PD5

PD2

PC12

PI1

VDD

VSS

PC13

PE6

PI4

PDR_

PG15

PG9

PD3

PC10

PA14

PH14

VCAP2

PA13

PC15

PC14

PE3

PB9

PG13

PD6

PD0

PI0

PH15

PA10

PA9

PA8

VSS

PI11

PI10

PE2

BOOT0

PA11

PA12

PC9

PC8

PC6

VSS

VDD USB

PF2

VDD

PF0

PI9

PB6

PC7

PG8

PG2

PG3

PG6

PG4

PG5

PF5

PF3

PF1

NRST

PF15

VSS

PG7

PB12

PD13

DSI

HOST

_D1P

DSI HOST _D1N

VSS DSI

VDD

VSS

PF4

PC0

PA7

PF13

PG0

PE14

PD11

DSI HOST _D0N

DSI HOST _CKN

DSI HOST _CKP

PH1

PH0

PF10

PA1

PH5

PF11

PE9

PB11

PB13

DSI HOST _D0P

VDD12

DSI

VCAP

DSI

PC1

VSSA

PA0

PA2

PA5

PF14

PE13

PH9

PD8

PD14

PD15

VDD

DSI

VDDA

PH2

PH4

PA4

PF12

PE8

PE12

PH8

PH10

PD10

PD12

VSS

PH3

VSS

PA3

PB1

VSS

PE7

PE11

VCAP1

PH11

PB15

PD9

PB10

VDD

PA6

PB0

PB2

VDD

PG1

PE10

PE15

VSS

VDD

PH12

PB14

Figure 15. STM32F47x WLCSP168 pinout

1. The above figure shows the package bottom view.

50 /22 0 DS 1111 8 Rev 6

STM32F479xx Pinouts and pin description

MSv35730V2

PI6 PA11

PI5 BOOT0 PG12 PC12 PG13

PD7

PA14PE1 PE0 PA13 PA12

PI7 PI0

PE2 PB3 PD5 PC11PG11 PD2 PAI3PI4 PB7 PA15 PI2

PE3 PH14

PE4 PB6 PD1 PD0PD4 PD3 PC10

PDR_

PB9 PI1 PH15

PE5 PG8

PE6 PB5 PD6 PH13PB4 PA8 VDDVDD PB8 VSS VCAP2

PC14 PG4

PI9 VBAT PG10 PA10PG9 PA9 PC8VSS PI10 PG7 PG5

PC15 PG2

PI11 VSS VDD PC6PG15

VSS

PC7PF0 VDD PG6 PG3

PH1

DSI

HOST_

D1N

PH0 PF2 VSS VSSPE8

VDD

PC9PF1 PC13

VDD

USB

DSI

HOST_

D1P

DSI_

HOST

CKN

NRST

PF14

PE10 PH9PE9

PH8

PH12

PF5

PF3

VSSDSI

DSI

HOST_

CKP

PF10

VSS

DSI

HOST_

D0N

VSSA PA0 VSS PH10VSS

PE13

VSSVDDA VDD

VDD12

DSI

HOST_

D0P

PA1

VDD

DSI

PA2 PB1 PE11 PH11VDD

PE14

VDDPA3 PA7 VSSDSI

VCAP

DSI

PH3 PD15

PH2 PB2 PE12 VDDVDD

PE15

PD8PH5 PF4 PD10 PD14

PC1 PB15

PA4 PF12 PE7 VCAP1PG0

PB11

PB12PA6 PB0 PB13 PB14

PC0 PD12

PH4 PF11 PG1 VSSPF15

PB10

PD9PA5 PF13 PD11 PD13

12345678910111213

Figure 16. STM32F47x UFBGA169 ballout

1. The above figure shows the package top view.

DS 1111 8 Rev 6 51/ 2 2 0

Pinouts and pin description STM32F479xx

MS39400V2

123 910 11121314 15

APE3PE2

PE 1 P E 0 P B 8

PB5

PG14 PG13 PB4 PB3 PD7 PC12 PA15 PA14 PA13

BPE4PE5

PE6

PB9 PB7 PB6

PG15 PG 12 PG 11 PG 10 PD6 P D0 PC 11 PC10 P A12

VBAT

PI7 PI6 PI5

PDR _ON

PG9 PD5 PD1 P I3

PC13

PI8

PI9 PI4

BOOT0

VSS VSS VSS PD4 PD3 PD2

PI1

PA10

PC14

P F0 PI10

PI11

DSI

HOST_

D1P

PI0 PA 9

FPC15

VSS

VDD

PH2

V SS VCAP2 P C 9 PA 8

PH0 VSS VDD PH3

VSS VDD PC8 PC7

PH1

PF2

PF1

PH4

VSS

DSI

VDD_

USB

PG8 PC 6

NRST

PF3 PH5

PG7 PG 6

PF7

PF6

PF4

VDD

VSS

PG5 PG4 PG3

PF10

BYPASS

_REG

PG2

MVSSAPC0

PF8

PC1 P C 2 P C 3

PB2

PG1

VCAP

PH6

PD14

NVREF-

PA0

PA4

PC4

PF13

P G 0 VDD V DD V DD P H 7 P D 12 P D 1 1 P D 10

P A2 PA6 P A5

PC5

PF12

PF15 PE8 PE 9 PE11 PB 12 PB 13 PD9 PD 8

PA3

PB1

PF11

PE7

PE12

P B 11 P B 14 P B 15

VSS

45678

PA1

VDD12

DSI

HOST_

D1N

VDD

DSI

VCAP

DSI

HOST_

CKP

DSI

HOST_

D0P

DSI

HOST_

D0N

DSI

HOST_

CKN

VDD

VREF+

VDDA

PA7

PB0

PF14

PE10

VSS VSS VSS VSS

VSSVSSVSS VSS VSS

VSS VSS

PF9

PF5

PD13

PD15

VDD PA11

PE13

PE14

PE15 PB10

Figure 17. STM32F47x UFBGA176 ballout

1. The above figure shows the package top view.

52 /22 0 DS 1111 8 Rev 6

STM32F479xx Pinouts and pin description

MS33870V4

PDR_ON

VDD

PE1

PE0

PB9

PB8

BOOT0

PB7

PB6

PB5

PB4

PB3

PG15

VDD

VSS

PG14

PG13

PG12

PG11

PG10

PG9

PD7

PD6

VDD

VSS

PD5

PD4

PD3

PD2

PD1

PD0

PC12

PC11

PC10

PI7

PI6

PE2

PA12

PE3

PA11

PE4 PE5

PA9

PE6

PA8

VBAT

PC9

PI8

PC8

PC14

PC7

PC15

PC6

PF0

VDDUSB

PF1

VSS

PF2

PG8

PF3

PG7

PF4

PG6

PF5

PG5 PG4 PG3

PF6

PG2

PF7

VSSDSI

PF8

DSIHOST_D1N

PF9

DSIHOST_D1P

PF10

VDD12DSI

PH0

DSIHOST_CKN

PH1

DSIHOST_CKP

NRST

VSSDSI

PC0

DSIHOST_D0N

PC1

DSIHOST_D0P

PC2

VCAPDSI

PC3

VDDDSI PD15 PD14

VREF+

VDD VSS

PA0

PD13

PA1

PD12

PA2

PD11

PA3

BYPASS_REG

PA4

PA5

PA6

PA7

PC4

PC5

PB0

PB1

PB2

PF11

PF12

VSS

PF13

PF14

PF15

PG0

PG1

PE7

PE8

PE9

PE10

PE11

PE12

PE13

PE14

PE15

PB10

PB11

VCAP_1

176

175

174

173

172

171

170

169

168

167

166

165

164

163

162

161

160

159

158

157

156

155

154

153

141 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108

4546474849505152535455565758596061626364656667

LQFP176

152

151

150

149

148

147

146

145

144

143

142

6970717273747576777879

26 27 28 29 30 31 32 33 34 35 36

107 106 105 104 103 102 101 100

99 98

PA10

PI4

PA15

PA14

VDD

VSS

PI3

PI1

PI5

140

139

138

137

136

135

134

133

PH4

PH5

PH6

PH7

PB12

PB13

PB14

PB15

81828384858687

PI0 VDD VSS VCAP2 PA13

PD10 PD9 PD8

96 95 94 93 92 91 90

97 37 38 39 40 41 42 43 44

PC13

PI9 PI10 PI11 VSS

PH2 PH3

VDD

VSS

VDD

VSSA

VDDA

VDD

VSS

VDD

Figure 18. STM32F47x LQFP176 pinout

1. The above figure shows the package top view.

DS 1111 8 Rev 6 53/ 2 2 0

Pinouts and pin description STM32F479xx

MSv33876V5

LQFP208

PI7

PI6

PI5

PI4

VDD

PDR_ON

VSS

PE1

PE0

PB9

PB8

BOOT0

PB7

PB6

PB5

PB4

PB3

PG15

PK7

PK6

PK5

PK4

PK3

VDD

VSS

PG14

PG13

PG12

PG11

PG10

PG9

PJ15

PJ14

PJ13

PJ12

PD7

PD6

VDD

VSS

PD5

PD4

PD3

PD2

PD1

PD0

PC12

PC11

PC10

PA15

PA14

VDD

PI3

208

207

206

205

204

203

202

201

200

199

198

197

196

195

194

193

192

191

190

189

188

187

186

185

184

183

182

181

180

179

178

177

176

175

174

173

172

171

170

169

168

167

166

165

164

163

162

161

160

159

158

157

PE2

156

PI2

PE3 2 155

PI1

PE4 3 154

PI0

PE5 4 153

PH15

PE6 5 152

PH14

VBAT 6 151

PH13

PI8 7 150

VDD

PC13 8 149

VSS

PC14 9 148

VCAP2

PC15 10 147

PA13

PI9 11 146

PA12

PI10 12 145

PA11

PI11 13 144

PA10

VSS 14 143

PA9

VDD 15 142

PA8

PF0 16 141

PC9

PF1 17 140

PC8

PF2 18 139

PC7

PI12 19 138

PC6

PI13 20 137

VDDUSB

PI14 21 136

VSS

PF3 22 135

PG8

PF4 23 134

PG7

PF5 24 133

PG6

VSS 25 132

PG5

VDD 26 131

PG4

PF6 27 130

PG3

PF7 28 129

PG2

PF8 29 128

VSSDSI

PF9 30 127

DSIHOST_D1N

PF10 31 126

DSIHOST_D1P

PH0 32 125

VDD12DSI

PH1 33 124

DSIHOST_CKN

NRST 34

123

DSIHOST_CKP

PC0 35 122

VSSDSI

PC1 36 121

DSIHOST_D0N

PC2 37 120

DSIHOST_D0P

PC3 38 119

VCAPDSI

VDD 39 11 8

VDDDSI

VSSA 40 11 7

PD15

VREF+ 41 116

PD14

VDDA 42 11 5

VDD

PA0 43 11 4

VSS

PA1 44 11 3

PD13

PA2 45 11 2

PD12

PH2 46 111

PD11

PH3 47 11 0

PD10

PH4 48 109

PD9

PH5 49 108

PD8

PA3 50 107

PB15

VSS 51 106

PB14

VDD

105 PB13

5354555657585960616263646566676869707172737475767778798081828384858687888990919293949596979899

100

101

102

103

104

PA4

PA5

PA6

PA7

PC4

PC5

VDD

VSS

PB0

PB1

PB2

PI15

PJ0

PJ1

PJ2

PJ3

PJ4

PF11

PF12

VSS

VDD

PF13

PF14

PF15

PG0

PG1

PE7

PE8

PE9

VSS

VDD

PE10

PE11

PE12

PE13

PE14

PE15

PB10

PB11

VCAP1

VSS

VDD

PJ5

PH6

PH7

PH8

PH9

PH10

PH11

PH12

VDD

PB12

Figure 19. STM32F47x LQFP208 pinout

54 /22 0 DS 1111 8 Rev 6

1. The above figure shows the package top view.

STM32F479xx Pinouts and pin description

MSv33871V4

123 4 5678 910 1112131415

PG14

PE1

PE0

PB8

PB5

PB4

PB3

PD7

PC12 PA15

PA14 PA13

PE5 PE6 PG13 PB9

PB7

PB6

PG15

PG11 PJ13

PJ12 PD6

PD0

PC11 PC10

PA12

VBAT PI8

PI4

PK7 PK6 PK5

PG12

PG10 PJ14 PD5

PD1

PI3

PI2

PA11

PC13 PF0 PI5 PI7 PI10 PI6 PK4 PK3 PG9 PJ15 PD4 PD2 PH15 PI1 PA10

PC14 PF1 PI12 PI9 BOOT0 VDD

VDD

VDD VDD

VCAP2

PH13

PH14 PI0 PA9

PC15 VSS PI11

VDD

PC9

PA8

PH0

PF2

PI13

PI15

VDD

PC8 PC7

PH1 PI14

PH4

VSS PG8

PC6

NRST PF4 PH5

PH3

VSS

VDD

PG7

PG6

PF7

PF6

PF5

PH2

VDD

VSS

VSS VSS VSS VSS VDD

PD15

PB13

PD10

PF10

PC3

BYPASS-

REG

PB12

PD9 PD8

VSSA

PG1

PD12 PD13 PG3 PG2 PJ5 PH12

VREF- PA1

PA0

PA4

PC4

PF13

PG0 PJ3

PE8

PD11 PG5

PG4

PH7

PH9

PH11

VREF+

PA2

PA6 PA5 PC5 PF14 PJ2 PF11 PE9

PE11

PE14

PB10 PH6 PH8 PH10

PA3 PA7 PB1

PB0 PJ0

PJ1

PE7 PE10 PE12

PE15 PE13

PB11 PB14

PB15

PF3

VDDA

VDD

DSI

HOST_

CKP

VDDD

USB

VSS

DSI

VDD12

DSI

HOST_

CKN

DSI

HOST_

D0P

PDR

VCAP

DSI

HOST_

D0N

DSI

HOST_

D1P

DSI

HOST_

D1N

PE4

PE3

PE2

VDD

VSS

VSS VSS VSS VSS VSS

VSS

VDD

PJ4PF15

VDD VDD VDD VCAP1 PD14

VDD

PF8

PF9

PC0

PC1 PC2 PB2 PF12

VDD

VSS

PD3

Figure 20. STM32F47x TFBGA216 ballout

1. The above figure shows the package top view.

DS 1111 8 Rev 6 55/ 2 2 0

Pinouts and pin description STM32F479xx

Table 9. Legend/abbreviations used in the pinout table

Name Abbreviation Definition

Pin name

Unless otherwise specified in brackets below the pin name, the pin function during and after reset is the same as the actual pin name

S Supply pin

Pin type

I Input only pin

I/O Input / output pin

FT 5 V tolerant I/O

TTa 3.3 V tolerant I/O directly connected to analog parts

I/O structure

B Dedicated BOOT0 pin

RST Bidirectional reset pin with weak pull-up resistor

Notes Unless otherwise specified by a note, all I/Os are set as floating inputs during and after reset

Alternate functions

Additional

functions

Functions selected through GPIOx_AFR registers

Functions directly selected/enabled through peripheral registers

56 /22 0 DS 1111 8 Rev 6

STM32F479xx Pinouts and pin description

Table 10. STM32F479xx pin and ball definitions

Pin number

LQFP100

LQFP144

UFBGA169

UFBGA176

WLCSP168

LQFP176

LQFP208

Pin name

(function after

reset)

TFBGA216

(1)

Pin types

Alternate functions

Notes

I/O structures

Additional

functions

TRACECLK, SPI4_SCK,

SAI1_MCLK_A,

1 144 B2 F9 A2 1 1 A3 PE2 I/O FT -

QUADSPI_BK1_IO2,

ETH_MII_TXD3, FMC_A23,

EVENTOUT

1 C1 E10 A1 2 2 A2 PE3 I/O FT -

(2)

TRACED0, SAI1_SD_B,

FMC_A19, EVENTOUT

TRACED1, SPI4_NSS,

2 C2 C11 B1 3 3 A1 PE4 I/O FT -

(2)

SAI1_FS_A, FMC_A20,

DCMI_D4, LCD_B0,

EVENTOUT

TRACED2, TIM9_CH1,

3 D1 B12 B2 4 4 B1 PE5 I/O FT -

(2)

SPI4_MISO, SAI1_SCK_A,

FMC_A21, DCMI_D6,

LCD_G0, EVENTOUT

TRACED3, TIM9_CH2,

4 D2 D11 B3 5 5 B2 PE6 I/O FT -

(2)

SPI4_MOSI, SAI1_SD_A,

FMC_A22, DCMI_D7,

LCD_G1, EVENTOUT

2------G6 VSS S-- - -

--- - ---F5 VDD S-- - -

3 5 E5 C12 C1 6 6 C1 VBAT S - - - -

- - - - D2 7 7 C2 PI8 I/O FT

(3)

(4)

EVENTOUT

RTC_TAMP1/ RTC_TAMP2/

RTC_TS

RTC_TAMP1/

RTC_TS/

4 6G4D12D18 8D1 PC13 I/OFT

(3)

(4)

EVENTOUT

RTC_OUT

5 7 E1 E11 E1 9 9 E1

68F1E12F11010F1

PC14-OSC32_IN

(PC14)

PC15-

OSC32_OUT

I/O FT

(3)

(4)

(3)

(4)

EVENTOUT OSC32_IN

EVENTOUT OSC32_OUT

(PC15)

--- - ---G5 VDD S-- - -

- - E2 G9 D3 11 11 E4 PI9 I/O FT

CAN1_RX, FMC_D30,

LCD_VSYNC, EVENTOUT

ETH_MII_RX_ER,

- - E4 F10 E3 12 12 D5 PI10 I/O FT

FMC_D31, LCD_HSYNC,

EVENTOUT

LCD_G6,

- - F2 F11 E4 13 13 F3 PI11 I/O FT

OTG_HS_ULPI_DIR,

EVENTOUT

- - F5 F12 F2 14 14 F2 VSS S - - - -

--F4G11F31515F4 VDD S-- - -

DS 1111 8 Rev 6 57/ 2 2 0

Pinouts and pin description STM32F479xx

Table 10. STM32F479xx pin and ball definitions (continued)

Pin number

Pin name

(function after

LQFP100

LQFP144

UFBGA169

WLCSP168

UFBGA176

LQFP176

LQFP208

TFBGA216

reset)

(1)

Pin types

- 9 F3 G10 E2 16 16 D2 PF0 I/O FT

- 10 G3 H10 H3 17 17 E2 PF1 I/O FT

- 11 G5 G12 H2 18 18 G2 PF2 I/O FT

I/O structures

Alternate functions

Notes

I2C2_SDA, FMC_A0,

EVENTOUT

I2C2_SCL, FMC_A1,

EVENTOUT

I2C2_SMBA, FMC_A2,

EVENTOUT

- - - - - - 19 E3 PI12 I/O FT LCD_HSYNC, EVENTOUT -

- - - - - - 20 G3 PI13 I/O FT LCD_VSYNC, EVENTOUT -

- - - - - - 21 H3 PI14 I/O FT LCD_CLK, EVENTOUT -

- 12 H4 H11 J2 19 22 H2 PF3 I/O FT

- 13 L4 J10 J3 20 23 J2 PF4 I/O FT

- 14 H3 H12 K3 21 24 K3 PF5 I/O FT

(5)

FMC_A3, EVENTOUT ADC3_IN9

(5)

FMC_A4, EVENTOUT ADC3_IN14

(5)

FMC_A5, EVENTOUT ADC3_IN15

7 15 G7 J11 G2 22 25 H6 VSS S - - - -

8 16 G8 J12 G3 23 26 H5 VDD S - - - -

TIM10_CH1, SPI5_NSS,

SAI1_SD_B, UART7_Rx,

- - - - K2 24 27 K2 PF6 I/O FT

(5)

QUADSPI_BK1_IO3,

EVENTOUT

TIM11_CH1, SPI5_SCK,

SAI1_MCLK_B, UART7_Tx,

- - - - K1 25 28 K1 PF7 I/O FT

(5)

QUADSPI_BK1_IO2,

EVENTOUT

SPI5_MISO, SAI1_SCK_B,

- - - - L3 26 29 L3 PF8 I/O FT

(5)

TIM13_CH1,

QUADSPI_BK1_IO0,

EVENTOUT

SPI5_MOSI, SAI1_FS_B,

- - - - L2 27 30 L2 PF9 I/O FT

(5)

TIM14_CH1,

QUADSPI_BK1_IO1,

EVENTOUT

QUADSPI_CLK,

DCMI_D11, LCD_DE,

- 17 H1 K10 L1 28 31 L1 PF10 I/O FT

(5)

EVENTOUT

9 18 G2 K11 G1 29 32 G1

10 19 G1 K12 H1 30 33 H1

PH0-OSC_IN

(PH0)

PH1-OSC_OUT

(PH1)

I/O FT - EVENTOUT OSC_IN

I/O FT - EVENTOUT OSC_OUT

11 20 H2 H9 J1 31 34 J1 NRST I/O RST -

OTG_HS_ULPI_STP,

12 21 M1 J9 M2 32 35 M2 PC0 I/O FT

(5)

FMC_SDNWE, LCD_R5,

EVENTOUT

Additional

functions

ADC3_IN4

ADC3_IN5

ADC3_IN6

ADC3_IN7

ADC3_IN8

ADC123_

IN10

58 /22 0 DS 1111 8 Rev 6

STM32F479xx Pinouts and pin description

Table 10. STM32F479xx pin and ball definitions (continued)

Pin number

Pin name

(function after

LQFP100

LQFP144

UFBGA169

WLCSP168

UFBGA176

LQFP176

LQFP208

TFBGA216

reset)

(1)

Pin types

I/O structures

Alternate functions

Notes

TRACED0,

SPI2_MOSI/I2S2_SD,

13 22 N1 L12 M3 33 36 M3 PC1 I/O FT

(5)

SAI1_SD_A, ETH_MDC,

EVENTOUT

SPI2_MISO, I2S2ext_SD,

OTG_HS_ULPI_DIR,

14 23 - - M4 34 37 M4 PC2 I/O FT

(5)

ETH_MII_TXD2,

FMC_SDNE0, EVENTOUT

SPI2_MOSI/I2S2_SD, OTG_HS_ULPI_NXT,

15 24 - - M5 35 38 L4 PC3 I/O FT

(5)

ETH_MII_TX_CLK,

FMC_SDCKE0,

EVENTOUT

- 25 - - - 36 39 J5 VDD S - - - -

--- - ---J6 VSS S-- - -

16 26 J2 L11 M1 37 40 M1 VSSA S - - - -

--- -N1--N1 VREF- S-- - -

17 27 - - P1 38 41 P1 VREF+ S - - - -

18 28 J3 M12 R1 39 42 R1 VDDA S - - - -

TIM2_CH1/TIM2_ETR,

TIM5_CH1, TIM8_ETR,

19 29 J5 L10 N3 40 43 N3 PA0-WKUP(PA0) I/O FT

(6)

USART2_CTS, UART4_TX,

ETH_MII_CRS,

EVENTOUT

TIM2_CH2, TIM5_CH2,

USART2_RTS, UART4_RX,

QUADSPI_BK1_IO3,

20 30 K1 K9 N2 41 44 N2 PA1 I/O FT

(5)

ETH_MII_RX_CLK/ETH_R

MII_REF_CLK, LCD_R2,

EVENTOUT

TIM2_CH3, TIM5_CH3,

TIM9_CH1, USART2_TX,

21 31 K2 L9 P2 42 45 P2 PA2 I/O FT

(5)

ETH_MDIO, LCD_R1,

EVENTOUT

QUADSPI_BK2_IO0,

- - L2 M11 F4 43 46 K4 PH2 I/O FT -

ETH_MII_CRS,

FMC_SDCKE0, LCD_R0,

EVENTOUT

QUADSPI_BK2_IO1,

- - L1 N12 G4 44 47 J4 PH3 I/O FT -

ETH_MII_COL,

FMC_SDNE0, LCD_R1,

EVENTOUT

I2C2_SCL, LCD_G5,

- - M2 M10 H4 45 48 H4 PH4 I/O FT -

OTG_HS_ULPI_NXT,

LCD_G4, EVENTOUT

Additional

functions

ADC123_

IN11

ADC123_

IN12

ADC123_

IN13

ADC123_IN0,

WKUP

ADC123_IN1

ADC123_IN2

DS 1111 8 Rev 6 59/ 2 2 0

Pinouts and pin description STM32F479xx

Table 10. STM32F479xx pin and ball definitions (continued)

Pin number

Pin name

(function after

LQFP100

LQFP144

UFBGA169

WLCSP168

UFBGA176

LQFP176

LQFP208

TFBGA216

reset)

(1)

Pin types

I/O structures

- - L3 K8 J4 46 49 J3 PH5 I/O FT -

Alternate functions

Notes

I2C2_SDA, SPI5_NSS,

FMC_SDNWE, EVENTOUT

TIM2_CH4, TIM5_CH4,

TIM9_CH2, USART2_RX,

22 32 K3 N10 R2 47 50 R2 PA3 I/O FT

(5)

LCD_B2,

OTG_HS_ULPI_D0,

ETH_MII_COL, LCD_B5,

EVENTOUT

23 33 J1 N11 - - 51 K6 VSS S - - - -

- - - - L4 48 - L5 BYPASS_REG I FT - - -

24 34 J4 P12 K4 49 52 K5 VDD S - - - -

SPI1_NSS,

SPI3_NSS/I2S3_WS,

25 35 N2 M9 N4 50 53 N4 PA4 I/O TTa -

USART2_CK, OTG_HS_SOF, DCMI_HSYNC,

LCD_VSYNC, EVENTOUT

TIM2_CH1/TIM2_ETR,

26 36 M3 L8 P4 51 54 P4 PA5 I/O TTa -

TIM8_CH1N, SPI1_SCK,

OTG_HS_ULPI_CK,

LCD_R4, EVENTOUT

TIM1_BKIN, TIM3_CH1,

TIM8_BKIN, SPI1_MISO,

27 37 N3 P11 P3 52 55 P3 PA6 I/O FT

(5)

TIM13_CH1,

DCMI_PIXCLK, LCD_G2,

EVENTOUT

TIM1_CH1N, TIM3_CH2,

TIM8_CH1N, SPI1_MOSI,

28 38 K4 J8 R3 53 56 R3 PA7 I/O FT

(5)

TIM14_CH1,

QUADSPI_CLK,

ETH_MII_RX_DV/ETH_RMI

I_CRS_DV, FMC_SDNWE,

EVENTOUT

39 - - N5 54 57 N5 PC4 I/O FT

(2)

ETH_MII_RXD0/ETH_RMII

(5)

_RXD0, FMC_SDNE0,

EVENTOUT

40 - - P5 55 58 P5 PC5 I/O FT

(2)

ETH_MII_RXD1/ETH_RMII

(5)

_RXD1, FMC_SDCKE0,

EVENTOUT

------59L7 VDD S-- - -

------60L6 VSS S-- - -

TIM1_CH2N, TIM3_CH3,

TIM8_CH2N, LCD_R3,

(5)

29 41 N4 P10 R5 56 61 R5 PB0 I/O FT

OTG_HS_ULPI_D1,

ETH_MII_RXD2, LCD_G1,

EVENTOUT

Additional

functions

ADC123_IN3

ADC12_IN4, DAC_OUT1

ADC12_IN5, DAC_OUT2

ADC12_IN6

ADC12_IN7

ADC12_IN14

ADC12_IN15

ADC12_IN8

60 /22 0 DS 1111 8 Rev 6

STM32F479xx Pinouts and pin description

Table 10. STM32F479xx pin and ball definitions (continued)

Pin number

Pin name

(function after

LQFP100

LQFP144

UFBGA169

WLCSP168

30 42 K5 N9 R4 57 62 R4 PB1 I/O FT

31 43 L5 P9 M6 58 63 M5

- - - - - - 64 G4 PI15 I/O FT -

------65R6 PJ0 I/OFT-

- - - - - - 66 R7 PJ1 I/O FT - LCD_R2, EVENTOUT -

------67P7 PJ2 I/OFT-

- - - - - - 68 N8 PJ3 I/O FT - LCD_R4, EVENTOUT -

- - - - - - 69 M9 PJ4 I/O FT - LCD_R5, EVENTOUT -

- 44M5K7R65970P8 PF11 I/OFT -

- 45 N5 M8 P6 60 71 M6 PF12 I/O FT - FMC_A6, EVENTOUT -

- - J6 N8 M8 61 72 K7 VSS S - - - -

- 46K6P8N86273L8 VDD S - - - -

- 47M4J7N66374N6 PF13 I/OFT - FMC_A7, EVENTOUT -

- 48H5L7R76475P6 PF14 I/OFT - FMC_A8, EVENTOUT -

- 49M6H8P7 65 76M8 PF15 I/OFT - FMC_A9, EVENTOUT -

- 50N6J6N76677N7 PG0 I/OFT - FMC_A10, EVENTOUT -

- 51M7P7M767 78M7 PG1 I/OFT - FMC_A11, EVENTOUT -

32 52 N7 N7 R8 68 79 R8 PE7 I/O FT -

33 53 G6 M7 P8 69 80 N9 PE8 I/O FT -

34 54 H6 K6 P9 70 81 P9 PE9 I/O FT -

- 55 J7 - M9 71 82 K8 VSS S - - - -

- 56 L6 - N9 72 83 L9 VDD S - - - -

35 57 H7 P6 R9 73 84 R9 PE10 I/O FT -

UFBGA176

LQFP176

LQFP208

TFBGA216

BOOT1(PB2)

reset)

PB2-

(1)

Pin types

I/O structures

I/O FT - EVENTOUT -

Alternate functions

Notes

TIM1_CH3N, TIM3_CH4,

TIM8_CH3N, LCD_R6,

(5)

OTG_HS_ULPI_D2,

ETH_MII_RXD3, LCD_G0,

EVENTOUT

LCD_G2, LCD_R0,

EVENTOUT

LCD_R7, LCD_R1,

EVENTOUT

DSIHOST_TE, LCD_R3,

EVENTOUT

SPI5_MOSI,

FMC_SDNRAS,

DCMI_D12, EVENTOUT

TIM1_ETR, UART7_Rx,

QUADSPI_BK2_IO0,

FMC_D4, EVENTOUT

TIM1_CH1N, UART7_Tx,

QUADSPI_BK2_IO1,

FMC_D5, EVENTOUT

TIM1_CH1,

QUADSPI_BK2_IO2,

FMC_D6, EVENTOUT

TIM1_CH2N,

QUADSPI_BK2_IO3,

FMC_D7, EVENTOUT

Additional

functions

ADC12_IN9

DS 1111 8 Rev 6 61/ 2 2 0

Pinouts and pin description STM32F479xx

Table 10. STM32F479xx pin and ball definitions (continued)

Pin number

Pin name

(function after

LQFP100

LQFP144

UFBGA169

WLCSP168

36 58 K7 N6 P10 74 85 P10 PE11 I/O FT -

37 59 L7 M6 R10 75 86 R10 PE12 I/O FT -

38 60 J8 L6 N11 76 87 R12 PE13 I/O FT -

39 61 K8 J5 P11 77 88 P11 PE14 I/O FT -

40 62 L8 P5 R11 78 89 R11 PE15 I/O FT -

41 63 M8 N5 R12 79 90 P12 PB10 I/O FT -

42 64 N8 K5 R13 80 91 R13 PB11 I/O FT -

43 65 N9 N4 M10 81 92 L11 VCAP1 S - - - -

44 - M9 P4 - - 93 K9 VSS S - - - -

45 66 L9 P3 N10 82 94 L10 VDD S - - - -

- - - - - - 95 M14 PJ5 I/O FT - LCD_R6, EVENTOUT -

- - - - M11 83 96 P13 PH6 I/O FT -

- - - - N12 84 97 N13 PH7 I/O FT -

- - H8 M5 - - 98 P14 PH8 I/O FT -

- - H9 L5 - - 99 N14 PH9 I/O FT -

UFBGA176

LQFP176

LQFP208

TFBGA216

reset)

(1)

Pin types

I/O structures

Alternate functions

Notes

TIM1_CH2, SPI4_NSS,

FMC_D8, LCD_G3,

EVENTOUT

TIM1_CH3N, SPI4_SCK,

FMC_D9, LCD_B4,

EVENTOUT

TIM1_CH3, SPI4_MISO,

FMC_D10, LCD_DE,

EVENTOUT

TIM1_CH4, SPI4_MOSI,

FMC_D11, LCD_CLK,

EVENTOUT

TIM1_BKIN, FMC_D12,

LCD_R7, EVENTOUT

TIM2_CH3, I2C2_SCL,

SPI2_SCK/I2S2_CK,

USART3_TX,

QUADSPI_BK1_NCS,

OTG_HS_ULPI_D3,

ETH_MII_RX_ER, LCD_G4,

EVENTOUT

TIM2_CH4, I2C2_SDA,

USART3_RX,

OTG_HS_ULPI_D4,

ETH_MII_TX_EN/ETH_RMI

I_TX_EN, DSIHOST_TE,

LCD_G5, EVENTOUT

I2C2_SMBA, SPI5_SCK,

TIM12_CH1,

ETH_MII_RXD2,

FMC_SDNE1, DCMI_D8,

EVENTOUT

I2C3_SCL, SPI5_MISO,

ETH_MII_RXD3,

FMC_SDCKE1, DCMI_D9,

EVENTOUT

I2C3_SDA, FMC_D16,

DCMI_HSYNC, LCD_R2,

EVENTOUT

I2C3_SMBA, TIM12_CH2,

FMC_D17, DCMI_D0, LCD_R3, EVENTOUT

Additional

functions

62 /22 0 DS 1111 8 Rev 6

STM32F479xx Pinouts and pin description

Table 10. STM32F479xx pin and ball definitions (continued)

Pin number

Pin name

(function after

LQFP100

LQFP144

UFBGA169

WLCSP168

- - J9 M4 - - 100 P15 PH10 I/O FT -

- - K9 N3 - - 101 N15 PH11 I/O FT -

- - H10 P2 - - 102 M15 PH12 I/O FT -

---H7---K10 VSS S-- - -

-66----103K11 VDD S-- - -

46 67 N10 H5 P12 85 104 L13 PB12 I/O FT -

47 68 N11 K4 P13 86 105 K14 PB13 I/O FT -

48 69 N12 P1 R14 87 106 R14 PB14 I/O FT -

49 70 N13 N2 R15 88 107 R15 PB15 I/O FT -

50 71 L10 L4 P15 89 108 L15 PD8 I/O FT -

51 72 M10 N1 P14 90 109 L14 PD9 I/O FT -

52 73 L11 M3 N15 91 110 K15 PD10 I/O FT -

- 74 M11 J4 N14 92 111 N10 PD11 I/O FT -

UFBGA176

LQFP176

LQFP208

TFBGA216

reset)

(1)

Pin types

I/O structures

Alternate functions

Notes

TIM5_CH1, FMC_D18,

DCMI_D1, LCD_R4,

EVENTOUT

TIM5_CH2, FMC_D19,

DCMI_D2, LCD_R5,

EVENTOUT

TIM5_CH3, FMC_D20,

DCMI_D3, LCD_R6,

EVENTOUT

TIM1_BKIN, I2C2_SMBA,

SPI2_NSS/I2S2_WS,

USART3_CK, CAN2_RX,

OTG_HS_ULPI_D5,

ETH_MII_TXD0/ETH_RMII

_TXD0, OTG_HS_ID,

EVENTOUT

TIM1_CH1N,

SPI2_SCK/I2S2_CK,

USART3_CTS, CAN2_TX,

OTG_HS_ULPI_D6,

ETH_MII_TXD1/ETH_RMII

_TXD1, EVENTOUT

TIM1_CH2N, TIM8_CH2N,

SPI2_MISO, I2S2ext_SD,

USART3_RTS,

TIM12_CH1, OTG_HS_DM,

EVENTOUT

RTC_REFIN, TIM1_CH3N,

TIM8_CH3N,

SPI2_MOSI/I2S2_SD,

TIM12_CH2, OTG_HS_DP,

EVENTOUT

USART3_TX, FMC_D13,

EVENTOUT

USART3_RX, FMC_D14,

EVENTOUT

USART3_CK, FMC_D15,

LCD_B3, EVENTOUT

USART3_CTS,

QUADSPI_BK1_IO0,

FMC_A16/FMC_CLE,

EVENTOUT

Additional

functions

OTG_HS_

VBUS

DS 1111 8 Rev 6 63/ 2 2 0

Pinouts and pin description STM32F479xx

Table 10. STM32F479xx pin and ball definitions (continued)

Pin number

Pin name

(function after

LQFP100

LQFP144

UFBGA169

WLCSP168

- 75 M13 M2 N13 93 112 M10 PD12 I/O FT -

- - M12 H4 M15 94 113 M11 PD13 I/O FT -

- 76 J10 M1 - 95 114 J10 VSS S - - - -

- 77 K10 - J13 96 115 J11 VDD S - - - -

53 78 L12 L3 M14 97 116 L12 PD14 I/O FT -

54 79 L13 L2 L14 98 117 K13 PD15 I/O FT -

55 80 K13 L1 J12 99 118 H11 VDDDSI S - - - -

--- - ---H10 VSS S-- - -

56 81 K12 K1 K12 100 119 K12 VCAPDSI S - - - -

- - - K2 D13 - - G13 VDD12DSI S - - - -

57 82 J12 K3 M12 101 120 J12 DSIHOST_D0P I/O - - - -

58 83 J13 J3 M13 102 121 J13 DSIHOST_D0N I/O - - - -

59 84 K11 H1 H12 103 122 G12 VSSDSI S - - - -

60 85 H12 J1 L12 104 123 H12 DSIHOST_CKP I/O - - - -

61 86 H13 J2 L13 105 124 H13 DSIHOST_CKN I/O - - - -

62 87 J11 - D13 106 125 - VDD12DSI S - - - -

63 88 G12 H3 E12 107 126 F12 DSIHOST_D1P I/O - - - -

64 89 G13 H2 E13 108 127 F13 DSIHOST_D1N I/O - - - -

- - H11 - H12 109 128 - VSSDSI S - - - -

- 90 F13 G5 L15 110 129 M13 PG2 I/O FT - FMC_A12, EVENTOUT -

- 91 F12 G4 K15 111 130 M12 PG3 I/O FT - FMC_A13, EVENTOUT -

- 92 E13 G2 K14 112 131 N12 PG4 I/O FT -

- 93 E12 G1 K13 113 132 N11 PG5 I/O FT -

- 94 F11 G3 J15 114 133 J15 PG6 I/O FT -

- 95 E11 H6 J14 115 134 J14 PG7 I/O FT -

UFBGA176

LQFP176

LQFP208

TFBGA216

reset)

(1)

Pin types

I/O structures

Alternate functions

Notes

TIM4_CH1, USART3_RTS,

QUADSPI_BK1_IO1,

FMC_A17/FMC_ALE,

EVENTOUT

TIM4_CH2,

QUADSPI_BK1_IO3,

FMC_A18, EVENTOUT

TIM4_CH3, FMC_D0,

EVENTOUT

TIM4_CH4, FMC_D1,

EVENTOUT

FMC_A14/FMC_BA0,

EVENTOUT

FMC_A15/FMC_BA1,

EVENTOUT

DCMI_D12, LCD_R7,

EVENTOUT

SAI1_MCLK_A,

USART6_CK, FMC_INT,

DCMI_D13, LCD_CLK,

EVENTOUT

Additional

functions

64 /22 0 DS 1111 8 Rev 6

STM32F479xx Pinouts and pin description

Table 10. STM32F479xx pin and ball definitions (continued)

Pin number

Pin name

(function after

LQFP100

LQFP144

UFBGA169

WLCSP168

- 96 D13 G6 H14 116 135 H14 PG8 I/O FT -

- - G9 F2 G12 117 136 G10 VSS S - - - -

65 97 G11 F1 H13 118 137 G11 VDDUSB S - - - -

66 98 F9 F3 H15 119 138 H15 PC6 I/O FT -

67 99 F10 G7 G15 120 139 G15 PC7 I/O FT -

68 100 E10 F4 G14 121 140 G14 PC8 I/O FT -

69 101 G10 F5 F14 122 141 F14 PC9 I/O FT -

70 102 D8 E1 F15 123 142 F15 PA8 I/O FT -

71 103 E8 E2 E15 124 143 E15 PA9 I/O FT -

72 104 E9 E3 D15 125 144 D15 PA10 I/O FT -

73 105 A13 F7 C15 126 145 C15 PA11 I/O FT -

74 106 A12 F6 B15 127 146 B15 PA12 I/O FT -

75 107 A11 D1 A15 128 147 A15

76 108 D12 D2 F13 129 148 E11 VCAP2 S - - - -

- 109 D11 C1 F12 130 149 F10 VSS S - - - -

UFBGA176

LQFP176

LQFP208

TFBGA216

PA13(JTMS-

reset)

SWDIO)

(1)

Pin types

I/O structures

I/O FT - JTMS-SWDIO, EVENTOUT -

Alternate functions

Notes

SPI6_NSS, USART6_RTS,

ETH_PPS_OUT,

FMC_SDCLK, LCD_G7,

EVENTOUT

TIM3_CH1, TIM8_CH1,

I2S2_MCK, USART6_TX,

SDIO_D6, DCMI_D0,

LCD_HSYNC, EVENTOUT

TIM3_CH2, TIM8_CH2,

I2S3_MCK, USART6_RX,

SDIO_D7, DCMI_D1,

LCD_G6, EVENTOUT

TRACED1, TIM3_CH3,

TIM8_CH3, USART6_CK,

SDIO_D0, DCMI_D2,

EVENTOUT

MCO2, TIM3_CH4,

TIM8_CH4, I2C3_SDA,

I2S_CKIN, QUADSPI_BK1_IO0, SDIO_D1, DCMI_D3,

EVENTOUT

MCO1, TIM1_CH1, I2C3_SCL, USART1_CK, OTG_FS_SOF, LCD_R6,

EVENTOUT

TIM1_CH2, I2C3_SMBA,

SPI2_SCK/I2S2_CK,

USART1_TX, DCMI_D0,

EVENTOUT

TIM1_CH3, USART1_RX,

OTG_FS_ID, DCMI_D1,

EVENTOUT

TIM1_CH4, USART1_CTS,

CAN1_RX, OTG_FS_DM,

LCD_R4, EVENTOUT

TIM1_ETR, USART1_RTS,

CAN1_TX, OTG_FS_DP,

LCD_R5, EVENTOUT

Additional

functions

OTG_FS_

VBUS

DS 1111 8 Rev 6 65/ 2 2 0

Pinouts and pin description STM32F479xx

Table 10. STM32F479xx pin and ball definitions (continued)

Pin number

Pin name

(function after

LQFP100

LQFP144

UFBGA169

WLCSP168

UFBGA176

LQFP176

LQFP208

TFBGA216

reset)

(1)

Pin types

I/O structures

Alternate functions

Notes

77 110 D10 C2 G13 131 150 F11 VDD S - - - -

TIM8_CH1N, CAN1_TX,

- - D9 B1 - - 151 E12 PH13 I/O FT -

FMC_D21, LCD_G2,

EVENTOUT

TIM8_CH2N, FMC_D22,

- - C13 D3 - - 152 E13 PH14 I/O FT -

DCMI_D4, LCD_G3,

EVENTOUT

TIM8_CH3N, FMC_D23,

- - C12 E4 - - 153 D13 PH15 I/O FT -

DCMI_D11, LCD_G4,

EVENTOUT

TIM5_CH4,

- - B13 E5 E14 132 154 E14 PI0 I/O FT -

SPI2_NSS/I2S2_WS

FMC_D24, DCMI_D13,

LCD_G5, EVENTOUT

(7)

- - C11 C3 D14 133 155 D14 PI1 I/O FT -

SPI2_SCK/I2S2_CK

FMC_D25, DCMI_D8,

LCD_G6, EVENTOUT

TIM8_CH4, SPI2_MISO,

--B12A1-

156 C14 PI2 I/O FT -

(2)

I2S2ext_SD, FMC_D26,

DCMI_D9, LCD_G7,

EVENTOUT

TIM8_ETR,

- - B10 B2 C13 134 157 C13 PI3 I/O FT -

SPI2_MOSI/I2S2_SD,

FMC_D27, DCMI_D10,

EVENTOUT

78 - - - D9 135 - F9 VSS S - - - -

- - - B5 C9 136 158 E10 VDD S - - - -

79 111 A10 D4 A14 137 159 A14

PA14(JTCK-

SWCLK)

I/O FT - JTCK-SWCLK, EVENTOUT -

JTDI,

TIM2_CH1/TIM2_ETR,

80 112 B11 A2 A13 138 160 A13 PA15(JTDI) I/O FT -

SPI1_NSS,

SPI3_NSS/I2S3_WS,

EVENTOUT

SPI3_SCK/I2S3_CK,

USART3_TX, UART4_TX,

81 113 C10 D5 B14 139 161 B14 PC10 I/O FT -

QUADSPI_BK1_IO1, SDIO_D2, DCMI_D8,

LCD_R2, EVENTOUT

I2S3ext_SD, SPI3_MISO,

USART3_RX, UART4_RX,

82 114 B9 B3 B13 140 162 B13 PC11 I/O FT -

QUADSPI_BK2_NCS,

SDIO_D3, DCMI_D4,

EVENTOUT

(7)

Additional

functions

66 /22 0 DS 1111 8 Rev 6

STM32F479xx Pinouts and pin description

Table 10. STM32F479xx pin and ball definitions (continued)

Pin number

Pin name

(function after

LQFP100

LQFP144

UFBGA169

WLCSP168

83 115 A9 C4 A12 141 163 A12 PC12 I/O FT -

84 116 C9 E6 B12 142 164 B12 PD0 I/O FT -

85 117 C7 A3 C12 143 165 C12 PD1 I/O FT -

86 118 B8 C5 D12 144 166 D12 PD2 I/O FT -

87 119 C8 D6 D11 145 167 C11 PD3 I/O FT -

88 120 C6 B4 D10 146 168 D11 PD4 I/O FT -

89 121 B7 C6 C11 147 169 C10 PD5 I/O FT -

- 122 F8 A4 D8 148 170 F8 VSS S - - - -

- 123 F7 - C8 149 171 E9 VDD S - - - -

90 124 D7 E7 B11 150 172 B11 PD6 I/O FT -

91 - A8 A5 A11 151 173 A11 PD7 I/O FT -

------174B10 PJ12 I/OFT-

- - - - - - 175 B9 PJ13 I/O FT -

- - - - - - 176 C9 PJ14 I/O FT - LCD_B2, EVENTOUT -

- - - - - - 177 D10 PJ15 I/O FT - LCD_B3, EVENTOUT -

- 125 E6 D7 C10 152 178 D9 PG9 I/O FT -

- 126 E7 C7 B10 153 179 C8 PG10 I/O FT -

- 127 B6 B6 B9 154 180 B8 PG11 I/O FT -

UFBGA176

LQFP176

LQFP208

TFBGA216

reset)

(1)

Pin types

I/O structures

Alternate functions

Notes

TRACED3,

SPI3_MOSI/I2S3_SD,

USART3_CK, UART5_TX,

SDIO_CK, DCMI_D9,

EVENTOUT

CAN1_RX, FMC_D2,

EVENTOUT

CAN1_TX, FMC_D3,

EVENTOUT

TRACED2, TIM3_ETR,

UART5_RX, SDIO_CMD,

DCMI_D11, EVENTOUT

SPI2_SCK/I2S2_CK,

USART2_CTS, FMC_CLK,

DCMI_D5, LCD_G7,

EVENTOUT

USART2_RTS, FMC_NOE,

EVENTOUT

USART2_TX, FMC_NWE,

EVENTOUT

SPI3_MOSI/I2S3_SD,

SAI1_SD_A, USART2_RX,

FMC_NWAIT, DCMI_D10,

LCD_B2, EVENTOUT

USART2_CK, FMC_NE1,

EVENTOUT

LCD_G3, LCD_B0,

EVENTOUT

LCD_G4, LCD_B1,

EVENTOUT

USART6_RX,

QUADSPI_BK2_IO2,

FMC_NE2/FMC_NCE,

DCMI_VSYNC, EVENTOUT

LCD_G3, FMC_NE3,

DCMI_D2, LCD_B2,

EVENTOUT

ETH_MII_TX_EN/ETH_RMI

I_TX_EN, DCMI_D3,

LCD_B3, EVENTOUT

Additional

functions

DS 1111 8 Rev 6 67/ 2 2 0

Pinouts and pin description STM32F479xx

Table 10. STM32F479xx pin and ball definitions (continued)

Pin number

Pin name

(function after

LQFP100

LQFP144

UFBGA169

WLCSP168

- 128 A7 A6 B8 155 181 C7 PG12 I/O FT -

- - A6 E8 A8 156 182 B3 PG13 I/O FT -

- - - - A7 157 183 A4 PG14 I/O FT -

- 129 - B7 D7 158 184 F7 VSS S - - - -

- 130 - A7 C7 159 185 E8 VDD S - - - -

- - - - - - 186 D8 PK3 I/O FT - LCD_B4, EVENTOUT -

- - - - - - 187 D7 PK4 I/O FT - LCD_B5, EVENTOUT -

- - - - - - 188 C6 PK5 I/O FT - LCD_B6, EVENTOUT -

- - - - - - 189 C5 PK6 I/O FT - LCD_B7, EVENTOUT -

- - - - - - 190 C4 PK7 I/O FT - LCD_DE, EVENTOUT -

- 131 F6 D8 B7 160 191 B7 PG15 I/O FT -

92 132 B5 A8 A10 161 192 A10

93 133 D6 C8 A9 162 193 A9 PB4(NJTRST) I/O FT -

94 134 D5 B8 A6 163 194 A8 PB5 I/O FT -

95 135 C5 G8 B6 164 195 B6 PB6 I/O FT -

UFBGA176

LQFP176

LQFP208

TFBGA216

PB3(JTDO/TRA

(1)

reset)

CESWO)

Pin types

I/O structures

I/O FT -

Alternate functions

Notes

SPI6_MISO,

USART6_RTS, LCD_B4,

FMC_NE4, LCD_B1,

EVENTOUT

TRACED0, SPI6_SCK,

USART6_CTS,

ETH_MII_TXD0/ETH_RMII

_TXD0, FMC_A24,

LCD_R0, EVENTOUT

TRACED1, SPI6_MOSI,

USART6_TX,

QUADSPI_BK2_IO3,

ETH_MII_TXD1/ETH_RMII

_TXD1, FMC_A25,

LCD_B0, EVENTOUT

USART6_CTS,

FMC_SDNCAS,

DCMI_D13, EVENTOUT

JTDO/TRACESWO,

TIM2_CH2, SPI1_SCK,

SPI3_SCK/I2S3_CK,

EVENTOUT

NJTRST, TIM3_CH1,

SPI1_MISO, SPI3_MISO,

I2S3ext_SD, EVENTOUT

TIM3_CH2, I2C1_SMBA,

SPI1_MOSI,

SPI3_MOSI/I2S3_SD,

CAN2_RX,

OTG_HS_ULPI_D7,

ETH_PPS_OUT,

FMC_SDCKE1, DCMI_D10,

LCD_G7, EVENTOUT

TIM4_CH1, I2C1_SCL,

USART1_TX, CAN2_TX,

QUADSPI_BK1_NCS,

FMC_SDNE1, DCMI_D5,

EVENTOUT

Additional

functions

68 /22 0 DS 1111 8 Rev 6

STM32F479xx Pinouts and pin description

Table 10. STM32F479xx pin and ball definitions (continued)

Pin number

Pin name

(function after

LQFP100

LQFP144

UFBGA169

WLCSP168

UFBGA176

LQFP176

LQFP208

TFBGA216

reset)

(1)

Pin types

I/O structures

Alternate functions

Notes

TIM4_CH2, I2C1_SDA,

96 136 B4 A9 B5 165 196 B5 PB7 I/O FT -

USART1_RX, FMC_NL,

DCMI_VSYNC, EVENTOUT

97 137 A5 F8 D6 166 197 E6 BOOT0 I B - - VPP

TIM4_CH3, TIM10_CH1,

I2C1_SCL, CAN1_RX,

98 138 D4 B9 A5 167 198 A7 PB8 I/O FT -

ETH_MII_TXD3, SDIO_D4,

DCMI_D6, LCD_B6,

EVENTOUT

TIM4_CH4, TIM11_CH1,

I2C1_SDA,

99 139 C4 E9 B4 168 199 B4 PB9 I/O FT -

SPI2_NSS/I2S2_WS, CAN1_TX, SDIO_D5,

DCMI_D7, LCD_B7,

EVENTOUT

140 A4 A10 A4 169 200 A6 PE0 I/O FT -

(2)

TIM4_ETR, UART8_Rx, FMC_NBL0, DCMI_D2,

EVENTOUT

141 A3 C9 A3 170 201 A5 PE1 I/O FT -

(2)

UART8_Tx, FMC_NBL1,

DCMI_D3, EVENTOUT

- - E3 B10 D5 - 202 F6 VSS S - - - -

- 142 C3 D9 C6 171 203 E5 PDR_ON S - - - -

100 143 D3 A11 C5 172 204 E7 VDD S - - - -

TIM8_BKIN, FMC_NBL2,

- - B3 D10 D4 173 205 C3 PI4 I/O FT -

DCMI_D5, LCD_B4,

EVENTOUT

TIM8_CH1, FMC_NBL3,

- - A2 C10 C4 174 206 D3 PI5 I/O FT -

DCMI_VSYNC, LCD_B5,

EVENTOUT

TIM8_CH2, FMC_D28,

- - A1 B11 C3 175 207 D6 PI6 I/O FT -

DCMI_D6, LCD_B6,

EVENTOUT

TIM8_CH3, FMC_D29,

- - B1 A12 C2 176 208 D4 PI7 I/O FT -

DCMI_D7, LCD_B7,

EVENTOUT

1. Function availability depends on the chosen device.

2. NC (not-connected) pins are not bonded. They must be configured by software to output push-pull and forced to “0” in the output data register to avoid extra current consumption in low power modes.

3. PC13, PC14, PC15 and PI8 are supplied through the power switch. Since the switch only sinks a limited amount of current (3 mA), the use of GPIOs PC13 to PC15 and PI8 in output mode is limited:

- The speed should not exceed 2 MHz with a maximum load of 30 pF.

- These I/Os must not be used as a current source (e.g. to drive an LED).

4. Main function after the first backup domain power-up. Later on, it depends on the contents of the RTC registers even after reset (because these registers are not reset by the main reset). For details on how to manage these I/Os, refer to the RTC register description sections in the STM32F4xx reference manual, available from www.st.com.

5. FT = 5 V tolerant except when in analog mode or oscillator mode (for PC14, PC15, PH0 and PH1).

Additional

functions

DS 1111 8 Rev 6 69/ 2 2 0

Pinouts and pin description STM32F479xx

6. If the device is delivered in an WLCSP168, UFBGA169, UFBGA176, LQFP176 or TFBGA216 package, and the BYPASS_REG pin is set to VDD (Regulator OFF/internal reset ON mode), then PA0 is used as an internal Reset (active low).

7. PI0 and PI1 cannot be used for I2S2 full-duplex mode.

70 /22 0 DS 1111 8 Rev 6

STM32F479xx Pinouts and pin description

Table 11. FMC pin definition

Pin name NOR/PSRAM/SRAM NOR/PSRAM Mux NAND16 SDRAM

PF0 A0 - - A0

PF1 A1 - - A1

PF2 A2 - - A2

PF3 A3 - - A3

PF4 A4 - - A4

PF5 A5 - - A5

PF12 A6 - - A6

PF13 A7 - - A7

PF14 A8 - - A8

PF15 A9 - - A9

PG0 A10 - - A10

PG1 A11 - - A11

PG2 A12 - - A12

PG3 A13 - -

PG4 A14 - - BA0

PG5 A15 - - BA1

PD11 A16 A16 CLE -

PD12 A17 A17 ALE -

PD13 A18 A18 - -

PE3 A19 A19 - -

PE4 A20 A20 - -

PE5 A21 A21 - -

PE6 A22 A22 - -

PE2 A23 A23 - -

PG13 A24 A24 - -

PG14 A25 A25 - -

PD14 D0 DA0 D0 D0

PD15 D1 DA1 D1 D1

PD0 D2 DA2 D2 D2

PD1 D3 DA3 D3 D3

PE7 D4 DA4 D4 D4

PE8 D5 DA5 D5 D5

PE9 D6 DA6 D6 D6

PE10 D7 DA7 D7 D7

PE11 D8 DA8 D8 D8

DS 1111 8 Rev 6 71/ 2 2 0

Pinouts and pin description STM32F479xx

Table 11. FMC pin definition (continued)

Pin name NOR/PSRAM/SRAM NOR/PSRAM Mux NAND16 SDRAM

PE12 D9 DA9 D9 D9

PE13 D10 DA10 D10 D10

PE14 D 11 DA11 D11 D 11

PE15 D12 DA12 D12 D12

PD8 D13 DA13 D13 D13

PD9 D14 DA14 D14 D14

PD10 D15 DA15 D15 D15

PH8 D16 - - D16

PH9 D17 - - D17

PH10 D18 - - D18

PH11 D19 - - D19

PH12 D20 - - D20

PH13 D21 - - D21

PH14 D22 - - D22

PH15 D23 - - D23

PI0 D24 - - D24

PI1 D25 - - D25

PI2 D26 - - D26

PI3 D27 - - D27

PI6 D28 - - D28

PI7 D29 - - D29

PI9 D30 - - D30

PI10 D31 - - D31

PD7 NE1 NE1 - -

PG9 NE2 NE2 NCE -

PG10 NE3 NE3 - -

PG11 - - - -

PG12 NE4 NE4 - -

PD3 CLK CLK - -

PD4 NOE NOE NOE -

PD5 NWE NWE NWE -

PD6 NWAIT NWAIT NWAIT -

PB7 NADV NADV - -

PF6 - - - -

PF7 - - - -

72 /22 0 DS 1111 8 Rev 6

STM32F479xx Pinouts and pin description

Table 11. FMC pin definition (continued)

Pin name NOR/PSRAM/SRAM NOR/PSRAM Mux NAND16 SDRAM

PF8 - - - -

PF9 - - - -

PF10 - - - -

PG6 - - - -

PG7 - - INT -

PE0 NBL0 NBL0 - NBL0

PE1 NBL1 NBL1 - NBL1

PI4 NBL2 - - NBL2

PI5 NBL3 - - NBL3

PG8 - - - SDCLK

PC0 - - - SDNWE

PF11 - - - SDNRAS

PG15 - - - SDNCAS

PH2 - - - SDCKE0

PH3 - - - SDNE0

PH6 - - - SDNE1

PH7 - - - SDCKE1

PH5 - - - SDNWE

PC2 - - - SDNE0

PC3 - - - SDCKE0

PB5 - - - SDCKE1

PB6 - - - SDNE1

DS 1111 8 Rev 6 73/ 2 2 0

74/220 DS11118 Rev 6

Pinouts and pin description STM32F479xx

Table 12. Alternate function

AF0 AF1 AF2 AF3 AF4 AF5 AF6 AF7 AF8 AF9 AF10 AF11 AF12 AF13 AF14 AF15

Port

SYS TIM1/2

PA0 -

PA1

PA2

PA3

PA4

PA5

PA6

Port

PA7

PA8 MCO1 TIM1_CH1

PA9

PA1 0

PA11

PA1 2

JTMS-

PA1 3

SWDIO

JTCK-

PA1 4

SWCLK

PA1 5 JTD I

TIM3/4/5TIM8/9/

TIM2_CH1/

TIM2_ETR

TIM2_CH2 TIM5_CH2

TIM2_CH3 TIM5_CH3 TIM9_CH1

TIM2_CH4 TIM5_CH4 TIM9_CH2

TIM5_CH1 TIM8_ETR - - -

10/11

I2C1/2/3

-- --

-- - - -

TIM2_CH1/

TIM2_ETR

TIM1_BKIN TIM3_CH1

TIM1_

CH1N

TIM1_CH2

TIM1_CH3

TIM1_CH4

TIM1_ETR

TIM3_CH2

TIM8_CH1

TIM8_BKI

TIM8_CH1

I2C3_SCL -

I2C3_SMBA

-- - - -

SPI1/2/3

---

SPI1_NSS

SPI1_SCK

SPI2_SCK/I

---------- - ---

TIM2_CH1/

TIM2_ETR

-SPI1_NSS

/4/5/6

SPI1_

MISO

SPI1_

MOSI

2S2_CK

CAN1/2/

TIM12/

T6/

13/14/

QUAD

SPI/LCD

BK1_IO3

4/5/7/

-- -

LCD_B2

SPI2/3/

SAI1

SPI3_NSS/

I2S3_WS

SPI2/3/

USART

1/2/3

USART2_

CTS

USART2_

RTS

USART2_T

USART2_

USAR

UART

UART4_

UART4_RXQUADSPI_

----

---

USART1_

SPI3_NSS/

I2S3_WS

USART1_T

USART1_

CTS

USART1_

RTS

-- - - - - - -

TIM13_CH1 -

TIM14_CH1

-- - - -

CAN1_RX

CAN1_TX

QUAD SPI/OT G2_HS

ETH

/OTG1

_FS

- - ETH_MII_CRS - - -

ETH_MII_RX_ CLK/ETH_RMI

I_REF_CLK

ETH_MDIO

OTG_HS

_ULPI_D0

OTG_HS

_ULPI_C

ETH_MII_COL

_CLK

SOF

ETH_MII_RX_ DV/ETH_RMII

_CRS_DV

---

QUADSPI

OTG_FS_

FMC/

SDIO/

OTG2_

OTG_HS_SOFDCMI_HS

FMC_SDN

DCMI/

DSI

LCD SYS

HOST

YNC

--LCD_R4

DCMI_PIX

CLK

LCD_R2

LCD_R1

LCD_B5

LCD_VSYNCEVENT

LCD_G2

LCD_R6

DCMI_D0

DCMI_D1

-LCD_R4

-LCD_R5

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

‘OUT

Table 12. Alternate function (continued)

AF0 AF1 AF2 AF3 AF4 AF5 AF6 AF7 AF8 AF9 AF10 AF11 AF12 AF13 AF14 AF15

STM32F479xx Pinouts and pin description

DS11118 Rev 6 75/220

Port

SYS TIM1/2

PB0 - TIM1_CH2N TIM3_CH3

Port

PB1

PB2

PB3

TRACESWOTIM2_CH2

PB4 NJTRST

PB5

PB6

PB7

PB8

PB9

PB10

PB11

PB12

PB13

PB14

PB15

TIM1_CH3N TIM3_CH4

-- - - - - ----- - - - -

JTDO /

TIM2_CH3

TIM2_CH4

TIM1_BKIN

TIM1_CH1N

TIM1_CH2N

RTC

TIM1_CH3N

_REFIN

TIM3/4/5TIM8/9/

10/11

TIM8_CH2

TIM8_CH3

I2C1/2/3

- - - - - LCD_R3

-----

TIM3_CH1

TIM3_CH2

TIM4_CH1

TIM4_CH2

TIM4_CH3

TIM4_CH4

I2C1_SMBA SPI1_MOSI

I2C1_SCL

I2C1_SDA

TIM10_CH

TIM11_CH

I2C1_SCL

I2C1_SDA

I2C2_SCL

I2C2_SDA

I2C2_SMBA

-- -

TIM8_CH2

TIM8_CH3

USAR

SPI1/2/3

/4/5/6

SPI2/3/

SAI1

SPI2/3/

USART

1/2/3

T6/

UART

4/5/7/

SPI1_SCK

SPI1_MISO

SPI3_SCK/

I2S3_CK

SPI3_MISOI2S3ext

SPI3_MOS

I/I2S3_SD

USART1

USART1_

-- - - - - - -

_SD

-- - - - - -

_TX

----

SPI2_NSS/I

2S2_WS

SPI2_SCK/I

2S2_CK

SPI2_NSS/I

2S2_WS

SPI2_SCK/I

2S2_CK

SPI2_MISO

SPI2_MOSI

/I2S2_SD

---

USART3

I2S2ext_SDUSART3

_TX

USART3

_RX

USART3

_CK

USART3

_CTS

_RTS

---

CAN1/2/

TIM12/

13/14/ QUAD

SPI/LCD

LCD_R6

CAN2_RX

CAN2_TX

CAN1_RX

CAN1_TX

QUADSPI_

BK1_NCS

CAN2_RX

CAN2_TX

TIM12_CH1

TIM12_CH2

QUAD SPI/OT G2_HS

ETH

/OTG1

_FS

OTG_HS

_ULPI_D1

OTG_HS

_ULPI_D2

OTG_HS

_ULPI_D7

QUADSPI _BK1_NC

ETH_MII_

RXD2

ETH_MII_

RXD3

ETH_PPS

OUT

ETH_MII_

TXD3

OTG_HS

_ULPI_D3

OTG_HS

_ULPI_D4

OTG_HS

_ULPI_D5

OTG_HS

_ULPI_D6

ETH_MII_RX_

ETH_MII_TX_ EN/ETH_RMII

_TX_EN

ETH_MII_TXD 0/ETH_RMII_T

XD0

ETH_MII_TXD 1/ETH_RMII_T

XD1

FMC/

SDIO/

OTG2_

FMC_

SDCKE1

FMC_

SDNE1

FMC_NL

SDIO_D4 DCMI_D6 LCD_B6

SDIO_D5 DCMI_D7 LCD_B7

OTG_HS_

DCMI/

DSI

LCD SYS

HOST

--LCD_G1

DCMI_D10 LCD_G7

DCMI_D5

DCMI_VS

YNC

DSIHOST_

LCD_G0

-LCD_G4

LCD_G5

---

OTG_HS_

‘DM

OTG_HS_

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

‘OUT

76/220 DS11118 Rev 6

Table 12. Alternate function (continued)

AF0 AF1 AF2 AF3 AF4 AF5 AF6 AF7 AF8 AF9 AF10 AF11 AF12 AF13 AF14 AF15

Pinouts and pin description STM32F479xx

Port

SYS TIM1/2

PC0 - - - - - - - - - -

TRACE

PC1

Port

PC2

PC3

PC4

PC5

PC6

PC7

PC8

PC9 MCO2

PC10 -

PC11 -

PC12

PC13

PC14

PC15

-- - - -

-- - - - - -----

TRACE

-- - - - - ----- - - - -

TIM3/4/5TIM8/9/

10/11

I2C1/2/3

----

TIM3_CH1 TIM8_CH1 - I2S2_MCK

TIM3_CH2 TIM8_CH2

TIM3_CH3 TIM8_CH3

TIM3_CH4 TIM8_CH4 I2C3_SDA I2S_CKIN

-----

----

SPI1/2/3

/4/5/6

SPI2_MOSI

/I2S2_SD

SPI2_MISO

SPI2_MOSI

/I2S2_SD

SPI2/3/

SAI1

SAI1_SD_

I2S2ext_S

I2S3_MCK

----

SPI3_SCK/

I2S3_CK

I2S3ext_SD

SPI3_MISOUSART3_RXUART4_RXQUADSPI_

SPI3_MOS

I/I2S3_SD

SPI2/3/

USART

1/2/3

-- -

----

---

USART3_TXUART4_TXQUADSPI_

USART3_CKUART5_

USAR

T6/

UART

4/5/7/

USART6

_TX

USART6

_RX

USART6

_CK

CAN1/2/

TIM12/

13/14/ QUAD

SPI/LCD

QUAD SPI/OT G2_HS

/OTG1

_FS

OTG_HS

_ULPI_ST

OTG_HS _ULPI_DI

OTG_HS

_ULPI_N

ETH

ETH_MDC

ETH_MII_TXD2FMC_SDN

ETH_MII_TX_

CLK

ETH_MII_RXD

0/ETH_RMII_R

XD0

ETH_MII_RXD 1/ETH_RMII_R

XD1

-- -

QUADSPI_

BK1_IO0

BK1_IO1

BK2_NCS

-- -

FMC/

SDIO/

OTG2_

FMC_SDN

FMC_SDC

KE0

FMC_SDN

FMC_SDC

KE0

SDIO_D6 DCMI_D0

SDIO_D7 DCMI_D1 LCD_G6

SDIO_D0 DCMI_D2

SDIO_D1 DCMI_D3

SDIO_D2 DCMI_D8 LCD_R2

SDIO_D3 DCMI_D4

SDIO_CK DCMI_D9

DCMI/

DSI

LCD SYS

HOST

-LCD_R5

---

LCD_HSYNCEVENT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

‘OUT

Table 12. Alternate function (continued)

AF0 AF1 AF2 AF3 AF4 AF5 AF6 AF7 AF8 AF9 AF10 AF11 AF12 AF13 AF14 AF15

STM32F479xx Pinouts and pin description

DS11118 Rev 6 77/220

Port

SYS TIM1/2

PD0 - - - - - - - - - CAN1_RX - - FMC_D2 - -

Port

PD1

PD2

PD3

PD4

PD5

PD6

PD7

PD8

PD9

PD10

PD11

PD12

PD13

PD14

PD15

-- - - - - ---

TRACE

-- - - -

-- - - - - -

-- - - -

-- - - - - -

TIM3/4/5TIM8/9/

TIM3_ETR

TIM4_CH1

TIM4_CH2

TIM4_CH3

TIM4_CH4

10/11

I2C1/2/3

-- ---

-- --

-- ----

SPI1/2/3

/4/5/6

SPI2_SCK/I

2S2_CK

SPI3_MOSI

/I2S3_SD

SPI2/3/

SAI1

SAI1_SD_AUSART2_

SPI2/3/

USART

UART

1/2/3

UART5_

USART2_

CTS

USART2_

RTS

USART2_T

USART2_

USART3_T

USART3_

CTS

USART3_

RTS

USAR

CAN1/2/

TIM12/

T6/

13/14/

QUAD

SPI/LCD

CAN1_TX

4/5/7/

-- - -

QUADSPI_

BK1_IO0

QUADSPI_

BK1_IO1

QUADSPI_

BK1_IO3

QUAD SPI/OT G2_HS

ETH

/OTG1

_FS

-- -

SDIO_CMD DCMI_D11 -

FMC_NWAI

FMC_A16/F

FMC_A17/F

FMC/

SDIO/

OTG2_

FMC_D3

FMC_CLK DCMI_D5 LCD_G7

FMC_NOE

FMC_NWE

DCMI_D10 LCD_B2

FMC_NE1

FMC_D13

FMC_D14

FMC_D15

MC_CLE

MC_ALE

FMC_A18

FMC_D0

FMC_D1

DCMI/

DSI

LCD SYS

HOST

LCD_B3

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

‘OUT

78/220 DS11118 Rev 6

Table 12. Alternate function (continued)

AF0 AF1 AF2 AF3 AF4 AF5 AF6 AF7 AF8 AF9 AF10 AF11 AF12 AF13 AF14 AF15

Pinouts and pin description STM32F479xx

Port

SYS TIM1/2

PE0 - - TIM4_ETR - - - - -

Port

PE1

PE2

PE3

PE4

PE5

PE6

PE7

PE8

PE9

PE10

PE11

PE12

PE13

PE14

PE15

-- - - - - --

TRACE

CLK

TRACE

TIM1_ETR

TIM1_CH1N

TIM1_CH1

TIM1_CH2N

TIM1_CH2

TIM1_CH3N

TIM1_CH3

TIM1_CH4

TIM1_BKIN

TIM3/4/5TIM8/9/

10/11

I2C1/2/3

----

TIM9_CH1

TIM9_CH2

-- - - --

-- - - ----

-- -

-- - - ----- -

SPI1/2/3

/4/5/6

SPI4_SCK

SPI4_NSS

SPI4_MISO

SPI4_MOSI

SPI4_NSS

SPI4_SCK

SPI4_MISO

SPI4_MOSI

QUAD SPI/OT G2_HS

ETH

/OTG1

_FS

-- -FMC_NBL0DCMI_D2-

-- -

ETH_MII_TXD

QUADSPI

_BK2_IO0

QUADSPI

_BK2_IO1

QUADSPI _BK2_IO2

QUADSPI _BK2_IO3

SPI2/3/

SAI1

SAI1_

MCLK_A

SAI1

_SD_B

SAI1

_FS_A

SAI1

_SCK_A

SAI1

_SD_A

T6/

4/5/7/

CAN1/2/

TIM12/

13/14/ QUAD

SPI/LCD

QUADSPI_

BK1_IO2

SPI2/3/

USAR

USART

UART

1/2/3

UART8_

-- - - -

UART7_

----- -

FMC/

SDIO/

OTG2_

FMC_NBL1 DCMI_D3

FMC_A23

FMC_A19

FMC_A20 DCMI_D4 LCD_B0

FMC_A21 DCMI_D6 LCD_G0

FMC_A22 DCMI_D7 LCD_G1

FMC_D4

FMC_D5

FMC_D6

FMC_D7

FMC_D8

FMC_D9

FMC_D10

FMC_D11

FMC_D12

DCMI/

DSI

LCD SYS

HOST

LCD_G3

LCD_B4

LCD_DE

LCD_CLK

LCD_R7

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

‘OUT

Table 12. Alternate function (continued)

AF0 AF1 AF2 AF3 AF4 AF5 AF6 AF7 AF8 AF9 AF10 AF11 AF12 AF13 AF14 AF15

STM32F479xx Pinouts and pin description

DS11118 Rev 6 79/220

QUAD SPI/OT G2_HS

ETH

/OTG1

_FS

-- ---

QUADSPI _BK1_IO0

QUADSPI _BK1_IO1

----

- - DCMI_D11 LCD_DE

FMC/

SDIO/

OTG2_

FMC_SDN

RAS

DCMI/

DSI

HOST

DCMI_D12 -

T6/

4/5/7/

CAN1/2/

TIM12/

13/14/ QUAD

SPI/LCD

BK1_IO3

BK1_IO2

QUADSPI_

CLK

Port

SYS TIM1/2

PF0 - - - - I2C2_SDA - - - - - - - FMC_A0 - -

PF1 - - - - I2C2_SCL - - - - - - - FMC_A1 - -

PF2 - - - - I2C2_SMBA - - - - - - - FMC_A2 - -

PF3 - - - - - - - - - - - - FMC_A3 - -

PF4 - - - - - - - - - - - - FMC_A4 - -

PF5 - - - - - - - - - - - - FMC_A5 - -

PF6 - - -

PF7 - - -

Port

PF8 - - - - - SPI5_MISO

PF9 - - - - - SPI5_MOSI

PF10 - - - - - - - - -

PF11 - - - - - SPI5_M OSI - - - - - -

PF12-- -- - - ----- -FMC_A6--

PF13-- -- - - ----- -FMC_A7--

PF14-- -- - - ----- -FMC_A8--

PF15-- -- - - ----- -FMC_A9--

TIM3/4/5TIM8/9/

10/11

TIM10_CH

TIM11_CH

I2C1/2/3

SPI1/2/3

/4/5/6

-SPI5_NSS

-SPI5_SCK

SPI2/3/

SAI1

SAI1_ SD_B

SAI1_

MCLK_B

SAI1_

SCK_B

SAI1_

FS_B

SPI2/3/

USART

UART

1/2/3

UART7_RxQUADSPI_

UART7_TxQUADSPI_

- - TIM13_CH1

- - TIM14_CH1

USAR

LCD SYS

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

‘OUT

80/220 DS11118 Rev 6

Table 12. Alternate function (continued)

AF0 AF1 AF2 AF3 AF4 AF5 AF6 AF7 AF8 AF9 AF10 AF11 AF12 AF13 AF14 AF15

Pinouts and pin description STM32F479xx

QUAD SPI/OT G2_HS

/OTG1

_FS

ETH

FMC/

SDIO/

OTG2_

DCMI/

DSI

HOST

FMC_A14/F

MC_BA0

FMC_A15/F

MC_BA1

- - - FMC_INT DCMI_D13 LCD_CLK

-- -

ETH_PPS_OUTFMC_SDCL

ETH_MII

_TX_EN /

ETH_RMII

_TX_EN

ETH_MII _TXD0 /

ETH_RMII

_TXD0

ETH_MII

_TXD1 /

ETH_RMII

_TXD1

FMC_NE2/ FMC_NCE

FMC_A24 - LCD_R0

FMC_A25 - LCD_B0

SDNCAS

- DCMI_D3 LCD_B3

FMC_

DCMI_VS

YNC

DCMI_D13 -

T6/

4/5/7/

_CK

_RTS

_RX

_RTS

_CTS

_TX

_CTS

CAN1/2/

TIM12/

13/14/ QUAD

SPI/LCD

QUADSPI_

BK2_IO2

LCD_B4 - - FMC_NE4 - LCD_B1

QUADSPI_

BK2_IO3

USAR

SAI1

SPI2/3/

USART

1/2/3

UART

USART6

Port

SYS TIM1/2

PG0 - - - - - - - - - - - - FMC_A10 - -

PG1 - - - - - - - - - - - - FMC_A11

PG2 - - - - - - - - - - - - FMC_A12

PG3 - - - - - - - - - - - - FMC_A13

PG4 - - - - - - - - - - - -

PG5 - - - - - - - - - - - -

PG6 - - - - - - - - - - - - DCMI_D12 LCD_R7

PG7 - - - - -

PG8 - - - - - SPI6_NSS - -

Port

PG9 - - - - - - - -

PG10 - - - - - - - - LCD_G3 - - FMC_NE3 DCMI_D2 LCD_B2

PG11 - - - - - - - - - - -

PG12 - - - - - SPI6_MISO - -

TRACE

PG13

TRACE

PG14

PG15 - - - - - - - -

TIM3/4/5TIM8/9/

10/11

----SPI6_SCK--

----SPI6_MOSI--

I2C1/2/3

SPI1/2/3

/4/5/6

SPI2/3/

SAI1

_MCLK_A

LCD SYS

EVENT

LCD_G7

EVENT

OUT

‘OUT

Table 12. Alternate function (continued)

AF0 AF1 AF2 AF3 AF4 AF5 AF6 AF7 AF8 AF9 AF10 AF11 AF12 AF13 AF14 AF15

STM32F479xx Pinouts and pin description

DS11118 Rev 6 81/220

QUAD SPI/OT G2_HS

/OTG1

_FS

- ETH_MII_CRS

- ETH_MII_COL

OTG_HS

_ULPI_N

ETH_MII_RXD2FMC_SDN

ETH_MII_RXD3FMC_SDC

FMC/

ETH

SDIO/

OTG2_

FMC_SDC

KE0

FMC_SDN

---LCD_G4

FMC_SDN

KE1

DCMI/

DSI

HOST

-LCD_R0

-LCD_R1

DCMI_D9 -

DCMI_HS

YNC

T6/

4/5/7/

CAN1/2/

TIM12/

13/14/ QUAD

SPI/LCD

QUADSPI_

BK2_IO0

QUADSPI_

BK2_IO1

Port

SYS TIM1/2

PH0 - - - - - - - - - - - - - - -

PH1 - - - - - - - - - - - - - -

PH2 - - - - - - - - -

PH3 - - - - - - - - -

PH4 - - - - I2C2_SCL - - - - LCD_G5

PH5 - - - - I2C2_SDA SPI5_NSS - - - - - -

PH6 - - - - I2C2_SMBA SPI5_SCK - - - TIM12_CH1 -

PH7 - - - - I2C3_SCL SPI5_MISO - - - - -

Port

PH8 - - - - I2C3_SDA - - - - - - - FMC_D16

PH9 - - - - I2C3_SMBA - - - - TIM12_CH2 - - FMC_D17 DCMI_D0 LCD_R3

PH10 - - TIM5_CH1 - - - - - - - - - FMC_D18 DCMI_D1 LCD_R4

PH11 - - TIM5_CH2 - - - - - - - - - FMC_D19 DCMI_D2 LCD_R5

PH12 - - TIM5_CH3 - - - - - - - - - FMC_D20 DCMI_D3 LCD_R6

PH13 - - -

PH14 - - -

PH15 - - -

TIM3/4/5TIM8/9/

10/11

TIM8_CH1

TIM8_CH2

TIM8_CH3

I2C1/2/3

SPI1/2/3

/4/5/6

- - - - - CAN1_TX - - FMC_D21 - LCD_G2

- - - - - - - - FMC_D22 DCMI_D4 LCD_G3

- - - - - - - - FMC_D23 DCMI_D11 LCD_G4

SPI2/3/

SAI1

SPI2/3/

USART

1/2/3

UART

USAR

LCD SYS

EVENT

LCD_R2

EVENT

OUT

‘OUT

82/220 DS11118 Rev 6

Table 12. Alternate function (continued)

AF0 AF1 AF2 AF3 AF4 AF5 AF6 AF7 AF8 AF9 AF10 AF11 AF12 AF13 AF14 AF15

Pinouts and pin description STM32F479xx

QUAD SPI/OT G2_HS

/OTG1

_FS

OTG_HS

_ULPI

_DIR

FMC/

ETH

SDIO/

OTG2_

ETH_MII_RX_

----

FMC_D31 -

DCMI/

DSI

HOST

DCMI_VS

YNC

T6/

4/5/7/

CAN1/2/

TIM12/

13/14/ QUAD

SPI/LCD

Port

SYS TIM1/2

PI0 - - TIM5_CH4 - -

PI1 - - - - -

PI2 - - - TIM8_CH4 - SPI2_MISO

PI3 - - - TIM8_ETR -

PI4 - - -

PI5 - - - TIM8_CH1 - - - - - - - - FMC_NBL3

PI6 - - - TIM8_CH2 - - - - - - - - FMC_D28 DCMI_D6 LCD_B6

PI7 - - - TIM8_CH3 - - - - - - - - FMC_D29 DCMI_D7 LCD_B7

Port I

PI8 - - - - - - - - - - - - - -

PI9 - - - - - - - - - CAN1_RX - - FMC_D30 -

PI10 - - - - - - - - - - -

PI11 - - - - - - - - - LCD_G6

PI12 - - - - - - - - - - - - - -

PI13 - - - - - - - - - - - - - -

PI14 - - - - - - - - - - - - - - LCD_CLK

PI15 - - - - - - - - - LCD_G2 - - - - LCD_R0

TIM3/4/5TIM8/9/

10/11

TIM8_BKI

I2C1/2/3

SPI1/2/3

/4/5/6

SPI2_NSS/I

2S2_WS

SPI2_SCK/I

2S2_CK

SPI2_MOSI

/I2S2_SD

- - - - - - - - FMC_NBL2 DCMI_D5 LCD_B4

SPI2/3/

SAI1

I2S2ext_S

SPI2/3/

USART

UART

1/2/3

- - - - - - FMC_D24 DCMI_D13 LCD_G5

- - - - - - FMC_D25 DCMI_D 8 LCD_G6

- - - - - - FMC_D27 DCMI_D10

- - - - - FMC_D26 DCMI_D9 LCD_G7

USAR

LCD SYS

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

LCD_B5

LCD_VSYNCEVENT

LCD_HSYNCEVENT

LCD_VSYNCEVENT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

OUT

EVENT

‘OUT

Table 12. Alternate function (continued)

AF0 AF1 AF2 AF3 AF4 AF5 AF6 AF7 AF8 AF9 AF10 AF11 AF12 AF13 AF14 AF15

STM32F479xx Pinouts and pin description

DS11118 Rev 6 83/220

QUAD SPI/OT G2_HS

/OTG1

_FS

ETH

FMC/

SDIO/

OTG2_

DCMI/

DSI

HOST

DSIHOST

_TE

T6/

4/5/7/

CAN1/2/

TIM12/

13/14/ QUAD

SPI/LCD

Port

SYS TIM1/2

PJ0 - - - - - - - - - LCD_R7 - - - - LCD_R1

PJ1 - - - - - - - - - - - - - - LCD_R2

PJ2 - - - - - - - - - - - - -

PJ3 - - - - - - - - - - - - - - LCD_R4

PJ4 - - - - - - - - - - - - - - LCD_R5

Port

PJ5 - - - - - - - - - - - - - - LCD_R6

PJ12 - - - - - - - - - LCD_G3 - - - - LCD_ B0

PJ13 - - - - - - - - - LCD_G4 - - - - LCD_ B1

PJ14 - - - - - - - - - - - - - - L CD_B2

PJ15 - - - - - - - - - - - - - - L CD_B3

PK3 - - - - - - - - - - - - - - LCD_B4

PK4 - - - - - - - - - - - - - - LCD_B5

Port

PK5 - - - - - - - - - - - - - - LCD_B6

PK6 - - - - - - - - - - - - - - LCD_B7

PK7 - - - - - - - - - - - - - - LCD_DE

TIM3/4/5TIM8/9/

10/11

I2C1/2/3

SPI1/2/3

/4/5/6

SPI2/3/

SAI1

SPI2/3/

USART

1/2/3

UART

USAR

LCD SYS

EVENT

LCD_R3

EVENT

OUT

Memory mapping STM32F479xx

MSv33863V2

512-Mbyte

Block 7

Cortex

-4

Internal

peripherals

512-Mbyte

Block 6

FMC

0x0000 0000

0x1FFF FFFF

0x2000 0000

0x3FFF FFFF

0x4000 0000

0x5FFF FFFF

0x6000 0000

0x7FFF FFFF

0x8000 0000

0x9FFF FFFF

0xA000 0000

0xCFFF FFFF

0xD000 0000

0xDFFF FFFF

0xE000 0000

0xFFFF FFFF

Reserved

0x2000 0000 - 0x2002 7FFF

0x2002 8000 - 0x2002 FFFF

0x2005 0000 - 0x3FFF FFFF

0x4000 0000

Reserved

0x4000 7FFF

0x4000 8000 - 0x4000 FFFF

0x4001 0000

Reserved

0x5006 0C00 - 0x5FFF FFFF

AHB3

0x6000 0000 - 0xDFFF FFFF

AHB2

0x5006 0BFF

0x5000 0000

SRAM3

(128 KB aliased by bit-banding)

0x2003 0000 - 0x2004 FFFF

APB1

APB2

0x4001 73FF

0x4001 7400 - 0x4001 FFFF

Reserved

0x4008 0000 - 0x4FFF FFFF 0x4007 FFFF

AHB1

Reserved

Flash memory

0x0820 0000 - 0x0FFF FFFF

0x1FFF 0000 - 0x1FFF 7A0F

0x1FFF C000 - 0x1FFF C00 F

0x0800 0000 - 0x081F FFFF

0x0020 0000 - 0x07FF FFFF

0x0000 0000 - 0x001F FFFF

System memory

Reserved

Aliased to Flash, system

memory or SRAM depending

on the BOOT pins

0x1FFF C008 - 0x1FFF FFFF

0x1FFF 7A10 - 0x1FFF 7FFF

CCM data RAM

(64 KB data SRAM)

0x1000 0000 - 0x1000 FFFF

0x1001 0000 - 0x1FFE BFFF

0x1FFE C000 - 0x1FFE C00 F

Option bytes

Reserved

0x1FFE C008 - 0x1FFE FFFF

0x4002 0000

Cortex

-M4

internal peripheral

0xE000 0000 - 0xE00F FFFF

Reserved

0xE010 0000 - 0xFFFF FFFF

512-Mbyte

Block 5

FMC and

QUADSPI

512-Mbyte

Block 4

FMC bank3 and

QUADSPI bank

512-Mbyte

Block 3

FMC bank1 to

QUADSPI bank 2

512-Mbyte

Block 2

Peripherals

512-Mbyte

Block 1

SRAM

512-Mbyte

Block 0

SRAM

SRAM2

(32 KB aliased by bit-banding)

SRAM1

(160 KB aliased by bit-banding)

Reserved

Option Bytes

Reserved

4 Memory mapping

The memory map is shown in Figure 21.

Figure 21. Memory map

84 /22 0 DS 1111 8 Rev 6

STM32F479xx Memory mapping

Table 13. STM32F479xx register boundary addresses

(1)

Bus Boundary address Peripheral

- 0xE00F FFFF - 0xFFFF FFFF Reserved

Cortex

-M4 0xE000 0000 - 0xE00F FFFF Cortex®-M4 internal peripherals

0xD000 0000 - 0xDFFF FFFF FMC bank 6

0xC000 0000 - 0xCFFF FFFF FMC bank 5

0xA000 1000 - 0xA0001FFF Quad-SPI control register

0xA000 2000 - 0xBFFF FFFF Reserved

AHB3

0xA000 0000- 0xA000 0FFF FMC control register

0x9000 0000 - 0x9FFF FFFF Quad-SPI bank

0x8000 0000 - 0x8FFF FFFF FMC bank 3

0x7000 0000 - 0x7FFF FFFF FMC bank 2 (reserved)

0x6000 0000 - 0x6FFF FFFF FMC bank 1

- 0x5006 0C00- 0x5FFF FFFF Reserved

0x5006 0800 - 0x5006 0BFF RNG

0x5006 0400 - 0x5006 07FF HASH

0x5006 0000 - 0x5006 03FF CRYP

AHB2

0x5005 0400 - 0x5005 FFFF Reserved

0x5005 0000 - 0x5005 03FF DCMI

0x5004 0000- 0x5004 FFFF Reserved

0x5000 0000 - 0x5003 FFFF USB OTG FS

DS 1111 8 Rev 6 85/ 2 2 0

Memory mapping STM32F479xx

Table 13. STM32F479xx register boundary addresses

Bus Boundary address Peripheral

- 0x4008 0000- 0x4FFF FFFF Reserved

0x4004 0000 - 0x4007 FFFF USB OTG HS

0x4002 BC00- 0x4003 FFFF Reserved

0x4002 B000 - 0x4002 BBFF Chrom (DMA2D)

0x4002 9400 - 0x4002 AFFF Reserved

0x4002 9000 - 0x4002 93FF

0x4002 8C00 - 0x4002 8FFF

0x4002 8800 - 0x4002 8BFF

0x4002 8400 - 0x4002 87FF

0x4002 8000 - 0x4002 83FF

0x4002 6800 - 0x4002 7FFF Reserved

0x4002 6400 - 0x4002 67FF DMA2

0x4002 6000 - 0x4002 63FF DMA1

0x4002 5000 - 0x4002 5FFF Reserved

0x4002 4000 - 0x4002 4FFF BKPSRAM

ETHERNET MAC

(1)

(continued)

AHB1

0x4002 3C00 - 0x4002 3FFF Flash interface register

0x4002 3800 - 0x4002 3BFF RCC

0x4002 3400 - 0x4002 37FF Reserved

0x4002 3000 - 0x4002 33FF CRC

0x4002 2C00 - 0x4002 2FFF Reserved

0x4002 2800 - 0x4002 2BFF GPIOK

0x4002 2400 - 0x4002 27FF GPIOJ

0x4002 2000 - 0x4002 23FF GPIOI

0x4002 1C00 - 0x4002 1FFF GPIOH

0x4002 1800 - 0x4002 1BFF GPIOG

0x4002 1400 - 0x4002 17FF GPIOF

0x4002 1000 - 0x4002 13FF GPIOE

0x4002 0C00 - 0x4002 0FFF GPIOD

0x4002 0800 - 0x4002 0BFF GPIOC

0x4002 0400 - 0x4002 07FF GPIOB

0x4002 0000 - 0x4002 03FF GPIOA

86 /22 0 DS 1111 8 Rev 6

STM32F479xx Memory mapping

Table 13. STM32F479xx register boundary addresses

(1)

(continued)

Bus Boundary address Peripheral

0x4001 7400 - 0x4001 FFFF Reserved

0x4001 6C00 - 0x4001 73FF DSI Host

0x4001 6800 - 0x4001 6BFF LCD-TFT

0x4001 5C00 - 0x4001 67FF Reserved

0x4001 5800 - 0x4001 5BFF SAI1

0x4001 5400 - 0x4001 57FF SPI6

0x4001 5000 - 0x4001 53FF SPI5

0x4001 4C00 - 0x4001 4FFF Reserved

0x4001 4800 - 0x4001 4BFF TIM11

0x4001 4400 - 0x4001 47FF TIM10

0x4001 4000 - 0x4001 43FF TIM9

0x4001 3C00 - 0x4001 3FFF EXTI

APB2

0x4001 3800 - 0x4001 3BFF SYSCFG

0x4001 3400 - 0x4001 37FF SPI4

0x4001 3000 - 0x4001 33FF SPI1

0x4001 2C00 - 0x4001 2FFF SDIO

0x4001 2400 - 0x4001 2BFF Reserved

0x4001 2000 - 0x4001 23FF ADC1 - ADC2 - ADC3

0x4001 1800 - 0x4001 1FFF Reserved

0x4001 1400 - 0x4001 17FF USART6

0x4001 1000 - 0x4001 13FF USART1

0x4001 0800 - 0x4001 0FFF Reserved

0x4001 0400 - 0x4001 07FF TIM8

0x4001 0000 - 0x4001 03FF TIM1

DS 1111 8 Rev 6 87/ 2 2 0

Memory mapping STM32F479xx

Table 13. STM32F479xx register boundary addresses

Bus Boundary address Peripheral

- 0x4000 8000- 0x4000 FFFF Reserved

0x4000 7C00 - 0x4000 7FFF UART8

0x4000 7800 - 0x4000 7BFF UART7

0x4000 7400 - 0x4000 77FF DAC

0x4000 7000 - 0x4000 73FF PWR

0x4000 6C00 - 0x4000 6FFF Reserved

0x4000 6800 - 0x4000 6BFF CAN2

0x4000 6400 - 0x4000 67FF CAN1

0x4000 6000 - 0x4000 63FF Reserved

0x4000 5C00 - 0x4000 5FFF I2C3

0x4000 5800 - 0x4000 5BFF I2C2

0x4000 5400 - 0x4000 57FF I2C1

0x4000 5000 - 0x4000 53FF UART5

0x4000 4C00 - 0x4000 4FFF UART4

0x4000 4800 - 0x4000 4BFF USART3

(1)

(continued)

APB1

0x4000 4400 - 0x4000 47FF USART2

0x4000 4000 - 0x4000 43FF I2S3ext

0x4000 3C00 - 0x4000 3FFF SPI3 / I2S3

0x4000 3800 - 0x4000 3BFF SPI2 / I2S2

0x4000 3400 - 0x4000 37FF I2S2ext

0x4000 3000 - 0x4000 33FF IWDG

0x4000 2C00 - 0x4000 2FFF WWDG

0x4000 2800 - 0x4000 2BFF RTC & BKP Registers

0x4000 2400 - 0x4000 27FF Reserved

0x4000 2000 - 0x4000 23FF TIM14

0x4000 1C00 - 0x4000 1FFF TIM13

0x4000 1800 - 0x4000 1BFF TIM12

0x4000 1400 - 0x4000 17FF TIM7

0x4000 1000 - 0x4000 13FF TIM6

0x4000 0C00 - 0x4000 0FFF TIM5

0x4000 0800 - 0x4000 0BFF TIM4

0x4000 0400 - 0x4000 07FF TIM3

0x4000 0000 - 0x4000 03FF TIM2

1. The reserved boundary address are shown in grayed cells

88 /22 0 DS 1111 8 Rev 6

STM32F479xx Electrical characteristics

5 Electrical characteristics

5.1 Parameter conditions

Unless otherwise specified, all voltages are referenced to VSS.

5.1.1 Minimum and maximum values

Unless otherwise specified the minimum and maximum values are guaranteed in the worst conditions of ambient temperature, supply voltage and frequencies by tests in production on 100% of the devices with an ambient temperature at T the selected temperature range).

Data based on characterization results, design simulation and/or technology characteristics are indicated in the table footnotes and are not tested in production. Based on characterization, the minimum and maximum values refer to sample tests and represent the mean value plus or minus three times the standard deviation (mean±3σ).

5.1.2 Typical values

Unless otherwise specified, typical data are based on TA = 25 °C, VDD = 3.3 V (for the

1.7 V  V tested.

 3.6 V voltage range). They are given only as design guidelines and are not

= 25 °C and TA = TAmax (given by

Typical ADC accuracy values are determined by characterization of a batch of samples from a standard diffusion lot over the full temperature range, where 95% of the devices have an error less than or equal to the value indicated

5.1.3 Typical curves

Unless otherwise specified, all typical curves are given only as design guidelines and are not tested.

5.1.4 Loading capacitor

The loading conditions used for pin parameter measurement are shown in Figure 22.

5.1.5 Pin input voltage

The input voltage measurement on a pin of the device is described in Figure 23.

Figure 22. Pin loading conditions Figure 23. Pin input voltage

C = 50 pF

MCU pin

(mean±2σ).

MCU pin

MS19011V2

DS 1111 8 Rev 6 89/ 2 2 0

MS19010V2

191

Electrical characteristics STM32F479xx

MS38256V1

Backup circuitry

(OSC32K,RTC,

Wakeup logic

Backup registers,

backup RAM)

Kernel logic

(CPU, digital

& RAM)

Analog:

RCs, PLL,..

Power switch

BAT

GPIOs

OUT

20 × 100 nF + 1 × 4.7 μF

BAT

= 1.65 to 3.6 V

Voltage

regulator

DDA

ADC

Level shifter

Logic

100 nF

+ 1 μF

Flash memory

CAP_1

CAP_2

2 × 2.2 μF

BYPASS_REG

PDR_ON

Reset

controller

1/2/...19/20

REF+

REF-

SSA

REF

100 nF

+ 1 μF

OTG-FS

PHY

DDUSB

100 nF

DDUSB

DSI

PHY

DSI

Voltage

regulator

DDDSI

CAPDSI

DD12DSI

SSDSI

2.2 μF

5.1.6 Power supply scheme

Figure 24. Power supply scheme

1. To connect BYPASS_REG and PDR_ON pins, refer to Section 2.19 and Section 2.20.

2. The two 2.2 µF ceramic capacitors on V

Caution: Each power supply pair (VDD/VSS, V

capacitors when the voltage regulator is OFF.

3. The 4.7 µF ceramic capacitor must be connected to one of the V

DDA

and V

4. V

capacitors as shown above. These capacitors must be placed as close as possible to, or

must be connected to VDD and VSS, respectively.

SSA

below, the appropriate pins on the underside of the PCB to ensure good operation of the device. It is not recommended to remove filtering capacitors to reduce PCB size or cost. This might cause incorrect operation of the device.

CAP_1

DDA/VSSA

and V

should be replaced by two 100 nF decoupling

CAP_2

pin.

...) must be decoupled with filtering ceramic

90 /22 0 DS 1111 8 Rev 6

STM32F479xx Electrical characteristics

ai14126

BAT

DDA

IDD_V

BAT

5.1.7 Current consumption measurement

Figure 25. Current consumption measurement scheme

5.2 Absolute maximum ratings

Stresses above the absolute maximum ratings listed in Tab le 14 , Table 15, and Tabl e 16 may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these conditions is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

Table 14. Voltage characteristics

Symbol Ratings Min Max Unit

DD–VSS

External main supply voltage (including V

Input voltage on FT pins

DDA, VDD, VDDUSB, VDDDSI

(2)

and V

BAT

(1)

)

Input voltage on TTa pins V

Input voltage on any other pin V

Input voltage on BOOT pin V

| Variations between different VDD power pins - 50

|V

DDx

SSX VSS

ESD(HBM)

1. All main power (VDD, V the external power supply, in the permitted range.

2. VIN maximum value must always be respected. Refer to Ta bl e 1 5 for the values of the maximum allowed injected current.

3. Including V

| Variations between all the different ground pins

Electrostatic discharge voltage (human body model) see Section 5.3.18

REF-

DDA

, V

DDUSB

, V

) and ground (VSS, V

DDDSI

(3)

) pins must always be connected to

SSA

− 0.3 4.0

VSS− 0.3 VDD+4.0

− 0.3 4.0

9.0

-50

DS 1111 8 Rev 6 91/ 2 2 0

191

Electrical characteristics STM32F479xx

Table 15. Current characteristics

Symbol Ratings Max. Unit

(1)

290

− 290

100

− 100

I

I

VDDUSB

VDD

VSS

VDD

VSS

Total current into sum of all V

DD_x

Total current out of sum of all V

Total current into V

Maximum current into each V

power line (source) 25

DDUSB

DD_x

Maximum current out of each V

power lines (source)

ground lines (sink)

SS_x

power line (source)

ground line (sink)

SS_x

Output current sunk by any I/O and control pin 25

I

INJ(PIN)

I

INJ(PIN)

1. All main power (VDD, V supply, in the permitted range.

2. This current consumption must be correctly distributed over all I/Os and control pins. The total output current must not be sunk/sourced between two consecutive power supply pins referring to high pin count LQFP packages.

3. Negative injection disturbs the analog performance of the device. See note in Section 5.3.24.

4. Positive injection is not possible on these I/Os and does not occur for input voltages lower than the specified maximum value.

5. A positive injection is induced by VIN>V never be exceeded. Refer to Table 14 for the values of the maximum allowed input voltage.

6. When several inputs are submitted to a current injection, the maximum ΣI positive and negative injected currents (instantaneous values).

Output current sourced by any I/Os and control pin − 25

Total output current sunk by sum of all I/O and control pins

(2)

Total output current sunk by sum of all USB I/Os 25

Total output current sourced by sum of all I/Os and control pins

Injected current on FT pins

(3)

Injected current on NRST and BOOT0 pins

Injected current on TTa pins

(5)

Total injected current (sum of all I/O and control pins)

) and ground (VSS, V

DDA

(4)

(5)

(6)

) pins must always be connected to the external power

SSA

while a negative injection is induced by VIN<VSS. I

DDA

is the absolute sum of the

INJ(PIN)

(2)

120

− 120

− 5/+0

±5

±25

INJ(PIN)

must

Table 16. Thermal characteristics

Symbol Ratings Value Unit

STG

Storage temperature range − 65 to +150 °C

Maximum junction temperature 125 °C

92 /22 0 DS 1111 8 Rev 6

STM32F479xx Electrical characteristics

5.3 Operating conditions

5.3.1 General operating conditions

Table 17. General operating conditions

Symbol Parameter Conditions

Power Scale 3 (VOS[1:0] bits in PWR_CR register = 0x01), Regulator ON, over-drive OFF

Power Scale 2 (VOS[1:0] bits in PWR_CR register = 0x10),

HCLK

Internal AHB clock frequency

Regulator ON

Power Scale 1 (VOS[1:0] bits in PWR_CR register= 0x11), Regulator ON

Over-drive OFF 0 - 42

PCLK1

Internal APB1 clock frequency

Over-drive ON 0 - 45

Over-drive OFF 0 - 84

PCLK2

Internal APB2 clock frequency

Over-drive ON 0 - 90

Standard operating voltage - 1.7

Analog operating voltage

DDA

Analog operating voltage

Must be the same potential as V

(ADC limited to 1.2 M samples)

(3)(4)

(ADC limited to 2.4 M samples)

DDUSB

DDDSI

BAT

USB supply voltage (supply voltage for PA11, PA12, PB14 and PB15 pins)

DSI system operating voltage - 1.7

Backup operating voltage - 1.65 - 3.6

USB not used 0 3.3 3.6

USB used 3.0 - 3.6

(1)

Over-drive

OFF

Over-drive

OFF

Over-drive

(5)

Min Typ Max Unit

0-120

-144

-168

MHz

-180

(2)

-3.6

(2)

1.7

-2.4

2.4 - 3.6

(2)

-3.6

DS 1111 8 Rev 6 93/ 2 2 0

191

Electrical characteristics STM32F479xx

Table 17. General operating conditions (continued)

Symbol Parameter Conditions

Power Scale 3 ((VOS[1:0] bits in PWR_CR register = 0x01), 120 MHz HCLK max frequency

Power Scale 2 ((VOS[1:0] bits in

Regulator ON: 1.2 V internal voltage on V

CAP_1/VCAP_2

PWR_CR register = 0x10), 144 MHz HCLK max frequency with over-drive OFF

pins

or 168 MHz with over-drive ON

Power Scale 1 ((VOS[1:0] bits in PWR_CR register = 0x11), 168 MHz HCLK max frequency with over-drive OFF or 180 MHz with over-drive ON

Regulator OFF: 1.2 V external voltage must be supplied from external regulator on V

CAP_1/VCAP_2

Input voltage on RST and FT

(7)

pins

Input voltage on TTa pins - − 0.3 -

pins

(6)

Max frequency 120 MHz 1.10 1.14 1.20

Max frequency 144 MHz 1.20 1.26 1.32

Max frequency 168 MHz 1.26 1.32 1.38

2V VDD 3.6 V − 0.3 - 5.5

2V − 0.3 - 5.2

(1)

Min Typ Max Unit

1.08 1.14 1.20

1.20 1.26 1.32

1.26 1.32 1.40

DDA

+0.3

Input voltage on BOOT0 pin - 0 - 9

LQFP100 - - 465

LQFP144 - - 500

WLCSP168 - - 645

Power dissipation

at T

= 85 °C for suffix 6

or TA = 105 °C for suffix 7

UFBGA169 - - 385

(8)

LQFP176 - - 526

UFBGA176 - - 513

LQFP208 - - 1053

TFBGA216 - - 690

Ambient temperature for 6 suffix version

Ambient temperature for 7 suffix version

J Junction temperature range

Maximum power dissipation − 40 - 85

Low power dissipation

(9)

Maximum power dissipation − 40 - 105

Low power dissipation

(9)

6 suffix version − 40 - 105

7 suffix version − 40 - 125

1. The over-drive mode is not supported at the voltage ranges from 1.7 to 2.1 V.

2. V

3. When the ADC is used, refer to Table 76.

4. If V

5. It is recommended to power V V

6. The over-drive mode is not supported when the internal regulator is OFF.

minimum value of 1.7 V is obtained with the use of an external power supply supervisor (refer to Section 2.19.2).

DD/VDDA

pin is present, it must respect the following condition: V

REF+

and V

can be tolerated during power-up and power-down operation.

DDA

from the same source. A maximum difference of 300 mV between V

DDA

DDA-VREF+

< 1.2 V.

− 40 - 105

− 40 - 125

and

°C

94 /22 0 DS 1111 8 Rev 6

STM32F479xx Electrical characteristics

MS19044V2

ESR

Leak

7. To sustain a voltage higher than VDD+0.3, the internal Pull-up and Pull-Down resistors must be disabled

8. If T

9. In low power dissipation state, T

is lower, higher PD values are allowed as long as TJ does not exceed T

can be extended to this range as long as TJ does not exceed T

Table 18. Limitations depending on the operating power supply range

Jmax

Maximum Flash

Operating

power

supply range

1.7 to 2.1 V

(3)

ADC

operation

memory access

frequency with

no wait states

Flashmax

20 MHz

)

(4)

Conversion time

up to 1.2 Msps

2.1 to 2.4 V

2.4 to 2.7 V

22 MHz

24 MHz

Conversion time

up to 2.4 Msps

2.7 to 3.6 V

1. Applicable only when the code is executed from Flash memory. When the code is executed from RAM, no wait state is required.

2. Thanks to the ART accelerator and the 128-bit Flash memory, the number of wait states given here does not impact the execution speed from Flash memory since the ART accelerator allows to achieve a performance equivalent to 0 wait state program execution.

3. V

4. Prefetch is not available.

5. When V electrical characteristics of D- and D+ pins will be degraded between 2.7 and 3 V.

(5)

minimum value of 1.7 V is obtained with the use of an external power supply supervisor (refer to Section 2.19.2).

DD/VDDA

is connected to VDD, the voltage range for USB full speed PHYs can drop down to 2.7 V. However the

DDUSB

30 MHz

Maximum HCLK

frequency

vs.

Flash memory wait

states

(1)(2)

168 MHz

with 8 wait states

and over-drive OFF

180 MHz

with 8 wait states

and over-drive ON

180 MHz

with 7 wait states

and over-drive ON

180 MHz

with 5 wait states

and over-drive ON

I/O operation

No I/O

compensation

I/O compensation

works

Possible Flash

memory

operations

8-bit erase

and program

operations only

16-bit erase

and program

operations

16-bit erase

and program

operations

32-bit erase

and program

operations

5.3.2 VCAP1/VCAP2 external capacitor

Stabilization for the main regulator is achieved by connecting an external capacitor C the VCAP1/VCAP2 pins. C

1. Legend: ESR is the equivalent series resistance.

is specified in Tab le 1 9.

EXT

Figure 26. External capacitor C

DS 1111 8 Rev 6 95/ 2 2 0

EXT

191

Electrical characteristics STM32F479xx

Table 19. VCAP1/VCAP2 operating conditions

(1)

Symbol Parameter Conditions

CEXT Capacitance of external capacitor 2.2 µF

ESR ESR of external capacitor < 2 

1. When bypassing the voltage regulator, the two 2.2 µF V replaced by two 100 nF decoupling capacitors.

capacitors are not required and should be

CAP

5.3.3 Operating conditions at power-up / power-down (regulator ON)

Subject to general operating conditions for TA.

Table 20. Operating conditions at power-up / power-down (regulator ON)

Symbol Parameter Min Max Unit

VDD

VDD rise time rate 20 

fall time rate 20 

5.3.4 Operating conditions at power-up / power-down (regulator OFF)

Subject to general operating conditions for TA.

Table 21. Operating conditions at power-up / power-down (regulator OFF)

µs/V

(1)

Symbol Parameter Conditions Min Max Unit

VDD rise time rate Power-up 20 

VDD

VCAP

1. To reset the internal logic at power-down, a reset must be applied on pin PA0 when V

1.08 V.

fall time rate Power-down 20 

CAP_1

and V

rise time rate Power-up 20 

CAP_2

fall time rate Power-down 20 

CAP_2

5.3.5 Reset and power control block characteristics

The parameters given in Tab le 22 are derived from tests performed under ambient temperature and V

supply voltage conditions summarized in Tabl e 17 .

reach below

µs/V

96 /22 0 DS 1111 8 Rev 6

STM32F479xx Electrical characteristics

Table 22. Reset and power control block characteristics

Symbol Parameter Conditions Min Typ Max Unit

PLS[2:0]=000 (rising edge) 2.09 2.14 2.19

PLS[2:0]=000 (falling edge) 1.98 2.04 2.08

PLS[2:0]=001 (rising edge) 2.23 2.30 2.37

PLS[2:0]=001 (falling edge) 2.13 2.19 2.25

PLS[2:0]=010 (rising edge) 2.39 2.45 2.51

PLS[2:0]=010 (falling edge) 2.29 2.35 2.39

PLS[2:0]=011 (rising edge) 2.54 2.60 2.65

PVD

Programmable voltage detector level selection

PLS[2:0]=011 (falling edge) 2.44 2.51 2.56

PLS[2:0]=100 (rising edge) 2.70 2.76 2.82

PLS[2:0]=100 (falling edge) 2.59 2.66 2.71

PLS[2:0]=101 (rising edge) 2.86 2.93 2.99

PLS[2:0]=101 (falling edge) 2.65 2.84 2.92

PLS[2:0]=110 (rising edge) 2.96 3.03 3.10

PLS[2:0]=110 (falling edge) 2.85 2.93 2.99

PLS[2:0]=111 (rising edge) 3.07 3.14 3.21

PLS[2:0]=111 (falling edge) 2.95 3.03 3.09

(1)

PVDhyst

POR/PDR

PDRhyst

PVD hysteresis - - 100 - mV

Power-on/power-down reset threshold

(1)

PDR hysteresis - - 40 - mV

Falling edge 1.60 1.68 1.76

Rising edge 1.64 1.72 1.80

Falling edge 2.13 2.19 2.24

BOR1

Brownout level 1 threshold

Rising edge 2.23 2.29 2.33

Falling edge 2.44 2.50 2.56

BOR2

Brownout level 2 threshold

Rising edge 2.53 2.59 2.63

Falling edge 2.75 2.83 2.88

BOR3

BORhyst

RSTTEMPO

RUSH

(1)

Brownout level 3 threshold

Rising edge 2.85 2.92 2.97

(1)

BOR hysteresis - - 100 - mV

(1)(2)

POR reset temporization - 0.5 1.5 3.0 ms

InRush current on voltage regulator power-on (POR or

- - 160 200 mA

wakeup from Standby)

InRush energy on voltage regulator power-on (POR or

RUSH

(1)

wakeup from Standby)

1. Guaranteed by design.

2. The reset temporization is measured from the power-on (POR reset or wakeup from V instruction is read by the user application code.

= 1.7 V, TA = 105 °C,

= 171 mA for 31 µs

RUSH

--5.4µC

) to the instant when first

BAT

DS 1111 8 Rev 6 97/ 2 2 0

191

Electrical characteristics STM32F479xx

5.3.6 Over-drive switching characteristics

When the over-drive mode switches from enabled to disabled or disabled to enabled, the system clock is stalled during the internal voltage set-up.

The over-drive switching characteristics are given in Tab le 23 . They are subject to general operating conditions for T

Symbol Parameter Conditions Min Typ Max Unit

Table 23. Over-drive switching characteristics

(1)

HSI - 45 -

od_swen

od_swdis

1. Guaranteed by design.

Over_drive switch

enable time

Over_drive switch

disable time

HSE max for 4 MHz

and min for 26 MHz

External HSE

50 MHz

HSI - 20 -

HSE max for 4 MHz

and min for 26 MHz.

External HSE

50 MHz

5.3.7 Supply current characteristics

The current consumption is a function of several parameters and factors such as the operating voltage, ambient temperature, I/O pin loading, device software configuration, operating frequencies, I/O pin switching rate, program location in memory and executed binary code.

The current consumption is measured as described in Figure 25.

All the run-mode current consumption measurements given in this section are performed with a reduced code that gives a consumption equivalent to CoreMark

45 - 100

- 40 -

20 - 80

- 15 -

code.

µs

98 /22 0 DS 1111 8 Rev 6

STM32F479xx Electrical characteristics

Typical and maximum current consumption

The MCU is placed under the following conditions:

 All I/O pins are in input mode with a static value at V

 All peripherals are disabled except if it is explicitly mentioned.

 The Flash memory access time is adjusted both to f

(see Table 18: Limitations depending on the operating power supply range).

 When the regulator is OFF, the V

is provided externally, as described in Table 17:

General operating conditions.

 The voltage scaling and over-drive mode are adjusted to f

– Scale 3 for f

– Scale 2 for 120 MHz < f

– Scale 1 for 144 MHz < f

 The system clock is HCLK, f

 120 MHz

HCLK

 144 MHz

HCLK

 180 MHz. The over-drive is only ON at 180 MHz.

HCLK

PCLK1

= f

HCLK

/4, and f

 External clock frequency is 25 MHz and PLL is ON when f

 The typical current consumption values are obtained for 1.7 V

range and for ambient temperature T

 The maximum values are obtained for 1.7 V

maximum ambient temperature (T

 For the voltage range 1.7 V

 V

= 25 °C unless otherwise specified.

 V

), unless otherwise specified.

 2.1 V the maximum frequency is 168 MHz.

or VSS (no load).

frequency and V

HCLK

frequency as follows:

HCLK

= f

PCLK2

 3.6 V voltage range and a

/2.

HCLK

is higher than 25 MHz.

HCLK

 V

 3.6 V voltage

range

DS 1111 8 Rev 6 99/ 2 2 0

191

Electrical characteristics STM32F479xx

Table 24. Typical and maximum current consumption in Run mode, code with data processing

running from Flash memory (ART accelerator enabled except prefetch) or RAM,

regulator ON

(1)

Max

Symbol Parameter Conditions f

All

peripherals

enabled

(2)(3)

Supply

current in

Run mode

(MHz) Typ

HCLK

180 103 109

25 °C

(4)

TA =

85 °C

105 °C

142 175

TA =

(4)

168 94 99 124 149

150 84 89 114 140

144 77 81 104 127

120 57 60 79 98

90 43 46 64 84

60 30 33 51 70

30 16 19 37 57

25 14 16 34 54

16 7 10 28 48

8472646

4362444

2352343

180 50 56

(4)

89 124

(4)

168 45 51 75 102

150 41 46 70 97

Unit

144 37 42 63 88

120 28 31 49 69

All

peripherals

disabled

(2)

90 21 24 42 63

60 15 17 36 56

30 9 11 29 49

25 7 10 28 48

16 4 7 25 45

8362244

4352343

2252343

1. Guaranteed based on test during characterization.

2. When analog peripheral blocks such as ADCs, DACs, HSE, LSE, HSI, or LSI are ON, an additional power consumption should be considered.

3. When the ADC is ON (ADON bit set in the ADC_CR2 register), add an additional power consumption of 1.6 mA per ADC for the analog part.

4. Guaranteed by test in production.

10 0 /220 DS 1111 8 Rev 6

STMicroelectronics STM32F479AI, STM32F479AG, STM32F479BI, STM32F479BG, STM32F479II Datasheet

Specifications and Main Features

Frequently Asked Questions

User Manual

Table 1. Device summary

1 Description

Table 2. STM32F479xx features and peripheral counts

1.1 Compatibility throughout the family

1.1.1 LQFP176 package

Figure 1. Incompatible board design for LQFP176 package

1.1.2 LQFP208 package

Figure 2. Incompatible board design for LQFP208 package

1.1.3 UFBGA176 package

Figure 3. UFBGA176 port-to-terminal assignment differences

1.1.4 TFBGA216 package

Figure 4. TFBGA216 port-to-terminal assignment differences

Figure 5. STM32F479xx block diagram

2 Functional overview

2.1 Arm® Cortex®-M4 with FPU and embedded Flash and SRAM

2.2 Adaptive real-time memory accelerator (ART Accelerator™)

2.3 Memory protection unit

2.4 Embedded Flash memory

2.5 CRC (cyclic redundancy check) calculation unit

2.6 Embedded SRAM

2.7 Multi-AHB bus matrix

Figure 6. STM32F479xx Multi-AHB matrix

2.8 DMA controller (DMA)

2.9 Flexible memory controller (FMC)

2.10 Quad-SPI memory interface (QUADSPI)

2.11 LCD-TFT controller

2.12 DSI Host (DSIHOST)

2.13 Chrom-ART Accelerator™ (DMA2D)

2.14 Nested vectored interrupt controller (NVIC)

2.15 External interrupt/event controller (EXTI)

2.16 Clocks and startup

2.17 Boot modes

2.18 Power supply schemes

2.19 Power supply supervisor

2.19.1 Internal reset ON

2.19.2 Internal reset OFF

Figure 8. Power supply supervisor interconnection with internal reset OFF

Figure 9. PDR_ON control with internal reset OFF

2.20 Voltage regulator

2.20.1 Regulator ON

Table 3. Voltage regulator configuration mode versus device operating mode

2.20.2 Regulator OFF

Figure 10. Regulator OFF

2.20.3 Regulator ON/OFF and internal reset ON/OFF availability

Table 4. Regulator ON/OFF and internal reset ON/OFF availability

2.21 Real-time clock (RTC), backup SRAM and backup registers

2.22 Low-power modes

Table 5. Voltage regulator modes in stop mode

2.24 Timers and watchdogs

Table 6. Timer feature comparison

2.24.1 Advanced-control timers (TIM1, TIM8)

2.24.2 General-purpose timers (TIMx)

2.24.3 Basic timers TIM6 and TIM7

2.24.4 Independent watchdog

2.24.5 Window watchdog

2.24.6 SysTick timer

2.25 Inter-integrated circuit interface (I2C)

Table 7. Comparison of I2C analog and digital filters

Table 8. USART feature comparison

2.27 Serial peripheral interface (SPI)

2.28 Inter-integrated sound (I2S)

2.29 Serial Audio interface (SAI1)

2.30 Audio PLL (PLLI2S)

2.31 Audio and LCD PLL(PLLSAI)

2.32 Secure digital input/output interface (SDIO)

2.34 Controller area network (bxCAN)

2.35 Universal serial bus on-the-go full-speed (OTG_FS)

2.36 Universal serial bus on-the-go high-speed (OTG_HS)

2.37 Digital camera interface (DCMI)

2.38 Cryptographic accelerator

2.39 Random number generator (RNG)

2.40 General-purpose input/outputs (GPIOs)

2.41 Analog-to-digital converters (ADCs)

2.42 Temperature sensor

2.43 Digital-to-analog converter (DAC)

2.44 Serial wire JTAG debug port (SWJ-DP)
