STMicroelectronics ST7LITE3 Technical data

ST7LITE3
8-bit MCU with single voltage Flash, data EEPROM, ADC, timers,
SPI, LINSCI
Features
Memories
tended Flash (XFlash) Program memory with read-out protection, In-Circuit Programming and In-Application programming (ICP and
IAP), data retention: 20 years at 55°C. – 384 bytes RAM – 256 bytes data EEPROM with read-out pro-
tection. 300K write/erase cycles guaranteed,
data retention: 20 years at 55°C.
Clock, Reset and Supply Management
– Enhanced reset system – Enhanced low voltage supervisor (LVD) for
main supply and an auxiliary voltage detector
(AVD) with interrupt capability for implement-
ing safe power-down procedures – Clock sources: Internal RC 1% oscillator,
crystal/ceramic resonator or external clock – Optional x4 or x8 PLL for 4 or 8 MHz internal
clock – Five Power Saving Modes: Halt, Active-Halt,
Wait and Slow, Auto Wake Up From Halt
I/O Ports
– Up to 15 multifunctional bidirectional I/O lines –7 high sink outputs
5 Timers
– Configurable Watchdog Timer – Two 8-bit Lite Timers with prescaler,
1 realtime base and 1 input capture – Two 12-bit Auto-reload Timers with 4 PWM
outputs, input capture and output compare
functions
DIP20
2 Communication Interfaces
– Master/slave LINSCI asynchronous serial
interface
– SPI synchronous serial interface
Interrupt Management
– 10 interrupt vectors plus TRAP and RESET – 12 external interrupt lines (on 4 vectors)
A/D Converter
– 7 input channels – 10-bit resolution
Instruction Set
8-bit data manipulation
– 63 basic instructions with illegal opcode
detection – 17 main addressing modes – 8 x 8 unsigned multiply instructions
Development Tools
– Full hardware/software development package – DM (Debug module)
QFN20
SO20
Table 1. Device summary
Features ST7LITE30 ST7LITE35 ST7LITE39
Program memory - bytes 8K RAM (stack) - bytes 384 (128) Data EEPROM - bytes - - 256 Peripherals Lite Timer, Autoreload Timer, SPI, LINSCI, 10-bit ADC Operating Supply 2.7V to 5.5V
CPU Frequency
Operating Temperature -40°C to +125°C Packages SO20 300”, DIP20, QFN20
Up to 8Mhz
(w/ ext OSC up to 16MHz)
Up to 8Mhz (w/ ext OSC up to 16MHz
and int 1MHz RC 1% PLLx8/4MHz)
Rev. 8
May 2007 1/175
1
Table of Contents
ST7LITE3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 PIN DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 REGISTER & MEMORY MAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 FLASH PROGRAM MEMORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.2 MAIN FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.3 PROGRAMMING MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.4 ICC INTERFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.5 MEMORY PROTECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.6 RELATED DOCUMENTATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.7 REGISTER DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5 DATA EEPROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.2 MAIN FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.3 MEMORY ACCESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.4 POWER SAVING MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.5 ACCESS ERROR HANDLING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.6 DATA EEPROM READ-OUT PROTECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.7 REGISTER DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6 CENTRAL PROCESSING UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.2 MAIN FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.3 CPU REGISTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7 SUPPLY, RESET AND CLOCK MANAGEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7.1 INTERNAL RC OSCILLATOR ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7.2 PHASE LOCKED LOOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7.3 REGISTER DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7.4 MULTI-OSCILLATOR (MO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.5 RESET SEQUENCE MANAGER (RSM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.6 SYSTEM INTEGRITY MANAGEMENT (SI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
8 INTERRUPTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.1 NON MASKABLE SOFTWARE INTERRUPT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.2 EXTERNAL INTERRUPTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.3 PERIPHERAL INTERRUPTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
9 POWER SAVING MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.2 SLOW MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.3 WAIT MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.4 HALT MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
2/175
2
Table of Contents
9.5 ACTIVE-HALT MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
9.6 AUTO WAKE UP FROM HALT MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
10 I/O PORTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
10.1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
10.2 FUNCTIONAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
10.3 I/O PORT IMPLEMENTATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
10.4 UNUSED I/O PINS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
10.5 LOW POWER MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
10.6 INTERRUPTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
11 ON-CHIP PERIPHERALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
11.1 WATCHDOG TIMER (WDG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
11.2 DUAL 12-BIT AUTORELOAD TIMER 3 (AT3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
11.3 LITE TIMER 2 (LT2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
11.4 SERIAL PERIPHERAL INTERFACE (SPI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
11.5 LINSCI SERIAL COMMUNICATION INTERFACE (LIN MASTER/SLAVE) . . . . . . . . . . 90
11.6 10-BIT A/D CONVERTER (ADC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
12 INSTRUCTION SET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
12.1 ST7 ADDRESSING MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
12.2 INSTRUCTION GROUPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
13 ELECTRICAL CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
13.1 PARAMETER CONDITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
13.2 ABSOLUTE MAXIMUM RATINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
13.3 OPERATING CONDITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
13.4 SUPPLY CURRENT CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
13.5 CLOCK AND TIMING CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
13.6 MEMORY CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
13.7 EMC CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
13.8 I/O PORT PIN CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
13.9 CONTROL PIN CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
13.10 COMMUNICATION INTERFACE CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . 155
13.11 10-BIT ADC CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
14 PACKAGE CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
14.1 PACKAGE MECHANICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
14.2 THERMAL CHARACTERISTICS 160
14.3 SOLDERING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
15 DEVICE CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
15.1 FLASH OPTION BYTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
15.2 DEVICE ORDERING INFORMATION AND TRANSFER OF CUSTOMER CODE . . . . 164
15.3 DEVELOPMENT TOOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
15.4 ST7 APPLICATION NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
16 KNOWN LIMITATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
3/175
3
Table of Contents
16.1 CLEARING ACTIVE INTERRUPTS OUTSIDE INTERRUPT ROUTINE . . . . . . . . . . . . 171
16.2 LINSCI LIMITATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
17 REVISION HISTORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
To obtain the most recent version of this datasheet,
please check at www.st.com>products>technical literature>datasheet
Please also pay special attention to the Section “KNOWN LIMITATIONS” on page 171.
4/175
1

1 INTRODUCTION

ST7LITE3
The ST7LITE3 is a member of the ST7 microcon­troller family. All ST7 devices are based on a com­mon industry-standard 8-bit core, featuring an en­hanced instruction set.
The ST7LITE3 features FLASH memory with byte-by-byte In-Circuit Programming (ICP) and In­Application Programming (IAP) capability.
Under software control, the ST7LITE3 device can be placed in WAIT, SLOW, or HALT mode, reduc­ing power consumption when the application is in idle or standby state.
The enhanced instruction set and addressing modes of the ST7 offer both power and flexibility to software developers, enabling the design of highly
Figure 1. General Block Diagram
Int.
1% RC
CLKIN
OSC1 OSC2
V
DD
V
SS
RESET
Ext.
OSC
1MHz
to
16MHz
1MHz
PLL x 8
or PLL X4
/ 2
Internal CLOCK
LVD
POWER
SUPPLY
CONTROL
efficient and compact application code. In addition to standard 8-bit data management, all ST7 micro­controllers feature true bit manipulation, 8x8 un­signed multiplication and indirect addressing modes.
For easy reference, all parametric data are located in section 13 on page 131.
The devices feature an on-chip Debug Module (DM) to support in-circuit debugging (ICD). For a description of the DM registers, refer to the ST7 ICC Protocol Reference Manual.
12-Bit
Auto-Reload
TIMER 2
8-Bit
LITE TIMER 2
PORT A
ADDRESS AND DATA BUS
PORT B
Debug Module
ADC
PA7:0
(8 bits)
PB6:0
(7 bits)
8-BIT CORE
ALU
PROGRAM
MEMORY (8K Bytes)
RAM
(384 Bytes)
SPI
LINSCI
WDG
DATA EEPROM
( 256 Bytes)
5/175
1
ST7LITE3

2 PIN DESCRIPTION

Figure 2. 20-Pin QFN Package Pinout
RESET
S
S/AIN0/PB0
SCK/AIN1/PB1
MISO/AIN2/PB2
MOSI/AIN3/PB3
CLKIN/AIN4/PB4
SS
DD
V
V
1
2
ei3
3
4
ei2
5
ei2
6
78 910
OSC1/CLKIN
17181920
ei0
ei1
OSC2
16
PA0 (HS)/LTIC
15
PA1 (HS)/ATIC
PA2 (HS)/ATPWM0
14
PA3 (HS)/ATPWM1
13
12
PA4 (HS)/ATPWM2
11
PA5 (HS)/ATPWM3/ICCDATA
AIN5/PB5
Figure 3. 20-Pin SO and DIP Package Pinout
V V
RESET
/AIN0/PB0
SS
SCK/AIN1/PB1 MISO/AIN2/PB2 MOSI/AIN3/PB3
CLKIN/AIN4/PB4
AIN5/PB5
RDI/AIN6/PB6
SS
DD
1
2
3
4
5
6
7
8 9
10
TDO/PA7(HS)
RDI/AIN6/PB6
MCO/ICCCLKBREAK/PA6
ei3
ei0
ei2
ei1
ei2
(HS) 20mA High sink capability eix associated external interrupt vector
OSC1/CLKIN
20
OSC2
19
PA0 (HS)/LTIC
18
PA1 (HS)/ATIC
17
PA2 (HS)/ATPWM0
16
PA3 (HS)/ATPWM1
15
PA4 (HS)/ATPWM2
14
PA5 (HS)/ATPWM3/ICCDATA
13
PA6/MCO/ICCCLK/BREAK
12
PA7 (HS)/TDO
11
(HS) 20mA high sink capability eix associated external interrupt vector
6/175
1
ST7LITE3
PIN DESCRIPTION (Cont’d)
Legend / Abbreviations for Table 2:
Type: I = input, O = output, S = supply In/Output level: C Output level: HS = 20mA high sink (on N-buffer only)
Port and control configuration:
– Input: float = floating, wpu = weak pull-up, int = interrupt, ana = analog – Output: OD = open drain, PP = push-pull
The RESET configuration of each pin is shown in bold which is valid as long as the device is in reset state.
Table 2. Device Pin Description
Pin Name
QFN20
SO20/DIP20
19 1 V
20 2 V
1 3 RESET
2 4 PB0/AIN0/SS
3 5 PB1/AIN1/SCK I/O C
46
57
68
7 9 PB5/AIN5 I/O C
8 10 PB6/AIN6/RDI I/O C
9 11 PA7/TDO I/O C
1)
SS
DD
PB2/AIN2/ MISO
PB3/AIN3/ MOSI
PB4/AIN4/ CLKIN**
= CMOS 0.3VDD/0.7VDD with input trigger
T
Level Port / Control
Input Output
Type
Input
Output
float
wpu
int
S Ground
1)
I/O C
S Main power supply
T
I/O C
T
X X Top priority non maskable interrupt (active low)
X
ei3
X XXXPort B1
T
I/O C
I/O C
I/O C
T
X XXXPort B2
T
X ei2 X X X Port B3
T
X XXXXPort B4
T
X
T
T
ei2
X XXXPort B6 ADC Analog Input 6 or LINSCI Input
HS X XXXPort A7 LINSCI Output
Main
ana
OD
Function
(after
reset)
PP
Alternate Function
ADC Analog Input 0 or SPI Slave Select (active low)
XXXPort B0
Caution: No negative current injection allowed on this pin. For details, refer to
section 13.2.2 on page 132
ADC Analog Input 1 or SPI Serial Clock Caution: No negative current injection allowed on this pin. For details, refer to
section 13.2.2 on page 132
ADC Analog Input 2 or SPI Master In/ Slave Out Data
ADC Analog Input 3 or SPI Master Out / Slave In Data
ADC Analog Input 4 or External clock input
XXXPort B5 ADC Analog Input 5
7/175
1
ST7LITE3
Level Port / Control
Pin Name
QFN20
SO20/DIP20
PA6 /MCO/
10 12
11 13
12 14 PA4/ATPWM2 I/O C
13 15 PA3/ATPWM1 I/O C
14 16 PA2/ATPWM0 I/O C
15 17 PA1/ATIC I/O C
16 18 PA0/LTIC I/O C
17 19 OSC2 O Resonator oscillator inverter output
18 20 OSC1/CLKIN I
ICCCLK/ BREAK
PA5 /ATPWM3/ ICCDATA
Type
Input
I/O C
I/O C
T
T
T
T
T
T
Output
T
HS X XXPort A5
HS X XXPort A4 Auto-Reload Timer PWM2
HS X
HS X XXPort A2 Auto-Reload Timer PWM0
HS X XXPort A1 Auto-Reload Timer Input Capture
HS X XXXPort A0 Lite Timer Input Capture
Input Output
int
wpu
float
X
ei1
ei0
OD
ana
XXPort A6
XXPort A3 Auto-Reload Timer PWM1
Main
Function
(after
reset)
PP
Main Clock Output or In Circuit Com­munication Clock or External BREAK
Caution: During normal operation this pin must be pulled- up, internally or ex­ternally (external pull-up of 10k manda­tory in noisy environment). This is to avoid entering ICC mode unexpectedly during a reset. In the application, even if the pin is configured as output, any re­set will put it back in input pull-up.
Auto-Reload Timer PWM3 or In Circuit Communication Data
Resonator oscillator inverter input or External clock input
Alternate Function
Notes:
1. It is mandatory to connect all available V
DD
and V
pins to the supply voltage and all VSS and V
DDA
SSA
pins to ground.
2. For input with interrupt possibility “ei
” defines the associated external interrupt vector which can be as-
x
signed to one of the I/O pins using the EISR register. Each interrupt can be either weak pull-up or floating defined through option register OR.
8/175
1

3 REGISTER & MEMORY MAP

ST7LITE3
As shown in Figure 4, the MCU is capable of ad­dressing 64K bytes of memories and I/O registers.
The available memory locations consist of 128 bytes of register locations, 384 bytes of RAM, 256 bytes of data EEPROM and 8 Kbytes of user pro­gram memory. The RAM space includes up to 128 bytes for the stack from 180h to 1FFh.
The highest address bytes contain the user reset and interrupt vectors.
Figure 4. Memory Map
0080h
E000h
FBFFh FC00h
FFFFh
00FFh 0100h
017Fh
0180h
01FFh
0000h
007Fh 0080h
01FFh
0200h
0FFFh
1000h
10FFh
1100h
DFFFh
E000h
FFDFh
FFE0h
FFFFh
HW Registers
(see Table 3)
RAM
(384 Bytes)
Reserved
Data EEPROM
(256 Bytes)
Reserved
Flash Memory
(8K)
Interrupt & Reset Vectors
(see Table 6)
The Flash memory contains two sectors (see Fig-
ure 4) mapped in the upper part of the ST7 ad-
dressing space so the reset and interrupt vectors are located in Sector 0 (F000h-FFFFh).
The size of Flash Sector 0 and other device op­tions are configurable by Option byte.
IMPORTANT: Memory locations marked as “Re­served” must never be accessed. Accessing a re­seved area can have unpredictable effects on the device.
Short Addressing RAM (zero page)
16-bit Addressing
RAM
128 Bytes Stack
8K FLASH
PROGRAM MEMORY
7 Kbytes
SECTOR 1
1 Kbyte
SECTOR 0
DEE0h
DEE1h
DEE2h
DEE3h
DEE4h
see section 7.1 on page 23 and
RCCRH0
RCCRL0 RCCRH1
RCCRL1
Note 1)
1. DEE0h, DEE1h, DEE2h and DEE3h addresses are located in a reserved area but are special bytes containing also the RC calibration values which are read-accessible only in user mode. If all the EEPROM data or Flash space (including the RC calibration values locations) has been erased (after the read out protection removal), then the RC calibration values can still be obtained through these addresses.
9/175
1
ST7LITE3
Table 3. Hardware Register Map
Address Block
0000h 0001h 0002h
0003h 0004h 0005h
0006h 0007h
0008h 0009h 000Ah 000Bh 000Ch
000Dh 000Eh 000Fh 0010h 0011h 0012h 0013h 0014h 0015h 0016h 0017h 0018h 0019h 001Ah 001Bh 001Ch 001Dh 001Eh 001Fh 0020h 0021h 0022h 0023h 0024h 0025h
Port A
Port B
LITE
TIMER 2
AUTO-
RELOAD
TIMER 3
Register
Label
PADR PADDR PAOR
PBDR PBDDR PBOR
LTCSR2 LTARR LTCNTR LTCSR1 LTICR
ATCSR CNTR1H CNTR1L ATR1H ATR1L PWMCR PWM0CSR PWM1CSR PWM2CSR PWM3CSR DCR0H DCR0L DCR1H DCR1L DCR2H DCR2L DCR3H DCR3L ATICRH ATICRL ATCSR2 BREAKCR ATR2H ATR2L DTGR
Register Name Reset Status Remarks
Port A Data Register Port A Data Direction Register Port A Option Register
Port B Data Register Port B Data Direction Register Port B Option Register
Reserved area (2 bytes)
Lite Timer Control/Status Register 2 Lite Timer Auto-reload Register Lite Timer Counter Register Lite Timer Control/Status Register 1 Lite Timer Input Capture Register
Timer Control/Status Register Counter Register 1 High Counter Register 1 Low Auto-Reload Register 1 High Auto-Reload Register 1 Low PWM Output Control Register PWM 0 Control/Status Register PWM 1 Control/Status Register PWM 2 Control/Status Register PWM 3 Control/Status Register PWM 0 Duty Cycle Register High PWM 0 Duty Cycle Register Low PWM 1 Duty Cycle Register High PWM 1 Duty Cycle Register Low PWM 2 Duty Cycle Register High PWM 2 Duty Cycle Register Low PWM 3 Duty Cycle Register High PWM 3 Duty Cycle Register Low Input Capture Register High Input Capture Register Low Timer Control/Status Register 2 Break Control Register Auto-Reload Register 2 High Auto-Reload Register 2 Low Dead Time Generator Register
1)
FFh
00h 40h
1)
FFh
00h 00h
0Fh 00h 00h
0x00 00x0b
xxh
0x00 0000b
00h 00h 00h 00h 00h 00h 00h 00h 00h 00h 00h 00h 00h 00h 00h 00h 00h 00h 00h 03h 00h 00h 00h 00h
R/W R/W R/W
R/W R/W
2)
R/W
R/W R/W Read Only R/W Read Only
R/W Read Only Read Only R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W R/W Read Only Read Only R/W R/W R/W R/W R/W
0026h to
002Dh
002Eh WDG WDGCR Watchdog Control Register 7Fh R/W
0002Fh FLASH FCSR Flash Control/Status Register 00h R/W
00030h EEPROM EECSR Data EEPROM Control/Status Register 00h R/W
10/175
Reserved area (8 bytes)
1
ST7LITE3
Address Block
0031h 0032h 0033h
0034h 0035h 0036h
0037h ITC EICR External Interrupt Control Register 00h R/W
0038h MCC MCCSR Main Clock Control/Status Register 00h R/W
0039h 003Ah
003Bh Reserved area (1 byte)
003Ch ITC EISR External Interrupt Selection Register 00h R/W
003Dh to
003Fh
0040h 0041h 0042h 0043h 0044h 0045h 0046h 0047h
SPI
ADC
Clock and
Reset
LINSCI
(LIN Mas-
ter/Slave)
Register
Label
SPIDR SPICR SPICSR
ADCCSR ADCDRH ADCDRL
RCCR SICSR
SCISR SCIDR SCIBRR SCICR1 SCICR2 SCICR3 SCIERPR SCIETPR
Register Name Reset Status Remarks
SPI Data I/O Register SPI Control Register SPI Control Status Register
A/D Control Status Register A/D Data Register High A/D control and Data Register Low
RC oscillator Control Register System Integrity Control/Status Register
Reserved area (3 bytes)
SCI Status Register SCI Data Register SCI Baud Rate Register SCI Control Register 1 SCI Control Register 2 SCI Control Register 3 SCI Extended Receive Prescaler Register SCI Extended Transmit Prescaler Register
xxh 0xh 00h
00h xxh x0h
FFh
0110 0xx0b
C0h
xxh
00xx xxxxb
xxh 00h 00h 00h 00h
R/W R/W R/W
R/W Read Only R/W
R/W R/W
Read Only R/W R/W R/W R/W R/W R/W R/W
0048h Reserved area (1 byte)
0049h 004Ah
004Bh 004Ch 004Dh
004Eh
004Fh
0050h
0051h to
007Fh
AWU
DM
3)
AWUPR AWUCSR
DMCR DMSR DMBK1H DMBK1L DMBK2H DMBK2L
AWU Prescaler Register AWU Control/Status Register
DM Control Register DM Status Register DM Breakpoint Register 1 High DM Breakpoint Register 1 Low DM Breakpoint Register 2 High DM Breakpoint Register 2 Low
Reserved area (47 bytes)
FFh
00h
00h 00h 00h 00h 00h 00h
R/W R/W
R/W R/W R/W R/W R/W R/W
Legend: x=undefined, R/W=read/write Notes:
1. The contents of the I/O port DR registers are readable only in output configuration. In input configura­tion, the values of the I/O pins are returned instead of the DR register contents.
2. The bits associated with unavailable pins must always keep their reset value.
3. For a description of the DM registers, see the ST7 ICC Reference Manual.
11/175
1
ST7LITE3

4 FLASH PROGRAM MEMORY

4.1 Introduction

The ST7 single voltage extended Flash (XFlash) is a non-volatile memory that can be electrically erased and programmed either on a byte-by-byte basis or up to 32 bytes in parallel.
The XFlash devices can be programmed off-board (plugged in a programming tool) or on-board using In-Circuit Programming or In-Application Program­ming.
The array matrix organisation allows each sector to be erased and reprogrammed without affecting other sectors.

4.2 Main Features

ICP (In-Circuit Programming)
IAP (In-Application Programming)
ICT (In-Circuit Testing) for downloading and
executing user application test patterns in RAM
Sector 0 size configurable by option byte
Read-out and write protection

4.3 PROGRAMMING MODES

The ST7 can be programmed in three different ways:
– Insertion in a programming tool. In this mode,
FLASH sectors 0 and 1, option byte row and data EEPROM (if present) can be pro­grammed or erased.
– In-Circuit Programming. In this mode, FLASH
sectors 0 and 1, option byte row and data EEPROM (if present) can be programmed or erased without removing the device from the application board.
– In-Application Programming. In this mode,
sector 1 and data EEPROM (if present) can be programmed or erased without removing
the device from the application board and while the application is running.
4.3.1 In-Circuit Programming (ICP)
ICP uses a protocol called ICC (In-Circuit Commu­nication) which allows an ST7 plugged on a print­ed circuit board (PCB) to communicate with an ex­ternal programming device connected via cable. ICP is performed in three steps:
Switch the ST7 to ICC mode (In-Circuit Communi­cations). This is done by driving a specific signal sequence on the ICCCLK/DATA pins while the RESET pin is pulled low. When the ST7 enters ICC mode, it fetches a specific RESET vector which points to the ST7 System Memory contain­ing the ICC protocol routine. This routine enables the ST7 to receive bytes from the ICC interface.
– Download ICP Driver code in RAM from the
ICCDATA pin
– Execute ICP Driver code in RAM to program
the FLASH memory
Depending on the ICP Driver code downloaded in RAM, FLASH memory programming can be fully customized (number of bytes to program, program locations, or selection of the serial communication interface for downloading).
4.3.2 In Application Programming (IAP)
This mode uses an IAP Driver program previously programmed in Sector 0 by the user (in ICP mode).
This mode is fully controlled by user software. This allows it to be adapted to the user application, (us­er-defined strategy for entering programming mode, choice of communications protocol used to fetch the data to be stored etc.) IAP mode can be used to program any memory ar­eas except Sector 0, which is write/erase protect­ed to allow recovery in case errors occur during the programming operation.
12/175
1
FLASH PROGRAM MEMORY (Cont’d)

4.4 ICC INTERFACE

ST7LITE3
ICP needs a minimum of 4 and up to 6 pins to be connected to the programming tool. These pins are:
– RESET
–V
: device reset
: device power supply ground
SS
Figure 5. Typical ICC Interface
APPLICATION POWER SUPPLY
(See Note 3)
DD
V
OPTIONAL (See Note 4)
CLKIN/PB4
(See Note 5)
ST7
Notes:
1. If the ICCCLK or ICCDATA pins are only used as outputs in the application, no signal isolation is necessary. As soon as the Programming Tool is plugged to the board, even if an ICC session is not in progress, the ICCCLK and ICCDATA pins are not available for the application. If they are used as inputs by the application, isolation such as a serial resistor has to be implemented if another device forces the signal. Refer to the Programming Tool documentation for recommended resistor values.
2. During the ICP session, the programming tool must control the RESET
pin. This can lead to con­flicts between the programming tool and the appli­cation reset circuit if it drives more than 5mA at high level (push pull output or pull-up resistor<1K). A schottky diode can be used to isolate the appli­cation RESET circuit in this case. When using a classical RC network with R>1K or a reset man­agement IC with open drain output and pull-up re­sistor>1K, no additional components are needed. In all cases the user must ensure that no external reset is generated by the application during the ICC session.
3. The use of Pin 7 of the ICC connector depends on the Programming Tool architecture. This pin
– ICCCLK: ICC output serial clock pin – ICCDATA: ICC input serial data pin – CLKIN/PB4: main clock input for external
source
: application board power supply (option-
–V
DD
al, see Note 3)
PROGRAMMING TOOL
ICC CONNECTOR
ICC Cable
ICC CONNECTOR
HE10 CONNECTOR TYPE
975 3
RESET
ICCCLK
1
246810
See Note 1 and caution
ICCDATA
APPLICATION BOARD
APPLICATION RESET SOURCE
See Note 2
APPLICATION
See Note 1
must be connected when using most ST Program­ming Tools (it is used to monitor the application power supply). Please refer to the Programming Tool manual.
4. Pin 9 must be connected to the PB4 pin of the ST7 when the clock is not available in the applica­tion or if the selected clock option is not pro­grammed in the option byte. ST7 devices with multi-oscillator capability must have OSC2 grounded in this case.
5. With any programming tool, while the ICP option is disabled, the external clock must be provided on PB4.
6. In 38-pulse ICC mode, the internal RC oscillator is forced as a clock source, regardless of the se­lection in the option byte. For ST7LITE30 devices which do not support the internal RC oscillator, the “option byte disabled” mode must be used (35­pulse ICC mode entry, clock provided by the tool). Caution: During normal operation ICCCLK pin must be pulled- up, internally or externally (exter­nal pull-up of 10k mandatory in noisy environ­ment). This avoids entering ICC mode unexpectedly during a reset. In the application, even if the pin is configured as output, any reset puts it back in input pull-up.
I/O
13/175
1
ST7LITE3
FLASH PROGRAM MEMORY (Cont’d)

4.5 Memory Protection

There are two different types of memory protec­tion: Read Out Protection and Write/Erase Protec­tion which can be applied individually.
4.5.1 Read out Protection
Readout protection, when selected provides a pro­tection against program memory content extrac­tion and against write access to Flash memory. Even if no protection can be considered as totally unbreakable, the feature provides a very high level of protection for a general purpose microcontroller. Both program and data E
2
memory are protected.
In flash devices, this protection is removed by re­programming the option. In this case, both pro­gram and data E
2
memory are automatically
erased and the device can be reprogrammed. – Read-out protection selection is enabled and re-
moved through the FMP_R bit in the option byte.
4.5.2 Flash Write/Erase Protection
Write/erase protection, when set, makes it impos­sible to both overwrite and erase program memo­ry. It does not apply to E
2
data. Its purpose is to provide advanced security to applications and pre­vent any change being made to the memory con­tent.
Warning: Once set, Write/erase protection can never be removed. A write-protected flash device is no longer reprogrammable.
Write/erase protection is enabled through the FMP_W bit in the option byte.

4.6 Related Documentation

For details on Flash programming and ICC proto­col, refer to the ST7 Flash Programming Refer­ence Manual and to the ST7 ICC Protocol Refer­ence Manual
.

4.7 Register Description

FLASH CONTROL/STATUS REGISTER (FCSR)
Read/Write Reset Value: 000 0000 (00h) 1st RASS Key: 0101 0110 (56h) 2nd RASS Key: 1010 1110 (AEh)
70
00000OPTLATPGM
Note: This register is reserved for programming using ICP, IAP or other programming methods. It controls the XFlash programming and erasing op­erations.
When an EPB or another programming tool is used (in socket or ICP mode), the RASS keys are sent automatically.
14/175
1

5 DATA EEPROM

ST7LITE3

5.1 INTRODUCTION

The Electrically Erasable Programmable Read Only Memory can be used as a non volatile back­up for storing data. Using the EEPROM requires a basic access protocol described in this chapter.

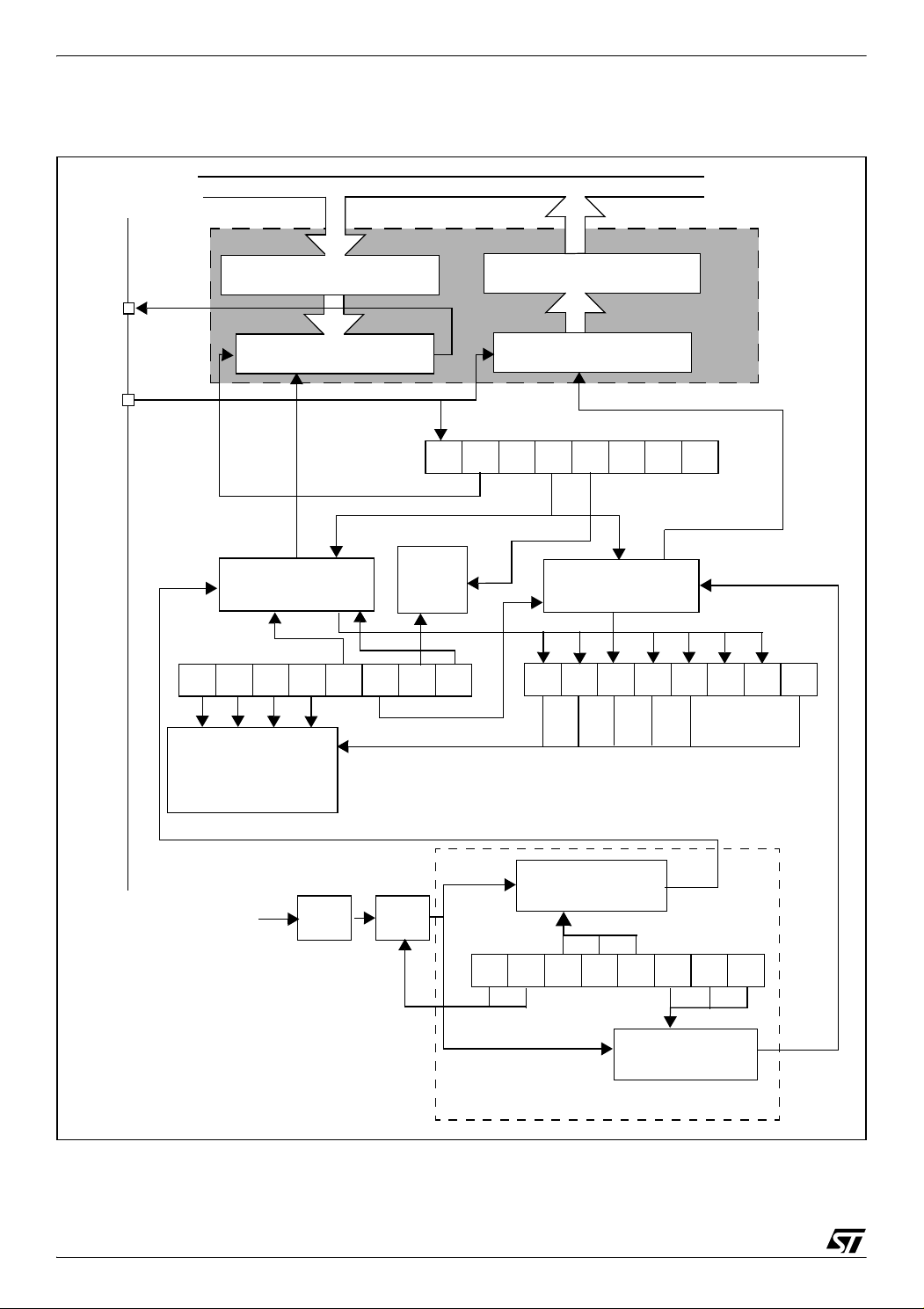

Figure 6. EEPROM Block Diagram
EECSR
ADDRESS DECODER
0 E2LAT00 0 0 0 E2PGM
4
DECODER
ROW

5.2 MAIN FEATURES

Up to 32 Bytes programmed in the same cycle
EEPROM mono-voltage (charge pump)
Chained erase and programming cycles
Internal control of the global programming cycle
duration
WAIT mode management
Readout protection
HIGH VOLTAGE
PUMP
EEPROM
MEMORY MATRIX
(1 ROW = 32 x 8 BITS)
ADDRESS BUS
128128
4
4
DATA
MULTIPLEXER
DATA BUS
32 x 8 BITS
DATA LATCHES
15/175
1
ST7LITE3
DATA EEPROM (Cont’d)

5.3 MEMORY ACCESS

The Data EEPROM memory read/write access modes are controlled by the E2LAT bit of the EEP­ROM Control/Status register (EECSR). The flow­chart in Figure 7 describes these different memory access modes.
Read Operation (E2LAT=0)
The EEPROM can be read as a normal ROM loca­tion when the E2LAT bit of the EECSR register is cleared.
On this device, Data EEPROM can also be used to execute machine code. Take care not to write to the Data EEPROM while executing from it. This would result in an unexpected code being execut­ed.
Write Operation (E2LAT=1)
To access the write mode, the E2LAT bit has to be set by software (the E2PGM bit remains cleared). When a write access to the EEPROM area occurs,
Figure 7. Data EEPROM Programming Flowchart
READ MODE
E2LAT=0
E2PGM=0
the value is latched inside the 32 data latches ac­cording to its address.
When PGM bit is set by the software, all the previ­ous bytes written in the data latches (up to 32) are programmed in the EEPROM cells. The effective high address (row) is determined by the last EEP­ROM write sequence. To avoid wrong program­ming, the user must take care that all the bytes written between two programming sequences have the same high address: only the five Least Significant Bits of the address can change.
At the end of the programming cycle, the PGM and LAT bits are cleared simultaneously.
Note: Care should be taken during the program­ming cycle. Writing to the same memory location will over-program the memory (logical AND be­tween the two write access data result) because the data latches are only cleared at the end of the programming cycle and by the falling edge of the E2LAT bit. It is not possible to read the latched data. This note is ilustrated by the Figure 9.
WRITE MODE
E2LAT=1
E2PGM=0
16/175
1
READ BYTES
IN EEPROM AREA
CLEARED BY HARDWARE
WRITE UP TO 32 BYTES
(with the same 11 MSB of the address)
IN EEPROM AREA
START PROGRAMMING CYCLE
E2PGM=1 (set by software)
E2LAT=1
01
E2LAT
DATA EEPROM (Cont’d)
2
Figure 8. Data E
DEFINITION
PROM Write Operation
Row / Byte 0 1 2 3 ... 30 31 Physical Address
ROW
ST7LITE3
0
1
...
N
00h...1Fh 20h...3Fh
Nx20h...Nx20h+1Fh
E2LAT bit
E2PGM bit
Read operation impossible
Byte 1 Byte 2 Byte 32
PHASE 1
Writing data latches Waiting E2PGM and E2LAT to fall
Set by USER application
Programming cycle
PHASE 2
Read operation possible
Cleared by hardware
Note: If a programming cycle is interrupted (by a reset action), the integrity of the data in memory is not guaranteed.
17/175
1
ST7LITE3
DATA EEPROM (Cont’d)

5.4 POWER SAVING MODES

Wait mode
The DATA EEPROM can enter WAIT mode on ex­ecution of the WFI instruction of the microcontrol­ler or when the microcontroller enters Active-HALT mode.The DATA EEPROM will immediately enter this mode if there is no programming in progress, otherwise the DATA EEPROM will finish the cycle and then enter WAIT mode.
Active-Halt mode
Refer to Wait mode.
Halt mode
The DATA EEPROM immediately enters HALT mode if the microcontroller executes the HALT in­struction. Therefore the EEPROM will stop the function in progress, and data may be corrupted.

5.5 ACCESS ERROR HANDLING

If a read access occurs while E2LAT=1, then the data bus will not be driven.
If a write access occurs while E2LAT=0, then the data on the bus will not be latched.
If a programming cycle is interrupted (by RESET action), the integrity of the data in memory is not guaranteed.

5.6 Data EEPROM Read-out Protection

The read-out protection is enabled through an op­tion bit (see section 15.1 on page 162).
When this option is selected, the programs and data stored in the EEPROM memory are protected against read-out (including a re-write protection). In Flash devices, when this protection is removed by reprogramming the Option Byte, the entire Pro­gram memory and EEPROM is first automatically erased.
Note: Both Program Memory and data EEPROM are protected using the same option bit.
Figure 9. Data EEPROM Programming Cycle
READ OPERATION NOT POSSIBLE
INTERNAL PROGRAMMING VOLTAGE
ERASE CYCLE WRITE CYCLE
WRITE OF
DATA LATCHES
t
PROG
READ OPERATION POSSIBLE
LAT
PGM
18/175
1
DATA EEPROM (Cont’d)

5.7 REGISTER DESCRIPTION

EEPROM CONTROL/STATUS REGISTER (EEC­SR)
Read/Write Reset Value: 0000 0000 (00h)
70
000000E2LATE2PGM
Bits 7:2 = Reserved, forced by hardware to 0.
Bit 1 = E2LAT Latch Access Transfer This bit is set by software. It is cleared by hard­ware at the end of the programming cycle. It can only be cleared by software if the E2PGM bit is cleared. 0: Read mode 1: Write mode
ST7LITE3
Bit 0 = E2PGM Programming control and status This bit is set by software to begin the programming cycle. At the end of the programming cycle, this bit is cleared by hardware. 0: Programming finished or not yet started 1: Programming cycle is in progress
Note: if the E2PGM bit is cleared during the pro­gramming cycle, the memory data is not guaran­teed
Table 4. DATA EEPROM Register Map and Reset Values
Address
(Hex.)
0030h
Register
Label
EECSR
Reset Value
76543210
000000
E2LAT0E2PGM
0
19/175
1
ST7LITE3

6 CENTRAL PROCESSING UNIT

6.1 INTRODUCTION

This CPU has a full 8-bit architecture and contains six internal registers allowing efficient 8-bit data manipulation.

6.2 MAIN FEATURES

63 basic instructions
Fast 8-bit by 8-bit multiply
17 main addressing modes
Two 8-bit index registers
16-bit stack pointer
Low power modes
Maskable hardware interrupts
Non-maskable software interrupt

6.3 CPU REGISTERS

The six CPU registers shown in Figure 10 are not present in the memory mapping and are accessed by specific instructions.
Figure 10. CPU Registers
70
RESET VALUE = XXh
70
RESET VALUE = XXh
70
RESET VALUE = XXh
Accumulator (A)
The Accumulator is an 8-bit general purpose reg­ister used to hold operands and the results of the arithmetic and logic calculations and to manipulate data.
Index Registers (X and Y)
In indexed addressing modes, these 8-bit registers are used to create either effective addresses or temporary storage areas for data manipulation. (The Cross-Assembler generates a precede in­struction (PRE) to indicate that the following in­struction refers to the Y register.)
The Y register is not affected by the interrupt auto­matic procedures (not pushed to and popped from the stack).
Program Counter (PC)
The program counter is a 16-bit register containing the address of the next instruction to be executed by the CPU. It is made of two 8-bit registers PCL (Program Counter Low which is the LSB) and PCH (Program Counter High which is the MSB).
ACCUMULATOR
X INDEX REGISTER
Y INDEX REGISTER
15 8
RESET VALUE = RESET VECTOR @ FFFEh-FFFFh
15
RESET VALUE = STACK HIGHER ADDRESS
20/175
PCH
RESET VALUE =
7
70
1C11HI NZ
1X11X1XX
70
8
PCL
1
0
PROGRAM COUNTER
CONDITION CODE REGISTER
STACK POINTER
X = Undefined Value
CPU REGISTERS (cont’d) CONDITION CODE REGISTER (CC)
Read/Write Reset Value: 111x1xxx
70
logical or data manipulation. It is a copy of the 7 bit of the result. 0: The result of the last operation is positive or null. 1: The result of the last operation is negative
(that is, the most significant bit is a logic 1).
This bit is accessed by the JRMI and JRPL instruc-
111HINZC
tions.
ST7LITE3
th
The 8-bit Condition Code register contains the in­terrupt mask and four flags representative of the result of the instruction just executed. This register can also be handled by the PUSH and POP in­structions.
These bits can be individually tested and/or con­trolled by specific instructions.
Bit 4 = H Half carry This bit is set by hardware when a carry occurs be-
tween bits 3 and 4 of the ALU during an ADD or ADC instruction. It is reset by hardware during the same instructions. 0: No half carry has occurred. 1: A half carry has occurred.
This bit is tested using the JRH or JRNH instruc­tion. The H bit is useful in BCD arithmetic subrou­tines.
Bit 3 = I Interrupt mask This bit is set by hardware when entering in inter-
rupt or by software to disable all interrupts except the TRAP software interrupt. This bit is cleared by software. 0: Interrupts are enabled. 1: Interrupts are disabled.
This bit is controlled by the RIM, SIM and IRET in­structions and is tested by the JRM and JRNM in­structions.
Note: Interrupts requested while I is set are latched and can be processed when I is cleared. By default an interrupt routine is not interruptible because the I bit is set by hardware at the start of the routine and reset by the IRET instruction at the end of the routine. If the I bit is cleared by software in the interrupt routine, pending interrupts are serviced regardless of the priority level of the cur­rent interrupt routine.
Bit 2 = N Negative This bit is set and cleared by hardware. It is repre-
sentative of the result sign of the last arithmetic,
Bit 1 = Z Zero This bit is set and cleared by hardware. This bit in-
dicates that the result of the last arithmetic, logical or data manipulation is zero. 0: The result of the last operation is different from
zero.
1: The result of the last operation is zero. This bit is accessed by the JREQ and JRNE test
instructions.
Bit 0 = C Carry/borrow This bit is set and cleared by hardware and soft-
ware. It indicates an overflow or an underflow has occurred during the last arithmetic operation. 0: No overflow or underflow has occurred. 1: An overflow or underflow has occurred.
This bit is driven by the SCF and RCF instructions and tested by the JRC and JRNC instructions. It is also affected by the “bit test and branch”, shift and rotate instructions.
CPU REGISTERS (Cont’d) STACK POINTER (SP)
Read/Write Reset Value: 01FFh
15 8
00000001
70
1 SP6 SP5 SP4 SP3 SP2 SP1 SP0
The Stack Pointer is a 16-bit register which is al­ways pointing to the next free location in the stack. It is then decremented after data has been pushed onto the stack and incremented before data is popped from the stack (see Figure 11).
Since the stack is 128 bytes deep, the 9 most sig­nificant bits are forced by hardware. Following an
21/175
1
ST7LITE3
MCU Reset, or after a Reset Stack Pointer instruc­tion (RSP), the Stack Pointer contains its reset val­ue (the SP6 to SP0 bits are set) which is the stack higher address.
The least significant byte of the Stack Pointer (called S) can be directly accessed by a LD in­struction.
Note: When the lower limit is exceeded, the Stack Pointer wraps around to the stack upper limit, with­out indicating the stack overflow. The previously stored information is then overwritten and there­fore lost. The stack also wraps in case of an under­flow.
The stack is used to save the return address dur­ing a subroutine call and the CPU context during an interrupt. The user may also directly manipulate the stack by means of the PUSH and POP instruc-
Figure 11. Stack Manipulation Example
@ 0180h
CALL
Subroutine
Interrupt
Event
PUSH Y POP Y IRET
tions. In the case of an interrupt, the PCL is stored at the first location pointed to by the SP. Then the other registers are stored in the next locations as shown in Figure 11.
– When an interrupt is received, the SP is decre-
mented and the context is pushed on the stack.
– On return from interrupt, the SP is incremented
and the context is popped from the stack.
A subroutine call occupies two locations and an in­terrupt five locations in the stack area.
RET
or RSP
SP
@ 01FFh
SP
CC
A
X PCH PCL
PCH
PCL
Stack Higher Address = 01FFh Stack Lower Address =
PCH
PCL
0180h
SP
Y
CC
A
X PCH PCL PCH PCL
SP
CC
A
X PCH PCL PCH PCL
SP
PCH PCL
SP
22/175
1

7 SUPPLY, RESET AND CLOCK MANAGEMENT

ST7LITE3
The device includes a range of utility features for securing the application in critical situations (for example in case of a power brown-out), and re­ducing the number of external components.
Main features
Clock Management
– 1 MHz internal RC oscillator (enabled by op-
tion byte, available on ST7LITE35 and ST7LITE39 devices only)
– 1 to 16 MHz or 32kHz External crystal/ceramic
resonator (selected by option byte) – External Clock Input (enabled by option byte) – PLL for multiplying the frequency by 8 or 4
(enabled by option byte)
Reset Sequence Manager (RSM)
System Integrity Management (SI)
– Main supply Low voltage detection (LVD) with
reset generation (enabled by option byte) – Auxiliary Voltage detector (AVD) with interrupt
capability for monitoring the main supply (en-
abled by option byte)

7.1 INTERNAL RC OSCILLATOR ADJUSTMENT

The device contains an internal RC oscillator with an accuracy of 1% for a given device, temperature and voltage range (4.5V-5.5V). It must be calibrat­ed to obtain the frequency required in the applica­tion. This is done by software writing a 8-bit cali­bration value in the RCCR (RC Control Register) and in the bits [6:5] in the SICSR (SI Control Sta­tus Register).
Whenever the microcontroller is reset, the RCCR returns to its default value (FFh), i.e. each time the device is reset, the calibration value must be load­ed in the RCCR. Predefined calibration values are stored in EEPROM for 3V and 5V V ages at 25°C, as shown in the following table.
RCCR Conditions
T f
T f
DD
A
RC
DD
A
RC
=5V
=25°C
=1MHz
=3.3V
=25°C
=1MHz
RCCRH0 V
RCCRL0 DEE1h
RCCRH1 V
RCCRL1 DEE3h
DEE0h
DEE2h
supply volt-
DD
ST7LITE3
Addresses
1)
(CR[9:2] bits)
1)
(CR[1:0] bits)
1)
(CR[9:2] bits)
1)
(CR[1:0] bits)
1. DEE0h, DEE1h, DEE2h and DEE3h addresses are located in a reserved area of non-volatile memory. They are read-only bytes for the applica-
tion code. This area cannot be erased or pro­grammed by any ICC operation.
For compatibility reasons with the SICSR register, CR[1:0] bits are stored in the 5th and 6th position of DEE1 and DEE3 addresses.
Note: – In 38-pulse ICC mode, the internal RC oscillator
is forced as a clock source, regardless of the se­lection in the option byte. For ST7LITE30 devic­es which do not support the internal RC oscillator, the “option byte disabled” mode must be used (35-pulse ICC mode entry, clock provid­ed by the tool).
– See “ELECTRICAL CHARACTERISTICS” on
page 131. for more information on the frequency and accuracy of the RC oscillator.
– To improve clock stability and frequency accura-
cy, it is recommended to place a decoupling ca­pacitor, typically 100nF, between the V
pins as close as possible to the ST7 device
V
SS
DD
and
– These bytes are systematically programmed by
ST, including on FASTROM devices. Conse­quently, customers intending to use FASTROM service must not use these bytes.
– RCCR0 and RCCR1 calibration values will not
be erased if the read-out protection bit is reset af­ter it has been set . See “Read out Protection” on page 14.
Caution: If the voltage or temperature conditions change in the application, the frequency may need to be recalibrated.
Refer to application note AN1324 for information on how to calibrate the RC frequency using an ex­ternal reference signal.

7.2 PHASE LOCKED LOOP

The PLL can be used to multiply a 1MHz frequen­cy from the RC oscillator or the external clock by 4 or 8 to obtain f
of 4 or 8 MHz. The PLL is ena-
OSC
bled and the multiplication factor of 4 or 8 is select­ed by 2 option bits.
– The x4 PLL is intended for operation with V
DD
in
the 2.7V to 3.3V range
– The x8 PLL is intended for operation with V
DD
in
the 3.3V to 5.5V range
Refer to Section 15.1 for the option byte descrip­tion.
If the PLL is disabled and the RC oscillator is ena­bled, then f
OSC =
1MHz.
23/175
1
ST7LITE3
If both the RC oscillator and the PLL are disabled,
is driven by the external clock.
f
OSC
Figure 12. PLL Output Frequency Timing Diagram
LOCKED bit set
4/8 x input
freq.
t
STAB
t
LOCK
t
STARTUP
Output freq.
t
When the PLL is started, after reset or wakeup from Halt mode or AWUFH mode, it outputs the clock after a delay of t
STARTUP
.
When the PLL output signal reaches the operating frequency, the LOCKED bit in the SICSCR register is set. Full PLL accuracy (ACC a stabilization time of t
STAB
) is reached after
PLL
(see Figure 12 and
13.3.4Internal RC Oscillator and PLL)
Refer to section 7.6.4 on page 34 for a description of the LOCKED bit in the SICSR register.

7.3 REGISTER DESCRIPTION

MAIN CLOCK CONTROL/STATUS REGISTER (MCCSR)
Read / Write Reset Value: 0000 0000 (00h)
70
000000
MCO SMS
Bits 7:2 = Reserved, must be kept cleared.
Bit 1 = MCO Main Clock Out enable This bit is read/write by software and cleared by hardware after a reset. This bit allows to enable the MCO output clock. 0: MCO clock disabled, I/O port free for general
purpose I/O.
1: MCO clock enabled.
Bit 0 = SMS Slow Mode select This bit is read/write by software and cleared by hardware after a reset. This bit selects the input
OSC
or f
clock f 0: Normal mode (f 1: Slow mode (f
/32.
OSC
CPU = fOSC
CPU = fOSC
/32)
RC CONTROL REGISTER (RCCR)
Read / Write Reset Value: 1111 1111 (FFh)
24/175
1
70
CR9 CR8 CR7 CR6 CR5 CR4 CR3 CR2
Bits 7:0 = CR[9:2] RC Oscillator Frequency Ad-
justment Bits
These bits must be written immediately after reset to adjust the RC oscillator frequency and to obtain an accuracy of 1%. The application can store the correct value for each voltage range in EEPROM and write it to this register at start-up. 00h = maximum available frequency FFh = lowest available frequency These bits are used with the CR[1:0] bits in the SICSR register. Refer to section 7.6.4 on page 34 Note: To tune the oscillator, write a series of differ­ent values in the register until the correct frequen­cy is reached. The fastest method is to use a di­chotomy starting with 80h.
Figure 13. Clock Management Block Diagram
ST7LITE3
CLKIN
CLKIN/ OSC1
OSC2
OSCRANGE[2:0]
CLKIN
f
CLKIN
CLKIN
1-16 MHZ or 32kHz
f
OSC
Tunable
Oscillator1% RC
Option bits
DIVIDER
OSC
/32 DIVIDER
/32 DIVIDER
CR6CR9 CR2CR3CR4CR5CR8 CR7
CR1 CR0
1MHz
/2
DIVIDER
PLL 1MHz -> 8MHz PLL 1MHz -> 4MHz
OSC Option bit
/2
8-BIT
LITE TIMER 2 COUNTER
f
/32
OSC
f
OSC
1
0
RCCR
Crystal OSC /2
SICSR
CLKIN/2 (Ext Clock)
RC OSC 8MHz 4MHz
PLL
Clock
PLLx4x8
OSC,PLLOFF,
OSCRANGE[2:0]
Option bits
f
LTIMER
(1ms timebase @ 8 MHz f
f
CPU
TO CPU AND PERIPHERALS
OSC
f
OSC
)
MCO
SMS
MCCSR
f
CPU
MCO
25/175
1
ST7LITE3

7.4 MULTI-OSCILLATOR (MO)

The main clock of the ST7 can be generated by four different source types coming from the multi­oscillator block (1 to 16MHz or 32kHz):
an external source
5 crystal or ceramic resonator oscillators
an internal high frequency RC oscillator
Each oscillator is optimized for a given frequency range in terms of consumption and is selectable through the option byte. The associated hardware configurations are shown in Table 5. Refer to the electrical characteristics section for more details.
External Clock Source
In this external clock mode, a clock signal (square, sinus or triangle) with ~50% duty cycle has to drive the OSC1 pin while the OSC2 pin is tied to ground.
Note: when the Multi-Oscillator is not used, PB4 is selected by default as external clock.
Crystal/Ceramic Oscillators
This family of oscillators has the advantage of pro­ducing a very accurate rate on the main clock of the ST7. The selection within a list of 4 oscillators with different frequency ranges has to be done by option byte in order to reduce consumption (refer to section 15.1 on page 162 for more details on the frequency ranges). In this mode of the multi-oscil­lator, the resonator and the load capacitors have to be placed as close as possible to the oscillator pins in order to minimize output distortion and start-up stabilization time. The loading capaci­tance values must be adjusted according to the selected oscillator.
These oscillators are not stopped during the RESET phase to avoid losing time in the oscillator start-up phase.
Internal RC Oscillator
In this mode, the tunable 1%RC oscillator is used as main clock source. The two oscillator pins have to be tied to ground.
The calibration is done through the RCCR[7:0] and SICSR[6:5] registers.
Table 5. ST7 Clock Sources
Hardware Configuration
ST7
OSC1 OSC2
External ClockCrystal/Ceramic ResonatorsInternal RC Oscillator
EXTERNAL
SOURCE
OSC1 OSC2
C
L1
CAPACITORS
OSC1 OSC2
ST7
LOAD
ST7
C
L2
26/175
1

7.5 RESET SEQUENCE MANAGER (RSM)

ST7LITE3
7.5.1 Introduction
The reset sequence manager includes three RE­SET sources as shown in Figure 15:
External RESET source pulse
Internal LVD RESET (Low Voltage Detection)
Internal WATCHDOG RESET
Note: A reset can also be triggered following the detection of an illegal opcode or prebyte code. Re­fer to section 12.2.1 on page 128 for further de­tails.
These sources act on the RESET
pin and it is al-
ways kept low during the delay phase. The RESET service routine vector is fixed at ad-
dresses FFFEh-FFFFh in the ST7 memory map. The basic RESET sequence consists of 3 phases
as shown in Figure 14:
Active Phase depending on the RESET source
256 or 4096 CPU clock cycle delay (see table
below)
RESET vector fetch
Caution: When the ST7 is unprogrammed or fully erased, the Flash is blank and the RESET vector is not programmed. For this reason, it is recom­mended to keep the RESET pin in low state until programming mode is entered, in order to avoid unwanted behavior.
The 256 or 4096 CPU clock cycle delay allows the oscillator to stabilise and ensures that recovery has taken place from the Reset state. The shorter or longer clock cycle delay is automatically select­ed depending on the clock source chosen by op­tion byte:
The RESET vector fetch phase duration is 2 clock cycles.
Clock Source
Internal RC Oscillator 256 External clock (connected to CLKIN pin) 256 External Crystal/Ceramic Oscillator
(connected to OSC1/OSC2 pins)
CPU clock
cycle delay
4096
If the PLL is enabled by option byte, it outputs the clock after an additional delay of t
STARTUP
(see
Figure 12).
Figure 14. RESET Sequence Phases
RESET
Active Phase
INTERNAL RESET
256 or 4096 CLOCK CYCLES
7.5.2 Asynchronous External RESET
The RESET output with integrated R
pin is both an input and an open-drain
weak pull-up resistor.
ON
FETCH
VECTOR
pin
This pull-up has no fixed value but varies in ac­cordance with the input voltage. It
can be pulled low by external circuitry to reset the device. See Electrical Characteristic section for more details.
A RESET signal originating from an external source must have a duration of at least t
h(RSTL)in
in order to be recognized (see Figure 16). This de­tection is asynchronous and therefore the MCU can enter reset state even in HALT mode.
27/175
1
ST7LITE3
Figure 15. Reset Block Diagram
V
DD
R
ON
RESET
Filter
PULSE
GENERATOR
WATCHDOG RESET ILLEGAL OPCODE RESET LVD RESET
INTERNAL RESET
Note 1: See “Illegal Opcode Reset” on page 128. for more details on illegal opcode reset conditions.
1)
28/175
1
RESET SEQUENCE MANAGER (Cont’d) The RESET
pin is an asynchronous signal which plays a major role in EMS performance. In a noisy environment, it is recommended to follow the guidelines mentioned in the electrical characteris­tics section.
7.5.3 External Power-On RESET
If the LVD is disabled by option byte, to start up the microcontroller correctly, the user must ensure by means of an external reset circuit that the reset signal is held low until V level specified for the selected f
A proper reset signal for a slow rising V
is over the minimum
DD
frequency.
OSC
supply
DD
can generally be provided by an external RC net­work connected to the RESET
pin.
Figure 16. RESET Sequences
V
DD
ST7LITE3
7.5.4 Internal Low Voltage Detector (LVD) RESET
Two different RESET sequences caused by the in­ternal LVD circuitry can be distinguished:
Power-On RESET
Voltage Drop RESET
The device RESET pulled low when V V
DD<VIT-
(falling edge) as shown in Figure 16.
The LVD filters spikes on V avoid parasitic resets.
7.5.5 Internal Watchdog RESET
The RESET sequence generated by a internal Watchdog counter overflow is shown in Figure 16.
Starting from the Watchdog counter underflow, the device RESET low during at least t
pin acts as an output that is
DD<VIT+
(rising edge) or
larger than t
DD
g(VDD)
to
pin acts as an output that is pulled
w(RSTL)out
.
V
IT+(LVD)
V
IT-(LVD)
EXTERNAL RESET SOURCE
RESET PIN
WATCHDOG RESET
RUN
LVD
RESET
ACTIVE PHASE
RUN
t
h(RSTL)in
EXTERNAL
RESET
ACTIVE PHASE
WATCHDOG UNDERFLOW
RUN RUN
INTERNAL RESET (256 or 4096 T VECTOR FETCH
WATCHDOG
RESET
ACTIVE
PHASE
t
w(RSTL)out
CPU
)
29/175
1
ST7LITE3

7.6 SYSTEM INTEGRITY MANAGEMENT (SI)

The System Integrity Management block contains the Low voltage Detector (LVD) and Auxiliary Volt­age Detector (AVD) functions. It is managed by the SICSR register.
Note: A reset can also be triggered following the detection of an illegal opcode or prebyte code. Re­fer to section 12.2.1 on page 128 for further de­tails.
7.6.1 Low Voltage Detector (LVD)
The Low Voltage Detector function (LVD) gener­ates a static reset when the V below a V
IT-(LVD)
reference value. This means that
supply voltage is
DD
it secures the power-up as well as the power-down keeping the ST7 in reset.
The V
IT-(LVD)
lower than the V
reference value for a voltage drop is
IT+(LVD)
reference value for power­on in order to avoid a parasitic reset when the MCU starts running and sinks current on the sup­ply (hysteresis).
The LVD Reset circuitry generates a reset when
is below:
V
DD
–V –V
IT+(LVD)
IT-(LVD)
when VDD is rising
when VDD is falling The LVD function is illustrated in Figure 17. The voltage threshold can be configured by option
byte to be low, medium or high.
Provided the minimum V the oscillator frequency) is above V
value (guaranteed for
DD
IT-(LVD)
, the
MCU can only be in two modes:
– under full software control – in static safe reset
In these conditions, secure operation is always en­sured for the application without the need for ex­ternal reset hardware.
During a Low Voltage Detector Reset, the RESET pin is held low, thus permitting the MCU to reset other devices.
Notes: The LVD allows the device to be used without any
external RESET circuitry. Use of LVD with capacitive power supply: with this
type of power supply, if power cuts occur in the ap­plication, it is recommended to pull V
down to
DD
0V to ensure optimum restart conditions. Refer to circuit example in Figure 99 on page 154 and note
4. The LVD is an optional function which can be se-
lected by option byte. It is recommended to make sure that the V
DD
sup­ply voltage rises monotonously when the device is exiting from Reset, to ensure the application func­tions properly.
Figure 17. Low Voltage Detector vs Reset
V
DD
V
IT+
(LVD)
V
IT-
(LVD)
RESET
30/175
V
hys
1
Loading...
+ 145 hidden pages
