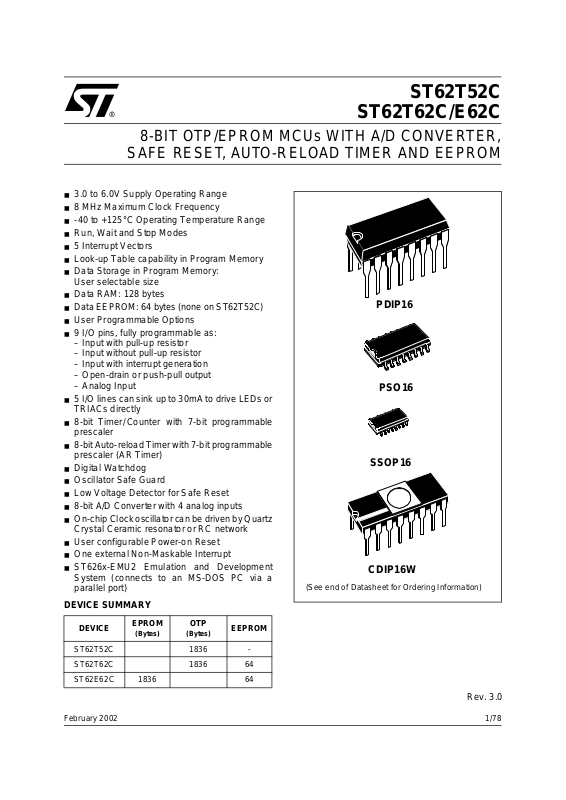

STMicroelectronics ST62T52C, ST62T62C Technical data

Download

8-BIT OTP/EPROM MCUs WITH A/D CONVERTER,

SAFE RESET, AUTO-RELOAD TIMER AND EEPROM

■ 3.0 to 6.0V Supply Operating Range

■ 8 MHz Maximum Clock Frequency

■ -40 to +125°C Operating Temperature Range

■ Run, Wait and Stop Modes

■ 5 Interrupt Vectors

■ Look-up Table capability in Program Memory

■ Data Storage in Program Memory:

User selectable size

■ Data RAM: 128 bytes

■ Data EEPROM: 64 bytes (none on ST 62T 5 2 C )

■ User Programmable Options

■ 9 I/O pins, fully programmable as:

– Input with pull-up resistor – Input without pull-up resistor – Input with interrupt generation – Open-drain or push-pull output – Analog Input

■ 5 I/O lines can sink up to 30mA to drive LEDs or

TRIACs directly

■ 8-bit Timer/Counter with 7-bit programmable

prescaler

■ 8-bit Auto-reload Timer with 7-bit programmable

prescaler (AR Timer)

■ Digital Watchdog

■ Oscillator Safe Guard

■ Low Voltage Detector for Safe Reset

■ 8-bit A/D Converter with 4 analog inputs

■ On-chip Clock oscillator can be driven by Quartz

Crystal Ceramic resonator or RC network

■ User configurable Power-on Reset

■ One external Non-Maskable Interrupt

■ ST626x-EMU2 Emulation and Development

System (connects to an MS-DOS PC via a parallel port)

ST62T52C

ST62T62C/E62C

PDIP16

PSO16

SSOP16

CDIP16W

(See end of Datasheet for Ordering Information)

DEVICE SUMMARY

DEVICE

ST62T52C 1836 ST62T62C 1836 64 ST62E62C 1836 64

EPROM

(Bytes)

OTP

(Bytes)

EEPROM

Rev. 3.0

February 2002 1/78

Table of Contents

Document

Page

ST62T52C

ST62T62C/E62C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1 GENERAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.2 PIN DESCRIPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.3 MEMORY MAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.3.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.3.2 Program Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.3.3 Data Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.3.4 Stack Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.3.5 Data Window Register (DWR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1.3.6 Data RAM/EEPROM Bank Register (DRBR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

1.3.7 EEPROM Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1.4 PROGRAMMING MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

1.4.1 Option Bytes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

1.4.2 Program Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

1.4.3 . EEPROM Data Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2 CENTRAL PROCESSING UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2.2 CPU REGISTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3 CLOCKS, RESET, INTERRUPTS AND POWER SAVING MODES . . . . . . . . . . . . . . . . . . . . . 18

3.1 CLOCK SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.1.1 Main Oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3.1.2 Low Frequenc y Au xiliar y Os c illa tor ( LFA O) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.1.3 Oscillator Safe Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.2 RESETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.2.1 RESET Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.2.2 Power-on Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.2.3 Watchdog Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3.2.4 LVD Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3.2.5 Application Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3.2.6 MCU Initialization Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

3.3 DIGITAL WATCHDOG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

3.3.1 Digital Watchdog Register (DWDR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

3.3.2 Application Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

3.4 INTERRUPTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3.4.1 Interrupt request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

3.4.2 Interrupt Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

3.4.3 Interrupt Option Register (IOR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

3.4.4 Interrupt Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

3.5 POWER SAVING MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

3.5.1 WAIT Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

3.5.2 STOP Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

3.5.3 Exit from WAIT and STOP Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

2/78

Table of Contents

4 ON-CHIP PERIPHERALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

4.1 I/O PORTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

4.1.1 Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

4.1.2 Safe I/O State Switching Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

4.1.3 ARTimer alternate functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

4.2 TIMER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

4.2.1 Timer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

4.2.2 Timer Interrupt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

4.2.3 Application Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

4.2.4 Timer Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

4.3 AUTO-RELOAD TIMER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

4.3.1 AR Timer Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

4.3.2 Timer Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

4.3.3 AR Timer Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

4.4 A/D CONVERTER (ADC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

4.4.1 Application Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

5 SOFTWARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

5.1 ST6 ARCHITECTURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

5.2 ADDRESSING MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

5.3 INSTRUCTION SET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

6 ELECTRICAL CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

6.1 ABSOLUTE MAXIMUM RATINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

6.2 RECOMMENDED OPERATING CONDITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

6.3 DC ELECTRICAL CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

6.4 AC ELECTRICAL CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

6.5 A/D CONVERTER CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

6.6 TIMER CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

6.7 SPI CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

6.8 ARTIMER ELECTRICAL CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

7 GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

7.1 PACKAGE MECHANICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

7.2 ORDERING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Document

Page

ST62P52C

ST62P62C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

1 GENERAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

1.1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

1.2 ORDERING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

1.2.1 Transfer of Customer Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

1.2.2 Listing Generation and Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

3/78

Table of Contents

Document

Page

ST6252C

ST6262 B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

1 GENERAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

1.1 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

1.2 ROM READOUT PROTECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

1.3 ORDERING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

1.3.1 Transfer of Customer Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

1.3.2 Listing Generation and Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

2 SUMMARY OF CHANGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

4/78

1 GENERAL DESCRIPTIO N

1.1 INTRODUCTION

ST62T52C ST62T62C/E62C

The ST62T52C and ST62T62C devices is low cost members of the ST62xx 8-bit HCMOS family of microcontrollers, which is targeted at lo w t o med ium complexity applications. All ST62xx devices are based on a building block approach: a common core is surrounded by a number of on-chip peripherals.

The ST62E62C is the erasable EPROM version of the ST62T62C device, whi ch may be used to em ulate the ST62T52C and ST62T62C devices as well as the ST6252C and ST6262B ROM devices.

OTP and EPROM devices are functional ly identical. The ROM based versions offer the same functionality selecting as ROM options the options de-

Figure 1. Block Diagram

8-BIT

TEST/V

NMI INTER RUPT

TEST

PROGRAM

MEMORY

1836 bytes OTP

(ST62T52C, T62C)

1836 bytes EPROM

(ST62E62C)

A/D CONVERTER

DATA ROM

USER

SELECTABLE

DATA RAM

128 Bytes

DATA EEPROM

64 Bytes

(ST62T62C/E62C)

fined in the programmable option byte of the OTP/EPROM versions.

OTP devices offer all the advant ages of user programmability at low cost, which make them the ideal choice in a wide range of applications where frequent code chang es, mu ltiple code vers ions or last minute programmability are required.

These compact low -cost devices feature a Timer comprising an 8-bit counter and a 7-bit programmable prescaler, an 8-bit Auto-Reload Timer, EEPRO M data capa bility (exce pt ST62T52C ), an 8-bit A/D Converter with 4 analog inputs and a Digital Watchdog timer, making them well suited for a wide range of automotive, appliance and industrial applications.

PORT A

PORT B

PORT C PC2..PC3 / Ain

AUTORELOAD

TIMER

PA4..PA5 / Ain

PB0, PB2..PB3 / 30 mA Sink PB6 / ARTimin / 20 mA Sink PB7 / ARTimout / 20 mA Sink

STACK LEVEL 1 STACK LEVEL 2 STACK LEVEL 3 STACK LEVEL 4 STACK LEVEL 5 STACK LEVEL 6

POWER SUPPLY

DDVSS

OSCILLATOR

OSCin OSCout RESET

8 BIT CORE

RESET

DIGITAL

WATCHDOG

5/78

ST62T52C ST62T62C/E62C

1.2 PIN DESCRI PTIONS V

and VSS. Power is suppl ied to the MCU vi a

these two pins. V V

is the ground connection.

is the power conn ection and

OSCin and OSCout. These pins are internally connected to the on-chip oscillator circuit. A quartz crystal, a ceramic resonator or an external clock signal can be connected between these two pins. The OSCin pin is the input pin, the OSCout pin is the output pin.

RESET. The active-low RESET

pin is used to re-

start the microcontroller.

TEST/V

PP. The TEST must be held at V

for nor-

mal operation. If TEST pin is connected to a +12.5V level during the reset phase, the EPROM/OTP programming Mode is entered.

NMI. The NMI pin provides the capability for asynchronous interruption, by applying an external non maskable interrupt to the MCU. The NM I input is falling edge sensitive. It is provided with an on-chip pullup resistor (if option has been e nabled), and Schmitt trigger characteristics.

PA4-PA5. Th es e 2 lines are orga nized as one I /O port (A). Each line may be configu red under software control as inputs with or without internal pullup resistors, interrupt generating inputs with pullup resistors, open-drain or push-pull outputs, analog inputs for the A/D converter.

PB0, PB2-PB3, PB6-PB7. These 5 lines are organized as one I/O port (B). Each line may be configured under software control as inputs with or without internal pull-up resistors, interrupt generating inputs with pull-up resistors, open-drain or push-pull outputs. PB6/ARTIMin and PB7/ARTI-

Mout are either Port B I/O bits or the Input and Output pins of the ARTimer. Reset state of PB2-PB3 pins can be defined by option either with pull-up or high impedance.

PB0, PB2-PB3, PB6 -PB7 sca n also sink 30mA for direct LED driving.

PC2-PC3. These 2 lines are organized as one I/O port (C). Each line may be configured under software control as input with or without internal pullup resistor, interrupt generating in put with pull-up resistor, analog input for the A/D converter, opendrain or push-pull output.

Figure 2. ST62T52C, E62C and T62C Pin Configuration

PB0

/TEST

PB2

PB3

ARTIMin/PB6

ARTIMout/PB7

1 2 3 4 5 6 7 8

PC2/Ain

PC3/Ain

NMI

RESET

OSCout

OSCin PA5/Ain PA4/Ain

6/78

1.3 MEMORY MA P

ST62T52C ST62T62C/E62C

1.3.1 Introd uct i on

The MCU operates in three separate memory spaces: Program space, Data space, and Stack space. Operation in these three memory spaces is described in the following paragraphs.

Figure 3. Mem ory Addressing D ia gram

PROGRAM SPACE

0000h

0-63

PROGRAM

MEMORY

Briefly, Program space contains user program code in OTP and user vectors; Data space contains user data in RAM and in OTP, and Stack space accommodat es six levels of stack for subroutine and interrupt service routine nesting.

DATA SPACE

000h

RAM / EEPROM BANKING AREA

03Fh 040h

DATA READ-ONLY

WINDOW

RAM

07Fh 080h 081h 082h 083h 084h

MEMORY

X REGISTER Y REGISTER V REGISTER

W REGISTER

0FF0h

0FFFh

INTERRUPT &

RESET VECTORS

0C0h

0FFh

DATA READ-ONLY

MEMORY

WINDOW SELECT

DATA RAM

BANK SELECT ACCUMULATOR

7/78

ST62T52C ST62T62C/E62C

MEMORY MAP (Cont’d)

1.3.2 Program Space

Program Space comprises the instructions to b e executed, the data required for immediate addressing mode instructions, the reserved factory test area and the user v ectors. Program Space is addressed via the 12-bit Program Counter register (PC register).

1.3.2.1 Program Memory Protection

The Program Mem ory i n O TP or E P ROM devices can be protected against external readout of memory by selecting the READOUT PROTECTION option in the option byte.

In the EPROM parts, READOUT PROTECTION option can be disactivated only by U.V. erasure that also results into the whole EPROM context erasure.

Note: Once the Readout Protection is activated, it is no longer possible, even for STMicroelectronics, to gain access to the OTP contents. Returned parts with a protection set can therefore not be accepted.

Figure 4. ST62T52C/T62C Program

Memory M a p

0000h

RESERVED

087Fh 0880h

USER

PROGRAM MEMORY

1836 BYTES

(OTP/EPROM)

0F9Fh 0FA0h 0FEFh 0FF0h 0FF7h 0FF8h

0FFBh 0FFCh 0FFDh

0FFEh

0FFFh

RESERVED

INTERRUPT VECTORS

RESERVED

NMI VECTOR

USER RESET VECTOR

(*) Reserved areas should be filled with 0FFh

8/78

MEMORY MAP (Cont’d)

1.3.3 Data Space

Data Space accommodates all the data necessary for processing the user program. This space comprises the RAM resource, the proc essor core an d peripheral registers, as well as read-only data such as constants and look-up tables in OTP/EPROM.

1.3.3.1 Data ROM

All read-only data is physically stored in program memory, which also accommodates the Program Space. The program mem ory consequently contains the program code to be executed, as well as the constants and look-up tables required by th e application.

The Data Space locations in which the different constants and look-up tables are addressed by the processor core may be thought of as a 64-byte window through which it is possible to acc ess the read-only data stored in OTP/EPROM.

1.3.3.2 Data RAM/EEPROM

In ST62T52C, T62C and ST62E62C devices, the data space includes 60 bytes of RAM, the accumulator (A), the i ndirect registers (X), (Y), t he short direct registers (V), (W), the I/O port registers, the peripheral data and control registers, the interrupt option register and the Data ROM Window register (DRW register).

Additional RAM and EEPROM pages can also be addressed using banks of 64 bytes located between addresses 00h and 3Fh.

1.3.4 Stack Space

Stack space consists of six 12-bit registers which are used to stack subroutine and interrupt return addresses, as well as the current program counter contents.

Table 1. Additional RAM / EEPROM Banks

Device RAM EEPROM

ST62T52C 1 x 64 bytes ST62T62C 1 x 64 bytes 1 x 64 bytes

ST62T52C ST62T62C/E62C

Table 2. ST62T52C, T62C and ST62E62C Data

Memory Space

RAM / EEPROM banks

DATA ROM WINDOW AREA

X REGISTER 080h Y REGISTER 081h V REGISTER 082h

W REGISTER 083h

DATA RAM 60 BYT ES

PORT A DATA REGISTER 0C0h PORT B DATA REGISTER 0C1h PORT C DAT A REGISTER 0C2h

RESERVED 0C3h PORT A DIRECTION REGISTER 0C4h PORT B DIRECTION REGISTER 0C5h

PORT C DIRECTION REGISTER 0C6h

RESERVED 0C7h

INTERRUPT OPTION REGISTER 0C8h*

DATA RO M WINDOW RE GIS T ER 0C9h*

RESERVED

PORT A OPTION REGISTER 0CCh PORT B OPTION REGISTER 0CDh

PORT C OPTION REGISTER 0CEh

RESERVED 0CFh

A/D DATA REGISTER 0D0h

A/D CONTROL REGISTER 0D1h

TIMER PRESCALER REGISTE R 0D2h

TIMER COUNTER REGISTER 0D3h

TIMER S T A T US CONTRO L REGISTER 0D4h

AR TIMER MODE CONTROL REGI STER 0D5h AR TIMER STATUS/CONTROL REGISTER1 0D6h AR TIMER STATUS/CONTROL REGISTER2 0D7h

WATCHDOG REGISTER 0D8h

AR TIMER RELOAD/CAPTURE REGISTER 0D9h

AR TIMER COMPARE REGISTER 0DAh

AR TIMER LOAD REGISTER 0 DBh

RESERVED

DATA RAM/EEPROM REGISTER 0E8h*

RESERVED 0E9h

EEPROM CONTROL REGISTER 0EAh

RESERVED

ACCUMULATOR 0FFh

* WRITE ONLY REGISTE R

000h

03Fh

040h

07Fh

084h

0BFh

0CAh 0CBh

0DCh 0DDh 0DEh

0E7h

0EBh 0FEh

9/78

ST62T52C ST62T62C/E62C

MEMORY MAP (Cont’d)

1.3.5 Data Window Register (DWR)

Data Wind ow R eg ist er (DWR)

The Data read-only memory window is located from address 0040h to address 007Fh in Data space. It allows direct reading of 64 consecutive bytes located anywhere in program memory, between address 0000h and 0FFFh (top memory address depends on the specific device). All the program memory can therefore be used to store ei ther instructions or read-only data. Indeed, the window can be moved i n steps of 64 byt es along the program memory by writing the appropriate code in the Data Window Register (DWR).

The DWR can be addressed like any RAM location in the Data Space, it is however a write-only register and therefore cannot be accessed using singlebit operations. This register is used to position the 64-byte read-only data window (from address 40 h to address 7Fh of the Data space) in program memory in 64-byte steps. The effective address of the byte to be rea d as data in program me mory is obtained by concatenating the 6 least significant bits of the register address given in the instruction (as least significant bits) and the content of the DWR register (as most significant bits), as illustrated in Figure 5 below. For instance, when address- ing location 0040h of the Data Space, with 0 loaded in the DWR register, the physical location addressed in program memory is 00h. The DWR register is not cleared on reset, therefore it must be written to prior to the first access to the Data readonly memory window area.

Address: 0C9h — Write Only

- - DWR5 DWR4 DWR3 DWR2 DWR1 DWR0

Bits 6, 7 = Not used. Bit 5-0 = DWR5-DWR0:

Window Register Bits.

Data read-only memory

These are the Da ta readonly memory Window bits that correspond to the upper bits of the data read-only memory space.

Caution:

This register is undefined on reset. Neither read nor single bit instructions may be used to address this register.

Note: Care is required when handling the DWR register as it is write only. For this reason, the DWR contents should no t be changed while executing an interrupt service routine, as the service routine cannot save and then restore the register’s previous contents. If it is impossible to avoid writing to the DWR during the interrupt service routine, an image of the register m ust be saved in a RAM location, and each time the program writes to the DWR, it must also write to the image register. The image register must be written first so that, if an interrupt occurs between the two instructions, the DWR is not affected.

Figure 5. Data read-only memory Window Memo ry Add ressi ng

543210

DATA ROM

WINDOW REGISTER

CONTENTS

(DWR)

Example:

DWR=28h

ROM

ADDRESS:A19h

765432 0

1100000001

67891011

000

543210

PROGRAM SPACE ADDRESS

READ

DATA SPACE ADDRESS

40h-7Fh

IN INSTRUCTION

DATA SPACE ADDRESS

59h

VR01573C

10/78

ST62T52C ST62T62C/E62C

MEMORY MAP (Cont’d)

1.3.6 Data RAM/EEPROM Bank Register (DRBR)

Address: E8h — Write only

---

DRBR

---

DRBR

Bit 7-5 = These bits are not used Bit 4 - DRBR4. This bit, when set, selects RAM

Page 2. Bit 3-1. Not used Bit 0. DRBR0. This bit, when set, selects EEP-

ROM page 0. The selection of the bank is made by programming

the Data RAM Bank Switch register (DRBR register) located at address E8h of the Data Sp ace according to Table 1. No more than one bank should be set at a time.

The DRBR register can be addressed l ike a RAM Data Space at the address E8h; nevertheless it is a write only register that cannot be accessed with single-bit operations. This register is used to select the desired 64-byte RAM bank of the Data Space. The bank number has to be loaded in the DRB R register and the instruction has to point to the selected location as if it was in bank 0 (from 00h address to 3Fh address).

This register is not cleared during the MCU initialization, therefore it must be written bef ore the first access to the Data Space bank region. Refer to the Data Space description f or a dditional inform a-

tion. The DRBR register is not modified whe n an interrupt or a subroutine occurs.

Notes : Care is required when handling the DRBR register

as it is write only. For this reason, it is not allowed to change the DRBR contents while executing interrupt service routine, as the service routine cannot save and then restore its previous content. If it is impossible to avoid the w riting of th is register in interrupt service routine, an image of this register must be saved in a RAM location, and each time the program writes to DRBR it must write also to the image register. The image register must be written first, so if an interrupt occurs between t he two instructions the DRBR is not affected.

In DRBR Register, only 1 bit must be set. Otherwise two or more pages are enabled in parallel, producing errors.

Care must also be taken not to change the E²PROM page (when available) when the parallel writing mode is set for the E²PROM, as defined in EECTL register.

Table 3. Data RAM Bank Register Set-up

DRBR ST62T52C ST62T62C

00 None None 01 Not available EEPROM page 0 02 Not Available Not Available 08 Not available Not available

10h RAM Page 2 RAM Page 2

other Reserved Reserved

11/78

ST62T52C ST62T62C/E62C

MEMORY MAP (Cont’d)

1.3.7 EEPROM Description

EEPROM memory is located in 64-byte pages i n data space. This memory may be used by the user program for non-volatile data storage.

Data space from 00h to 3Fh is paged as described in T able 4 . EEPROM locations are accessed directly by addressing these paged sections of data space.

The EEPROM does not require dedicated instructions for read or write access. Once selected via t he Data RAM Bank Register, the active EEPROM page is controlled by the EEPROM Control Register (EECTL), which is described below.

Bit E20FF of the EECTL register must be reset prior to any write or read access to the EEPROM. If no bank has been selected, or if E2OFF is set, any access is meaningless.

Programming must be enabled by setting the E2ENA bit of the EECTL register.

The E2BUSY bit of the EECTL register is set when the EEPROM is performing a programming cycle. Any access to the EEPROM when E2B US Y is set is meaningless.

Provided E2OFF and E2BUSY are reset, an EEPROM location is read just like any other data location, also in terms of access time.

Writing to the EEPROM ma y be carried o ut in tw o modes: B yte Mode (BM ODE) and Pa rallel Mode

(PMODE). In BMODE, one byte is accessed at a time, while in PMODE up to 8 bytes in the same row are programmed simultaneously (with consequent speed and power consumption advantages, the latter being particularly important in battery powered circuits).

General Notes: Data should be written directly to the intended ad-

dress in EEPROM space. There is no buffer memory between data RAM and the EEPROM space.

When the EEPROM is busy (E2BUSY = “1”) EECTL cannot be accessed in write mode, it is only possible to read t he status of E2BUSY . This implies that as long as the EEPROM is busy, it is not possible to change the status of the EEP ROM Control Register. EECTL bits 4 and 5 are reserved and must never be set.

Care is required when dealing with the EECTL register, as some bits are w rite on ly. F or this reason, the EECTL contents must not be altered while executing an interrupt service routine.

If it is impossible to avoid writing to this register within an interrupt service routine, an image of the register must be saved in a RAM location, and each time the program writes to EECTL it must also write to the image register. The image register must be written to first so that, if an interrupt occurs between the two in structions, the E E CT L wi ll not be affected.

Table 4. Row Arr a ng e men t f or Para llel Writin g of EEPRO M Lo c ations

Dataspace addresses. Banks 0 and 1.

Byte01234567 ROW7 38h-3Fh ROW6 30h-37h ROW5 28h-2Fh ROW4 20h-27h ROW3 18h-1Fh ROW2 10h-17h ROW1 08h-0Fh ROW0 00h-07h

Up to 8 bytes in each row may be programmed simultaneously in Parallel Write mode.

The number of available 64-byte banks (1 or 2) is device dependent.

Note: The EEPROM is di s abled as soon as STO P inst ruction i s exec uted in order to a chieve the lowest power-consumption.

12/78

MEMORY MAP (Cont’d) Addi t i onal No t es on Parallel Mo de:

If the user wishes to perform parallel programming, the first step should be t o set the E2PAR2 bit. From this time on, the EEPROM will be addressed in write mode, the ROW address and the data will be latched and it will be possible to change them only at the end of the programmin g cycle or by resetting E2PAR2 without programming the EEPROM. After the ROW address is latched, the MCU can only “see” the selected EEPROM row and any attempt to write or read other rows will produce errors.

The EEPROM should not be read while E2PAR2 is set.

As soon as the E2PAR2 bit is set, the 8 volatile ROW latches are cleared. From this moment on, the user can load data in all or in part of the ROW. Setting E2PAR1 will modify the EEPROM registers corresponding to the ROW latches accessed after E2PAR2. For example, if the software sets E2PAR2 and accesses the EEPROM by writing to addresses 18h, 1Ah and 1Bh, and then sets E2PAR1, t he s e t h r ee re g is ters will be modified s imultaneously; the remaining bytes in the row will be unaffected.

Note that E2PAR2 is internally reset at the end of the programming cycle. This implies that the user must set the E2PAR2 bit between two parallel programming cycles. Note that if the user tries to set E2PAR1 while E2PAR2 is not set, there will be no programming cycle and the E2PAR1 bit will be unaffected. Consequently, the E2PAR1 bit cannot be set if E2ENA is low. The E2PAR1 bit can be set by the user, only if the E2ENA and E2PAR2 bits are also set.

Notes: The EEPROM page shall not be changed through the DRBR register when the E2PAR2 bit is set.

ST62T52C ST62T62C/E62C

EEPROM Control Register (EECTL)

Address: EAh — Read/Write Reset status: 00h

E2O

D5 D4

Unused.

Stand-by Enable Bit.

Bit 7 = D7: Bit 6 = E2OFF:

If this bit is set the EEPROM is disabled (any access will be meaningless) and the power consumption of the EEPROM is reduced to it s lowe st va lue .

Bit 5-4 = D5-D4:

Reserved.

Bit 3 = E2PAR1: Once in Parallel Mode, as soon as the user software sets the E2PAR1 bit, parallel writing of the 8 adjacent registers will start. This bit is internally reset at the end of the programming procedure. Note that less than 8 bytes can be written if required, the undefined bytes being unaffected by the parallel programming cycle; thi s is explained in greater d etail in the Additional Notes on Parallel Mode overleaf.

Bit 2 = E2PAR2: ONLY. This bit must be set by the user program in order to perform parallel programming. If E2PAR2 is set and the parallel start bit (E2PAR1) is reset, up to 8 adjacent bytes c an be written simultaneously. These 8 adjacent bytes are considered as a row, whose address lines A7, A6, A5, A4, A3 are fixed while A2, A1 and A0 are the changing bits, as illustrated in Table 4. E2PAR2 is automatically reset at the end of any parallel programming procedure. It can be reset by the user s oftware before starting the programming procedure, thus leaving the EEPROM registers unchanged.

Bit 1 = E2BUSY: LY. This bit is aut omatically set by the EEP ROM control logic when the EEPROM is in programming mode. The user program should test it before any EEPROM rea d or wri te oper at ion; any att emp t to access the EEPROM while the busy bit is set will be aborted and the writing procedure in progress w ill be c ompleted.

Bit 0 = E2ENA:

EEPROM Enable Bi t.

LY. This bit enables programming of the EEPROM cells. It must be set before any write to the EEPROM register. Any attempt to write to the EEPROM when E2ENA is low is meaningless and will not trigger a write cycle.

E2PAR1E2PAR2E2BUSYE2E

WRIT E ONL Y.

MUST be kept reset.

Parallel Start Bit.

WRITE ONLY.

Parallel Mode En. Bit.

EEPROM Busy Bit.

WRITE ON-

WRITE

READ ON-

13/78

ST62T52C ST62T62C/E62C

1.4 PROGRAMMING MODES

1.4.1 Option Bytes

The two Option Bytes allow configuration capability to the MCUs. Option byte’s content is automatically read, and the selected options enabled, when the chip reset is activated.

It can only be accessed during the programmin g mode. This access is made either automatically (copy from a master device) or by selecting the OPTION BYTE PROGRAMMING mode of the programmer.

The option bytes are located in a non-user m ap. No address has to be specified.

EXTCNTL is low, STOP mode is not available with the watchdog active.

PB2-3 PULL. When set this bit removes pull-up at reset on PB2-PB3 pins. When cleared PB2-PB3 pins have an internal pull-up resistor at reset.

D4. Reserved. Must be cleared to 0. WDACT. This bit controls the watchdog activation.

When it is high, hardware activation is selected. The software activation is selected when WDACT is low.

DELAY.

This bit enables the selection of the delay internally generated after the internal reset (external pin, LVD, or watchdog activated) is released.

EPROM Code Option Byte (LSB)

PRO-

EXTC-

TECT

NTL

PB2-3

PULL

- WDACT

DELAY

OSCIL OSGEN

When DELAY is low, the delay is 2048 cycles of the oscillat or, it is of 32768 cycles when DELAY i s high.

OSCIL.

Oscillat or selection

. When this bit is low, the oscillator must b e controlled by a quartz crystal, a ceramic resonator or an ex ternal frequenc y. When it is high, the oscillator must be controlled by

EPROM Code Option Byte (MSB)

15 8

--SYNCHRO

ADC

NMI

PULL

LVD

an RC network, with only the resistor having to be externally provided.

OSGEN.

Oscillator Safe Guard

set high to enable the Oscillator Safe Guard. When this bit is low, the OSG is disabled.

The Option byte is writt en during programming ei-

D15-D13. Reserved . Must be cleared. ADC SYNCHRO

When set, an A/D c onvers ion is

started upon WAIT instruction execution, in order

ther by using the PC menu (PC driven M ode) or automatically (stand-alone mode).

1.4.2 Program Memory

to reduce supply noise. When this bit is low, an A/D conversion is started as soon as the STA bit of the A/D Converter Control Register is set.

D11. Reserved, must be cleared. D10. Reserved, must be set to one. NMI PULL.

NMI Pull-Up

. This bit must be set high to configure the NMI pin with a pull-up resistor. When it is low, no pull-up is provided.

LVD.

LVD RESET enable.

When this bit is set, safe RESET is performed by MCU when the supply voltage is too low. When this bit is cleared, only power-on reset or external RESET are active.

PROTECT.

Readout Protection.

This bit allows the protection of the software contents against piracy. When the bit PROTECT is set high, readout of the OTP contents is prevented by hardware.. When this bit is low, the user program can be read.

EXTCNTL.

External STOP MODE control.

. Whe n

EPROM/OTP programming mode is set by a +12.5V voltage applied to the TEST/V programming flow of the ST62T62C is described in the User Manual of the EPROM Programming Board.

The MCUs can be programmed with the ST62E6xB EPRO M programming tools available from STMicroelectronics.

Table 5. ST62T52C/T62C Program Memory Map

Device Address Description

0000h-087Fh 0880h-0F9Fh

0FA0h-0FEFh

0FF0h-0FF7h

0FF8h-0FFBh

0FFCh-0FFDh

0FFEh-0FFFh

NMI Interrupt Vector

EXTCNTL is high, ST OP mode is available with watchdog active by setting NMI pin to one. When

Note: OTP/EPROM devices c an be programmed with the development tools a vailable from STMicroelectro n ics (ST62E6X-EPB or ST62 6X - KIT ) .

. This bit must be

pin. The

Reserved

User ROM

Reserved

Interrupt Vectors

Reserved

Reset Vector

14/78

PROGRAMMING MODES (Cont’d)

1.4.3 . EEPROM Data Memory

EEPROM data pages are supplied in the virgin state FFh. Partial or total programming of EEPROM data memory can be performed either through the application software or through an ex-

ST62T52C ST62T62C/E62C

ternal programmer. Any STMicroelectronics tool used for the program memory (O TP/EPROM ) c an also be used to pr o g ra m th e EEPROM data memory.

15/78

ST62T52C ST62T62C/E62C

2 CENTRAL PRO CESSING UNIT

2.1 INTRODUCTION

The CPU Core of ST6 devices is independent of the I/O or Memory conf iguration. As such, it may b e thought of as an independent central processor communicating with on-chip I/O, Memory and Peripherals via internal address, data, and control buses. In-core communication is arranged as shown in Figure 6; the controller being externally linked to both the Reset and Oscillator circuits, while the core is linked to the dedicated on-chip peripherals via the serial data bus and indirec tly, for interrupt purposes, through the control registers.

2.2 CPU REGISTERS

The ST6 Family CPU core features six registers and three pairs of flags available to the programmer. These are described in the following paragraphs.

Accumulator (A). The accumulator is an 8-bit general purpose register used in all arithmetic calculations, logical operations, and data manipulations. The accumulator can be a ddressed in Dat a space as a RAM location at address FFh. Thus the ST6 can manipulate the accumu lator just like any other register in Data space.

Figure 6ST6 Core Block Diagram

0,01 TO 8MHz

RESET

OSCin

Indirect Registers (X, Y). These t wo indi rect registers are used as pointers to memory locations in Data space. They are used in the register-indirect addressing mode. These registers can be addressed in the data space as RAM locations at addresses 80h (X) and 81h (Y). They can also be accessed with the direct, short direct, or bit direct addressing modes. Accordingly, the ST6 i nstruction set can use the indirect registers as any other register of the data space.

Short Direct Registers (V, W). The se two registers are used to save a byte in short direct addressing mode. They can be addressed in Data space as RAM locations at addresses 82h (V) and 83h (W). They can also be acc ess ed usin g th e direct and bit direct addressing modes. Thus, the ST6 instruction set can use the short direct registers as any other register of the data space.

Program Counter (PC). The program counter is a 12-bit register which cont ains the address of the next ROM location to be processed by the core. This ROM location may b e an opcode, an operand, or the address of an operand. The 12-bit length allows the direct addressing of 4096 bytes in Program space.

OSCout

16/78

PROGRAM

ROM/EPROM

OPCODE

Program Count e r

and

6 LAYER STACK

CONTROLLER

FLAG

VALUES

FLAGS

CONTROL

SIGNALS

A-DATA

ADDRESS/READ LINE

ADDRESS

DECODER

B-DATA

ALU

RESULTS TO DATA SPACE (WRITE LINE)

INTERRUPTS

256

DATA SPACE

DATA

RAM/EEPROM

DATA

ROM/EPROM

DEDICATIONS

ACCUMULATOR

VR01811

CPU REGISTERS (Cont’d)

ST62T52C ST62T62C/E62C

However, if the program space contains more than 4096 bytes, the additional memory in program space can be addressed by using the Program Bank Switch register.

The PC value is incremented after reading the address of the current instruction. To execute relative jumps, the PC and the offset are shifted through the ALU, where they are added; the result is then shifted back into the PC. The program counter can be changed in the following ways:

- JP (Jump) instructionPC=Jump address

- CALL instructionPC= Call address

- Relative Branch Instruction.PC= PC +/- offset

- Interrupt PC=Interrupt vector

- ResetPC= Reset vector

- RET & RETI instructionsPC= Pop (stack)

- Normal instructionPC= PC + 1 Flags (C, Z). The ST6 CPU includes three pairs of

flags (Carry and Zero), each pair being associated with one of the three normal modes of operation: Normal mode, Interrupt mode and Non Maskabl e Interrupt mode. Each pair consists of a CARRY flag and a ZERO flag. One pair (CN, ZN) is u sed during Normal operation, another pair is used during Interrupt mode (CI, ZI), and a third pair is used in the Non Maskable Interrupt m ode (CNMI, ZNMI).

The ST6 CPU uses the pair of flags associated with the current mode: as soon as an interrupt (or a Non Maskable I nterrupt) is generated, the ST 6 CPU uses the Interrupt flags (resp. the NMI flags) instead of the Normal flags. When the RETI instruction is executed, the previously used set of flags is restored. It should be noted that each flag set can only be addressed in its own context (Non Maskable Interrupt, Normal Interrupt or Main routine). The flags are not cleared during context switching and thus retain their status.

The Carry flag is set when a carry or a borrow occurs during arithmetic operations; otherwise it is cleared. The Carry flag is also set to the val ue of the bit tested in a bit test instruction; it also participates in the rotate left instruction.

The Zero flag is set if the result of the last arithmetic or logical operation was equal to zero; otherwise it is cleared.

Switching between the three sets of flags is performed automatically when an NMI, an interrupt or

a RETI instructions occurs. As the NMI mode is automatically selected aft er the reset of the MCU, the ST6 core uses at first the NMI flags.

Stack. The ST6 CP U includes a true LIFO hardware stack which eliminates the need for a stack pointer. The stack consists of six separate 12-bit RAM locations that do not belong to the data space RAM area. When a subroutine call (or interrupt request) occurs, the contents of each level are shifted into the next higher level, while the content of the PC is shifted into the first level (the original contents of the sixth stac k level are lost). Whe n a subroutine or interrupt return occurs (RET or RETI instructions), the first level register is shifted back into the PC and the value of ea ch level is popped back into the previous level. Since the acc umulator, in common with all other data space registers, is not stored in this sta ck, management of these registers should be performed within the subroutine. The stack will rem ain in it s “deep est” pos it ion if more than 6 nested calls or interrupts are executed, and consequent ly the last return address wi ll be lost. It will als o remain in its highe st pos ition if the stack is empty and a RET or RETI is executed. In this case the next instruction will be executed.

Figure 7S T6 C P U Pro gramming Mo de

X R EG. POINTER

INDEX

INTERRUPTFLAGS

NMI FLAGS

b7 b7 b7

b7 b7

PROGRAM COUNTER

SIX LEVELS

STACK REGISTER

YREG.POINTER

VREGISTER

WREGISTER

ACCUMULATOR

b0 b0 b0

b0 b0

b0b11

CZNORMAL FLAGS

SHORT

DIRECT

ADDRESSING

MODE

VA000423

17/78

ST62T52C ST62T62C/E62C

3 CLOCKS, RESET, INTERRUPTS AND POWER SAVING MODES

3.1 CLOCK SYSTEM

The MCU f ea tu r es a Main Oscilla tor wh ic h c an be driven by an external clock, or used in conjunction with an AT-cut parallel resonant crystal or a s uitable ceramic resonator, or with an external resistor

). In addition, a Low Frequency Auxiliary Os-

NET

cillator (LFAO) can be switched in for security reasons, to reduce power consumption, or to offer the benefits of a back-up clock system.

The Oscillator Safeguard (OSG) option filters spikes from the oscillator lines, provides access to the LFAO to provide a backup oscillator in the event of main osc illator failure and al so automat ically limits the internal clock frequency (f function of V

, in order to guarantee correct oper-

INT

) as a

ation. These functions are il lustrated in Figure 9.,

Figure 10., Figure 11. and Figure 12.. Figure 8. illustrates various possible oscillator con-

figurations using an external crystal or ceramic resonator, an external clock input, an external resistor (R

), or the lowest cost solution using only the

NET

LFAO. C

an CL2 should have a capacitance in the

range 12 tST6_CLK1o 22 pF for an oscillator frequency in the 4-8 MHz range.

The internal MCU clock frequency (f

) is divided

INT

by 12 to drive the Timer, the A/D converter and the Watchdog timer, and by 13 to drive the CPU core, as may be seen in Figure 11..

With an 8MHz oscillator frequency, the fastest machine cycle is therefore 1.625µs.

A machine cycle is the smallest unit of ti me needed to execute any operation (for instance, to increment the Program Counter). An instruction may requi re two, four, or five machine cycles for execution.

3.1.1 Main Oscillator

The oscillator configuration may be specified by selecting the appropriate option. When the CRYSTAL/RESONATOR option is selected, it must be used with a quartz crystal, a ceramic resonator or an external signal provided on the OSCin pin. When the RC NETWORK option is selected, the system clock is generated by an external resistor.

The main oscillator can be turned off (when the OSG ENABLED option is se lected ) by set ting th e OSCOFF bit of the ADC Control Register. The Low Frequency Auxiliary Oscillator is automatically started.

Figure 8. Os cill a tor C on f ig urations

CRYSTAL/RESONATOR CLOCK

CRYSTAL/RESONATOR option

ST6xxx

OSC

out

NET

OSC

L1n

EXTERNAL CLOCK

CRYSTAL/RESONATOR option

OSC

RC NETWORK

RC NETW O RK option

OSC

INTEGRATED CL OCK

CRYSTAL/RESONATOR option

OSG ENABLED option

OSC

18/78

ST62T52C ST62T62C/E62C

CLOCK SYSTEM (Cont’d)

Turning on the main oscillator is achieved by resetting the OSCOFF bit of the A/D Converter Control Register or by resetting the MCU. Restarting the main oscillator implies a delay comprising the oscillator start up delay period plus the duration of the software instruction at f

clock frequency.

LFAO

3.1.2 Low Frequency Auxiliary Oscillator

(LFAO)

The Low Frequency Auxiliary Oscillator has three main purposes. Firstly, it can be used to reduce power consumption in non timing critical routines. Secondly, it offers a fully integrated system clock, without any external components. Lastly, it acts as a safety oscillator in case of main oscillator failure.

This oscillator is available when the OSG ENABLED option is selected. In this case, it automatically starts one of its periods after the first missing edge from the main oscillator, whatever the reason (main oscillator defective, no clock circuitry provided, main osc illator swit ched off...).

User code, normal interrupts, WAIT and STOP instructions, are processed as normal, at the reduced f

frequency. The A/D converter accura-

LFAO

cy is decreased, since the internal frequency is below 1MHz.

At power on, the Low Frequency Aux ilia ry Osc ill ator starts faster than the Main Oscillator. It therefore feeds the on-chip counter generating the POR delay until the Main Oscillator runs.

The Low Frequency Auxiliary Oscillator is automatically switched off as soon as the main oscillator sta r ts.

ADCR

Address: 0D1h — Read/Write

ADCR7ADCR6ADCR5ADCR4ADCR3OSC

OFF

ADCR1ADCR

Bit 7-3, 1-0= ADCR7-ADCR3, ADCR1-ADCR0:

ADC Control Register

. These bits are not used.

Bit 2 = OSCOFF. When low, this bit enables m ai n oscillator to run. The main oscillator is switched off when OSCOFF is high.

3.1.3 Oscillator Safe Guard

The Oscillator Safe Guard (OSG) affords drastically increased operational integrity in ST62x x dev ices. The OSG circuit provides three basic func-

tions: it filters spikes from the oscillator lines which would result in over frequency to the ST62 CPU; it gives access to the Low Frequency Auxiliary Oscillator (LFAO), used to ensure minimum processing in case of main oscillator failure, to offer reduced power consumption or to provide a fixed frequency low cost oscillator; finally, it automatically limits the internal clock frequen cy as a function of supply voltage, in order to ensure correct operation even if the power supply should drop.

The OSG is enabled or disab led by choosin g the relevant OSG option. It may b e viewed as a filter whose cross-over frequency is device dependent.

Spikes on the oscillator lines result in an effectively increased internal clock frequency. In the absence of an OSG circuit, this may lead to an over frequency for a given power supply voltage. The OSG filters out such spikes (as illustr ated in Figure

9.). In all cases, when the OSG is active, the max-

imum internal clock frequency, f f

, which is supply voltage dependent. T his re-

OSG

lationship is illustrated in Figure 12.. When the OSG is enabled, the Low Frequency

Auxiliary Oscillator may be accessed. This oscillator starts operating after the first missing edge of the main oscillator (see Figu re 10.).

Over-frequency, at a given power supp ly level, is seen by the OSG as spikes; it therefore filte rs out some cycles in order that the internal clock frequency of the device is kept within the range t he particular device can stand (depending o n V and below f

: the maximum authorised frequen-

OSG

cy with OSG enabled. Note. The OSG should be used wherever possible

as it provides maximum safet y. Care must be taken, however, as it ca n increase power consumption and reduce the maximum operating frequency to f

OSG

Warning: Care has to be taken when using the OSG, as the internal frequency is defined between a minimum and a maximum value and is not accurate.

For precise timing measu remen ts, it is no t re commended to use the OSG and it should not be enabled in applications that use the SPI or the UART.

It should also be noted that power consum ption in Stop mode is higher when the OSG is enabled (around 50µA at nominal conditions and room temperature).

, is limited to

INT

19/78

ST62T52C ST62T62C/E62C

CLOCK SYSTEM (Cont’d) Figure 9. OSG Fi l terin g P rin c i pl e

(1)

(2)

(3)

(4)

(1)

Maximum Frequency for the device to work correctly

(2)

Actual Quartz Crystal Frequency at OSCin pin

(3)

Noise from OSCin

(4)

Resulting Internal Frequency

Figure 10. OSG Emergency Oscillator Principle

Main

Oscillator

Emergency

Oscillator

Internal

Frequency

VR001932

20/78

VR001933

CLOCK SYSTEM (Cont’d) Figure 11. Clock Circuit Block Diagram

ST62T52C ST62T62C/E62C

POR

OSG

MAIN

OSCILLATOR

LFAO

Main Oscillator off

Figure 12. Maximum Operating Frequency (f

Maximum FREQUENCY (MHz)

2.5

GUARANTEED

FUNCTIONALITY IS NOT

IN THIS AREA

3.644.555.56

M U X

) versus Supply Voltage (VDD)

MAX

INT

OSG

Min (at 85 °C)

OSG

Min (at 125°C)

OSG

Core

TIMER 1

Watchdog

SUPPLY VOLTAGE (V

Notes:

1. In this area, operation is guaranteed at the quartz crystal frequency.

2. When the OSG is disabled, operation in this area is guaranteed at the crystal frequency. When the OSG is enabled, operation in this area is guaranteed at a frequency of at least f

OSG Min.

3. When the OSG is disabled, operation in this

)

VR01807J

area is guaranteed at the quartz crystal frequency. When the OSG is enab led, access to this area is prevented. The internal frequency is kept a f

OSG.

4. When the OSG is disabled, operation in this area is not guaranteed When the OSG is enab led, access to this area is prevented. The internal frequency is kept at f

OSG.

21/78

ST62T52C ST62T62C/E62C

3.2 RESETS

The MCU can be reset in four ways: – by the external Reset input being pulled low; – by Power-on Reset; – by the digital Watchdog peripheral timing out. – by Low Voltage Detection (LVD)

3.2.1 RESET Input

The RESET

pin may be connected to a device of the application board in order to reset the MCU if required. The RESET

pin may be pulled low in RUN, WAIT or STOP mode. This input can be used to reset the MCU internal state and ensure a correct start-up procedure. The pin i s active low and features a Schmitt trigger input. The internal Reset signal is generated by adding a delay to the external signal. Therefore even short pulses on the RESET

pin are acceptable, provide d VDD has completed its rising phase and that the oscillator is running correctly (normal RUN or WAIT modes). The MCU is kept in the Reset state as long as the RESET

If RESET

pin is held low.

activation occurs in the RUN or WAIT modes, processing of the user program is stopped (RUN mode only), the Inputs and Outputs are configured as inputs with pull-up resistors and the main Osc illat o r is res t ar ted. When the le v el o n the RESET pin then goes high, the initialization sequence is executed following expiry of the internal delay period.

If RESET

pin activation occurs in the STOP mode, the oscillator starts u p and a ll Inputs and Out puts are configured as inputs with pull-up resistors. When the level of the RESET

pin then goes high, the initialization sequence is executed following expiry of the internal delay period.

3.2.2 Power-on Reset

The function of the POR circuit cons ists in waking up the MCU by detecting around 2V a dynamic (rising edge) variation of the VDD Supply. At the beginning of this sequence, the MCU is configured in the Reset state: al l I/O ports are c onfigured as inputs with pull-up resistors a nd no instruction is executed. When the power supply voltage rises to a sufficient level, the o scillator starts to operate, whereupon an internal delay is initiated, in order to allow the oscillator to fully stabilize befo re ex ecut ing the first instruction. The initialization sequence

is executed immediately following the internal delay.

To ensure correct s tart-up, the user shoul d take care that the VDD Supply is stabilized at a sufficient level for the chosen frequency (see recommended operation) before the reset sign al is released. In addition, supply rising must start from 0V.

As a consequence, the POR does not allow to supervise static, slowly rising, or falling, or noisy (present in g o s c illation) VDD supplies.

An external RC network connected to the RESET pin, or the LVD reset can b e used instead to get the best performances.

Figure 13. Reset and Interrupt Processing

RESET

NMI M ASK SET

INT LATCH CLEARED

( IF PRESENT )

SELECT

NMI MODE FLAGS

PUT FFEH

ON ADDRESS BUS

YES

IS RESET STILL

PRESENT?

LOAD PC

FROM RESET LOCATIONS

FFE/FFF

FETCH INSTRUCTION

VA000427

22/78

RESETS (Cont’d)

3.2.3 Watchdog Reset

The MCU provides a Wat chdog timer function in order to ensure graceful recovery from software upsets. If the Watchdog regi ster is not refreshed before an end-of-count condition is reached, the internal reset will be activated. This, amongs t ot her things, resets the watchdog counter.

ues, allowing hysteresis effect. Reference value in case of voltage drop has been set lower than the reference value for power-on in order to avoid any parasitic Reset when MCU start's running and sinking current on the supply.

As long as the s upply voltage is below the reference value, there is a internal and static RESET command. The MCU can start only when the sup-

The MCU restarts just as though the Reset had been generated by the RESET

pin, including the

built-in stabilisation de l a y peri o d.

3.2.4 LVD Reset

The on-chip Low Voltage Detector, selectable as user option, features static Reset when supply voltage is below a reference value. Thanks to this feature, external reset circuit can be removed while keeping the application safety. This SAFE RESET is effective as well in Power-on phase as

ply voltage rises over the reference value. Therefore, only two operating mode exist for the MCU: RESET active below the voltage reference, and running mode over the voltage reference as shown on the Figure 14., that represents a powerup, power-down sequence.

Note: When the RESET state is controlled by one of the internal RESET sourc es (Low Voltage Detector, Watchdog, Power on Reset), the RESET pin is tied to low logic level.

in power supply drop with different reference val-

Figure 14. LVD Reset on Power-on and Power-down (Brown-out)

ST62T52C ST62T62C/E62C

RESET

3.2.5 Application Notes

No external resistor is requ ired bet ween V

and

the Reset pin, thanks to the built-in pull-up device.

RESET

time

VR02106 A

Direct external connection of the pin RESET to V

must be avoided in order to ensure safe be-

haviour of the internal reset sources (AND.Wired structure).

23/78

ST62T52C ST62T62C/E62C

RESETS (Cont’d)

3.2.6 MCU Initialization Sequence

When a reset occurs the stack is reset, the PC is loaded with the address of the Reset Vector (located in program ROM starting at address 0FFEh). A jump to the beginning of the user program must be coded at this address. Following a Reset , the Interrupt flag is automatically set, so that the CPU is in Non Maskable Interrupt mode; this prevents the initialisation routine from being interrupted. The initialisation routine should therefore be t erminated by a RETI instruction, in order to revert to normal mode and enable interrupts. If no pending interrupt is present at the end of the initialisation routine, the MCU will continue by processing the instruction immediately following the RETI instruction. If, however, a pending interrupt is present, it will be serviced.

Figure 16. Reset Block Diagram

Figure 15. Reset and Interrupt Processing

RESET

VECTOR

INITIALIZATION ROUTINE

RETI

JP:2 BYTES/4 CYCLES

RETI: 1 BYTE/2 CYCLES

VA00181

RESET

POWER

WATCHDOG R ESE T

LVD RESET

1) Resis tive ESD protection. Val ue not guaranteed.

ESD

ON RESET

OSC

AND. Wired

RESET

COUNTER

RESET

ST6 INTERNAL RESET

VR02107A

24/78

RESETS (Cont’d) Table 6. Register Reset Status

EEPROM Control Register Port Data Registers Port Direction Register Port Option Register Interrupt Option Register TIMER Status/Control

0EAh 0C0h to 0C2h 0C4h to 0C6h 0CCh to 0CEh 0C8h 0D4h

00h

ST62T52C ST62T62C/E62C

EEPROM enabled (if available) I/O are Input with pull-up I/O are Input with pull-up I/O are Input with pull-up Interrupt disabled TIMER disabled

AR TIMER Mode Control Register AR TIMER Status/Control 1 Register AR TIMER Status/Control 2Register AR TIMER Compare Register X, Y, V, W, Register Accumulator Data RAM Data RAM Page REgister Data ROM Window Register EEPROM A/D Result Register AR TIMER Load Register AR TIMER Reload/Capture Register TIMER Counter Register TIMER Prescaler Register Watchdog Counter Register A/D Control Register

0D5h 0D6h 0D7h 0DAh 080H TO 083H 0FFh 084h to 0BFh 0E8h 0C9h 00h to F3h 0D0h 0DBh 0D9h 0D3h 0D2h 0D8h 0D1h

Undefined

FFh 7Fh FEh

40h

AR TIMER stopped

As written if programmed

Max count loaded

A/D in Standby

25/78

ST62T52C ST62T62C/E62C

3.3 DIGITAL WATCHDOG

The digital Watchdog consists of a reloadable downcounter timer which can be used to provide controlled recovery from software upsets.

The Watchdog circuit generates a Reset when the downcounter reaches zero. User software can prevent this reset by reloading the counter, and should therefore be written so that the counter is regularly reloaded while the user program runs correctly. In the event of a software mishap (usually caused by externally generated interference), the user program will no longer behave in its usual fashion and the timer register will thus not be reloaded periodically. Consequently the timer will decrement down to 00h and reset the MCU. In order to maximise the effectiveness of the Watchdog function, user software must be written with this concept in mind.

Watchdog behaviour is gove rned by two options, known as “WATCHDOG ACTIVATION” (i.e. HARDWARE or SOFTWARE) and “EXTERNAL STOP MODE CONTROL” (see Table 7 ).

In the SOFTWARE option, t he Watchdog is d isabled until bit C of the DWDR register has been set.

Table 7. Recommended Option Choices

Functions Required Recommended Options

Stop Mode & Watchdog “EXTERNAL STOP MODE” & “HARDWARE WATCHDOG”

Stop Mode “SOFTWARE WATCHDOG”

Watchdog “HARDWARE WATCHDOG”

When the Watchdog is di sabled, low power Stop mode is available. On ce activated, the Watchdog cannot be disabled, except by resetting the MCU.

In the HARDWARE option, the Watchdog i s permanently enabled. Since the oscillator will run continuously, low power mode is not available. The STOP instruction is inter pr eted as a WAIT instr uc tion, and the Watchdog continues to countdown.

However, when the EXTERNAL STOP MODE CONTROL option has been selected low power consumption may be achieved in Stop Mode.

Execution of the STOP instruction is then governed by a secondary function associated with the NMI pin. If a STOP instruction is encountered when the NMI pin is low, it is interpreted as WAIT, as described above. If, however, the STOP instruction is encountered when the NMI pin is high, the Watchdog counter is fr ozen and the CPU enters STOP mode.

When the MCU exits STOP mode (i.e. when an interrupt is generated), the Watchdog resumes its activity.

26/78

DIGITAL WATCHDOG (Cont’d) The Watchdog is associated with a Data space

Section 3.3.1 Digital Watchdog Register (DWDR).

This register is set to 0FEh on Reset: bit C is cleared to “0”, which disables the Watchdog; the timer downcounter bits, T0 t o T5, and the SR bit are all set to “1”, thus selecting the longest Watchdog timer period. This time period can be set to t he user’s requirements by setting the appropriate value for bits T0 to T5 in the DWDR register. The SR bit must be set to “1”, since it is this bit which generates the Reset signal when it changes to “0”; clearing this bit would gen erate an i mm edia te Reset.

It should be noted that the order of the bits in the DWDR register is inverted with respect to the associated bits in the down counter: bit 7 of the DWDR register corresponds, in fact, to T0 and bit 2 to T5. The user should bear in mind the fact that these bits are inverted and shifted with respect t o the physical counter bits when writing to this register. The relationship between the DWDR regist er bits and the physical implementation of the Watchdog timer downcounter is illustrated in Figure 17..

Only the 6 most significant bits may be used to define the time period, since it is bit 6 which triggers the Reset when it changes to “0”. This offers the user a choice of 64 timed periods ranging from 3,072 to 196,608 clock c ycles (with an oscillator frequency of 8MHz, this is equivalent to t i mer periods ranging from 384µs to 24.576ms).

ST62T52C ST62T62C/E62C

Figure 17. Watchdog Counter Control

WATCHDOG CONTROL REGISTER

RESET

WATCHDOG COUNTER

÷2

OSC ÷12

VR02068A

27/78

ST62T52C ST62T62C/E62C

DIGITAL WATCHDOG (Cont’d)

3.3.1 Digital Watchdog Register (DWDR)

Address: 0D8h — Read/Write Reset status: 1111 1110b

T0 T1 T2 T3 T4 T5 SR C

Bit 0 = C :

Watchdog Control bit

If the hardware option is selected, this bit is forced high and the user cannot change it (the Watchdog is always active). When the software option is selected, the Watchd og function is activated by set ting bit C to 1, and cannot then be disabled (save by resetting the MCU).

When C is kept low the counter can be used as a 7-bit timer.

This bit is cleared to “0” on Reset. Bit 1 = SR:

Software Reset bit

This bit triggers a Reset when cleared. When C = “0” (Watchdog disabled) it is the MSB of

the 7-bit timer. This bit is set to “1” on Reset. Bits 2-7 = T5-T0:

Downcounter bits

It should be noted that the register bits are reversed and shifted with respect to the physical counter: bit-7 (T0) is the LSB of the Watchdog downcounter and bit-2 (T5) is the MSB.

These bits are set to “1” on Reset.

3.3.2 Application Notes

The Watchdog plays an i mportant support ing role in the high noise immunity of ST62xx devices, and should be used whe rever possible. Watchd og related options shou ld be select ed o n t he basis of a trade-off between application s ecurity and STOP mode availabilit y.

When STOP m ode is not requ ired, hardware activation without EXTERNAL STOP MODE CONTROL should be preferred, as it provides maximum security, especially during power-on.

When STOP mode i s required, hardware activation and EXTERNAL STOP MODE CONTROL should be chosen. NM I shoul d be high by defa ult, to allow STOP mode to be entered when the MCU is idle.

The NMI pin can be connected to an I/O line (see

Figure 18.) to allow its state to be controlled by

software. The I/O line can then be used to keep NMI low while Watchdog protection is required, or to avoid noise or key bounce. When no more processing is required, the I/O line is released and the device placed in STOP mode for lowest power consumption.

When software activation is selected and the Watchdog is not activated, t he downcounter may be used as a simple 7-bit timer (remember that the bits are in reverse order).

The software activation opt ion should be chosen only when the Watchdog counter is to be used as a timer. To ensure the Watchdog has not been unexpectedly activated, the following instructions should be executed within the first 27 instructions:

jrr 0, WD, #+3 ldi WD, 0FDH

28/78

DIGITAL WATCHDOG (Cont’d) These instructions test the C bit and Reset the

MCU (i.e. disable the Watchdog) i f the bit is set (i.e. if the Watchdog is active), thus disabling the Watchdog.

In all modes, a minimum of 28 instructions are executed after activation, before the Watchdog can generate a Reset. Consequently, user software should load the watchdog counter within the first 27 instructions following Watchdog activation (software mode), or within the first 27 inst ructions executed following a Reset (hardware activation).

It should be noted that when the GEN bit is low (interrupts disabled), the NMI interrupt is active but cannot cause a wake up from STOP/WAIT modes.

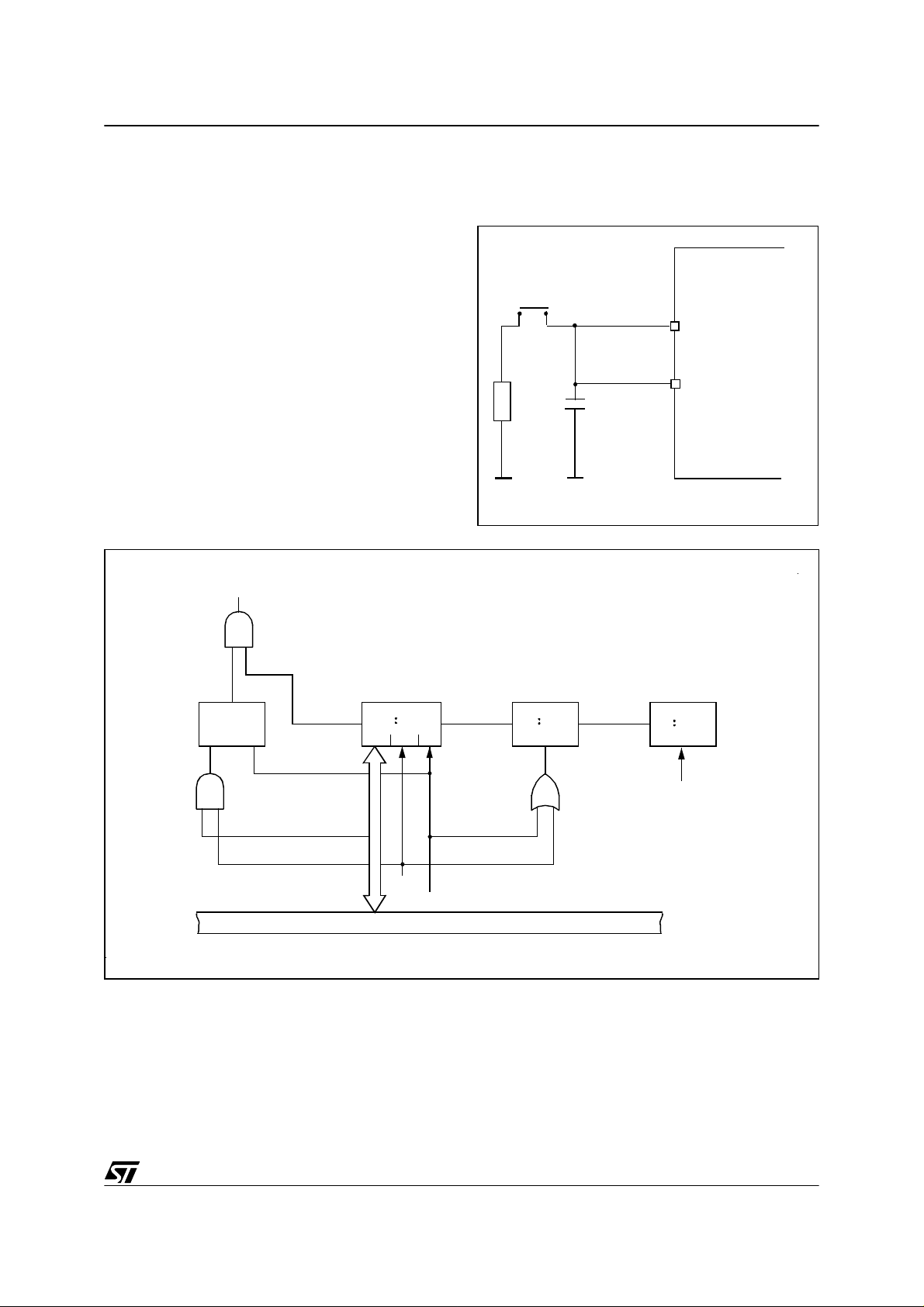

Figure 19. Digital Watchdog Block Diagram

ST62T52C ST62T62C/E62C

Figure 18. A typical circuit maki ng use of the EXERNAL STOP MODE CONTROL feature

SWITCH

NMI

I/O

VR02002

RESET

RSFF

DB0

-2

DB1.7 SETLOAD

WRITE

DATA BUS

RESET

-2

SET

-12

OSCILLATOR

CLOCK

VA00010

29/78

ST62T52C ST62T62C/E62C

3.4 INTERRUPTS

The CPU can manage four Maskable Interrupt sources, in addition to a Non Maskable Interrupt source (top priority interrupt). Each source i s associated with a specific Interrupt Vector which contains a Jump instruction to the associated interrupt service routine. These vec tors are located i n Program space (see Table 8 ).

When an interrupt source generates an interrupt request, and interrupt processing is enabled, the PC register is loaded with the address of the interrupt vector (i.e. of the Jump instruction), which then causes a Jump to the relevant interrupt service routine, thus servicing the interrupt.

Interrupt sources are linked to events either on external pins, or on chip peripherals. Several event s can be ORed o n the same interrupt source, an d relevant flags are available to determine which event triggered the interrupt.

The Non Maskable Interrupt request has the highest priority and can interrupt any interrupt rou tine at any time; the other four interrupts cannot interrupt each other. If more than one interrupt request is pending, these are processed by the proces sor core according to their priority level: source #1 has the higher priority while source #4 the lower. The priority of each interrupt source is fixed.

Table 8. Interrupt Vector Map

Interrupt Source Priority Vector Address

Interrupt source #0 1 (FFCh-FFDh) Interrupt source #1 2 (FF6h-FF7h) Interrupt source #2 3 (FF4h-FF5h) Interrupt source #3 4 (FF2h-FF3h) Interrupt source #4 5 (FF0h-FF1h)

3.4.1 Interrupt request

All interrupt sources but the Non M askable Interrupt source can be disabled by setting accordingly the GEN bit of the Interrupt Option Register (IOR). This GEN bit also defines if an interrupt source, including the Non Maskable Interrupt source, can restart the MCU from STOP/WAIT modes.

Interrupt request from the No n M ask able Interrupt source #0 is latched by a flip flop which is automat-

ically reset by the core at the beginning of the nonmaskable interrupt service routine.

Interrupt request from source #1 can be configured either as edge or level sensitive by setting accordingly the LES bit of the Interrupt Option Register (IOR).

Interrupt request from source #2 are always edge sensitive. The e dge polarity can be configured by setting accord ingl y the ESB bit of the Int erru pt Option Register (IOR).

Interrupt request from sources #3 & #4 are level sensitive.

In edge sensitive mode, a latch is set when a edge occurs on the interrupt sou rce line and is cleared when the associated interrupt routine is started. So, the occurrence of an interrupt can be stored, until completion of the running interrupt routine before being processed. If several interrupt requests occurs before completion o f the running interrupt routine, only the first request is stored.

Storage of interrupt requests is not available in level sensitive mode. To be taken into account, the low level must be present on the interrupt pin when the MCU samples the line after instruction execution.

At the end of every instruction, the MCU tests the interrupt lines: if there is an interrupt request the next instruction is not e xecuted and the appropriate interrupt service routine is executed instead.

Table 9. Interrupt Option Register Description

GEN

ESB

LES

OTHERS NOT USED

SET Enable all interrupts CLEARED Disable all interrupts

SET

CLEARED

SET

CLEARED

Rising edge mode on interrupt source #2

Falling edge mode on interrupt source #2

Level-sensitive mode on interrupt source #1

Falling edge mode on interrupt source #1

30/78

INTERRUPTS (Cont’d)

3.4.2 Interrupt Procedure

The interrupt procedure is very similar to a call procedure, indeed the user can consider the interrupt as an asynchronous call procedure. As this is an asynchronous event, the user cannot know the context and the time at which it occurred. As a result, the user should save all Data space registers which may be used within the interrupt routines. There are separate sets of processor flags for normal, interrupt and non-maskable interrupt modes, which are automatically switched and so do not need to be saved.

The following list summarizes the interrupt procedure:

MCU

– The interrupt is detected. – The C and Z flags are replaced by the interrupt

flags (or by the NMI flags).

– The PC contents are stored in the first level of

the stack.

– The normal interrupt lines are inhibited (NMI still

active). – The first internal latch is cleared. – The associated interrupt vector is loaded in the PC.

WARNING: In some circumstances, when a maskable interrupt occurs while the ST6 core is in NORMAL mode and es pecially during the ex ecution of an "ldi IOR, 00h" instruction (disabling all maskable interrupts): if the interrupt arrives during the first 3 cycles of the "ldi" instruction (which is a 4-cycle instruction) the core will switch to interrupt mode BUT the flags CN and ZN will NOT switch to the interrupt pair CI and ZI.

User

– User selected registers are saved within the in-

terrupt service routine (normally on a software

stack). – The source of the interrupt is found by polling the

interrupt flags (if more than one source is associ-

ated with the same vector). – The interrupt is serviced. – Return from interrupt (RETI)

ST62T52C ST62T62C/E62C

MCU

– Automatically the MCU switches back to the nor-

mal flag set (or the interrupt flag set) and pops the previous PC value from the stack.

The interrupt routine usually begins by the identifying the device which generated the interrupt request (by polling). The user should save the registers which are used within the interrupt routine in a software stack. After the RETI instruction is executed, the MCU returns to the main routine.

Figure 20. Interrupt Processing Flow Chart

INSTRUCTION

FETCH

INSTRUCTION

EXECUTE

INSTRUCTION

LOAD PC FROM

INTERRUPT VECTOR

(FFC/FFD)

SET

INTERRUPT MASK

PUSH THE

PC INTO THE STACK

SELECT

INTERNAL MODE FLAG

VA000014

THE INSTRUCTION

YES

INTERRUPT MASK

PROGRAM FLAGS

THE STACKED PC

WAS

A RETI ?

CLEAR

SELECT

"POP"

YES

IS THE CORE

ALREADY IN

NORMAL MODE?

CHECK IF THERE IS

AN INTERRUPT REQUEST

AND INTERRUPT MASK

YES

31/78

ST62T52C ST62T62C/E62C

INTERRUPTS (Cont’d)

3.4.3 Interrupt Option Register (IOR)

The Interrupt Option Register (IOR) is used to enable/disable the individual interrupt sources and to select the operating mode of the external interrupt inputs. This register is write-only and cannot be accessed by single-bit operations.

Address: 0C8h — Write Only Reset status: 00h

- LES ESB GEN - - - -

Bit 5 = ESB: The bit ESB selects the polarity of the interrupt

source #2. Bit 4 = GEN:

is set to one, all interrupts are enable d. When t his bit is cleared to zero a ll the interrupts (excluding NMI) are disabled.

When the GEN bit is low, the NMI in terrupt is active but cannot cause a wake up from STOP/WAIT modes.

This register is cleared on reset.

3.4.4 Interrupt Sources

Edge Selection bit

Global Enable Interrupt

. When this bit

Bit 7, Bits 3-0 = Bit 6 = LES:

Unused

Level/Edge Selection bit

When this bit is set to one, the interrupt source #1

Interrupt sources available on the ST62E62C/T62C are summarized in the Table 10 with associated mas k bit to enable/disabl e the in-

terrupt request. is level sensitive. When cleared to zero the edge sensitive mode for interrupt request is selected.

Table 10. Interrupt Requests and Mask Bits

Peripheral Register

GENERAL IOR C8h GEN TIMER TSCR1 D4h ETI TMZ: TIMER Overflow Vector 4 A/D CONVERTER ADCR D1h EAI EOC: End of Conversion Vector 4

AR TIMER ARMC D5h

Port PAn ORPA-DRPA C0h-C4h ORPAn-DRPAn PAn pin Vector 1 Port PBn ORPB-DRPB C1h-C5h ORPBn-DRPBn PBn pin Vector 1 Port PCn ORPC-DRPC C2h-C6h ORPCn-DRPCn PCn pin Vector 2

Address Register

Mask bit Masked Interrupt Source

All Interrupts, excluding NMI

OVIE CPIE EIE

OVF: AR TIMER Overflow CPF: Successful compare EF: Active edge on ARTIMin

Interrupt

vector

Vector 3

32/78

INTERRUPTS (Cont’d) Figure 21. Interrupt Blo ck D ia gram

FROM REGISTER PORT A,B,C

SINGLE BI T ENABLE

PBE

ST62T52C ST62T62C/E62C

PORT A PORT B

Bits

PORT C

Bits

PBE

SPIDIV Register

SPINT bi t

SPIE bit

SPIMOD Register

AR TIMER

TIMER1

ADC

QCLK

CLR

IOR REG. C8H, bit 5

OVF

OVIE

CPF

CPIE

EIE

TMZ

ETI

EOC

EAI

MUX

Start

IOR REG. C8H, bit 6

CLK Q

CLR

I2Start

INT #1 (F F6 ,7)

RESTART FROM

STOP/WAIT

INT #2 (F F4 ,5)

INT #3 (F F2 ,3)

INT #4 (F F0 ,1)

NMI

QCLK

CLR

Start

Bit GEN (IOR Register)

NMI (FFC,D)

VA0426K

33/78

ST62T52C ST62T62C/E62C

3.5 POWER SAVI NG MO DE S

The WAIT and STOP modes have been implemented in the ST62xx family of MCUs in order to reduce the product’s electrical consumption during idle periods. These two powe r saving modes are described in the following paragraphs.

3.5.1 WAIT Mode

The MCU goes into WAIT mode as soon as the WAIT instruction is executed. The microcontroller can be considered as being in a “software f rozen” state where the core stops processing the program instructions, the RAM contents and peripheral registers are preserved as long as the power supply voltage is higher than the RAM retention voltage. In this mode the peripherals are still active.

WAIT mode can be used when the use r wants to reduce the MCU power consumption during idle periods, while not losing track of time or the capability of monitoring external events. The active oscillator is not stopped in order to provide a clock signal to the peripherals. Timer counting may be enabled as well as the Timer interrupt, before entering the WAIT mode: this allows the WAIT mode to be exited when a T imer interrupt occurs. Th e same applies to other peripherals which use th e clock signal.

If the WAIT mode is exited due to a Reset (either by activating the external pin or generated by the Watchdog), the MCU enters a normal reset procedure. If an interrupt is generated during WAIT mode, the MCU’s behaviour depends on the stat e

of the processor core prior to the WAIT instruction,

but also on the kind of interrupt request which is

generated. This is described in the following para-

graphs. The processor core does not generate a

delay following the occurrence of the interrupt, be-

cause the oscillator clock is still av ailable and no

stabilisation period is necessary.

3.5.2 STOP Mode

If the Watchdog is disabled, STOP mode is availa-

ble. When in STOP mode, the MCU is pla ced in

the lowest power consumption mode. In this oper-

ating mode, the microcontroller can be considered

as being “frozen”, no instruction is e xecuted, the

oscillator is stopped, the RAM contents and pe-

ripheral registers are preserved as long as the

power supply voltage is higher than the RAM re-

tention voltage, and the ST62xx core wa its for the

occurrence of an external interrupt request or a

Reset to exit the STOP state.

If the STOP state is exited due to a Reset (by acti-

vating the external p in) the MCU will enter a nor-

mal reset procedure. Behaviour in response to in-

terrupts depends on the state of the processor

core prior to issuing the STOP instruction, and

also on the kind of interrupt request that is gener-

ated.

This case will be described in the following para-

graphs. The proces sor core generates a de lay a f-

ter occurrence of the interrupt request, in order to

wait for complete stabilisation of the oscillator, be-

fore executing the first instruction.

34/78

POWER SAVING MODE (Cont’d)

3.5.3 Exit from WAIT and STOP Modes

The following paragraphs describe how the MCU exits from WAIT and STOP modes, when an interrupt occurs (not a Reset). It should be noted that the restart sequence depends on the original state of the MCU (normal, interrupt or non-maskable interrupt mode) prior to entering WAIT or STOP mode, as well as on the interrupt type.

Interrupts do not affect the oscillator selection.

3.5.3.1 Normal Mode

If the MCU was in the main routine when the WAIT or STOP instruction was executed, exit from S top or Wait mode will occur as soon as an interrupt occurs; the related interrupt routine is executed and, on completion, the instruction which follows the STOP or WAIT instruction is then executed, providing no other interrupts are pending.

3.5.3.2 Non Maskable Interrupt Mode

If the STOP or WAIT instruc tion has be en ex ecut ed during execution of the non-maskab le interrupt routine, the MCU exits from the Stop or Wait mode as soon as an interrupt occurs: the instruction which follows the STOP or WAIT instruction is executed, and the MCU remains in non-maskable interrupt mode, even if another interrupt has been generated.

3.5.3.3 Normal Interrupt Mode

If the MCU was in interrupt mode before the STOP or WAIT instruction was executed, it exits from STOP or WAIT mode as soon as an interrupt occurs. Nevertheless, two cases must be considered:

– If the interrupt is a normal one, the interrupt rou-

tine in which the WAIT or STOP mode was en-

ST62T52C ST62T62C/E62C

tered will be completed, starting with the execution of the instruction which follows the STOP or the WAIT instruction, and the MCU is still in the interrupt mode. A t the end of this routine pending interrupts will be serviced in accordance with their priority.

– In the event of a non-maskable interrupt, the

non-maskable inte rrupt service routine is processed first, then the routine in which the WAIT or STOP mode was entered will be compl eted by executing the instruction following the STOP or WAIT instruction. The MCU remains in normal interrupt mode.

Notes:

To achieve the lowest po wer consumption during

RUN or WAIT modes, the user program must take

care of:

– configuring unused I/Os as inputs without pull-up

(these should be ext ernally tied to well defined logic levels);

– placing all peripherals in their power down

modes before entering STOP mod e;

When the hardware activated Watchdog i s sel ect-

ed, or when the software Watchdog is enabled, the

STOP instruction is disabled and a WAIT instruc-

tion will be executed in its place.

If all interrupt sources are disabled (GEN low), the

MCU can only be restarted by a Reset. Although

setting GEN low does not mask the NMI as an in-

terrupt, it will stop it generating a wake-up signal.

The WAIT and STOP instructions are not execut-

ed if an enabled interrupt request is pending.

35/78

ST62T52C ST62T62C/E62C

4 ON-CHIP PERIPHERALS

4.1 I/O PORTS

The MCU features Input/Output lines which m ay be individually programmed as any of the following input or output configurations:

– Input without pull-up or interrupt – Input with pull-up and interrupt – Input with pull-up, but without interrupt – Analog input – Push-pull output – Open drain output The lines are organised as bytewise Ports. Each port is associated with 3 registers in Data

space. Each bit of these registers is associated with a particular line (for instance, bits 0 of Port A Data, Direction and Option registers are associated with the PA0 line of Port A).

The DATA registers (DRx), are used to read the voltage level values of the lines which have bee n configured as inputs, or t o write the logic value of the signal to be output on the l ines configured as outputs. The port data registers can be read to get the effective logic levels of the pins, but t hey can

Figure 22. I/O Por t Bl ock D i agram

SIN CONTRO LS

RESET

be also written by user software, in conjunction

with the related option registers, to select the dif-

ferent input mode options.

Single-bit operations on I/O registers a re possible

but care is necessary because reading in input

mode is done from I/O pins while writing will direct-

ly affect the Port data register ca using an unde-

sired change of the input configuration.

The Data Direction registers (DDRx) allow the

data direction (input or output) of each pin to be

set.

The Option registers (ORx) are used to select the

different port options available both in input and in

output mode.

All I/O registers can be read or written to just as

any other RAM location in Data space, so no extra

RAM cells are needed for port data storage and

manipulation. During MCU initialization, all I/O reg-

isters are cleared and the input mode with pull-ups

and no interrupt generation is se lected for all the

pins, thus avoiding pin conflicts.

36/78

SHIFT

OUT

TO INTERRUPT

TO ADC

DATA

DIRECTION

DATA

OPTION

INPUT/OUTPUT

VA00413

ST62T52C ST62T62C/E62C

I/O PO R T S (Cont’d)

4.1.1 Operating Modes

Each pin may be individually programmed as input or output with various configurations.

This is achieved by writing the relevant bit in the Data (DR), Data Direction (DDR) and O ption registers (OR). Table 11 illustrates the various port configurations which can be selected by user software.

4.1.1.1 Input Options

Pull-up, High Impedance Option. All input lines can be individually programmed with or without an internal pull-up by programming the OR and DR registers accordingly. If the pull-up option is not selected, the input pin will be in the high-impedance state.

Table 11. I/O Port Option Selection

DDR OR DR Mo de Option

0 0 0 Input With pull-up, no interrupt 0 0 1 Input No pull-up, no interrupt 0 1 0 Input With pull-up and with interrupt 0 1 1 Input Analog input (when available) 1 0 X Output Open-drain output (20mA sink when available) 1 1 X Output Push-pull output (20mA sink when available)

4.1.1.2 Interrupt Options

All input lines can be individually connected by

software to the interrupt system by programming

the OR and DR registers accordingly. The inter-

rupt trigger modes (fall ing edge, rising edge and

low level) can be configured by software as de-

scribed in the Interrupt Chapter for each port.

4.1.1.3 Analog Input Options

Some pins can be configured as analog input s by

programming the OR and DR registers according-

ly. These analog inputs are c onnected to the on-

chip 8-bit Analog to Digital Converter.

pin should be programmed as an a nalog input at

any time, since by selecting m ore than one input

simultaneously their pins will be effectively sh ort-

ed.

ONLY ONE

Note: X = Don’t care

37/78

ST62T52C ST62T62C/E62C

I/O PO R T S (Cont’d)

4.1.2 Safe I/O State Switching Sequence

Switching the I/O ports from one state to another should be done in a se quence which ensures that no unwanted side effects can occur. The recommended safe transitions are illustrated in Figure

23.. All other transitions are potentially risky and

should be avoided when changing the I/O operating mode, as it is most likely that undesirable sideeffects will be experienced, such as spurious interrupt generation or two pins shorted together by the analog multiplexer.

Single bit instructions (SET, RES, INC and DEC) should be used with great caution on Ports Data registers, since these instructions make an implicit read and write back of the entire reg ister. In port input mode, however, the data register reads from the input pins directly, and not from the data register latches. Since data register information in input mode is used to set the characteristics of the input pin (interrupt, pull-up, analog input), these may be unintentionally reprogrammed depending on the state of the input pins. As a general rule, it is better to limit the use of single bit instructions on data registers to when the whole (8-bit) port is in output mode. In the case of inputs or of mixed inputs and

outputs, it is advisable to keep a copy of the data

be used on the R AM copy, a fter which the whole

copy register can be written to the port data regis-

ter:

SET bit, datacopy

LD a, datacopy

LD DRA, a

Warning: Care must also be taken to not use in-

structions that act on a whole port register (INC,

DEC, or read operations) when all 8 bits are not

available on the de vice. Unavailable bits must be

masked by software (AND instruction).

The WAIT and STOP instructions allow the

ST62xx to be used in situations where low power

consumption is needed. The lowest power con-

sumption is achieved b y configuring I/Os in input

mode with well-defined logic levels.

The user must take care not to switch outputs with

heavy loads during the co nversion of one of the

analog inputs in order to avoid any disturbance to

the conversion.

Figure 23. Diagram showing Safe I/O State Transitions

Interrupt pull-up

010*

Input pull-up (Reset

000

state)

Output Open Drain

Output Push-pull

100

110

Note *. xxx = DDR, OR, DR Bits respectively

011

001

101

111

Input

Analog

Input

Output

Open Drain

Output

Push-pull

38/78

I/O PO R T S (Cont’d) Table 12. I/O Port Option Selections

ST62T52C ST62T62C/E62C

MODE AVAILABLE ON

Input

Reset state(

Reset state if PULL-UP

option disabled

Input

Reset state

Reset state if PULL-UP

option enabled

Input

with pull up

with interrupt

(1)

PA4-PA5 PB0, PB6-PB7 PC2-PC3

PB2-PB3,

PA4-PA5 PB0,,PB6-PB7 PC2-PC3

PB2-PB3

PA4-PA5 PB0, PB2-PB3,PB6-PB7 PC2-PC3

SCHEMATIC

Data in

Interrupt

Data in

Interrupt

Data in

Interrupt

Analog Input

Open drain output

5mA

Open drain output

30mA

Push-pull output

5mA

Push-pull output

30mA

Note 1. Pr ovided the cor rect configuration has been selected.

PA4-PA5 PC2-PC3

PB0, PB2-PB3,PB6-PB7

PA4-PA5 PC2-PC3

PB0, PB2-PB3,PB6-PB7

ADC

Data out

39/78

ST62T52C ST62T62C/E62C

I/O PO R T S (Cont’d)

4.1.3 ARTimer alternate functions

When bit PWMOE of register ARMC is low, pin ARTIMout/PB7 is configured as any standard pin of port B through the port registers. When PWMOE is high, ARTMout/PB7 is the PWM output, independently of the port registers configuration.

Figure 24. Peripheral Interface Configuration of AR Timer

ARTIMin/PB6 is c onnect ed to t he A R Timer input.

It is configured through the port regist ers as any

standard pin of port B. To use ARTIMin/PB6 as AR

Timer input, it must be configured as input through

DDRB.

PID

ARTIMin

ARTIMout

PID

MUX

AR TIMER

1 0

PWMOE

ARTIMout

VR01661G

40/78

4.2 TIMER

ST62T52C ST62T62C/E62C

The MCU features an on-chip Timer peripheral, consisting of an 8-bit counter with a 7-bit programmable prescaler, giving a maximum count of 2

Figure 25. shows the Time r Block Diagram. The

content of the 8-bit counter can be read/written in the Timer/Counter register, TCR, which can be addressed in Data space as a RAM location at address 0D3h. The state of the 7-bit prescaler can be read in the PSC register at address 0D2h. The control logic device is managed in the TSCR register as described in the following paragraphs.

The 8-bit counter is decrement by the output (rising edge) coming from the 7-bit prescaler and can be loaded and read under program contro l. Whe n it decrements to zero then the TMZ (Timer Zero)bit in the TSCR is set. If the ETI (Enable Timer Interrupt) bit in the TSCR is also set, an interrupt request is generated. The Timer interrupt can be used to exit the MCU from WAIT mode.

Figure 25. Timer Block Diagram

The prescaler input is the interna l frequency (f

divided by 12. The p rescaler decrements on the

rising edge. Depending on the division factor pro-

grammed by P S2, PS 1 and PS0 bits in the TSCR

(see Table 13.), the clock input of the timer/coun-

ter register is multiplexed to different s ources . For

division factor 1, the clock input of the prescaler is

also that of timer/counter; for factor 2, bit 0 of the

prescaler register is connected to the clock input of

TCR. This bit changes its state at half the frequen-

cy of the prescaler input clock. For factor 4, bit 1 of

the PSC is connected to the clock input of TCR,

and so forth. The prescaler initialize bit, PSI, in the

TSCR register must be set to allow the prescaler

(and hence the counter) to start. If it is cleared, all

the prescaler bits are se t and t he counter is inhib-

ited from counting. The prescaler can be loa ded

with any value between 0 and 7Fh, if bit PSI is set.

The prescaler tap is selected by means of the

PS2/PS1/PS0 bits in the control register.

Figure 26. illustrates the Timer’s working principle.

DATA BUS

INT

)

INT

PSC

6 5 4 3 2 1 0

SELECT

1 OF 7

8-BIT

COUNTER

b7 b6 b5 b4 b3 b2 b1 b0

STATUS/CONTROL

TMZ ETI D5 D4 PSI PS2 PS1 PS0

INTERRUPT

LINE

VR02070A

41/78

ST62T52C ST62T62C/E62C

TIMER (Cont’d)

4.2.1 Timer Operation

The Timer prescaler is clocked by the prescaler clock input (f

The user can select the desired prescaler division ratio through t he PS2, P S1, PS0 b its. When the TCR count reaches 0, it sets the TMZ bit in the TSCR. The TMZ bit can be tested und er program control to perform a timer function whenever it goes high.

4.2.2 Timer Interru pt

When the counter register decrements to zero with the ETI (Enable Timer Interrupt) bit s et to one, a n interrupt request associated with Interrupt Vector #4 is generated. When the c ounter dec rem ents t o

Figure 26. Tim er Working Princ i pl e

CLOCK

÷ 12).

INT

BIT0 BIT1 BIT2

7-BIT PRESCALE R

zero, the TMZ bit in the TSCR register is set to

one.

4.2.3 Application Notes

TMZ is set when the counter reaches zero; howev-

er, it may also be set by writing 00h in the TCR

The TMZ bit must be cleared by user software

when servicing the timer interrupt to avoid unde-

sired interrupts when leaving the interrupt service

routine. After reset, the 8-bit counter register is

loaded with 0FFh, while the 7-bit prescaler is load-

ed with 07Fh, and the TSCR register is cleared.

This means that the Timer is stopped (PSI=“0”)

and the timer interrupt is disabled.

BIT3 BIT6BIT5BIT4

10234

8-1 MULTIPLEXER

BIT0 BIT1

BIT2

BIT3 BIT4 BIT5 BIT6

8-BIT COUNTER

BIT7

PS0 PS1 PS2

VA00186

42/78

ST62T52C ST62T62C/E62C

TIMER (Cont’d)

A write to the TCR register will predominate over the 8-bit counter decrement to 00h function, i.e. if a write and a TCR register decrement to 00h occur simultaneously, the write will take precedence, and the TMZ bit i s not set until the 8-bit c ounter reaches 00h again. The values of the TCR and the PSC registers can be read accurately at any time.

4.2.4 Timer Registers Timer Status Control Register (TSCR)

Address: 0D4h — Read/Write

TMZ ETI D5 D4 PSI PS2 PS1 PS0

Bit 7 = TMZ:

Timer Ze r o bit

A low-to-high transition indicates that the timer count register has decrement to zero. This bit must be cleared by user software before starting a new count.

Bit 6 = ETI:

Enable Timer Interrup

When set, enables the timer interrupt request (vector #4). If ETI=0 the timer interrupt is di sabled. If ETI=1 and TMZ=1 an interrupt request is generated.

Bit 5 = D5:

Reserved

Must be set to “1”. Bit 4 = D4 Do not care. Bit 3 = PSI:

Prescaler Initialize Bit

Used to initialize the prescaler and inhibit its counting. When PSI=“0” the presc aler is set to 7Fh and the counter is inhibited. When PSI=“1” the prescaler is enabled to count downwards. As long as

PSI=“0” both counter and prescaler are not run-

ning.

Bit 2, 1, 0 = PS2, PS1, PS0:

These bits select the division ratio of the pres-

lect.

caler register.

Table 13. Prescaler Division Factors

PS2 PS1 PS0 Divided by

0 0 0 1 0 0 1 2 0 1 0 4 0118 10016 10132 11064 111128

Timer Counter Register (TCR)

Address: 0D3h — Read/Write

D7 D6 D5 D4 D3 D2 D1 D0

Bit 7-0 = D7-D0:

Counter Bits.

Prescaler Register PSC

Address: 0D2h — Read/Write

D7 D6 D5 D4 D3 D2 D1 D0

Bit 7 = D7: Always read as "0".

Bit 6-0 = D6-D0: Prescaler Bit s .

Prescaler Mux. Se-

43/78

ST62T52C ST62T62C/E62C

4.3 AUTO-RELOAD TIMER

The Auto-Reload Timer (AR Timer) on-chip peripheral consists of an 8-bit timer/counter with compare and cap ture/reload capabilities and of a 7-bit prescaler with a clock m ultiplexer, enabling the clock input to be selected as f external clock source. A Mode Control Register,

INT

, f

INT/3

or an

ARMC, two Status Control Registers, ARSC0 and ARSC1, an output pin, ARTIMout, and an input pin, ARTIMin, allow the Auto-Reload Timer to be used in 4 modes:

– Auto-reload (PWM generation), – Output compare and reload on externa l event

(PLL),

– Input capture and output compare for time meas-

urement.

– Input capture and output compare for period

measurement.

The AR Timer can be used to wake the MCU from WAIT mode either with an internal or with an external clock. It also can be used to wake the MCU from STOP mode , if used with an external clock signal connected to the ARTIMin pin. A Load register allows the program to read and write the counter on the fly.

4.3.1 AR Timer Description

The AR COUNTER is an 8-bit up-counter incremented on the input clock’s rising edge. The counter is loaded from the ReLoad/Capture Register, ARRC, for auto-reload or capture operations, as well as f or initialization. Direct access to the AR counter is not possible; however, by reading or writing the ARLR load register, it is possible to read or write the counter’s contents on the fly.

The AR Timer’s input clock can be either the internal clock (from the Oscillator Divider), the internal clock divided by 3, or the clock signal connected to the ARTIMin pin. Selection between these clock sources is effected by suitably programming bits CC0-CC1 of the ARSC1 register. The output of the AR Multiplexer feeds the 7-bit programmable AR Prescaler, ARPSC, which selects one of the 8 available taps of the prescaler, as defined by PSC0-PSC2 in the AR Mode Control Register. Thus the division factor of the prescaler can be set to 2n (where n = 0, 1,..7).

The clock input to the AR counter is enabled by the TEN (Timer Enable) bit in the ARMC register. When TEN is reset, the AR counter is stopped and

the prescaler and counter contents are frozen.

When TEN is set, the AR counter runs at the rate

of the selected clock source. The counter is

cleared on system reset.

The AR counter may also be initialized by writing

to the ARLR load register, which also causes an

immediate copy of the value to be placed in the AR

counter, regardless of whether the counter is run-

ning or not. I nitialization of the counter, by either

method, will also clear the ARPSC register, where-

upon counting will start from a known value.

4.3.2 Timer Operating Modes

Four different operating modes are available for

the AR Timer:

Auto-reload Mode with PWM Generation. This

mode allows a Pulse Width Modulated signal to be

generated on the ARTIMout pin with minimum

Core processing overhead.

The free running 8-bit counter is fed by the pres-

caler’s output, and is incremented on every rising

edge of the clock signal.

When a counter overflow occurs, the counter is

automatically reloaded with the contents of the Re-

load/Capture Register, ARCC, and ARTIMout is

set. When the counter reaches the value con-

tained in the compare register (ARCP), ARTIMout

is reset.

On overflow, the OVF flag of the ARSC0 register is

set and an overflow interrupt request is generated

if the overflow interrupt enable bit, OVIE, in the

Mode Control Register (A RMC), is set. The OVF

flag must be reset by the user software.

When the counter reaches the compare value, the

CPF flag of t he A RS C0 register is set a nd a com-

pare interrupt request is generated, if t he Compare

Interrupt enable bit, CPIE, in the Mode Control

tine may then adjust the PWM period by loading a

new value into ARCP. The CPF flag must be reset

by user software.

The PWM signal is generated on the ARTIMout

pin (refer to the Block Diagram). The f requen cy of

this signal is controlled by the prescaler setting

and by the auto-reload value present in the Re-

load/Capture register, ARRC. The duty cycle of

the PWM signal is controlled by the Compare Reg-

ister, ARCP.

44/78

AUTO-RELOAD TIMER (Cont’d) Figure 27. AR Timer Block Diagram

ST62T52C ST62T62C/E62C

INT

M U X

CC0-CC1

7-Bit

AR PRES CA LE R

PS0-PS2

DATA BUS

AR COMPARE

COMPARE

8-Bit

AR COUNTER

CPF

OVF

LOAD

DRB7

R S

OVF OVIE

TCLD

EIE

CPF

CPIE

DDRB7

PB7/

ARTIMout

PWMOE

AR TIMER

INTERRUPT

PB6/

ARTIMin

SL0-SL1

SYNCHRO

RELOAD/CAPTURE

LOAD

DATA BUS

VR01660A

45/78

ST62T52C ST62T62C/E62C

AUTO-RELOAD TIMER (Cont’d)

It should be noted that the reload val ues will also affect the value and the resolution of the duty cycle of PWM output signal. To obtain a signal on ARTIMout, the contents of the ARCP register must be greater than the contents of the ARRC register.

The maximum available resolution for the ARTIMout duty cycle is:

Resolution = 1/[255-(ARRC)]

Where ARRC is the content of the Reload/Capture register. The compare value loaded in the Com pare Register, ARCP, must be in the range from (ARRC) to 255.

Figure 28. Auto-reload Timer PWM Function

COUNTER

255

COMPARE VALUE

The ARTC counter is initialized by writing to t he

ARRC register and by then setting the TCLD (Tim-

er Load) and the TEN (Timer Clock Enable) bits in

the Mode Control register, ARMC.

Enabling and sel ection of t he c lock s ource is con-

trolled by the CC0, CC1, SL0 and S L1 bits in the

Status Control Register, ARSC1. The prescaler di-

vision ratio is selected by the P S0, PS1 and PS 2

bits in the ARSC1 register.

In Auto-reload Mode, any of the three available

clock sources can be selected: Internal Clock, In-

ternal Clock divided by 3 or the clock signal

present on the ARTIMin pin.

RELOAD

PWM OUTPUT

000

VR001852

46/78

AUTO-RELOAD TIMER (Cont’d) Capture Mode with PWM Generation. In this

mode, the AR counter operates as a free running 8-bit counter fed by the prescaler output. The counter is incremented on every clock rising edge.

An 8-bit capture operation from the counter to the ARRC register is performed o n every active edg e on the ARTIMin pin, whe n ena bled by E dge Control bits SL0, SL1 in the ARSC1 register. At the same time, the External F lag, EF, in the ARSC0 register is set and an external interrupt request is generated if the External Interrupt Enable bit, EIE, in the ARMC register, is set. The EF flag must be reset by user software.

Each ARTC overflow sets ARTIMout, while a match between the counter and ARCP (Compare Register) resets ARTIMout and sets the compare flag, CPF. A compare interrupt request is generated if the related compare interrupt enable bit, CPIE, is set. A PWM signal is generated on ARTIMout. The CPF flag must be reset by user software.

The frequency of the generated signal is determined by the prescaler setting. The du ty cycle is determined by the ARCP register.

Initialization and reading of the counter are identical to the auto-reload mode (see previous description).

Enabling and selection of clock sources is controlled by the CC0 and CC1 bits in the AR Status Control Register, ARSC1.

The prescaler division ratio is selected by programming the PS0, PS1 and PS2 bits in the ARSC1 Register.

In Capture mode, the allowed clo ck sources are the internal clock and the internal clock divided by 3; the external ARTIMin input pin should not be used as a clock source.

Capture Mode with Reset of counter and prescaler, and PWM Generation. This mode is identi-

cal to the previous one, with the differenc e that a capture condition also resets the counter and th e prescaler, thus allowing easy measurement of the time between two captures (for input period measurement on the ARTIMin pin).

Load on External Input. The counter operates as a free running 8-bit counter f ed by the prescaler.

ST62T52C ST62T62C/E62C

the count is incremented on every clock rising

edge.

Each counter overflow sets the A RTIMout pin. A

match between the counter and ARCP (Compare

compare flag, CPF. A compare interrupt request is

generated if the related compare interrupt ena ble

bit, CPIE, is set. A PWM signal is generated on

ARTIMout. The CPF flag must be reset by user

software.

Initialization of the counter is as described in the

previous paragraph. In addition, if the external AR-

TIMin input is enabled, an active edge on the input

pin will copy the contents of t he ARRC regist er into

the counter, whether the counter is running or not.

Notes:

The allowed AR Timer clock sources are the fol-

lowing:

AR Timer Mode Clock Sources

Auto-reload mode f Capture mode f Capture/Reset mode f External Load mode f

The clock frequency should not be modified while

the counter is counting, since the c ounter may be

set to an unpredictable value. For instance, the

multiplexer setting should not be modified while

the counter is counting.

Loading of the counter by any means (by auto-re-

load, through ARLR, ARRC or by the Core) resets

the prescaler at the same time.

Care should be taken when both the Capture inter-

rupt and the Overflow i nterrupt are used. Capture

and overflow are asynchron ous. If t he capt ure oc-

curs when the Overflow Interrupt Flag, OVF, is

high (between counter overflow and the flag being

reset by software, in the interrupt routine), the Ex-

ternal Interrupt Flag, EF, may be cleared simul-

taneusly without the interrupt being taken into ac-

count.

The solution consist s in resetting the OVF flag by

writing 06h in the ARSC0 register. The value of EF

is not affected by this operation. If an interrupt has

occured, it w ill be proc esse d whe n the MCU exi ts

from the interrupt routine (the second interrupt is

latched).

INT INT INT INT

, f , f , f , f

INT/3 INT/3 INT/3 INT/3

, ARTIMin

47/78

ST62T52C ST62T62C/E62C

AUTO-RELOAD TIMER (Cont’d)

4.3.3 AR Timer Registers AR Mode Control Register (ARMC)

Address: D5h — Read/Write Reset status: 00h

TCLD T EN PWMOE EIE CPIE OVIE ARMC1 ARMC0

The AR Mode Control Register ARMC is used to program the different operating modes of the AR Timer, to enable the clock and to initialize the counter. It can be read and written to by the Core and it is cleared on system reset (the AR Timer is disabled).

ARSC0 register is al so set , an i nterrup t reques t is

generated.

Bit 1-0 = A RMC1-ARMC0:

Mode Control Bits 1-0

These are the operating mode control bits. The fol-

lowing bit combinations will select the v arious op-

erating modes:

ARMC1 ARMC0 Operating Mode

0 0 Auto-reload Mode 0 1 Capture Mode

Capture Mode with Reset of ARTC and ARPSC

Load on External Edge Mode

Bit 7 = TLCD:

Timer Load Bit.

This b it, when se t, will cause the contents of ARRC register to be loaded into the counter and the contents of the prescaler register, ARPSC, are cleared in order to initialize the timer before starting to count. This bit is write-only and any attempt to read it will yield a logical zero.

Bit 6 = TEN

: Timer Clock Enable.

This bit, when set, allows the timer to count. When cleared, it will stop the timer and freeze ARPSC and ARTSC.

Bit 5 = PWMOE:

PWM Output Enable.

This bit, when set, enables the PWM output on the ARTIMout pin. When reset, the PWM output is disabled.

Bit 4 = EIE:

External Interrupt Enable.

This bit, when set, enables the exte rnal interrupt request. When reset, the external interrupt request is masked. If EIE is set and the related flag, EF, in the ARSC0 register is also set, an interrupt request is generated.

Bit 3 = CPIE:

Compare Interrupt Enable.

This bit, when set, enables the compare interrupt request. If CPIE is reset, the com pare interrupt request is masked. If CPIE is set and the related flag, CPF, in the ARSC0 register is also set, an interrupt request is generated.

Bit 2 = OVIE:

Overflow Interrupt

. This bit, when set, enables the overflow interrupt request. If OVIE is reset, the compare interrupt request is m asked. If OVIE is set and the related flag, OVF in the

AR Timer Status/Control Registers ARSC0 & ARSC1. These registers contain the AR Timer sta-

tus information bits and also allow the programming of clock source s, active edge and pres caler multiplex er s e ttin g.

ARSC0 register bits 0,1 and 2 contain the interrupt flags of the AR Timer. These bits are read normally. Each one may b e reset by software. Writing a one does not affect the bit value.

AR Status Control Register 0 (ARSC0)

Address: D6h — Read/Clear

D7 D6 D5 D4 D3 EF CPF OVF

Bits 7-3 = D7-D3: Bit 2 = EF:

External Interrupt Flag.

Unused

This bit is set by any active edge on the external ARTIMin input pin. The flag is cleared by writing a zero to the EF bit.

Bit 1 = CPF:

Compare Interrupt Flag.

This bit is set if the contents of the counter and the ARCP register are equal. The flag is cleared by writing a zero to the CPF bit.

Bit 0 = OVF:

Overflow Interrupt Flag.

This bit is set by a transition of the counter from FFh to 00h (overflow). The flag is cleared by writing a zero to the OVF bit.

48/78

ST62T52C ST62T62C/E62C

AUTO-RELOAD TIMER (Cont’d) AR Status Control Register 1(ARSC1)

Address: D7h — Read/Write

PS2 PS1 PS0 D4 SL1 SL0 CC1 CC0

AR Load Register ARLR. The ARLR load register is used to read or write the ARTC counter register “on the fly” (while it is counting). The ARLR register is not affected by system reset.

AR Load Register (ARLR)

Address: DBh — Read/Write

Bist 7-5 = PS2-PS0:

Bits 2-0.

These bits determine the Prescaler divi-

Prescaler Division Selection

sion ratio. The prescaler itself is not affected by these bits. The prescaler division ratio is listed in the following table:

Table 14. Prescaler Division Ratio Selection

PS2 PS1 PS0 ARPSC Division Ratio

0 0 0 0 1 1 1 1

Bit 4 = D4: Bit 3-2 = SL1-SL0:

These bits control the edge function of the Timer

0 0 1 1 0 0 1 1

Reserved

Timer Input Edge Control Bits 1-

0 1 0 1 0 1 0 1

1 2 4

8 16 32 64

128

. Must be kept reset.

input pin for external synchronization. If bit SL0 is reset, edge detection is disabled; if set edge detection is enabled. If bit SL1 is reset, the AR Timer input pin is rising edge sensitive; if set, it is falling edge sensitive.

SL1 SL0 Edge Detection

X 0 Disabled 0 1 Rising Edge 1 1 Falling Edge

Bit 1-0 = CC1-CC0:

Clock Source Select Bit 1-0.

These bits select the clock source for the AR Timer through the AR Multiplexer. The p rogramming of the clock sources is explained in the following Table

15 :

D7 D6 D5 D4 D3 D2 D1 D0

Bit 7-0 = D7-D0:

Load Register Data Bits.

These

are the load register data bits.

AR Reload/Capture Register. The ARRC reload/capture register is used to ho ld the auto-reload value which is automatically loaded in to the counter when overflow occurs.

AR Reload/Capture (ARRC)

Address: D9h — Read/Write

D7 D6 D5 D4 D3 D2 D1 D0

Bit 7-0 = D7-D0:

Reload/Capture Data Bits

. These

are the Reload/Capture register data bits.

AR Compare Register. The CP compare register is used to hold the compare value for the compare function.

AR Compare Register (ARCP)

Address: DAh — Read/Write

D7 D6 D5 D4 D3 D2 D1 D0

Bit 7-0 = D7-D0:

Compare Data Bits

. These are

the Compare register data bits.

Table 15. Clock Source Selection.

CC1 CC0 Clock Source

00F 01F 1 0 ARTIMin Input Clock 1 1 Reserved

int

Divided by 3

int

49/78

ST62T52C ST62T62C/E62C

4.4 A/D CONVERTER (ADC)

The A/D converter peripheral is an 8-bit analog to digital converter with analog inputs as alternate I/O functions (the number of which is device dependent), offering 8-bit resolution with a typical conversion time of 70us (at an oscillator clock frequency of 8MHz).

The ADC converts the inpu t voltage by a process of successive approximations, using a clock frequency derived from the os cillator with a division factor of twelve. With an oscillator clock frequency less than 1.2MHz, conversion accuracy is decreased.

Selection of the input pi n is done by configuring the related I/O line as an analog input via the Option and Data registers (refer to I/O ports description for additional information). Only one I/O line must be configured as an analog input at any time. The user must avoid any situation in wh ich more than one I/O pin is selecte d as an analog input simultaneously, to avoid device malfunction.

The ADC uses two registers in the data space: the ADC data conversion register, ADR, which stores the conversion result, and the ADC control register, ADCR, used to program the ADC functions.

A conversion is started by writing a “1” to the Start bit (STA) in the ADC control register. This automatically clears (resets to “0”) the End Of Conversion Bit (EOC). When a conversion is complete, the EOC bit is automatically set to “1”, in order to flag that conversion is complete and t hat the data in the ADC data conversion register is val id. E ach conversion has to be separately initiated by writing to the STA bit.

The STA bit is continuously scanned so that, if the user sets it to “1” while a previous conversion is in progress, a new conversion is started before completing the previous one. The start bit (STA) is a wri te o nly b it , any att emp t to r ead it wi ll show a logical “0”.

The A/D converter features a maskable interrupt associated with the end of conversion. This interrupt is associated with interrupt vector #4 and occurs when the EOC bit is set (i.e. when a conv ersion is completed). The interrupt is masked us ing the EAI (interrupt mask) bit in the control register.

The power consumption of th e device can be reduced by turning off the ADC peripheral. Thi s is done by setting the PDS bit in the ADC control register to “0”. If PDS=“1”, the A/D is powered and enabled for conversion. This bit mus t be set at least one instruction before the beginning of the conver-

sion to allow stabilisation of the A/D converter. This action is also needed before ente ring WAIT mode, since the A/D com parator is not automatically disabled in WAIT mode.

During Reset, any conversion in progress is stopped, the control register is reset to 40h and the ADC interrupt is masked (EAI=0).

Figure 29. ADC Block Diagram

INTERRUPT

Ain

CONTRO L REGIS T ER

CONTROL SI GNA LS

CONVERTER

CORE

RESULT REGISTER

CLOCK RESET AV AV

CORE

SS DD

VA00418

4.4.1 Application Notes

The A/D converter doe s not f eature a sample and hold circuit. The a nalog voltage to be measured should therefore be stable during the entire conversion cycle. Voltage variati on should not exceed ±1/2 LSB for the optim um conve rsion acc uracy . A low pass filter may be used at the analog input pins to reduce input voltage variation during conversion.

When selected as an analog channel, the input pin is internally connected to a capacitor C

of typi-

cally 12pF. For maximum ac curacy , th is capacitor must be fully charged at the beginnin g of conversion. In the worst case, conversion starts on e instruction (6.5 µs) after the channel has been selected. In worst case conditions, the impedan ce, ASI, of the analog voltage source is calculated using the following formula:

6.5µs = 9 x C

x ASI

(capacitor charged to over 99.9%), i.e. 30 kΩ including a 50% guardband. ASI can be higher if C

has been charged for a longer period by adding instructions before the start of conversion (adding more than 26 CPU cycles is pointless).

50/78

A/D CONVERTER (Cont’d) Since the ADC is on the same chip as the micro-

processor, the user should not switch heavily loaded output signals during conversion, if high precision is required. Such switching will affect the supply voltages used as analog references.

The accuracy of the conversion depends on the quality of the power supplies (V

and VSS). Th e

user must take special care to ensure a well regulated reference voltage is present on the V

pins (power supply voltage variations must be

and

less than 5V/ms). This implies, in particular, that a suitable decoupling capacitor is used at the V

pin. The converter resolution is given by::

ST62T52C ST62T62C/E62C

the noise during the c onversion. But the first conversion step is performed before the execution of the WAIT when most of clocks signals are still enabled . The key is to sy nchronize the ADC start with the effective execution of the WAIT. This is achieved by setting ADC SYNC op tion. This way, ADC conversion starts in effective WAIT for m aximum accuracy.

Note: With this extra option, it is mandatory to execute WAIT instruction just after ADC start instruction. Insertion of any extr a instruction may cause spurious interrupt request at ADC interrupt vector.

A/D Converter Control Register (ADCR)

Address: 0D1h — Read/Write

–

DDVSS

--------------------------- 256

The Input voltage (Ain) which is to be converted must be constant for 1µs before conversion and remain constant during conversion.

Conversion resolution can be improved if the power supply voltage (V lowered.

) to the microcontroller is

In order to optimise conversion resolution, the user can configure the microcontroller in WAIT mode, because this mode minimises noise disturbances and power supply variations due to output switching. Nevertheless, the WAIT instruction should be executed as soon as possible after the beg inning of the conversion, because execution of the WAIT instruction may cause a small variation of the V

voltage. The negative effect of this variation is m inimized at the beginning of the conversion when the converter is less sensitive, rather than at the end of conversion, when the less significant bits are determined.

The best configuration, from an accuracy standpoint, is WAIT mode with the Timer stopped. Indeed, only the A DC peripheral and the oscillator are then still working. The MCU must be woken up from WAIT mode by th e ADC interrupt at the end of the conversion. It should be noted that waking up the microcontroller could also be done using the Timer interrup t, but in t his case the Time r will be working and the resulting noise could affect conversion accuracy.

One extra feature is available in the ADC to get a better accuracy. In fact, each ADC conversion has to be followed by a WAIT instruction to minimize

EAI EOC STA PDS D3 D2 D1 D0

Bit 7 = EAI:

Enable A/D Interrupt.

If this b it is se t to “1” the A/D interrupt is enabled, when EAI=0 the interrupt is disabled.

Bit 6 = EOC:

End of con version. Read Only

. This read only bit indicates when a conversion has been completed. Thi s bit is automatically reset to “0” when the STA bit is written. If the user is using the interrupt option then this bit can be used as an interrupt pending bit. Data in the data conversion register are valid only when this bit is set to “1”.

Bit 5 = STA

: Start of Conversion. Write Only

. Writing a “1” t o this bit will start a conversion on the selected channel and aut omatically reset to “0” the EOC bit. If the bit is set again when a conversion is in progress, the present conversion is stopped and a new one will take place. This bit is write only, any attempt to read it will show a logical zero.

Bit 4 = PDS

: Power Down Selection.

This bit activates the A/D converter if set to “1”. Writing a “0” to this bit will put the ADC in power down mode (idle mode).

Bit 3-0 = D3-D0. Not used

A/D Converter Data Register (ADR)

Address: 0D0h — Read only

D7 D6 D5 D4 D3 D2 D1 D0

Bit 7-0 = D7-D0

: 8 Bit A/D Conversion Result.

51/78

ST62T52C ST62T62C/E62C

5 SOFTWARE

5.1 ST6 ARCHITECTURE

The ST6 software has been designed to fully use the hardware in the most efficient way possible while keeping byte usage to a minimum ; in short, to provide byte efficient programming capability. The ST6 core has t he ability to set or clear any register or RAM location bit of the Data space with a single instruction. Furthermore, the program may branch to a selected address depe nding on the status of any bit of the Data space. The carry bit is stored with the value of the bit when the SET or RE S instruction is processed.

5.2 ADDRESSING MODES

The ST6 core offers nine addressing modes, which are described in the follo wing paragraphs. Three different address spaces are available: Program space, Data s pace, and Stack space. Program space cont ains the instructions which are to be executed, plus the data for immediate mode instructions. Data space contains the Accumulator, the X,Y,V and W registers, peripheral and Input/Output registers, the RAM locations and Data ROM locations (for storage of tables and constants). Stack space contains six 12-bit RAM cells used to stack the return addresses for subroutines and interrupts.

Immediate. In the immediate addressing mode, the operand of the instruction follows the opcode location. As the operand is a ROM byte, the immediate addressing mode is used to access constants which do not change during program execution (e.g., a constant used to initialize a loop counter).

Direct. In the direct addressing mode, the address of the byte which is processed by the instruction is stored in the location which follows the opcode. Direct addressing allows the user to directly address the 256 bytes in Data Space memory with a single two-byte instruction.

Short Direct. The core can address the four RAM registers X,Y,V,W (locations 80h, 81h, 82h, 83h) in the short-direct addressing mode. In this case, the instruction is only one byte and the selection of the location to be processed is contained in the opcode. Short direct addressing is a subset of the direct addressing mode. (Note that 80h and 81h are also indirect registers).

Extende d. In the exten ded addressing m ode, the 12-bit address needed to define the instruction is obtained by concatenating the four less significant

bits of the opcode with the byte following the opcode. The instructions (JP, CALL) which use the extended addressing mode are able to branch to any address of the 4K bytes Program space.

An extended addressing m ode instruction is twobyte long.

Program Counter Relative. The relative addressing mode is only used in conditional branch instructions. The instruction is used to perform a test and, if the condition is true, a branch with a span of

-15 to +16 locations around the address of the relative instruction. If the condition is not true, the instruction which follows the relative instruction is executed. The relative addressing mode instruction is one-byte long. The opcode is obtained in adding the three most significant bits which characterize the kind of the test, one bit which de termines whether the branch is a forward (wh en it is

0) or backward (when it is 1) branch and the four less significant bits which give the span of the branch (0h to Fh) which must be added or subtracted to the ad dress of t he rel ative inst ruction t o obtain the address of the branch.

Bit Direct. In the bit direct addressing mode, the bit to be set or cleared is part of the opcode, and the byte following the opcode points to the address of the byte in which the specified bit must be set or cleared. Thus, any bit in the 256 locations of Data space memory can be set or cleared.

Bit Test & Branch. The bit test and branch addressing mode is a combination of direct addressing and relative addressing. The bit test and branch instruction is three-byte long. T he bit identification and the tested condition are include d in the opcode byte. The address of the byte to be tested follows immedia tely the opcode in the Program space. The third byte is the jump displacement, which is in the range of -127 to +128. This displacement can be determined using a label, which is converted by the assembler.

Indirect. In the indirect addressing mode, the byte processed by the register-indirect instruction is at the address pointed by the content of one of the indirect registers, X or Y (80h,81h). The indirect register is selected by the bit 4 of the opcode. A register indirect instruction is one byte long.

Inherent. In the inherent addressing mode, all the information necessary to execute the instruction is contained in the opcode. These instructions are one byte long.

52/78

5.3 INSTRUCTION SET

ST62T52C ST62T62C/E62C

The ST6 core offers a set of 40 bas ic instructions which, when combined with nine addressing modes, yield 244 usable opcodes. They can be divided into six different ty pes: load/store, arithmetic/logic, conditional branch, control instructions, jump/call, and bit manipu lat ion. T he f ollowing paragraphs describe the different types.

All the instructions belonging to a given type are

Load & Store. These instructions use one, two or three bytes in relation with the addressing mode. One operand is the Accumulator for LOAD and the other operand is obtained from data memory using one of the addressing modes.

For Load Immediate one operand can be any of the 256 data space bytes while the other is always immediate data.

presented in individual tables.

Table 16. Load & Store Instructions

Instruction Addressing Mode Bytes Cycles

LD A, X Short Direct 1 4 ∆ * LD A, Y Short Direct 1 4 ∆ * LD A, V Short Direct 1 4 ∆ * LD A, W Short Direct 1 4 ∆ * LD X, A Short Direct 1 4 ∆ * LD Y, A Short Direct 1 4 ∆ * LD V, A Short Direct 1 4 ∆ * LD W, A Short Direct 1 4 ∆ * LD A, rr Direct 2 4 ∆ * LD rr, A Direct 2 4 ∆ * LD A, (X) Indirect 1 4 ∆ * LD A, (Y) Indirect 1 4 ∆ * LD (X), A Indirect 1 4 ∆ * LD (Y), A Indirect 1 4 ∆ * LDI A, #N Immediate 2 4 ∆ * LDI rr, #N Immediate 3 4 * *

Flags

Notes:

X,Y. Indirect Register Po inters, V & W S hort Direct Registers # . Immediate data (stored in ROM memory) rr. Data space register

∆. Affected

* . Not Affected

53/78

ST62T52C ST62T62C/E62C

INSTRUCTION SET (Cont’d) Arithmetic and Logic. These instructions are

used to perform the arithmetic calculations and logic operations. In AND, ADD, CP, SUB instructions one operand is always the accumulator while the other can be either a data space memory con-

tent or an immediate value in relation with the addressing mode. In CLR, DEC, INC instructions the operand can be any of the 256 data space addresses. In COM, RLC, SLA the operand is always the accumulator.

Table 17. Arithmetic & Logic Instructions

Instruction Addressing Mode Bytes Cycles

ADD A, (X) Indirect 1 4 ∆∆ ADD A, (Y) Indirect 1 4 ∆∆ ADD A, rr Direct 2 4 ∆∆ ADDI A, #N Immediate 2 4 ∆∆ AND A, (X) Indirect 1 4 ∆∆ AND A, (Y) Indirect 1 4 ∆∆ AND A, rr Direct 2 4 ∆∆ ANDI A, #N Immediate 2 4 ∆∆ CLR A Short Direct 2 4 ∆∆ CLR r Direct 3 4 * * COM A Inherent 1 4 ∆∆ CP A, (X) Indirect 1 4 ∆∆ CP A, (Y) Indirect 1 4 ∆∆ CP A, rr Direct 2 4 ∆∆ CPI A, #N Immediate 2 4 ∆∆ DEC X Short Direct 1 4 ∆ * DEC Y Short Direct 1 4 ∆ * DEC V Short Direct 1 4 ∆ * DEC W Short Direct 1 4 ∆ * DEC A Direct 2 4 ∆ * DEC rr Direct 2 4 ∆ * DEC (X) Indirect 1 4 ∆ * DEC (Y) Indirect 1 4 ∆ * INC X Short Direct 1 4 ∆ * INC Y Short Direct 1 4 ∆ * INC V Short Direct 1 4 ∆ * INC W Short Direct 1 4 ∆ * INC A Direct 2 4 ∆ * INC rr Direct 2 4 ∆ * INC (X) Indirect 1 4 ∆ * INC (Y) Indirect 1 4 ∆ * RLC A Inherent 1 4 ∆∆ SLA A Inherent 2 4 ∆∆ SUB A, (X) Indirect 1 4 ∆∆ SUB A, (Y) Indirect 1 4 ∆∆ SUB A, rr Direct 2 4 ∆∆ SUBI A, #N Immediate 2 4 ∆∆

Notes:

X,Y.Indirect Register Pointers, V & W Short Direct RegistersD. Affected # . Immedia te data (store d i n ROM memor y)* . Not Affe ct ed rr. Data spac e registe r

Flags

54/78

INSTRUCTION SET (Cont’d)

ST62T52C ST62T62C/E62C

Conditional Branch. The branch instructions

achieve a branch in the program when the selected condition is met.

Bit Manipulation Instructions. These instructions can handle any bit in data space memory. One group either sets or clears. The ot her group

Control Instructions. The control instructions control the MCU operations during program execution.

Jump and Call. These two instructions are used to perform long (12-bit) jumps or subroutines call inside the whole program space.

(see Conditional Branch) performs the bit test branch operations.

Table 18. Conditional Branch Instructions

Instruction Branch If Bytes Cycles

JRC e C = 1 1 2 * * JRNC e C = 0 1 2 * * JRZ e Z = 1 1 2 * * JRNZ e Z = 0 1 2 * * JRR b, rr, ee Bit = 0 3 5 * ∆ JRS b, rr, ee Bit = 1 3 5 * ∆

Notes:

b. 3-bit address rr. Data space register e. 5 bit signed di splaceme nt in the range -15 to +16<F128M> ∆ . Affected. The tested bit is shifted into carry. ee. 8 bi t s i gned displac em ent in the ran ge -126 to +129 * . Not A ffected

Flags

Table 19. Bit Manipulation Instructions

Instruction Addressing Mode Bytes Cycles

SET b,rr Bit Direct 2 4 * * RES b,rr Bit Direct 2 4 * *

Notes:

b. 3-bit address; * . Not<M> Affected rr. Data space register;

Flags

Table 20. Control Instructio ns

Instruction Addressing Mode Bytes Cycles

NOP Inherent 1 2 * * RET Inherent 1 2 * * RETI Inherent 1 2 ∆∆ STOP (1) Inherent 1 2 * * WAIT Inherent 1 2 * *

Notes:

1. This instruction is deactivated<N>and a WAI T i s automatically execut ed instead of a STOP if the watc hdog functi on i s selected . ∆ . Affected *. Not Affected

Flags

Table 21. Jump & Call Instructions

Instruction

CALL abc Extended 2 4 * * JP abc Extended 2 4 * *

Notes: abc. 12-bit address; * . Not Affected

Addressing Mode Bytes Cycles

Flags

55/78

ST62T52C ST62T62C/E62C

Opcode Map Summary. The following table contains an opcode map for the instructions used by the ST6

LOW

HI HI

0000

0001

0010

0011

0100

0101

0110

0111

1000

1001

1010

1011

1100

1101

1110

1111

0000

2 JRNZ 4 CALL 2 JRNC 5 JRR 2 JRZ 2 JRC 4 LD

e abc e b0,rr,ee e # e a,(x) 1pcr2ext1pcr3 bt1pcr 1prc1ind 2 JRNZ 4 CALL 2 JRNC 5 JRS 2 JRZ 4 INC 2 JRC 4 LDI

e abc e b0,rr,ee e x e a,nn 1pcr2ext1pcr3 bt1pcr1 sd1prc2imm 2 JRNZ 4 CALL 2 JRNC 5 JRR 2 JRZ 2 JRC 4 CP

e abc e b4,rr,ee e # e a,(x) 1pcr2ext1pcr3 bt1pcr 1prc1ind 2 JRNZ 4 CALL 2 JRNC 5 JRS 2 JRZ 4 LD 2 JRC 4 CPI

e abc e b4,rr,ee e a,x e a,nn 1pcr2ext1pcr3 bt1pcr1 sd1prc2imm 2 JRNZ 4 CALL 2 JRNC 5 JRR 2 JRZ 2 JRC 4 ADD

e abc e b2,rr,ee e # e a,(x) 1pcr2ext1pcr3 bt1pcr 1prc1ind 2 JRNZ 4 CALL 2 JRNC 5 JRS 2 JRZ 4 INC 2 JRC 4 ADDI

e abc e b2,rr,ee e y e a,nn 1pcr2ext1pcr3 bt1pcr1 sd1prc2imm 2 JRNZ 4 CALL 2 JRNC 5 JRR 2 JRZ 2 JRC 4 INC

e abc e b6,rr,ee e # e (x) 1pcr2ext1pcr3 bt1pcr 1prc1ind 2 JRNZ 4 CALL 2 JRNC 5 JRS 2 JRZ 4 LD 2 JRC

e abc e b6,rr,ee e a,y e # 1pcr2ext1pcr3 bt1pcr1 sd1prc 2 JRNZ 4 CALL 2 JRNC 5 JRR 2 JRZ 2 JRC 4 LD

e abc e b1,rr,ee e # e (x),a 1pcr2ext1pcr3 bt1pcr 1prc1ind 2 RNZ 4 CALL 2 JRNC 5 JRS 2 JRZ 4 INC 2 JRC

e abc e b1,rr,ee e v e # 1pcr2ext1pcr3 bt1pcr1 sd1prc 2 JRNZ 4 CALL 2 JRNC 5 JRR 2 JRZ 2 JRC 4 AND

e abc e b5,rr,ee e # e a,(x) 1pcr2ext1pcr3 bt1pcr 1prc1ind 2 JRNZ 4 CALL 2 JRNC 5 JRS 2 JRZ 4 LD 2 JRC 4 ANDI

e abc e b5,rr,ee e a,v e a,nn 1pcr2ext1pcr3 bt1pcr1 sd1prc2imm 2 JRNZ 4 CALL 2 JRNC 5 JRR 2 JRZ 2 JRC 4 SUB

e abc e b3,rr,ee e # e a,(x) 1pcr2ext1pcr3 bt1pcr 1prc1ind 2 JRNZ 4 CALL 2 JRNC 5 JRS 2 JRZ 4 INC 2 JRC 4 SUBI

e abc e b3,rr,ee e w e a,nn 1pcr2ext1pcr3 bt1pcr1 sd1prc2imm 2 JRNZ 4 CALL 2 JRNC 5 JRR 2 JRZ 2 JRC 4 DEC

e abc e b7,rr,ee e # e (x) 1pcr2ext1pcr3 bt1pcr 1prc1ind 2 JRNZ 4 CALL 2 JRNC 5 JRS 2 JRZ 4 LD 2 JRC

e abc e b7,rr,ee e a,w e # 1pcr2ext1pcr3 bt1pcr1 sd1prc

0001

0010

0011

0100

0101

0110

0111

LOW

0000

0001

0010

0011

0100

0101

0110

0111

1000

1001

1010

1011

1100

1101

1110

1111

Abbreviations for Addressing Modes: Legend:

dir Direct # Indicates Illegal Instructions sd Short Dire ct e 5 Bit Dis pl acement imm Immediate b 3 Bit Addres s inh Inherent rr 1byte datasp ace address ext Extended nn 1 byte imm edi ate data b.d Bit Direct abc 12 bi t address bt Bit Test ee 8 bit Di splacemen t pcr Program Counter Relative ind Indirect

56/78

Cycle Operand

Bytes Addressing Mode

JRC

1prc

Mnemonic

ST62T52C ST62T62C/E62C

Opcode Map Summary (Continued)

LOW

HI HI

0000

0001

0010

0011

0100

0101

0110

0111

1000

1001

1010

1011

1100

1101

1110

1111

1000

2 JRNZ 4 JP 2 JRNC 4 RES 2 JRZ 4 LDI 2 JRC 4 LD

e abc e b0,rr e rr,nn e a,(y) 1pcr2ext1pcr2b.d1pcr3imm1prc1ind 2 JRNZ 4 JP 2 JRNC 4 SET 2 JRZ 4 DEC 2 JRC 4 LD

e abc e b0,rr e x e a,rr 1pcr2ext1pcr2b.d1pcr1 sd1prc2 dir 2 JRNZ 4 JP 2 JRNC 4 RES 2 JRZ 4 COM 2 JRC 4 CP

e abc e b4,rr e a e a,(y) 1pcr2ext1pcr2b.d1pcr 1prc1ind 2 JRNZ 4 JP 2 JRNC 4 SET 2 JRZ 4 LD 2 JRC 4 CP

e abc e b4,rr e x,a e a,rr 1pcr2ext1pcr2b.d1pcr1 sd1prc2 dir 2 JRNZ 4 JP 2 JRNC 4 RES 2 JRZ 2 RETI 2 JRC 4 ADD

e abc e b2,rr e e a,(y) 1pcr2ext1pcr2b.d1pcr1inh1prc1ind 2 JRNZ 4 JP 2 JRNC 4 SET 2 JRZ 4 DEC 2 JRC 4 ADD

e abc e b2,rr e y e a,rr 1pcr2ext1pcr2b.d1pcr1 sd1prc2 dir 2 JRNZ 4 JP 2 JRNC 4 RES 2 JRZ 2 STOP 2 JRC 4 INC

e abc e b6,rr e e (y) 1pcr2ext1pcr2b.d1pcr1inh1prc1ind 2 JRNZ 4 JP 2 JRNC 4 SET 2 JRZ 4 LD 2 JRC 4 INC

e abc e b6,rr e y,a e rr 1pcr2ext1pcr2b.d1pcr1 sd1prc2 dir 2 JRNZ 4 JP 2 JRNC 4 RES 2 JRZ 2 JRC 4 LD

e abc e b1,rr e # e (y),a 1pcr2ext1pcr2b.d1pcr 1prc1ind 2 RNZ 4 JP 2 JRNC 4 SET 2 JRZ 4 DEC 2 JRC 4 LD

e abc e b1,rr e v e rr,a 1pcr2ext1pcr2b.d1pcr1 sd1prc2 dir 2 JRNZ 4 JP 2 JRNC 4 RES 2 JRZ 4 RCL 2 JRC 4 AND

e abc e b5,rr e a e a,(y) 1pcr2ext1pcr2b.d1pcr1inh1prc1ind 2 JRNZ 4 JP 2 JRNC 4 SET 2 JRZ 4 LD 2 JRC 4 AND

e abc e b5,rr e v,a e a,rr 1pcr2ext1pcr2b.d1pcr1 sd1prc2 dir 2 JRNZ 4 JP 2 JRNC 4 RES 2 JRZ 2 RET 2 JRC 4 SUB

e abc e b3,rr e e a,(y) 1pcr2ext1pcr2b.d1pcr1inh1prc1ind 2 JRNZ 4 JP 2 JRNC 4 SET 2 JRZ 4 DE C 2 JRC 4 SUB

e abc e b3,rr e w e a,rr 1pcr2ext1pcr2b.d1pcr1 sd1prc2 dir 2 JRNZ 4 JP 2 JRNC 4 RES 2 JRZ 2 WAIT 2 JRC 4 DEC

e abc e b7,rr e e (y) 1pcr2ext1pcr2b.d1pcr1inh1prc1ind 2 JRNZ 4 JP 2 JRNC 4 SET 2 JRZ 4 LD 2 JRC 4 DEC

e abc e b7,rr e w,a e rr 1pcr2ext1pcr2b.d1pcr1 sd1prc2 dir

1001

1010

1011

1100

1101

1110

1111

LOW

0000

0001

0010

0011

0100

0101

0110

0111

1000

1001

1010

1011

1100

1101

1110

1111

Abbreviations for Addressing Modes: Legend:

Cycle Operand

Bytes Addressing Mode

JRC

1prc

Mnemonic

57/78

ST62T52C ST62T62C/E62C

6 ELECTRIC AL CHARACTERISTICS

6.1 ABSOLUTE MAXIMUM RATINGS

This product contains devices to protect the inputs against damage due to high static voltages , however it is advisable to take normal precaution to avoid application of any voltage higher than the specified maximum rated voltages.

Power Considerations.The average chip-junction temperature, Tj, in Celsius can be obtained from:

Tj=TA + PD x RthJA

Where:TA = Ambient Temperature.

For proper operation it is recommended that V and VO be higher t han VSS and lower than VDD. Reliability is enhanc ed if unused inputs are connected to an appropriate logic vol tage level (V or VSS).

RthJA =Package thermal resistance (junc-

tion-to ambient). PD = Pint + Pport. Pint =IDD x VDD (chip internal power). Pport =Port power dissipation (determined

by the user).

Symbol Parameter Value Unit

Tj Junction Temperature 150 °C

STG

Notes:

- Stresses above tho se list ed as “abs o l ute maxi m u m ratings” may c ause permanen t damag e to the device. This is a stres s rating only and functional operation of the device at these condi t i ons is not imp l i ed. Exposure to maximum rating cond iti ons for extended periods may affect device reliability.

- (1) Within these limits, clamping diodes are guarantee to be not conductive. Voltages outside these limits are authorised as long as injection current is kept within the specification.

Supply Voltage -0.3 to 7.0 V Input Voltage VSS - 0.3 to VDD + 0.3 Output Voltage VSS - 0.3 to VDD + 0.3 Total Current into VDD (source) 80 mA Total Current out of VSS (sink) 100 mA

Storage Temperature -60 to 150 °C

(1) (1)

V V

58/78

6.2 RECOMMENDED OPERATING CONDITIONS

ST62T52C ST62T62C/E62C

Symbol Parameter Test Conditions

6 Suffix Version

Operating Temperature

Operating Supply Voltage (Except ST626xB ROM devices)

Operating Supply Voltage (ST626xB ROM devices)

1 Suffix Version 3 Suffix Version

4MHz, 1 & 6 Suffix

OSC =

4MHz, 3 Suffix

OSC =

fosc= 8MHz , 1 & 6 Suffix fosc= 8MHz , 3 Suffix

4MHz, 1 & 6 Suffix

OSC =

4MHz, 3 Suffix

OSC =

fosc= 8MHz , 1 & 6 Suffix fosc= 8MHz , 3 Suffix

= 3.0V, 1 & 6 Suffix

Oscillator Frequency

(Except ST626xB ROM devices)

OSC

Oscillator Frequency

(ST626xB ROM devices)

INJ+

Notes:

1. Care must be taken in case of negative current injection, where adapted impedance must be respected on analog sources to not affect the

A/D conversion. For a -1m A i nj ection, a max i mum 10 KΩ is reco m m ended.

2.An oscillator frequency above 1MHz is recommended for reliable A/D results

Pin Injection Current (positive) VDD = 4.5 to 5.5V +5 mA Pin Injection Current (negative) VDD = 4.5 to 5.5V -5 mA

INJ-

= 3.0V , 3 Suffix

= 3.6V , 1 & 6 Suffix

= 3.6V , 3 Suffix

= 3.0V, 1 & 6 Suffix

= 3.0V , 3 Suffix

= 4.0V , 1 & 6 Suffix

= 4.0V , 3 Suffix

Min. Typ. Max.

-40 0

-40

3.0

3.6

4.5

3.0

4.0

4.5 0

0 0 0

0 0 0 0

Value

85 70

125

6.0

4.0

8.0

4.0

8.0

4.0

Unit

°C

MHz

Figure 30. Maximu m Opera t ing FREQUENCY (Fmax) Vers us SUPPLY VOLTAGE (VDD)

Maximum FREQUENCY (MHz)

FUNCTIONALITY IS NOT

GUARANTEED IN

THIS AREA

2.5 3 44.5 55.5 6

1 & 6 Suffix version

1 & 6 Suffix

version

3.6

3 Suffix ver sion

3 Suffix version

SUPPLY VOLTAGE (VDD)

All device s except ST6 26xB ROM devices

ST626xB ROM devices

The shaded area is outside the recommended operating range; device functionality is not guaranteed under these conditions.

59/78

ST62T52C ST62T62C/E62C

6.3 DC ELECTRICAL CHARACTERISTICS

= -40 to +125°C unless otherwise specified)

Symbol Parameter Test Conditions

I I

Retention EPROM Data Retention T

Input Low Level Voltage

All Input pins Input High Level Voltage

All Input pins

(2)

(1)

= 5V

= 3V

VDD= 5.0V; I V

= 5.0V; I

= 5.0V; IOL = +15mA

VDD= 5.0V; I

= 5.0V; I

= +10µA

= + 3mA

= +10µA

= +7mA

= -10µA

= -3.0mA

All Input pins 40 100 350 RESET pin 150 350 900 VIN = VSS (No Pull-Up configured)

= V

VIN = V

RESET=VSS

=8MHz

OSC

VDD=5.0V f

VDD=5.0V f I

(3)

V I

(3)

=0mA

LOAD

=5.0V

=0mA

LOAD

=5.0V

= 55°C 10 years

=8MHz 7 mA

INT

=8MHz 2.5 mA

INT

Hysteresis Voltage

Hys

All Input pins LVD Threshold in power-on 4.1 4.3

L VD threshold in powerdown 3.5 3.8

Low Level Output Voltage All Output pins

Low Level Output Voltage 30 mA Sink I/O pins

High Level Output Voltage

All Output pins Pull-up Resistance

Input Leakage Current All Input pins but RESET

Input Leakage Current

RESET pin Supply Current in RESET

Mode Supply Current in

RUN Mode Supply Current in WAIT

(3)

Mode Supply Current in STOP

Mode, with LVD disabled Supply Current in STOP

Mode, with LVD enabled

Value

Min. Typ. Max.

x 0.3 V

x 0.7 V

0.2

0.1

0.8

0.1

0.8

1.3

4.9

3.5

0.1 1.0

-8 -16 -30 10

7mA

20 µA

500

Unit

ΚΩ

µA

Notes:

(1) Hysteresis voltage between switching levels (2) All peri pherals running (3) All peri pherals in s tand-by

60/78

DC ELECTRICAL CHARACTERISTICS (Cont’d)

= -40 to +85°C unless otherwise specified))

ST62T52C ST62T62C/E62C

Symbol Parameter Test Conditions

Note: (*) All Peripherals in stand-by.

LVD Threshold in power-on Vdn +50 mV 4.1 4.3 V

L VD threshold in powerdown 3.6 3.8 Vup -50 mV V

Low Level Output Voltage All Output pins

Low Level Output Voltage 30 mA Sink I/O pins

High Level Output Voltage

All Output pins Supply Current in STOP

Mode, with LVD disabled

V V

V V V V

VDD= 5.0V; I V

LOAD

(*)

= 5.0V; I

= 5.0V; IOL = +30mA

= 5.0V; I

=0mA

=5.0V

= +10µA

= + 5mA

= + 10mAv

= +10µA

= +10mA

= +20mA

= -10µA

= -5.0mA

6.4 AC ELECTRICAL CHARACTERISTICS

= -40 to +125°C unless otherwise specified)

Symbol Parameter Test Conditions

REC

WEE

Endurance

(2)

Supply Recovery Time

EEPROM Write Time

EEPROM WRITE/ERASE Cycle QA LOT Acceptance (25°C) 300,000 1 million cycles

(1)

= 25°C

= 85°C

= 125°C

Value

Min. Typ. Max.

0.1

0.8

1.2

0.1

0.8

1.3

2.0

4.9

3.5 10 µA

Value Min. Typ. Max. 100 ms

5 10 20

10 20 30

Unit

Retention EEPROM Data Retention T

LFA O

OSG

Internal frequency with LFA O active 200 400 800 kHz

Internal Frequency with OSG enabled

= 55°C 10 years

= 3V

= 3.6V

= 4.5V

= 6V

VDD=5.0V (Except 626xB ROM) R=47kΩ R=100kΩ

Internal frequency with RC oscillator and OSG disabled

2) 3)

R=470kΩ VDD=5.0V (626xB ROM)

R=10kΩ R=27kΩ R=67kΩ R=100kΩ

OUT

Notes:

1. Period for which V 2 An oscillator frequency above 1MHz is recommended for reliable A/D results.

3. Measure performed with OSCin pin soldered on PCB, with an around 2pF equivalent capacitance.

Input Capacitance All Inputs Pins 10 pF

Output Capacitance All Outputs Pins 10 pF

has to be connected at 0V to all ow internal Reset funct i on at next power-up.

1 1 2 2

2.7

800

6.3

4.7

2.8

2.2

3.2

850

8.2

5.9

3.6

2.8

OSC

5.8

3.5

900

9.8

4.3

3.4

MHz

MHz MHz

kHz

MHz

MHz MHz MHz

61/78

ST62T52C ST62T62C/E62C

6.5 A/D CONVERTER CHARACTERISTICS

= -40 to +125°C unless otherwise specified)

Symbol Parameter Test Conditions

Min. Typ. Max.

Res Resolution 8 Bit

TOT

Total Accuracy

Conversion Time

(1) (2)

ZIR Zero Input Reading

FSR Full Scale Reading

Notes:

1. Noise at VDD, VSS <10 mV

2. With oscillator frequencie s less than 1MH z, the A/D Conver t er accuracy is decreased.

Analog Input Current During

Conversion Analog Input Capacitan ce 2 5 pF

> 1.2MHz

OSC

> 32kHz

OSC

= 8MHz (TA < 85°C)

OSC

= 4 MHz

OSC

Conversion result when V

= V

00 Hex

Conversion result when V

= V

= 4.5V 1.0 µA

6.6 TIMER CHARACTERISTICS

Value

±2 ±4

140

FF Hex

Unit

LSB

µs

= -40 to +125°C unless otherwise specified)

Symbol Parameter Test Conditions

Input Frequency on TIMER Pin MHz

= 3.0V

Pulse Width at TIMER Pin

DD DD

>4.5V

6.7 SPI CHARACTERISTICS

= -40 to +125°C unless otherwise specified)

Symbol Parameter Test Conditions

Clock Frequency Applied on Scl 500 kHz

Set-up Time Applied on Sin 250 ns

Hold Time Applied onSin 50 ns

6.8 ARTIMER ELECTRICAL CHARACTERISTICS

= -40 to +125°C unless otherwise specified)

Symbol Parameter Test Conditions

Value

Min. Typ. Max.

125

Value

Min. Typ. Max.

Value

Min Typ Max

INT

--------- - 4

Unit

µs

Unit

62/78

Input Frequency on ARTIMin Pin

RUN and WAIT Modes

STOP mode 2

MHz

Figure 31. Vol versus Iol on all I/O port at Vdd=5V

ST62T52C ST62T62C/E62C

6 4

Vol (V)

2 0

010203040

Iol (mA)

This curves represents typical variations and is given for guidance only

Figure 32. Vol versus Iol on all I/O port at T=25°C

8 6 4

Vol (V)

2 0

0 10203040

Iol (mA)

T = -40°C T = 25°C T = 95°C T = 125°C

Vdd = 3.0V Vdd = 4.0V Vdd = 5.0V Vdd = 6.0V

This curves represents typical variations and is given for guidance only

Figure 33. Vol versus Iol for High sink (30mA) I/Oport s at T=25°C

5 4 3 2

Vol (V)

1 0

0 10203040

Iol (mA)

This curves represents typical variations and is given for guidance only

Vdd = 3.0V Vdd = 4.0V Vdd = 5.0V Vdd = 6.0V

63/78

ST62T52C ST62T62C/E62C

Figure 34. Vol versus Iol for High sink (30mA) I/O ports at Vdd=5V

5 4 3 2

Vol (V)

1 0

0 10203040

Iol (mA)

This curves represents typical variations and is given for guidance only

Figure 35. Voh versus Ioh on all I/O port at 25°C

6 4 2

Voh (V)

-2 0 10203040

Ioh (mA)

T = -40°C T = 25°C T = 95°C T = 125°C

Vdd = 3.0V Vdd = 4.0V Vdd = 5.0V Vdd = 6.0V

This curves represents typical variations and is given for guidance only

Figure 36. Voh versus Ioh on all I/O por t at Vdd=5V

6 4 2

Voh (V)

-2 0 10203040

Ioh (mA)

This curves represents typical variations and is given for guidance only

64/78

T = -40°C T = 25°C T = 95°C T = 125°C

Figure 37. Idd W A I T ver sus VDD at 8 Mhz for OTP devices

2.5 2

1.5 1

0.5

Idd WAIT (mA)

3V 4V 5V 6V

Vdd

This curves represents typical variations and is given for guidance only

ST62T52C ST62T62C/E62C

T = -40°C T = 25°C T = 95°C T = 125°C

Figure 38. Idd S TOP versus V

8 6 4 2 0

Idd STOP (µA)

-2 3V 4V 5V 6V

for OTP devices

Vdd

This curves represents typical variations and is given for guidance only

Figure 39. Idd S TOP versus V

1.5 1

0.5

Idd STO P (µ A)

for ROM devices

T = -40°C T = 25°C T = 95°C T = 125°C

-0.5 3V 4V 5V 6V

Vdd

This curves represents typical variations and is given for guidance only

65/78

ST62T52C ST62T62C/E62C

Figure 40. Idd W A I T ver sus VDD at 8Mhz for ROM devices

2.5 2

1.5 1

0.5

Idd WAIT (mA)

3V 4V 5V 6V

Vdd

This curves represents typical variations and is given for guidance only

Figure 41. Idd RUN versus V

Idd RUN ( mA)

3V 4V 5V 6V

at 8 Mhz for ROM and OTP devices

Vdd

This curves represents typical variations and is given for guidance only

T = -40°C T = 25°C T = 95°C T = 125°C

Figure 42. LVD thresholds versus temperature

4.2

4.1

3.9

Vthresh.

3.8

3.7

-40°C 25°C 95°C 125°C

Temp

This curves represents typical variations and is given for guidance only

66/78

Vup Vdn

Figure 43. RC frequency versus VDD for ROM ST626xB only

ST62T52C ST62T62C/E62C

R=1OK

R=27K

MHz

Frequency

3456

VDD (volts)]

This curves represents typical variations and is given for guidance only

Figure 44. RC frequency versus V

(Except for ST626xB ROM devices)

MHz

Frequency

R=67K

R=100K

R=47K R=100K R=470K

0.1 3 3.5 4 4.5 5 5.5 6

VDD (vol t s)

This curves represents typical variations and is given for guidance only

67/78

ST62T52C ST62T62C/E62C

7 GENERAL IN FORMATION

7.1 PACKAGE MECHANICAL DATA Figure 45. 16-Pin Plastic Dual In-Line Package, 300-mil Width

Figure 46. 16-Pin Ceramic Side-Brazed Dual In-Line Package

CDIP16W

Dim.

mm inches

Min Typ Max Min Typ Max

A 5.33 0.210 A1 0.38 0.015 A2 2.92 3.30 4.95 0.115 0.130 0.195

b 0.36 0.46 0.56 0.014 0.018 0.022 b2 1.14 1.52 1.78 0.045 0.060 0.070 b3 0.76 0.99 1.14 0.030 0.039 0.045

c 0.20 0.25 0.36 0.008 0.010 0.014

D 18.67 19.18 19.69 0.735 0.755 0.775 D1 0.13 0.005

e 2.54 0.100

E 7.62 7.87 8.26 0.300 0.310 0.325 E1 6.10 6.35 7.11 0.240 0.250 0.280

L 2.92 3.30 3.81 0.115 0.130 0.150 eB 10.92 0.430

Number of Pins

N 16

Dim.

mm inches

Min Typ Max Min Typ Max

A 3.78 0.149

A1 0.38 0.015

B 0.36 0.46 0.56 0.014 0.018 0.022

B1 1.14 1.37 1.78 0.045 0.054 0.070

C 0.20 0.25 0.36 0.008 0.010 0.014

D 19.86 20.32 20.78 0.782 0.800 0.818 D1 17.78 0.700 E1 7.04 7.49 7.95 0.277 0.295 0.313

e 2.54 0.100

G 6.35 6.60 6.86 0.250 0.260 0.270

G1 9.47 9.73 9.98 0.373 0.383 0.393 G2 1.02 0.040

L 2.92 3.30 3.81 0.115 0.130 0.150 S 1.27 0.050 Ø 4.22 0.166

Number of Pins

N16

68/78

PACKAGE MECHANICAL DATA (Cont’d) Figure 47. 16-Pin Plastic Small Outline Package, 300-mil Width

ST62T52C ST62T62C/E62C

Figure 48. 16-Pin Plastic Shrink Small Outline Package

h x 45×

Dim.

A 2.35 2.65 0.093 0.104

mm inches

Min Typ Max Min Typ Max

A1 0.10 0.30 0.004 0.012

B 0.33 0.51 0.013 0.020 C 0.23 0.32 0.009 0.013 D 10.10 10.50 0.398 0.413 E 7.40 7.60 0.291 0.299 H 10.00 10.65 0.394 0.419 e 1.27 0.050 h 0.25 0.75 0.010 0.030

α 0° 8° 0° 8°

L 0.40 1.27 0.016 0.050

Number of Pins

N 16

Dim.

A 2.00 0.079

A1 0.05 0.002 A2 1.65 1.75 1.85 0.065 0.069 0.073

b 0.22 0.38 0.009 0.015

mm inches

Min Typ Max Min Typ Max

c 0.09 0.25 0.004 0.010 D 5.90 6.20 6.50 0.232 0.244 0.256 E 7.40 7.80 8.20 0.291 0.307 0.323

E1 5.00 5.30 5.60 0.197 0.209 0.220

e 0.65 0.026

θ 0° 4° 8° 0° 4° 8°

L 0.55 0.75 0.95 0.022 0.030 0.037

Number of Pins

N 16

69/78

ST62T52C ST62T62C/E62C

THERMAL CHARACTERISTIC

Symbol Parameter Test Conditions

RthJA Thermal Resistance

PDIP16 55 PSO16 75

Min. Typ. Max.

Value

7.2 ORDERING INFORMATION Table 22. OTP/EPROM VERSION ORDERING INFORMATION

Sales Type

ST62E62CF1 1836 EPROM 64 0 to +70°C CDIP16W ST62T52CM6

ST62T52CM3 ST62T62CM6

ST62T62CM3 ST62T52CB6

ST62T52CB3 ST62T62CB6

ST62T62CB3 ST62T52CN6

ST62T52CN3 ST62T62CN6

ST62T62CN3

Program

Memory (Bytes)

1836 OTP None

1836 OTP 64

1836 OTP None

1836 OTP 64

1836 OTP None

1836 OTP 64

EEPROM (Bytes) Temperature Range Package

-40 to + 85°C

-40 to + 125°C

-40 to + 85°C

-40 to + 125°C

-40 to + 85°C

-40 to + 125°C

-40 to + 85°C

-40 to + 125°C

-40 to + 85°C

-40 to + 125°C

-40 to + 85°C

-40 to + 125°C

PSO16

PDIP16

SSOP16

Unit

°C/W

70/78

8-BIT FAST ROM MCUs WITH A/D CONVERTER,

SAFE RESET, AUTO-RELOAD TIMER AND EEPROM

■ 3.0 to 6.0V Supply Operating Range

■ 8 MHz Maximum Clock Frequency

■ -40 to +125°C Operating Temperature Range

■ Run, Wait and Stop Modes

■ 5 Interrupt Vectors

■ Look-up Table capability in Program Memory

■ Data Storage in Program Memory:

User selectable size

■ Data RAM: 128 bytes

■ Data EEPROM: 64 bytes (none on ST 62T 5 2 C )

■ 9 I/O pins, fully programmable as:

– Input with pull-up resistor – Input without pull-up resistor – Input with interrupt generation – Open-drain or push-pull output – Analog Input

■ 5 I/O lines can sink up to 30mA to drive LEDs or

TRIACs directly

■ 8-bit Timer/Counter with 7-bit programmable

prescaler

■ 8-bit Auto-reload Timer with 7-bit programmable

prescaler (AR Timer)

■ Digital Watchdog

■ Oscillator Safe Guard

■ Low Voltage Detector for Safe Reset

■ 8-bit A/D Converter with 4 analog inputs

■ On-chip Clock oscillator can be driven by Quartz

Crystal Ceramic resonator or RC network

■ User configurable Power-on Reset

■ One external Non-Maskable Interrupt

■ ST626x-EMU2 Emulation and Development

System (connects to an MS-DOS PC via a parallel port)

ST62P52C ST62P62C

PDIP16

PSO16

SSOP16

(See end of Datasheet for Ordering Information)

DEVICE SUMMARY

DEVICE

ST62P52C 1836 ST62P62C 1836 64

ROM

(Bytes)

EEPROM

Rev. 3.0

February 2002 71/78

ST62P52C ST62P62C

1 GENERAL DESCRIPTIO N

1.1 INTRODUCTION The ST62P52C and ST62P62C are the Factory

Advanced Service Technique ROM (FASTROM)

version of ST62T52C and ST62T62C OTP devices.

They offer the same functionality as OTP devices, selecting as FASTROM options the options defined in the program mab le o ption b yte of the OTP version.

1.2.2 Listing Generation and Verification

When STMicroelectronics receives the user’s ROM contents, a computer listing is generated from it. This listing refers exactly to the ROM contents and options which will be used to produce the specified MCU. The listing is then returned to the customer who must thoroughly check, complete, sign and return it to STMicroelectronics. The signed listing forms a part of the cont ractual agreement for the production of the specific customer

1.2 ORDERING INFORMATION

The following section deals with the procedure for transfer of customer codes to STMicroelectronics.

1.2.1 Transfer of Customer Code

MCU. The STMicroelectronics Sales Organization will be

pleased to provide detailed information on contractual points.

Customer code is made up of the RO M contents and the list of the selected FASTROM options.

Table 23. ROM Memory Map ST62P52C/ P 62C

The ROM contents are to be sent on diskette, or by electronic means, with the hexadecimal file generated by the development tool. All unused bytes must be set to FFh.

The selected options are com municated t o STM icroelectronics using the correctly filled OPTION LIST appended. See page 76.

Device Address Description

0000h-087Fh 0880h-0F9Fh

0FA0h-0FEFh

0FF0h-0FF7h

0FF8h-0FFBh

0FFCh-0FFDh

0FFEh-0FFFh

Table 24. FASTROM version Orderi ng Information

Sales Type ROM EEPROM (Bytes) Temperature Range Package

ST62P52CM1/XXX ST62P52CM6/XXX ST62P52CM3/XXX (*)

ST62P62CM1/XXX ST62P62CM6/XXX ST62P62CM3/XXX (*)

ST62P52CB1/XXX ST62P52CB6/XXX ST62P52CB3/XXX (*)

ST62P62CB1/XXX ST62P62CB6/XXX ST62P62CB3/XXX (*)

ST62P52CN1/XXX ST62P52CN6/XXX ST62P52CN3/XXX (*)

ST62P62CN1/XXX ST62P62CN6/XXX ST62P62CN3/XXX (*)

1836 Bytes None

1836 Bytes 64

1836 Bytes None

1836 Bytes 64

1836 Bytes None

1836 Bytes 64

0 to +70°C

-40 to + 85°C

-40 to + 125°C 0 to +70°C

-40 to + 85°C

-40 to + 125°C 0 to +70°C

-40 to + 85°C

-40 to + 125°C 0 to +70°C

-40 to + 85°C

-40 to + 125°C 0 to +70°C

-40 to + 85°C

-40 to + 125°C 0 to +70°C

-40 to + 85°C

-40 to + 125°C

Reserved

User ROM

Reserved

Interrupt Vectors

Reserved

NMI Interrupt Vector

Reset Vector

PSO16

PDIP16

SSOP16

(*) Advanced information

72/78

ST6252C ST6262B

8-BIT ROM MCUs WITH A/D CONVERTER,

SAFE RESET AUTO-RELOAD TIMER, ROM AND EEPROM

■ 3.0 to 6.0V Supply Operating Range

■ 8 MHz Maximum Clock Frequency

■ -40 to +125°C Operating Temperature Range

■ Run, Wait and Stop Modes

■ 5 Interrupt Vectors

■ Look-up Table capability in Program Memory

■ Data Storage in Program Memory:

User selectable size

■ Data RAM: 128 bytes

■ Data EEPROM: 64 bytes (none on ST 62T 5 2 C )

■ 9 I/O pins, fully programmable as:

– Input with pull-up resistor – Input without pull-up resistor – Input with interrupt generation – Open-drain or push-pull output – Analog Input

■ 5 I/O lines can sink up to 30mA to drive LEDs or

TRIACs directly

■ 8-bit Timer/Counter with 7-bit programmable

prescaler

■ 8-bit Auto-reload Timer with 7-bit programmable

prescaler (AR Timer)

■ Digital Watchdog

■ Oscillator Safe Guard

■ Low Voltage Detector for Safe Reset

■ 8-bit A/D Converter with 4 analog inputs

■ On-chip Clock oscillator can be driven by Quartz

Crystal Ceramic resonator or RC network

■ User configurable Power-on Reset

■ One external Non-Maskable Interrupt

■ ST626x-EMU2 Emulation and Development

System (connects to an MS-DOS PC via a parallel port)

(See end of Datasheet for Ordering Information)

PDIP16

PSO16

SSOP16

DEVICE SUMMARY

DEVICE

ST6252C 1836 - Y es ST6262B 18 36 6 4 No

ROM

(Bytes)

EEPROM LVD & OSG

Rev. 3.0

February 2002 73/78

ST6252C ST6262B

1 GENERAL DESCRIPTIO N

1.1 INTRODUCTION

The ST6252C and ST6262B are mask programmed ROM version of ST62T52C and ST62T62C OTP devices.

Figure 1. Programming Waveform

TEST

14V typ

TEST

100mA

max

0.5s min

150 µs typ

They offer the same functionality as OTP devices, selecting as ROM options the options def ined in the programmable option byte of the OTP version, except the LVD & OSG options that are not available on the ST6262B ROM device.

In case the user wants to blow this fuse, high voltage must be applied on the TEST pin.

Figure 2. Programming Circuit

47mF

100nF

4mA typ

VR02001

1.2 ROM READOUT PROTECTION

If the ROM READOUT PROTECTION option is selected, a protection fuse can be blo wn to prevent any access to the program memory content.

PROTECT

TEST

100nF

Note: ZPD 15 is used for overvoltage protection

ZPD15 15V

14V

VR02003

74/78

ST6252C ST6262B

1.3 ORDERING INFORMATION

from it. This listing refers exactly to the mask which will be used to produce the specified MCU. The

The following section deals with the procedure for transfer of customer codes to STMicroelectronics.

1.3.1 Transfer of Customer Code

listing is then returned to the customer who must thoroughly check, complet e, sign and return it to STMicroelectronics. The signed listing forms a

part of the contractual agreement for the creat ion Customer code is made up of the RO M contents and the list of the selected mask options. The ROM contents are to be sent on diskette, or by electronic means, with the hexadecimal file generated by the development tool. All unused bytes must be set to FFh.

The selected mask o ptions are communica ted to STMicroelectronics using the correctly filled OPTION LIST appended. See page 76.

1.3.2 Listing Generation and V eri f icati on

When STMicroelectronics receives the user’s ROM contents, a computer listing is generated

Table 26. ROM version Ordering Information

Sales Type ROM EEPROM (Bytes) Temperature Range Package

ST6252CB1/XXX ST6252CB6/XXX ST6252CB3/XXX

ST6252CM1/XXX ST6252CM6/XXX ST6252CM3/XXX

ST6252CN1/XXX ST6252CN6/XXX ST6252CN3/XXX

ST6262BB1/XXX ST6262BB6/XXX ST6262BB3/XXX

ST6262BM1/XXX ST6262BM6/XXX ST6262BM3/XXX

ST6262BN1/XXX ST6262BN6/XXX ST6262BN3/XXX

1836 Bytes None

1836 Bytes 64

of the specific customer mask.

The STMicroelectronics Sales Organization will be

pleased to provide detailed information on con-

tractual points.

Table 25. ROM Memory Map for ST6252 C/62B

Device Address Description

0000h-087Fh 0880h-0F9Fh

0FA0h-0FEFh

0FF0h-0FF7h

0FF8h-0FFBh

0FFCh-0FFDh

0FFEh-0FFFh

0 to +70°C

-40 to + 85°C

-40 to + 125°C 0 to +70°C

-40 to + 85°C

-40 to + 125°C 0 to +70°C

-40 to + 85°C

-40 to + 125°C 0 to +70°C

-40 to + 85°C

-40 to + 125°C 0 to +70°C

-40 to + 85°C

-40 to + 125°C 0 to +70°C

-40 to + 85°C

-40 to + 125°C

Reserved

User ROM

Reserved

Interrupt Vectors

Reserved

NMI Interrupt Vector

Reset Vector

PDIP16

PSO16

SSOP16

PDIP16

PSO16

SSOP16

75/78

ST6252C ST6262B

ST6252C/62B/P52C/P62C MICROCONTROLLER OPTION LIST

Customer: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Address: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Contact: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Phone: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Reference: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

STMicroelectronics references:

Device: [ ] ST6252C (2 KB) [ ] ST6262B (2 KB)

Package: [ ] Dual in Line Plastic

Conditioning option: [ ] Standard (Tube) [ ] Tape & Reel Temperature Range: [ ] 0°C to + 70°C [ ] - 40°C to + 85°C

Marking: [ ] Standard marking

Authorized characters are letters, digits, '.', '-', '/' and spaces only.

Oscillator Safeguard*: [ ] Enabled [ ] Disabled Oscillator Selection: [ ] Quartz crystal / Ceramic resonator

Reset Delay: [ ] 32768 cycle delay [ ] 2048 cycle delay Watchdog Selection: [ ] Software Activation [ ] Hardware Activation PB3:PB2 pull-up at RESET*: [ ] Enabled [ ] Disabled External STOP Mode Control: [ ] Enabled [ ] Disabled

Readout Protection: F ASTR OM:

ROM:

[ ] Fuse is blown by STMicroelectronics

[ ] Fuse can be blown by the customer

[ ] ST62P52C (2 KB) [ ] ST62P62C (2 KB)

[ ] Small Outline Plastic with conditioning [ ] Shrink Small Outline Plastic with conditioning

[ ] - 40°C to + 125°C

[ ] Special marking (ROM only):

[ ] RC network

[ ] Enabled [ ] Disabled

[ ] Enabled:

[ ] Disabled

PDIP16 (9 char. max): _ _ _ _ _ _ _ _ _ PSO16 (6 char. max): _ _ _ _ _ _ SSOP16 (10 char. max): _ _ _ _ _ _ _ _ _ _

Low Voltage Detector*: [ ] Enabled [ ] Disabled NMI pull-up*: [ ] Enabled [ ] Disabled ADC Synchro*: [ ] Enabled [ ] Disabled *except on ST6262B

Comments:

Oscillator Frequency in the application: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Supply Operating Range in the application: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Notes: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Date: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Signature: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

76/78

ST6252C ST6262B

2 SUMMAR Y OF CHANGES

Rev. Main Changes Date

Modification of “Additional Notes for EEPROM Parallel Mode” (p.13) Changed f In section 4.2 on page 41: vector #4 instead of vector #3 for the timer interrupt request.

2.9 Changed Figure 43 on page 67.

Changed Figure 45. on page 68 and Figure 47.and Figure 48. on page 69. Changed option list on page 76.

Swapped D11 and D10 description on page 14: D11. Reserved, must be cleared.

3.0 D10. Reserved, must be set to one.

values in section 6.4 on page 61

July 2001

Feb 2002

77/78

ST6252C ST6262B

Notes:

Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implic ation or otherwise under any pat ent or pat ent rights of STMicroe l ectronics . Specificat i ons menti oned in thi s publication are subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not authorized for use as cri t i cal compone nts in life support device s or systems without the express writt en approval of STMicroel ectronics.

The ST logo is a registered trademark of STMicroelectronics



STMicroelectronics Group of Compani es

http://www.s t. com

Purchase of I

C Components by STMicroelectronics conveys a license under the Philips I2C Patent. Rights to use the se component s i n an

C system i s granted pro vided that the system con forms to the I2C Standard Specification as defined by Philips.

Australi a - B razil - Canada - China - Finland - Franc e - Germany - Hong Kong - Ind i a - Israel - Ita l y - J apan

Malaysi a - M al ta - Morocco - Singapore - Spain - Sweden - Switz erland - Unit ed Kingdo m - U. S. A.

78/78

STMicroelectronics ST62T52C, ST62T62C Technical data

Specifications and Main Features

Frequently Asked Questions

User Manual
