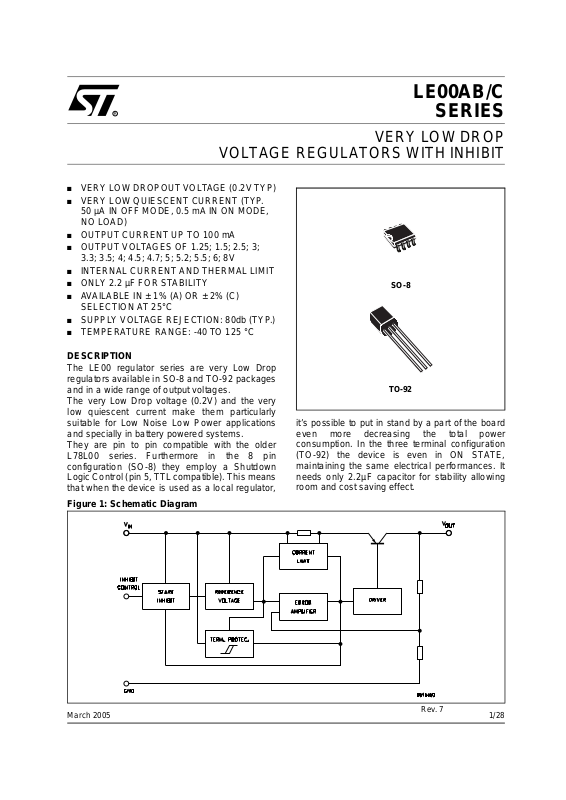

LE00AB/C
SERIES
VERY LOW DROP
VOLTAGE REGULATORS WITH INHIBIT
■ VERY LOW DROPOUT VOLTAGE (0.2V TYP)
■ VERY LOW QUIESCENT CURRENT (TYP.
50 µ A IN OFF MODE, 0 . 5 m A IN ON MODE,
NO LOAD)
■ OUTPUT CURRENT UP TO 100 mA
■ OUTPUT VOLTAGES OF 1.25; 1.5; 2.5; 3;
3.3; 3.5; 4; 4.5; 4.7; 5; 5.2; 5.5; 6; 8V
■ INTERNAL CURRENT AND THERMAL LIMIT
■ ONLY 2.2 µF FOR STABILITY
■ AVAILABLE IN ± 1% (A) OR ± 2% (C)
SELECTION AT 25°C
■ SUPPLY VOLTAGE REJECTION: 80db (TYP.)
■ TEMPERATURE RANGE: -40 TO 125 °C
DESCRIPTION
The LE00 regulator series are very Low Drop
regulators available in SO-8 and TO-92 packages
and in a wide range of output voltages.
The very Low Drop voltage (0.2V) and the very
low quiescent current make them particularly
suitable for Low Noise Low Power applications
and specially in battery powered systems.
They are pin to pin compatible with the older
L78L00 series. Furthermore in the 8 pin
configuration (SO-8) they employ a Shutdown
Logic Control (pin 5, TTL compatible). This means
that when the device is used a s a local regula tor,
SO-8
TO-92
it’s possible to put in stand by a part of the board
even more decreasing the total power
consumption. In the three terminal configuration
(TO-92) the device is even in ON STATE,
maintaining the same electrical performances. It
needs only 2.2µF capacitor for stability allowing
room and cost saving effect.
Figure 1: Schematic Diagram
Rev. 7
1/28March 2005
LE00AB/C SERIES
Table 1: Absolute Maximum Ratings
Symbol Parameter Value Unit
V
I
P
T
T
(*) Our SO -8 package used for Voltage Regulators is mo di f i ed i nternally to have pins 2, 3, 6 and 7 electrically com muned to the die attach
flag. This particular frame decreases the total thermal resis tance of the package and increases its ability to dissipate power when an appropriate area of copper on the printed circuit board is available for heatsinking. The external dimensions are the same as for the standard SO-8.
Table 2: Thermal Data
Symbol Parameter SO-8 TO-92 Unit
R
thj-case
R
thj-amb
Figure 2: Test Circuits
DC Input Voltage
I
Output Current
O
Power Dissipation
tot
Storage Temperature Range
stg
Operating Junction Temperature Range
op
Thermal Resistance Junction-case
Thermal Resistance Junction-ambient
20 V
Internally Limited (*)
Internally Limited (*)
-40 to 150 °C
-40 to 125 °C
20 °C/W
55 200 °C/W
Note: If th e Inhibit pin is le ft floating, the regulator is in ON mode. However, to avoid any noise picking-up, it is suggested to ground it when
the Inhibi t function is no t us ed.
Figure 3: Pin Connection (top view)
BOTTOM VIEW
PIN 1 = V
PIN 2 = GND
PIN 3 = V
OUT
IN
SO-8 TO-92
2/28
Table 3: Order Codes
TYPE SO-8 (TUBE) (*) TO-92 (TUBE) (#) OUTPUT VOLTAGE
LE12AB LE12ABD LE12ABZ 1.25 V
LE12C LE12CD LE12CZ 1.25 V
LE15AB LE15ABD LE15ABZ 1.5 V
LE15C LE15CD LE15CZ 1.5 V
LE25AB LE25ABD LE25ABZ 2.5 V
LE25C LE25CD LE25CZ 2.5 V
LE27AB LE27ABD LE27ABZ 2.7 V
LE27C LE27CD LE27CZ 2.7 V
LE30AB LE30ABD LE30ABZ 3 V
LE30C LE30CD LE30CZ 3 V
LE33AB LE33ABD LE33ABZ 3.3 V
LE33C LE33CD LE33CZ 3.3 V
LE35AB LE35ABD LE35ABZ 3.5 V
LE35C LE35CD LE35CZ 3.5 V
LE40AB LE40ABD LE40ABZ 4 V
LE40C LE40CD LE40CZ 4 V
LE45AB LE45ABD LE45ABZ 4.5 V
LE45C LE45CD LE45CZ 4.5 V
LE47AB LE47ABD LE47ABZ 4.7 V
LE47C LE47CD LE47CZ 4.7 V
LE50AB LE50ABD LE50ABZ 5 V
LE50C LE50CD LE50CZ 5 V
LE52AB LE52ABD LE52ABZ 5.2 V
LE52C LE52CD LE52CZ 5.2 V
LE55AB LE55ABD LE55ABZ 5.5 V
LE55C LE55CD LE55CZ 5.5 V
LE60AB LE60ABD LE60ABZ 6 V
LE60C LE60CD LE60CZ 6 V
LE80AB LE80ABD LE80ABZ 8 V
LE80C LE80CD LE80CZ 8 V
LE120AB LE120ABD LE120ABZ 12 V
LE120C LE120CD LE120CZ 12 V
LE00AB/C SERIES
(*) Avai l abl e in Tape & Reel wi th the suffix " -TR".
(#) Avail able in Tape & Reel wi th the suffi x "-TR" and in Ammopak with the suff i x "-AP". Please note that in these cases pins are shaped
accordi ng to Tape & Reel specificati ons.
3/28
LE00AB/C SERIES
Table 4: Electrical Characteristics For LE12AB (refer to the test circuits, Tj = 25°C, CI = 0.1 µF,
= 2.2 µF unless otherwise specified.)
C
O
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 3.3 V 1.225 1.25 1.275 V
O
= 10 mA, VI = 3.3 V, Ta = -25 to 85°C 1.2 1.3
I
O
Operating Input Voltage IO = 100 mA 2.5 18 V
V
I
I
Output Current Limit 150 mA
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 2.5 to 18 V, IO = 0.5 mA 3 15 mV
O
Load Regulation VI = 2.8 V IO = 0.5 to 100 mA 3 15 mV
O
Quiescent Current VI = 2.5 to 18V, IO = 0mA ON MODE 0.5 1 mA
I
d
= 2.5 to 18V, IO = 100mA 1.5 3
V
I
V
= 6 V OFF MODE 50 100 µA
I
= 5 mA
O
V
= 3.5 ± 1 V
I
f = 120 Hz 82 dB
f = 1 KHz 77
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA Ta = -40 to 125°C 1.25 V
d
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
Control Input Logic High Ta = -40 to 125°C 2 V
V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
C
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
O
Table 5: Electrical Characteristics For LE12C (refer to th e test circuits, T
= 2.2 µF unless otherwise specified.)
C
O
= 25°C, CI = 0.1 µF,
j
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 3.3 V 1.225 1.25 1.275 V
O
= 10 mA, VI = 3.3 V, Ta = -25 to 85°C 1.2 1.3
I
O
Operating Input Voltage IO = 100 mA 2.5 18 V
V
I
Output Current Limit 150 mA
I
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 2.5 to 18 V, IO = 0.5 mA 3 20 mV
O
Load Regulation VI = 2.8 V IO = 0.5 to 100 mA 3 25 mV
O
Quiescent Current VI = 2.5 to 18V, IO = 0mA ON MODE 0.5 1 mA
I
d
= 2.5 to 18V, IO = 100mA 1.5 3
V
I
= 6 V OFF MODE 50 100 µA
V
I
= 5 mA
O
V
= 3.5 ± 1 V
I
f = 120 Hz 82 dB
f = 1 KHz 77
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA Ta = -40 to 125°C 1.25 V
d
V
Control Input Logic Low Ta = -40 to 125°C 0.8 V
IL
Control Input Logic High Ta = -40 to 125°C 2 V
V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
C
O
4/28
LE00AB/C SERIES
Table 6: Electrical Characteristics For LE15AB ( r e fe r to the tes t circui ts, Tj = 25°C, CI = 0.1 µF,
= 2.2 µF unless othe rwis e specified.)
C
O
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 3.5 V 1.47 1.5 1.53 V
O
= 10 mA, VI = 3.5 V, Ta = -25 to 85°C 1.44 1.56
I
O
Operating Input Voltage IO = 100 mA 2.5 18 V
V
I
I
Output Current Limit 150 mA
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 2.5 to 18 V, IO = 0.5 mA 3 15 mV
O
Load Regulation VI = 2.8 V IO = 0.5 to 100 mA 3 15 mV
O
Quiescent Current VI = 2.5 to 18V, IO = 0mA ON MODE 0.5 1 mA
I
d
= 2.5 to 18V, IO = 100mA 1.5 3
V
I
V
= 6 V OFF MODE 50 100 µA
I
= 5 mA
O
V
= 3.5 ± 1 V
I
f = 120 Hz 82 dB
f = 1 KHz 77
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA Ta = -40 to 125°C 1 V
d
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
Control Input Logic High Ta = -40 to 125°C 2 V
V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
C
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 10 0 mA 2 10 µF
O
Table 7: Electrical Characteristics For LE15C ( refer to the test circui t s, T
= 2.2 µF unless othe rwis e specified.)
C
O
= 25°C , CI = 0.1 µF,
j
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 3.5 V 1.47 1.5 1.53 V
O
= 10 mA, VI = 3.5 V, Ta = -25 to 85°C 1.44 1.56
I
O
Operating Input Voltage IO = 100 mA 2.5 18 V
V
I
I
Output Current Limit 150 mA
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 2.5 to 18 V, IO = 0.5 mA 3 20 mV
O
Load Regulation VI = 2.8 V IO = 0.5 to 100 mA 3 25 mV
O
I
Quiescent Current VI = 2.5 to 18V, IO = 0mA ON MODE 0.5 1 mA
d
= 2.5 to 18V, IO = 100mA 1.5 3
V
I
V
= 6 V OFF MODE 50 100 µA
I
= 5 mA
O
V
= 3.5 ± 1 V
I
f = 120 Hz 82 dB
f = 1 KHz 77
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA Ta = -40 to 125°C 1 V
d
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
Control Input Logic High Ta = -40 to 125°C 2 V
V
IH
I
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 10 0 mA 2 10 µF
C
O
5/28
LE00AB/C SERIES
Table 8: Electrical Characteristics For LE25AB (refer to the test circuits, Tj = 25°C, CI = 0.1 µF,
= 2.2 µF unless otherwise specified.)
C
O
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 4.5 V 2.475 2.5 2.525 V
O
= 10 mA, VI = 4.5 V, Ta = -25 to 85°C 2.45 2.55
I
O
V
Operating Input Voltage IO = 100 mA 18 V
I
Output Current Limit 150 mA
I
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 3.2 to 18 V, IO = 0.5 mA 3 15 mV
O
Load Regulation VI = 3.5 V IO = 0.5 to 100 mA 3 15 mV
O
I
Quiescent Current VI = 3.5 to 18V, IO = 0mA ON MODE 0.5 1 mA
d
= 3.5 to 18V, IO = 100mA 1.5 3
V
I
= 6 V OFF MODE 50 100 µA
V
I
= 5 mA
O
V
= 4.5 ± 1 V
I
f = 120 Hz 82 dB
f = 1 KHz 77
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
V
Control Input Logic High Ta = -40 to 125°C 2 V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
C
O
Table 9: Electrical Characteristics For LE25C (refer to th e test circuits, T
= 2.2 µF unless otherwise specified.)
C
O
= 25°C, CI = 0.1 µF,
j
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 4.5 V 2.45 2.5 2.55 V
O
= 10 mA, VI = 4.5 V, Ta = -25 to 85°C 2.4 2.6
I
O
Operating Input Voltage IO = 100 mA 18 V
V
I
I
Output Current Limit 150 mA
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 3.2 to 18 V, IO = 0.5 mA 3 20 mV
O
Load Regulation VI = 3.5 V IO = 0.5 to 100 mA 3 25 mV
O
Quiescent Current VI = 3.5 to 18V, IO = 0mA ON MODE 0.5 1 mA
I
d
V
= 3.5 to 18V, IO = 100mA 1.5 3
I
V
= 6 V OFF MODE 50 100 µA
I
= 5 mA
O
V
= 4.5 ± 1 V
I
f = 120 Hz 82 dB
f = 1 KHz 77
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
Control Input Logic High Ta = -40 to 125°C 2 V
V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
C
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
O
6/28
LE00AB/C SERIES
Table 10: Electrical Characteristics For LE27AB (refe r to the tes t circui t s, Tj = 25°C , CI = 0.1 µF,
= 2.2 µF unless otherwise specified.)
C
O
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 4.7 V 2.673 2.7 2.727 V
O
= 10 mA, VI = 4.7 V, Ta = -25 to 85°C 2.646 2.754
I
O
V
Operating Input Voltage IO = 100 mA 18 V
I
Output Current Limit 150 mA
I
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 3.4 to 18 V, IO = 0.5 mA 3 15 mV
O
Load Regulation VI = 3.7 V IO = 0.5 to 100 mA 3 15 mV
O
I
Quiescent Current VI = 3.7 to 18V, IO = 0mA ON MODE 0.5 1 mA
d
= 3.7 to 18V, IO = 100mA 1.5 3
V
I
= 6 V OFF MODE 50 100 µA
V
I
= 5 mA
O
V
= 4.7 ± 1 V
I
f = 120 Hz 82 dB
f = 1 KHz 77
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
V
Control Input Logic High Ta = -40 to 125°C 2 V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
C
O
Table 11: Electrical Characteristics For LE27C (refer to the test circuits, T
= 2.2 µF unless otherwise specified.)
C
O
= 25°C , CI = 0.1 µF,
j
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 4.7 V 2.646 2.7 2.754 V
O
= 10 mA, VI = 4.7 V, Ta = -25 to 85°C 2.592 2.808
I
O
Operating Input Voltage IO = 100 mA 18 V
V
I
I
Output Current Limit 150 mA
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 3.4 to 18 V, IO = 0.5 mA 3 20 mV
O
Load Regulation VI = 3.7 V IO = 0.5 to 100 mA 3 25 mV
O
Quiescent Current VI = 3.7 to 18V, IO = 0mA ON MODE 0.5 1 mA
I
d
V
= 3.7 to 18V, IO = 100mA 1.5 3
I
V
= 6 V OFF MODE 50 100 µA
I
= 5 mA
O
V
= 4.7 ± 1 V
I
f = 120 Hz 82 dB
f = 1 KHz 77
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
Control Input Logic High Ta = -40 to 125°C 2 V
V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
C
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
O
7/28
LE00AB/C SERIES
Table 12: Electrical Characteristics For LE30AB (refe r to the tes t circui t s, Tj = 25°C , CI = 0.1 µF,
= 2.2 µF unless otherwise specified.)
C
O
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 5 V 2.970 3 3.030 V
O
= 10 mA, VI = 5 V, Ta = -25 to 85°C 2.940 3.060
I
O
V
Operating Input Voltage IO = 100 mA 18 V
I
Output Current Limit 150 mA
I
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 3.7 to 18 V, IO = 0.5 mA 3 15 mV
O
Load Regulation VI = 4 V IO = 0.5 to 100 mA 3 15 mV
O
I
Quiescent Current VI = 4 to 18V, IO = 0mAON MODE 0.51mA
d
= 4 to 18V, IO = 100mA 1.5 3
V
I
= 6 V OFF MODE 50 100 µA
V
I
= 5 mA
O
V
= 5 ± 1 V
I
f = 120 Hz 81 dB
f = 1 KHz 76
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
V
Control Input Logic High Ta = -40 to 125°C 2 V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
C
O
Table 13: Electrical Characteristics For LE30C (refer to the test circuits, T
= 2.2 µF unless otherwise specified.)
C
O
= 25°C , CI = 0.1 µF,
j
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 5 V 2.940 3 3.060
O
= 10 mA, VI = 5 V, Ta = -25 to 85°C 2.880 3.120
I
O
Operating Input Voltage IO = 100 mA 18 V
V
I
I
Output Current Limit 150 mA
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 3.7 to 18 V, IO = 0.5 mA 3 20 mV
O
Load Regulation VI = 4 V IO = 0.5 to 100 mA 3 25 mV
O
Quiescent Current VI = 4 to 18V, IO = 0mAON MODE 0.51mA
I
d
V
= 4 to 18V, IO = 100mA 1.5 3
I
V
= 6 V OFF MODE 50 100 µA
I
= 5 mA
O
V
= 5 ± 1 V
I
f = 120 Hz 81 dB
f = 1 KHz 76
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
Control Input Logic High Ta = -40 to 125°C 2 V
V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
C
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
O
8/28
LE00AB/C SERIES
Table 14: Electrical Characteristics For LE33AB (refe r to the tes t circui t s, Tj = 25°C , CI = 0.1 µF,
= 2.2 µF unless otherwise specified.)
C
O
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 5.3 V 3.267 3.3 3.333 V
O
= 10 mA, VI = 5.3 V, Ta = -25 to 85°C 3.234 3.366
I
O
V
Operating Input Voltage IO = 100 mA 18 V
I
Output Current Limit 150 mA
I
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 4 to 18 V, IO = 0.5 mA 3 15 mV
O
Load Regulation VI = 4.3 V IO = 0.5 to 100 mA 3 15 mV
O
I
Quiescent Current VI = 4.3 to 18V, IO = 0mA ON MODE 0.5 1 mA
d
= 4.3 to 18V, IO = 100mA 1.5 3
V
I
= 6 V OFF MODE 50 100 µA
V
I
= 5 mA
O
V
= 5.3 ± 1 V
I
f = 120 Hz 80 dB
f = 1 KHz 75
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
V
Control Input Logic High Ta = -40 to 125°C 2 V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
C
O
Table 15: Electrical Characteristics For LE33C (refer to the test circuits, T
= 2.2 µF unless otherwise specified.)
C
O
= 25°C , CI = 0.1 µF,
j
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 5.3 V 3.234 3.3 3.366 V
O
= 10 mA, VI = 5.3 V, Ta = -25 to 85°C 3.168 3.432
I
O
Operating Input Voltage IO = 100 mA 18 V
V
I
I
Output Current Limit 150 mA
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 4 to 18 V, IO = 0.5 mA 3 20 mV
O
Load Regulation VI = 4.3 V IO = 0.5 to 100 mA 3 25 mV
O
Quiescent Current VI = 4.3 to 18V, IO = 0mA ON MODE 0.5 1 mA
I
d
V
= 4.3 to 18V, IO = 100mA 1.5 3
I
V
= 6 V OFF MODE 50 100 µA
I
= 5 mA
O
V
= 5.3 ± 1 V
I
f = 120 Hz 80 dB
f = 1 KHz 75
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
Control Input Logic High Ta = -40 to 125°C 2 V
V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
C
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
O
9/28
LE00AB/C SERIES
Table 16: Electrical Characteristics For LE35AB (refe r to the tes t circui t s, Tj = 25°C , CI = 0.1 µF,
= 2.2 µF unless otherwise specified.)
C
O
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 5.5 V 3.465 3.5 3.535 V
O
= 10 mA, VI = 5.5 V, Ta = -25 to 85°C 3.43 3.57
I
O
V
Operating Input Voltage IO = 100 mA 18 V
I
Output Current Limit 150 mA
I
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 4.2 to 18 V, IO = 0.5 mA 3 15 mV
O
Load Regulation VI = 4.5 V IO = 0.5 to 100 mA 3 15 mV
O
I
Quiescent Current VI = 4.5 to 18V, IO = 0mA ON MODE 0.5 1 mA
d
= 4.5 to 18V, IO = 100mA 1.5 3
V
I
= 6 V OFF MODE 50 100 µA
V
I
= 5 mA
O
V
= 5.5 ± 1 V
I
f = 120 Hz 79 dB
f = 1 KHz 74
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
V
Control Input Logic High Ta = -40 to 125°C 2 V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
C
O
Table 17: Electrical Characteristics For LE35C (refer to the test circuits, T
= 2.2 µF unless otherwise specified.)
C
O
= 25°C , CI = 0.1 µF,
j
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 5.5 V 3.43 3.5 3.57 V
O
= 10 mA, VI = 5.5 V, Ta = -25 to 85°C 3.36 3.64
I
O
Operating Input Voltage IO = 100 mA 18 V
V
I
I
Output Current Limit 150 mA
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 4.2 to 18 V, IO = 0.5 mA 3 20 mV
O
Load Regulation VI = 4.5 V IO = 0.5 to 100 mA 3 25 mV
O
Quiescent Current VI = 4.5 to 18V, IO = 0mA ON MODE 0.5 1 mA
I
d
V
= 4.5 to 18V, IO = 100mA 1.5 3
I
V
= 6 V OFF MODE 50 100 µA
I
= 5 mA
O
V
= 5.5 ± 1 V
I
f = 120 Hz 79 dB
f = 1 KHz 74
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
Control Input Logic High Ta = -40 to 125°C 2 V
V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
C
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
O
10/28
LE00AB/C SERIES
Table 18: Electrical Characteristics For LE40AB (refe r to the tes t circui t s, Tj = 25°C , CI = 0.1 µF,
= 2.2 µF unless otherwise specified.)
C
O
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 6 V 3.96 4 4.04 V
O
= 10 mA, VI = 6 V, Ta = -25 to 85°C 3.92 4.08
I
O
V
Operating Input Voltage IO = 100 mA 18 V
I
Output Current Limit 150 mA
I
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 4.7 to 18 V, IO = 0.5 mA 4 20 mV
O
Load Regulation VI = 5 V IO = 0.5 to 100 mA 3 15 mV
O
I
Quiescent Current VI = 5 to 18V, IO = 0mAON MODE 0.51mA
d
= 5 to 18V, IO = 100mA 1.5 3
V
I
= 6 V OFF MODE 50 100 µA
V
I
= 5 mA
O
V
= 6 ± 1 V
I
f = 120 Hz 78 dB
f = 1 KHz 73
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
V
Control Input Logic High Ta = -40 to 125°C 2 V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
C
O
Table 19: Electrical Characteristics For LE40C (refer to the test circuits, T
= 2.2 µF unless otherwise specified.)
C
O
= 25°C , CI = 0.1 µF,
j
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 6 V 3.92 4 4.08 V
O
= 10 mA, VI = 6 V, Ta = -25 to 85°C 3.84 4.16
I
O
Operating Input Voltage IO = 100 mA 18 V
V
I
I
Output Current Limit 150 mA
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 4.7 to 18 V, IO = 0.5 mA 4 30 mV
O
Load Regulation VI = 5 V IO = 0.5 to 100 mA 3 25 mV
O
Quiescent Current VI = 5 to 18V, IO = 0mAON MODE 0.51mA
I
d
V
= 5 to 18V, IO = 100mA 1.5 3
I
V
= 6 V OFF MODE 50 100 µA
I
= 5 mA
O
V
= 6 ± 1 V
I
f = 120 Hz 78 dB
f = 1 KHz 73
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
Control Input Logic High Ta = -40 to 125°C 2 V
V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
C
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
O
11/28
LE00AB/C SERIES
Table 20: Electrical Characteristics For LE45AB (refe r to the tes t circui t s, Tj = 25°C , CI = 0.1 µF,
= 2.2 µF unless otherwise specified.)
C
O
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 6.5 V 4.445 4.5 4.545 V
O
= 10 mA, VI = 6.5 V, Ta = -25 to 85°C 4.41 4.59
I
O
V
Operating Input Voltage IO = 100 mA 18 V
I
Output Current Limit 150 mA
I
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 5.2 to 18 V, IO = 0.5 mA 4 20 mV
O
Load Regulation VI = 5.5 V IO = 0.5 to 100 mA 3 15 mV
O
I
Quiescent Current VI = 5.5 to 18V, IO = 0mA ON MODE 0.5 1 mA
d
= 5.5 to 18V, IO = 100mA 1.5 3
V
I
= 6 V OFF MODE 50 100 µA
V
I
= 5 mA
O
V
= 6.5 ± 1 V
I
f = 120 Hz 77 dB
f = 1 KHz 72
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
V
Control Input Logic High Ta = -40 to 125°C 2 V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
C
O
Table 21: Electrical Characteristics For LE45C (refer to the test circuits, T
= 2.2 µF unless otherwise specified.)
C
O
= 25°C , CI = 0.1 µF,
j
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 6.5 V 4.41 4.5 4.59 V
O
= 10 mA, VI = 6.5 V, Ta = -25 to 85°C 4.32 4.68
I
O
Operating Input Voltage IO = 100 mA 18 V
V
I
I
Output Current Limit 150 mA
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 5.2 to 18 V, IO = 0.5 mA 4 30 mV
O
Load Regulation VI = 5.5 V IO = 0.5 to 100 mA 3 25 mV
O
Quiescent Current VI = 5.5 to 18V, IO = 0mA ON MODE 0.5 1 mA
I
d
V
= 5.5 to 18V, IO = 100mA 1.5 3
I
V
= 6 V OFF MODE 50 100 µA
I
= 5 mA
O
V
= 6.5 ± 1 V
I
f = 120 Hz 77 dB
f = 1 KHz 72
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
Control Input Logic High Ta = -40 to 125°C 2 V
V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
C
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
O
12/28
LE00AB/C SERIES
Table 22: Electrical Characteristics For LE47AB (refe r to the tes t circui t s, Tj = 25°C , CI = 0.1 µF,
= 2.2 µF unless otherwise specified.)
C
O
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 6.7 V 4.653 4.7 4.747 V
O
= 10 mA, VI = 6.7 V, Ta = -25 to 85°C 4.606 4.794
I
O
V
Operating Input Voltage IO = 100 mA 18 V
I
Output Current Limit 150 mA
I
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 5.4 to 18 V, IO = 0.5 mA 4 20 mV
O
Load Regulation VI = 5.7 V IO = 0.5 to 100 mA 3 15 mV
O
I
Quiescent Current VI = 5.7 to 18V, IO = 0mA ON MODE 0.5 1 mA
d
= 5.7 to 18V, IO = 100mA 1.5 3
V
I
= 6 V OFF MODE 50 100 µA
V
I
= 5 mA
O
V
= 6.7 ± 1 V
I
f = 120 Hz 77 dB
f = 1 KHz 72
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
V
Control Input Logic High Ta = -40 to 125°C 2 V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
C
O
Table 23: Electrical Characteristics For LE47C (refer to the test circuits, T
= 2.2 µF unless otherwise specified.)
C
O
= 25°C , CI = 0.1 µF,
j
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 6.7 V 4.606 4.7 4.794 V
O
= 10 mA, VI = 6.7 V, Ta = -25 to 85°C 4.512 4.888
I
O
Operating Input Voltage IO = 100 mA 18 V
V
I
I
Output Current Limit 150 mA
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 5.4 to 18 V, IO = 0.5 mA 4 30 mV
O
Load Regulation VI = 5.7 V IO = 0.5 to 100 mA 3 25 mV
O
Quiescent Current VI = 5.7 to 18V, IO = 0mA ON MODE 0.5 1 mA
I
d
V
= 5.7 to 18V, IO = 100mA 1.5 3
I
V
= 6 V OFF MODE 50 100 µA
I
= 5 mA
O
V
= 6.7 ± 1 V
I
f = 120 Hz 77 dB
f = 1 KHz 72
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
Control Input Logic High Ta = -40 to 125°C 2 V
V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
C
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
O
13/28
LE00AB/C SERIES
Table 24: Electrical Characteristics For LE50AB (refe r to the tes t circui t s, Tj = 25°C , CI = 0.1 µF,
= 2.2 µF unless otherwise specified.)
C
O
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 7 V 4.95 5 5.05 V
O
= 10 mA, VI = 7 V, Ta = -25 to 85°C 4.9 5.1
I
O
V
Operating Input Voltage IO = 100 mA 18 V
I
Output Current Limit 150 350 425 mA
I
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 5.7 to 18 V, IO = 0.5 mA 4 20 mV
O
Load Regulation VI = 6 V IO = 0.5 to 100 mA 3 15 mV
O
I
Quiescent Current VI = 6 to 18V, IO = 0mAON MODE 0.51mA
d
= 6 to 18V, IO = 100mA 1.5 3
V
I
= 6 V OFF MODE 50 100 µA
V
I
= 5 mA
O
V
= 7 ± 1 V
I
f = 120 Hz 76 dB
f = 1 KHz 71
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
V
Control Input Logic High Ta = -40 to 125°C 2 V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
C
O
Table 25: Electrical Characteristics For LE50C (refer to the test circuits, T
= 2.2 µF unless otherwise specified.)
C
O
= 25°C , CI = 0.1 µF,
j
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 7 V 4.955.1V
O
= 10 mA, VI = 7 V, Ta = -25 to 85°C 4.8 5.2
I
O
Operating Input Voltage IO = 100 mA 18 V
V
I
I
Output Current Limit 150 350 425 mA
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 5.7 to 18 V, IO = 0.5 mA 4 30 mV
O
Load Regulation VI = 6 V IO = 0.5 to 100 mA 3 25 mV
O
Quiescent Current VI = 6 to 18V, IO = 0mAON MODE 0.51mA
I
d
V
= 6 to 18V, IO = 100mA 1.5 3
I
V
= 6 V OFF MODE 50 100 µA
I
= 5 mA
O
V
= 7 ± 1 V
I
f = 120 Hz 76 dB
f = 1 KHz 71
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
Control Input Logic High Ta = -40 to 125°C 2 V
V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
C
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
O
14/28
LE00AB/C SERIES
Table 26: Electrical Characteristics For LE52AB (refe r to the tes t circui t s, Tj = 25°C , CI = 0.1 µF,
= 2.2 µF unless otherwise specified.)
C
O
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 7.2 V 5.148 5.2 5.252 V
O
= 10 mA, VI = 7.2 V, Ta = -25 to 85°C 5.096 5.304
I
O
V
Operating Input Voltage IO = 100 mA 18 V
I
Output Current Limit 150 mA
I
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 5.9 to 18 V, IO = 0.5 mA 4 20 mV
O
Load Regulation VI = 6.2 V IO = 0.5 to 100 mA 3 15 mV
O
I
Quiescent Current VI = 6.2 to 18V, IO = 0mA ON MODE 0.5 1 mA
d
= 6.2 to 18V, IO = 100mA 1.5 3
V
I
= 6 V OFF MODE 50 100 µA
V
I
= 5 mA
O
V
= 7.2 ± 1 V
I
f = 120 Hz 76 dB
f = 1 KHz 71
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
V
Control Input Logic High Ta = -40 to 125°C 2 V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
C
O
Table 27: Electrical Characteristics For LE52C (refer to the test circuits, T
= 2.2 µF unless otherwise specified.)
C
O
= 25°C , CI = 0.1 µF,
j
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 7.2 V 5.096 5.2 5.304 V
O
= 10 mA, VI = 7.2 V, Ta = -25 to 85°C 4.992 5.408
I
O
Operating Input Voltage IO = 100 mA 18 V
V
I
I
Output Current Limit 150 mA
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 5.9 to 18 V, IO = 0.5 mA 4 30 mV
O
Load Regulation VI = 6.2 V IO = 0.5 to 100 mA 3 25 mV
O
Quiescent Current VI = 6.2 to 18V, IO = 0mA ON MODE 0.5 1 mA
I
d
V
= 6.2 to 18V, IO = 100mA 1.5 3
I
V
= 6 V OFF MODE 50 100 µA
I
= 5 mA
O
V
= 7.2 ± 1 V
I
f = 120 Hz 76 dB
f = 1 KHz 71
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
Control Input Logic High Ta = -40 to 125°C 2 V
V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
C
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
O
15/28
LE00AB/C SERIES
Table 28: Electrical Characteristics For LE55AB (refe r to the tes t circui t s, Tj = 25°C , CI = 0.1 µF,
= 2.2 µF unless otherwise specified.)
C
O
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 7.5 V 5.445 5.5 5.55 V
O
= 10 mA, VI = 7.5 V, Ta = -25 to 85°C 5.39 5.61
I
O
V
Operating Input Voltage IO = 100 mA 18 V
I
Output Current Limit 150 mA
I
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 6.2 to 18 V, IO = 0.5 mA 4 20 mV
O
Load Regulation VI = 6.5 V IO = 0.5 to 100 mA 3 15 mV
O
I
Quiescent Current VI = 6.5 to 18V, IO = 0mA ON MODE 0.5 1 mA
d
= 6.5 to 18V, IO = 100mA 1.5 3
V
I
= 6 V OFF MODE 50 100 µA
V
I
= 5 mA
O
V
= 7.5 ± 1 V
I
f = 120 Hz 76 dB
f = 1 KHz 71
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
V
Control Input Logic High Ta = -40 to 125°C 2 V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
C
O
Table 29: Electrical Characteristics For LE55C (refer to the test circuits, T
= 2.2 µF unless otherwise specified.)
C
O
= 25°C , CI = 0.1 µF,
j
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 7.5 V 5.39 5.5 5.61 V
O
= 10 mA, VI = 7.5 V, Ta = -25 to 85°C 5.28 5.72
I
O
Operating Input Voltage IO = 100 mA 18 V
V
I
I
Output Current Limit 150 mA
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 6.2 to 18 V, IO = 0.5 mA 4 30 mV
O
Load Regulation VI = 6.5 V IO = 0.5 to 100 mA 3 25 mV
O
Quiescent Current VI = 6.5 to 18V, IO = 0mA ON MODE 0.5 1 mA
I
d
V
= 6.5 to 18V, IO = 100mA 1.5 3
I
V
= 6 V OFF MODE 50 100 µA
I
= 5 mA
O
V
= 7.5 ± 1 V
I
f = 120 Hz 76 dB
f = 1 KHz 71
f = 10 KHz 60
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
Control Input Logic High Ta = -40 to 125°C 2 V
V
IH
Control Input Current VI = 6 V, VC = 6 V 10 µA
I
I
C
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
O
16/28
LE00AB/C SERIES
Table 30: Electrical Characteristics For LE60AB (refe r to the tes t circui t s, Tj = 25°C , CI = 0.1 µF,
= 2.2 µF unless otherwise specified.)
C
O
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 8 V 5.94 6 6.06 V
O
= 10 mA, VI = 8 V, Ta = -25 to 85°C 5.88 6.12
I
O
V
Operating Input Voltage IO = 100 mA 18 V
I
Output Current Limit 150 mA
I
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 6.7 to 18 V, IO = 0.5 mA 5 25 mV
O
Load Regulation VI = 7 V IO = 0.5 to 100 mA 3 15 mV
O
I
Quiescent Current VI = 7 to 18V, IO = 0mA ON MODE 0.7 1.6 mA
d
= 7 to 18V, IO = 100mA 1.7 3.6
V
I
= 9 V OFF MODE 70 140 µA
V
I
= 5 mA
O
V
= 8 ± 1 V
I
f = 120 Hz 75 dB
f = 1 KHz 69
f = 10 KHz 57
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
V
Control Input Logic High Ta = -40 to 125°C 2 V
IH
Control Input Current VI = 9 V, VC = 6 V 10 µA
I
I
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
C
O
Table 31: Electrical Characteristics For LE60C (refer to the test circuits, T
= 2.2 µF unless otherwise specified.)
C
O
= 25°C , CI = 0.1 µF,
j
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 8 V 5.88 6 6.12 V
O
= 10 mA, VI = 8 V, Ta = -25 to 85°C 5.76 6.24
I
O
Operating Input Voltage IO = 100 mA 18 V
V
I
I
Output Current Limit 150 mA
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 6.7 to 18 V, IO = 0.5 mA 5 35 mV
O
Load Regulation VI = 7 V IO = 0.5 to 100 mA 3 25 mV
O
Quiescent Current VI = 7 to 18V, IO = 0mA ON MODE 0.7 1.6 mA
I
d
V
= 7 to 18V, IO = 100mA 1.7 3.6
I
V
= 9 V OFF MODE 70 140 µA
I
= 5 mA
O
V
= 8 ± 1 V
I
f = 120 Hz 75 dB
f = 1 KHz 69
f = 10 KHz 57
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
Control Input Logic High Ta = -40 to 125°C 2 V
V
IH
Control Input Current VI = 9 V, VC = 6 V 10 µA
I
I
C
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
O
17/28
LE00AB/C SERIES
Table 32: Electrical Characteristics For LE80AB (refe r to the tes t circui t s, Tj = 25°C , CI = 0.1 µF,
= 2.2 µF unless otherwise specified.)
C
O
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 10 V 7.92 8 8.08 V
O
= 10 mA, VI = 10 V, Ta = -25 to 85°C 7.84 8.16
I
O
V
Operating Input Voltage IO = 100 mA 18 V
I
Output Current Limit 150 mA
I
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 8.7 to 18 V, IO = 0.5 mA 5 25 mV
O
Load Regulation VI = 9 V IO = 0.5 to 100 mA 3 15 mV
O
I
Quiescent Current VI = 9 to 18V, IO = 0mA ON MODE 0.7 1.6 mA
d
= 9 to 18V, IO = 100mA 1.7 3.6
V
I
= 9 V OFF MODE 70 140 µA
V
I
= 5 mA
O
V
= 10 ± 1 V
I
f = 120 Hz 72 dB
f = 1 KHz 66
f = 10 KHz 57
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
V
Control Input Logic High Ta = -40 to 125°C 2 V
IH
Control Input Current VI = 9 V, VC = 6 V 10 µA
I
I
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
C
O
Table 33: Electrical Characteristics For LE80C (refer to the test circuits, T
= 2.2 µF unless otherwise specified.)
C
O
= 25°C , CI = 0.1 µF,
j
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 10 V 7.84 8 8.16 V
O
= 10 mA, VI = 10 V, Ta = -25 to 85°C 7.68 8.32
I
O
Operating Input Voltage IO = 100 mA 18 V
V
I
I
Output Current Limit 150 mA
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 8.7 to 18 V, IO = 0.5 mA 5 35 mV
O
Load Regulation VI = 9 V IO = 0.5 to 100 mA 3 25 mV
O
Quiescent Current VI = 9 to 18V, IO = 0mA ON MODE 0.7 1.6 mA
I
d
V
= 9 to 18V, IO = 100mA 1.7 3.6
I
V
= 9 V OFF MODE 70 140 µA
I
= 5 mA
O
V
= 10 ± 1 V
I
f = 120 Hz 72 dB
f = 1 KHz 66
f = 10 KHz 57
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
Control Input Logic High Ta = -40 to 125°C 2 V
V
IH
Control Input Current VI = 9 V, VC = 6 V 10 µA
I
I
C
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
O
18/28
LE00AB/C SERIES
Table 34: Electrical Characteristics For LE120AB (refer to the test circuits, Tj = 25°C, CI = 0.1 µF,
= 2.2 µF unless otherwise specified.)
C
O
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 14 V 11.88 12 12.12 V
O
= 10 mA, VI = 14 V, Ta = -25 to 85°C 11.76 12.24
I
O
V
Operating Input Voltage IO = 100 mA 18 V
I
Output Current Limit 150 mA
I
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 12.7 to 18 V, IO = 0.5 mA 5 25 mV
O
Load Regulation VI = 13 V IO = 0.5 to 100 mA 3 15 mV
O
I
Quiescent Current VI = 13 to 18V, IO = 0mA ON MODE 0.7 1.6 mA
d
= 13 to 18V, IO = 100mA 1.7 3.6
V
I
= 13 V OFF MODE 90 180 µA
V
I
= 5 mA
O
V
= 14 ± 1 V
I
f = 120 Hz 69 dB
f = 1 KHz 63
f = 10 KHz 55
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
V
Control Input Logic High Ta = -40 to 125°C 2 V
IH
Control Input Current VI = 13 V, VC = 6 V 10 µA
I
I
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
C
O
Table 35: Electrical Characteristics For LE120C (refe r to the test circ u its, T
= 2.2 µF unless otherwise specified.)
C
O
= 25°C, CI = 0.1 µF,
j
Symbol Parameter Test Conditions Min. Typ. Max. Unit
V
Output Voltage IO = 10 mA, VI = 14 V 11.76 12 12.24 V
O
= 10 mA, VI = 14 V, Ta = -25 to 85°C 11.52 12.48
I
O
Operating Input Voltage IO = 100 mA 18 V
V
I
I
Output Current Limit 150 mA
O
∆V
∆V
SVR Supply Voltage Rejection I
Line Regulation VI = 12.7 to 18 V, IO = 0.5 mA 5 35 mV
O
Load Regulation VI = 13 V IO = 0.5 to 100 mA 3 25 mV
O
Quiescent Current VI = 13 to 18V, IO = 0mA ON MODE 0.7 1.6 mA
I
d
V
= 13 to 18V, IO = 100mA 1.7 3.6
I
V
= 13 V OFF MODE 90 180 µA
I
= 5 mA
O
V
= 14 ± 1 V
I
f = 120 Hz 69 dB
f = 1 KHz 63
f = 10 KHz 55
eN Output Noise Voltage B = 10 Hz to 100 KHz 50 µV
V
Dropout Voltage IO = 100 mA 0.2 0.4 V
d
= 100 mA Ta = -40 to 125°C 0.5
I
O
Control Input Logic Low Ta = -40 to 125°C 0.8 V
V
IL
Control Input Logic High Ta = -40 to 125°C 2 V
V
IH
Control Input Current VI = 13 V, VC = 6 V 10 µA
I
I
C
Output Bypass Capacitance ESR = 0.1 to 10 Ω IO = 0 to 100 mA 2 10 µF
O
19/28
LE00AB/C SERIES
TYPICAL PERFORMAN CE CHARACTERISTICS
Figure 4: Dropout Voltage vs Output Current
Figure 5: Dropout Voltage vs Temperature
(unless otherwi se specified V
O(NOM)
= 3.3 V)
Figure 7: Supply Current vs Input Voltage
Figure 8: Sho rt Circuit Current vs Dropout Voltage
Figure 6: Supply Current vs Temperature
20/28
Figure 9: S.V.R. vs Frequency
Figure 10: Logic Controlled Precision 3.3/5.0V Selectable Output
Figure 11: Sequential Multi-Output Supply
LE00AB/C SERIES
21/28
LE00AB/C SERIES
Figure 12: Multiple Supply With ON/OFF Toggle Switch
Figure 13: Basic Inhibit Functions
22/28
SO-8 MECHANICAL DATA
LE00AB/C SERIES
DIM.
A 1.35 1.75 0.053 0.069
A1 0.10 0.25 0.04 0.010
A2 1.10 1.65 0.043 0.065
B 0.33 0.51 0.013 0.020
C 0.19 0.25 0.007 0.010
D 4.80 5.00 0.189 0.197
E 3.80 4.00 0.150 0.157
e 1.27 0.050
H 5.80 6.20 0.228 0.244
h 0.25 0.50 0.010 0.020
L 0.40 1.27 0.016 0.050
k ˚ (max.)
ddd 0.1 0.04
MIN. TYP MAX. MIN. TYP. MAX.
mm. inch
8
0016023/C
23/28
LE00AB/C SERIES
TO-92 MECHANICA DATA
mm. mils
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
A 4.32 4.95 170.1 194.9
b 0.36 0.51 14.2 20.1
D 4.45 4.95 175.2 194.9
E 3.30 3.94 129.9 155.1
e 2.41 2.67 94.9 105.1
e1 1.14 1.40 44.9 55.1
L 12.7 15.49 500.0 609.8
R 2.16 2.41 85.0 94.9
S1 0.92 1.52 36.2 59.8
W 0.41 0.56 16.1 22.0
24/28
0102782/C
LE00AB/C SERIES
Tape & Reel SO-8 MECHANICAL DATA
mm. inch
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
A 330 12.992
C 12.8 13.2 0.504 0.519
D 20.2 0.795
N 60 2.362
T 22.4 0.882
Ao 8.1 8.5 0.319 0.335
Bo 5.5 5.9 0.216 0.232
Ko 2.1 2.3 0.082 0.090
Po 3.9 4.1 0.153 0.161
P 7.9 8.1 0.311 0.319
25/28
LE00AB/C SERIES
Tape & Reel for TO-92 MECHANICAL DATA
DIM.
MIN. TYP MAX. MIN. TYP. MAX.
mm. inch
A1 4.80 0.189
T 3.80 0.150
T1 1.60 0.063
T2 2.30 0.091
d 0.48 0.019
P0 12.5 12.9 0.492 0.508
P2 5.65 7.05 0.222 0.278
F1, F2 2.44 2.54 2.94 0.096 0.100 0.116
delta H ±2 0.079
W 17.5 18.00 19.0 0.689 0.709 0.748
W0 5.7 6.3 0.224 0.248
W1 8.5 9.25 0.335 0.364
W2 0.50 0.20
H 18.50 18.70 0.728 0.726
H0 15.50 16.50 0.610 0.650
H1 25.00 0.984
D0 3.8 4.2 0.150 0.165
t 0.90 0.035
L1 3 0.118
delta P ±1 0.039
u 50 1.968
Φ1 360 14.173
Φ2 30 1.181
H1
delta P
A1
delta H
H
H0
L
d
W2
T
T2
T1
26/28
Φ1
Φ2
Pull-out direction
l1
W
W0
W1
F1
F2
P2
P0
D0
t
u
DRAWING NOT IN SCALE
Table 36: Revision History
Date R evisio n Description of Change s
09-Jul-2004 6
16-Mar-2005 7 Add Tape & Reel for TO-92 - Note on Table 3.
IO typ. and max. are changed in tab. 24 and 25 - pag 14.
LE00AB/C SERIES
27/28
LE00AB/C SERIES
Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences
of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted
by implic ati o n or ot h er wis e und er an y pat ent or pa te nt r igh ts of STMi cr oe l ect ro ni cs . Sp ec if i cat i on s ment i o ned i n th is p ub li c ati on ar e s ubj ec t
to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectroni cs products are not
authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.
The ST logo is a registered trademark of STMicroelectronics
All other names are the property of their respective owners
© 2005 STMicroelectronics - All Rights Reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
28/28
Loading...
