L78

Positive voltage regulator ICs

Datasheet - production data

Features

 Output current up to 1.5 A
 Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18;

24 V

 Thermal overload protection
 Short circuit protection
 Output transition SOA protection
 2 % output voltage tolerance (A version)
 Guaranteed in extended temperature range

(A version)

Description

The L78 series of three-terminal positive
regulators is available in TO-220, TO-220FP,
D²PAK and DPAK packages and several fixed
output voltages, making it useful in a wide range
of applications.

These regulators can provide local on-card
regulation, eliminating the distribution problems
associated with single point regulation. Each type
embeds internal current limiting, thermal shut­down and safe area protection, making it
essentially indestructible. If adequate heat
sinking is provided, they can deliver over 1 A
output current. Although designed primarily as
fixed voltage regulators, these devices can be
used with external components to obtain
adjustable voltage and currents.

Downloaded from Arrow.com.

Contents

L78

2/54

DocID2143 Rev 34

Contents

1 Diagram ............................................................................................ 3

2 Pin configuration ............................................................................. 4

3 Maximum ratings ............................................................................. 5

4 Test circuits ..................................................................................... 6

5 Electrical characteristics ................................................................ 7

6 Application information ................................................................ 23

6.1 Design consideration ....................................................................... 23

7 Typical performance ..................................................................... 31

8 Package information ..................................................................... 33

8.1 TO-220 (dual gauge) package information ...................................... 34

8.2 TO-220 (single gauge) package information ................................... 36

8.3 TO-220FP package information ...................................................... 38

8.4 TO-220 packing information ............................................................ 40

8.5 DPAK package information ............................................................. 41

8.6 D²PAK (SMD 2L STD-ST) type A package information ................... 44

8.7 D²PAK (SMD 2L Wooseok-subcon.) package information .............. 46

8.8 D²PAK and DPAK packing information ........................................... 49

9 Ordering information ..................................................................... 52

10 Revision history ............................................................................ 53

Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Diagram

DocID2143 Rev 34

3/54

1 Diagram

Figure 1: Block diagram

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Pin configuration

L78

4/54

DocID2143 Rev 34

2 Pin configuration

Figure 2: Pin connections (top view)

Figure 3: Schematic diagram

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Maximum ratings

DocID2143 Rev 34

5/54

Symbol

Parameter

Value

Unit

VI

DC input voltage
for VO= 5 to 18 V

35

V

for VO= 20, 24 V

40

IO

Output current

Internally limited

PD

Power dissipation

Internally limited

T

STG

Storage temperature range

-65 to 150

°C

TOP

Operating junction temperature range
for L78xxC, L78xxAC

0 to 125

°C

for L78xxAB

-40 to 125

Absolute maximum ratings are those values beyond which damage to the device
may occur. Functional operation under these condition is not implied.

Symbol

Parameter

D²PAK

DPAK

TO-220

TO-220FP

Unit

R

thJC

Thermal resistance junction-case

3 8 5

5

°C/W

R

thJA

Thermal resistance junction-ambient

62.5

100

50

60

°C/W

3 Maximum ratings

Table 1: Absolute maximum ratings

Table 2: Thermal data

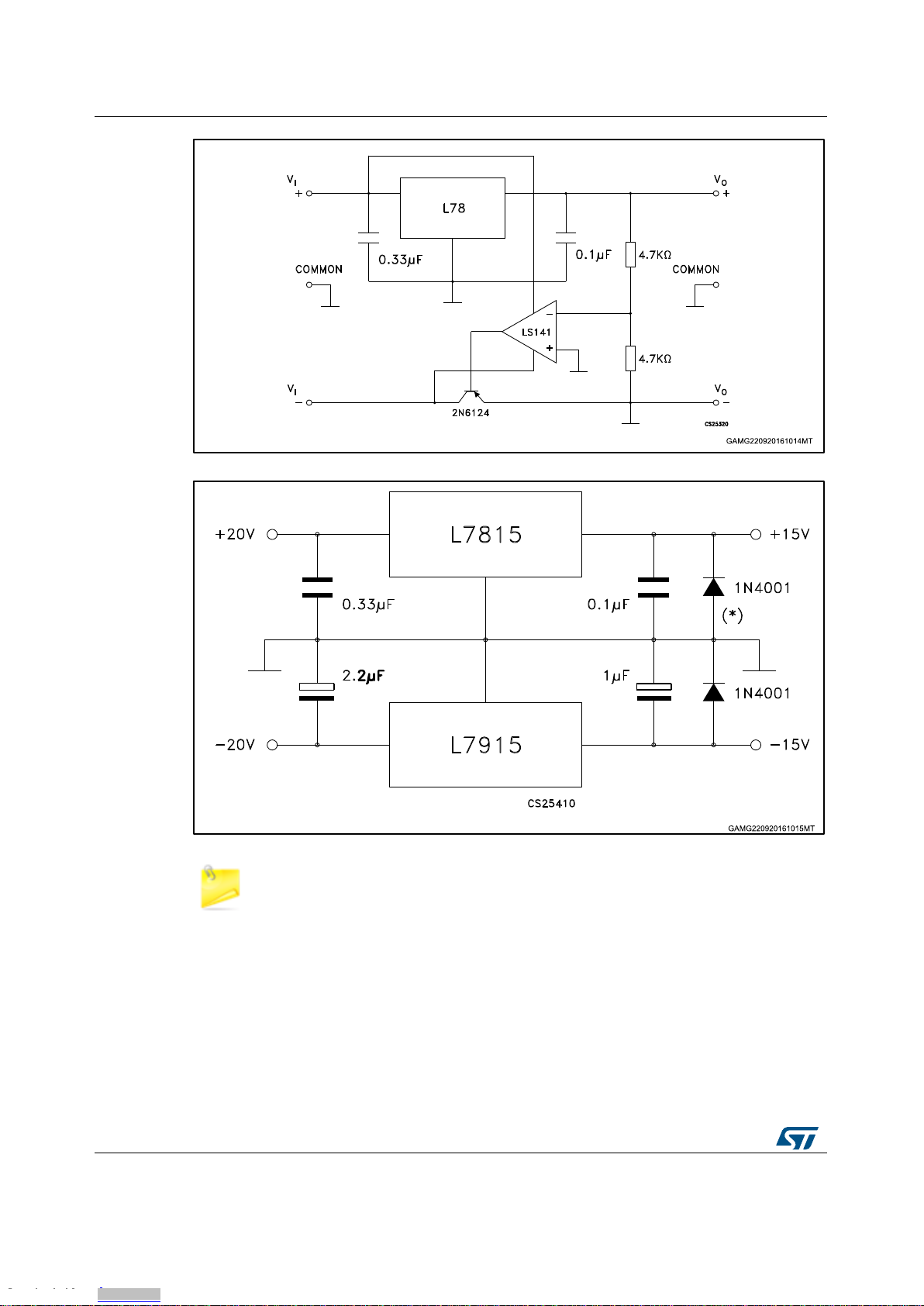

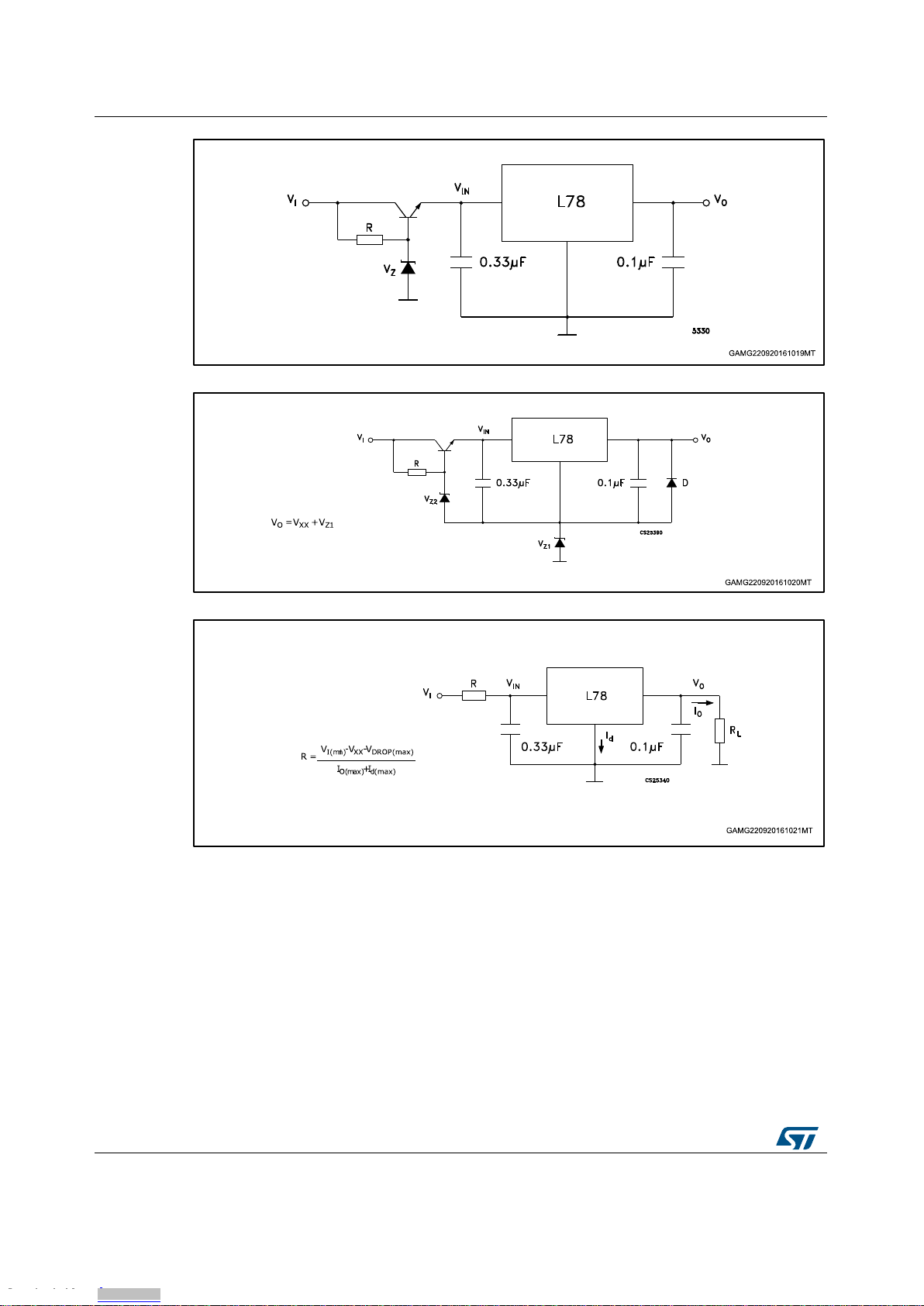

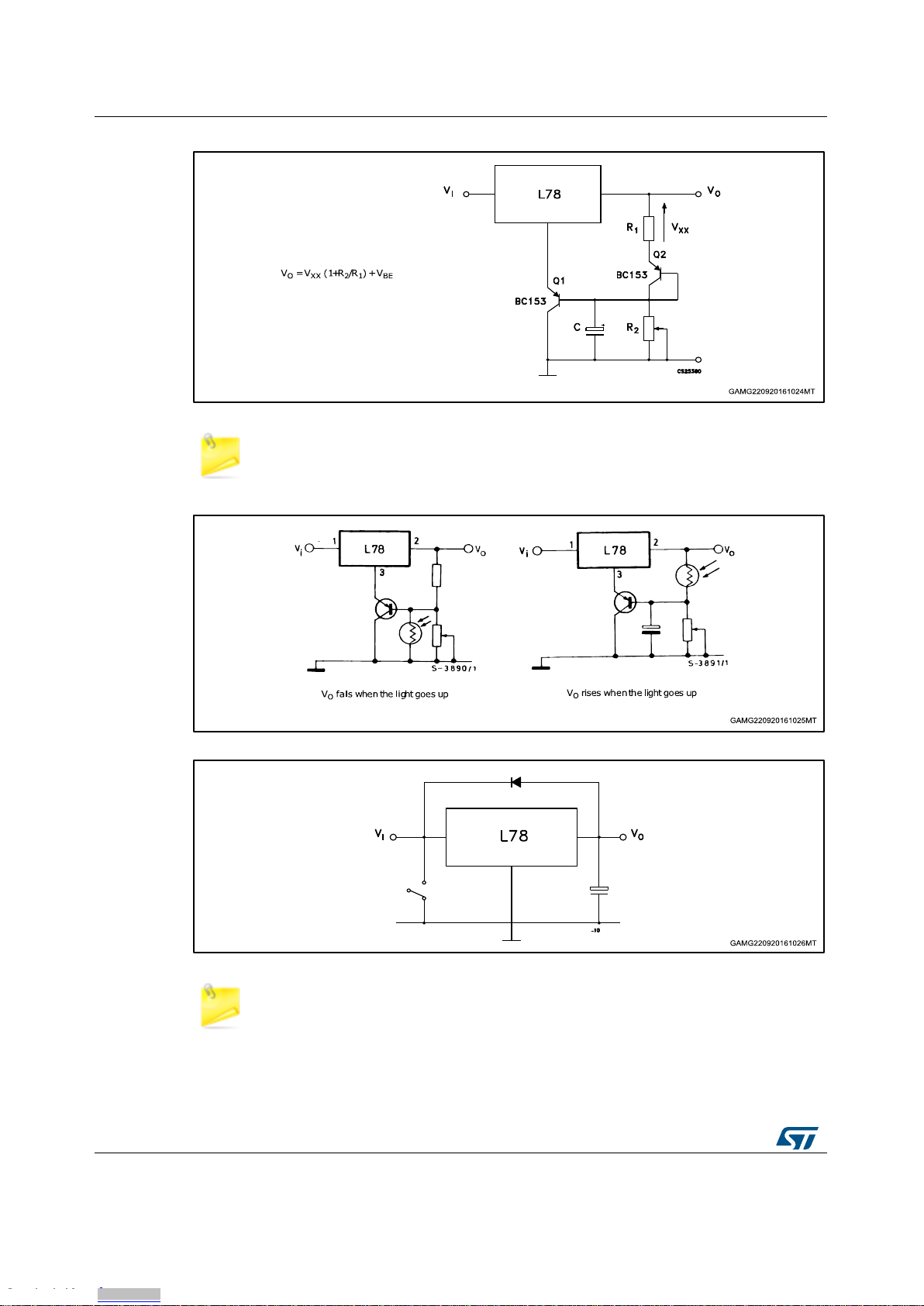

Figure 4: Application circuits

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Test circuits

L78

6/54

DocID2143 Rev 34

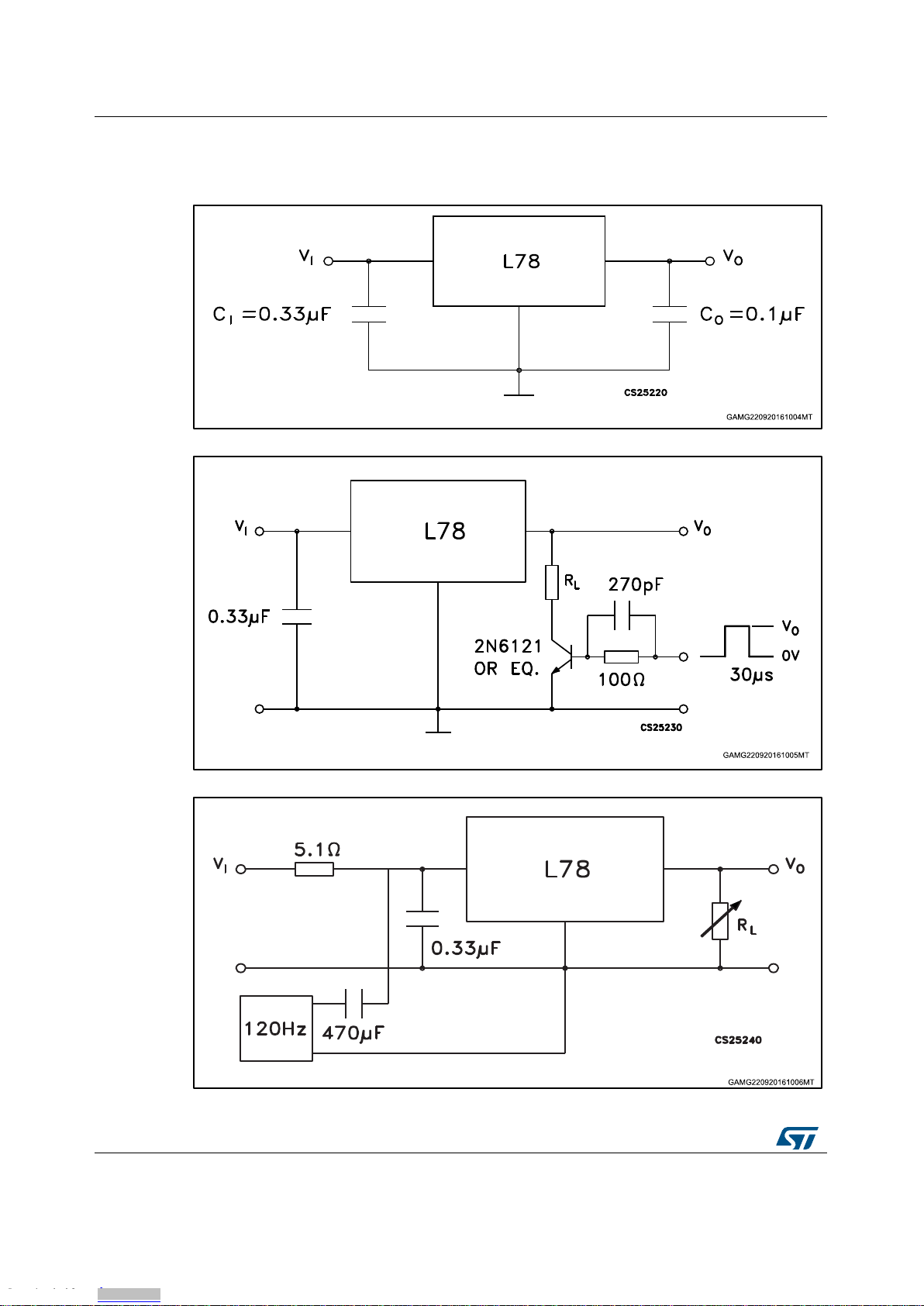

4 Test circuits

Figure 5: DC parameter

Figure 6: Load regulation

Figure 7: Ripple rejection

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Electrical characteristics

DocID2143 Rev 34

7/54

Symbol

Parameter

Test conditions

Min.

Typ.

Max.

Unit

VO

Output voltage

TJ = 25 °C

4.9 5 5.1 V VO

Output voltage

IO = 5 mA to 1 A, VI = 7.5 to 18 V

4.8 5 5.2 V VO

Output voltage

IO = 1 A, VI = 18 to 20 V, TJ = 25 °C

4.8 5 5.2

V

∆V

O

(1)

Line regulation

VI = 7.5 to 25 V, IO = 500 mA, TJ = 25 °C

7

50

mV

VI = 8 to 12 V

10

50

mV

VI = 8 to 12 V, TJ = 25 °C

2

25

mV

VI = 7.3 to 20 V, TJ = 25 °C

7

50

mV

∆V

O

(1)

Load regulation
IO = 5 mA to 1 A

25

100

mV

IO = 5 mA to 1.5 A, TJ = 25 °C

30

100

IO = 250 to 750 mA

8

50

Iq

Quiescent current
TJ = 25 °C

4.3 6 mA 6 mA

∆I

q

Quiescent current change
VI = 8 to 23 V, IO = 500 mA

0.8

mA

VI = 7.5 to 20 V, TJ = 25 °C

0.8

mA

IO = 5 mA to 1 A

0.5

mA

SVR

Supply voltage rejection

VI = 8 to 18 V, f = 120 Hz, IO = 500 mA

68

dB

Vd

Dropout voltage

IO = 1 A, TJ = 25 °C

2 V eN

Output noise voltage

TA = 25 °C, B =10 Hz to 100 kHz

10

µV/VO

RO

Output resistance

f = 1 kHz

17

mΩ

Isc

Short circuit current

VI = 35 V, TA = 25 °C

0.2 A I

scp

Short circuit peak current

TJ = 25 °C

2.2

A

∆V

O

/∆T

Output voltage drift

-1.1

mV/°C

Notes:

(1)

Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into

account separately. Pulse testing with low duty cycle is used.

a

5 Electrical characteristics

VI = 10 V, IO = 1 A, TJ = 0 to 125 °C (L7805AC), TJ = -40 to 125 °C (L7805AB), unless
otherwise specifieda

Table 3: Electrical characteristics of L7805A

Minimum load current for regulation is 5 mA.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Electrical characteristics

L78

8/54

DocID2143 Rev 34

Symbol

Parameter

Test conditions

Min.

Typ.

Max.

Unit

VO

Output voltage

TJ = 25 °C

5.88 6 6.12 V VO

Output voltage

IO = 5 mA to 1 A, VI = 8.6 to 19 V

5.76 6 6.24 V VO

Output voltage

IO = 1 A, VI = 19 to 21 V, TJ = 25 °C

5.76 6 6.24

V

∆V

O

(1)

Line regulation

VI = 8.6 to 25 V, IO = 500 mA, TJ = 25 °C

9

60

mV

VI = 9 to 13 V

11

60

mV

VI = 9 to 13 V, TJ = 25 °C

3

30

mV

VI = 8.3 to 21 V, TJ = 25 °C

9

60

mV

∆V

O

(1)

Load regulation
IO = 5 mA to 1 A

25

100

mV

IO = 5 mA to 1.5 A, TJ = 25 °C

30

100

IO = 250 to 750 mA

10

50

Iq

Quiescent current
TJ = 25° C

4.3 6 mA

6

mA

∆I

q

Quiescent current change
VI = 9 to 24 V, IO = 500 mA

0.8

mA

VI = 8.6 to 21 V, TJ = 25 °C

0.8

mA

IO = 5 mA to 1 A

0.5

mA

SVR

Supply voltage rejection

VI = 9 to 19 V, f = 120 Hz, IO = 500 mA

65

dB

Vd

Dropout voltage

IO = 1 A, TJ = 25 °C

2 V eN

Output noise voltage

TA = 25 °C, B =10 Hz to 100 kHz

10

µV/VO

RO

Output resistance

f = 1 kHz

17

mΩ

Isc

Short circuit current

VI = 35 V, TA = 25 °C

0.2 A I

scp

Short circuit peak current

TJ = 25 °C

2.2

A

∆V

O

/∆T

Output voltage drift

-0.8

mV/°C

Notes:

(1)

Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into

account separately. Pulse testing with low duty cycle is used.

a

VI = 11 V, IO = 1 A, TJ = 0 to 125 °C (L7806AC), TJ = -40 to 125 °C (L7806AB), unless
otherwise specifieda

Table 4: Electrical characteristics of L7806A

Minimum load current for regulation is 5 mA.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Electrical characteristics

DocID2143 Rev 34

9/54

Symbol

Parameter

Test conditions

Min.

Typ.

Max.

Unit

VO

Output voltage

TJ = 25 °C

7.84 8 8.16 V VO

Output voltage

IO = 5 mA to 1 A, VI = 10.6 to 21 V

7.7 8 8.3 V VO

Output voltage

IO = 1 A, VI = 21 to 23 V, TJ = 25 °C

7.7 8 8.3

V

∆V

O

(1)

Line regulation

VI = 10.6 to 25 V, IO = 500 mA, TJ = 25 °C

12

80

mV

VI = 11 to 17 V

15

80

mV

VI = 11 to 17 V, TJ = 25 °C

5

40

mV

VI = 10.4 to 23 V, TJ = 25 °C

12

80

mV

∆V

O

(1)

Load regulation
IO = 5 mA to 1 A

25

100

mV

IO = 5 mA to 1.5 A, TJ = 25 °C

30

100

IO = 250 to 750 mA

10

50

Iq

Quiescent current
TJ = 25 °C

4.3 6 mA

6

mA

∆I

q

Quiescent current change
VI = 11 to 23 V, IO = 500 mA

0.8

mA

VI = 10.6 to 23 V, TJ = 25 °C

0.8

mA

IO = 5 mA to 1 A

0.5

mA

SVR

Supply voltage rejection

VI = 11.5 to 21.5 V, f = 120 Hz, IO = 500 mA

62

dB

Vd

Dropout voltage

IO = 1 A, TJ = 25 °C

2 V eN

Output noise voltage

TA = 25 °C, B =10 Hz to 100 kHz

10

µV/VO

RO

Output resistance

f = 1 kHz

18

mΩ

Isc

Short circuit current

VI = 35 V, TA = 25 °C

0.2 A I

scp

Short circuit peak current

TJ = 25 °C

2.2

A

∆V

O

/∆T

Output voltage drift

-0.8

mV/°C

Notes:

(1)

Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into

account separately. Pulse testing with low duty cycle is used.

a

VI = 14 V, IO = 1 A, TJ = 0 to 125 °C (L7808AC), TJ = -40 to 125 °C (L7808AB), unless
otherwise specifieda

Table 5: Electrical characteristics of L7808A

Minimum load current for regulation is 5 mA.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Electrical characteristics

L78

10/54

DocID2143 Rev 34

Symbol

Parameter

Test conditions

Min.

Typ.

Max.

Unit

VO

Output voltage

TJ = 25 °C

8.82 9 9.18 V VO

Output voltage

IO = 5 mA to 1 A, VI = 10.6 to 22 V

8.65 9 9.35 V VO

Output voltage

IO = 1 A, VI = 22 to 24 V, TJ = 25 °C

8.65 9 9.35

V

∆V

O

(1)

Line regulation

VI = 10.6 to 25 V, IO = 500 mA, TJ = 25 °C

12

90

mV

VI = 11 to 17 V

15

90

mV

VI = 11 to 17 V, TJ = 25 °C

5

45

mV

VI = 11.4 to 23 V, TJ = 25 °C

12

90

mV

∆V

O

(1)

Load regulation
IO = 5 mA to 1 A

25

100

mV

IO = 5 mA to 1.5 A, TJ = 25 °C

30

100

IO = 250 to 750 mA

10

50

Iq

Quiescent current
TJ = 25 °C

4.3 6 mA

6

mA

∆I

q

Quiescent current change
VI = 11 to 25 V, IO = 500 mA

0.8

mA

VI = 10.6 to 23 V, TJ = 25 °C

0.8

mA

IO = 5 mA to 1 A

0.5

mA

SVR

Supply voltage rejection

VI = 11.5 to 21.5 V, f = 120 Hz, IO = 500 mA

61

dB

Vd

Dropout voltage

IO = 1 A, TJ = 25 °C

2 V eN

Output noise voltage

TA = 25 °C, B =10 Hz to 100 kHz

10

µV/VO

RO

Output resistance

f = 1 kHz

18

mΩ

Isc

Short circuit current

VI = 35 V, TA = 25 °C

0.2 A I

scp

Short circuit peak current

TJ = 25 °C

2.2

A

∆V

O

/∆T

Output voltage drift

-0.8

mV/°C

Notes:

(1)

Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into

account separately. Pulse testing with low duty cycle is used.

a

VI = 15 V, IO = 1 A, TJ = 0 to 125 °C (L7809AC), TJ = -40 to 125 °C (L7809AB), unless
otherwise specifieda

Table 6: Electrical characteristics of L7809A

Minimum load current for regulation is 5 mA.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Electrical characteristics

DocID2143 Rev 34

11/54

Symbol

Parameter

Test conditions

Min.

Typ.

Max.

Unit

VO

Output voltage

TJ = 25 °C

11.75

12

12.25 V VO

Output voltage

IO = 5 mA to 1 A, VI = 14.8 to 25 V

11.5

12

12.5 V VO

Output voltage

IO = 1 A, VI = 25 to 27 V, TJ = 25 °C

11.5

12

12.5

V

∆V

O

(1)

Line regulation

VI = 14.8 to 30 V, IO = 500 mA, TJ = 25 °C

13

120

mV

VI = 16 to 12 V

16

120

mV

VI = 16 to 12 V, TJ = 25 °C

6

60

mV

VI = 14.5 to 27 V, TJ = 25 °C

13

120

mV

∆V

O

(1)

Load regulation
IO = 5 mA to 1 A

25

100

mV

IO = 5 mA to 1.5 A, TJ = 25 °C

30

100

IO = 250 to 750 mA

10

50

Iq

Quiescent current
TJ = 25 °C

4.4 6 mA

6

mA

DIq

Quiescent current change
VI = 15 to 30 V, IO = 500 mA

0.8

mA

VI = 14.8 to 27 V, TJ = 25 °C

0.8

mA

IO = 5 mA to 1 A

0.5

mA

SVR

Supply voltage rejection

VI = 15 to 25 V, f = 120 Hz, IO = 500 mA

60

dB

Vd

Dropout voltage

IO = 1 A, TJ = 25 °C

2 V eN

Output noise voltage

TA = 25 °C, B = 10 Hz to 100 kHz

10

µV/VO

RO

Output resistance

f = 1 kHz

18

mΩ

Isc

Short circuit current

VI = 35 V, TA = 25 °C

0.2 A I

scp

Short circuit peak current

TJ = 25 °C

2.2

A

∆V

O

/∆T

Output voltage drift

-1

mV/°C

Notes:

(1)

Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into

account separately. Pulse testing with low duty cycle is used.

a

VI = 19 V, IO = 1 A, TJ = 0 to 125 °C (L7812AC), TJ = -40 to 125 °C (L7812AB), unless
otherwise specifieda

Table 7: Electrical characteristics of L7812A

Minimum load current for regulation is 5 mA.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Electrical characteristics

L78

12/54

DocID2143 Rev 34

Symbol

Parameter

Test conditions

Min.

Typ.

Max.

Unit

VO

Output voltage

TJ = 25 °C

14.7

15

15.3 V VO

Output voltage

IO = 5 mA to 1 A, VI = 17.9 to 28 V

14.4

15

15.6 V VO

Output voltage

IO = 1 A, VI = 28 to 30 V, TJ = 25 °C

14.4

15

15.6

V

∆V

O

(1)

Line regulation

VI = 17.9 to 30 V, IO = 500 mA, TJ = 25 °C

13

150

mV

VI = 20 to 26 V

16

150

mV

VI = 20 to 26 V, TJ = 25 °C

6

75

mV

VI = 17.5 to 30 V, TJ = 25 °C

13

150

mV

∆V

O

(1)

Load regulation
IO = 5 mA to 1 A

25

100

mV

IO = 5 mA to 1.5 A, TJ = 25 °C

30

100

IO = 250 to 750 mA

10

50

Iq

Quiescent current
TJ = 25 °C

4.4 6 mA

6

mA

∆I

q

Quiescent current change
VI = 17.5 to 30 V, IO = 500 mA

0.8

mA

VI = 17.5 to 30 V, TJ = 25 °C

0.8

mA

IO = 5 mA to 1 A

0.5

mA

SVR

Supply voltage rejection

VI = 18.5 to 28.5 V, f = 120 Hz, IO = 500 mA

58

dB

Vd

Dropout voltage

IO = 1 A, TJ = 25 °C

2 V eN

Output noise voltage

TA = 25 °C, B = 10Hz to 100 kHz

10

µV/VO

RO

Output resistance

f = 1 kHz

19

mΩ

Isc

Short circuit current

VI = 35 V, TA = 25 °C

0.2 A I

scp

Short circuit peak current

TJ = 25 °C

2.2

A

∆V

O

/∆T

Output voltage drift

-1

mV/°C

Notes:

(1)

Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into

account separately. Pulse testing with low duty cycle is used.

a

VI = 23 V, IO = 1 A, TJ = 0 to 125 °C (L7815AC), TJ = -40 to 125 °C (L7815AB), unless
otherwise specifieda

Table 8: Electrical characteristics of L7815A

Minimum load current for regulation is 5 mA.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Electrical characteristics

DocID2143 Rev 34

13/54

Symbol

Parameter

Test conditions

Min.

Typ.

Max.

Unit

VO

Output voltage

TJ = 25 °C

23.5

24

24.5 V VO

Output voltage

IO = 5 mA to 1 A, VI = 27.3 to 37 V

23

24

25 V VO

Output voltage

IO = 1 A, VI = 37 to 38 V, TJ = 25 °C

23

24

25

V

∆V

O

(1)

Line regulation

VI = 27 to 38 V, IO = 500 mA, TJ = 25 °C

31

240

mV

VI = 30 to 36 V

35

200

mV

VI = 30 to 36 V, TJ = 25 °C

14

120

mV

VI = 26.7 to 38 V, TJ = 25 °C

31

240

mV

∆V

O

(1)

Load regulation
IO = 5 mA to 1 A

25

100

mV

IO = 5 mA to 1.5 A, TJ = 25 °C

30

100

IO = 250 to 750 mA

10

50

Iq

Quiescent current
TJ = 25 °C

4.6 6 mA

6

mA

∆I

q

Quiescent current change
VI = 27.3 to 38 V, IO = 500 mA

0.8

mA

VI = 27.3 to 38 V, TJ = 25 °C

0.8

mA

IO = 5 mA to 1 A

0.5

mA

SVR

Supply voltage rejection

VI = 28 to 38 V, f = 120 Hz, IO = 500 mA

54

dB

Vd

Dropout voltage

IO = 1 A, TJ = 25 °C

2 V eN

Output noise voltage

TA = 25 °C, B = 10 Hz to 100 kHz

10

µV/VO

RO

Output resistance

f = 1 kHz

20 m Isc

Short circuit current

VI = 35 V, TA = 25 °C

0.2 A I

scp

Short circuit peak current

TJ = 25 °C

2.2

A

∆V

O

/∆T

Output voltage drift

-1.5

mV/°C

Notes:

(1)

Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into

account separately. Pulse testing with low duty cycle is used.

a

VI = 33 V, IO = 1 A, TJ = 0 to 125 °C (L7824AC), TJ = -40 to 125 °C (L7824AB), unless
otherwise specifieda

Table 9: Electrical characteristics of L7824A

Minimum load current for regulation is 5 mA.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Electrical characteristics

L78

14/54

DocID2143 Rev 34

Symbol

Parameter

Test conditions

Min.

Typ.

Max.

Unit

VO

Output voltage

TJ = 25 °C

4.8 5 5.2 V VO

Output voltage

IO = 5 mA to 1 A, VI = 7 to 18 V

4.75 5 5.25 V VO

Output voltage

IO = 1 A, VI = 18 to 20V, TJ = 25 °C

4.75 5 5.25

V

∆V

O

(1)

Line regulation
VI = 7 to 25 V, TJ = 25 °C

3

100

mV

VI = 8 to 12 V, TJ = 25 °C

1

50

∆V

O

(1)

Load regulation
IO = 5 mA to 1.5 A, TJ = 25 °C

100

mV

IO = 250 to 750 mA, TJ = 25 °C

50

Id

Quiescent current

TJ = 25° C

8

mA

∆I

d

Quiescent current change
IO = 5 mA to 1 A

0.5

mA

VI = 7 to 23 V

0.8

∆V

O

/∆T

Output voltage drift

IO = 5 mA

-1.1

mV/°C

eN

Output noise voltage

B = 10 Hz to 100 kHz, TJ = 25 °C

40

µV/VO

SVR

Supply voltage rejection

VI = 8 to 18 V, f = 120 Hz

62

dB

Vd

Dropout voltage

IO = 1 A, TJ = 25 °C

2 V RO

Output resistance

f = 1 kHz

17

mΩ

Isc

Short circuit current

VI = 35 V, TJ = 25 °C

0.75 A I

scp

Short circuit peak current

TJ = 25 °C

2.2

A

Notes:

(1)

Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into

account separately. Pulse testing with low duty cycle is used.

a

Refer to the test circuits, TJ = 0 to 125 °C, VI = 10 V, IO = 500 mA, CI = 0.33 µF, CO = 0.1 µF
unless otherwise specifieda

Table 10: Electrical characteristics of L7805C

Minimum load current for regulation is 5 mA.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Electrical characteristics

DocID2143 Rev 34

15/54

Symbol

Parameter

Test conditions

Min.

Typ.

Max.

Unit

VO

Output voltage

TJ = 25 °C

5.75 6 6.25 V VO

Output voltage

IO = 5 mA to 1 A, VI = 8 to 19 V

5.7 6 6.3 V VO

Output voltage

IO = 1 A, VI = 19 to 21 V, TJ = 25 °C

5.7 6 6.3

V

∆V

O

(1)

Line regulation
VI = 8 to 25 V, TJ = 25 °C

120

mV

VI = 9 to 13 V, TJ = 25 °C

60

∆V

O

(1)

Load regulation
IO = 5 mA to 1.5 A, TJ = 25 °C

120

mV

IO = 250 to 750 mA, TJ = 25 °C

60

Id

Quiescent current

TJ = 25 °C

8

mA

DId

Quiescent current change
IO = 5 mA to 1 A

0.5

mA

VI = 8 to 24 V

1.3

∆V

O

/∆T

Output voltage drift

IO = 5 mA

-0.8

mV/°C

eN

Output noise voltage

B = 10 Hz to 100 kHz, TJ = 25 °C

45

µV/VO

SVR

Supply voltage rejection

VI = 9 to 19 V, f = 120 Hz

59

dB

Vd

Dropout voltage

IO = 1 A, TJ = 25 °C

2 V RO

Output resistance

f = 1 kHz

19

mΩ

Isc

Short circuit current

VI = 35 V, TJ = 25 °C

0.55 A I

scp

Short circuit peak current

TJ = 25 °C

2.2

A

Notes:

(1)

Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into

account separately. Pulse testing with low duty cycle is used.

a

Refer to the test circuits, TJ = 0 to 125 °C, VI = 11 V, IO = 500 mA, CI = 0.33 µF, CO = 0.1 µF
unless otherwise specifieda

Table 11: Electrical characteristics of L7806C

Minimum load current for regulation is 5 mA.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Electrical characteristics

L78

16/54

DocID2143 Rev 34

Symbol

Parameter

Test conditions

Min.

Typ.

Max.

Unit

VO

Output voltage

TJ = 25 °C

7.7 8 8.3 V VO

Output voltage

IO = 5 mA to 1 A, VI = 10.5 to 21 V

7.6 8 8.4 V VO

Output voltage

IO = 1 A, VI = 21 to 25 V, TJ = 25 °C

7.6 8 8.4

V

∆V

O

(1)

Line regulation
VI = 10.5 to 25 V, TJ = 25 °C

160

mV

VI = 11 to 17 V, TJ = 25 °C

80

∆V

O

(1)

Load regulation
IO = 5 mA to 1.5 A, TJ = 25 °C

160

mV

IO = 250 to 750 mA, TJ = 25 °C

80

Id

Quiescent current

TJ = 25 °C

8

mA

∆I

d

Quiescent current change
IO = 5 mA to 1 A

0.5

mA

VI = 10.5 to 25 V

1

∆V

O

/∆T

Output voltage drift

IO = 5 mA

-0.8

mV/°C

eN

Output noise voltage

B = 10 Hz to 100 kHz, TJ = 25 °C

52

µV/VO

SVR

Supply voltage rejection

VI = 11.5 to 21.5 V, f = 120 Hz

56

dB

Vd

Dropout voltage

IO = 1 A, TJ = 25 °C

2 V RO

Output resistance

f = 1 kHz

16

mΩ

Isc

Short circuit current

VI = 35 V, TJ = 25 °C

0.45 A I

scp

Short circuit peak current

TJ = 25 °C

2.2

A

Notes:

(1)

Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into

account separately. Pulse testing with low duty cycle is used.

a

Refer to the test circuits, TJ = 0 to 125 °C, VI = 14 V, IO = 500 mA, CI = 0.33 µF, CO = 0.1 µF
unless otherwise specifieda

Table 12: Electrical characteristics of L7808C

Minimum load current for regulation is 5 mA.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Electrical characteristics

DocID2143 Rev 34

17/54

Symbol

Parameter

Test conditions

Min.

Typ.

Max.

Unit

VO

Output voltage

TJ = 25 °C

8.2

8.5

8.8 V VO

Output voltage

IO = 5 mA to 1 A, VI = 11 to 21.5 V

8.1

8.5

8.9 V VO

Output voltage

IO = 1 A, VI = 21.5 to 26 V, TJ = 25 °C

8.1

8.5

8.9

V

∆V

O

(1)

Line regulation
VI = 11 to 27 V, TJ = 25 °C

160

mV

VI = 11.5 to 17.5 V, TJ = 25 °C

80

∆V

O

(1)

Load regulation
IO = 5 mA to 1.5 A, TJ = 25 °C

160

mV

IO = 250 to 750 mA, TJ = 25 °C

80

Id

Quiescent current

TJ = 25 °C

8

mA

∆I

d

Quiescent current change
IO = 5 mA to 1 A

0.5

mA

VI = 11 to 26 V

1

∆V

O

/∆T

Output voltage drift

IO = 5 mA

-0.8

mV/°C

eN

Output noise voltage

B = 10 Hz to 100 kHz, TJ = 25 °C

55

µV/VO

SVR

Supply voltage rejection

VI = 12 to 22 V, f = 120 Hz

56

dB

Vd

Dropout voltage

IO = 1 A, TJ = 25 °C

2 V RO

Output resistance

f = 1 kHz

16

mΩ

Isc

Short circuit current

VI = 35 V, TJ = 25 °C

0.45 A I

scp

Short circuit peak current

TJ = 25 °C

2.2

A

Notes:

(1)

Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into

account separately. Pulse testing with low duty cycle is used.

a

Refer to the test circuits, TJ = 0 to 125 °C, VI = 14.5 V, IO = 500 mA, CI = 0.33 µF,
CO = 0.1 µF unless otherwise specifieda

Table 13: Electrical characteristics of L7885C

Minimum load current for regulation is 5 mA.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Electrical characteristics

L78

18/54

DocID2143 Rev 34

Symbol

Parameter

Test conditions

Min.

Typ.

Max.

Unit

VO

Output voltage

TJ = 25 °C

8.64 9 9.36 V VO

Output voltage

IO = 5 mA to 1 A, VI = 11.5 to 22 V

8.55 9 9.45 V VO

Output voltage

IO = 1 A, VI = 22 to 26 V, TJ = 25 °C

8.55 9 9.45

V

∆V

O

(1)

Line regulation
VI = 11.5 to 26 V, TJ = 25 °C

180

mV

VI = 12 to 18 V, TJ = 25 °C

90

∆V

O

(1)

Load regulation
IO = 5 mA to 1.5 A, TJ = 25 °C

180

mV

IO = 250 to 750 mA, TJ = 25 °C

90

Id

Quiescent current

TJ = 25 °C

8

mA

∆I

d

Quiescent current change
IO = 5 mA to 1 A

0.5

mA

VI = 11.5 to 26 V

1

∆V

O

/∆T

Output voltage drift

IO = 5 mA

-1

mV/°C

eN

Output noise voltage

B = 10 Hz to 100 kHz, TJ = 25 °C

70

µV/VO

SVR

Supply voltage rejection

VI = 12 to 23 V, f = 120 Hz

55

dB

Vd

Dropout voltage

IO = 1 A, TJ = 25 °C

2 V RO

Output resistance

f = 1 kHz

17

mΩ

Isc

Short circuit current

VI = 35 V, TJ = 25 °C

0.40 A I

scp

Short circuit peak current

TJ = 25 °C

2.2

A

Notes:

(1)

Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into

account separately. Pulse testing with low duty cycle is used.

a

Refer to the test circuits, TJ = 0 to 125 °C, VI = 15 V, IO = 500 mA, CI = 0.33 µF, CO = 0.1 µF
unless otherwise specifieda

Table 14: Electrical characteristics of L7809C

Minimum load current for regulation is 5 mA.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Electrical characteristics

DocID2143 Rev 34

19/54

Symbol

Parameter

Test conditions

Min.

Typ.

Max.

Unit

VO

Output voltage

TJ = 25 °C

11.5

12

12.5 V VO

Output voltage

IO = 5 mA to 1 A, VI = 14.5 to 25 V

11.4

12

12.6 V VO

Output voltage

IO = 1 A, VI = 25 to 27 V, TJ = 25 °C

11.4

12

12.6

V

∆V

O

(1)

Line regulation
VI = 14.5 to 30 V, TJ = 25 °C

240

mV

VI = 16 to 22 V, TJ = 25 °C

120

∆V

O

(1)

Load regulation
IO = 5 mA to 1.5 A, TJ = 25 °C

240

mV

IO = 250 to 750 mA, TJ = 25 °C

120

Id

Quiescent current

TJ = 25 °C

8

mA

∆I

d

Quiescent current change
IO = 5 mA to 1 A

0.5

mA

VI = 14.5 to 30 V

1

∆V

O

/∆T

Output voltage drift

IO = 5 mA

-1

mV/°C

eN

Output noise voltage

B = 10 Hz to 100 kHz, TJ = 25 °C

75

µV/VO

SVR

Supply voltage rejection

VI = 15 to 25 V, f = 120 Hz

55

dB

Vd

Dropout voltage

IO = 1 A, TJ = 25 °C

2 V RO

Output resistance

f = 1 kHz

18

mΩ

Isc

Short circuit current

VI = 35 V, TJ = 25 °C

0.35 A I

scp

Short circuit peak current

TJ = 25 °C

2.2

A

Notes:

(1)

Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into

account separately. Pulse testing with low duty cycle is used.

a

Refer to the test circuits, TJ = 0 to 125 °C, VI = 19 V, IO = 500 mA, CI = 0.33 µF, CO = 0.1 µF
unless otherwise specifieda

Table 15: Electrical characteristics of L7812C

Minimum load current for regulation is 5 mA.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Electrical characteristics

L78

20/54

DocID2143 Rev 34

Symbol

Parameter

Test conditions

Min.

Typ.

Max.

Unit

VO

Output voltage

TJ = 25 °C

14.4

15

15.6 V VO

Output voltage

IO = 5 mA to 1 A, VI = 17.5 to 28 V

14.25

15

15.75 V VO

Output voltage

IO = 1 A, VI = 28 to 30 V, TJ = 25 °C

14.25

15

15.75

V

∆V

O

(1)

Line regulation
VI = 17.5 to 30 V, TJ = 25 °C

300

mV

VI = 20 to 26 V, TJ = 25 °C

150

∆V

O

(1)

Load regulation
IO = 5 mA to 1.5 A, TJ = 25 °C

300

mV

IO = 250 to 750 mA, TJ = 25 °C

150

Id

Quiescent current

TJ = 25 °C

8

mA

∆I

d

Quiescent current change
IO = 5 mA to 1A

0.5

mA

VI = 17.5 to 30 V

1

∆V

O

/∆T

Output voltage drift

IO = 5 mA

-1

mV/°C

eN

Output noise voltage

B = 10 Hz to 100kHz, TJ = 25 °C

90

µV/VO

SVR

Supply voltage rejection

VI = 18.5 to 28.5 V, f = 120 Hz

54

dB

Vd

Dropout voltage

IO = 1 A, TJ = 25 °C

2 V RO

Output resistance

f = 1 kHz

19

mΩ

Isc

Short circuit current

VI = 35 V, TJ = 25 °C

0.23 A I

scp

Short circuit peak current

TJ = 25 °C

2.2

A

Notes:

(1)

Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into

account separately. Pulse testing with low duty cycle is used.

a

Refer to the test circuits, TJ = 0 to 125 °C, VI = 23 V, IO = 500 mA, CI = 0.33 µF, CO = 0.1 µF
unless otherwise specifieda

Table 16: Electrical characteristics of L7815C

Minimum load current for regulation is 5 mA.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Electrical characteristics

DocID2143 Rev 34

21/54

Symbol

Parameter

Test conditions

Min.

Typ.

Max.

Unit

VO

Output voltage

TJ = 25 °C

17.3

18

18.7 V VO

Output voltage

IO = 5 mA to 1 A, VI = 21 to 31 V

17.1

18

18.9 V VO

Output voltage

IO = 1 A, VI = 31 to 33 V, TJ = 25 °C

17.1

18

18.9

V

∆V

O

(1)

Line regulation
VI = 21 to 33 V, TJ = 25 °C

360

mV

VI = 24 to 30 V, TJ = 25 °C

180

∆V

O

(1)

Load regulation
IO = 5 mA to 1.5 A, TJ = 25 °C

360

mV

IO = 250 to 750 mA, TJ = 25 °C

180

Id

Quiescent current

TJ = 25 °C

8

mA

∆I

d

Quiescent current change
IO = 5 mA to 1 A

0.5

mA

VI = 21 to 33 V

1

∆V

O

/∆T

Output voltage drift

IO = 5 mA

-1

mV/°C

eN

Output noise voltage

B = 10 Hz to 100 kHz, TJ = 25 °C

110

µV/VO

SVR

Supply voltage rejection

VI = 22 to 32 V, f = 120 Hz

53

dB

Vd

Dropout voltage

IO = 1 A, TJ = 25 °C

2 V RO

Output resistance

f = 1 kHz

22

mΩ

Isc

Short circuit current

VI = 35 V, TJ = 25 °C

0.20 A I

scp

Short circuit peak current

TJ = 25 °C

2.1

A

Notes:

(1)

Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into

account separately. Pulse testing with low duty cycle is used.

a

Refer to the test circuits, TJ = 0 to 125 °C, VI = 26 V, IO = 500 mA, CI = 0.33 µF, CO = 0.1 µF
unless otherwise specifieda

Table 17: Electrical characteristics of L7818C

Minimum load current for regulation is 5 mA.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Electrical characteristics

L78

22/54

DocID2143 Rev 34

Symbol

Parameter

Test conditions

Min.

Typ.

Max.

Unit

VO

Output voltage

TJ = 25 °C

23

24

25 V VO

Output voltage

IO = 5 mA to 1 A, VI = 27 to 37 V

22.8

24

25.2 V VO

Output voltage

IO = 1 A, VI = 37 to 38 V, TJ = 25 °C

22.8

24

25.2

V

∆V

O

(1)

Line regulation
VI = 27 to 38 V, TJ = 25 °C

480

mV

VI = 30 to 36 V, TJ = 25 °C

240

∆V

O

(1)

Load regulation
IO = 5 mA to 1.5 A, TJ = 25 °C

480

mV

IO = 250 to 750 mA, TJ = 25 °C

240

Id

Quiescent current

TJ = 25 °C

8

mA

∆I

d

Quiescent current change
IO = 5 mA to 1 A

0.5

mA

VI = 27 to 38 V

1

∆V

O

/∆T

Output voltage drift

IO = 5 mA

-1.5

mV/°C

eN

Output noise voltage

B = 10 Hz to 100 kHz, TJ = 25 °C

170

µV/VO

SVR

Supply voltage rejection

VI = 28 to 38 V, f = 120 Hz

50

dB

Vd

Dropout voltage

IO = 1 A, TJ = 25 °C

2 V RO

Output resistance

f = 1 kHz

28

mΩ

Isc

Short circuit current

VI = 35 V, TJ = 25° C

0.15 A I

scp

Short circuit peak current

TJ = 25 °C

2.1

A

Notes:

(1)

Load and line regulation are specified at constant junction temperature. Changes in VO due to heating effects must be taken into

account separately. Pulse testing with low duty cycle is used.

a

Refer to the test circuits, TJ = 0 to 125 °C, VI = 33 V, IO = 500 mA, CI = 0.33 µF, CO = 0.1 µF
unless otherwise specifieda

Table 18: Electrical characteristics of L7824C

Minimum load current for regulation is 5 mA.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Application information

DocID2143 Rev 34

23/54

6 Application information

6.1 Design consideration

The L78 Series of fixed voltage regulators are designed with thermal overload protection
that shuts down the circuit when subjected to an excessive power overload condition,
internal short-circuit protection that limits the maximum current the circuit will pass, and
output transistor safe-area compensation that reduces the output short-circuit current as
the voltage across the pass transistor is increased. In many low current applications,
compensation capacitors are not required. However, it is recommended that the regulator
input be bypassed with capacitor if the regulator is connected to the power supply filter with
long lengths, or if the output load capacitance is large. An input bypass capacitor should be
selected to provide good high frequency characteristics to insure stable operation under all
load conditions. A 0.33 µF or larger tantalum, mylar or other capacitor having low internal
impedance at high frequencies should be chosen. The bypass capacitor should be
mounted with the shortest possible leads directly across the regulators input terminals.
Normally good construction techniques should be used to minimize ground loops and lead
resistance drops since the regulator has no external sense lead.

The addition of an operational amplifier allows adjustment to higher or intermediate values
while retaining regulation characteristics. The minimum voltage obtained with the
arrangement is 2 V greater than the regulator voltage.

The circuit of Figure 13: "High current voltage regulator" can be modified to provide supply
protection against short circuit by adding a short circuit sense resistor, RSC, and an
additional PNP transistor. The current sensing PNP must be able to handle the short circuit
current of the three terminal regulator Therefore a four ampere plastic power transistor is
specified.

Figure 8: Fixed output regulator

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

1. Although no output capacitor is need for stability, it does improve transient response.

2. Required if regulator is located an appreciable distance from power supply filter.

Application information

L78

24/54

DocID2143 Rev 34

Figure 9: Current regulator

Figure 10: Circuit for increasing output voltage

Figure 11: Adjustable output regulator (7 to 30 V)

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Application information

DocID2143 Rev 34

25/54

Figure 12: 0.5 to 10 V regulator

Figure 13: High current voltage regulator

Figure 14: High output current with short circuit protection

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Application information

L78

26/54

DocID2143 Rev 34

* Against potential latch-up problems.

Figure 15: Tracking voltage regulator

Figure 16: Split power supply (± 15 V - 1 A)

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Application information

DocID2143 Rev 34

27/54

Figure 17: Negative output voltage circuit

Figure 18: Switching regulator

Figure 19: High input voltage circuit (configuration 1)

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Application information

L78

28/54

DocID2143 Rev 34

Figure 20: High input voltage circuit (configuration 2)

Figure 21: High input and output voltage

Figure 22: Reducing power dissipation with dropping resistor

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Application information

DocID2143 Rev 34

29/54

The circuit performs well up to 100 kHz.

Figure 23: Remote shutdown

Figure 24: Power AM modulator (unity voltage gain, IO ≤ 0.5)

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Application information

L78

30/54

DocID2143 Rev 34

Q2 is connected as a diode in order to compensate the variation of the Q1 VBE with
the temperature. C allows a slow rise time of the VO.

Application with high capacitance loads and an output voltage greater than 6 volts
need an external diode (see Figure 22: "Reducing power dissipation with dropping

resistor") to protect the device against input short circuit. In this case the input

voltage falls rapidly while the output voltage decrease slowly. The capacitance
discharges by means of the base-emitter junction of the series pass transistor in
the regulator. If the energy is sufficiently high, the transistor may be destroyed.
The external diode by-passes the current from the IC to ground.

Figure 25: Adjustable output voltage with temperature compensation

Figure 26: Light controllers (VO(min) = VXX + VBE)

Figure 27: Protection against input short-circuit with high capacitance loads

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Typical performance

DocID2143 Rev 34

31/54

Figure 28: Dropout voltage vs junction temperature

Figure 29: Peak output current vs input/output

differential voltage

Figure 30: Supply voltage rejection vs frequency

Figure 31: Output voltage vs junction temperature

7 Typical performance

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Typical performance

L78

32/54

DocID2143 Rev 34

Figure 32: Output impedance vs frequency

Figure 33: Quiescent current vs junction temp.

Figure 34: Load transient response

Figure 35: Line transient response

Figure 36: Quiescent current vs. input voltage

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Package information

DocID2143 Rev 34

33/54

8 Package information

In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK® is an ST trademark.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Package information

L78

34/54

DocID2143 Rev 34

8.1 TO-220 (dual gauge) package information

Figure 37: TO-220 (dual gauge) package outline

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Package information

DocID2143 Rev 34

35/54

Dim.

mm

Min.

Typ.

Max.

A

4.40

4.60

b

0.61

0.88

b1

1.14

1.70

c

0.48

0.70

D

15.25

15.75

D1

1.27 E 10

10.40

e

2.40

2.70

e1

4.95

5.15

F

1.23

1.32

H1

6.20

6.60

J1

2.40

2.72

L

13

14

L1

3.50

3.93

L20

16.40

L30

28.90

∅ P

3.75

3.85

Q

2.65

2.95

Table 19: TO-220 (dual gauge) mechanical data

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Package information

L78

36/54

DocID2143 Rev 34

8.2 TO-220 (single gauge) package information

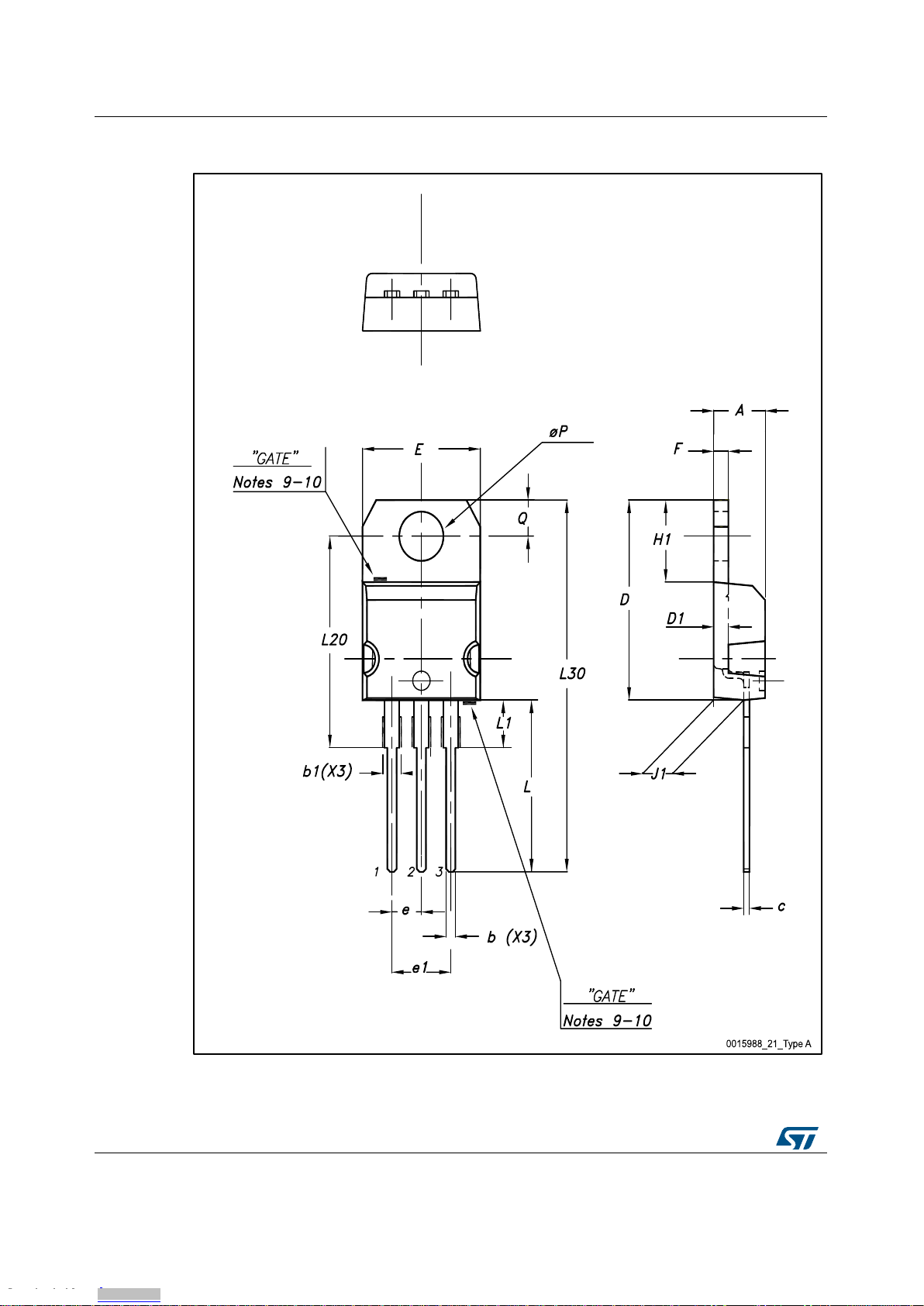

Figure 38: TO-220 (single gauge) package outline

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Package information

DocID2143 Rev 34

37/54

Dim.

mm

Min.

Typ.

Max.

A

4.40

4.60

b

0.61

0.88

b1

1.14

1.70

c

0.48

0.70

D

15.25

15.75

E

10.00

10.40

e

2.40

2.70

e1

4.95

5.15

F

0.51

0.60

H1

6.20

6.60

J1

2.40

2.72

L

13.00

14.00

L1

3.50

3.93

L20

16.40

L30

28.90

∅ P

3.75

3.85

Q

2.65

2.95

Table 20: TO-220 (single gauge) mechanical data

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Package information

L78

38/54

DocID2143 Rev 34

8.3 TO-220FP package information

Figure 39: TO-220FP package outline

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Package information

DocID2143 Rev 34

39/54

Dim.

mm

Min.

Typ.

Max.

A

4.4

4.6 B 2.5

2.7 D 2.5

2.75

E

0.45

0.7

F

0.75 1 F1

1.15

1.70

F2

1.15

1.70

G

4.95

5.2

G1

2.4

2.7 H 10

10.4

L2

16

L3

28.6

30.6

L4

9.8

10.6

L5

2.9

3.6

L6

15.9

16.4

L7 9 9.3

Dia 3 3.2

Table 21: TO-220FP package mechanical data

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Package information

L78

40/54

DocID2143 Rev 34

8.4 TO-220 packing information

Figure 40: Tube for TO-220 (dual gauge) (mm.)

Figure 41: Tube for TO-220 (single gauge) (mm.)

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Package information

DocID2143 Rev 34

41/54

0068772_A_21

8.5 DPAK package information

Figure 42: DPAK package outline

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Package information

L78

42/54

DocID2143 Rev 34

Dim.

mm

Min.

Typ.

Max.

A

2.20

2.40

A1

0.90

1.10

A2

0.03

0.23

b

0.64

0.90

b4

5.20

5.40

c

0.45

0.60

c2

0.48

0.60

D

6.00

6.20

D1

5.10

E

6.40

6.60

E1

4.70

e

2.28

e1

4.40

4.60

H

9.35

10.10

L

1.00

1.50

(L1)

2.80

L2

0.80

L4

0.60

1.00

R

0.20

V2

0°

8°

Table 22: DPAK mechanical data

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Package information

DocID2143 Rev 34

43/54

Figure 43: DPAK recommended footprint (dimensions are in mm)

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Package information

L78

44/54

DocID2143 Rev 34

8.6 D²PAK (SMD 2L STD-ST) type A package information

Figure 44: D²PAK (SMD 2L STD-ST) type A package outline

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Package information

DocID2143 Rev 34

45/54

Dim.

mm

Min.

Typ.

Max.

A

4.40

4.60

A1

0.03

0.23

b

0.70

0.93

b2

1.14

1.70

c

0.45

0.60

c2

1.23

1.36

D

8.95

9.35

D1

7.50

7.75

8.00

D2

1.10

1.30

1.50

E

10

10.40

E1

8.50

8.70

8.90

E2

6.85

7.05

7.25

e

2.54

e1

4.88

5.28

H

15

15.85

J1

2.49

2.69

L

2.29

2.79

L1

1.27

1.40

L2

1.30

1.75

R

0.4

V2

0°

8°

Table 23: D²PAK (SMD 2L STD-ST) mechanical data

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Package information

L78

46/54

DocID2143 Rev 34

8.7 D²PAK (SMD 2L Wooseok-subcon.) package information

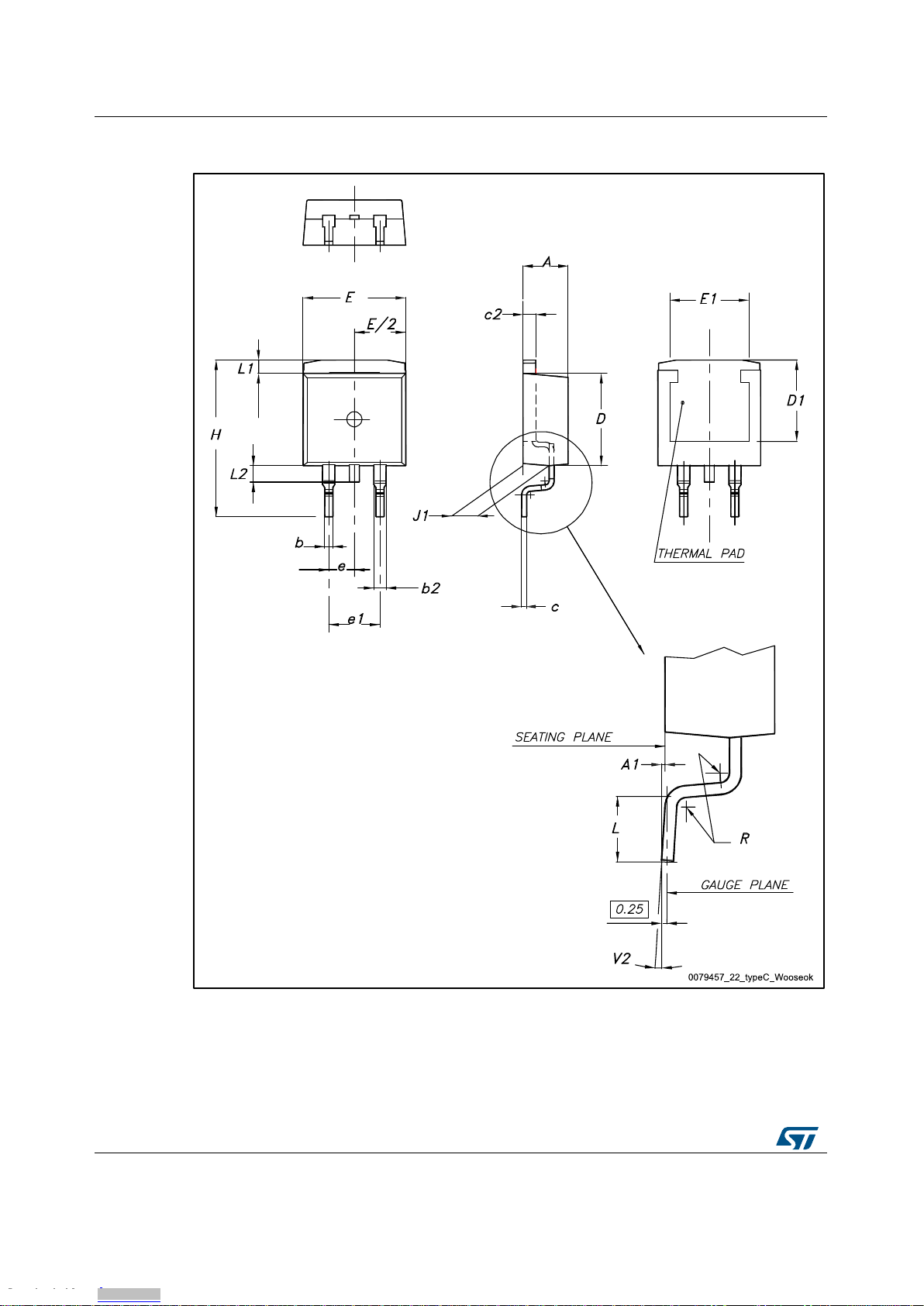

Figure 45: D²PAK (SMD 2L Wooseok-subcon.) package outline

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Package information

DocID2143 Rev 34

47/54

Dim.

mm

Min.

Typ.

Max.

A

4.30

4.70

A1 0 0.20

b

0.70

0.90

b2

1.17

1.37

c

0.45

0.50

0.60

c2

1.25

1.30

1.40

D 9 9.20

9.40

D1

7.50

E

9.80

10.20

E1

7.50 e 2.54

e1

5.08

H

15

15.30

15.60

J1

2.20

2.60

L

1.79

2.79

L1 1 1.40

L2

1.20

1.60

R

0.30

V2

0°

3°

Table 24: D²PAK (SMD 2L Wooseok-subcon.) mechanical data

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Package information

L78

48/54

DocID2143 Rev 34

Figure 46: D²PAK (SMD 2L Wooseok-subcon.) recommended footprint

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Package information

DocID2143 Rev 34

49/54

8.8 D²PAK and DPAK packing information

Figure 47: Tape outline

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Package information

L78

50/54

DocID2143 Rev 34

Tape

Reel

Dim.

mm

Dim.

mm

Min.

Max.

Min.

Max.

A0

10.5

10.7 A 330

B0

15.7

15.9 B 1.5 D 1.5

1.6 C 12.8

13.2

D1

1.59

1.61 D 20.2

E

1.65

1.85 G 24.4

26.4

F

11.4

11.6 N 100

K0

4.8

5.0 T 30.4

P0

3.9

4.1

P1

11.9

12.1

Base quantity

1000

P2

1.9

2.1

Bulk quantity

1000 R 50

T

0.25

0.35

W

23.7

24.3

Figure 48: Reel outline

Table 25: D²PAK tape and reel mechanical data

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Package information

DocID2143 Rev 34

51/54

Tape

Reel

Dim.

mm

Dim.

mm

Min.

Max.

Min.

Max.

A0

6.8 7 A

330

B0

10.4

10.6

B

1.5

B1

12.1

C

12.8

13.2

D

1.5

1.6 D 20.2

D1

1.5 G 16.4

18.4

E

1.65

1.85 N 50 F 7.4

7.6 T 22.4

K0

2.55

2.75

P0

3.9

4.1

Base qty.

2500

P1

7.9

8.1

Bulk qty.

2500

P2

1.9

2.1 R 40

T

0.25

0.35

W

15.7

16.3

Table 26: DPAK tape and reel mechanical data

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Ordering information

L78

52/54

DocID2143 Rev 34

Part

number

Order codes

TO-220

(single gauge)

TO-220

(dual gauge)

DPAK

D²PAK

TO-220FP

Output

voltages

L7805C

L7805CV

L7805CV-DG

L7805CDT-TR

L7805CD2T-TR

L7805CP

5 V

L7805AB

L7805ABV

L7805ABV-DG

L7805ABD2T-TR

L7805ABP

5 V

L7805AC

L7805ACV

L7805ACV-DG

L7805ACD2T-TR

L7805ACP

5 V

L7806C

L7806CV

L7806CV-DG

L7806CD2T-TR

6 V

L7806AB

L7806ABV

L7806ABV-DG

L7806ABD2T-TR

6 V

L7806AC

L7806ACV

L7806ACV-DG

6 V

L7808C

L7808CV

L7808CV-DG

L7808CD2T-TR

8 V

L7808AB

L7808ABV

L7808ABV-DG

L7808ABD2T-TR

8 V

L7808AC

L7808ACV

L7808ACV-DG

8 V

L7885C

L7885CV

8.5 V

L7809C

L7809CV

L7809CV-DG

L7809CD2T-TR

L7809CP

9 V

L7809AB

L7809ABV

L7809ABV-DG

L7809ABD2T-TR

9 V

L7809AC

L7809ACV

9 V

L7812C

L7812CV

L7812CV-DG

L7812CD2T-TR

L7812CP

12 V

L7812AB

L7812ABV

L7812ABV-DG

L7812ABD2T-TR

12 V

L7812AC

L7812ACV

L7812ACV-DG

L7812ACD2T-TR

12 V

L7815C

L7815CV

L7815CV-DG

L7815CD2T-TR

L7815CP

15 V

L7815AB

L7815ABV

L7815ABV-DG

L7815ABD2T-TR

15 V

L7815AC

L7815ACV

L7815ACV-DG

L7815ACD2T-TR

15 V

L7818C

L7818CV

L7818CV-DG

18 V

L7824C

L7824CV

L7824CV-DG

L7824CD2T-TR

L7824CP

24 V

L7824AB

L7824ABV

L7824ABV-DG

24 V

L7824AC

L7824ACV

L7824ACV-DG

24 V

9 Ordering information

Table 27: Order codes

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

Revision history

DocID2143 Rev 34

53/54

Date

Revision

Changes

21-Jun-2004

12

Document updating.

03-Aug-2006

13

Order codes has been updated and new template.

19-Jan-2007

14

D²PAK mechanical data has been updated and add footprint data.

31-May-2007

15

Order codes has been updated.

29-Aug-2007

16

Added Table 1 in cover page.

11-Dec-2007

17

Modified: Table 27.

06-Feb-2008

18

Added: TO-220 mechanical data Figure 38 on page 38 , Figure 39 on page 39, and
Table 23 on page 37. Modified: Table 27 on page 58.

18-Mar-2008

19

Added: Table 29: DPAK mechanical data on page 50, Table 30: Tape and reel
DPAK mechanical data on page 52. Modified: Table 27 on page 58.

26-Jan-2010

20

Modified Table 1 on page 1 and Table 23 on page 37, added: Figure 38 on
page 38 and Figure 39 on page 39, Figure 40 on page 45 and Figure 41 on
page 45.

04-Mar-2010

21

Added notes Figure 38 on page 38.

08-Sep-2010

22

Modified Table 27 on page 58.

23-Nov-2010

23

Added: TJ = 25 °C test condition in DVO on Table 3, 4, 5, 6, 7, 8 and Table 9.

16-Sep-2011

24

Modified title on page 1.

30-Nov-2011

25

Added: order codes L7805CV-DG, L7806CV-DG, L7808ABV-DG, L7812CV-DG
and L7815CV-DG Table 27 on page 58.

08-Feb-2012

26

Added: order codes L7805ACV-DG, L7805ABV-DG, L7806ABV-DG, L7808CV­DG, L7809CV-DG, L7812ACV-DG, L7818CV-DG, L7824CV-DG Table 27 on
page 58.

27-Mar-2012

27

Added: order codes L7812ABV-DG, L7815ABV-DG Table 27 on page 58.

27-Apr-2012

28

Modified: VI = 10.4 to 23 V ==> VI = 11.4 to 23 V test conditon value Line
regulation Table 6 on page 13.

10-May-2012

29

Added: order codes L7806ACV-DG, L7808ACV-DG, L7815ACV-DG, L7824ABV­DG and L7824ACV-DG Table 27 on page 58.

19-Sep-2012

30

Modified load regulation units from V to mV in Table 3 to Table 9.

12-Mar-2013

31

Modified: VO output voltage at 25 °C min. value 14.4 V Table 16 on page 23.

04-Mar-2014

32

Part numbers L78xx, L78xxC, L78xxAB, L78xxAC changed to L78.
Removed TO-3 package.
Updated the description in cover page, Section 2: Pin configuration, Section 3:

Maximum ratings, Section 4: Test circuits, Section 5: Electrical characteristics,
Section 6: Application information, Section 8: Package information and Table 27:
Order codes.

Added Section 9: Packaging mechanical data.
Minor text changes.

26-Feb-2016

33

Updated Section 8: Package information.
Minor text changes.

28-Nov-2016

34

Updated Section 9: "Ordering information".
Minor text changes.

10 Revision history

Table 28: Document revision history

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

L78

54/54

DocID2143 Rev 34

IMPORTANT NOTICE – PLEASE READ CAREFULLY

STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications , and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST
products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement.

Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the

design of Purchasers’ products.

No license, express or implied, to any intellectual property right is granted by ST herein.

Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.

ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.

Information in this document supersedes and replaces information previously supplied in any prior versions of this document.

© 2016 STMicroelectronics – All rights reserved

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.
