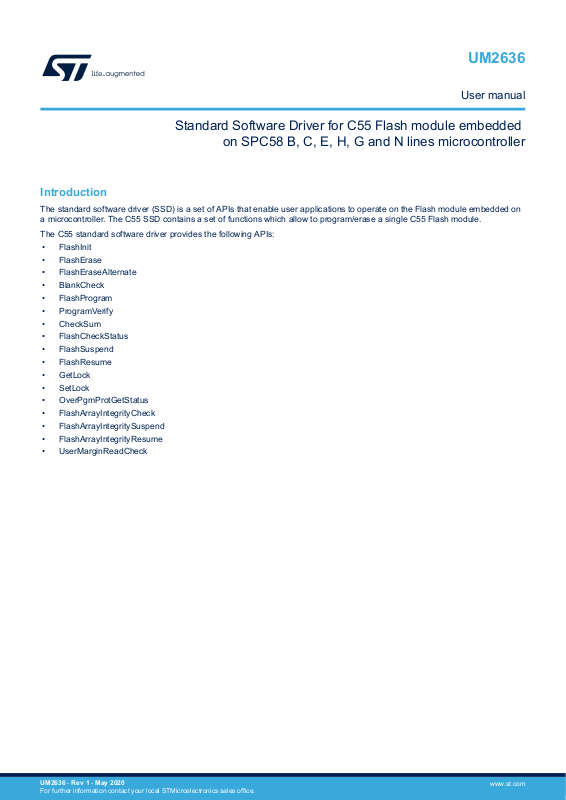

STMicroelectronics C55 User Manual

UM2636

User manual

Standard Software Driver for C55 Flash module embedded

on SPC58 B, C, E, H, G and N lines microcontroller

Introduction

The standard software driver (SSD) is a set of APIs that enable user applications to operate on the Flash module embedded on
a microcontroller. The C55 SSD contains a set of functions which allow to program/erase a single C55 Flash module.

The C55 standard software driver provides the following APIs:

• FlashInit

• FlashErase

• FlashEraseAlternate

• BlankCheck

• FlashProgram

• ProgramVerify

• CheckSum

• FlashCheckStatus

• FlashSuspend

• FlashResume

• GetLock

• SetLock

• OverPgmProtGetStatus

• FlashArrayIntegrityCheck

• FlashArrayIntegritySuspend

• FlashArrayIntegrityResume

• UserMarginReadCheck

UM2636 - Rev 1 - May 2020
For further information contact your local STMicroelectronics sales office.

www.st.com

1 Overview

This document is the user manual for the standard software driver (SSD) for single C55 Flash module. The
roadmap for the document is the following.

Section 1.1 Features lists the features of the driver.

Section 2 API specifications describes the API specifications. This section includes many sub-sections which

describe the different aspects of the driver.

• Section 2.1 General overview provides a general overview of the driver.

• Section 2.2 General type definitions provides the type definitions used for the driver.

• Section 2.3 SSD configuration parameters reports the driver configuration parameters.

• Section 2.4 Context data structure and Section 2.5 Other data structures describe the data context
structure and provide some other data structures used in this driver.

• Section 2.6 Return codes provides return code information.

• Section 2.7 Normal mode functions and Section 2.8 User Test Mode Functions provide the detailed
description of the standard software Flash driver APIs for the normal mode and the user's test mode
respectively.

Section A.1 System requirements details the system requirements for the driver development. Section
B.1 Acronyms lists the acronyms used in the present document. Section C.1 Document reference lists the

reference documents.

UM2636

Overview

1.1 Features

The C55 SSD provides the following features:

• Driver binary built with Variable-Length-Encoding (VLE) instruction set.

• Driver released in binary c-array format to provide compiler-independent support for non-debug-mode
embedded applications.

• Driver released in s-record format to provide compiler-independent support for debug-mode/JTAG
programming tools.

• Each driver function is independent of each other so the end user can choose the function subset to meet
their particular needs.

• Support from word-wise to quad-page-wise programming according to specific hardware feature for fast
programming.

• Position-independent and ROM-able

• Ready-to-use demos illustrating the usage of the driver

• Concurrency support via asynchronous design.

UM2636 - Rev 1

page 2/45

2 API specifications

2.1 General overview

The C55 SSD has APIs to handle the erase, program, erase verify and program verify operations on the Flash.
Apart from these, it also provides the feature for locking specific blocks and calculating check sum. This SSD also
provides four User Test APIs to check the array integrity, perform the user margin read check as well as to
suspend/resume these operations. All functions work as an asynchronous model for concurrency event support
by invoking the 'FlashCheckStatus' function to track the on-going status of the targeted operation.

2.2 General type definitions

Derived type Size C language type description

BOOL 8-bit unsigned char

INT8 8-bit signed char

VINT8 8-bit volatile signed char

UINT8 8-bit unsigned char

VUINT8 8-bit volatile unsigned char

INT16 16-bit signed short

VINT16 16-bit volatile signed short

UINT16 16-bit unsigned short

VUINT16 16-bit volatile unsigned short

INT32 32-bit signed long

VINT32 32-bit volatile signed long

UINT32 32-bit unsigned long

VUINT32 32-bit volatile unsigned long

UM2636

API specifications

Table 1. Type definitions

UM2636 - Rev 1

page 3/45

2.3 SSD configuration parameters

This section explains the configuration parameters used for the SSD operation. The configuration parameters are
handled as structure. The user should correctly initialize the fields including c55RegBase, mainArrayBase,
uTestArrayBase, mainInterfaceFlag, programmableSize and BDMEnable before passing the structure to SSD
functions. The rest of parameters such as lowBlockInfo, midBlockInfo, highBlockInfo and nLargeBlockNum, are
initialized by ‘FlashInit’ automatically and can be used for other purposes of the user’s application.

Table 2. SSD configuration structure field definition

Parameter name Type Parameter description

c55RegBase UINT32 The base address of C55 control registers.

mainArrayBase UINT32 The base address of Flash main array.

lowBlockInfo BLOCK_INFO

midBlockInfo BLOCK_INFO

highBlockInfo BLOCK_INFO

nLargeBlockNum UINT32 Number of blocks of the 256 K address space.

uTestArrayBase UINT32 The base address of the UTest block.

mainInterfaceFlag BOOL The flag to select the main interface or not.

programmableSize UINT32 The maximum programmable size of the C55 Flash according to specific interface.

BDMEnable BOOL

Block info of the low address space. It includes information of this block space based on
different block sizes.

Block info of the mid address space. It includes information of this block space based on
different block sizes.

Block info of the high address space. It includes information of this block space based on
different block sizes.

The debug mode selection. User can enable/disable the debug mode via this input
argument.

UM2636

SSD configuration parameters

2.4

The type definition for the structure is given below:

typedef struct _c55_ssd_config
{
UINT32 c55RegBase;
UINT32 mainArrayBase;
BLOCK_INFO lowBlockInfo;
BLOCK_INFO midBlockInfo;
BLOCK_INFO highBlockInfo;
UINT32 nLargeBlockNum;
UINT32 uTestArrayBase;
BOOL mainInterfaceFlag;
UINT32 programmableSize;
BOOL BDMEnable;
} SSD_CONFIG, *PSSD_CONFIG;

Context data structure

The Context data structure is used for storing the context variable values while an operation is in progress. The
operations that support asynchronous model may require caching the context data including ‘FlashProgram’,
‘ProgramVerify’, ‘BlankCheck’, ‘CheckSum’, ‘FlashArrayIntegrityCheck’, and ‘UserMarginReadCheck’. The user
needs to declare and initialize a context data structure before passing it to the SSD functions mentioned above.
Refer to ‘FlashCheckStatus’ to have a quick view of how to initialize the context data. The context data structure
contents can be reviewed at anytime during the operation progress (these information may be useful in some
cases), but they must not be changed for any reason in order to make the operation complete correctly.

UM2636 - Rev 1

page 4/45

Table 3. Context data structure field definitions

Name Description

dest The context destination address of an operation

size The context size of an operation

source The context source of an operation

pFailedAddress The context failed address of an operation

pFailedData The context failed data of an operation

pFailedSource The context failed source of an operation

pSum The context sum of an operation

pMisr The context MISR values of an operation

pReqCompletionFn Function pointer to the Flash function being checked for status

The type definition for the structure is given below:

typedef struct _c55_context_data
{
UINT32 dest;
UINT32 size;
UINT32 source;
UINT32 *pFailedAddress;
UINT32 *pFailedData;
UINT32 *pFailedSource;
UINT32 *pSum;
MISR *pMisr;
void* pReqCompletionFn;
} CONTEXT_DATA, *PCONTEXT_DATA;

UM2636

Other data structures

2.5

Other data structures

This section reports some other data structures used for the SSD operation. These are the structures used for
variables' declaration in SSD configuration and context data structures or input arguments' declaration in some
APIs.

Table 4. Block information structure field definitions

Name Type Definition

n16KBlockNum UINT32 Number of 16K block

n32KBlockNum UINT32 Number of 32K block

n64KBlockNum UINT32 Number of 64K block

n128KBlockNum UINT32 Number of 128K block

The type definition for the structure is given below:

typedef struct _c55_block_info
{
UINT32 n16KBlockNum;
UINT32 n32KBlockNum;
UINT32 n64KBlockNum;
UINT32 n128KBlockNum;
} BLOCK_INFO, *PBLOCK_INFO;

UM2636 - Rev 1

page 5/45

Table 5. 256K block select structure field definitions

Name Type Definition

firstLargeBlockSelect UINT32

secondLargeBlockSelect UINT32

Bit map for the first 32-bit block select (from bit 0 to bit 31) in 256K block space; bit 0
corresponds to the least significant bit and bit 31 corresponds to the most significant bit.

Bit map for the second 32-bit block select (from bit 32 to upper bits) in 256K block space;
bit 32 corresponds to the least significant bit and bit 63 corresponds to the most significant
bit.

The type definition for the structure is given below:

typedef struct _c55_nLarge_block_sel
{
UINT32 firstLargeBlockSelect;
UINT32 secondLargeBlockSelect;
} NLARGE_BLOCK_SEL,*PNLARGE_BLOCK_SEL;

Table 6. MISR structure field definitions

UM2636

Other data structures

Name Type Definition

Wn

n = 0, 1, …9

UINT32

Each Wn corresponds to each MISR value provided by the user. The user must provide ten MISR
values in total via this structure to perform the user’s test mode functions.

The type definition for the structure is given below:

typedef struct _c55_misr
{
UINT32 w0;
UINT32 w1;
UINT32 w2;
UINT32 w3;
UINT32 w4;
UINT32 w5;
UINT32 w6;
UINT32 w7;
UINT32 w8;
UINT32 w9;
} MISR, *PMISR;

UM2636 - Rev 1

page 6/45

2.6 Return codes

The return code returned to the caller function notifies the success or the errors of the API execution. These are
the possible values of the return code:

Name Value Description

C55_OK 0x00000000 The requested operation is successful.

C55_ERROR_ALIGNMENT 0x00000001 Alignment error.

C55_ERROR_ENABLE 0x00000002 Fail to enable the operation.

C55_ERROR_BUSY 0x00000004

C55_ERROR_PGOOD 0x00000008 The program operation is unsuccessful.

C55_ERROR_EGOOD 0x00000010 The erase operation is unsuccessful.

C55_ERROR_NOT_BLANK 0x00000020

C55_ERROR_VERIFY 0x00000040

C55_ERROR_BLOCK_INDICATOR 0x00000080 Invalid block space indicator.

C55_ERROR_ALTERNATE 0x00000100

C55_ERROR_FACTORY_OP 0x00000200 Factory erase/program is locked.

C55_ERROR_MISMATCH 0x00000400

C55_ERROR_NO_BLOCK 0x00000800

C55_ERROR_ADDR_SEQ 0x00001000 Invalid address sequence error.

C55_ERROR_MARGIN_LEVEL 0x00002000 Invalid margin level error.

C55_ERROR_ERASE_OPTION 0x00004000 Invalid erase option.

C55_ERROR_MODE_OP 0x00008000 Invalid mode op.

C55_DONE 0x00010000

C55_INPROGRESS 0x00020000

UM2636

Return codes

Table 7. Return codes

New program/erase cannot be performed while a high-voltage operation is
already in progress.

New array integrity cannot be performed while an array integrity is going
on.

There is a non-blank Flash memory location within the checked Flash
memory region.

There is a mismatch between the source data and the content in the
checked Flash memory.

The operation does not support an alternate interface for the specified
address space.

In ‘FlashArrayIntegrityCheck’ or ‘UserMarginReadCheck’, the MISR
values generated by the hardware do not match the values passed by the
user.

In ‘FlashArrayIntegrityCheck’ or ‘UserMarginReadCheck’, no block has
been enabled for array integrity check.

The operation has been done and this operation is no more requested on
FlashCheckStatus function.

The operation is in progress and the user needs to call the
FlashCheckStatus more times to finish this operation.

UM2636 - Rev 1

page 7/45

2.7 Normal mode functions

2.7.1 FlashInit

Description

This function initializes an individual Flash module. It accesses the Flash configuration register and read out the
number of blocks for each memory space of single Flash module.

Each time this driver is used, the user must provide the chip-dependent parameters such as c55RegBase,
mainArrayBase, uTestArrayBase, mainInterfaceFlag, programmableSize and DBMEnable and the rest of
parameters initialized via this function. Those are block information including the number of the block based on
the block size for each address space.

Prototype

UINT32 FlashInit (PSSD_CONFIG pSSDConfig);

Arguments

UM2636

Normal mode functions

Table 8. FlashInit

Argument Description Range

pSSDConfig

Pointer to the SSD Configuration
Structure.

The values in this structure are chip-dependent. Please refer to Section

2.3 SSD configuration parameters for more details.

Return values

Table 9. Return values for FlashInit

Type

UINT32 Indicates successful completion of operation. C55_OK

Description Possible values

Troubleshooting

None.

Comments

In case that the mainInterfaceFlag is the main interface, ‘FlashInit’ checks the C55_MCR_RWE, C55_MCR_EER
and C55_MCR_SBC bits, and then clears them if any of them is set.

This function also clears the PGM and ERS bits in the MCR and MCRA registers respectively if any of them is set.

UM2636 - Rev 1

Assumptions

None.

page 8/45

2.7.2 FlashErase

Description

This function is to perform an erase operation for multi-blocks on a single Flash module according to user’s input
arguments via the main interface. The target Flash module status is checked in advance to return relevant error
code if any. This function only sets the high voltage without waiting for the operation to be finished. Instead, the
user must call the ‘FlashCheckStatus’ function to confirm the successful completion of this operation.

Prototype

UINT32 FlashErase(PSSD_CONFIG pSSDConfig,
UINT8 eraseOption,
UINT32 lowBlockSelect,
UINT32 midBlockSelect,
UINT32 highBlockSelect,
NLARGE_BLOCK_SEL nLargeBlockSelect

Arguments

UM2636

Normal mode functions

Table 10. Arguments for FlashErase

Argument Description Range

pSSDConfig

eraseOption

lowBlockSelect

midBlockSelect

highBlockSelect

nLargeBlockSelect

Pointer to the SSD
Configuration Structure.

The option is to select
user’s expected erase
operation.

To select the array blocks
in low address space for
erasing.

To select the array blocks
in mid address space for
erasing.

To select the array blocks
in high address space for
erasing.

To select the array blocks
in 256K address space for
erasing. It includes two
elements to decode the
first half of 256K block
select and the second half
of 256K block select.

The values in this structure are chip-dependent. Please refer to Section

2.3 SSD configuration parameters for more details.

The valid value can be:

C55_ERASE_MAIN (0x0)

C55_ERASE_MAIN_FERS (0x1)

C55_ERASE_UTEST (0x2)

C55_ERASE_UTEST_FERS (0x3)

Bit-mapped value which corresponds to LOWSEL of the block select register
in which the least significant bit of this argument corresponds to LOWSEL[0].
Select the block to be erased by setting 1 to the appropriate bit of
lowBlockSelect. If there is not any block to be erased in the low address
space, lowBlockSelect must be set to 0.

Bit-mapped value which corresponds to 256KSEL of the block select register.
The first 256K block select corresponds to the first 32 bits (from 0 to 31) of
256KSEL. The second 256K block select corresponds to the rest of 256KSEL
bits. Select the block to be erased by setting 1 to the appropriate bit of
nLargeBlockSelect. If there is not any block to be erased in the 256K address
space, nLargeBlockSelect must be set to 0.

Bit-mapped value such that the least significant bit is at bit 0 of 16K block
region (if available), then 32K block region (if available) and lastly 64K block
region (if available). Select the block in the high address space to be erased
by setting 1 to the appropriate bit of highBlockSelect. If there is not any block
to be erased in the high address space, highBlockSelect must be set to 0.

Bit-mapped value such that the least significant bit is at bit 0 of 256K block
region (if available). Select the block in the 256K address space to be erased
by setting 1 to the appropriate bit of nLargeBlockSelect. If there is not any
block to be erased in the 256K address space, nLargeBlockSelect must be
set to 0.

UM2636 - Rev 1

page 9/45

Normal mode functions

Return values

Table 11. Return values for FlashErase

Type Description Possible values

C55_OK

C55_ERROR_ERASE_OPTION

UINT32 Successful completion or error value.

C55_ERROR_BUSY

C55_ERROR_FACTORY_OP

C55_ERROR_ENABLE

Troubleshooting

Table 12. Troubleshooting for FlashErase

Error Codes Possible Causes Solution

C55_ERROR_ERASE_OPTION Invalid erase option. Use one of the valid values for the option.

Wait until all previous program/erase operations on the
Flash module finish.

Possible cases that erase cannot start are:

1. erase in progress (MCR-ERS is high);

2. program in progress (MCR-PGM is high);

Factory erase is locked by the system due to the data at
the UTest NVM ‘diary’ location.

If UT0[UTE] bit is being set, then the erase operation
cannot be started. Thus, make sure that the UT0[UTE] is
cleared before any erase operation.

C55_ERROR_BUSY

C55_ERROR_FACTORY_OP

C55_ERROR_ENABLE

New erase operation cannot
be performed because there is
a program/erase sequence in
progress on the Flash module.

The factory erase could not be
performed.

ERS bit cannot be set
correctly.

UM2636

UM2636 - Rev 1

Comments

'FlashErase' always uses the main interface to complete an erase operation and ignores the value of the
‘mainInterfaceFlag’ in the SSD configuration structure. However, it is recommended that the user explicitly sets
this flag value to TRUE before calling 'FlashErase'.

The eraseOption input argument provides an option for the user to select the expected erase operation. If the
user wants to set a factory erase, he has to select eraseOption as C55_ERASE_MAIN_FERS or
C55_ERASE_UTEST_FERS. If the user wants to perform a normal erase operation on the main array,
eraseOption must be C55_ERASE_MAIN and lastly, the user must select C55_ERASE_UTEST to make an erase
operation on the UTest block.

The factory erase feature can be used to provide a faster erase. But the feature cannot be performed if the data at
“diary” location in the UTest NVM space contains at least one zero at reset. In that case, each try to perform
factory erase causes the error C55_ERROR_FACTORY_OP to be returned.

The inputs lowBlockSelect, midBlockSelect, highBlockSelect and nLargeBlockSelect are bit-mapped arguments
that are used to select the blocks to be erased in the low/mid/high/256K address spaces of main array. The
selection of the blocks of the main array is determined by setting/clearing the corresponding bit in lowBlockSelect,
midBlockSelect, highBlockSelect or nLargeBlockSelect.

The bit allocations for low/mid/high/first 256K blocks are: the least significant bit corresponds to the least
significant bit of LOWSEL/MIDSEL/HIGHSEL/256KSEL in the relevant block select register. The first 256K block
select can specify maximum 32 blocks. If there are more than 32 blocks of 256K, the second 256K block select
will be used to specify the remaining ones. In this case the least significant bit of the second 256K block
corresponds to 256KSEL[32] and so on.

page 10/45

UM2636

Normal mode functions

Table 13. Bit allocation for low block select argument is an example for block allocation and bit map for specific

Flash modules with two blocks for each block size in low, middle or high address space. The invalid blocks are
marked as reserved and the number of valid bits may vary according to specific Flash module.

Table 13. Bit allocation for low block select argument

MSB LSB

bit 31 … bit 4 bit 3 bit 2 bit 1 bit 0

reserved … LOWSEL[4] LOWSEL[3] LOWSEL[2] LOWSEL[1] LOWSEL[0]

Table 14. Bit allocation for middle block select argument

MSB LSB

bit 31 … bit 4 bit 3 bit 2 bit 1 bit 0

reserved … MIDSEL[4] MIDSEL[3] MIDSEL[2] MIDSEL[1] MIDSEL[0]

Table 15. Bit allocation for blocks in high address space

MSB LSB

bit 31 … bit 4 bit 3 bit 2 bit 1 bit 0

reserved … 64K block 0 32K block 1 32K block 0 16K block 1 16K block 0

Table 16. Bit allocation for first 256K block select argument

MSB

bit 31 … bit 4 bit 3 bit 2 bit 1 bit 0

… 256KSEL[4] 256KSEL[3] 256KSEL[2] 256KSEL[1] 256KSEL[0]

LSB

Table 17. Bit allocation for second256K block select argument

MSB

bit 31 … bit 4 bit 3 bit 2 bit 1 bit 0

reserved … 256KSEL[36] 256KSEL[35] 256KSEL[34] 256KSEL[33] 256KSEL[32]

LSB

If the selected main array blocks or UTest block are locked for erasing, those blocks do not erase, but
‘FlashErase’ still returns C55_OK. The user needs to check the erasing result with the ‘BlankCheck’ function.

It is impossible to erase any Flash block when a program or erase operation is already in progress on C55
module. ‘FlashErase’ returns C55_ERROR_BUSY when trying to do so. In addition, when ‘FlashErase’ is running,
it is unsafe to read the data from the flash partitions having one or more blocks being erased. Otherwise, it causes
a Read-While-Write error.

UM2636 - Rev 1

Assumptions

It is assumed that the Flash block is initialized using a ‘FlashInit’ API.

page 11/45

2.7.3 FlashEraseAlternate

Description

This function is to perform an erase operation for single blocks on a single Flash module according to user’s input
arguments via alternate interface. The targeted Flash module status is checked in advance to return relevant error
code if any. This function only set the high voltage without waiting for the operation to be finished. Instead, the
user must call ‘FlashCheckStatus’ function to confirm the successful completion of this operation.

Prototype

UINT32 FlashEraseAlternate (PSSD_CONFIG pSSDConfig,
UINT32 interlockAddress);

Arguments

Argument Description Range

pSSDConfig

interlockAddress

Pointer to the SSD Configuration
Structure.

The interlock address which points to
the block needs to be erased.

UM2636

Normal mode functions

Table 18. Arguments for FlashEraseAlternate

The values in this structure are chip-dependent. Please refer to

Section 2.3 SSD configuration parameters for more details.

The interlockAddress must fall in the block that the user wants to
erase and must be aligned to word.

Return values

Table 19. Return values for FlashEraseAlternate

Type

UINT32 Successful completion or error value.

Description Possible values

Troubleshooting

Table 20. Troubleshooting for FlashEraseAlternate

Returned Error Bits

New erase operation cannot be

C55_ERROR_BUSY

C55_ERROR_ALIGNMENT

performed because a program/erase
sequence is in progress on the Flash
module.

The input argument of interlockAddress
is not aligned by word.

C55_OK

C55_ERROR_BUSY

C55_ERROR_ALIGNMENT

Description Solution

Wait until all previous program/erase operations on
the Flash module finish.

Possible cases that erase cannot start are:

• erase in progress (MCR-ERS is high);

• program in progress (MCR-PGM is high);

The input argument of interlockAddress must be
aligned by word.

UM2636 - Rev 1

page 12/45

Comments

FlashEraseAlternate’ always uses the main interface to complete an erase operation and ignores the value of the
‘mainInterfaceFlag’ in the SSD configuration structure. However, it is recommended that user should explicitly set
this flag value to FALSE before calling FlashEraseAlternate’. The ‘FlashEraseAlternate’ must not be used to erase
any block in the 256K address space. In that case the function only returns C55_OK without performing the
operation. If the selected main array blocks are locked for erasing, those blocks are not erased, but
‘FlashEraseAlternate’ still return C55_OK. The user needs to check the erasing result with the ‘BlankCheck’
function. It is impossible to erase any Flash block when a program or erase operation is already in progress on
C55 module. ‘FlashEraseAlternate’ returns C55_ERROR_BUSY when trying to do so. In addition, when
‘FlashEraseAlternate’ is running, it is unsafe to read the data from the Flash partitions having one or more blocks
being erased. Otherwise, it causes a Read-While-Write error.

Assumptions

It is assumed that the Flash block is initialized using a ‘FlashInit’ API.

2.7.4 BlankCheck

Description

This function is used to run a blank check for the previous erase operation. It verifies whether the expected Flash
range is blank or not. In case of mismatch, the failed address and failed destination are saved and the relevant
error code is returned. This function only runs blank check for given number of bytes which can terminate this
function within the expected time interval. Thus, if the user wants to conduct a blank check for large size, the
remaining information that needs to be blank-checked is stored in “pCtxData” variable and ‘FlashCheckStatus’
must be called periodically to run the next blank check for next destination based on all data provided in
“pCtxData”.

UM2636

Normal mode functions

Prototype

UINT32 BlankCheck (PSSD_CONFIG pSSDConfig,
UINT32 dest,
UINT32 size,
UINT32 *pFailedAddress,
UINT32 *pFailedData,
PCONTEXT_DATA pCtxData);

Arguments

Table 21. Arguments for BlankCheck

Argument

pSSDConfig Pointer to the SSD Configuration Structure.

dest Destination address to be checked.

size Size, in bytes, of the Flash region to check.

pFailedAddress

pFailedData

pCtxData Address of context data structure. A data structure for storing context variables.

Return the address of the first non-blank

Flash location in the checking region

Return the content of the first non-blank

Flash location in the checking region.

Description Range

The values in this structure are chip-dependent.
Please refer to Section 2.3 SSD configuration

parameters for more details.

Any accessible address aligned on word boundary in
either main array or UTest block.

If size = 0, the return value is C55_OK.

It should be word aligned and its combination with
dest should fall in either main array or UTest block.

Only valid when this function returns
C55_ERROR_NOT_BLANK.

Only valid when this function returns
C55_ERROR_NOT_BLANK.

UM2636 - Rev 1

page 13/45

Return values

Table 22. Return values for BlankCheck

Type Description Possible values

UINT32 Successful completion or error value.

C55_OK

C55_ERROR_ALIGNMENTC55_ERROR_NOT_BLANK

Troubleshooting

Table 23. Troubleshooting for BlankCheck

Returned Error Bits Description Solution

C55_ERROR_ALIGNMENT

C55_ERROR_NOT_BLANK

The dest and size provided by the user are not
aligned by word.

There is a non-blank area within targeted Flash
range.

The dest and size must be word-aligned.

Call ‘FlashErase’ to re-erase the targeted
Flash range and do blank check again.

UM2636

Normal mode functions

Comments

If the blank checking fails, the first failing address is saved to pFailedAddress, and the failing data in Flash are
saved in pFailedData. The contents pointed by pFailedAddress and pFailedData are updated only when there is a
non-blank location in the checked Flash range.

If the user wants to run a blank check for large size, this Flash size is divided into many small portions defined by
NUM_WORDS_BLANK_CHECK_CYCLE so that blank check for one small portion can be finished within the
expected time interval. In this case, ‘BlankCheck’ function plays a role to kick-off this blank check operation by
finishing blank check for the first portion after backing-up all necessary information to pCtxData variable and blank
checks from the second portion are done within ‘FlashCheckStatus’ function. Thus, user must call
‘FlashCheckStatus’ to finish all the expected operations defined by size argument.

Assumptions

It is assumed that the Flash block is initialized using a ‘FlashInit’ API.

2.7.5 FlashProgram

Description

This function is used to perform a program operation for single or multi-programmable sizes via different interface
on targeted Flash module according to user’s input arguments. The targeted Flash module status is checked in
advance to return relevant error code if any. This function only sets the high voltage without waiting for the
operation to be finished. Instead, the user must call ‘FlashCheckStatus’ function to confirm the successful
completion of this operation.

In case of programming for multi-programmable size, the remaining information needs to be programmed and is
stored in the “pCtxData” variable, and the ‘FlashCheckStatus’ function is called periodically by the user to confirm
the successful completion of the previous destination and once finished, this function invokes ‘FlashProgram’more
times to program the next destination based on the data provided in “pCtxData” until all is over.

UM2636 - Rev 1

page 14/45

Prototype

UINT32 FlashProgram (PSSD_CONFIG pSSDConfig,
BOOL factoryPgmFlag,
UINT32 dest.
UINT32 size,
UINT32 source,
PCONTEXT_DATA pCtxData);

Arguments

Table 24. Arguments for FlashProgram

Argument Description Range

pSSDConfig

factoryPgmFlag

dest

size

source Source program buffer address. This address must reside on word boundary.

pCtxData Address of context data structure. A data structure for storing context variables

Pointer to the SSD Configuration
Structure.

A flag indicates to do factory program or
not.

Destination address to be programmed
in Flash memory.

Size, in bytes, of the Flash region to be
programmed.

The values in this structure are chip-dependent. Please refer to

Section 2.3 SSD configuration parameters for more details.

TRUE to do factory program, FALSE to do normal program.

Any accessible address aligned on double word boundary in either
main array or UTest space.

If size = 0, C55_OK returns.

It should be multiple of word and its combination with dest should
fall in either main array or UTest block.

UM2636

Normal mode functions

Return values

Table 25. Return values for FlashProgram

Type

UINT32 Successful completion or error value.

Description Possible values

C55_OK

C55_ERROR_ALTERNATE

C55_ERROR_ALIGNMENTC55_ERROR_BUSY

C55_ERROR_FACTORY_OP

C55_ERROR_ENABLE

UM2636 - Rev 1

page 15/45

Troubleshooting

Table 26. Troubleshooting for FlashProgram

Returned Error Bits Description Solution

C55_ERROR_ALTERNATE

C55_ERROR_ALIGNMENT

C55_ERROR_BUSY

C55_ERROR_FACTORY_OP

C55_ERROR_ENABLE PGM bit cannot be set correctly.

This error occurs when the user wants
to perform factory program via the
alternate interface.

This error indicates that dest/size/
source is not properly aligned.

A program operation is in progress or
an erase operation is going on and not
in suspended state.

The factory program could not be
performed due to the data at the ‘diary’
location in the UTest NVM contains at
least one zero.

Use the main interface to perform factory program or
normal program to use the alternate interface.

Check if dest is aligned on double word (64-bit)
boundary. Check if size and source are aligned on
word boundary.

Wait for the on-going high voltage operation to finish.
Flash program operation can be started if:

There is no program or erase operation in progress.

If erase operation is in progress and it must be in
suspended state.

Check the data at the ‘diary’ location in the UTest
NVM or just perform a normal program.

If the UT0[UTE] bit is being set, then the program
operation cannot be started. Thus, make sure that
UT0[UTE] is cleared before any program operation.

UM2636

Normal mode functions

Comments

After performing a program, ‘ProgramVerify’ should be used to verify whether the programmed data is correct or
not.

‘FlashProgram’ checks the mainInterfaceFlag in the SSD configuration to decide which interface to be used for
the operation, the main interface or the alternate one. The user should explicitly set this parameter before calling
the function.

This function also provides a faster method to the user to perform the factory program but the feature cannot be
performed if the data at “diary” location in the UTest NVM space contains at least one zero at reset. In that case,
each attempt to perform factory program causes the error C55_ERROR_FACTORY_OP to be returned.

If the selected main array blocks are locked for programming, those blocks are not programmed, and
‘FlashProgram’ still returns C55_OK.

If the user wants to program 256K block space via alternate interface, this function still returns C55_OK without
doing any program operation.

It is impossible to program any Flash block when a program or erase operation is already in progress on C55
module. ‘FlashProgram’ returns C55_ERROR_BUSY when doing so. However, the user can use the
‘FlashSuspend’ function to suspend an on-going erase operation on one block and perform a program operation
on another block.

It is unsafe to read the data from the Flash partitions having one or more blocks being programmed when
‘FlashProgram’ is running. Otherwise, a Read-While-Write error occurs.

If the user wants to set a program for multi-programmable size, this function plays a role to kick-off this operation
by finishing the program for the first programmable size after the back-up of all necessary information to pCtxData
variable, and programming from the second programmable size is done within the ‘FlashCheckStatus’ function.
Thus, the user must call the ‘FlashCheckStatus’ to finish all the expected operations defined by size argument.

Assumptions

UM2636 - Rev 1

It is assumed that the Flash block is initialized using a ‘FlashInit’ API, and the Flash location must be in erased
state before calling the ‘FlashProgram’ API.

page 16/45

2.7.6 ProgramVerify

Description

This function has the task to verify the previous program operation. It verifies whether the programmed Flash
range matches the corresponding source data buffer. In case of mismatch, the failed address, failed destination
and failed source are saved and the relevant error code returns.

This function only conducts a verification for a given number of bytes which can terminate this function within the
expected time interval. Thus, if the user wants to make a Flash verification for a large size, the remaining
information needs to be verified and stored in “pCtxData” variable, and ‘FlashCheckStatus’ must be called
periodically to run the next verification for the next destination based on all data provided in “pCtxData”.

Prototype

UINT32 ProgramVerify (PSSD_CONFIG pSSDConfig,
UINT32 dest,
UINT32 size,
UINT32 source,
UINT32 *pFailedAddress,
UINT32 *pFailedData,
UINT32 *pFailedSource,
PCONTEXT_DATA pCtxData);

UM2636

Normal mode functions

Arguments

Table 27. Arguments for ProgramVerify

Argument

pSSDConfig

dest

size

source Verify source buffer address. This address must reside on word boundary.

pFailedAddress Return first failing address in Flash. Only valid when the function returns C55_ERROR_VERIFY.

pFailedData Returns first mismatch data in Flash. Only valid when this function returns C55_ERROR_VERIFY.

pFailedSource Returns first mismatch data in buffer. Only valid when this function returns C55_ERROR_VERIFY.

pCtxData Address of context data structure. A data structure for storing context variables

Pointer to the SSD Configuration
Structure.

Destination address to be verified in
Flash memory.

Size, in byte, of the Flash region to
verify.

Description Range

The values in this structure are chip-dependent. Please refer to

Section 2.3 SSD configuration parameters for more details.

Any accessible address aligned on word boundary in main array or
UTest block.

If size = 0, C55_OK returns.

It must be word-aligned and its combination with dest should fall
within the main array or UTest block.

Return values

UM2636 - Rev 1

Table 28. Return values for ProgramVerifyZ

Argument

UINT32 Successful completion or error value.

Description Range

C55_OK

C55_ERROR_ALIGNMENTC55_ERROR_VERIFY

page 17/45

UM2636

Normal mode functions

Troubleshooting

Table 29. Troubleshooting for ProgramVerify

Returned Error Bits Description Solution

C55_ERROR_ALIGNMENT

C55_ERROR_VERIFY

This error indicates that dest/size/
source is not properly aligned.

There is a mismatch between
destination and source data.

Comments

The contents pointed by pFailedAddress, pFailedData and pFailedSource are updated only when there is a
mismatch between the source and destination regions.

If the user wants to run a program verify for large sizes, this Flash size is divided into many small portions defined
by NUM_WORDS_PROGRAM_VERIFY_CYCLE so that the verification for one small portion can be finished
within the expected time interval. In this case, ‘ProgramVerify’ function plays a role to kick-off this verification
operation by finishing verification for the first portion after the back-up of all necessary information to pCtxData
variable. Verification from the second portion is done within the ‘FlashCheckStatus’ function. Thus, the user must
call the ‘FlashCheckStatus’ to finish all the expected operations defined by size argument.

Check if dest, size and source are aligned on word (32­bit) boundary.

Check if the data in source is correct. If yes, the previous
program operation is failed. The user should re-erase that
Flash location and program again.

Assumptions

It is assumed that the Flash block is initialized using a ‘FlashInit’ API.

2.7.7 CheckSum

Description

This function performs a 32-bit sum over the specified Flash memory range without carry, which provides a rapid
method for data integrity checking.

This function only conducts Flash check sum for a given number of bytes which can terminate this function within
the expected time interval. Thus, if the user wants to run a check sum for large sizes, the remaining information
needs to be checked sum and stored in “pCtxData” variable and ‘FlashCheckStatus’ must be called periodically to
conduct the next check sum for next destination based on all data provided in “pCtxData”.

Prototype

UINT32 CheckSum (PSSD_CONFIG pSSDConfig,
UINT32 dest,
UINT32 size,
UINT32 *pSum,
PCONTEXT_DATA pCtxData);

UM2636 - Rev 1

page 18/45

Arguments

Table 30. Arguments for CheckSum

Argument Description Range

pSSDConfig

dest

size

pSum Returns the sum value.

pCtxData Address of context data structure. A data structure for storing context variables.

Pointer to the SSD Configuration
Structure.

Destination address to be
summed in Flash memory.

Size, in bytes, of the Flash region
to check sum.

The values in this structure are chip-dependent. Please refer to Section

2.3 SSD configuration parameters for more details.

Any accessible address aligned on word boundary in either main array or
UTest block.

If size is 0 and the other parameters are all valid, C55_OK returns. It must
be word aligned and its combination with dest should fall within main array
or UTest block.

0x00000000 - 0xFFFFFFFF. Note that this value is only valid when the
function returns C55_OK.

The user must not pass to this function with NULL pointer of pSum.

UM2636

Normal mode functions

Return values

Table 31. Return values for CheckSum

Type

UINT32 Successful completion or error value.

Description Possible values

C55_OK

C55_ERROR_ALIGNMENT

Troubleshooting

Table 32. Troubleshooting for CheckSum

Returned Error Bits

C55_ERROR_ALIGNMENT

This error indicates that dest/size is not
properly aligned.

Description Solution

Check if dest and size are aligned on word (32­bit) boundary.

Comments

In order to provide a correct pSum calculation, this input argument must not be NULL pointer. However, this API
does not return any error code if the user tries doing so.

If the user wants to run a checksum for large sizes, this Flash size is divided into many small portions defined by
NUM_WORDS_CHECK_SUM_CYCLE so that checksum for one small portion can be finished within the
expected time interval. In this case, ‘CheckSum’ function plays a role to kick-off this operation by finishing
checksum for the first portion after the back-up of all necessary information to pCtxData variable. Checksum from
the second portion is done within the ‘FlashCheckStatus’ function. Thus, the user must call the
‘FlashCheckStatus’ to finish all the expected operations defined by size argument.

UM2636 - Rev 1

Assumptions

It is assumed that the Flash block is initialized using a ‘FlashInit’ API.

page 19/45

2.7.8 FlashCheckStatus

Description

This function checks the status of on-going high-voltage operations in user mode or the status of the array
integrity check in user test mode. The user’s application code should call this function to determine whether the
operation is done or failed or in progress. In addition, this function is used to recover the un-completed task in
FlashProgram, ProgramVerify, CheckSum , BlankCheck in case the user wants to call those functions with very
big size.

In case of invoking program operation for multi-programmable size, after confirming that the previous program
operation has been finished successfully, this function calls the FlashProgram one more time to perform the next
program operation at next destination.

In case of invoking the Flash verify operation for large sizes, this function calls the FlashVerify one more time to
conduct verification for the next portion of data.

In case of invoking the blank check operation for large sizes, this function calls the BlankCheck one more time to
run a blank check for the next portion of data.

In case of invoking the check sum for large sizes, this function calls the CheckSum one more time to run a check
sum for the next portion of data.

The user must provide the modeOp input argument with an appropriate value to determine which operation needs
to be checked by this function. The list below defines all the possible cases to call this function:

• Call FlashCheckStatus for program operation.

• Call FlashCheckStatus for erase operation.

• Call FlashCheckStatus for user’s test mode.

• Call FlashCheckStatus for Flash verification.

• Call FlashCheckStatus for blank check.

• Call FlashCheckStatus for check sum.

The user must provide the pCtxData input argument which is a pointer to the context data structure for each Flash
function being checked for status. The context data structure contains a function pointer which must be manually
set up for each Flash operation (program, blank check, program verify, check sum) to be checked for status. It is
recommended to keep a separate context data structure for each type of Flash operation. As an example, please
refer to the demo code included in the release package. Below is a code snippet.

UM2636

Normal mode functions

CONTEXT_DATA dummyCtxData; // no context for erase and user test operation
CONTEXT_DATA pgmCtxData;
CONTEXT_DATA bcCtxData;
CONTEXT_DATA pvCtxData;
CONTEXT_DATA csCtxData;
/* set up function pointers in context data */
pgmCtxData.pReqCompletionFn = pFlashProgram;
bcCtxData.pReqCompletionFn = pBlankCheck;
pvCtxData.pReqCompletionFn = pProgramVerify;
csCtxData.pReqCompletionFn = pCheckSum;

Prototype

UINT32 FlashCheckStatus (PSSD_CONFIG pSSDConfig,
UINT8 modeOp,
UINT32 *opResult,
PCONTEXT_DATA pCtxData);

UM2636 - Rev 1

page 20/45

Arguments

Table 33. Arguments for FlashCheckStatus

Argument Description Range

pSSDConfig

modeOp

opResult

pCtxData

Pointer to the SSD
Configuration Structure.

To specify the operation
needs to be checked.

To store result of the
operation.

Address of a context
data structure.

The values in this structure are chip-dependent. Please refer to Section 2.3 SSD

configuration parameters for more details.

Must be one of the values:

• C55_MODE_OP_PROGRAM

• C55_MODE_OP_ERASE

• C55_MODE_OP_PROGRAM_VERIFY

• C55_MODE_OP_BLANK_CHECK

• C55_MODE_OP_CHECK_SUM

• C55_MODE_OP_USER_TEST_CHECK

The values for this variable depend on the operation being checked.

For PROGRAM operation, they are:

• C55_OK

• C55_ERROR_PGOOD

For ERASE operation, they are:

• C55_OK

• C55_ERROR_EGOOD

For PROGRAM_VERIFY operation, they are:

• C55_OK

• C55_ERROR_VERIFY

For BLANK_CHECK operation, they are:

• C55_OK

• C55_ERROR_NOT_BLANK

For CHECK_SUM operation, it is always C55_OK.

For USER_TEST_CHECK operation, they are:

• C55_OK

• C55_ERROR_MISMATCH

A data structure for storing context variables

UM2636

Normal mode functions

UM2636 - Rev 1

Return values

Table 34. Return values for FlashCheckStatus

Type

UINT32 Successful completion or error value.

Description Possible values

C55_INPROGRESS

C55_DONE

C55_ERROR_MODE_OP

All possible states in ‘FlashSuspend()’

All possible states in ‘FlashArrayIntegritySuspend()’

page 21/45

UM2636

Normal mode functions

Troubleshooting

Table 35. Troubleshooting for FlashCheckStatus

Returned Error Bits Description Solution

C55_ERROR_MODE_OP

User provides invalid modeOp
argument.

Comments

The user should call this function periodically until the whole operation has finished.

This function can also be called inside an interrupt procedure for program/erase to take the full advantage of
interrupt. Each time the interrupt procedure is called, ‘FlashCheckStatus’ gets called to continue to complete the
whole operation.

Assumptions

It is assumed that the Flash block is initialized using a ‘FlashInit()’ API.

The modeOp must be one of the values provided on

Table 33. Arguments for FlashCheckStatus.

2.7.9 FlashSuspend

Description

This function checks if there is any high voltage operation in progress on the C55 module and if this operation can
be suspended. This function suspends the ongoing operation if possible.

Prototype

UINT32 FlashSuspend (PSSD_CONFIG pSSDConfig,
UINT8 *suspendState);

Arguments

Argument Description Range

pSSDConfig Pointer to the SSD Configuration Structure.

suspendState

Return values

Indicate the suspend state of C55 module
after the function being called.

Table 36. Arguments for FlashSuspend

The values in this structure are chip-dependent. Please refer to

Section 2.3 SSD configuration parameters for more details.

All state values are enumerated in Table 38. Suspend state

definitions.

UM2636 - Rev 1

Table 37. Return values for FlashSuspend

Type

UINT32 Successful completion of this function. C55_OK

Description Possible values

Troubleshooting

None.

page 22/45

UM2636

Normal mode functions

Comments

After calling this function, read is allowed on the main array space without any Read-While-Write error. But data
read from the blocks targeted for programming or erasing is indeterminate even if the operation is suspended.

Table 38. Suspend state definitions defines and describes various suspend states and associated suspend codes.

Table 38. Suspend state definitions

Argument Code Description Valid operation after suspend

C55_SUS_NOTHING 10 There is no program/erase operation.

C55_PGM_WRITE 11

C55_ERS_WRITE 12

C55_ERS_SUS_PGM_WRITE 13

C55_PGM_SUS 14

C55_ERS_SUS 15

C55_ERS_SUS_PGM_SUS 16

There is a program sequence in
interlock write stage.

There is an erase sequence in interlock
write stage.

There is an erase-suspend program
sequence in interlock write stage.

The program operation is in suspended
state.

The erase operation on main array is in
suspended state.

The erase-suspended program
operation is in suspended state.

Erasing operation, programming operation
and read are valid on main array space.

Only read is valid on main array space.

Only read is valid on main array space.

Only read is valid on main array space.

Only read is valid on main array space.

Programming/Read operation is valid on
main array space.

Only read is valid on main array space.

This function should be used together with ‘FlashResume’. If suspendState is C55_PGM_SUS or C55_ERS_SUS
or C55_ERS_SUS_PGM_SUS, then ‘FlashResume’ should be called in order to resume the operation.

Table 39. Suspending state vs C55 status lists the Suspend State against the Flash block status.

Table 39. Suspending state vs C55 status

suspendState

C55_SUS_NOTHING X 0 X 0 X

C55_PGM_WRITE 0 0 X 1 0

C55_ERS_WRITE 0 1 0 0 X

C55_ESUS_PGM_WRITE 0 1 1 1 0

C55_PGM_SUS

C55_ERS_SUS

C55_ERS_SUS_PGM_SUS

EHV ERS ESUS PGM PSUS

1 0 X 1 0

X 0 X 1 1

1 1 0 0 X

X 1 1 0 X

X 1 1 0 X

1 1 1 1 0

X 1 1 1 1

UM2636 - Rev 1

The values of EHV, ERS, ESUS, PGM and PSUS represent the C55 status at the entry of ‘FlashSuspend’.

0: Logic zero; 1: Logic one; X: Do-not-care.

page 23/45

Assumptions

It is assumed that the Flash block is initialized using a ‘FlashInit’ API.

2.7.10 FlashResume

Description

This function checks if there is any suspended erase or program operation on the C55 module, and resumes the
suspended operation if any.

Prototype

UINT32 FlashResume (PSSD_CONFIG pSSDConfig,
UINT8* resumeState);

Arguments

Argument Description Range

pSSDConfig Pointer to the SSD Configuration Structure.

resumeState

Indicate the resume state of C55 module
after the function being called.

UM2636

Normal mode functions

Table 40. Arguments for FlashResume

The values in this structure are chip-dependent. Please refer to

Section 2.3 SSD configuration parameters for more details.

All state values are listed in:

Table 42. Resume state definitions.

Return values

Table 41. Return values for FlashResume

Type

UINT32 Successful completion of this function. C55_OK

Description Possible values

Troubleshooting

None.

Comments

This function resumes any operation that may be suspended. For instance, if a program operation is in
suspended state, it is resumed. If an erase operation is in suspended state, it is resumed, too. If an erase­suspended program operation is in a suspended state, the program operation is resumed prior to resuming the
erase operation.

Table 42. Resume state definitions defines and describes various resume states and associated resume codes.

UM2636 - Rev 1

page 24/45

C55_RES_NOTHING 20 No program/erase operation to be resumed

C55_RES_PGM 21 A program operation is resumed

C55_RES_ERS 22 A erase operation is resumed

C55_RES_ERS_PGM 23 A suspended erase-suspended program operation is resumed

Assumptions

It is assumed that the Flash block is initialized using a ‘FlashInit’ API.

2.7.11 GetLock

Description

This function checks the block locking status of low/middle/high/256K address spaces in the C55 module via
either main or alternate interface.

UM2636

Normal mode functions

Table 42. Resume state definitions

Code Name Value Description

Prototype

UINT32 GetLock (PSSD_CONFIG pSSDConfig,
UINT8 blkLockIndicator,
UINT32 *blkLockState);

Arguments

Table 43. Arguments for GetLock

Argument Description Range

pSSDConfig

blkLockIndicator

blkLockState

Pointer to the SSD Configuration
Structure.

Indicating the address space which
determines the address space block
locking register to be checked.

Returns the blocks’ locking status in the
given address space

The values in this structure are chip-dependent. Please refer to

Section 2.3 SSD configuration parameters for more details.

Refer to Table 46. Lock Indicator Definitions for valid values for
this parameter.

Bit mapped value indicating the locking status of the specified
address space.

1: The block is locked from program/erase.

0: The block is ready for program/erase

Return values

UM2636 - Rev 1

Table 44. Return values for GetLock

Type

UINT32 Successful completion or error value.

Description Possible values

C55_OK

C55_ERROR_BLOCK_INDICATOR

C55_ERROR_ALTERNATE

page 25/45

UM2636

Normal mode functions

Troubleshooting

Table 45. Troubleshooting for GetLock

Returned Error Bits Possible causes Solution

C55_ERROR_BLOCK_INDICATOR The input blkLockIndicator is invalid.

C55_ERROR_ALTERNATE

User calls this function to get lock status for
256K block space via alternate interface.

Comments

Table 46. Lock Indicator Definitions defines and describes various blkLockIndicator values.

Table 46. Lock Indicator Definitions

Code Name Value Description

C55_BLOCK_LOW 0 Block lock protection of low address space.

C55_BLOCK_MID 1 Block lock protection of mid address space.

C55_BLOCK_HIGH 2 Block lock protection of high address space.

C55_BLOCK_LARGE_FIRST 3 Block lock protection of the first 256 K address space (from block 0 to block 31).

C55_BLOCK_LARGE_SECOND 4

C55_BLOCK_UTEST 5 Block lock protection of the UTest block.

Block lock protection of the second 256 K address space (from block 32 to upper
block numbering).

Set this argument to correct value listed
in Table 46. Lock Indicator Definitions.

Alternate interface does not support
256K block space.

The output parameter blkLockState returns a bit-mapped value indicating the block lock status of the specified
address space. A main array block is locked from program/erase if its corresponding bit is set.

The indicated address space determines the valid bits of blkLockState. For either low/mid/high/256K address
spaces, if blocks corresponding to valid block lock state bits are not present (due to configuration or total memory
size), values for these block lock state bits are always 1 because such blocks are locked by hardware on reset.
These blocks cannot be unlocked by software with ‘SetLock’ function.

If the user uses the alternate interface to get the lock protection for the 256 K address space, the error code
C55_ERROR_ALTERNATE returns to indicate that the interface does not support this operation.

The bit allocations of bklLockState for each address space correspond to the ones of the relevant lock registers
as follows:

Table 47. blkLockState in low address space

MSB

bit 31 … bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

reserved … LOWLOCK[4] 64K block 0 32K block 1 32K block 0 16K block 1 16K block 0

LSB

UM2636 - Rev 1

page 26/45

UM2636

Normal mode functions

Table 48. blkLockState in middle address space

MSD LSB

bit 31 … bit 4 bit 3 bit 2 bit 1 bit 0

reserved … LOWLOCK[4] LOWLOCK[3] LOWLOCK[2] LOWLOCK[1] LOWLOCK[0]

Table 49. blkLockState in high address space

MSB LSB

bit 31 … bit 4 bit 3 bit 2 bit 1 bit 0

reserved … MIDLOCK[4] MIDLOCK[3] MIDLOCK[2] MIDLOCK[1] MIDLOCK[0]

Table 50. blkLockState in the first 256 K address space

MSB LSB

bit 31 … bit 4 bit 3 bit 2 bit 1 bit 0

reserved … HIGHLOCK[4] HIGHLOCK[3] HIGHLOCK[2] HIGHLOCK[1] HIGHLOCK[0]

MSB

bit 31 … bit 4 bit 3 bit 2 bit 1 bit 0

reserved … 256KLOCK[4] 256KLOCK[3] 256KLOCK[2] 256KLOCK[1] 256KLOCK[0]

MSB

bit 31 … bit 16 bit 15 bit 14 … bit 1 bit 0

reserved … reserved reserved reserved … reserved TSLOCK

Assumptions

It is assumed that the Flash block is initialized using a ‘FlashInit’ API.

2.7.12 SetLock

Description

This function sets the block lock state for low/middle/high/256K address space on the C55 module to protect them
from program/erase via either main or alternate interface.

Table 51. blkLockState in the second 256 K address space

LSB

Table 52. blkLockState in UTest block space

LSB

UM2636 - Rev 1

Prototype

UINT32 SetLock (PSSD_CONFIG pSSDConfig,
UINT8 blkLockIndicator,
UINT32 blkLockState);

page 27/45

Arguments

Table 53. Arguments for SetLock

Argument Description Range

pSSDConfig

blkLockIndicator

blkLockState

Pointer to the SSD Configuration
Structure.

Indicating the address space and the
protection level of the block lock register to
be read.

The block locks to be set to the specified
address space and protection level.

The values in this structure are chip-dependent. Please refer to

Section 2.3 SSD configuration parameters for more details.

Refer to Table 46. Lock Indicator Definitions for valid codes for
this parameter.

Bit mapped value indicating the lock status of the specified
address space.

1: The block is locked from program/erase.

0: The block is ready for program/erase

Return values

UM2636

Normal mode functions

Table 54. Return values for SetLock

Type Description Possible values

C55_OK

UINT32 Successful completion or error value.

C55_ERROR_BLOCK_INDICATOR

C55_ERROR_ALTERNATE

Troubleshooting

Table 55. Troubleshooting for SetLock

Returned Error Bits

C55_ERROR_BLOCK_INDICATOR The input blkLockIndicator is invalid.

C55_ERROR_ALTERNATE

User calls this function to set lock for 256 K
block space via alternate interface.

Possible causes Solution

Set this argument to correct value listed
in Table 46. Lock Indicator Definitions.

Alternate interface does not support
256 K block space.

Comments

See ‘GetLock’ API.

Assumptions

It is assumed that the Flash block is initialized using a ‘FlashInit’ API.

2.7.13 OverPgmProtGetStatus

Description

This function returns the over-program protection status via either main or alternate interface. This value shows
the blocks that are protected from being over programmed.

UM2636 - Rev 1

page 28/45

Prototype

UINT32 OverPgmProtGetStatus(PSSD_CONFIG pSSDConfig,
UINT8 blkProtIndicator,
UINT32 *blkProtState);

Arguments

Table 56. Arguments for OverPgmProtGetStatus

Argument Description Range

pSSDConfig Pointer to the SSD Configuration Structure.

The block indicator to get over-program

blkProtIndicator

blkProtState

protection status. This argument determines
which over-program protection register needs to
be accessed by this function.

The bit map for over-program protection
information of specific address space according
to blkProtIndicator argument.

The values in this structure are chip-dependent. Please
refer to Section 2.3 SSD configuration parameters for
more details.

The valid value for this argument is the same as the one
of blkLockIndicator argument in ‘SetLock ’function.

Bit-mapped value.

1: The block is protected from over-program.

0: The block is ready for over-program.

UM2636

Normal mode functions

Return values

Table 57. Return values for OverPgmProtGetStatus

Type

UINT32 Successful completion or error value.

Description Possible values

Troubleshooting

Table 58. Troubleshooting for OverPgmProtGetStatus

Returned Error Bits

C55_ERROR_BLOCK_INDICATOR The input blkProtIndicator is invalid.

C55_ERROR_ALTERNATE

User calls this function to get over-program
protection status via alternate interface.

Possible causes Solution

Comments

C55_OK

C55_ERROR_BLOCK_INDICATOR

C55_ERROR_ALTERNATE

Set this argument to correct value listed in

Table 46. Lock Indicator Definitions.

Alternate interface does not support this
operation.

UM2636 - Rev 1

If the user uses the alternate interface to get the over-program protection status for the 256 K address space, the
error code C55_ERROR_ALTERNATE is returned to indicate that the interface does not support this operation.

The blkProtState is bit map allocation and it has the same definition as the blkLockState of ‘GetLock’ function.
See ‘GetLock’ function for more details.

page 29/45

Assumptions

It is assumed that the Flash block is initialized using a ‘FlashInit’ API.

2.8 User Test Mode Functions

2.8.1 FlashArrayIntegrityCheck

Description

This function checks the array integrity of the Flash via the main interface. The user-specified address sequence
is used for array integrity reads and the operation is done on the specified blocks. The MISR values calculated by
the hardware is compared with the values passed by the user, if they are not the same, then an error code is
returned.

In order to support asynchronous design, this function stores the necessary information to “pCtxData” (ex: user
provided MISR value) and terminates without waiting for completion of this operation. The user should call
‘FlashCheckStatus’ to check the on-going status of this function. Once finished, it makes a comparison between
the MISR values provided by the user, which are currently stored in “pCtxData” and MISR values generated by
hardware, and it finally returns an appropriate code according to this compared result.

UM2636

User Test Mode Functions

Prototype

UINT32 FlashArrayIntegrityCheck(PSSD_CONFIG pSSDConfig,
UINT32 lowEnabledBlocks,
UINT32 midEnabledBlocks,
UINT32 highEnabledBlocks,
NLARGE_BLOCK_SEL nLargeEnabledBlocks,
UINT8 breakOption,
UINT8 addrSeq,
PMISR pMisrValue,
PCONTEXT_DATA pCtxData);

Arguments

Table 59. Arguments for FlashArrayIntegrityCheck

Argument

pSSDConfig

lowEnabledBlocks

midEnabledBlocks

highEnabledBlocks

nLargeEnabledBlocks

breakOption

Pointer to the SSD
Configuration Structure.

To select the array blocks in
low address space for
checking.

To select the array blocks in
mid address space for
checking.

To select the array blocks in
high address space for
checking.

To select the array blocks in
256K address space for
checking.

To specify an option to allow
stopping the operation on
errors.

Description Range

The values in this structure are chip-dependent. Please refer to

Section 2.3 SSD configuration parameters for more details.

Refer to ‘FlashErase’ for details.

Refer to ‘FlashErase’ for details.

Refer to ‘FlashErase’ for details.

Refer to ‘FlashErase’ for details.

Must be one of these values:

• C55_BREAK_NONE

• C55 BREAK_ON_DBD (stop the operation on Double Bit
Detection)

• C55_BREAK_ON_DBD_SBC (stop the operation on Double Bit
Detection or Single Bit Correction)

UM2636 - Rev 1

page 30/45

Argument Description Range

Must be one of these values:

• C55_ADDR_SEQ_PROPRIETARY: this is meant to replicate
the sequences that the normal “user” code follows, and
thoroughly check the read propagation paths. This sequence is
proprietary

• C55_ADDR_SEQ_LINEAR: this is just logically sequential.

It should be noted that the time to run a sequential sequence is
significantly shorter than the time to run the proprietary sequence.

The individual MISR words can range from 0x00000000 ­0xFFFFFFFF

A data structure for storing context variables

addrSeq

pMISRValue

pCtxData

To determine the address
sequence to be used during
array integrity checks.

Address of a MISR structure
contains the MISR values
calculated by offline tool.

Address of a context data
structure.

Return values

Table 60. Return values for FlashArrayIntegrityCheck

UM2636

User Test Mode Functions

Type Description Possible values

C55_OK

C55_ERROR_ADDR_SEQ

UINT32 Successful completion or error value.

C55_ERROR_NO_BLOCK

C55_ERROR_MISMATCH

C55_ERROR_ALTERNATE

C55_ERROR_ENABLE

Troubleshooting

The troubleshooting given here comprises hardware errors and input parameter errors.

Table 61. Troubleshooting for FlashArrayIntegrityCheck

Returned Error Bits

C55_ERROR_MISMATCH

C55_ERROR_NO_BLOCK

C55_ERROR_ADDR_SEQ

C55_ERROR_ALTERNATE

C55_ERROR_ENABLE

Possible causes Solution

The MISR values calculated
by the user are incorrect.

The MISR values calculated
by hardware are incorrect.

None of the blocks are
enabled for Array Integrity
Check

The user provides invalid
address sequence input
argument.

The user calls this function
via alternate interface.

UTE bit cannot be set
properly.

Re-calculate the MISR values using the correct data and address
sequence.

Hardware error

Enable any of the blocks using the variables: lowEnabledBlocks,
midEnabledBlocks, highEnabledBlocks or nLargeEnabledBlocks.

The address sequence input argument must be either proprietary
(C55_ADDR_SEQ_PROPRIETARY) or sequential
(C55_ADDR_SEQ_LINEAR). Any other value is unacceptable.

Alternate interface does not support this operation.

It is impossible to enable user test mode function if any program/
erase operation is going on. Thus, please make sure to clear
PGM/ERS before invoking user test mode function.

UM2636 - Rev 1

page 31/45

Comments

The inputs lowEnabledBlocks, midEnabledBlocks, highEnabledBlocks and nLargeEnabledBlocks are bit-mapped
arguments that are used to select the blocks to be evaluated in the low/mid/high/256K address spaces of the
main array. The selection of the blocks of the main array is determined by setting/clearing the corresponding bit in
lowEnabledBlocks, midEnabledBlocks, highEnabledBlocks or nLargeEnabledBlocks.

For diagrams of block bit-map definitions of lowEnabledBlocks, midEnabledBlocks, highEnabledBlocks and
nLargeEnabledBlocks, refer to ‘FlashErase’ function for more details.

In case the user specifies a break option other than C55_BREAK_NONE, the function stops immediately if any
Double Bit Detection or Single Bit Correction occurs. It is possible to resume the operation by calling
‘FlashArrayIntegrityResume’ or start a new array integrity check.

If no blocks are enabled the C55_ERROR_NO_BLOCK error code is returned.

If the user calls this function via alternate interface, the C55_ERROR_ALTERNATE error code is returned.

This function does not support the array integrity check on UTest block.

Assumptions

It is assumed that the Flash block is initialized using a ‘FlashInit’ API.

2.8.2 FlashArrayIntegritySuspend

UM2636

User Test Mode Functions

Description

This function checks if there is an ongoing array integrity check of the Flash and suspends it via themain
interface.

Prototype

UINT32 FlashArrayIntegritySuspend (PSSD_CONFIG pSSDConfig,
UINT8 *suspendState);

Arguments

Table 62. Arguments for FlashArrayIntegritySuspend

Argument Description Range

pSSDConfig Pointer to the SSD Configuration Structure.

suspendState

Indicates the suspend state on user test
mode after calling the function.

The values in this structure are chip-dependent. Please refer to

Section 2.3 SSD configuration parameters for more details.

All state values are enumerated in Table 65. Suspend State

Definitions.

Return values

Table 63. Return values for FlashArrayIntegritySuspend

UM2636 - Rev 1

Type

UINT32 Successful completion error code.

Description Possible values

C55_OK

C55_ERROR_ALTERNATE

page 32/45

UM2636

User Test Mode Functions

Troubleshooting

Table 64. Troubleshooting for FlashArrayIntegritySuspend

Returned Error Bits Possible causes Solution

C55_ERROR_ALTERNATE User calls this function via alternate interface.

Comments

If the user calls this function via the alternate interface, a return code of C55_ERROR_ALTERNATE returns
without doing any operation.

Table 65. Suspend State Definitions defines and describes the various suspend states and the associated

suspend codes.

Table 65. Suspend State Definitions

Alternate interface does not support this
operation.

Argument Code Description

C55_SUS_NOTHING 10 There is no array integrity check/margin read operation in-progress.

C55_USER_TEST_SUS 17 The user test operation is in suspended state.

This function should be used together with ‘FlashArrayIntegrityResume’. If suspendState is C55_UTEST_SUS,
then ‘FlashArrayIntegrityResume’ should be called in order to resume the operation.

Assumptions

It is assumed that the Flash block is initialized using a ‘FlashInit’ API.

2.8.3 FlashArrayIntegrityResume

Description

This function checks if there is an ongoing array integrity check of the suspended Flash and resumes it via main
interface.

Prototype

UINT32 FlashArrayIntegrityResume (PSSD_CONFIG pSSDConfig,
UINT8 *resumeState);

Arguments

UM2636 - Rev 1

Table 66. Arguments for FlashArrayIntegrityResume

Argument Description Range

pSSDConfig Pointer to the SSD Configuration Structure.

resumeState

Indicates the resume state on the user test
mode after calling the function.

The values in this structure are chip-dependent. Please refer to

Section 2.3 SSD configuration parameters for more details.

All state values are enumerated in Table 69. Resume State

Definitions.

page 33/45

Return values

Table 67. Return values for FlashArrayIntegrityResume

Type Description Possible values

UINT32 Successful completion or error code.

C55_OK

C55_ERROR_ALTERNATE

Troubleshooting

Table 68. Troubleshooting for FlashArrayIntegrityResume

Returned Error Bits Possible causes Solution

C55_ERROR_ALTERNATE User calls this function via alternate interface.

Alternate interface does not support this
operation.

UM2636

User Test Mode Functions

Comments

If the user calls this function via the alternate interface, a return code of C55_ERROR_ALTERNATE returns
without doing any operation.

This function can also be used to resume an array integrity check/margin read check when it is stopped by a
Double Bit Detection or a Single Bit Correction.

Table 69. Resume State Definitions defines and describes the various resume states and the associated resume

codes.

Argument

C55_RES_NOTHING 20 There is no array integrity check/margin read operation suspended.

C55_RES_USER_TEST 24 The user test operation is in progress state.

Assumptions

It is assumed that the Flash block is initialized using a ‘FlashInit’ API.

2.8.4 UserMarginReadCheck

Description

This function checks the user margin reads of the Flash via the main interface. The user-specified margin level is
used for reads and the operation is done on the specified blocks. The MISR values calculated by the hardware
are compared with the values passed by the user, if they are not the same, then an error code is returned.

In order to support asynchronous design, this function stores the necessary information to “pCtxData” (for
example user provided MISR value) and terminates without waiting for completion of this operation. User should
call ‘FlashCheckStatus’ to check the on-going status of this function. Once finished, the function makes a
comparison between the MISR values provided by the user, which are currently stored in “pCtxData”, and the
MISR values generated by hardware, and returns an appropriate code according to this compared result.

Table 69. Resume State Definitions

Code Description

UM2636 - Rev 1

page 34/45

User Test Mode Functions

Prototype

UINT32 UserMarginReadCheck (PSSD_CONFIG pSSDConfig,
UINT32 lowEnabledBlocks,
UINT32 midEnabledBlocks,
UINT32 highEnabledBlocks,
NLARGE_BLOCK_SEL nLargeEnabledBlocks
UINT8 breakOption,
UINT8 marginLevel,
PMISR pMisrValue,
PCONTEXT_DATA pCtxData);

Arguments

Table 70. Arguments for UserMarginReadCheck

Argument Description Range

pSSDConfig

lowEnabledBlocks

midEnabledBlocks

highEnabledBlocks

nLargeEnabledBlocks

breakOption

marginLevel

pMISRValue

pCtxData Address of a context data structure. A data structure for storing context variables

Pointer to the SSD Configuration
Structure.

To select the array blocks in low address
space for checking.

To select the array blocks in mid address
space for being evaluated.

To select the array blocks in high address
space for being evaluated.

To select the array blocks in 256K address
space for being evaluated.

To specify an option to allow stopping the
operation on errors.

To determine the margin level to be used
during margin read checks.

Address of a MISR structure contains the
MISR values calculated by the user.

The values in this structure are chip-dependent. Please
refer to Section 2.3 SSD configuration parameters

for more details.

Refer to ‘FlashErase’ for details.

Refer to ‘FlashErase’ for details.

Refer to ‘FlashErase’ for details.

Refer to ‘FlashErase’ for details.

Refer to ‘FlashArrayIntegrityCheck’ for details.

Selects the margin level that is being checked. Must be
one of the values:

C55_MARGIN_LEVEL_ERASE

C55_MARGIN_LEVEL_PROGRAM

Refer to ‘FlashArrayIntegrityCheck’ for details.

UM2636

UM2636 - Rev 1

Return values

Table 71. Return values for UserMarginReadCheck

Type

UINT32 Successful completion or error value.

Description Possible values

C55_OK

C55_ERROR_ALTERNATE

C55_ERROR_MARGIN_LEVEL

C55_ERROR_NO_BLOCK

C55_ERROR_MISMATCH

EE_ERROR_ENABLE

page 35/45

Troubleshooting

Table 72. Troubleshooting for UserMarginReadCheck

Returned Error Bits Possible causes Solution

C55_ERROR_MISMATCH

C55_ERROR_NO_BLOCK

C55_ERROR_MARGIN_LEVEL

C55_ERROR_ALTERNATE

C55_ERROR_ENABLE

The MISR values
calculated by the user are
incorrect.

The MISR values
calculated by the
hardware are incorrect.

None of the blocks are
enabled for Factory
Margin Read Check

User provides invalid
margin level.

User calls this function via
the alternate interface.

UTE bit cannot be set
properly.

Re-calculate the MISR values using the correct data and margin
level.

Hardware error.

Enable any of the blocks using variables lowEnabledBlocks,
midEnabledBlocks, highEnabledBlocks and
nLargeEnabledBlocks

The margin level input argument must be either program level
(C55_MARGIN_LEVEL_PROGRAM) or erase level
(C55_MARGIN_LEVEL_ERASE). Any other value is
unacceptable.

Alternate interface does not support this operation.

It is impossible to enable user test mode function if any
program/erase operation is going on. Thus, please make sure to
clear PGM/ERS before invoking user test mode function.

UM2636

User Test Mode Functions

Comments

Refer to ‘FlashArrayIntegrityCheck’ for details.

Assumptions

It is assumed that the Flash block is initialized using a ‘FlashInit’ API.

UM2636 - Rev 1

page 36/45

A.1 System requirements

The C55 SSD is designed to support a single C55 Flash module embedded on microcontrollers. Before using this
SSD on a different derivative microcontroller, the user has to provide the information specific to the derivative
through a configuration. Table 73. System requirements provides the hardware/tool which is necessary for using
this driver.

Tool name Description Version No

Green Hills MULTI IDE Development tool v7.1.6

Lauterbach T32 ICD JTAG debugger Debugger

UM2636

Appendix A

Table 73. System requirements

UM2636 - Rev 1

page 37/45

B.1 Acronyms

Abbreviation Complete name

API Application Programming Interface

BIU Bus Interface Unit

ECC Error Correction Code

EVB Evaluation Board

RWW Read While Write

SSD Standard Software Driver

UM2636

Appendix B

Table 74. Acronyms

UM2636 - Rev 1

page 38/45

C.1 Document reference

• SPC582Bx 32-bit Power Architecture microcontroller for automotive vehicle body and gateway applications
(RM0403).

• SPC584Bx 32-bit MCU family built on the Power Architecture® for automotive body electronics applications
(RM0449).

• SPC584Cx/SPC58ECx 32-bit MCU family built on the Power Architecture for automotive body electronics
applications (RM0407).

• SPC58xEx/SPC58xGx 32-bit Power Architecture® microcontroller for automotive ASILD applications
( RM0391).

• SPC58EHx/SPC58NHx 32-bit Power Architecture microcontroller for automotive ASILD applications
(RM0452).

• SPC58xNx 32-bit Power Architecture® microcontroller for automotive ASILD applications (RM0421).

UM2636

Appendix C

UM2636 - Rev 1

page 39/45

Revision history

Date Revision Changes

21-May-2020 1 Initial release.

UM2636

Table 75. Document revision history

UM2636 - Rev 1

page 40/45

UM2636

Contents

Contents

1 Overview ..........................................................................2

1.1 Features ......................................................................2

2 API specification ..................................................................3

2.1 General overview ..............................................................3

2.2 General type definitions .........................................................3

2.3 SSD configuration parameter ....................................................4

2.4 Context data structure ..........................................................4

2.5 Other data structures ...........................................................5

2.6 Return codes ..................................................................7

2.7 Normal mode functions..........................................................8

2.7.1 FlashInit ...............................................................8

2.7.2 FlashErase .............................................................9

2.7.3 FlashEraseAlternate .....................................................12

2.7.4 BlankCheck............................................................13

2.7.5 FlashProgram ..........................................................14

2.7.6 ProgramVerify ..........................................................17

2.7.7 CheckSum ............................................................18

2.7.8 FlashCheckStatus.......................................................20

2.7.9 FlashSuspend..........................................................22

2.7.10 FlashResume ..........................................................24

2.7.11 GetLock ..............................................................25

2.7.12 SetLock...............................................................27

2.7.13 OverPgmProtGetStatus ..................................................28

2.8 User Test Mode Functions ......................................................30

2.8.1 FlashArrayIntegrityCheck .................................................30

2.8.2 FlashArrayIntegritySuspend ...............................................32

2.8.3 FlashArrayIntegrityResume................................................33

2.8.4 UserMarginReadCheck...................................................34

A.1 System requirements ..........................................................37

B.1 Acronyms ....................................................................38

UM2636 - Rev 1

page 41/45

UM2636

Contents

C.1 Document reference ...........................................................39

Revision history .......................................................................40

UM2636 - Rev 1

page 42/45

UM2636

List of tables

List of tables

Table 1. Type definitions .....................................................................3

Table 2. SSD configuration structure field definition ..................................................4

Table 3. Context data structure field definitions ..................................................... 5

Table 4. Block information structure field definitions ..................................................5

Table 5. 256K block select structure field definitions ..................................................6

Table 6. MISR structure field definitions ..........................................................6

Table 7. Return codes.......................................................................7

Table 8. FlashInit ..........................................................................8

Table 9. Return values for FlashInit .............................................................8

Table 10. Arguments for FlashErase..............................................................9

Table 11. Return values for FlashErase .......................................................... 10

Table 12. Troubleshooting for FlashErase ......................................................... 10

Table 13. Bit allocation for low block select argument ................................................. 11

Table 14. Bit allocation for middle block select argument ............................................... 11

Table 15. Bit allocation for blocks in high address space ............................................... 11

Table 16. Bit allocation for first 256K block select argument ............................................. 11

Table 17. Bit allocation for second256K block select argument........................................... 11

Table 18. Arguments for FlashEraseAlternate ...................................................... 12

Table 19. Return values for FlashEraseAlternate .................................................... 12

Table 20. Troubleshooting for FlashEraseAlternate................................................... 12

Table 21. Arguments for BlankCheck ............................................................ 13

Table 22. Return values for BlankCheck .......................................................... 14

Table 23. Troubleshooting for BlankCheck ........................................................ 14

Table 24. Arguments for FlashProgram ........................................................... 15

Table 25. Return values for FlashProgram......................................................... 15

Table 26. Troubleshooting for FlashProgram ....................................................... 16

Table 27. Arguments for ProgramVerify........................................................... 17

Table 28. Return values for ProgramVerifyZ ....................................................... 17

Table 29. Troubleshooting for ProgramVerify .......................................................18

Table 30. Arguments for CheckSum ............................................................. 19

Table 31. Return values for CheckSum ........................................................... 19

Table 32. Troubleshooting for CheckSum ......................................................... 19

Table 33. Arguments for FlashCheckStatus ........................................................ 21

Table 34. Return values for FlashCheckStatus ...................................................... 21

Table 35. Troubleshooting for FlashCheckStatus .................................................... 22

Table 36. Arguments for FlashSuspend ..........................................................22

Table 37. Return values for FlashSuspend ........................................................ 22

Table 38. Suspend state definitions .............................................................23

Table 39. Suspending state vs C55 status ......................................................... 23

Table 40. Arguments for FlashResume ...........................................................24

Table 41. Return values for FlashResume ......................................................... 24

Table 42. Resume state definitions .............................................................. 25

Table 43. Arguments for GetLock ............................................................... 25

Table 44. Return values for GetLock............................................................. 25

Table 45. Troubleshooting for GetLock ........................................................... 26

Table 46. Lock Indicator Definitions .............................................................26

Table 47. blkLockState in low address space ....................................................... 26

Table 48. blkLockState in middle address space .................................................... 27

Table 49. blkLockState in high address space ...................................................... 27

Table 50. blkLockState in the first 256 K address space ...............................................27

Table 51. blkLockState in the second 256 K address space ............................................. 27

Table 52. blkLockState in UTest block space .......................................................27

UM2636 - Rev 1

page 43/45

UM2636

List of tables

Table 53. Arguments for SetLock ............................................................... 28

Table 54. Return values for SetLock .............................................................28

Table 55. Troubleshooting for SetLock ........................................................... 28

Table 56. Arguments for OverPgmProtGetStatus .................................................... 29

Table 57. Return values for OverPgmProtGetStatus ..................................................29

Table 58. Troubleshooting for OverPgmProtGetStatus ................................................ 29

Table 59. Arguments for FlashArrayIntegrityCheck ...................................................30

Table 60. Return values for FlashArrayIntegrityCheck ................................................. 31

Table 61. Troubleshooting for FlashArrayIntegrityCheck ............................................... 31

Table 62. Arguments for FlashArrayIntegritySuspend ................................................. 32

Table 63. Return values for FlashArrayIntegritySuspend ............................................... 32

Table 64. Troubleshooting for FlashArrayIntegritySuspend .............................................33

Table 65. Suspend State Definitions ............................................................. 33

Table 66. Arguments for FlashArrayIntegrityResume ................................................. 33

Table 67. Return values for FlashArrayIntegrityResume ............................................... 34

Table 68. Troubleshooting for FlashArrayIntegrityResume .............................................. 34

Table 69. Resume State Definitions ............................................................. 34

Table 70. Arguments for UserMarginReadCheck .................................................... 35

Table 71. Return values for UserMarginReadCheck .................................................. 35

Table 72. Troubleshooting for UserMarginReadCheck ................................................ 36

Table 73. System requirements ................................................................ 37

Table 74. Acronyms ........................................................................ 38

Table 75. Document revision history .............................................................40

UM2636 - Rev 1

page 44/45

UM2636

IMPORTANT NOTICE – PLEASE READ CAREFULLY

STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST
products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST
products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.

Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of
Purchasers’ products.

No license, express or implied, to any intellectual property right is granted by ST herein.

Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.

ST and the ST logo are trademarks of ST. For additional information about ST trademarks, please refer to www.st.com/trademarks. All other product or service
names are the property of their respective owners.

Information in this document supersedes and replaces information previously supplied in any prior versions of this document.

© 2020 STMicroelectronics – All rights reserved

UM2636 - Rev 1

page 45/45
