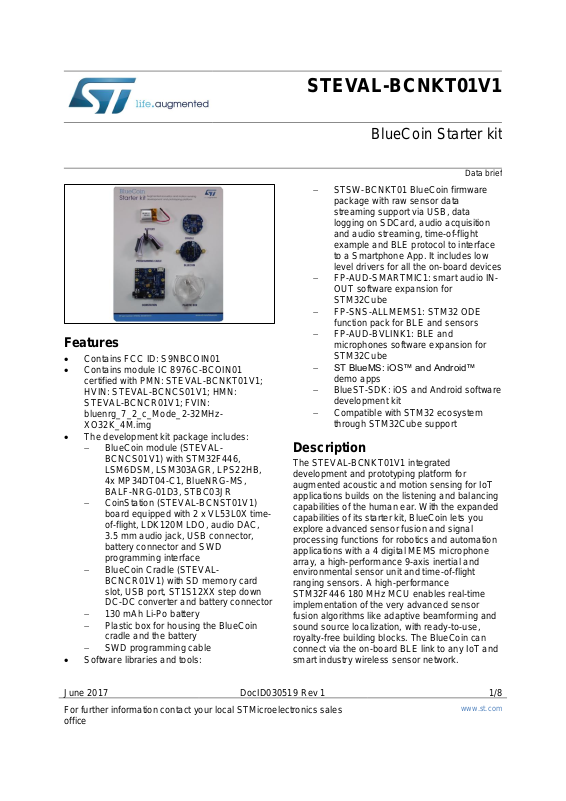

STEVAL-BCNKT01V1
BlueCoin Starter kit
Data brief
Features
Contains FCC ID: S9NBCOIN01
Contains module IC 8976C-BCOIN01
certified with PMN: STEVAL-BCNKT01V1;
HVIN: STEVAL-BCNCS01V1; HMN:
STEVAL-BCNCR01V1; FVIN:
bluenrg_7_2_c_Mode_2-32MHzXO32K_4M.img
The development kit package includes:
BlueCoin module (STEVAL-
BCNCS01V1) with STM32F446,
LSM6DSM, LSM303AGR, LPS22HB,
4x MP34DT04-C1, BlueNRG-MS,
BALF-NRG-01D3, STBC03JR
CoinStation (STEVAL-BCNST01V1)
board equipped with 2 x VL53L0X timeof-flight, LDK120M LDO, audio DAC,
3.5 mm audio jack, USB connector,
battery connector and SWD
programming interface
BlueCoin Cradle (STEVAL-
BCNCR01V1) with SD memory card
slot, USB port, ST1S12XX step down
DC-DC converter and battery connector
130 mAh Li-Po battery
Plastic box for housing the BlueCoin
cradle and the battery
SWD programming cable
Software libraries and tools:
STSW-BCNKT01 BlueCoin firmware
package with raw sensor data
streaming support via USB, data
logging on SDCard, audio acquisition
and audio streaming, time-of-flight
example and BLE protocol to interface
to a Smartphone App. It includes low
level drivers for all the on-board devices
FP-AUD-SMARTMIC1: smart audio IN-
OUT software expansion for
STM32Cube
FP-SNS-ALLMEMS1: STM32 ODE
function pack for BLE and sensors
FP-AUD-BVLINK1: BLE and
microphones software expansion for
STM32Cube
ST BlueMS: iOS™ and Android™
demo apps
BlueST-SDK: iOS and Android software
development kit
Compatible with STM32 ecosystem
through STM32Cube support
Description
The STEVAL-BCNKT01V1 integrated
development and prototyping platform for
augmented acoustic and motion sensing for IoT
applications builds on the listening and balancing
capabilities of the human ear. With the expanded
capabilities of its starter kit, BlueCoin lets you
explore advanced sensor fusion and signal
processing functions for robotics and automation
applications with a 4 digital MEMS microphone
array, a high-performance 9-axis inertial and
environmental sensor unit and time-of-flight
ranging sensors. A high-performance
STM32F446 180 MHz MCU enables real-time
implementation of the very advanced sensor
fusion algorithms like adaptive beamforming and
sound source localization, with ready-to-use,
royalty-free building blocks. The BlueCoin can
connect via the on-board BLE link to any IoT and
smart industry wireless sensor network.
Content of the starter kit
STEVAL-BCNKT01V1
2/8
DocID030519 Rev 1
1 Content of the starter kit
Figure 1: STEVAL-BCNCS01V1 - BlueCoin Core System
STEVAL-BCNCS01V1 - BlueCoin Core System board features
Very compact module for motion, audio and environmental sensing and Bluetooth low
energy connectivity with a complete set of firmware examples
Main components:
STM32F446 – 32-bit high-performance MCU (ARM® Cortex®-M4 with FPU)
4x MP34DT04-C1 – 64dB SNR Digital MEMS microphone
LSM6DSM – iNEMO inertial module: 3D accelerometer and 3D gyroscope
LSM303AGR – ultra-compact high-performance eCompass module: ultra-low
power 3D accelerometer and 3D magnetometer
LPS22HB – MEMS nano pressure sensor: 260-1260 hPa absolute digital output
barometer
BlueNRG-MS – Bluetooth low energy network processor
BALF-NRG-01D3 – 50 Ω balun with integrated harmonic filter
STBC03JR – linear battery charger with 150 mA LDO 3.0 V
External interfaces: UART, SPI, SAI (Serial Audio Interface), I²C, USB OTG, ADC,
GPIOs, SDIO, CAN, I2S
SWD interface for debugging and programming capability
The Bluetooth radio power output is set by default to 0 dBm; the FCC and IC
certifications refer to this operating value. The power output can be changed up to 8
dBm by reprogramming the device firmware, but this change will require an update of
the FCC and IC certifications, with additional radio emission tests to be performed.
STEVAL-BCNKT01V1
Content of the starter kit
DocID030519 Rev 1
3/8
Figure 2: STEVAL-BCNCR01V1 - BlueCoin Cradle board
STEVAL-BCNCR01V1 - BlueCoin Cradle board features
BlueCoin Cradle board with BlueCoin connectors
ST1S12XX – 3.3 V step down DC-DC converter
USBLC6-2P6 – very low capacitance ESD protection
USB type A to Mini-B USB connector for power supply and communication
microSD card socket
Figure 3: STEVAL-BCNST01V1 - CoinStation board
Content of the starter kit
STEVAL-BCNKT01V1
4/8
DocID030519 Rev 1
STEVAL-BCNST01V1 - CoinStation board features
CoinStation expansion board with BlueCoin connectors
LDK120M-R – 200 mA low quiescent current very low noise LDO
USBLC6-2P6 – very low capacitance ESD protection for USB
2x VL53L0X Time-of-Flight (ToF) ranging sensor
16-Bit, low-power stereo audio DAC and 3.5 mm jack socket
Micro-USB connector for power supply and communication
Reset button
SWD connector for programming and debugging
STEVAL-BCNKT01V1
Product notice
DocID030519 Rev 1
5/8
2 Product notice
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
Innovation, Science and Economic Development Canada Compliance
This device complies with Innovation, Science and Economic Development RSS standards.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
Conformité à Innovation, Sciences et Développement Économique Canada
Cet appareil est conforme aux normes RSS d'Innovation, Science et Développement
économique. L'utilisation est soumise aux deux conditions suivantes: (1) cet appareil ne
doit pas causer d'interférences nuisibles, et (2) cet appareil doit accepter de recevoir tous
les types d’interférence, y comprises les interférences susceptibles d'entraîner un
fonctionnement indésirable.
Les changements ou les modifications non expressément approuvés par le fabricant
pourraient annuler le permis d'utiliser l'équipement.
