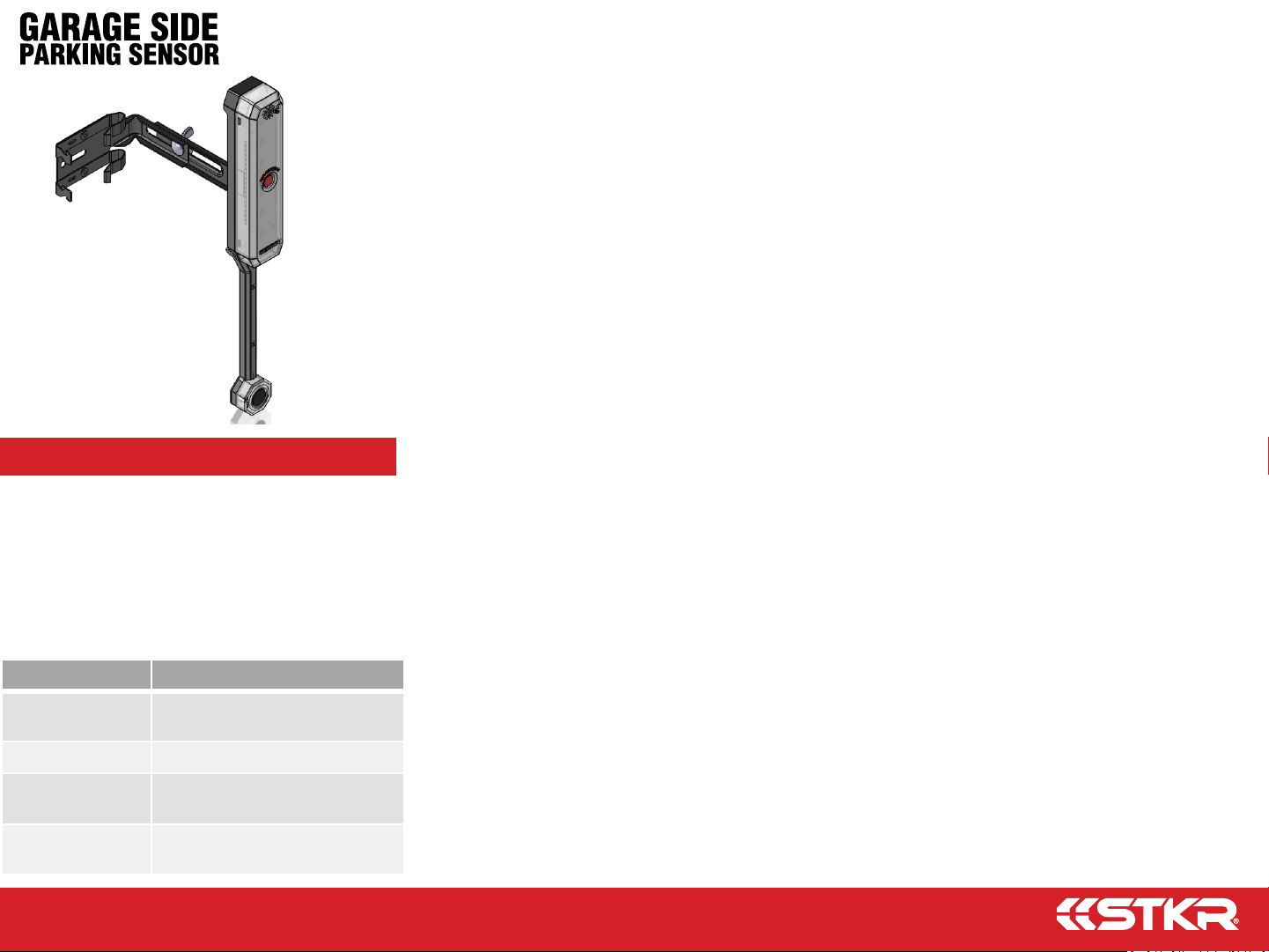

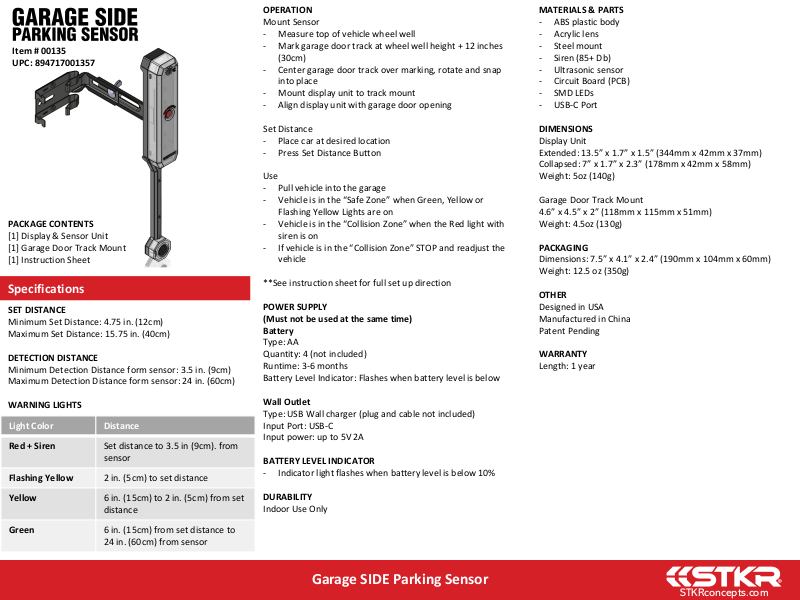

Page 1
Item # 00135
UPC: 894717001357
OPERATION
Mount Sensor
- Measure top of vehicle wheel well
- Mark garage door track at wheel well height + 12 inches
(30cm)
- Center garage door track over marking, rotate and snap
into place
- Mount display unit to track mount
- Align display unit with garage door opening
MATERIALS & PARTS
- ABS plastic body
- Acrylic lens
- Steel mount
- Siren (85+ Db)
- Ultrasonic sensor
- Circuit Board (PCB)
- SMD LEDs
- USB-C Port
PACKAGE CONTENTS
[1] Display & Sensor Unit
[1] Garage Door Track Mount
[1] Instruction Sheet
Specifications
SET DISTANCE
Minimum Set Distance: 4.75 in. (12cm)
Maximum Set Distance: 15.75 in. (40cm)
DETECTION DISTANCE
Minimum Detection Distance form sensor: 3.5 in. (9cm)
Maximum Detection Distance form sensor: 24 in. (60cm)
WARNING LIGHTS
Light Color Distance
Red + Siren Set distance to 3.5 in (9cm). from
sensor
Flashing Yellow 2 in. (5cm) to set distance
Yellow 6 in. (15cm) to 2 in. (5cm) from set
distance
Set Distance
- Place car at desired location
- Press Set Distance Button
Use
- Pull vehicle into the garage
- Vehicle is in the “Safe Zone” when Green, Yellow or
Flashing Yellow Lights are on
- Vehicle is in the “Collision Zone” when the Red light with
siren is on
- If vehicle is in the “Collision Zone” STOP and readjust the
vehicle
**See instruction sheet for full set up direction
POWER SUPPLY
(Must not be used at the same time)
Battery
Type: AA
Quantity: 4 (not included)
Runtime: 3-6 months
Battery Level Indicator: Flashes when battery level is below
Wall Outlet
Type: USB Wall charger (plug and cable not included)
Input Port: USB-C
Input power: up to 5V 2A
BATTERY LEVEL INDICATOR
- Indicator light flashes when battery level is below 10%
DURABILITY
Indoor Use Only
DIMENSIONS
Display Unit
Extended: 13.5” x 1.7” x 1.5” (344mm x 42mm x 37mm)
Collapsed: 7” x 1.7” x 2.3” (178mm x 42mm x 58mm)
Weight: 5oz (140g)
Garage Door Track Mount
4.6” x 4.5” x 2” (118mm x 115mm x 51mm)
Weight: 4.5oz (130g)
PACKAGING
Dimensions: 7.5” x 4.1” x 2.4” (190mm x 104mm x 60mm)
Weight: 12.5 oz (350g)
OTHER
Designed in USA
Manufactured in China
Patent Pending
WARRANTY
Length: 1 year
Green 6 in. (15cm) from set distance to
24 in. (60cm) from sensor
Garage SIDE Parking Sensor
STKRconcepts.com
Page 2

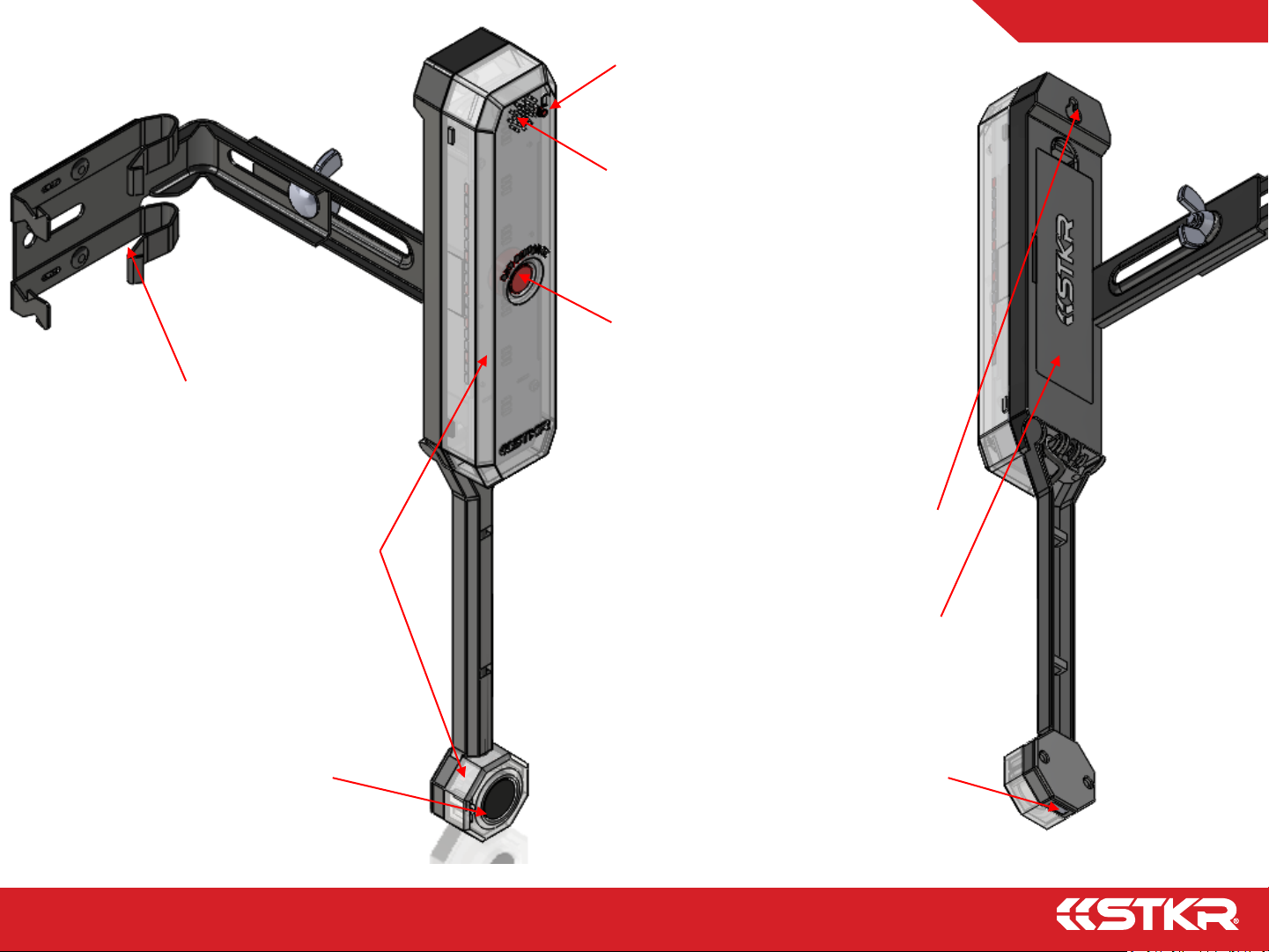

Garage Door Track Mount
- Clamps to standard garage
door track
Warning Lights
- Green / Yellow / Flashing Yellow / Red
Features
Low Battery Indicator
- Flashes when battery
level is below 10%
LOUD Siren
85+ Db
- Alerts user the vehicle mirror
will collide with sensor/garage
door opening
Set Distance Button
- Controls set distance
of car from ultrasonic
sensor
Hanging Hole
- To mount sensor using a screw
Ultrasonic Sensor
- Used to detect position of side of
vehicle
Battery Door
- Holds 4x AA alkaline or
rechargeable AA batteries
USB-C Port
- Provide power to unit
Garage SIDE Parking Sensor
STKRconcepts.com
Page 3

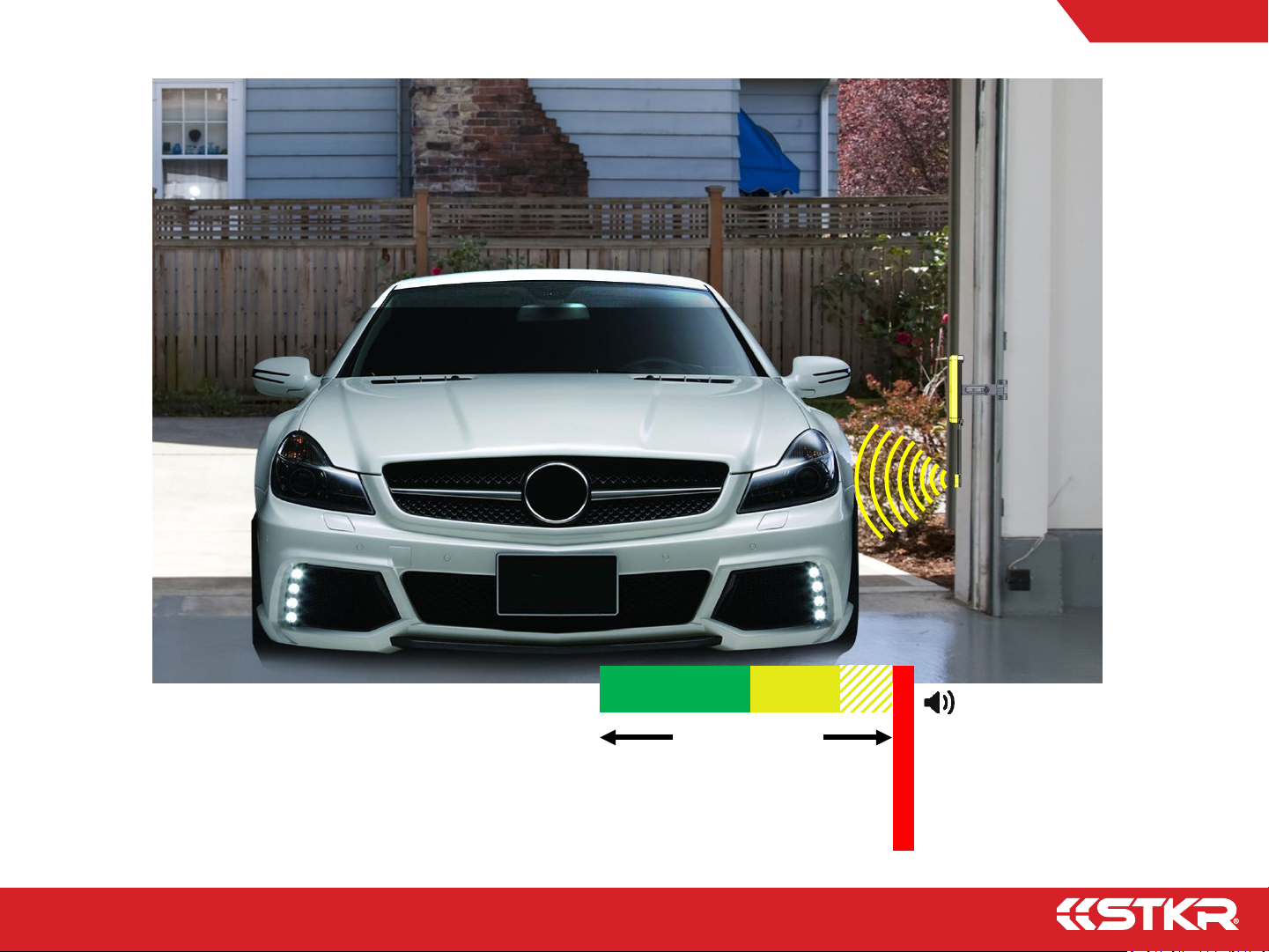

In-Use
SAFE ZONE
Green – Yellow –
Flashing Yellow indicates the vehicle
is only 2 inches or less away from the
set collision zone
Garage SIDE Parking Sensor
COLLISION ZONE
Red Light and siren indicates the vehicle
mirror will strike the garage door opening.
User must reposition vehicle.
STKRconcepts.com
Page 4

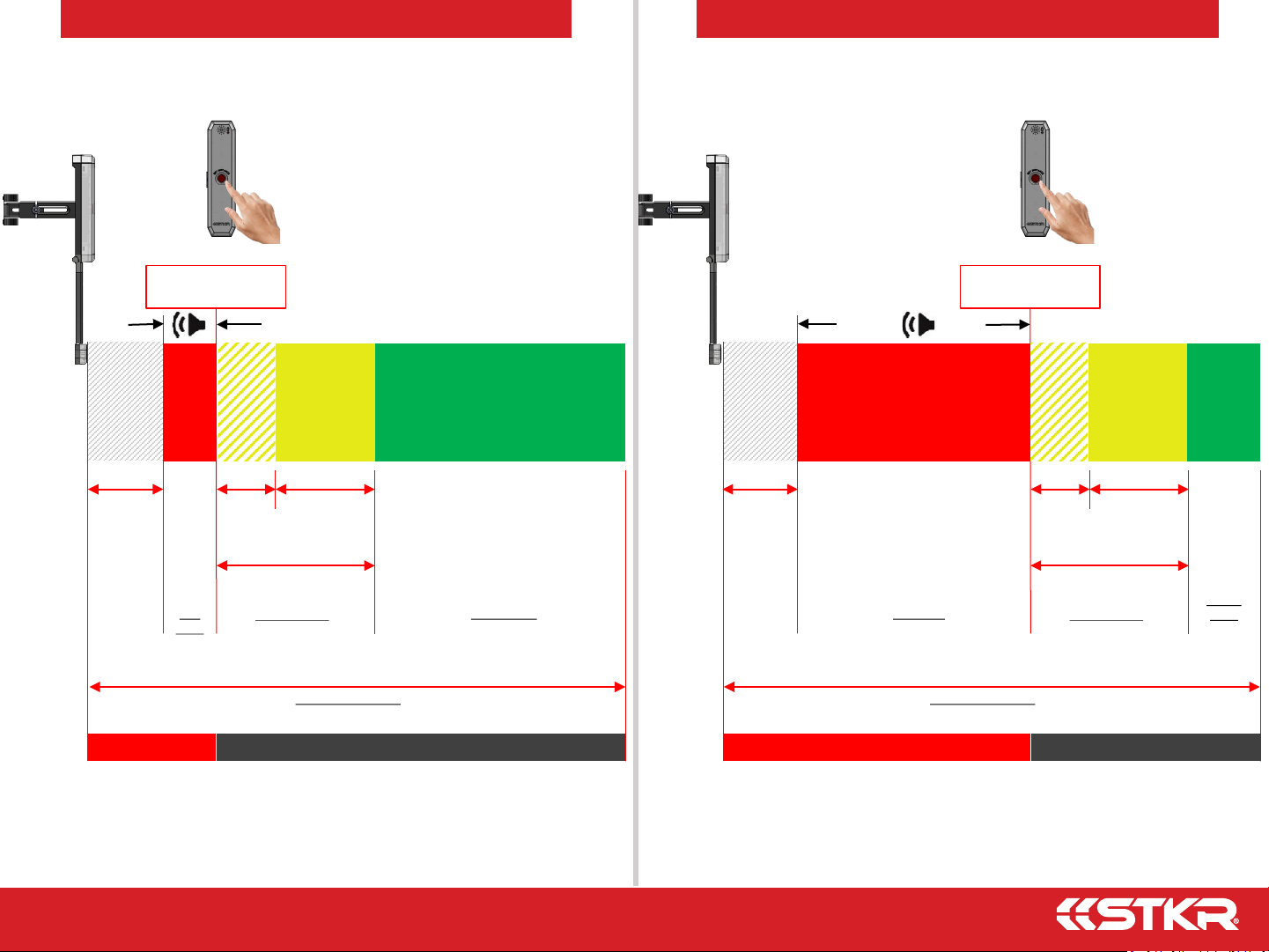

EXAMPLE OF MINIMUM SET DISTANCE 12cm (4.75 in.) EXAMPLE OF MAXIMUM SET DISTANCE 40cm (15.75 in.)
User sets distance
Set Distance: 12cm
(4.75 in.)
ZONE
DEAD
RED + SIREN
9cm
(3.5in.)
COLLISION ZONE SAFE ZONE
Distanc
e Varies
RED
ZONE
Adjusta
ble
Zone
YELLOW
FLASHING
5cm
(2 in.) from
set
distance
YELLOW ZONE
15cm (6 in.)
Always the same
YELLOW
10cm
(4 in.)
from flashing
yellow
distance
Maximum Detection
60cm (24 in.)
Variable distance according
GREEN
to user setting
GREEN ZONE
Adjustable zone
DEAD
9cm
(3.5in.)
User sets distance
Set Distance: 40 cm
(15.75 in.)
ZONE
RED + SIREN
Distance Varies
RED ZONE
Adjustable Zone
Maximum Detection
60cm (24 in.)
COLLISION ZONE
YELLOW
FLASHING
5cm
(2 in.) from
set
distance
YELLOW ZONE
15cm (6 in.)
Always the same
YELLOW
10cm
(4 in.)
from flashing
yellow
distance
SAFE ZONE
GREEN
Variable distance according
GREEN
ZONE
Adjustable
zone
to user setting
Garage SIDE Parking Sensor
STKRconcepts.com
