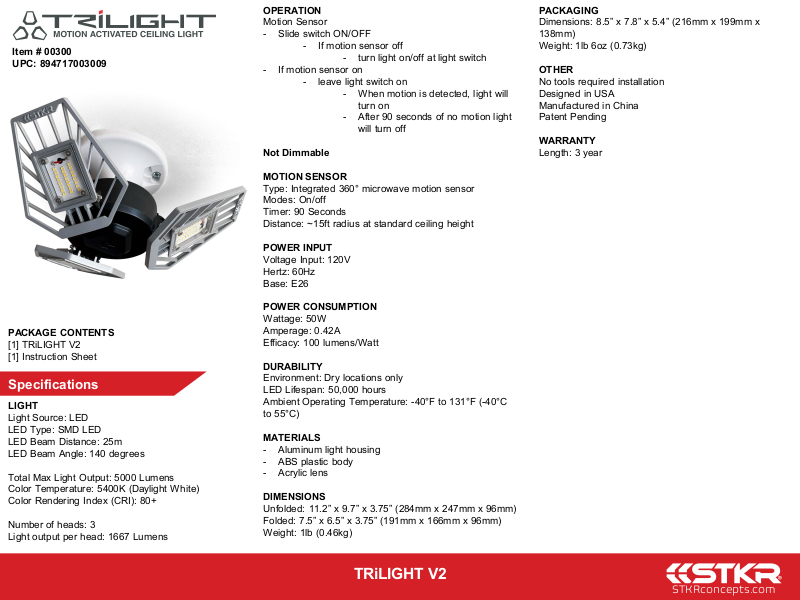

Page 1
Item # 00300
UPC: 894717003009
PACKAGE CONTENTS
[1] TRiLIGHT V2
[1] Instruction Sheet
Specifications
LIGHT
Light Source: LED
LED Type: SMD LED
LED Beam Distance: 25m
LED Beam Angle: 140 degrees
Total Max Light Output: 5000 Lumens
Color Temperature: 5400K (Daylight White)
Color Rendering Index (CRI): 80+
Number of heads: 3
Light output per head: 1667 Lumens
OPERATION
Motion Sensor
- Slide switch ON/OFF
- If motion sensor off
- turn light on/off at light switch
- If motion sensor on
- leave light switch on
- When motion is detected, light will
turn on
- After 90 seconds of no motion light
will turn off
Not Dimmable
MOTION SENSOR
Type: Integrated 360° microwave motion sensor
Modes: On/off
Timer: 90 Seconds
Distance: ~15ft radius at standard ceiling height
POWER INPUT
Voltage Input: 120V
Hertz: 60Hz
Base: E26
POWER CONSUMPTION
Wattage: 50W
Amperage: 0.42A
Efficacy: 100 lumens/Watt
DURABILITY
Environment: Dry locations only
LED Lifespan: 50,000 hours
Ambient Operating Temperature: -40°F to 131°F (-40°C
to 55°C)
MATERIALS
- Aluminum light housing
- ABS plastic body
- Acrylic lens
DIMENSIONS
Unfolded: 11.2” x 9.7” x 3.75” (284mm x 247mm x 96mm)
Folded: 7.5” x 6.5” x 3.75” (191mm x 166mm x 96mm)
Weight: 1lb (0.46kg)
PACKAGING
Dimensions: 8.5” x 7.8” x 5.4” (216mm x 199mm x
138mm)
Weight: 1lb 6oz (0.73kg)
OTHER
No tools required installation
Designed in USA
Manufactured in China
Patent Pending
WARRANTY
Length: 3 year
TRiLIGHT V2
STKRconcepts.com
Page 2
Standard lightbulb screw
• E26 lightbulb screw
• No tools installation
Durable A.B.S. Plastic Body
Motion Sensor Switch
• Turn On/Off
LED Module
• SMD LEDs
• Lumens per head: 1667
• 5400K Daylight White
• Total Lumens: 5000
Adjustable Aluminum Heads
• Direct the light where you need it
360° Motion Sensor
• Detects motion up to 15ft in all directions
• Ultra sensitive detection
TRiLIGHT V2
STKRconcepts.com
