Wireless Smart
PLUG-IN WALL OUTLET
P/N 33841
User’s Manual
CONTENTS
SAFETY WARNINGS AND GUIDELINES .............................................................................................................................................................. 3
INTRODUCTION ....................................................................................................................................................................................................................... 4
FEATURES ..................................................................................................................................................................................................................................... 4
CUSTOMER SERVICE ........................................................................................................................................................................................................... 4
PACKAGE CONTENTS ........................................................................................................................................................................................................ 5
APPLICATIONS ......................................................................................................................................................................................................................... 5
PRODUCT OVERVIEW ........................................................................................................................................................................................................ 6
Front View ............................................................................................................................................................................................................................ 6
Rear and Side Views .................................................................................................................................................................................................... 6
PHYSICAL INSTALLATION.............................................................................................................................................................................................. 7
APP INSTALLATION AND LOGIN ............................................................................................................................................................................. 7
ADD A DEVICE ......................................................................................................................................................................................................................... 9
Smart Inclusion Installation .................................................................................................................................................................................. 9
AP Mode Installation ................................................................................................................................................................................................. 11
APP FEATURES ....................................................................................................................................................................................................................... 14
LINK DEVICES TO AMAZON ALEXA ................................................................................................................................................................... 15
LED INDICATOR STATUS ............................................................................................................................................................................................... 18
BUTTON INSTRUCTIONS................................................................................................................................................................................................ 18
TECHNICAL SUPPORT ...................................................................................................................................................................................................... 18
SPECIFICATIONS ................................................................................................................................................................................................................... 19
REGULATORY COMPLIANCE ..................................................................................................................................................................................... 19
Notice for FCC ................................................................................................................................................................................................................. 19
RF Exposure Statement for FCC .................................................................................................................................................................... 20
Notice for Industry Canada ................................................................................................................................................................................ 20
RF Exposure Statement for Industry Canada ..................................................................................................................................... 21
2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future reference.
This device is intended for indoor use only.
Do not expose this device to water or moisture of any kind. Do not place drinks or
other containers with moisture on or near the device. If moisture does get in or on
the device, immediately unplug it from the power outlet and allow it to fully dry
before reapplying power.
Do not touch the device or any connected cables with wet hands.
Do not expose this device to excessively high temperatures. Do not place it in, on,
or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it in direct
sunlight.
Before plugging the unit into a power outlet, ensure that the outlet provides the
same type and level of power required by the device.
Ensure that the power source has a proper ground connection. Do not modify the
plug or use a "cheater" plug to bypass the ground connection.
Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
3
INTRODUCTION
This Wireless Smart Plug and Wall Outlet allows you to remotely monitor and control your
home appliances and electronics using your Android™ or iOS® smartphone or tablet. The
device communicates with your phone through your local Wi-Fi® network, so you won't
need any separate mesh network hubs or controllers. Simply plug the device into your wall
outlet and pair it with the app! Smart outlets provide the ability to monitor, control, and
even schedule your appliances and electronics to turn on or off, from anywhere, at any
time. Link to Amazon Alexa™ or Google Home for a hands-free, voice-controlled
experience.

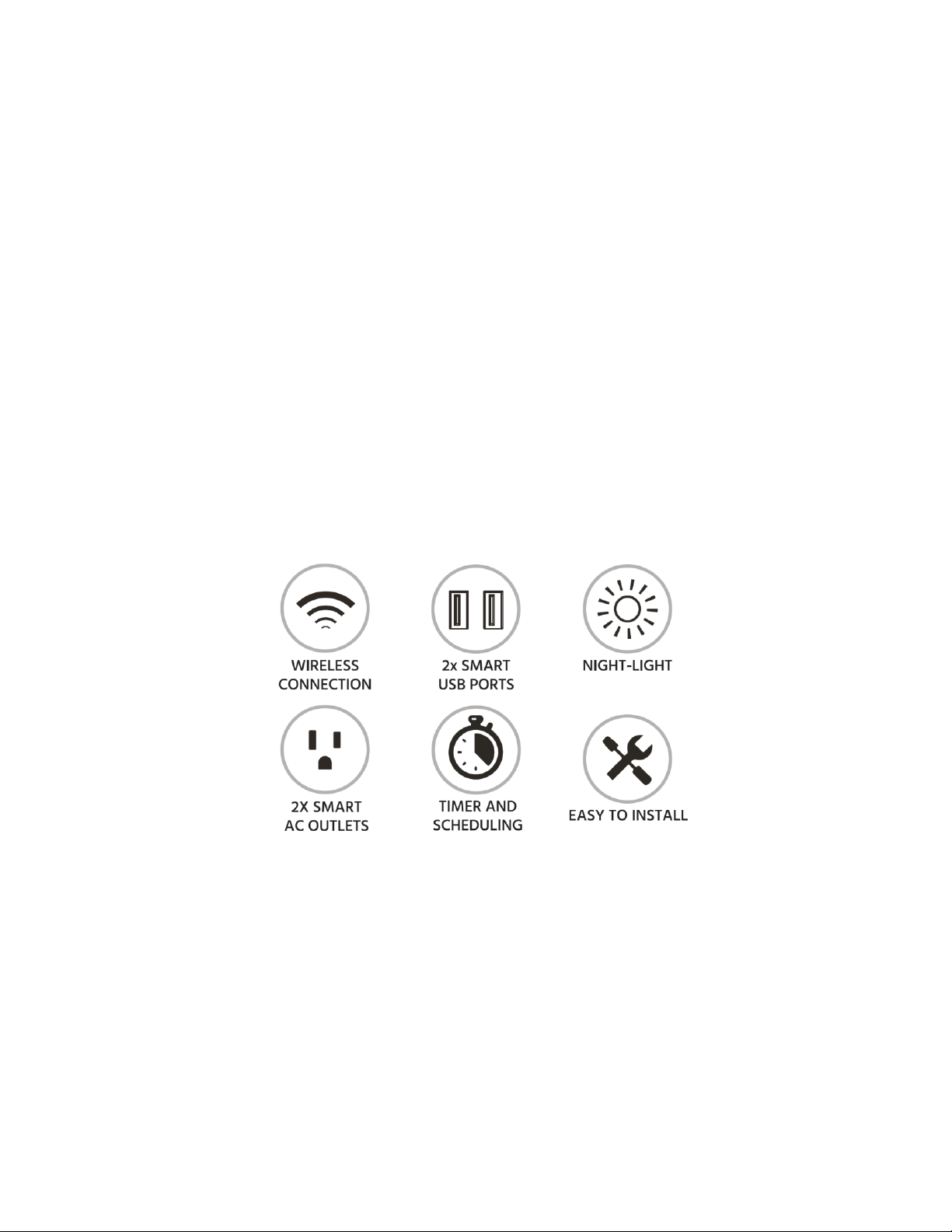

FEATURES
Provides simple 24/7 remote monitoring and control of your home appliances and
electronics
Create a schedule or set a timer to turn your devices on or off at particular times of
the day
Control the outlets or the USB ports with your smartphone or tablet
Convenient, built-in, master power switch
Built-in light sensor provides an app controllable night light
Supports scene control to work with other "smart" devices
Works with other STITCH™ by Monoprice smart devices (sold separately)
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-
6pm PT) or via email at support@monoprice.com
4
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x Wall Outlet
1x User's Manual
APPLICATIONS
Plug the device into an outlet to control and monitor your appliances and electronics.
Charge your tablets and smartphones and power a fan or lamp to control them wirelessly
through remote app control.
5

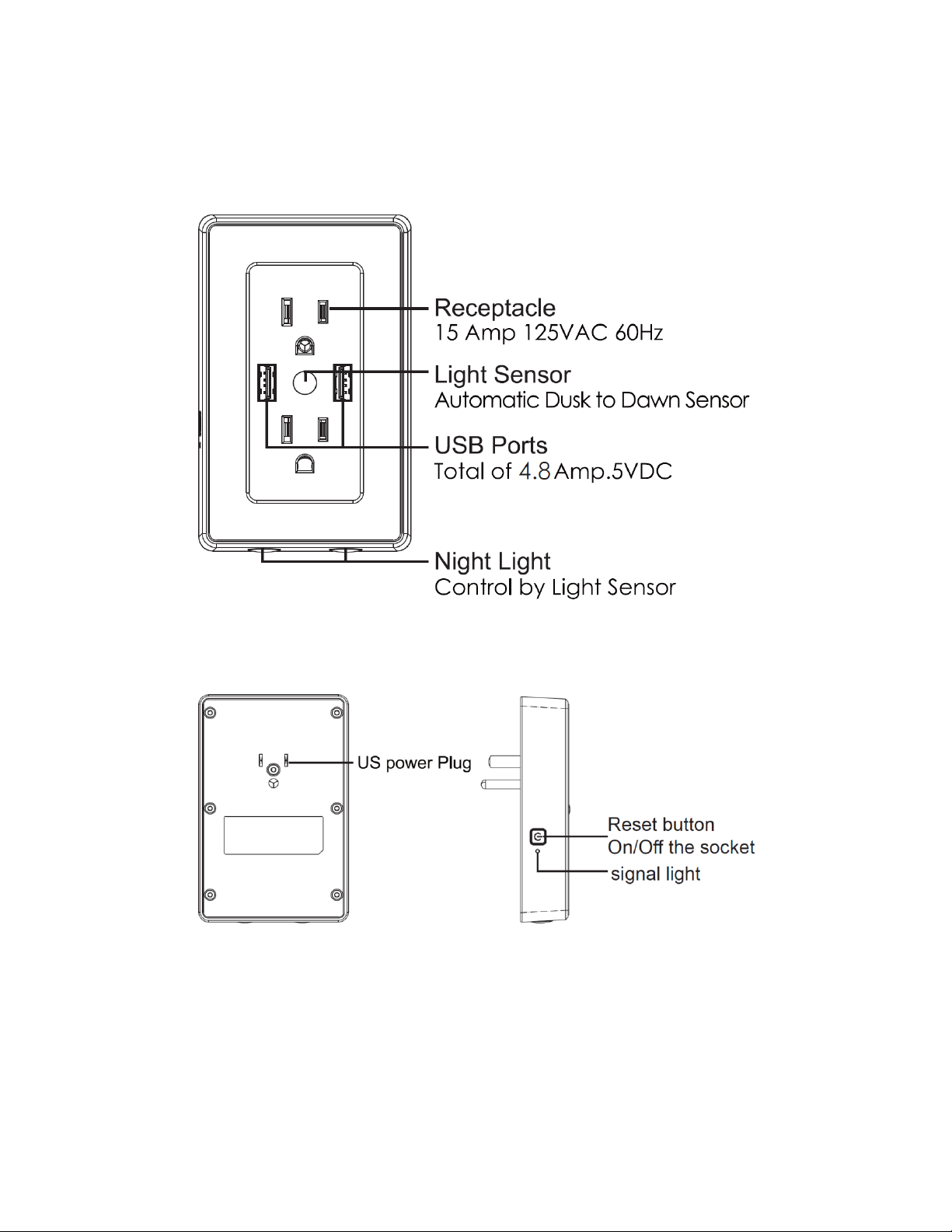

PRODUCT OVERVIEW
Front View
Rear and Side Views
6
PHYSICAL INSTALLATION
Plug the device into a wall outlet. The Signal Light will flash rapidly. If not, press and hold
the Reset button for 5 seconds until the Signal Light starts to flash rapidly.
APP INSTALLATION AND LOGIN
1. Download and install the free STITCH™ by Monoprice app from Google Play™ or the
App Store. Scan one of the two QR codes below to go directly to the appropriate
page in the app store.
2. Once the app is installed, launch it.
7

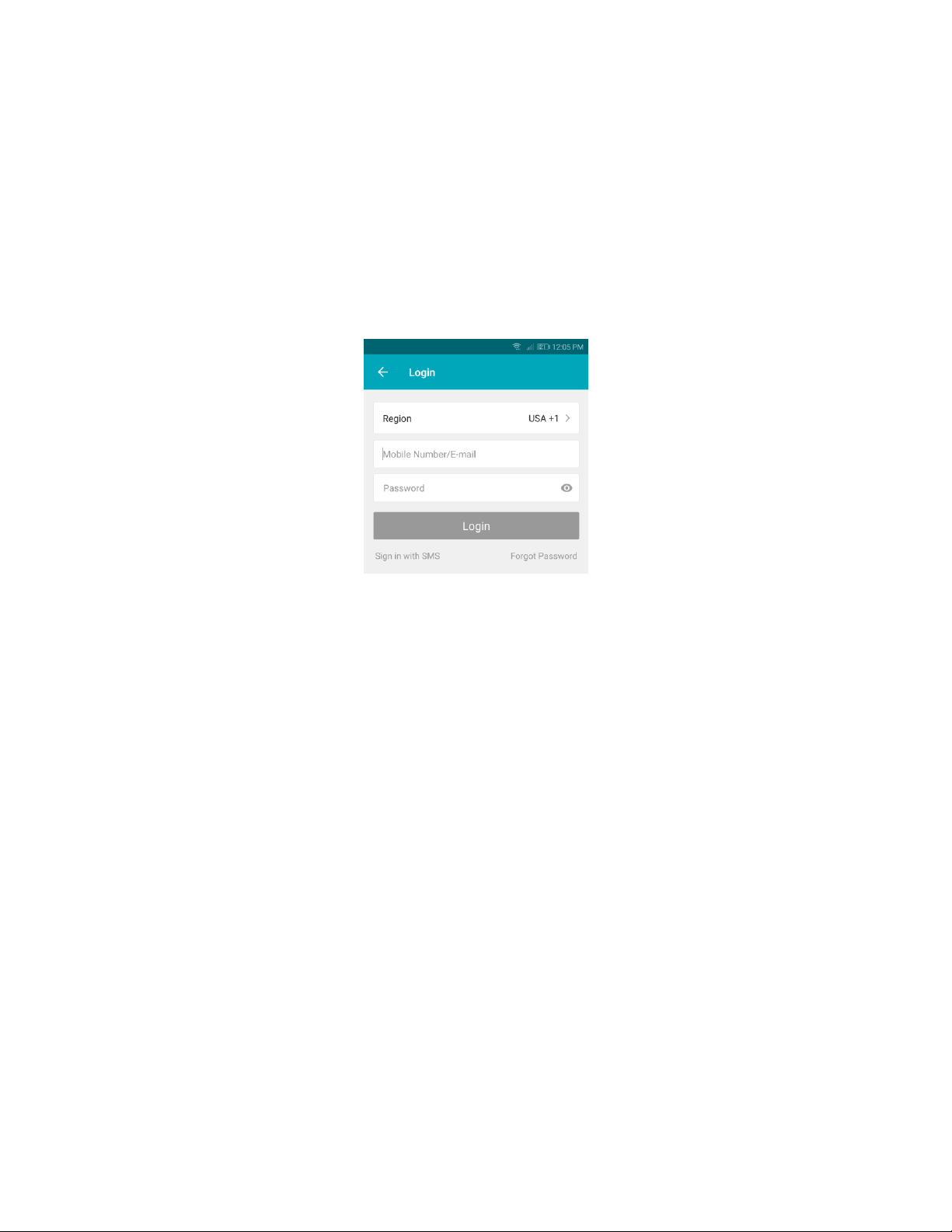

3. If you have already used the STITCH™ by Monoprice app, tap the Login button, then
enter your STITCH account information. If you have not installed and used the
STITCH app before, proceed to app registration. You can register using your phone
number or by using your email address. Follow the on-screen app instructions for
more details.
Note that the password must contain 6-20 characters and must include at least one
number.
8
ADD A DEVICE
Smart Inclusion Installation
Smart Inclusion is the default mode for installing your device. It uses your wireless network
to communicate between your smartphone and the smart device. If you do not have a
Wi-Fi® network or do not wish to include the plug in your network, see the
Installation

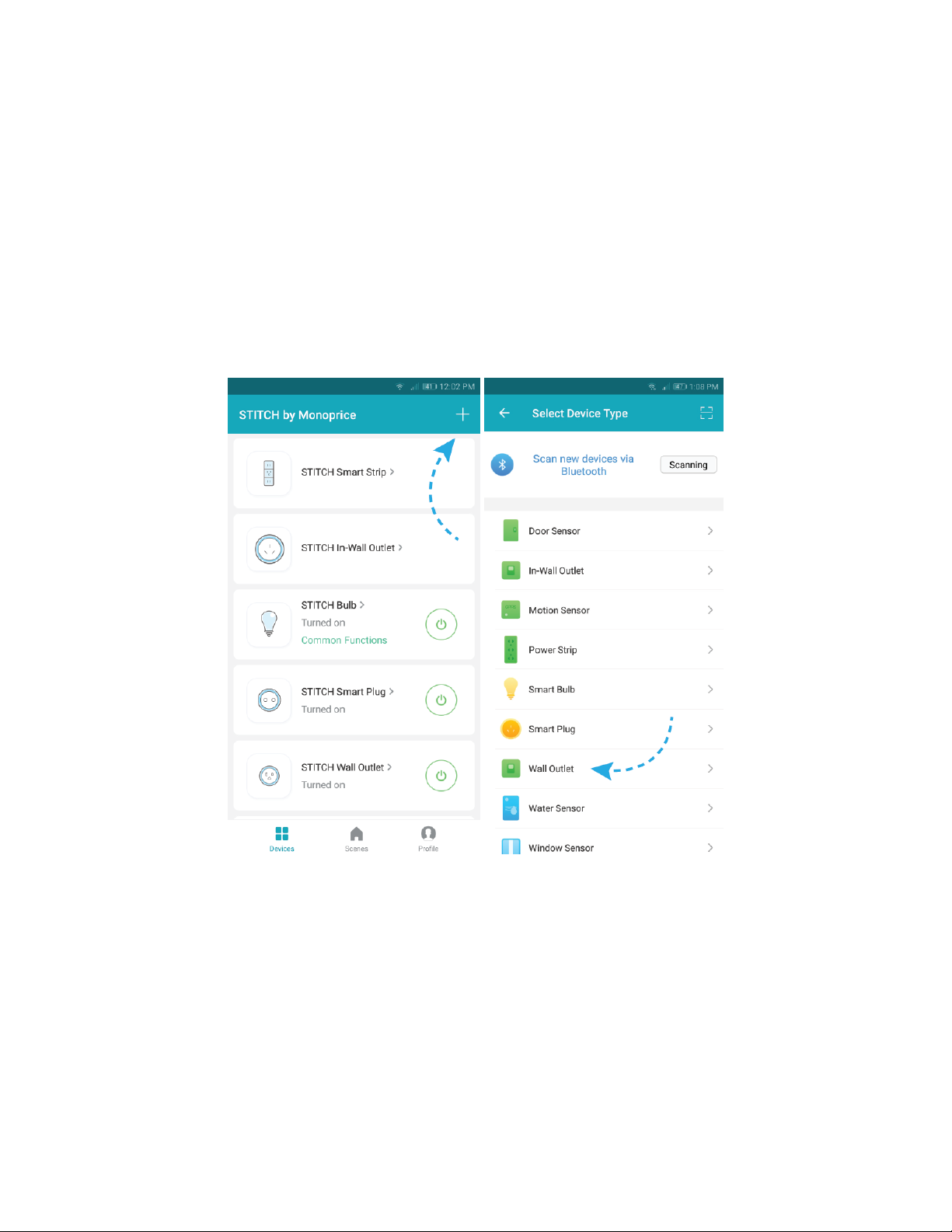

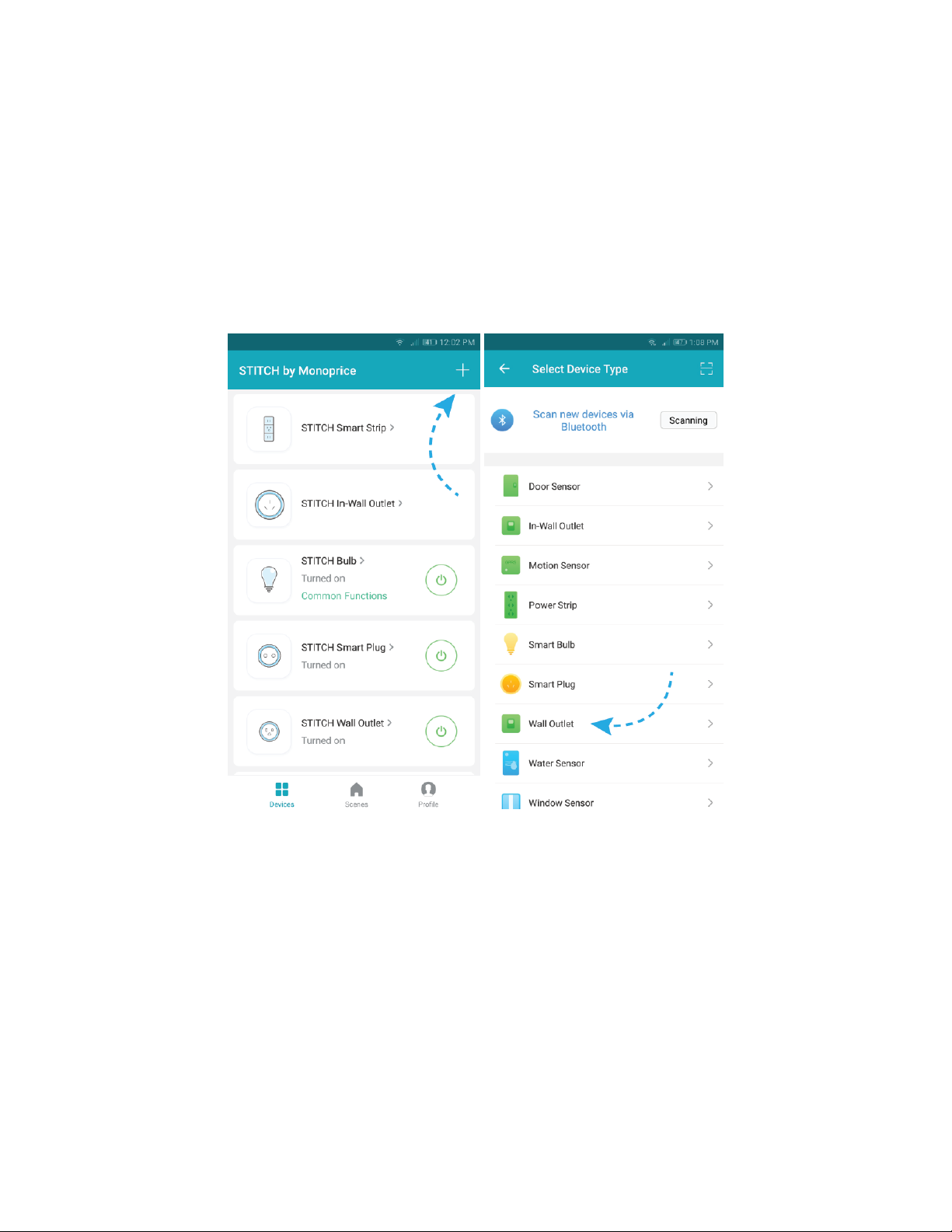

1. Tap + on the Add Devices screen to add a new device.
section below.
AP Mode
2. Scroll through the list and select Wall Outlet to add your new device to the
STITCH™ app.
9
3. The Signal Light should be flashing green rapidly, indicating that it is ready to be
paired with your network. If not, press and hold the Reset button for 5 seconds.

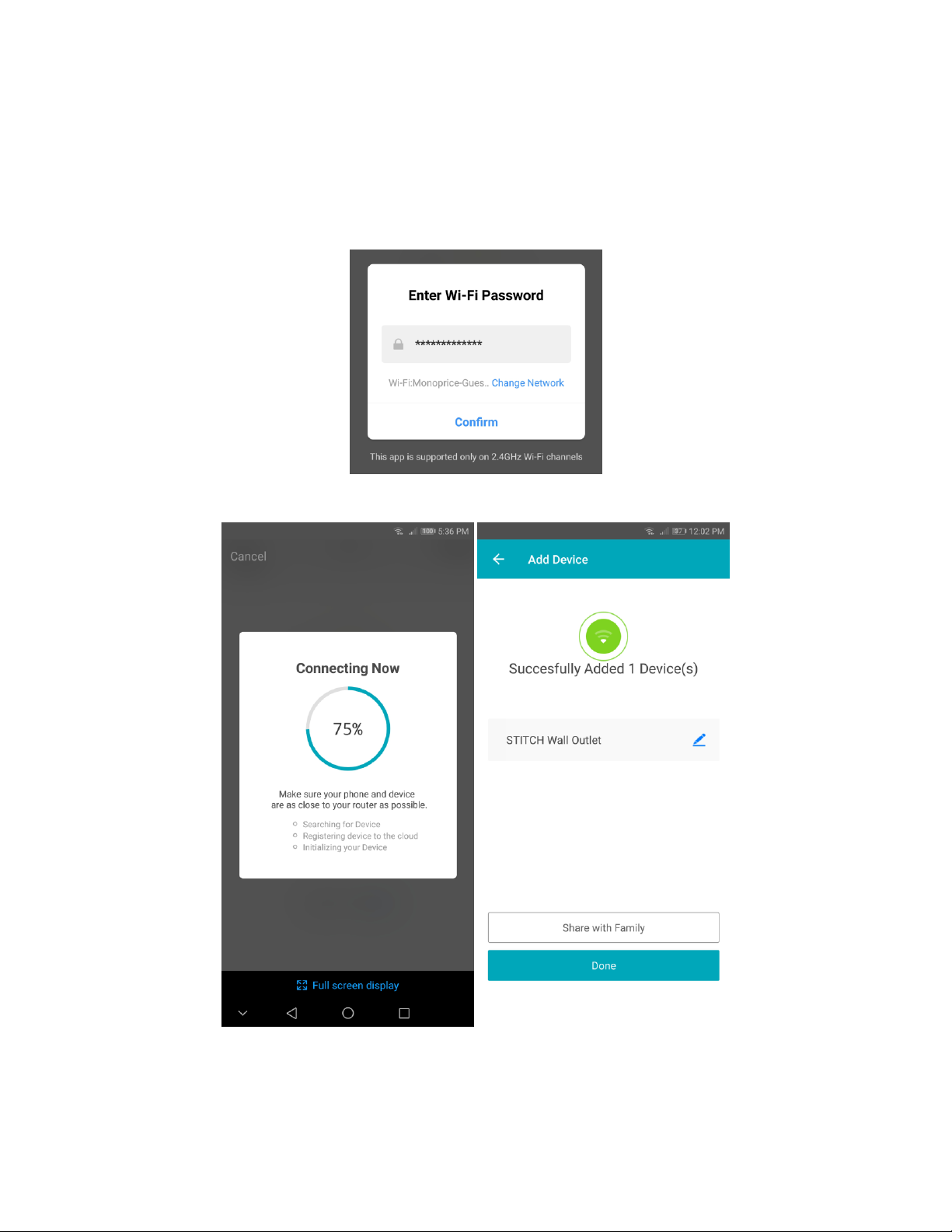

4. Tap Confirm on the app to continue, input the password to your wireless network,
then tap Confirm again.
5. The app will start connecting to the device. Tap Done once it is completed.
10
AP Mode Installation
AP mode differs from Smart Inclusion mode in that it does not use your Wi-Fi® network to
manage the communications between your smartphone and the device. Instead, it
connects your phone's Wi-Fi directly to the device's built-in hotspot network.
1. Launch the STITCH™ by Monoprice app.
2. Tap + on the Add Devices screen to add a new device.
3. Scroll through the list and select Wall Outlet to add your new device to the
STITCH™ app.
11

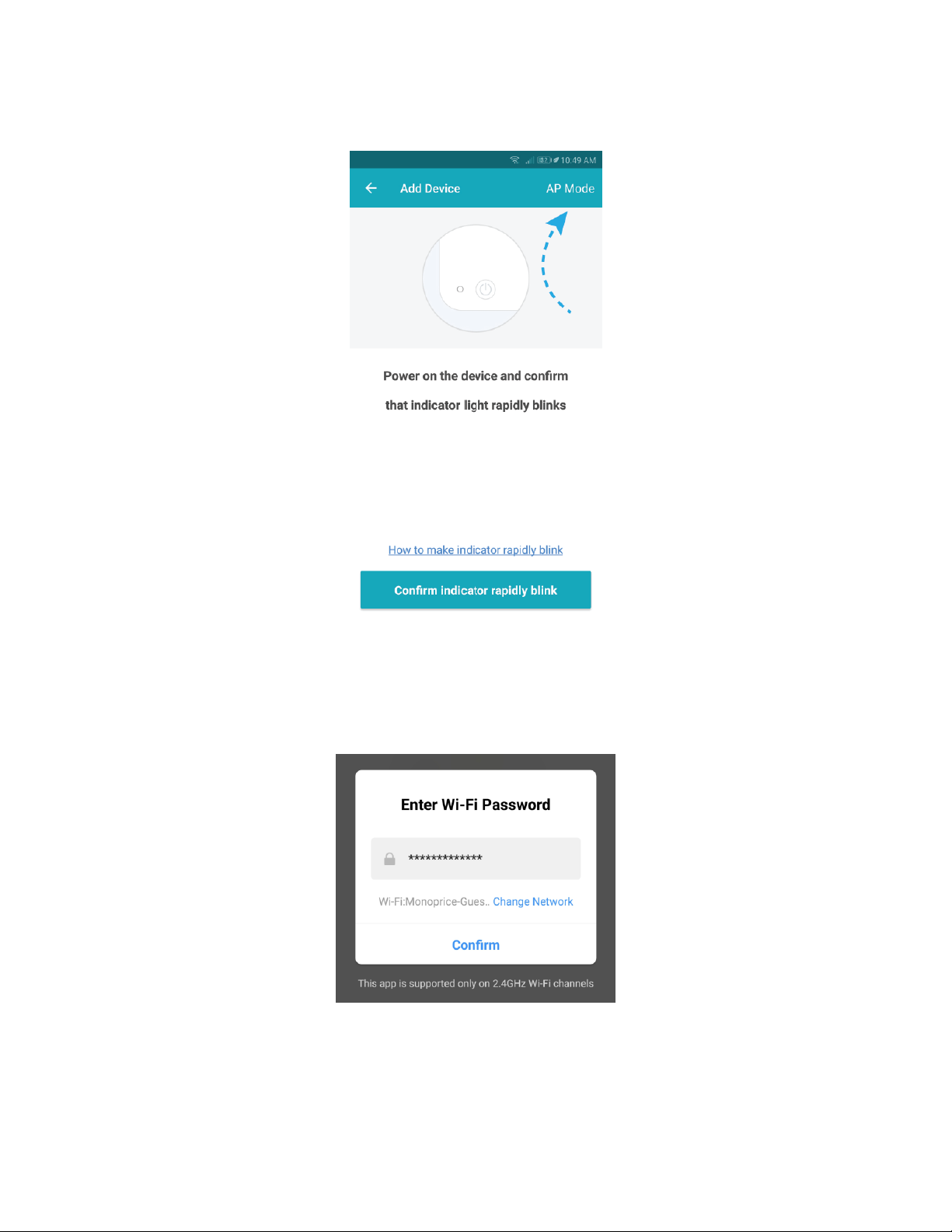

4. Tap AP Mode at the top right.
5. The Signal Light should be slowly blinking, indicating that it is ready to be added in
AP Mode. Tap Confirm on the app to continue, input the password to your wireless
network, then tap Confirm again.
12

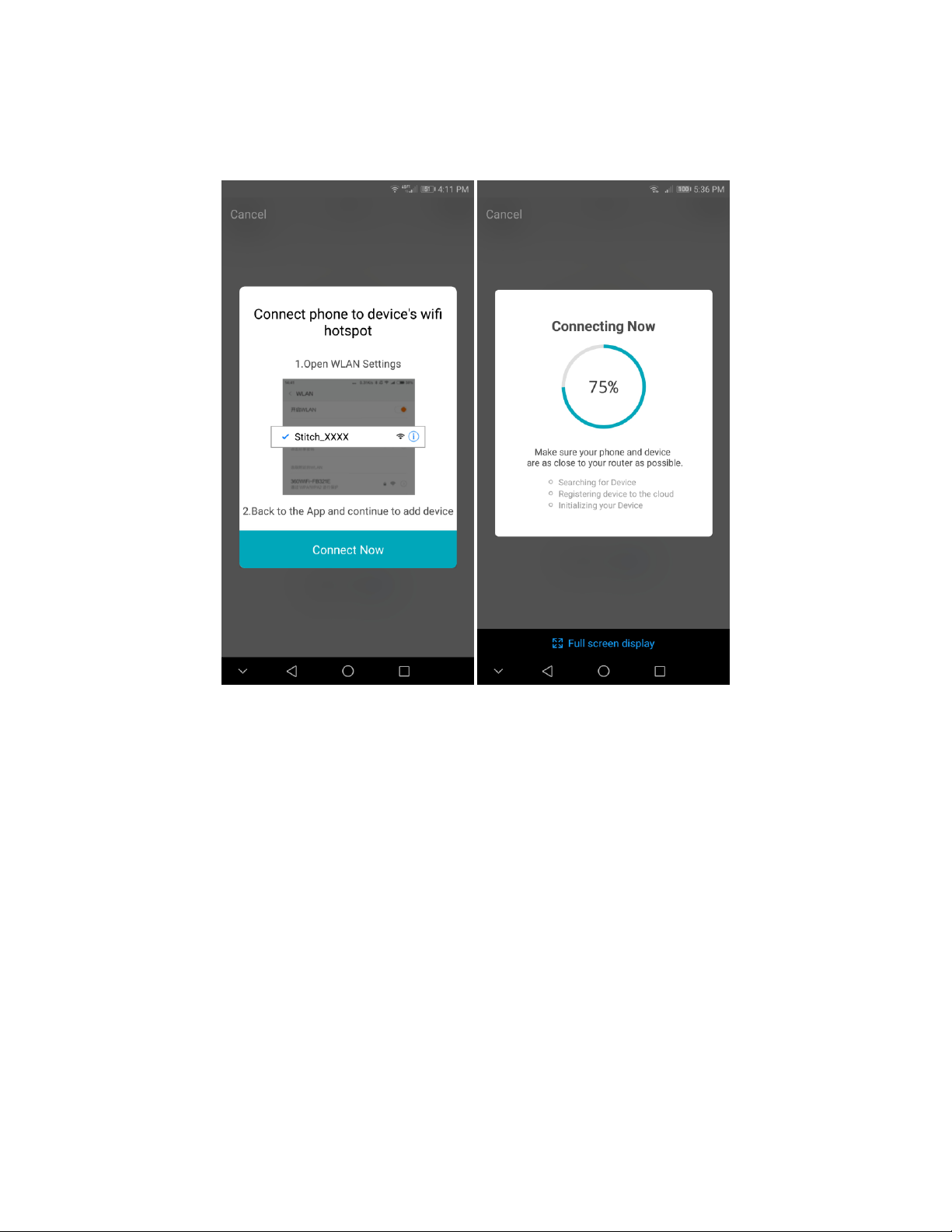

6. In the wireless settings on your phone, select the Stitch_XXXX entry, then tap
Connect Now to continue. The app will begin connecting to the device.
13

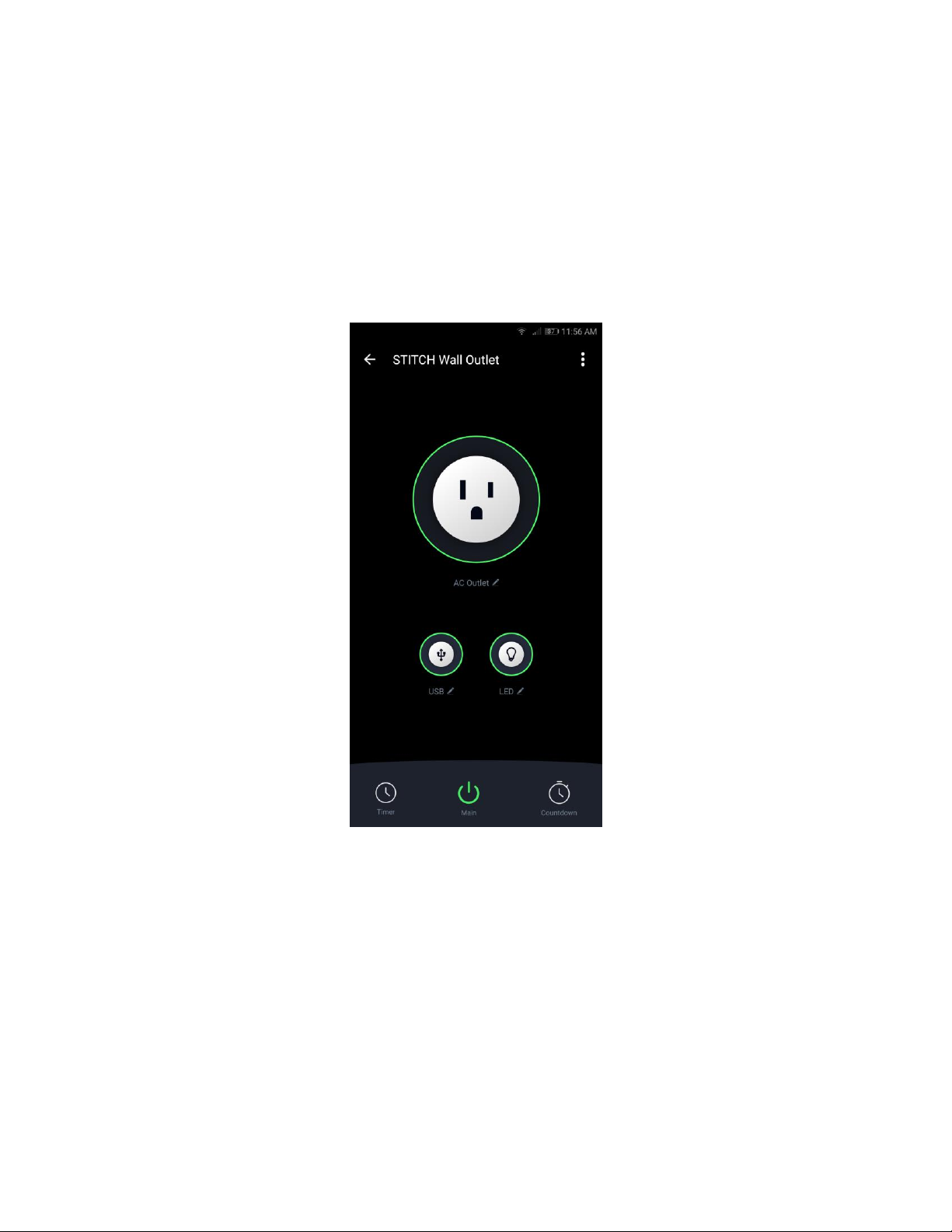

APP FEATURES
Monitor and control outlets and USB ports on and off
Create a schedule or set a countdown timer for outlets to turn on and off
Master switch to power on or off both outlets and USB ports
Remotely control the LED night light
14
LINK DEVICES TO AMAZON ALEXA
1. Before using Alexa™ to control your smart devices, make sure you meet the
following conditions:
Stable Wi-Fi® network that can access the Amazon server
An Amazon Echo device, including Echo, Echo Tap, and Echo Dot
An Amazon account
The STITCH™ by Monoprice app and account
At least one device added under STITCH™ by Monoprice account and the
device's name can be easily recognized by Echo
2. Add one or more devices in the STITCH by Monoprice app by following the
instructions in the

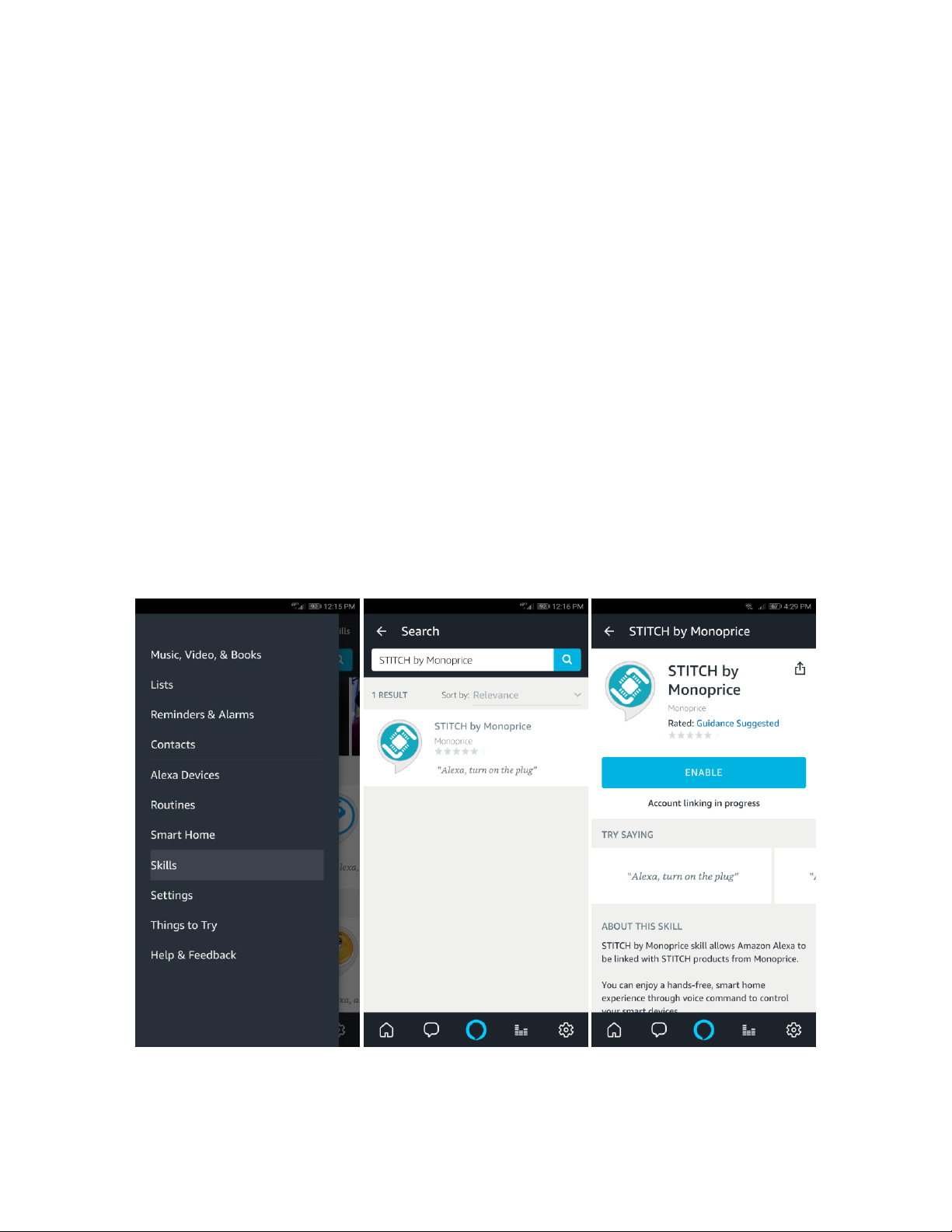

3. In the Amazon Alexa™ app menu, tap Skills, then search for and select the STITCH
by Monoprice entry. Tap Enable to enable Amazon Skills.
APP INSTALLATION AND LOGIN
section above.
15

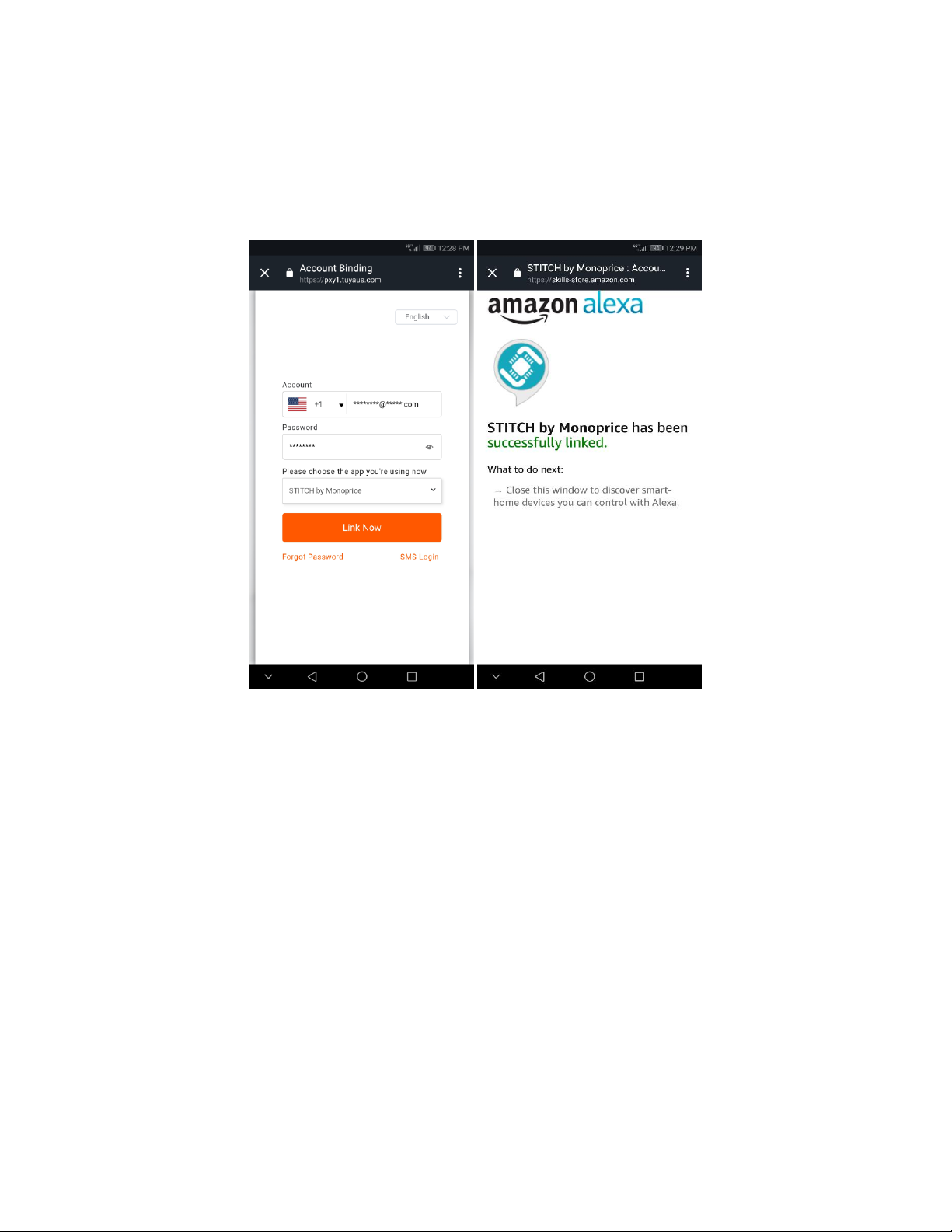

4. You will be redirected to the account link page. Select the proper country/region,
then input your STITCH™ by Monoprice account and password. Tap Link Now, then
tap Authorize. When the message STITCH by Monoprice has been successfully
linked appears, close the window.
16

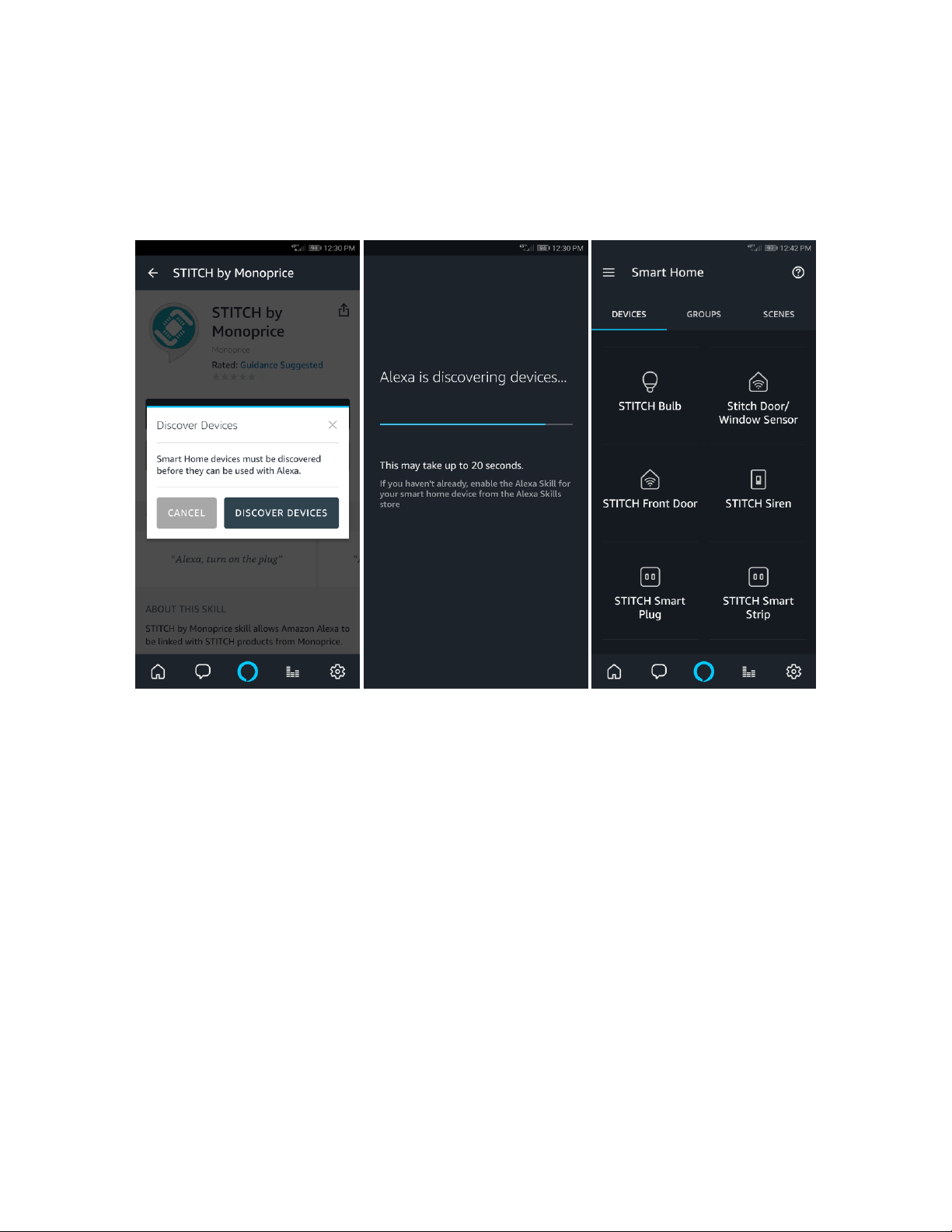

5. Alexa™ needs to "discover" your smart devices before it can control them. Say
"Alexa, discover devices" or tap Discover to start the discovery process. Alexa will
then discover and sync with compatible devices added in the STITCH™ by
Monoprice app. The discovered devices will be displayed in a list.
Note: Each time the device's name is changed in the STITCH™ by Monoprice app,
Alexa must rediscover it again before it can be controlled.
6. You can now control your smart devices with Alexa. You can use the following
command examples for a smart plug named bedroom light:
Alexa, turn on/off bedroom light
Alexa, set bedroom light to 50 percent
Alexa, brighten/dim bedroom light
7. You can also create groups in the Alexa app. Tap Groups to create a group and give
it a name, such as my smart lights. Select individual devices to add them to the
group, then tap Save. You can now control the entire group of devices with a single
command. For example, say "Alexa, turn on my smart lights" to turn on all lights in
the group.
17
LED INDICATOR STATUS
Smart Inclusion
LED Signal Light flashes green rapidly
AP Mode
LED Signal Light flashes green slowly
In Network
Press and hold the Reset button for 5 seconds, then release it to reset
the plug and enter Smart Inclusion Mode
Out of Network
While in Smart Inclusion Mode, press and hold the Reset button for 5
seconds, then release it to switch to AP Mode
BUTTON INSTRUCTIONS
Notes:
In Network: The device has been included into the network
Out of Network: The device is in the default mode and has never configured been
into a Wi-Fi® network
The duration of the configuration network is about 2 minutes
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with any
questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come online
to talk to one of our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website www.monoprice.com
during regular business hours, 7 days a week. You can also get assistance through email by
sending a message to tech@monoprice.com
18
SPECIFICATIONS
Radio Frequency
2.4 GHz
Supported Network Protocols
IEEE802.11 b/g/n
Receptacle Rating
125 VAC, 60Hz, 15A
USB Rating
5 VDC, 4.8A total for 2 ports
Operating Temperature
-14 ~ +140°F (-20 ~ +60°C)
Product Dimensions (without prongs)
4.7" x 3.0 x 1.3" (121 x 77 x 34 mm)
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Modifying the equipment without Monoprice’s authorization may result in the equipment
no longer complying with FCC requirements for Class B digital devices. In that event, your
right to use the equipment may be limited by FCC regulations, and you may be required to
correct any interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
19
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Statement for FCC
Caution
This equipment complies with radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must be at least 20 cm from the user and must not
be collocated or operated in conjunction with any other antenna or transmitter.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
20
RF Exposure Statement for Industry Canada
Caution
This equipment complies with radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must be at least 20 cm from the user and must not
be collocated or operated in conjunction with any other antenna or transmitter.
Android™ and Google Play™ are trademarks of Google LLC.
Cisco® and IOS® are registered trademarks or trademarks of Cisco Systems, Inc. and/or its
affiliates in the United States and certain other countries.
Wi-Fi® is a registered trademark of Wi-Fi Alliance.
Amazon™, Amazon Alexa™, and all related logos are trademarks of Amazon.com, Inc. or its
affiliates.
STITCH™ and the STITCH logo are trademarks of Monoprice Inc.
21
TECHNOLOGY AT PRICES THAT MAKE SENSE
www.monoprice.com
Need Help? We’re here for you!
Contact us: www.monoprice.com/contactus
Product pictures are for reference only.
Specifications described herein are subject to change without prior notification.
All trademarks are the sole property of their respective companies.
Stitch is a Sub-Brand for Smart Home of Monoprice.
Copyright © 2018 Monoprice, Inc. All rights reserved.
Loading...
