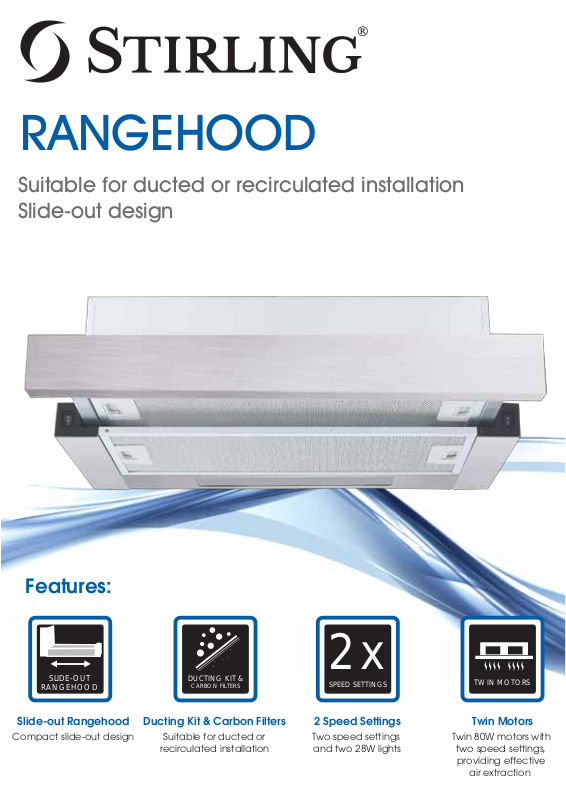

Page 1
RANGEHOOD
Suitable for ducted or recirculated installation
Slide-out design
Features:
SLIDE-OUT
RANGEHOOD
Slide-out Rangehood
Compact slide-out design
DUCTING KIT &
CARBON FILTERS
Ducting Kit & Carbon Filters
Suitable for ducted or
recirculated installation
2x
SPEED SETTINGS
2 Speed Settings
Two speed settings
and two 28W lights
TWIN MOTORS
Twin Motors
Twin 80W motors with
two speed settings,
providing effective
air extraction
Page 2
Quick Start Guide
This Quick Start Guide includes only brief instructions. Make sure to read the full instruction manual
with comprehensive installation and operating instructions and important safety advice.
Installation
We strongly recommend you get the rangehood professionally
installed by a carpenter or cabinet-maker. All electrical work
associated with the rangehood installation must be carried
out by a licensed electrician. This rangehood can be
installed two ways:
(a) Ducted installation requires knocking a hole in the ceiling or
wall for the exhaust duct (supplied), so that steam and
odours can be vented outside.
(b) Installation in recirculating mode requires use of
odour-absorbing carbon filters (supplied and already
installed), as the steam is vented back into the kitchen.
After the rangehood has been installed, insert the power plug
into an appropriate electrical outlet and let the unit run for a
few minutes prior to using it while cooking.
Operation
Make sure the rangehood is properly connected to the power
supply and the power is switched on at the outlet.
Pull out the front panel to reveal the switches at the corners of the
rangehood.
The left switch operates the light. The right one is the operation
switch, press it to the “ I ” position for low or to “ II ” for high suction
power. In the neutral “ 0 ” position the motor will be off.
After use, simply push the front panel back in and the fan and light
will stop working.
Model Number STR-BRH
Speed Settings 2 Speeds
Warranty 3 Years In Home
Version QSGV1.0
For more information
please visit www.stirlingappliances.com.au
or call 1300 886 649
